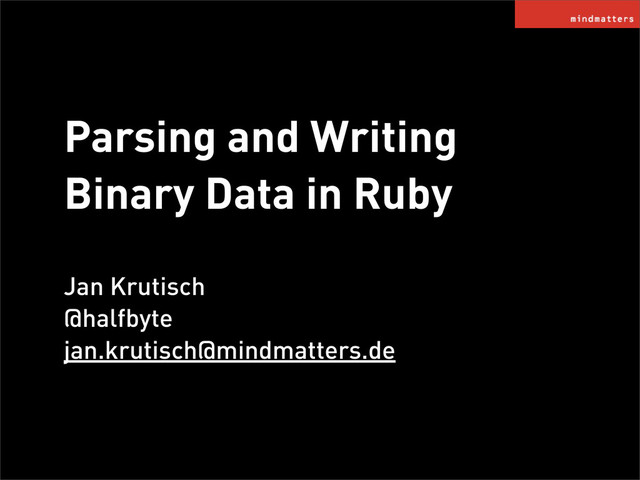

  1. Parsing and Writing Binary Data in Ruby Jan Krutisch @halfbyte

    jan.krutisch@mindmatters.de

  2. señor developer

  3. None

  4. Protracker "mod" files

  5. Binary Format

  6. None

  7. ‣ Instrument Metadata ‣ Sample Data ‣ Pattern Data ‣

    Sequence Data Mod File Contents

  8. ‣ Instrument Metadata ‣ Sample Data ‣ Pattern Data ‣

    Sequence Data Mod File Contents Array of Structs (=Array of Hashes)

  9. ‣ Instrument Metadata ‣ Sample Data ‣ Pattern Data ‣

    Sequence Data Mod File Contents Array of Structs (=Array of Hashes) Array of Blobs

  10. ‣ Instrument Metadata ‣ Sample Data ‣ Pattern Data ‣

    Sequence Data Mod File Contents Array of Structs (=Array of Hashes) Array of Blobs Arrays of Arrays of Arrays of Structs

  11. ‣ Instrument Metadata ‣ Sample Data ‣ Pattern Data ‣

    Sequence Data Mod File Contents Array of Structs (=Array of Hashes) Array of Blobs Arrays of Arrays of Arrays of Structs Array of Integers

  12. Simple Approach

  13. Serializer / Deserializer

  14. Different Datatypes

  15. Protracker Datatypes

  16. Protracker Datatypes ‣ 8Bit signed binary blobs

  17. Protracker Datatypes ‣ 8Bit signed binary blobs ‣ UInt8

  18. Protracker Datatypes ‣ 8Bit signed binary blobs ‣ UInt8 ‣

    UInt16 (Endianness?)

  19. Protracker Datatypes ‣ 8Bit signed binary blobs ‣ UInt8 ‣

    UInt16 (Endianness?) ‣ \0-Terminated/Padded Strings

  20. Protracker Datatypes ‣ 8Bit signed binary blobs ‣ UInt8 ‣

    UInt16 (Endianness?) ‣ \0-Terminated/Padded Strings ‣ Int4 (Yes, that‘s a signed halfbyte)

  21. And this...

  22. None

  23. Procedural Mess

  24. Declarative

  25. gem "bindata"

  26. class ProtrackerModule < BinData::Record endian :big string :name, :length =>

    20, :trim_padding => true array :samples, :type => Sample, :length => 31 uint8 :pattern_table_length uint8 :unused array :pattern_table, :type => :uint8, :initial_length => 128 [...]

  27. class ProtrackerModule < BinData::Record endian :big string :name, :length =>

    20, :trim_padding => true array :samples, :type => Sample, :length => 31 uint8 :pattern_table_length uint8 :unused array :pattern_table, :type => :uint8, :initial_length => 128 [...]

  28. class ProtrackerModule < BinData::Record endian :big string :name, :length =>

    20, :trim_padding => true array :samples, :type => Sample, :length => 31 uint8 :pattern_table_length uint8 :unused array :pattern_table, :type => :uint8, :initial_length => 128 [...]

  29. class ProtrackerModule < BinData::Record endian :big string :name, :length =>

    20, :trim_padding => true array :samples, :type => Sample, :length => 31 uint8 :pattern_table_length uint8 :unused array :pattern_table, :type => :uint8, :initial_length => 128 [...]

  30. class ProtrackerModule < BinData::Record endian :big string :name, :length =>

    20, :trim_padding => true array :samples, :type => Sample, :length => 31 uint8 :pattern_table_length uint8 :unused array :pattern_table, :type => :uint8, :initial_length => 128 [...]

  31. array :patterns, :type => Pattern, :initial_length => lambda { pattern_table.max

    + 1 }
  32. None

  33. Demo

  34. señor developer http://senordevelopershop.spreadshirt.de/ (europe) http://senordeveloper.spreadshirt.com/ (intl)
