Dockerization of real mobile device farm and scalable QA automation ecosystem

Share our expertise in building up of highly scalable and effective infrastructure for Test Automation based on open-source solutions like Selenium and Appium by means of Docker.

We are going to show real case studies of our production challenges. Also we are going to talk about self-hosted mobile cloud solutions as part of QA ecosystem and how Docker simplifies our life in this area.

Transcript

1. Dockerization of real mobile device farm and scalable QA automation ecosystem

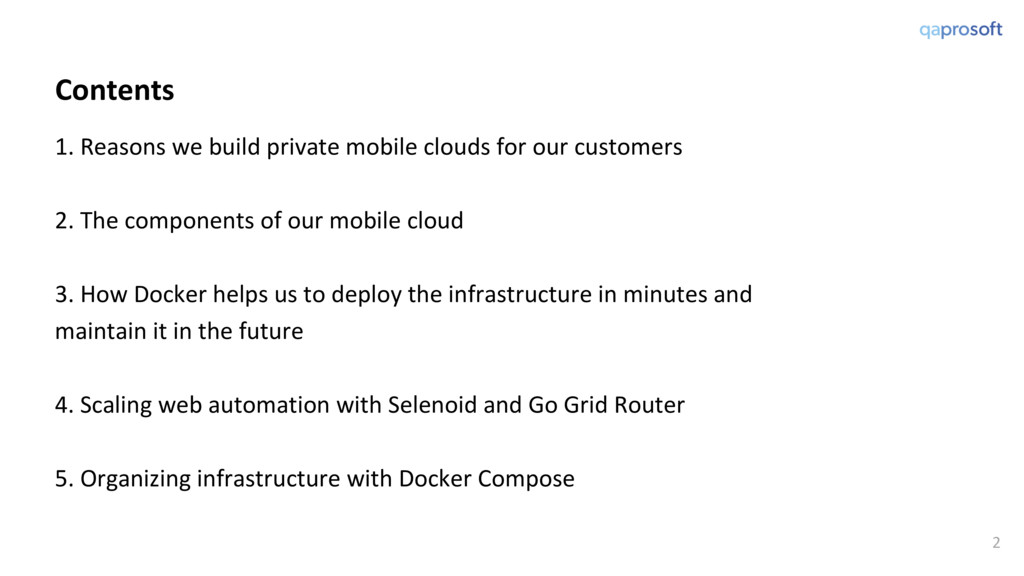

2. 1. Reasons we build private mobile clouds for our customers 2. The components of our mobile cloud 3. How Docker helps us to deploy the infrastructure in minutes and maintain it in the future 4. Scaling web automation with Selenoid and Go Grid Router 5. Organizing infrastructure with Docker Compose Contents 2

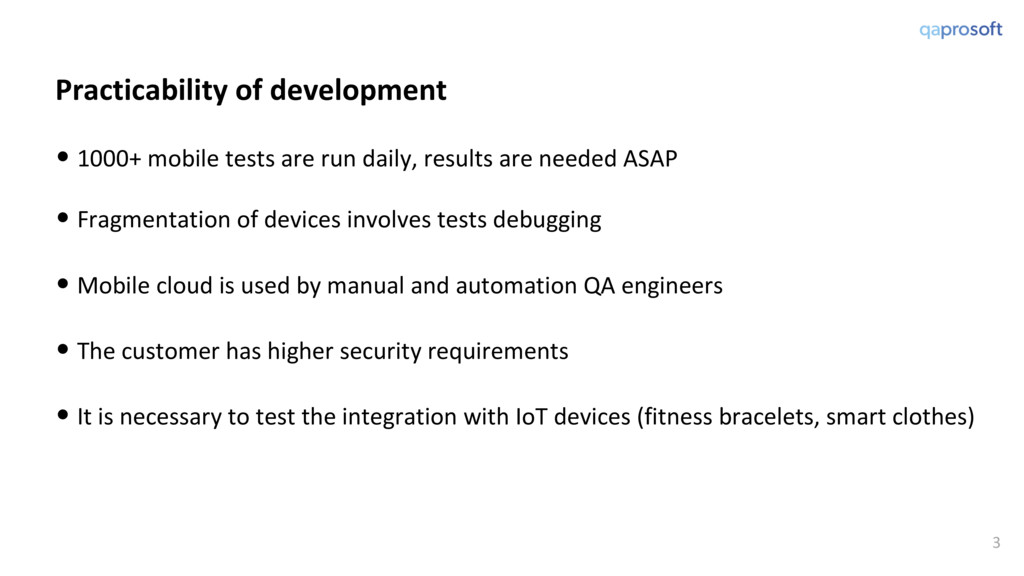

3. 3 • 1000+ mobile tests are run daily, results are needed ASAP Practicability of development • Fragmentation of devices involves tests debugging • Mobile cloud is used by manual and automation QA engineers • The customer has higher security requirements • It is necessary to test the integration with IoT devices (fitness bracelets, smart clothes)

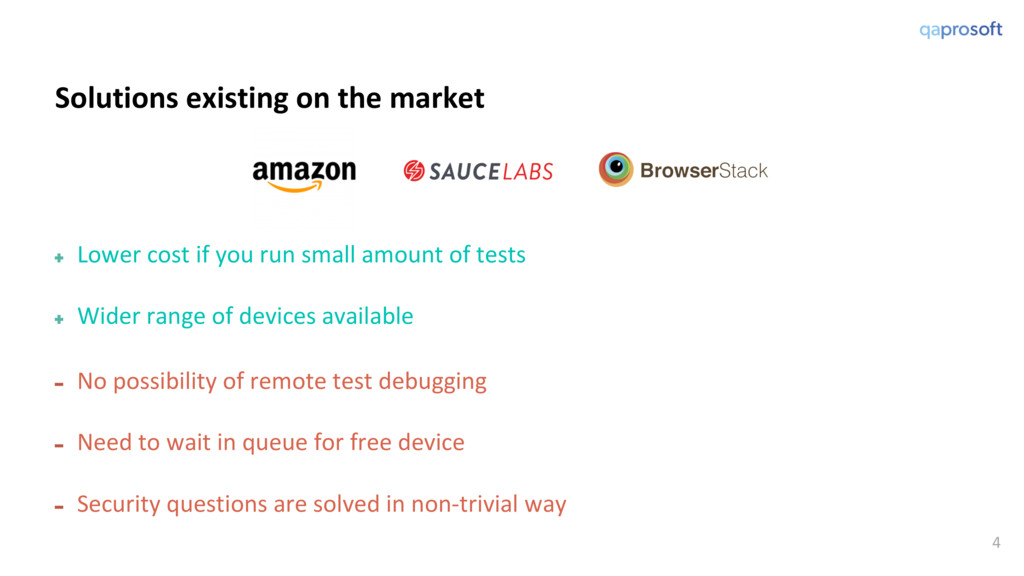

4. Lower cost if you run small amount of tests Wider range of devices available Solutions existing on the market 4 No possibility of remote test debugging Need to wait in queue for free device Security questions are solved in non-trivial way

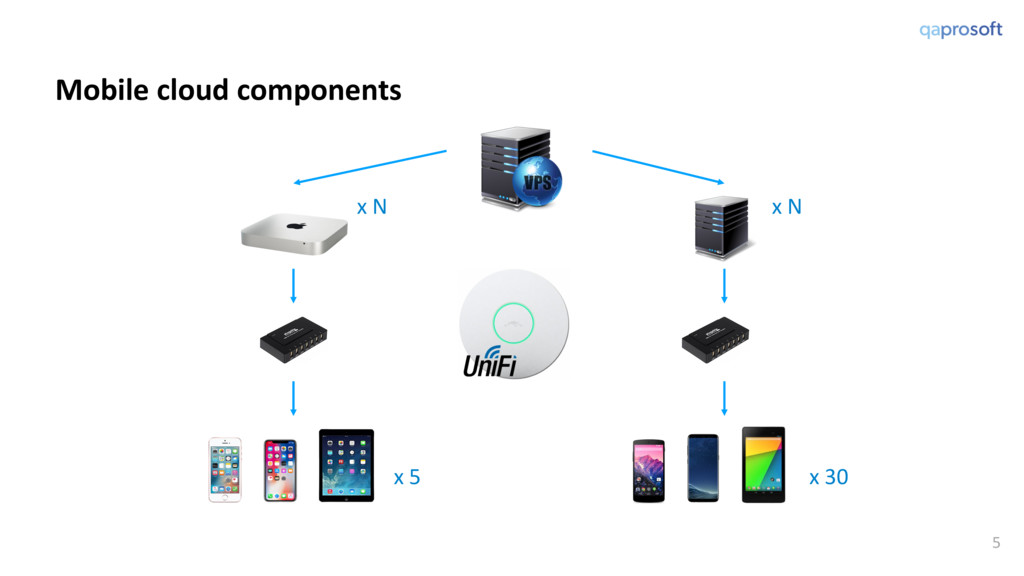

5. x N x 5 x 30 5 Mobile cloud components x N

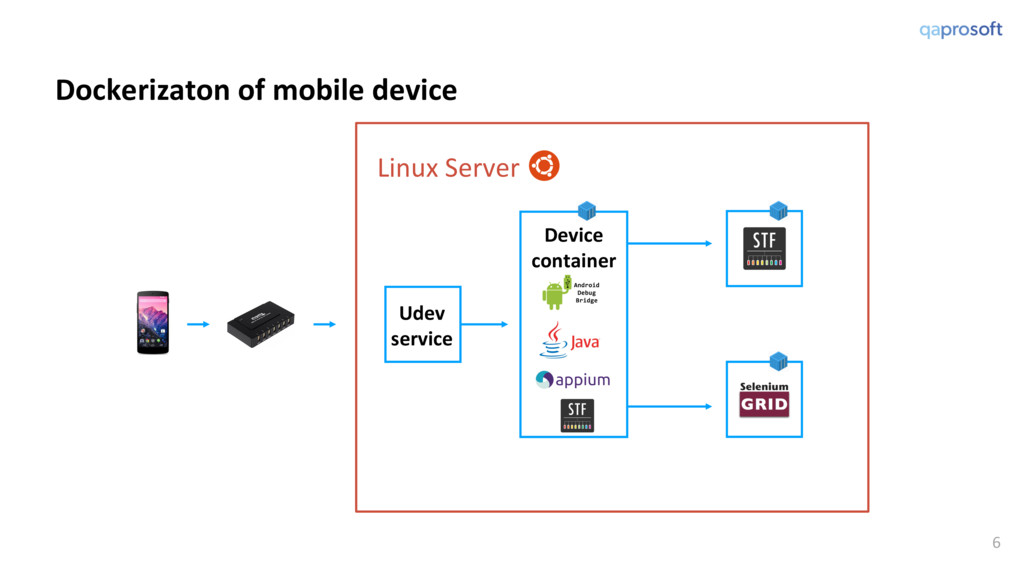

6. Linux Server Udev service Device container 6 Dockerizaton of mobile device

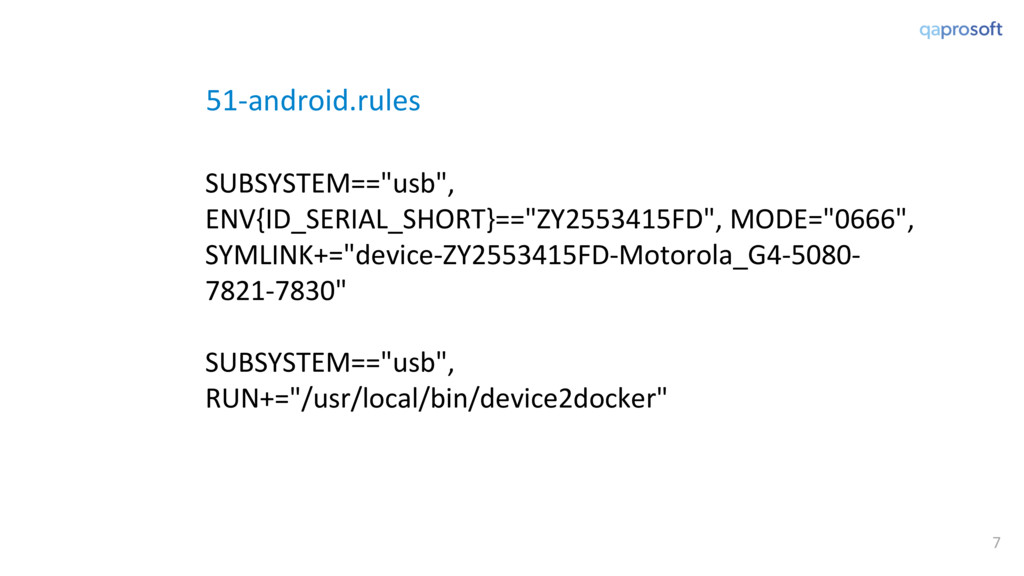

7. SUBSYSTEM=="usb", ENV{ID_SERIAL_SHORT}=="ZY2553415FD", MODE="0666", SYMLINK+="device-ZY2553415FD-Motorola_G4-5080- 7821-7830" SUBSYSTEM=="usb", RUN+="/usr/local/bin/device2docker" 51-android.rules 7

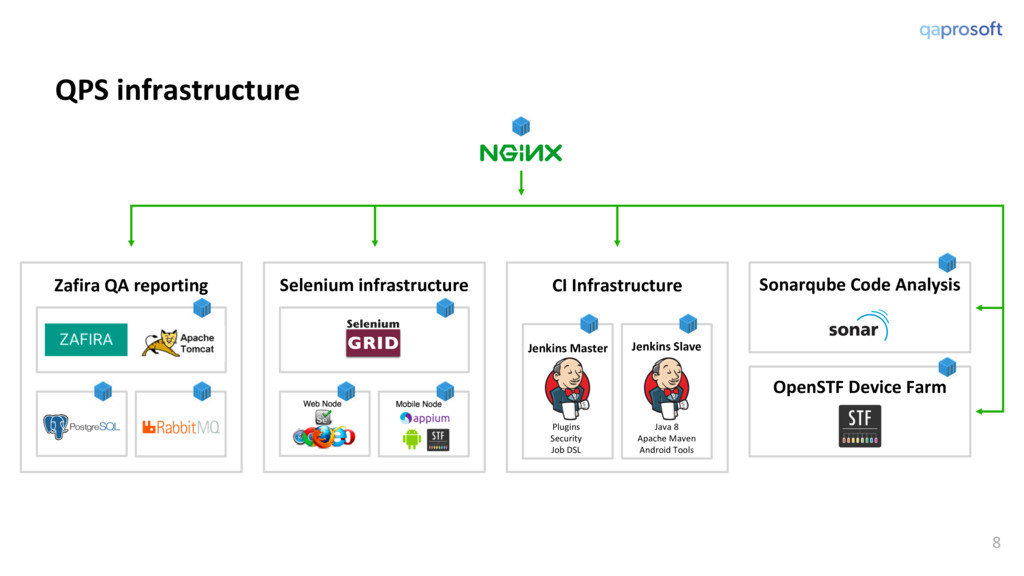

8. Selenium infrastructure Zafira QA reporting Sonarqube Code Analysis OpenSTF Device Farm CI Infrastructure Jenkins Master Jenkins Slave Plugins Security Job DSL Java 8 Apache Maven Android Tools 8 QPS infrastructure

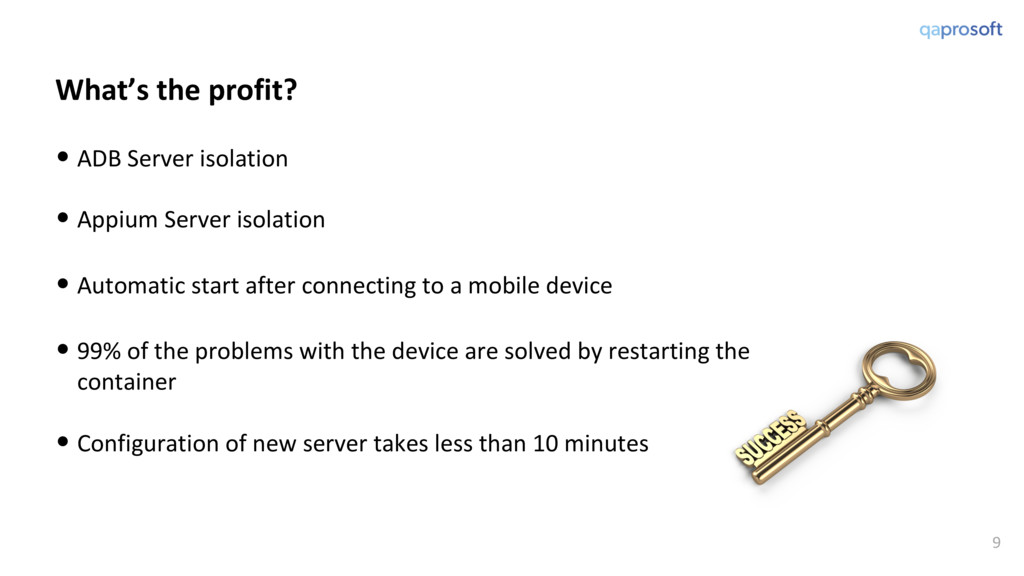

9. 9 What’s the profit? • ADB Server isolation • Appium Server isolation • Automatic start after connecting to a mobile device • 99% of the problems with the device are solved by restarting the container • Configuration of new server takes less than 10 minutes

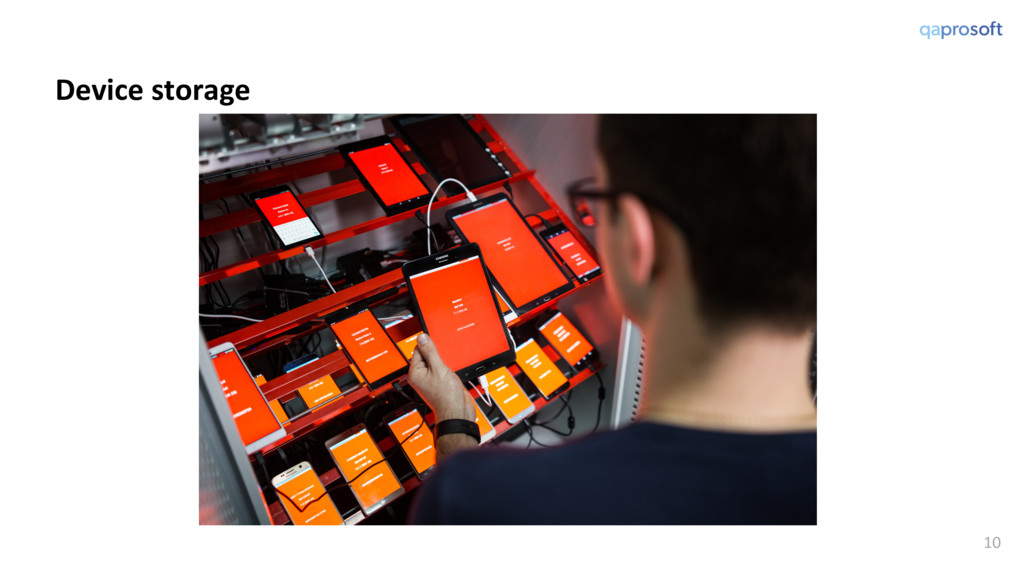

10. 10 Device storage

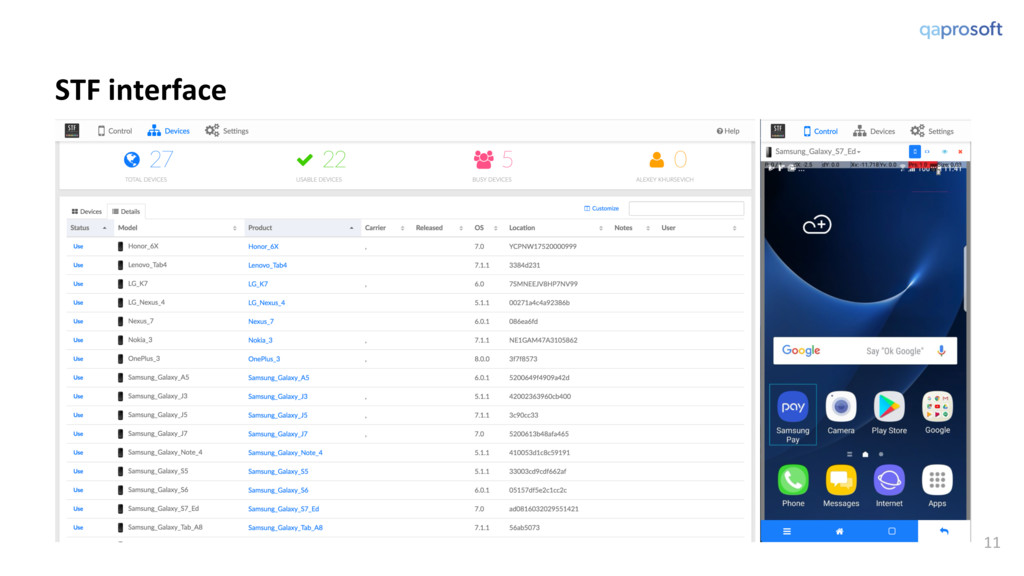

11. 11 STF interface

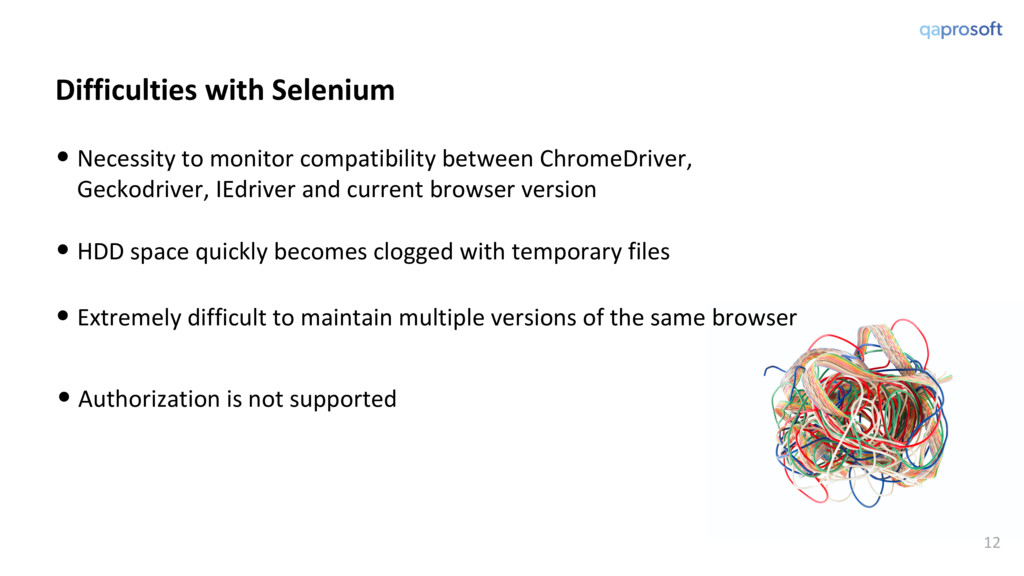

12. 12 Difficulties with Selenium • Necessity to monitor compatibility between ChromeDriver, Geckodriver, IEdriver and current browser version • HDD space quickly becomes clogged with temporary files • Extremely difficult to maintain multiple versions of the same browser • Authorization is not supported

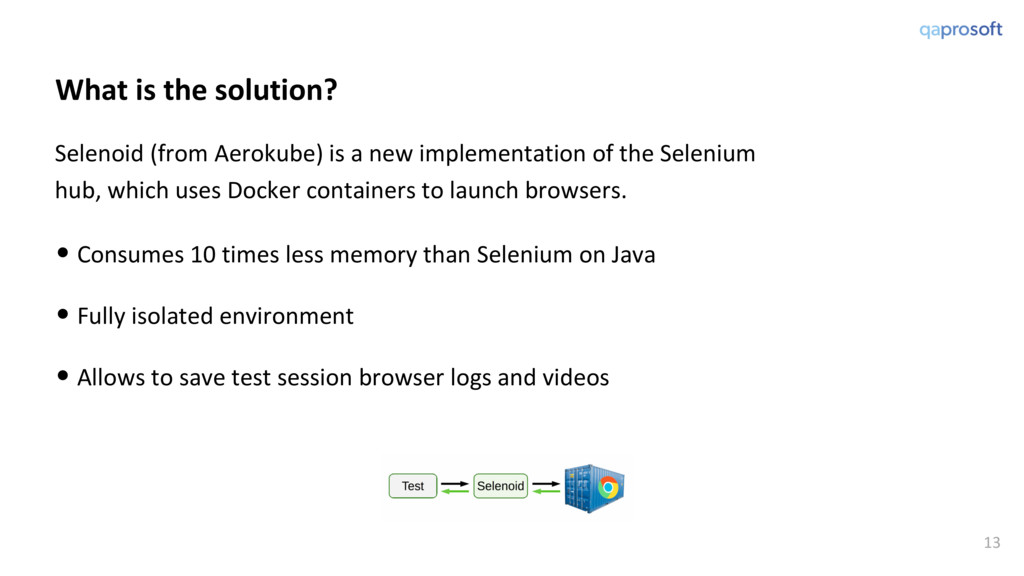

13. 13 What is the solution? Selenoid (from Aerokube) is a new implementation of the Selenium hub, which uses Docker containers to launch browsers. • Consumes 10 times less memory than Selenium on Java • Fully isolated environment • Allows to save test session browser logs and videos

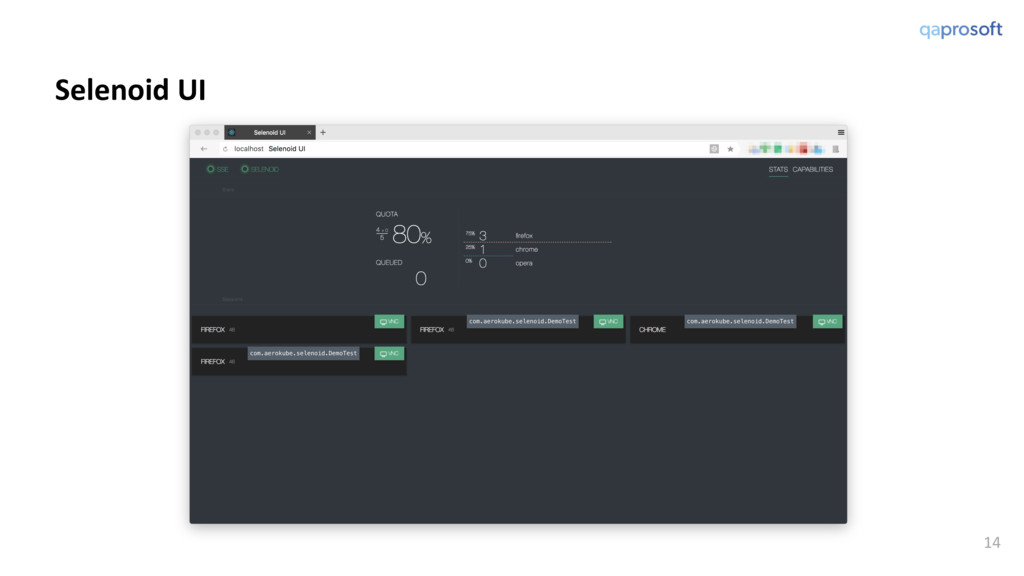

14. 14 Selenoid UI

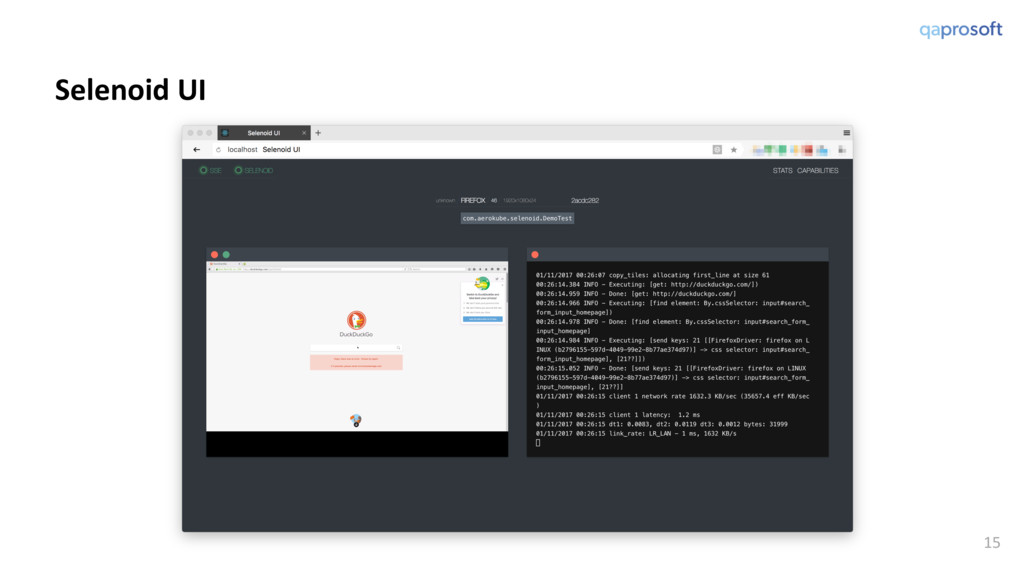

15. 15 Selenoid UI

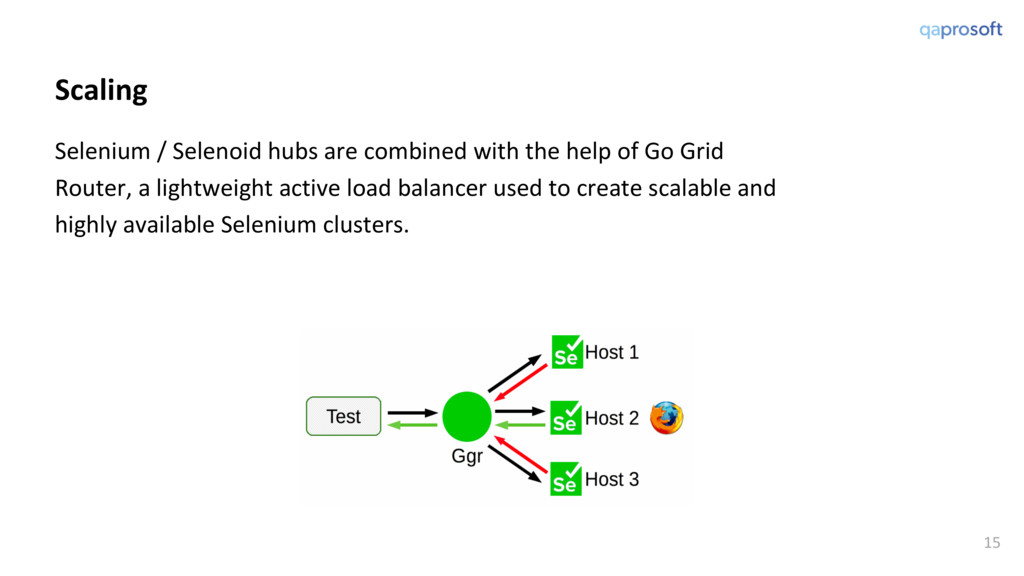

16. 15 Scaling Selenium / Selenoid hubs are combined with the help of Go Grid Router, a lightweight active load balancer used to create scalable and highly available Selenium clusters.

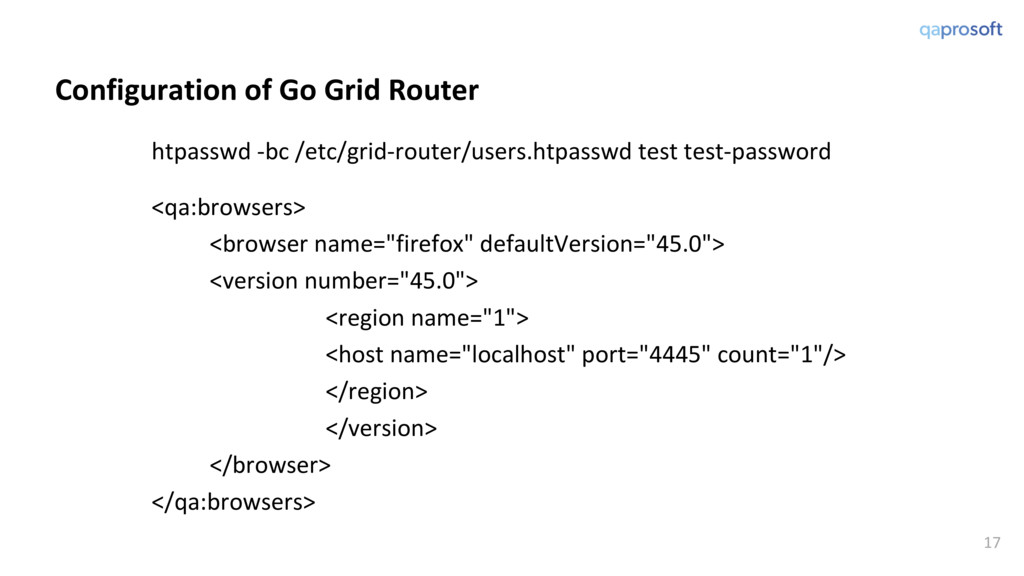

17. htpasswd -bc /etc/grid-router/users.htpasswd test test-password <qa:browsers> <browser name="firefox" defaultVersion="45.0"> <version number="45.0"> <region name="1"> <host name="localhost" port="4445" count="1"/> </region> </version> </browser> </qa:browsers> 17 Configuration of Go Grid Router

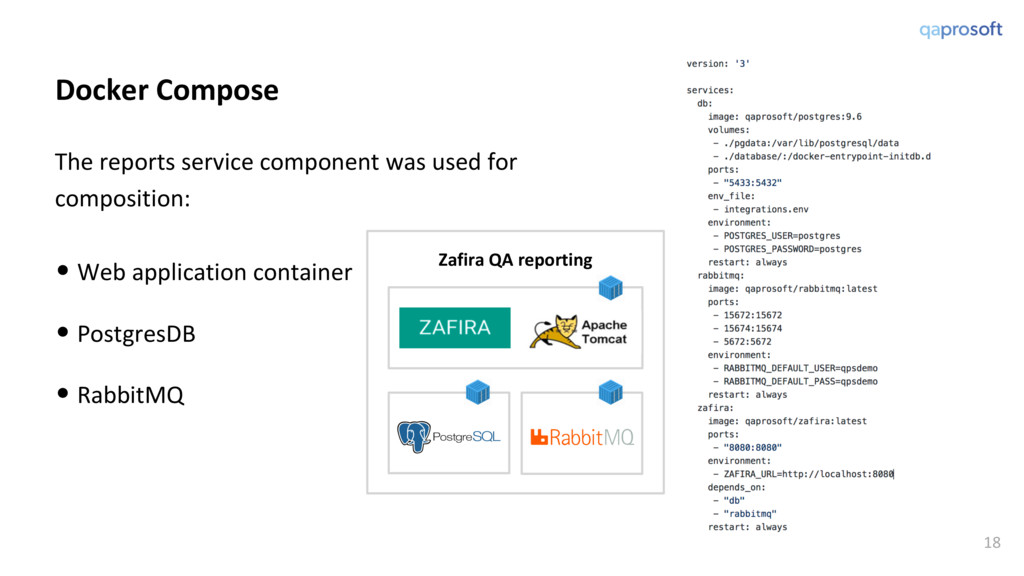

18. 18 Docker Compose Zafira QA reporting The reports service component was used for composition: • Web application container • PostgresDB • RabbitMQ

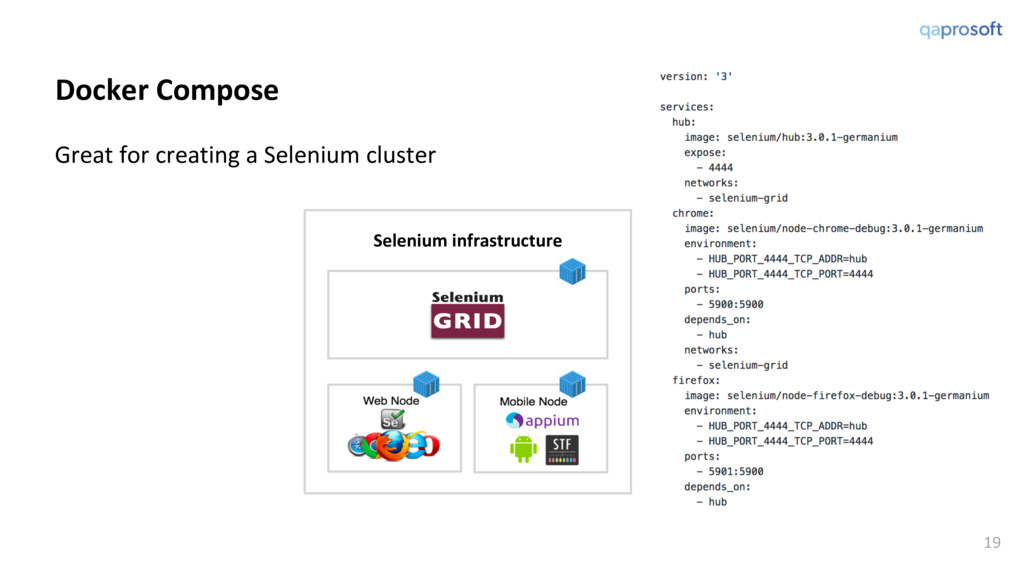

19. 19 Docker Compose Great for creating a Selenium cluster Selenium infrastructure

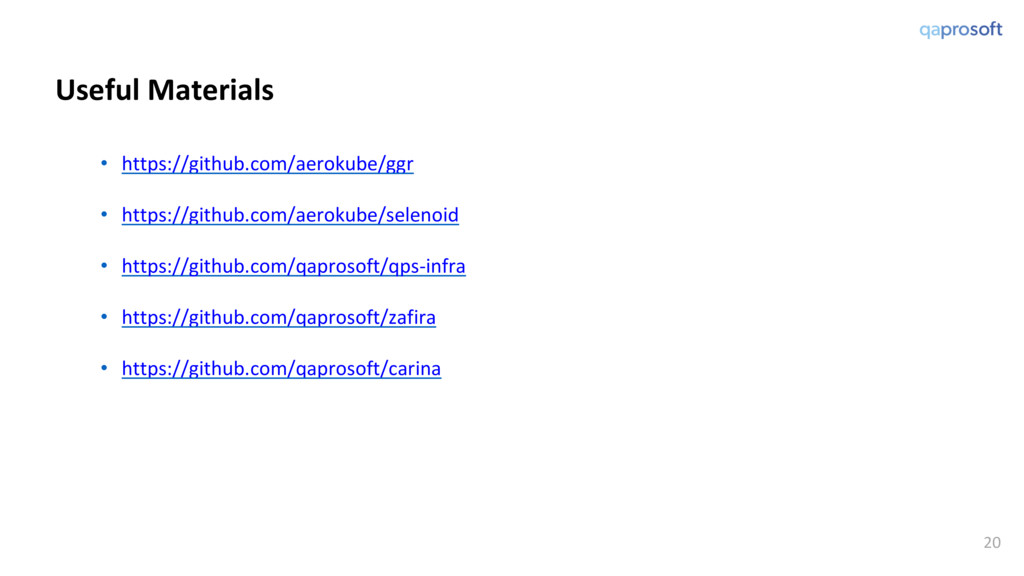

20. • https://github.com/aerokube/ggr • https://github.com/aerokube/selenoid • https://github.com/qaprosoft/qps-infra • https://github.com/qaprosoft/zafira • https://github.com/qaprosoft/carina 20 Useful Materials
21. Any questions left? alex@qaprosoft.com
