Droidcon London 2024 - Molecule talk

Transcript

1. Jack Adams - Senior Android Engineer @ Trainline Building State Holders in Compose With Molecule
2. • Senior Android Engineer @ Trainline • Android dev for ~4 years • Selling train tickets for ~2.5 years • Passionate about building scalable app architectures • Outside of work I like space exploration, chess, Man City, and UFC A bit about me

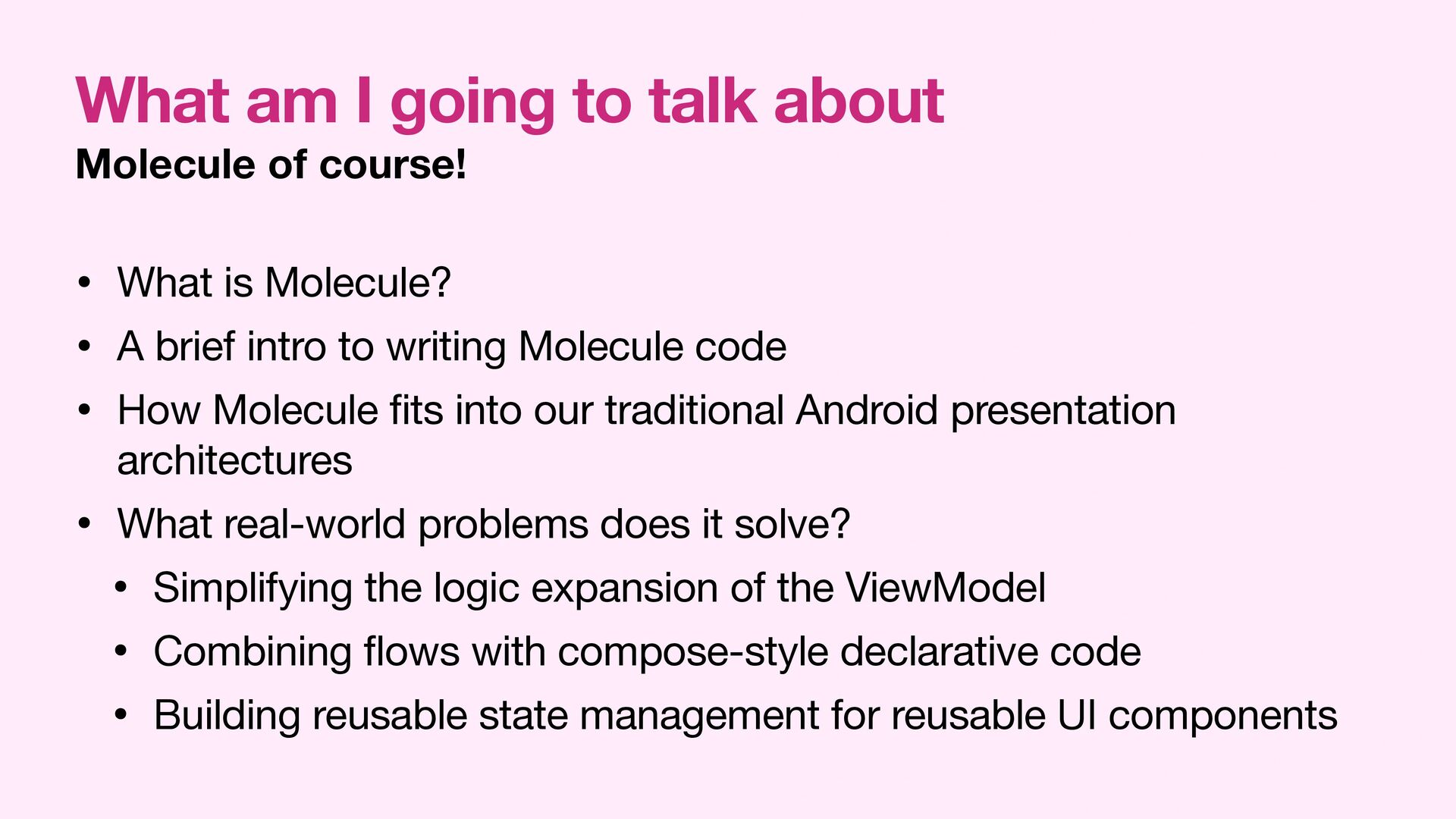

3. What am I going to talk about Molecule of course! • What is Molecule? • A brief intro to writing Molecule code • How Molecule fits into our traditional Android presentation architectures • What real-world problems does it solve? • Simplifying the logic expansion of the ViewModel • Combining flows with compose-style declarative code • Building reusable state management for reusable UI components
4. Disclaimer!! Molecule is not used in production at Trainline
5. So what is this whole Molecule thing?
6. Jake Wharton - Author of Molecule (and many other libraries you already use) “It [Molecule] allows you to use the compiler magic of Compose for the pure manipulation of data… just aggregating inputs and emitting outputs.”

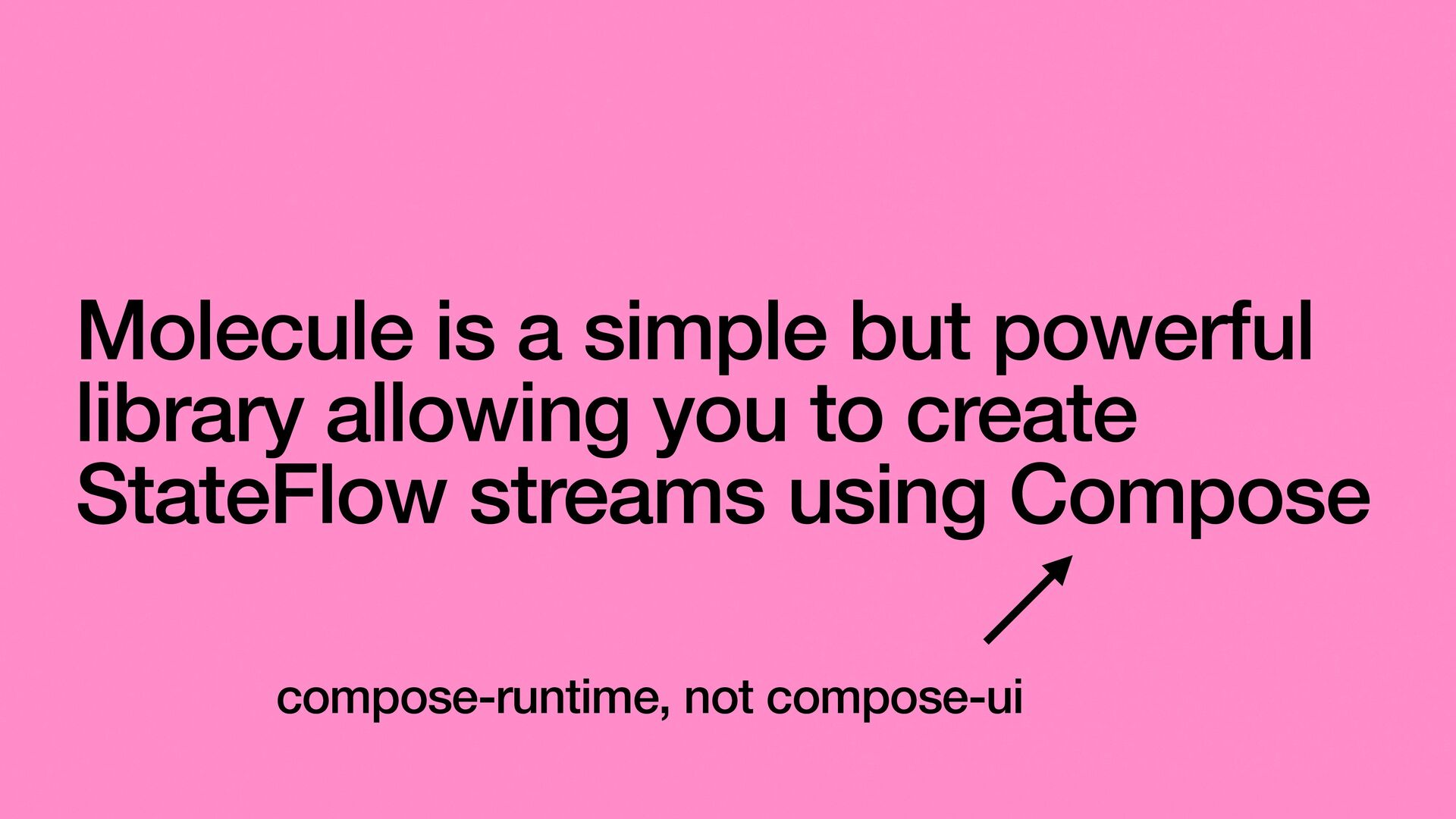

7. Molecule is a simple but powerful library allowing you to create StateFlow streams using Compose
8. Molecule is a simple but powerful library allowing you to create StateFlow streams using Compose compose-runtime, not compose-ui

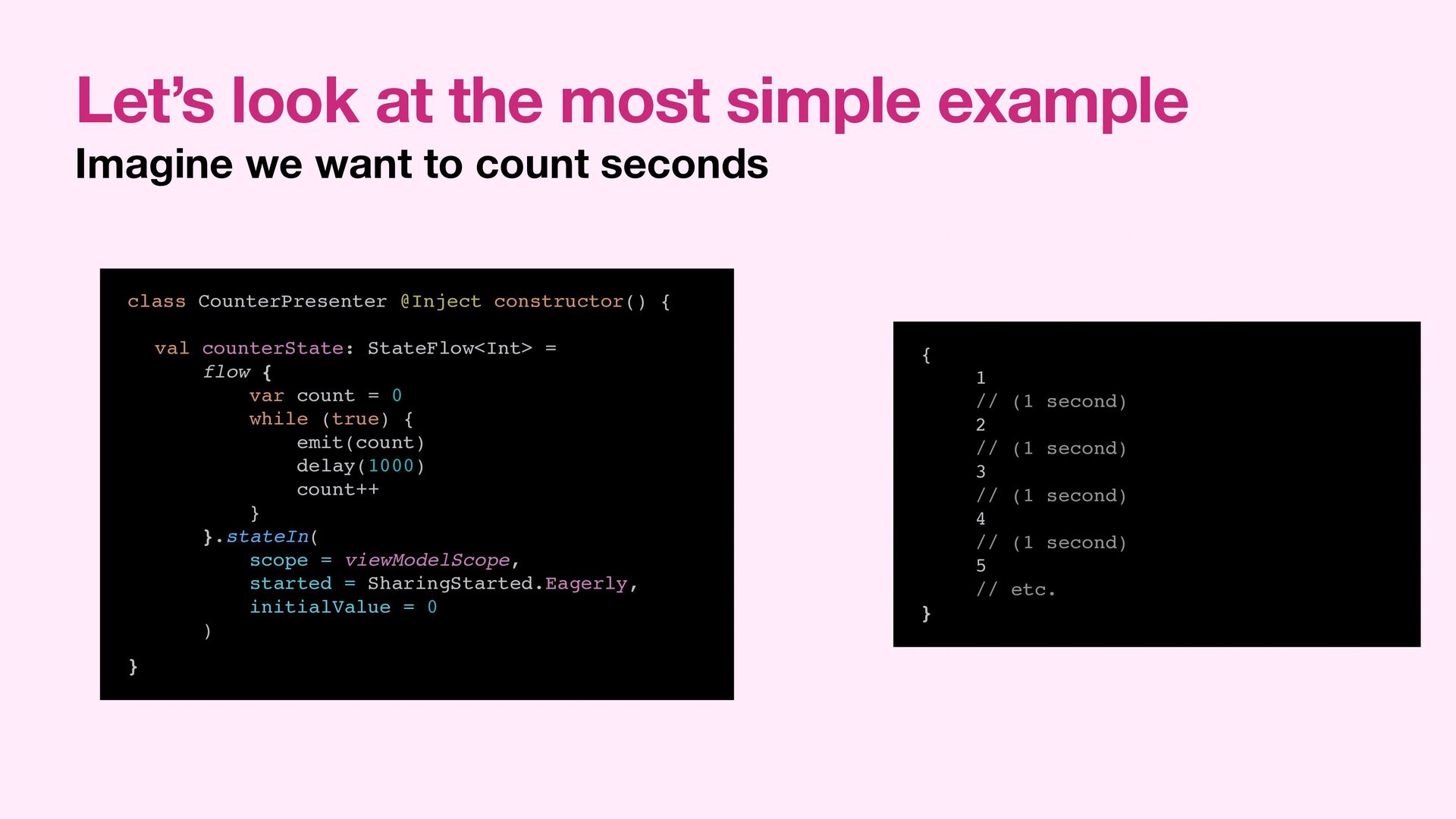

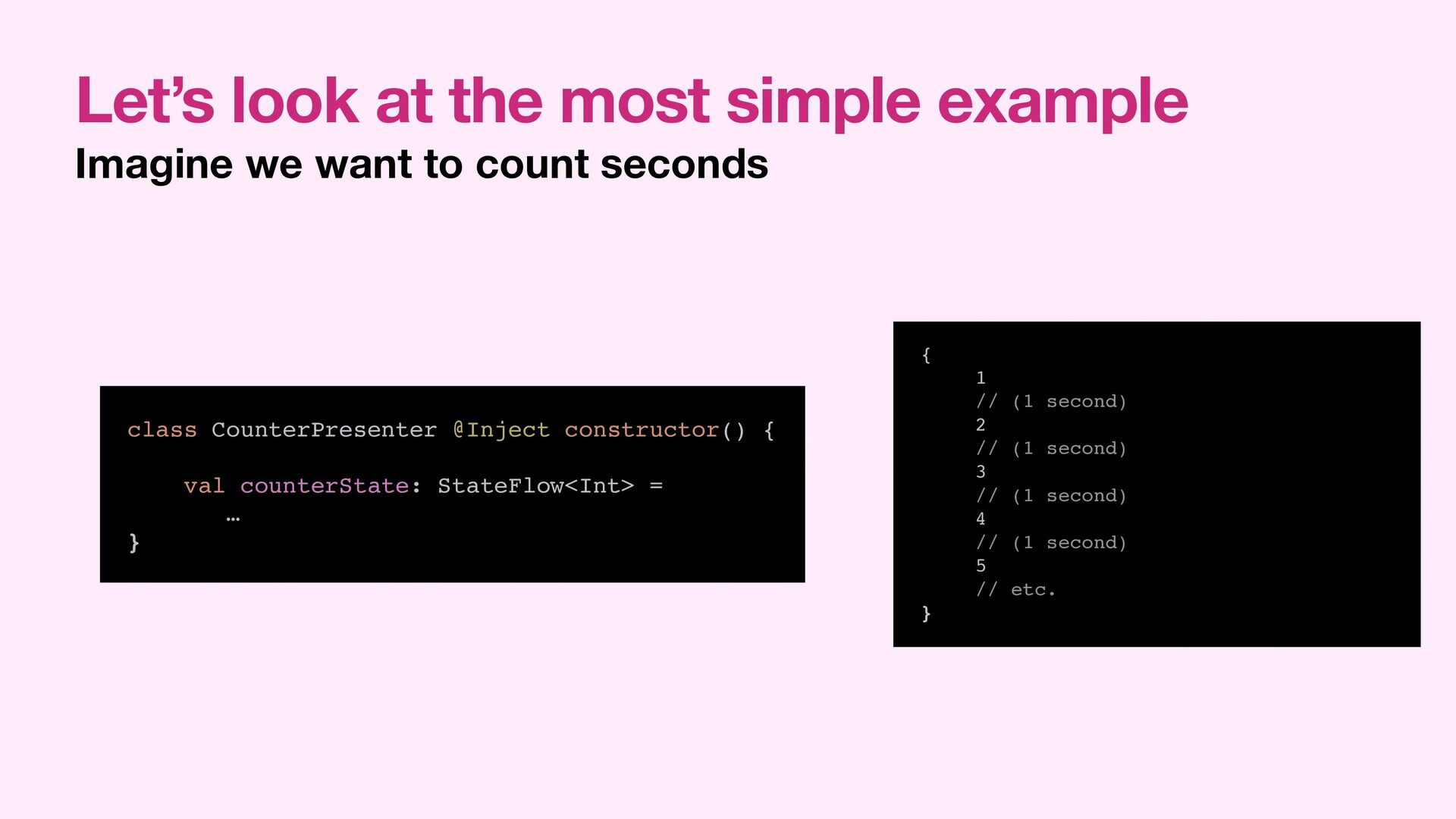

9. Let’s look at the most simple example Imagine we want to count seconds class CounterPresenter @Inject constructor() { val counterState: StateFlow<Int> = … } { 1 // (1 second) 2 // (1 second) 3 // (1 second) 4 // (1 second) 5 // etc. }
10. Let’s look at the most simple example Imagine we want to count seconds class CounterPresenter @Inject constructor() { val counterState: StateFlow<Int> = flow { var count = 0 while (true) { emit(count) delay(1000) count++ } }.stateIn( scope = viewModelScope, started = SharingStarted.Eagerly, initialValue = 0 ) } { 1 // (1 second) 2 // (1 second) 3 // (1 second) 4 // (1 second) 5 // etc. }

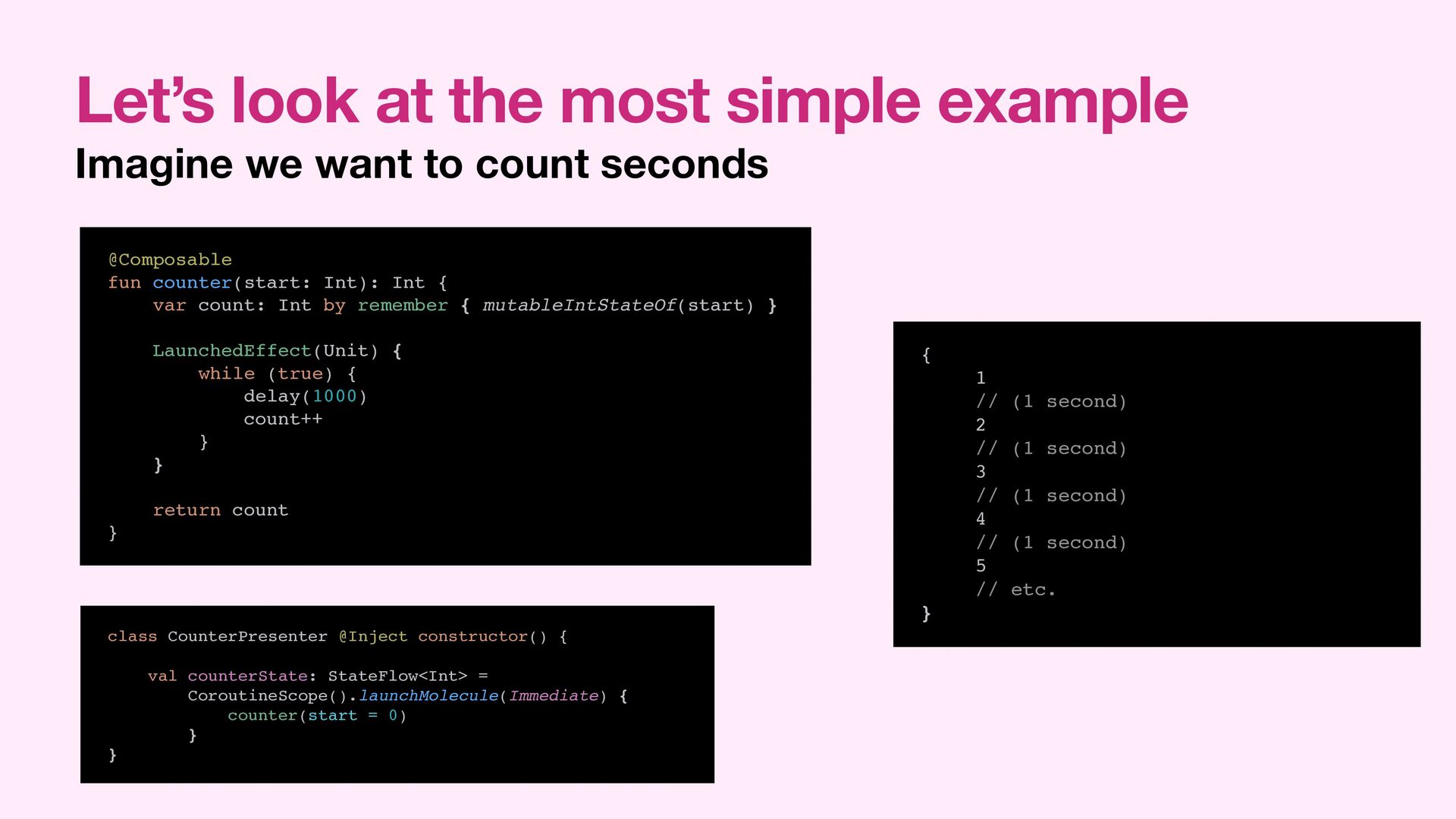

11. Let’s look at the most simple example Imagine we want to count seconds @Composable fun counter(start: Int): Int { var count: Int by remember { mutableIntStateOf(start) } LaunchedEffect(Unit) { while (true) { delay(1000) count++ } } return count } class CounterPresenter @Inject constructor() { val counterState: StateFlow<Int> = CoroutineScope().launchMolecule(Immediate) { counter(start = 0) } } { 1 // (1 second) 2 // (1 second) 3 // (1 second) 4 // (1 second) 5 // etc. }
12. Ogres Apps are like onions They have layers
13. Most modern day Android developers agree that our apps should be divided into layers…

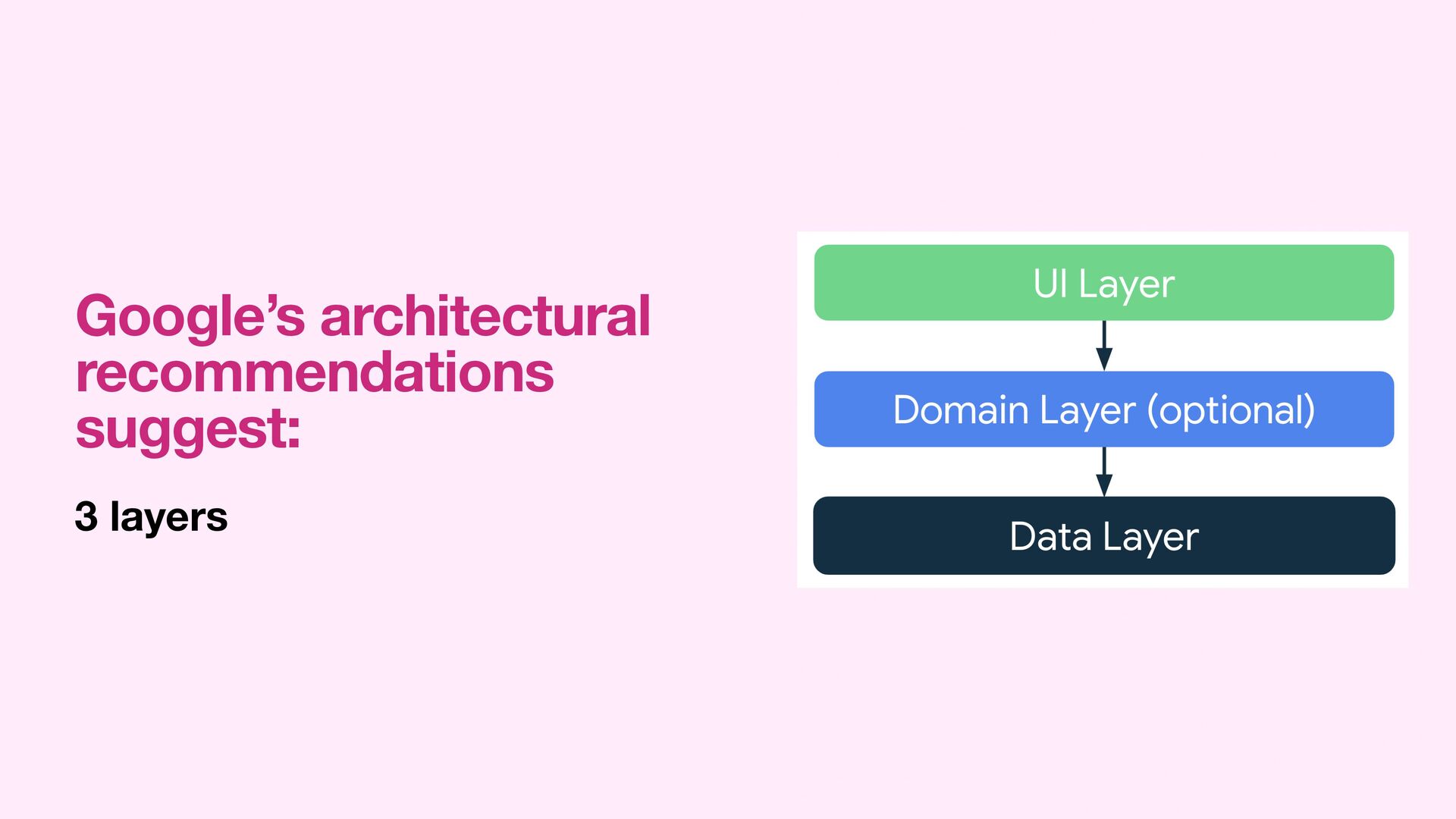

14. 3 layers Google’s architectural recommendations suggest:

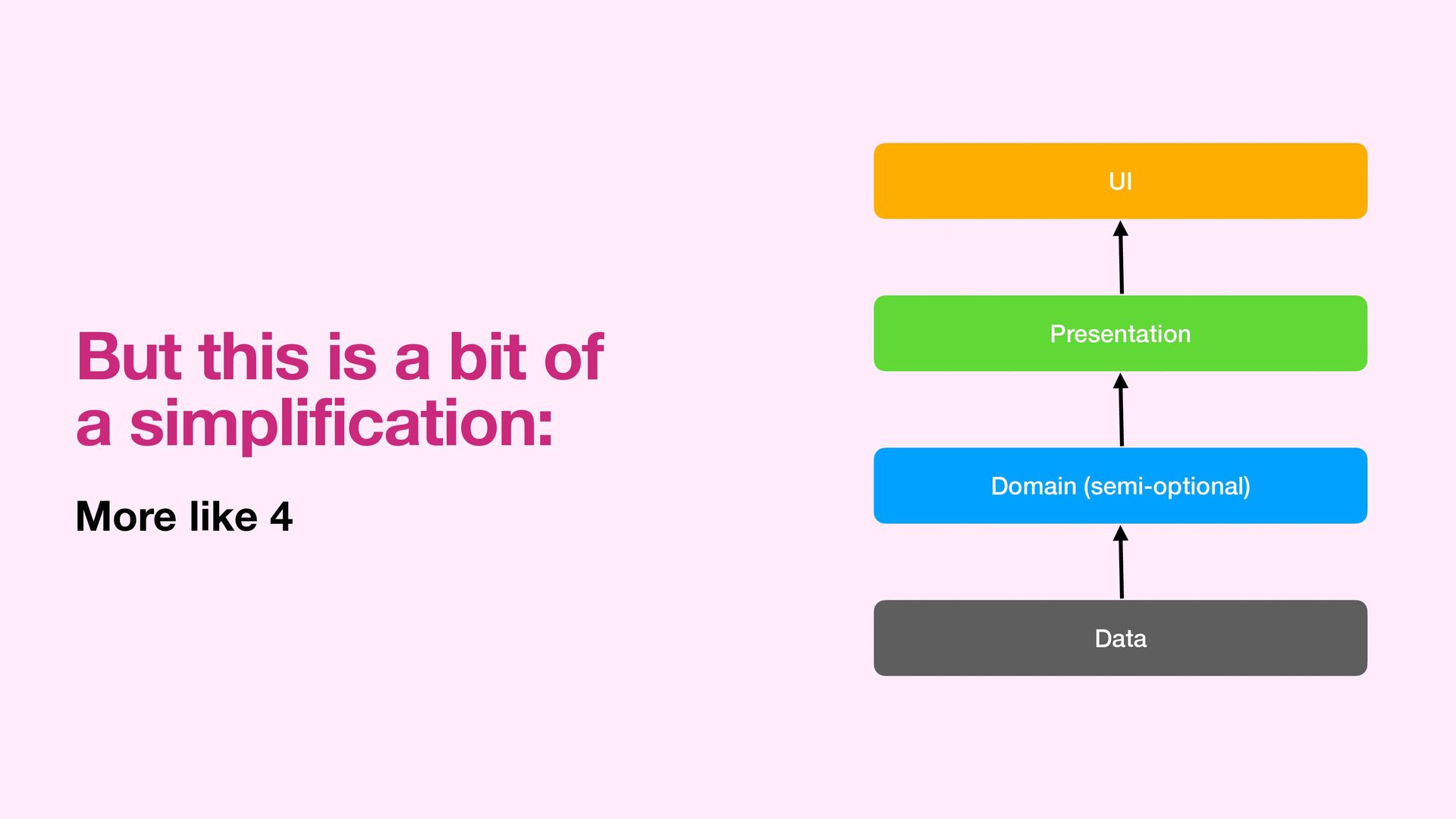

15. More like 4 But this is a bit of a simplification: UI Presentation Domain (semi-optional) Data

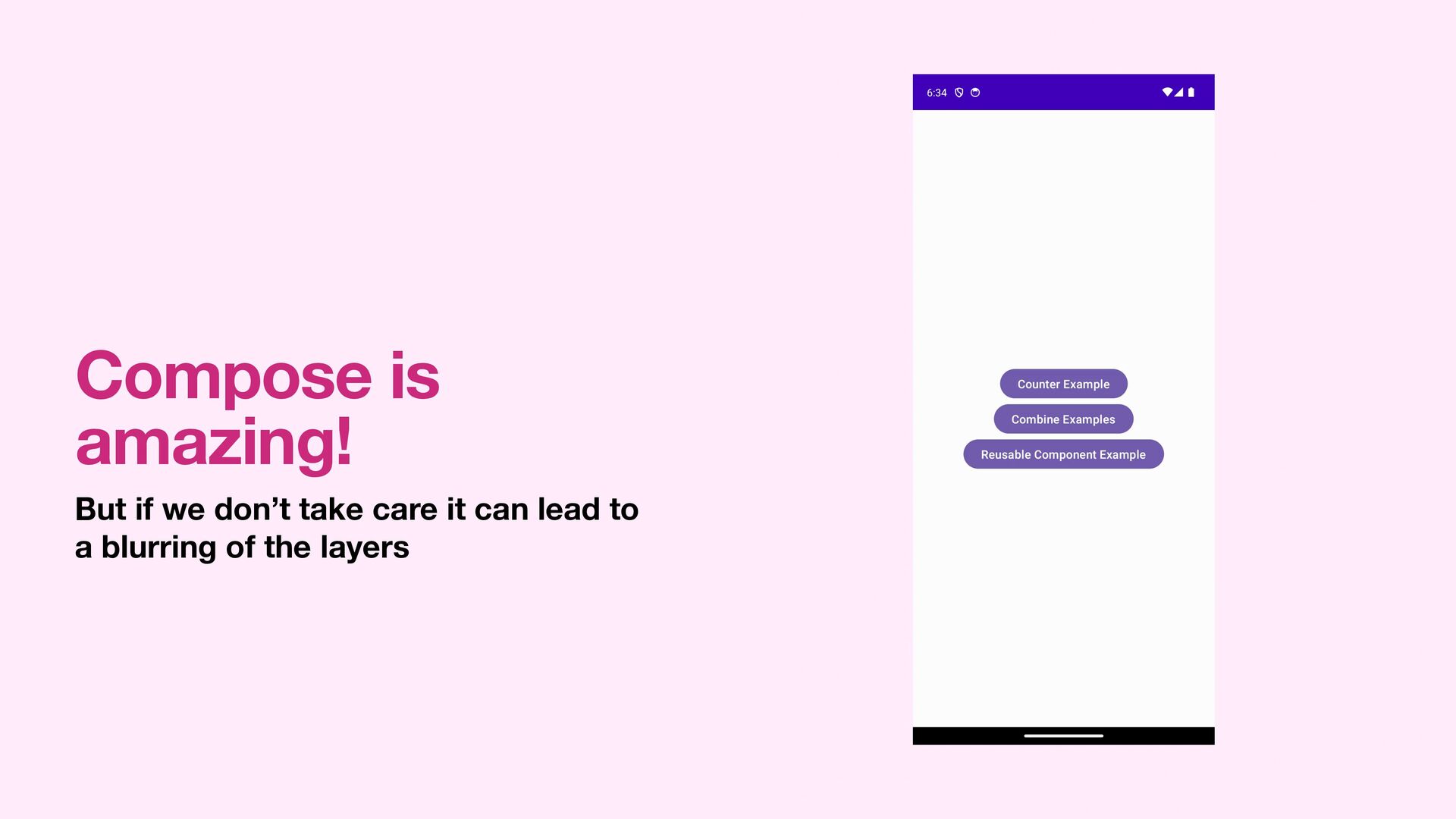

16. But if we don’t take care it can lead to a blurring of the layers Compose is amazing!

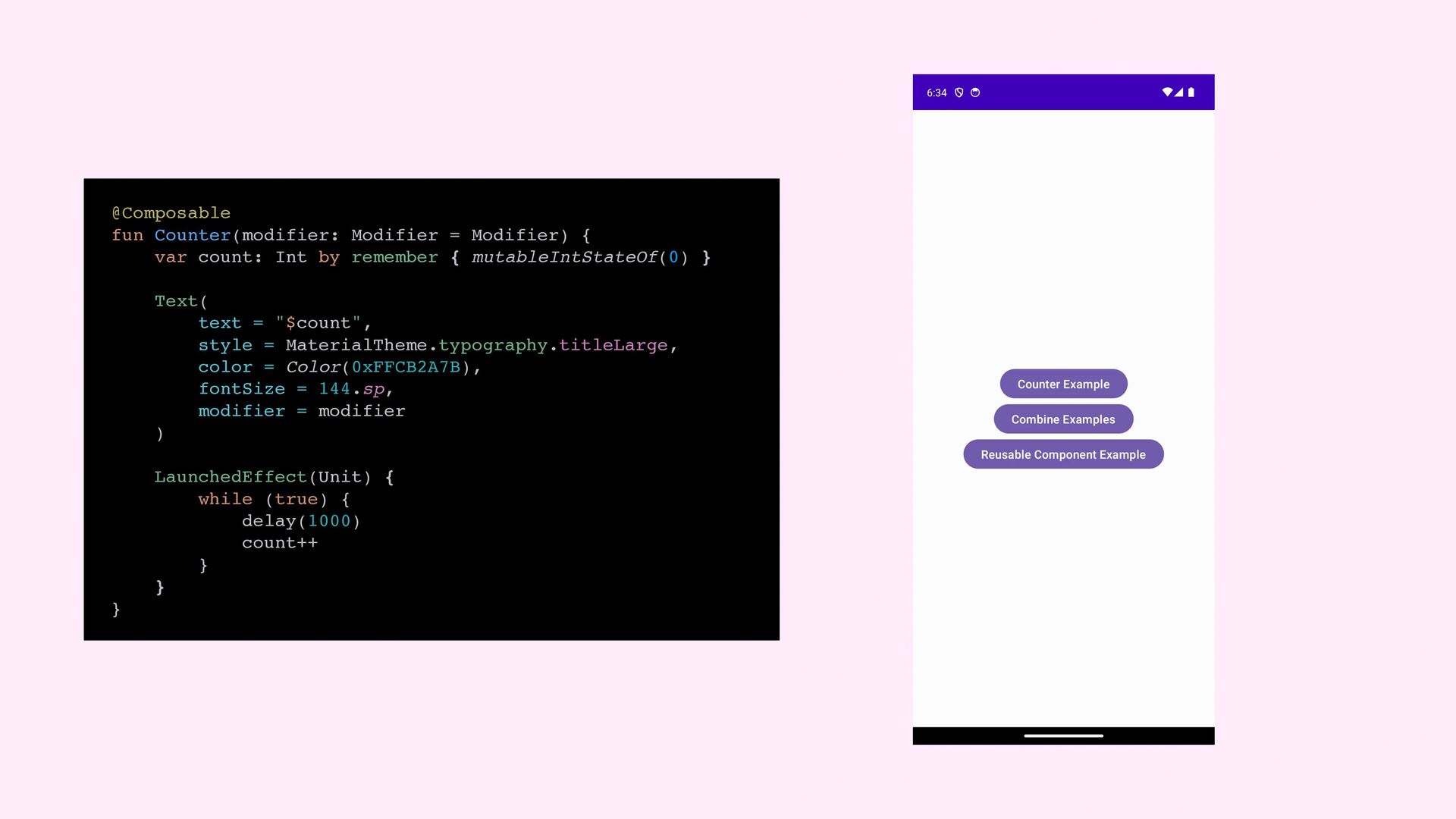

17. @Composable fun Counter(modifier: Modifier = Modifier) { var count: Int by remember { mutableIntStateOf(0) } Text( text = "$count", style = MaterialTheme.typography.titleLarge, color = Color(0xFFCB2A7B), fontSize = 144.sp, modifier = modifier ) LaunchedEffect(Unit) { while (true) { delay(1000) count++ } } }
18. val count by viewModel.counterState.collectAsState() CounterContent(count, viewModel::process) @Composable fun CounterText(count: Int, modifier: Modifier = Modifier) { Text( text = "$count", style = MaterialTheme.typography.titleLarge, color = Color(0xFFCB2A7B), fontSize = 144.sp, modifier = modifier ) } @Composable fun counter(start: Int): Int { var count: Int by remember { mutableIntStateOf(start) } LaunchedEffect(Unit) { while (true) { delay(1000) count++ } } return count } class CounterViewModel @Inject constructor() : ViewModel(){ val counterState: StateFlow<Int> = viewModelScope.launchMolecule(Immediate) { counter(start = 0) } }

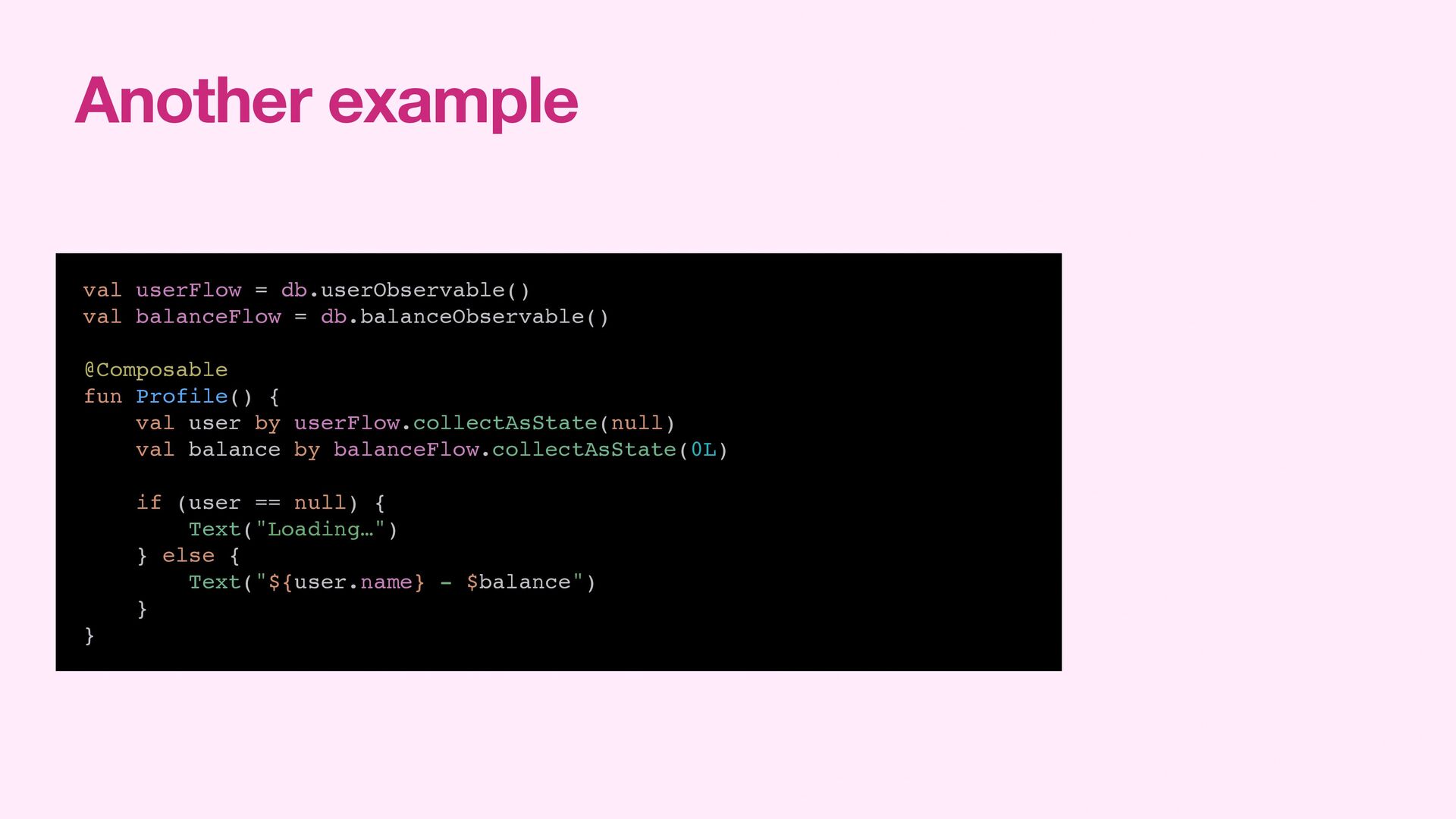

19. Another example val userFlow = db.userObservable() val balanceFlow = db.balanceObservable() @Composable fun Profile() { val user by userFlow.collectAsState(null) val balance by balanceFlow.collectAsState(0L) if (user == null) { Text("Loading…") } else { Text("${user.name} - $balance") } }

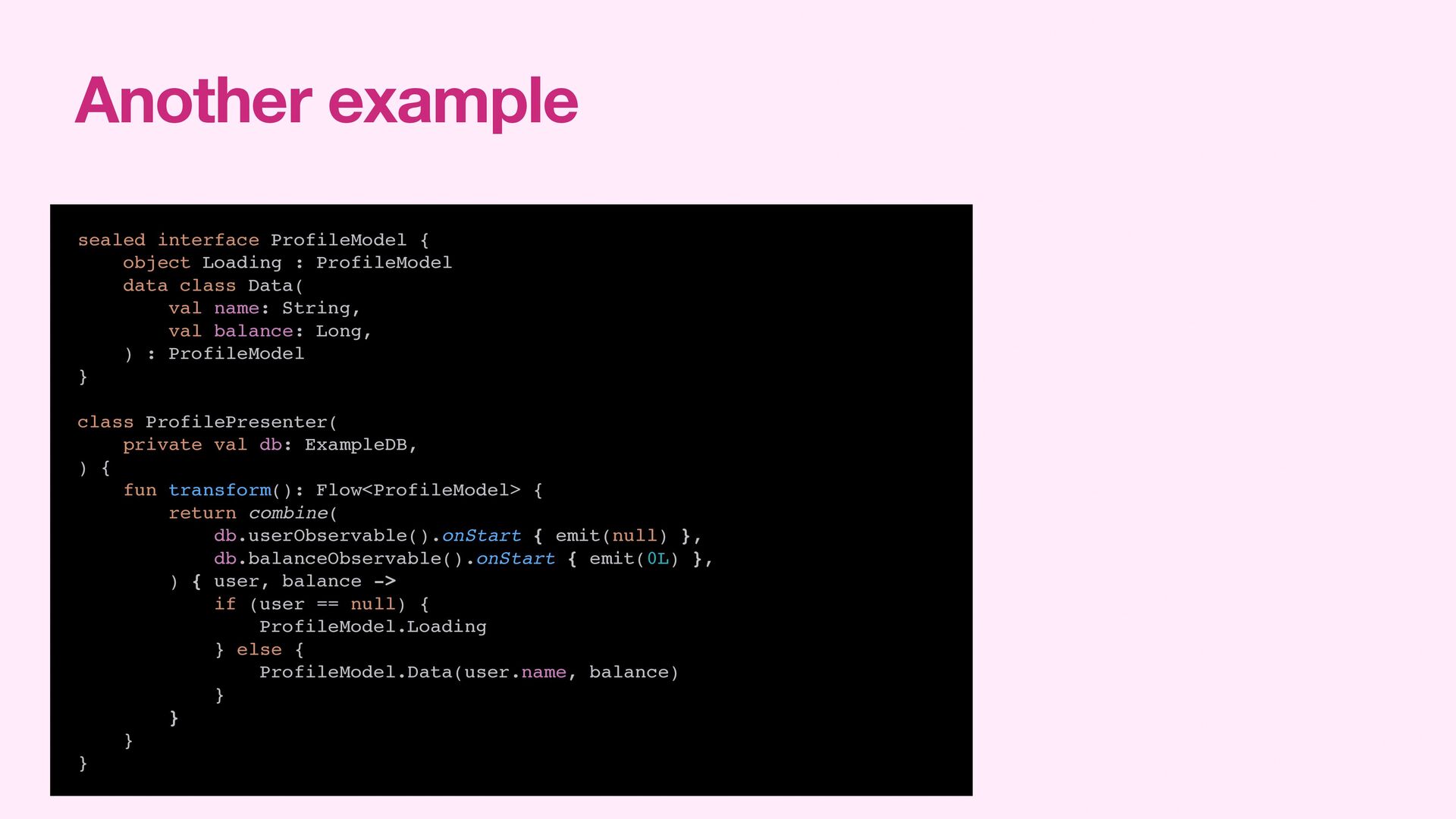

20. Another example sealed interface ProfileModel { object Loading : ProfileModel data class Data( val name: String, val balance: Long, ) : ProfileModel } class ProfilePresenter( private val db: ExampleDB, ) { fun transform(): Flow<ProfileModel> { return combine( db.userObservable().onStart { emit(null) }, db.balanceObservable().onStart { emit(0L) }, ) { user, balance -> if (user == null) { ProfileModel.Loading } else { ProfileModel.Data(user.name, balance) } } } }

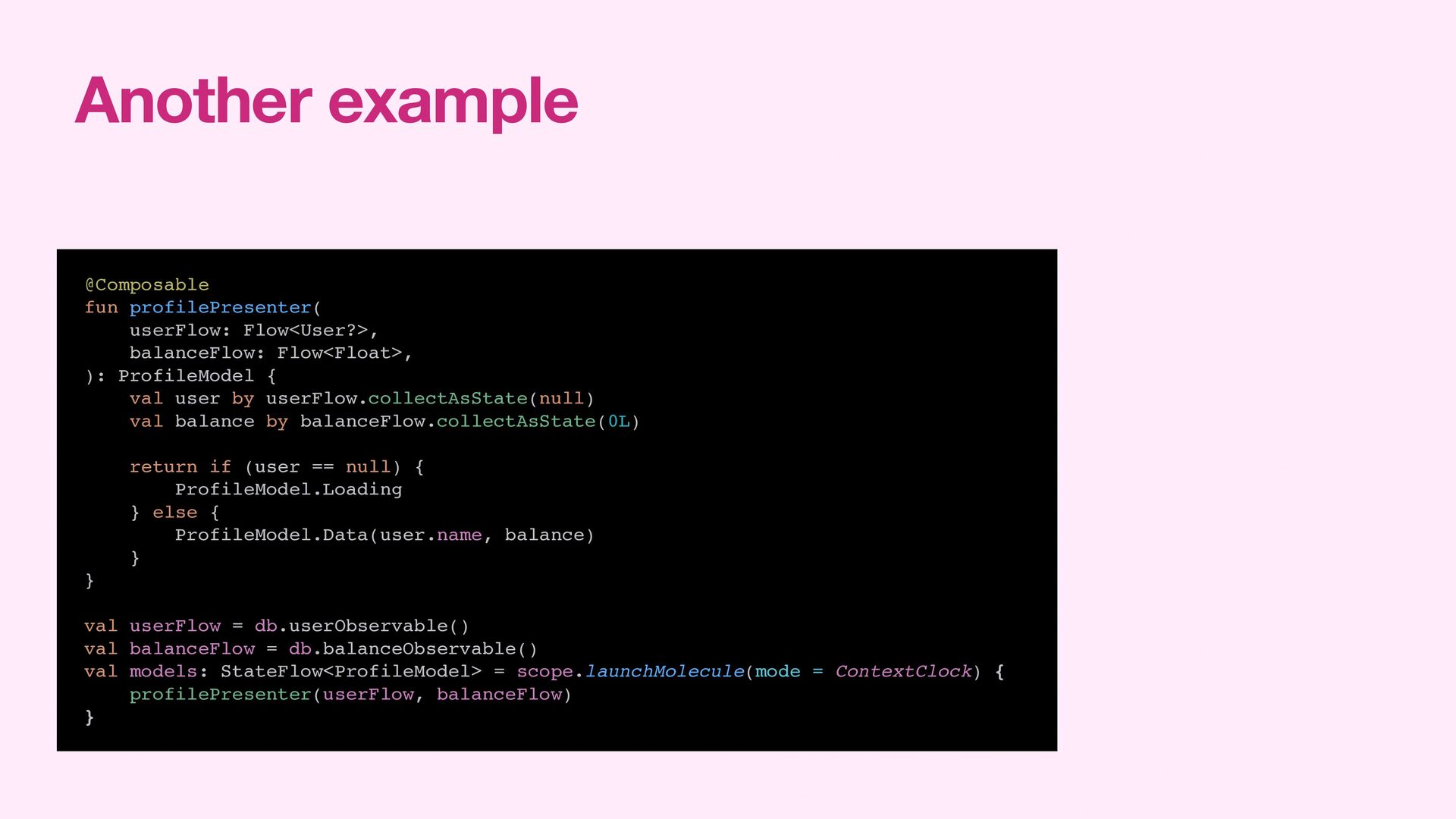

21. @Composable fun profilePresenter( userFlow: Flow<User?>, balanceFlow: Flow<Float>, ): ProfileModel { val user by userFlow.collectAsState(null) val balance by balanceFlow.collectAsState(0L) return if (user == null) { ProfileModel.Loading } else { ProfileModel.Data(user.name, balance) } } val userFlow = db.userObservable() val balanceFlow = db.balanceObservable() val models: StateFlow<ProfileModel> = scope.launchMolecule(mode = ContextClock) { profilePresenter(userFlow, balanceFlow) } Another example

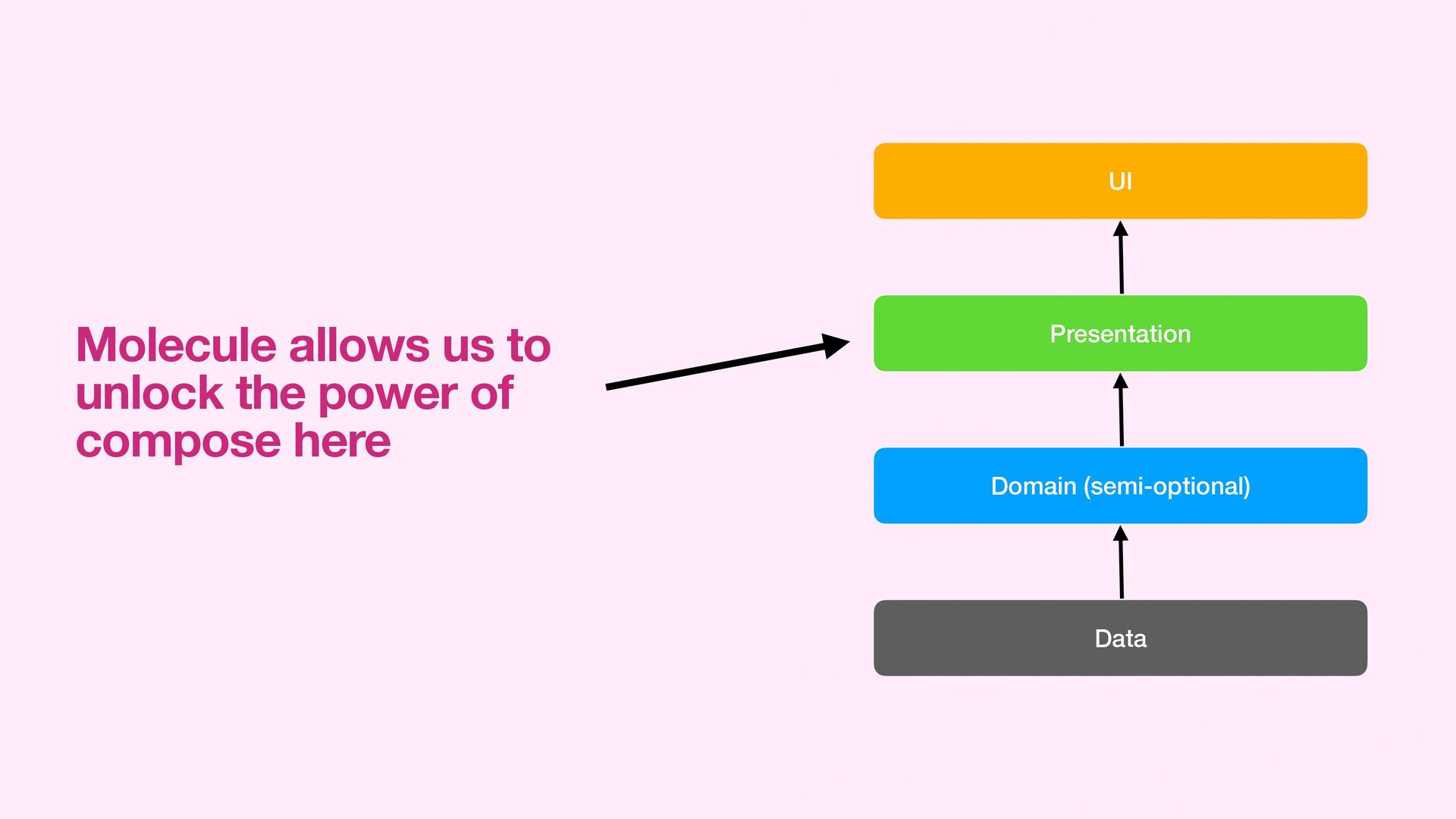

22. Molecule allows us to unlock the power of compose here UI Presentation Domain (semi-optional) Data
23. Molecule in an MVVM/MVI world

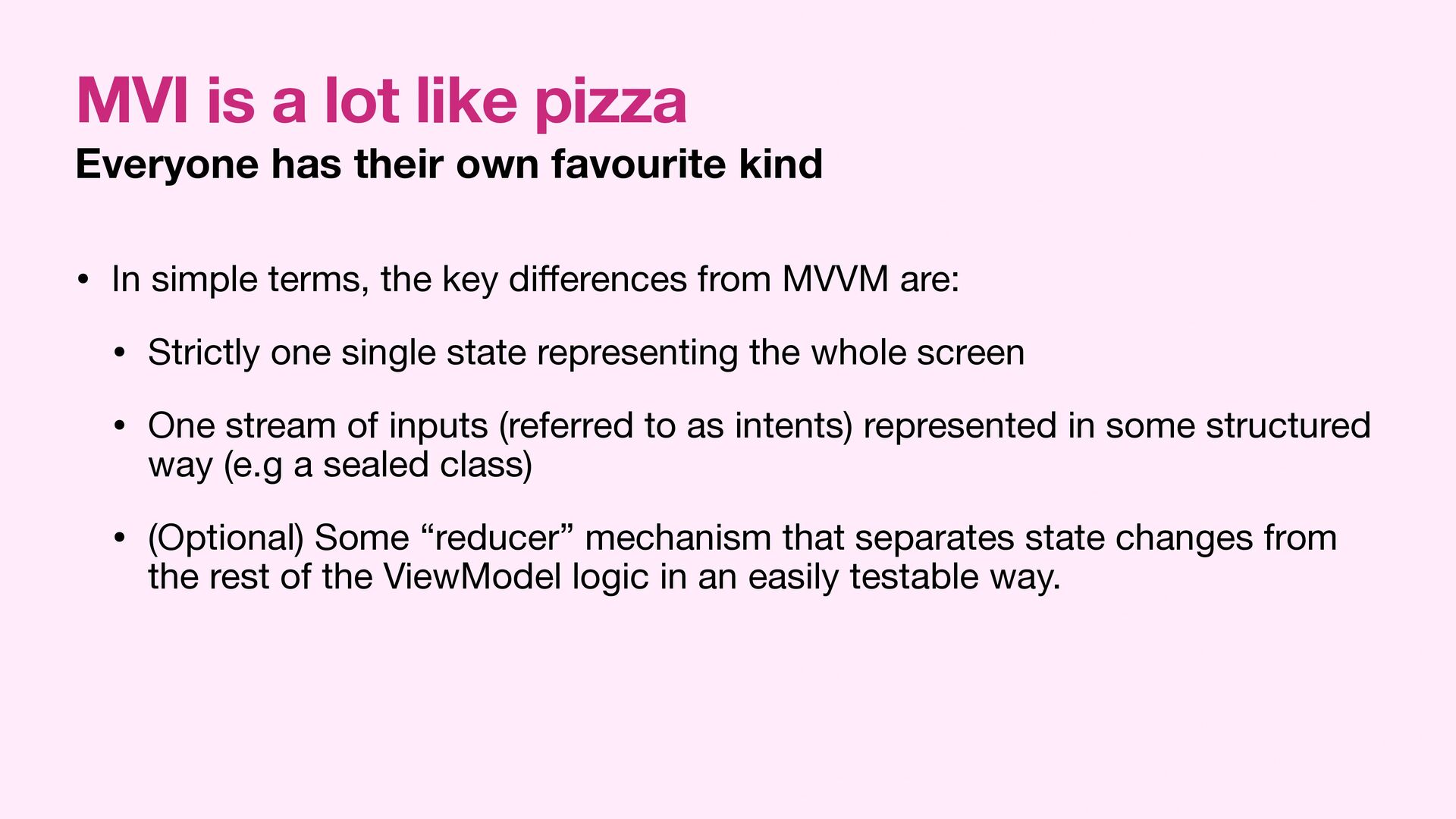

24. MVI is a lot like pizza Everyone has their own favourite kind • In simple terms, the key di ff erences from MVVM are: • Strictly one single state representing the whole screen • One stream of inputs (referred to as intents) represented in some structured way (e.g a sealed class) • (Optional) Some “reducer” mechanism that separates state changes from the rest of the ViewModel logic in an easily testable way.

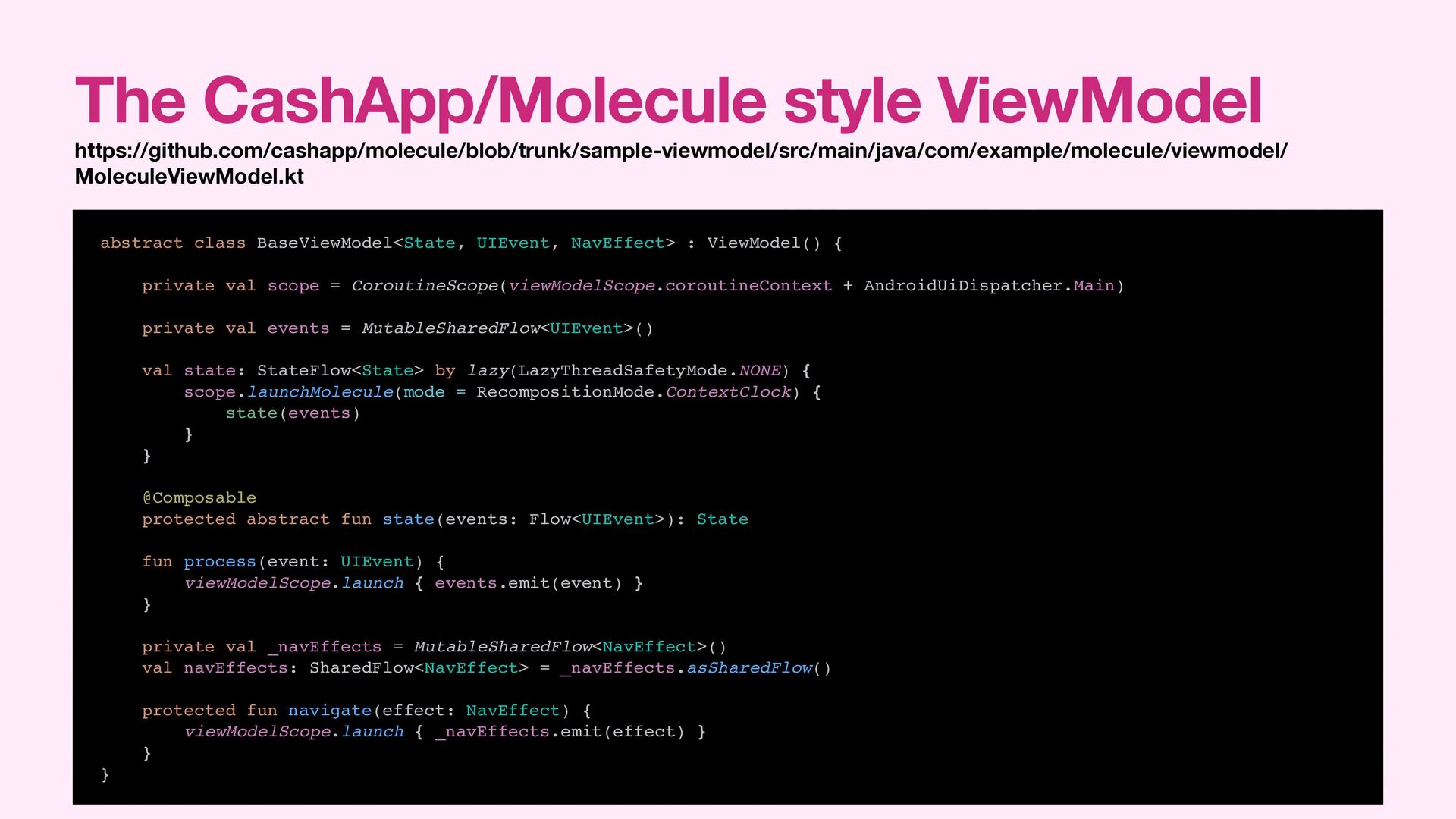

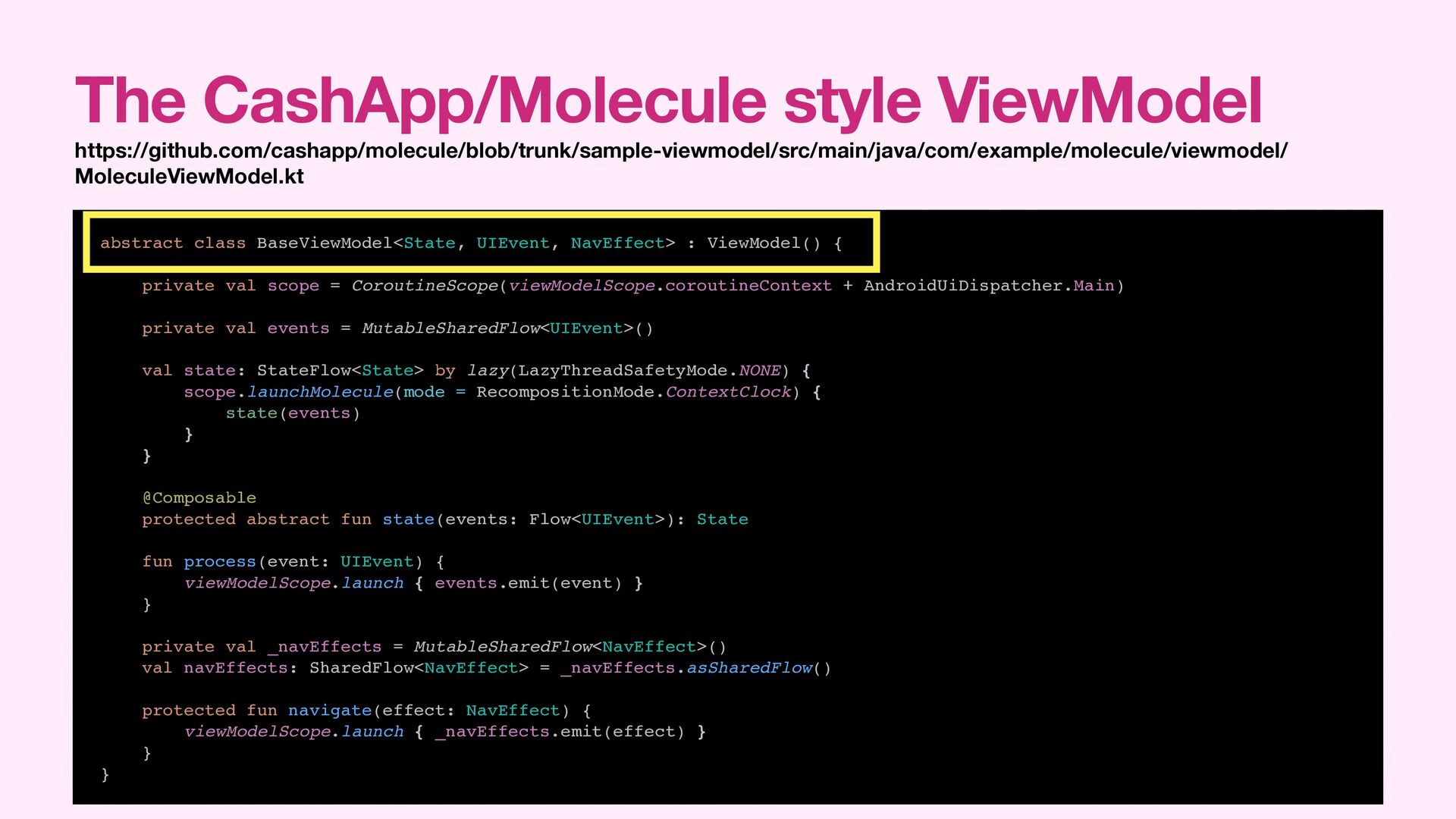

25. The CashApp/Molecule style ViewModel https://github.com/cashapp/molecule/blob/trunk/sample-viewmodel/src/main/java/com/example/molecule/viewmodel/ MoleculeViewModel.kt abstract class BaseViewModel<State, UIEvent, NavEffect> : ViewModel() { private val scope = CoroutineScope(viewModelScope.coroutineContext + AndroidUiDispatcher.Main) private val events = MutableSharedFlow<UIEvent>() val state: StateFlow<State> by lazy(LazyThreadSafetyMode.NONE) { scope.launchMolecule(mode = RecompositionMode.ContextClock) { state(events) } } @Composable protected abstract fun state(events: Flow<UIEvent>): State fun process(event: UIEvent) { viewModelScope.launch { events.emit(event) } } private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } }

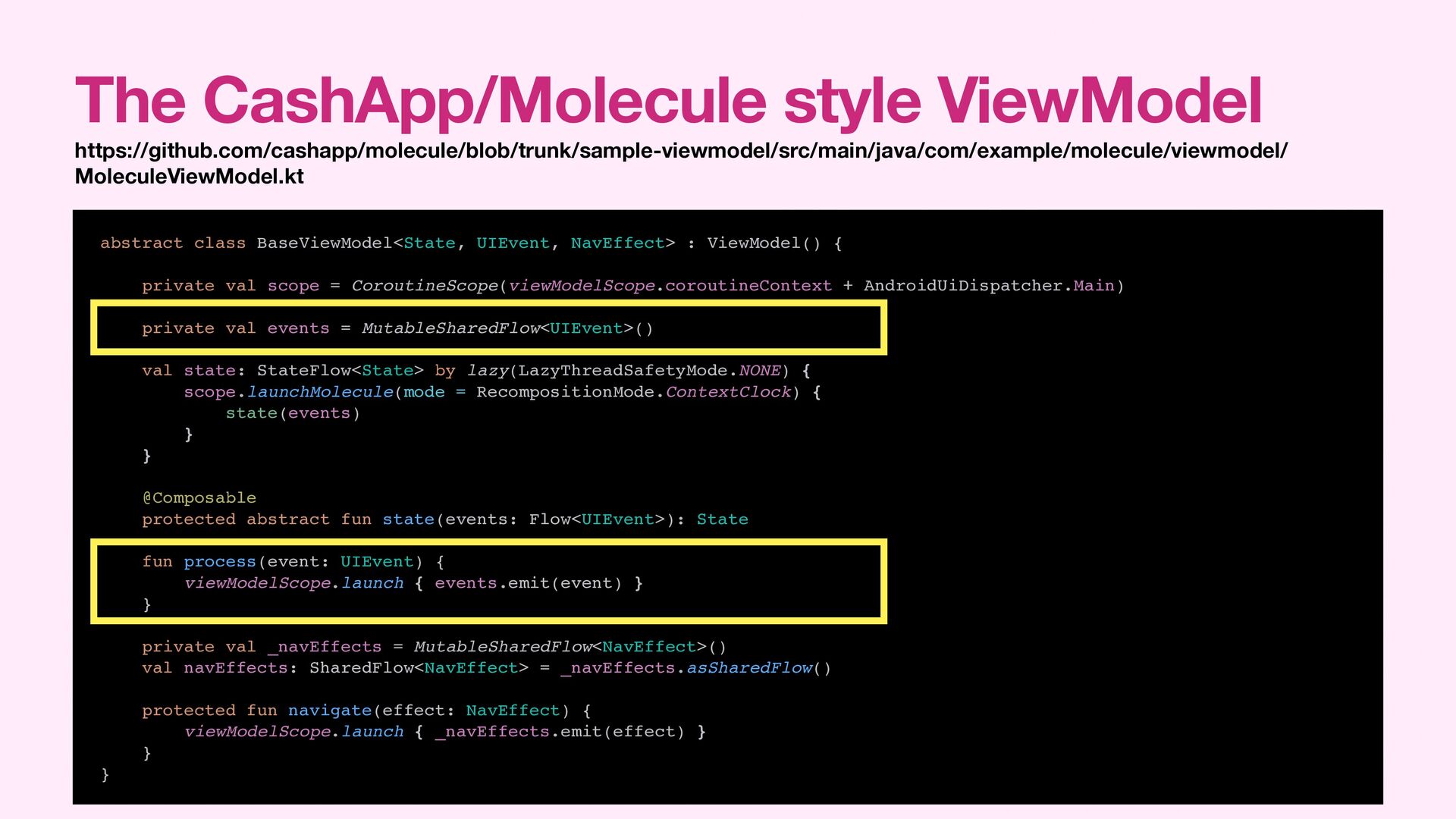

26. The CashApp/Molecule style ViewModel https://github.com/cashapp/molecule/blob/trunk/sample-viewmodel/src/main/java/com/example/molecule/viewmodel/ MoleculeViewModel.kt abstract class BaseViewModel<State, UIEvent, NavEffect> : ViewModel() { private val scope = CoroutineScope(viewModelScope.coroutineContext + AndroidUiDispatcher.Main) private val events = MutableSharedFlow<UIEvent>() val state: StateFlow<State> by lazy(LazyThreadSafetyMode.NONE) { scope.launchMolecule(mode = RecompositionMode.ContextClock) { state(events) } } @Composable protected abstract fun state(events: Flow<UIEvent>): State fun process(event: UIEvent) { viewModelScope.launch { events.emit(event) } } private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } }

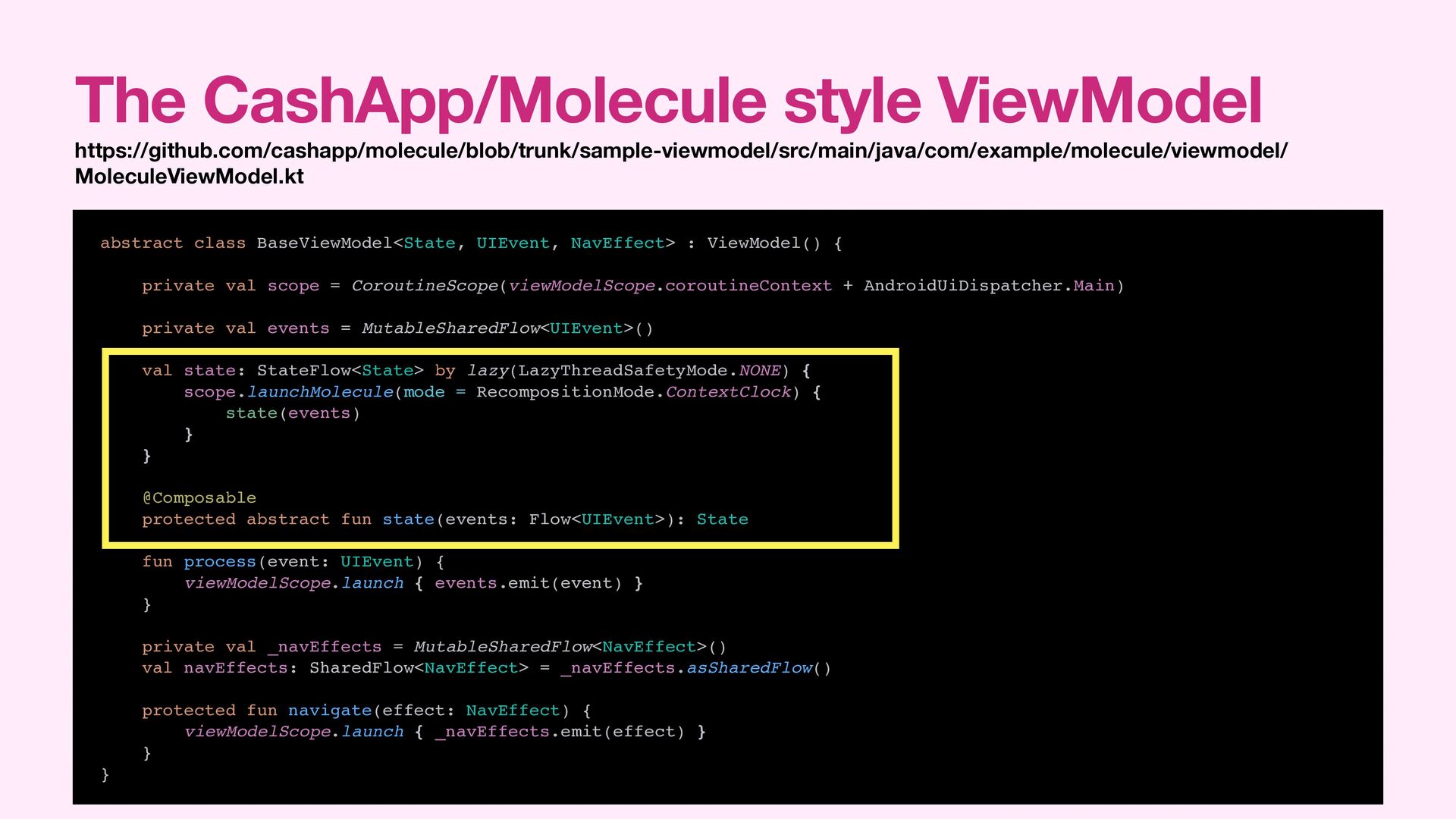

27. The CashApp/Molecule style ViewModel https://github.com/cashapp/molecule/blob/trunk/sample-viewmodel/src/main/java/com/example/molecule/viewmodel/ MoleculeViewModel.kt abstract class BaseViewModel<State, UIEvent, NavEffect> : ViewModel() { private val scope = CoroutineScope(viewModelScope.coroutineContext + AndroidUiDispatcher.Main) private val events = MutableSharedFlow<UIEvent>() val state: StateFlow<State> by lazy(LazyThreadSafetyMode.NONE) { scope.launchMolecule(mode = RecompositionMode.ContextClock) { state(events) } } @Composable protected abstract fun state(events: Flow<UIEvent>): State fun process(event: UIEvent) { viewModelScope.launch { events.emit(event) } } private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } }
28. The CashApp/Molecule style ViewModel https://github.com/cashapp/molecule/blob/trunk/sample-viewmodel/src/main/java/com/example/molecule/viewmodel/ MoleculeViewModel.kt abstract class BaseViewModel<State, UIEvent, NavEffect> : ViewModel() { private val scope = CoroutineScope(viewModelScope.coroutineContext + AndroidUiDispatcher.Main) private val events = MutableSharedFlow<UIEvent>() val state: StateFlow<State> by lazy(LazyThreadSafetyMode.NONE) { scope.launchMolecule(mode = RecompositionMode.ContextClock) { state(events) } } @Composable protected abstract fun state(events: Flow<UIEvent>): State fun process(event: UIEvent) { viewModelScope.launch { events.emit(event) } } private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } }

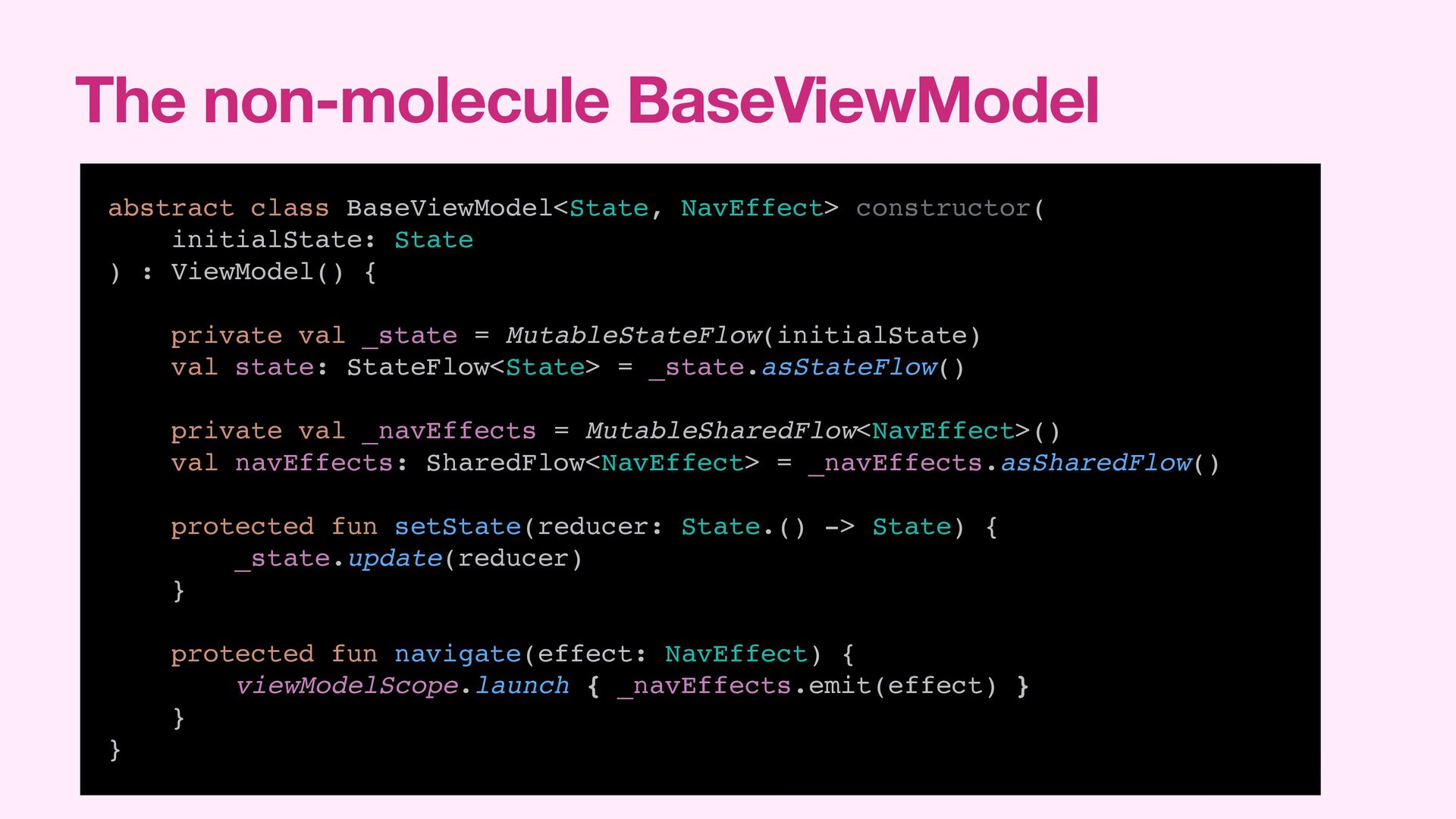

30. abstract class BaseViewModel<State, NavEffect> constructor( initialState: State ) : ViewModel() { private val _state = MutableStateFlow(initialState) val state: StateFlow<State> = _state.asStateFlow() private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun setState(reducer: State.() -> State) { _state.update(reducer) } protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } } The non-molecule BaseViewModel

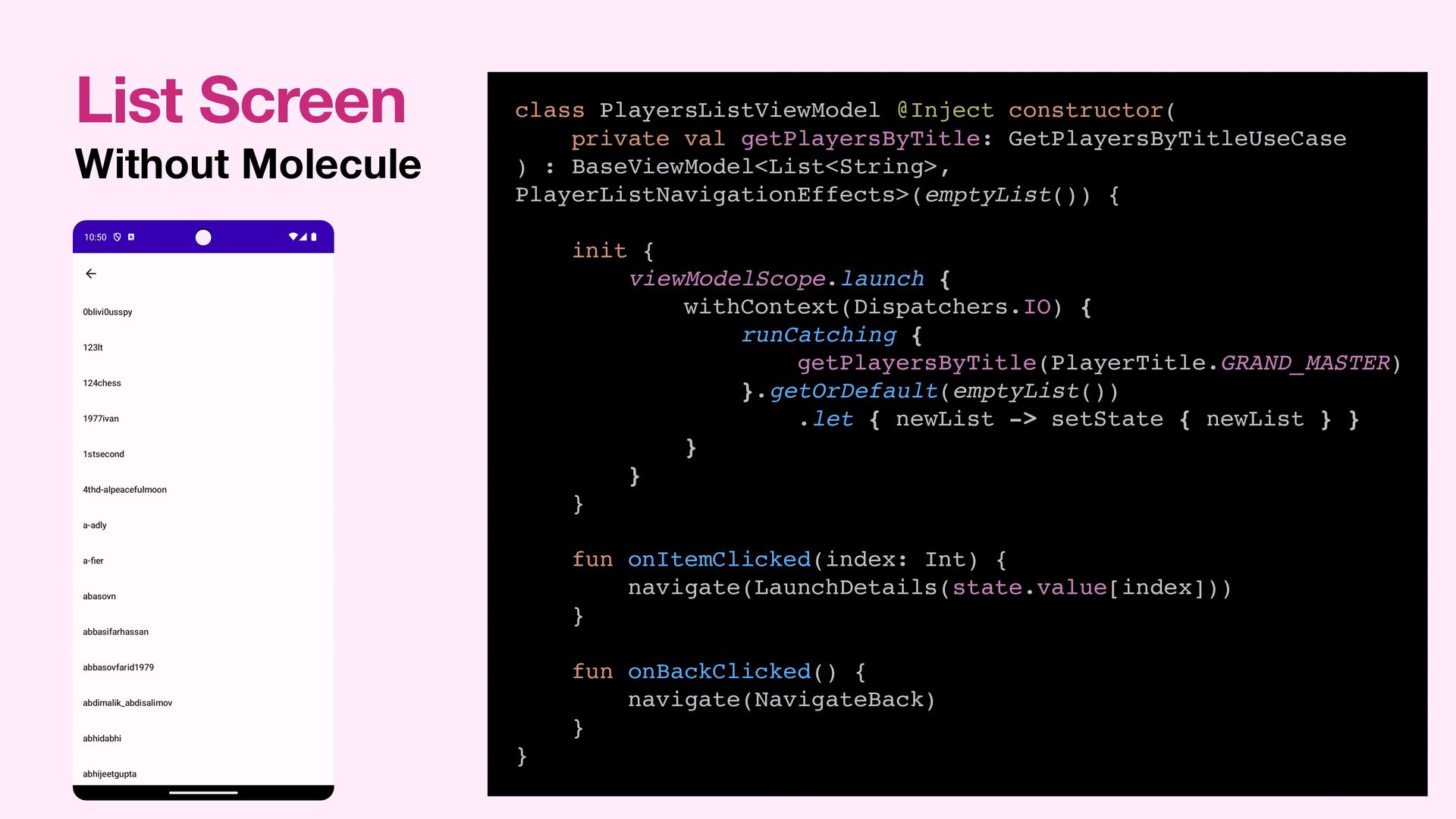

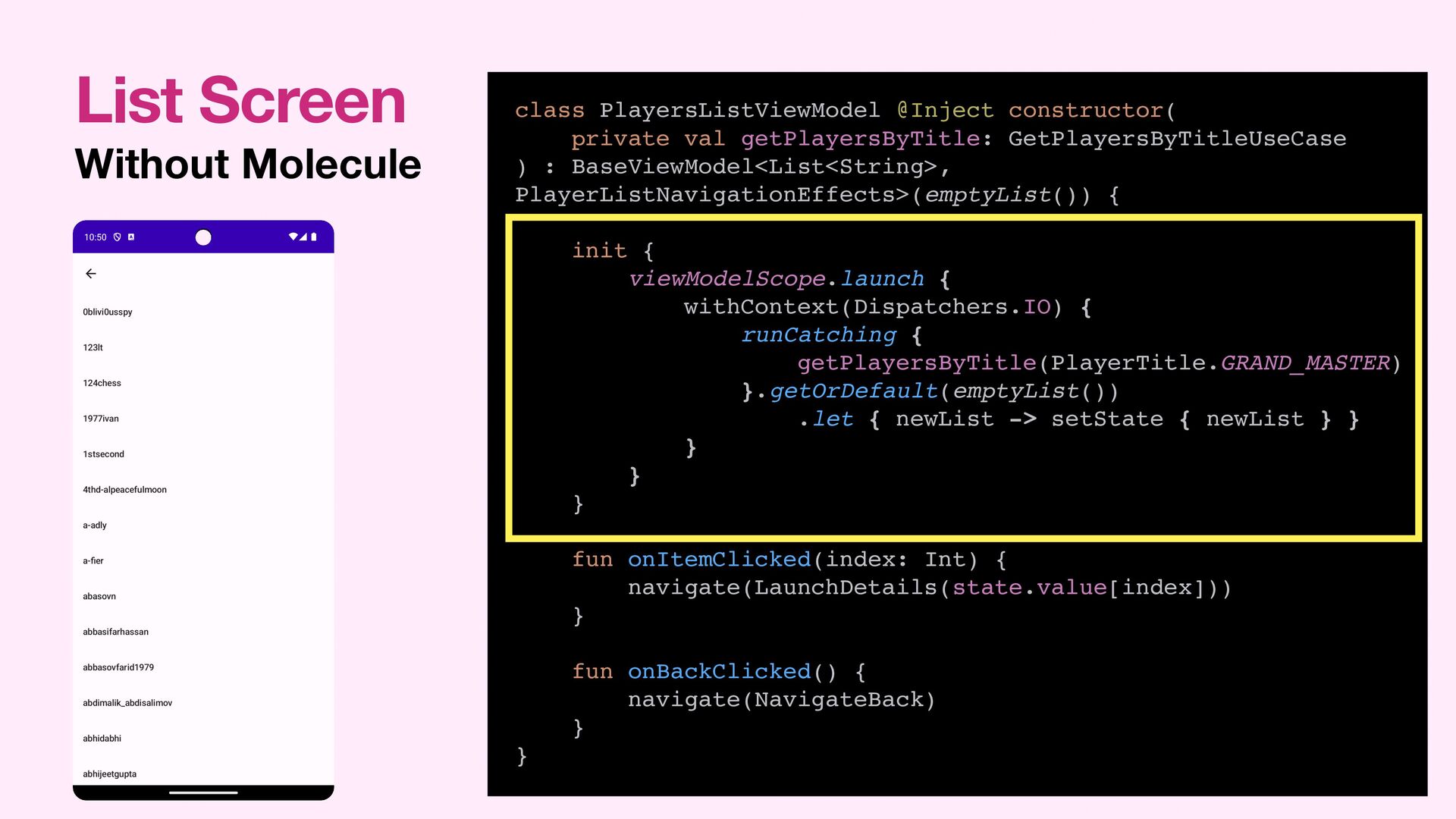

31. List Screen Without Molecule class PlayersListViewModel @Inject constructor( private val getPlayersByTitle: GetPlayersByTitleUseCase ) : BaseViewModel<List<String>, PlayerListNavigationEffects>(emptyList()) { init { viewModelScope.launch { withContext(Dispatchers.IO) { runCatching { getPlayersByTitle(PlayerTitle.GRAND_MASTER) }.getOrDefault(emptyList()) .let { newList -> setState { newList } } } } } fun onItemClicked(index: Int) { navigate(LaunchDetails(state.value[index])) } fun onBackClicked() { navigate(NavigateBack) } }
32. List Screen Without Molecule class PlayersListViewModel @Inject constructor( private val getPlayersByTitle: GetPlayersByTitleUseCase ) : BaseViewModel<List<String>, PlayerListNavigationEffects>(emptyList()) { init { viewModelScope.launch { withContext(Dispatchers.IO) { runCatching { getPlayersByTitle(PlayerTitle.GRAND_MASTER) }.getOrDefault(emptyList()) .let { newList -> setState { newList } } } } } fun onItemClicked(index: Int) { navigate(LaunchDetails(state.value[index])) } fun onBackClicked() { navigate(NavigateBack) } }

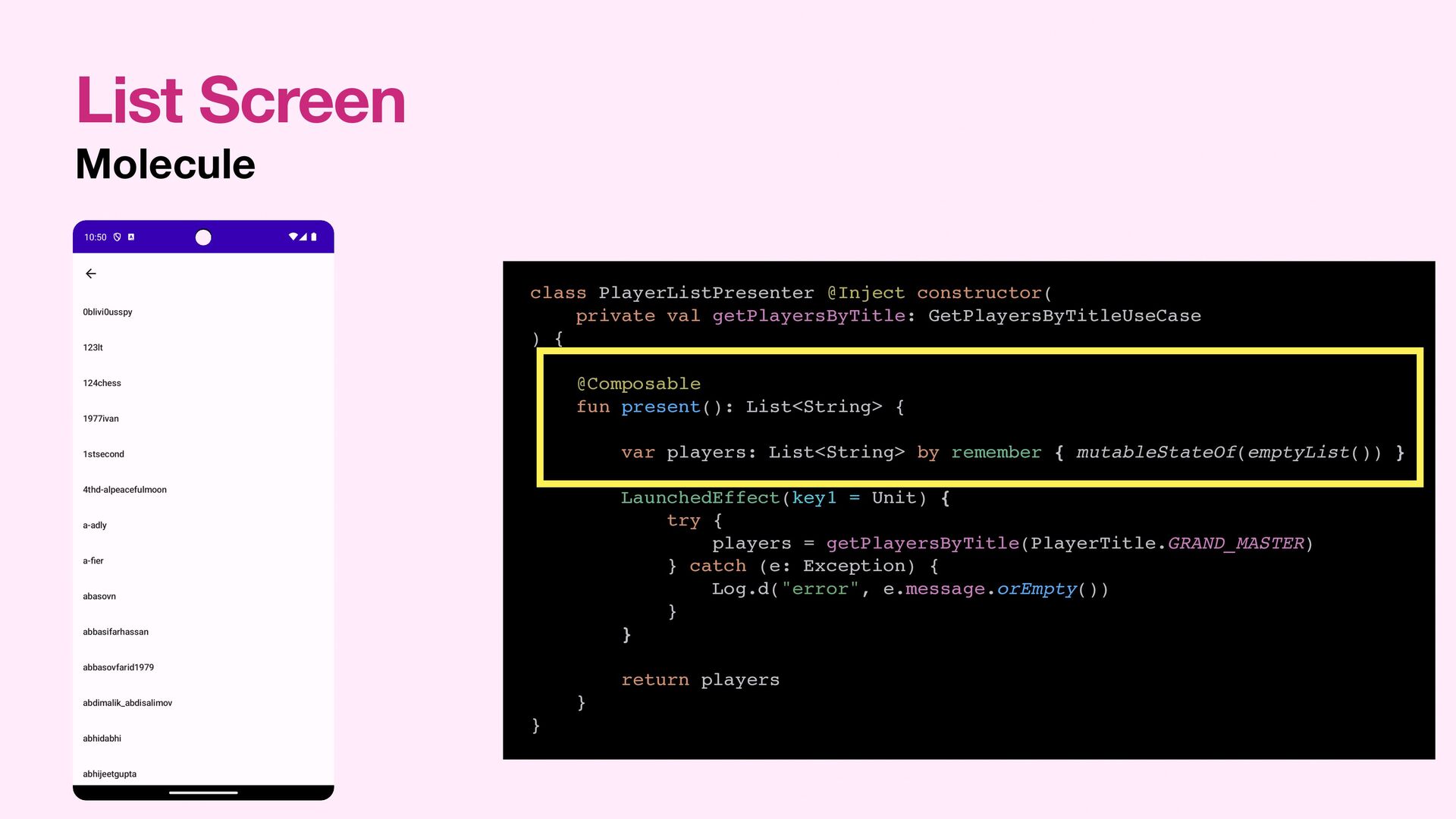

33. List Screen Molecule class PlayerListPresenter @Inject constructor( private val getPlayersByTitle: GetPlayersByTitleUseCase ) { @Composable fun present(): List<String> { var players: List<String> by remember { mutableStateOf(emptyList()) } LaunchedEffect(key1 = Unit) { try { players = getPlayersByTitle(PlayerTitle.GRAND_MASTER) } catch (e: Exception) { Log.d("error", e.message.orEmpty()) } } return players } }

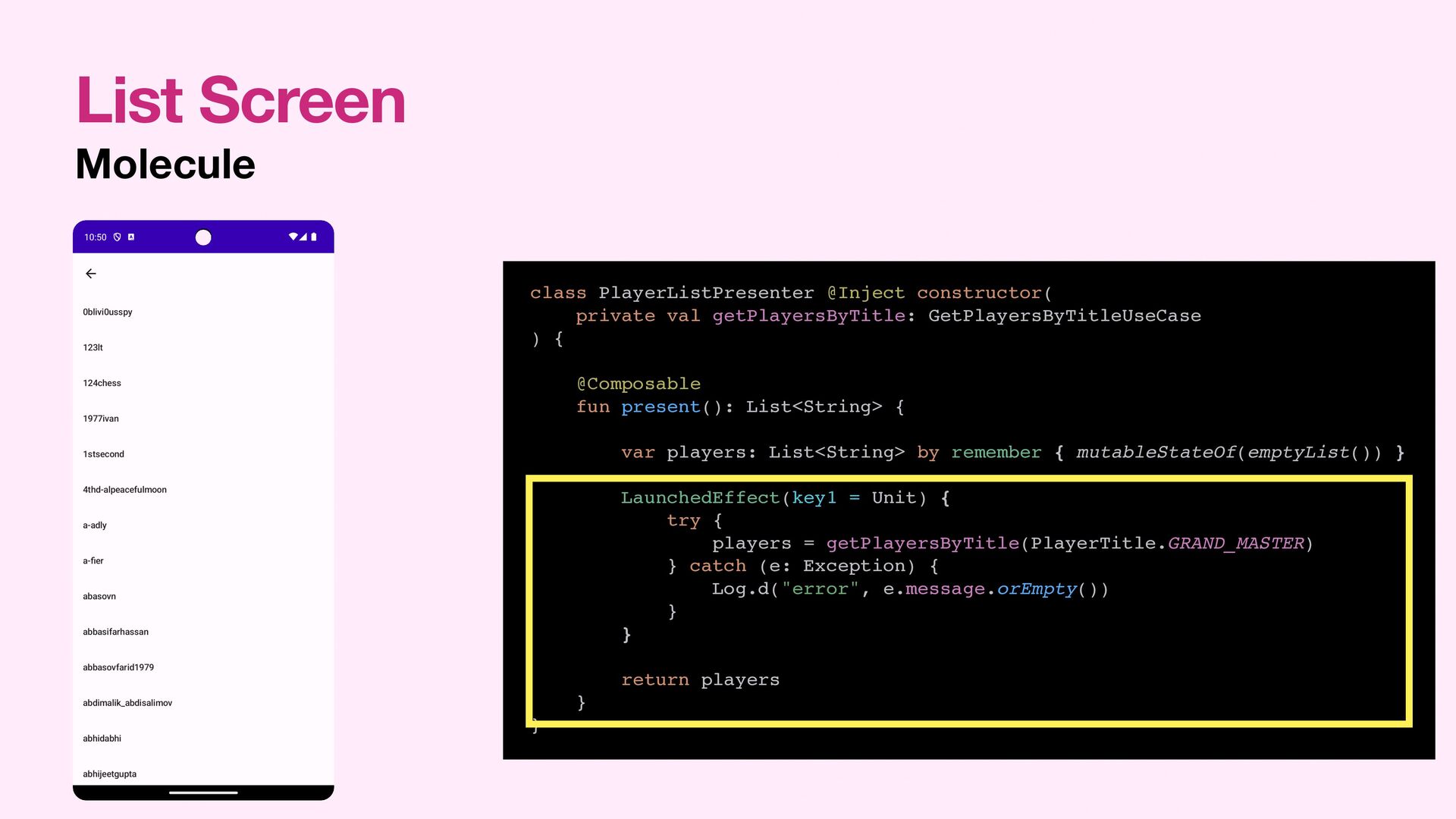

34. List Screen Molecule class PlayerListPresenter @Inject constructor( private val getPlayersByTitle: GetPlayersByTitleUseCase ) { @Composable fun present(): List<String> { var players: List<String> by remember { mutableStateOf(emptyList()) } LaunchedEffect(key1 = Unit) { try { players = getPlayersByTitle(PlayerTitle.GRAND_MASTER) } catch (e: Exception) { Log.d("error", e.message.orEmpty()) } } return players } }
35. List Screen Molecule class PlayerListPresenter @Inject constructor( private val getPlayersByTitle: GetPlayersByTitleUseCase ) { @Composable fun present(): List<String> { var players: List<String> by remember { mutableStateOf(emptyList()) } LaunchedEffect(key1 = Unit) { try { players = getPlayersByTitle(PlayerTitle.GRAND_MASTER) } catch (e: Exception) { Log.d("error", e.message.orEmpty()) } } return players } }

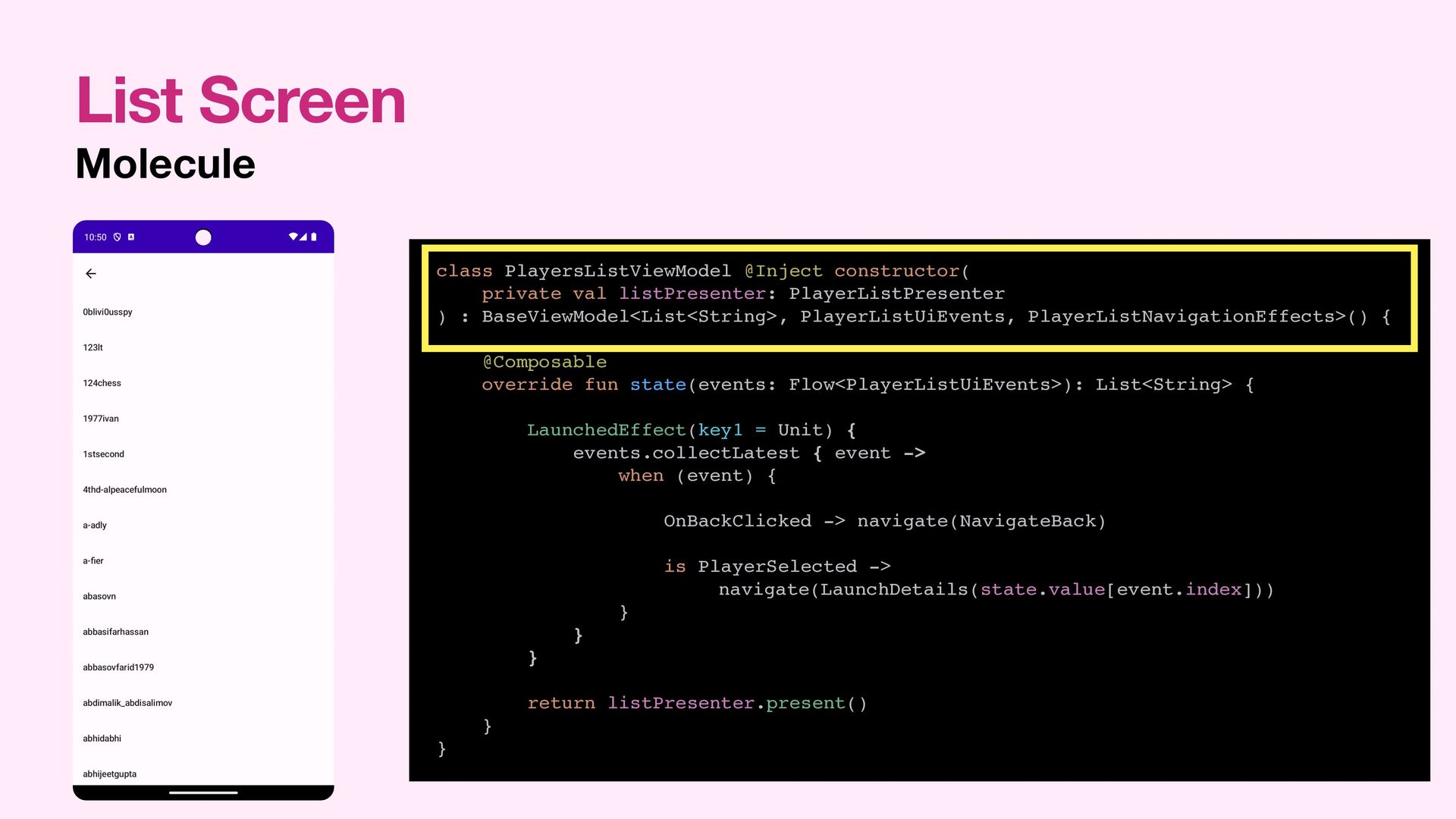

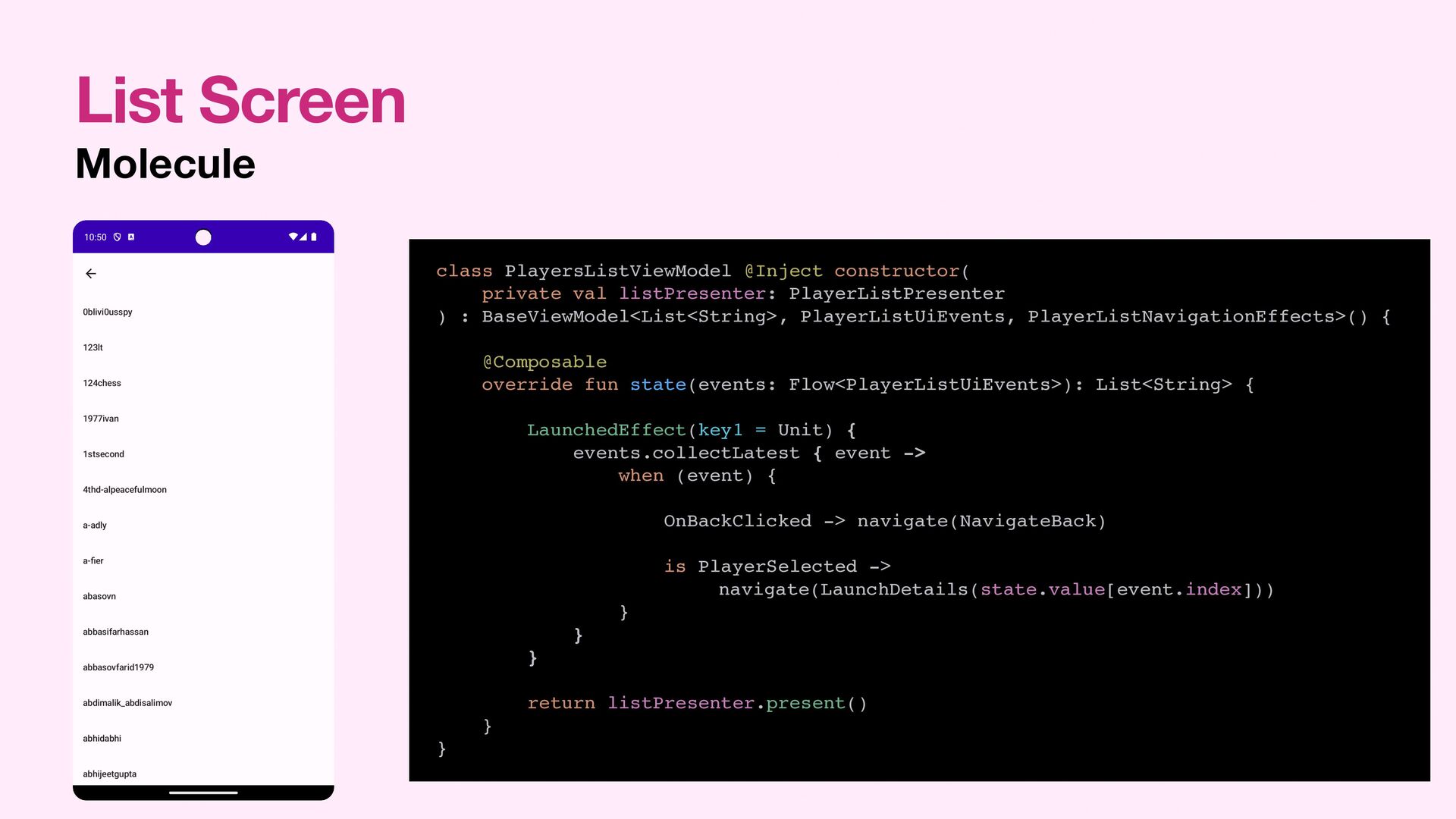

36. List Screen Molecule class PlayersListViewModel @Inject constructor( private val listPresenter: PlayerListPresenter ) : BaseViewModel<List<String>, PlayerListUiEvents, PlayerListNavigationEffects>() { @Composable override fun state(events: Flow<PlayerListUiEvents>): List<String> { LaunchedEffect(key1 = Unit) { events.collectLatest { event -> when (event) { OnBackClicked -> navigate(NavigateBack) is PlayerSelected -> navigate(LaunchDetails(state.value[event.index])) } } } return listPresenter.present() } }

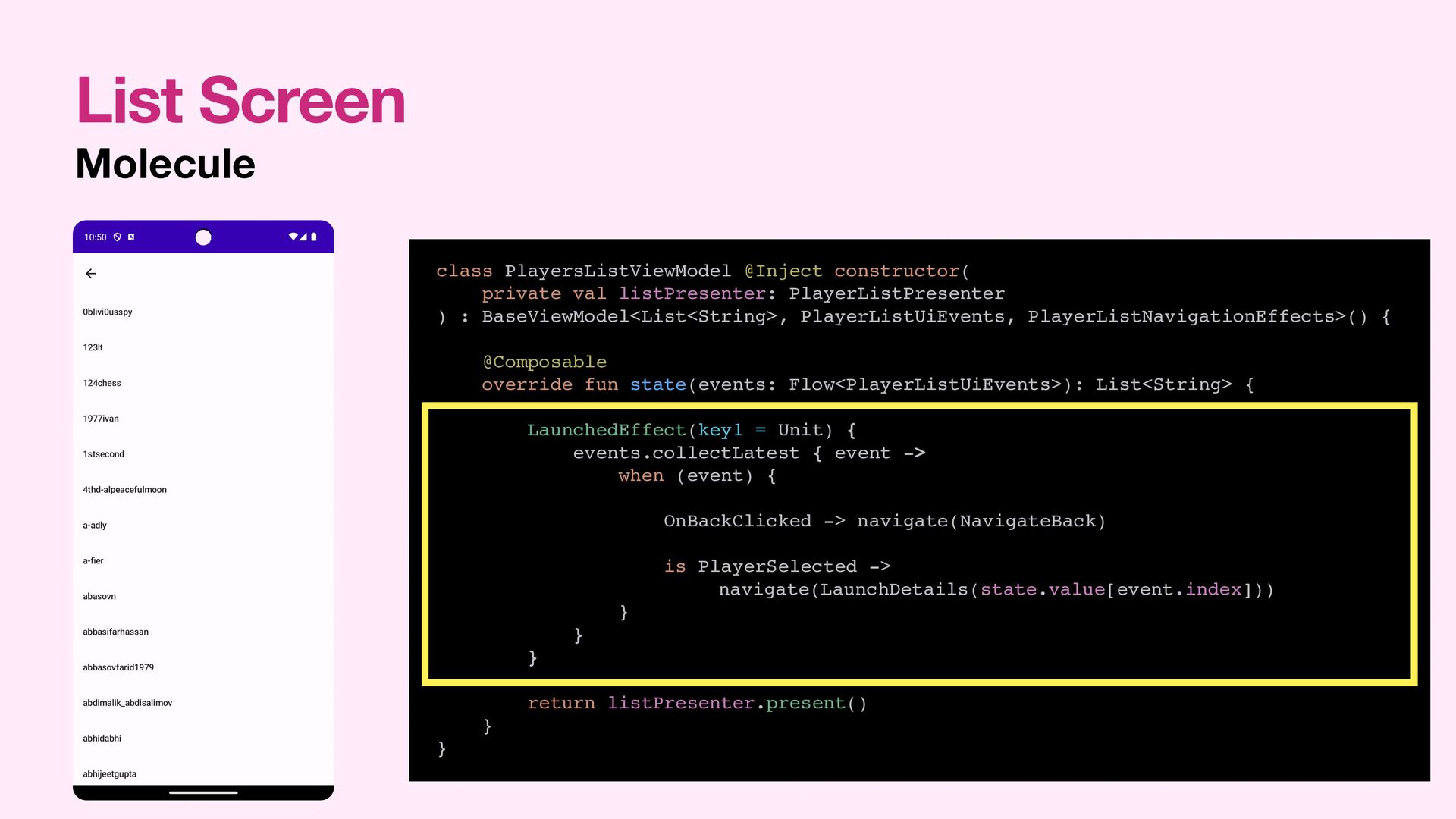

37. List Screen Molecule class PlayersListViewModel @Inject constructor( private val listPresenter: PlayerListPresenter ) : BaseViewModel<List<String>, PlayerListUiEvents, PlayerListNavigationEffects>() { @Composable override fun state(events: Flow<PlayerListUiEvents>): List<String> { LaunchedEffect(key1 = Unit) { events.collectLatest { event -> when (event) { OnBackClicked -> navigate(NavigateBack) is PlayerSelected -> navigate(LaunchDetails(state.value[event.index])) } } } return listPresenter.present() } }

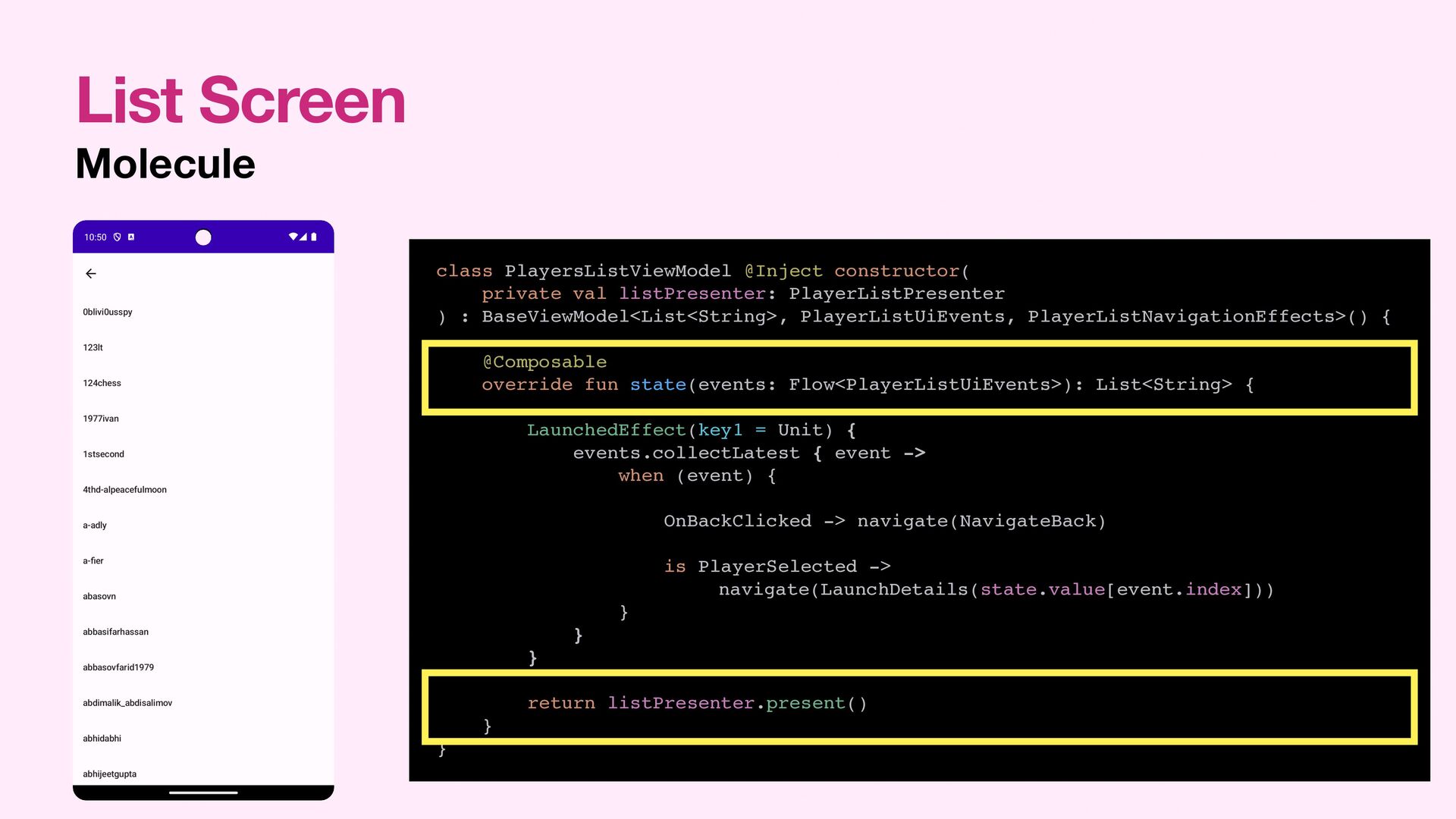

38. List Screen Molecule class PlayersListViewModel @Inject constructor( private val listPresenter: PlayerListPresenter ) : BaseViewModel<List<String>, PlayerListUiEvents, PlayerListNavigationEffects>() { @Composable override fun state(events: Flow<PlayerListUiEvents>): List<String> { LaunchedEffect(key1 = Unit) { events.collectLatest { event -> when (event) { OnBackClicked -> navigate(NavigateBack) is PlayerSelected -> navigate(LaunchDetails(state.value[event.index])) } } } return listPresenter.present() } }
39. List Screen Molecule class PlayersListViewModel @Inject constructor( private val listPresenter: PlayerListPresenter ) : BaseViewModel<List<String>, PlayerListUiEvents, PlayerListNavigationEffects>() { @Composable override fun state(events: Flow<PlayerListUiEvents>): List<String> { LaunchedEffect(key1 = Unit) { events.collectLatest { event -> when (event) { OnBackClicked -> navigate(NavigateBack) is PlayerSelected -> navigate(LaunchDetails(state.value[event.index])) } } } return listPresenter.present() } }

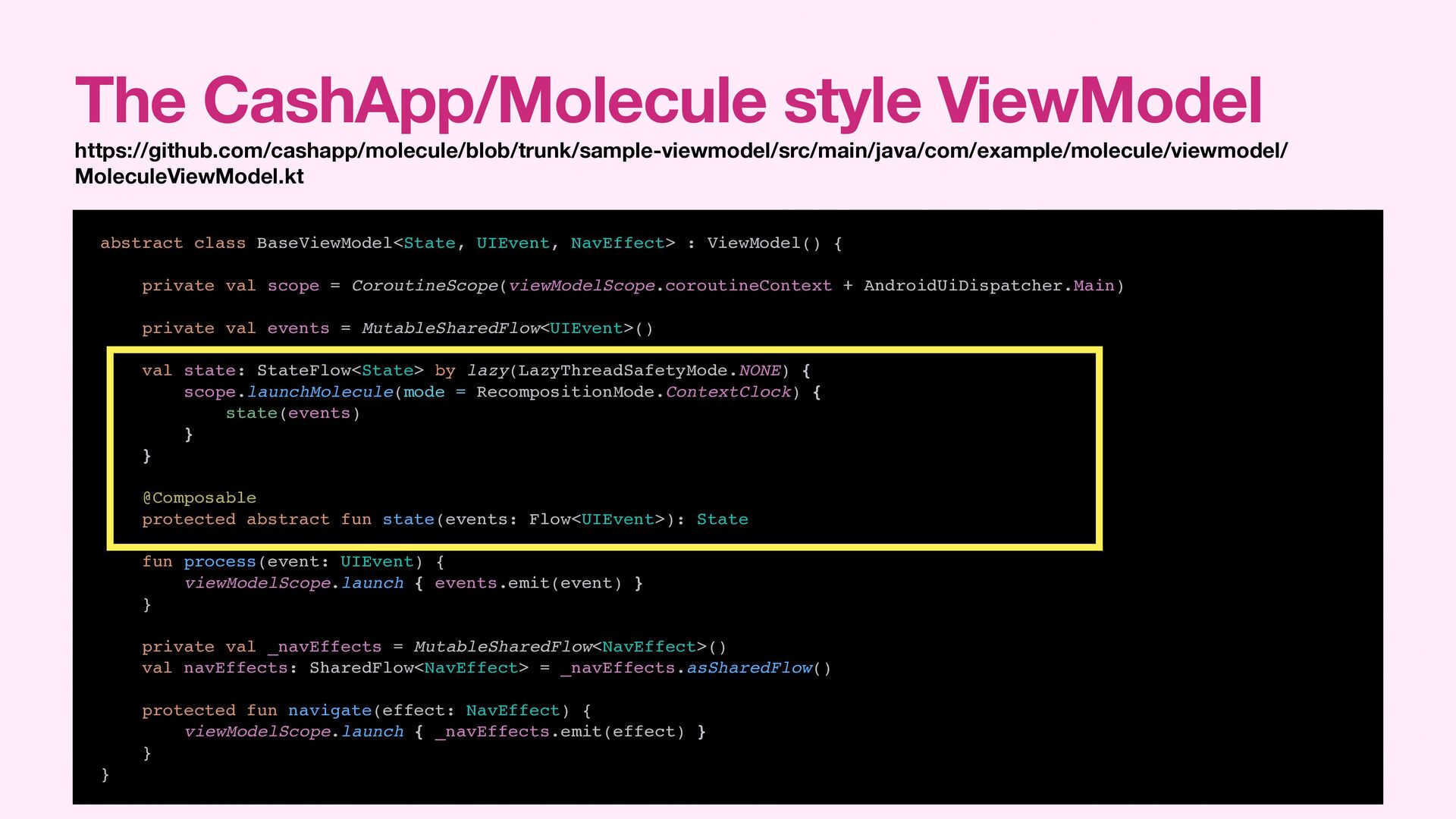

40. The CashApp/Molecule style ViewModel https://github.com/cashapp/molecule/blob/trunk/sample-viewmodel/src/main/java/com/example/molecule/viewmodel/ MoleculeViewModel.kt abstract class BaseViewModel<State, UIEvent, NavEffect> : ViewModel() { private val scope = CoroutineScope(viewModelScope.coroutineContext + AndroidUiDispatcher.Main) private val events = MutableSharedFlow<UIEvent>() val state: StateFlow<State> by lazy(LazyThreadSafetyMode.NONE) { scope.launchMolecule(mode = RecompositionMode.ContextClock) { state(events) } } @Composable protected abstract fun state(events: Flow<UIEvent>): State fun process(event: UIEvent) { viewModelScope.launch { events.emit(event) } } private val _navEffects = MutableSharedFlow<NavEffect>() val navEffects: SharedFlow<NavEffect> = _navEffects.asSharedFlow() protected fun navigate(effect: NavEffect) { viewModelScope.launch { _navEffects.emit(effect) } } }

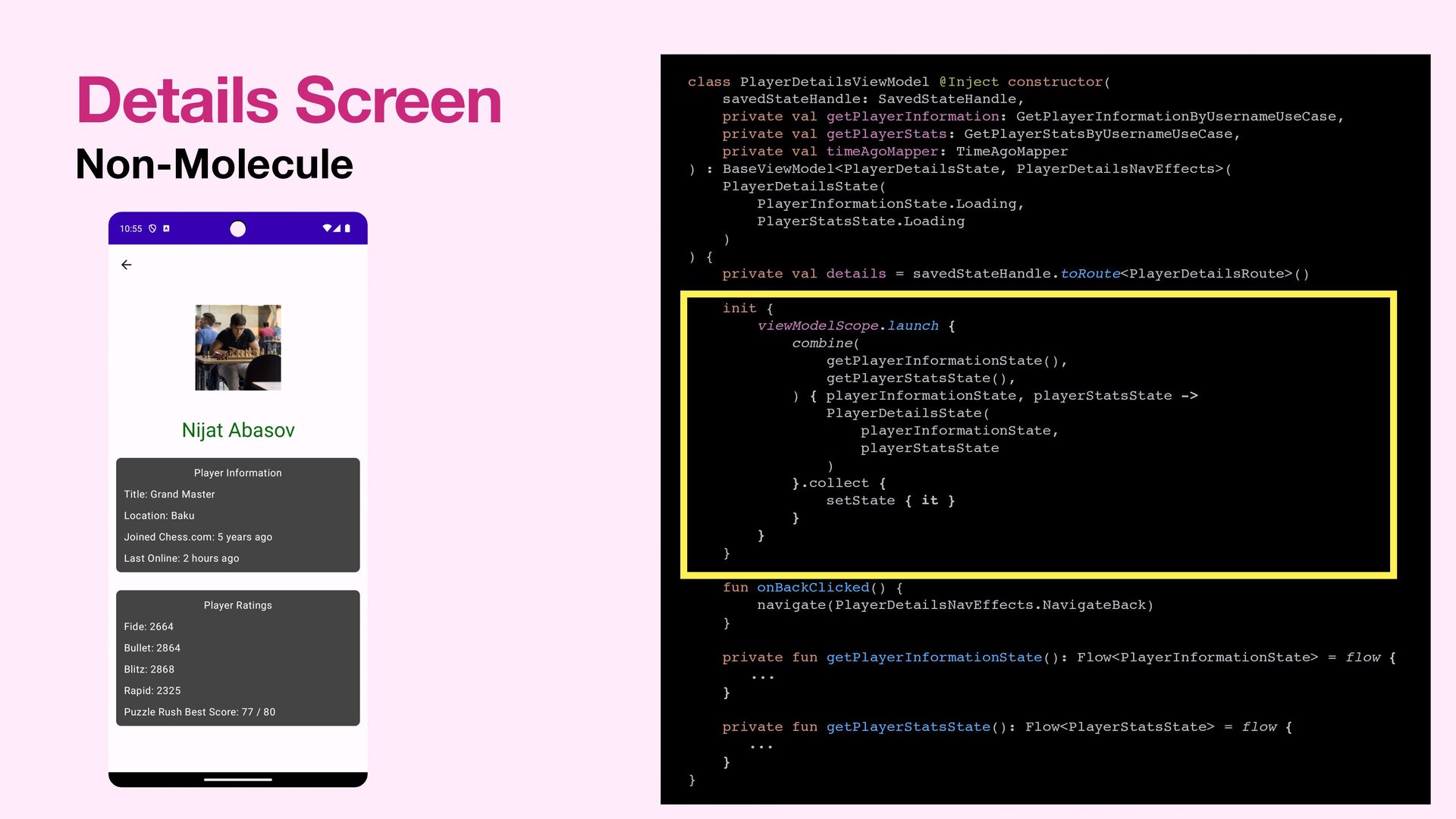

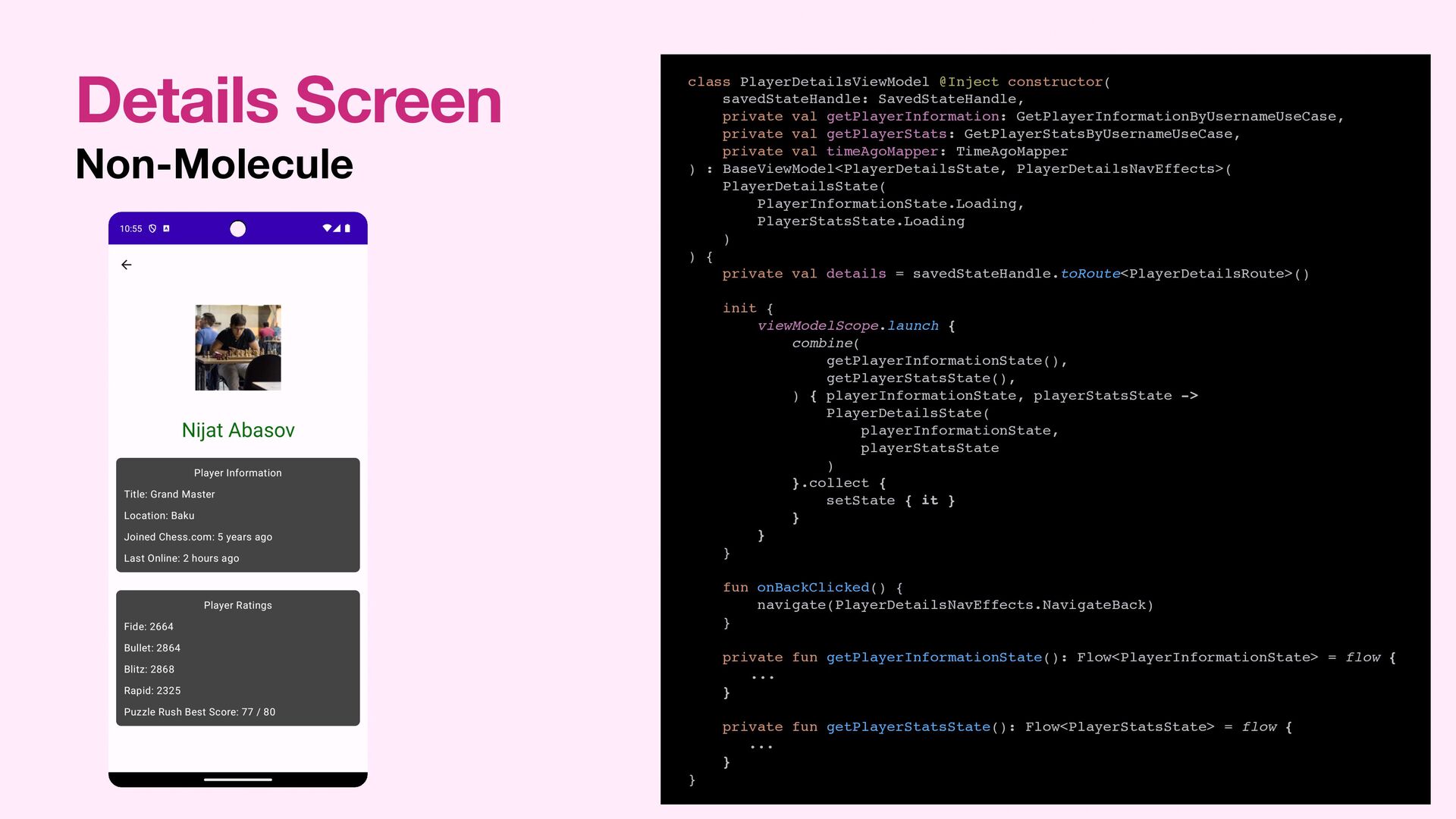

41. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val getPlayerStats: GetPlayerStatsByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( PlayerDetailsState( PlayerInformationState.Loading, PlayerStatsState.Loading ) ) { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() init { viewModelScope.launch { combine( getPlayerInformationState(), getPlayerStatsState(), ) { playerInformationState, playerStatsState -> PlayerDetailsState( playerInformationState, playerStatsState ) }.collect { setState { it } } } } fun onBackClicked() { navigate(PlayerDetailsNavEffects.NavigateBack) } private fun getPlayerInformationState(): Flow<PlayerInformationState> = flow { ... } private fun getPlayerStatsState(): Flow<PlayerStatsState> = flow { ... } }

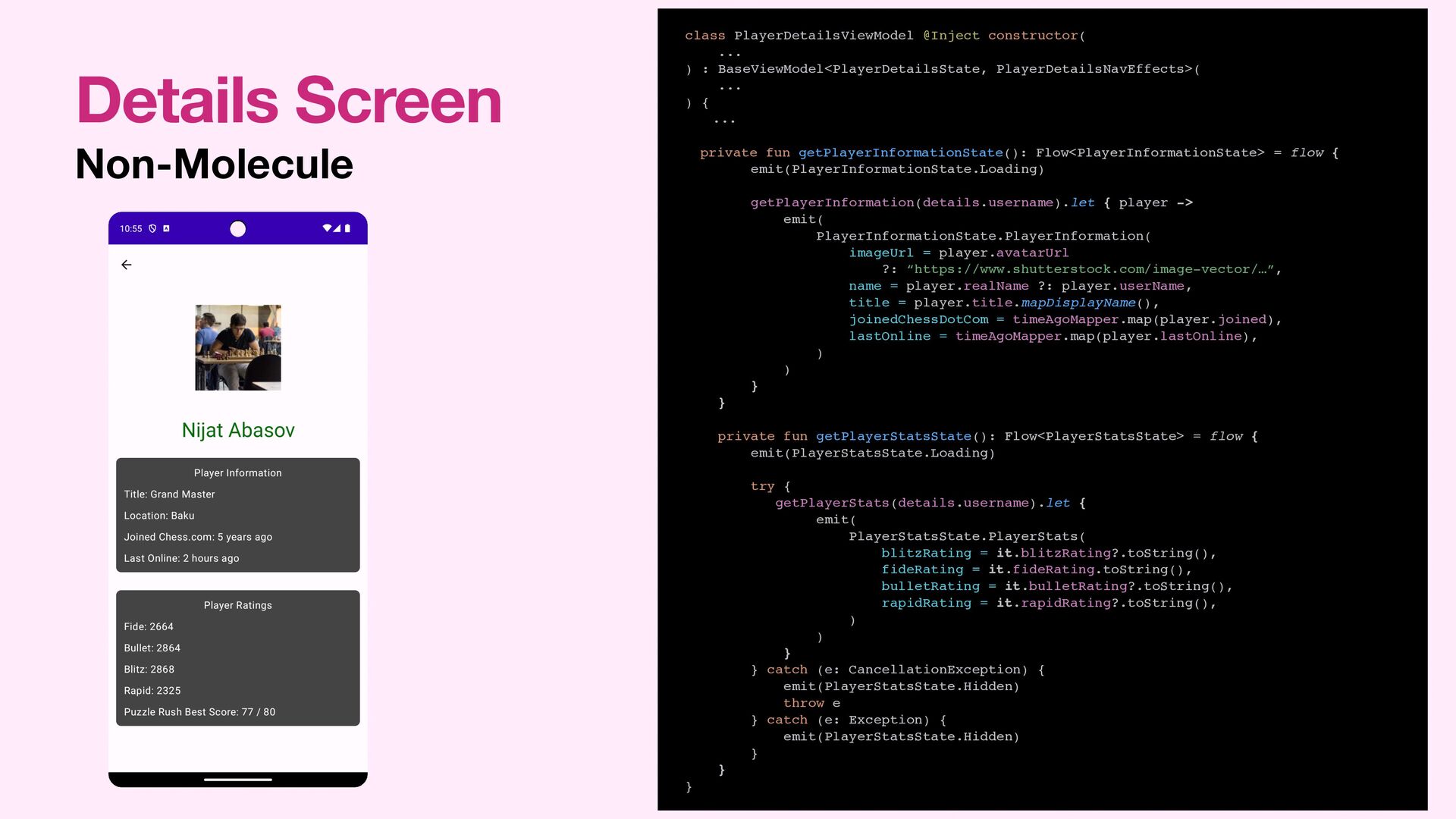

42. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val getPlayerStats: GetPlayerStatsByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( PlayerDetailsState( PlayerInformationState.Loading, PlayerStatsState.Loading ) ) { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() init { viewModelScope.launch { combine( getPlayerInformationState(), getPlayerStatsState(), ) { playerInformationState, playerStatsState -> PlayerDetailsState( playerInformationState, playerStatsState ) }.collect { setState { it } } } } fun onBackClicked() { navigate(PlayerDetailsNavEffects.NavigateBack) } private fun getPlayerInformationState(): Flow<PlayerInformationState> = flow { ... } private fun getPlayerStatsState(): Flow<PlayerStatsState> = flow { ... } }

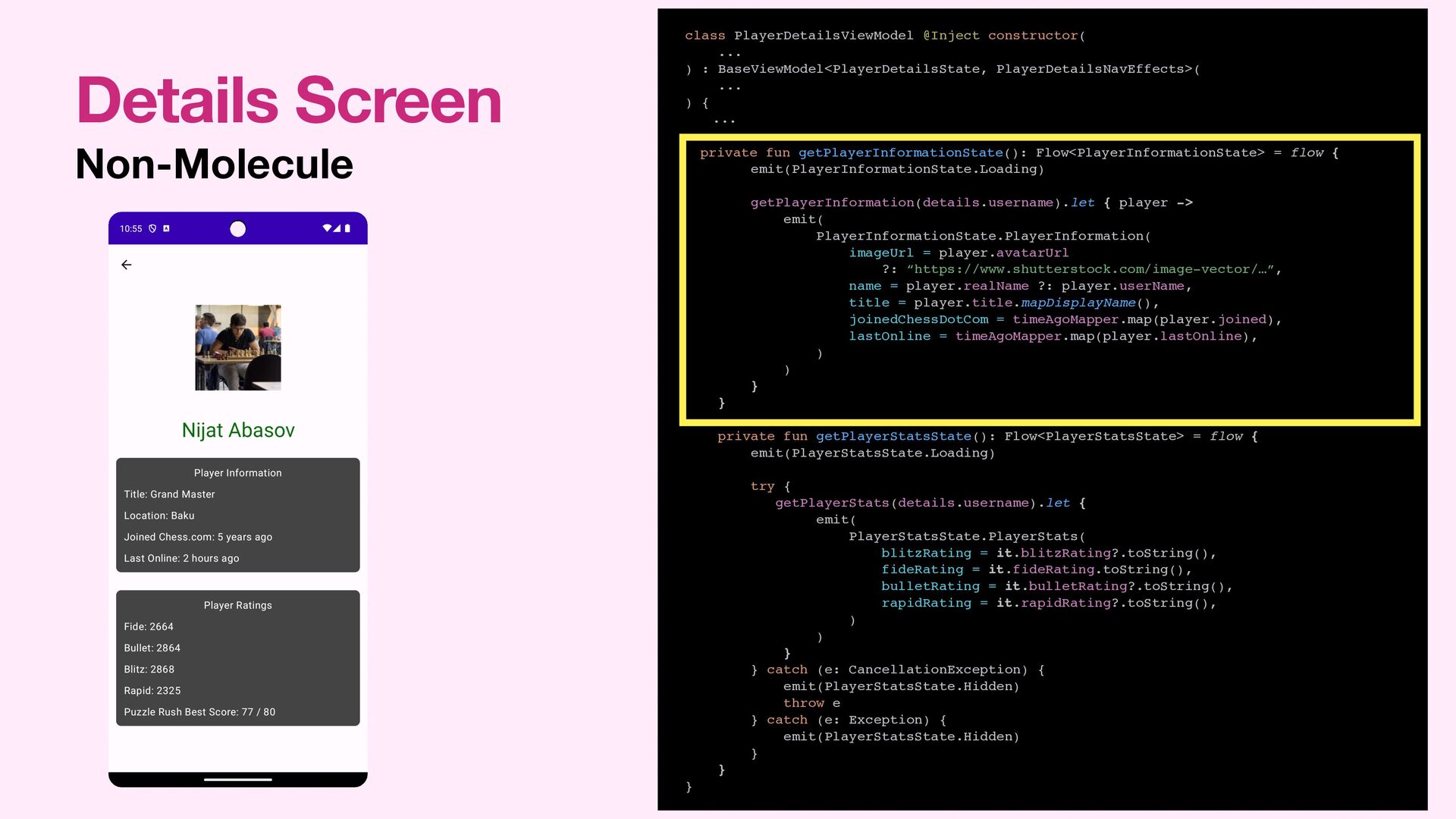

43. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( ... ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( ... ) { ... private fun getPlayerInformationState(): Flow<PlayerInformationState> = flow { emit(PlayerInformationState.Loading) getPlayerInformation(details.username).let { player -> emit( PlayerInformationState.PlayerInformation( imageUrl = player.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = player.realName ?: player.userName, title = player.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(player.joined), lastOnline = timeAgoMapper.map(player.lastOnline), ) ) } } private fun getPlayerStatsState(): Flow<PlayerStatsState> = flow { emit(PlayerStatsState.Loading) try { getPlayerStats(details.username).let { emit( PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), ) ) } } catch (e: CancellationException) { emit(PlayerStatsState.Hidden) throw e } catch (e: Exception) { emit(PlayerStatsState.Hidden) } } }
44. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( ... ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( ... ) { ... private fun getPlayerInformationState(): Flow<PlayerInformationState> = flow { emit(PlayerInformationState.Loading) getPlayerInformation(details.username).let { player -> emit( PlayerInformationState.PlayerInformation( imageUrl = player.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = player.realName ?: player.userName, title = player.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(player.joined), lastOnline = timeAgoMapper.map(player.lastOnline), ) ) } } private fun getPlayerStatsState(): Flow<PlayerStatsState> = flow { emit(PlayerStatsState.Loading) try { getPlayerStats(details.username).let { emit( PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), ) ) } } catch (e: CancellationException) { emit(PlayerStatsState.Hidden) throw e } catch (e: Exception) { emit(PlayerStatsState.Hidden) } } }

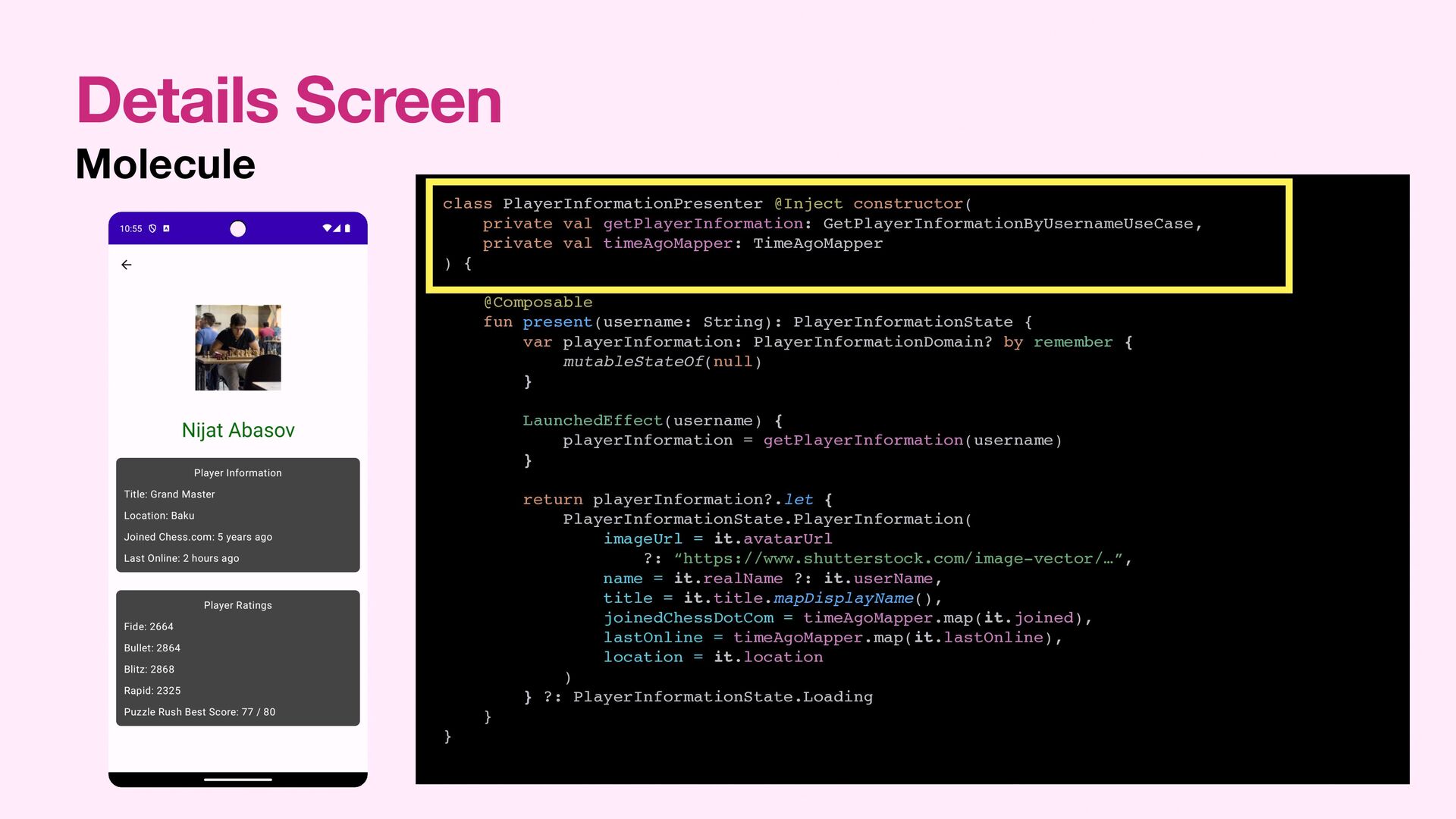

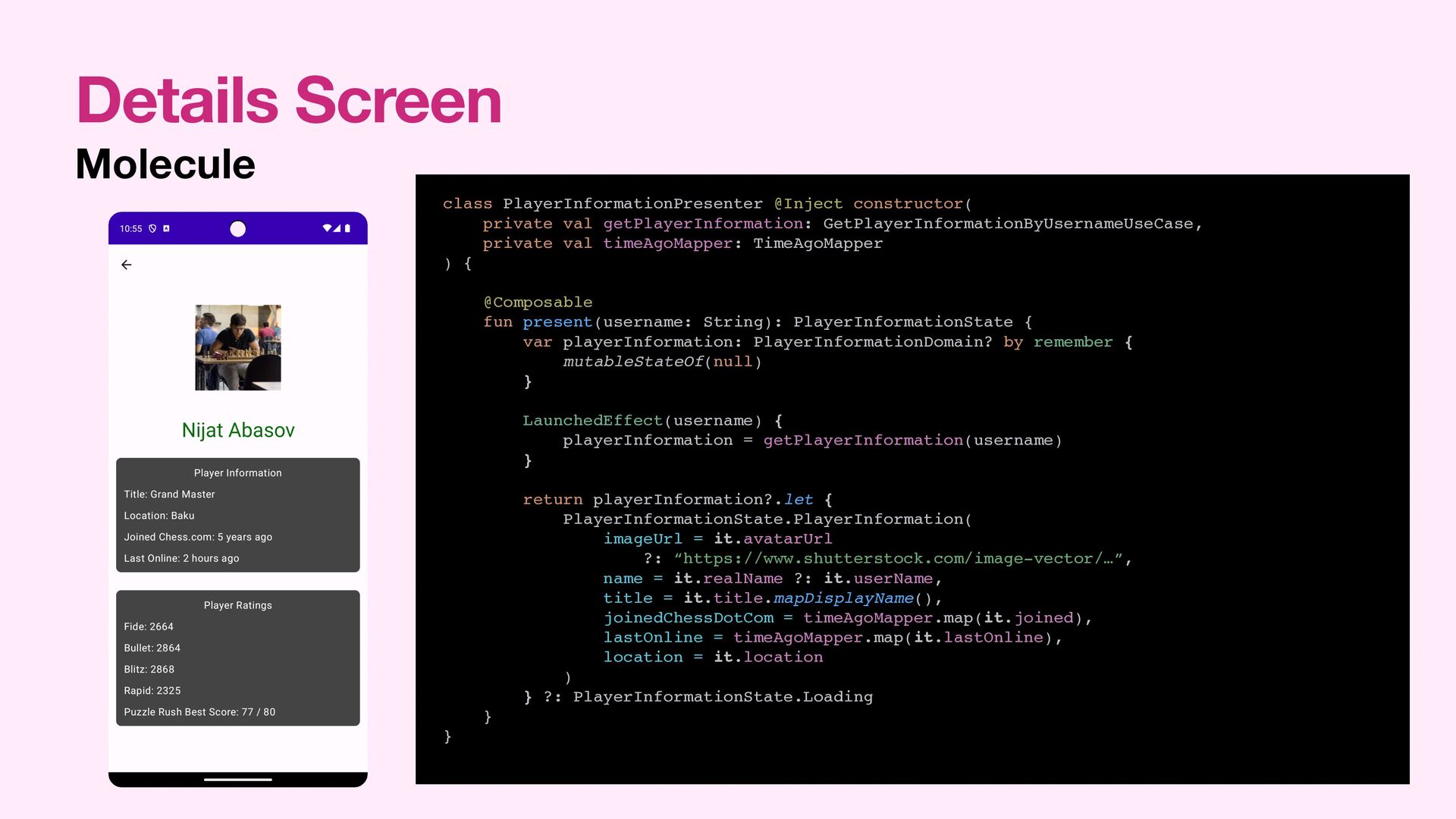

45. Details Screen Molecule class PlayerInformationPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) { @Composable fun present(username: String): PlayerInformationState { var playerInformation: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { playerInformation = getPlayerInformation(username) } return playerInformation?.let { PlayerInformationState.PlayerInformation( imageUrl = it.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = it.realName ?: it.userName, title = it.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(it.joined), lastOnline = timeAgoMapper.map(it.lastOnline), location = it.location ) } ?: PlayerInformationState.Loading } }

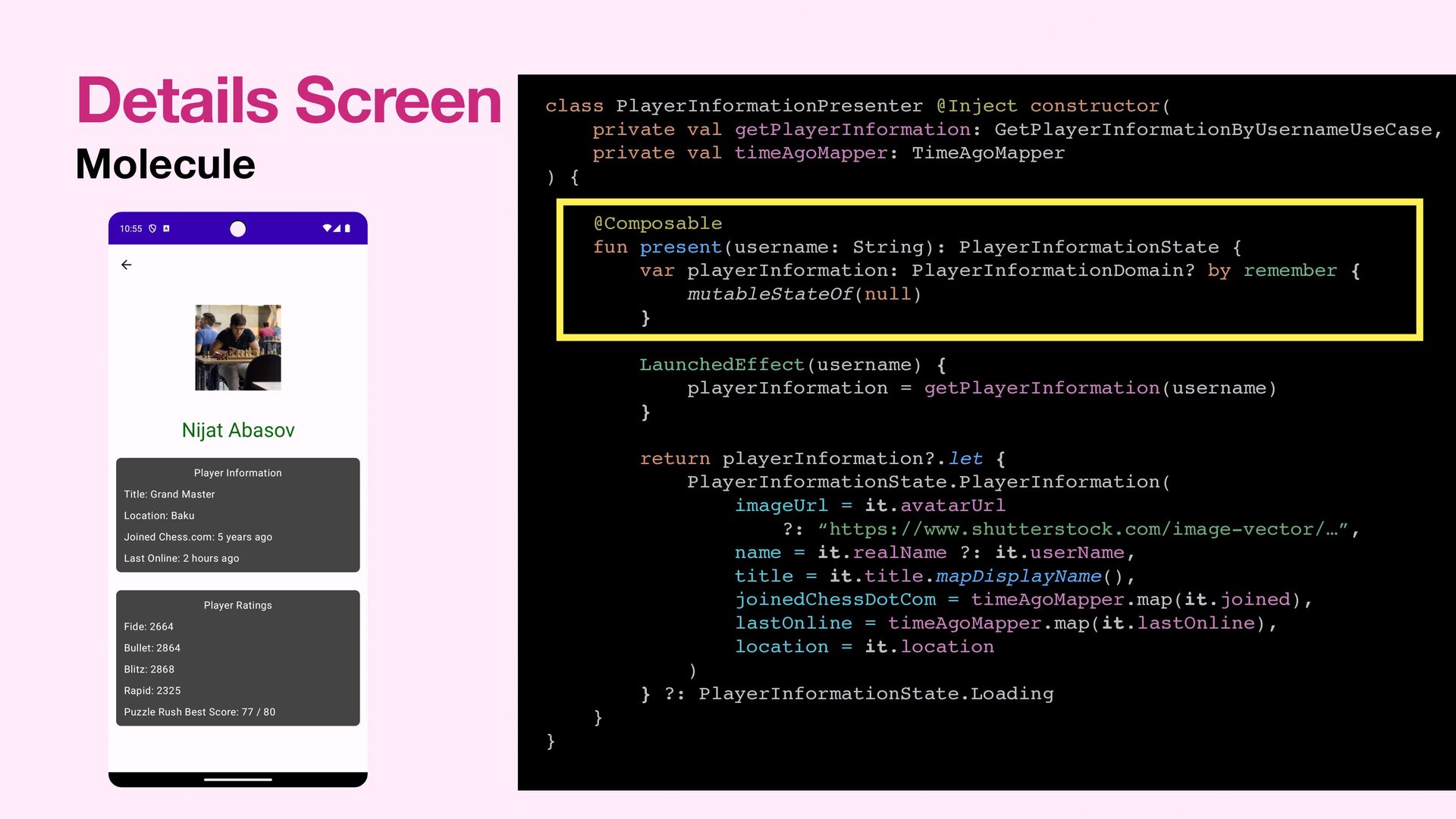

46. Details Screen Molecule class PlayerInformationPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) { @Composable fun present(username: String): PlayerInformationState { var playerInformation: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { playerInformation = getPlayerInformation(username) } return playerInformation?.let { PlayerInformationState.PlayerInformation( imageUrl = it.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = it.realName ?: it.userName, title = it.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(it.joined), lastOnline = timeAgoMapper.map(it.lastOnline), location = it.location ) } ?: PlayerInformationState.Loading } }

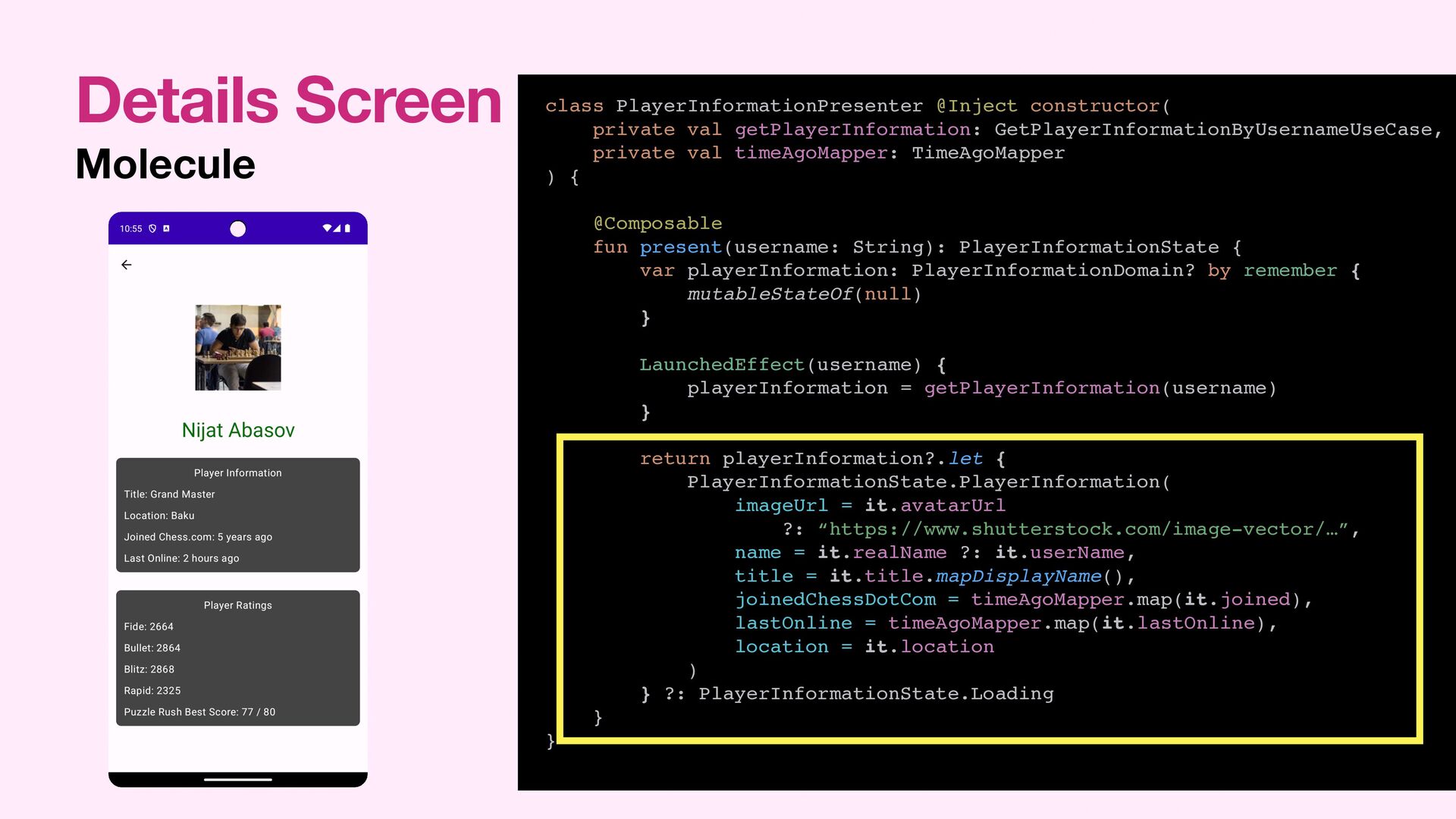

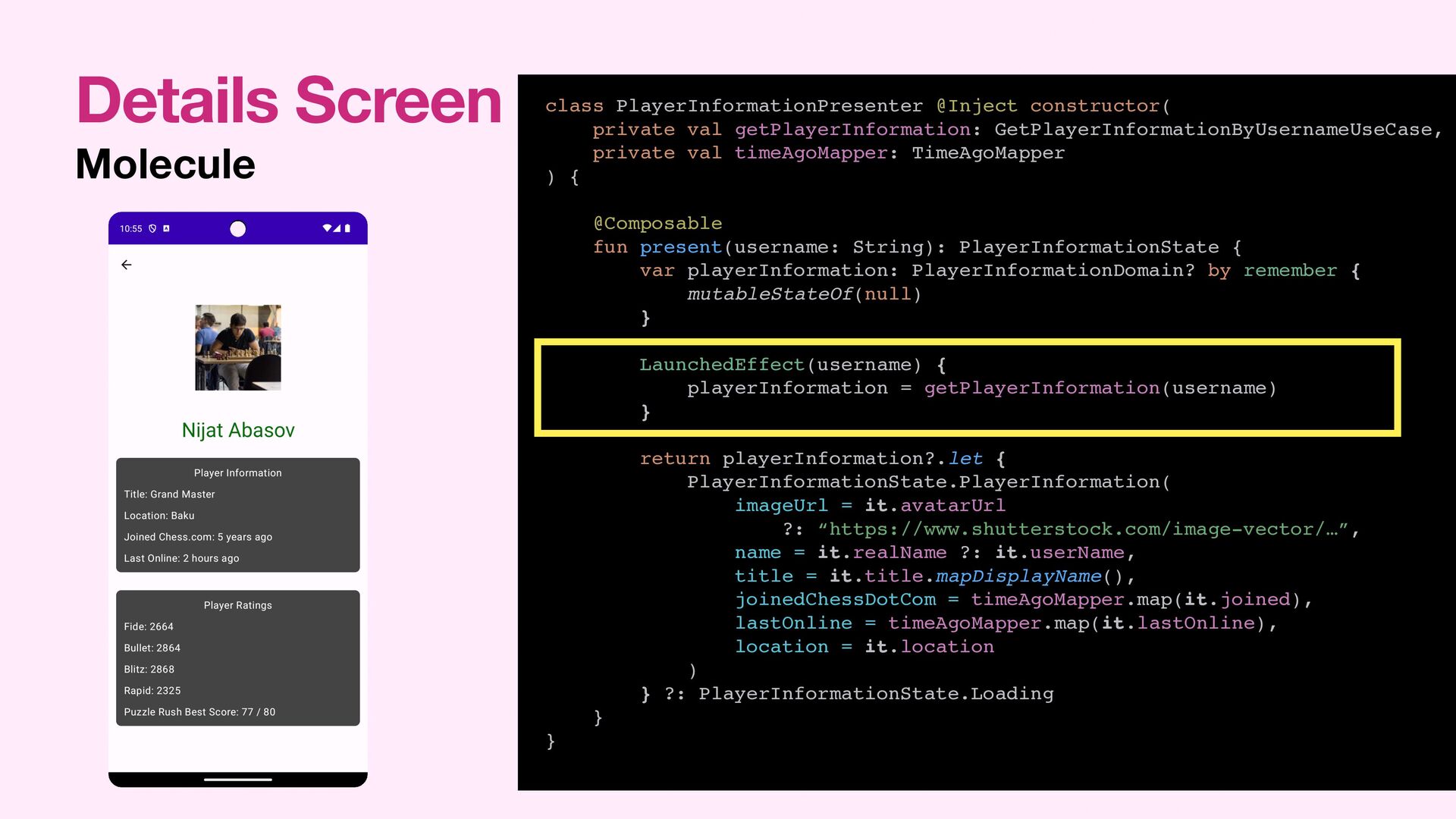

47. Details Screen Molecule class PlayerInformationPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) { @Composable fun present(username: String): PlayerInformationState { var playerInformation: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { playerInformation = getPlayerInformation(username) } return playerInformation?.let { PlayerInformationState.PlayerInformation( imageUrl = it.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = it.realName ?: it.userName, title = it.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(it.joined), lastOnline = timeAgoMapper.map(it.lastOnline), location = it.location ) } ?: PlayerInformationState.Loading } }
48. Details Screen Molecule class PlayerInformationPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) { @Composable fun present(username: String): PlayerInformationState { var playerInformation: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { playerInformation = getPlayerInformation(username) } return playerInformation?.let { PlayerInformationState.PlayerInformation( imageUrl = it.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = it.realName ?: it.userName, title = it.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(it.joined), lastOnline = timeAgoMapper.map(it.lastOnline), location = it.location ) } ?: PlayerInformationState.Loading } }
49. Details Screen Molecule class PlayerInformationPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper ) { @Composable fun present(username: String): PlayerInformationState { var playerInformation: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { playerInformation = getPlayerInformation(username) } return playerInformation?.let { PlayerInformationState.PlayerInformation( imageUrl = it.avatarUrl ?: “https://www.shutterstock.com/image-vector/…”, name = it.realName ?: it.userName, title = it.title.mapDisplayName(), joinedChessDotCom = timeAgoMapper.map(it.joined), lastOnline = timeAgoMapper.map(it.lastOnline), location = it.location ) } ?: PlayerInformationState.Loading } }

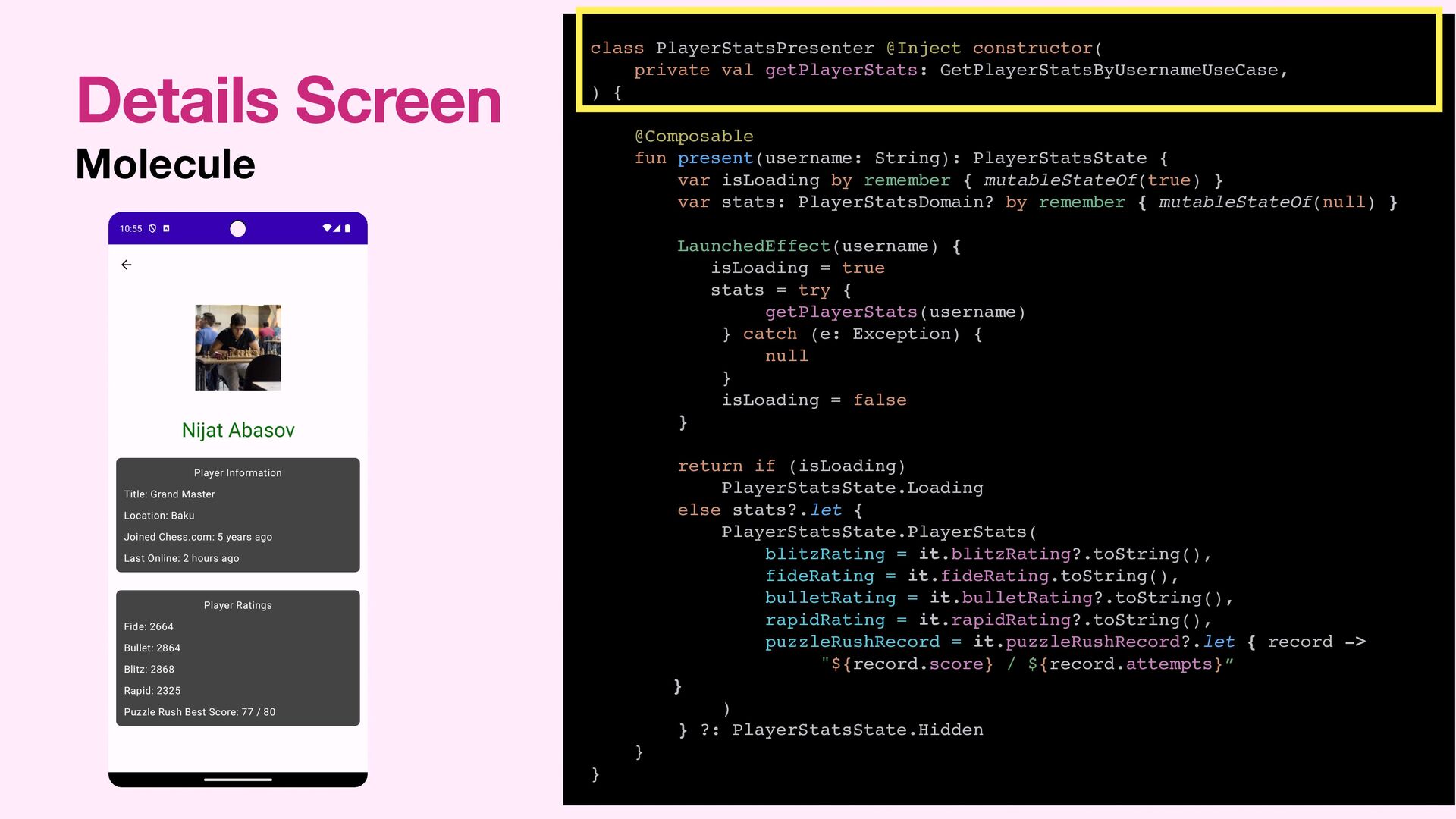

50. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase, ) { @Composable fun present(username: String): PlayerStatsState { var isLoading by remember { mutableStateOf(true) } var stats: PlayerStatsDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { isLoading = true stats = try { getPlayerStats(username) } catch (e: Exception) { null } isLoading = false } return if (isLoading) PlayerStatsState.Loading else stats?.let { PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord?.let { record -> "${record.score} / ${record.attempts}” } ) } ?: PlayerStatsState.Hidden } }

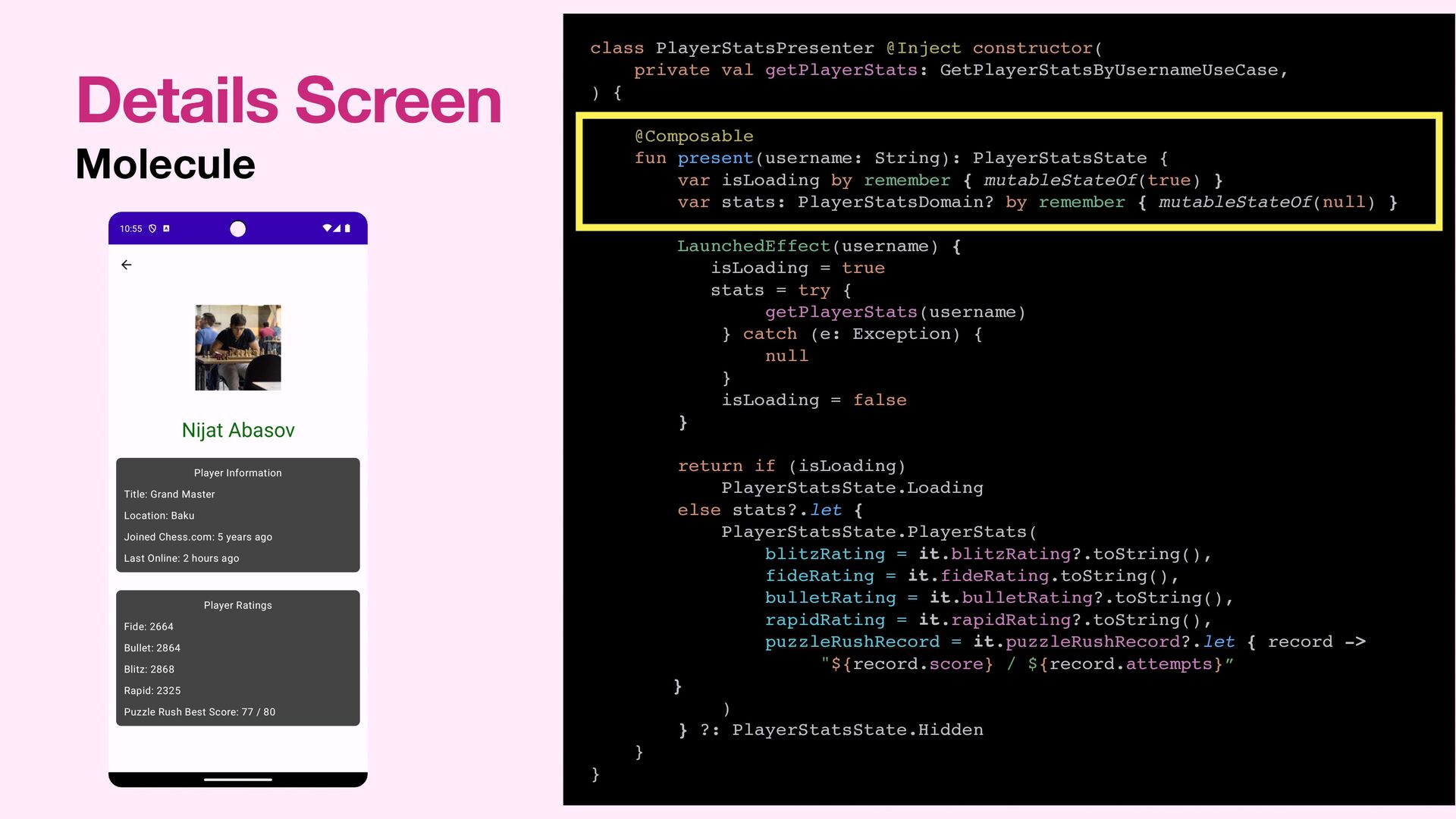

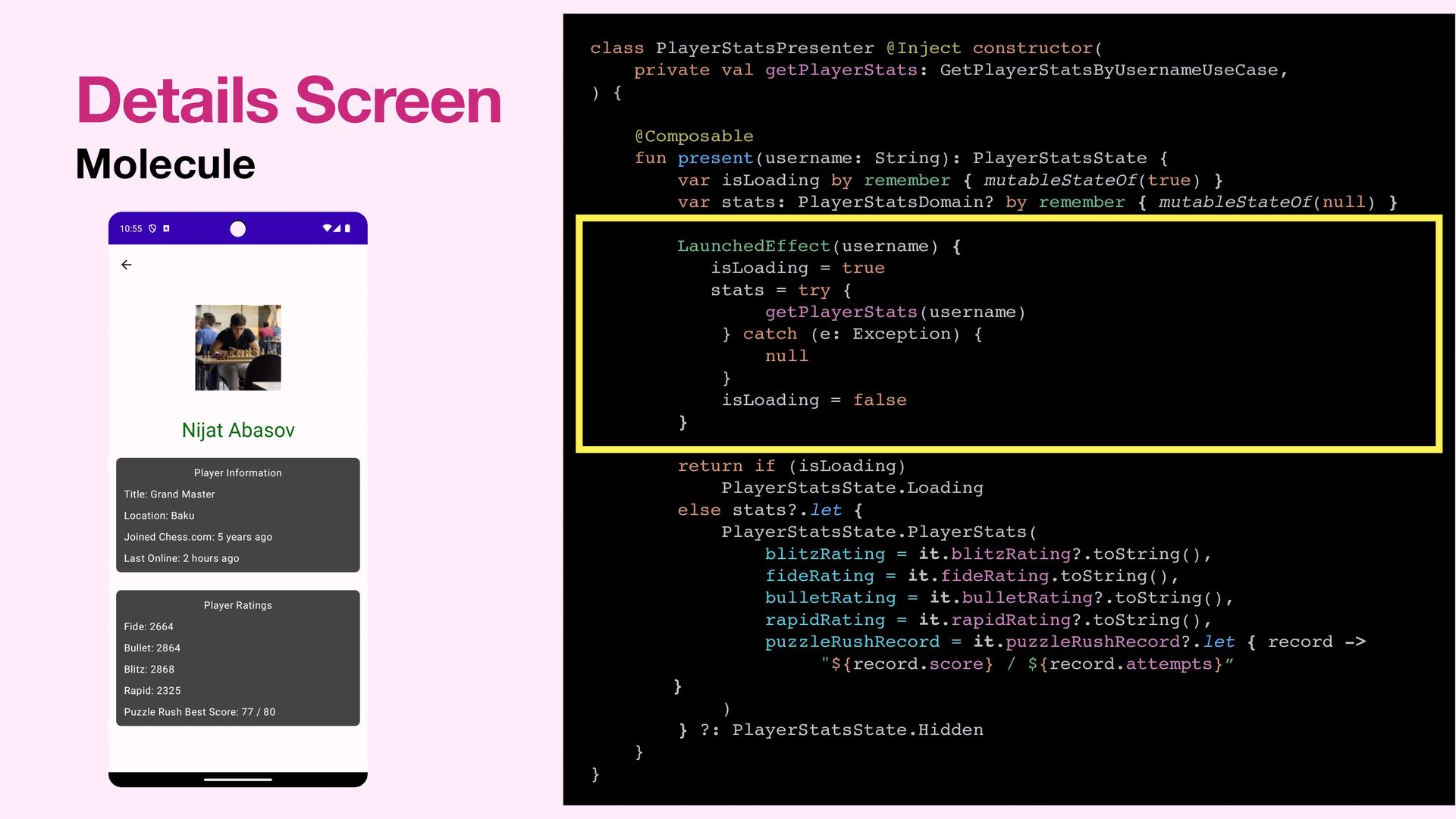

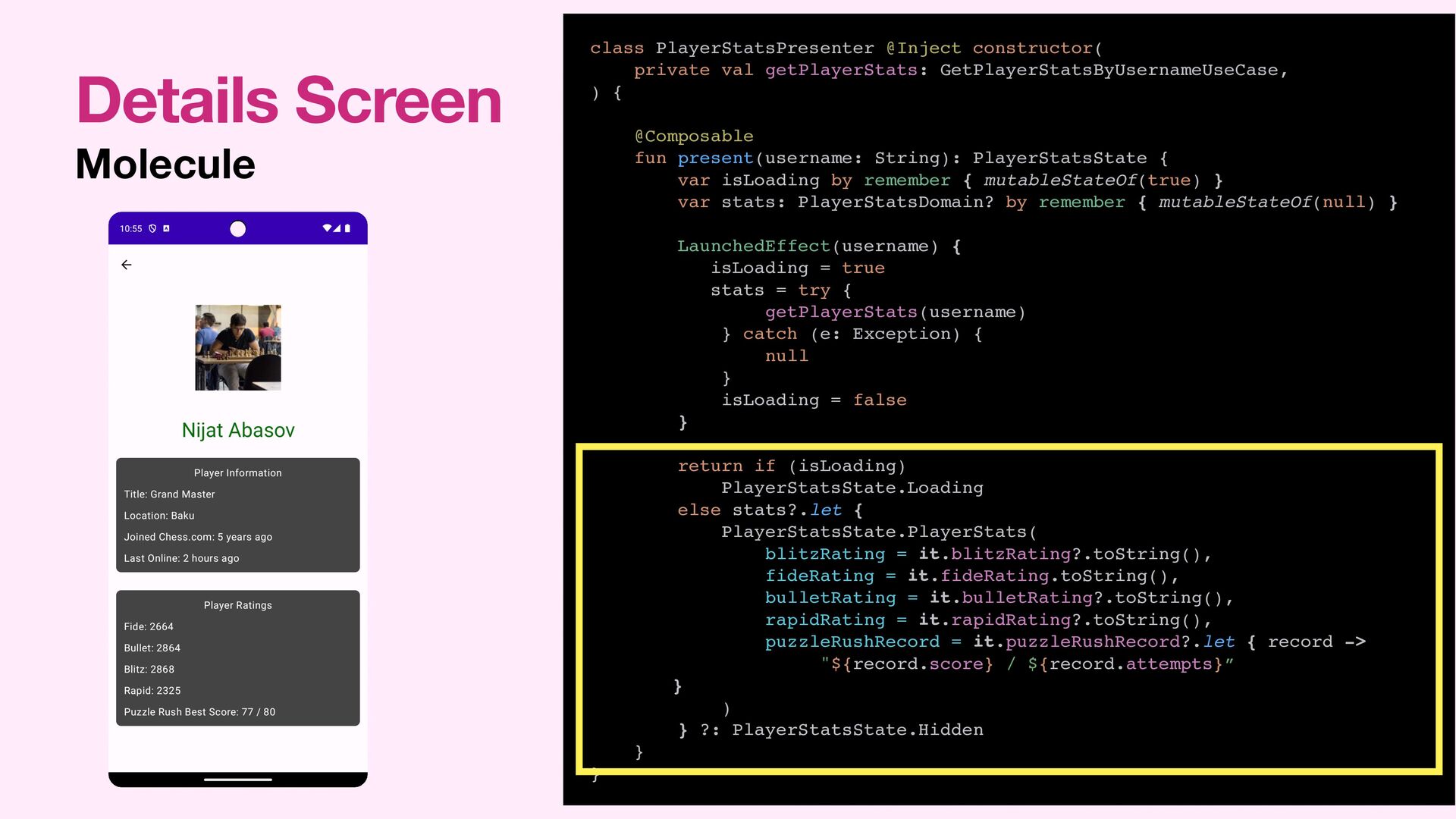

51. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase, ) { @Composable fun present(username: String): PlayerStatsState { var isLoading by remember { mutableStateOf(true) } var stats: PlayerStatsDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { isLoading = true stats = try { getPlayerStats(username) } catch (e: Exception) { null } isLoading = false } return if (isLoading) PlayerStatsState.Loading else stats?.let { PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord?.let { record -> "${record.score} / ${record.attempts}” } ) } ?: PlayerStatsState.Hidden } }
52. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase, ) { @Composable fun present(username: String): PlayerStatsState { var isLoading by remember { mutableStateOf(true) } var stats: PlayerStatsDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { isLoading = true stats = try { getPlayerStats(username) } catch (e: Exception) { null } isLoading = false } return if (isLoading) PlayerStatsState.Loading else stats?.let { PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord?.let { record -> "${record.score} / ${record.attempts}” } ) } ?: PlayerStatsState.Hidden } }
53. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase, ) { @Composable fun present(username: String): PlayerStatsState { var isLoading by remember { mutableStateOf(true) } var stats: PlayerStatsDomain? by remember { mutableStateOf(null) } LaunchedEffect(username) { isLoading = true stats = try { getPlayerStats(username) } catch (e: Exception) { null } isLoading = false } return if (isLoading) PlayerStatsState.Loading else stats?.let { PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord?.let { record -> "${record.score} / ${record.attempts}” } ) } ?: PlayerStatsState.Hidden } }

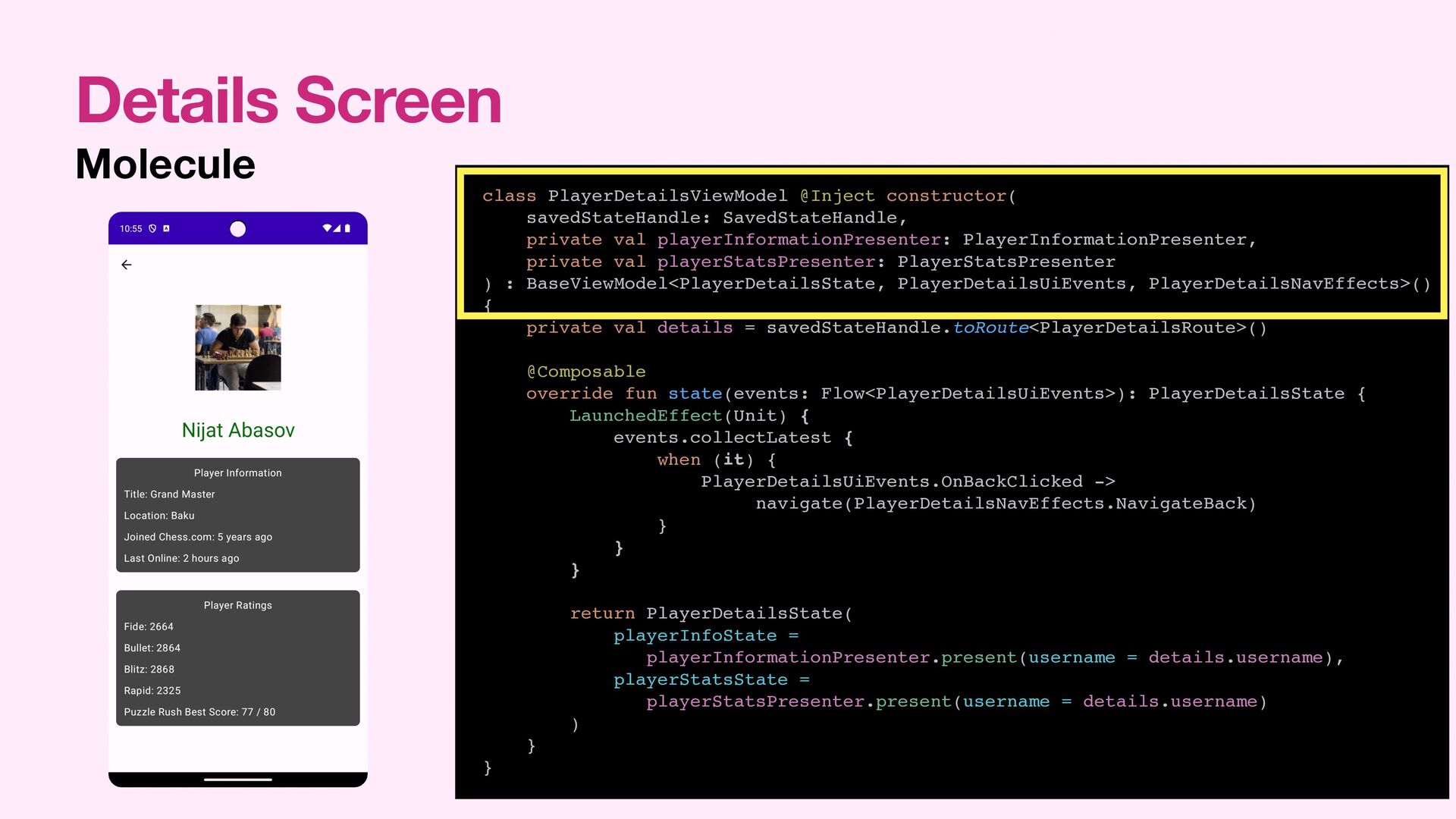

54. Details Screen Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerDetailsUiEvents.OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(username = details.username), playerStatsState = playerStatsPresenter.present(username = details.username) ) } }

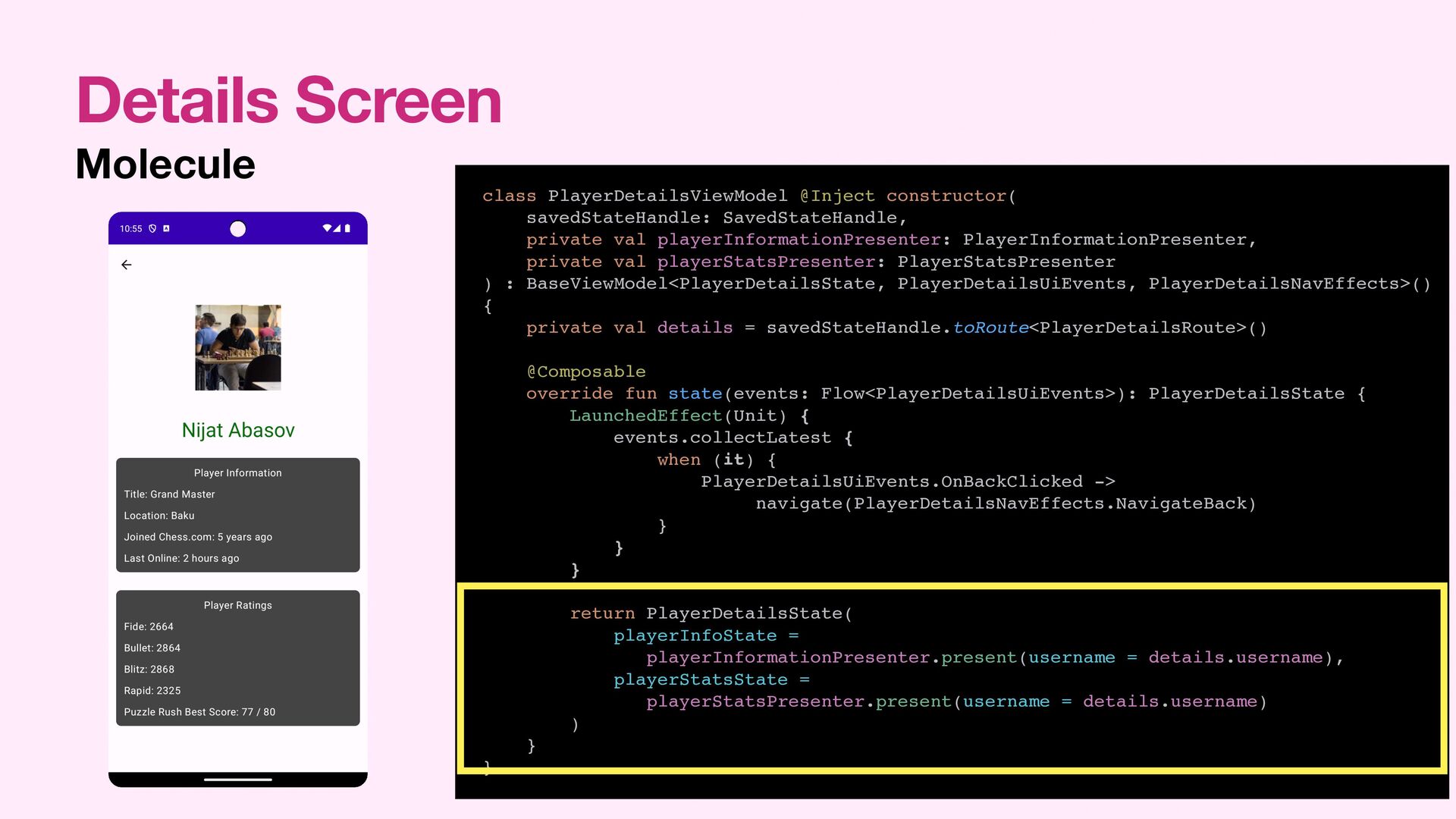

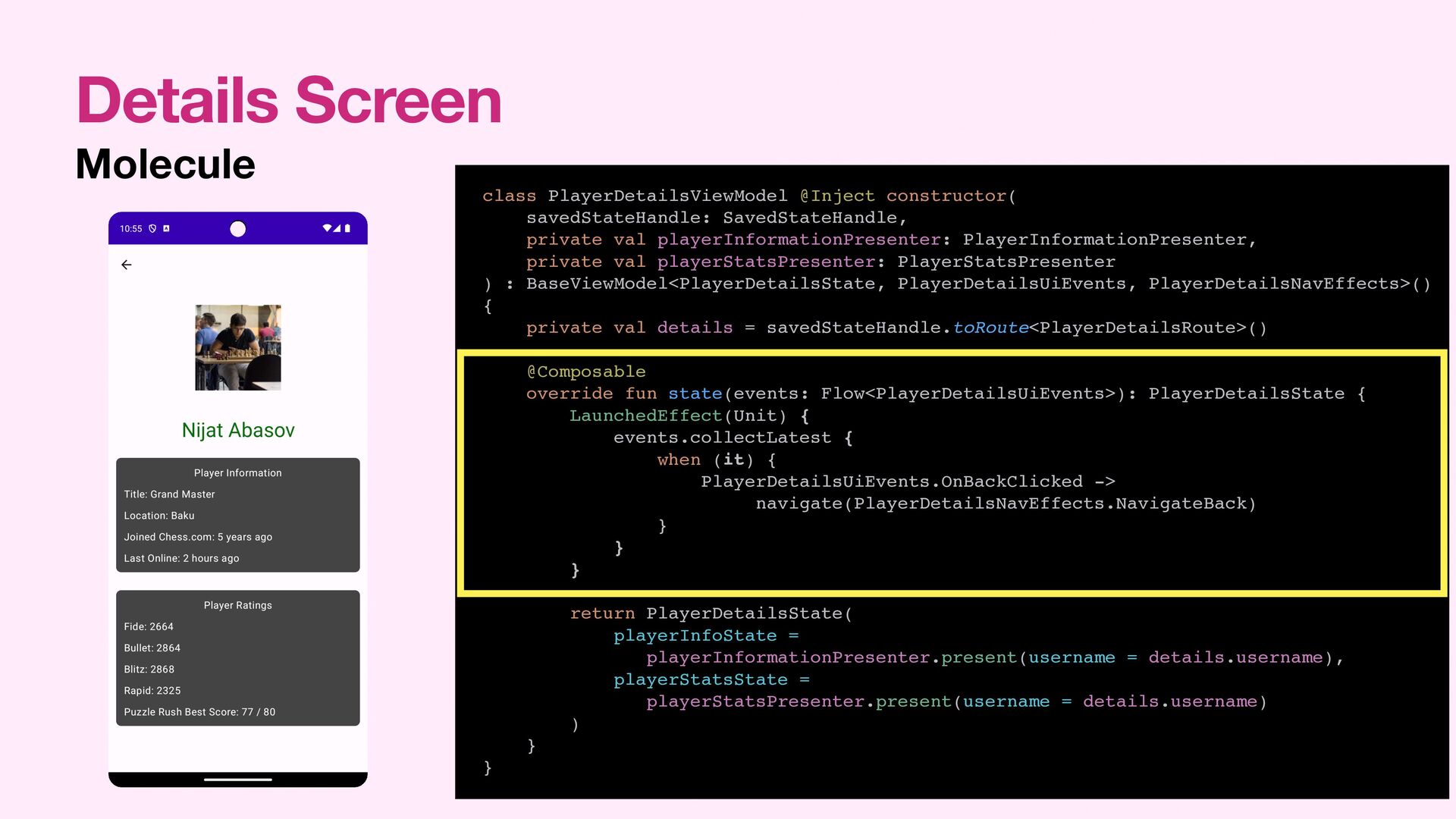

55. Details Screen Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerDetailsUiEvents.OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(username = details.username), playerStatsState = playerStatsPresenter.present(username = details.username) ) } }
56. Details Screen Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerDetailsUiEvents.OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(username = details.username), playerStatsState = playerStatsPresenter.present(username = details.username) ) } }
57. Details Screen Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerDetailsUiEvents.OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(username = details.username), playerStatsState = playerStatsPresenter.present(username = details.username) ) } }

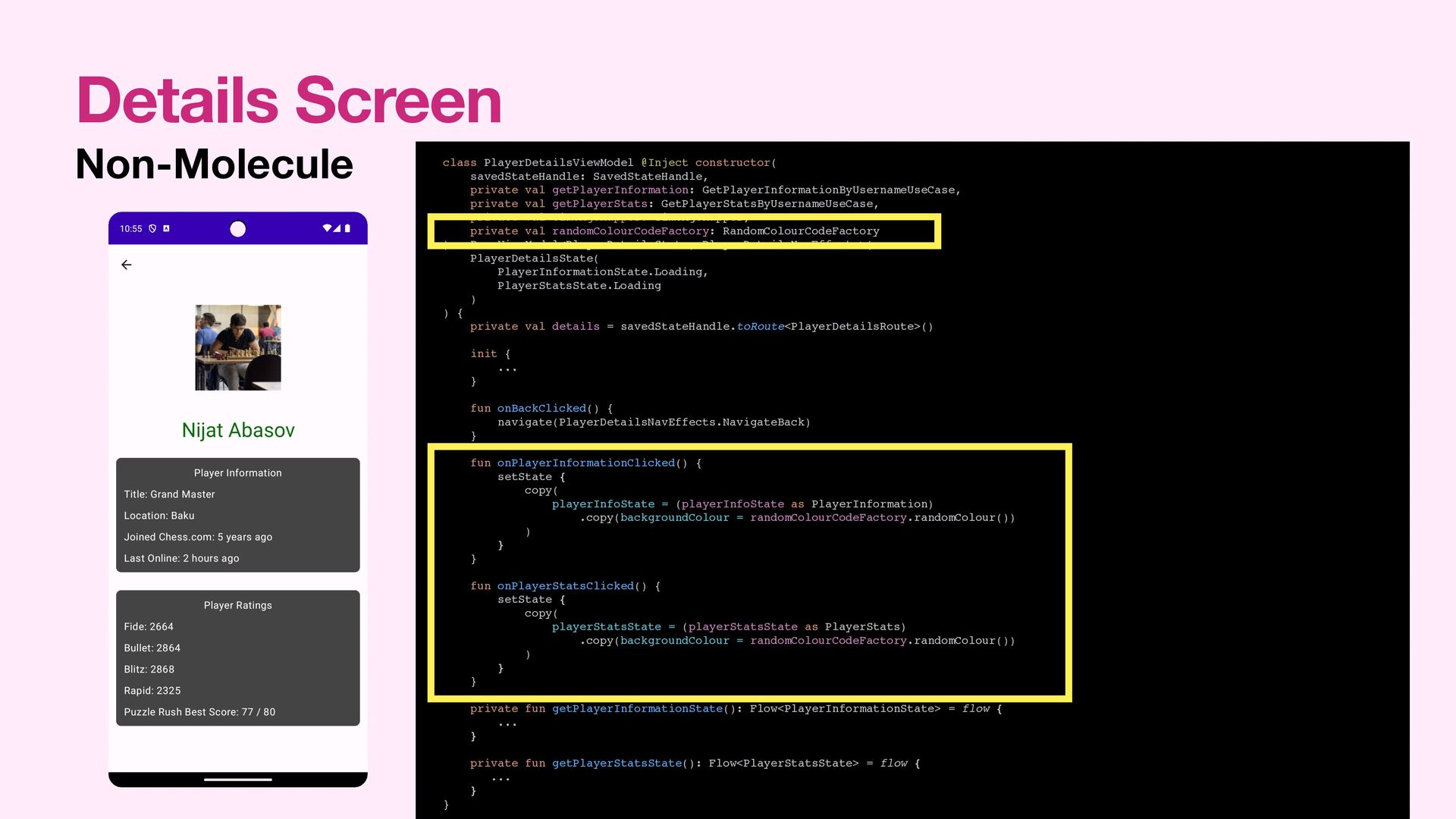

58. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val getPlayerStats: GetPlayerStatsByUsernameUseCase, private val timeAgoMapper: TimeAgoMapper, private val randomColourCodeFactory: RandomColourCodeFactory ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( PlayerDetailsState( PlayerInformationState.Loading, PlayerStatsState.Loading ) ) { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() init { ... } fun onBackClicked() { navigate(PlayerDetailsNavEffects.NavigateBack) } fun onPlayerInformationClicked() { setState { copy( playerInfoState = (playerInfoState as PlayerInformation) .copy(backgroundColour = randomColourCodeFactory.randomColour()) ) } } fun onPlayerStatsClicked() { setState { copy( playerStatsState = (playerStatsState as PlayerStats) .copy(backgroundColour = randomColourCodeFactory.randomColour()) ) } } private fun getPlayerInformationState(): Flow<PlayerInformationState> = flow { ... } private fun getPlayerStatsState(): Flow<PlayerStatsState> = flow { ... } }

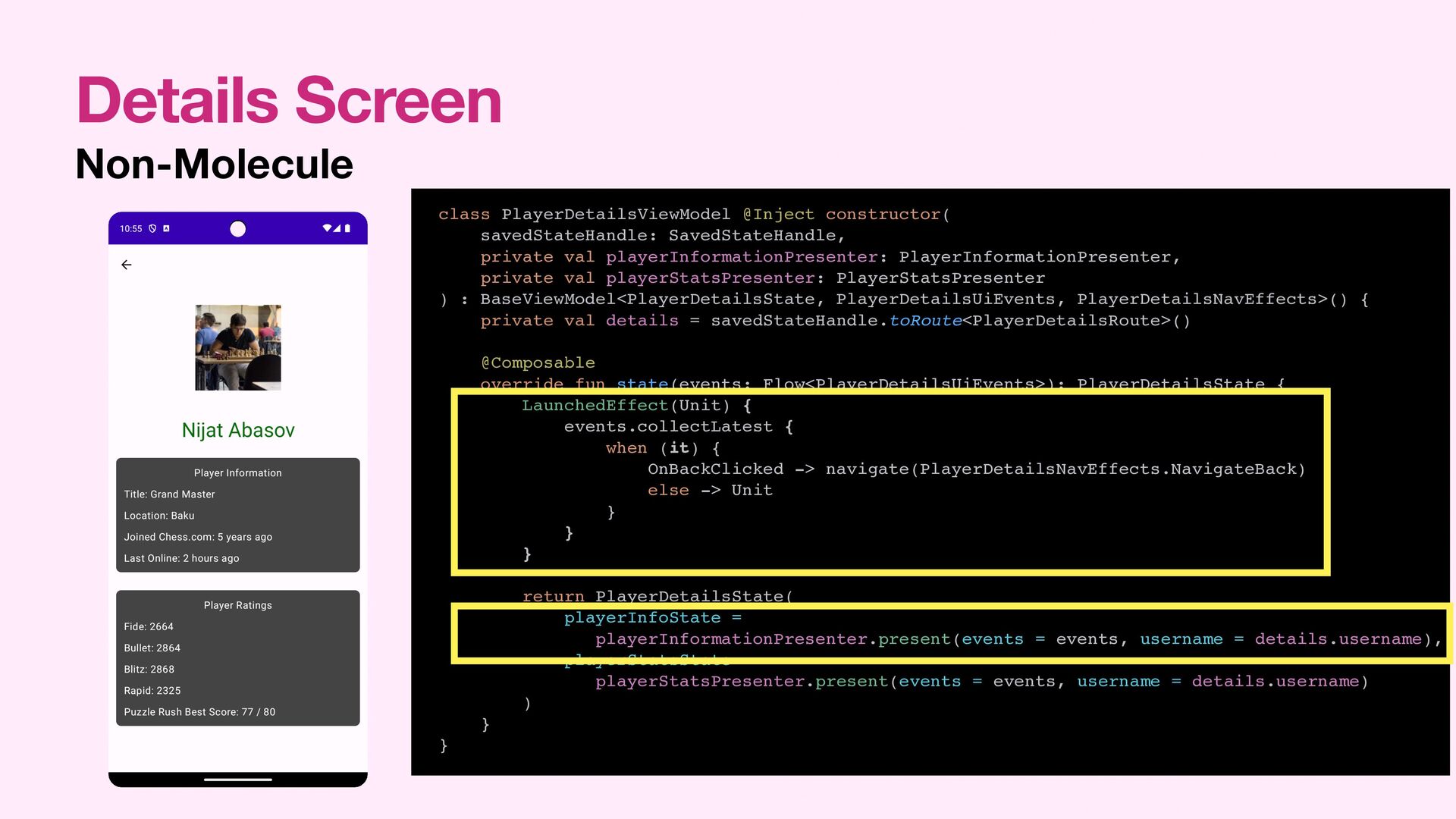

59. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) else -> Unit } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(events = events, username = details.username), playerStatsState = playerStatsPresenter.present(events = events, username = details.username) ) } }
60. Details Screen Non-Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { LaunchedEffect(Unit) { events.collectLatest { when (it) { OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) else -> Unit } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(events = events, username = details.username), playerStatsState = playerStatsPresenter.present(events = events, username = details.username) ) } }
61. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase, private val randomColourCodeFactory: RandomColourCodeFactory ) { @Composable fun present(events: Flow<PlayerDetailsUiEvents>, username: String): PlayerStatsState { var isLoading by remember { mutableStateOf(true) } var stats: PlayerStatsDomain? by remember { mutableStateOf(null) } var backgroundColor by remember { mutableLongStateOf(0xFF444444) } LaunchedEffect(username) { ... } LaunchedEffect(Unit) { events.collectLatest { when(it) { PlayerDetailsUiEvents.PlayerStatsClicked -> backgroundColor = randomColourCodeFactory.randomColour() else -> Unit } } } return if (isLoading) PlayerStatsState.Loading else stats?.let { PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord?.let { record -> “$ {record.score}" + “/ ${record.attempts}" }, backgroundColour = backgroundColor ) } ?: PlayerStatsState.Hidden } }
63. Details Screen Molecule class PlayerStatsPresenter @Inject constructor( private val getPlayerStats: GetPlayerStatsByUsernameUseCase ) { fun present(username: String): Flow<PlayerStatsState> = flow { emit(PlayerStatsState.Loading) try { getPlayerStats(username).let { emit( PlayerStatsState.PlayerStats( blitzRating = it.blitzRating?.toString(), fideRating = it.fideRating.toString(), bulletRating = it.bulletRating?.toString(), rapidRating = it.rapidRating?.toString(), puzzleRushRecord = it.puzzleRushRecord ?.let { record -> "${record.score} / ${record.attempts}" } ) ) } } catch (e: CancellationException) { emit(PlayerStatsState.Hidden) throw e } catch (e: Exception) { Log.e("stats error", e.toString()) emit(PlayerStatsState.Hidden) } } }

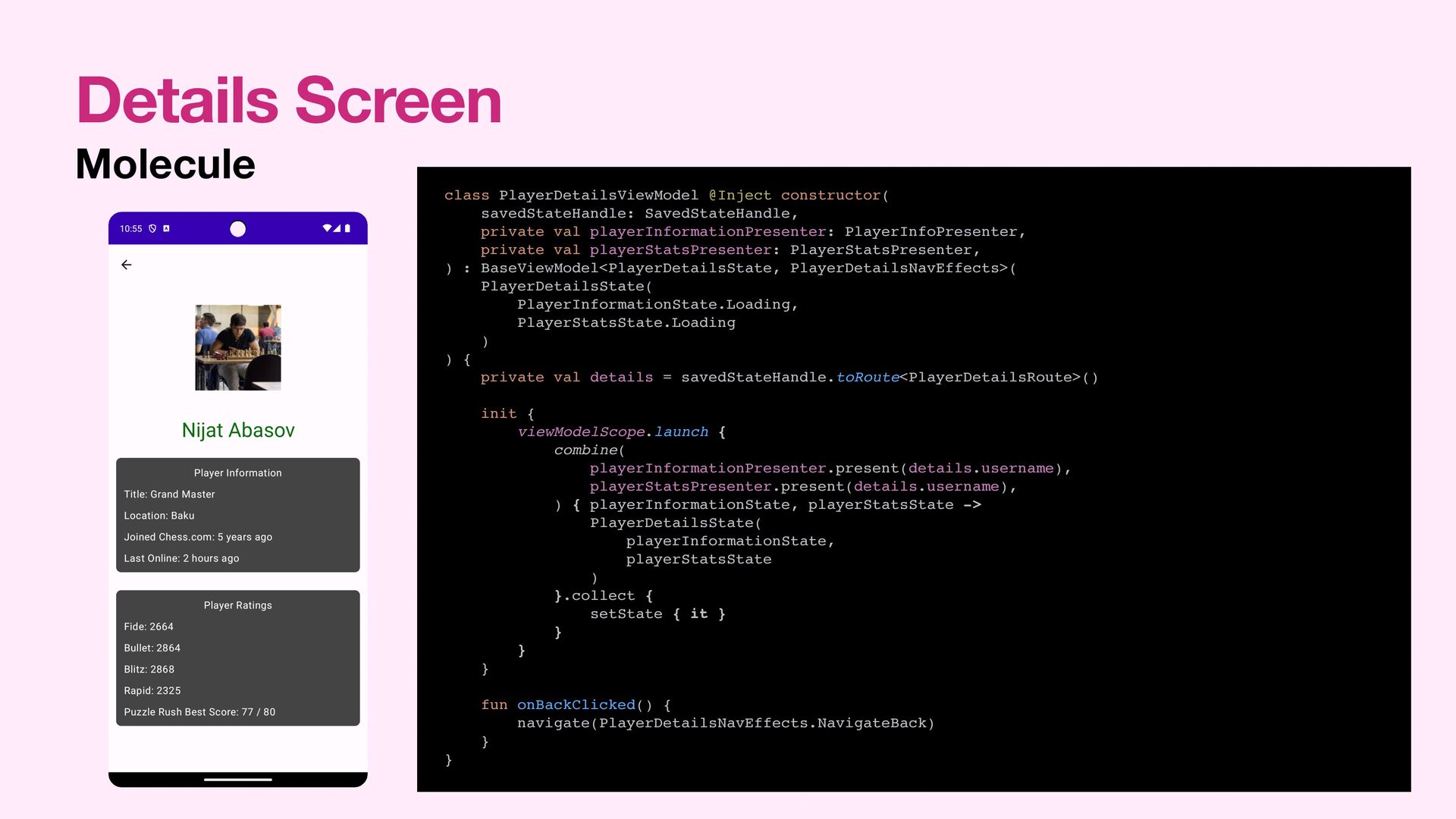

64. Details Screen Molecule class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInfoPresenter, private val playerStatsPresenter: PlayerStatsPresenter, ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( PlayerDetailsState( PlayerInformationState.Loading, PlayerStatsState.Loading ) ) { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() init { viewModelScope.launch { combine( playerInformationPresenter.present(details.username), playerStatsPresenter.present(details.username), ) { playerInformationState, playerStatsState -> PlayerDetailsState( playerInformationState, playerStatsState ) }.collect { setState { it } } } } fun onBackClicked() { navigate(PlayerDetailsNavEffects.NavigateBack) } }

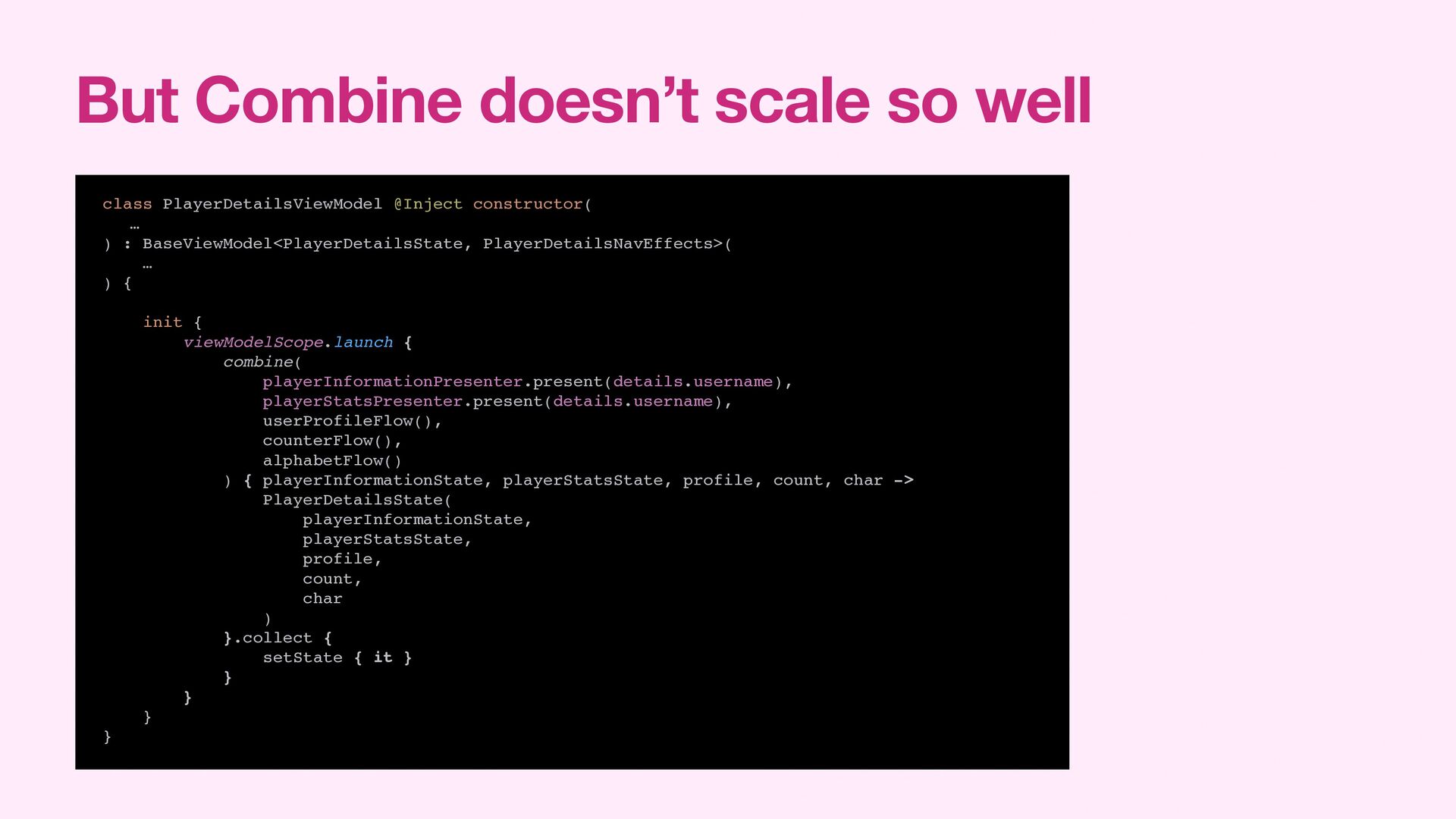

65. class PlayerDetailsViewModel @Inject constructor( … ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( … ) { init { viewModelScope.launch { combine( playerInformationPresenter.present(details.username), playerStatsPresenter.present(details.username), ) { playerInformationState, playerStatsState -> PlayerDetailsState( playerInformationState, playerStatsState ) }.collect { setState { it } } } } } But Combine doesn’t scale so well

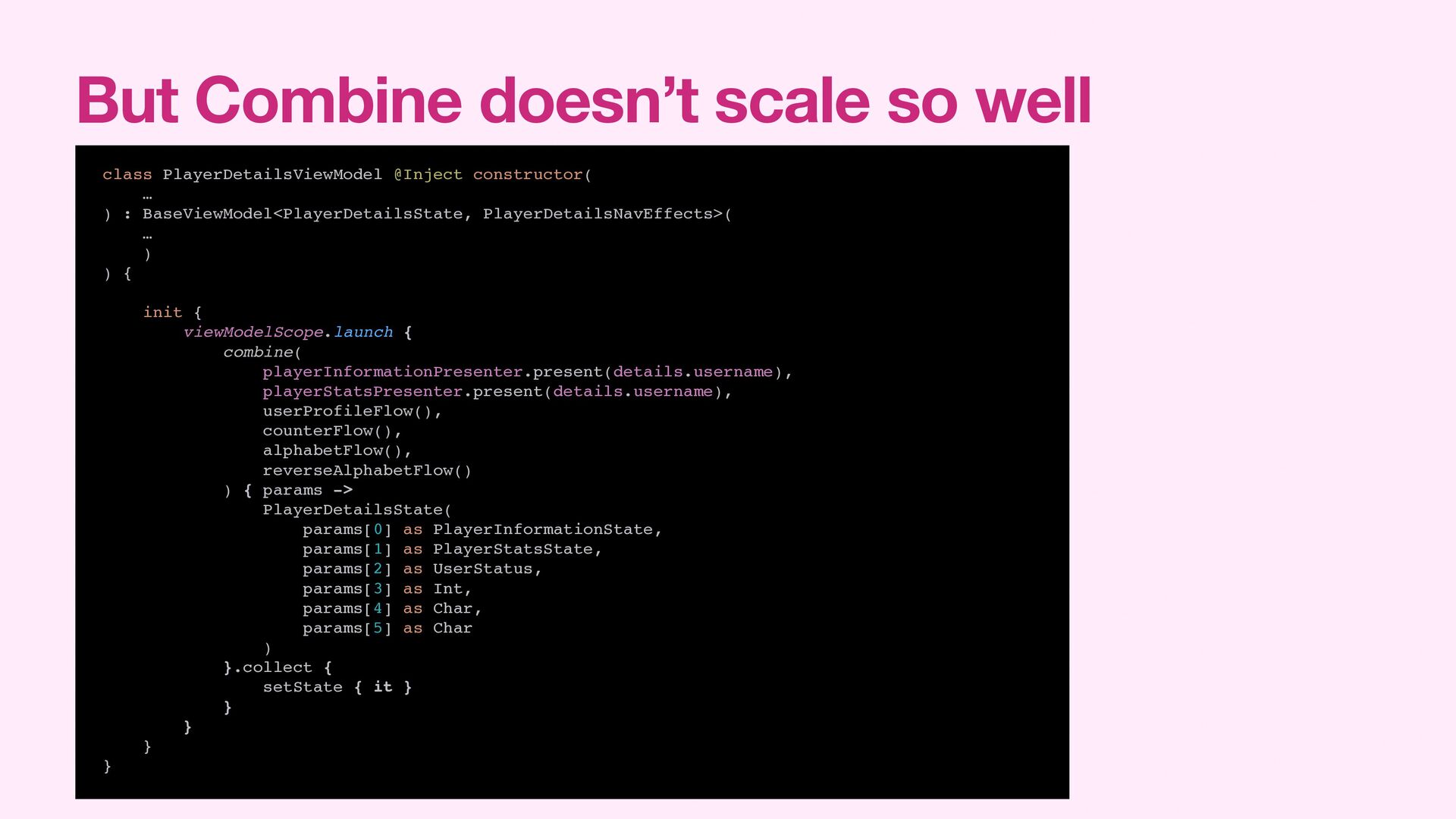

66. class PlayerDetailsViewModel @Inject constructor( … ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( … ) { init { viewModelScope.launch { combine( playerInformationPresenter.present(details.username), playerStatsPresenter.present(details.username), userProfileFlow(), counterFlow(), alphabetFlow() ) { playerInformationState, playerStatsState, profile, count, char -> PlayerDetailsState( playerInformationState, playerStatsState, profile, count, char ) }.collect { setState { it } } } } } But Combine doesn’t scale so well
67. class PlayerDetailsViewModel @Inject constructor( … ) : BaseViewModel<PlayerDetailsState, PlayerDetailsNavEffects>( … ) ) { init { viewModelScope.launch { combine( playerInformationPresenter.present(details.username), playerStatsPresenter.present(details.username), userProfileFlow(), counterFlow(), alphabetFlow(), reverseAlphabetFlow() ) { params -> PlayerDetailsState( params[0] as PlayerInformationState, params[1] as PlayerStatsState, params[2] as UserStatus, params[3] as Int, params[4] as Char, params[5] as Char ) }.collect { setState { it } } } } } But Combine doesn’t scale so well

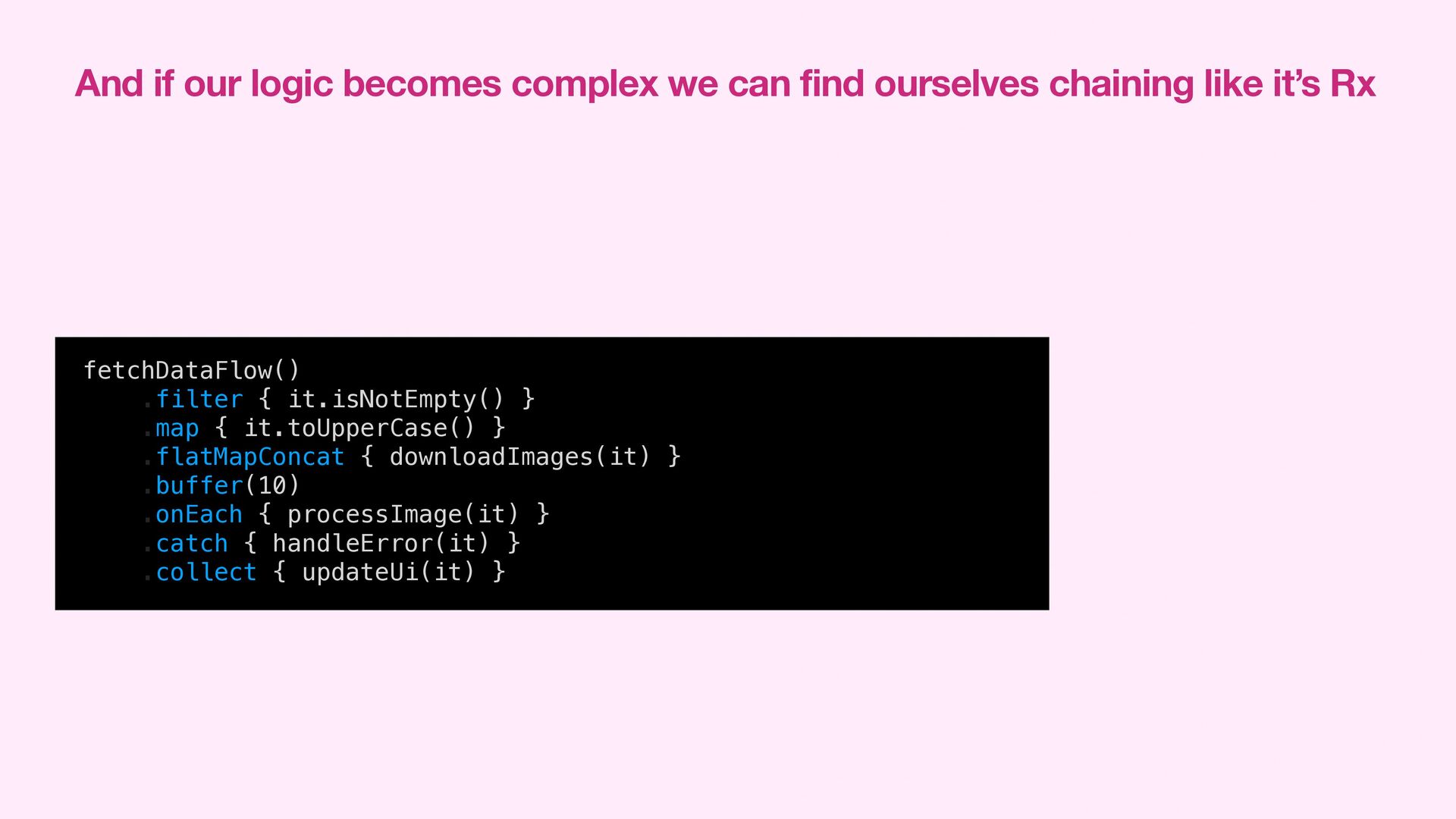

68. fetchDataFlow() .filter { it.isNotEmpty() } .map { it.toUpperCase() } .flatMapConcat { downloadImages(it) } .buffer(10) .onEach { processImage(it) } .catch { handleError(it) } .collect { updateUi(it) } And if our logic becomes complex we can find ourselves chaining like it’s Rx
69. class PlayerDetailsViewModel @Inject constructor( savedStateHandle: SavedStateHandle, private val playerInformationPresenter: PlayerInformationPresenter, private val playerStatsPresenter: PlayerStatsPresenter, private val playerMatchesPresenter: PlayerMatchesPresenter ) : BaseViewModel<PlayerDetailsState, PlayerDetailsUiEvents, PlayerDetailsNavEffects>() { private val details = savedStateHandle.toRoute<PlayerDetailsRoute>() @Composable override fun state(events: Flow<PlayerDetailsUiEvents>): PlayerDetailsState { var matchesSearchTerm: String by remember { mutableStateOf("") } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerDetailsUiEvents.OnBackClicked -> navigate(PlayerDetailsNavEffects.NavigateBack) is PlayerDetailsUiEvents.MatchesSearchTermChanged -> matchesSearchTerm = it.searchTerm } } } return PlayerDetailsState( playerInfoState = playerInformationPresenter.present(username = details.username), playerStatsState = playerStatsPresenter.present(username = details.username), playerMatchesState = playerMatchesPresenter.present( username = details.username, searchTerm = matchesSearchTerm ) ) } } And using Molecule we can leverage other features of Compose

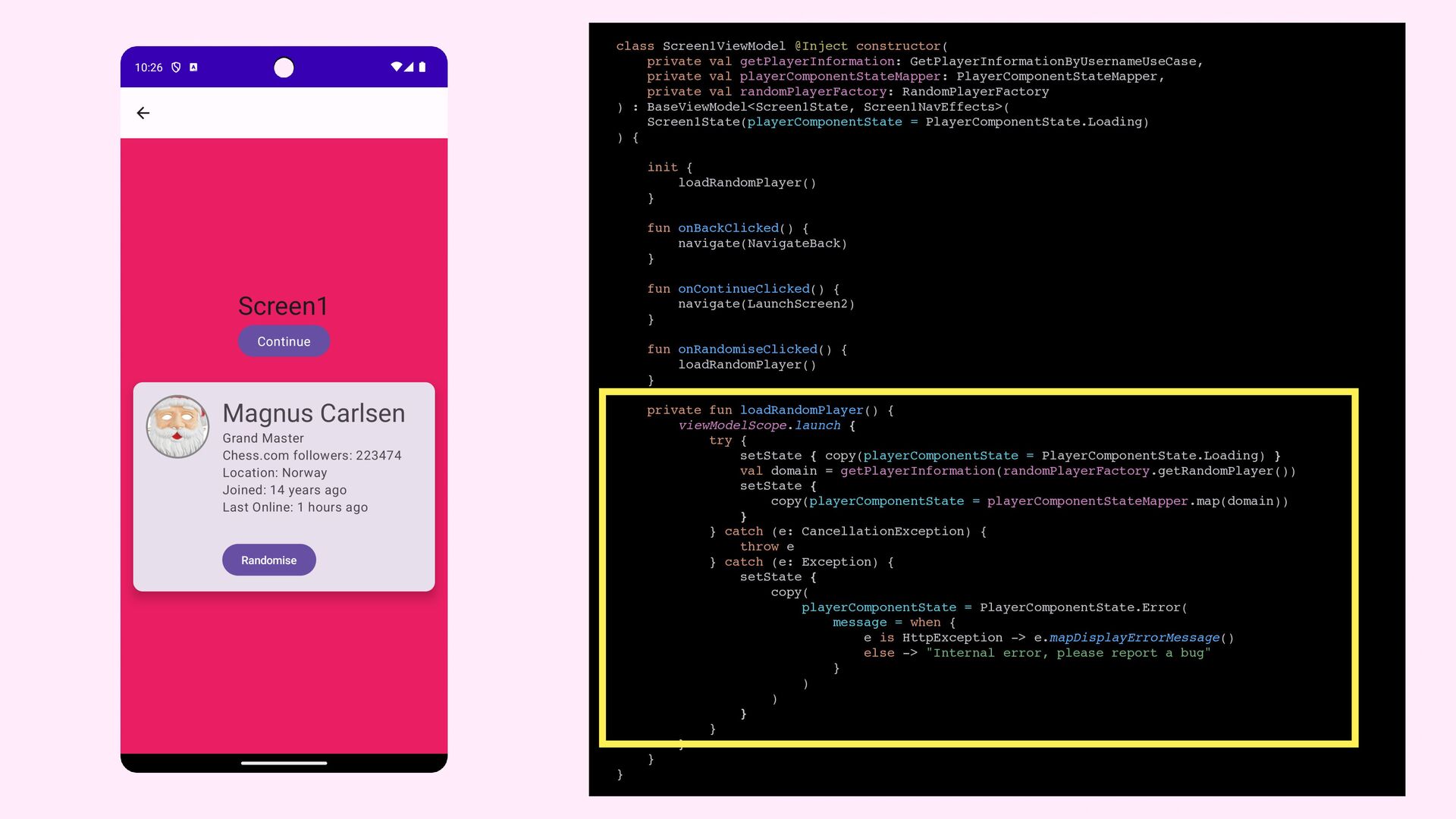

71. class Screen1ViewModel @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) : BaseViewModel<Screen1State, Screen1NavEffects>( Screen1State(playerComponentState = PlayerComponentState.Loading) ) { init { loadRandomPlayer() } fun onBackClicked() { navigate(NavigateBack) } fun onContinueClicked() { navigate(LaunchScreen2) } fun onRandomiseClicked() { loadRandomPlayer() } private fun loadRandomPlayer() { viewModelScope.launch { try { setState { copy(playerComponentState = PlayerComponentState.Loading) } val domain = getPlayerInformation(randomPlayerFactory.getRandomPlayer()) setState { copy(playerComponentState = playerComponentStateMapper.map(domain)) } } catch (e: CancellationException) { throw e } catch (e: Exception) { setState { copy( playerComponentState = PlayerComponentState.Error( message = when { e is HttpException -> e.mapDisplayErrorMessage() else -> "Internal error, please report a bug" } ) ) } } } } }

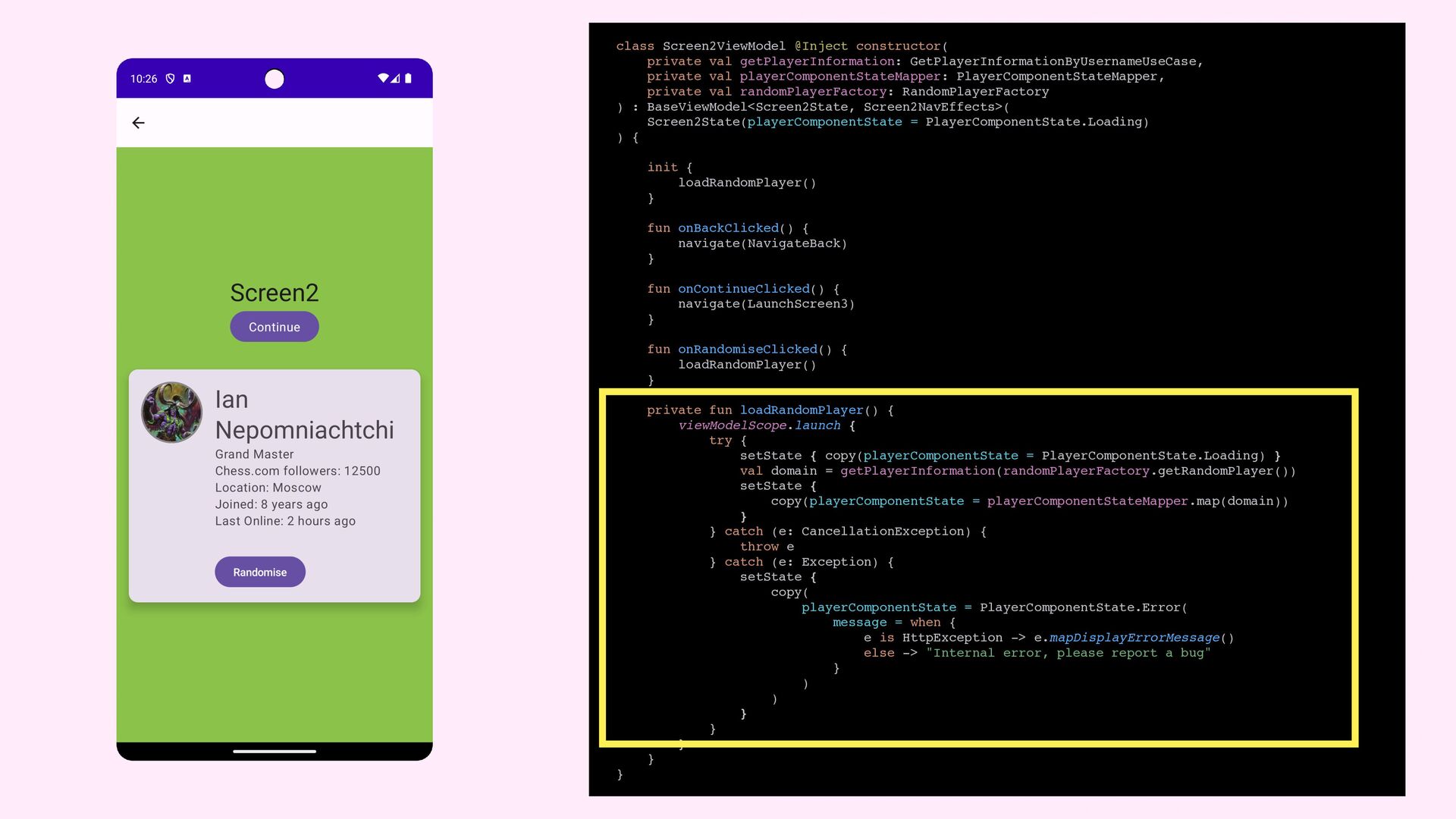

72. class Screen2ViewModel @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) : BaseViewModel<Screen2State, Screen2NavEffects>( Screen2State(playerComponentState = PlayerComponentState.Loading) ) { init { loadRandomPlayer() } fun onBackClicked() { navigate(NavigateBack) } fun onContinueClicked() { navigate(LaunchScreen3) } fun onRandomiseClicked() { loadRandomPlayer() } private fun loadRandomPlayer() { viewModelScope.launch { try { setState { copy(playerComponentState = PlayerComponentState.Loading) } val domain = getPlayerInformation(randomPlayerFactory.getRandomPlayer()) setState { copy(playerComponentState = playerComponentStateMapper.map(domain)) } } catch (e: CancellationException) { throw e } catch (e: Exception) { setState { copy( playerComponentState = PlayerComponentState.Error( message = when { e is HttpException -> e.mapDisplayErrorMessage() else -> "Internal error, please report a bug" } ) ) } } } } }

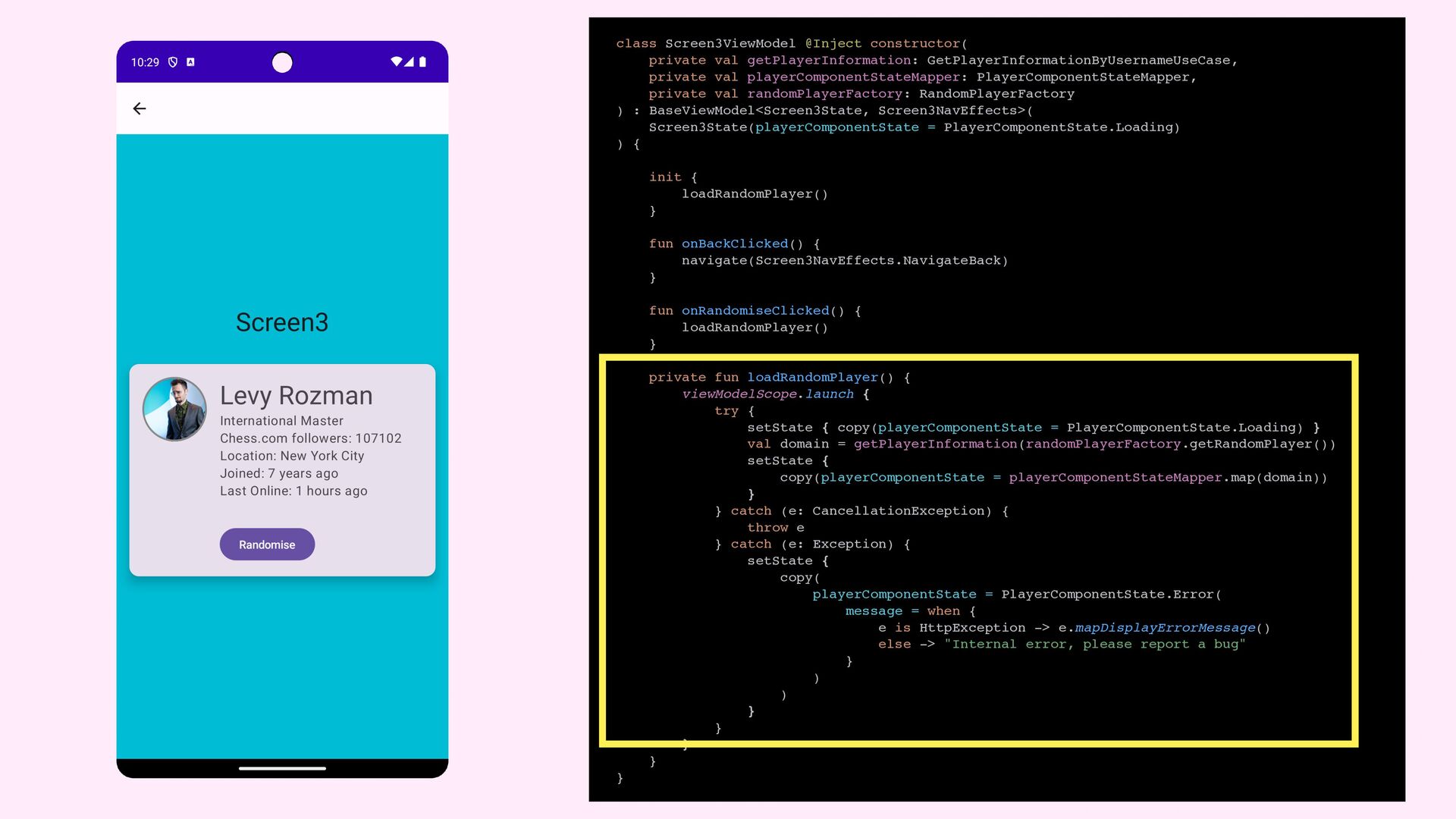

73. class Screen3ViewModel @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) : BaseViewModel<Screen3State, Screen3NavEffects>( Screen3State(playerComponentState = PlayerComponentState.Loading) ) { init { loadRandomPlayer() } fun onBackClicked() { navigate(Screen3NavEffects.NavigateBack) } fun onRandomiseClicked() { loadRandomPlayer() } private fun loadRandomPlayer() { viewModelScope.launch { try { setState { copy(playerComponentState = PlayerComponentState.Loading) } val domain = getPlayerInformation(randomPlayerFactory.getRandomPlayer()) setState { copy(playerComponentState = playerComponentStateMapper.map(domain)) } } catch (e: CancellationException) { throw e } catch (e: Exception) { setState { copy( playerComponentState = PlayerComponentState.Error( message = when { e is HttpException -> e.mapDisplayErrorMessage() else -> "Internal error, please report a bug" } ) ) } } } } }

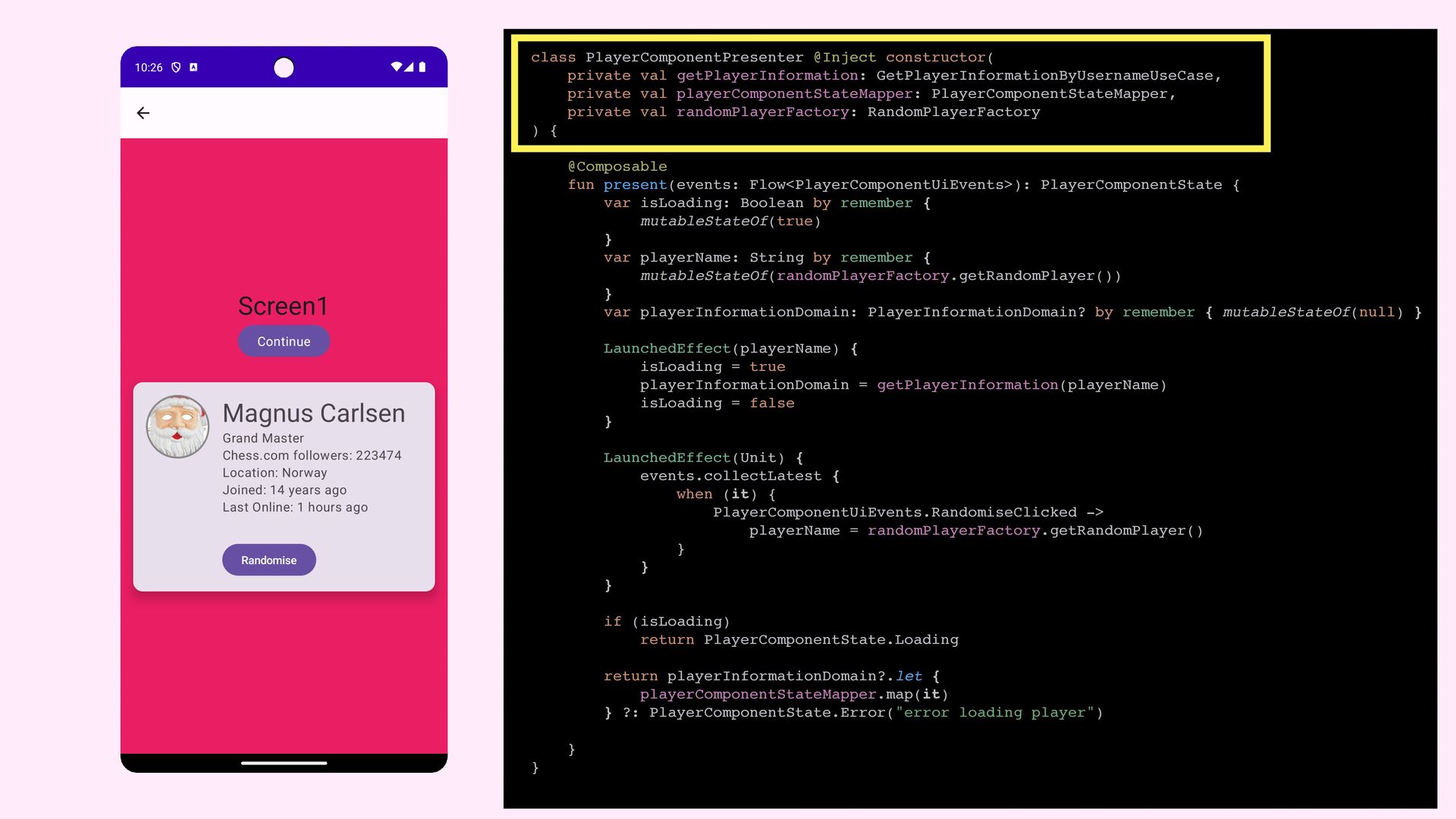

74. class PlayerComponentPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) { @Composable fun present(events: Flow<PlayerComponentUiEvents>): PlayerComponentState { var isLoading: Boolean by remember { mutableStateOf(true) } var playerName: String by remember { mutableStateOf(randomPlayerFactory.getRandomPlayer()) } var playerInformationDomain: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(playerName) { isLoading = true playerInformationDomain = getPlayerInformation(playerName) isLoading = false } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerComponentUiEvents.RandomiseClicked -> playerName = randomPlayerFactory.getRandomPlayer() } } } if (isLoading) return PlayerComponentState.Loading return playerInformationDomain?.let { playerComponentStateMapper.map(it) } ?: PlayerComponentState.Error("error loading player") } }

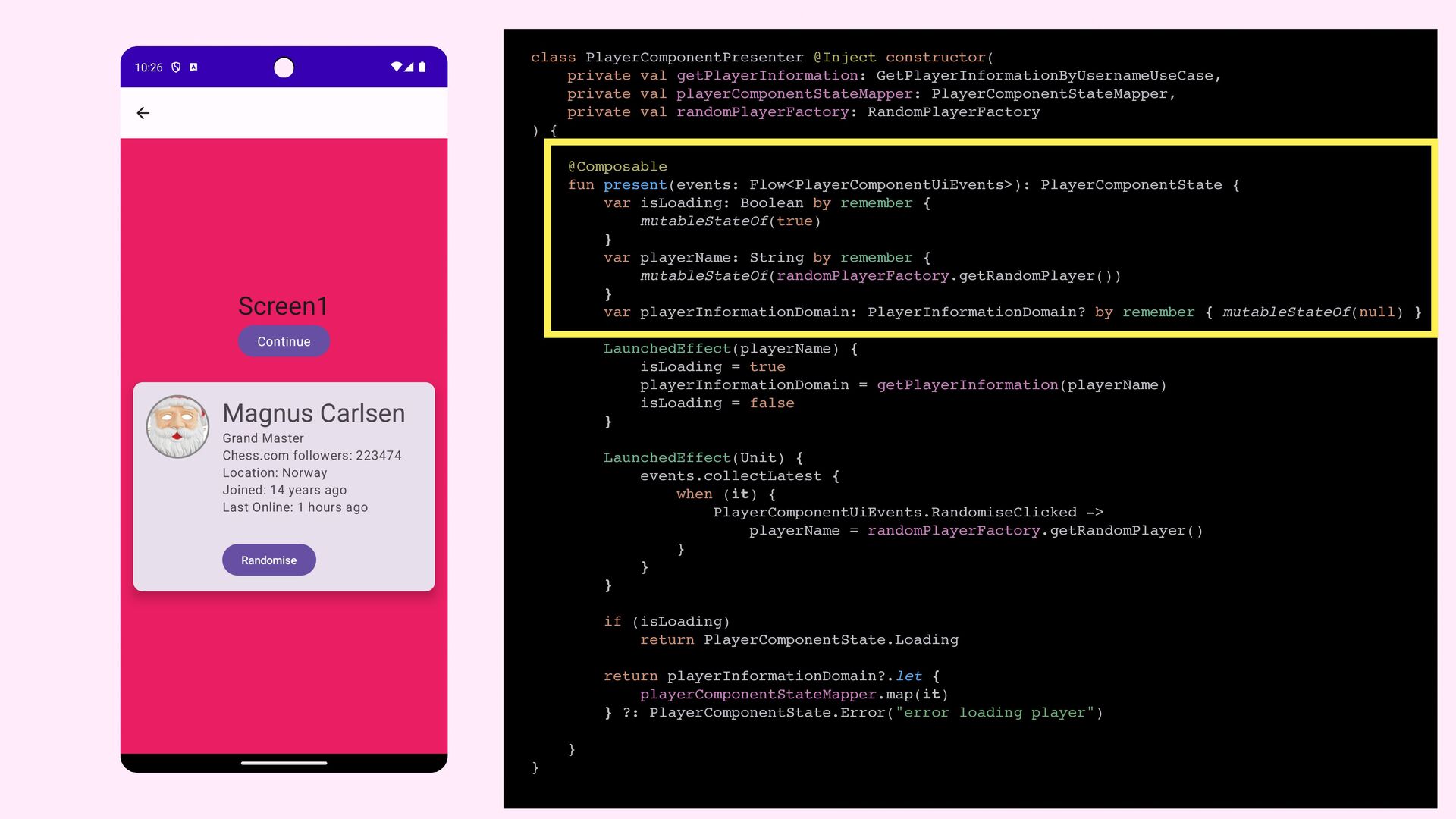

75. class PlayerComponentPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) { @Composable fun present(events: Flow<PlayerComponentUiEvents>): PlayerComponentState { var isLoading: Boolean by remember { mutableStateOf(true) } var playerName: String by remember { mutableStateOf(randomPlayerFactory.getRandomPlayer()) } var playerInformationDomain: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(playerName) { isLoading = true playerInformationDomain = getPlayerInformation(playerName) isLoading = false } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerComponentUiEvents.RandomiseClicked -> playerName = randomPlayerFactory.getRandomPlayer() } } } if (isLoading) return PlayerComponentState.Loading return playerInformationDomain?.let { playerComponentStateMapper.map(it) } ?: PlayerComponentState.Error("error loading player") } }
76. class PlayerComponentPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) { @Composable fun present(events: Flow<PlayerComponentUiEvents>): PlayerComponentState { var isLoading: Boolean by remember { mutableStateOf(true) } var playerName: String by remember { mutableStateOf(randomPlayerFactory.getRandomPlayer()) } var playerInformationDomain: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(playerName) { isLoading = true playerInformationDomain = getPlayerInformation(playerName) isLoading = false } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerComponentUiEvents.RandomiseClicked -> playerName = randomPlayerFactory.getRandomPlayer() } } } if (isLoading) return PlayerComponentState.Loading return playerInformationDomain?.let { playerComponentStateMapper.map(it) } ?: PlayerComponentState.Error("error loading player") } }

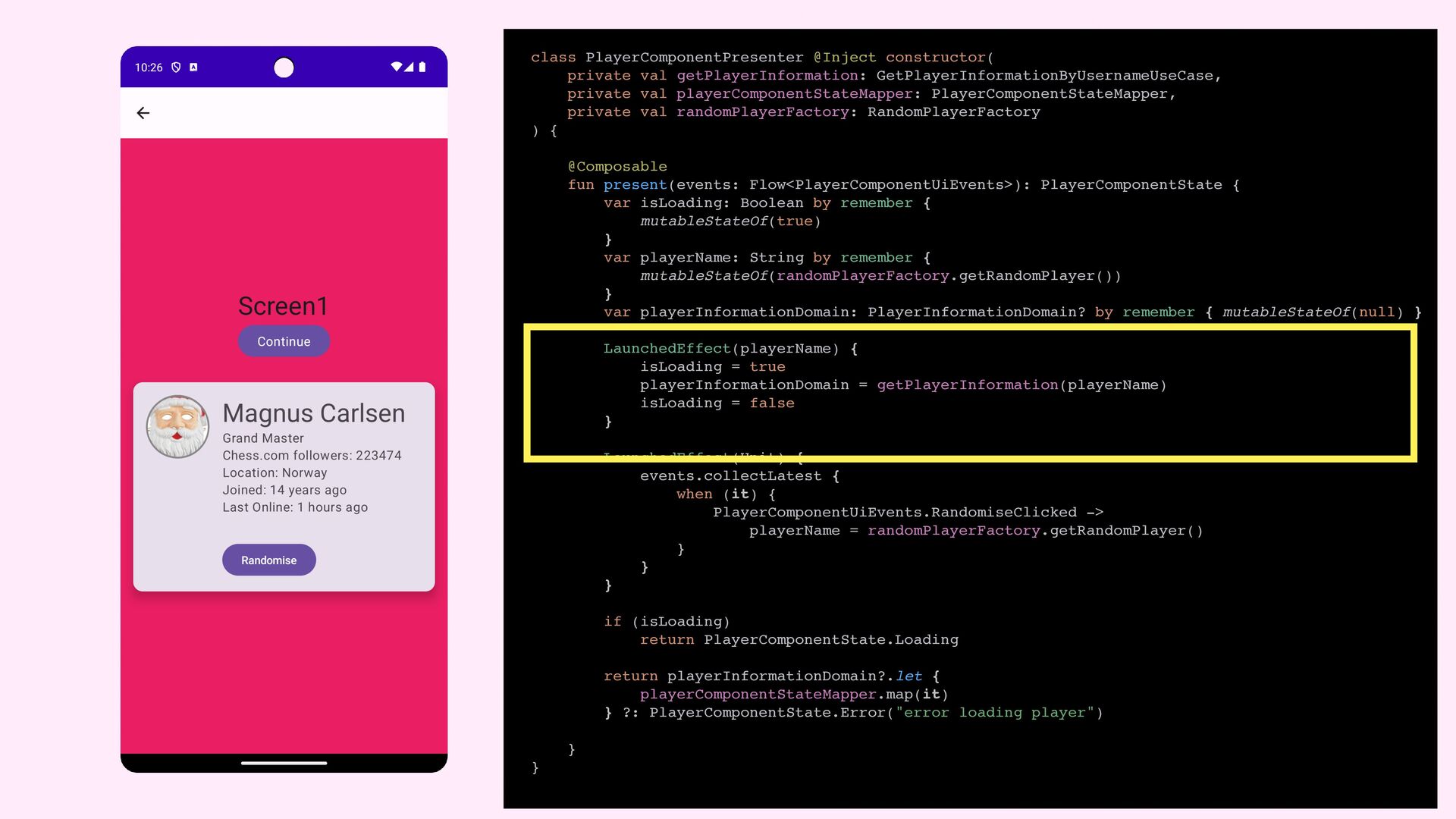

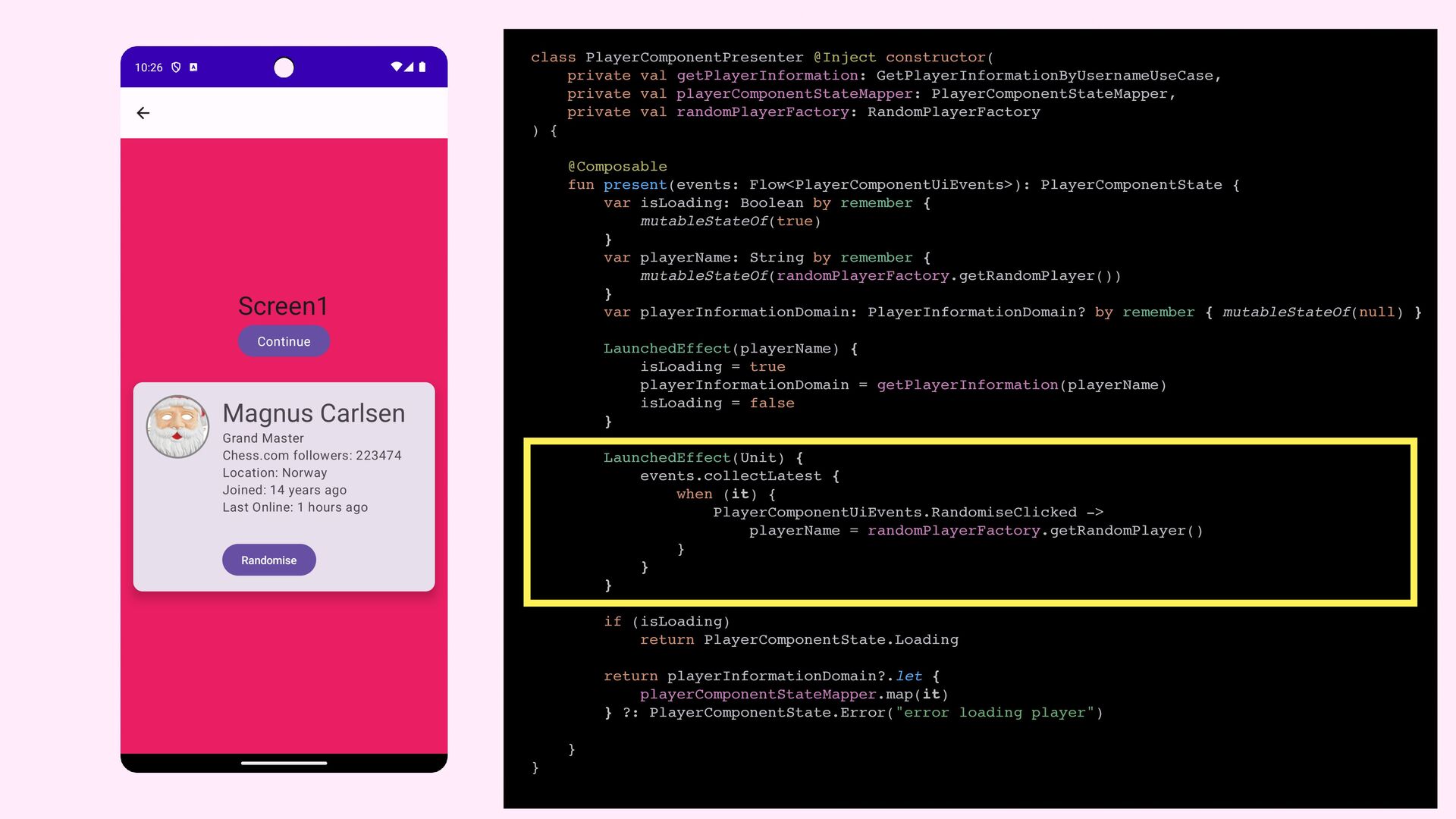

77. class PlayerComponentPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) { @Composable fun present(events: Flow<PlayerComponentUiEvents>): PlayerComponentState { var isLoading: Boolean by remember { mutableStateOf(true) } var playerName: String by remember { mutableStateOf(randomPlayerFactory.getRandomPlayer()) } var playerInformationDomain: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(playerName) { isLoading = true playerInformationDomain = getPlayerInformation(playerName) isLoading = false } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerComponentUiEvents.RandomiseClicked -> playerName = randomPlayerFactory.getRandomPlayer() } } } if (isLoading) return PlayerComponentState.Loading return playerInformationDomain?.let { playerComponentStateMapper.map(it) } ?: PlayerComponentState.Error("error loading player") } }

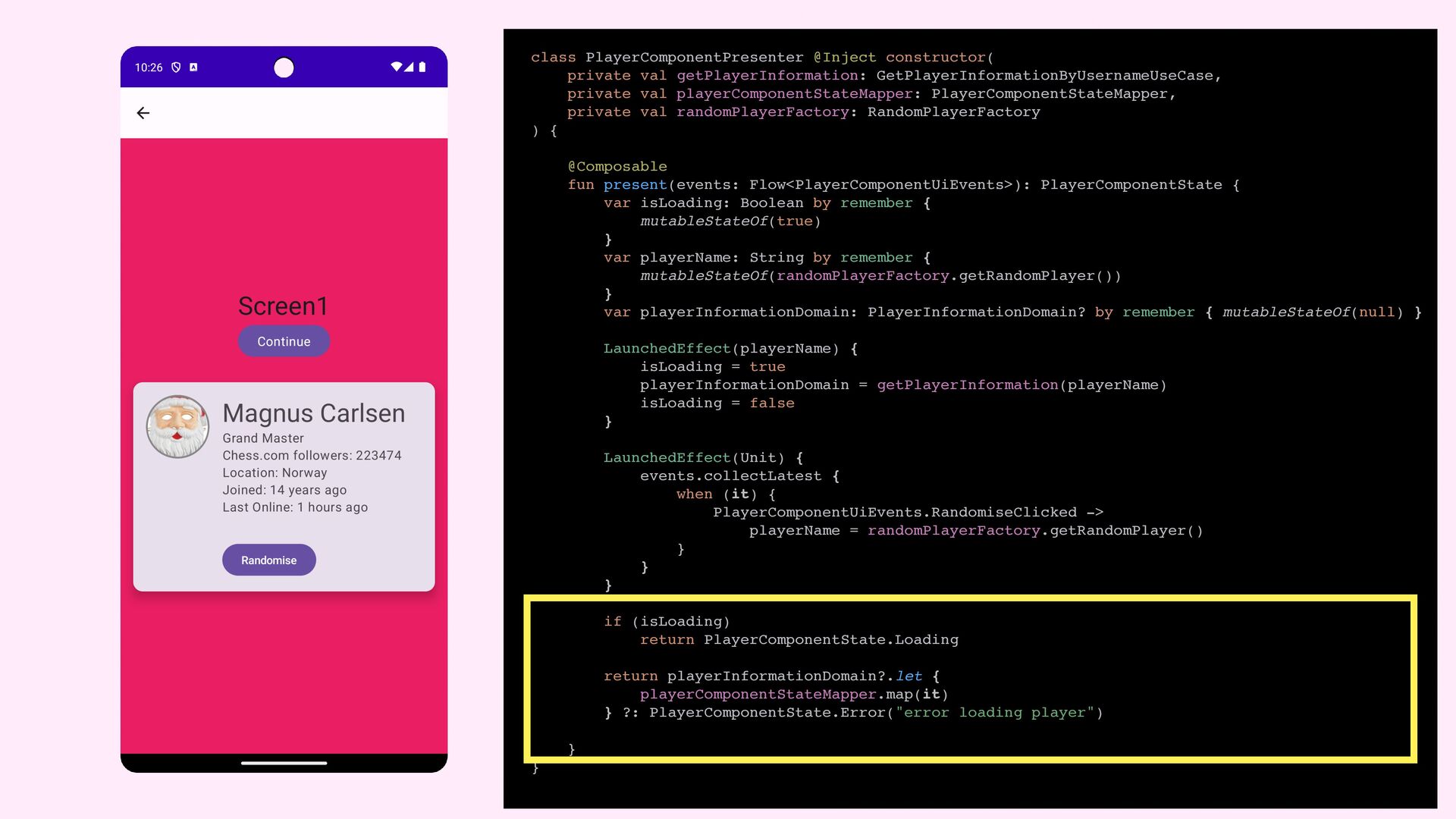

78. class PlayerComponentPresenter @Inject constructor( private val getPlayerInformation: GetPlayerInformationByUsernameUseCase, private val playerComponentStateMapper: PlayerComponentStateMapper, private val randomPlayerFactory: RandomPlayerFactory ) { @Composable fun present(events: Flow<PlayerComponentUiEvents>): PlayerComponentState { var isLoading: Boolean by remember { mutableStateOf(true) } var playerName: String by remember { mutableStateOf(randomPlayerFactory.getRandomPlayer()) } var playerInformationDomain: PlayerInformationDomain? by remember { mutableStateOf(null) } LaunchedEffect(playerName) { isLoading = true playerInformationDomain = getPlayerInformation(playerName) isLoading = false } LaunchedEffect(Unit) { events.collectLatest { when (it) { PlayerComponentUiEvents.RandomiseClicked -> playerName = randomPlayerFactory.getRandomPlayer() } } } if (isLoading) return PlayerComponentState.Loading return playerInformationDomain?.let { playerComponentStateMapper.map(it) } ?: PlayerComponentState.Error("error loading player") } }

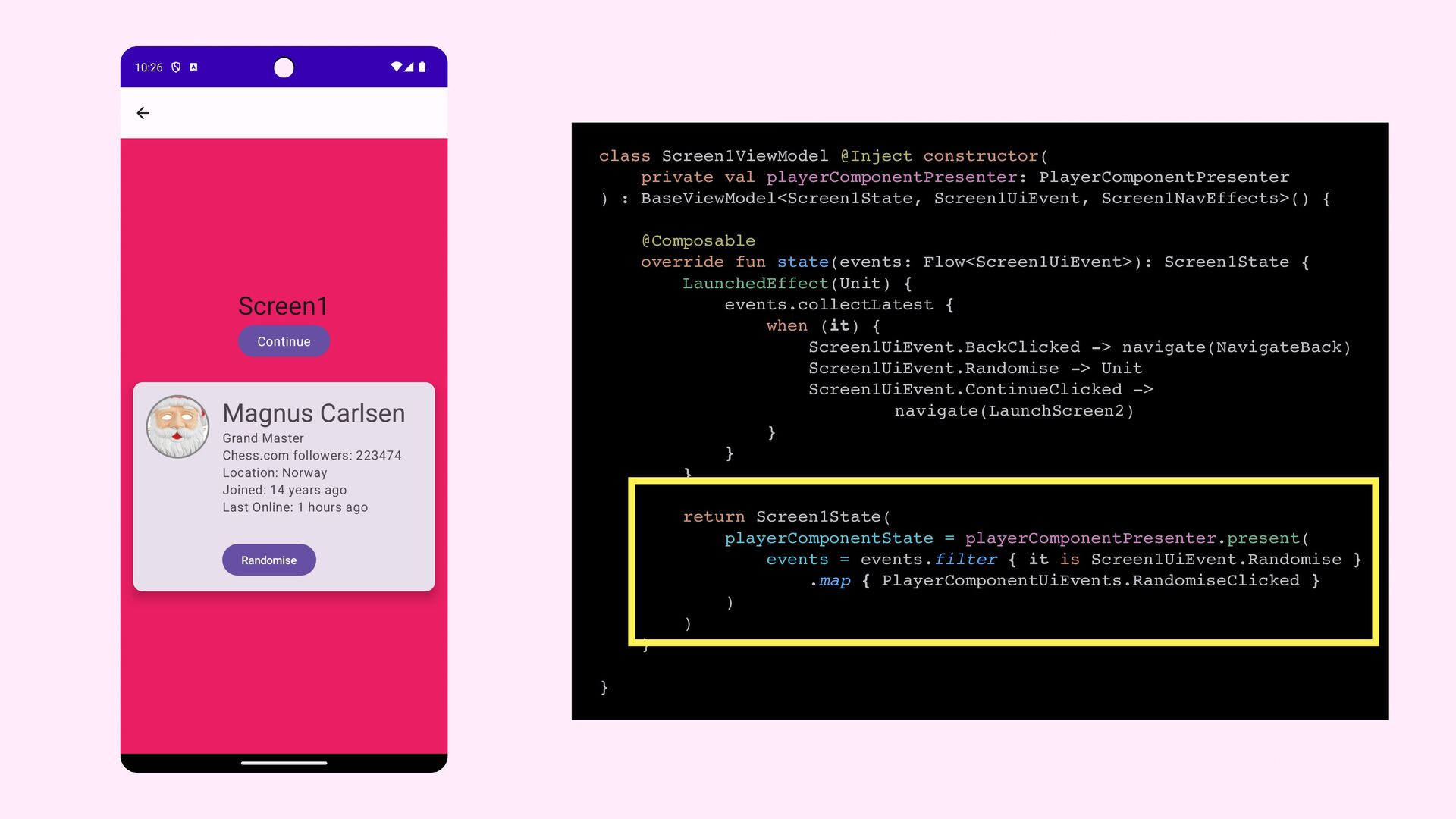

79. class Screen1ViewModel @Inject constructor( private val playerComponentPresenter: PlayerComponentPresenter ) : BaseViewModel<Screen1State, Screen1UiEvent, Screen1NavEffects>() { @Composable override fun state(events: Flow<Screen1UiEvent>): Screen1State { LaunchedEffect(Unit) { events.collectLatest { when (it) { Screen1UiEvent.BackClicked -> navigate(NavigateBack) Screen1UiEvent.Randomise -> Unit Screen1UiEvent.ContinueClicked -> navigate(LaunchScreen2) } } } return Screen1State( playerComponentState = playerComponentPresenter.present( events = events.filter { it is Screen1UiEvent.Randomise } .map { PlayerComponentUiEvents.RandomiseClicked } ) ) } }

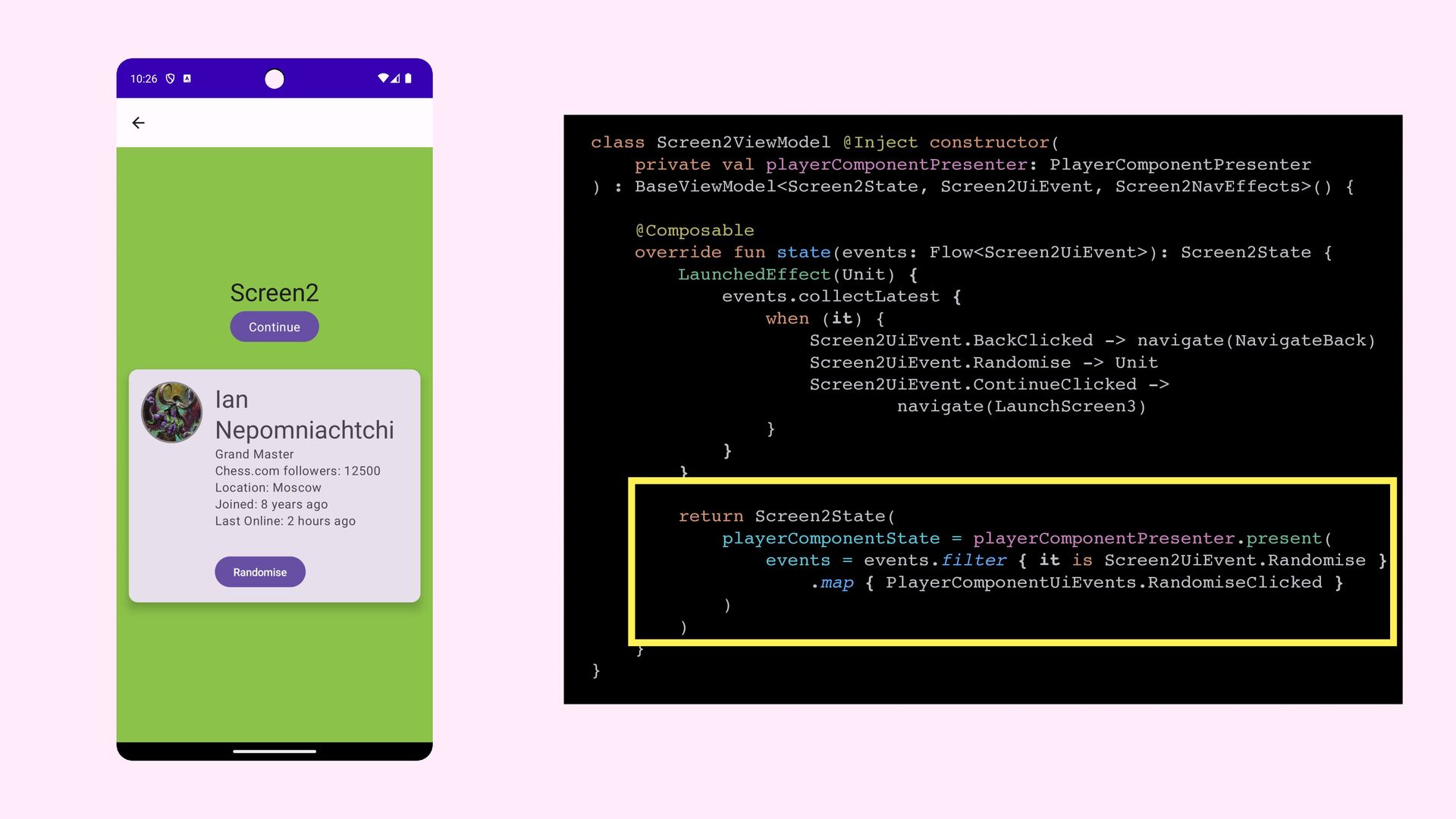

80. class Screen2ViewModel @Inject constructor( private val playerComponentPresenter: PlayerComponentPresenter ) : BaseViewModel<Screen2State, Screen2UiEvent, Screen2NavEffects>() { @Composable override fun state(events: Flow<Screen2UiEvent>): Screen2State { LaunchedEffect(Unit) { events.collectLatest { when (it) { Screen2UiEvent.BackClicked -> navigate(NavigateBack) Screen2UiEvent.Randomise -> Unit Screen2UiEvent.ContinueClicked -> navigate(LaunchScreen3) } } } return Screen2State( playerComponentState = playerComponentPresenter.present( events = events.filter { it is Screen2UiEvent.Randomise } .map { PlayerComponentUiEvents.RandomiseClicked } ) ) } }

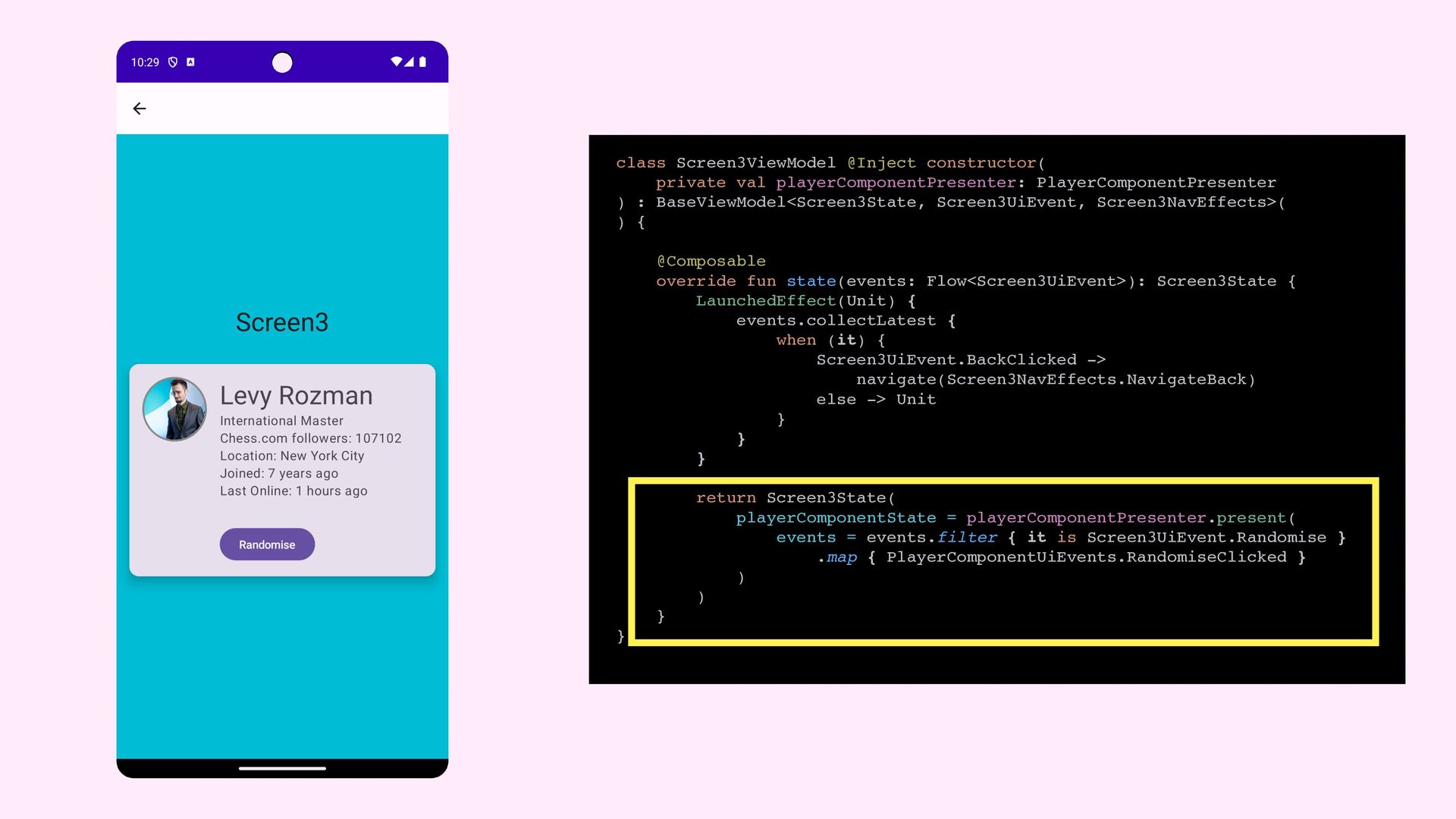

81. class Screen3ViewModel @Inject constructor( private val playerComponentPresenter: PlayerComponentPresenter ) : BaseViewModel<Screen3State, Screen3UiEvent, Screen3NavEffects>( ) { @Composable override fun state(events: Flow<Screen3UiEvent>): Screen3State { LaunchedEffect(Unit) { events.collectLatest { when (it) { Screen3UiEvent.BackClicked -> navigate(Screen3NavEffects.NavigateBack) else -> Unit } } } return Screen3State( playerComponentState = playerComponentPresenter.present( events = events.filter { it is Screen3UiEvent.Randomise } .map { PlayerComponentUiEvents.RandomiseClicked } ) ) } }

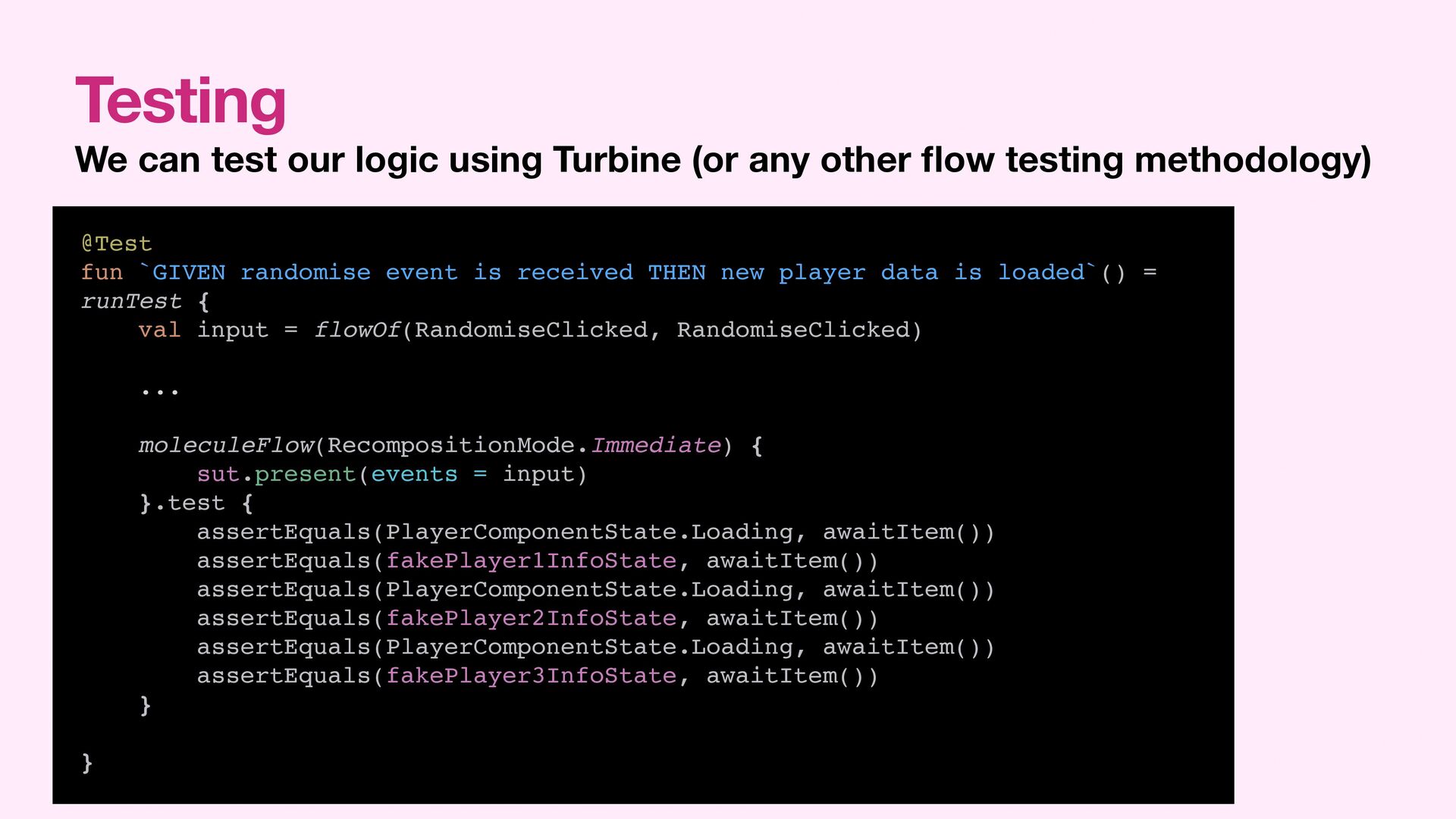

82. Testing We can test our logic using Turbine (or any other fl ow testing methodology) @Test fun `GIVEN randomise event is received THEN new player data is loaded`() = runTest { val input = flowOf(RandomiseClicked, RandomiseClicked) ... moleculeFlow(RecompositionMode.Immediate) { sut.present(events = input) }.test { assertEquals(PlayerComponentState.Loading, awaitItem()) assertEquals(fakePlayer1InfoState, awaitItem()) assertEquals(PlayerComponentState.Loading, awaitItem()) assertEquals(fakePlayer2InfoState, awaitItem()) assertEquals(PlayerComponentState.Loading, awaitItem()) assertEquals(fakePlayer3InfoState, awaitItem()) } }

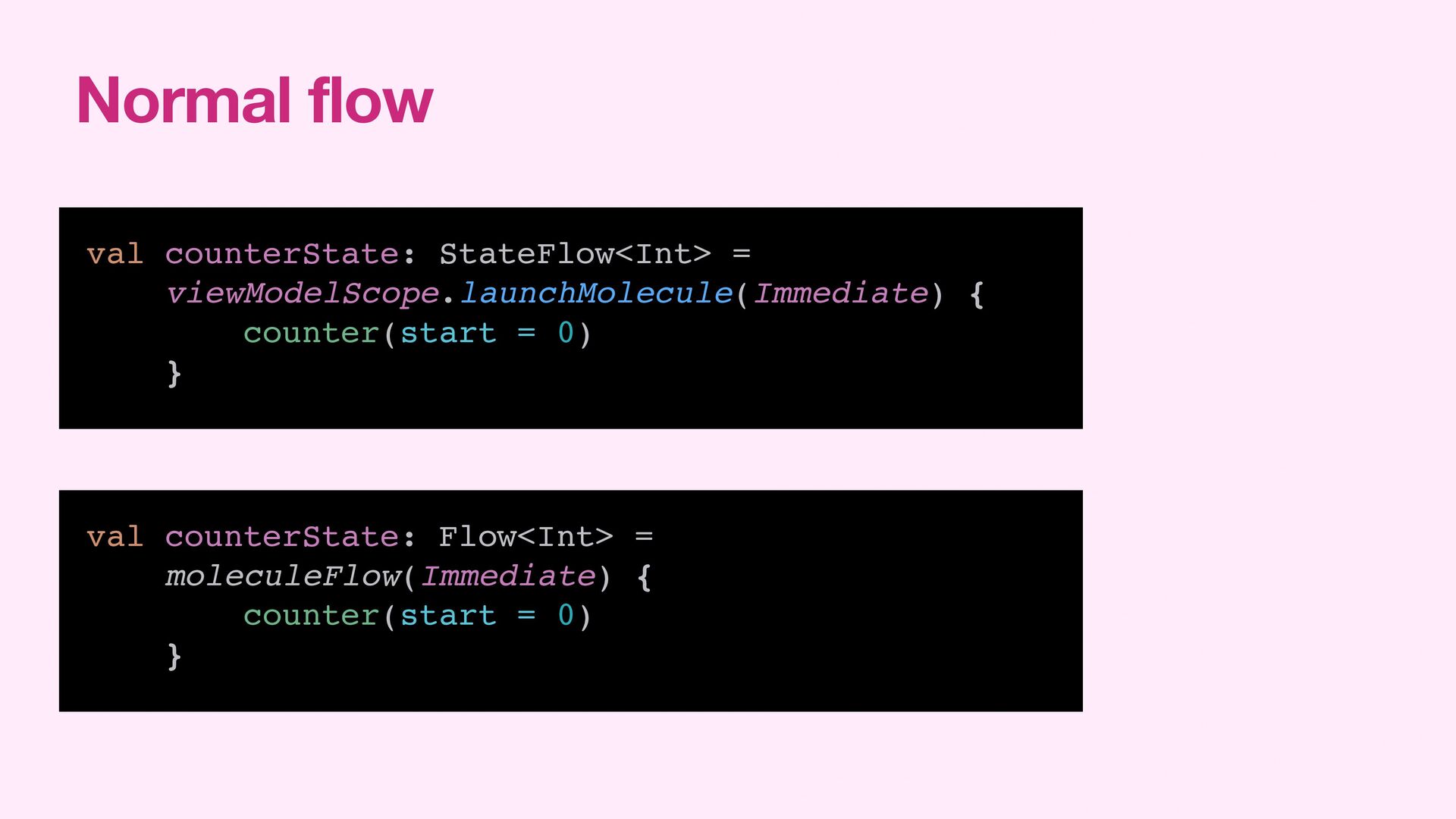

83. Normal flow val counterState: StateFlow<Int> = viewModelScope.launchMolecule(Immediate) { counter(start = 0) } val counterState: Flow<Int> = moleculeFlow(Immediate) { counter(start = 0) }

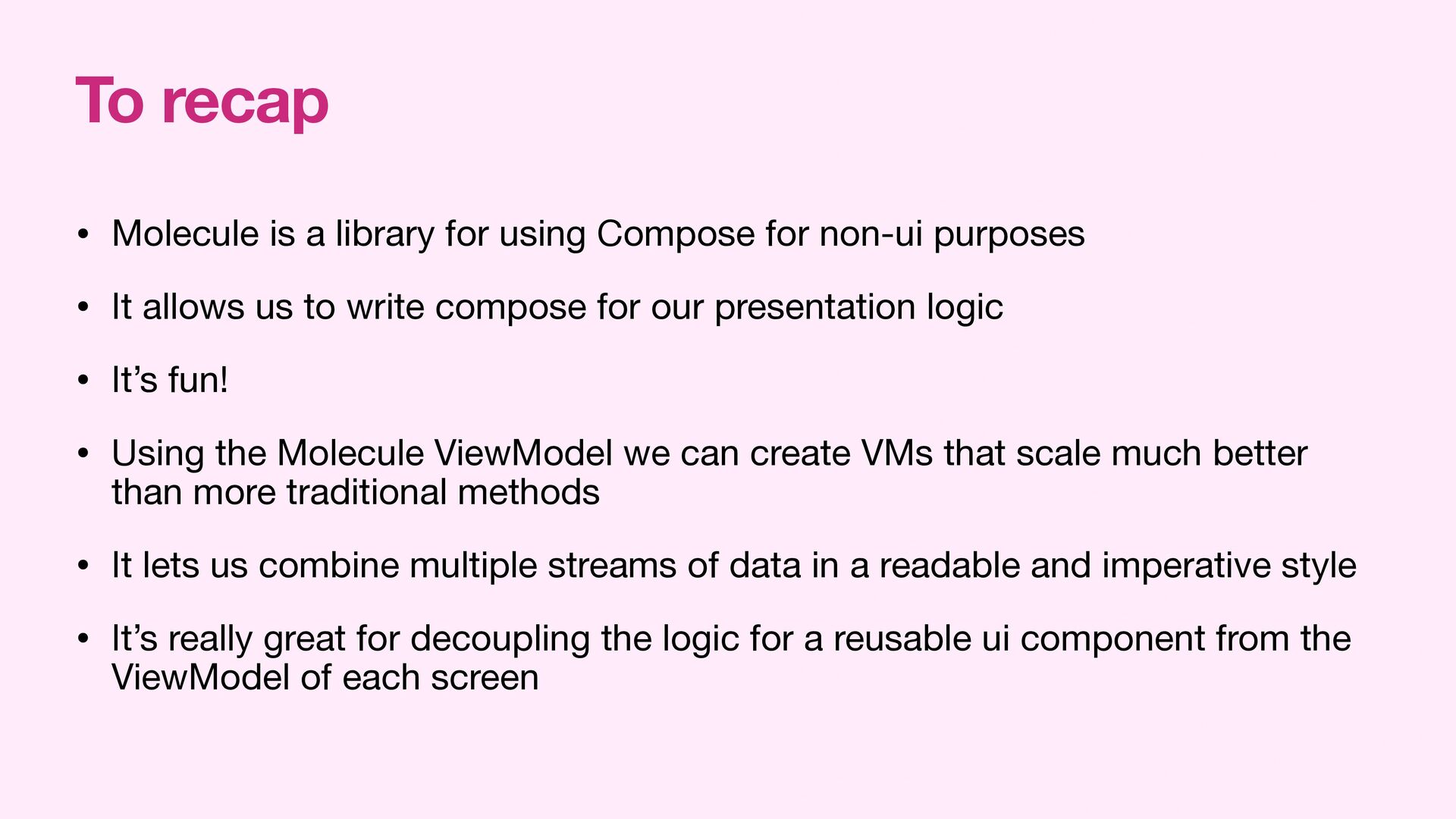

84. To recap • Molecule is a library for using Compose for non-ui purposes • It allows us to write compose for our presentation logic • It’s fun! • Using the Molecule ViewModel we can create VMs that scale much better than more traditional methods • It lets us combine multiple streams of data in a readable and imperative style • It’s really great for decoupling the logic for a reusable ui component from the ViewModel of each screen
