CSE360 Lecture 28

Introduction to Software Engineering
Software Testing
(201807)

Transcript

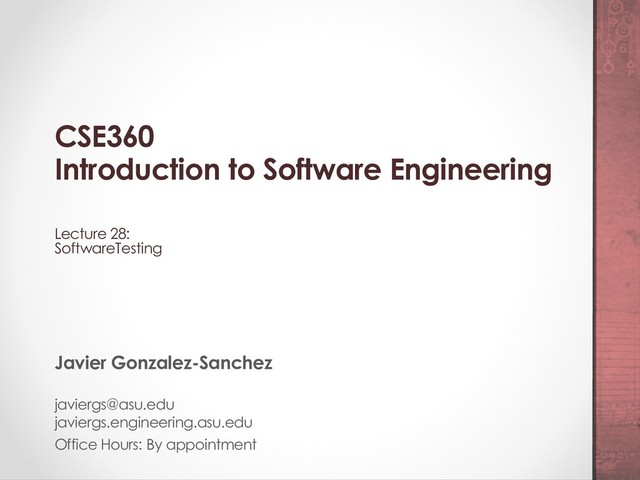

1. CSE360
   Introduction to Software Engineering
   Lecture 28:
   SoftwareTesting
   Javier Gonzalez-Sanchez
   javiergs@asu.edu
   javiergs.engineering.asu.edu
   Office Hours: By appointment


   View Slide

2. COCOMO Examples


   View Slide

3. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 3
   Case 1


   View Slide

4. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 4
   Case 2


   View Slide

5. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 5
   Case 3


   View Slide

6. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 6
   Case 4


   View Slide

7. Software Testing
   Unit Testing


   View Slide

8. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 8
   Next Step
   Process
   Requirements
   Planning
   Modeling
   Coding
   Deployment
   Testing


   View Slide

9. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 9
   Definition
   • Validation. It is about requirements. Are we building
   the right product? Does this software do what it
   needs to do?
   • Verification. It is about design. Are we building the
   product right? Does this meets it requirements?
   • Testing. Examination of the behavior of a program
   by executing it on sample data sets.


   View Slide

10. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 10
    Verify, Validate, and Test


    View Slide

11. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 11
    Testing
    Testing
    White Box
    (Verification)
    Unit Testing
    Integration Testing
    Black Box
    (Validation)
    System Testing
    Scenario-based
    testing
    Model-based testing


    View Slide

12. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 12
    Unit Testing
    • Unit testing is the testing of an individual unit or
    group of related units.
    • It test that a unit is producing expected output
    against given input.
    • Each Unit developer must define Unit Test Cases for
    that Unit.
    • Unit Testing Frameworks are tools and libraries that
    help to implement the Unit Testing process. Example
    JUnit


    View Slide

13. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 13
    Limitations and Constraints
    • Missing or Bad requirements
    • Exhaustive testing is not possible
    • Sampling
    • Limited time and money


    View Slide

14. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 14
    Example


    View Slide

15. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 15
    Example


    View Slide

16. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 16
    Example


    View Slide

17. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 17
    Coverage
    • Statement Coverage: every statement is executed
    at least 1 time.
    • Decision Coverage: every decision point is
    executed at least 1 time
    • Decision-Condition Coverage: every decision
    tested with all possible outcomes


    View Slide

18. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 18
    Statement Coverage
    1. if (a <10 || b>5)
    2. x = 50
    3. else
    4. x = 0;
    5. if (w == 5 || y>0)
    6. z = 48;
    7. else
    8. z = 5;
    Total Statements?
    Statement Coverage with a = 0, b=0, w=0, y=0 ?
    Statement Coverage with a=10, b=4, w=5, y = anything ?
    Coverage is cumulative


    View Slide

19. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 19
    Decision Coverage
    1. x = 0;
    2. if (x<10)
    3. doSomething();
    4. x =5;
    Total Statements?
    Statement coverage ?
    Decision Coverage ?


    View Slide

20. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 20
    Decision-Condition Coverage
    1. if (x<1 || y>5 a&& z!=0 || flag== T && s==NIL)
    2. doThis();
    3. else
    4. doThat();
    Total Statements?
    Test cases needed for 100% statement coverage?
    Test cases needed for Test for 100% decision coverage?
    Test cases needed for Test for 100% decision-condition
    coverage?


    View Slide

21. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 21
    Test Yourselves
    1. start =1;
    2. end = num;
    3. found = false;
    4. while (starts <= end and not found ) {
    5. middle =(start - end)/2;
    6. if (key > table[middle]) {
    7. start = middle +1
    8. } else if (key = table[middle]) {
    9. found = T
    10. LOC = middle;
    11. } else
    12. end = middle -1;
    13. }
    14. }
    //TestCase1 table={10, 20, 30, 40, 50, 60, 70}, key=55
    //TestCase2 table={10, 20, 30, 40, 50, 60, 70}, key=40


    View Slide

22. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 22
    Test Yourselves


    View Slide

23. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 23
    Reference
    Chapter 8


    View Slide

24. CSE360 – Introduction to Software Engineering
    Javier G onzalez-Sanchez
    javiergs@ asu.edu
    Sum m er 2017
    Disclaim er. These slides can only be used as study m aterial for the class C SE360 at ASU. They cannot be distributed or used for another purpose.
