AppArmor 3 and Beyond

There are several changes coming with the release of AppArmor 3. This talk
will cover the changes that AppArmor 3 will bring and how the changes
will affect policy and confinement. It will cover policy versioning, local vs
pre-shipped read-only policy text, improvements in AppArmor policy namespaces, fine grained network and d-bus mediation as well as IMA integration.

Transcript

1. John Johansen AppArmor Maintainer John.johansen@canonical.com AppArmor 3 and Beyond Riding the Tumbleweed
2. First, lets review
3. RBAC & User Confnement
4. pam_apparmor • Mappings done through policy – Uses “hats” to do the mapping – Requires task calling into pam be confned • Roles use policy inheritance – task and all its children confned by the same profle
5. Policy Namespaces
6. Policy Namespaces /usr/sbin/libvirtd (enforce) /usr/sbin/mdnsd (complain) /usr/sbin/ippusbxd (enforce) /usr/sbin/dovecot (complain) /usr/lib/snapd/snap-confine (enforce) /usr/lib/telepathy/telepathy-ofono (enforce) /usr/lib/telepathy/telepathy-* (enforce) /usr/lib/telepathy/mission-control-5 (enforce) /usr/sbin/identd (complain) /usr/sbin/cupsd (enforce) /usr/sbin/libvirtd (enforce) /usr/sbin/mdnsd (complain) /usr/sbin/identd (complain) /usr/sbin/cupsd (enforce) firefox (enforce) firefox//sanitized_helper (enforce) firefox//lsb_release (enforce) firefox//browser_openjdk (enforce) firefox//browser_java (enforce) Namespace 1 Namespace 2

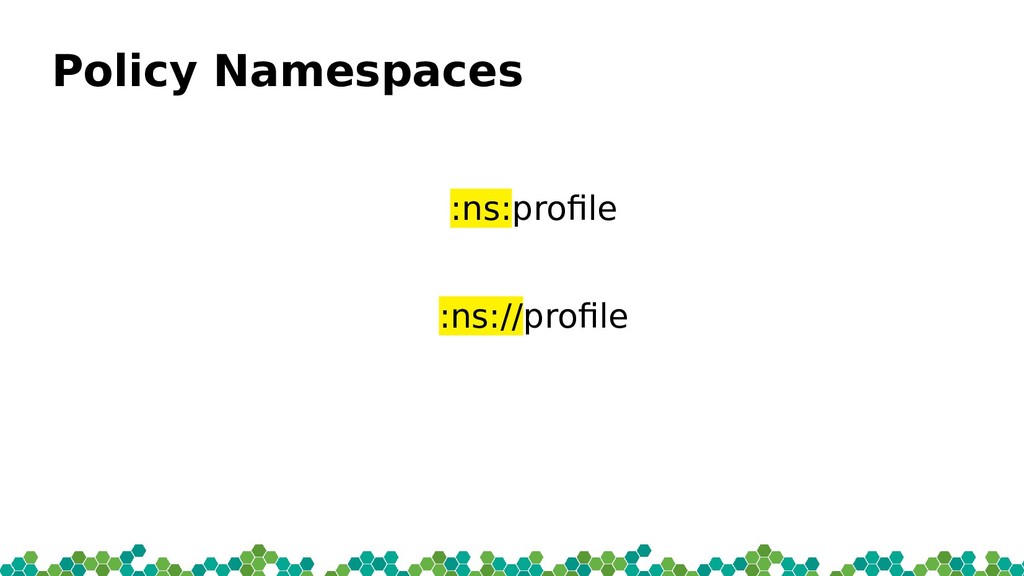

7. Policy Namespaces :ns:profle :ns://profle
8. Policy Namespaces - Hierarchical System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3:
9. View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3:
10. Child NS View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3:
11. Grand Child NS View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3:
12. Policy Stacking
13. Stacking frefior//&evince
14. System View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3: Task
15. Reduced View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3: Task
16. Further Reduced View System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3: Task
17. AppArmor 3
18. Policy Versioning include <version/3.0> include <tunables/global> # We want to confine the binaries that match: # /usr/lib/firefox/firefox # /usr/lib/firefox/firefox # but not: # /usr/lib/firefox/firefox.sh profile firefox /usr/lib/firefox/firefox{,*[^s][^h]} { include <abstractions/audio> include <abstractions/cups-client> include <abstractions/dbus-strict> include <abstractions/dbus-session-strict> ...
19. Policy Versioning - Include $ cat /etc/apparmor.d/version/3.0 feature-abi=<features/upstream-4.18> @{version}=3.0 $
20. Multiple versions • Each profle fle has a version – Versions do not have to be the same • Policy in application packaging – Updated out ofi sync firom distro policy – Selectively use fieatures not in distro policy*
21. Versioned policy on older releases? • Versioning will not be back ported • Ercept – Backported 2.13, 2.12. 2.11 – Considering 2.10 & 2.9 include if exists <version/3.0> include <tunables/global> profile firefox /usr/lib/firefox/firefox{,*[^s][^h]} { if defined @{version} { include <abstractions/audio>
22. Policy with out Versioning • Will mostly continue to work – subset ofi current kernel abi and upstream 4.14 • Compatibility “patches” – Without “unsupported” rules will be downgraded
23. Pre-built policy & RO images
24. Pre 3.0 - Single binary policy Cache bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... /etc/apparmor.d/cache

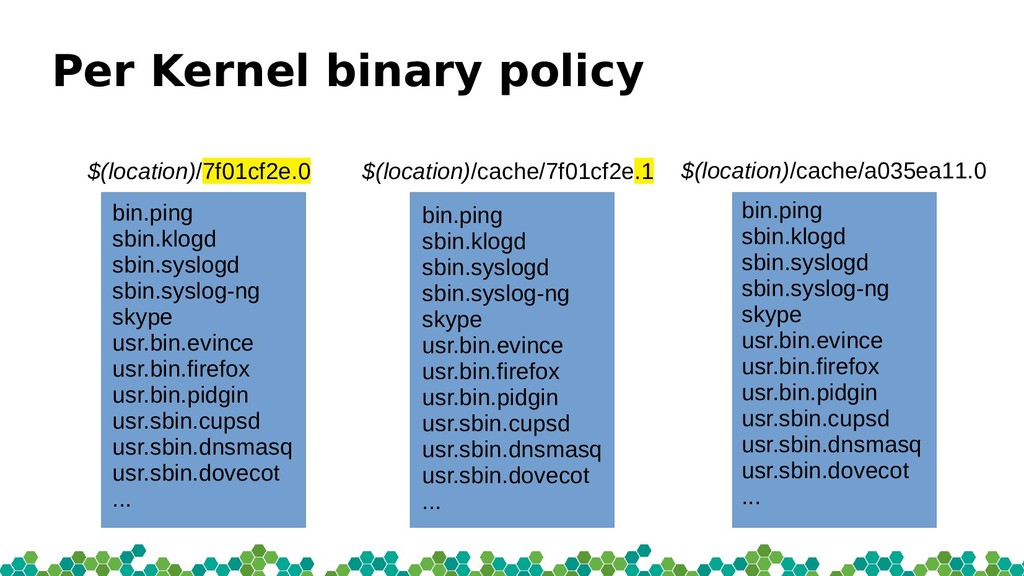

25. Per Kernel binary policy bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... $(location)/cache/7f01cf2e.1 $(location)/7f01cf2e.0 $(location)/cache/a035ea11.0
26. Binary policy overlays bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... skype usr.bin.evince usr.bin.firefox usr.sbin.cupsd ... $(loc1)/7f01cf2e.0 $(loc2)/7f01cf2e.0 bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... skype usr.bin.evince usr.bin.firefox usr.sbin.cupsd ... $(loc1)/a035ea11.0 $(loc2)/a035ea11.0
27. Policy Overlays bin.ping sbin.klogd sbin.syslogd sbin.syslog-ng skype usr.bin.evince usr.bin.firefox usr.bin.pidgin usr.sbin.cupsd usr.sbin.dnsmasq usr.sbin.dovecot ... skype usr.bin.evince usr.bin.firefox usr.sbin.cupsd ... /var/lib/apparmor.d/ /etc/apparmor.d/
28. Support for new upstream features
29. Network • upstream Network socket mediation (4.16) • fne grain unir socket mediation (4.19) unix, unix (accept, receive) addr=@foo peer=(label=/bar), unix receive peer=(label=@{profile_name}) unix bind addr=@example, unix (connect, receive, send) type=stream peer=(label=/foo,addr="@bar"),

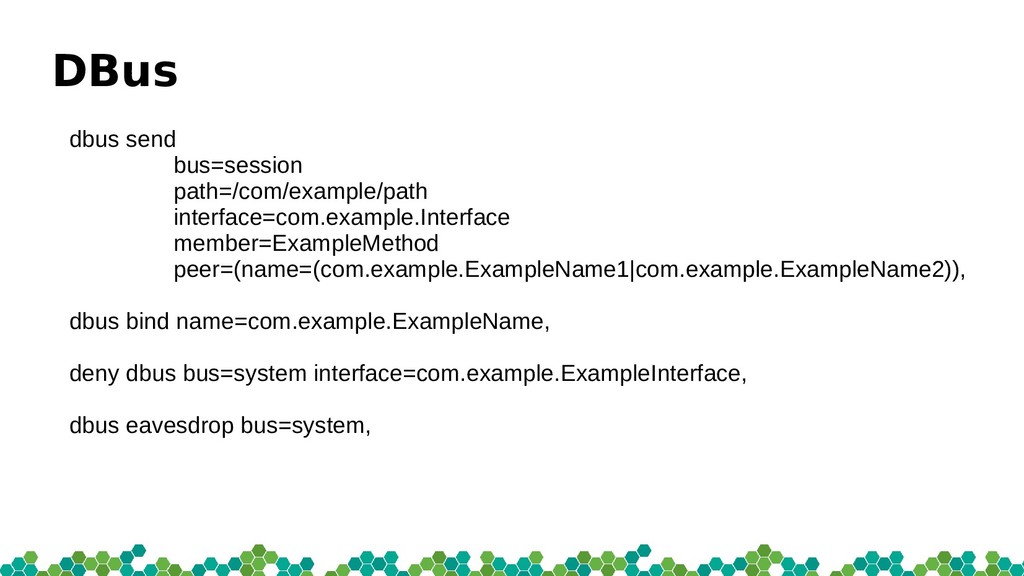

30. DBus dbus send bus=session path=/com/example/path interface=com.example.Interface member=ExampleMethod peer=(name=(com.example.ExampleName1|com.example.ExampleName2)), dbus bind name=com.example.ExampleName, deny dbus bus=system interface=com.example.ExampleInterface, dbus eavesdrop bus=system,
31. IMA interaction profile firefox /usr/lib/firefox/firefox{,*[^s][^h]} { #include <abstractions/audio> #include <abstractions/cups-client> #include <abstractions/dbus-strict> #include <abstractions/dbus-session-strict> #include <abstractions/dconf> #include <abstractions/gnome> #include <abstractions/ibus> #include <abstractions/nameservice> #include <abstractions/openssl> #include <abstractions/p11-kit> #include <abstractions/ubuntu-unity7-base> #include <abstractions/ubuntu-unity7-launcher> ...
32. IMA interaction profile firefox /usr/lib/firefox/firefox{,*[^s][^h]} xattrs=(security.ima=bar) { #include <abstractions/audio> #include <abstractions/cups-client> #include <abstractions/dbus-strict> #include <abstractions/dbus-session-strict> #include <abstractions/dconf> #include <abstractions/gnome> #include <abstractions/ibus> #include <abstractions/nameservice> #include <abstractions/openssl> #include <abstractions/p11-kit> #include <abstractions/ubuntu-unity7-base> #include <abstractions/ubuntu-unity7-launcher> ...
33. And beyond
34. Systemd integration • Use libapparmor directly • Direct loading ofi binary policy • Allows loading policy as early as possible
35. Policy NS – Scope & Views System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3: Task • View • Scope • Admin

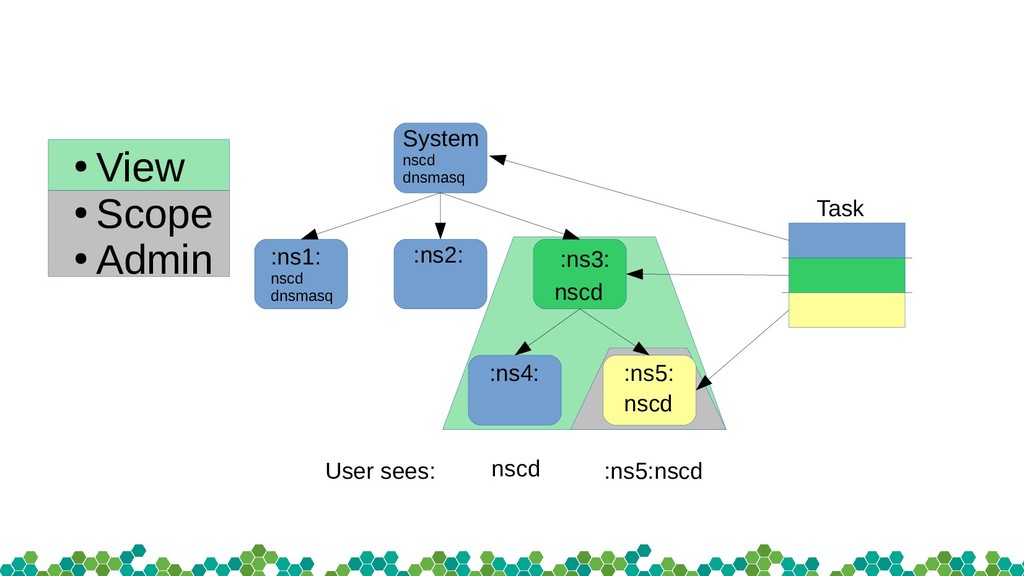

36. System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :ns5: :ns3: Task nscd nscd nscd :ns5:nscd User sees: • View • Scope • Admin
37. System nscd dnsmasq :ns2: :ns4: :ns1: nscd dnsmasq :user_jj: :role: Task user admin chrome :chrome: sandbox
38. User confnement revisited • pam_apparmor – confg fle – change_profle instead ofi change_hat – doesn’t require total system confnement
39. User confnement revisited profile firefox /usr/lib/firefox/firefox{,*[^s][^h]} user=(jj,cboltz) { #include <abstractions/audio> #include <abstractions/cups-client> #include <abstractions/dbus-strict> #include <abstractions/dbus-session-strict> #include <abstractions/dconf> #include <abstractions/gnome> #include <abstractions/ibus> #include <abstractions/nameservice> #include <abstractions/openssl> #include <abstractions/p11-kit> #include <abstractions/ubuntu-unity7-base> #include <abstractions/ubuntu-unity7-launcher> ...
40. Policy Learning – kernel interface • Boot Param to set bufer size • Divert complain messages • Allow applications to register to receive messages • Read complain messages directly firom the kernel
41. Fine grain ipv4/ipv6 networking ipv4 bind addr=192.168.1.100#53, ipv4 bind addr=#53, ipv4 (connect, send, receive) peer=(addr=192.168.1.200) ipv4 (connect, send) label:=foo peer=(addr=192.168.5) ipv4 (send, receive) label:=foo peer=bar
42. Questions Please https://gitlab.com/apparmor/apparmor John Johansen john.johansen@canonical.com www.canonical.com
