Utilisation du NDK : Lecture & gestion des PDF

Utilisation du NDK : Lecture & gestion des PDF

Session de Juin 2014 @TAUG.
Le SDK Android ne possède pas d'api permettant le rendu de PDF. Cette presentation vous montrera comment traiter cette problématique, via l'utilisation du Native Developement Kit (NDK), la compilation et l'intégration de bibliothèques natives, puis comment protéger ses fichiers et éviter que ceux-ci ne soient accessibles trop facilement.

Julien Sanchez

June 05, 2014
Tweet

More Decks by Julien Sanchez

Other Decks in Technology

Transcript

  1. Utilisation du NDK : Lecture & Gestion des PDF sous

    Android Juin 2014 Julien Sanchez
  2. Pdf et Android SDK 1/ Laisser la main à l’OS

    File file = new File("/sdcard/files/mypdf.pdf"); Intent intent = new Intent(); intent.setAction(Intent.ACTION_VIEW); Uri uri = Uri.fromFile(file); intent.setDataAndType(uri, "application/pdf");

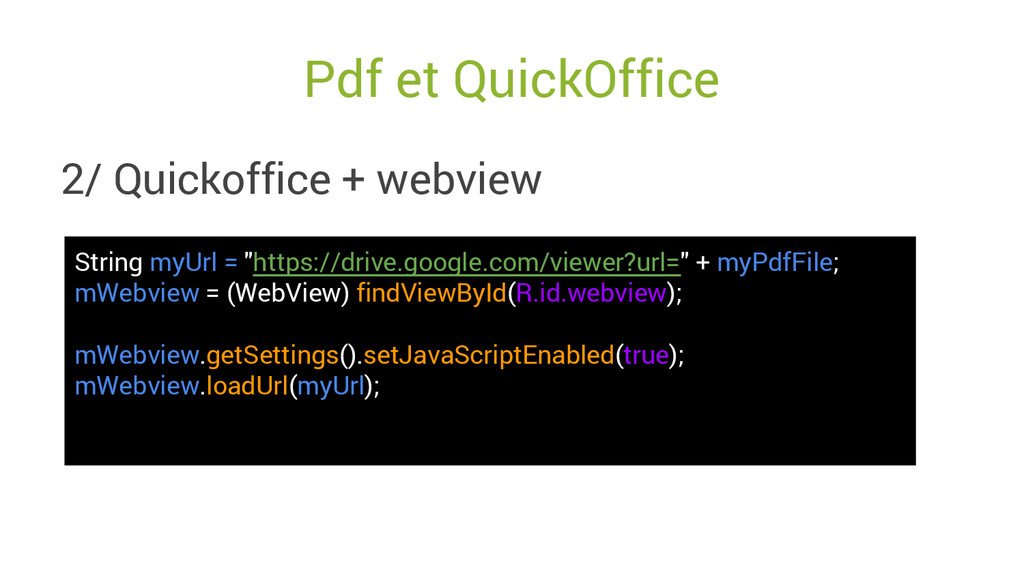

  3. Pdf et QuickOffice 2/ Quickoffice + webview String myUrl =

    "https://drive.google.com/viewer?url=" + myPdfFile; mWebview = (WebView) findViewById(R.id.webview); mWebview.getSettings().setJavaScriptEnabled(true); mWebview.loadUrl(myUrl);

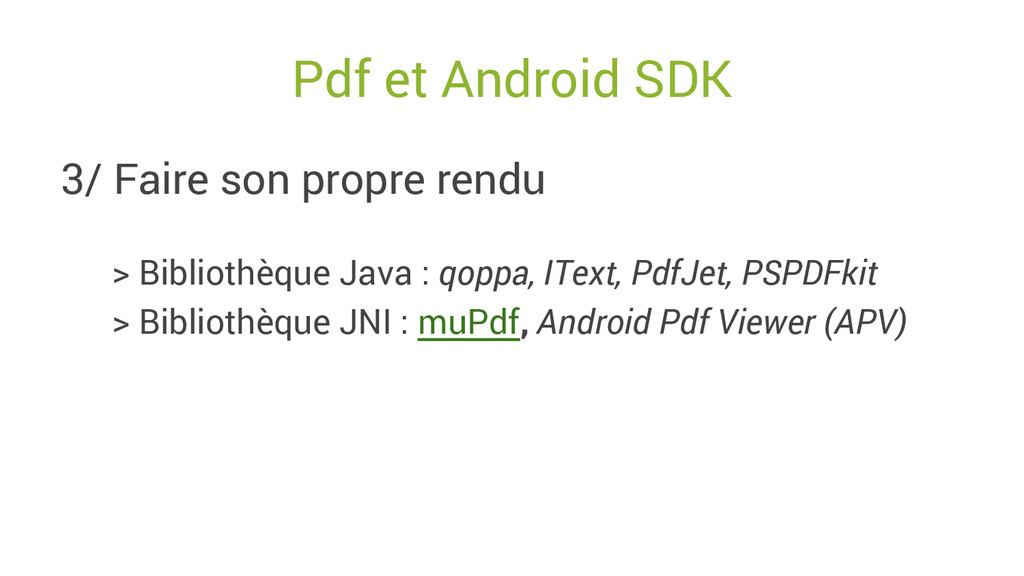

  4. Pdf et Android SDK 3/ Faire son propre rendu >

    Bibliothèque Java : qoppa, IText, PdfJet, PSPDFkit > Bibliothèque JNI : muPdf, Android Pdf Viewer (APV)

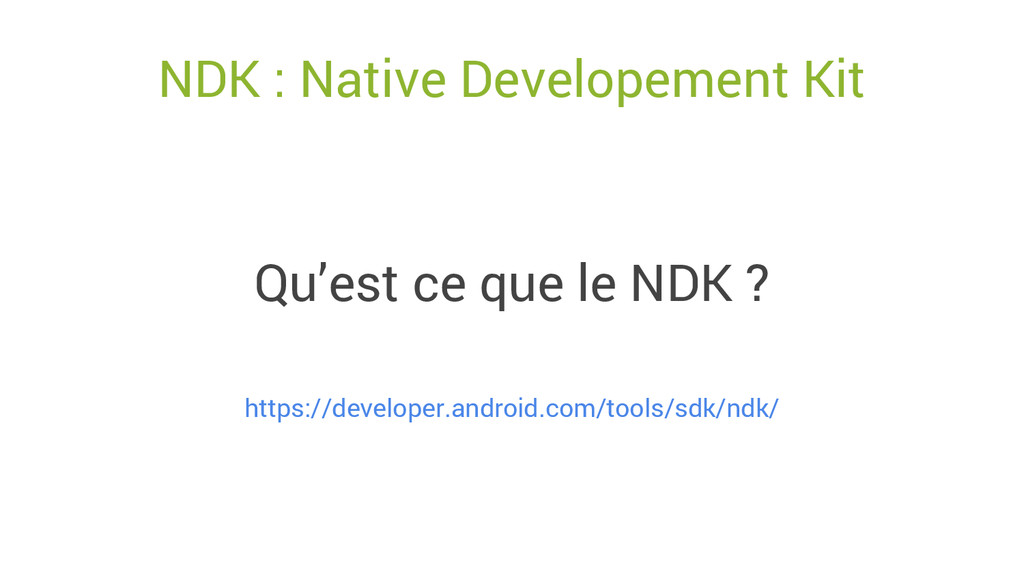

  5. NDK : Native Developement Kit Qu’est ce que le NDK

    ? https://developer.android.com/tools/sdk/ndk/

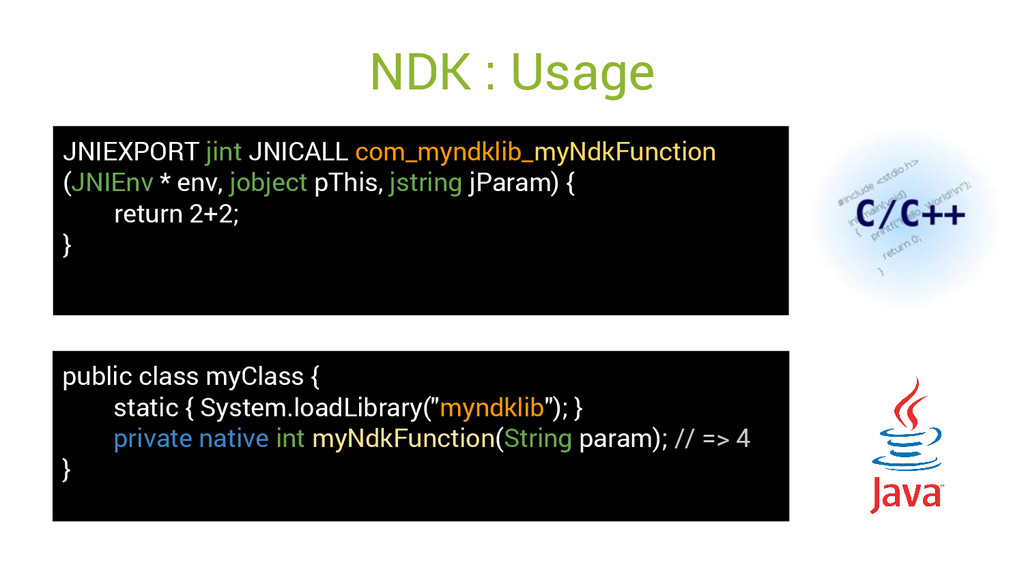

  6. NDK : Usage JNIEXPORT jint JNICALL com_myndklib_myNdkFunction (JNIEnv * env,

    jobject pThis, jstring jParam) { return 2+2; } public class myClass { static { System.loadLibrary("myndklib"); } private native int myNdkFunction(String param); // => 4 }

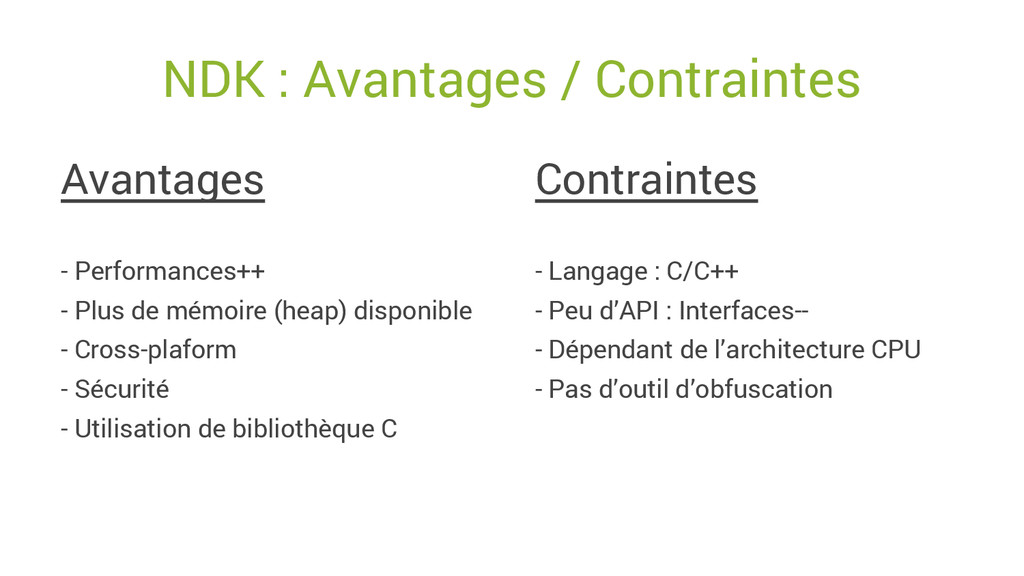

  7. NDK : Avantages / Contraintes Avantages - Performances++ - Plus

    de mémoire (heap) disponible - Cross-plaform - Sécurité - Utilisation de bibliothèque C Contraintes - Langage : C/C++ - Peu d’API : Interfaces-- - Dépendant de l’architecture CPU - Pas d’outil d’obfuscation

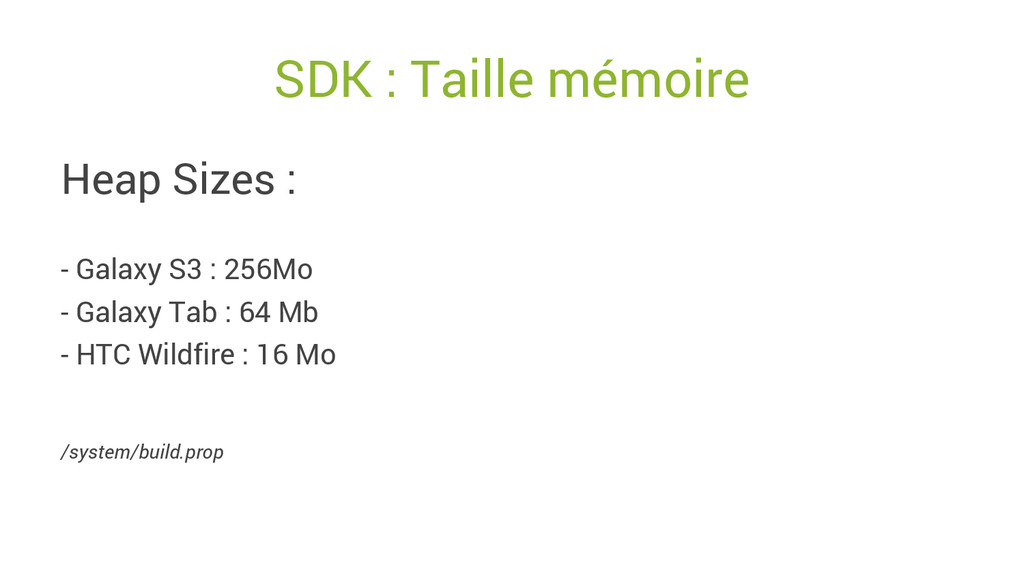

  8. SDK : Taille mémoire Heap Sizes : - Galaxy S3

    : 256Mo - Galaxy Tab : 64 Mb - HTC Wildfire : 16 Mo /system/build.prop

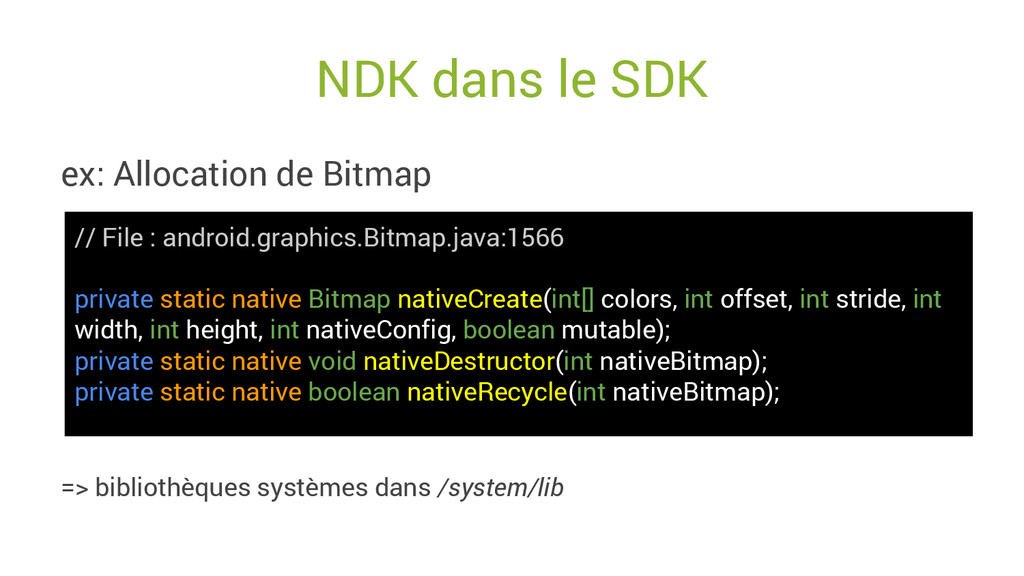

  9. NDK dans le SDK ex: Allocation de Bitmap => bibliothèques

    systèmes dans /system/lib // File : android.graphics.Bitmap.java:1566 private static native Bitmap nativeCreate(int[] colors, int offset, int stride, int width, int height, int nativeConfig, boolean mutable); private static native void nativeDestructor(int nativeBitmap); private static native boolean nativeRecycle(int nativeBitmap);
  10. Plus sur le NDK ? -> Session du Paris AUG,

    Mars 2013 par Sylvain Ratabouil http://youtu.be/K4TgkzpEEvM

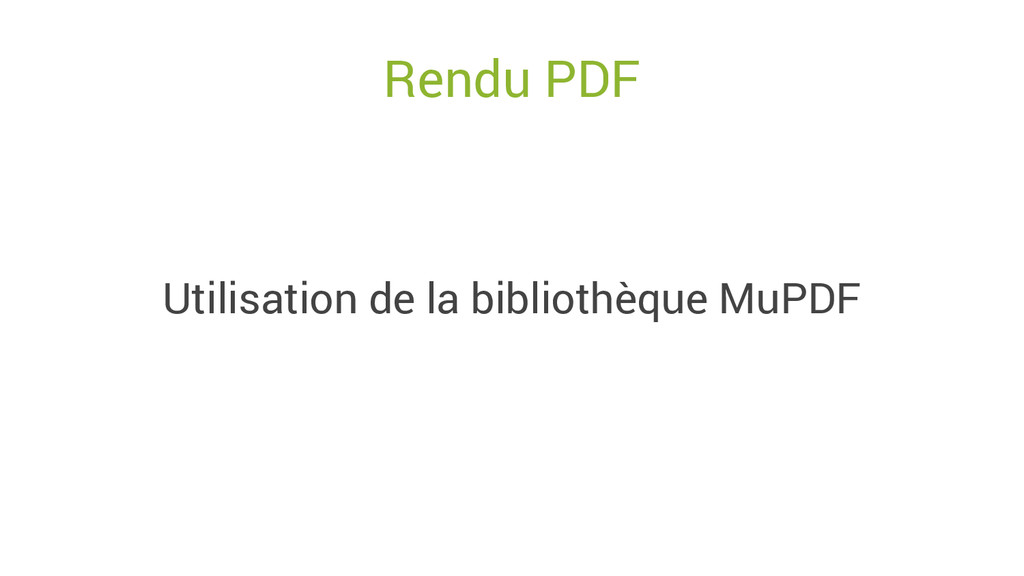

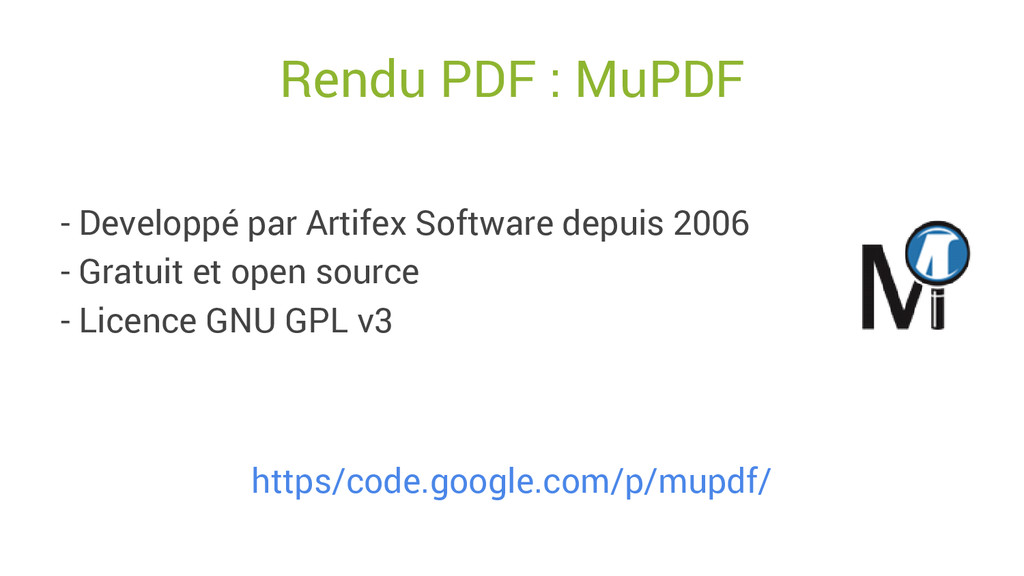

  11. Rendu PDF : MuPDF - Developpé par Artifex Software depuis

    2006 - Gratuit et open source - Licence GNU GPL v3 https/code.google.com/p/mupdf/

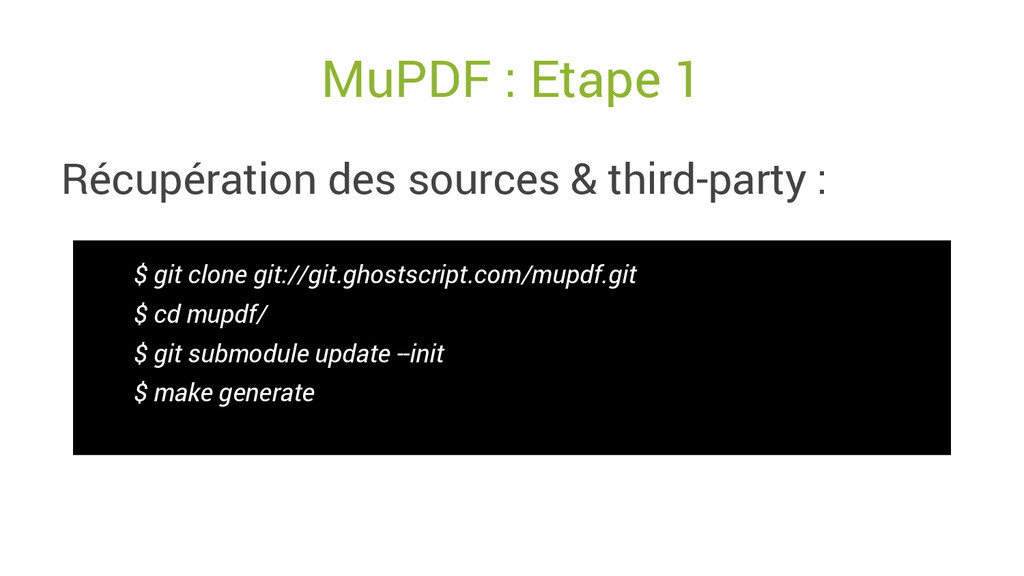

  12. MuPDF : Etape 1 Récupération des sources & third-party :

    $ git clone git://git.ghostscript.com/mupdf.git $ cd mupdf/ $ git submodule update --init $ make generate

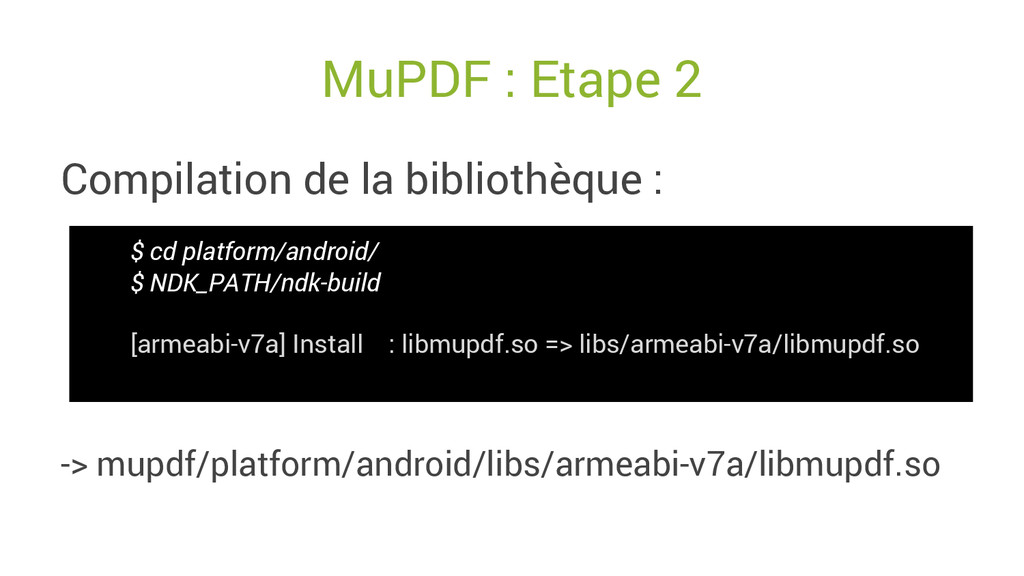

  13. MuPDF : Etape 2 Compilation de la bibliothèque : ->

    mupdf/platform/android/libs/armeabi-v7a/libmupdf.so $ cd platform/android/ $ NDK_PATH/ndk-build [armeabi-v7a] Install : libmupdf.so => libs/armeabi-v7a/libmupdf.so

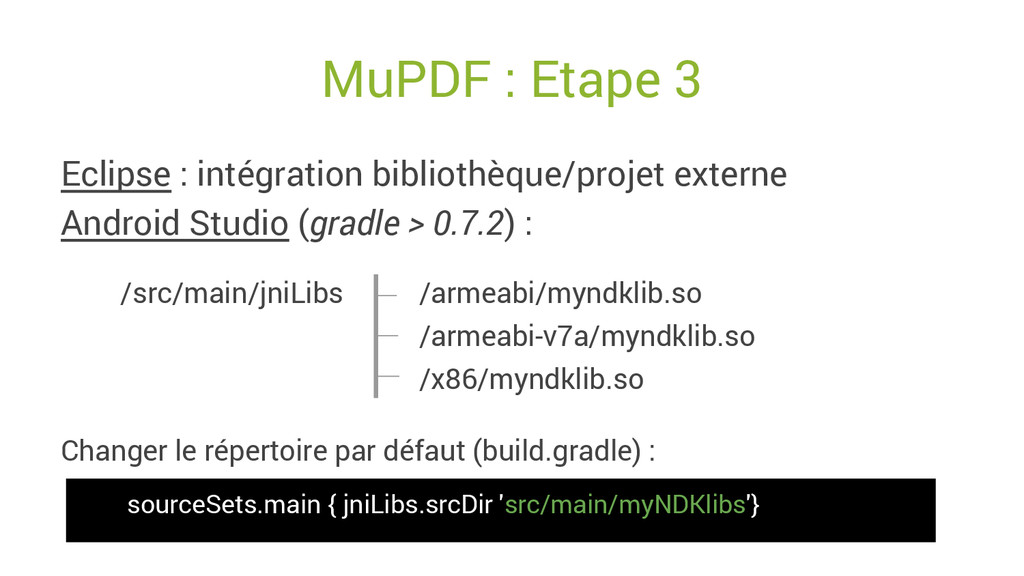

  14. MuPDF : Etape 3 Eclipse : intégration bibliothèque/projet externe Android

    Studio (gradle > 0.7.2) : /src/main/jniLibs /armeabi/myndklib.so /armeabi-v7a/myndklib.so /x86/myndklib.so Changer le répertoire par défaut (build.gradle) : sourceSets.main { jniLibs.srcDir 'src/main/myNDKlibs'}

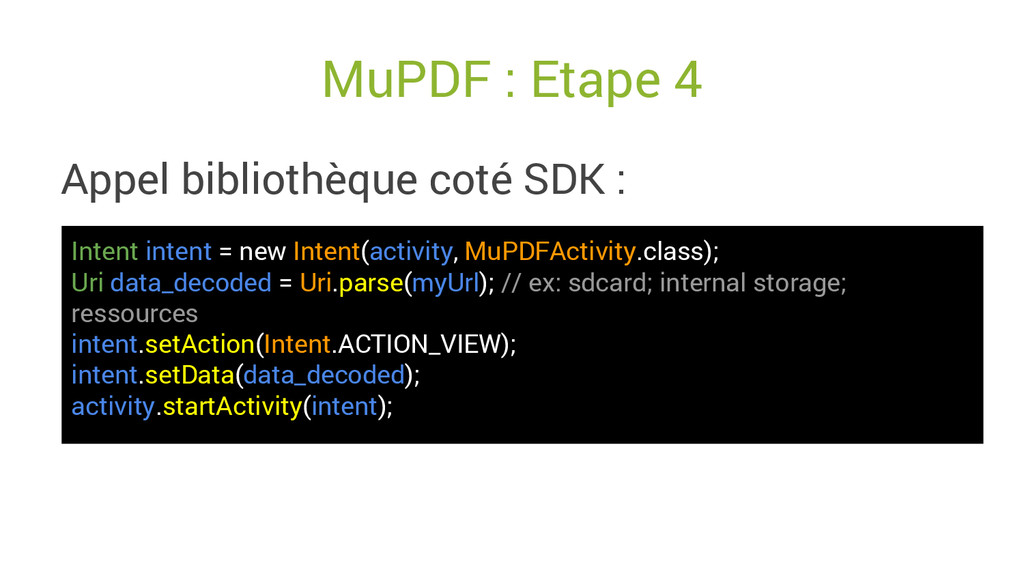

  15. MuPDF : Etape 4 Appel bibliothèque coté SDK : Intent

    intent = new Intent(activity, MuPDFActivity.class); Uri data_decoded = Uri.parse(myUrl); // ex: sdcard; internal storage; ressources intent.setAction(Intent.ACTION_VIEW); intent.setData(data_decoded); activity.startActivity(intent);

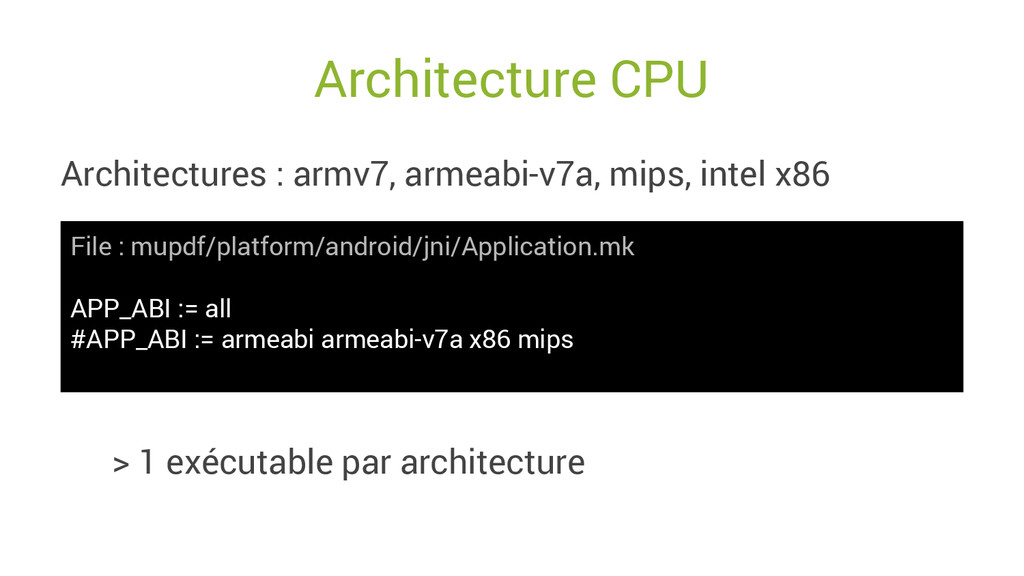

  16. Architecture CPU Architectures : armv7, armeabi-v7a, mips, intel x86 >

    1 exécutable par architecture File : mupdf/platform/android/jni/Application.mk APP_ABI := all #APP_ABI := armeabi armeabi-v7a x86 mips

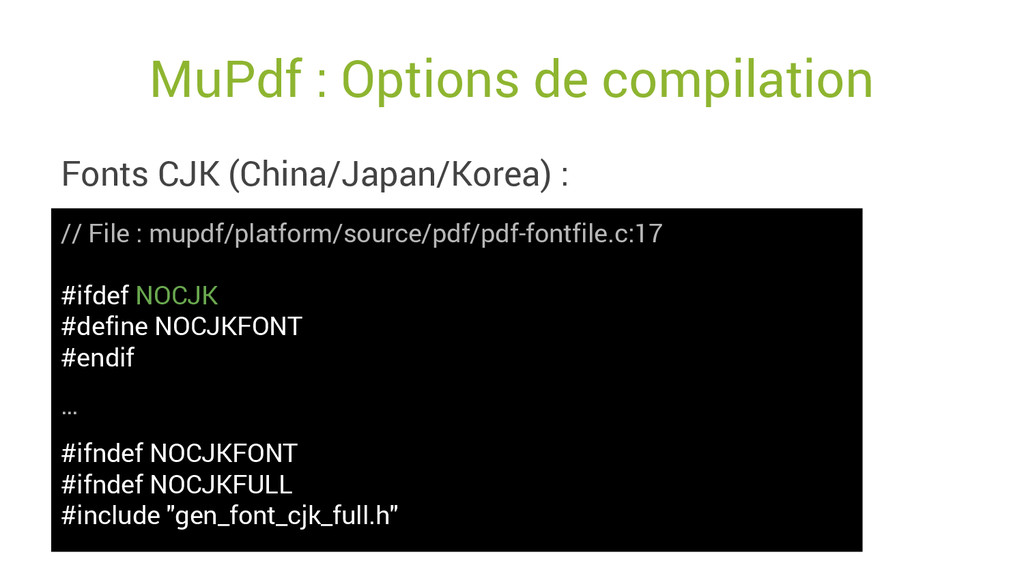

  17. MuPdf : Options de compilation Fonts CJK (China/Japan/Korea) : //

    File : mupdf/platform/source/pdf/pdf-fontfile.c:17 #ifdef NOCJK #define NOCJKFONT #endif … #ifndef NOCJKFONT #ifndef NOCJKFULL #include "gen_font_cjk_full.h"

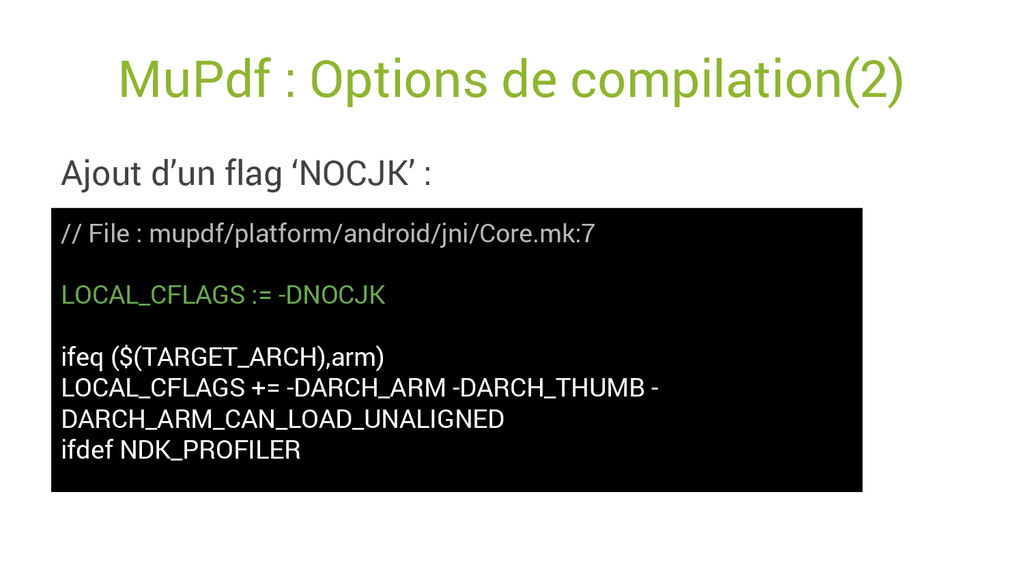

  18. MuPdf : Options de compilation(2) // File : mupdf/platform/android/jni/Core.mk:7 LOCAL_CFLAGS

    := -DNOCJK ifeq ($(TARGET_ARCH),arm) LOCAL_CFLAGS += -DARCH_ARM -DARCH_THUMB - DARCH_ARM_CAN_LOAD_UNALIGNED ifdef NDK_PROFILER Ajout d’un flag ‘NOCJK’ :

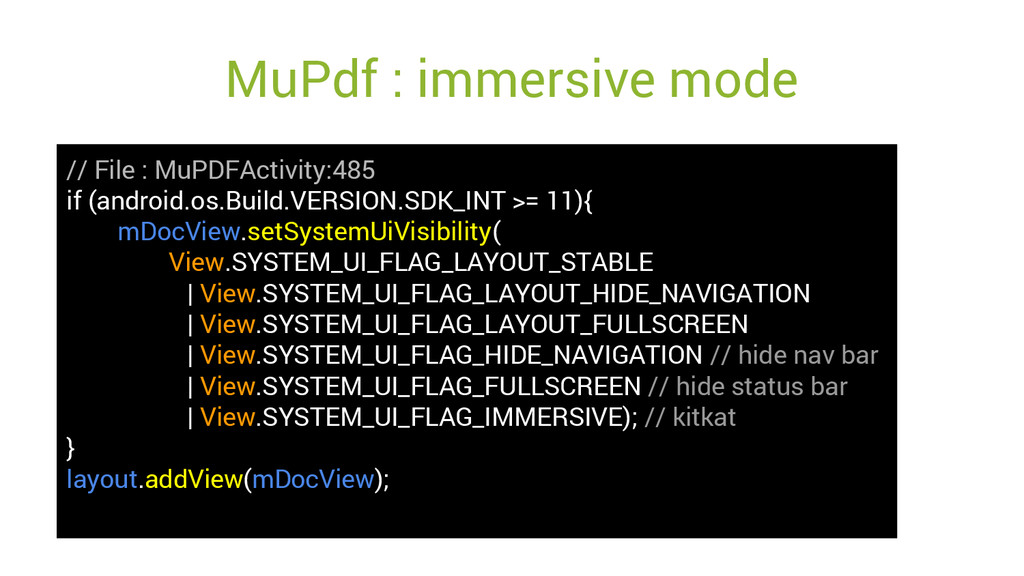

  19. MuPdf : immersive mode // File : MuPDFActivity:485 if (android.os.Build.VERSION.SDK_INT

    >= 11){ mDocView.setSystemUiVisibility( View.SYSTEM_UI_FLAG_LAYOUT_STABLE | View.SYSTEM_UI_FLAG_LAYOUT_HIDE_NAVIGATION | View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN | View.SYSTEM_UI_FLAG_HIDE_NAVIGATION // hide nav bar | View.SYSTEM_UI_FLAG_FULLSCREEN // hide status bar | View.SYSTEM_UI_FLAG_IMMERSIVE); // kitkat } layout.addView(mDocView);

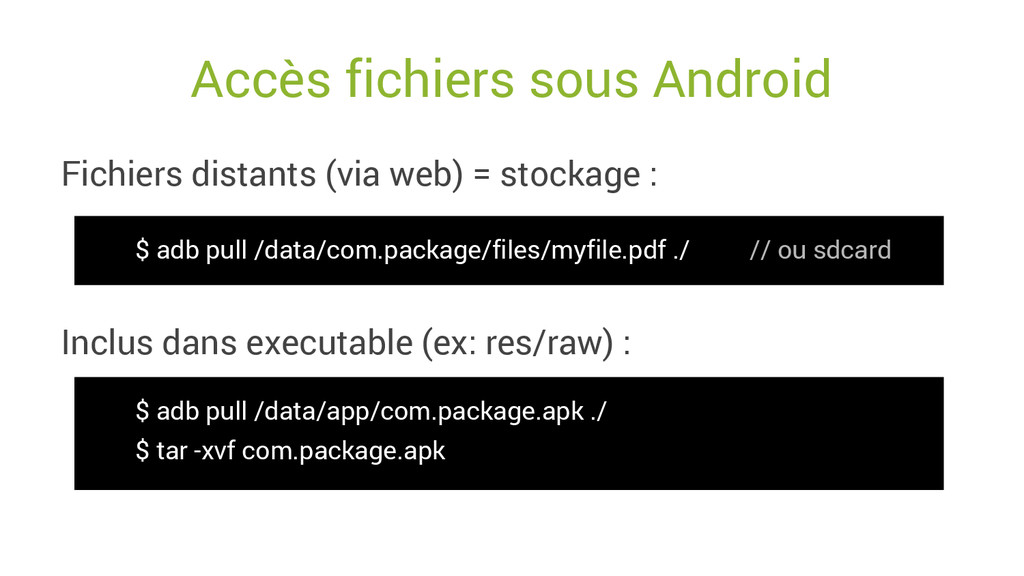

  20. Accès fichiers sous Android Fichiers distants (via web) = stockage

    : Inclus dans executable (ex: res/raw) : $ adb pull /data/com.package/files/myfile.pdf ./ // ou sdcard $ adb pull /data/app/com.package.apk ./ $ tar -xvf com.package.apk

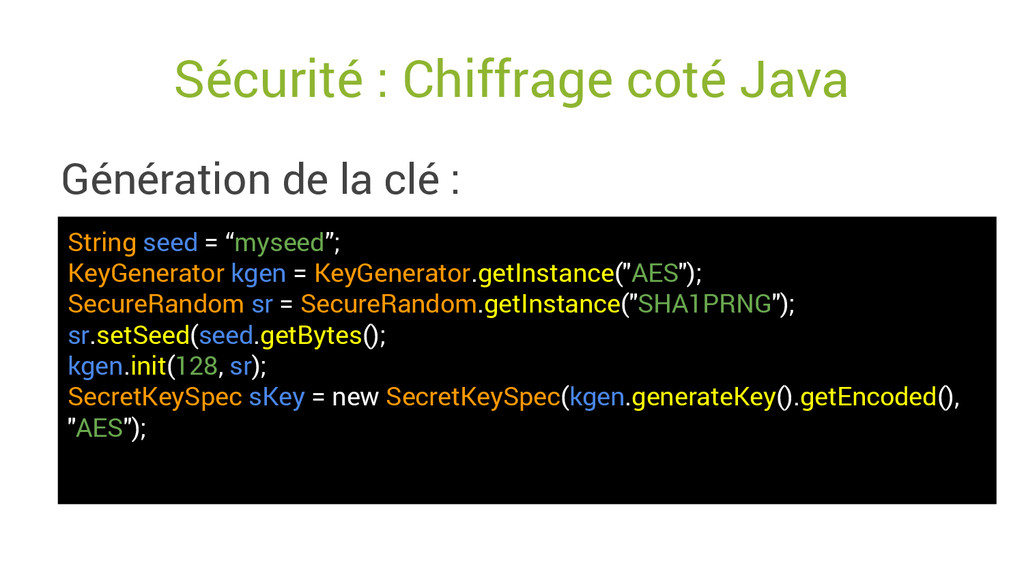

  21. Sécurité : Chiffrage coté Java Génération de la clé :

    String seed = “myseed”; KeyGenerator kgen = KeyGenerator.getInstance("AES"); SecureRandom sr = SecureRandom.getInstance("SHA1PRNG"); sr.setSeed(seed.getBytes(); kgen.init(128, sr); SecretKeySpec sKey = new SecretKeySpec(kgen.generateKey().getEncoded(), "AES");

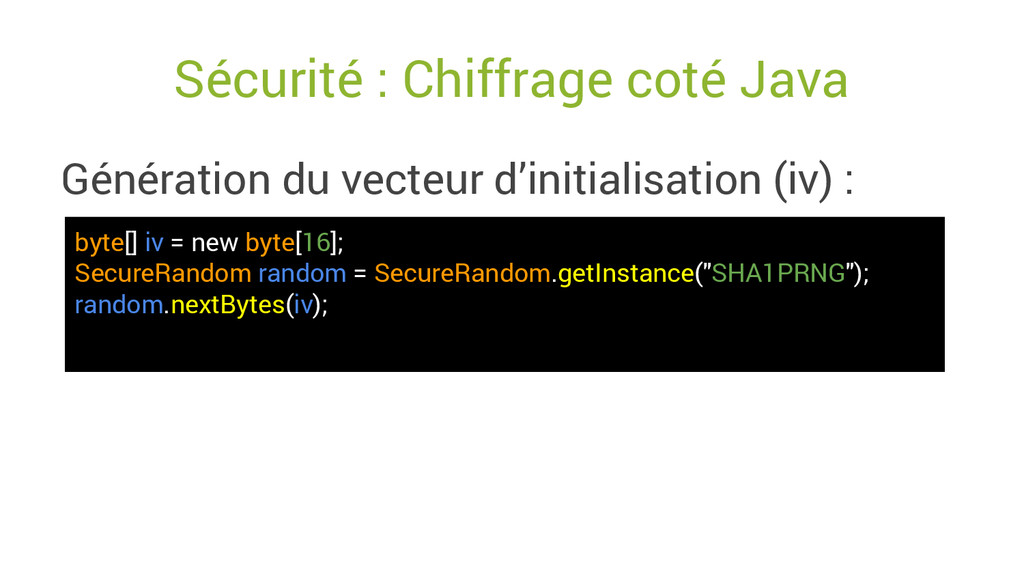

  22. Sécurité : Chiffrage coté Java Génération du vecteur d’initialisation (iv)

    : byte[] iv = new byte[16]; SecureRandom random = SecureRandom.getInstance("SHA1PRNG"); random.nextBytes(iv);

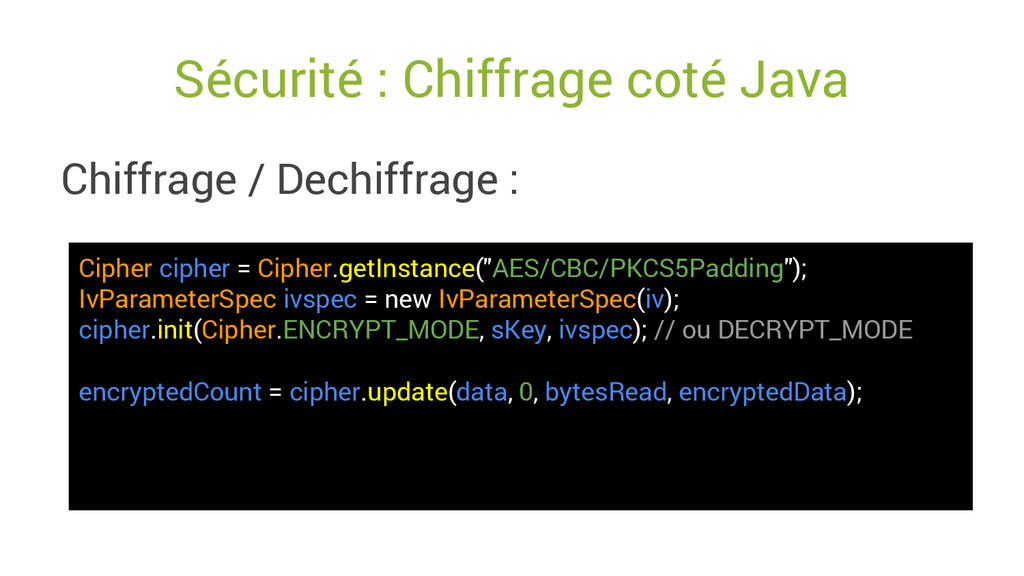

  23. Sécurité : Chiffrage coté Java Chiffrage / Dechiffrage : Cipher

    cipher = Cipher.getInstance("AES/CBC/PKCS5Padding"); IvParameterSpec ivspec = new IvParameterSpec(iv); cipher.init(Cipher.ENCRYPT_MODE, sKey, ivspec); // ou DECRYPT_MODE encryptedCount = cipher.update(data, 0, bytesRead, encryptedData);

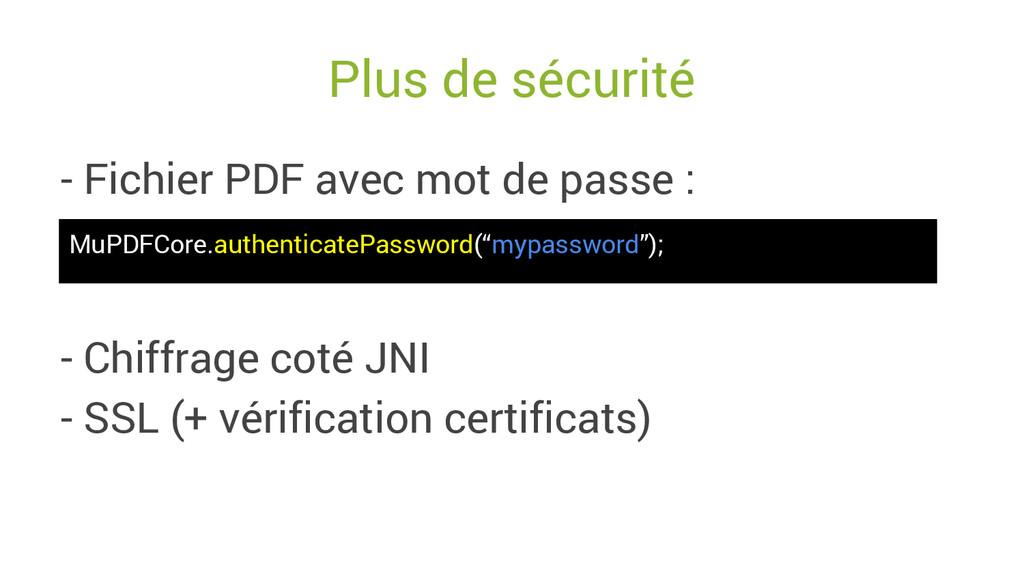

  24. Plus de sécurité - Fichier PDF avec mot de passe

    : - Chiffrage coté JNI - SSL (+ vérification certificats) MuPDFCore.authenticatePassword(“mypassword”);
