The underappreciated power of content invalidation

Some say there are only two hard things in computer science: cache invalidation and naming things. The latter is a matter of personal taste, but keeping things up to date is an aspect many of us have to deal with on daily basis.

This is particularly important from content delivery standpoint. Whenever you log into AEM to activate your carefully crafted pages the expectations are rather straightforward - you want that to be delivered fast, regardless of user’s location or device type. This is where Content Delivery Network (CDN) comes into play.
AEM with CDN is a fairly common thing these days. The most basic implementation assumes that only static resources get cached - DAM assets, clientlibs and possibly pages that don’t change very often. You set a reasonably short TTL and call it a day. But what if that’s not enough? What if you don’t want to sacrifice dynamic content and keep objects cached as long as there was no update in AEM?

We decided to give “everything is cacheable” principle a try in a complex multi-AEM setup. It didn’t took us long to realize that content invalidation is as important or even more important than caching itself. You can treat it rough, but it will negatively impact user experience - neither authors nor users want to wait when change is required now.

Transcript

1. APACHE SLING & FRIENDS TECH MEETUP 10-12 SEPTEMBER 2018 The underappreciated power of content invalidation Jakub Wądołowski, Cognifide (@jwadolowski)
2. 2 https://flic.kr/p/c7a8iE There are only two hard things in Computer Science: cache invalidation and naming things. Phil Karlton
3. 3 HTTP caching
4. What can be cached? 4 ▪ HTTP response (body & headers) ▪ What makes response cacheable? ▪ Static assets only? ▪ Body encoding matters ▪ gzip, deflate, br, … https://flic.kr/p/EWtcyL
5. Caching layers 5 ▪ AEM (custom in-memory cache) ▪ Dispatcher ▪ CDN ▪ Web browser https://flic.kr/p/Vh2TXE
6. 6 Invalidation strategy
7. Invalidation models 7 ▪ TTL-driven ▪ Event-driven ▪ Mix of both https://flic.kr/p/Ra7cVb

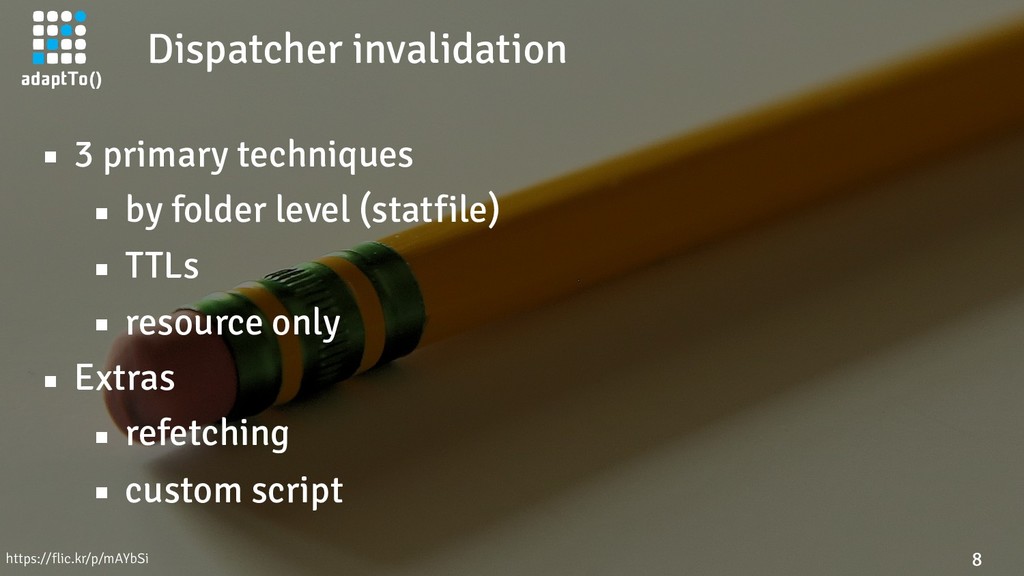

8. Dispatcher invalidation 8 ▪ 3 primary techniques ▪ by folder level (statfile) ▪ TTLs ▪ resource only ▪ Extras ▪ refetching ▪ custom script https://flic.kr/p/mAYbSi

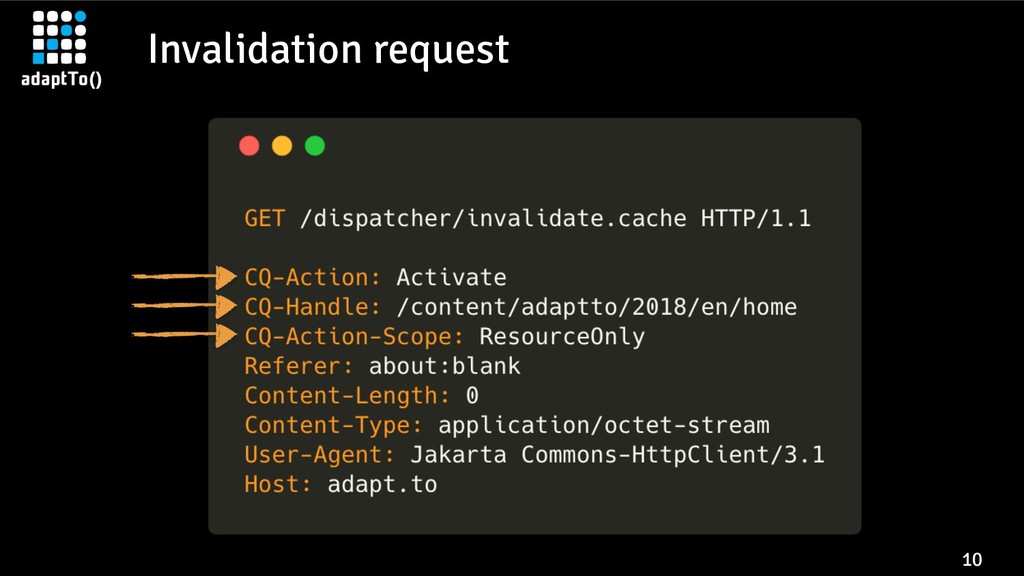

10. Invalidation request 10
12. Nothing fancy, huh? 12 ▪ Plenty of possibilities ▪ handle related resources ▪ invalidate CDN’s cache ▪ push data to external systems ▪ … https://flic.kr/p/qZygAC
13. 13 CDN invalidation
14. The plan 14 ▪ High hit ratio & cache coverage ▪ Long TTLs (30+ days) ▪ AEM content changes reflected quickly ▪ Precise invalidation https://flic.kr/p/7F4bHa

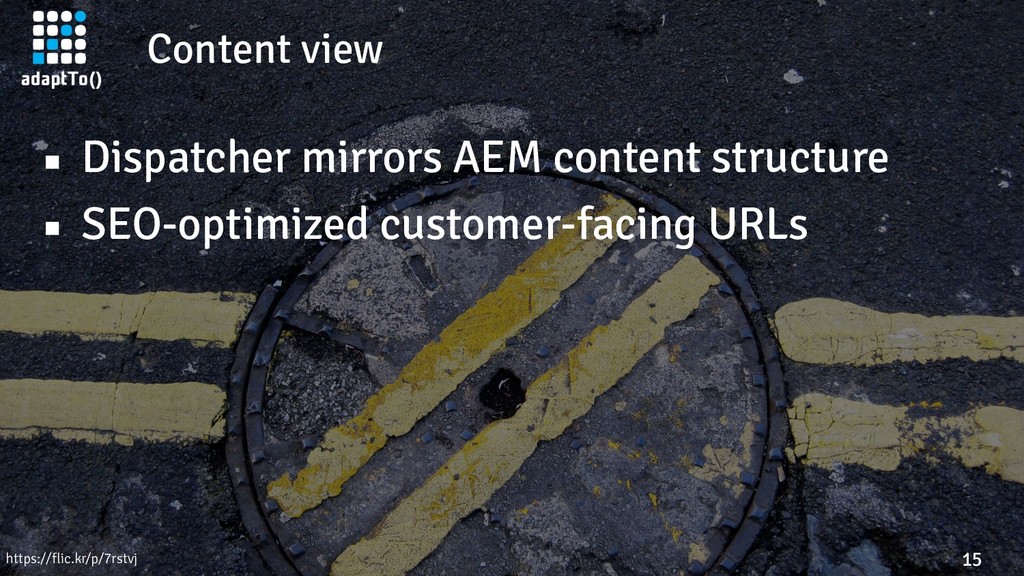

15. Content view 15 ▪ Dispatcher mirrors AEM content structure ▪ SEO-optimized customer-facing URLs https://flic.kr/p/7rstvj
16. Dispatcher cache 16 www.example.org www.example.org/help/about-us www.example.org/summer-sale www.example.org/product1-xyz

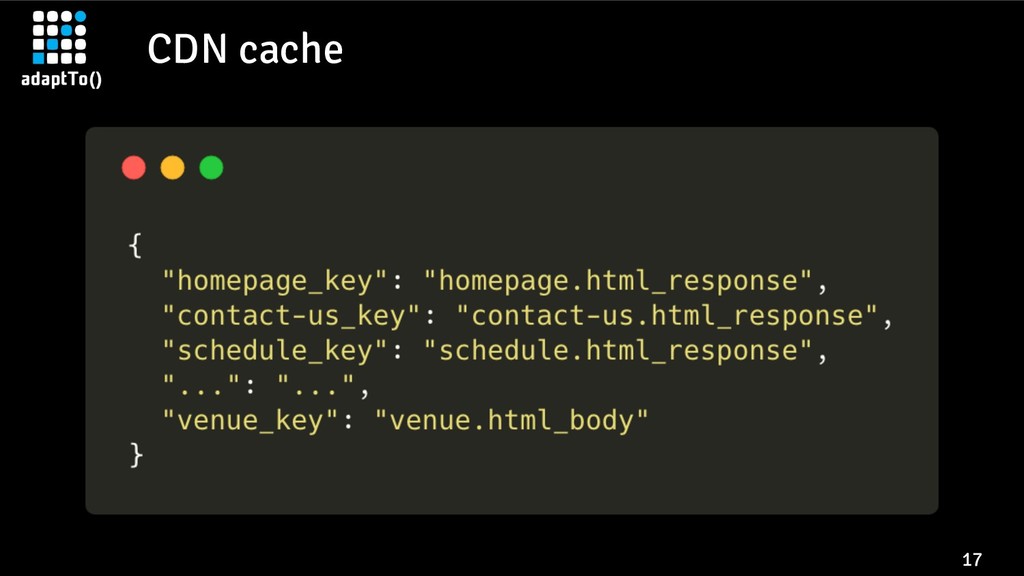

17. CDN cache 17
18. CDN cache keys 18
20. Invalidation APIs 20 ▪ Multiple endpoints ▪ feature/authentication differences ▪ performance may vary ▪ Invalidation scope ▪ everything ▪ URL(s) ▪ tag https://flic.kr/p/dgfRgD
21. DAM assets 21 ▪ Sounds trivial? ▪ Renditions ▪ Alt texts ▪ Non-standard properties https://flic.kr/p/9d2MRh

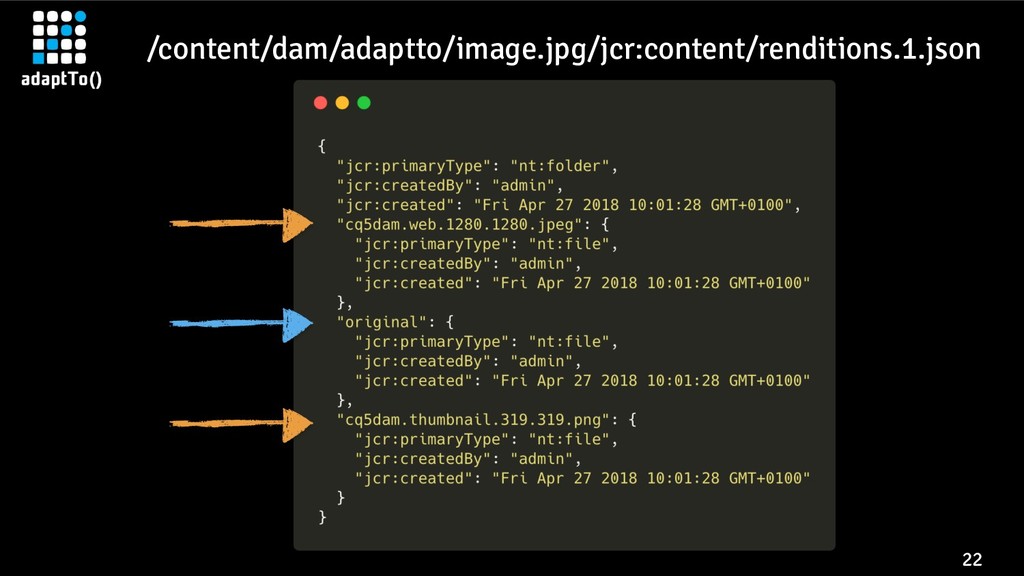

22. /content/dam/adaptto/image.jpg/jcr:content/renditions.1.json 22
23. /content/dam/adaptto/image.jpg/jcr:content/metadata.json 23

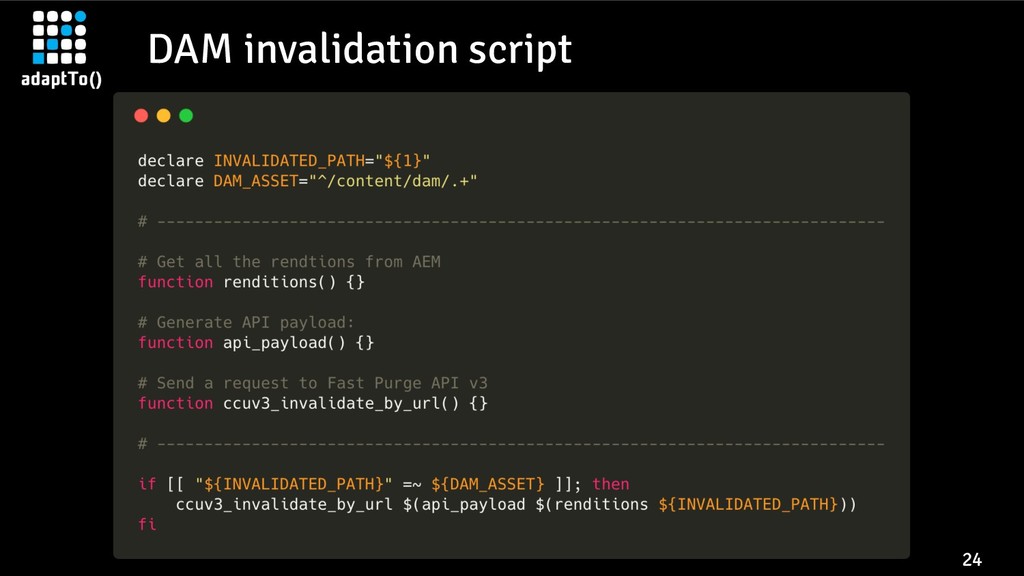

24. DAM invalidation script 24
25. Akamai API request 25
26. Alt text (1/3) 26

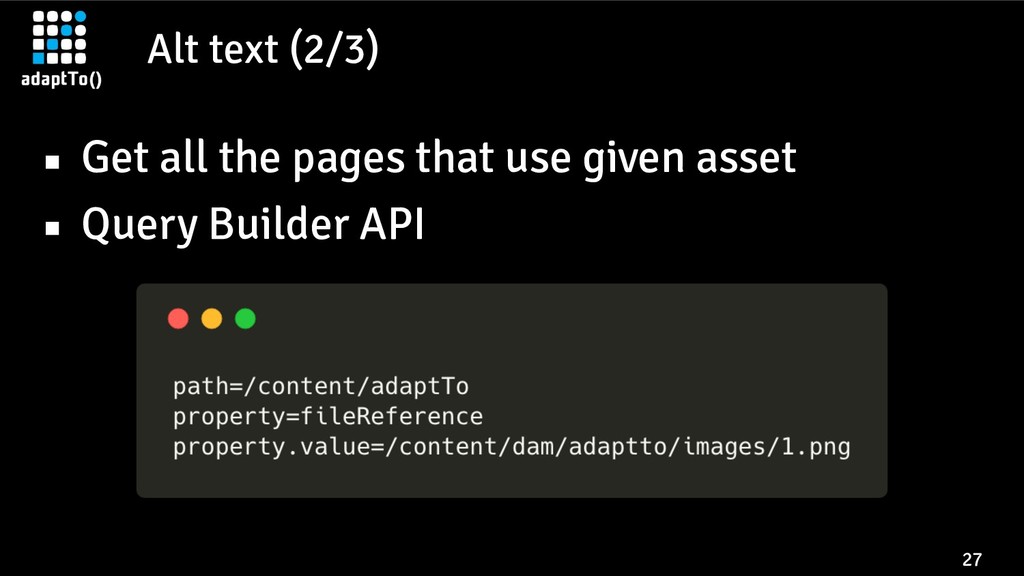

27. Alt text (2/3) 27 ▪ Get all the pages that use given asset ▪ Query Builder API

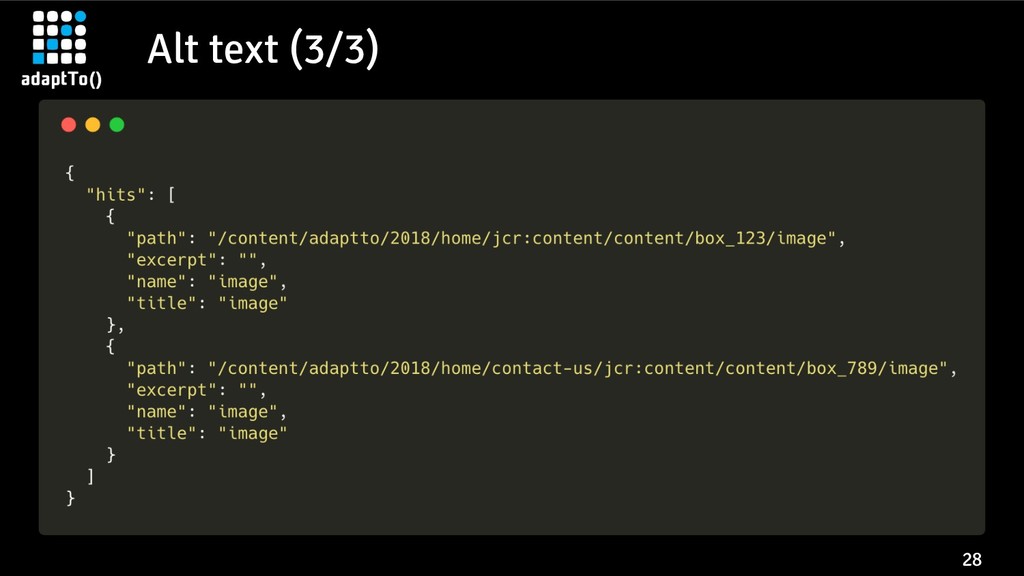

28. Alt text (3/3) 28
29. Vanity URLs 29 ▪ Each page can have a number of easy-to- remember URLs ▪ Those pages are cacheable too https://flic.kr/p/GDprQk
30. Vanity URLs (1/3) 30

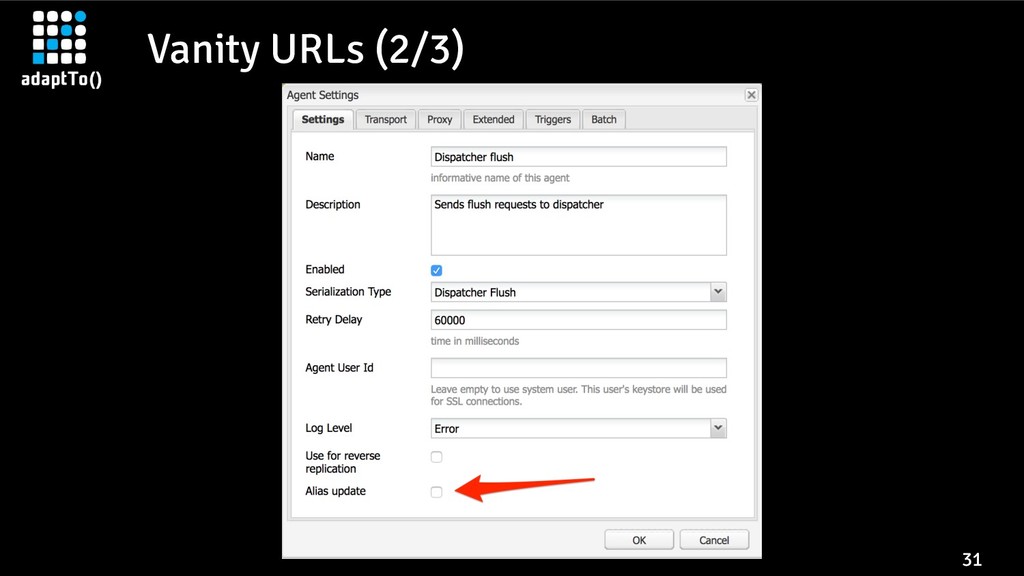

31. Vanity URLs (2/3) 31

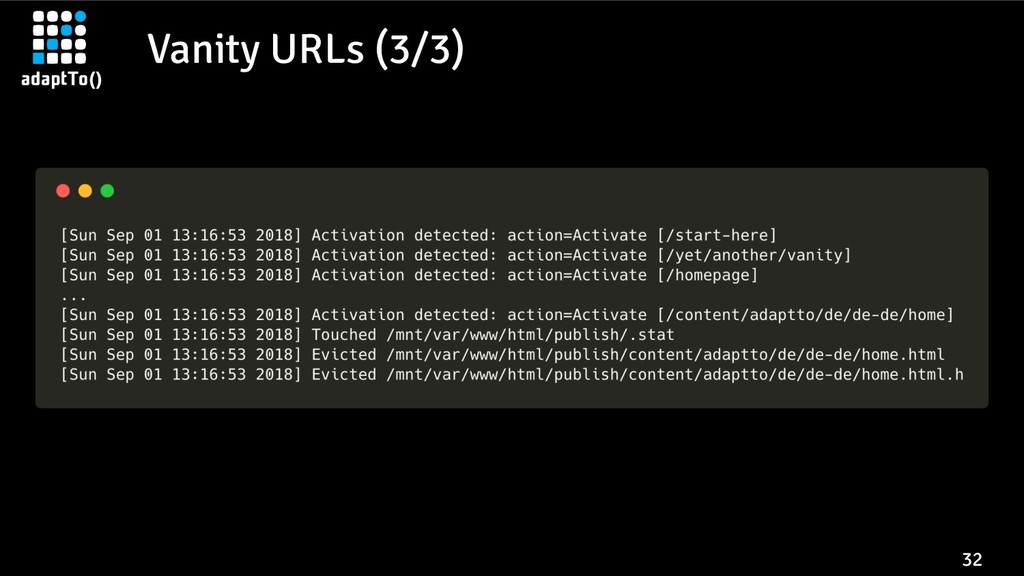

32. Vanity URLs (3/3) 32
33. Reusable components 33 ▪ Common elements (i.e. header) ▪ SDI (Sling Dynamic Include) to the rescue ▪ SSI (Server Side Includes) ▪ ESI (Edge Side Includes) https://flic.kr/p/dgghVK

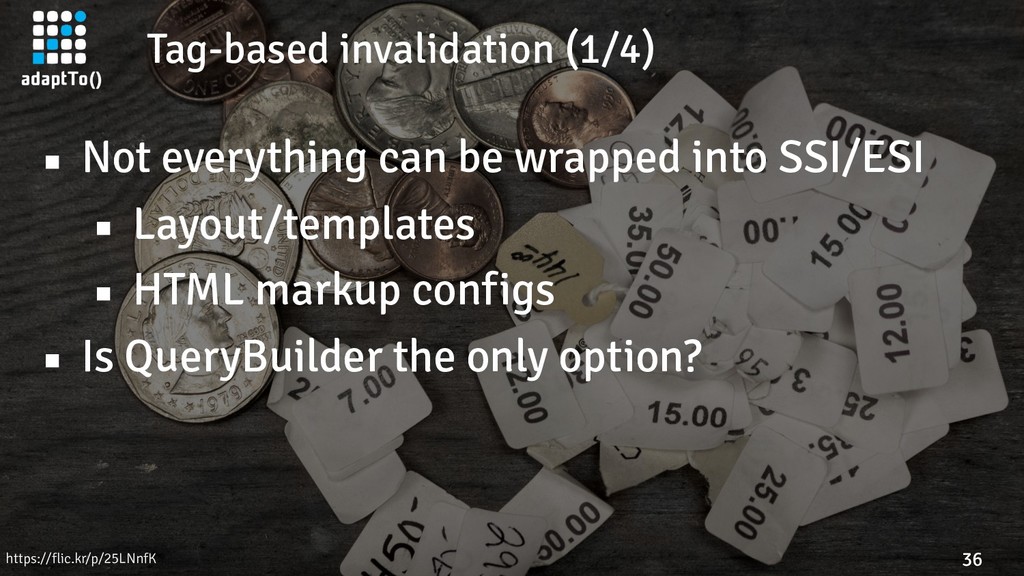

36. Tag-based invalidation (1/4) 36 ▪ Not everything can be wrapped into SSI/ESI ▪ Layout/templates ▪ HTML markup configs ▪ Is QueryBuilder the only option? https://flic.kr/p/25LNnfK
37. Tag-based invalidation (2/4) 37

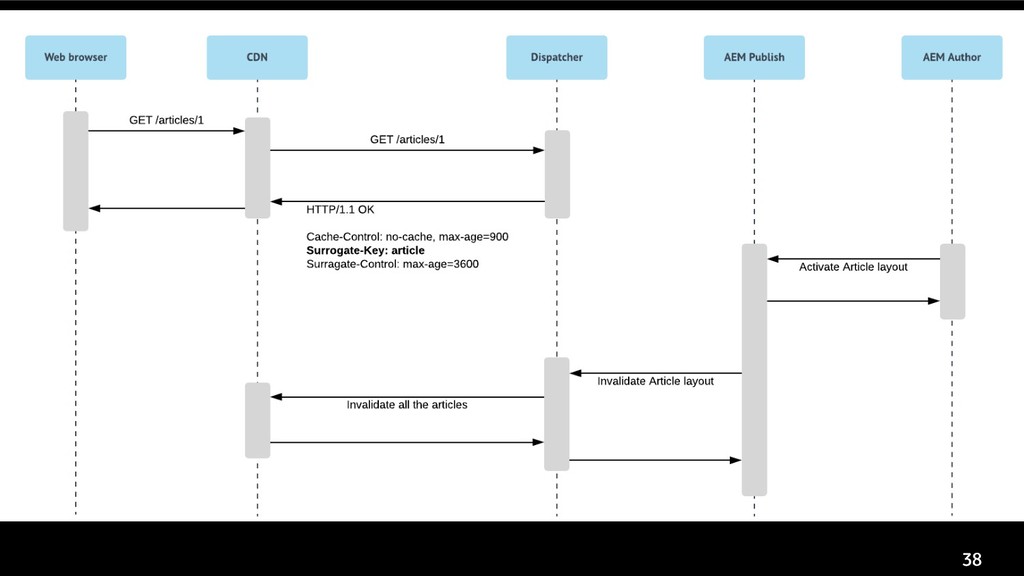

39. Tag-based invalidation (3/4) 39
40. 40 Browser caching
41. Browser cache setup 41 https://www.fastly.com/blog/understanding-vary-header-browser
42. Versioned clientlibs 42 ▪ Generally a good idea ▪ Does it fit well into CDN setup? https://flic.kr/p/9gTRKV
43. Cache-Control 43 ▪ public/private ▪ max-age=<seconds> ▪ must-revalidate ▪ no-cache https://flic.kr/p/5GCeGg
45. We barely scratched the surface… 45 ▪ API throttling ▪ Error handling ▪ Payload limits ▪ Non-obvious content references https://flic.kr/p/pSB1rM
46. Lessons learned 46 ▪ purge all is dangerous ▪ make invalidation as precise as possible ▪ plan SSI/ESI since the very beginning ▪ QueryBuilder calls may require extra indexes https://flic.kr/p/dgge8U
47. 47 Thank you!
