Testing batch and streaming Spark applications

Apache Spark is a general engine for processing data on a large scale. Employing this tool in a distributed environment to process large data sets is undeniably beneficial.

But what about fast feedback loop while developing such application with Apache Spark? Testing it on a cluster is essential, but it does not seem to be what most developers accustomed to TDD workflow would like to do.

In the talk, Łukasz will share with you some tips on how to write the unit and integration tests, and how Docker can be applied to test Spark application on a local machine.

Examples will be presented within the ScalaTest framework, and it should be easy to grasp by people who know Scala and other JVM languages.

Transcript

1. Testing batch and streaming Spark applications @lukaszgawron Software Engineer @PerformGroup

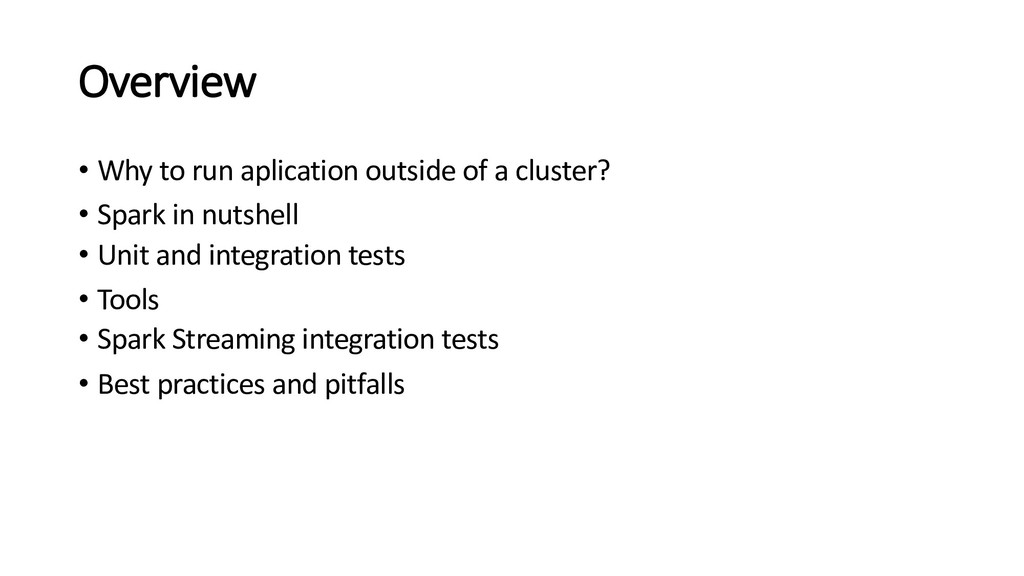

2. Overview • Why to run aplication outside of a cluster? • Spark in nutshell • Unit and integration tests • Tools • Spark Streaming integration tests • Best practices and pitfalls
3. Why to run application outside of a cluster?
4. Why we want to test?

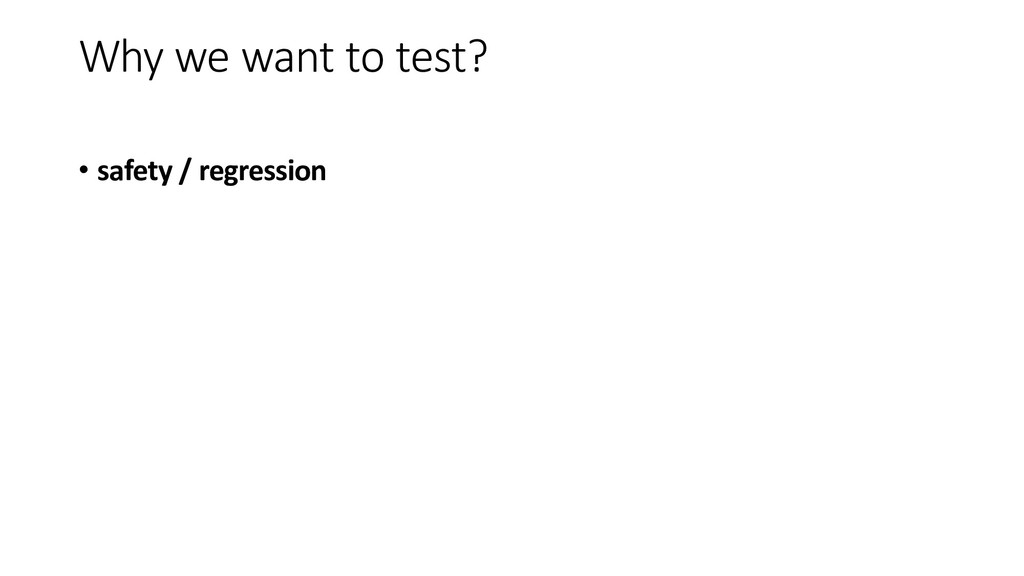

5. Why we want to test? • safety / regression

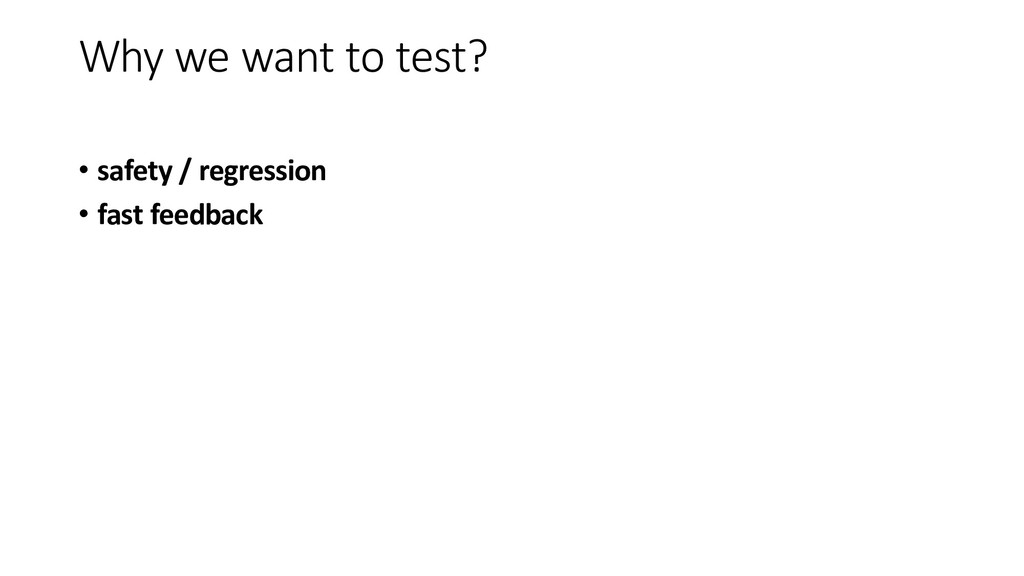

6. Why we want to test? • safety / regression • fast feedback

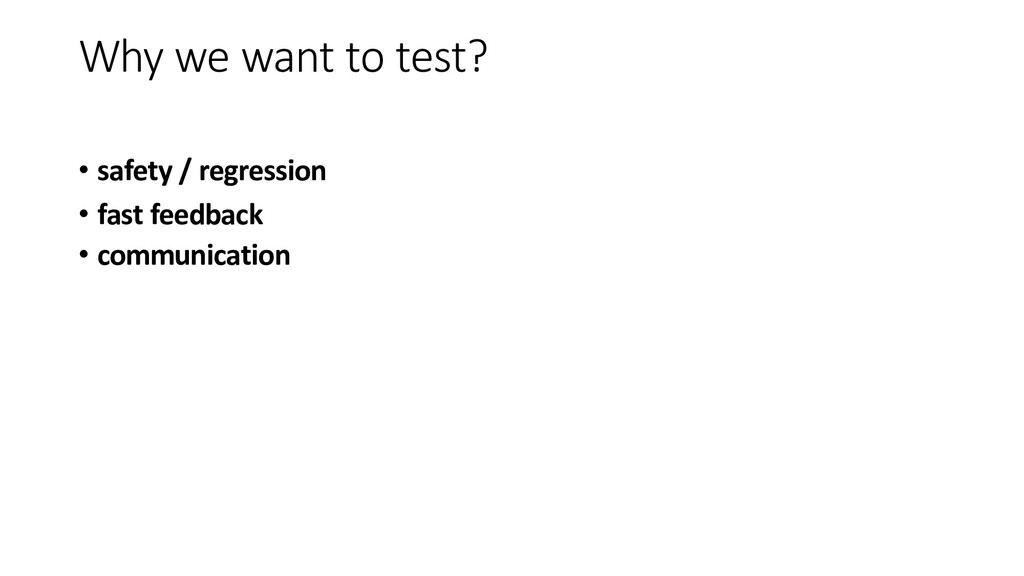

7. Why we want to test? • safety / regression • fast feedback • communication
8. Why we want to test? • safety / regression • fast feedback • communication • best possible design

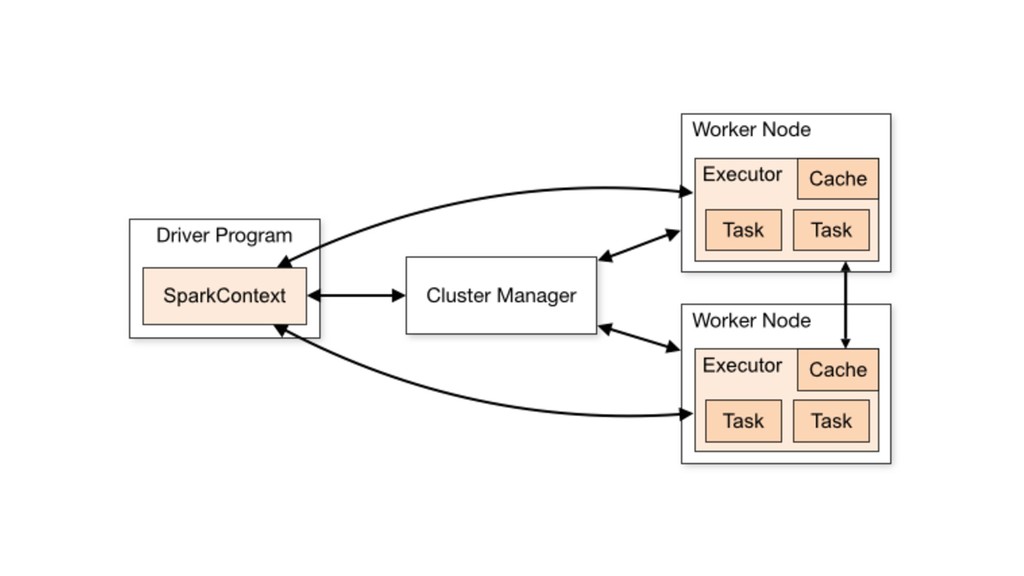

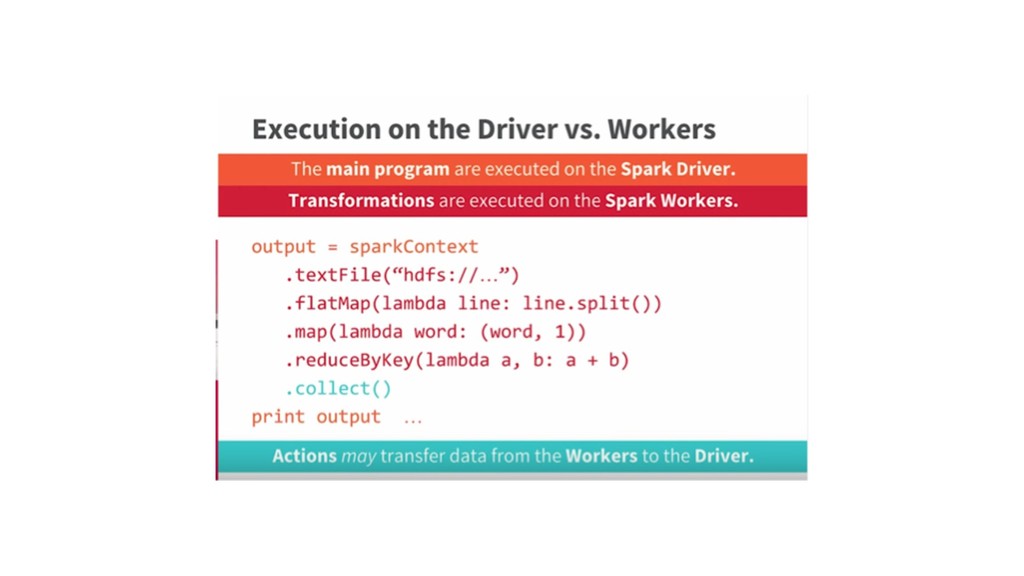

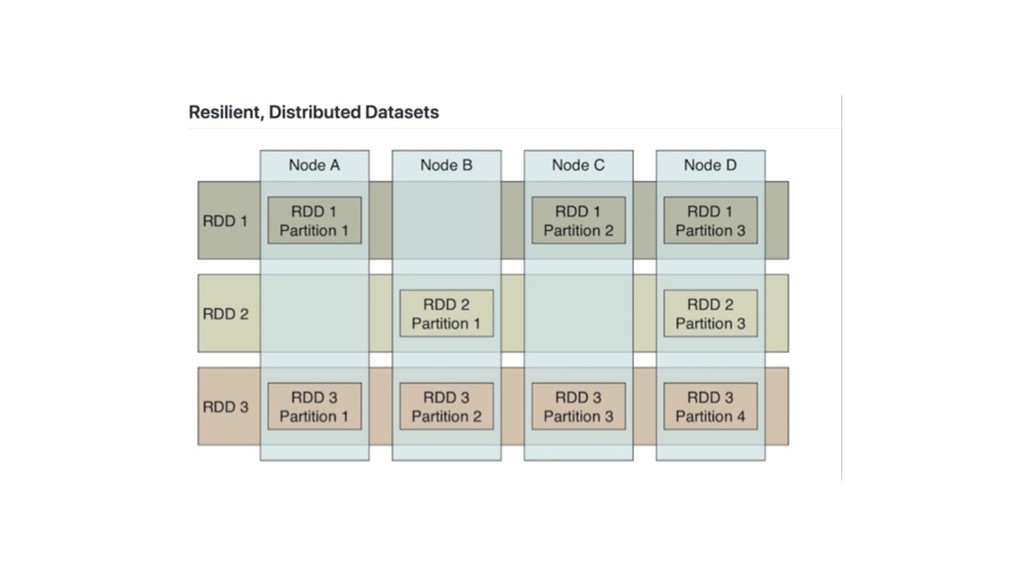

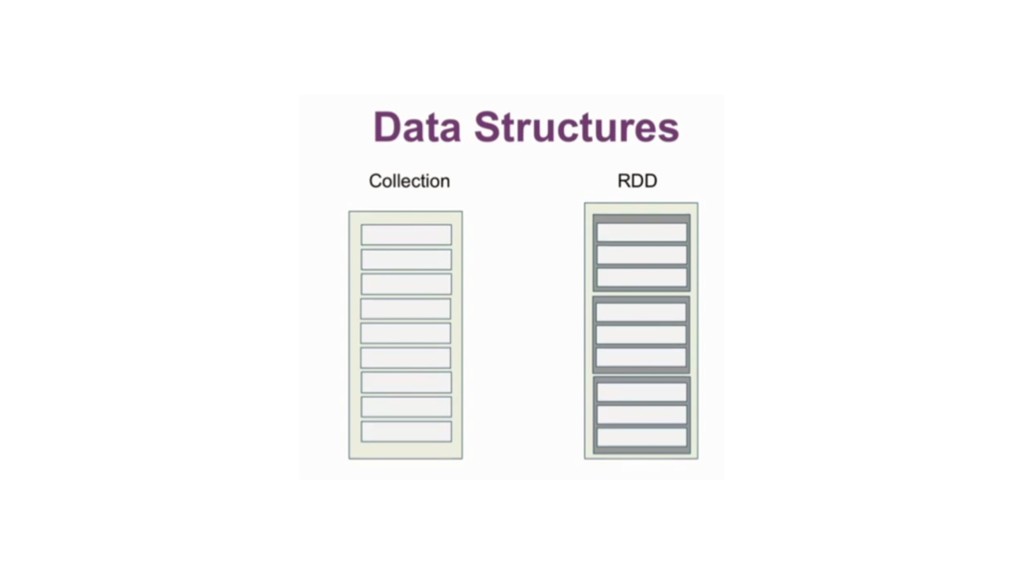

9. Spark in nutshell

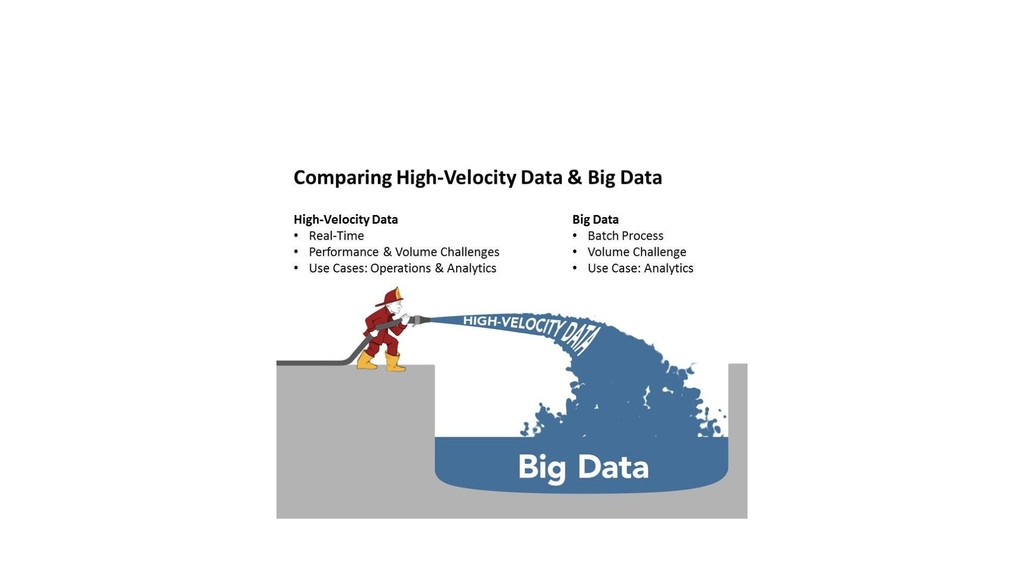

15. Batch and streaming
17. Example – word count WordCount maps (extracts) words from an input source and reduces (summarizes) the results, returning a count of each word.

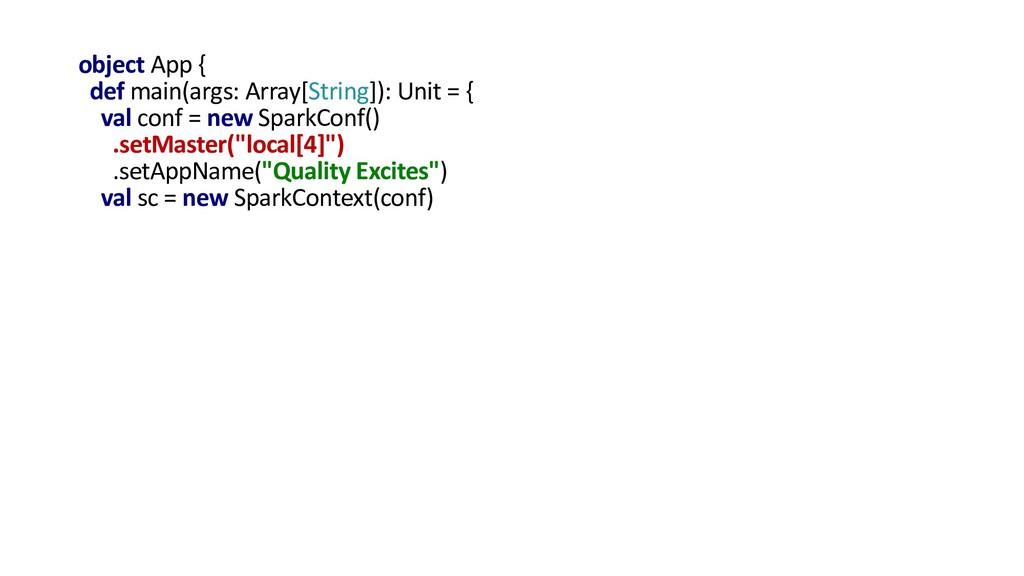

18. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf)

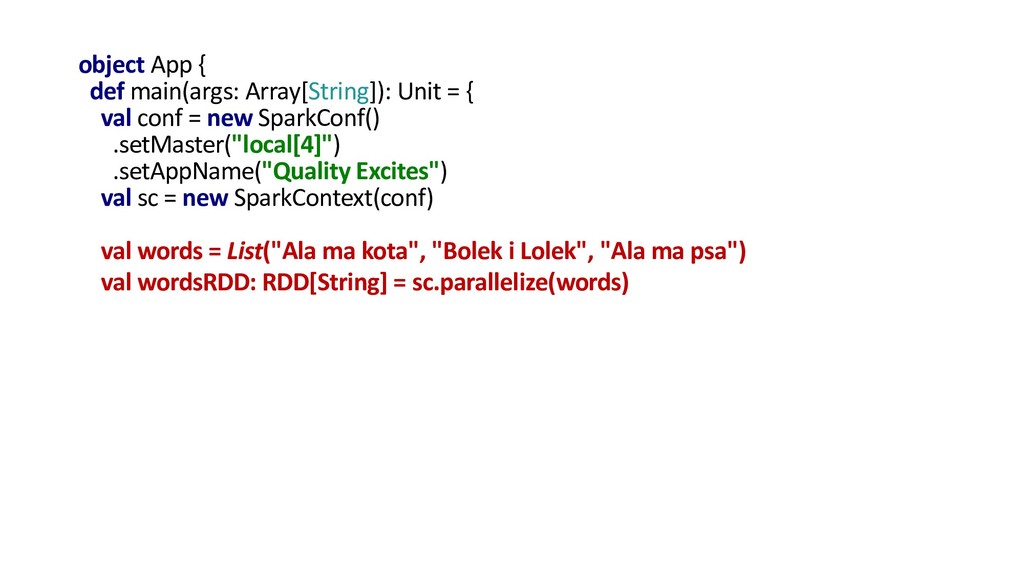

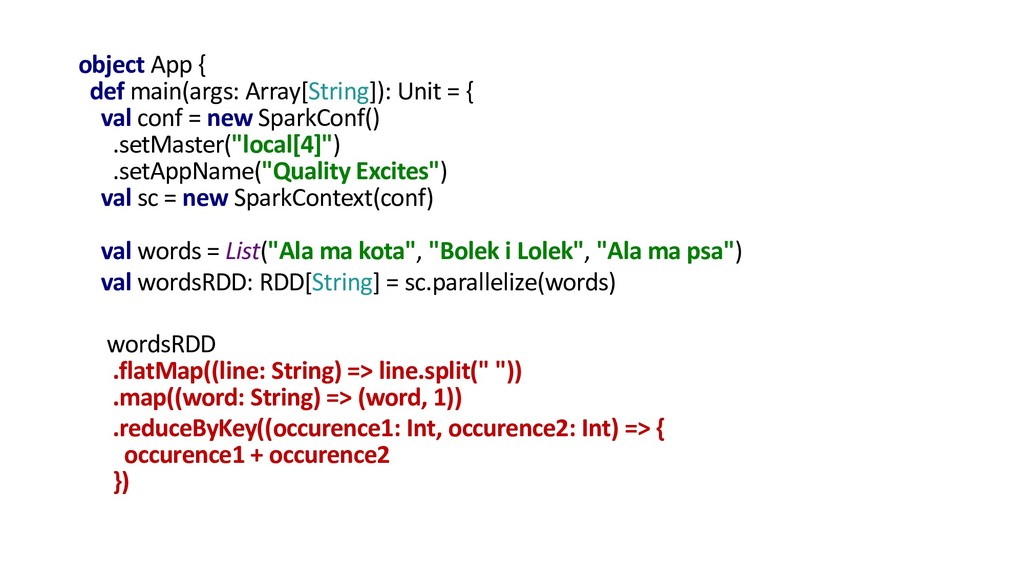

19. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf) val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words)

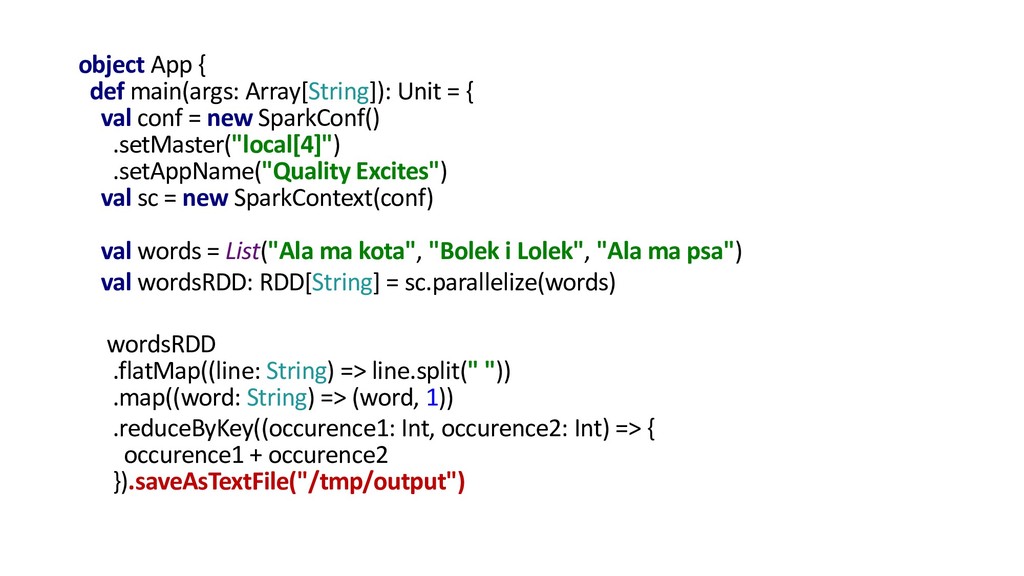

20. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf) val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap((line: String) => line.split(" ")) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 })

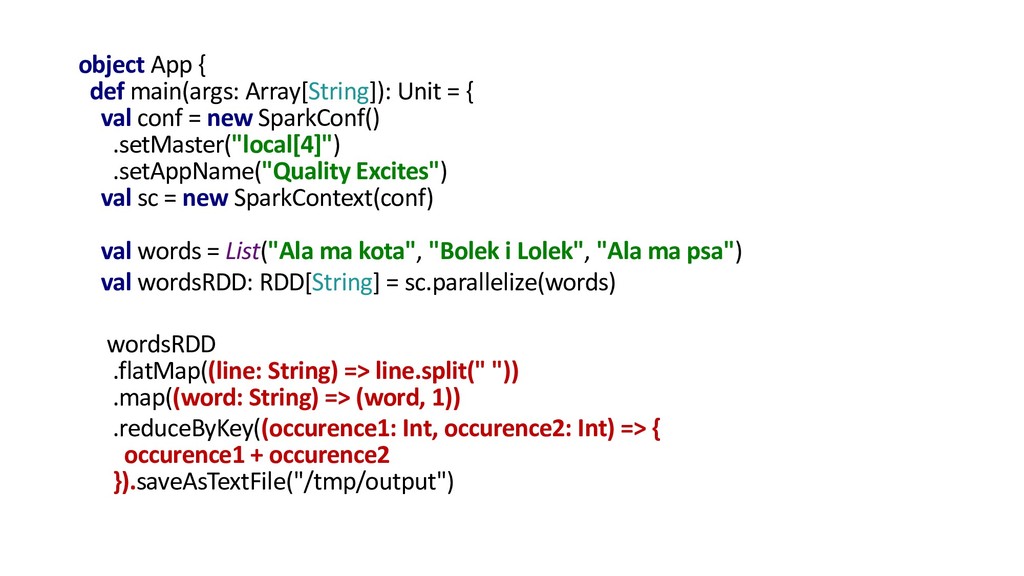

21. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf) val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap((line: String) => line.split(" ")) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }).saveAsTextFile("/tmp/output")

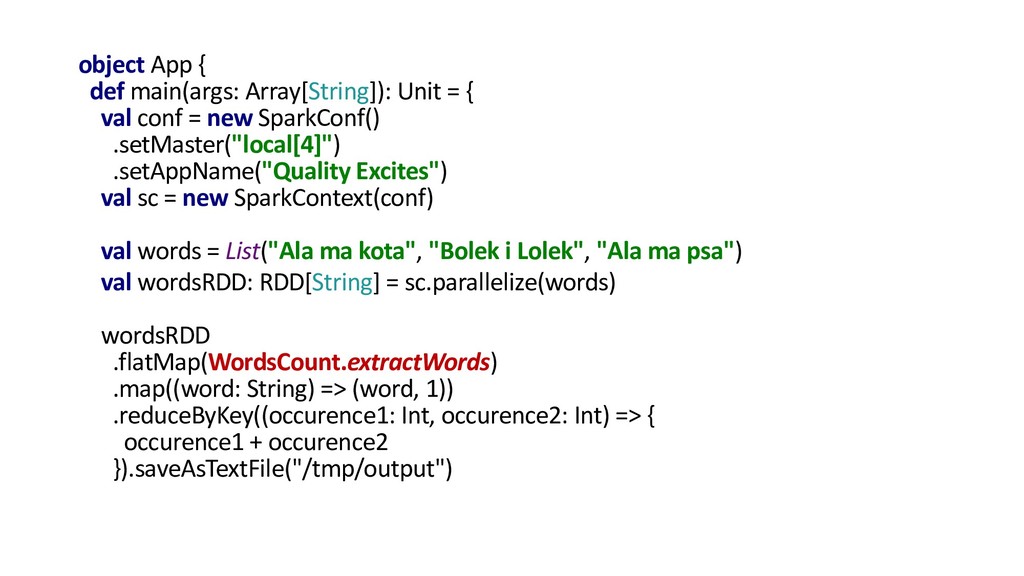

22. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf) val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap((line: String) => line.split(" ")) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }).saveAsTextFile("/tmp/output")
23. object App { def main(args: Array[String]): Unit = { val conf = new SparkConf() .setMaster("local[4]") .setAppName("Quality Excites") val sc = new SparkContext(conf) val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap(WordsCount.extractWords) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }).saveAsTextFile("/tmp/output")

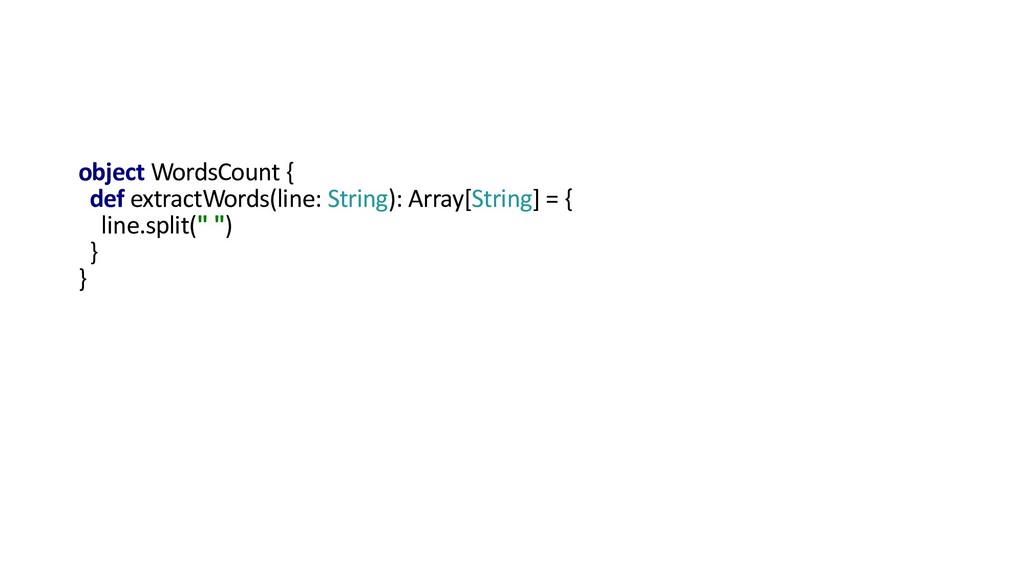

24. object WordsCount { def extractWords(line: String): Array[String] = { line.split(" ") } }

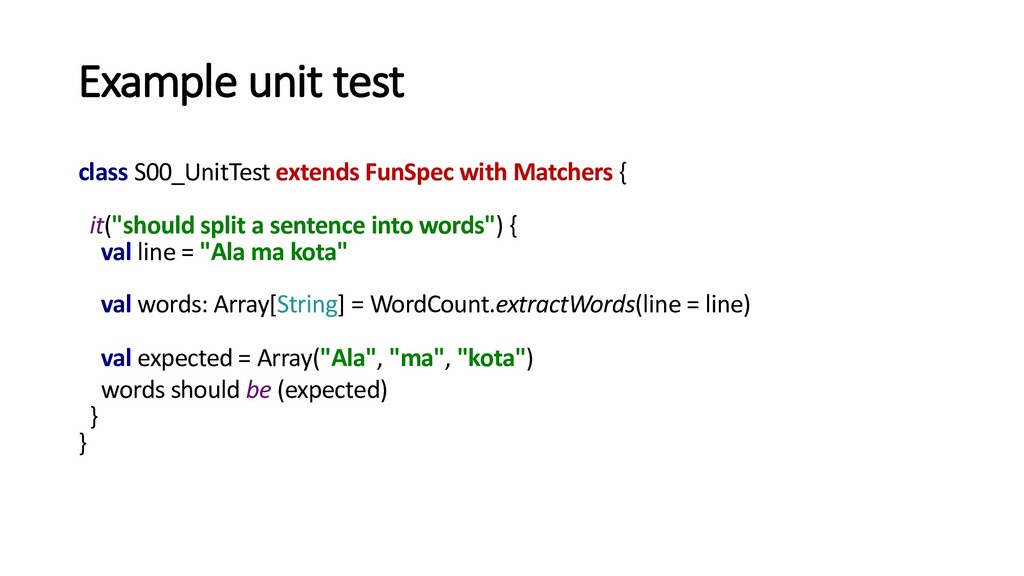

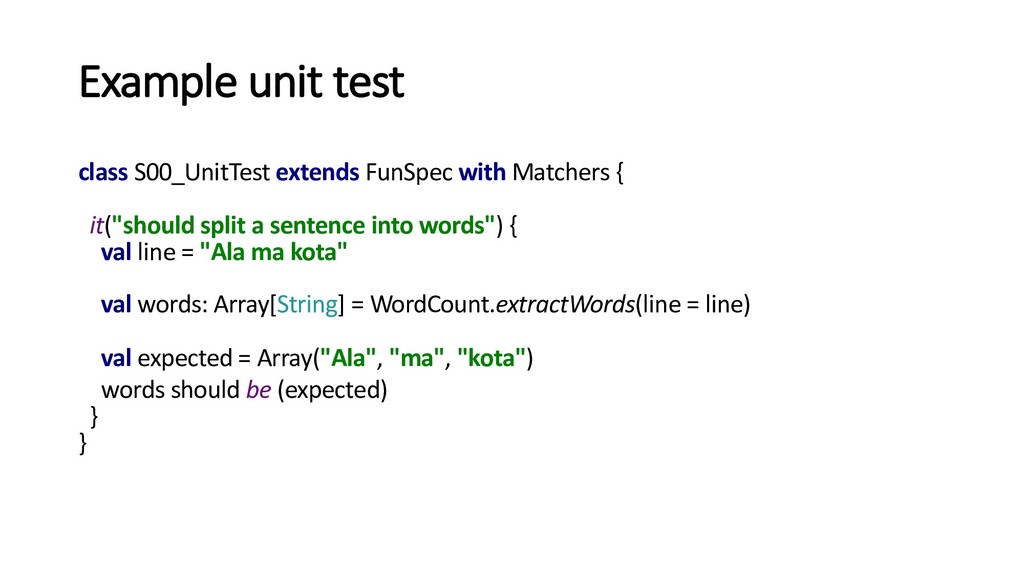

25. Example unit test class S00_UnitTest extends FunSpec with Matchers { it("should split a sentence into words") { val line = "Ala ma kota" val words: Array[String] = WordCount.extractWords(line = line) val expected = Array("Ala", "ma", "kota") words should be (expected) } }
26. Example unit test class S00_UnitTest extends FunSpec with Matchers { it("should split a sentence into words") { val line = "Ala ma kota" val words: Array[String] = WordCount.extractWords(line = line) val expected = Array("Ala", "ma", "kota") words should be (expected) } }

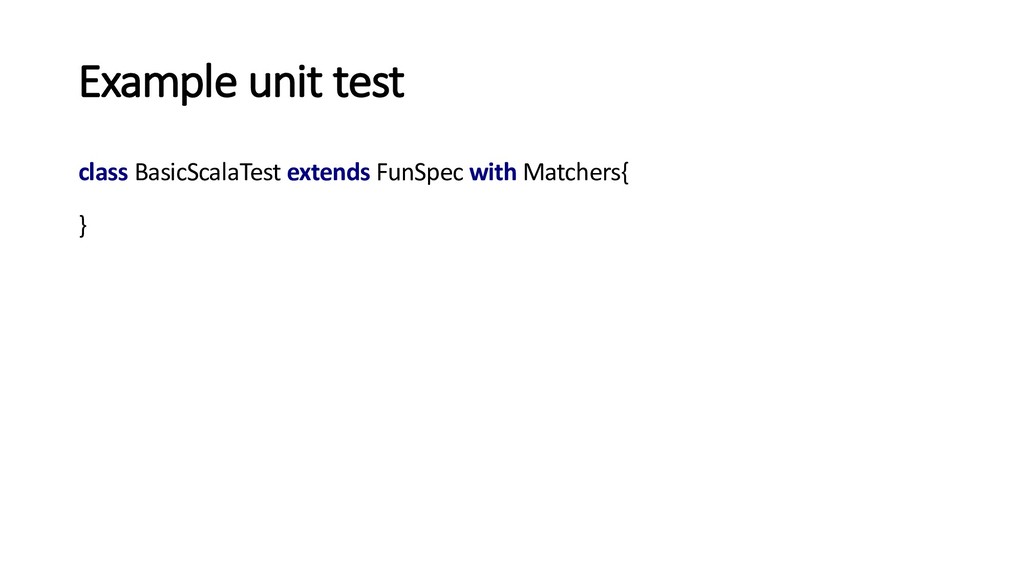

27. Example unit test class BasicScalaTest extends FunSpec with Matchers{ }

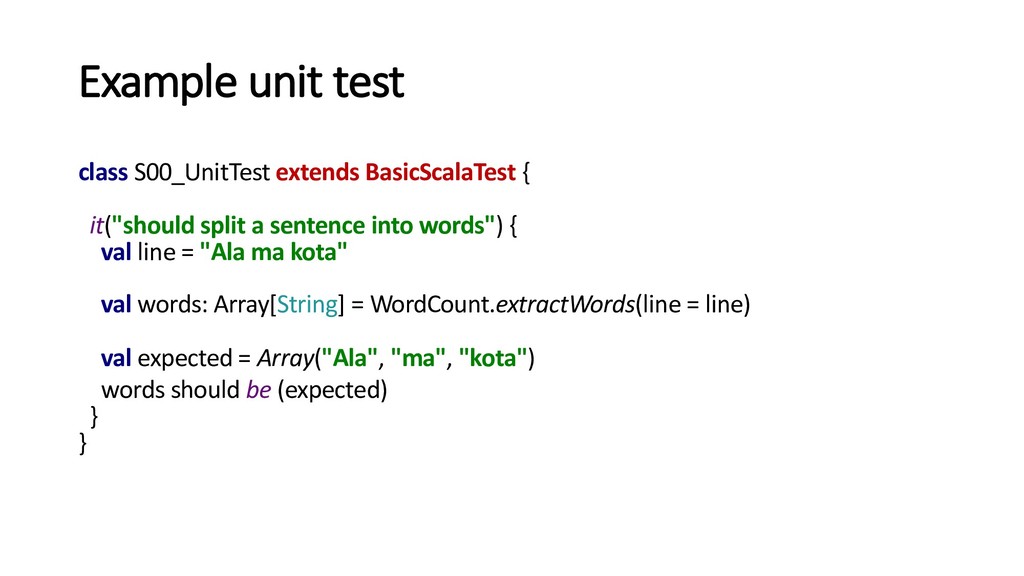

28. Example unit test class S00_UnitTest extends BasicScalaTest { it("should split a sentence into words") { val line = "Ala ma kota" val words: Array[String] = WordCount.extractWords(line = line) val expected = Array("Ala", "ma", "kota") words should be (expected) } }

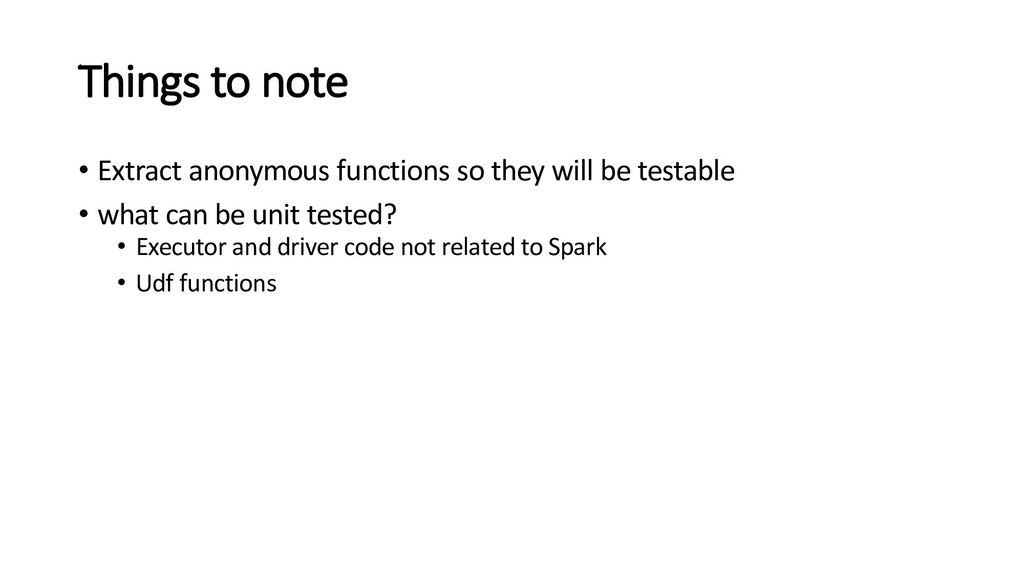

29. Things to note • Extract anonymous functions so they will be testable • what can be unit tested? • Executor and driver code not related to Spark • Udf functions
30. Production code vs test code

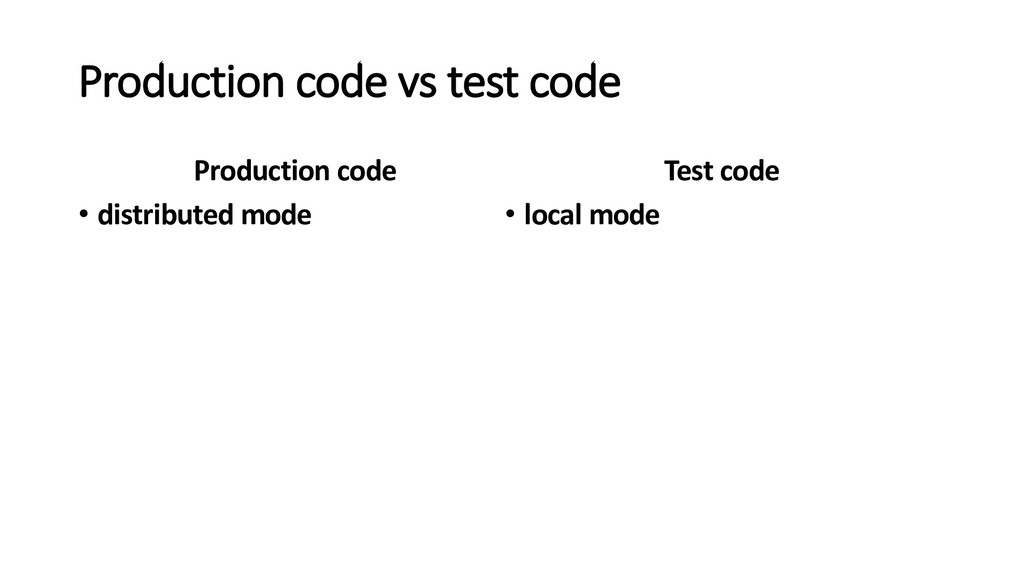

31. Production code vs test code Production code • distributed mode Test code • local mode

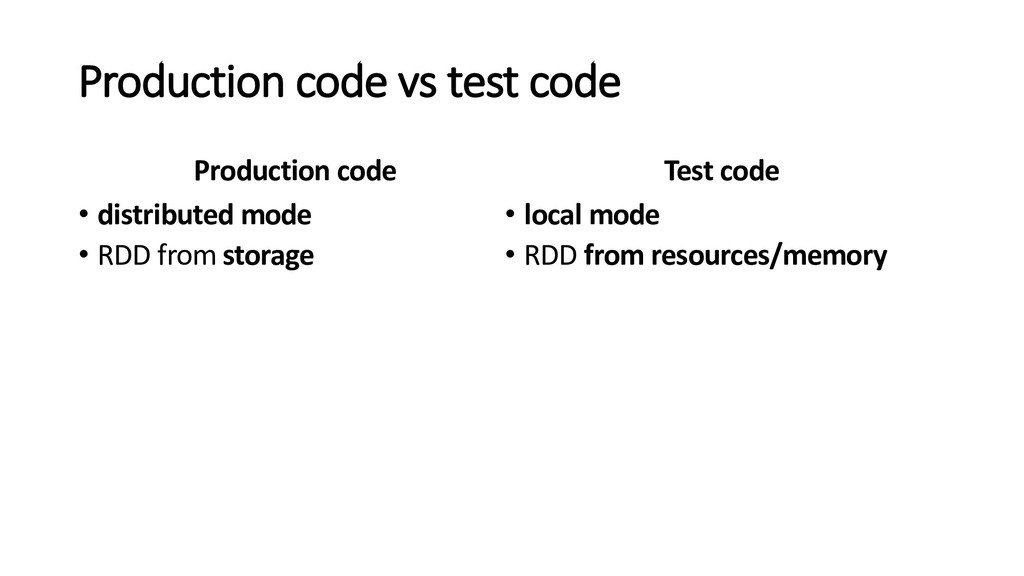

32. Production code vs test code Production code • distributed mode • RDD from storage Test code • local mode • RDD from resources/memory

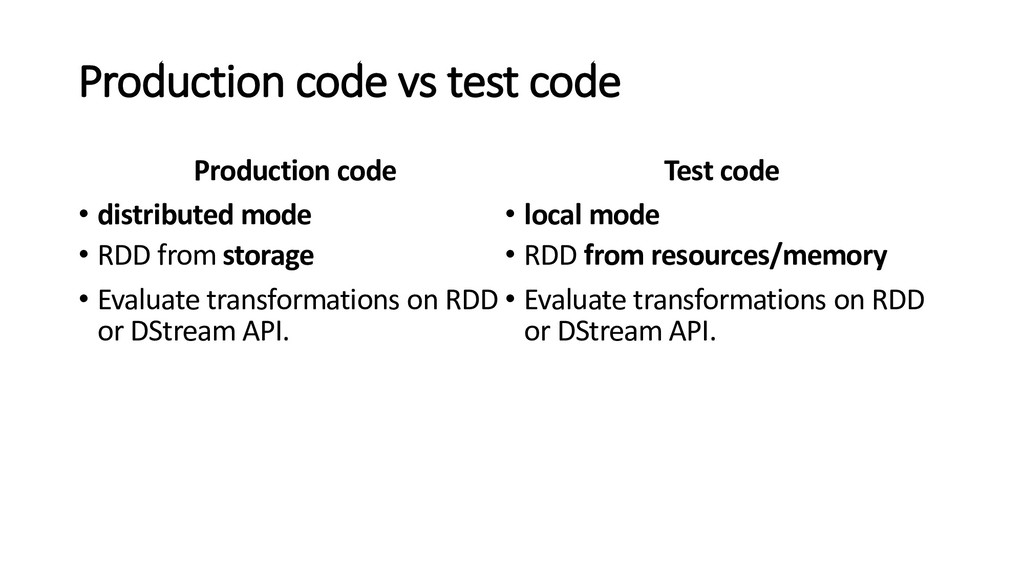

33. Production code vs test code Production code • distributed mode • RDD from storage • Evaluate transformations on RDD or DStream API. Test code • local mode • RDD from resources/memory • Evaluate transformations on RDD or DStream API.

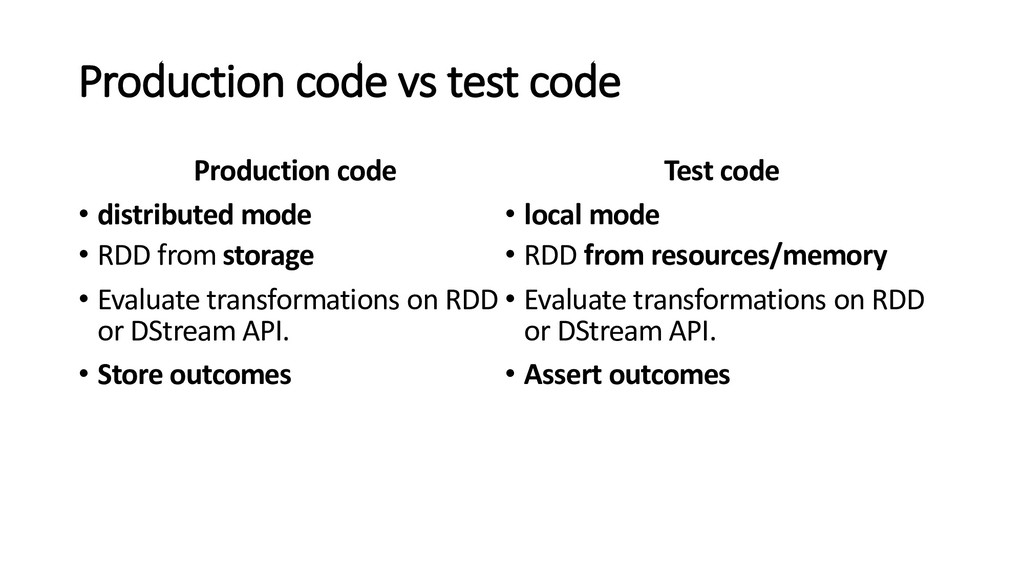

34. Production code vs test code Production code • distributed mode • RDD from storage • Evaluate transformations on RDD or DStream API. • Store outcomes Test code • local mode • RDD from resources/memory • Evaluate transformations on RDD or DStream API. • Assert outcomes
35. What to test in integration tests?

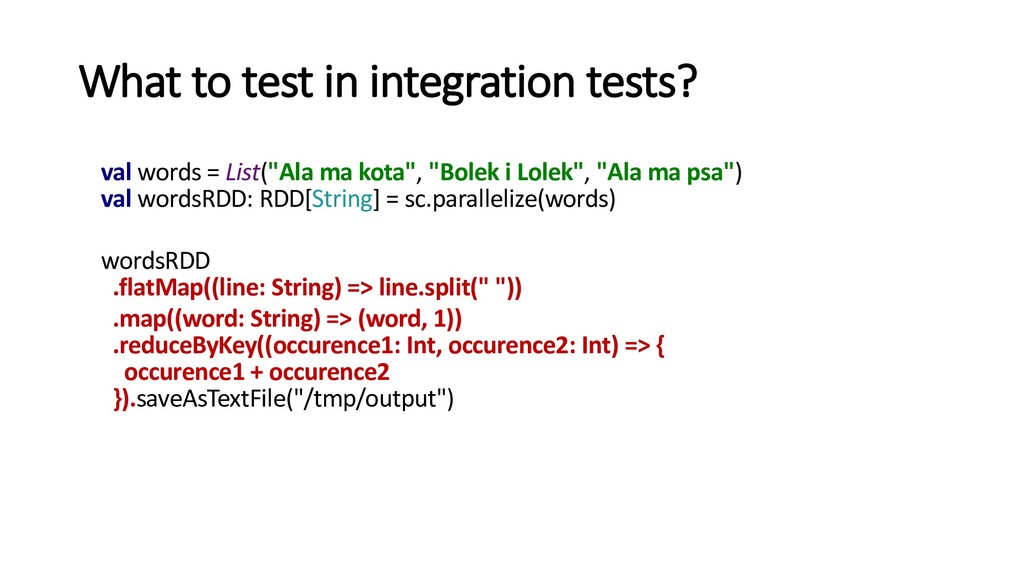

36. What to test in integration tests? val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap((line: String) => line.split(" ")) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }).saveAsTextFile("/tmp/output")
37. What to test in integration tests? val words = List("Ala ma kota", "Bolek i Lolek", "Ala ma psa") val wordsRDD: RDD[String] = sc.parallelize(words) wordsRDD .flatMap((line: String) => line.split(" ")) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }).saveAsTextFile("/tmp/output")

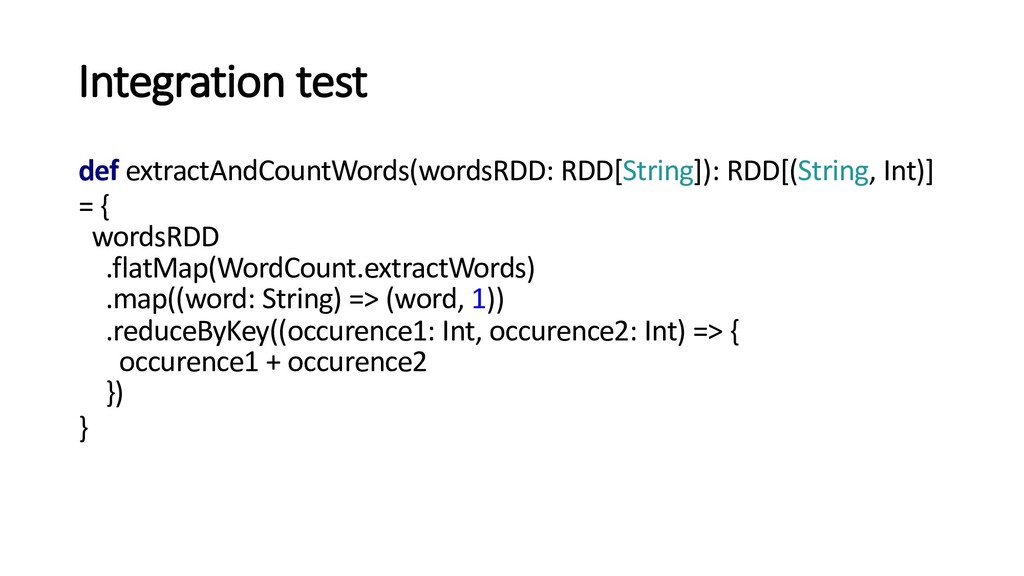

38. Integration test def extractAndCountWords(wordsRDD: RDD[String]): RDD[(String, Int)] = { wordsRDD .flatMap(WordCount.extractWords) .map((word: String) => (word, 1)) .reduceByKey((occurence1: Int, occurence2: Int) => { occurence1 + occurence2 }) }

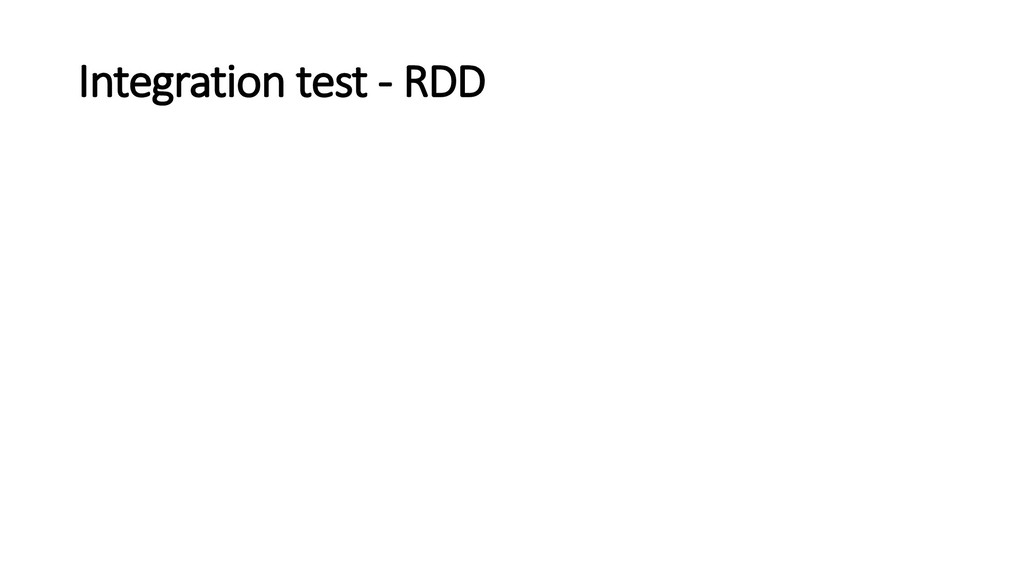

39. Integration test - RDD

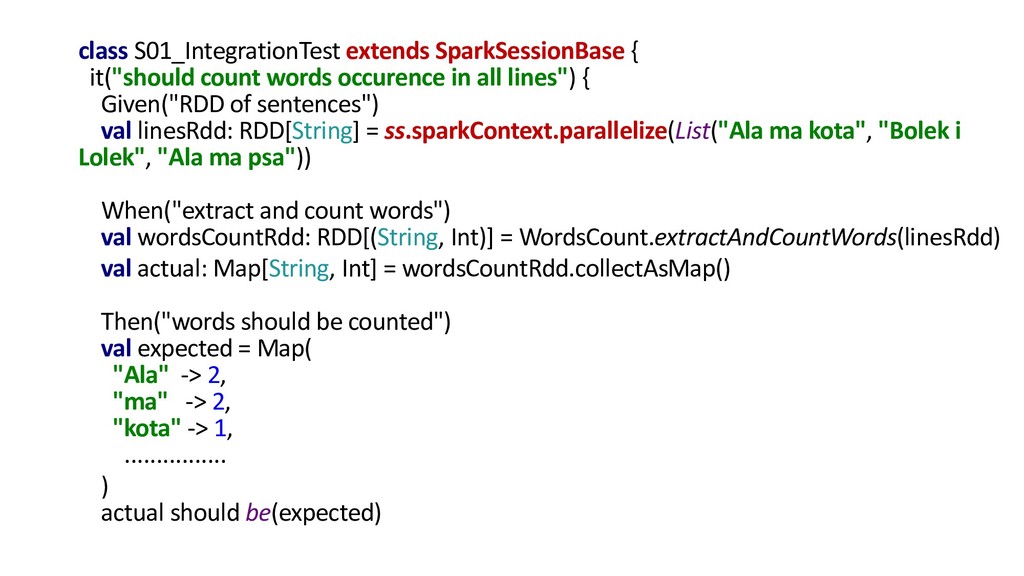

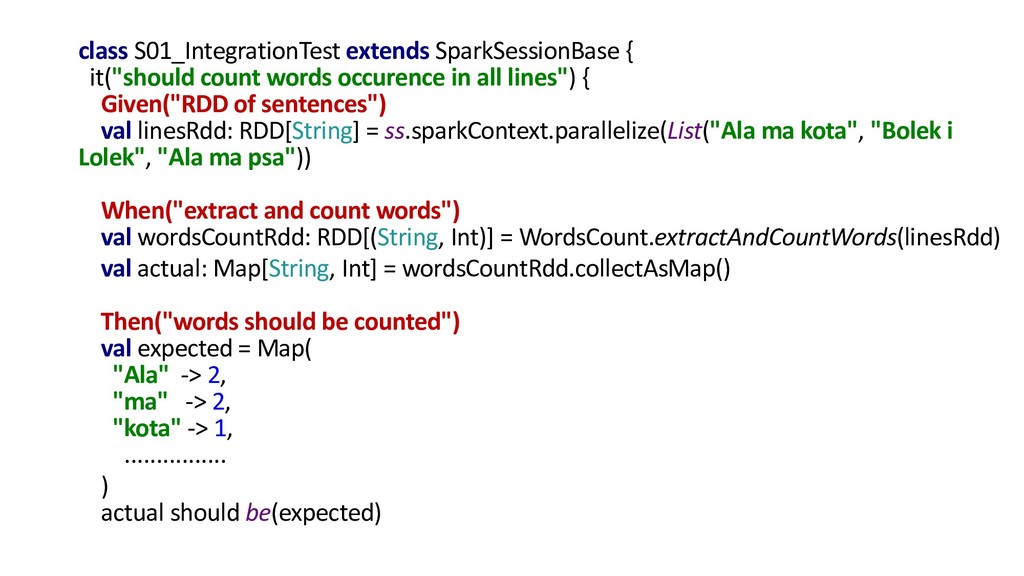

40. class S01_IntegrationTest extends SparkSessionBase { it("should count words occurence in all lines") { Given("RDD of sentences") val linesRdd: RDD[String] = ss.sparkContext.parallelize(List("Ala ma kota", "Bolek i Lolek", "Ala ma psa")) When("extract and count words") val wordsCountRdd: RDD[(String, Int)] = WordsCount.extractAndCountWords(linesRdd) val actual: Map[String, Int] = wordsCountRdd.collectAsMap() Then("words should be counted") val expected = Map( "Ala" -> 2, "ma" -> 2, "kota" -> 1, ................ ) actual should be(expected)
41. class S01_IntegrationTest extends SparkSessionBase { it("should count words occurence in all lines") { Given("RDD of sentences") val linesRdd: RDD[String] = ss.sparkContext.parallelize(List("Ala ma kota", "Bolek i Lolek", "Ala ma psa")) When("extract and count words") val wordsCountRdd: RDD[(String, Int)] = WordsCount.extractAndCountWords(linesRdd) val actual: Map[String, Int] = wordsCountRdd.collectAsMap() Then("words should be counted") val expected = Map( "Ala" -> 2, "ma" -> 2, "kota" -> 1, ................ ) actual should be(expected)

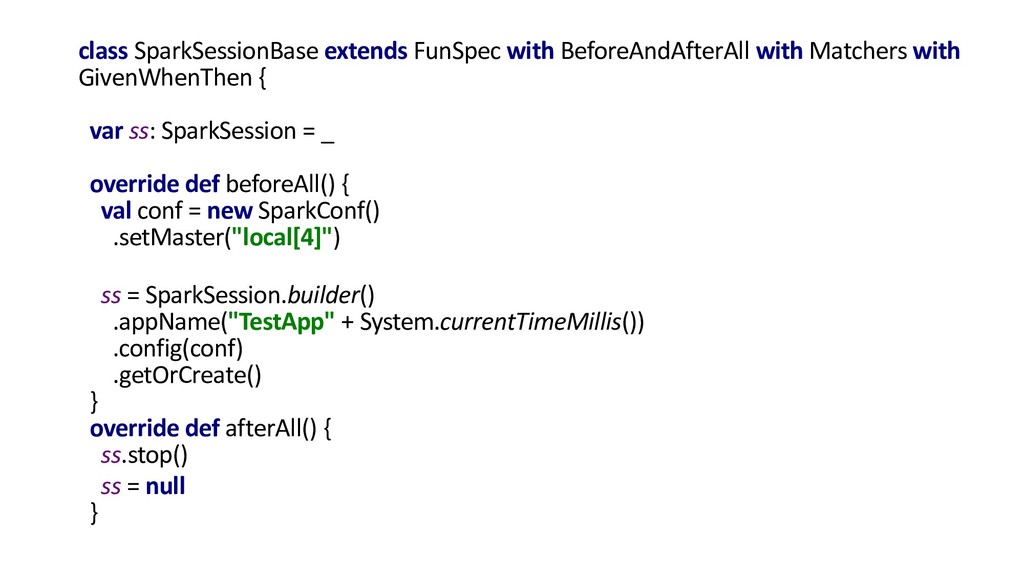

42. class SparkSessionBase extends FunSpec with BeforeAndAfterAll with Matchers with GivenWhenThen { var ss: SparkSession = _ override def beforeAll() { val conf = new SparkConf() .setMaster("local[4]") ss = SparkSession.builder() .appName("TestApp" + System.currentTimeMillis()) .config(conf) .getOrCreate() } override def afterAll() { ss.stop() ss = null }

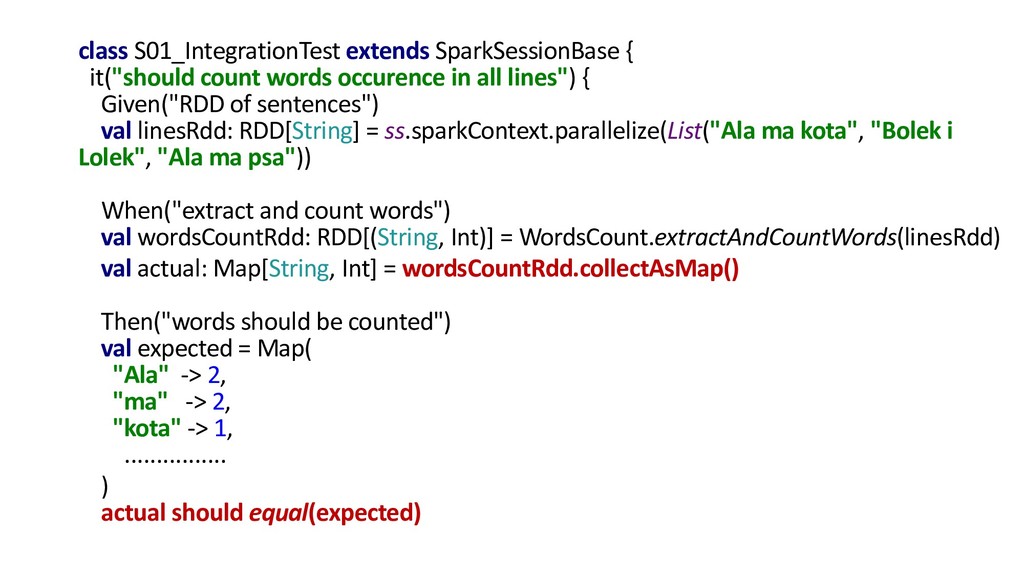

43. class S01_IntegrationTest extends SparkSessionBase { it( "should count words occurence in all lines" ) { Given("RDD of sentences") val linesRdd: RDD[String] = ss .sparkContext.parallelize( List ( "Ala ma kota" , "Bolek i Lolek" , "Ala ma psa" )) When("extract and count words") val wordsCountRdd: RDD[(String, Int)] = WordsCount. extractAndCountWords (linesRdd) val actual: Map[String, Int] = wordsCountRdd.collectAsMap() Then("words should be counted") val expected = Map( "Ala" -> 2, "ma" -> 2, "kota" -> 1, ................ ) actual should equal(expected)

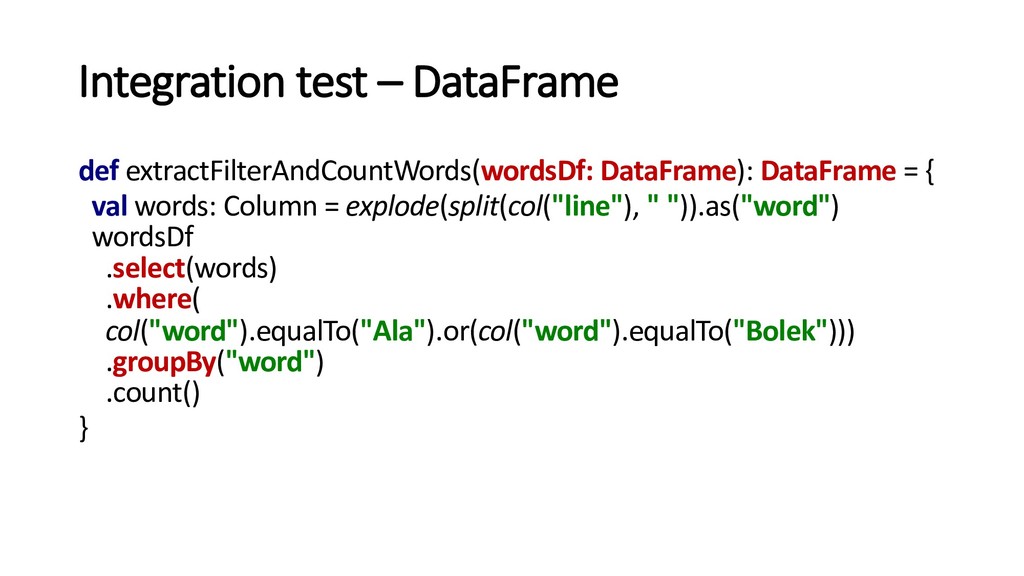

44. Integration test – DataFrame def extractFilterAndCountWords(wordsDf: DataFrame): DataFrame = { val words: Column = explode(split(col("line"), " ")).as("word") wordsDf .select(words) .where( col("word").equalTo("Ala").or(col("word").equalTo("Bolek"))) .groupBy("word") .count() }

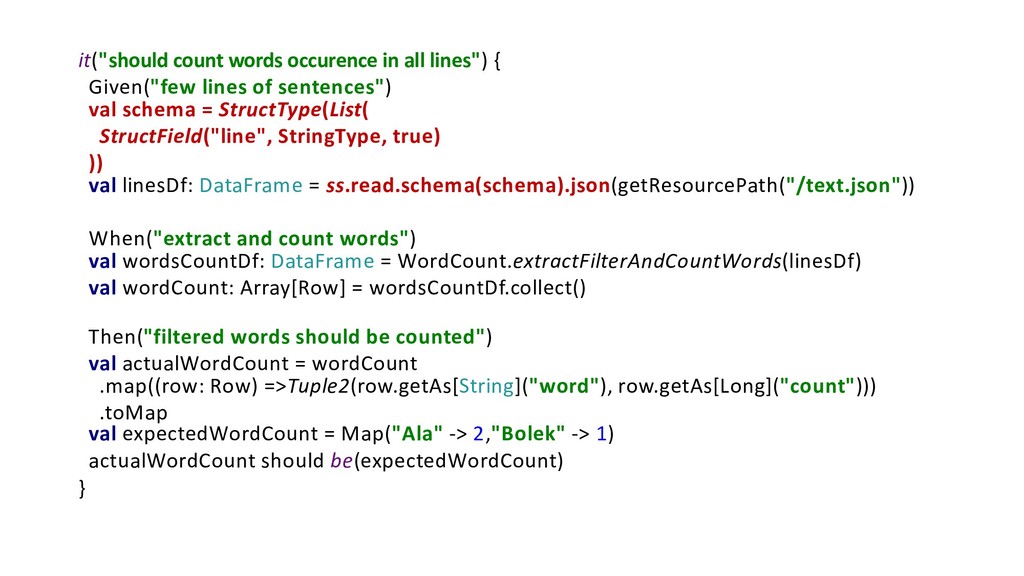

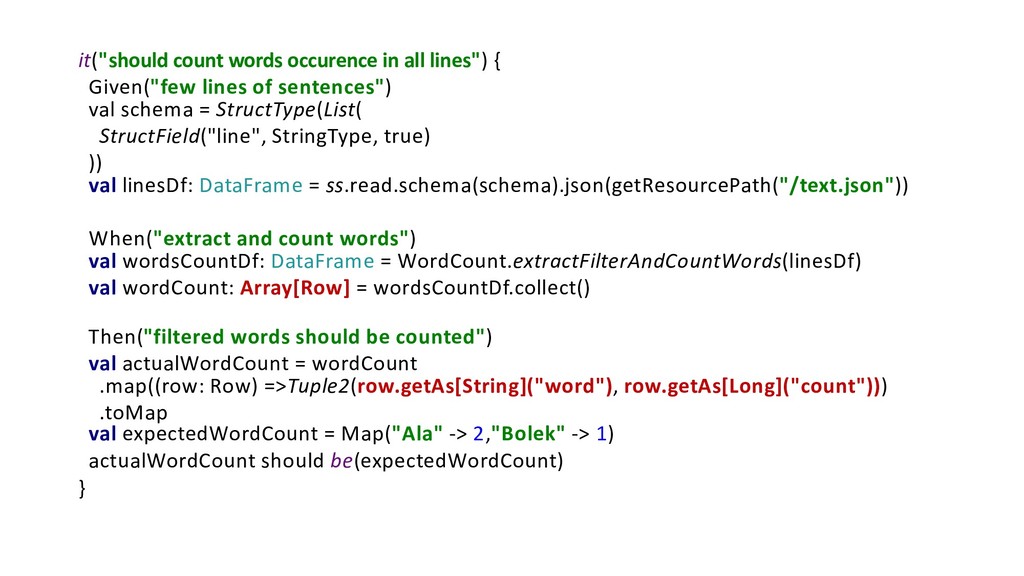

45. it("should count words occurence in all lines") { Given("few lines of sentences") val schema = StructType(List( StructField("line", StringType, true) )) val linesDf: DataFrame = ss.read.schema(schema).json(getResourcePath("/text.json")) When("extract and count words") val wordsCountDf: DataFrame = WordCount.extractFilterAndCountWords(linesDf) val wordCount: Array[Row] = wordsCountDf.collect() Then("filtered words should be counted") val actualWordCount = wordCount .map((row: Row) =>Tuple2(row.getAs[String]("word"), row.getAs[Long]("count"))) .toMap val expectedWordCount = Map("Ala" -> 2,"Bolek" -> 1) actualWordCount should be(expectedWordCount) }
46. it("should count words occurence in all lines") { Given("few lines of sentences") val schema = StructType(List( StructField("line", StringType, true) )) val linesDf: DataFrame = ss.read.schema(schema).json(getResourcePath("/text.json")) When("extract and count words") val wordsCountDf: DataFrame = WordCount.extractFilterAndCountWords(linesDf) val wordCount: Array[Row] = wordsCountDf.collect() Then("filtered words should be counted") val actualWordCount = wordCount .map((row: Row) =>Tuple2(row.getAs[String]("word"), row.getAs[Long]("count"))) .toMap val expectedWordCount = Map("Ala" -> 2,"Bolek" -> 1) actualWordCount should be(expectedWordCount) }

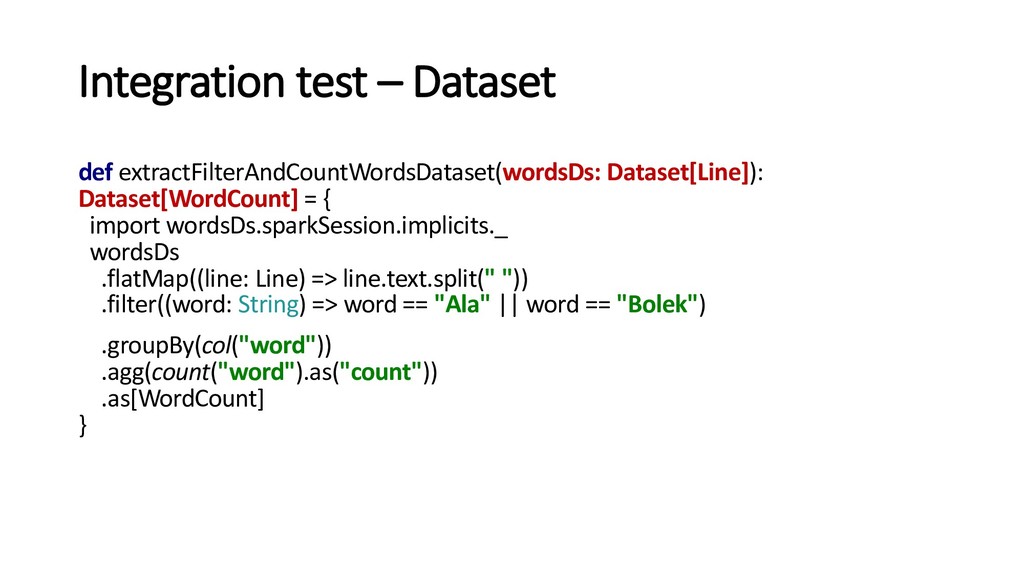

47. Integration test – Dataset def extractFilterAndCountWordsDataset(wordsDs: Dataset[Line]): Dataset[WordCount] = { import wordsDs.sparkSession.implicits._ wordsDs .flatMap((line: Line) => line.text.split(" ")) .filter((word: String) => word == "Ala" || word == "Bolek") .groupBy(col("word")) .agg(count("word").as("count")) .as[WordCount] }

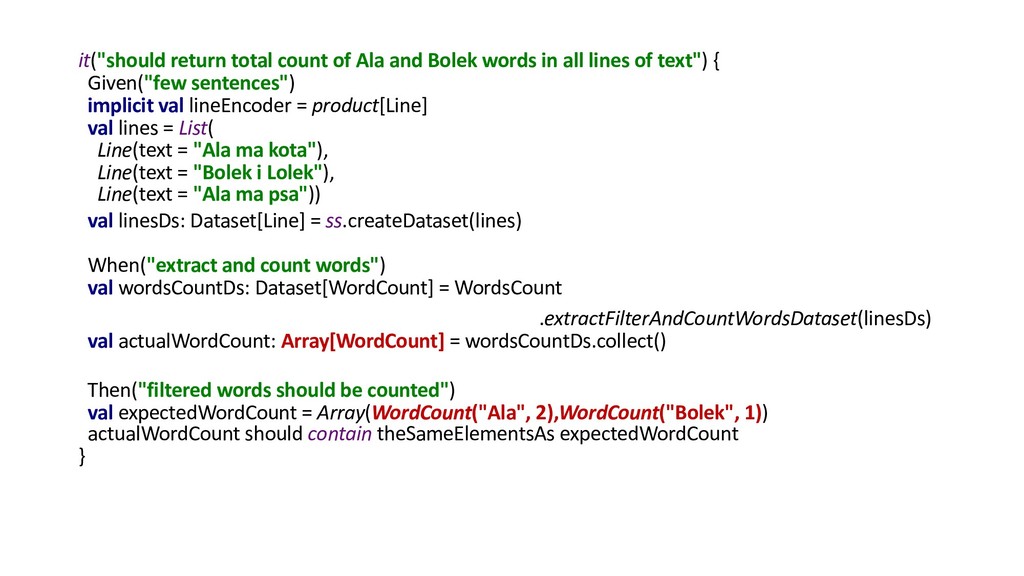

48. it("should return total count of Ala and Bolek words in all lines of text") { Given("few sentences") implicit val lineEncoder = product[Line] val lines = List( Line(text = "Ala ma kota"), Line(text = "Bolek i Lolek"), Line(text = "Ala ma psa")) val linesDs: Dataset[Line] = ss.createDataset(lines) When("extract and count words") val wordsCountDs: Dataset[WordCount] = WordsCount .extractFilterAndCountWordsDataset(linesDs) val actualWordCount: Array[WordCount] = wordsCountDs.collect() Then("filtered words should be counted") val expectedWordCount = Array(WordCount("Ala", 2),WordCount("Bolek", 1)) actualWordCount should contain theSameElementsAs expectedWordCount }

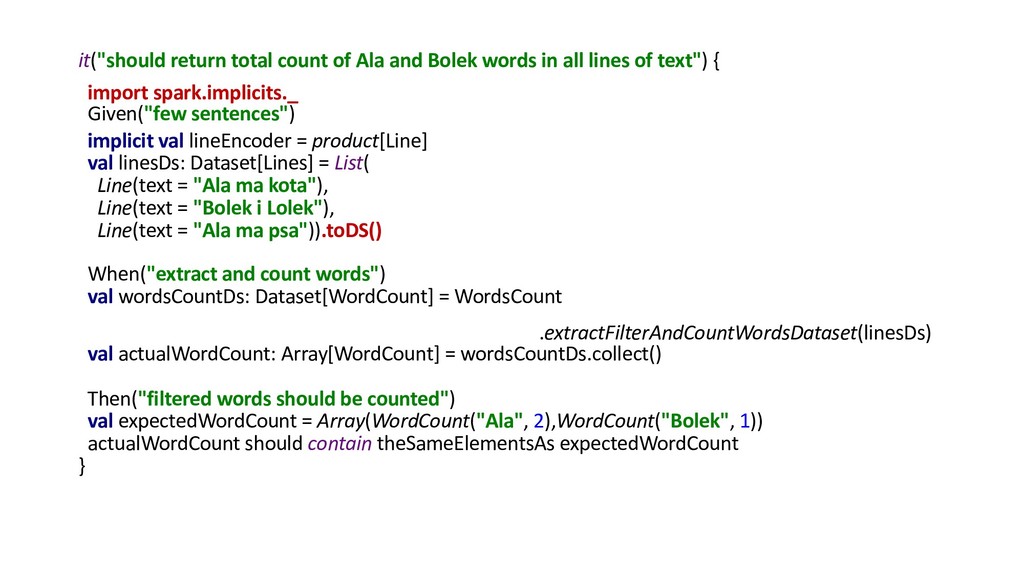

49. it("should return total count of Ala and Bolek words in all lines of text") { import spark.implicits._ Given("few sentences") implicit val lineEncoder = product[Line] val linesDs: Dataset[Lines] = List( Line(text = "Ala ma kota"), Line(text = "Bolek i Lolek"), Line(text = "Ala ma psa")).toDS() When("extract and count words") val wordsCountDs: Dataset[WordCount] = WordsCount .extractFilterAndCountWordsDataset(linesDs) val actualWordCount: Array[WordCount] = wordsCountDs.collect() Then("filtered words should be counted") val expectedWordCount = Array(WordCount("Ala", 2),WordCount("Bolek", 1)) actualWordCount should contain theSameElementsAs expectedWordCount }

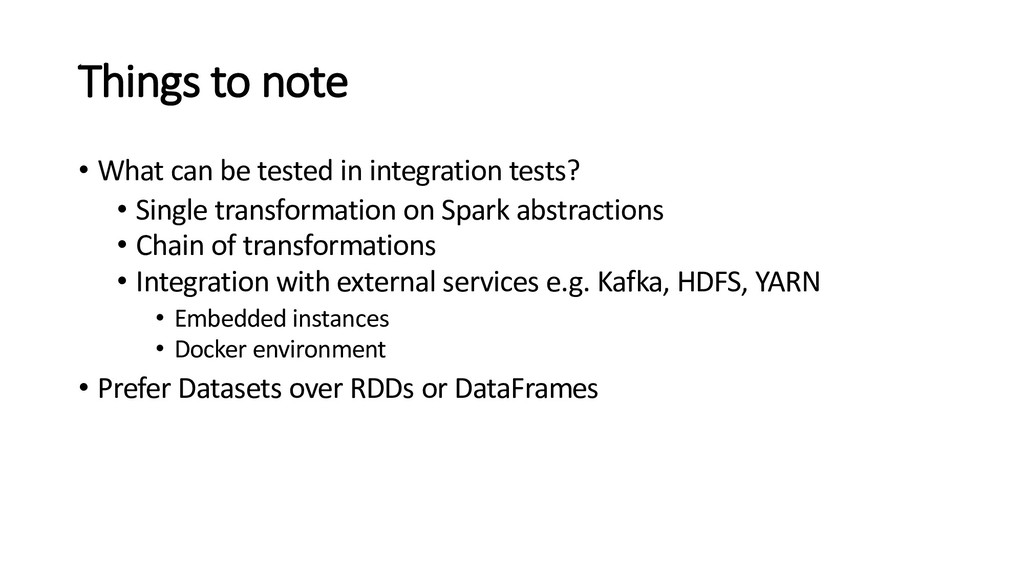

50. Things to note • What can be tested in integration tests? • Single transformation on Spark abstractions • Chain of transformations • Integration with external services e.g. Kafka, HDFS, YARN • Embedded instances • Docker environment • Prefer Datasets over RDDs or DataFrames
51. Tools

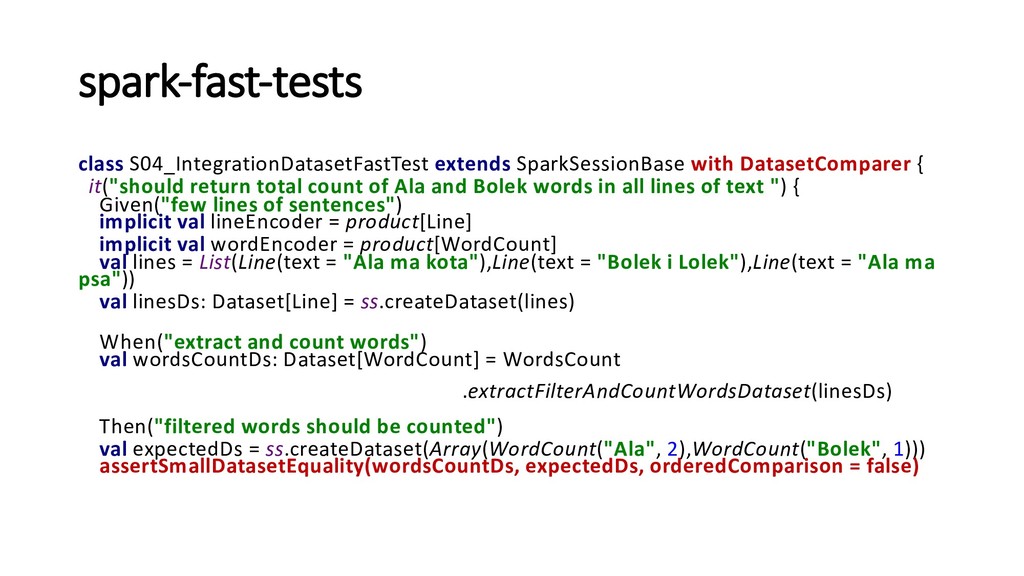

52. spark-fast-tests class S04_IntegrationDatasetFastTest extends SparkSessionBase with DatasetComparer { it("should return total count of Ala and Bolek words in all lines of text ") { Given("few lines of sentences") implicit val lineEncoder = product[Line] implicit val wordEncoder = product[WordCount] val lines = List(Line(text = "Ala ma kota"),Line(text = "Bolek i Lolek"),Line(text = "Ala ma psa")) val linesDs: Dataset[Line] = ss.createDataset(lines) When("extract and count words") val wordsCountDs: Dataset[WordCount] = WordsCount .extractFilterAndCountWordsDataset(linesDs) Then("filtered words should be counted") val expectedDs = ss.createDataset(Array(WordCount("Ala", 2),WordCount("Bolek", 1))) assertSmallDatasetEquality(wordsCountDs, expectedDs, orderedComparison = false)

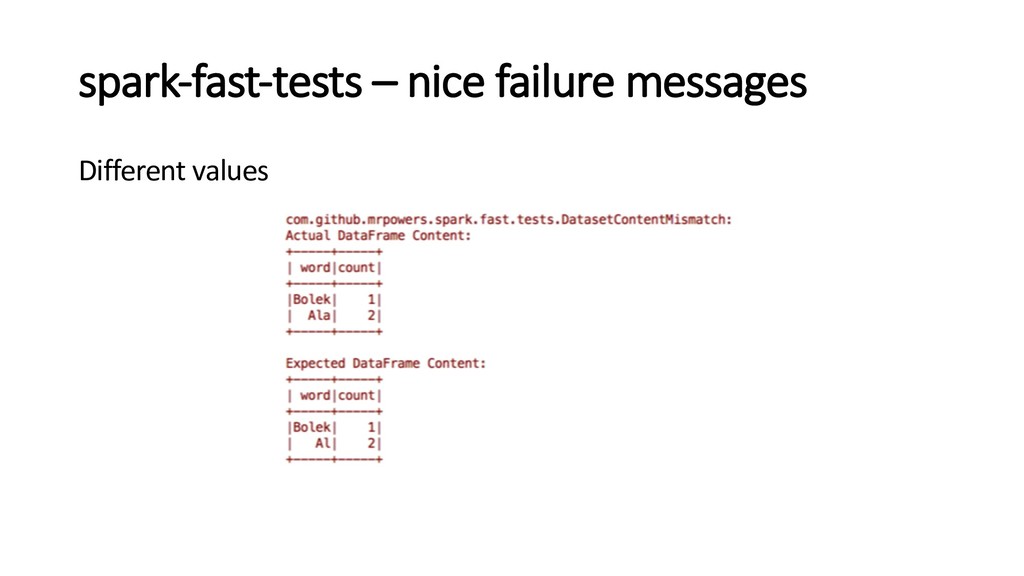

53. spark-fast-tests – nice failure messages Different values
54. Spark Testing Base class S06_01_IntegrationDatasetSparkTestingBaseTest extends FunSpec with DatasetSuiteBase with GivenWhenThen { it("counting word occurences on few lines of text should return count Ala and Bolek words in this text") { Given("few lines of sentences") implicit val lineEncoder = product[Line] implicit val wordEncoder = product[WordCount] val lines = List(Line(text = "Ala ma kota"), Line(text = "Bolek i Lolek"), Line(text = "Ala ma psa")) val linesDs: Dataset[Line] = spark.createDataset(lines) When("extract and count words") val wordsCountDs: Dataset[WordCount] = WordsCount.extractFilterAndCountWordsDataset(linesDs) Then("filtered words should be counted") val expectedDs: Dataset[WordCount] = spark.createDataset(Seq(WordCount("Bolek", 1),WordCount("Ala", 2))) assertDatasetEquals(expected = expectedDs, result = wordsCountDs)
55. Spark Testing Base – not so nice failure messages • Different length 1 did not equal 2 Length not EqualScalaTestFailureLocation: com.holdenkarau.spark.testing.TestSuite$class at • Different order of elements Tuple2;((0,(WordCount(Ala,2),WordCount(Bolek,1))), (1,(WordCount(Bolek,1),WordCount(Ala,2)))) was not empty • Differente values Tuple2;((0,(WordCount(Bole,1),WordCount(Bolek,1)))) was not empty
56. spark-fast-test vs spark-testing-base

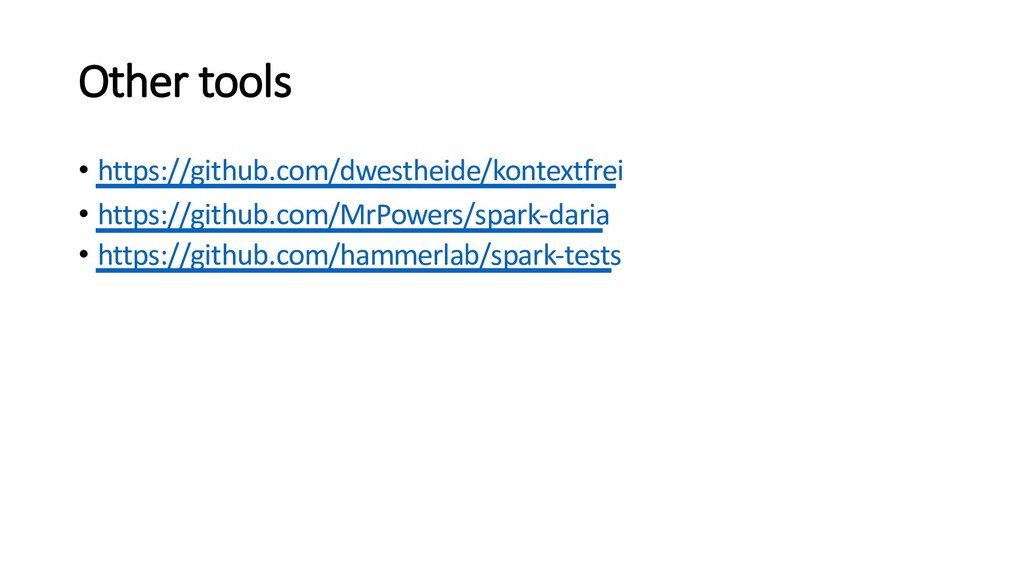

57. Other tools • https://github.com/dwestheide/kontextfrei • https://github.com/MrPowers/spark-daria • https://github.com/hammerlab/spark-tests
58. Spark streaming - inifinite flow of data

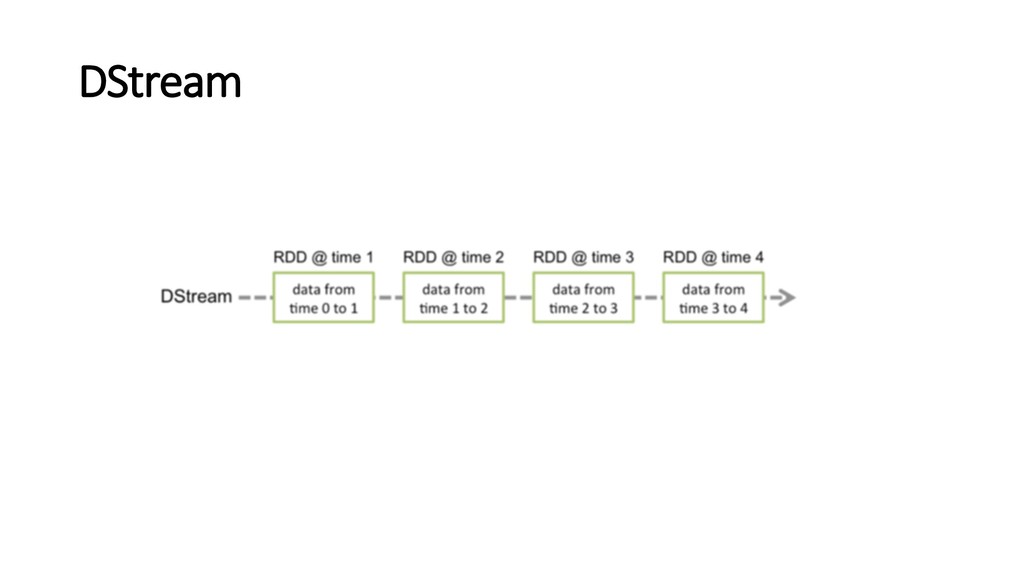

59. DStream

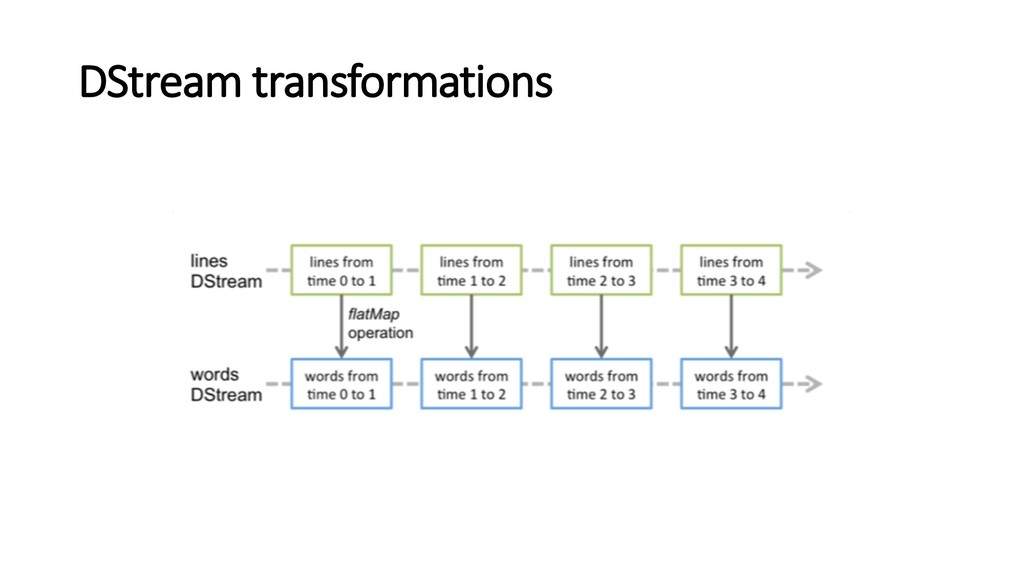

60. DStream transformations
61. Streaming – spark testing base class S06_02_StreamingTest_SparkTestingBase extends FunSuite with StreamingSuiteBase { test("count words") { val input = List(List("a b")) val expected = List(List(("a", 1), ("b", 1))) testOperation[String, (String, Int)](input, count _, expected, ordered = false) } // This is the sample operation we are testing def count(lines: DStream[String]): DStream[(String, Int)] = { lines.flatMap(_.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) } }

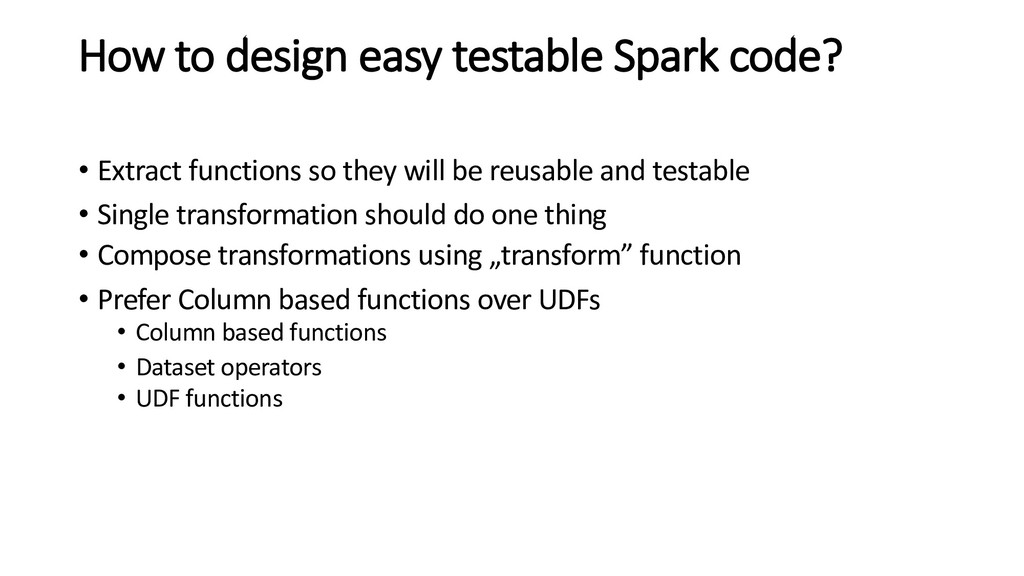

62. How to design easy testable Spark code? • Extract functions so they will be reusable and testable • Single transformation should do one thing • Compose transformations using „transform” function • Prefer Column based functions over UDFs • Column based functions • Dataset operators • UDF functions

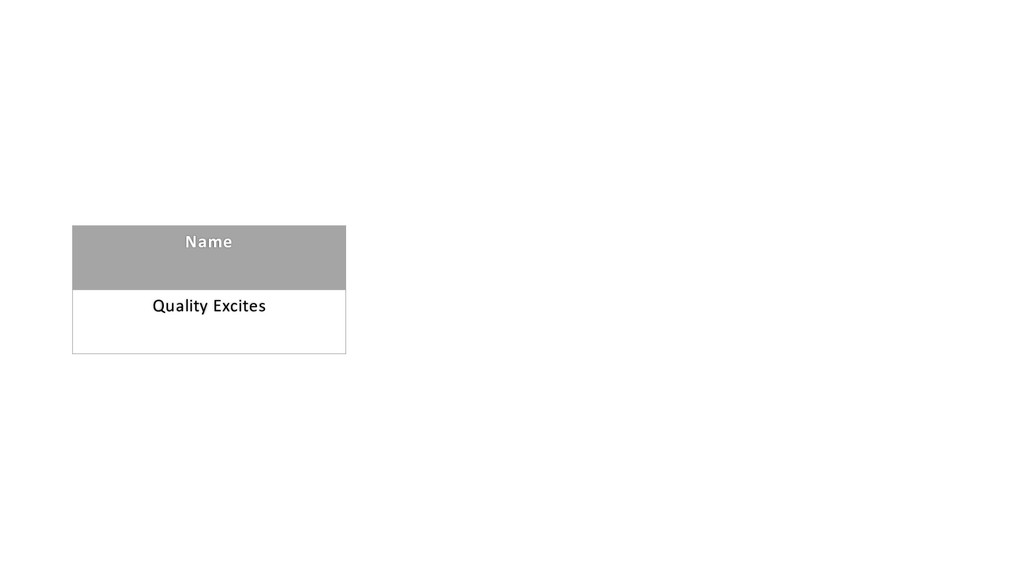

63. Name Quality Excites

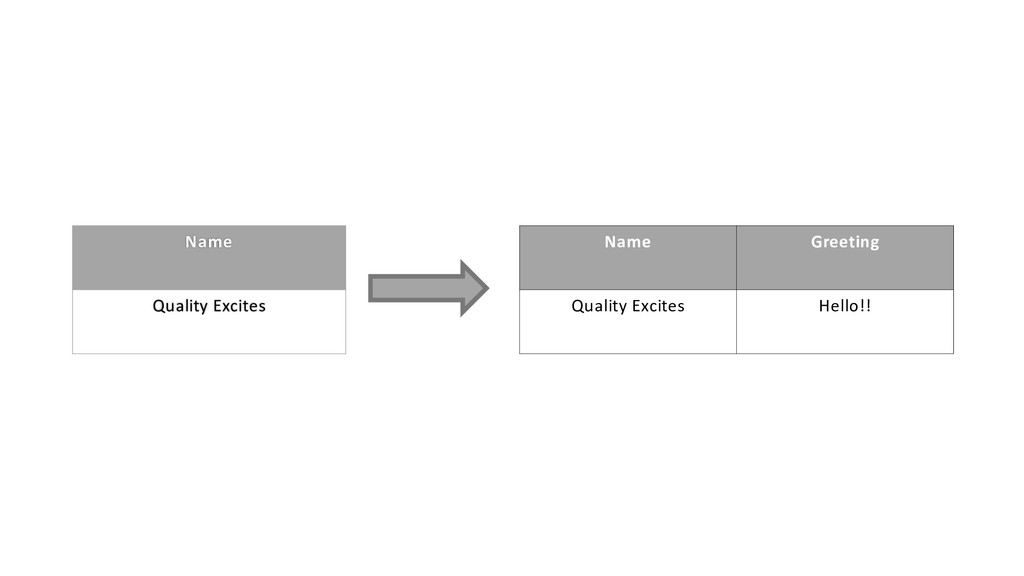

64. Name Quality Excites Name Greeting Quality Excites Hello!!

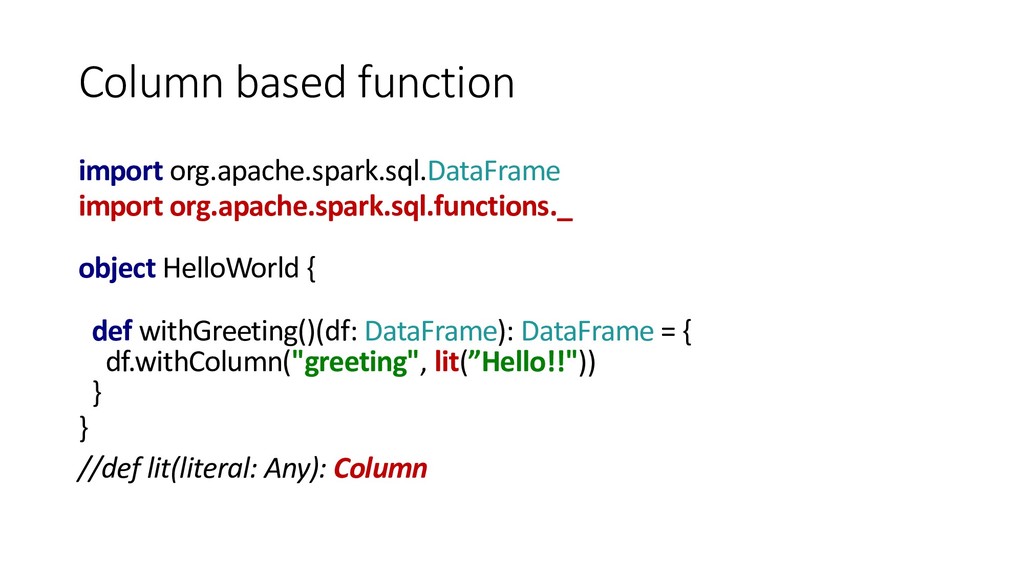

65. Column based function import org.apache.spark.sql.DataFrame import org.apache.spark.sql.functions._ object HelloWorld { def withGreeting()(df: DataFrame): DataFrame = { df.withColumn("greeting", lit(”Hello!!")) } } //def lit(literal: Any): Column

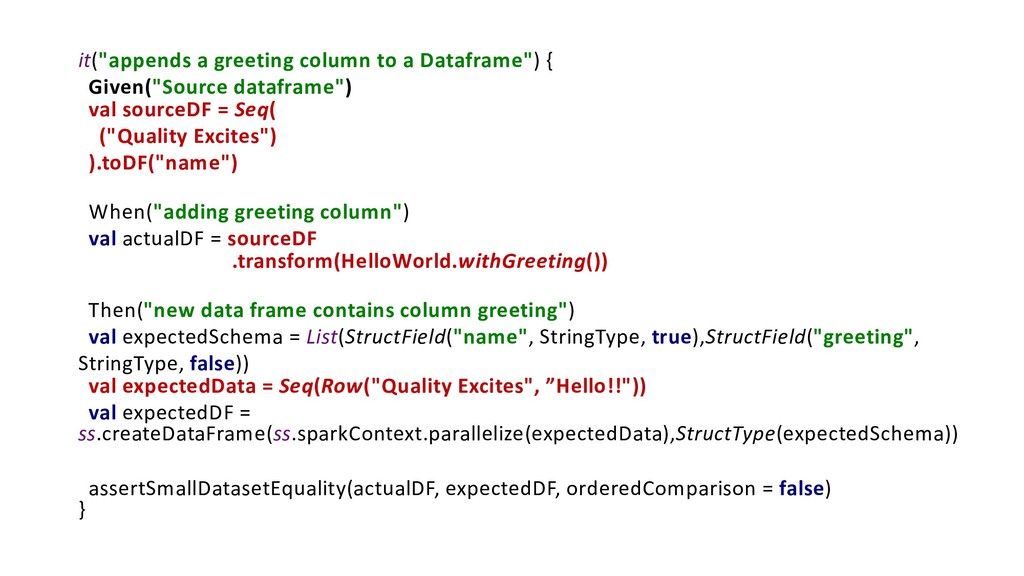

66. it("appends a greeting column to a Dataframe") { Given("Source dataframe") val sourceDF = Seq( ("Quality Excites") ).toDF("name") When("adding greeting column") val actualDF = sourceDF .transform(HelloWorld.withGreeting()) Then("new data frame contains column greeting") val expectedSchema = List(StructField("name", StringType, true),StructField("greeting", StringType, false)) val expectedData = Seq(Row("Quality Excites", ”Hello!!")) val expectedDF = ss.createDataFrame(ss.sparkContext.parallelize(expectedData),StructType(expectedSchema)) assertSmallDatasetEquality(actualDF, expectedDF, orderedComparison = false) }

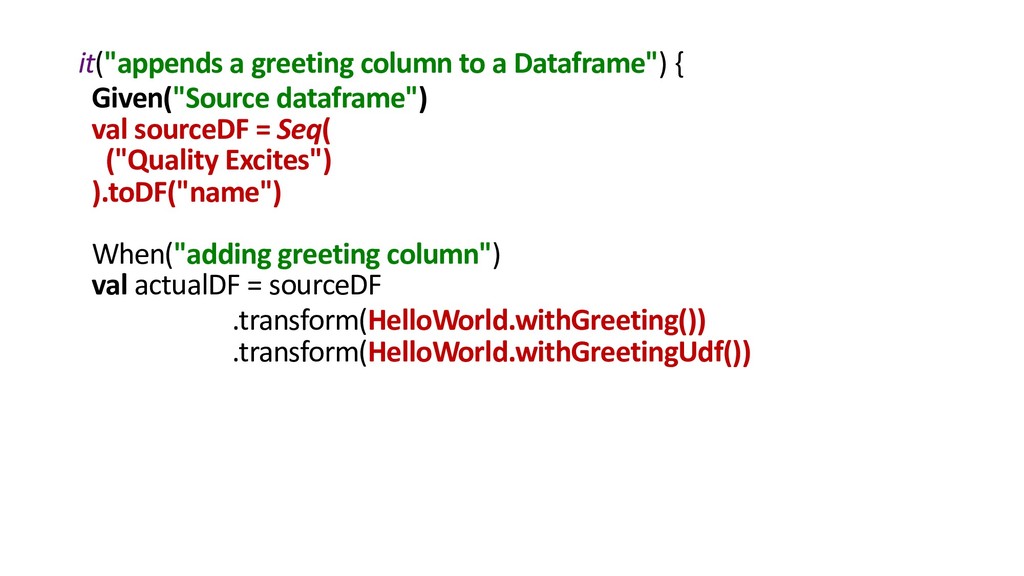

67. it("appends a greeting column to a Dataframe") { Given("Source dataframe") val sourceDF = Seq( ("Quality Excites") ).toDF("name") When("adding greeting column") val actualDF = sourceDF .transform(HelloWorld.withGreeting()) .transform(HelloWorld.withGreetingUdf())

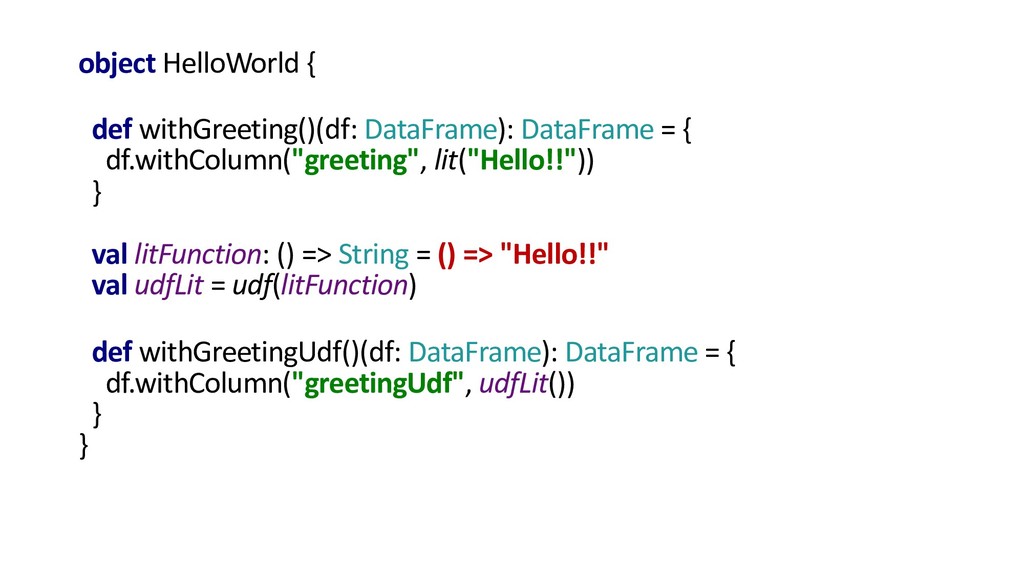

68. object HelloWorld { def withGreeting()(df: DataFrame): DataFrame = { df.withColumn("greeting", lit("Hello!!")) } val litFunction: () => String = () => "Hello!!" val udfLit = udf(litFunction) def withGreetingUdf()(df: DataFrame): DataFrame = { df.withColumn("greetingUdf", udfLit()) } }

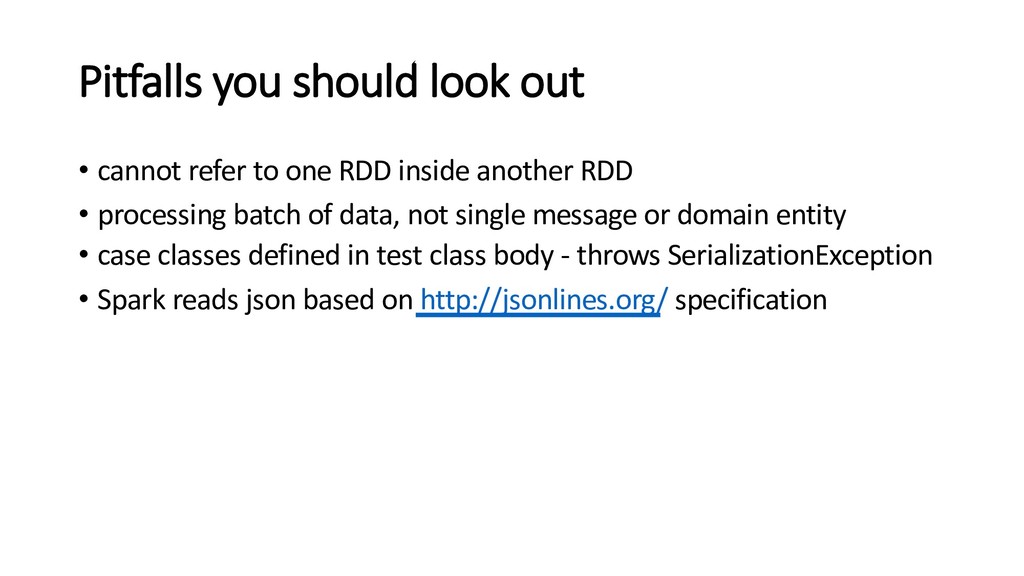

69. Pitfalls you should look out • cannot refer to one RDD inside another RDD • processing batch of data, not single message or domain entity • case classes defined in test class body - throws SerializationException • Spark reads json based on http://jsonlines.org/ specification

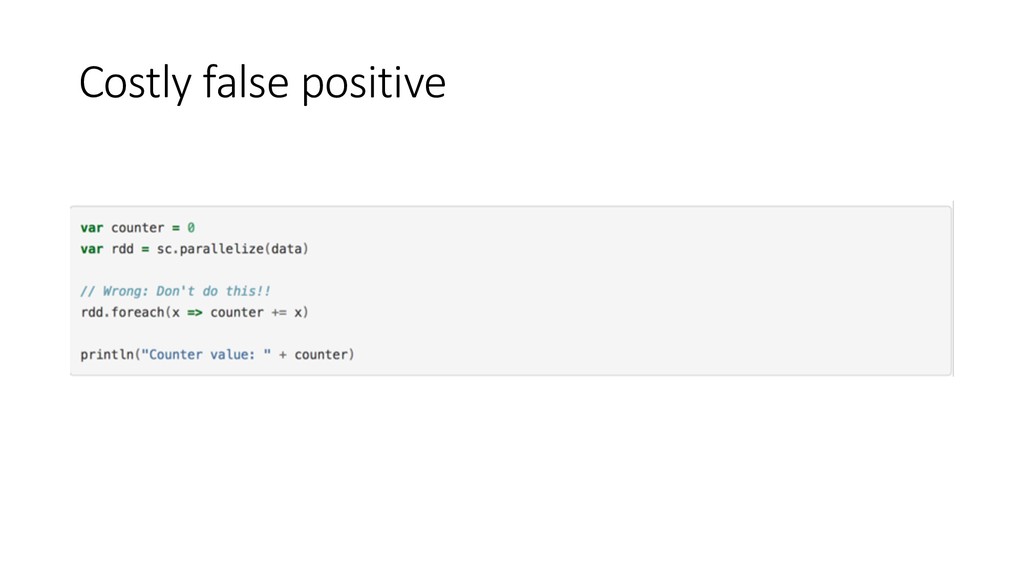

70. Costly false positive
71. Q&A
72. Thank you

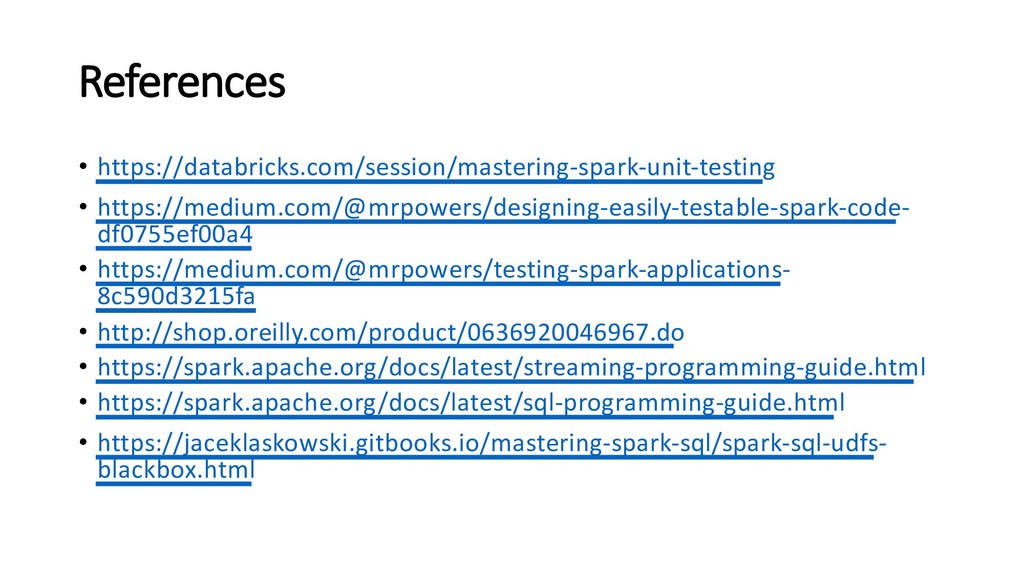

73. References • https://databricks.com/session/mastering-spark-unit-testing • https://medium.com/@mrpowers/designing-easily-testable-spark-code- df0755ef00a4 • https://medium.com/@mrpowers/testing-spark-applications- 8c590d3215fa • http://shop.oreilly.com/product/0636920046967.do • https://spark.apache.org/docs/latest/streaming-programming-guide.html • https://spark.apache.org/docs/latest/sql-programming-guide.html • https://jaceklaskowski.gitbooks.io/mastering-spark-sql/spark-sql-udfs- blackbox.html
