Sustainable SPA-Architectures with Micro Apps (Microfrontends)

Samples: https://github.com/manfredsteyer/angular-microapp

See Branch `new-tutorial` for an exmples using webpack externals to share Angular b/w micro apps.

Blog article about this topic:
https://www.softwarearchitekt.at/post/2018/05/04/microservice-clients-with-web-components-using-angular-elements-dreams-of-the-near-future.aspx

Blog article about externals:
https://www.softwarearchitekt.at/post/2019/01/27/building-angular-elements-with-the-cli.aspx

Transcript

1. @ManfredSteyer Sustainable SPA-Architectures with Micro Apps (Microfrontends) Manfred Steyer SOFTWAREarchitekt.at ManfredSteyer
2. @ManfredSteyer Ever build a software from the scratch? Kick-off After some weeks After some years
3. @ManfredSteyer Idea System
4. @ManfredSteyer Idea µService µService µService
5. @ManfredSteyer Idea µService µService µService Single Page Application ??
6. @ManfredSteyer Contents 1) Deployment Monolith 2) Hyperlinks 3) Shell 4) How to choose?
7. @ManfredSteyer About me… • Manfred Steyer • SOFTWAREarchitekt.at • Angular Trainings and Consultancy • Google Developer Expert (GDE) • Trusted Collaborator in the Angular Team Page ▪ 7 Manfred Steyer Public: Selected Cities In-House: everywhere http://softwarearchitekt.at/workshops
8. @ManfredSteyer 1) Deployment Monolith
9. @ManfredSteyer Idea µService µService µService Client Fragment Client Fragment Client Fragment ✓ Easy (Tooling) ✓ One optimized bundle set ✓ Consistent  No separate deployment  Mixing Technologies: Difficult  Coupling npm Packages ?
10. @ManfredSteyer Advantages • Distribution • Versioning
11. @ManfredSteyer Disadvantages • Distribution • Versioning ;-)
12. @ManfredSteyer Disadvantages Distribution • Annoying within project Versioning • Old versions • Conflicts • How to force devs to use latest version?
13. @ManfredSteyer 2) Monorepo
14. @ManfredSteyer Workspace
15. @ManfredSteyer Advantages Everyone uses the latest versions No version conflicts No burden with distributing libs Creating new libs: Adding folder Experience: Successfully used at Google, Facebook, …
16. @ManfredSteyer Moving back and forth Npm Registry
17. @ManfredSteyer Advantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project
18. @ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project

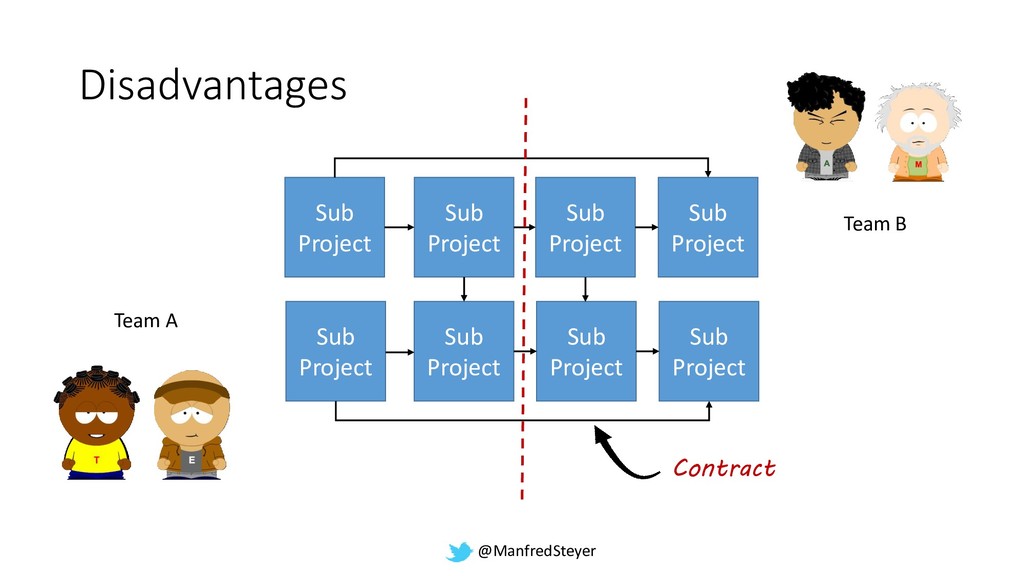

19. @ManfredSteyer Disadvantages Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Sub Project Team A Team B Contract
20. @ManfredSteyer Disadvantages One Architecture One Technology Stack Hard to change No self- contained teams One size fits all?
21. @ManfredSteyer 3) Hyperlinks
22. @ManfredSteyer UI Composition w/ Hyperlinks µApp SPA µApp SPA µApp SPA <a href="…">…</a> <a href="…">…</a>

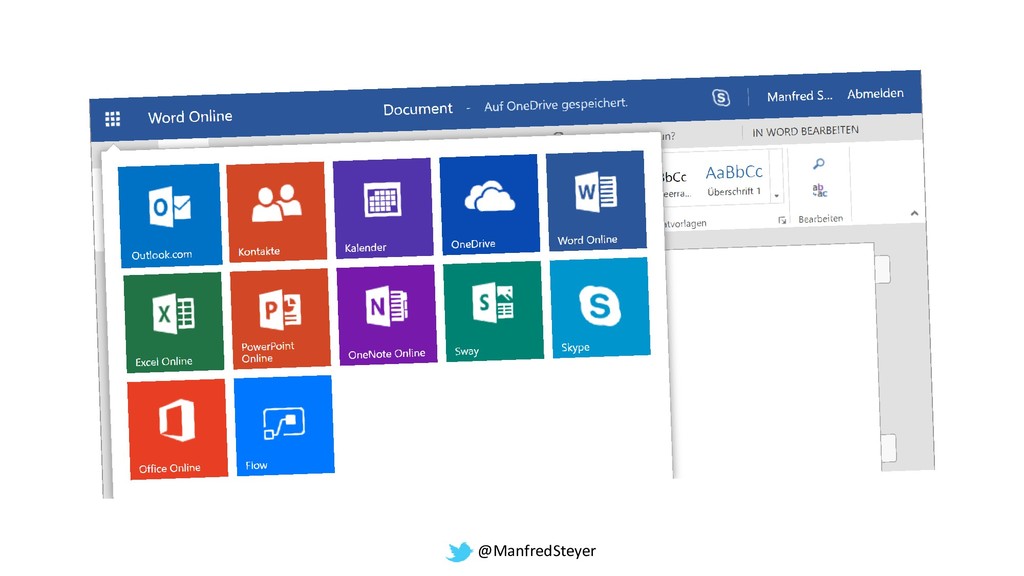

23. @ManfredSteyer
24. @ManfredSteyer

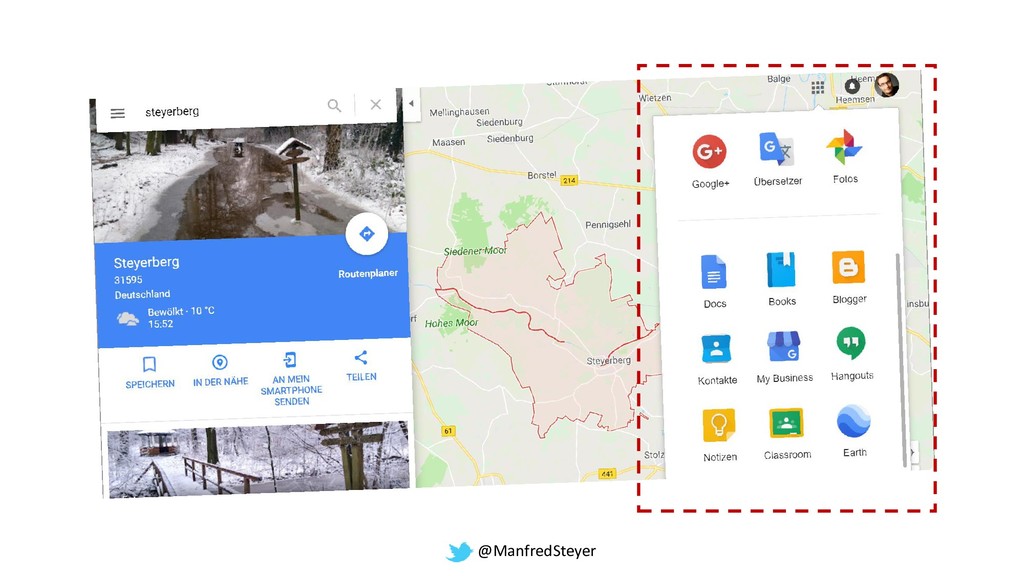

25. @ManfredSteyer ✓ Simple  Loosing State  Load a new Application
26. @ManfredSteyer
27. @ManfredSteyer Web Components for Shared Widgets?

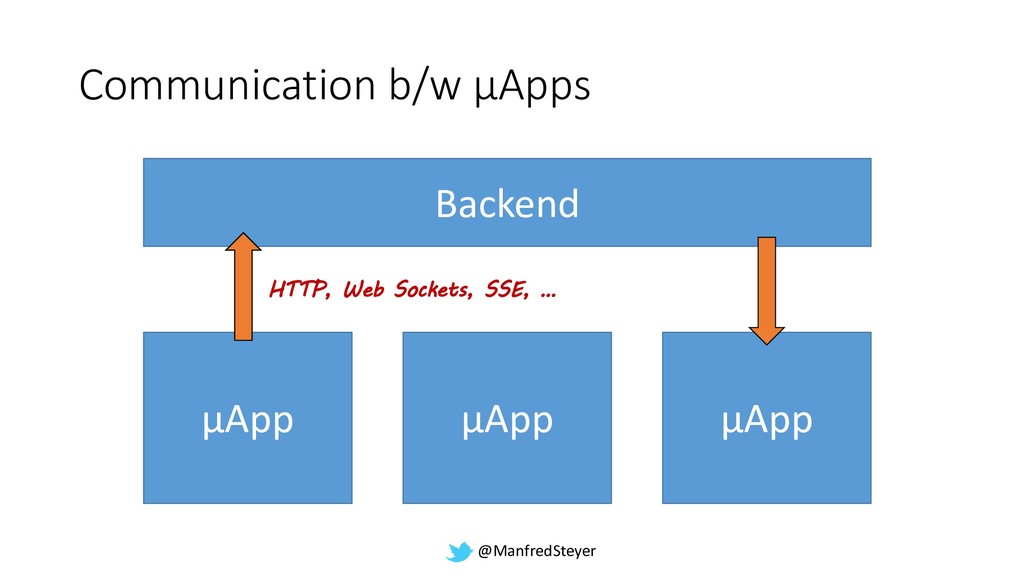

28. @ManfredSteyer Communication b/w µApps µApp µApp µApp Backend HTTP, Web Sockets, SSE, …
29. @ManfredSteyer Communication b/w µApps µApp µApp /app2/xyz/17?p=42 /app1/abc/42
30. @ManfredSteyer 3) Shell
31. @ManfredSteyer µService Providing a (SPA based) Shell µApp µApp µApp Shell ▪ iframes ▪ Bootstrapping several SPAs ▪ + Lazy Loading ▪ Meta-Frameworks?
32. @ManfredSteyer DEMO
33. @ManfredSteyer µService Communication via Url µApp µApp µApp Shell http://my-url?customerId=7
34. @ManfredSteyer Communication via Custom Events window.dispatchEvent('customer-selected', …) window.addEventListener('customer-selected', …)

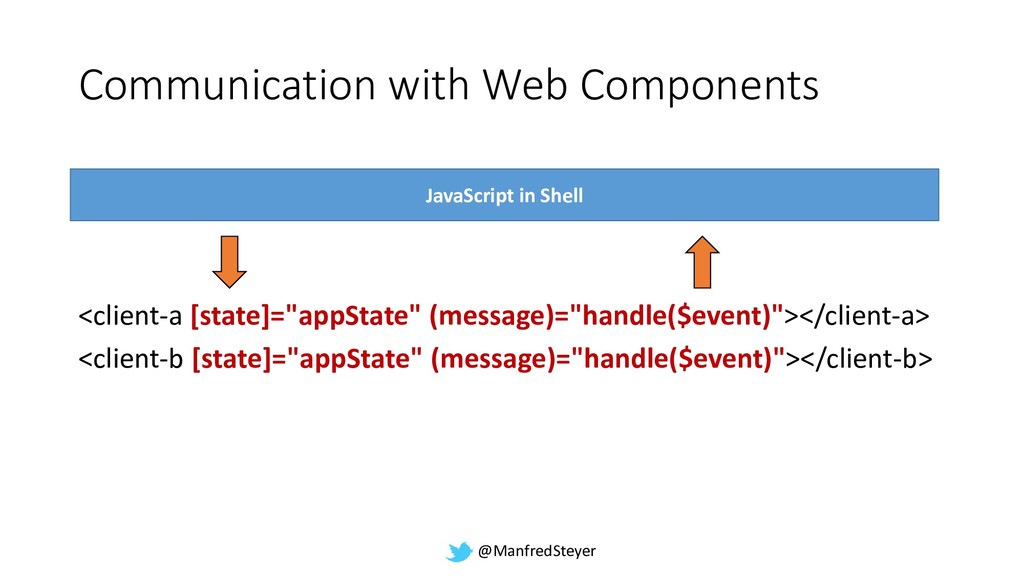

35. @ManfredSteyer Communication with Web Components <client-a [state]="appState" (message)="handle($event)"></client-a> <client-b [state]="appState" (message)="handle($event)"></client-b> JavaScript in Shell
36. @ManfredSteyer In general: Eventing As little as possible Send out information Don't expect an answer 0 to n other micro apps can consume it Don't expect specific notifications Loosely coupling
37. @ManfredSteyer Routing /client-a/this/that /client-b/this/that /client-c/this/that :
38. @ManfredSteyer Routing /client-a/this/that /client-b/this/that /client-c/this/that :
39. @ManfredSteyer Advantage • Several small and decoupled Projects
40. @ManfredSteyer Disadvantages • Several small and decoupled Projects ;-) • More Bundles • Less optimized Bundles/ duplicate Code? • UI Consistency?
41. @ManfredSteyer 4) Choosing a Solution
42. @ManfredSteyer Some General Advice Shared state, navigation b/w apps Hyperlinks Legacy Apps or *very very* strong isolation? iframes Separate Deployment/ mix Technologies? Bootstrap several SPAs Deployment Monolith little much yes no yes no Not a good fit for public web sites

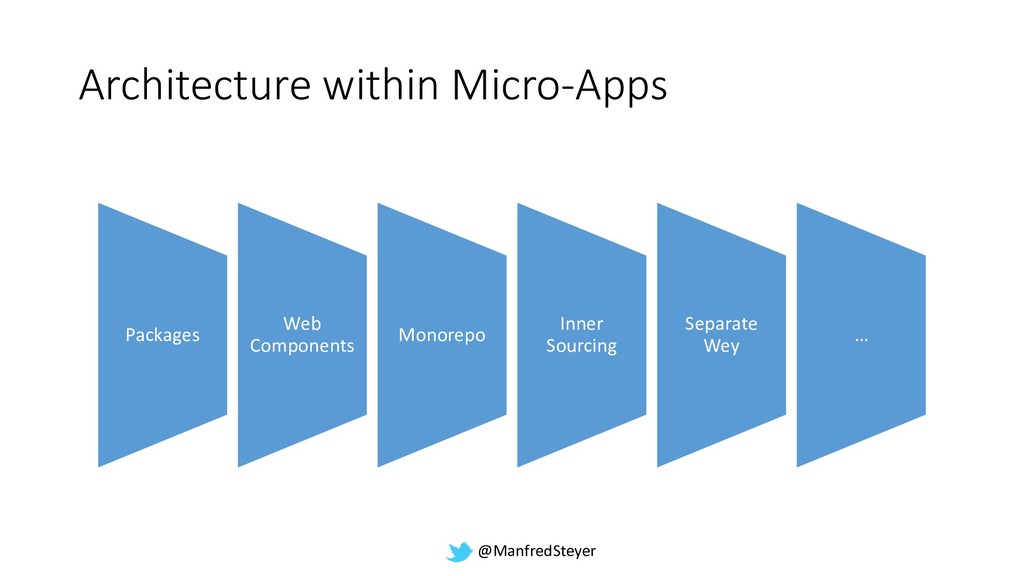

43. @ManfredSteyer Architecture within Micro-Apps Packages Web Components Monorepo Inner Sourcing Separate Wey …
44. @ManfredSteyer Blog > SOFTWAREarchitekt.at • A Software Architect's Approach Towards Using Angular (And SPAs In General) For Microservices Aka Microfrontends • A Lightweight And Solid Approach Towards Micro Frontends (Micro Service Clients) With Angular And/Or Other Frameworks • Micro Apps With Web Components Using Angular Elements
45. @ManfredSteyer Conclusion Deployment Monolith Hyper Links Shell You need to evaluate!
46. @ManfredSteyer Beware the Frankenstein- Monster on the client too!
47. @ManfredSteyer Contact and Downloads [mail] manfred.steyer@SOFTWAREarchitekt.at [web] SOFTWAREarchitekt.at [twitter] ManfredSteyer d http://softwarearchitekt.at/workshops Slides & Examples
