METASPACE training guide

These are the tutorial slides on METASPACE. They cover the basics, how to use it, and recommendations on data interpretation. We normally use them in face-to-face trainings but they can be equally useful if you are new to METASPACE or would like to get updated on the newest features.

For more information on METASPACE, please visit the project website http://metaspace2020.eu, follow us on Twitter https://twitter.com/metaspace2020, or email at contact@metaspace2020.eu.

Transcript

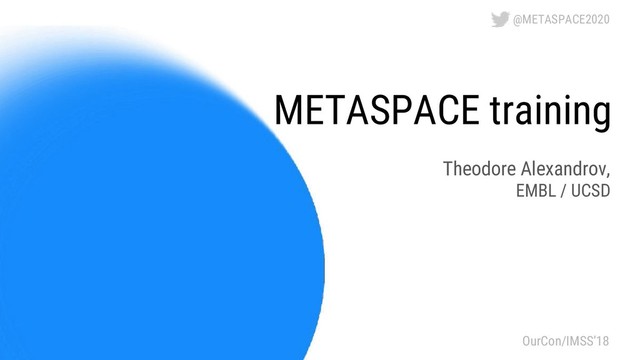

1. METASPACE training Theodore Alexandrov, EMBL / UCSD @METASPACE2020 OurCon/IMSS’18
2. Training agenda 1. Theory 2. Tutorial and demo 3. Q&A These slides: http://speakerdeck.com/metaspace2020

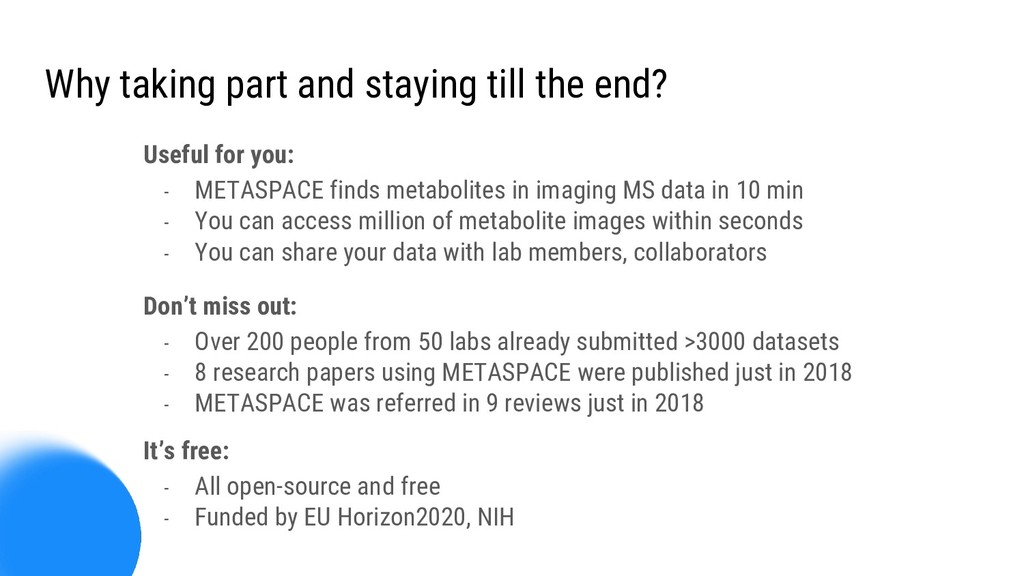

3. Why taking part and staying till the end? Useful for you: - METASPACE finds metabolites in imaging MS data in 10 min - You can access million of metabolite images within seconds - You can share your data with lab members, collaborators Don’t miss out: - Over 200 people from 50 labs already submitted >3000 datasets - 8 research papers using METASPACE were published just in 2018 - METASPACE was referred in 9 reviews just in 2018 It’s free: - All open-source and free - Funded by EU Horizon2020, NIH
4. Part of the Alexandrov team @ EMBL Heidelberg, Germany Lachlan Stuart Renat Nigmetzianov The METASPACE team Theodore Alexandrov Vitaly Kovalev Alumni: Andrew Palmer, Ivan Protsyuk, Dominik Fay, Artem Tarasov, Sergey Nikolenko Interested to join?
5. Part 1. Theory (external slides, see https://speakerdeck.com/metaspace2020/metaspace-theory)
6. Part 2. Tutorial
7. Part 2. Tutorial Webapp overview
8. METASPACE webapp http://metaspace2020.eu imzML, metadata annotations webapp 10 minutes Amazon Cloud
9. http://metaspace2020.eu Upload Main view List of datasets, yours and public ones Projects (groups of datasets), yours and public ones For submitting data, for access to private data

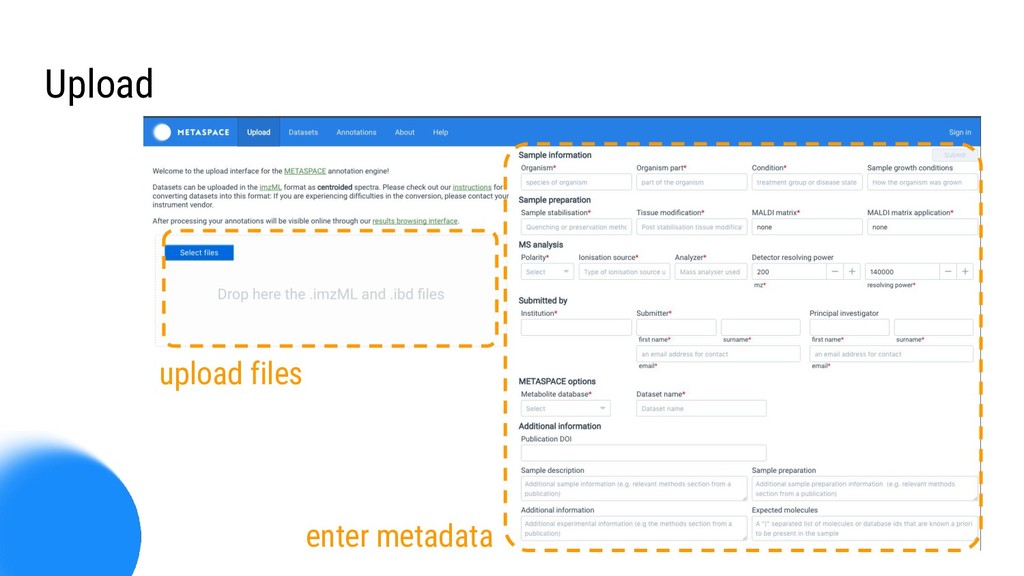

10. Upload enter metadata upload files
11. Datasets Shows progress (queued, processing, finished) Browsing annotations Browsing annotations
12. Data by Regis Lavigne, Charles Pineau, U Rennes 1 Browsing Annotations
13. Data provided by Regis Lavigne, Charles Pineau, University of Rennes 1 Filtering Annotations
14. Visualization Annotations
15. NEW! Projects and your group Projects, private and public And your group!
16. NEW! Projects and Groups
18. Part 2. Tutorial Data submission
19. High-resolving imaging MS - Any ionisation source - Any spatial resolution - Any tissue - One section per dataset Data requirements
20. High mass resolution Requirement: R FWHM (200 m/z) > 70K Well aligned and calibrated at least < 3 ppm Yes Yes Contact your vendor Orbitrap FTICR QTOF, TOF
21. We customize processing We customize processing w.r.t. - Resolving power - isotope pattern prediction - Polarity - adducts Make sure you enter it correctly! R 200 =70K R 200 =280K [C 41 H 78 NO 7 P+K]+
22. Data format Accepted data format: - centroided imzML Export available: - Bruker FTICR (using SCiLS Lab) - AP-SMALDI-Orbitrap - Spectroglyph-Orbitrap Our instructions: http://project.metaspace2020.eu/imzml
23. Part 2. Tutorial Overlaying an optical image
24. Select the dataset for overlaying an optical image To overlay optical image for your dataset, click at the “+”
26. Part 2. Tutorial Browsing results

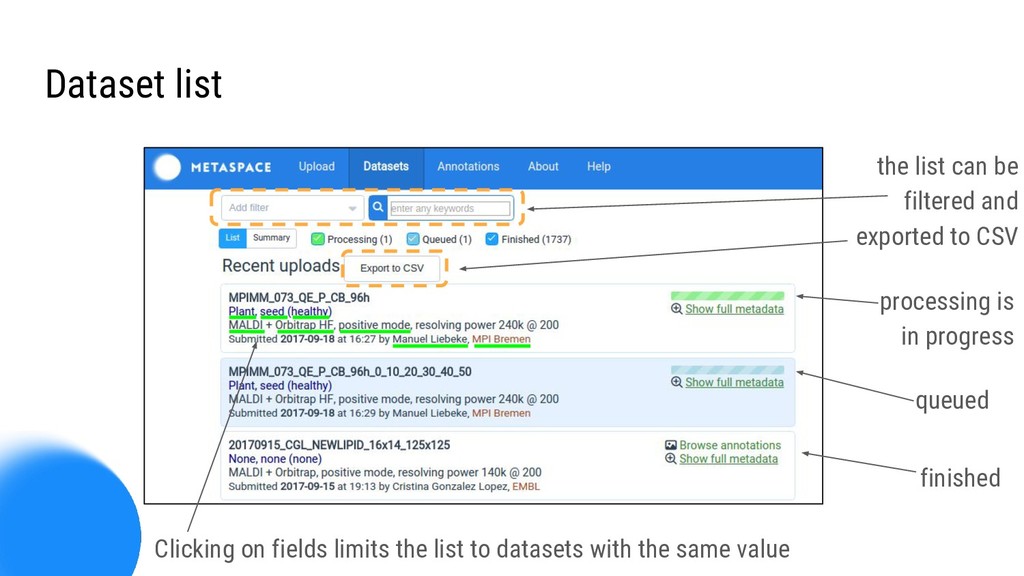

27. Dataset list processing is in progress queued finished the list can be filtered and exported to CSV Clicking on fields limits the list to datasets with the same value
28. Dynamic summaries Click at “Summary”
29. Annotation table Currently selected molecule (click to select) MSM score principal peak m/z
30. Sorting and filtering annotations Click on column headers to sort Add as many filters as you need Quickly add a filter by hovering over a cell and clicking the icon
31. Molecule search Search by name (partial name search) Or by molecular formula (exact match only) Click to edit
32. Quick search • search across all fields • works in both ‘Datasets’ and ‘Annotations’ tabs • supports* prefix match, OR operator, negation, e.g. Rennes -(rat | mouse | human) (*) ElasticSearch Simple Query
33. Quick search • search across all fields • works in both ‘Datasets’ and ‘Annotations’ tabs • supports* prefix match, OR operator, negation, e.g. Rennes -(rat | mouse | human) (*) ElasticSearch Simple Query
34. Details for highlighted annotation molecule distribution (principal isotope) Putative metabolite entries from the database
35. Visual insight into MSM score assignment Exact m/z of each ion image Click and drag to zoom Ion images for each isotope peak Isotopic patterns Blue: theoretical abundance (at instrument resolving power) Red: measured image intensity
36. Step-by-step search Choose molecular formula database
37. Step-by-step search Add dataset filter, then choose dataset(s) (up to 10)

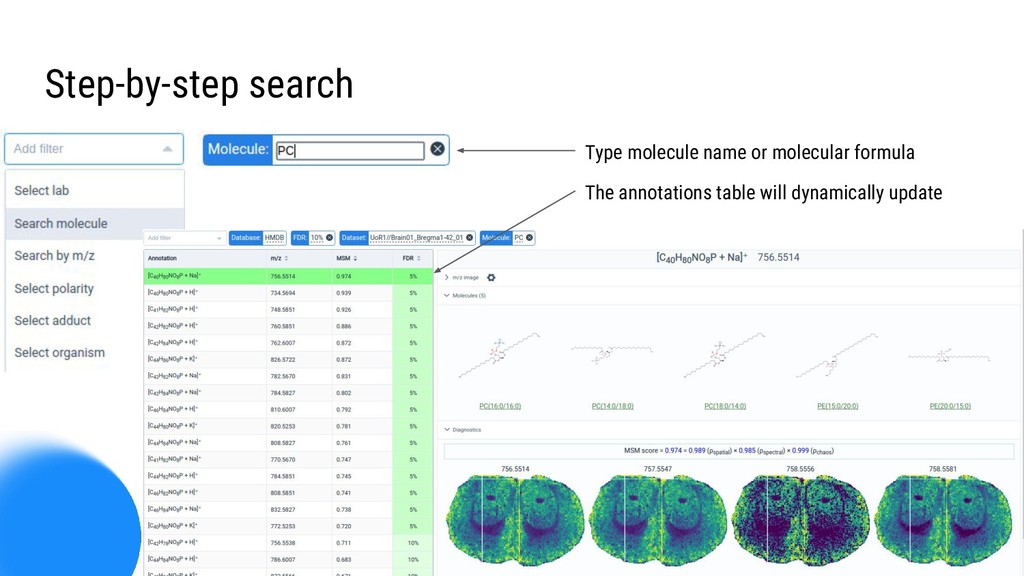

38. Step-by-step search Type molecule name or molecular formula The annotations table will dynamically update
39. Step-by-step search Export to CSV will save the current annotations table. Changing the filters will change which annotations are exported Always export annotations for comparison together (so they are at the same FDR)
40. Part 2. Tutorial Results interpretation
41. Choice of FDR level False Discovery Rate = expected percentage of false annotations Setting the FDR level: - Makes results comparable - Between datasets, runs, experiments, labs - Changes the number of annotations - Low FDR (e.g. 5%) provides low number of more reliable annotations - High FDR (e.g. 20%) reports more annotations but lower quality - Default FDR is 10% - FDR 50% is should be used with an extreme caution True annotation False hit MSM score FDR 10% FDR 20% Palmer et al, 2017, Nature Methods Annotations
42. Choice of metabolite database Impacts search and False-Discovery-Rate estimation • Use one that’s relevant • Larger database ◦ more false-hits --> fewer annotations at a fixed FDR • Different databases give different annotations ◦ even for molecules in both databases due to FDR control ◦ for data-set comparison, use the same database
43. Caution! Annotating at level of molecular formula • Possibility of multiple metabolites per sum formula ◦ webapp shows all hits from the database search (learn the ambiguity!) ◦ other databases can be searched (e.g. PubChem) ◦ use enrichment analysis to get biological leads • Use an orthogonal technique for reporting individual metabolites ◦ not directly integrated (yet) ◦ use web-app results help to target MS/MS studies (e.g. purchase of standards)
44. Example: Metabolite annotation of the data with the help of METASPACE against the HMDB database resulted in 100 metabolite annotations at FDR 10%. The metabolite annotation was performed using the FDR-controlled algorithm (Palmer et al, Nature Methods 2017) delivering annotations on the Level 2 (molecular formulas) according to the Metabolomics Standards Initiative (Sumner et al, 2007). If you make the results public, please add: The results are publicly available at http://metaspace2020.eu. You can create a public project with your datasets for publication and request us (contact@metaspace2020.eu) to create a public URL for your project. You can export your results as a CSV file and include as supplementary materials. Reporting METASPACE results in a publication
45. Dos and Don’ts Do • Use centroided imzML • Check the correctness of metadata ◦ polarity, mass resolving power • Make sure the data is <3 ppm accuracy before submitting it • Use your work email address Don’ts or rather Caution notes • Don’t submit profile data • Don’t use FDR 50% unless you understand the implications • Don’t use EMBL-dev databases • Don’t use several emails • When reporting annotations, pay attention to all reported isomers and consider the relevance of the selected database
46. Troubleshooting • If you get <10 annotations at FDR 10%, it is low and might indicate: ◦ Wrong polarity specified, wrong molecular database selected ◦ Data is miscalibrated (it should be at least <3 ppm), or unstable calibration, or lock-mass errors ◦ improperly exported or not centroided
47. More info? • METASPACE team: ◦ webapp: http://metaspace2020.eu ◦ email: contact@metaspace2020.eu ◦ twitter: @metaspace2020 ◦ source code: https://github.com/METASPACE2020/ ◦ tutorial slides: http://speakerdeck.com/metaspace2020 • Data conversion ◦ FTICR, contact SCiLS support@scils.de ◦ Orbitrap, contact Thermo: kerstin.strupat@thermofisher.com
48. Part 2. Tutorial Converting FTICR data using SCiLS Lab

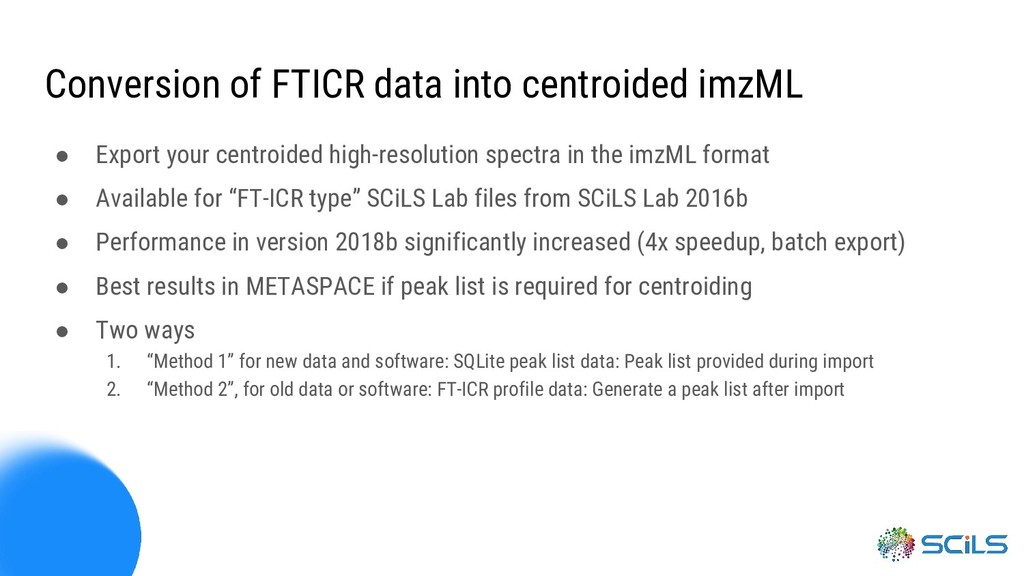

49. Conversion of FTICR data into centroided imzML • Export your centroided high-resolution spectra in the imzML format • Available for “FT-ICR type” SCiLS Lab files from SCiLS Lab 2016b • Performance in version 2018b significantly increased (4x speedup, batch export) • Best results in METASPACE if peak list is required for centroiding • Two ways 1. “Method 1” for new data and software: SQLite peak list data: Peak list provided during import 2. “Method 2”, for old data or software: FT-ICR profile data: Generate a peak list after import
50. Method 1. Create imzML file for METASPACE • In the objects tab, click the export symbol of the region to be exported and select “Export to METASPACE” • The Export Spectra dialog opens • Set your normalization of choice • Select your peak list of choice for example “Imported Peaks” in case of SQLite • Provide your scan polarity • Click OK to save imzML file

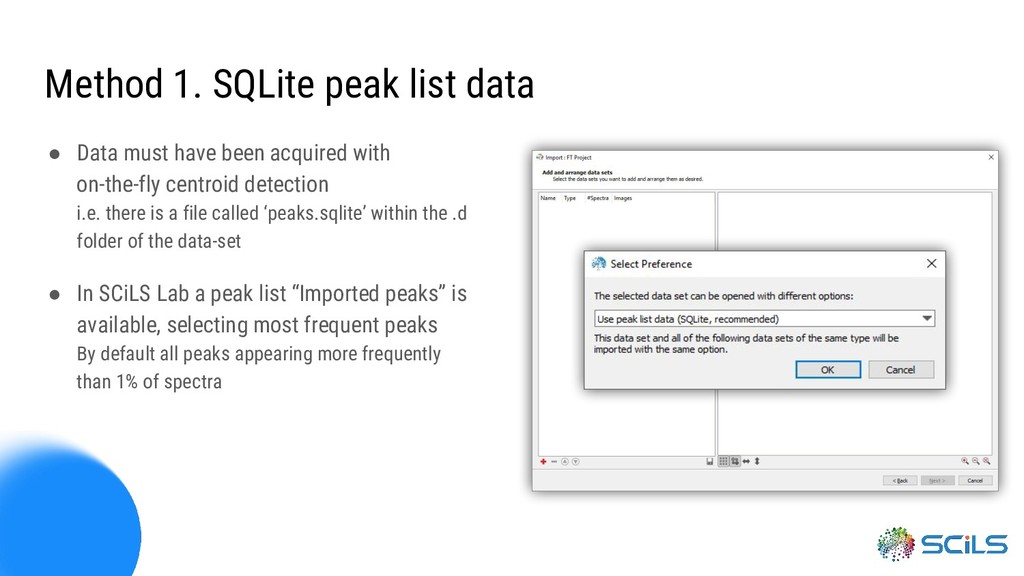

51. Method 1. SQLite peak list data • Data must have been acquired with on-the-fly centroid detection i.e. there is a file called ‘peaks.sqlite’ within the .d folder of the data-set • In SCiLS Lab a peak list “Imported peaks” is available, selecting most frequent peaks By default all peaks appearing more frequently than 1% of spectra

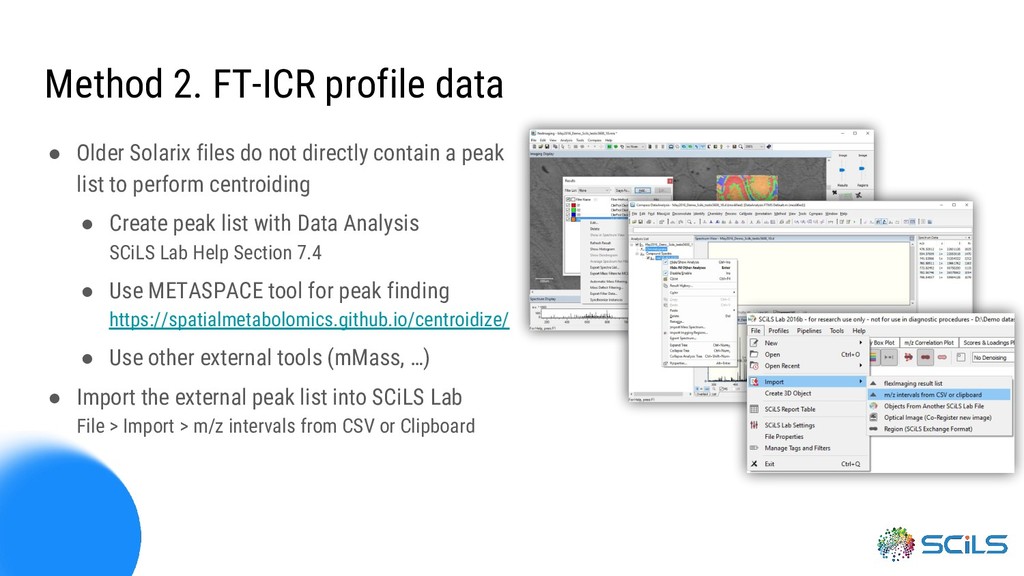

52. Method 2. FT-ICR profile data • Older Solarix files do not directly contain a peak list to perform centroiding • Create peak list with Data Analysis SCiLS Lab Help Section 7.4 • Use METASPACE tool for peak finding https://spatialmetabolomics.github.io/centroidize/ • Use other external tools (mMass, …) • Import the external peak list into SCiLS Lab File > Import > m/z intervals from CSV or Clipboard
53. Method 2. Use METASPACE tool for peak finding • Select the overview spectrum CSV exported from SCiLS • Upload CSV file to METASPACE tool • Copy values to clipboard • Use File > Import > m/z intervals from CSV
54. Part 2. Tutorial Converting Orbitrap data
55. Export into imzML from .raw Orbitrap format Several possible methods: 1. imageQuest / raw-converter ◦ Recommended for: Thermo MALDI- / TransMIT AP-S-MALDI- 2. imzmlConverter ◦ Recommended for: DESI/flowProbe with separate files per row 3. pyimzML Python parser ◦ Recommended for bioinformaticians For details, see our instructions: http://project.metaspace2020.eu/imzML
56. .raw -> imzML • Commercial ◦ Thermo Scientific Method 1. imageQuest
57. Method 2. Raw-imzml converter • http://ms-imaging.org/wp/raw-to-imzml-converter/ • .raw -> imzML • free

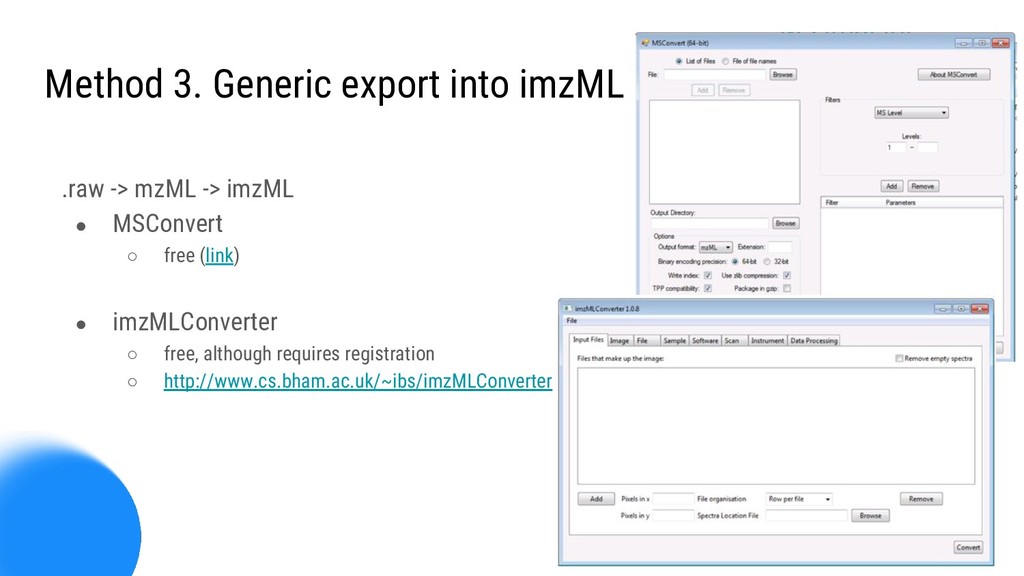

58. .raw -> mzML -> imzML • MSConvert ◦ free (link) • imzMLConverter ◦ free, although requires registration ◦ http://www.cs.bham.ac.uk/~ibs/imzMLConverter Method 3. Generic export into imzML
