Company Overview & Capabilities

A brief presentation about Mi-Wave (MIWV.com) and our company, capabilities, and product overview.

Transcript

1. Company Overview & Capabilities

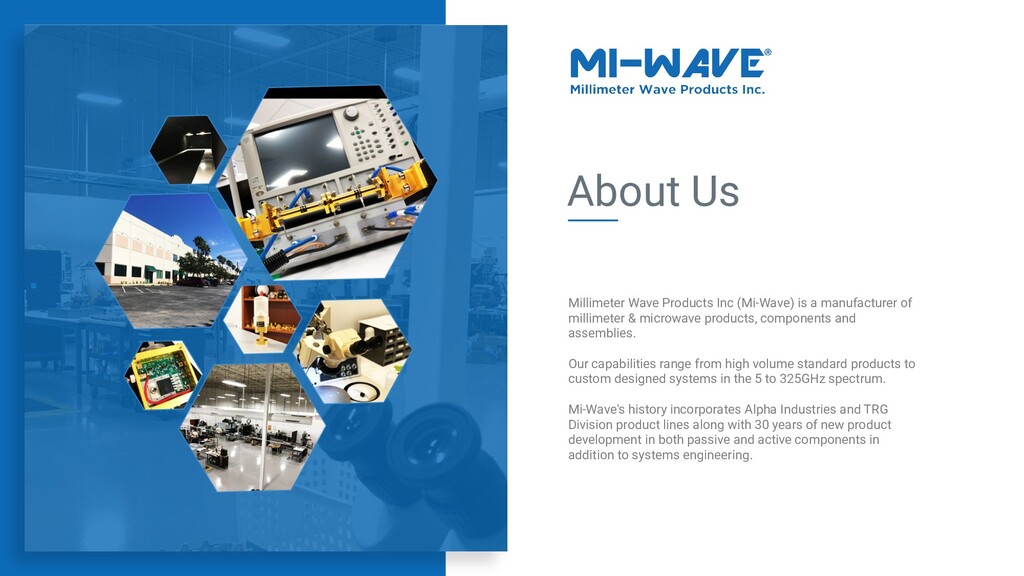

2. About Us Millimeter Wave Products Inc (Mi-Wave) is a manufacturer of millimeter & microwave products, components and assemblies. Our capabilities range from high volume standard products to custom designed systems in the 5 to 325GHz spectrum. Mi-Wave's history incorporates Alpha Industries and TRG Division product lines along with 30 years of new product development in both passive and active components in addition to systems engineering.

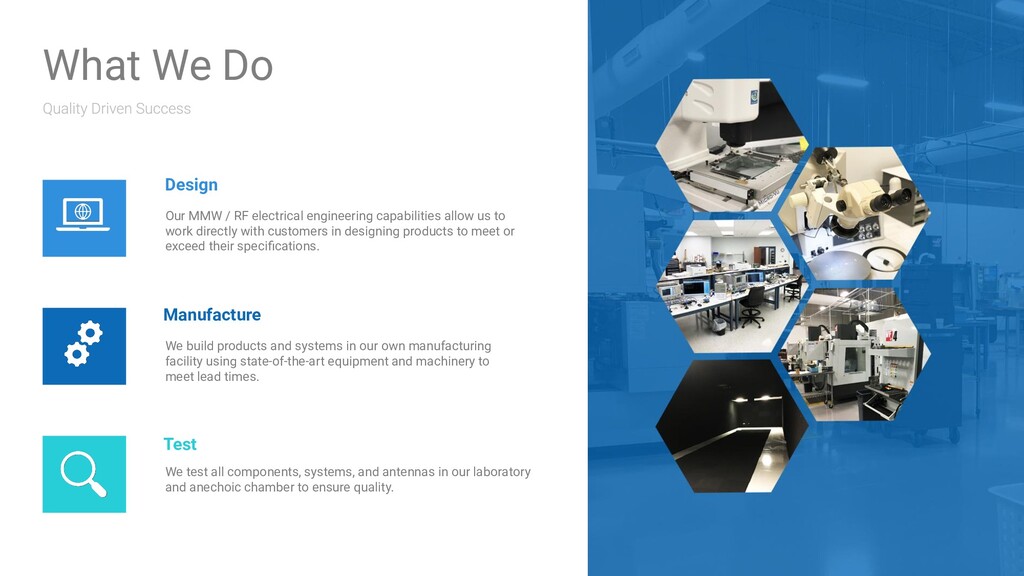

3. What We Do Manufacture We build products and systems in our own manufacturing facility using state-of-the-art equipment and machinery to meet lead times. Test We test all components, systems, and antennas in our laboratory and anechoic chamber to ensure quality. Design Our MMW / RF electrical engineering capabilities allow us to work directly with customers in designing products to meet or exceed their specifications.
4. Where We Fit Production Level Supplier Every industry has its vertical chain of suppliers, manufacturers, distributors, and end users. Mi-Wave sits at the testing, engineering, and manufacturing level in the ever-growing millimeter wave industry. Providing Solutions We work with companies that are investing in the MMW space and need our expertise to create a component or system from concept to production.
5. Global Client Reach
6. Markets We Serve Radar & Scanning Security systems, airport, borders are implementing mm wave Defense Radars, Satellites, Communication links, Weapons all continually invested in Automotive Collision and Radars, Tracking & self driving is reshaping the auto industry Aerospace Next generation satellites will use mm waves for broadband 5G Telecommunications How we communicate is changing globally Cancer research, treatment using mm waves Medical Research
7. Products & Systems From stock products to custom designed sub-systems/assemblies Here’s a quick product overview

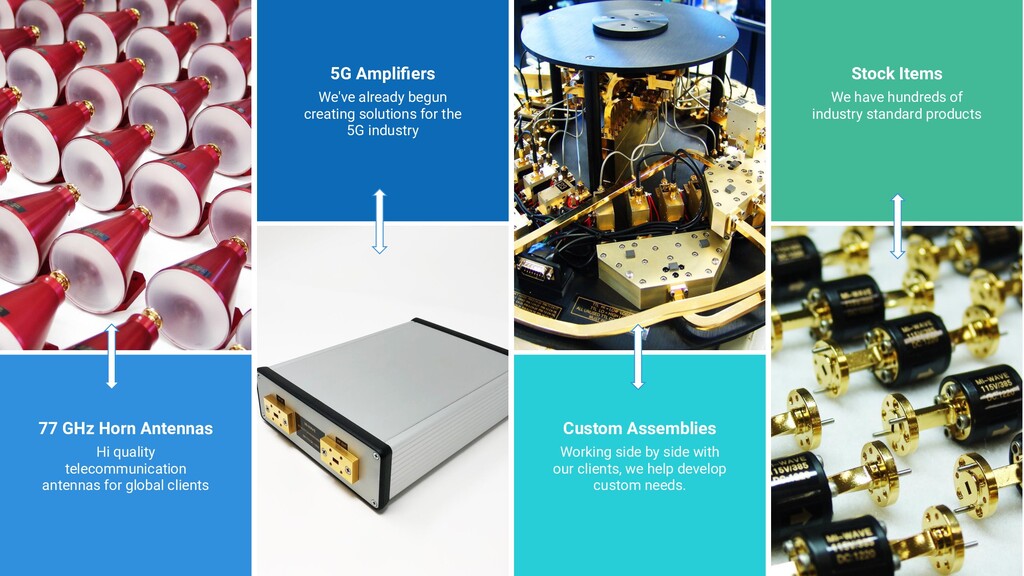

8. Hi quality telecommunication antennas for global clients 77 GHz Horn Antennas Working side by side with our clients, we help develop custom needs. Custom Assemblies We have hundreds of industry standard products Stock Items We've already begun creating solutions for the 5G industry 5G Amplifiers
9. We continue to set the trend in hi-quality attenuators for clients Attenuators Various adapter types Adapters Have an idea and need to see it come to life? Let’s talk! Custom Prototyping Active components are meticulously created for your needs Switches

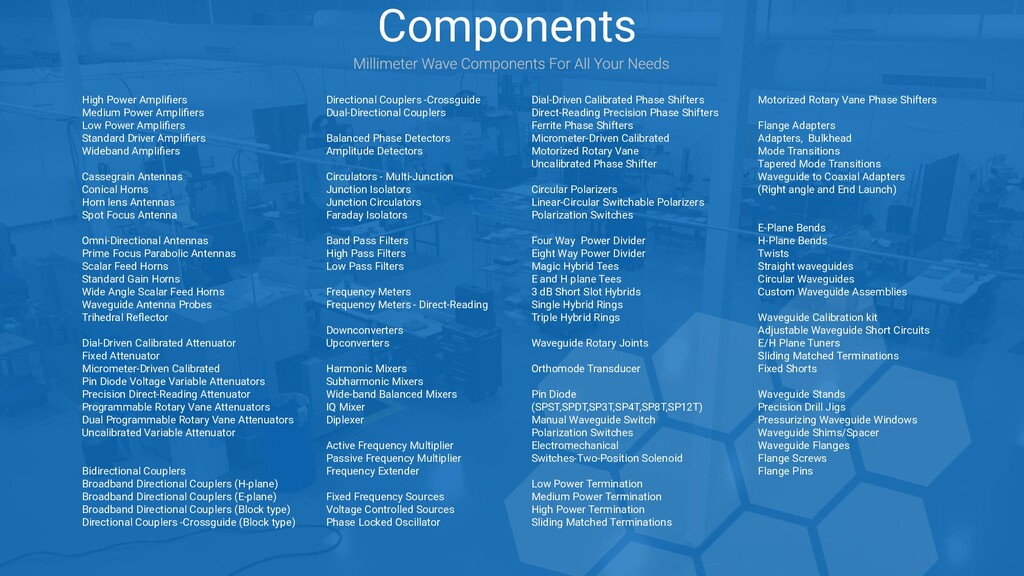

10. Components High Power Amplifiers Medium Power Amplifiers Low Power Amplifiers Standard Driver Amplifiers Wideband Amplifiers Cassegrain Antennas Conical Horns Horn lens Antennas Spot Focus Antenna Omni-Directional Antennas Prime Focus Parabolic Antennas Scalar Feed Horns Standard Gain Horns Wide Angle Scalar Feed Horns Waveguide Antenna Probes Trihedral Reflector Dial-Driven Calibrated Attenuator Fixed Attenuator Micrometer-Driven Calibrated Pin Diode Voltage Variable Attenuators Precision Direct-Reading Attenuator Programmable Rotary Vane Attenuators Dual Programmable Rotary Vane Attenuators Uncalibrated Variable Attenuator Bidirectional Couplers Broadband Directional Couplers (H-plane) Broadband Directional Couplers (E-plane) Broadband Directional Couplers (Block type) Directional Couplers -Crossguide (Block type) Directional Couplers -Crossguide Dual-Directional Couplers Balanced Phase Detectors Amplitude Detectors Circulators - Multi-Junction Junction Isolators Junction Circulators Faraday Isolators Band Pass Filters High Pass Filters Low Pass Filters Frequency Meters Frequency Meters - Direct-Reading Downconverters Upconverters Harmonic Mixers Subharmonic Mixers Wide-band Balanced Mixers IQ Mixer Diplexer Active Frequency Multiplier Passive Frequency Multiplier Frequency Extender Fixed Frequency Sources Voltage Controlled Sources Phase Locked Oscillator Dial-Driven Calibrated Phase Shifters Direct-Reading Precision Phase Shifters Ferrite Phase Shifters Micrometer-Driven Calibrated Motorized Rotary Vane Uncalibrated Phase Shifter Circular Polarizers Linear-Circular Switchable Polarizers Polarization Switches Four Way Power Divider Eight Way Power Divider Magic Hybrid Tees E and H plane Tees 3 dB Short Slot Hybrids Single Hybrid Rings Triple Hybrid Rings Waveguide Rotary Joints Orthomode Transducer Pin Diode (SPST,SPDT,SP3T,SP4T,SP8T,SP12T) Manual Waveguide Switch Polarization Switches Electromechanical Switches-Two-Position Solenoid Low Power Termination Medium Power Termination High Power Termination Sliding Matched Terminations Motorized Rotary Vane Phase Shifters Flange Adapters Adapters, Bulkhead Mode Transitions Tapered Mode Transitions Waveguide to Coaxial Adapters (Right angle and End Launch) E-Plane Bends H-Plane Bends Twists Straight waveguides Circular Waveguides Custom Waveguide Assemblies Waveguide Calibration kit Adjustable Waveguide Short Circuits E/H Plane Tuners Sliding Matched Terminations Fixed Shorts Waveguide Stands Precision Drill Jigs Pressurizing Waveguide Windows Waveguide Shims/Spacer Waveguide Flanges Flange Screws Flange Pins
11. 92GHz Transceiver Specifications RF Output Frequency: 92 – 94GHz IF Input Frequency: 2 – 4GHz Internal LO Frequency: 90GHz Conversion Gain: @ -5 dBm Antenna Gain: 35dBm VVA Attenuation: 35 dB typical VVA Central Voltage: 0 ~ 10V Maximum IF Input Power (CW): +10 dBm MAX AC Input: 100 ~ 120V @ 60Hz AC

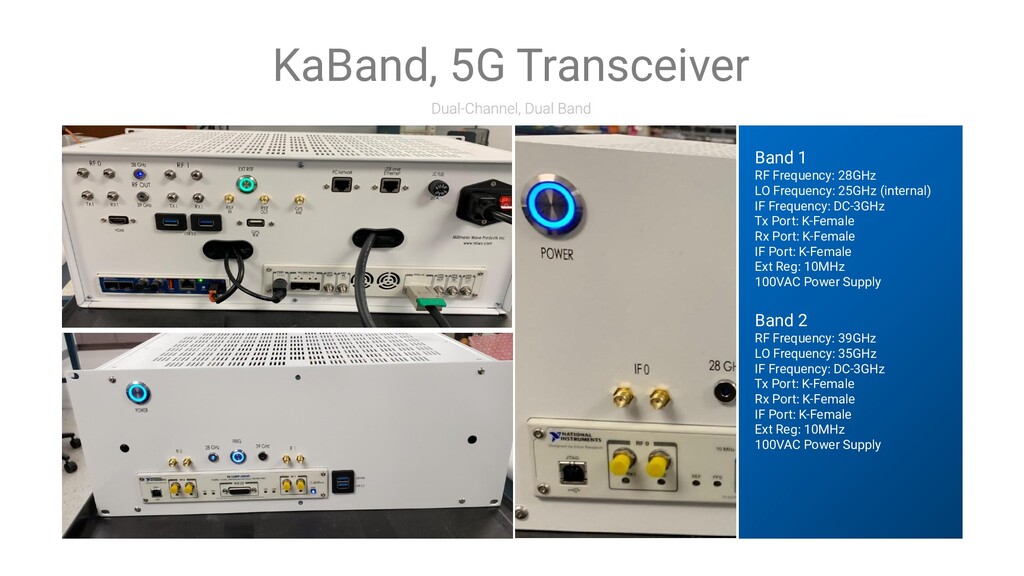

12. KaBand, 5G Transceiver Band 1 RF Frequency: 28GHz LO Frequency: 25GHz (internal) IF Frequency: DC-3GHz Tx Port: K-Female Rx Port: K-Female IF Port: K-Female Ext Reg: 10MHz 100VAC Power Supply Band 2 RF Frequency: 39GHz LO Frequency: 35GHz IF Frequency: DC-3GHz Tx Port: K-Female Rx Port: K-Female IF Port: K-Female Ext Reg: 10MHz 100VAC Power Supply

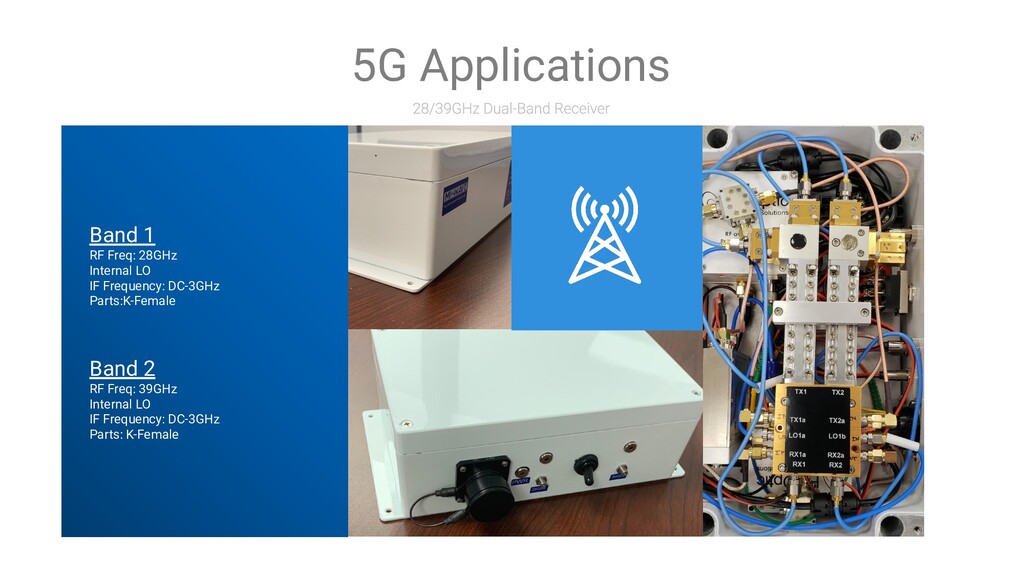

13. 5G Applications Band 1 RF Freq: 28GHz Internal LO IF Frequency: DC-3GHz Parts:K-Female Band 2 RF Freq: 39GHz Internal LO IF Frequency: DC-3GHz Parts: K-Female
14. 35GHz Receiver RF Frequency: 34-36GHz LO Frequency: 33GHz IF Frequency: 1-3GHz
15. E-Band Transmitter Specifications RX Frequency: 73.5 to 83.5 GHz RX Input Power: (P1dB) -10 dBm max. LO Frequency: 12.0 to 13.75 GHz LO Power: 7 dBm (Typ) IF Frequency: 0.5 to 10.5 GHz Conversion Gain: 10 dB min. VSWR: 2:1 (Typ) Noise Figure: 10 dB Flatness over Frequency: ± 2 dB V/I: 12 Vdc/ 450mA (Typ) RF Connector: WR-12 Flange: UG387/U LO Connector: SMA(F) IF Connector: SMA(F)
16. Oscillator & Software 840Series 92-95GHz Source Mi-Wave’s 840W-30/387S is a voltage controlled source designed for use from 92-95GHz and supplies 30dBm output power. Frequency (GHz) Frequency Resolution (Hz) Internal Reference Frequency Output (MHz) Internal Ref Frequency Output Interface Ref Frequency Output Amplitude (dBm) Internal Time Base Reference External Reference Input Frequency 10MHz External Ref Input Amplitude External Ref Input Interface/Impedance(Ω) RF Output Power RF Output Port Synthesizer Communication Interface 92 to 95GHz 1 100 +7.5 10 +5 >30 92 to 95GHz <10Hz 100 MHz typ. SMA(F)/50Ω ≥ +5dBm ≤ ± 5ppm/year 10MHz 0dBm to +10dBm SMA(F)/50Ω ≥ 1W/30dBm WR10 UG387/U-M USB

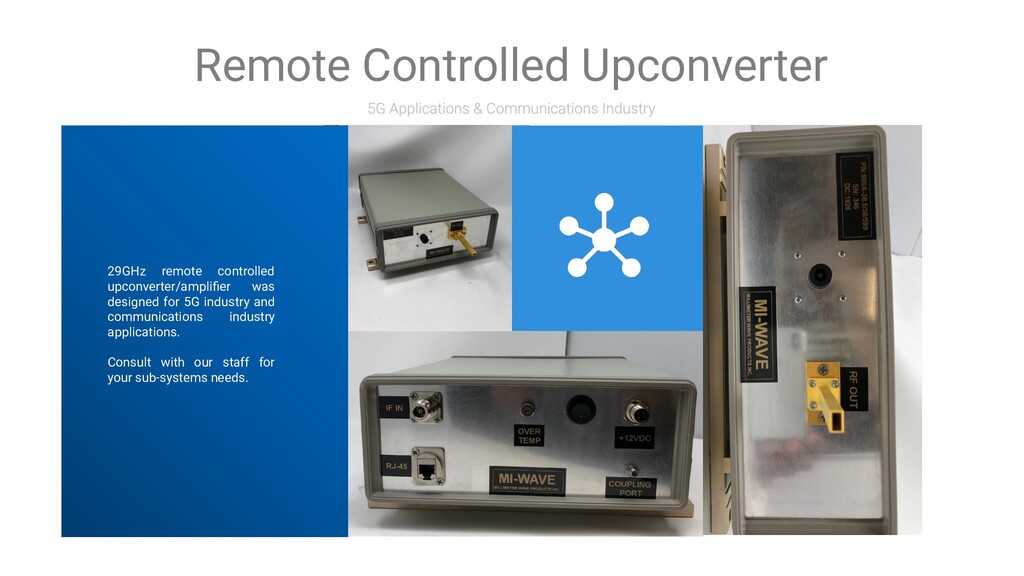

17. Remote Controlled Upconverter 29GHz remote controlled upconverter/amplifier was designed for 5G industry and communications industry applications. Consult with our staff for your sub-systems needs.

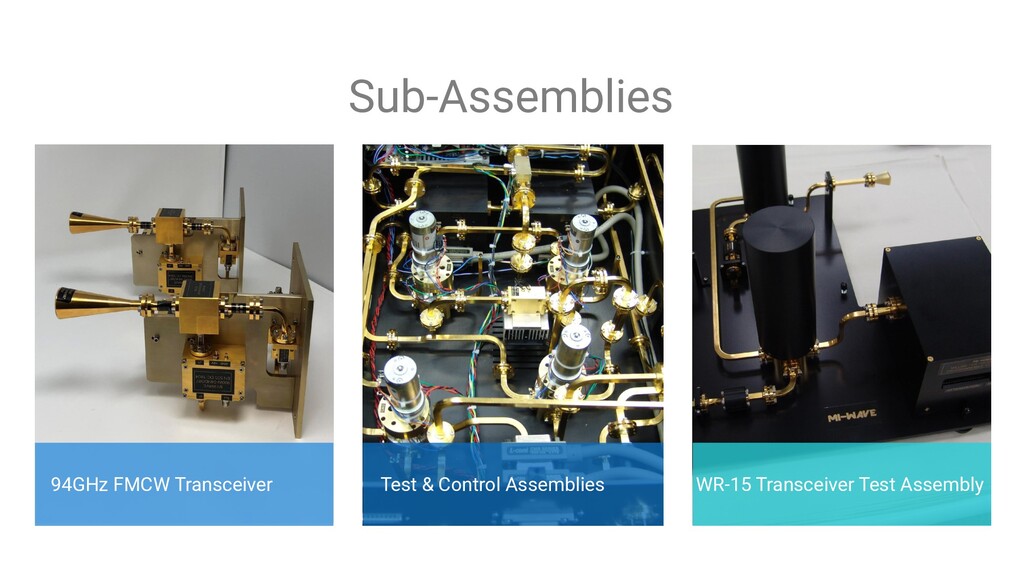

18. Sub-Assemblies 94GHz FMCW Transceiver Test & Control Assemblies WR-15 Transceiver Test Assembly

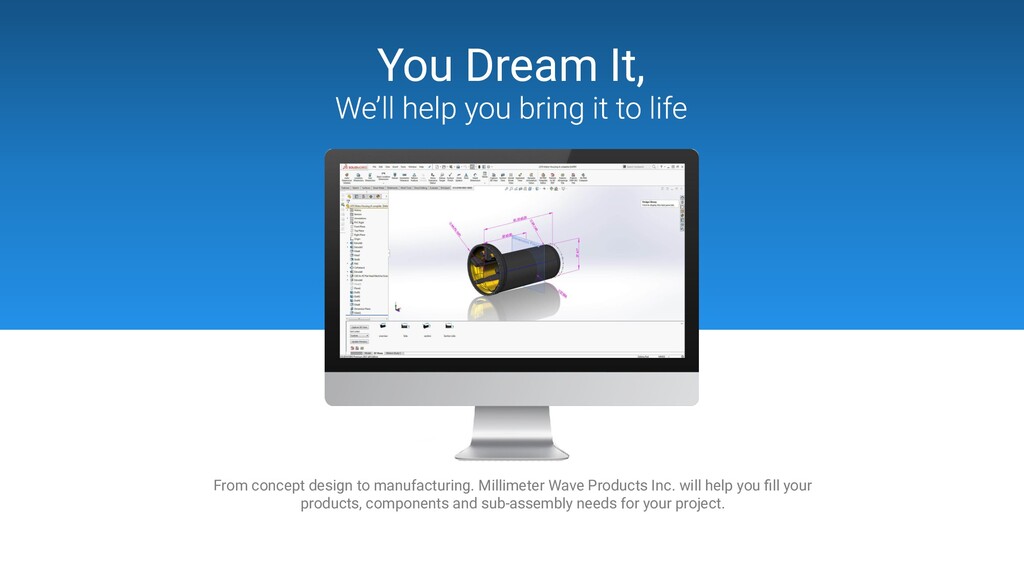

19. You Dream It, From concept design to manufacturing. Millimeter Wave Products Inc. will help you fill your products, components and sub-assembly needs for your project.

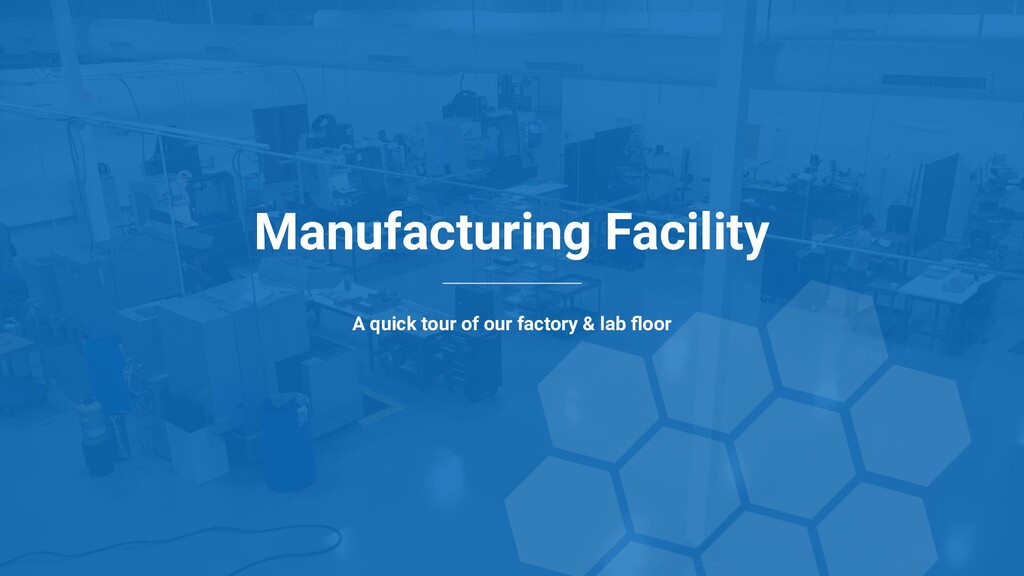

20. Manufacturing Facility A quick tour of our factory & lab floor

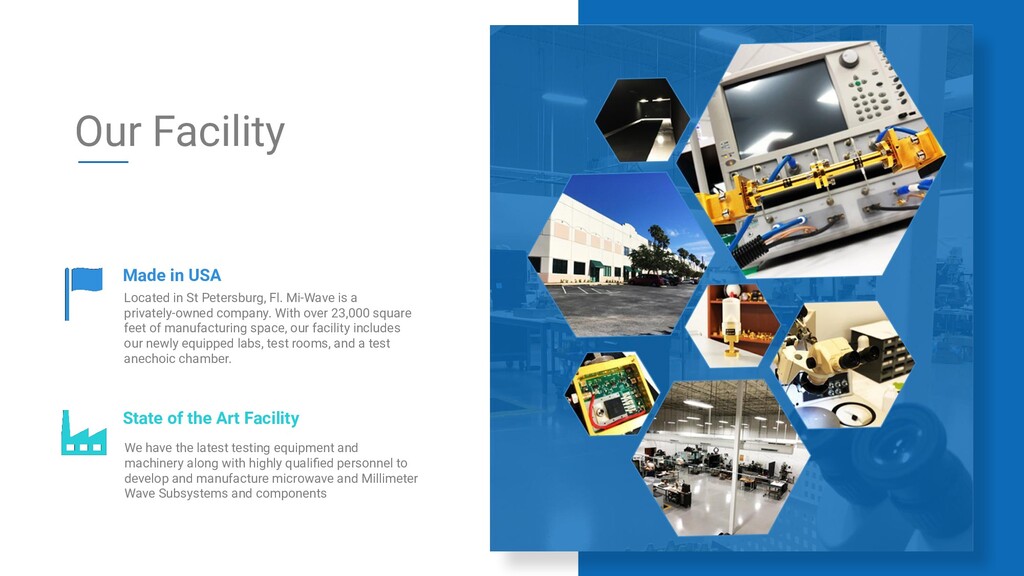

21. Our Facility Made in USA Located in St Petersburg, Fl. Mi-Wave is a privately-owned company. With over 23,000 square feet of manufacturing space, our facility includes our newly equipped labs, test rooms, and a test anechoic chamber. State of the Art Facility We have the latest testing equipment and machinery along with highly qualified personnel to develop and manufacture microwave and Millimeter Wave Subsystems and components
22. Engineering and Design Team The process starts with our strong foundation in MMW / RF engineering capabilities across passive, active, and digital applications. Our engineers are supported by our skilled designers that create detailed drawing packages before production begins to ensure all tolerances and specifications are met. Product design is assured at both the design module as well as the integrated level by ensuring an accurate translation of all requirements, specifications, and standards into a detailed, producible, and testable design. At Mi-Wave, we are proud to say we have an enormous library of drawings in our archives. We keep digitally updated and hand-drawn design records spanning decades of knowledge and innovation in the industry. Design Capability

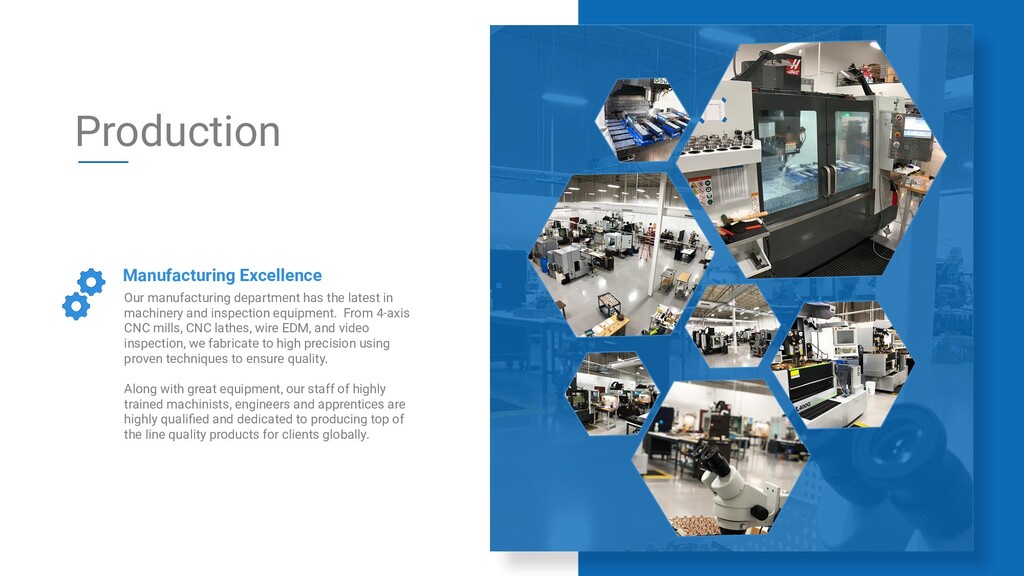

23. Production Manufacturing Excellence Our manufacturing department has the latest in machinery and inspection equipment. From 4-axis CNC mills, CNC lathes, wire EDM, and video inspection, we fabricate to high precision using proven techniques to ensure quality. Along with great equipment, our staff of highly trained machinists, engineers and apprentices are highly qualified and dedicated to producing top of the line quality products for clients globally.

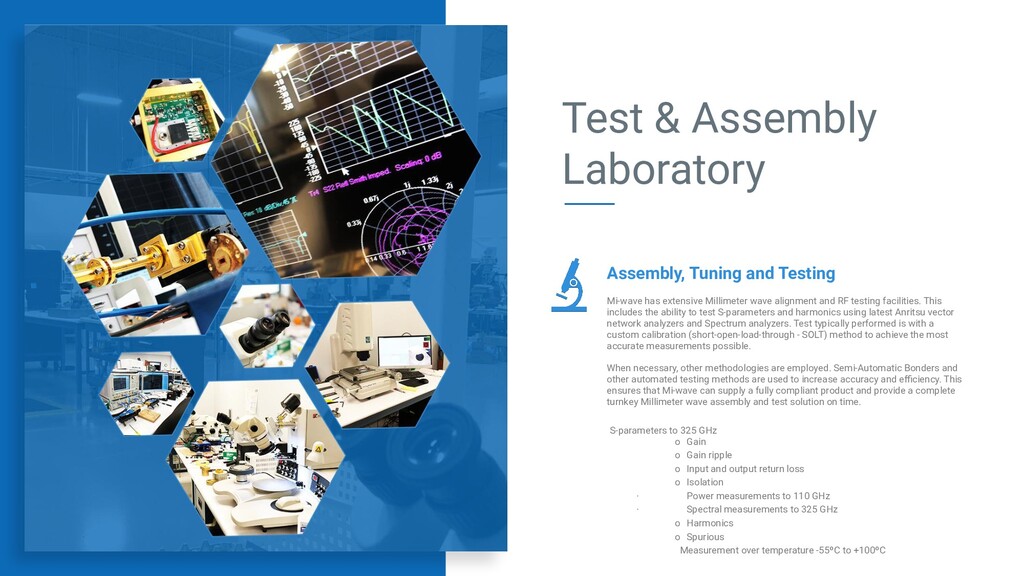

24. Test & Assembly Laboratory Mi-wave has extensive Millimeter wave alignment and RF testing facilities. This includes the ability to test S-parameters and harmonics using latest Anritsu vector network analyzers and Spectrum analyzers. Test typically performed is with a custom calibration (short-open-load-through - SOLT) method to achieve the most accurate measurements possible. When necessary, other methodologies are employed. Semi-Automatic Bonders and other automated testing methods are used to increase accuracy and efficiency. This ensures that Mi-wave can supply a fully compliant product and provide a complete turnkey Millimeter wave assembly and test solution on time. Assembly, Tuning and Testing S-parameters to 325 GHz o Gain o Gain ripple o Input and output return loss o Isolation · Power measurements to 110 GHz · Spectral measurements to 325 GHz o Harmonics o Spurious Measurement over temperature -55ºC to +100ºC

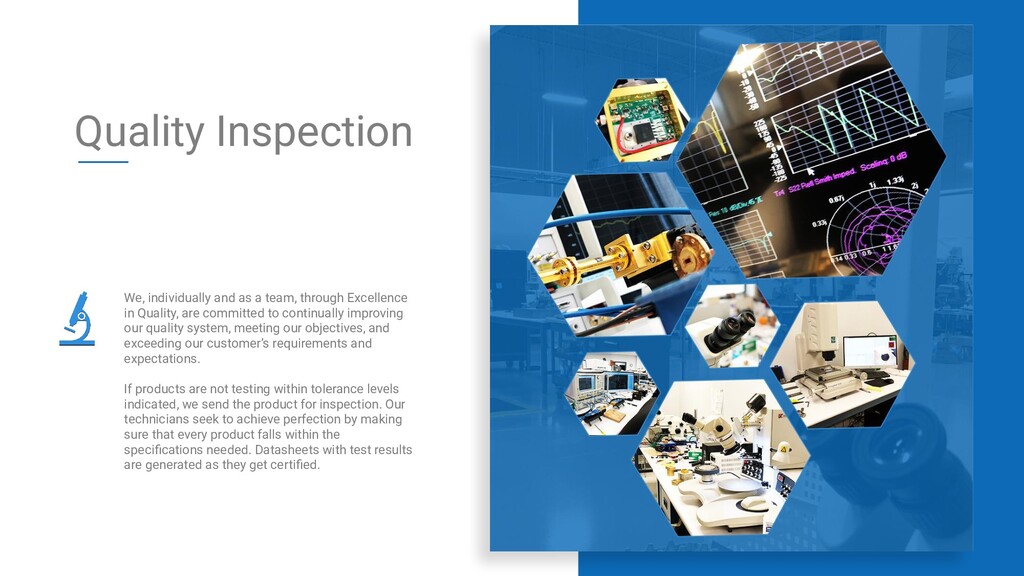

25. Quality Inspection We, individually and as a team, through Excellence in Quality, are committed to continually improving our quality system, meeting our objectives, and exceeding our customer’s requirements and expectations. If products are not testing within tolerance levels indicated, we send the product for inspection. Our technicians seek to achieve perfection by making sure that every product falls within the specifications needed. Datasheets with test results are generated as they get certified.

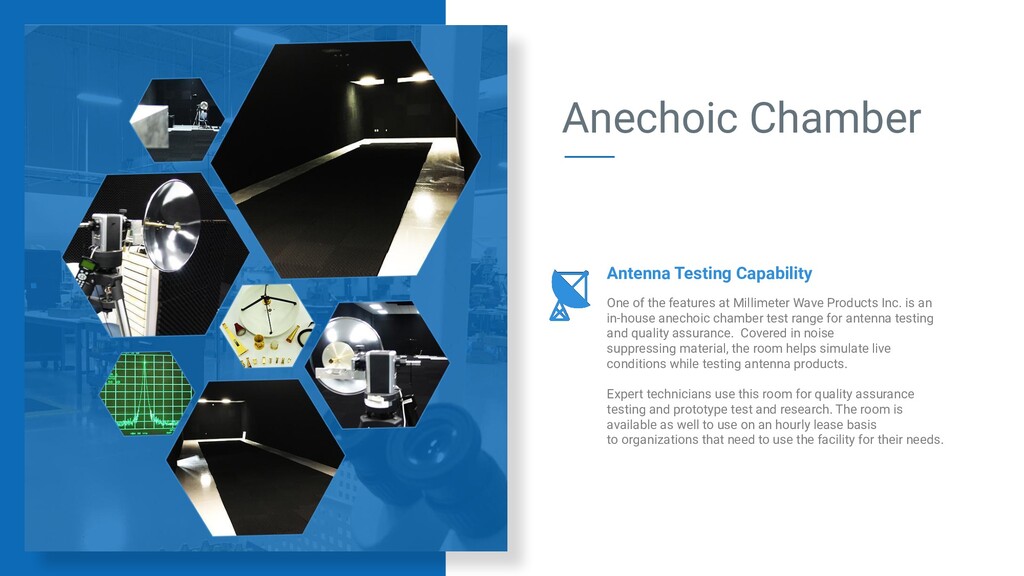

26. Anechoic Chamber One of the features at Millimeter Wave Products Inc. is an in-house anechoic chamber test range for antenna testing and quality assurance. Covered in noise suppressing material, the room helps simulate live conditions while testing antenna products. Expert technicians use this room for quality assurance testing and prototype test and research. The room is available as well to use on an hourly lease basis to organizations that need to use the facility for their needs. Antenna Testing Capability
27. Thank You For more about us please visit us at www.MIWV.com Ph. (727) 563-0034 Email: Sales@MIWV.com
