Google Cast

The advantages of cast enabled mobile applications and will do a walkthrough on how we can create cast enabled applications.

Transcript

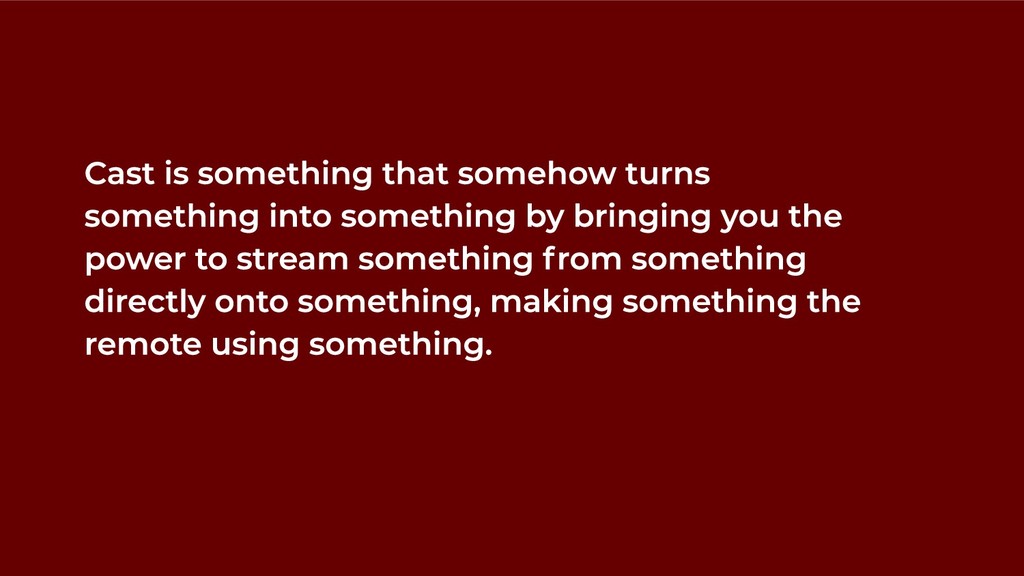

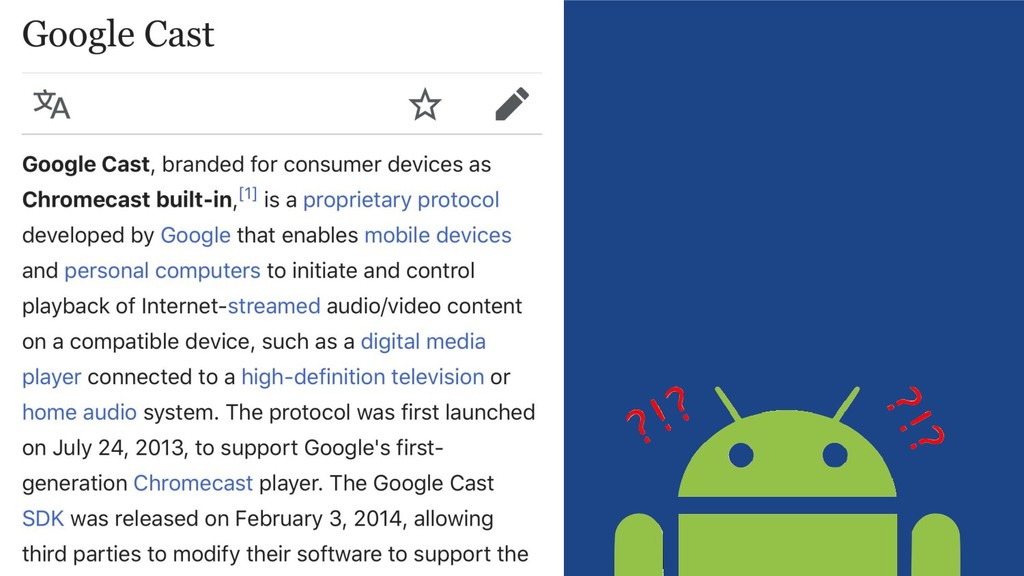

1. Cast?
2. Who should care?
3. Who should care?
4. Who should care?
5. Who should care?
6. Or
13. • •
14. • •
15. • •
16. • •
17. • •
23. Steps.
24. Steps.
29. import GoogleCast … { private var castButton: GCKUICastButton … override func viewDidLoad() { … castButton = GCKUICastButton(frame: CGRect(x: CGFloat(0), y: CGFloat(0), width: CGFloat(24), height: CGFloat(24))) castButton.tintColor = UIColor.white navigationItem.rightBarButtonItem = UIBarButtonItem(customView: castButton) } }
31. import GoogleCast … class AppDelegate: UIResponder, UIApplicationDelegate { … func application(_: UIApplication, didFinishLaunchingWithOptions _: [UIApplication.LaunchOptionsKey: Any]?) -> Bool { … let options = GCKCastOptions(discoveryCriteria: GCKDiscoveryCriteria(applicationID: kReceiverAppID)) options.physicalVolumeButtonsWillControlDeviceVolume = true GCKCastContext.setSharedInstanceWith(options) // ***ADD THE CAST BUTTON HERE AS WELL!*** } }
34. import GoogleCast … class sampleViewController: UIViewController, GCKSessionManagerListener, GCKRemoteMediaClientListener, LocalPlayerViewDelegate, GCKRequestDelegate { … private var sessionManager: GCKSessionManager! … required init?(coder: NSCoder) { super.init(coder: coder) sessionManager = GCKCastContext.sharedInstance().sessionManager … } … }
35. func sessionManager(_: GCKSessionManager, didStart session: GCKSession) { print("MediaViewController: sessionManager didStartSession \(session)") setQueueButtonVisible(true) switchToRemotePlayback() } func sessionManager(_: GCKSessionManager, didResumeSession session: GCKSession) { print("MediaViewController: sessionManager didResumeSession \(session)") setQueueButtonVisible(true) switchToRemotePlayback() } /* CREATE FUNCTIONS “didEnd”, “didFailToStartSessionWithError”, “didFailToResumeSession” */
36. func loadSelectedItem(byAppending appending: Bool) { print("enqueue item \(String(describing: mediaInfo))") if let remoteMediaClient = sessionManager.currentCastSession?.remoteMediaClient { // Set up the metadata & mediaInfoBuilder let mediaQueueItemBuilder = GCKMediaQueueItemBuilder() mediaQueueItemBuilder.mediaInformation = mediaInfo mediaQueueItemBuilder.autoplay = true let mediaQueueItem = mediaQueueItemBuilder.build() if appending { let request = remoteMediaClient.queueInsert(mediaQueueItem, beforeItemWithID: kGCKMediaQueueInvalidItemID) request.delegate = self }
37. else { let queueDataBuilder = GCKMediaQueueDataBuilder(queueType: .generic) queueDataBuilder.items = [mediaQueueItem] queueDataBuilder.repeatMode = remoteMediaClient.mediaStatus?.queueRepeatMode ?? .off let mediaLoadRequestDataBuilder = GCKMediaLoadRequestDataBuilder() mediaLoadRequestDataBuilder.queueData = queueDataBuilder.build() let request = remoteMediaClient.loadMedia(with: mediaLoadRequestDataBuilder.build()) request.delegate = self } }
38. Create two functions:
39. Create two functions:
42. 4. Mini controller
43. func application(_: UIApplication, didFinishLaunchingWithOptions _: [UIApplication.LaunchOptionsKey: Any]?) -> Bool { ... let appStoryboard = UIStoryboard(name: "Main", bundle: nil) guard let navigationController = appStoryboard.instantiateViewController(withIdentifier: "MainNavigation") as? UINavigationController else { return false } let castContainerVC = GCKCastContext.sharedInstance().createCastContainerController(for: navigationController) as GCKUICastContainerViewController castContainerVC.miniMediaControlsItemEnabled = true window = UIWindow(frame: UIScreen.main.bounds) window?.rootViewController = castContainerVC window?.makeKeyAndVisible() ... }
44. var isCastControlBarsEnabled: Bool { get { let castContainerVC = (window?.rootViewController as? GCKUICastContainerViewController) return castContainerVC!.miniMediaControlsItemEnabled } set(notificationsEnabled) { var castContainerVC: GCKUICastContainerViewController? castContainerVC = (window?.rootViewController as? GCKUICastContainerViewController) castContainerVC?.miniMediaControlsItemEnabled = notificationsEnabled } }
45. 5. Introductory overlay
46. override func viewDidLoad() { ... NotificationCenter.default.addObserver(self, selector: #selector(castDeviceDidChange), name: NSNotification.Name.gckCastStateDidChange, object: GCKCastContext.sharedInstance()) } @objc func castDeviceDidChange(_: Notification) { if GCKCastContext.sharedInstance().castState != .noDevicesAvailable { GCKCastContext.sharedInstance().presentCastInstructionsViewControllerOnce(with: castButton) } }

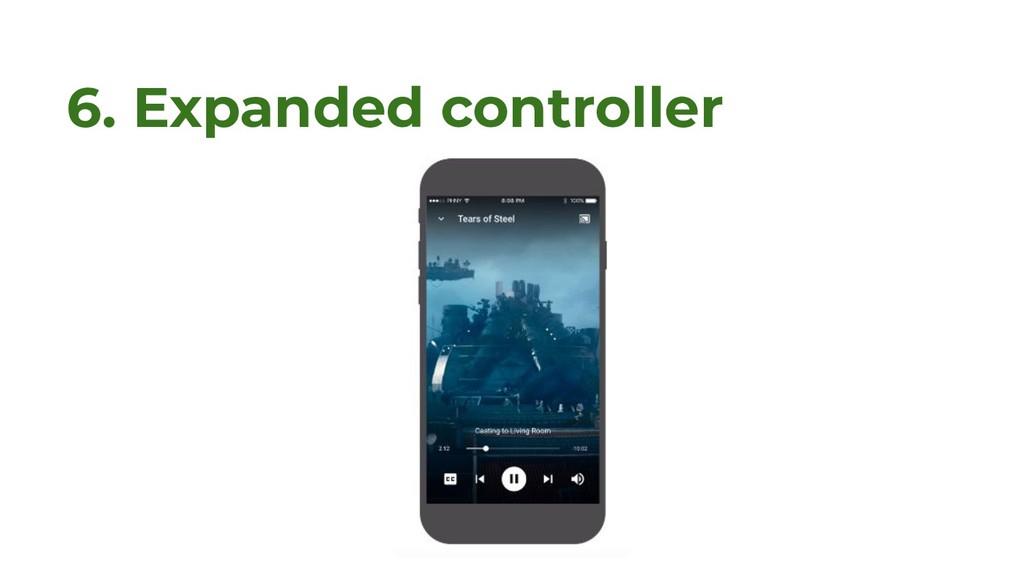

47. 6. Expanded controller

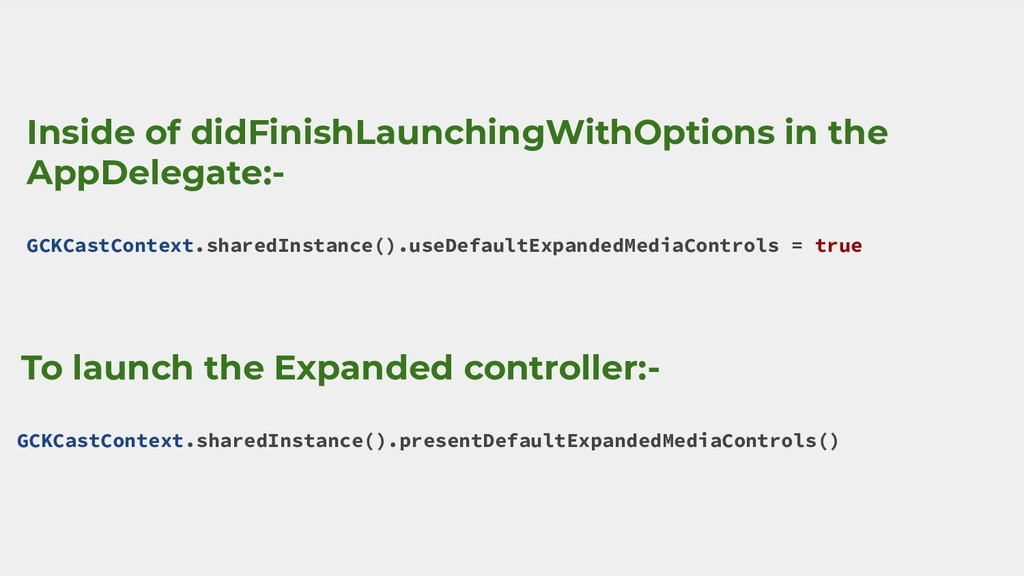

48. Inside of didFinishLaunchingWithOptions in the AppDelegate:- GCKCastContext.sharedInstance().useDefaultExpandedMediaControls = true To launch the Expanded controller:- GCKCastContext.sharedInstance().presentDefaultExpandedMediaControls()
49. 7. Customize the UI
50. 7. Customize the UI
51. 8. Party hard!
52. Case Studies
53. What’s Next? Getting Started With Cast developers.google.com/cast Sample Applications github.com/googlecast
60. Happy Casting! Q/A
