Fire Detection System _Ismayilova Nazrin _Verified by Physics Teacher Telman Askeraliyev , Fizika Muellimi, Azerbaijan ,Baku

An integrated fire safety system that detects fire early, sends real-time alerts, and automatically activates emergency response systems to protect people and property.
Ismayilova Nazrin _Verified by Physics Teacher Telman Askeraliyev , Fizika Muellimi, Azerbaijan ,Baku

Transcript

1. FİRE DETECTİON SYSTEM Student: Ismayilova Nazrin Verified by: Physics Teacher Telman Askeraliyev, Fizika Muellimi, Azerbaijan, Baku

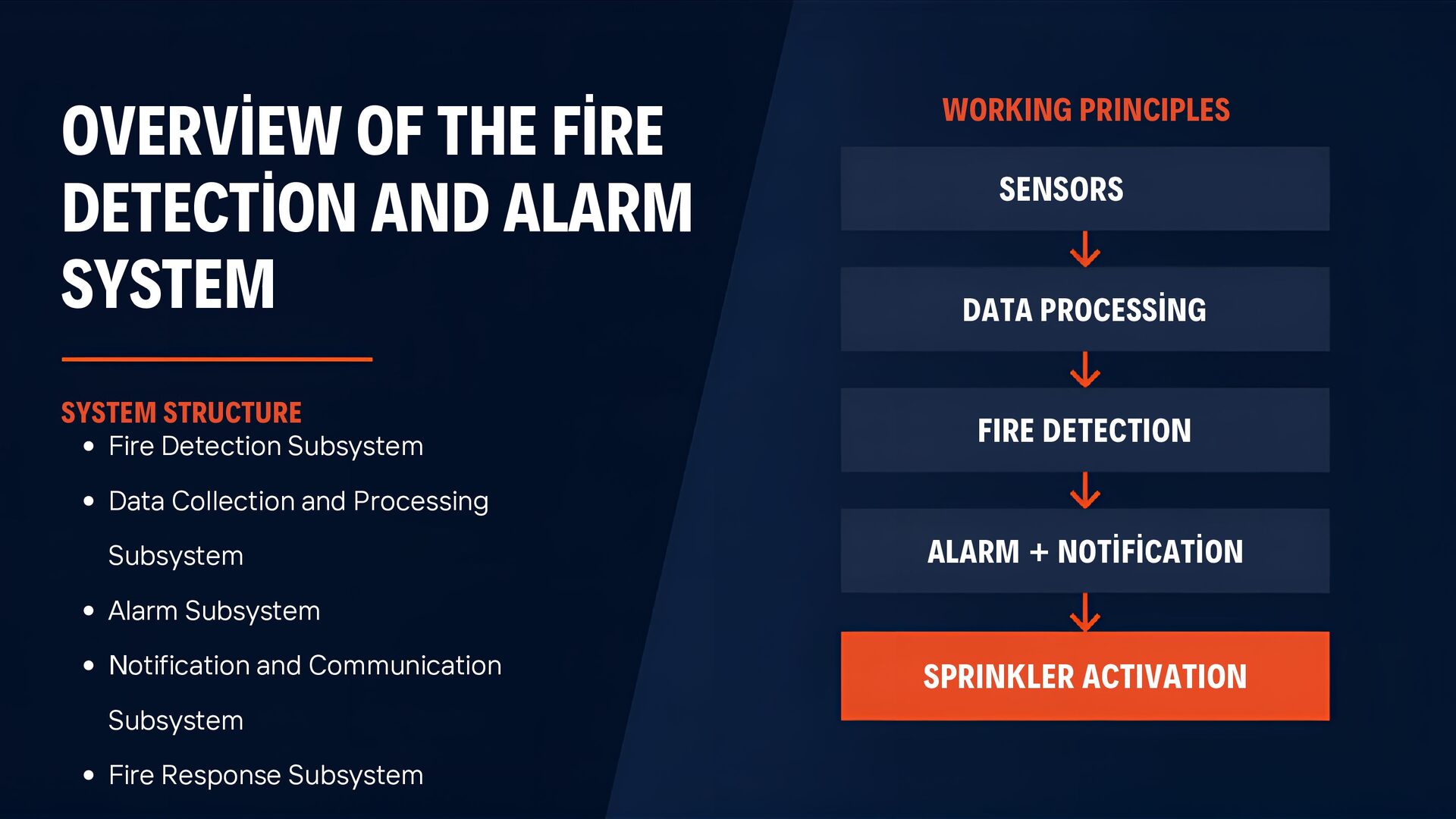

2. OVERVİEW OF THE FİRE DETECTİON AND ALARM SYSTEM SYSTEM STRUCTURE Fire Detection Subsystem WORKING PRINCIPLES SENSORS DATA PROCESSİNG FIRE DETECTION Data Collection and Processing Subsystem ALARM + NOTİFİCATİON Alarm Subsystem Notification and Communication Subsystem Fire Response Subsystem SPRINKLER ACTIVATION

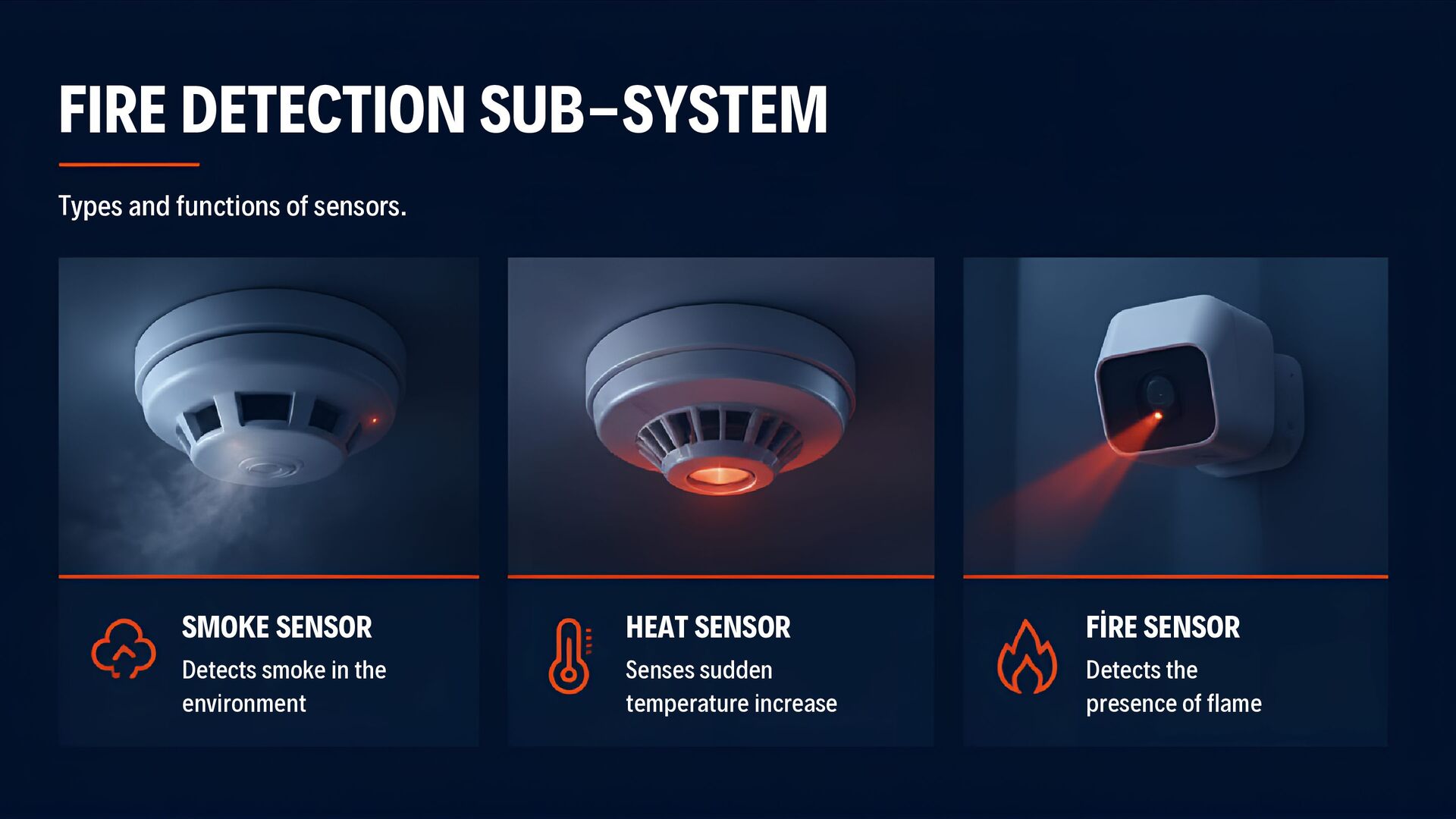

3. FIRE DETECTION SUB-SYSTEM Types and functions of sensors. SMOKE SENSOR HEAT SENSOR FİRE SENSOR Detects smoke in the environment Senses sudden temperature increase Detects the presence of flame

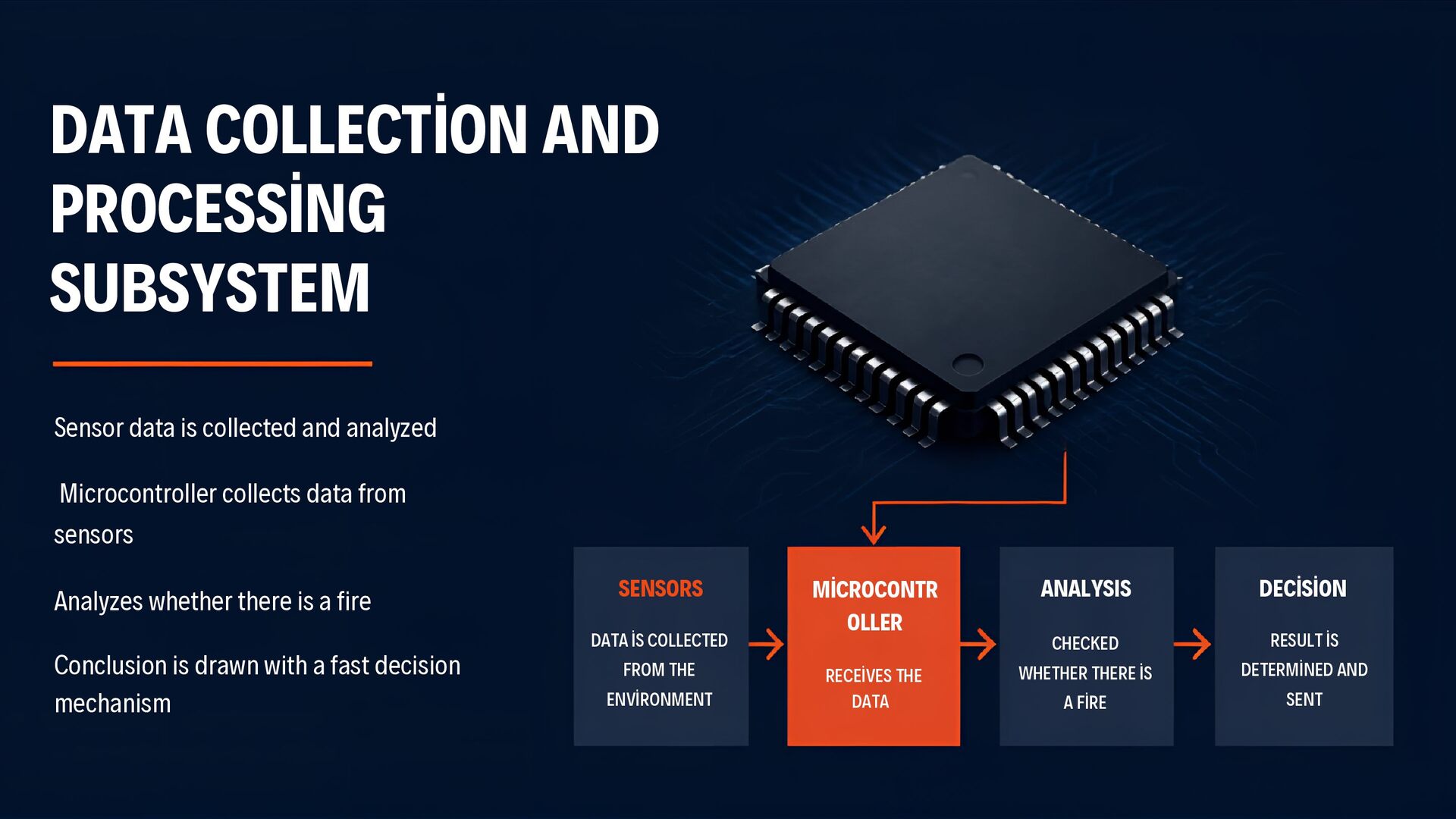

4. DATA COLLECTİON AND PROCESSİNG SUBSYSTEM Sensor data is collected and analyzed Microcontroller collects data from sensors Analyzes whether there is a fire Conclusion is drawn with a fast decision mechanism SENSORS DATA İS COLLECTED FROM THE ENVİRONMENT MİCROCONTR OLLER ANALYSIS DECİSİON CHECKED RESULT İS RECEİVES THE DATA WHETHER THERE İS DETERMİNED AND A FİRE SENT

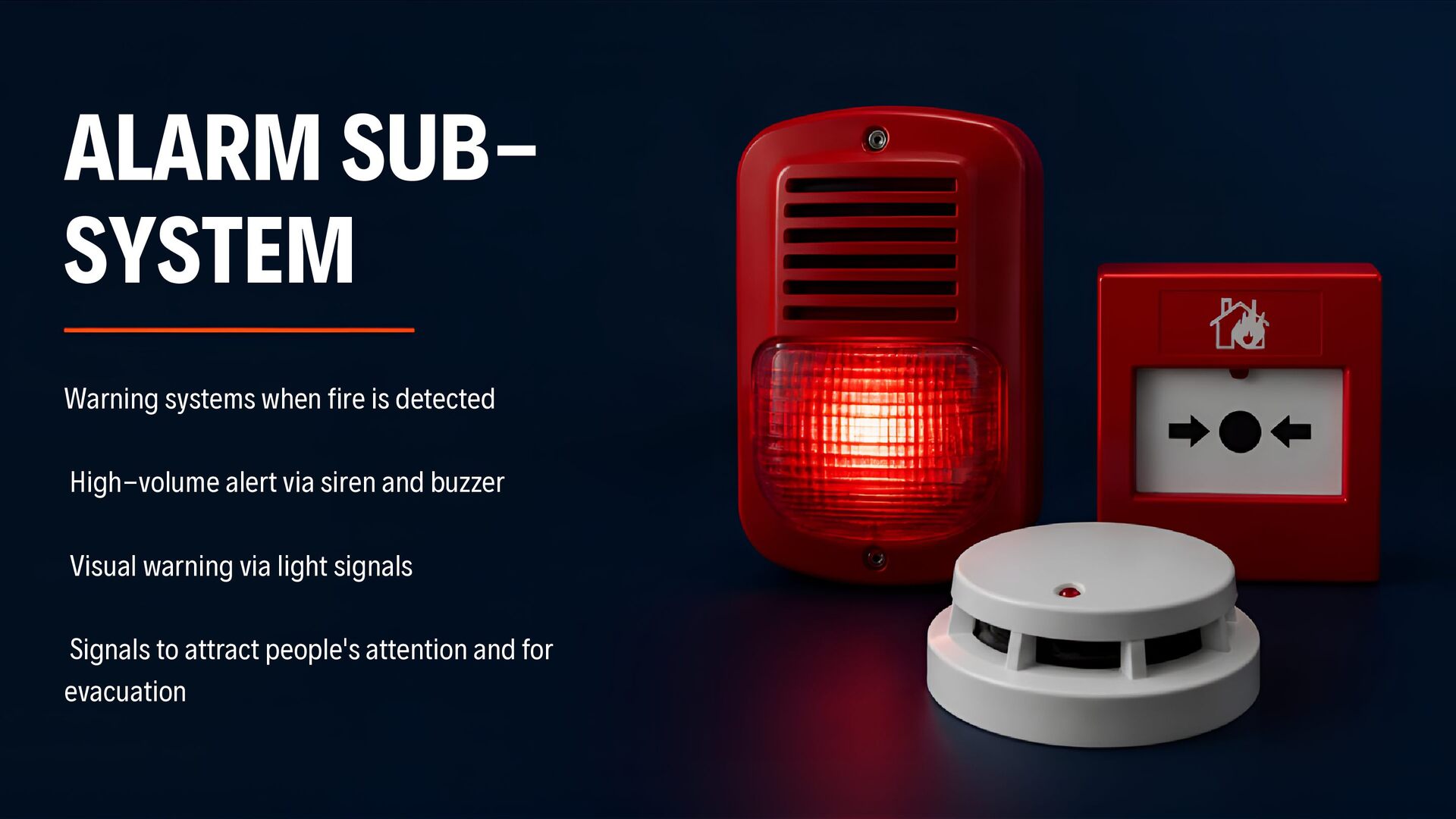

5. ALARM SUBSYSTEM Warning systems when fire is detected High-volume alert via siren and buzzer Visual warning via light signals Signals to attract people's attention and for evacuation

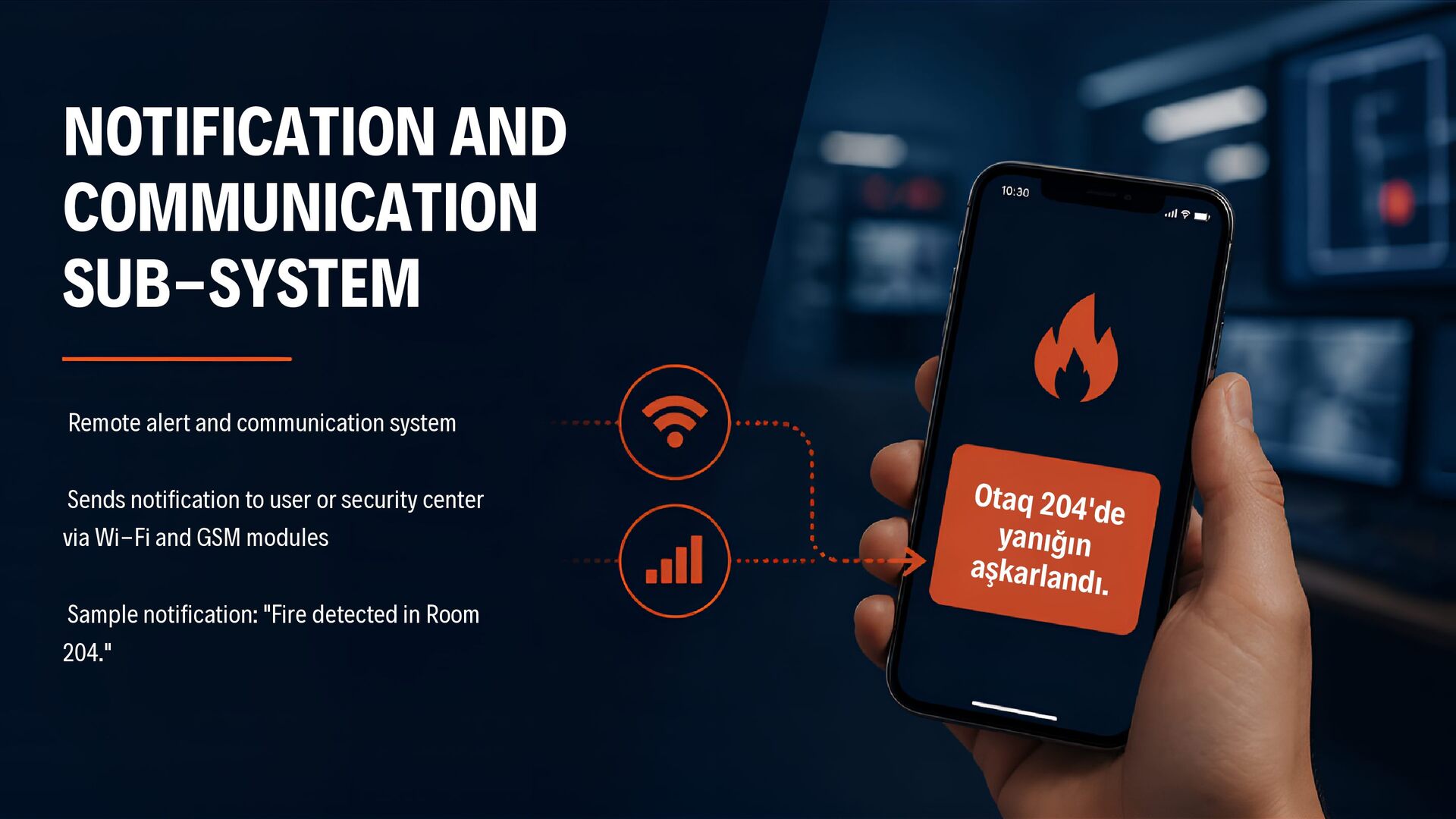

6. NOTIFICATION AND COMMUNICATION SUB-SYSTEM Remote alert and communication system Sends notification to user or security center via Wi-Fi and GSM modules Sample notification: "Fire detected in Room 204." Otaq 204'd e yanığın aşkarland ı.

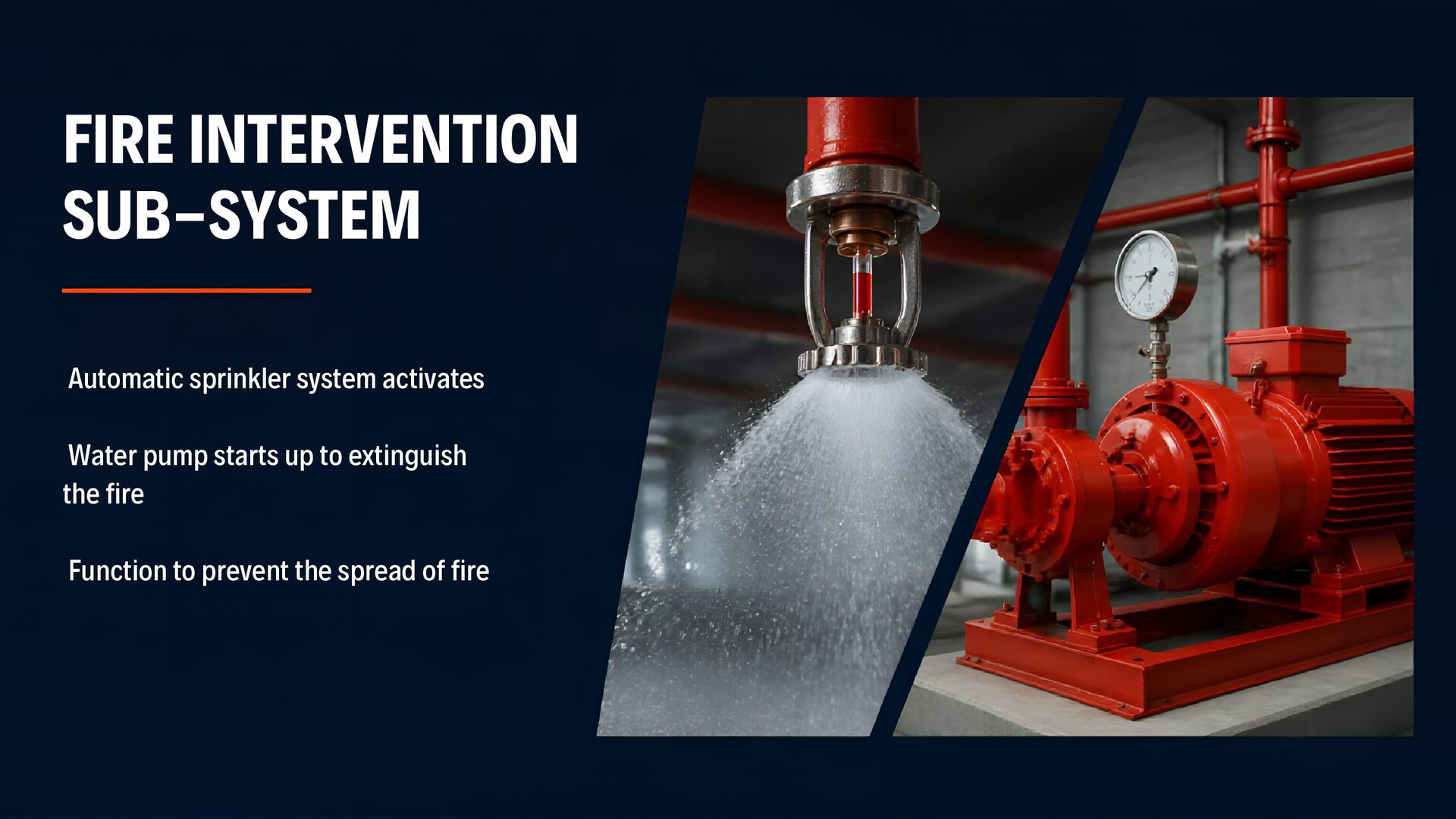

7. FIRE INTERVENTION SUB-SYSTEM Automatic sprinkler system activates Water pump starts up to extinguish the fire Function to prevent the spread of fire

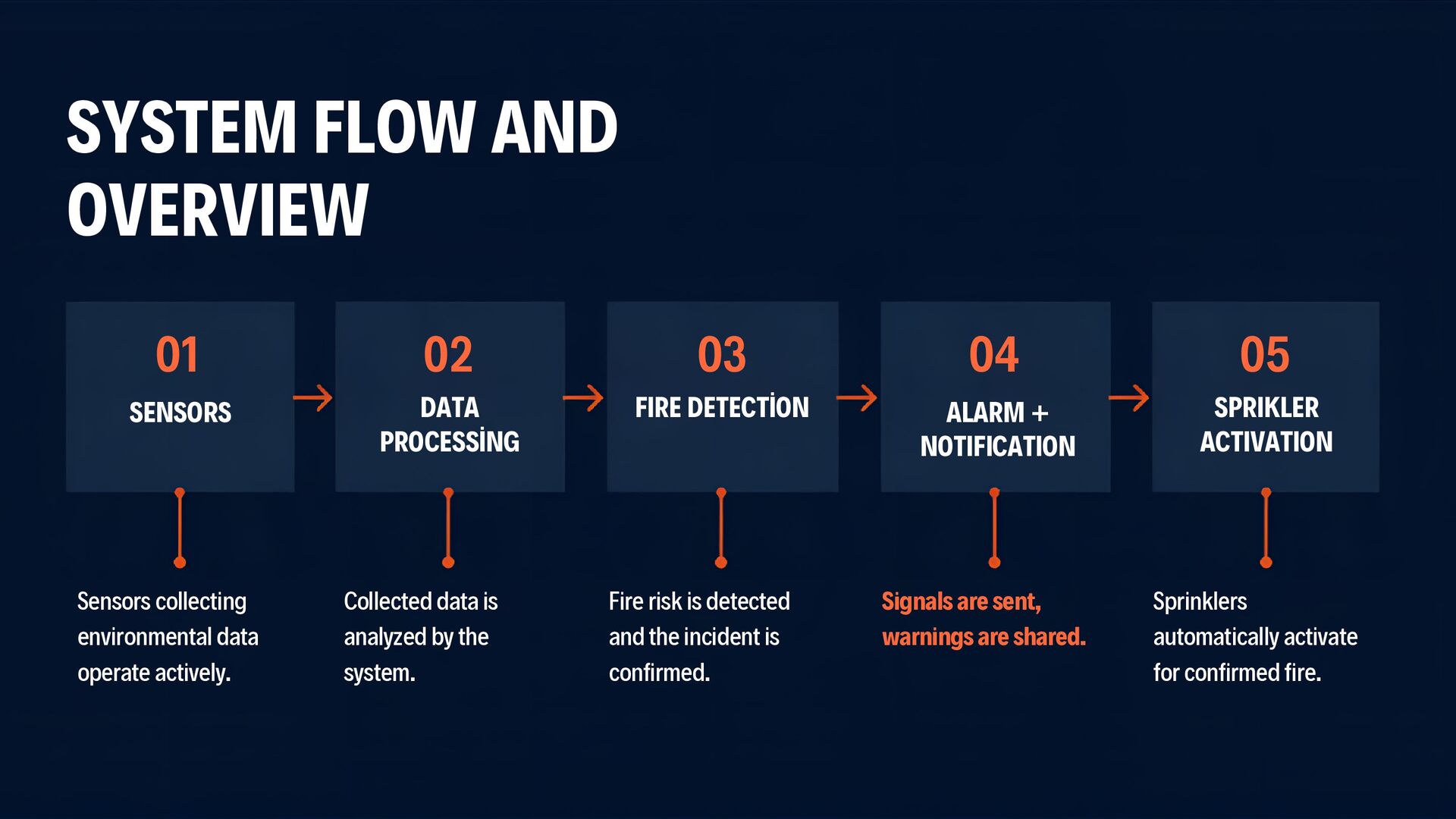

8. SYSTEM FLOW AND OVERVIEW 01 02 03 04 05 SENSORS DATA PROCESSİNG FIRE DETECTİON ALARM + NOTIFICATION SPRIKLER ACTIVATION Signals are sent, warnings are shared. Sprinklers automatically activate for confirmed fire. Sensors collecting environmental data operate actively. Collected data is analyzed by the system. Fire risk is detected and the incident is confirmed.
9. THANK YOU FOR LİSTENİNG
