An Introduction to Unclouded.io

Unclouded is a software platform for employing device-to-device communication. Get the SDK at http://unclouded.io to get started.

Transcript

1. UNCLOUDED Device-to-device Communication Made Easy http://unclouded.io
2. NICK DE COOMAN http://nickdecooman.com @nickdecooman !2
3. TODAY 1 2 3 Introduction to Unclouded Unclouded API Let me show you some code! !3

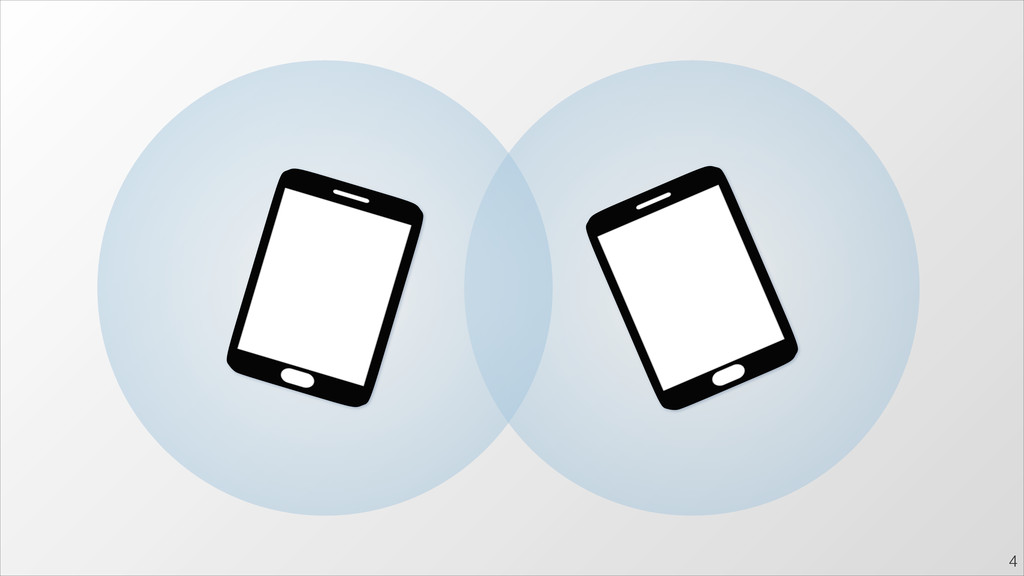

4. !4

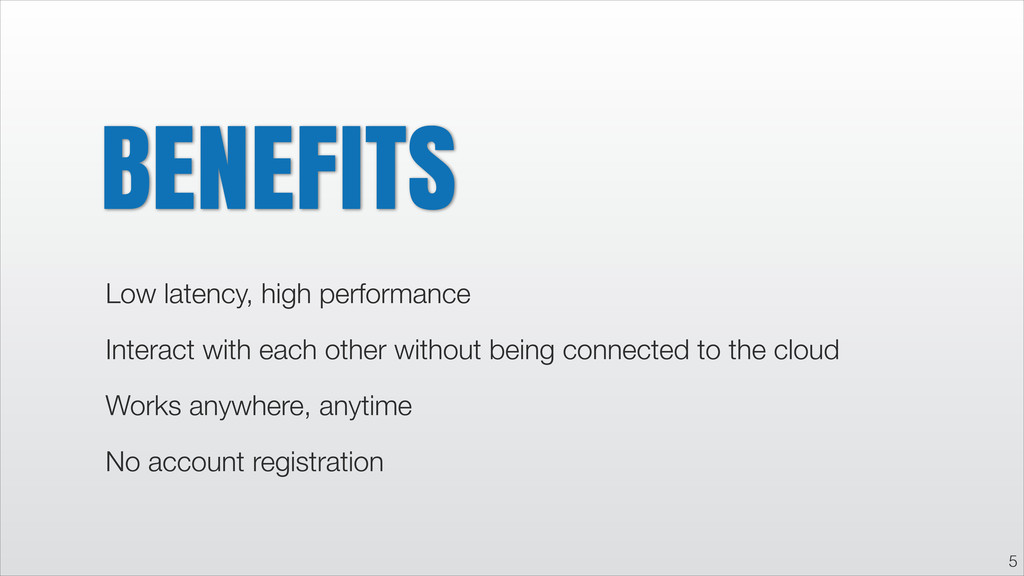

5. BENEFITS Low latency, high performance Interact with each other without being connected to the cloud Works anywhere, anytime No account registration !5
6. !6 DEVICE-TO-DEVICE COMMUNICATION IS HARD
7. !7 No central infrastructure to administer connections and interactions Connections are unreliable and volatile Fast-changing network topology WHY?
8. !8 UNCLOUDED A software platform for employing device-to-device communication .io
9. !9 CONNECT MONITOR INTERACT

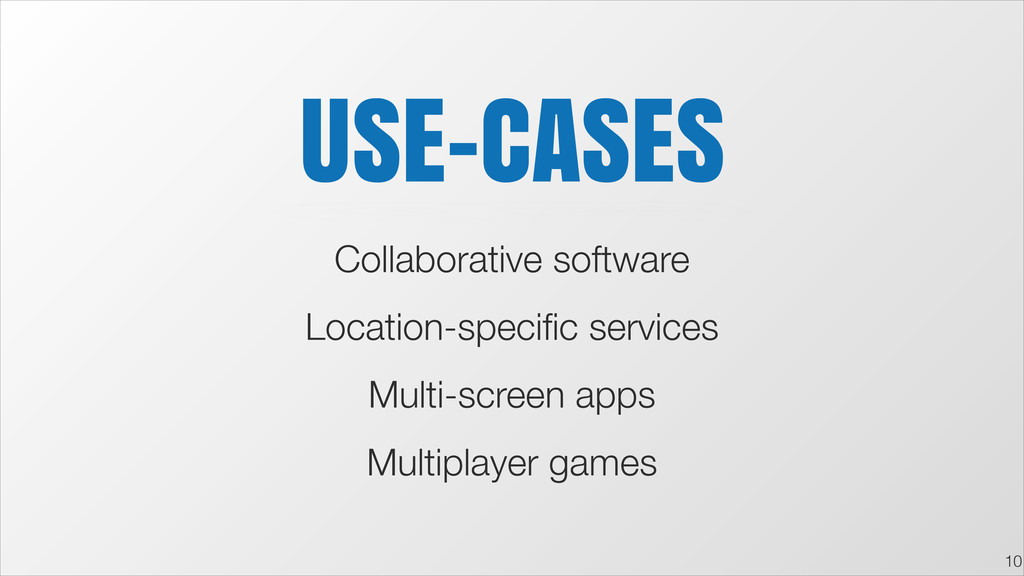

10. !10 Collaborative software Location-specific services Multi-screen apps Multiplayer games USE-CASES

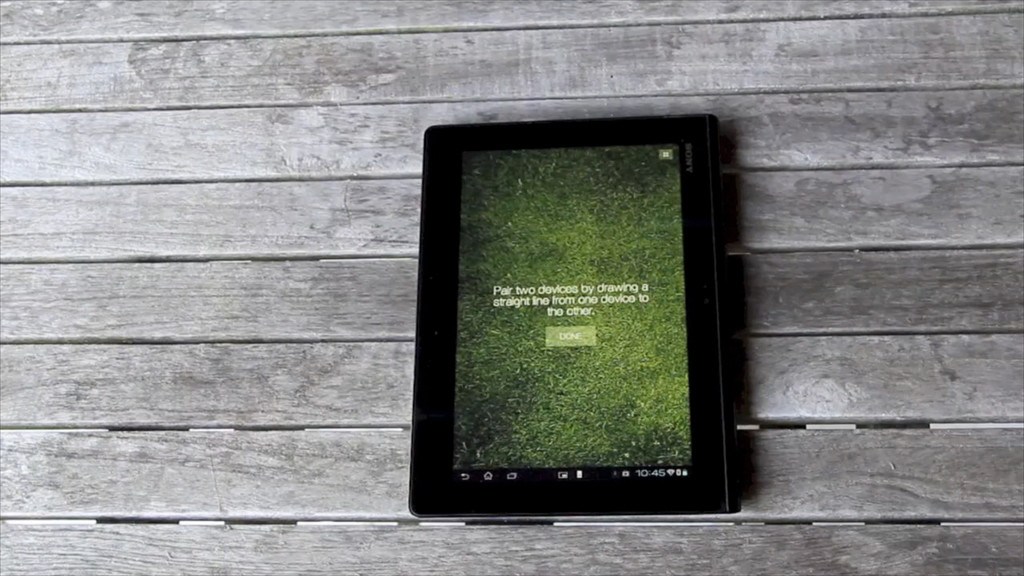

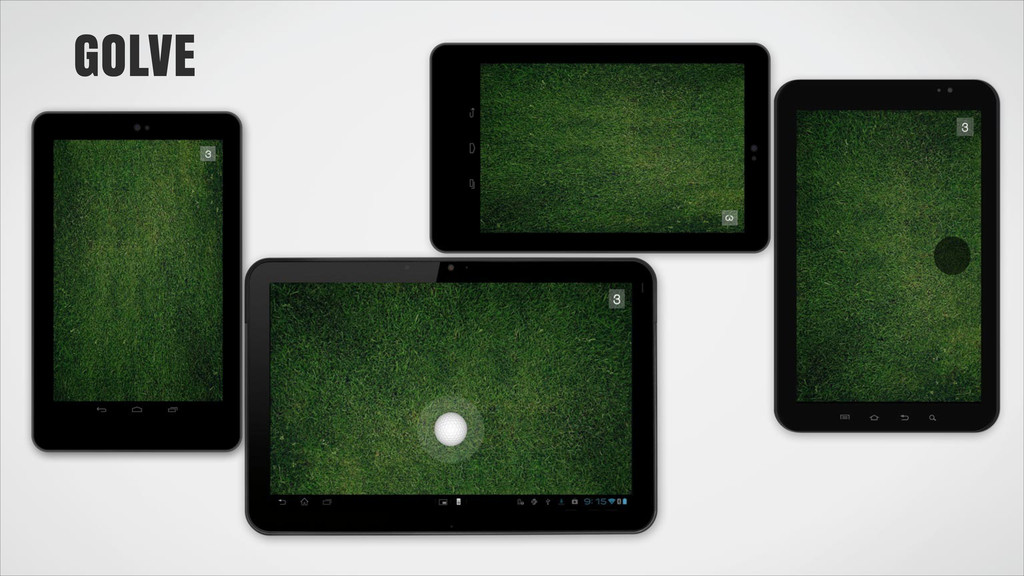

11. !11 GOLVE
12. !12
13. !12
14. !13 GOLVE A multi-screen mini golf application for Android. http://unclouded.io/golve
15. UNCLOUDED API 1.0 http://unclouded.io Get the SDK at !14
16. !15 http://ambienttalk.googlecode.com In collaboration with http://soft.vub.ac.be/ UNCLOUDED Inspired by

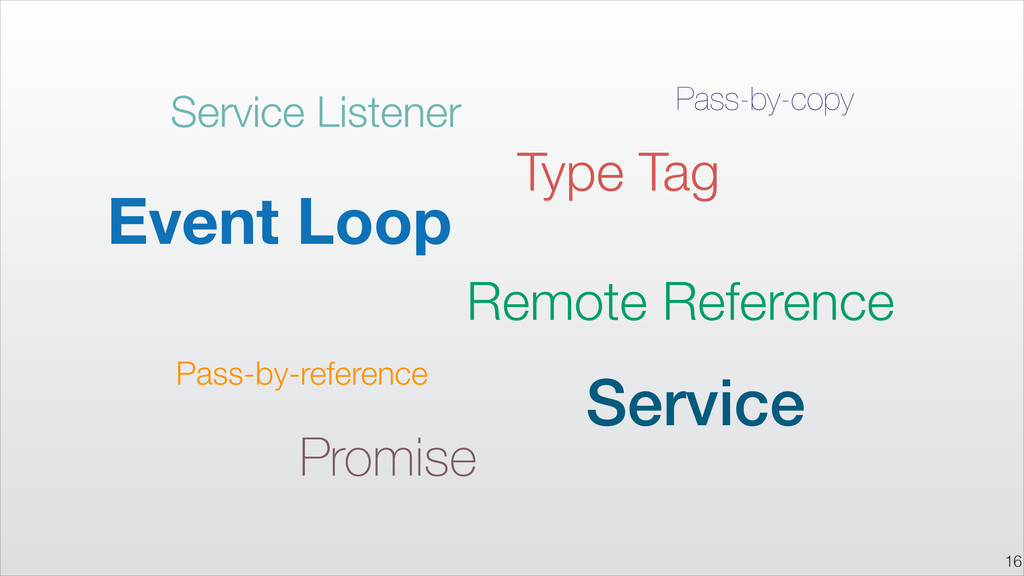

17. Event Loop Promise Service Service Listener Type Tag Remote Reference Pass-by-copy Pass-by-reference !16
18. Event Loop Queue of events, being sequentially processed. !17

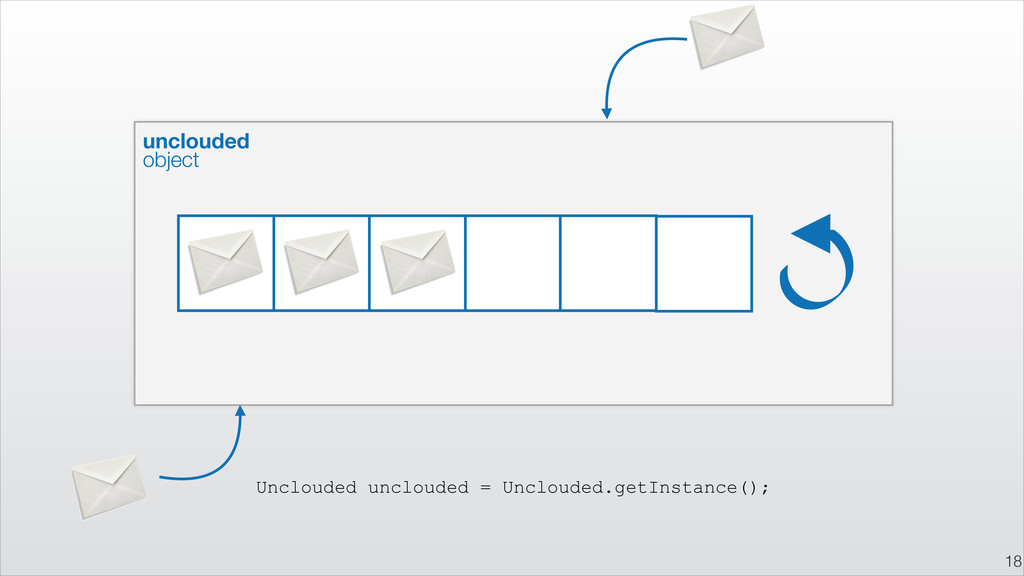

19. !18 unclouded object Unclouded unclouded = Unclouded.getInstance();
20. !19 unclouded.goOnline();
21. !19 unclouded.goOnline();
22. !19 unclouded.goOnline(); unclouded.goOnline();

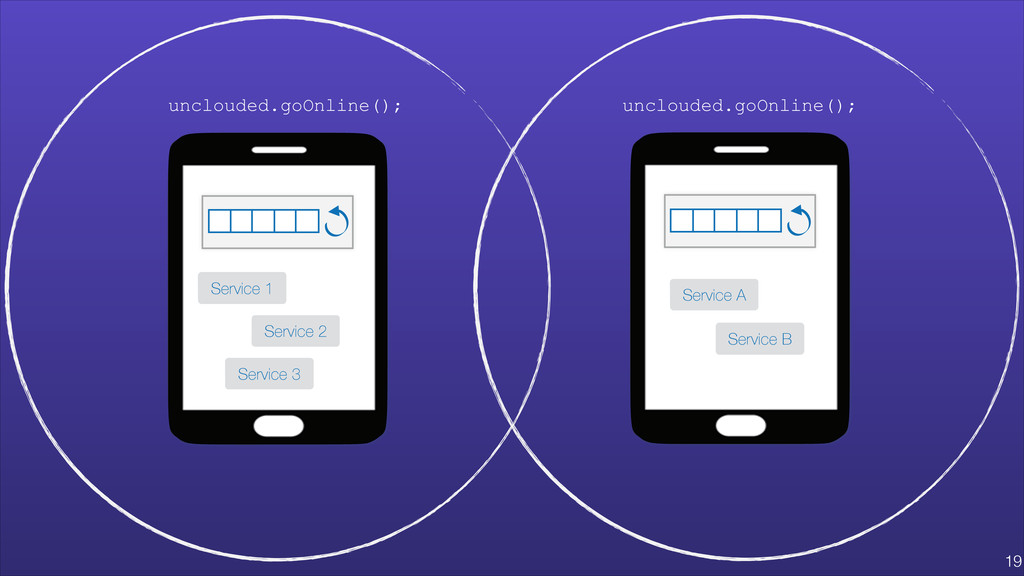

23. !19 unclouded.goOnline(); unclouded.goOnline(); Service 1 Service 2 Service 3 Service A Service B
24. !20 PUBLICATION ! SUBSCRIPTION Service Service

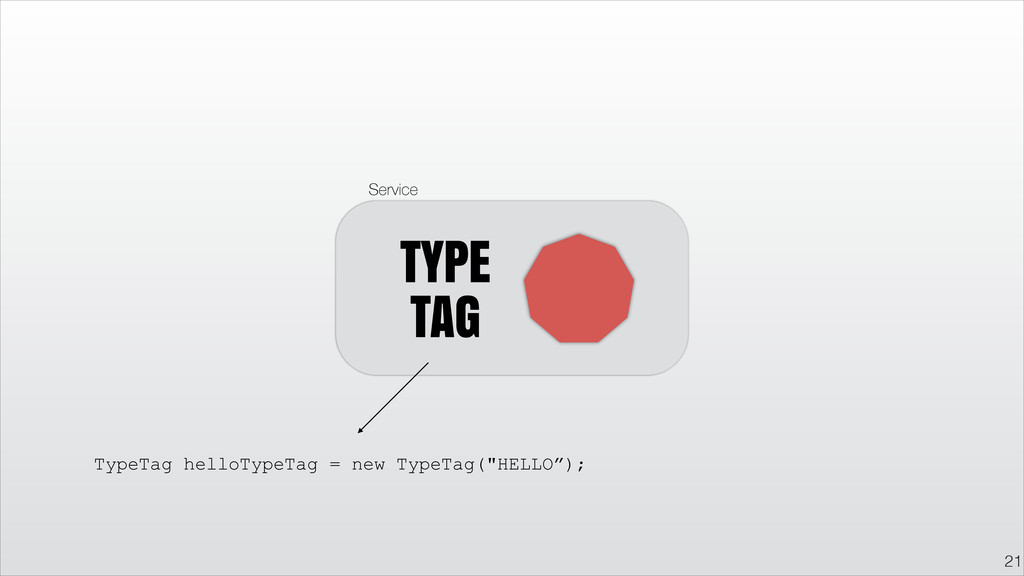

25. !21 TYPE TAG Service
26. !21 TYPE TAG Service TypeTag helloTypeTag = new TypeTag("HELLO”);
27. !21 TYPE TAG Service TypeTag helloTypeTag = new TypeTag("HELLO”); Pass-by-copy Pass-by-reference or
28. Passed by copy Any Serializable object is !22
29. !23 unclouded.broadcast(helloTypeTag1, "Hello World"); PUBLICATION SUBSCRIPTION unclouded.whenever(helloTypeTag1, new ServiceListener<String>(){ public void isDiscovered(String value){ // value is "Hello World" } };
30. !24 unclouded.broadcast(helloTypeTag2, 16112013); PUBLICATION SUBSCRIPTION unclouded.when(helloTypeTag2, new ServiceListener<Integer>(){ public void isDiscovered(Integer value){ … } public void isDisconnected(Integer value){ … } public void isReconnected(Integer value){ … } };

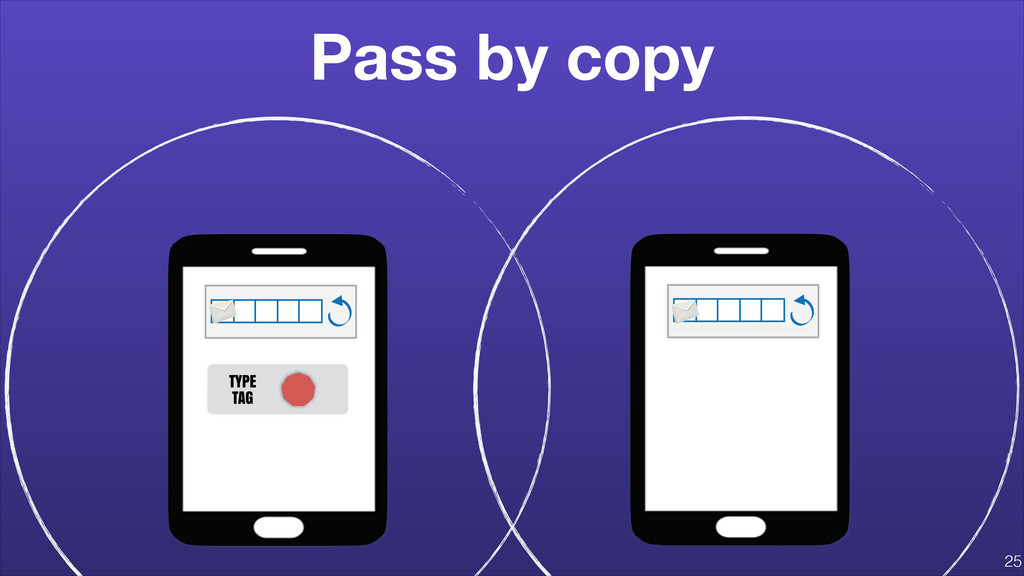

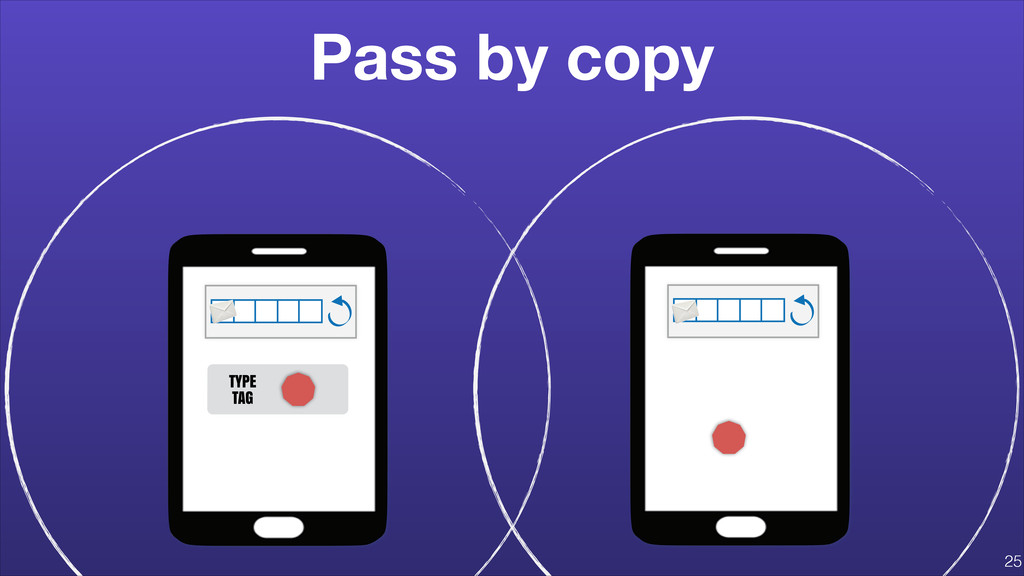

31. Pass by copy !25 TYPE TAG
32. Pass by copy !25 TYPE TAG

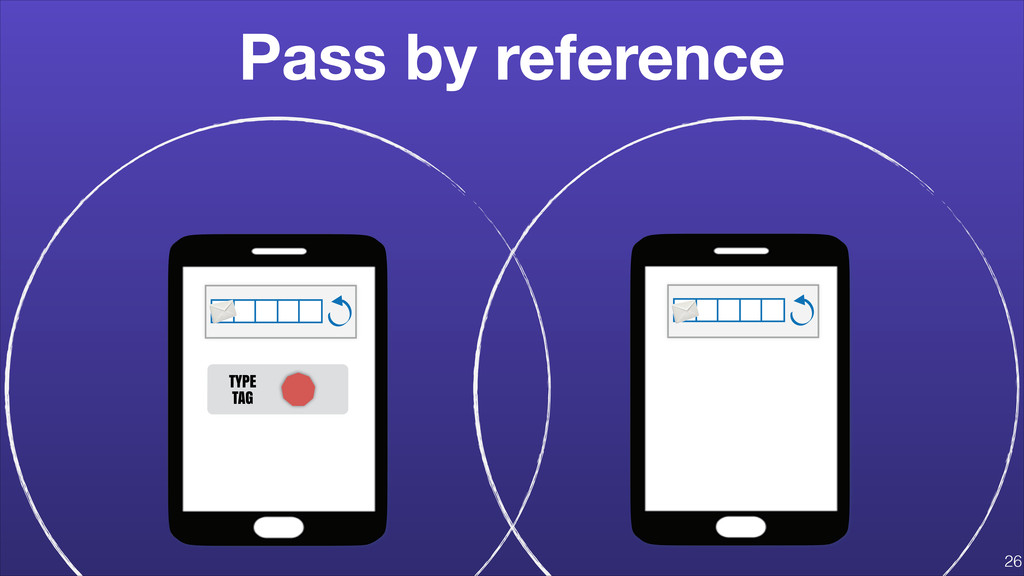

33. Pass by reference !26 TYPE TAG
34. Pass by reference !26 TYPE TAG
35. Pass by reference !26 TYPE TAG

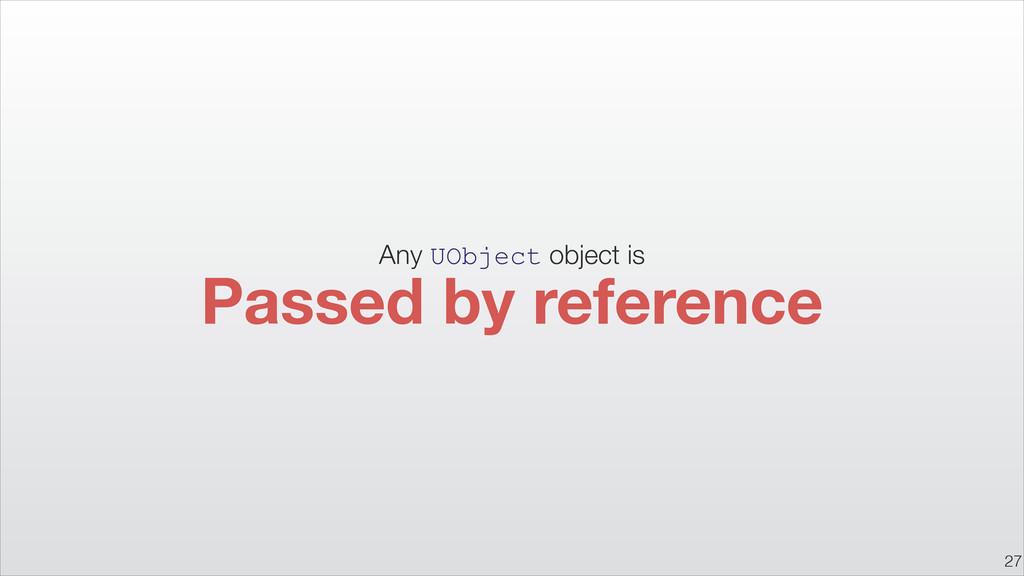

36. Passed by reference Any UObject object is !27

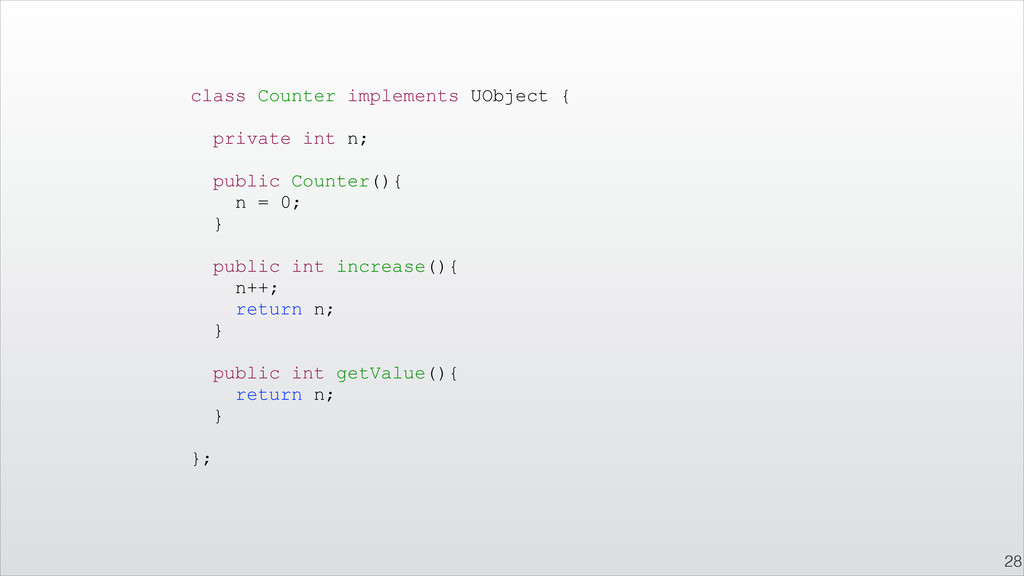

37. !28 class Counter implements UObject { ! private int n; ! public Counter(){ n = 0; } ! public int increase(){ n++; return n; } ! public int getValue(){ return n; } ! };

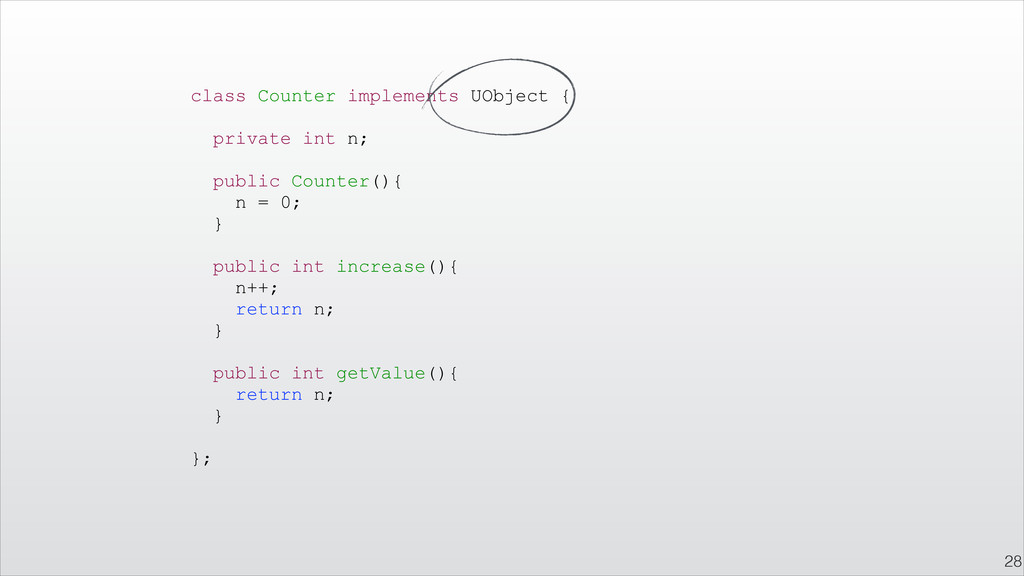

38. !28 class Counter implements UObject { ! private int n; ! public Counter(){ n = 0; } ! public int increase(){ n++; return n; } ! public int getValue(){ return n; } ! };

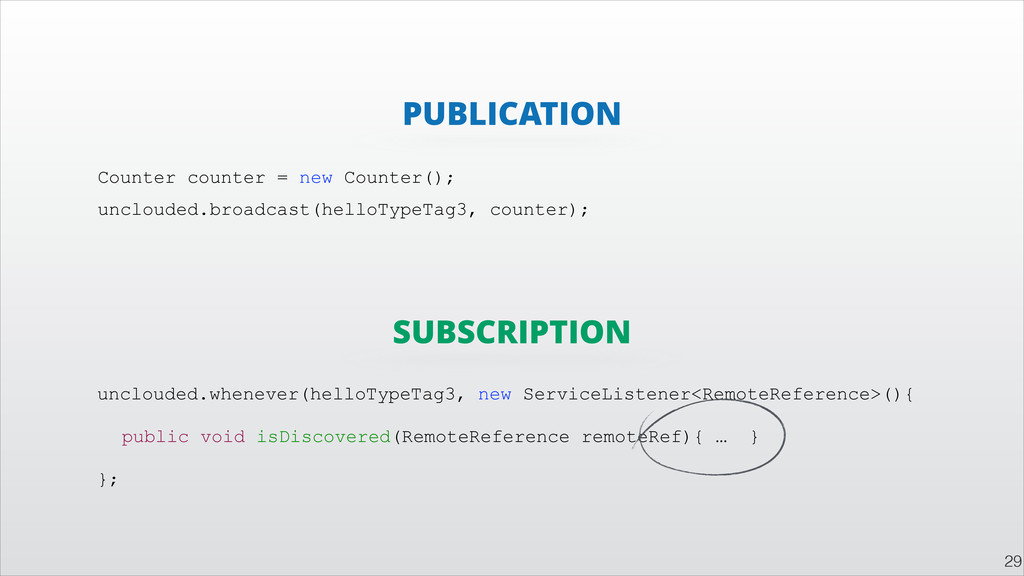

39. !29 Counter counter = new Counter(); unclouded.broadcast(helloTypeTag3, counter); PUBLICATION SUBSCRIPTION unclouded.whenever(helloTypeTag3, new ServiceListener<RemoteReference>(){ public void isDiscovered(RemoteReference remoteRef){ … } };
40. !29 Counter counter = new Counter(); unclouded.broadcast(helloTypeTag3, counter); PUBLICATION SUBSCRIPTION unclouded.whenever(helloTypeTag3, new ServiceListener<RemoteReference>(){ public void isDiscovered(RemoteReference remoteRef){ … } };
41. !30 unclouded.whenever(helloTypeTag3, new ServiceListener<RemoteReference>(){ public void isDiscovered(RemoteReference remoteRef){ Promise promise = remoteRef.asyncInvoke("increase"); promise.when(new PromiseListener<Integer>(){ ! public void isResolved(Integer value){ // counter = value } ! public void isRuined(){ // Oops, something wrong happened! } ! }); } };
42. UNCLOUDED MESSENGER http://unclouded.io Check the tutorial at !31
43. > !32
44. > !32 Bob
45. !32 >
46. !32 > >
47. !32 > > Eve has joined the conversation Bob has joined the conversation
48. !32 > > Eve has joined the conversation Bob has joined the conversation Me: Hallo Bob: Hallo

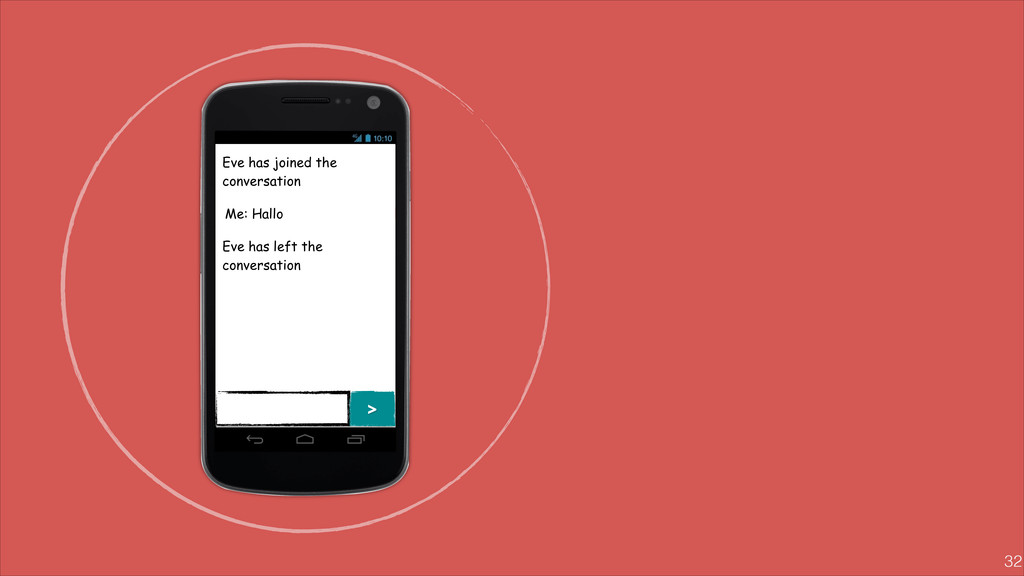

49. !32 > Eve has joined the conversation Me: Hallo Eve has left the conversation
50. Code time! !33
51. !34 NICK DE COOMAN http://nickdecooman.com UNCLOUDED http://unclouded.io by
