Beyond the Code: Manipulating Bytecode and Building Community

Explore Python bytecode's evolution, its impact on tools like pytype through PEP 709, and the vital role of OSS collaboration in shaping Python's future.

Transcript

1. Kir Chou @ EuroPython 2025 1 Beyond the Code: Manipulating Bytecode and Building Community

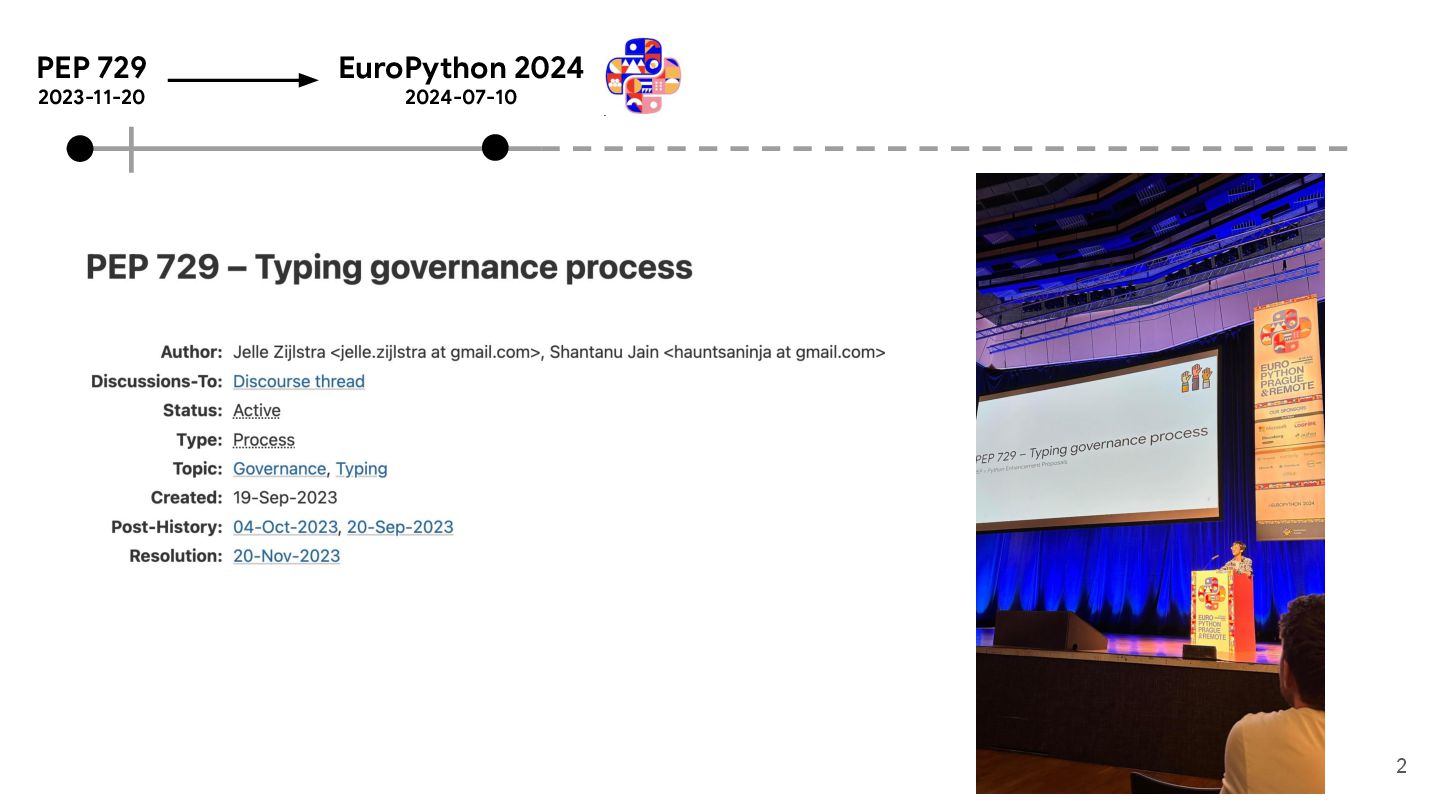

2. PEP 729 2023-11-20 EuroPython 2024 2024-07-10 2

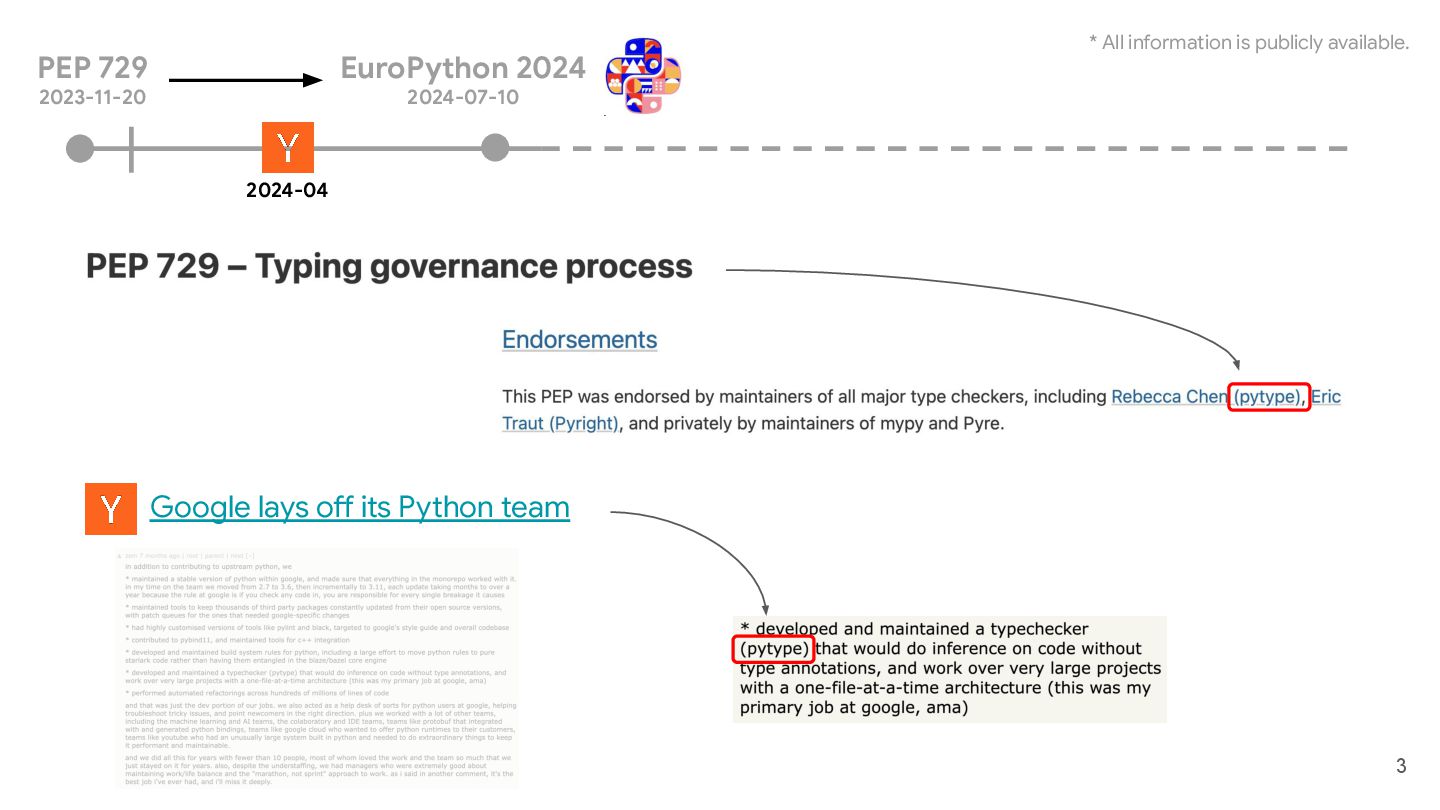

3. PEP 729 2023-11-20 EuroPython 2024 2024-07-10 * All information is publicly available. 3 Google lays off its Python team 2024-04
4. 4 Pytype's future? Can anyone maintain it? EuroPython 2025 2025-07-14 2024-04 PEP 729 2023-11-20 EuroPython 2024 2024-07-10
5. 5 Wait …
6. 6 "type checker" and "bytecode"?
7. 7 Bytecode 101

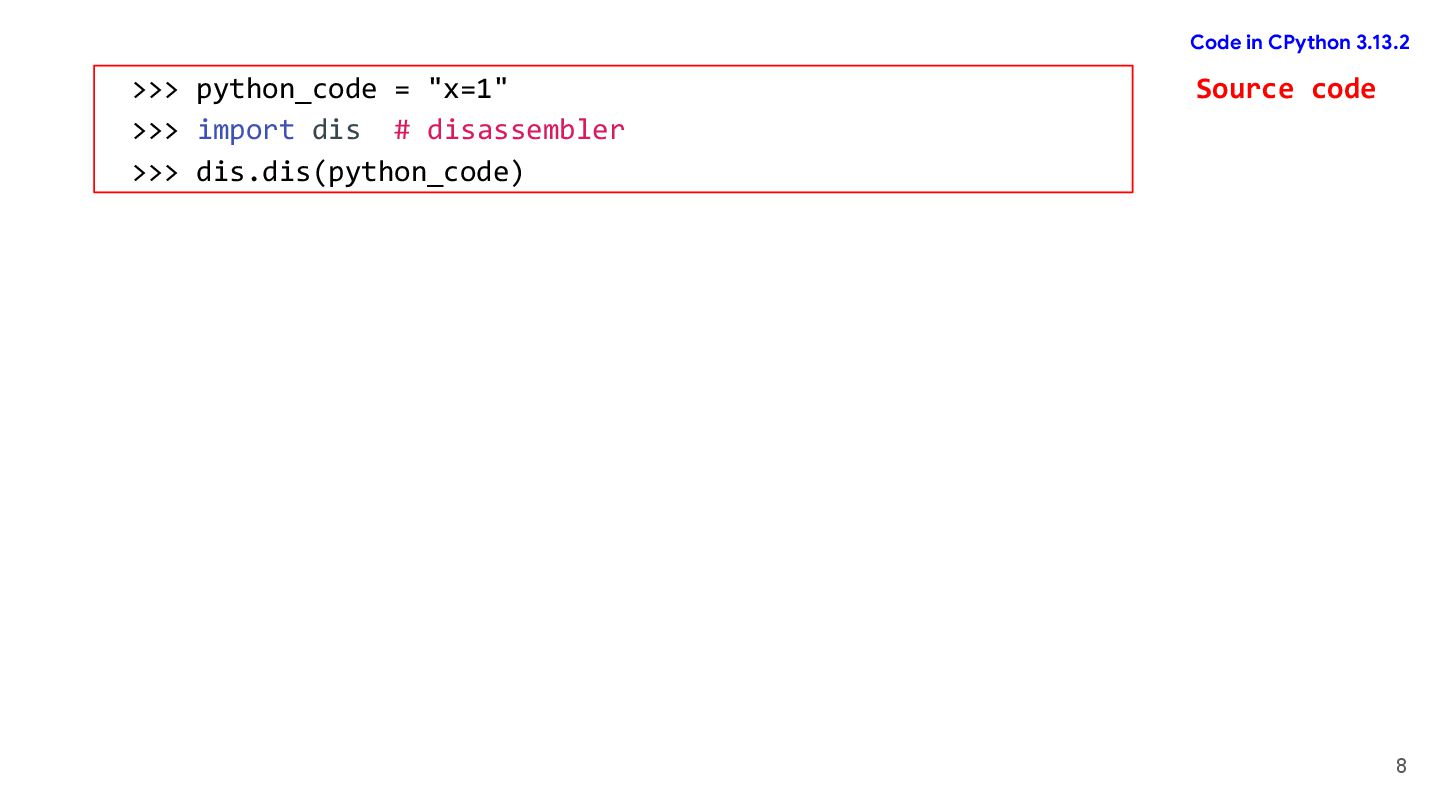

8. >>> python_code = "x=1" >>> import dis # disassembler >>> dis.dis(python_code) 8 Code in CPython 3.13.2 Source code

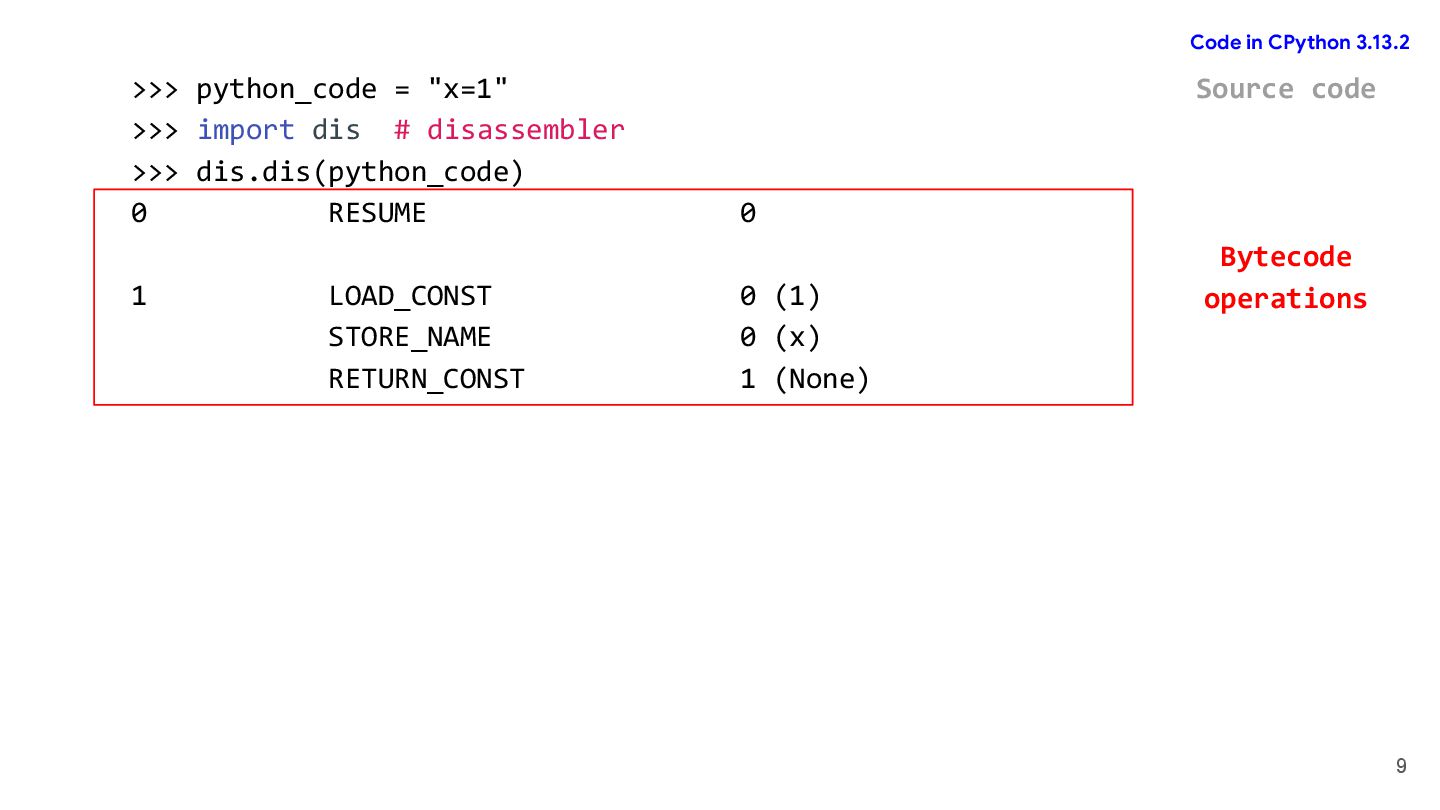

9. >>> python_code = "x=1" >>> import dis # disassembler >>> dis.dis(python_code) 0 RESUME 0 1 LOAD_CONST 0 (1) STORE_NAME 0 (x) RETURN_CONST 1 (None) 9 Code in CPython 3.13.2 Bytecode operations Source code

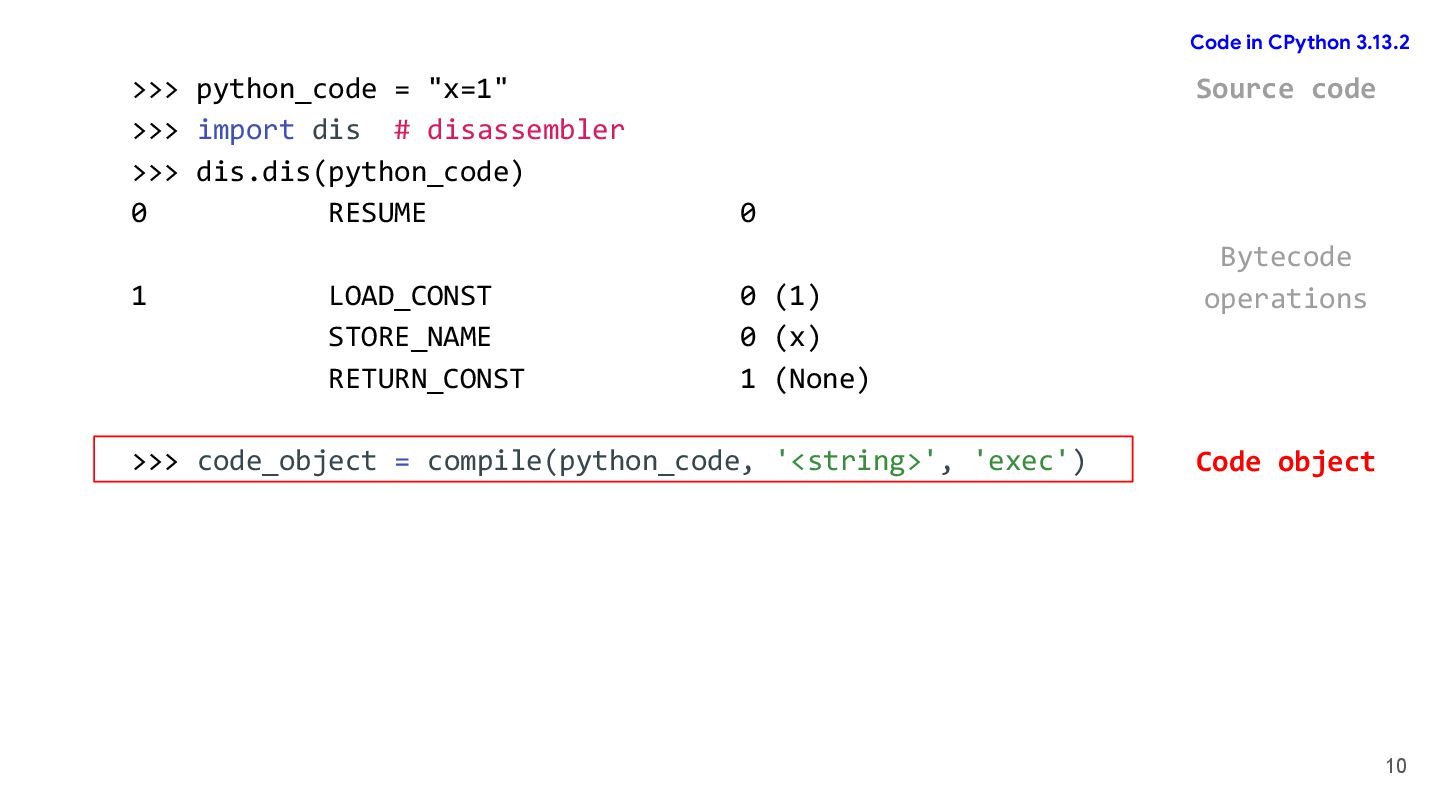

10. >>> python_code = "x=1" >>> import dis # disassembler >>> dis.dis(python_code) 0 RESUME 0 1 LOAD_CONST 0 (1) STORE_NAME 0 (x) RETURN_CONST 1 (None) >>> code_object = compile(python_code, '<string>', 'exec') 10 Code in CPython 3.13.2 Code object Bytecode operations Source code

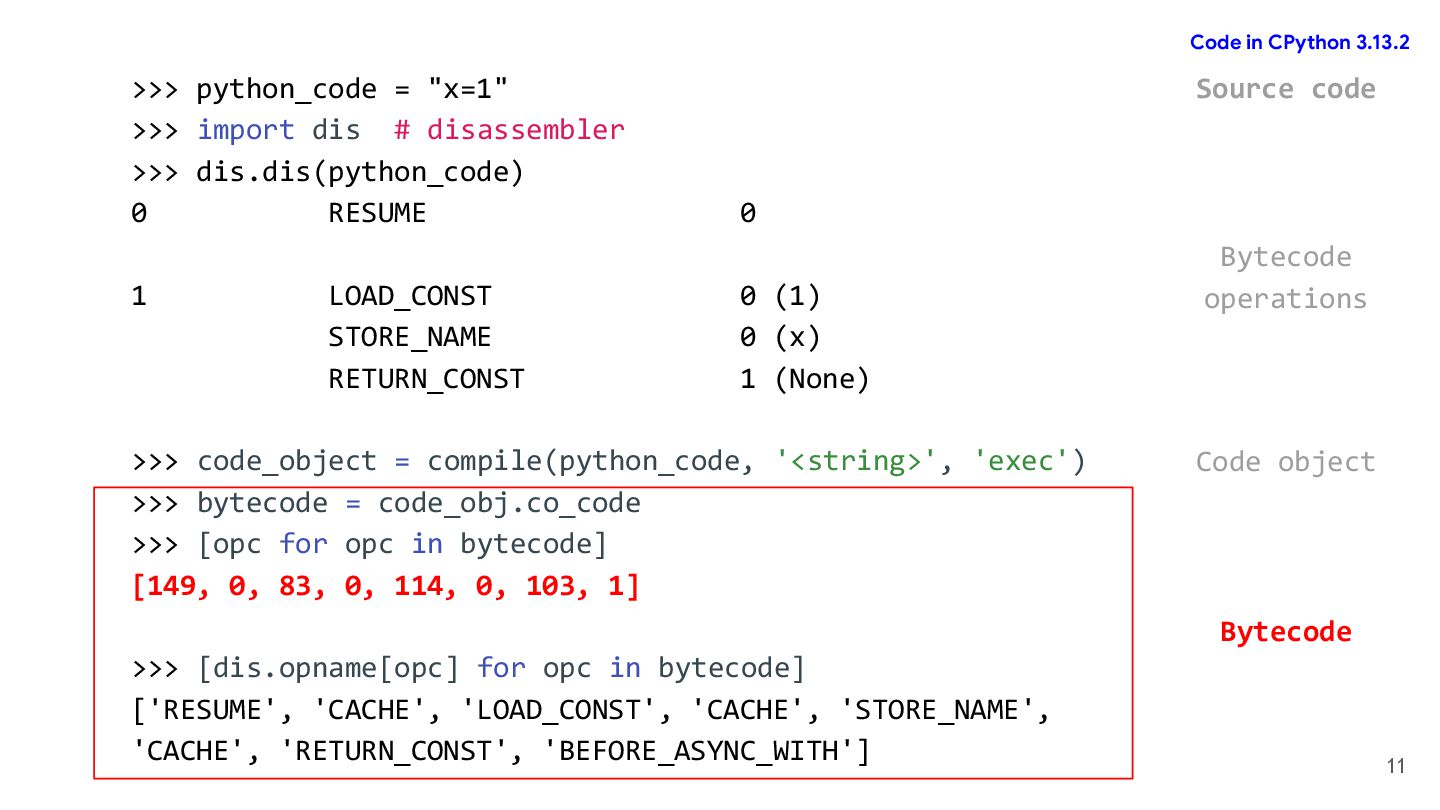

11. >>> python_code = "x=1" >>> import dis # disassembler >>> dis.dis(python_code) 0 RESUME 0 1 LOAD_CONST 0 (1) STORE_NAME 0 (x) RETURN_CONST 1 (None) >>> code_object = compile(python_code, '<string>', 'exec') >>> bytecode = code_obj.co_code >>> [opc for opc in bytecode] [149, 0, 83, 0, 114, 0, 103, 1] >>> [dis.opname[opc] for opc in bytecode] ['RESUME', 'CACHE', 'LOAD_CONST', 'CACHE', 'STORE_NAME', 'CACHE', 'RETURN_CONST', 'BEFORE_ASYNC_WITH'] 11 Code in CPython 3.13.2 Code object Bytecode Bytecode operations Source code

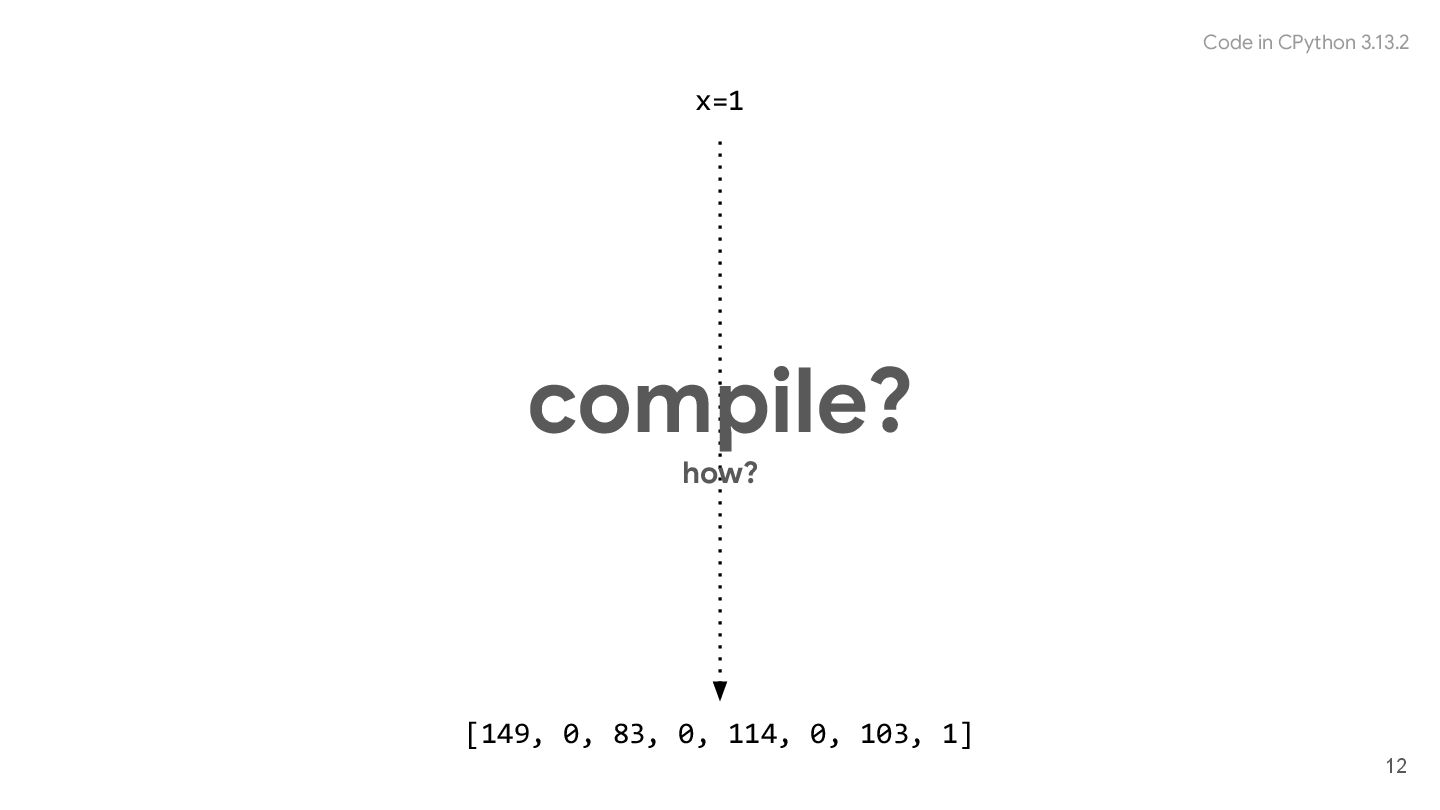

12. x=1 12 [149, 0, 83, 0, 114, 0, 103, 1] compile? how? Code in CPython 3.13.2

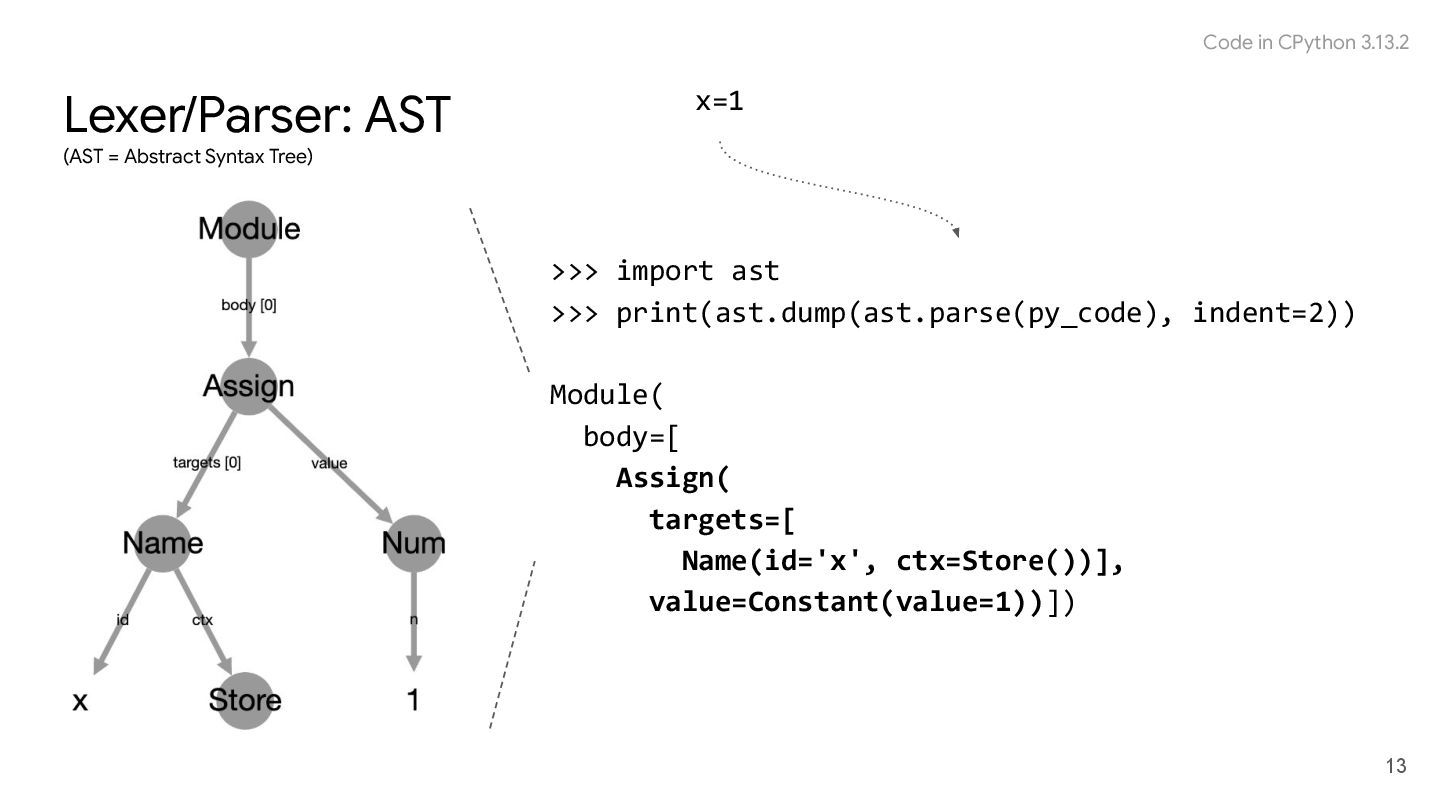

13. 13 >>> import ast >>> print(ast.dump(ast.parse(py_code), indent=2)) Module( body=[ Assign( targets=[ Name(id='x', ctx=Store())], value=Constant(value=1))]) Lexer/Parser: AST (AST = Abstract Syntax Tree) x=1 Code in CPython 3.13.2

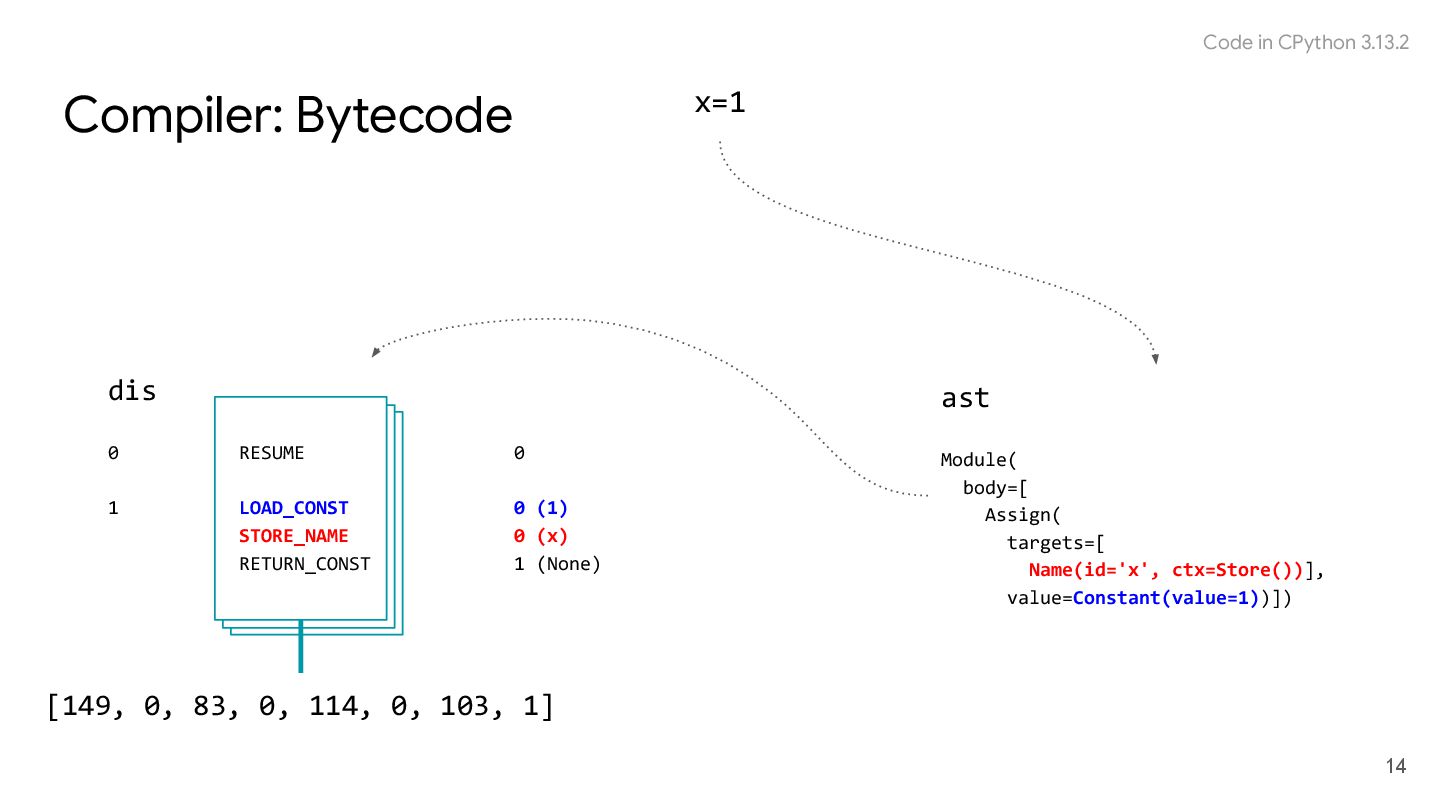

14. 14 ast Module( body=[ Assign( targets=[ Name(id='x', ctx=Store())], value=Constant(value=1))]) Compiler: Bytecode x=1 dis 0 RESUME 0 1 LOAD_CONST 0 (1) STORE_NAME 0 (x) RETURN_CONST 1 (None) [149, 0, 83, 0, 114, 0, 103, 1] Code in CPython 3.13.2

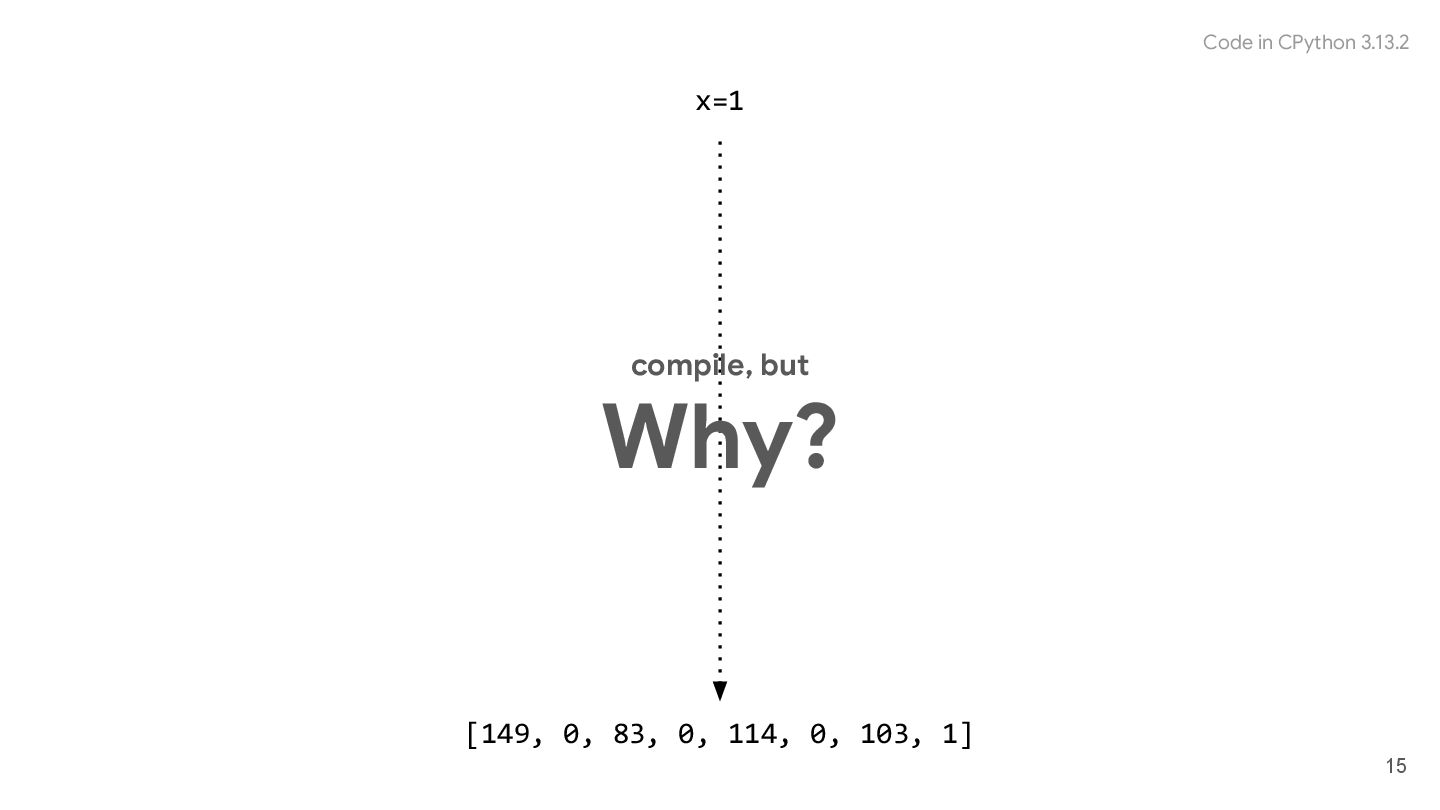

15. x=1 15 [149, 0, 83, 0, 114, 0, 103, 1] compile, but Why? Code in CPython 3.13.2

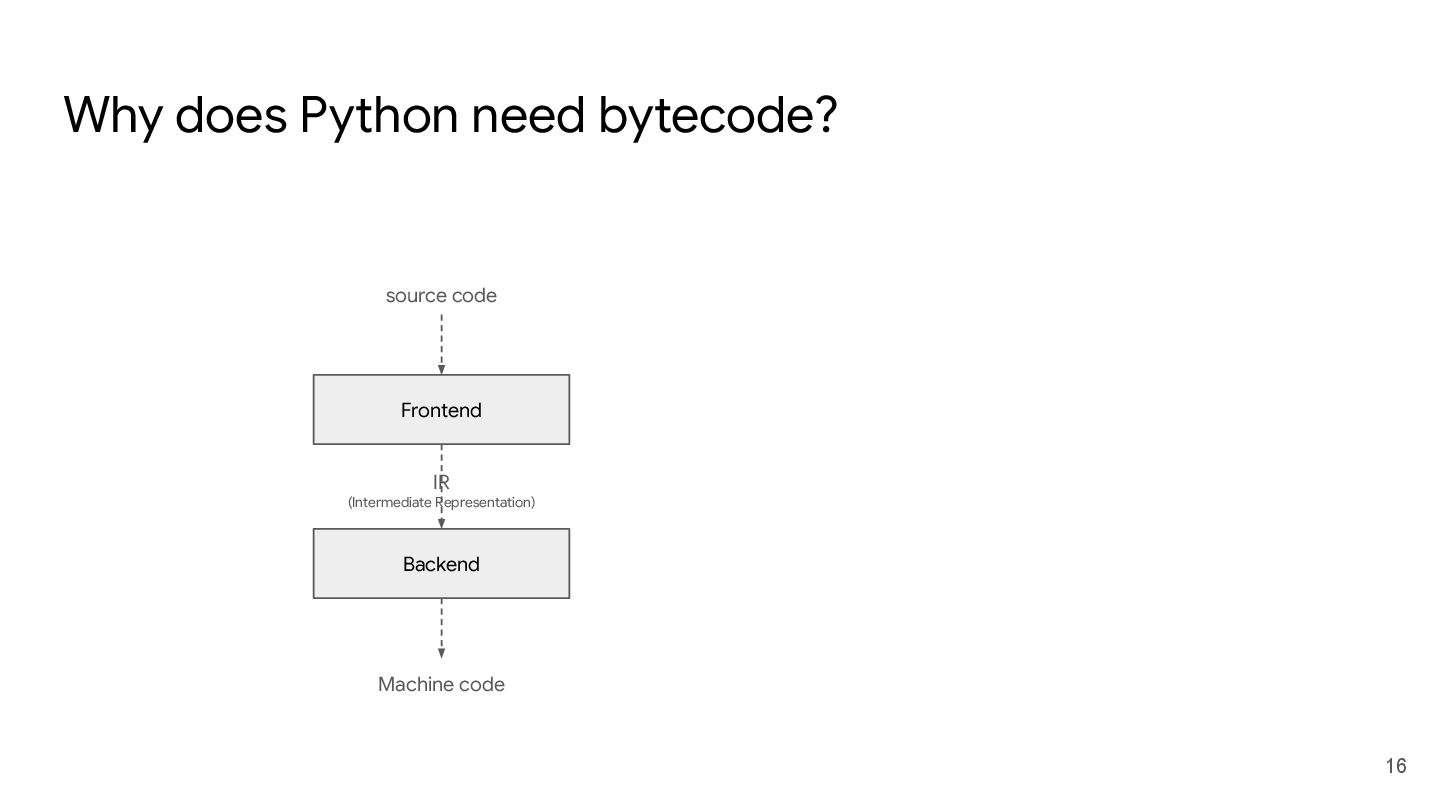

16. Why does Python need bytecode? Frontend Backend source code IR (Intermediate Representation) Machine code 16

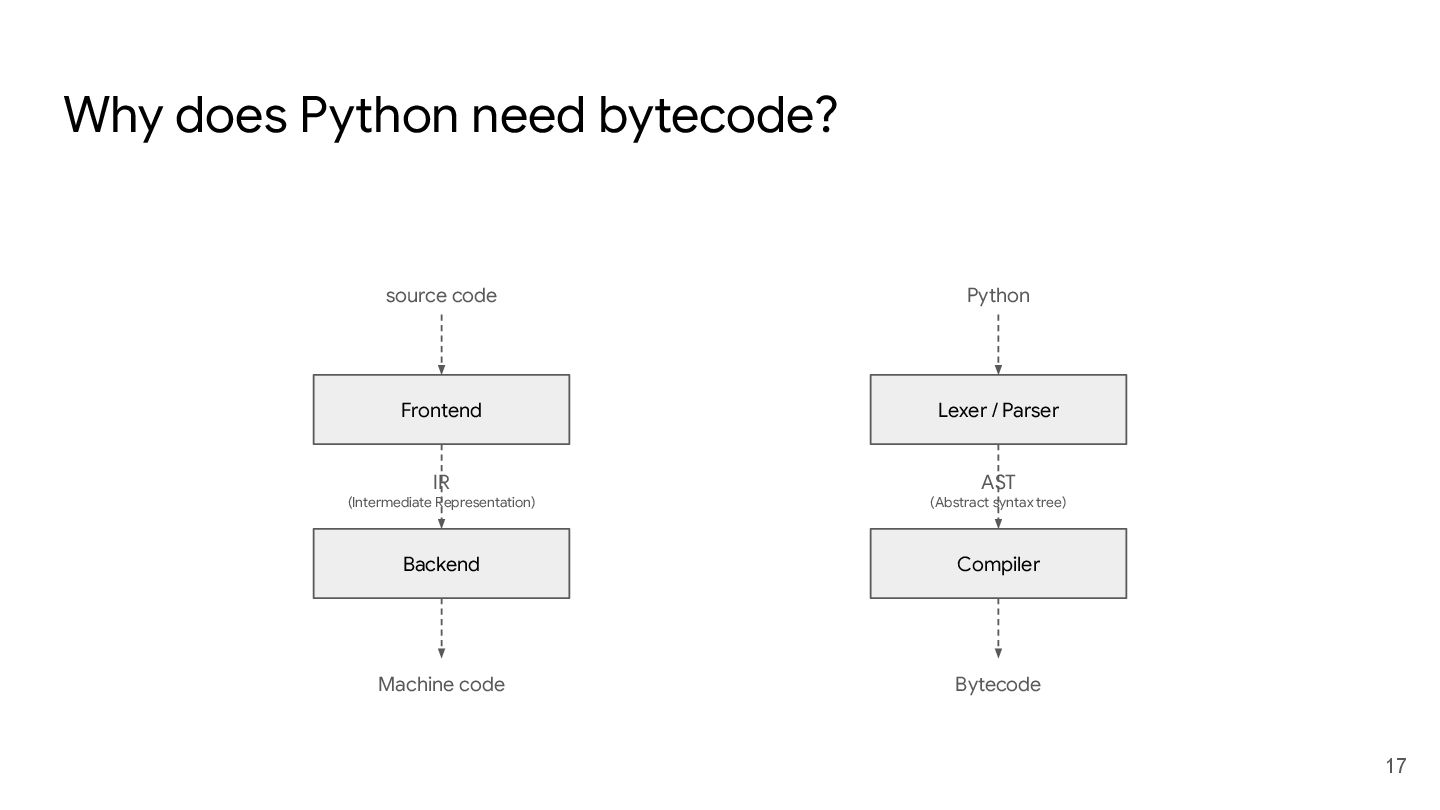

17. Why does Python need bytecode? Frontend Backend source code IR (Intermediate Representation) Machine code Lexer / Parser Compiler Python AST (Abstract syntax tree) Bytecode 17

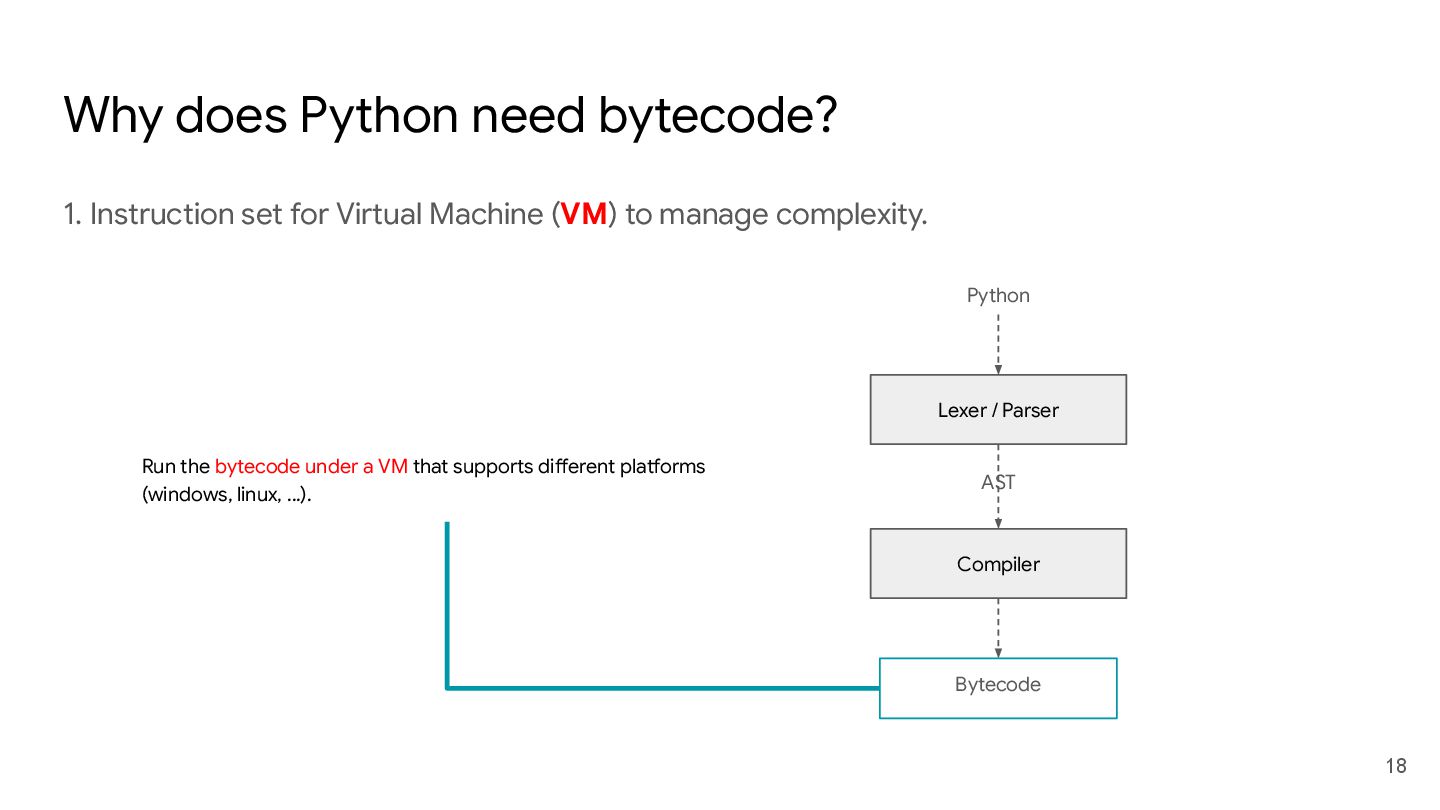

18. Run the bytecode under a VM that supports different platforms (windows, linux, …). Why does Python need bytecode? 1. Instruction set for Virtual Machine (VM) to manage complexity. 18 Lexer / Parser Compiler Python AST Bytecode

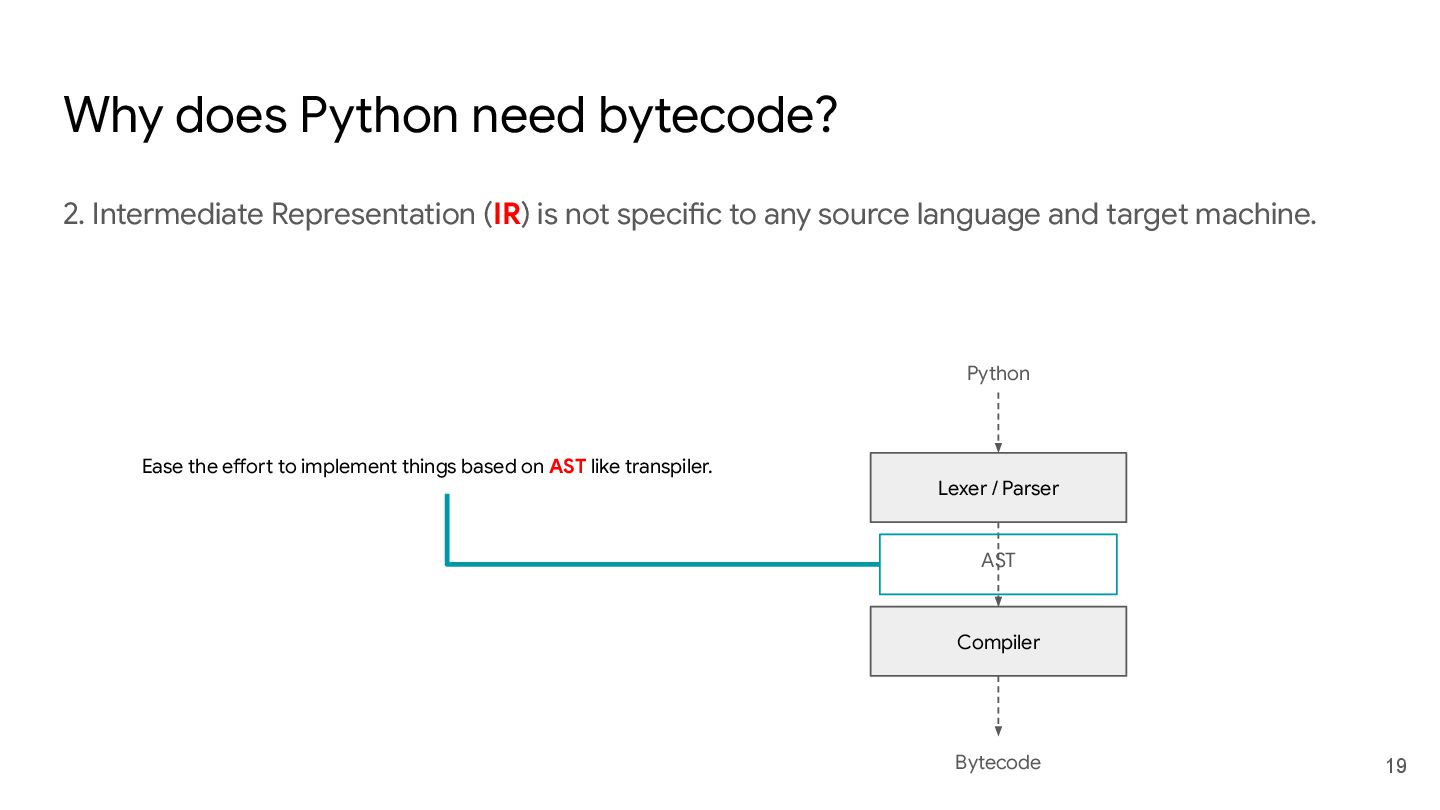

19. Why does Python need bytecode? 2. Intermediate Representation (IR) is not specific to any source language and target machine. Lexer / Parser Compiler Python AST Bytecode 19 Ease the effort to implement things based on AST like transpiler.

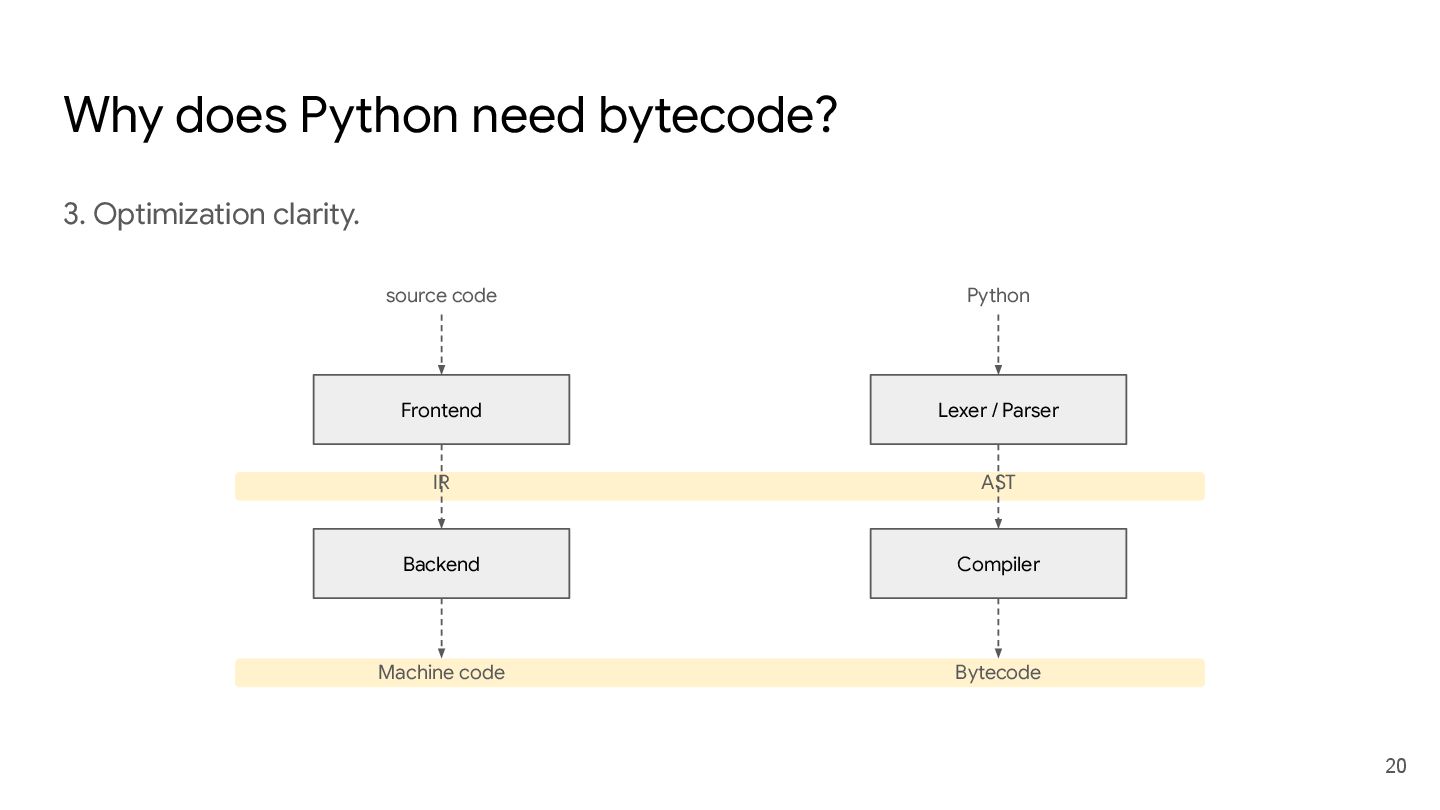

20. Why does Python need bytecode? Frontend Backend source code IR Machine code Lexer / Parser Compiler Python AST Bytecode 20 3. Optimization clarity.

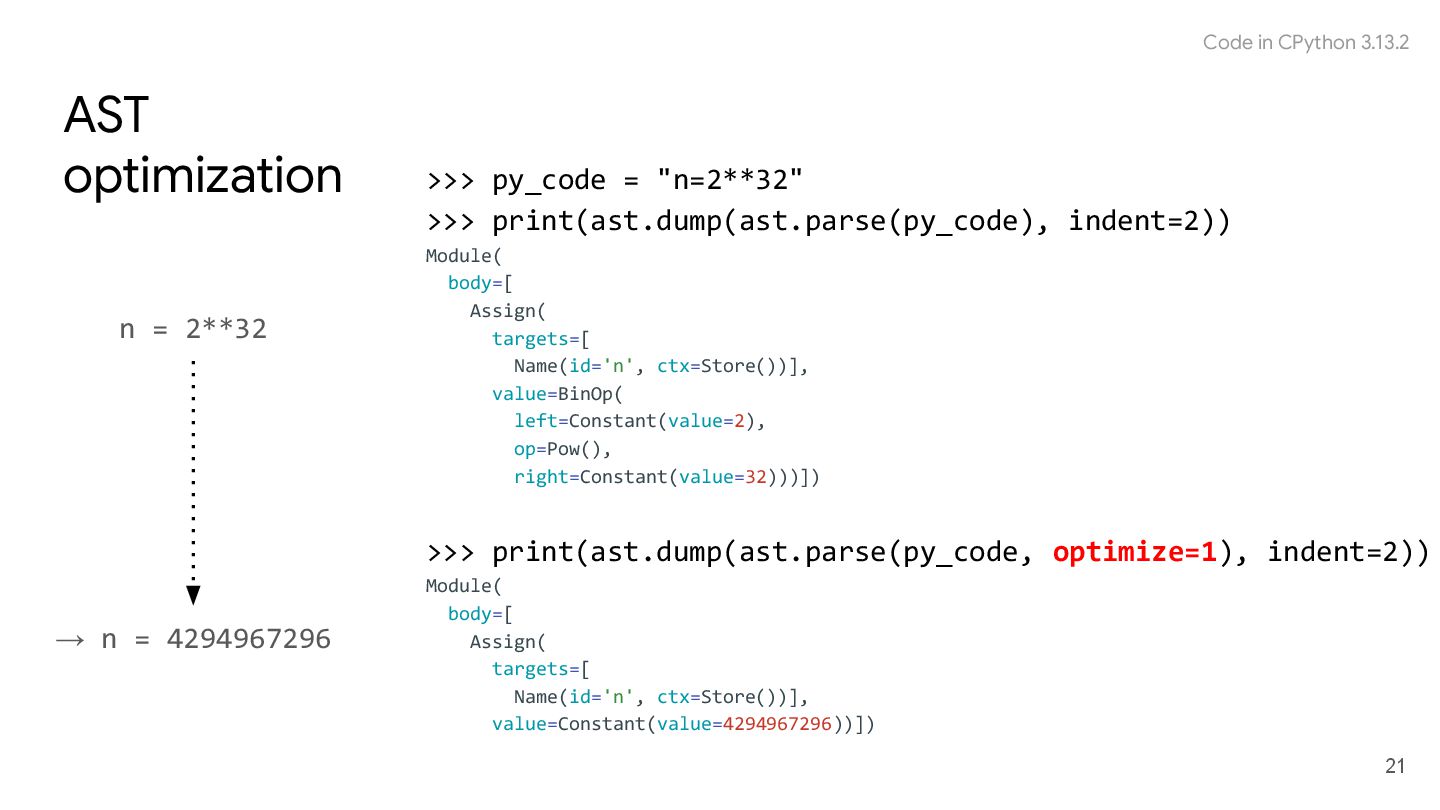

21. AST optimization 21 n = 2**32 → n = 4294967296 >>> print(ast.dump(ast.parse(py_code, optimize=1), indent=2)) Module( body=[ Assign( targets=[ Name(id='n', ctx=Store())], value=Constant(value=4294967296))]) >>> py_code = "n=2**32" >>> print(ast.dump(ast.parse(py_code), indent=2)) Module( body=[ Assign( targets=[ Name(id='n', ctx=Store())], value=BinOp( left=Constant(value=2), op=Pow(), right=Constant(value=32)))]) Code in CPython 3.13.2

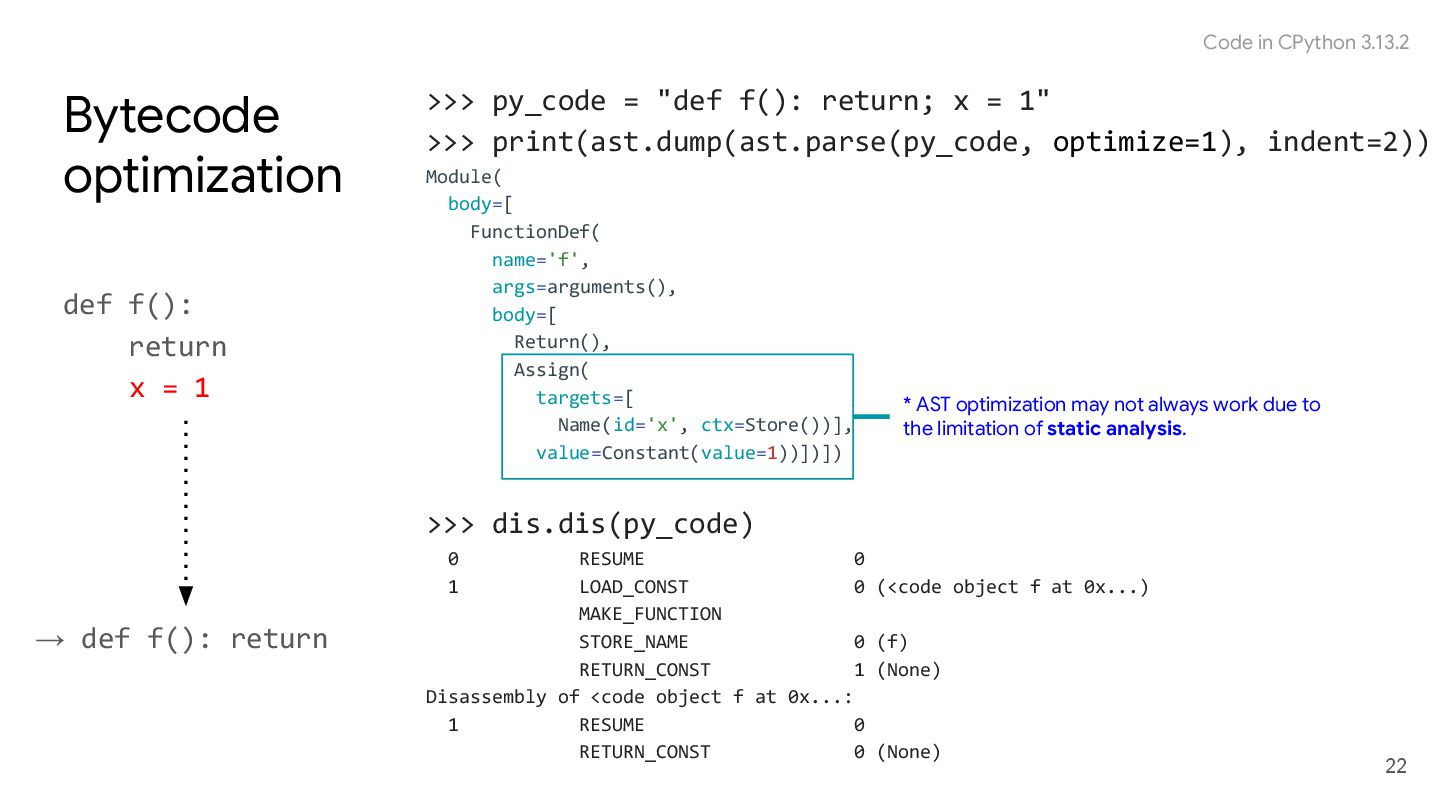

22. Bytecode optimization >>> py_code = "def f(): return; x = 1" >>> print(ast.dump(ast.parse(py_code, optimize=1), indent=2)) Module( body=[ FunctionDef( name='f', args=arguments(), body=[ Return(), Assign( targets=[ Name(id='x', ctx=Store())], value=Constant(value=1))])]) 22 def f(): return x = 1 → def f(): return >>> dis.dis(py_code) 0 RESUME 0 1 LOAD_CONST 0 (<code object f at 0x...) MAKE_FUNCTION STORE_NAME 0 (f) RETURN_CONST 1 (None) Disassembly of <code object f at 0x...: 1 RESUME 0 RETURN_CONST 0 (None) * AST optimization may not always work due to the limitation of static analysis. Code in CPython 3.13.2
23. 23 Bytecode development in CPython
24. 24 Do we still introduce new bytecode today?

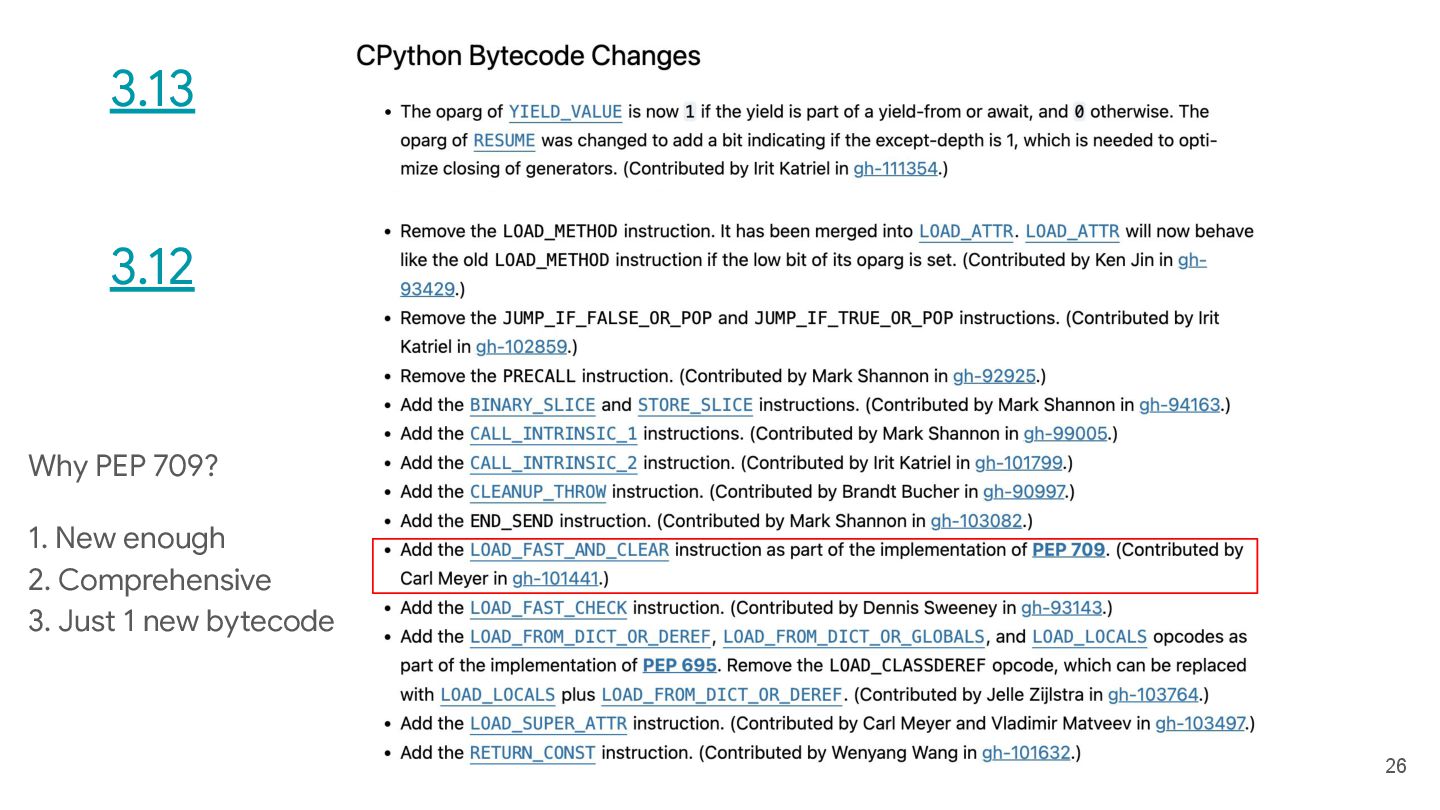

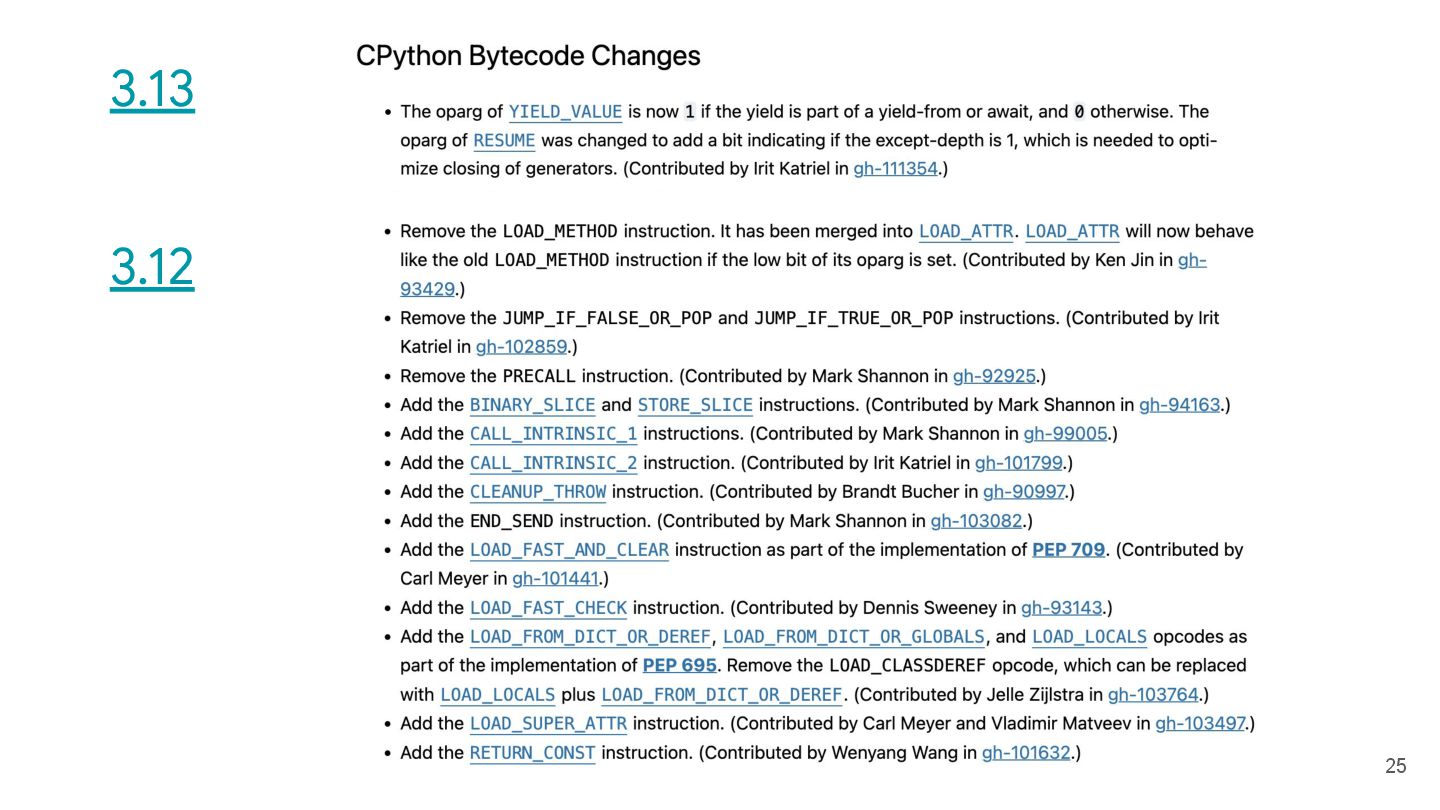

25. 3.13 3.12 25
26. 26 Why PEP 709? 1. New enough 2. Comprehensive 3. Just 1 new bytecode 3.13 3.12

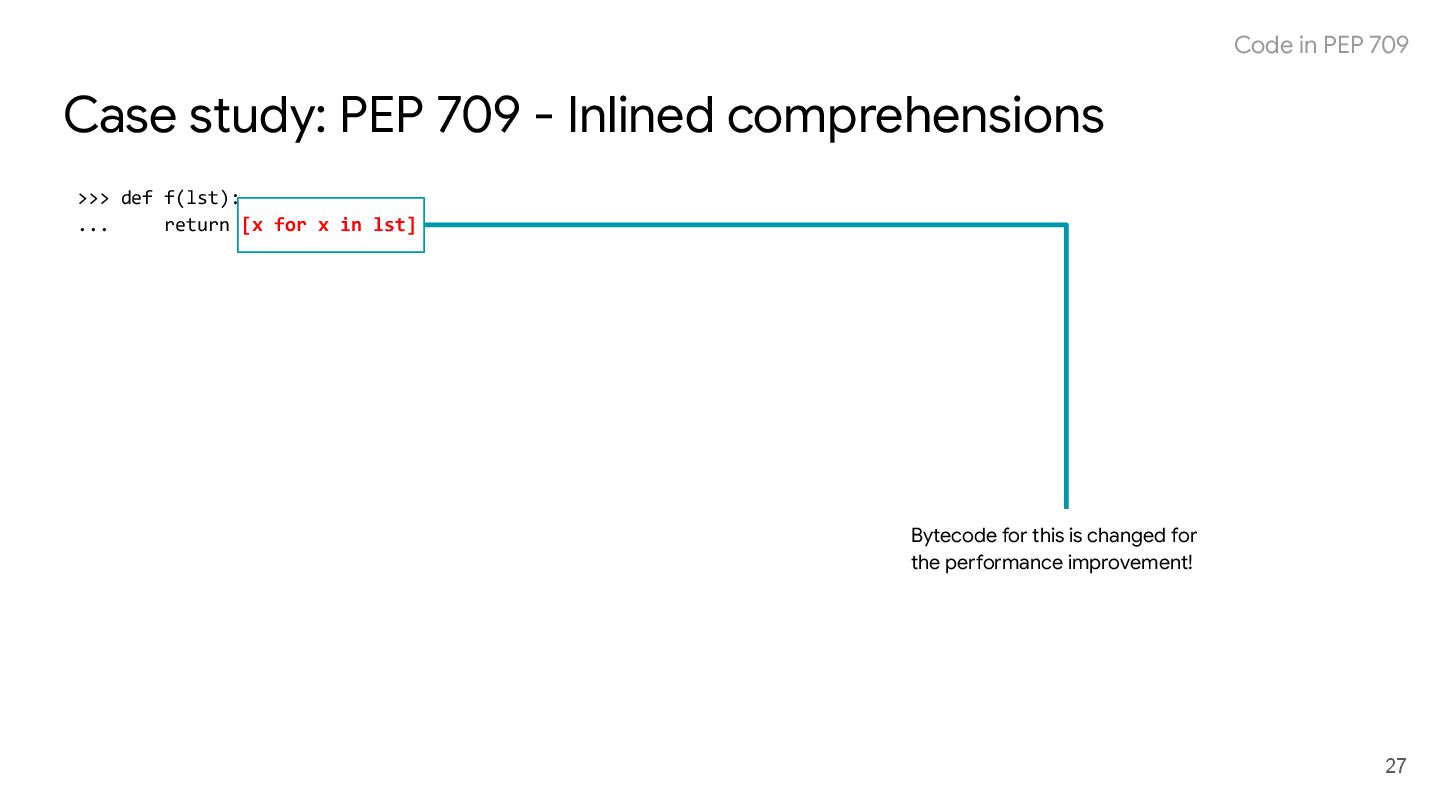

27. Case study: PEP 709 - Inlined comprehensions 27 >>> def f(lst): ... return [x for x in lst] Code in PEP 709 Bytecode for this is changed for the performance improvement!

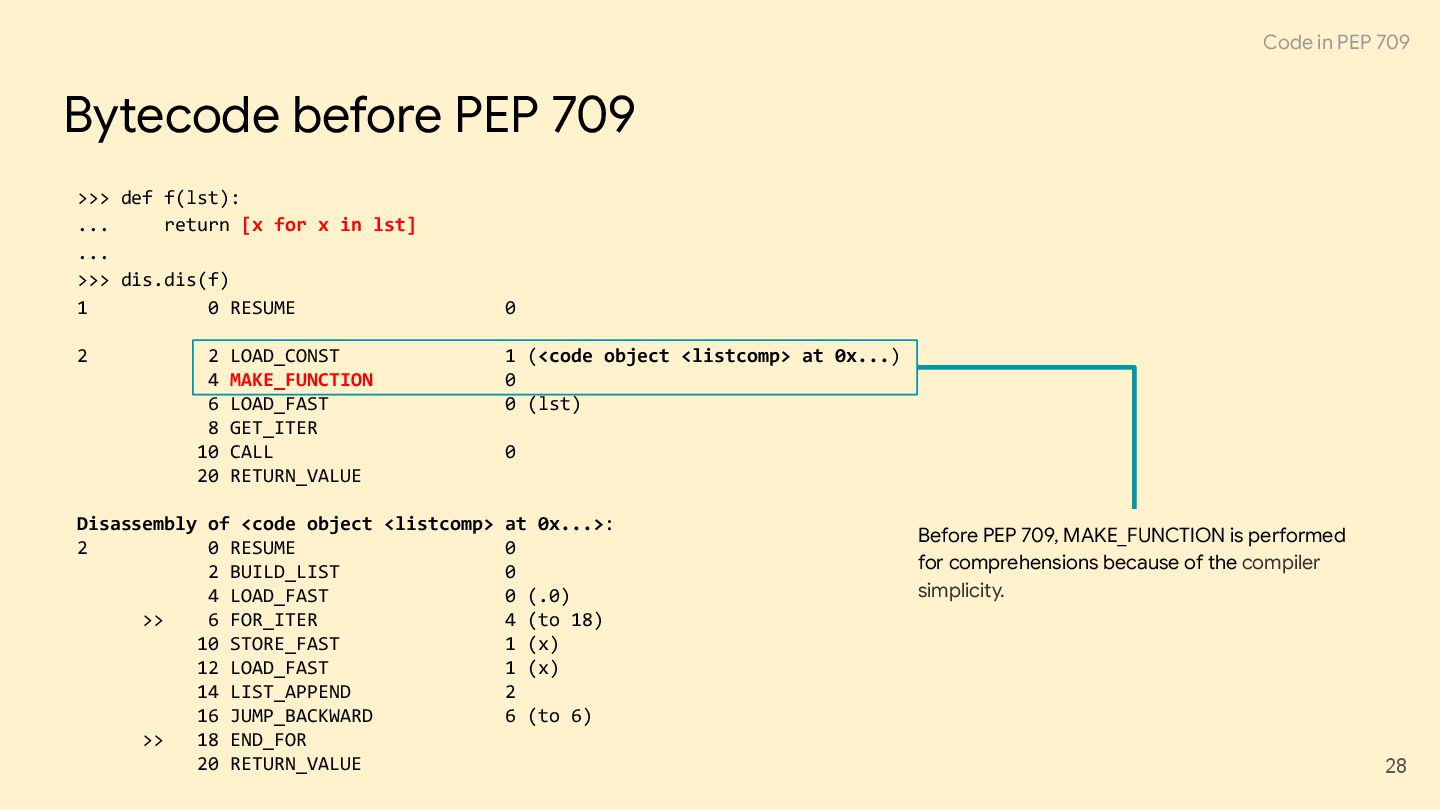

28. Bytecode before PEP 709 28 >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Before PEP 709, MAKE_FUNCTION is performed for comprehensions because of the compiler simplicity. Code in PEP 709
29. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 29 co_consts = { } co_varnames = { } Code in PEP 709
30. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 30 <listcomp> co_consts = { # 0: None 1: <listcomp> } co_varnames = { } Code in PEP 709

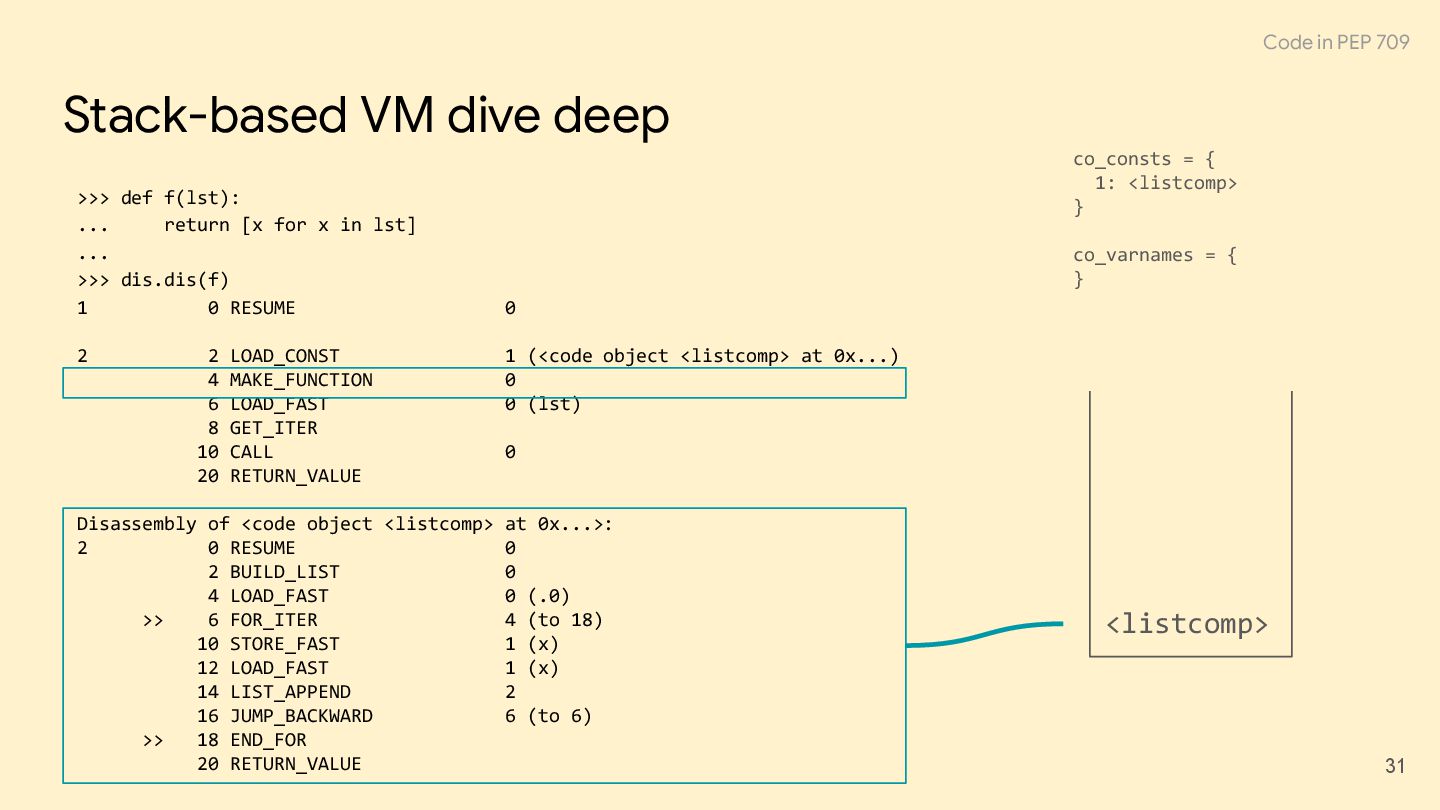

31. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 31 <listcomp> co_consts = { 1: <listcomp> } co_varnames = { } Code in PEP 709

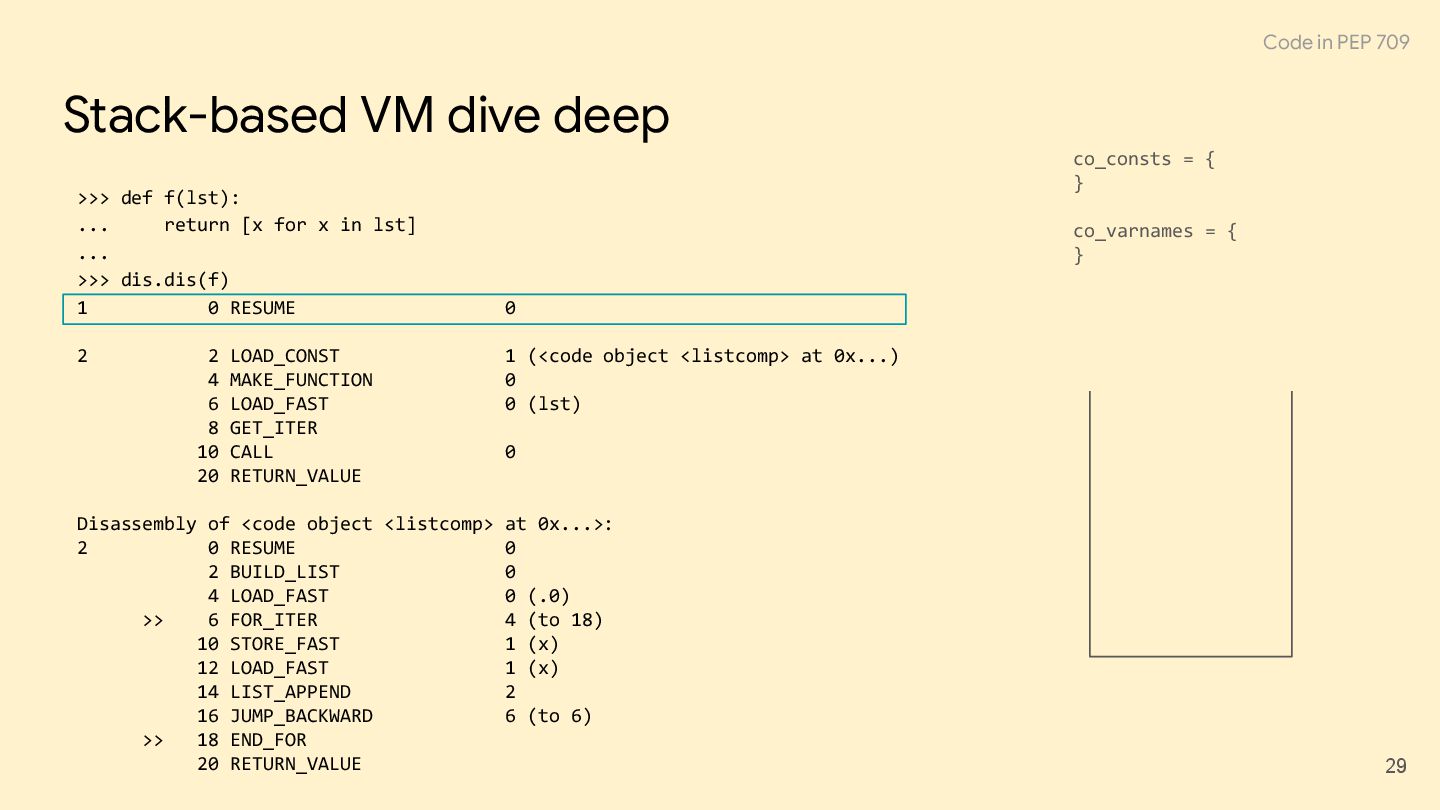

32. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 32 co_consts = { 1: <listcomp> } co_varnames = { 0: lst } <listcomp> lst Code in PEP 709 <listcomp>

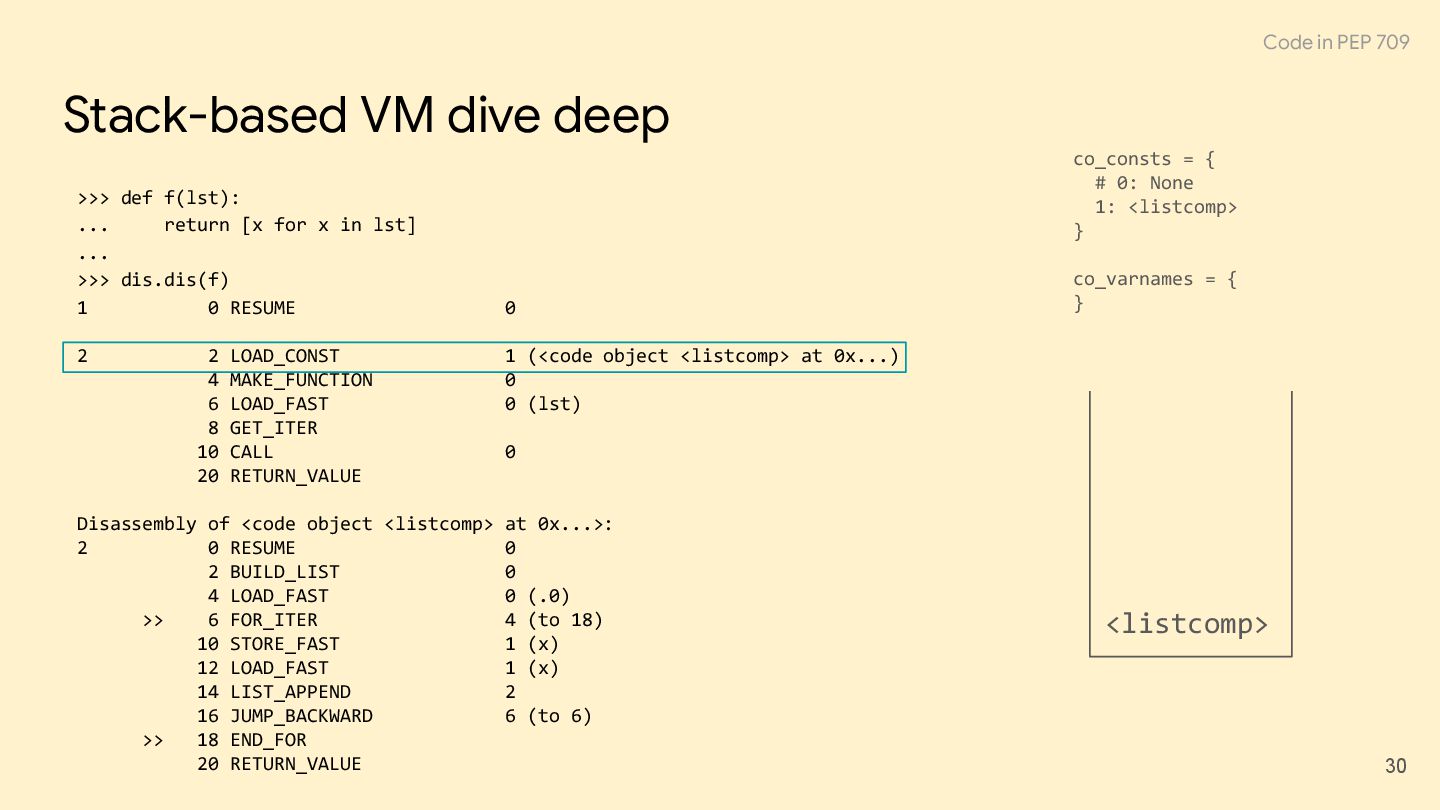

33. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 33 co_consts = { 1: <listcomp> } co_varnames = { 0: lst } <listcomp> iter(lst) Code in PEP 709

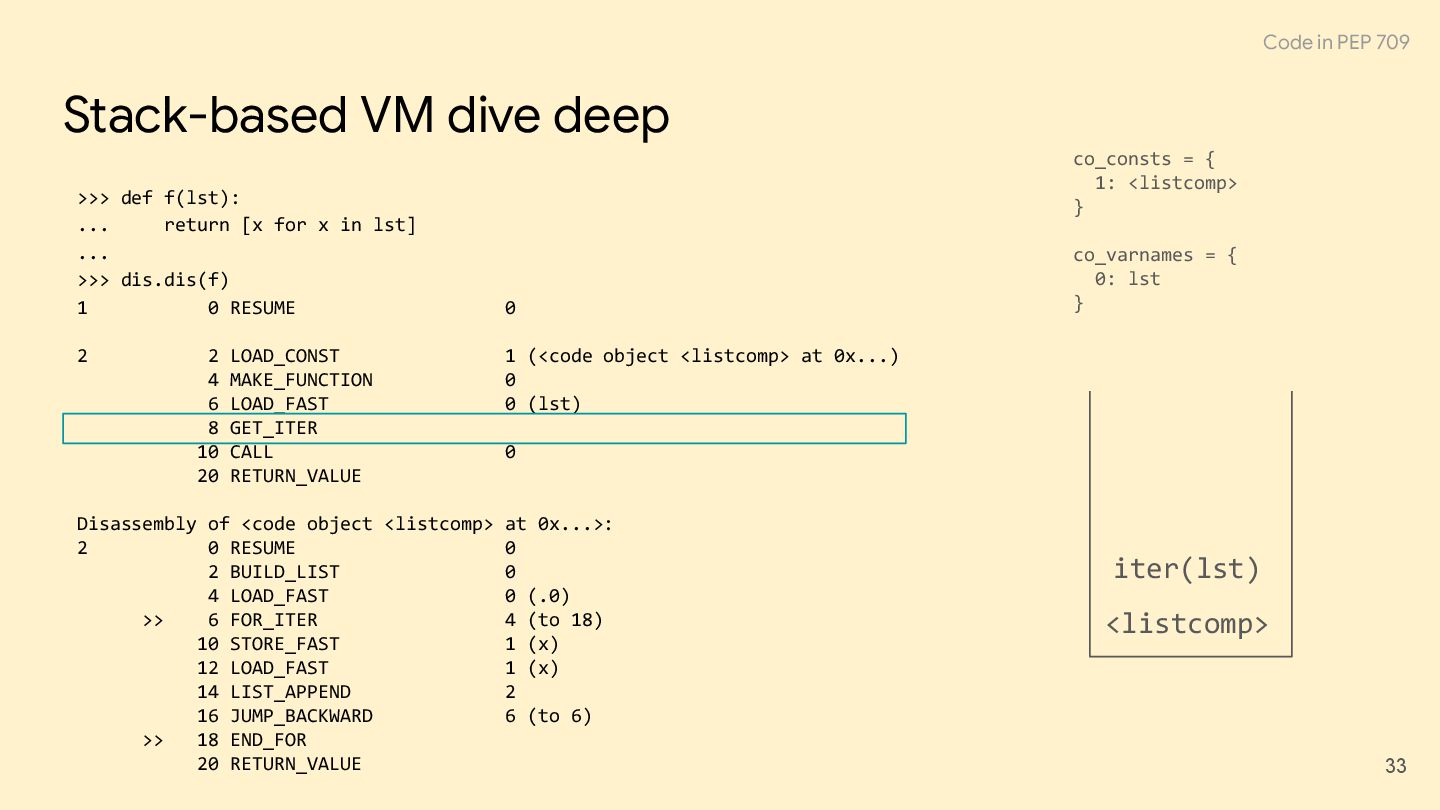

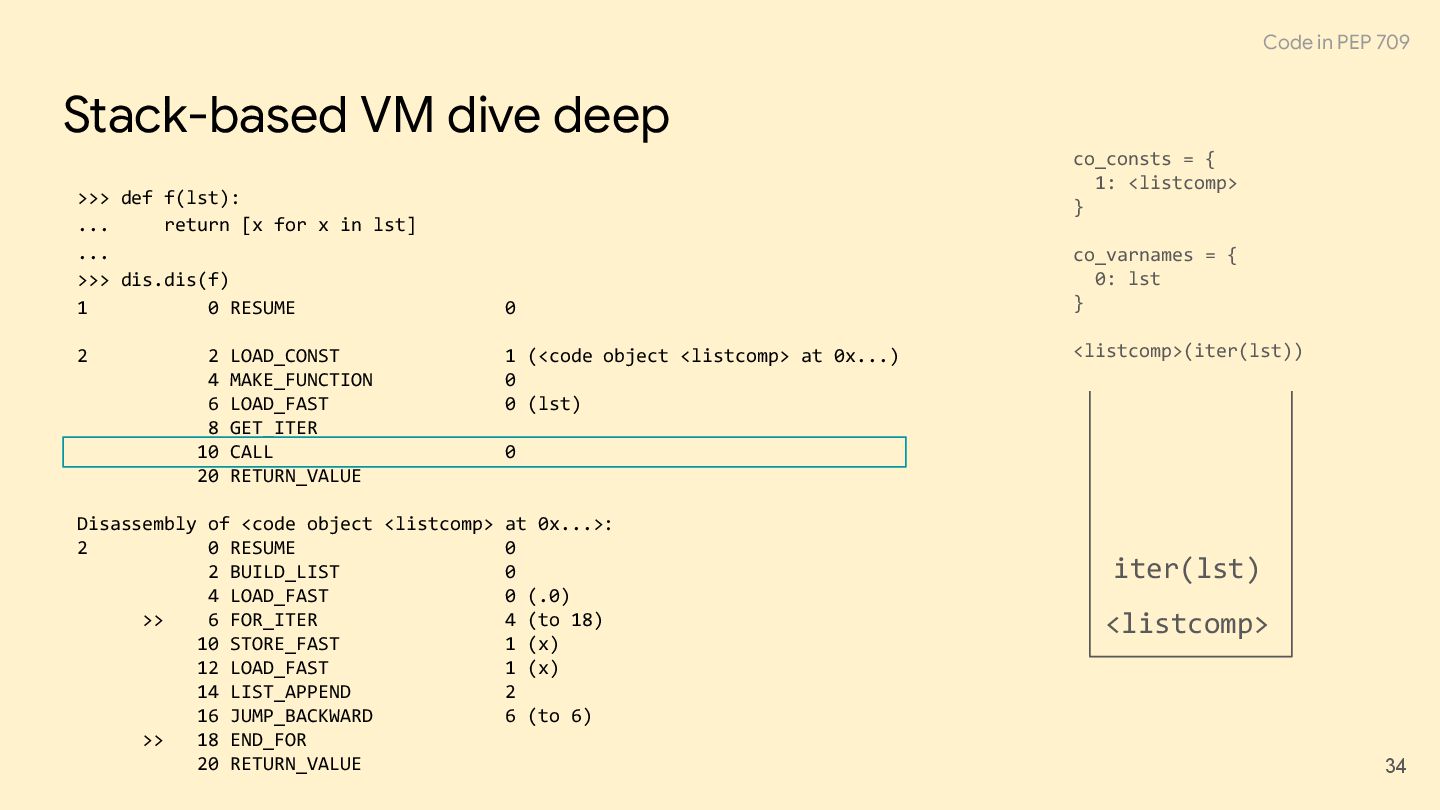

34. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 34 co_consts = { 1: <listcomp> } co_varnames = { 0: lst } <listcomp>(iter(lst)) Code in PEP 709 <listcomp> iter(lst)

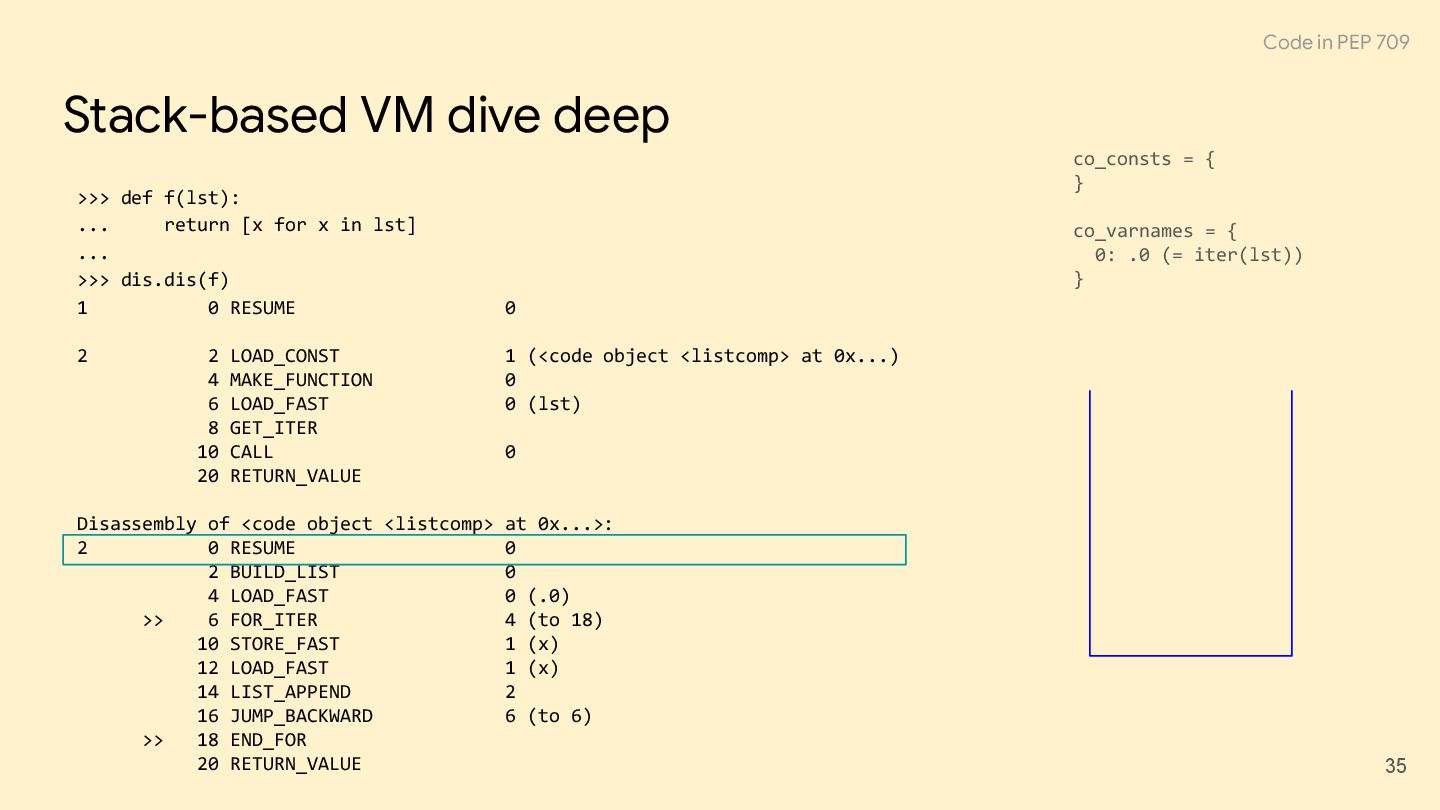

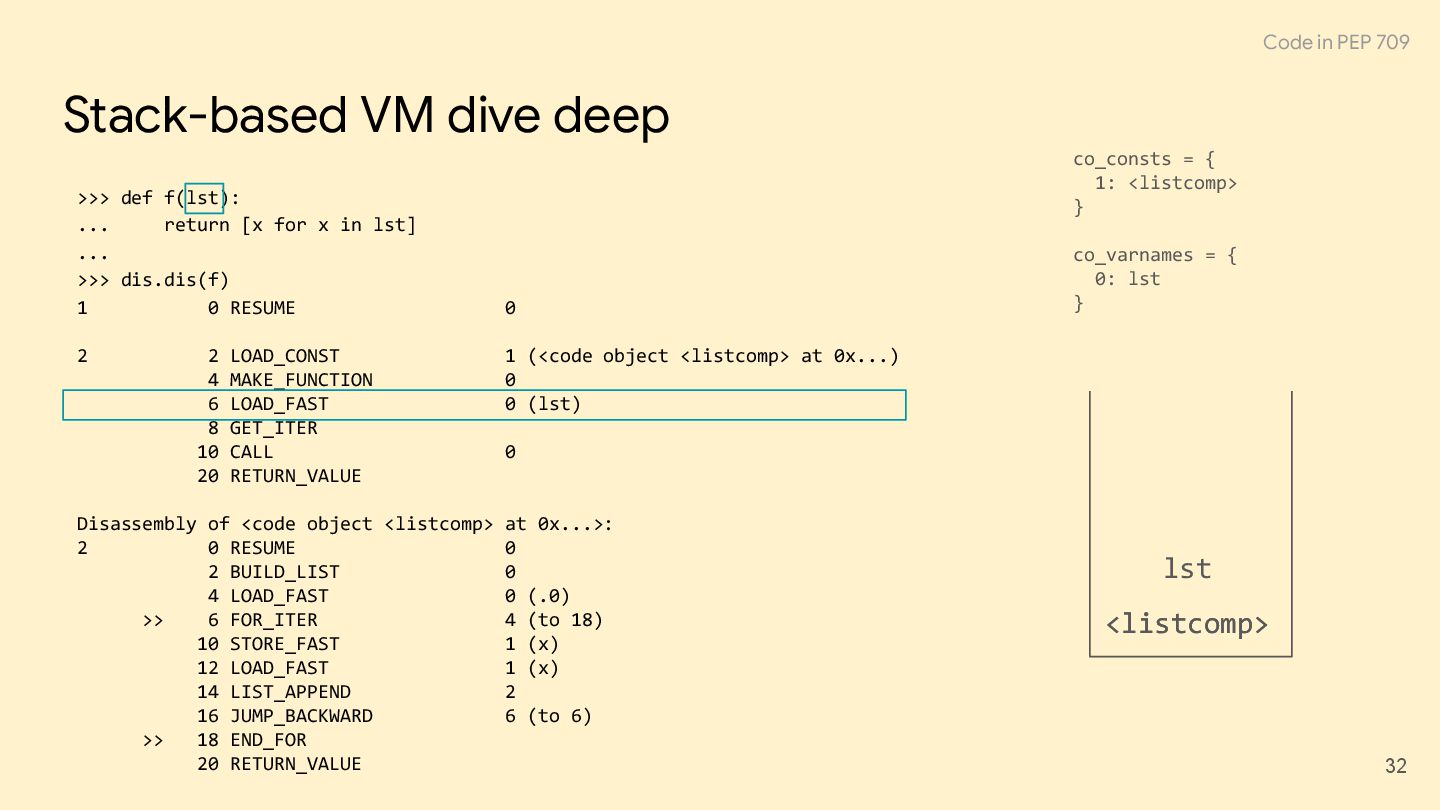

35. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 35 Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) }
36. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 36 [] Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) }

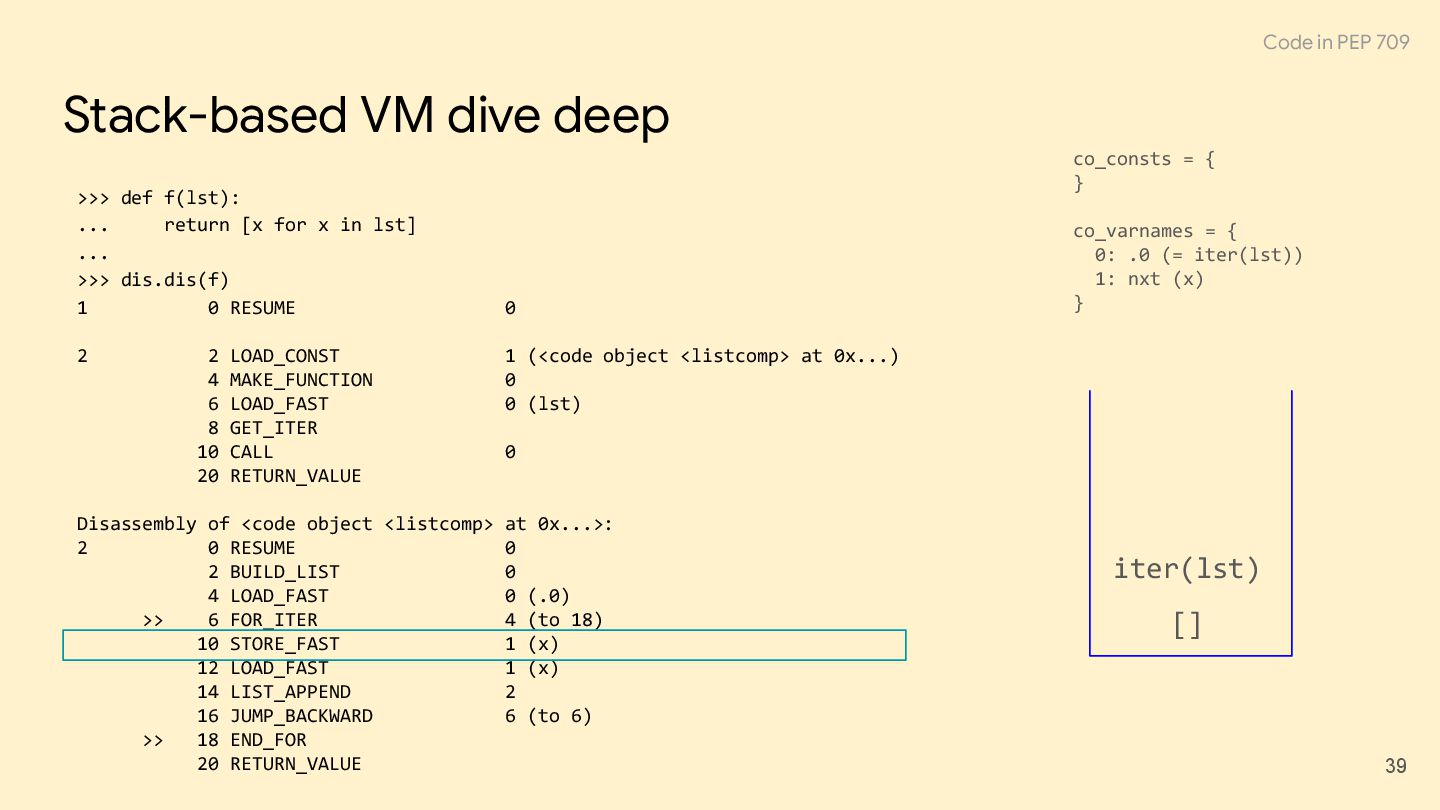

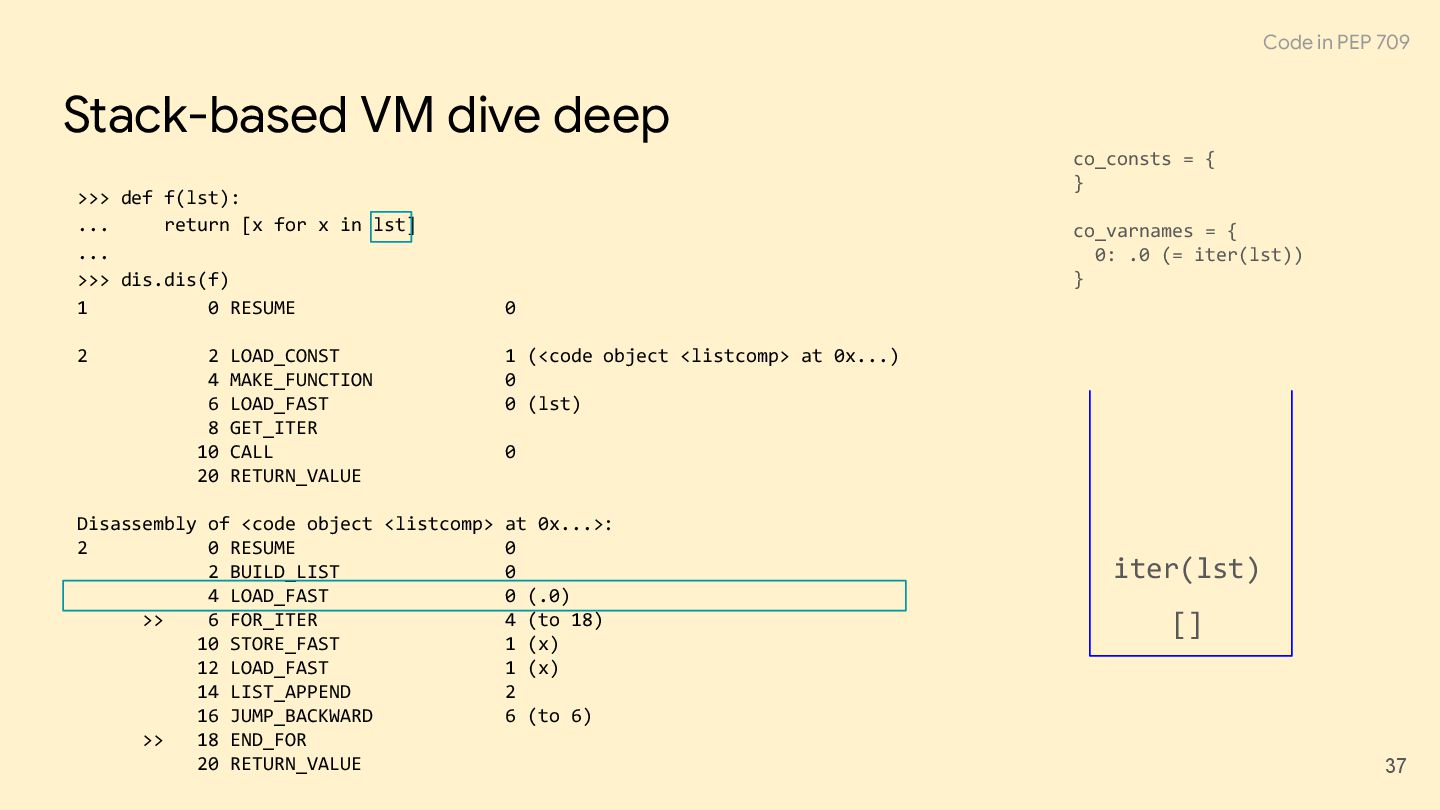

37. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 37 [] iter(lst) Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) }
38. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 38 co_varnames = { 0: .0 (= iter(lst)) } nxt = next(iter(lst)) [] iter(lst) nxt Code in PEP 709 co_consts = { }

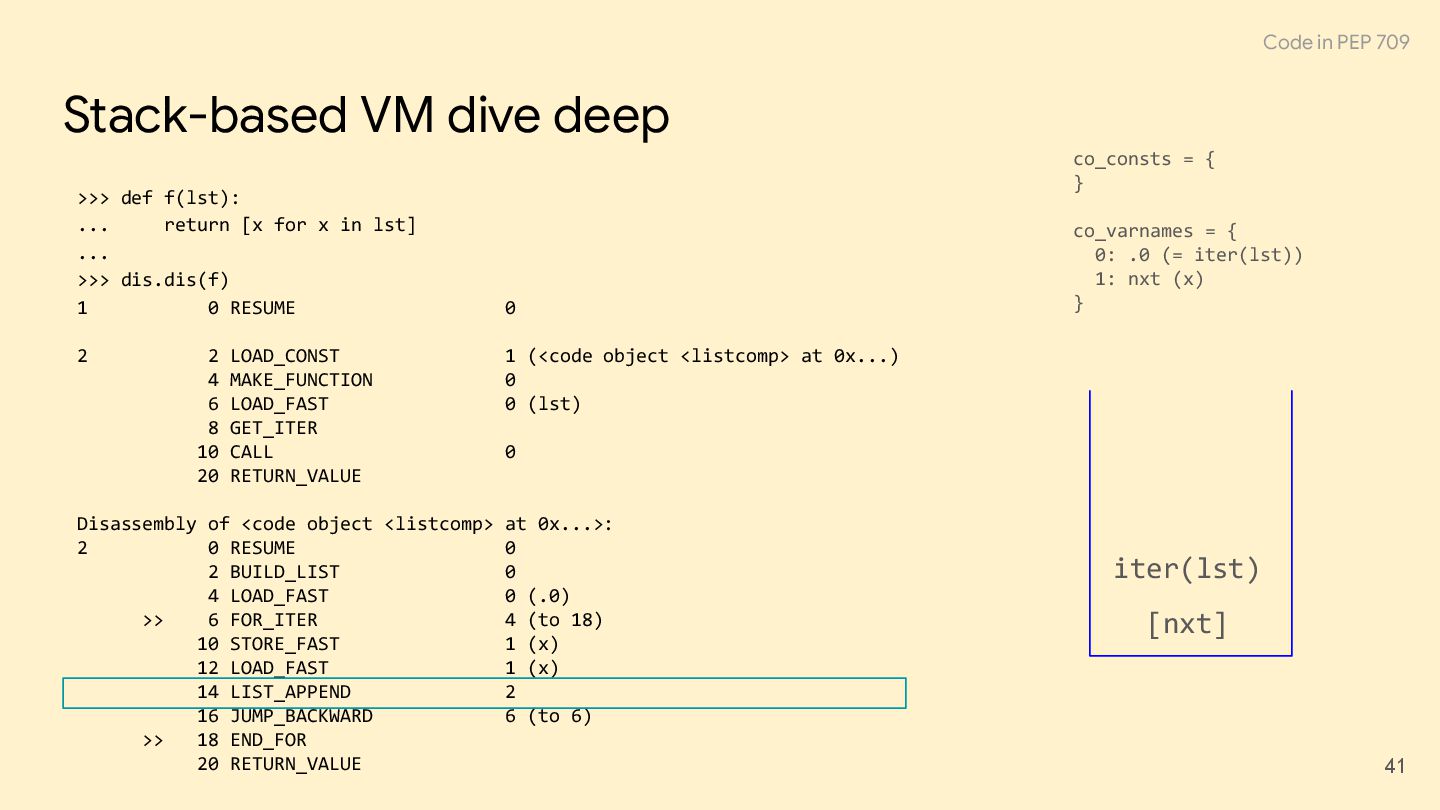

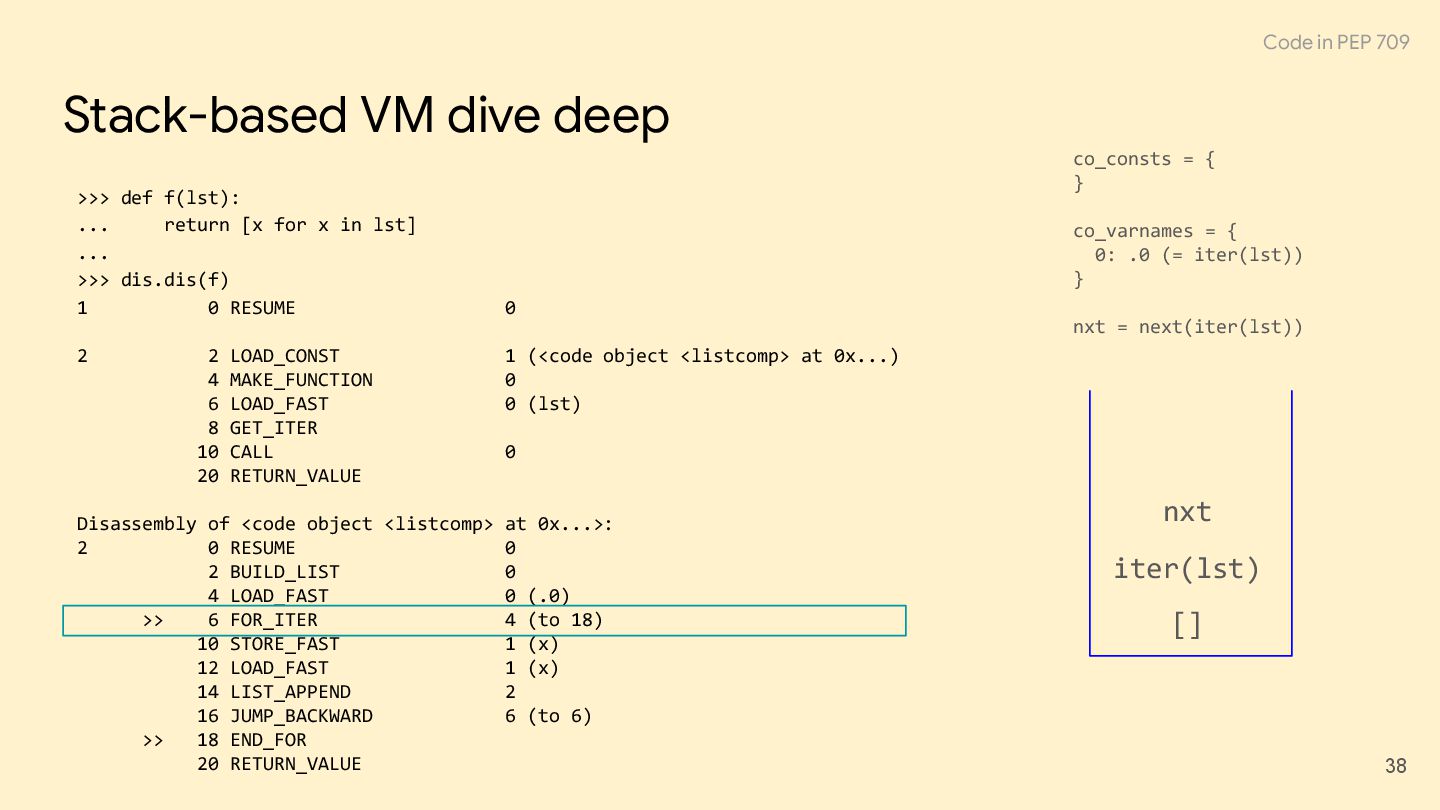

39. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 39 [] iter(lst) Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }

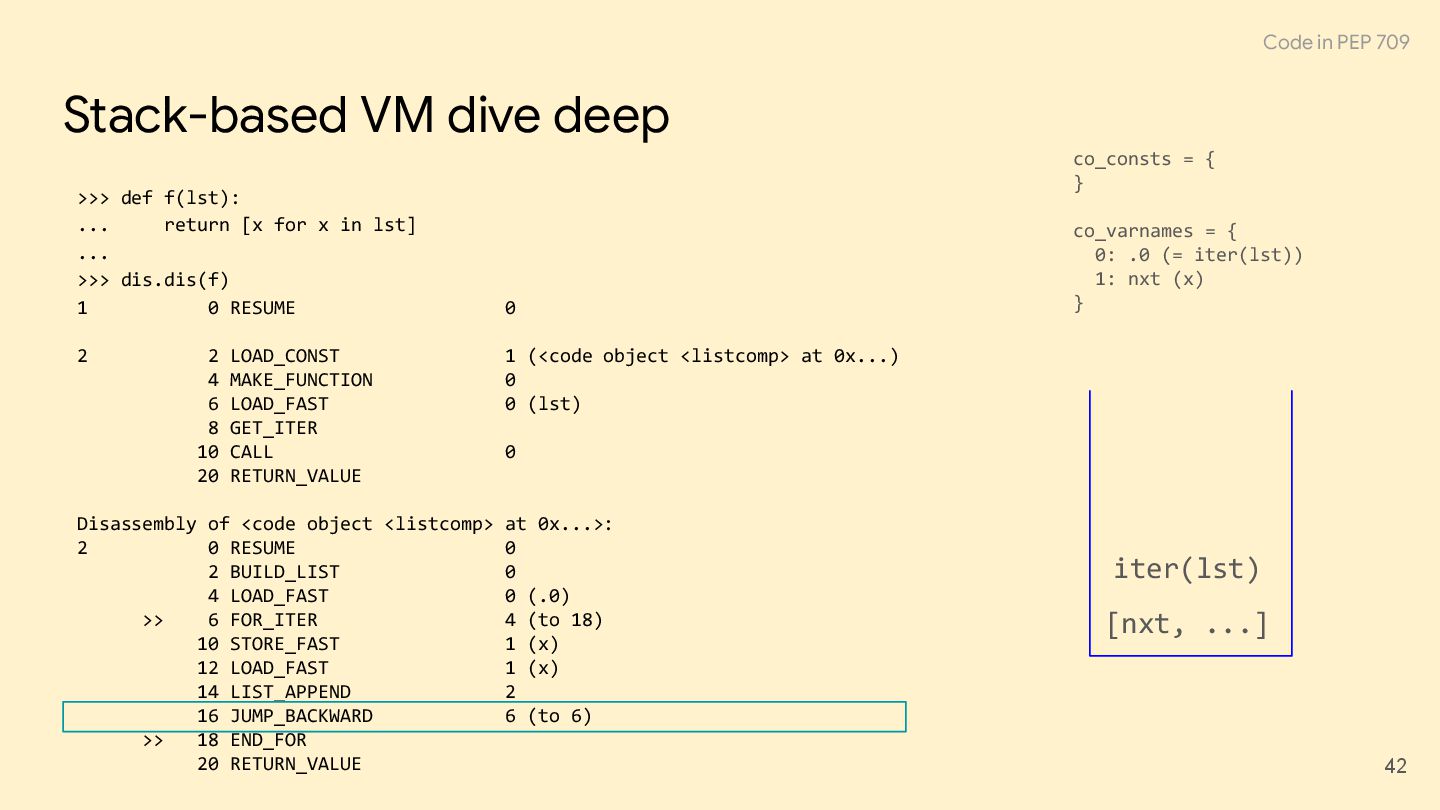

40. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 40 [] iter(lst) nxt Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }
41. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 41 [nxt] iter(lst) Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }
42. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 42 [nxt, ...] iter(lst) Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }

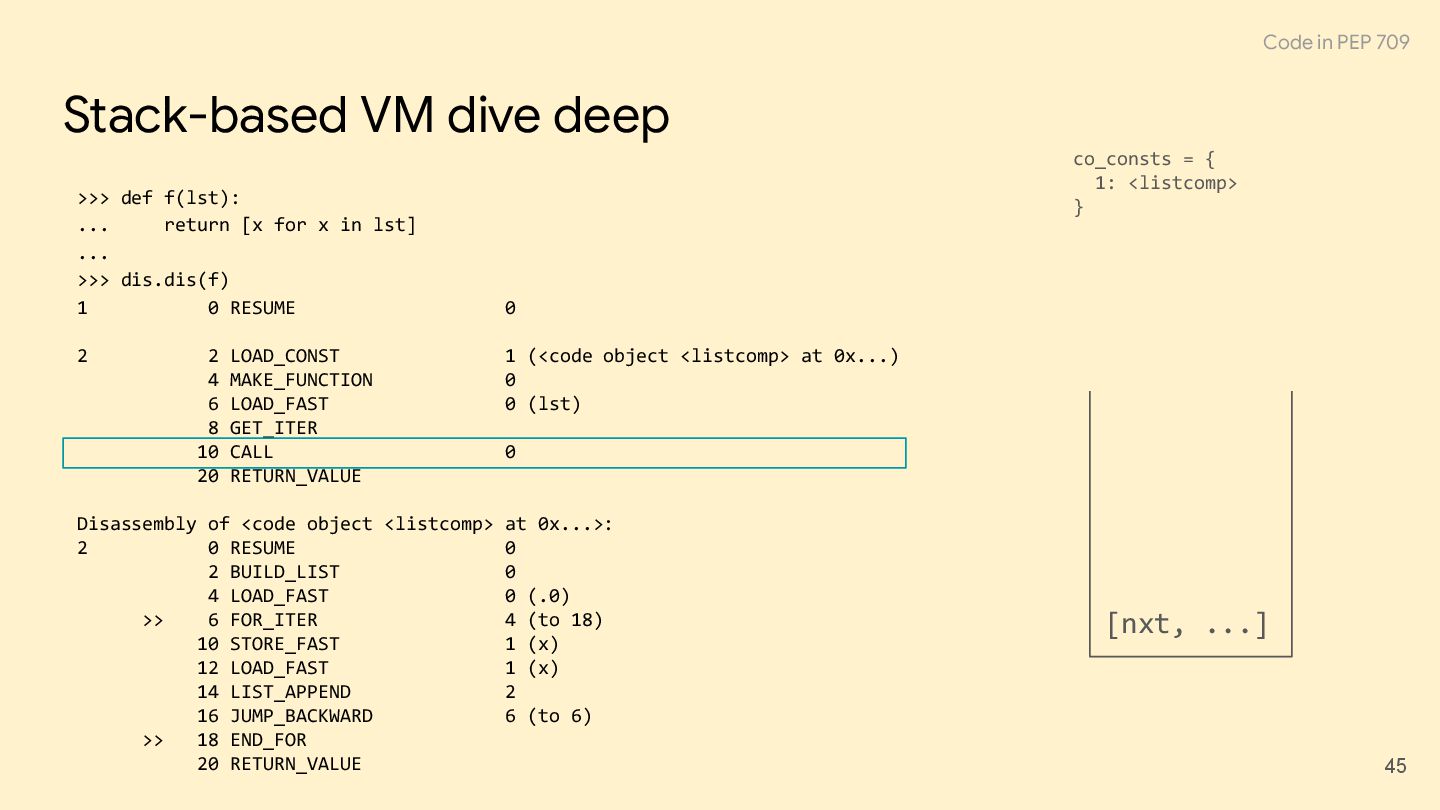

43. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 43 [nxt, ...] Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }
44. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 44 Code in PEP 709 co_consts = { } co_varnames = { 0: .0 (= iter(lst)) 1: nxt (x) }

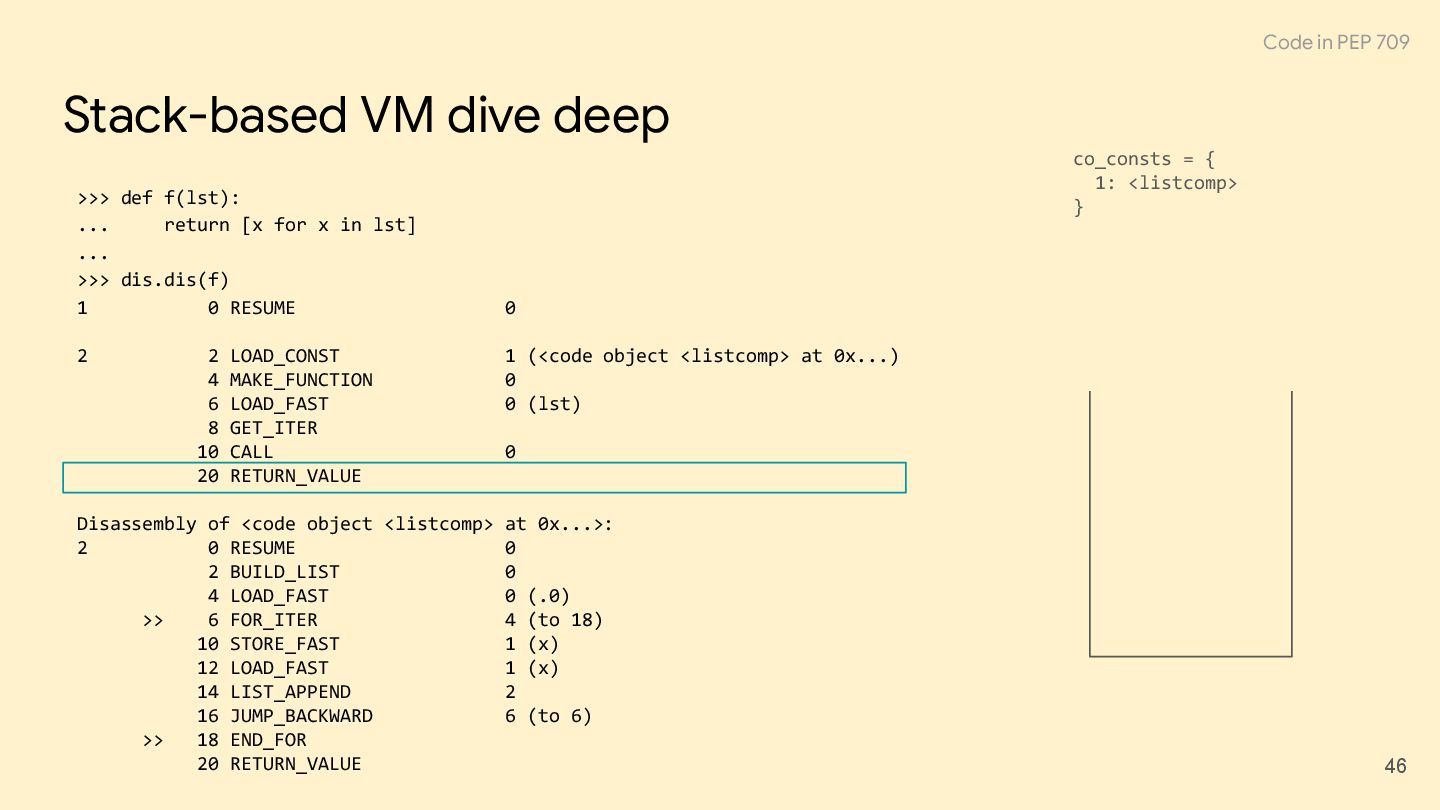

45. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 45 co_consts = { 1: <listcomp> } [nxt, ...] Code in PEP 709
46. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 0x...) 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE Stack-based VM dive deep 46 co_consts = { 1: <listcomp> } Code in PEP 709

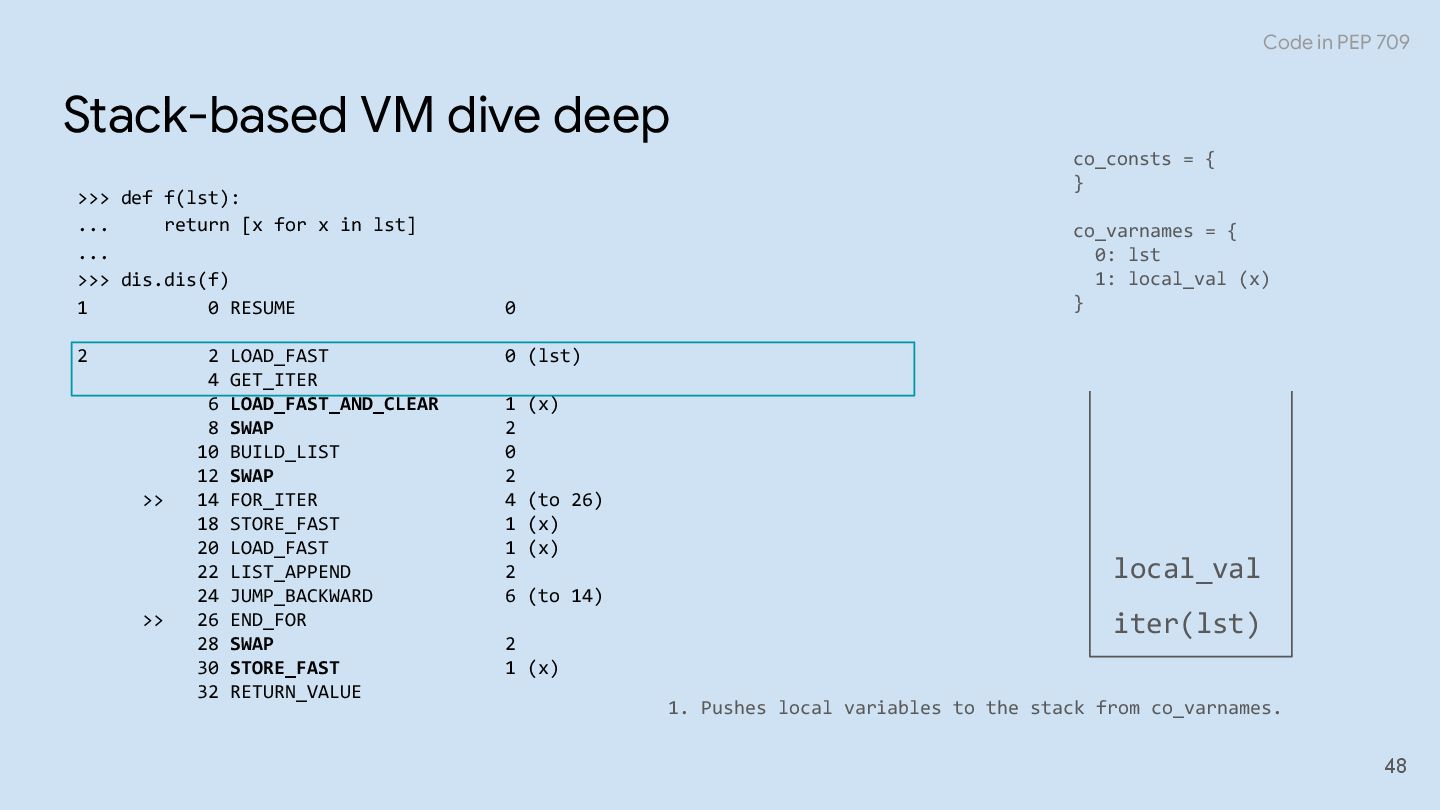

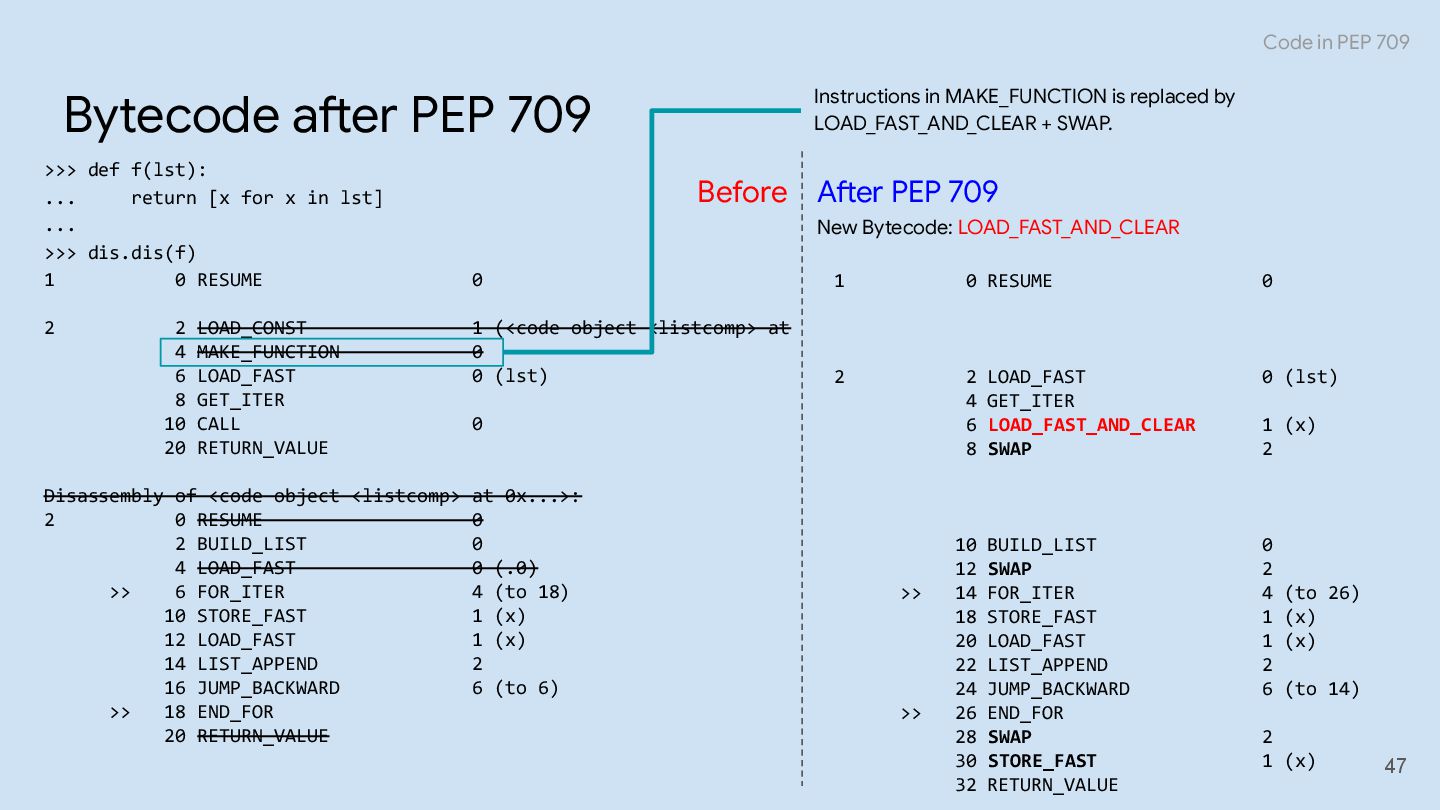

47. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE 47 Instructions in MAKE_FUNCTION is replaced by LOAD_FAST_AND_CLEAR + SWAP. Code in PEP 709 After PEP 709 New Bytecode: LOAD_FAST_AND_CLEAR Before Bytecode after PEP 709
48. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 48 Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: local_val (x) } iter(lst) local_val 1. Pushes local variables to the stack from co_varnames.

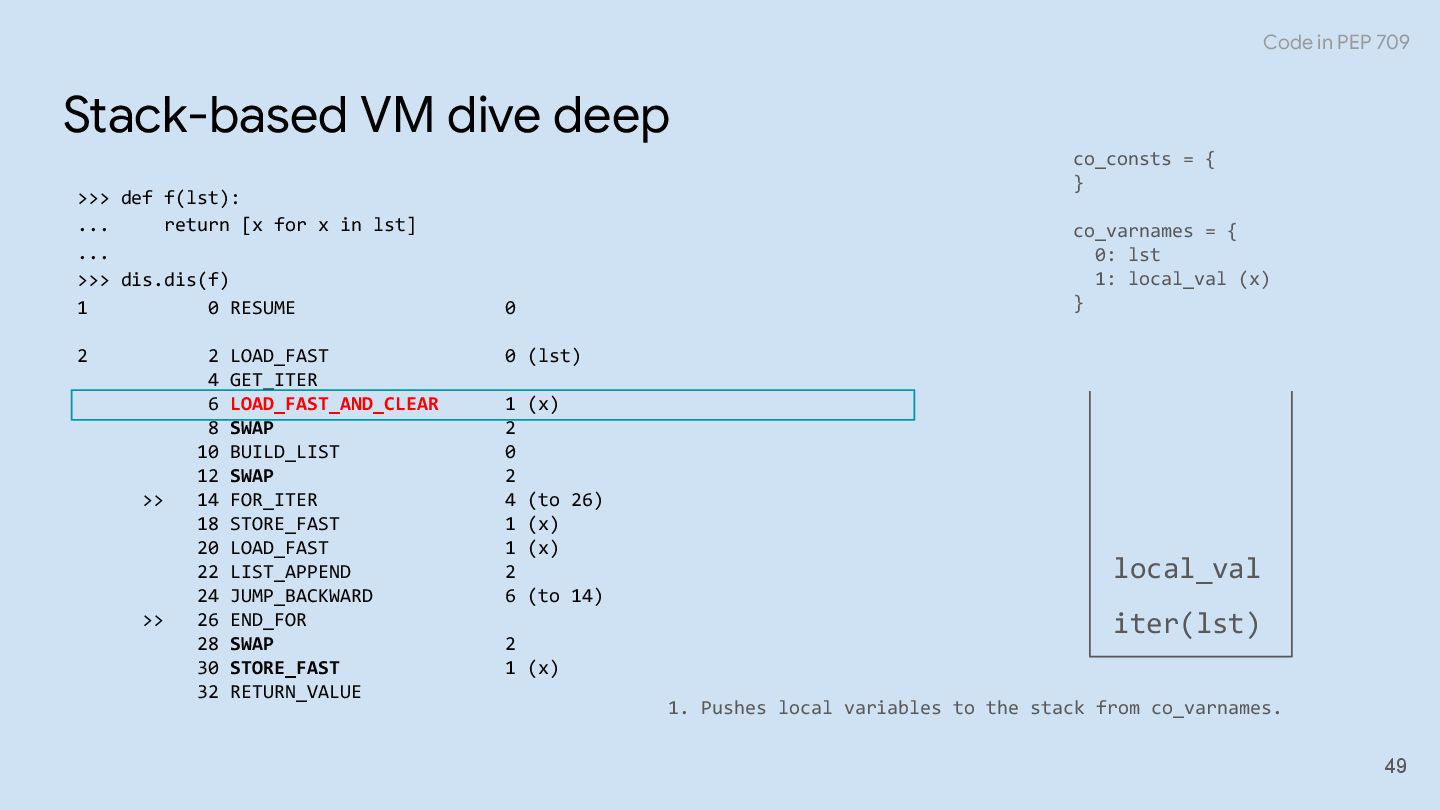

49. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 49 Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: local_val (x) } iter(lst) local_val 1. Pushes local variables to the stack from co_varnames.
50. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 50 local_val iter(lst) Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: local_val (x) }
51. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 51 local_val iter(lst) [] Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: local_val (x) }

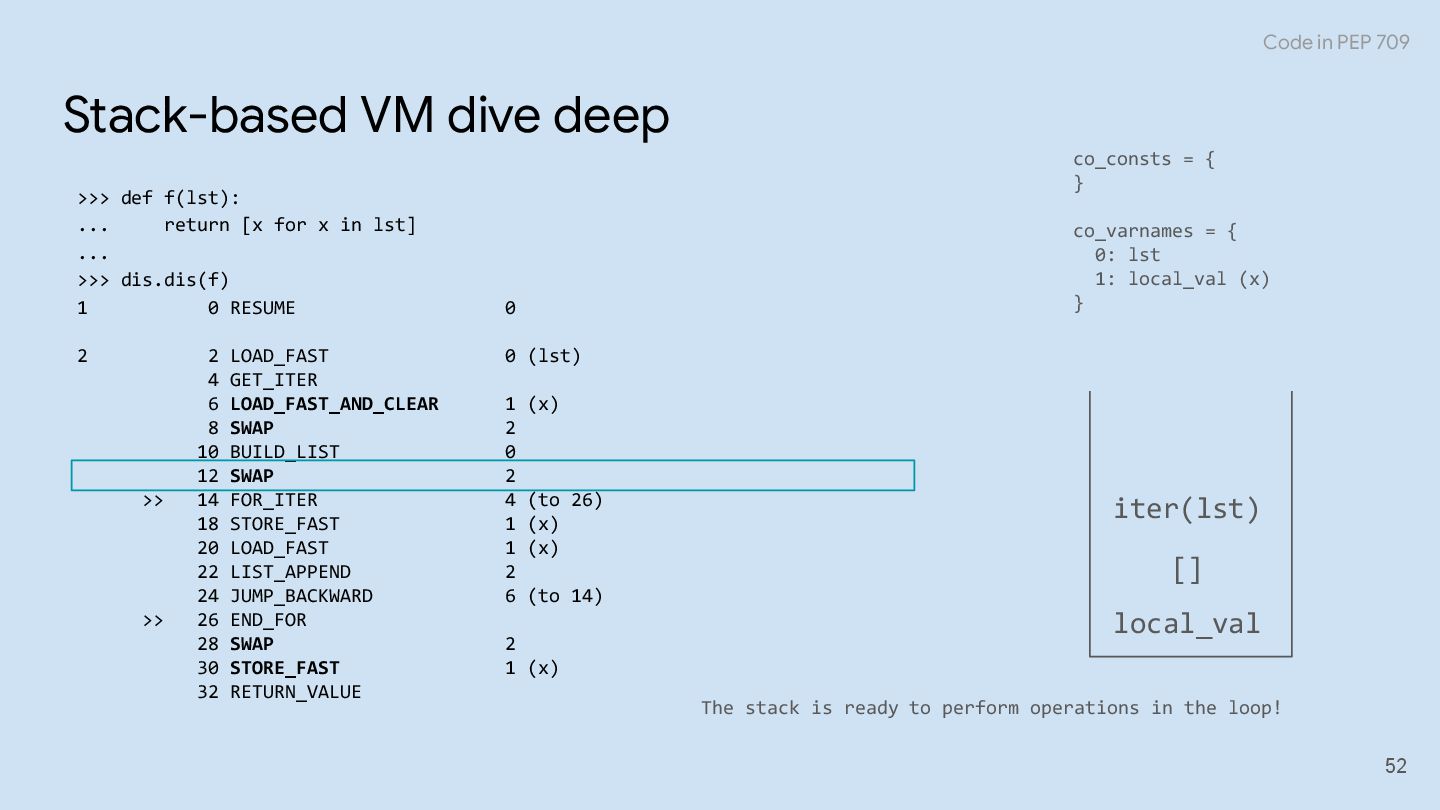

52. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 52 local_val [] iter(lst) Code in PEP 709 The stack is ready to perform operations in the loop! co_consts = { } co_varnames = { 0: lst 1: local_val (x) }

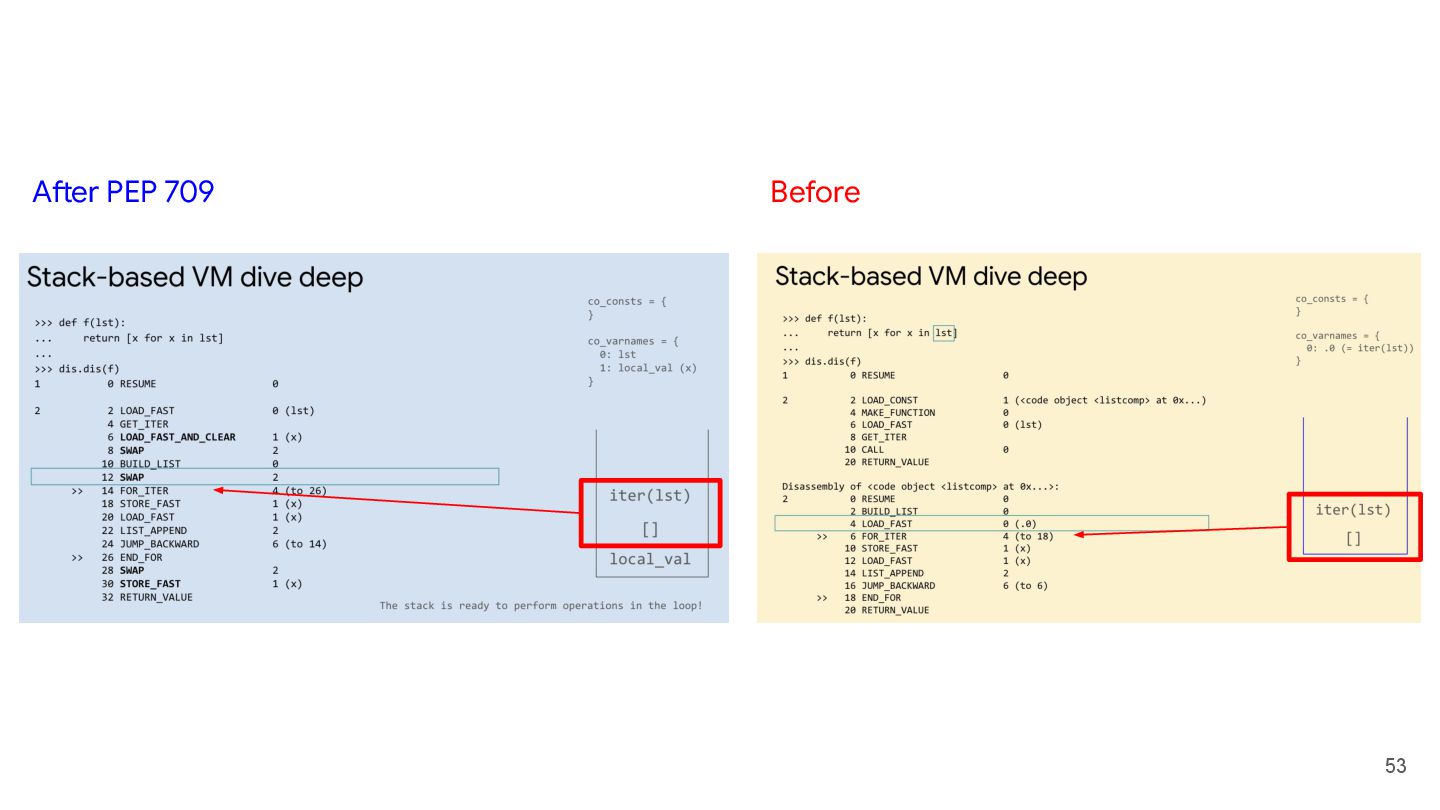

53. 53 After PEP 709 Before
54. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 54 local_val [nxt, ...] Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: nxt }

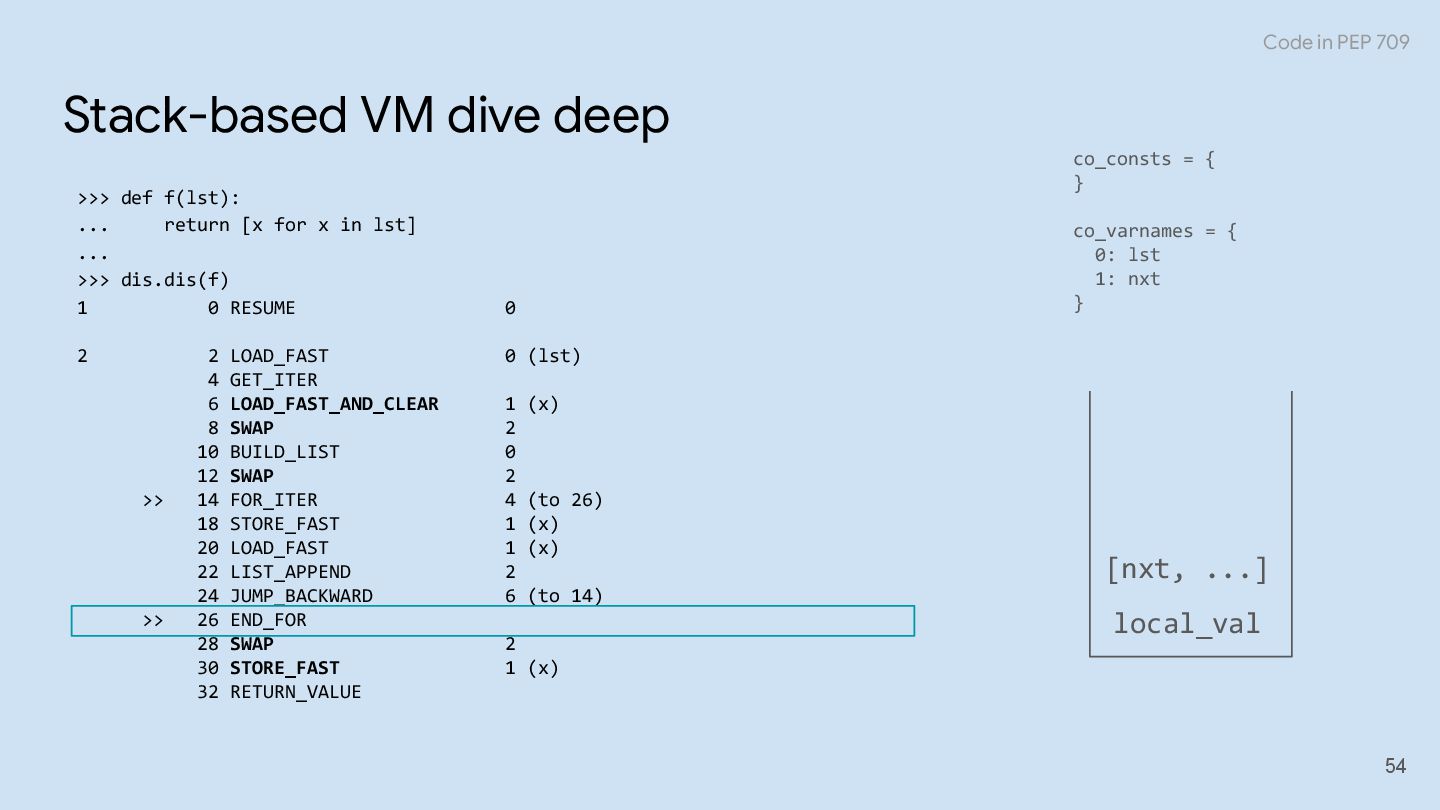

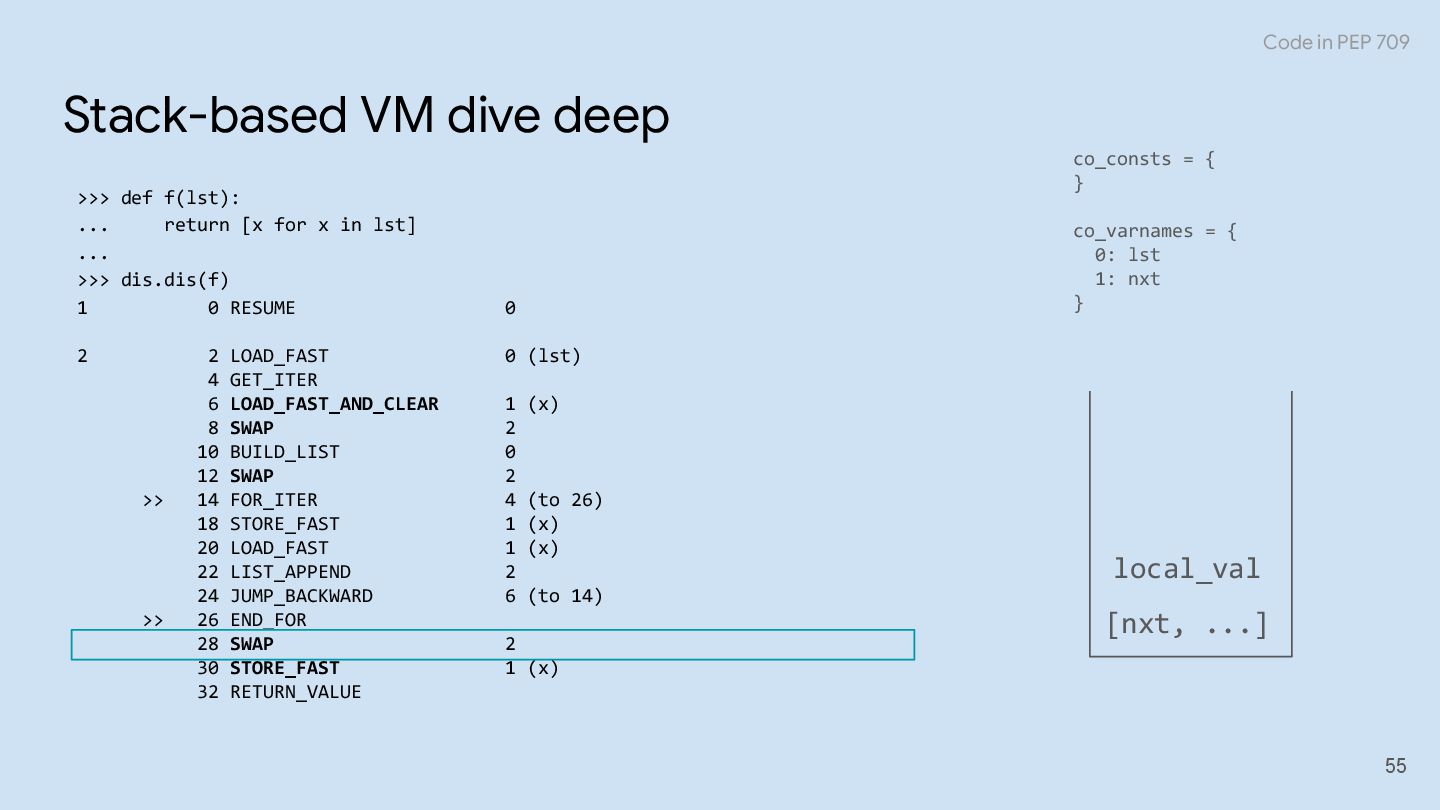

55. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 55 [nxt, ...] local_val Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: nxt }

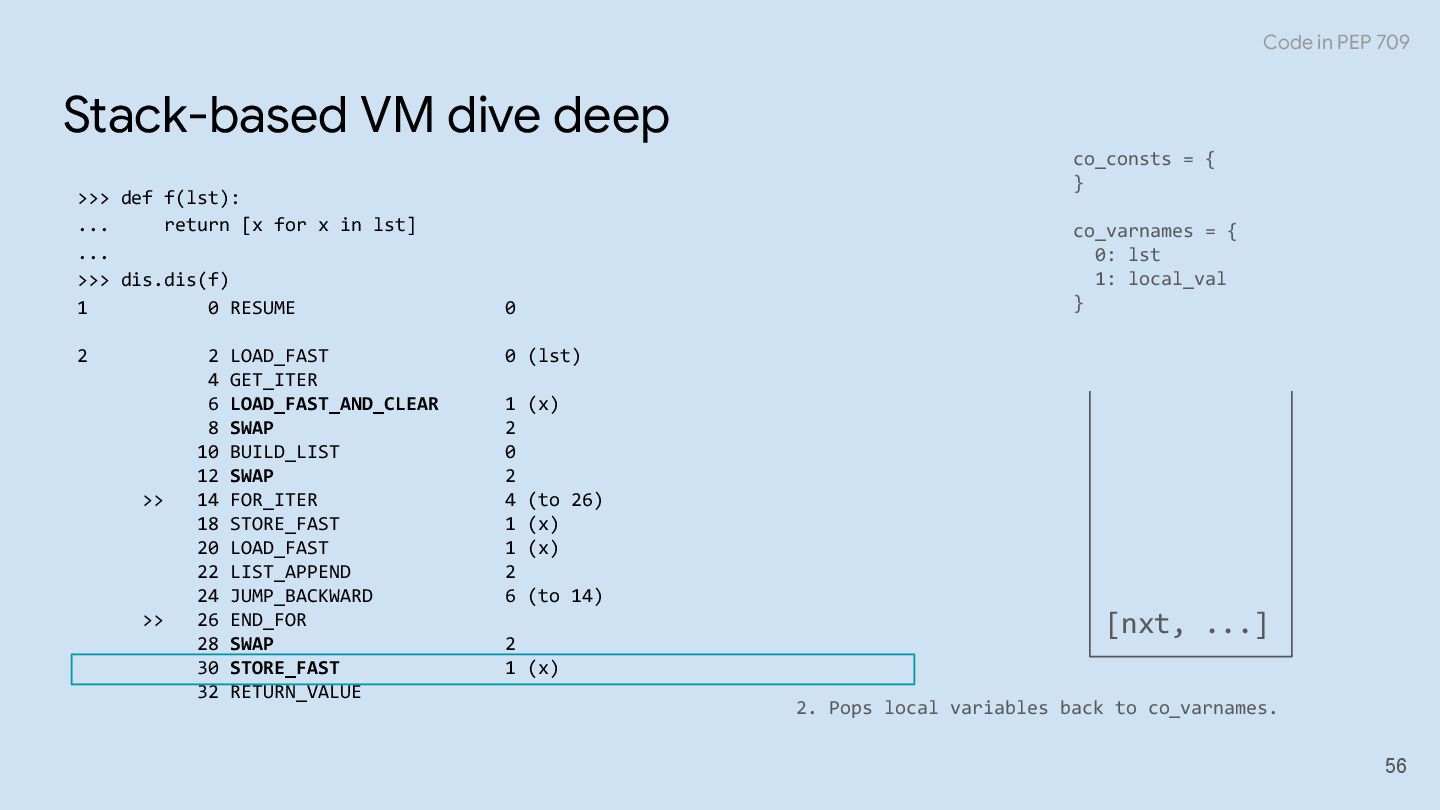

56. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE Stack-based VM dive deep 56 [nxt, ...] Code in PEP 709 co_consts = { } co_varnames = { 0: lst 1: local_val } 2. Pops local variables back to co_varnames.

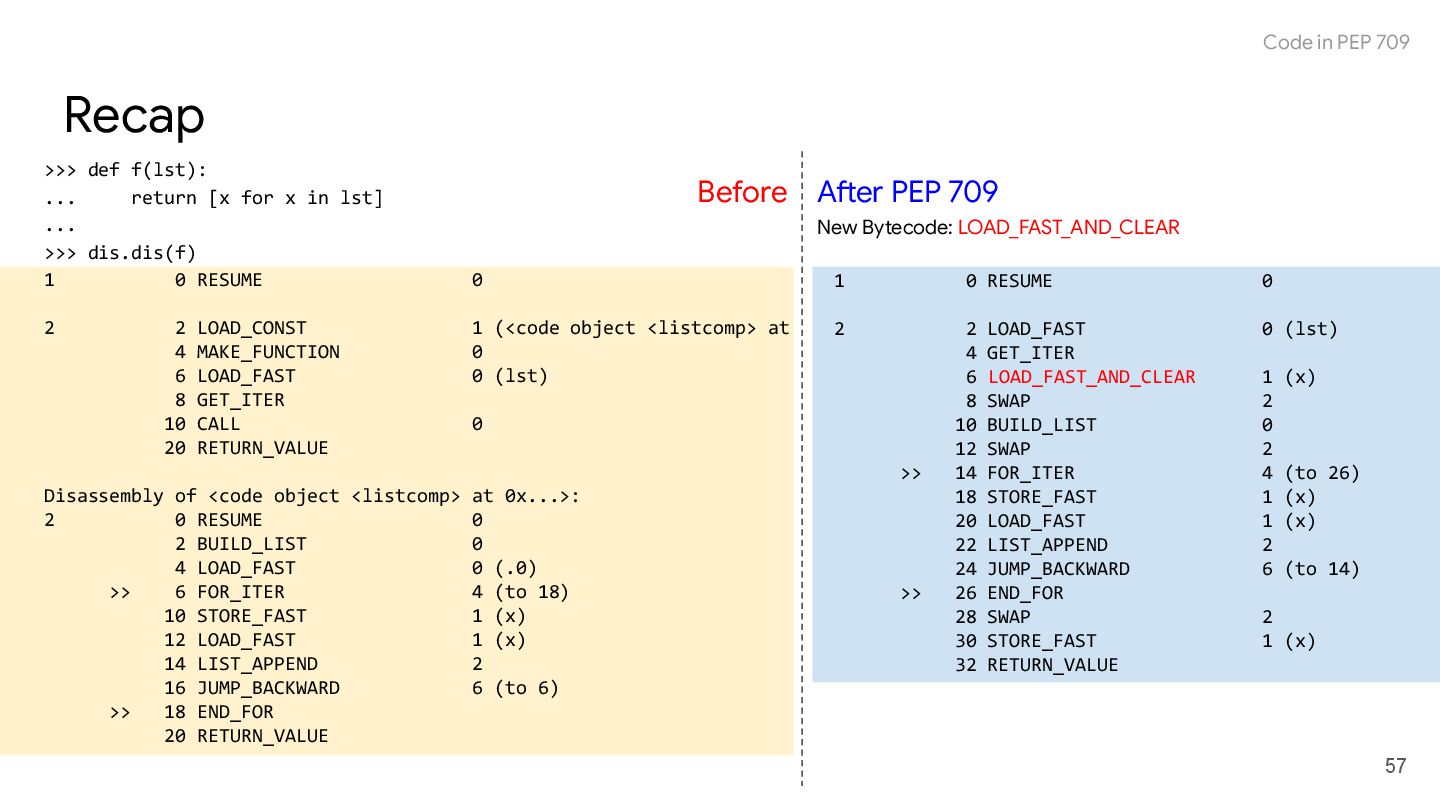

57. >>> def f(lst): ... return [x for x in lst] ... >>> dis.dis(f) 1 0 RESUME 0 2 2 LOAD_CONST 1 (<code object <listcomp> at 4 MAKE_FUNCTION 0 6 LOAD_FAST 0 (lst) 8 GET_ITER 10 CALL 0 20 RETURN_VALUE Disassembly of <code object <listcomp> at 0x...>: 2 0 RESUME 0 2 BUILD_LIST 0 4 LOAD_FAST 0 (.0) >> 6 FOR_ITER 4 (to 18) 10 STORE_FAST 1 (x) 12 LOAD_FAST 1 (x) 14 LIST_APPEND 2 16 JUMP_BACKWARD 6 (to 6) >> 18 END_FOR 20 RETURN_VALUE 1 0 RESUME 0 2 2 LOAD_FAST 0 (lst) 4 GET_ITER 6 LOAD_FAST_AND_CLEAR 1 (x) 8 SWAP 2 10 BUILD_LIST 0 12 SWAP 2 >> 14 FOR_ITER 4 (to 26) 18 STORE_FAST 1 (x) 20 LOAD_FAST 1 (x) 22 LIST_APPEND 2 24 JUMP_BACKWARD 6 (to 14) >> 26 END_FOR 28 SWAP 2 30 STORE_FAST 1 (x) 32 RETURN_VALUE 57 After PEP 709 New Bytecode: LOAD_FAST_AND_CLEAR Before Code in PEP 709 Recap
58. 58 Why is this implemented in 3.12?
59. If it works, don't touch it… 59 Takeaways #1
60. 60 #1: Bytecode is difficult. 1) Bytecode requires deep CPython knowledge. 2) Bytecode change can cause unexpected impacts on CPython itself and other projects.
61. 61 Bytecode manipulation
62. 62 "type checker" and "bytecode"?
63. 63 Bytecode Type checker
64. 64 P-y-t-y-p-e Why? Bytecode-based type inference. "untyped code" can also be type checked.
65. 65 AST-based Bytecode-based Mypy, Pyright, basedpyright, Pyre, pyrefly, pylyzer, ty, ... Pytype!? AST Bytecode

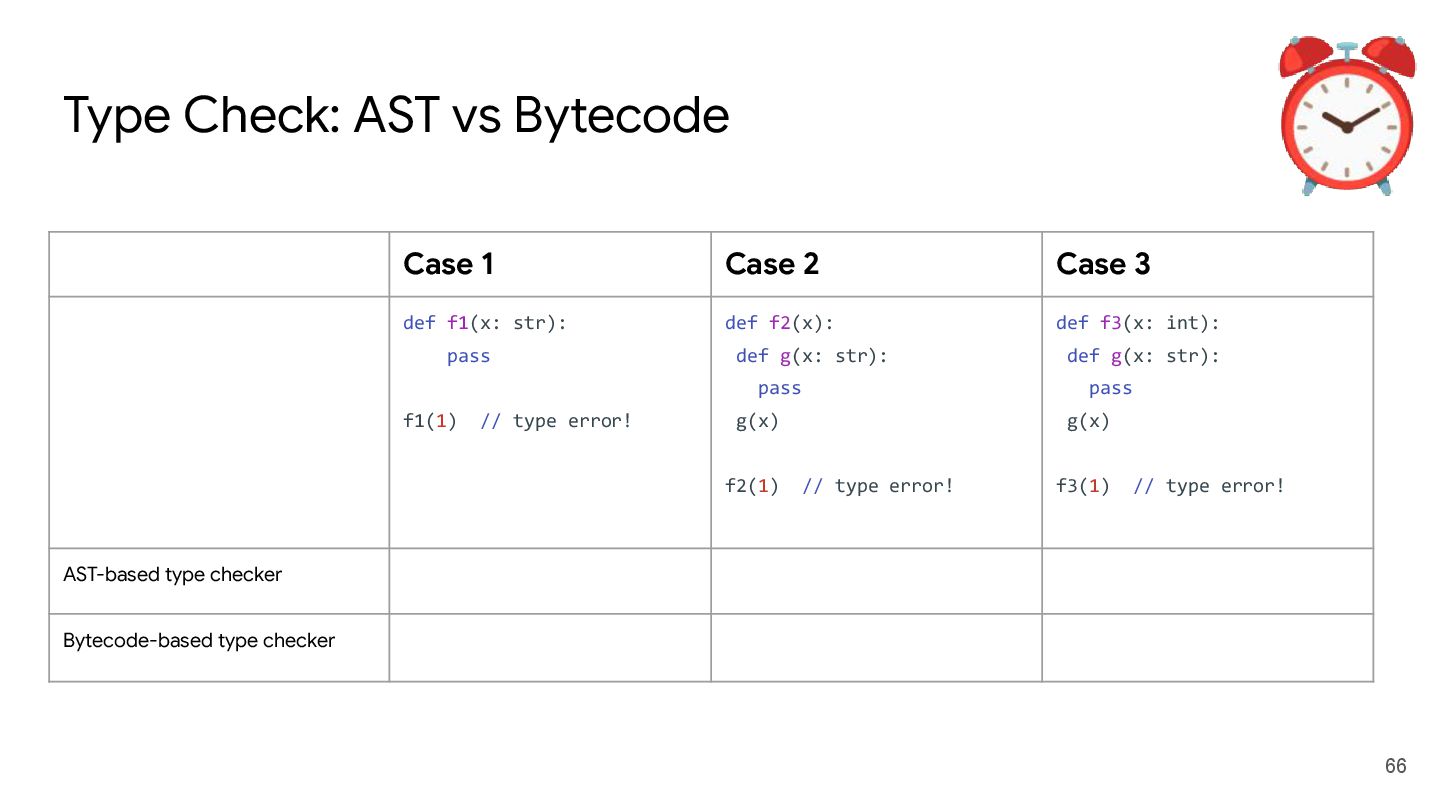

66. 66 Case 1 Case 2 Case 3 def f1(x: str): pass f1(1) // type error! def f2(x): def g(x: str): pass g(x) f2(1) // type error! def f3(x: int): def g(x: str): pass g(x) f3(1) // type error! AST-based type checker Bytecode-based type checker Type Check: AST vs Bytecode ⏰

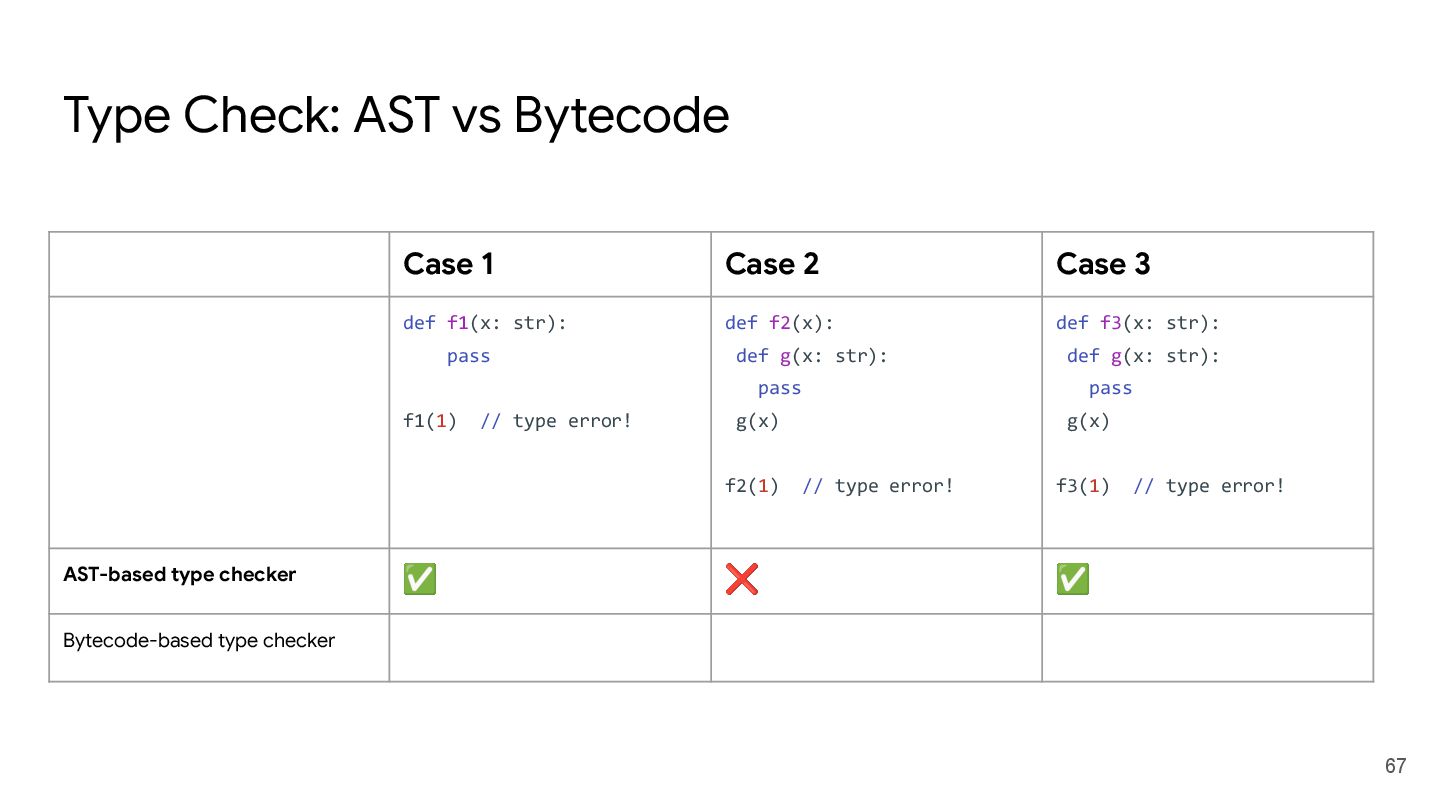

67. 67 Case 1 Case 2 Case 3 def f1(x: str): pass f1(1) // type error! def f2(x): def g(x: str): pass g(x) f2(1) // type error! def f3(x: str): def g(x: str): pass g(x) f3(1) // type error! AST-based type checker ✅ ❌ ✅ Bytecode-based type checker Type Check: AST vs Bytecode

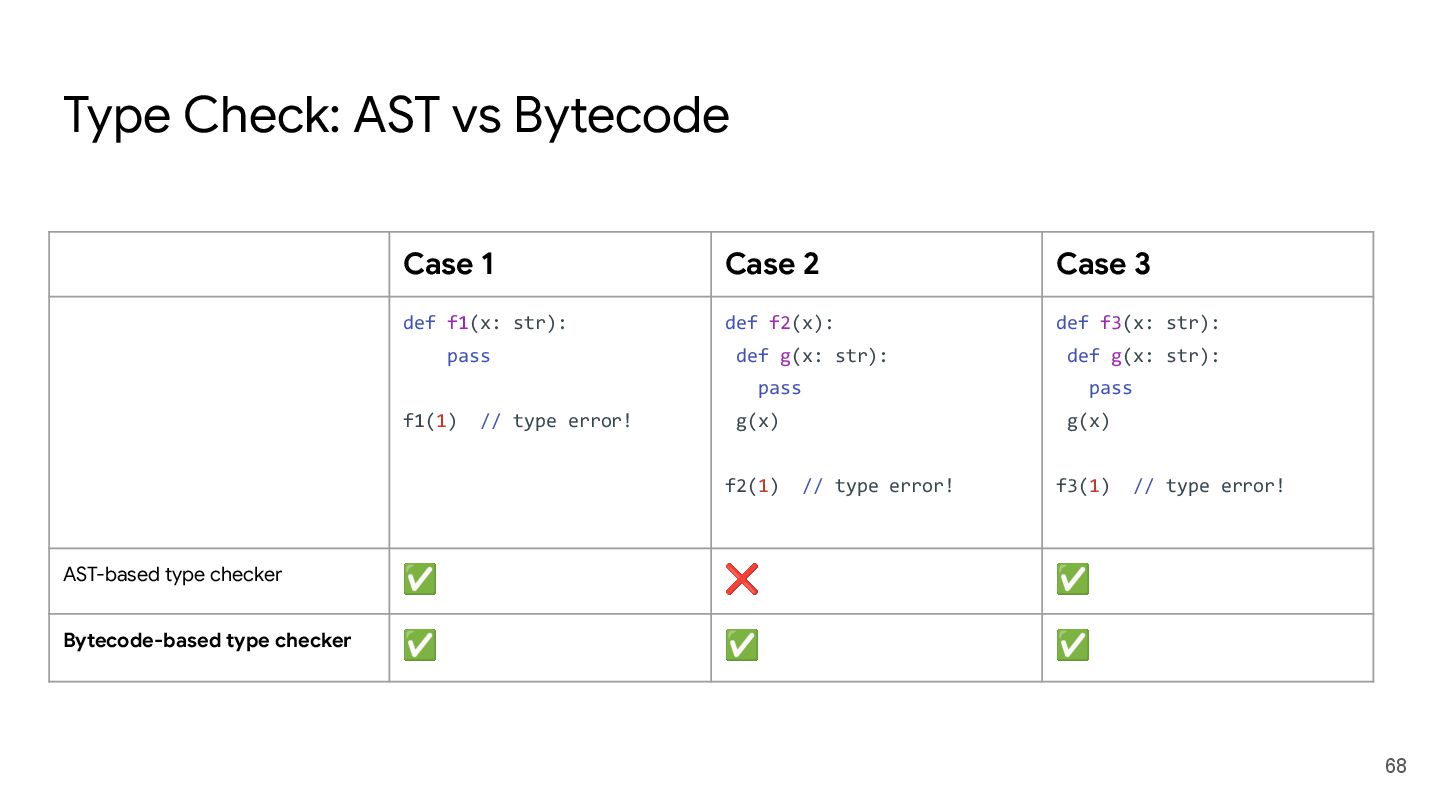

68. 68 Case 1 Case 2 Case 3 def f1(x: str): pass f1(1) // type error! def f2(x): def g(x: str): pass g(x) f2(1) // type error! def f3(x: str): def g(x: str): pass g(x) f3(1) // type error! AST-based type checker ✅ ❌ ✅ Bytecode-based type checker ✅ ✅ ✅ Type Check: AST vs Bytecode
69. 69 Why is Bytecode-based type checker not popular?

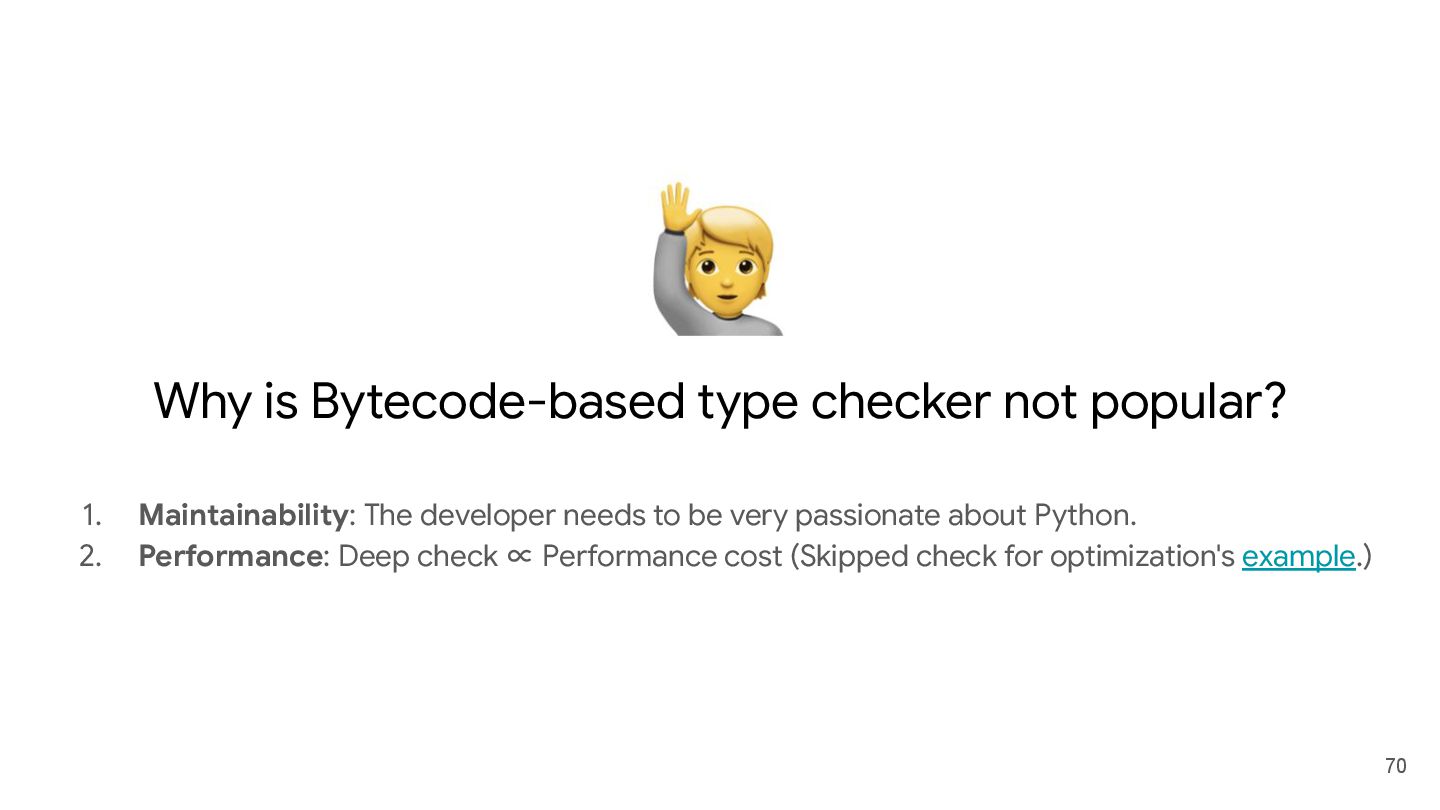

70. 70 1. Maintainability: The developer needs to be very passionate about Python. 2. Performance: Deep check ∝ Performance cost (Skipped check for optimization's example.) Why is Bytecode-based type checker not popular?

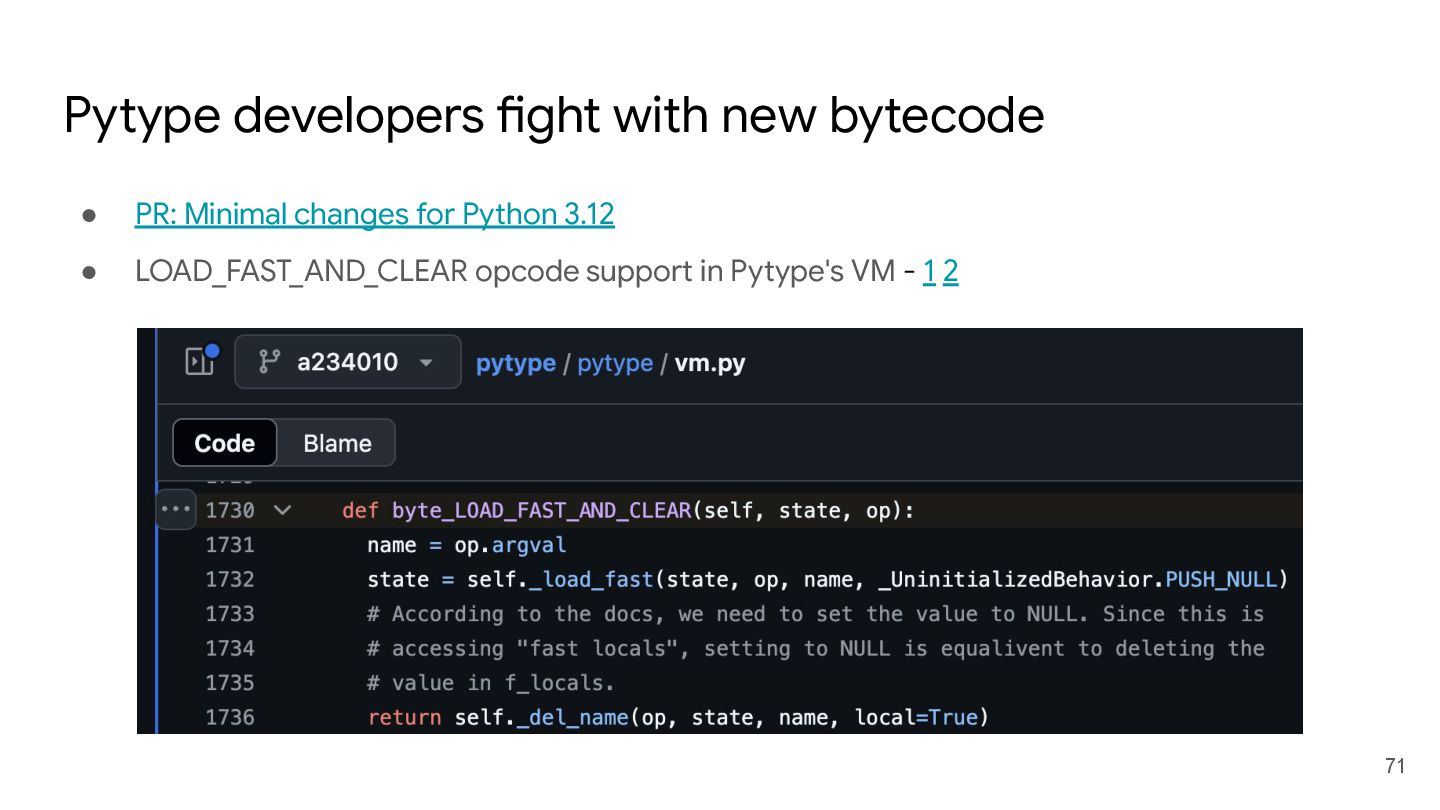

71. Pytype developers fight with new bytecode • PR: Minimal changes for Python 3.12 • LOAD_FAST_AND_CLEAR opcode support in Pytype's VM - 1 2 71

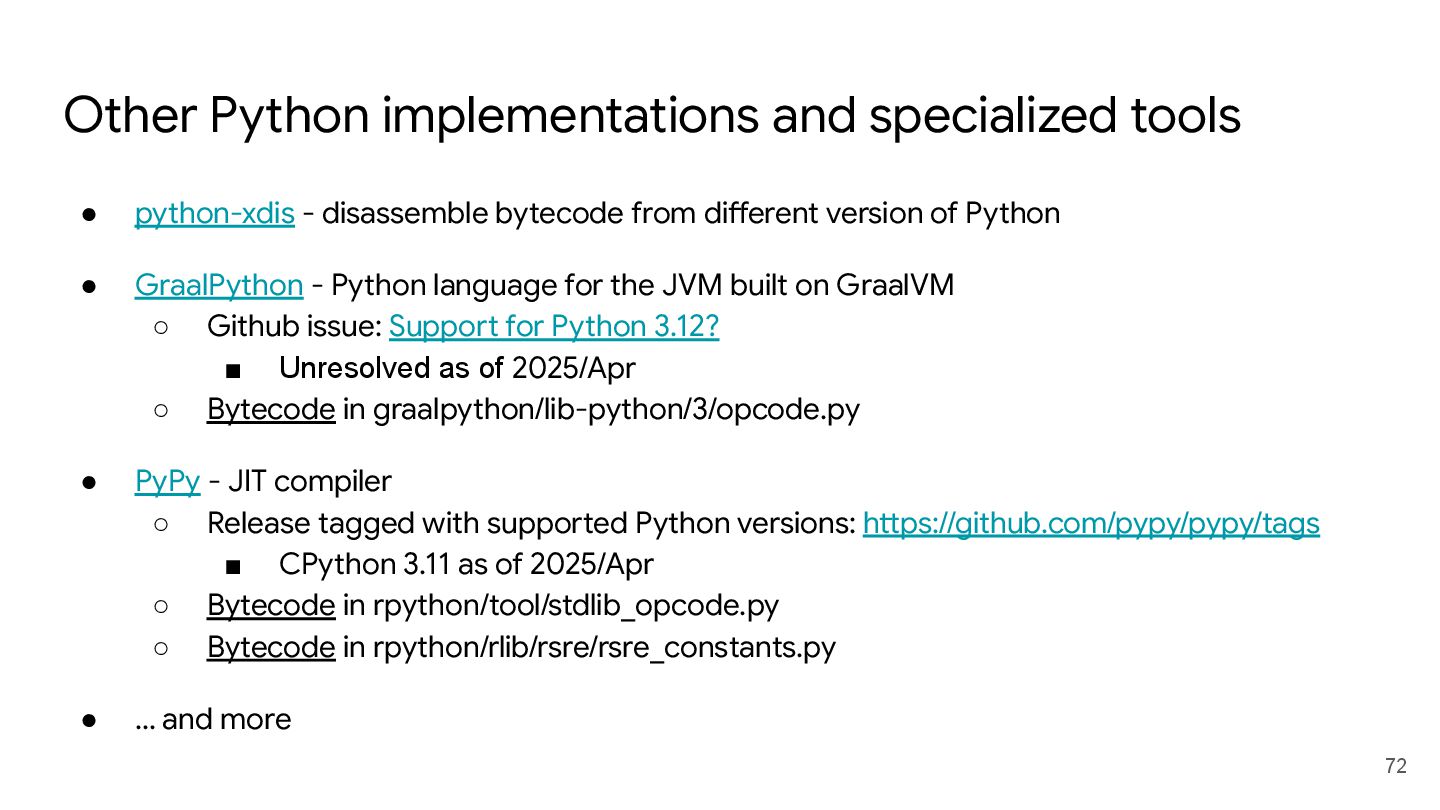

72. • python-xdis - disassemble bytecode from different version of Python • GraalPython - Python language for the JVM built on GraalVM ◦ Github issue: Support for Python 3.12? ▪ Unresolved as of 2025/Apr ◦ Bytecode in graalpython/lib-python/3/opcode.py • PyPy - JIT compiler ◦ Release tagged with supported Python versions: https://github.com/pypy/pypy/tags ▪ CPython 3.11 as of 2025/Apr ◦ Bytecode in rpython/tool/stdlib_opcode.py ◦ Bytecode in rpython/rlib/rsre/rsre_constants.py • … and more 72 Other Python implementations and specialized tools

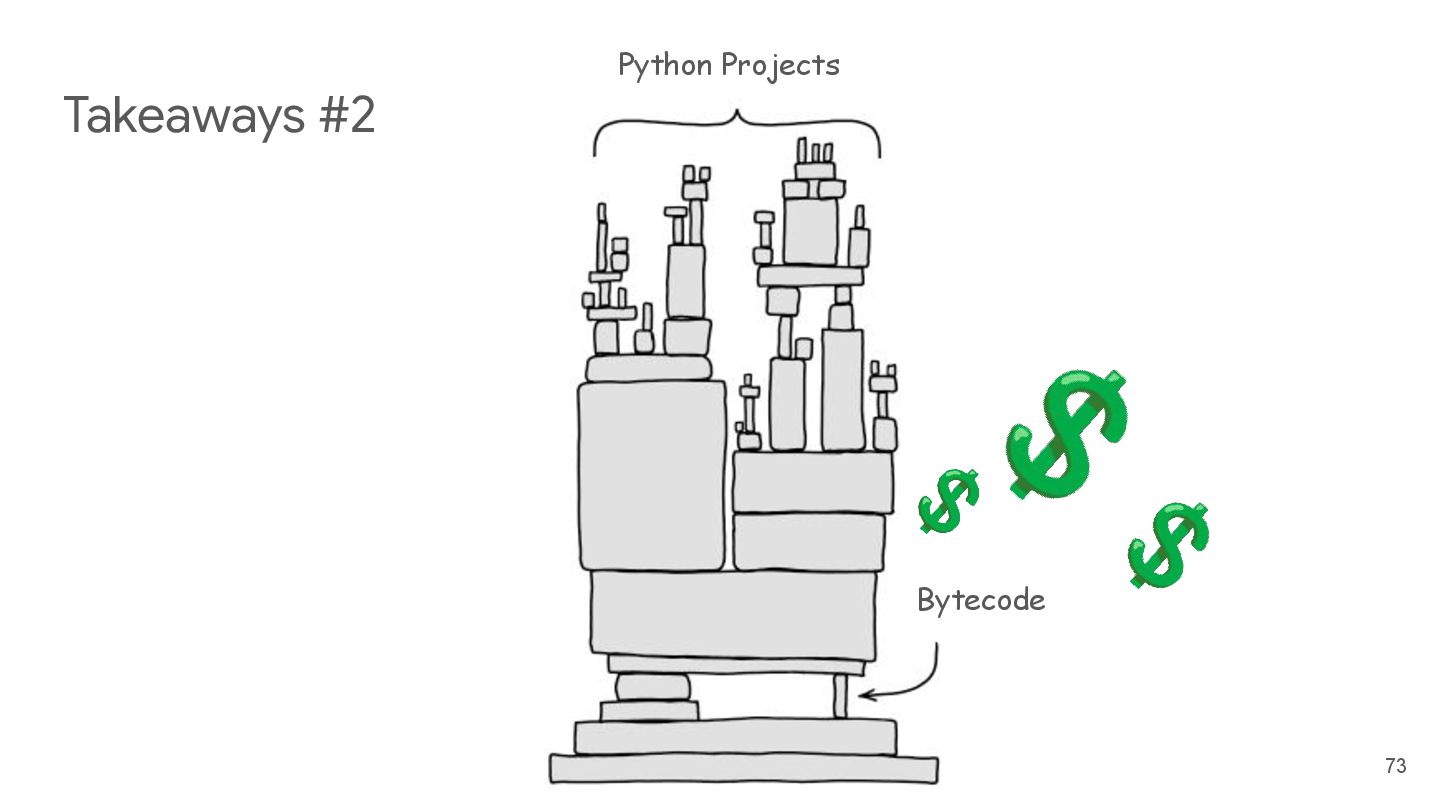

73. 73 Bytecode Python Projects 💲 💲 💲 Takeaways #2

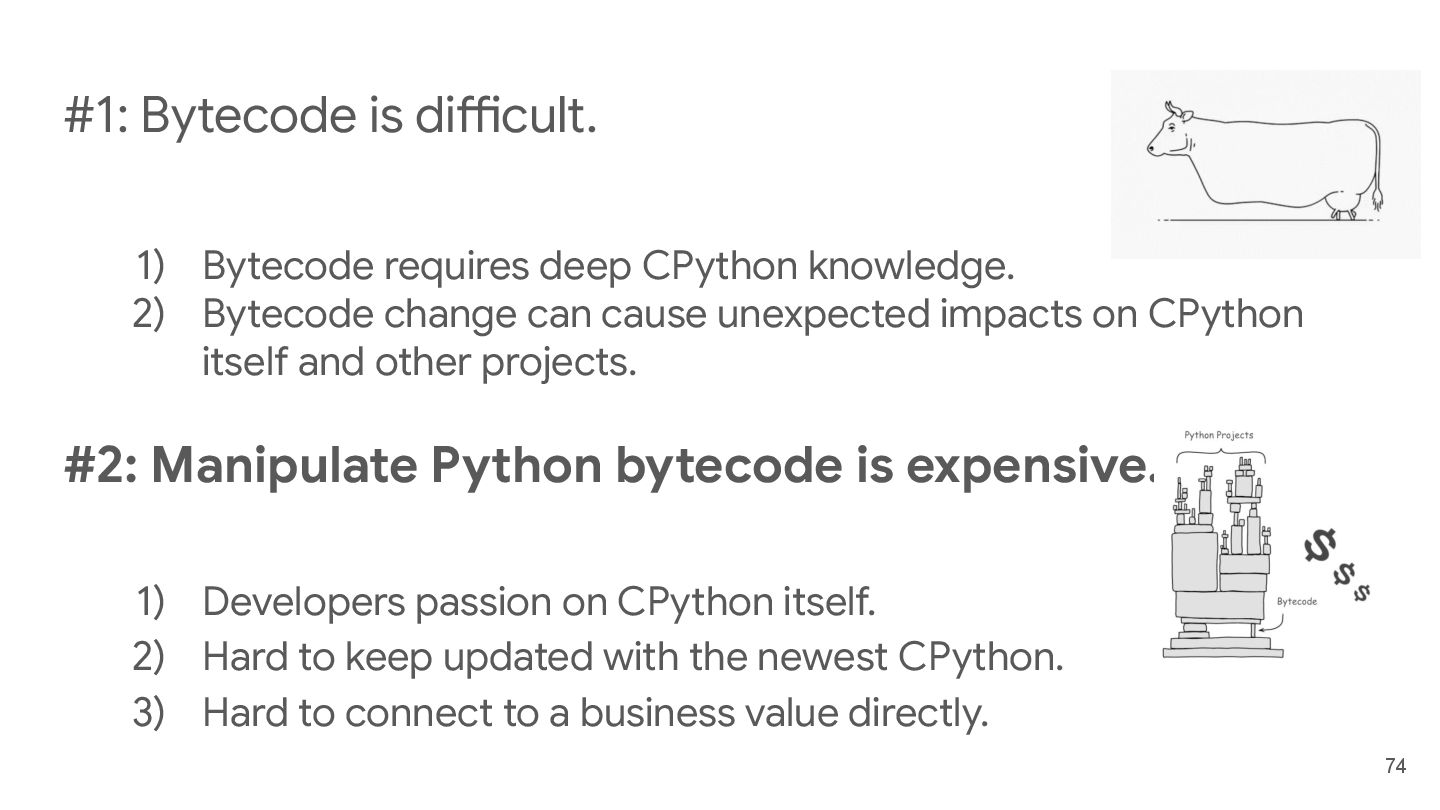

74. 74 #1: Bytecode is difficult. 1) Bytecode requires deep CPython knowledge. 2) Bytecode change can cause unexpected impacts on CPython itself and other projects. #2: Manipulate Python bytecode is expensive. 1) Developers passion on CPython itself. 2) Hard to keep updated with the newest CPython. 3) Hard to connect to a business value directly.
75. 75 Bytecode & Community
77. 77 and developers who manipulate bytecode!

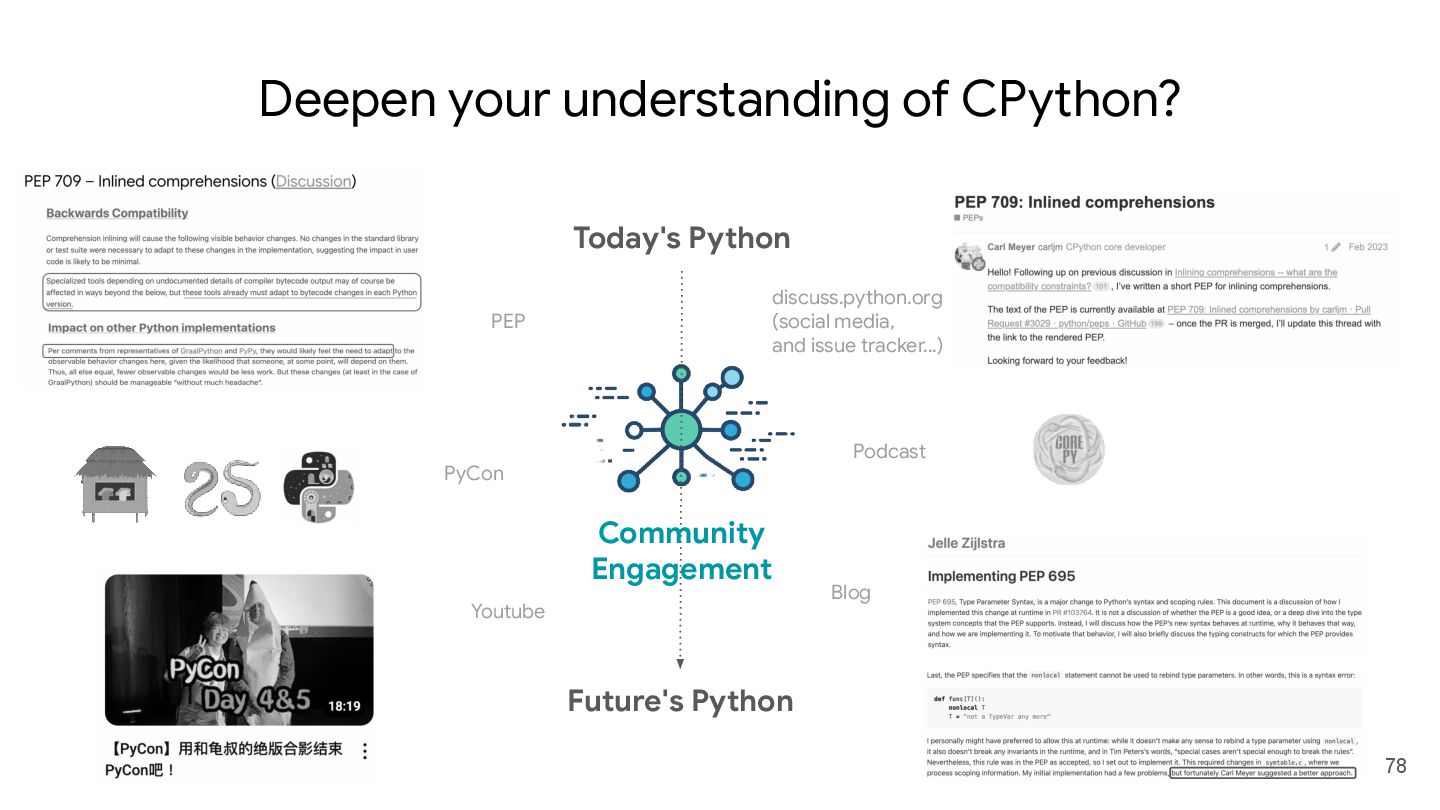

78. 78 PyCon PEP discuss.python.org (social media, and issue tracker…) Blog Today's Python Future's Python Community Engagement Podcast Youtube Deepen your understanding of CPython?
79. One last thought 79 🐍
80. Thank you! 80 Your passion on Python is priceless. 💗🐍
81. 81 Bonus slides for Bytecode 101 D.I.Y. your own compiler

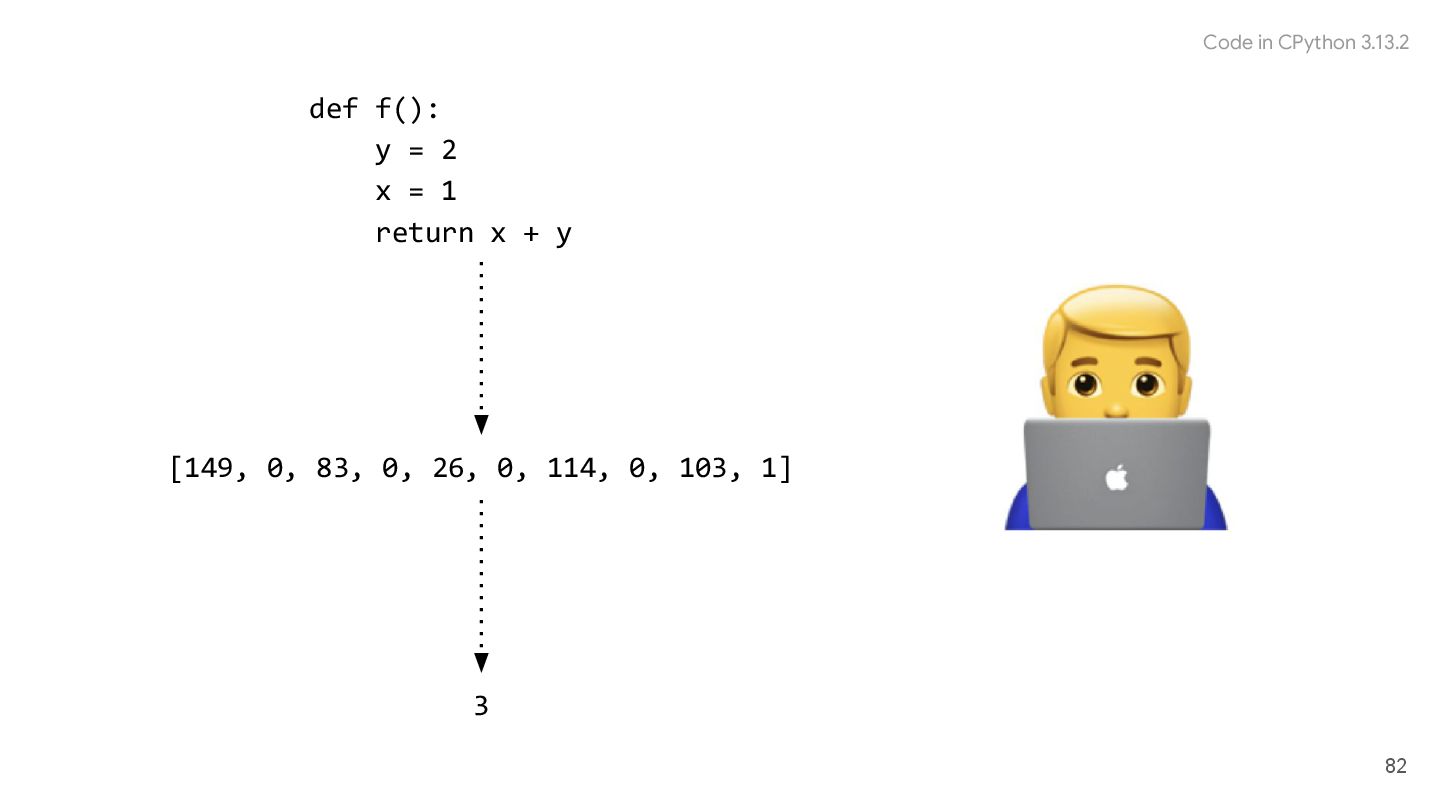

82. def f(): y = 2 x = 1 return x + y 82 [149, 0, 83, 0, 26, 0, 114, 0, 103, 1] 3 Code in CPython 3.13.2

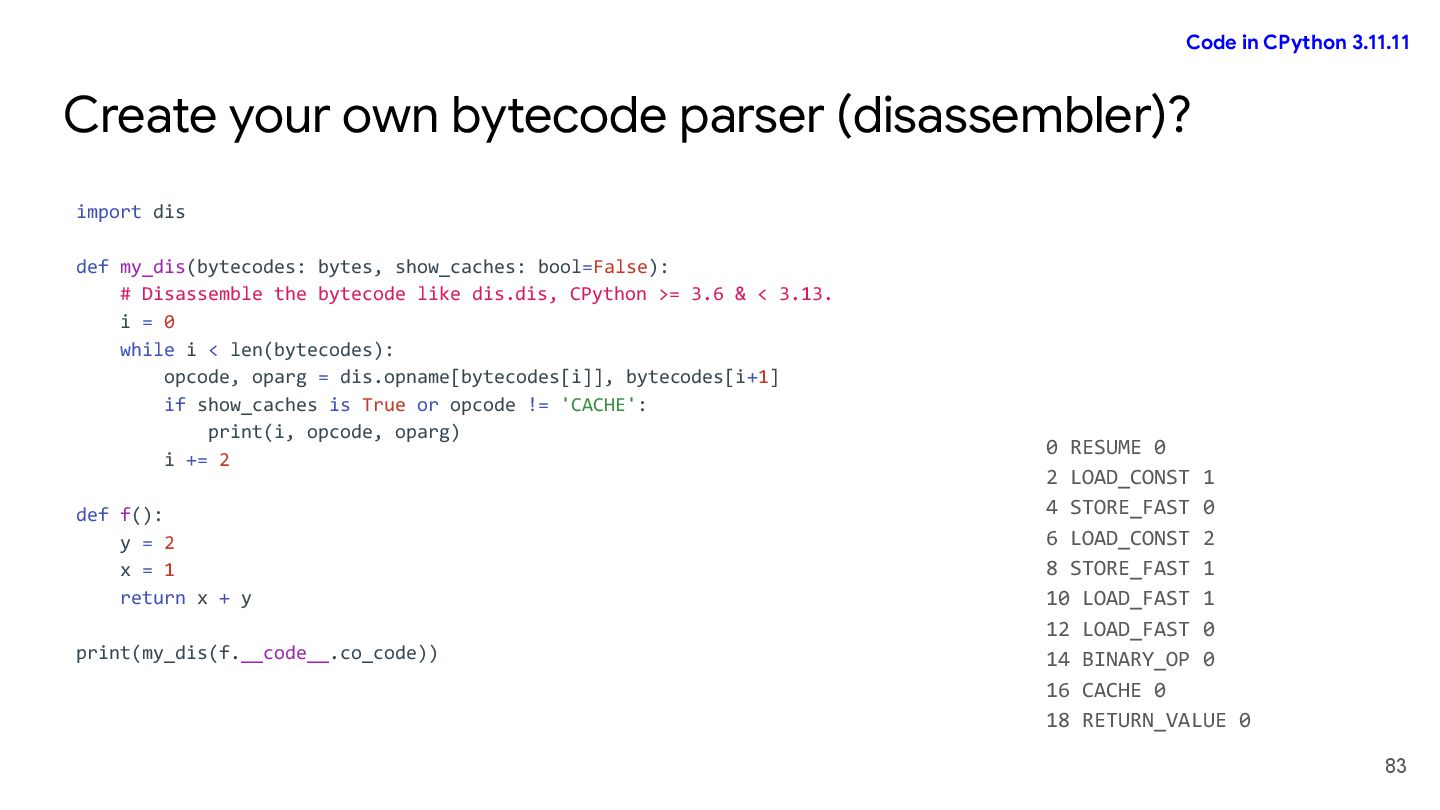

83. Create your own bytecode parser (disassembler)? 83 0 RESUME 0 2 LOAD_CONST 1 4 STORE_FAST 0 6 LOAD_CONST 2 8 STORE_FAST 1 10 LOAD_FAST 1 12 LOAD_FAST 0 14 BINARY_OP 0 16 CACHE 0 18 RETURN_VALUE 0 Code in CPython 3.11.11 import dis def my_dis(bytecodes: bytes, show_caches: bool=False): # Disassemble the bytecode like dis.dis, CPython >= 3.6 & < 3.13. i = 0 while i < len(bytecodes): opcode, oparg = dis.opname[bytecodes[i]], bytecodes[i+1] if show_caches is True or opcode != 'CACHE': print(i, opcode, oparg) i += 2 def f(): y = 2 x = 1 return x + y print(my_dis(f.__code__.co_code))

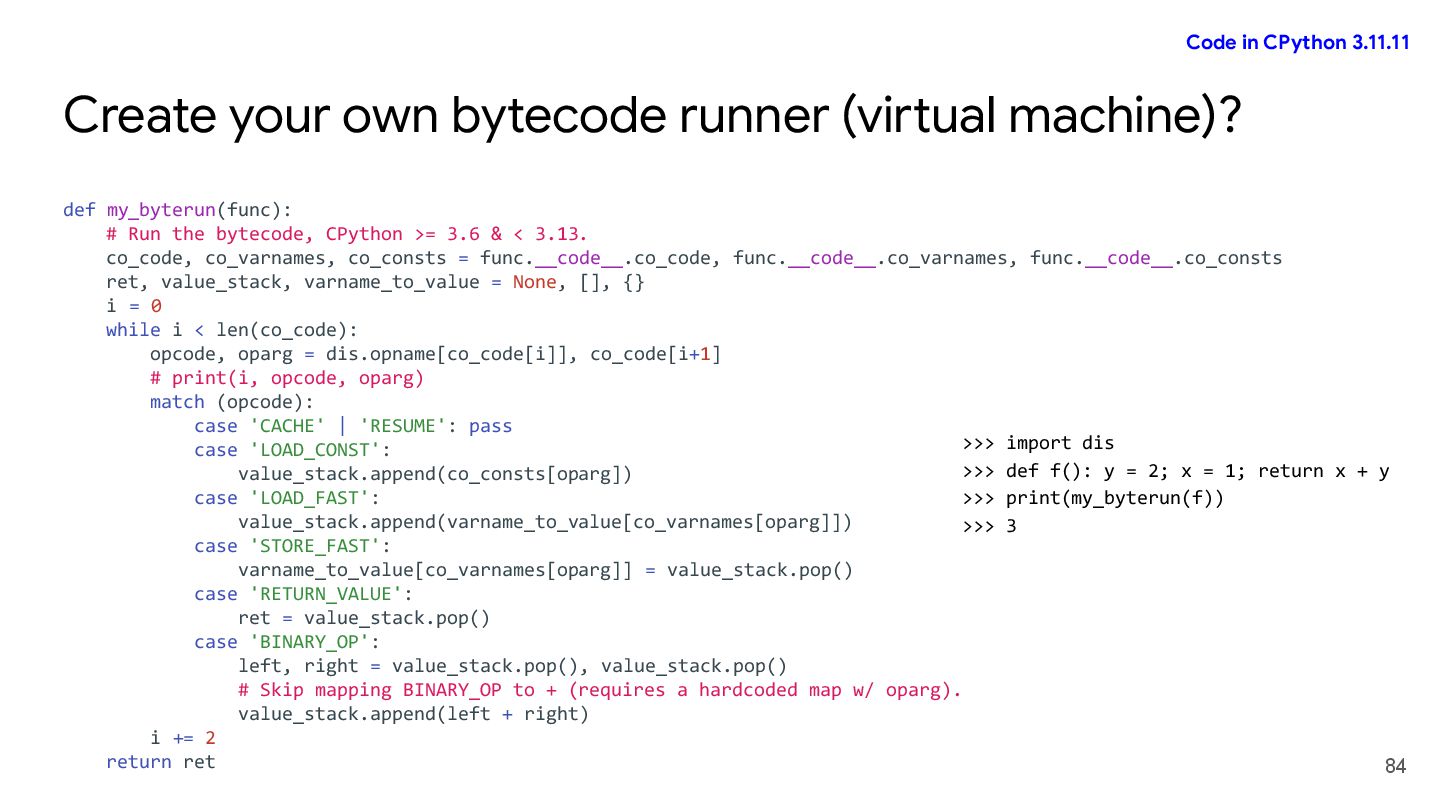

84. def my_byterun(func): # Run the bytecode, CPython >= 3.6 & < 3.13. co_code, co_varnames, co_consts = func.__code__.co_code, func.__code__.co_varnames, func.__code__.co_consts ret, value_stack, varname_to_value = None, [], {} i = 0 while i < len(co_code): opcode, oparg = dis.opname[co_code[i]], co_code[i+1] # print(i, opcode, oparg) match (opcode): case 'CACHE' | 'RESUME': pass case 'LOAD_CONST': value_stack.append(co_consts[oparg]) case 'LOAD_FAST': value_stack.append(varname_to_value[co_varnames[oparg]]) case 'STORE_FAST': varname_to_value[co_varnames[oparg]] = value_stack.pop() case 'RETURN_VALUE': ret = value_stack.pop() case 'BINARY_OP': left, right = value_stack.pop(), value_stack.pop() # Skip mapping BINARY_OP to + (requires a hardcoded map w/ oparg). value_stack.append(left + right) i += 2 return ret 84 Create your own bytecode runner (virtual machine)? >>> import dis >>> def f(): y = 2; x = 1; return x + y >>> print(my_byterun(f)) >>> 3 Code in CPython 3.11.11
85. 85 Bonus slides for Bytecode 101 Code to Bytecode

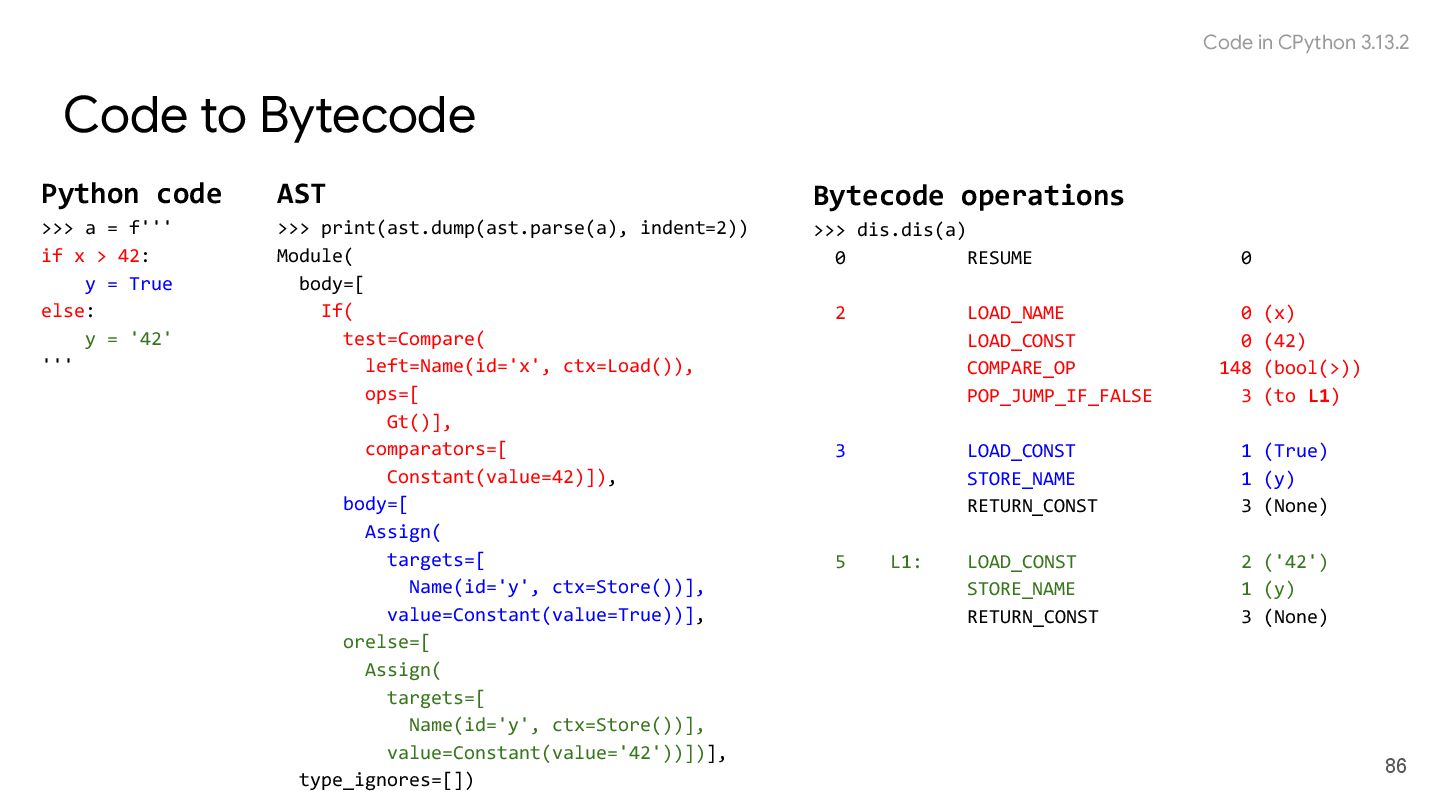

86. Code to Bytecode Python code >>> a = f''' if x > 42: y = True else: y = '42' ''' AST >>> print(ast.dump(ast.parse(a), indent=2)) Module( body=[ If( test=Compare( left=Name(id='x', ctx=Load()), ops=[ Gt()], comparators=[ Constant(value=42)]), body=[ Assign( targets=[ Name(id='y', ctx=Store())], value=Constant(value=True))], orelse=[ Assign( targets=[ Name(id='y', ctx=Store())], value=Constant(value='42'))])], type_ignores=[]) Bytecode operations >>> dis.dis(a) 0 RESUME 0 2 LOAD_NAME 0 (x) LOAD_CONST 0 (42) COMPARE_OP 148 (bool(>)) POP_JUMP_IF_FALSE 3 (to L1) 3 LOAD_CONST 1 (True) STORE_NAME 1 (y) RETURN_CONST 3 (None) 5 L1: LOAD_CONST 2 ('42') STORE_NAME 1 (y) RETURN_CONST 3 (None) 86 Code in CPython 3.13.2

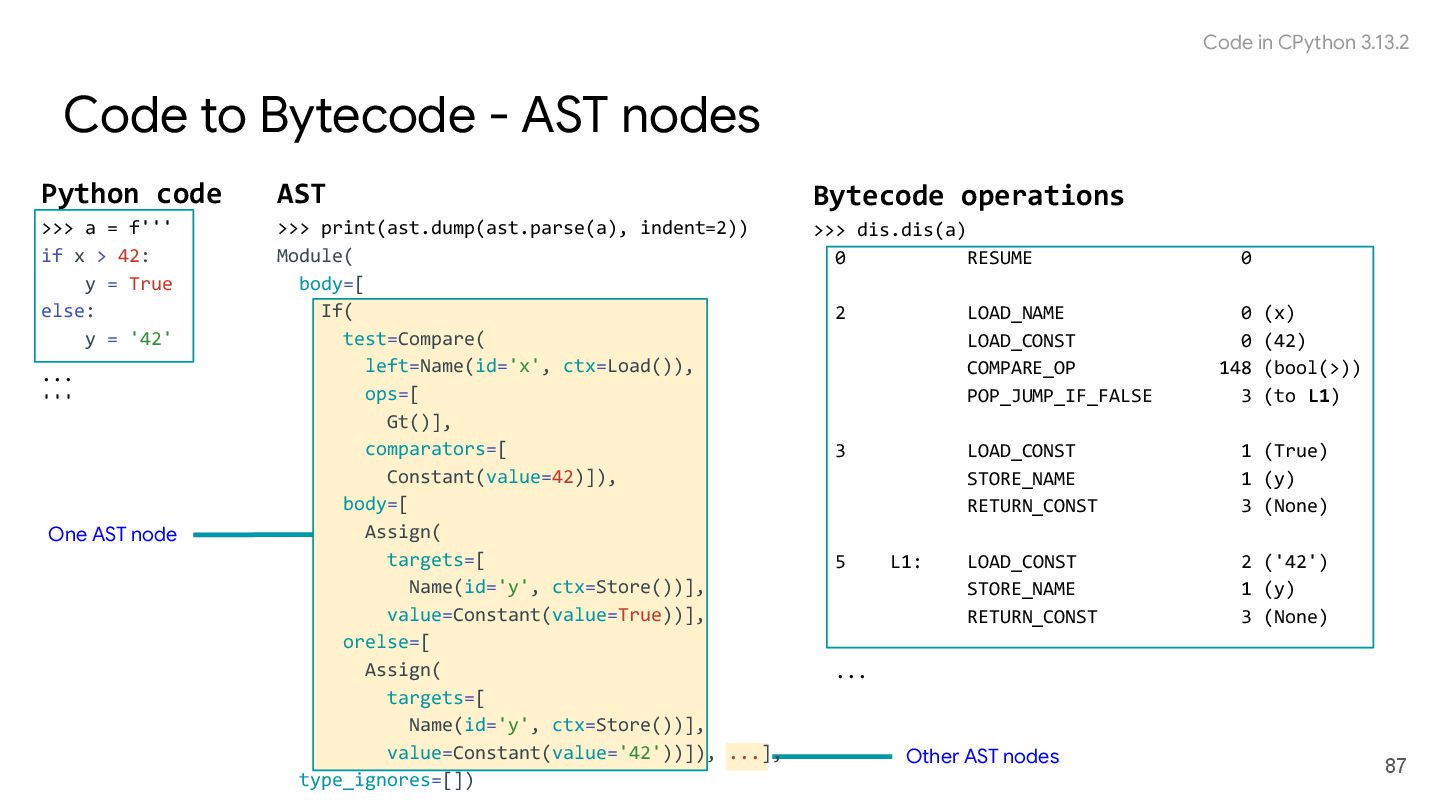

87. Code to Bytecode - AST nodes Bytecode operations >>> dis.dis(a) 0 RESUME 0 2 LOAD_NAME 0 (x) LOAD_CONST 0 (42) COMPARE_OP 148 (bool(>)) POP_JUMP_IF_FALSE 3 (to L1) 3 LOAD_CONST 1 (True) STORE_NAME 1 (y) RETURN_CONST 3 (None) 5 L1: LOAD_CONST 2 ('42') STORE_NAME 1 (y) RETURN_CONST 3 (None) ... 87 One AST node Python code >>> a = f''' if x > 42: y = True else: y = '42' ... ''' Other AST nodes AST >>> print(ast.dump(ast.parse(a), indent=2)) Module( body=[ If( test=Compare( left=Name(id='x', ctx=Load()), ops=[ Gt()], comparators=[ Constant(value=42)]), body=[ Assign( targets=[ Name(id='y', ctx=Store())], value=Constant(value=True))], orelse=[ Assign( targets=[ Name(id='y', ctx=Store())], value=Constant(value='42'))]), ...], type_ignores=[]) Code in CPython 3.13.2

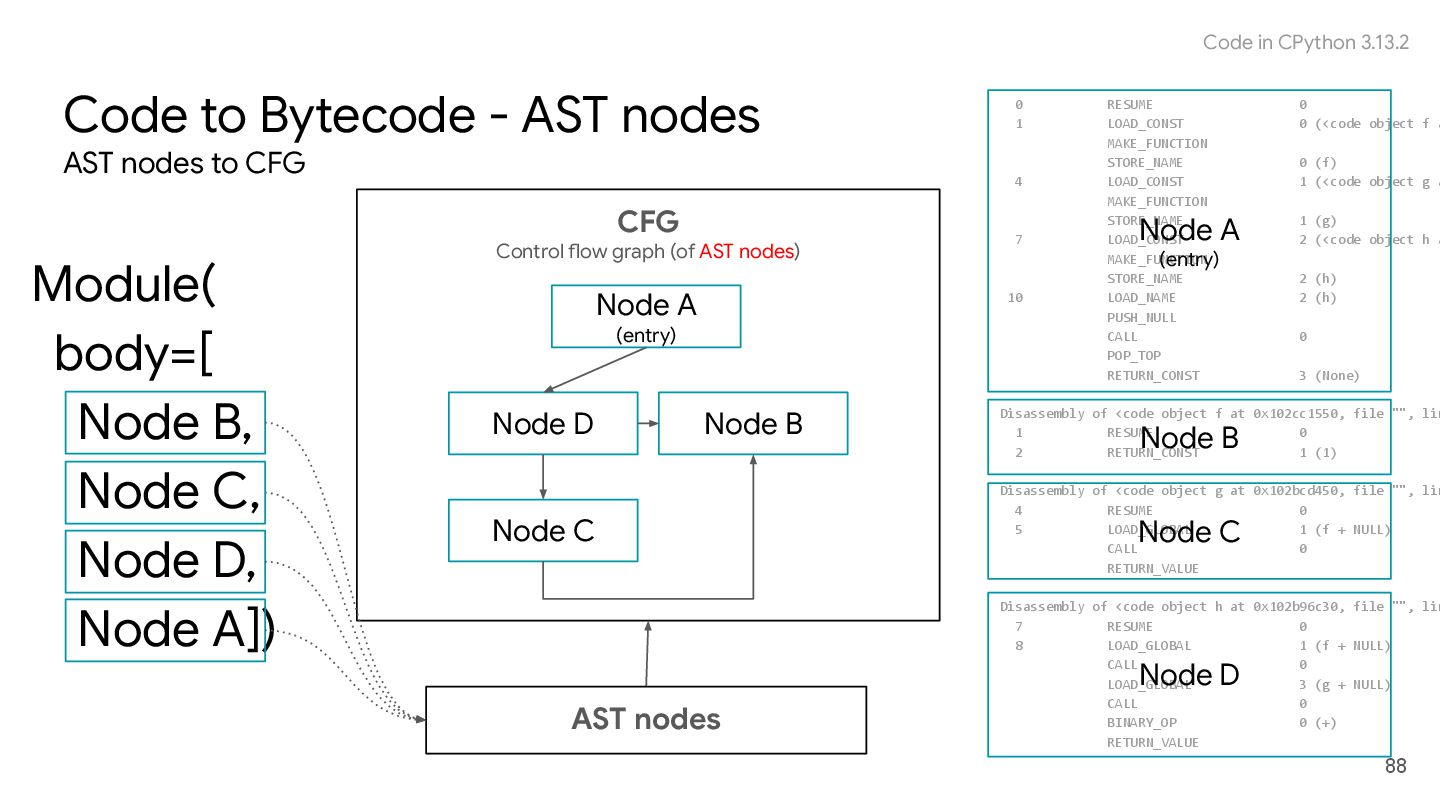

88. CFG Control flow graph (of AST nodes) 88 Module( body=[ Node B, Node C, Node D, Node A]) AST nodes Node A (entry) Node D Node B Node C 0 RESUME 0 1 LOAD_CONST 0 (<code object f a MAKE_FUNCTION STORE_NAME 0 (f) 4 LOAD_CONST 1 (<code object g a MAKE_FUNCTION STORE_NAME 1 (g) 7 LOAD_CONST 2 (<code object h a MAKE_FUNCTION STORE_NAME 2 (h) 10 LOAD_NAME 2 (h) PUSH_NULL CALL 0 POP_TOP RETURN_CONST 3 (None) Disassembly of <code object f at 0x102cc1550, file "", lin 1 RESUME 0 2 RETURN_CONST 1 (1) Disassembly of <code object g at 0x102bcd450, file "", lin 4 RESUME 0 5 LOAD_GLOBAL 1 (f + NULL) CALL 0 RETURN_VALUE Disassembly of <code object h at 0x102b96c30, file "", lin 7 RESUME 0 8 LOAD_GLOBAL 1 (f + NULL) CALL 0 LOAD_GLOBAL 3 (g + NULL) CALL 0 BINARY_OP 0 (+) RETURN_VALUE Node A (entry) Node C Node D Node B Code to Bytecode - AST nodes AST nodes to CFG Code in CPython 3.13.2

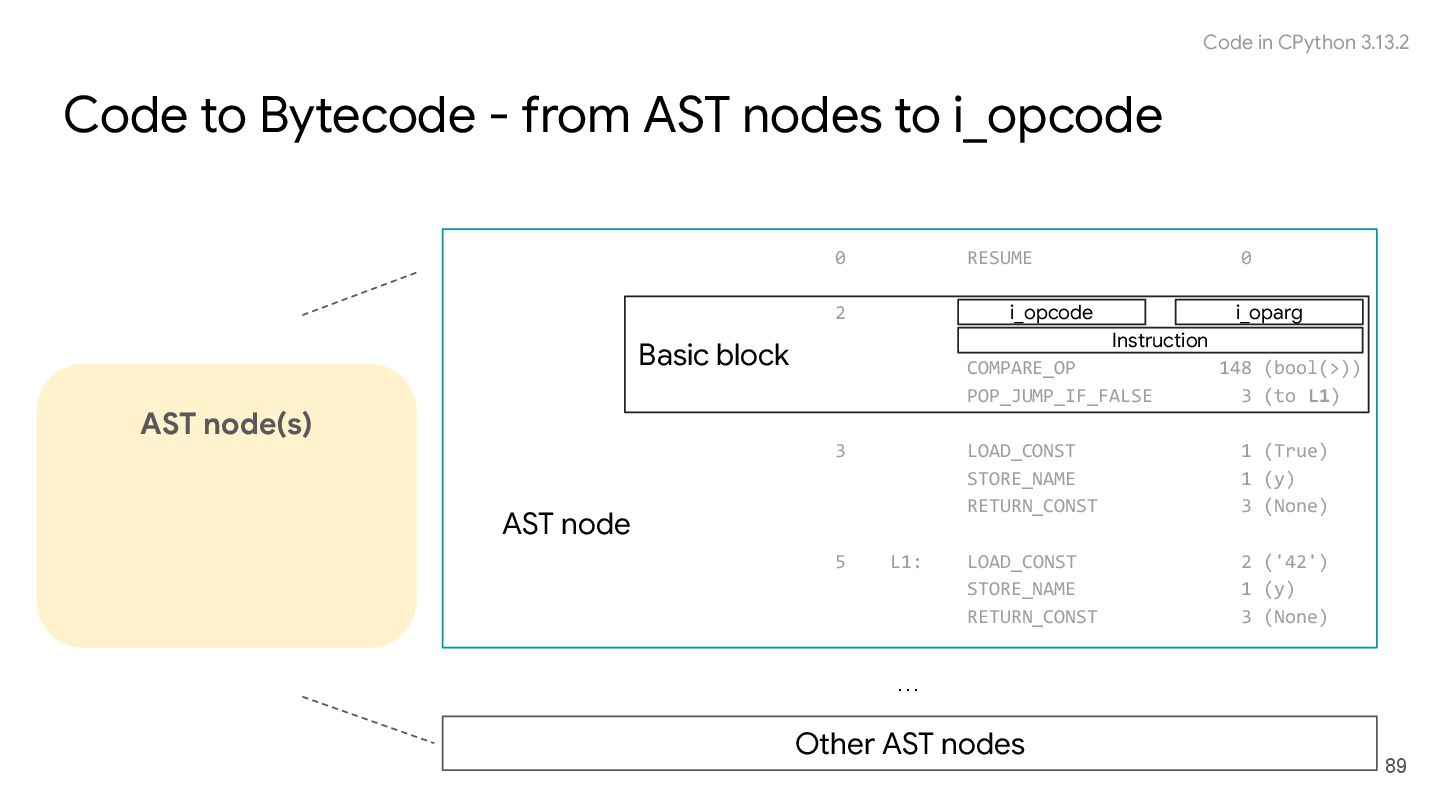

89. Code to Bytecode - from AST nodes to i_opcode 0 RESUME 0 2 LOAD_NAME 0 (x) LOAD_CONST 0 (42) COMPARE_OP 148 (bool(>)) POP_JUMP_IF_FALSE 3 (to L1) 3 LOAD_CONST 1 (True) STORE_NAME 1 (y) RETURN_CONST 3 (None) 5 L1: LOAD_CONST 2 ('42') STORE_NAME 1 (y) RETURN_CONST 3 (None) 89 Basic block AST node Instruction 0 2 3 5 AST node(s) i_opcode i_oparg Other AST nodes … Code in CPython 3.13.2

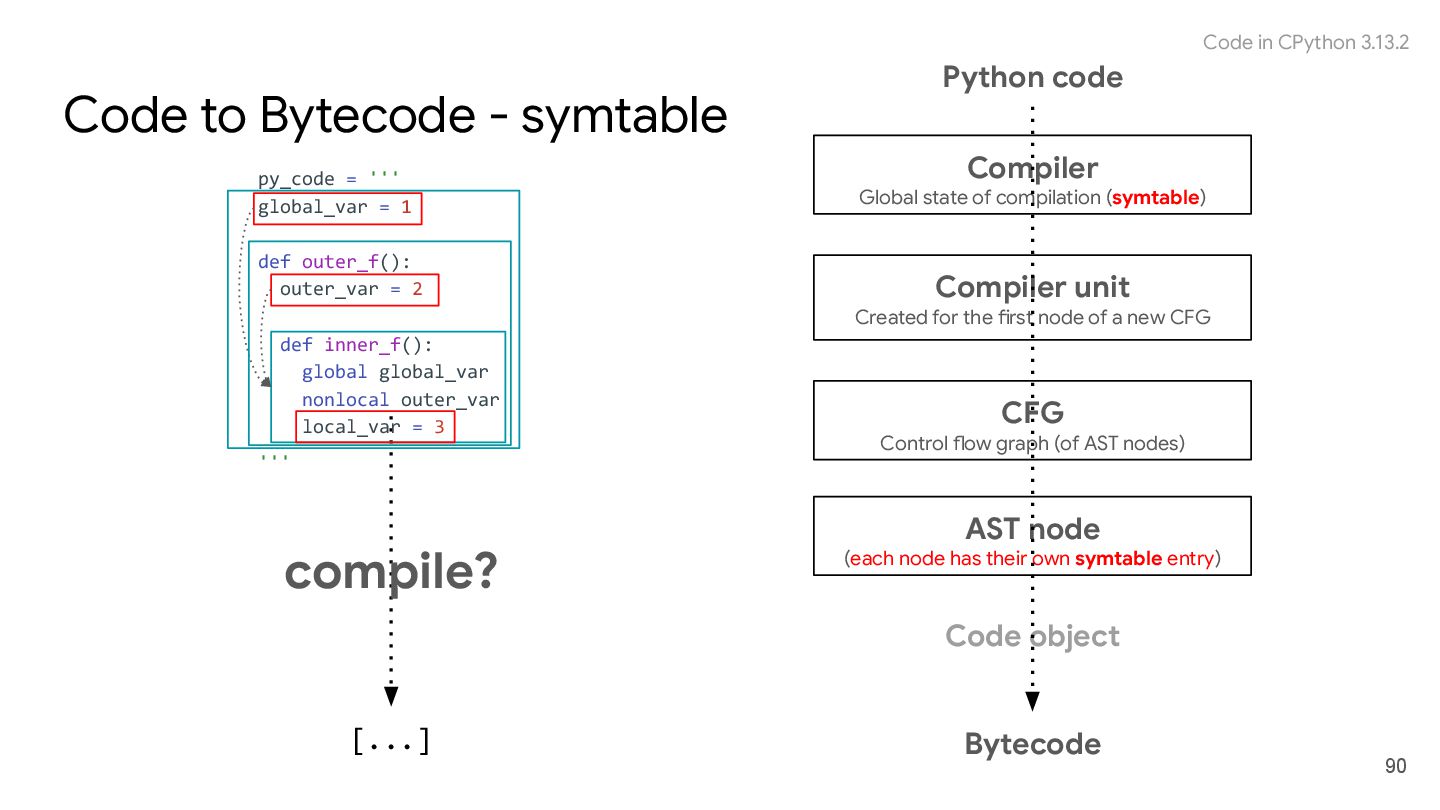

90. 90 Code to Bytecode - symtable [...] compile? py_code = ''' global_var = 1 def outer_f(): outer_var = 2 def inner_f(): global global_var nonlocal outer_var local_var = 3 ''' CFG Control flow graph (of AST nodes) AST node (each node has their own symtable entry) Compiler unit Created for the first node of a new CFG Compiler Global state of compilation (symtable) Code object Bytecode Python code Code in CPython 3.13.2

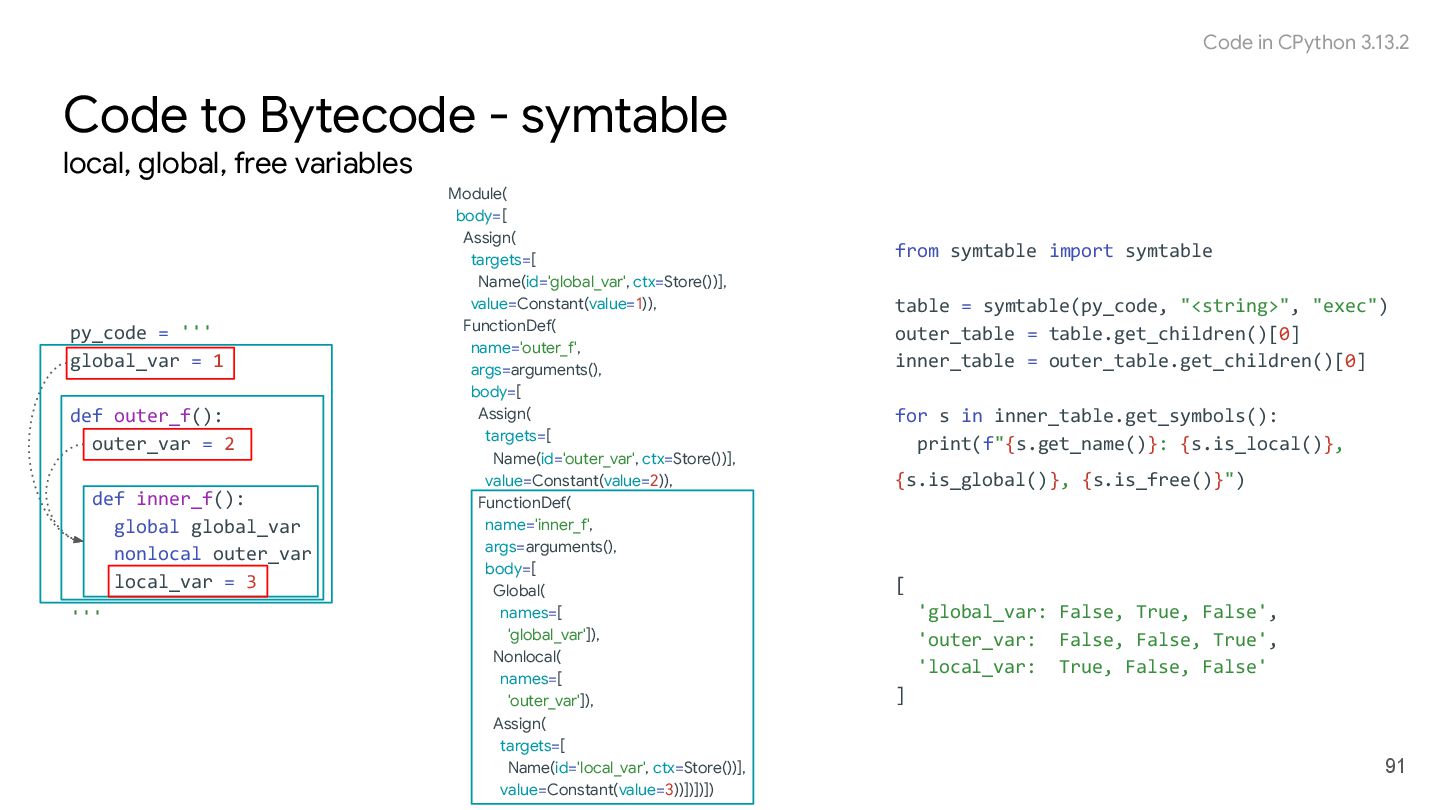

91. 91 Code to Bytecode - symtable local, global, free variables Module( body=[ Assign( targets=[ Name(id='global_var', ctx=Store())], value=Constant(value=1)), FunctionDef( name='outer_f', args=arguments(), body=[ Assign( targets=[ Name(id='outer_var', ctx=Store())], value=Constant(value=2)), FunctionDef( name='inner_f', args=arguments(), body=[ Global( names=[ 'global_var']), Nonlocal( names=[ 'outer_var']), Assign( targets=[ Name(id='local_var', ctx=Store())], value=Constant(value=3))])])]) from symtable import symtable table = symtable(py_code, "<string>", "exec") outer_table = table.get_children()[0] inner_table = outer_table.get_children()[0] for s in inner_table.get_symbols(): print(f"{s.get_name()}: {s.is_local()}, {s.is_global()}, {s.is_free()}") [ 'global_var: False, True, False', 'outer_var: False, False, True', 'local_var: True, False, False' ] py_code = ''' global_var = 1 def outer_f(): outer_var = 2 def inner_f(): global global_var nonlocal outer_var local_var = 3 ''' Code in CPython 3.13.2
92. 92 Skipped slides

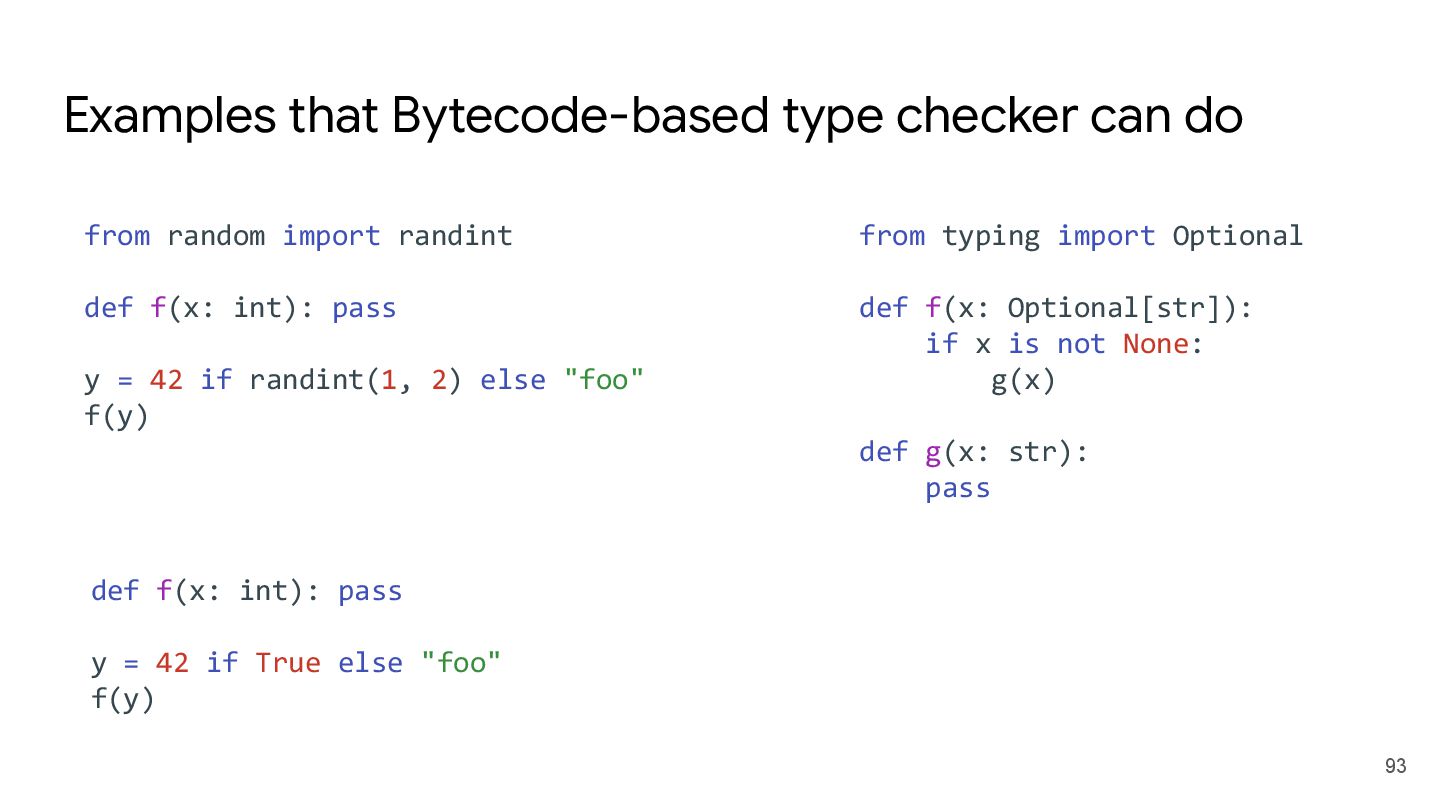

93. Examples that Bytecode-based type checker can do 93 from typing import Optional def f(x: Optional[str]): if x is not None: g(x) def g(x: str): pass from random import randint def f(x: int): pass y = 42 if randint(1, 2) else "foo" f(y) def f(x: int): pass y = 42 if True else "foo" f(y)

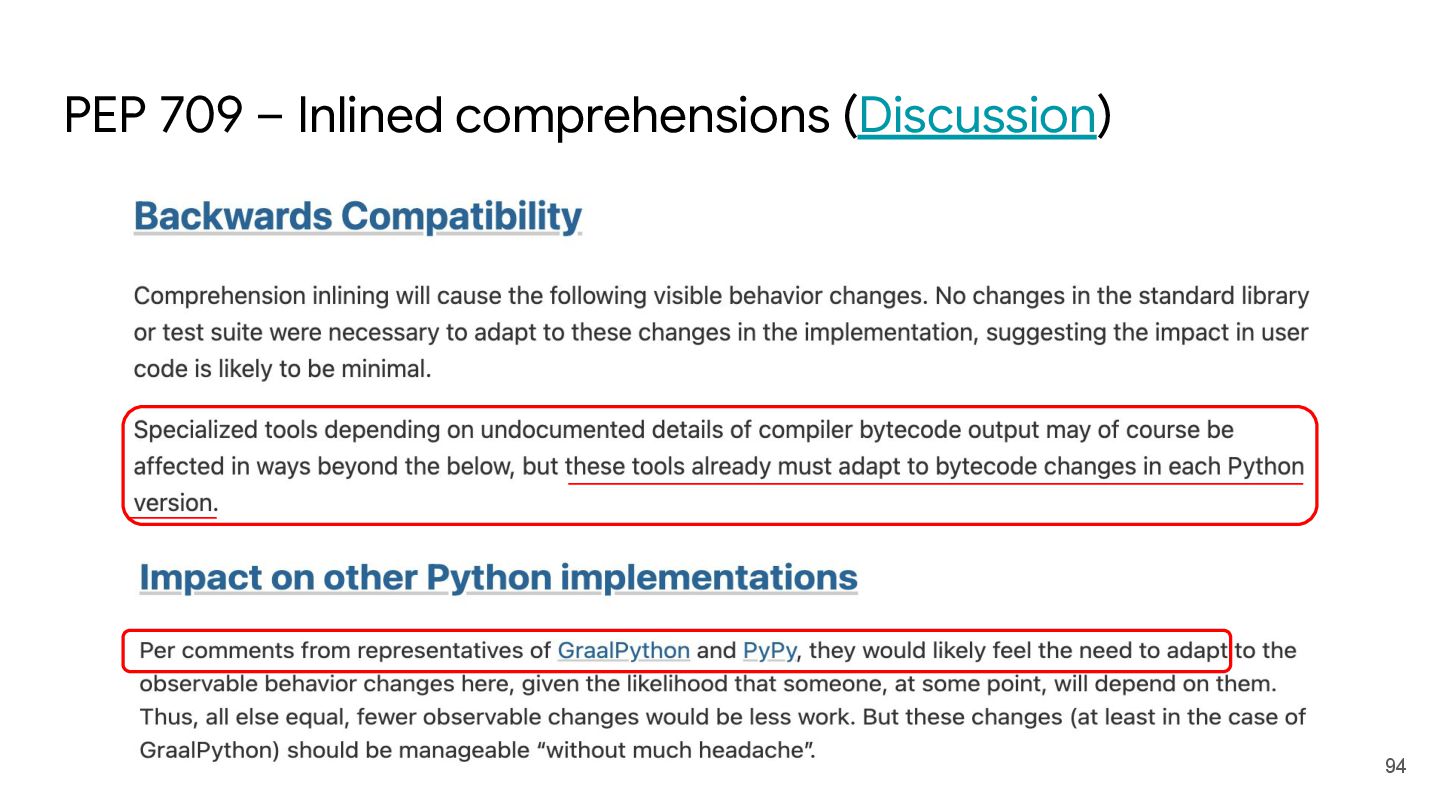

94. PEP 709 – Inlined comprehensions (Discussion) 94

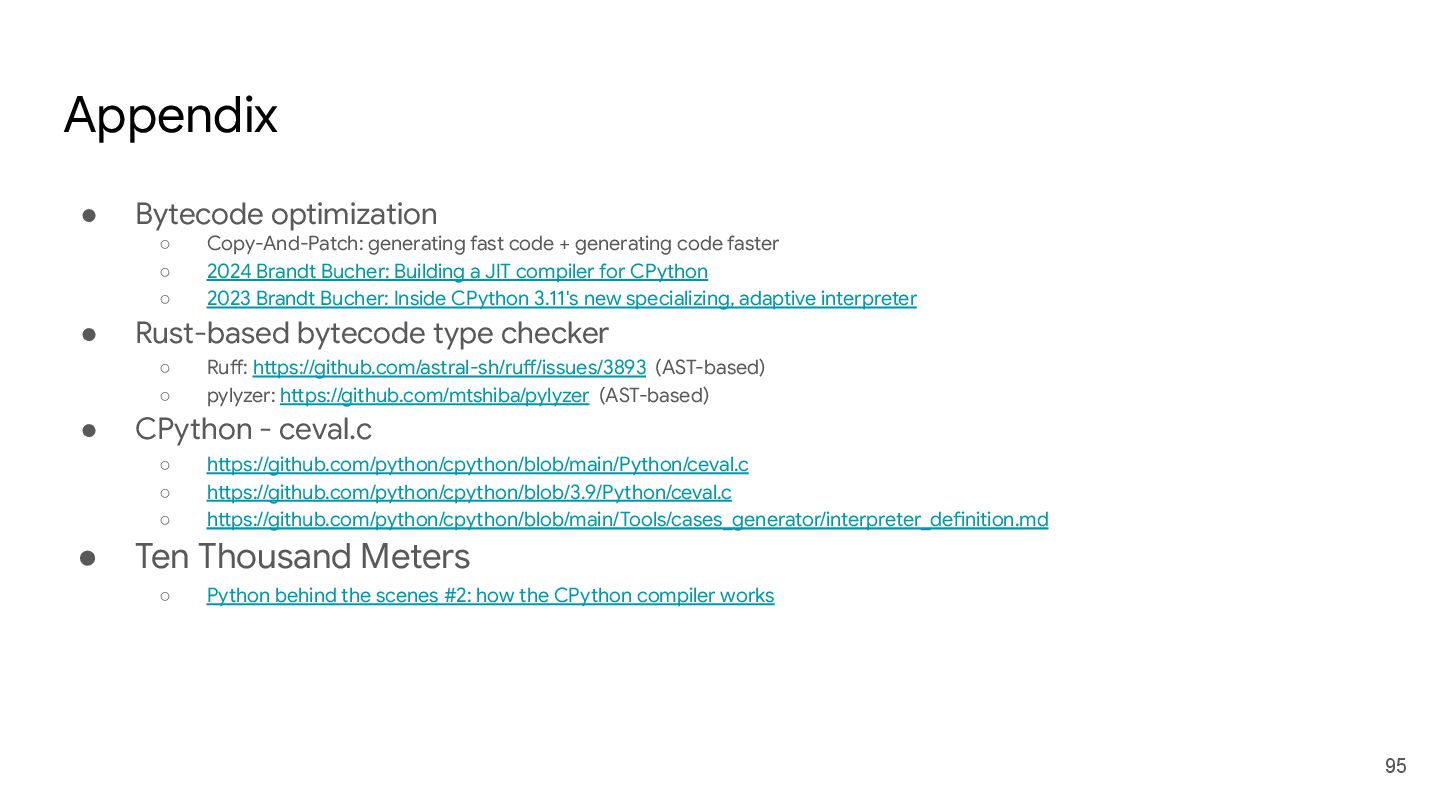

95. Appendix • Bytecode optimization ◦ Copy-And-Patch: generating fast code + generating code faster ◦ 2024 Brandt Bucher: Building a JIT compiler for CPython ◦ 2023 Brandt Bucher: Inside CPython 3.11's new specializing, adaptive interpreter • Rust-based bytecode type checker ◦ Ruff: https://github.com/astral-sh/ruff/issues/3893 (AST-based) ◦ pylyzer: https://github.com/mtshiba/pylyzer (AST-based) • CPython - ceval.c ◦ https://github.com/python/cpython/blob/main/Python/ceval.c ◦ https://github.com/python/cpython/blob/3.9/Python/ceval.c ◦ https://github.com/python/cpython/blob/main/Tools/cases_generator/interpreter_definition.md • Ten Thousand Meters ◦ Python behind the scenes #2: how the CPython compiler works 95
