Game Development with Unity from an Android Point of View @DevFestNantes

Developing mobile games with Unity has become more and more popular these years, and Unity developers often need to tackle OS specific challenges.

Through this talk you will discover how to work with Unity as an Android Developer. You will see how to build Unity plugins using the JNI and Java/Kotlin, which is the most efficient way to link Unity with the Android framework.

Every Unity project can be exported as an Android Studio project with a Gradle support. You'll also see how you can integrate Unity inside a native Android Java/Kotlin application, or how to get a full control of the build process so you can benefit from the best of both worlds.

Transcript

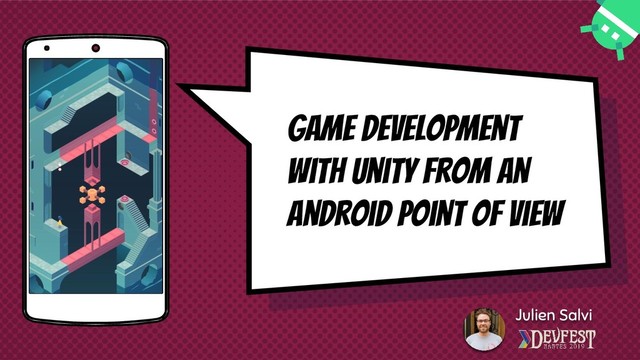

1. Game Development
   with Unity from an
   Android Point of View
   Place your screenshot here
   Julien Salvi


   View Slide

2. Android addict since Froyo
   Punk rock & IPA!
   You can find me at @JulienSalvi
   Julien Salvi
   Senior Android Engineer @ Innovorder


   View Slide

3. × Game Development on Android
   × Building Unity Plugins
   × Unity from Android Studio
   × What’s next?


   View Slide

4. 1.
   Game Development on
   Android
   A global overview


   View Slide

5. Place your screenshot here
   Major Game engines for Android


   View Slide

6. “More than 50% of
   new mobile games
   are made with unity!”


   View Slide

7. Place your screenshot here
   Trusted by many studios


   View Slide

8. × Available on Windows and Mac (soon on Linux)
   × 2D, 3D games or AR/VR apps
   × Fast prototyping, fast scripting
   × Supporting most of the 3D and 2D formats
   Great Asset Store!
   Game development on Android
   Building Android apps with Unity


   View Slide

9. × OpenGL and Vulkan support
   × Bridge to native platforms
   × Android Studio project export
   × Java and Kotlin support
   Game development on Android
   Building Android apps with Unity


   View Slide

10. 2.
    Building Unity Plugins
    Android to the rescue!


    View Slide

11. Building Unity plugins
    Game Developers with Unity
    × Build apps with C# scripts
    × Control the rendering pipeline
    × Cross-platform shader compilation
    Bring the best experience at a high frame rate!



    View Slide

12. For our fellow Unity
    developers


    View Slide

13. “Building Plugins
    for Unity”
    13


    View Slide

14. × Build your plugin using Java/Kotlin or C/C++
    × Android plugins might be: .jar, .aar or .so
    × Add Java or Kotlin classes directly into your Unity Project
    Build an Android Plugin for Unity


    View Slide

15. Android Plugin for Unity
    For example let us build a player plugin for Unity
    Call player methods from Unity


    View Slide

16. Unity
    They are best friends! Let’s eat some
    C# and C++!
    16


    View Slide

17. J
    N
    I
    Java / Kotlin code C/C++ code
    Plugin


    View Slide

18. public class PlayerBridge {
    private Context ctx;
    public PlayerBridge(Context ctx) {}
    public void addSubtitles(String path) {}
    public void doOnMainThread(boolean playWhenReady) {}
    public int getTrackCount() {}
    }
    Android Plugin for Unity


    View Slide

19. Calling a JAVA/Kotlin object from Unity
    AndroidJavaObject localMediaPlayer = null;
    using (AndroidJavaClass javaUnityPlayer = new AndroidJavaClass("com.unity3d.player.UnityPlayer")) {
    using (currentActivity = javaUnityPlayer.GetStatic("currentActivity")) {
    localMediaPlayer = new AndroidJavaObject("my/plugin/vr/PlayerBridge", currentActivity);
    if (localMediaPlayer != null) {
    // Do some work with your java object outside the Android UI thread
    localMediaPlayer.Call("addSubtitles", subtitleURL);
    int count = localMediaPlayer.Call("getTrackCount");
    currentActivity.Call("runOnUiThread", new AndroidJavaRunnable(() => {
    // Do some work on Android UI thread
    localMediaPlayer.Call("doOnMainThread", true);
    }));
    }
    }
    }


    View Slide

20. Function inside your plugin
    Define the plugin function in your Unity script
    extern "C" {
    float FooPluginFunction ();
    }
    C/C++ Plugin
    [DllImport ("PluginName")]
    private static extern float FooPluginFunction ();


    View Slide

21. Better performances when you call your Java plugin through the JNI
    Important: JVM loading
    jint JNI_OnLoad(JavaVM* vm, void* reserved) {
    JNIEnv* jni_env = 0;
    vm->AttachCurrentThread(&jni_env, 0);
    return JNI_VERSION_1_6;
    }
    Java and C/C++ Plugin


    View Slide

22. JNI method for calling a method in a Java class
    JNIEXPORT jobject JNICALL Java_com_example_NativeClass_nativeMethod(JNIEnv* env) {
    jclass cls_JavaClass = env->FindClass("com/your/java/Class"); // find class definition
    jmethodID mid_JavaClass = env->GetMethodID (cls_JavaClass, "", "()V"); // find constructor method
    jobject obj_JavaClass = env->NewObject(cls_JavaClass, mid_JavaClass); // create object instance
    return env->NewGlobalRef(obj_JavaClass); // return object with a global reference
    }
    Java and C/C++ Plugin


    View Slide

23. static void UNITY_INTERFACE_API OnRenderEvent(int eventID) {
    switch((GLEvent)eventID) {
    case Initialize :
    InitMediaSurface();
    break;
    case Shutdown :
    mediaSurface->Shutdown();
    mediaSurface = NULL;
    break;
    case Update:
    mediaSurface->Update();
    break;
    case Resize:
    mediaSurface->ResizeTexture();
    break;
    }
    }
    Java and C/C++ Plugin
    static void UNITY_INTERFACE_API OnRenderEvent(int eventID);
    enum GLEvent {
    Initialize = 0,
    Shutdown = 1,
    Update = 2,
    Resize = 3
    };
    Sending event to the native surface for low-level rendering


    View Slide

24. Set a native callback and dispatch an event to the native plugin from Unity
    // Set the native callback from Unity
    _inptr_native_callback_delegate = Marshal.GetFunctionPointerForDelegate(NativeCallback);
    // Native method from the plugin
    CINEVR_AndroidNative_SetNativeCallback(_inptr_native_callback_delegate);
    Java and C/C++ Plugin
    // Get native callback from the plugin to queue for Unity's renderer to invoke
    IntPtr _renderFunc = CINEVR_AndroidNative_GetRenderEventFunc();
    // Dispatch the event to native plugin
    GL.IssuePluginEvent(_renderFunc, GLEventType.Initialize);


    View Slide

25. Your C++ method in your JNI plugin
    JNIEXPORT jstring JNICALL Java_js_NativePlugin_getHiString(JNIEnv * env, jobject obj) {
    return env->NewStringUTF("Bonjour DevFest Nantes ! Hope you have fun");
    }
    C/C++ from Java or Kotlin


    View Slide

26. From Kotlin
    C/C++ from Java or Kotlin
    external fun getHiString(): String
    From Java
    public native String getHiString();
    From Kotlin
    init {
    System.loadLibrary("sample-jni")
    }
    From Java
    static {
    System.loadLibrary("sample-jni");
    }


    View Slide

27. × Support available from 2018.2
    × Add your files in a dedicated folder in
    the Asset Folder
    × Build with Gradle only
    × Use the AndroidJavaObject class to
    call methods in your plugin
    Building Unity Plugins
    Using Java or Kotlin source files as plugins


    View Slide

28. × Enable Custom Gradle Templates
    property on the Player window
    × Override the generated
    mainTemplate.gradle file
    × You can also provide your own
    settings.gradle file
    Building Unity Plugins
    Add Gradle dependencies to your Unity project


    View Slide

29. 3.
    Unity from Android
    Studio
    Your turn Android devs!


    View Slide

30. That’s what we want!


    View Slide

31. × Export your Unity project with
    Gradle or IL2CPP as Build
    System
    × Enable Symlink Sources if you
    have Java or Kotlin source files
    Unity from Android Studio
    Exporting a Unity Project


    View Slide

32. × Have a full control of the build
    workflow
    × Easily add Android code
    × Easy library management
    × Modify generated code
    Unity from Android Studio
    Exporting a Unity Project


    View Slide

33. UnityPlayerActivity overview
    public class UnityPlayerActivity extends Activity {
    protected UnityPlayer mUnityPlayer; // don't change it, referenced from native code
    @Override protected void onCreate(Bundle savedInstanceState) {
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    super.onCreate(savedInstanceState);
    getWindow().setFormat(PixelFormat.RGBX_8888); // <-- This makes xperia play happy
    mUnityPlayer = new UnityPlayer(this);
    setContentView(mUnityPlayer);
    mUnityPlayer.requestFocus();
    }
    }


    View Slide

34. Override the UnityPlayerActivity
    public class OverrideExample extends UnityPlayerActivity {
    @Override
    protected String updateUnityCommandLineArguments(String cmdLine) {
    if (Utils.preferVulkan())
    return Utils.appendCommandLineArgument(cmdLine, "-force-vulkan");
    else if (Utils.preferES2())
    return Utils.appendCommandLineArgument(cmdLine, "-force-gles20");
    else
    return cmdLine; // let Unity pick the Graphics API based on PlayerSettings
    }
    }


    View Slide

35. 4.
    What’s Next?
    \ (•◡•) /


    View Slide

36. What’s next?
    Linux support is coming soon
    Better Gradle integration
    Better performances



    View Slide

37.
    And that’s it?


    View Slide

38.
    Of course not!


    View Slide

39.
    Unity as a LiBrary!


    View Slide

40. What’s next?
    Unity as a Library
    × Available with Unity 2019.3
    × Add Unity content (AR/VR, 2D/3D
    games) directly to your Android apps
    × Proper library integration


    View Slide

41. View Slide

42. public class MainUnityActivity extends OverrideUnityActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    goBackBtn.setOnClickListener(v -> { showMainActivity(); });
    sendMsgBtn.setOnClickListener(v -> {
    UnitySendMessage("Cube", "ChangeColor", "yellow");
    });
    finishBtn.setOnClickListener(v -> { finish(); });
    }
    }
    Override the OverrideUnityActivity


    View Slide

43. What’s next?
    Unity as a Library limitations
    × Fullscreen rendering only
    × Only one instance of the Unity runtime
    is supported
    × You may need to adapt your plugins to
    work properly


    View Slide

44. What’s next?
    Unity as a library
    01
    02
    03
    https://blogs.unity3d.com/2019/06/17/add-features-powered-by
    -unity-to-native-mobile-apps
    Unity as a Library
    https://forum.unity.com/threads/using-unity-as-a-library-in-nat
    ive-ios-android-apps.685195/
    Using Unity as a library in native iOS/Android apps
    https://forum.unity.com/threads/integration-unity-as-a-library-
    in-native-android-app.685240/
    Integration Unity as a library in native Android app


    View Slide

45.
    Eh! What about
    Android from a Unity
    Point of view?
    random person in the audience - right now


    View Slide

46.
    I was about to
    tell them!


    View Slide

47. What’s next?
    Android from a Unity Point of View
    × Easy to build on Android
    × Graphic libs support (OpenGL/Vulkan)
    Easy compat with ShaderLab
    × No need to dig into the Android
    documentation



    View Slide

48. What’s next?
    Android from a Unity Point of View
    × How it is implemented under the hood
    × Building UI components
    × Integrating Unity games into Android apps…
    but Unity as a library is coming



    View Slide

49. Want to know more?
    https://developer.android.com/game
    Android Game Development
    https://medium.com/@cinemur/73ec7e83dd5c
    ExoPlayer for building powerful VR players on Cardboard and GearVR
    https://docs.unity3d.com/Manual/PluginsForAndroid.html
    Building Unity Plugins for Android


    View Slide

50. THANKS!
    Have fun with Android and Unity!
    Any questions?


    View Slide
