Distributed Events

Slides of the presentation I gave at the NCrafts conference in Paris on 12 May (www.ncrafts.io)

Transcript

1. Stijn Volders Freelance .net consultant Loves complex problems (that can be solved with software) @one75 https://www.linkedin.com/in/stijnvolders stijn@one75.be
2. Distributed Events A case study from the trenches

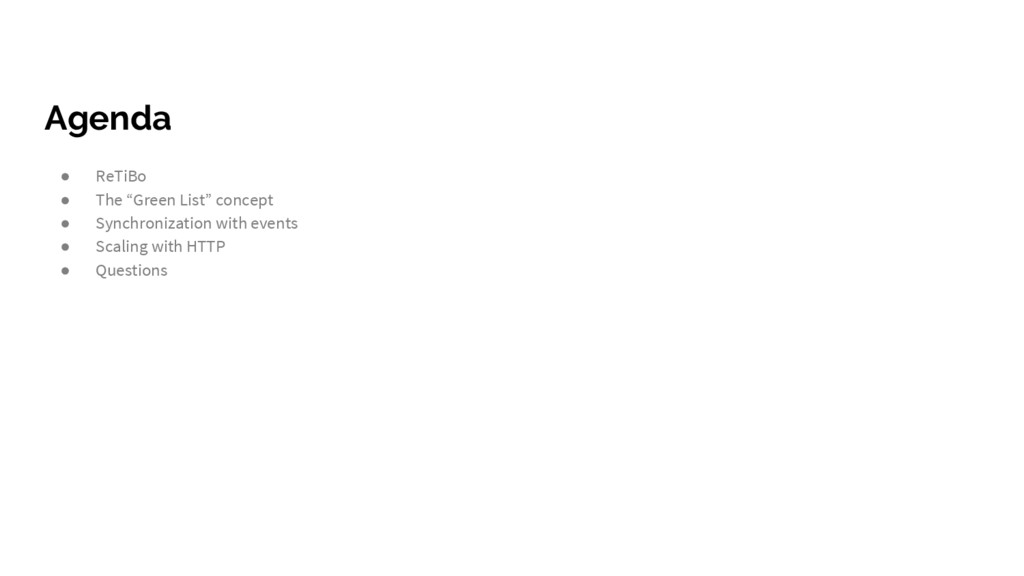

3. Agenda • ReTiBo • The “Green List” concept • Synchronization with events • Scaling with HTTP • Questions
4. Problem space
5. Problem space
6. Problem space
7. Problem space

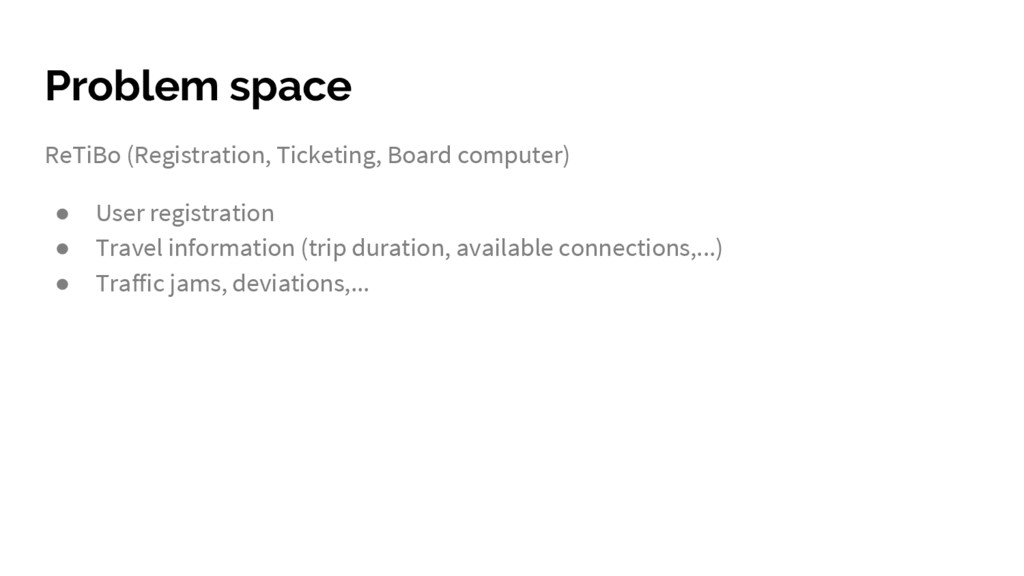

8. Problem space ReTiBo (Registration, Ticketing, Board computer) • User registration • Travel information (trip duration, available connections,...) • Traffic jams, deviations,...

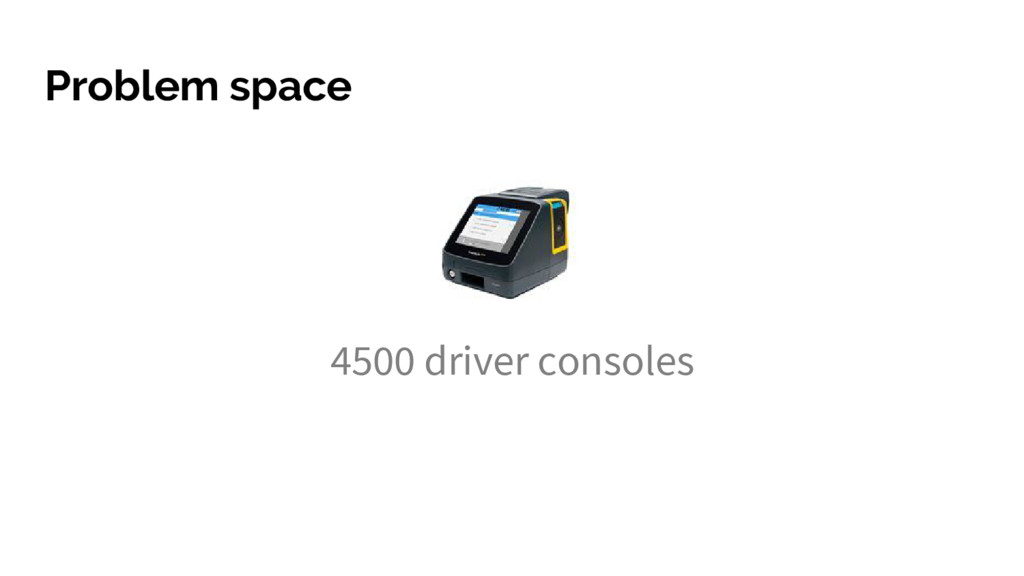

9. Problem space 4500 driver consoles

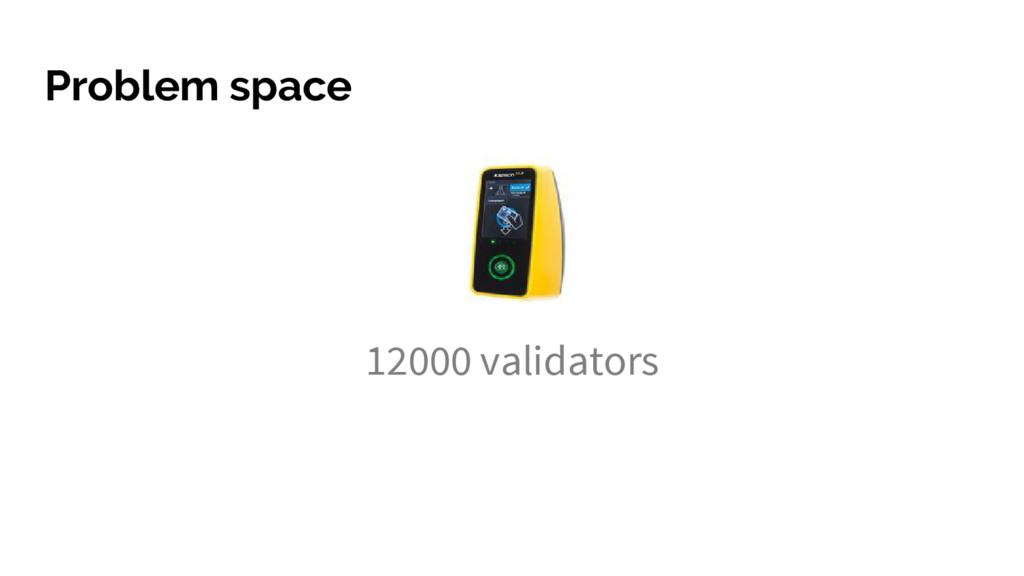

10. Problem space 12000 validators

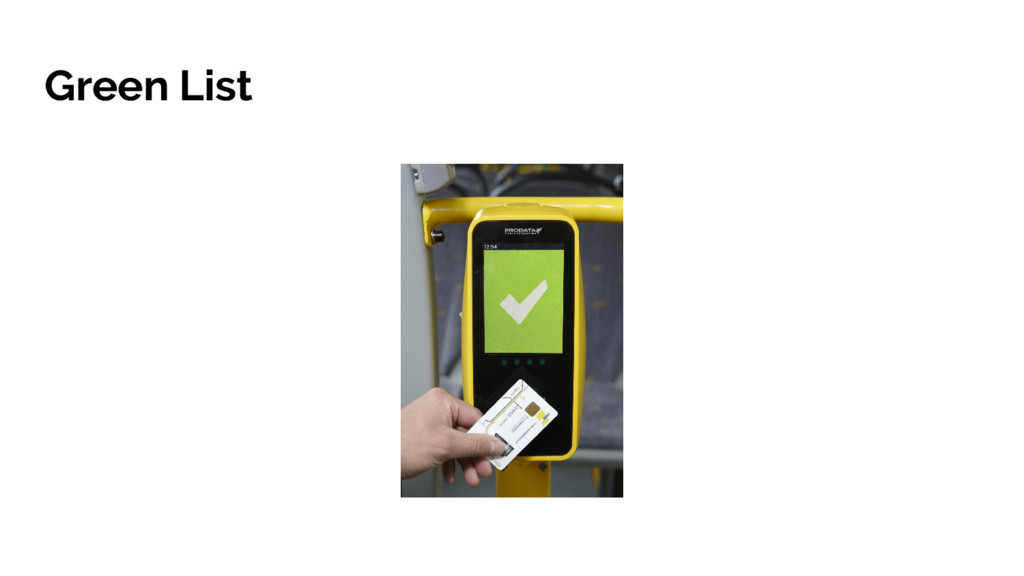

11. Green List
12. Problem space Synchronization

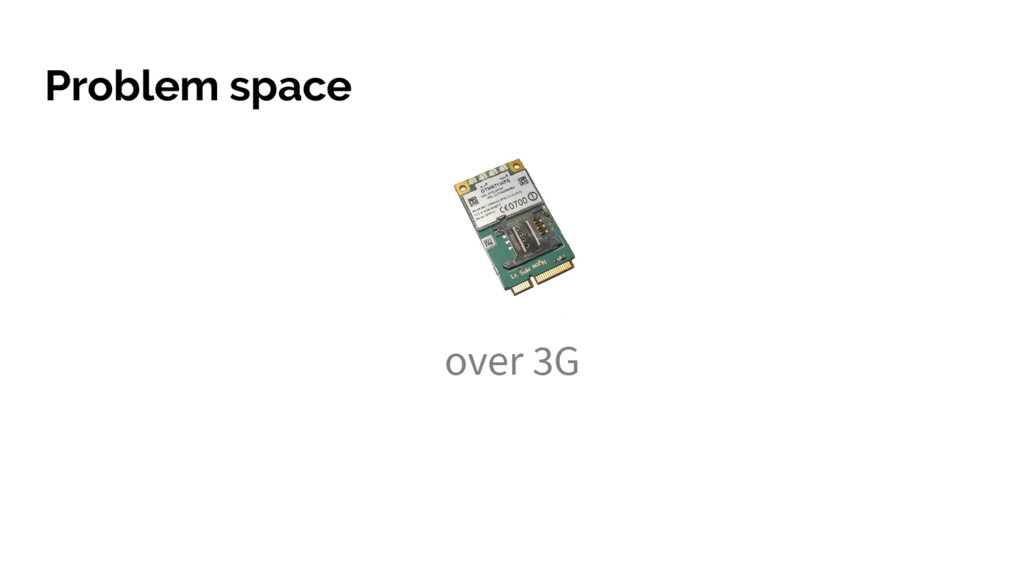

13. Problem space over 3G
14. Problem space
15. Solution

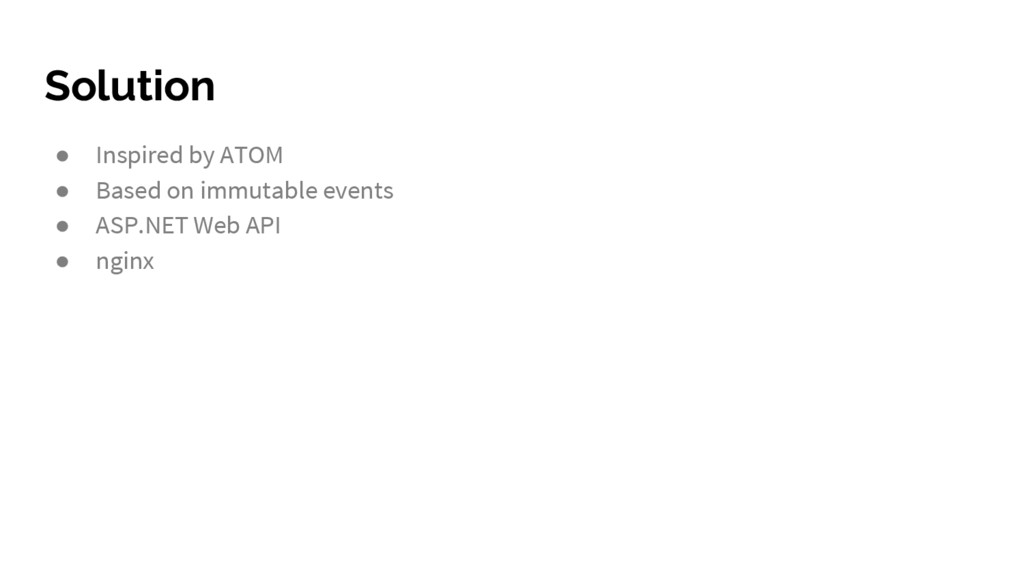

16. Solution • Inspired by ATOM • Based on immutable events • ASP.NET Web API • nginx

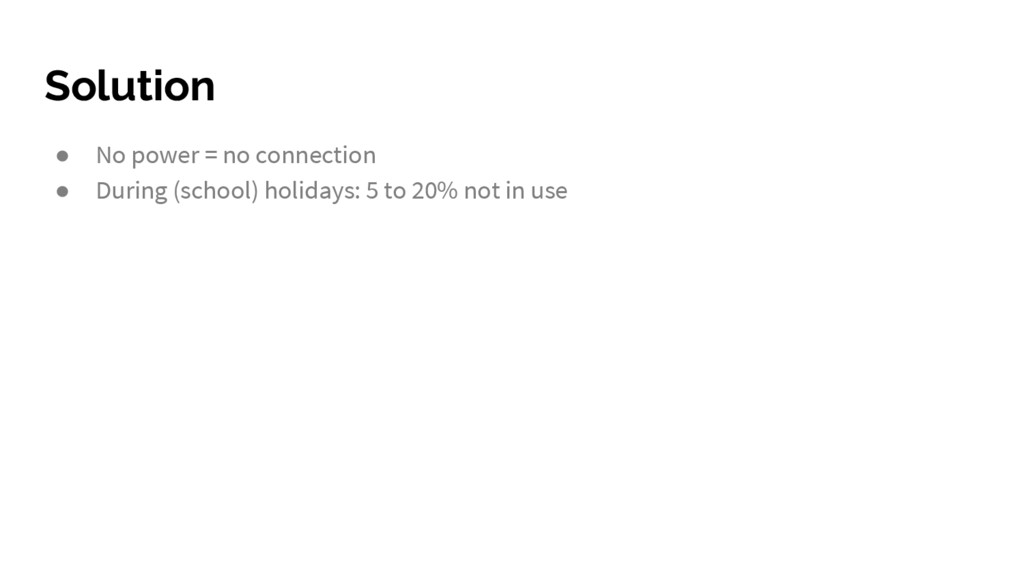

17. Solution • No power = no connection • During (school) holidays: 5 to 20% not in use
18. Solution

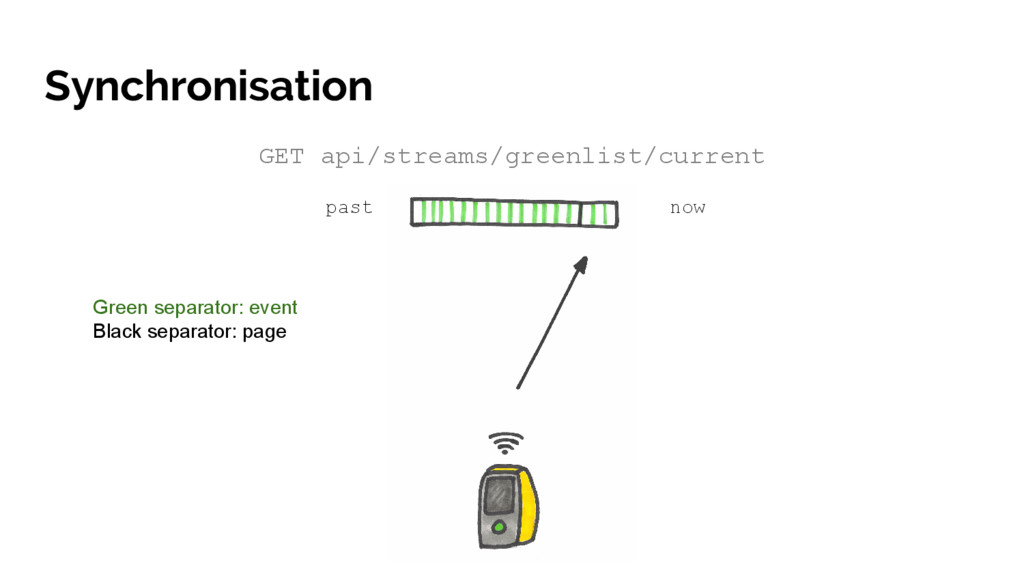

19. Synchronisation GET api/streams/greenlist/current now past Green separator: event Black separator: page

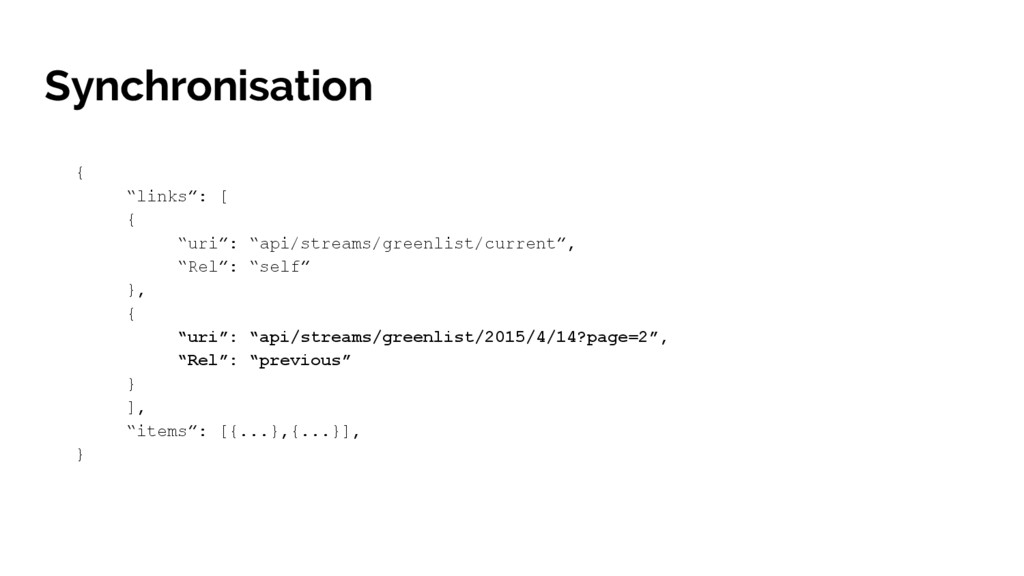

20. Synchronisation { “links”: [ { “uri”: “api/streams/greenlist/current”, “Rel”: “self” }, { “uri”: “api/streams/greenlist/2015/4/14?page=2”, “Rel”: “previous” } ], “items”: [{...},{...}], }

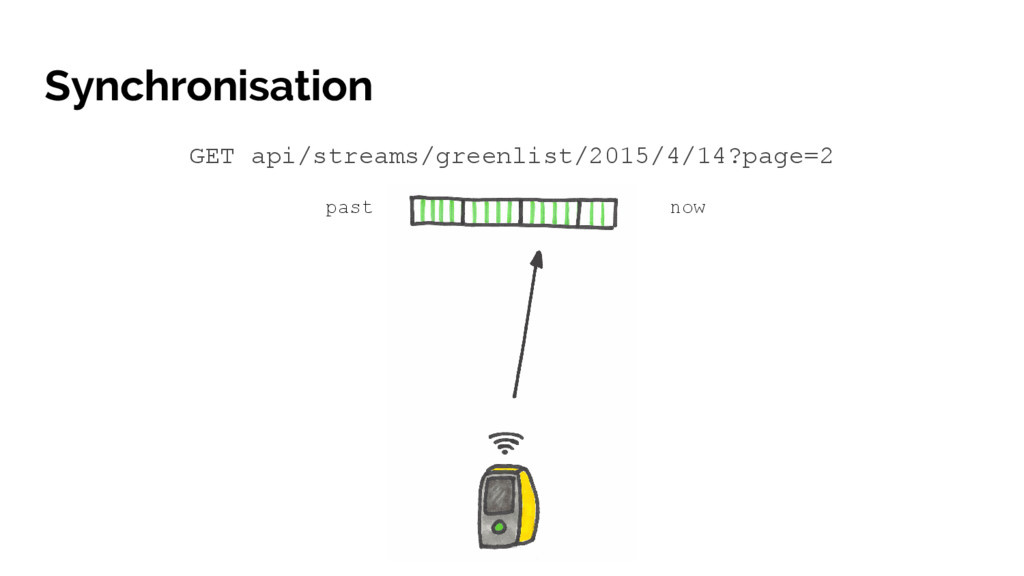

21. Synchronisation GET api/streams/greenlist/2015/4/14?page=2 now past

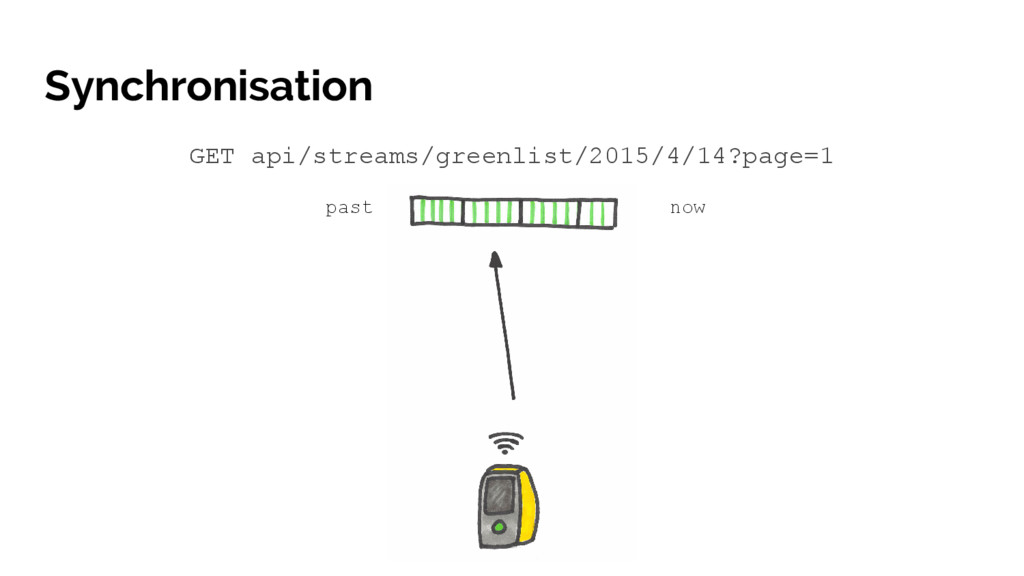

22. Synchronisation GET api/streams/greenlist/2015/4/14?page=1 now past

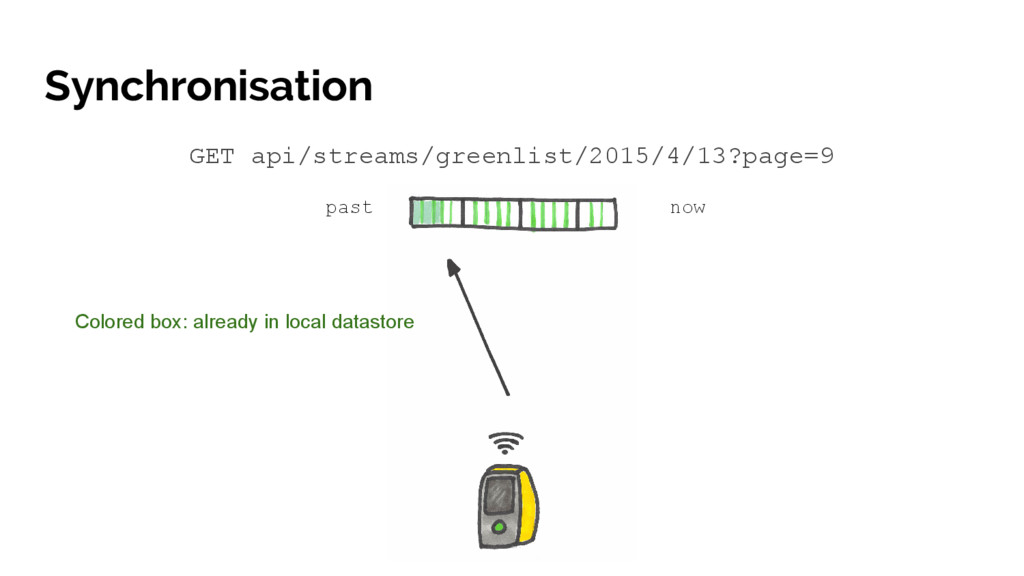

23. Synchronisation GET api/streams/greenlist/2015/4/13?page=9 now past Colored box: already in local datastore

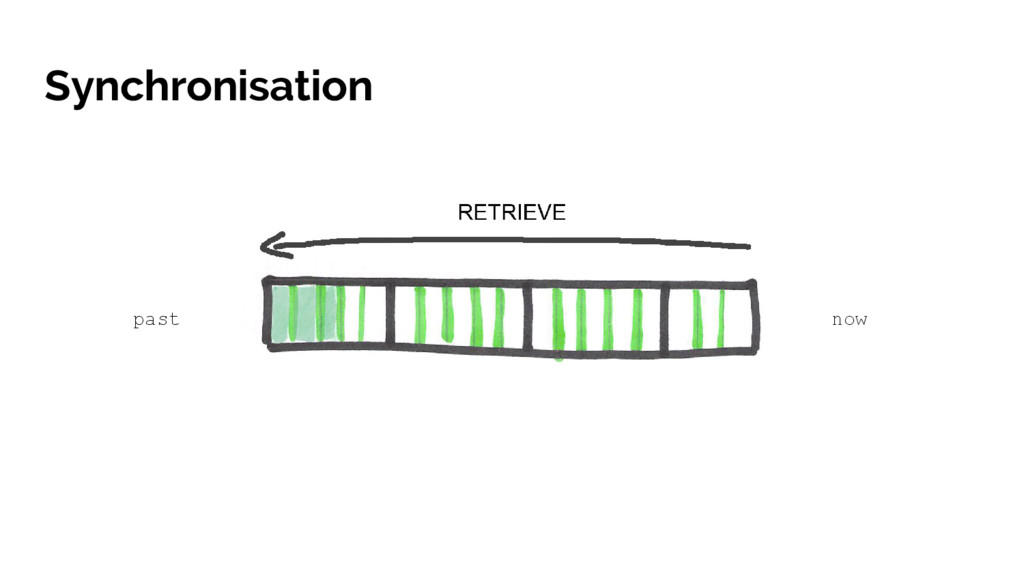

24. Synchronisation past now

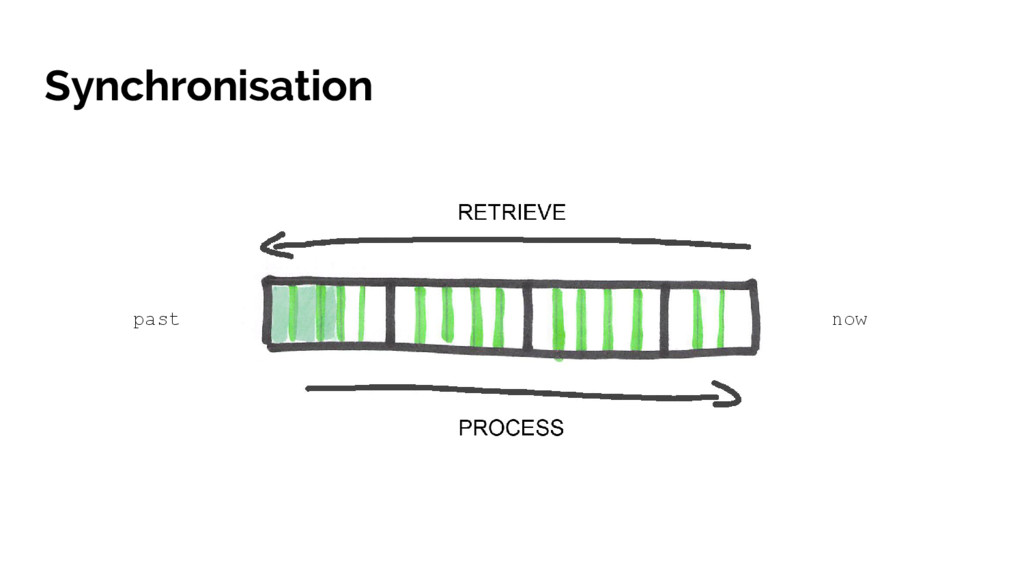

25. Synchronisation past now

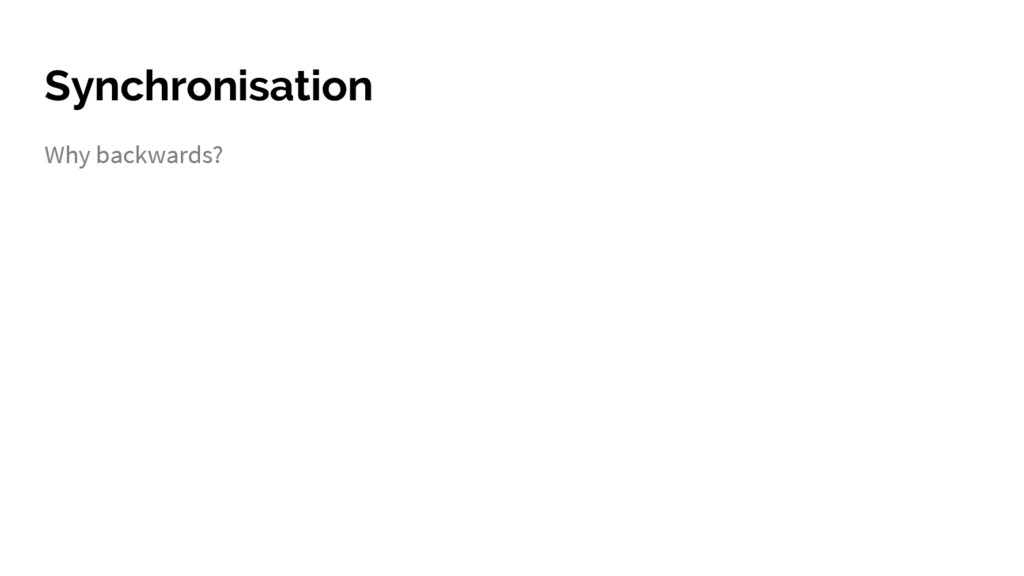

26. Synchronisation Why backwards?

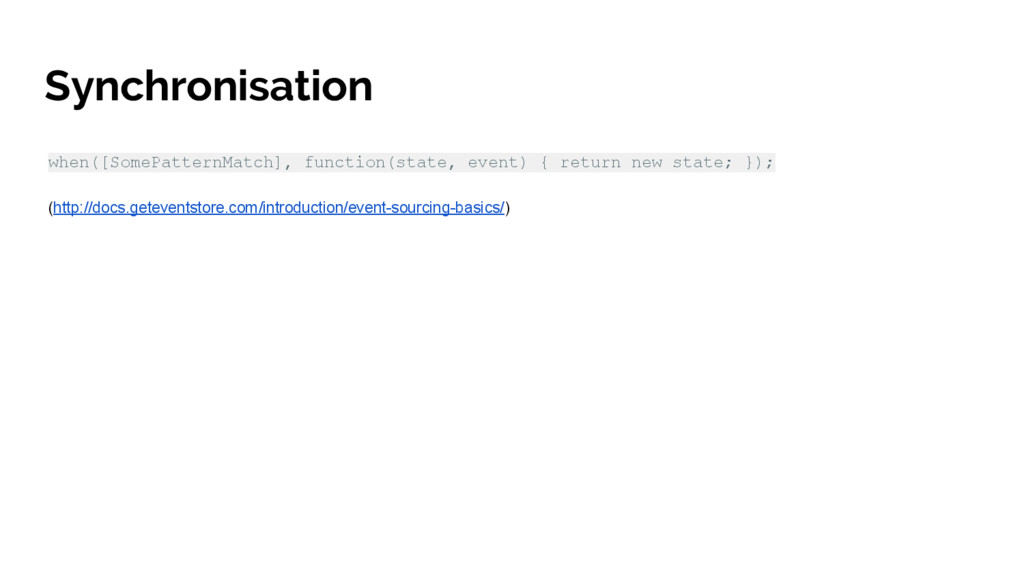

27. Synchronisation when([SomePatternMatch], function(state, event) { return new state; }); (http://docs.geteventstore.com/introduction/event-sourcing-basics/)
28. Scaling
29. Scaling

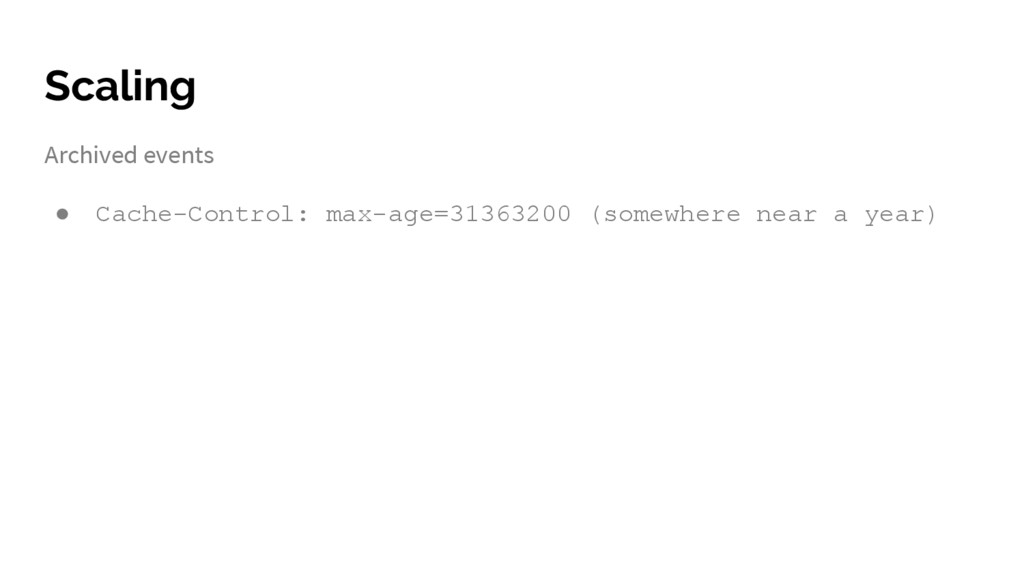

30. Scaling Archived events • Cache-Control: max-age=31363200 (somewhere near a year)

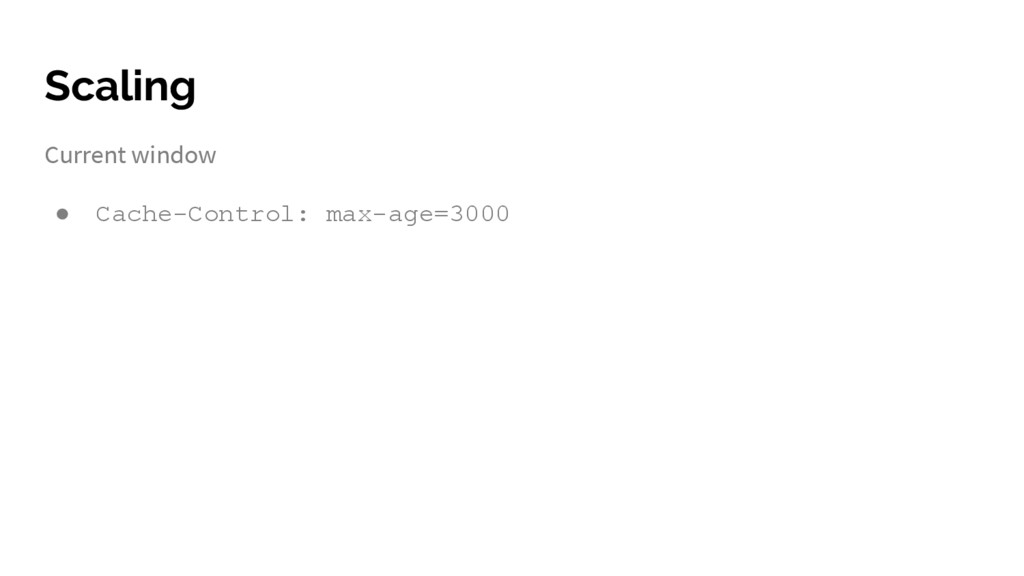

31. Scaling Current window • Cache-Control: max-age=3000

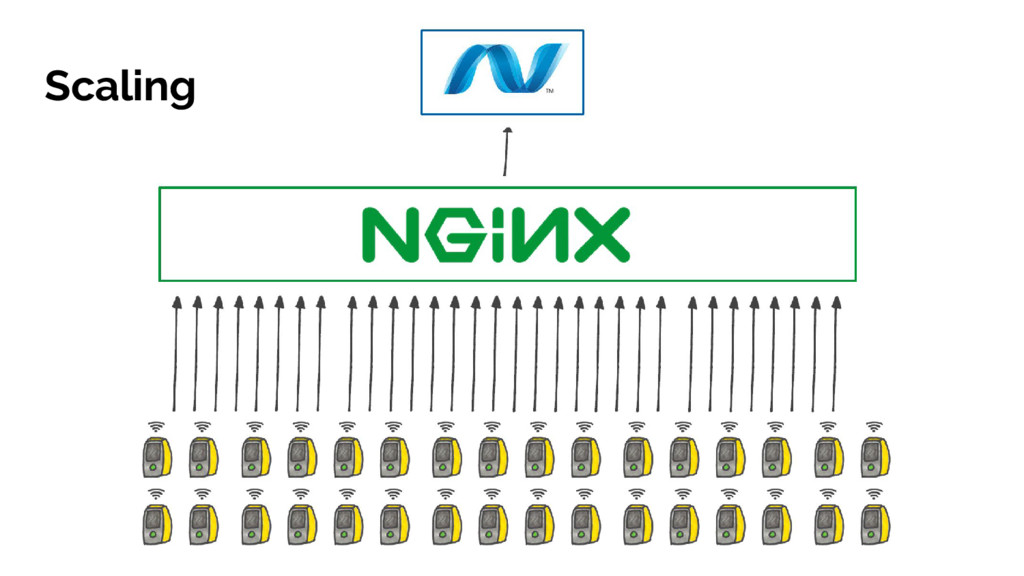

32. Scaling
33. Scaling Given • Nothing is cached • A 5 minute interval • 16500 devices

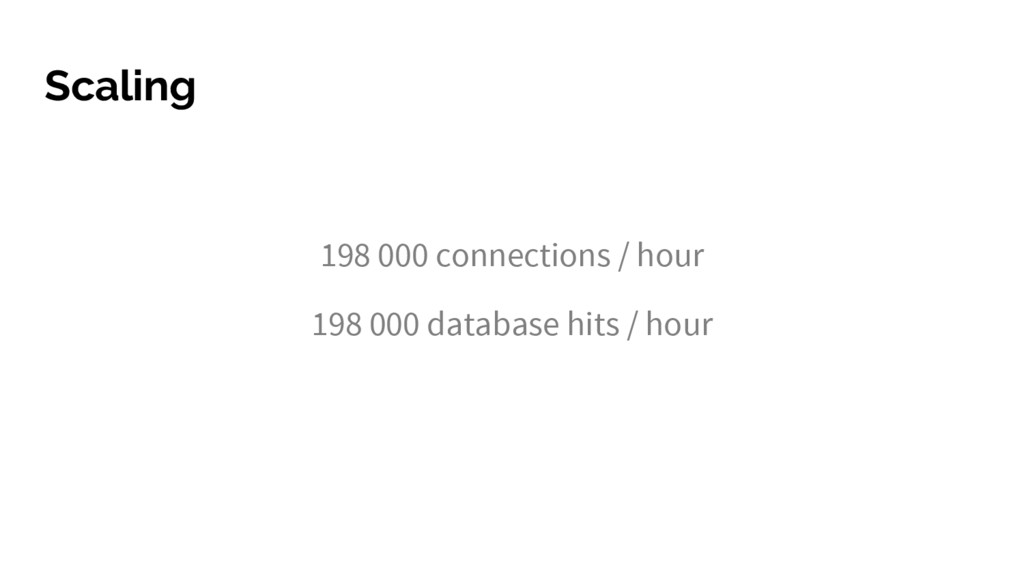

34. Scaling 198 000 connections / hour 198 000 database hits / hour
35. Scaling

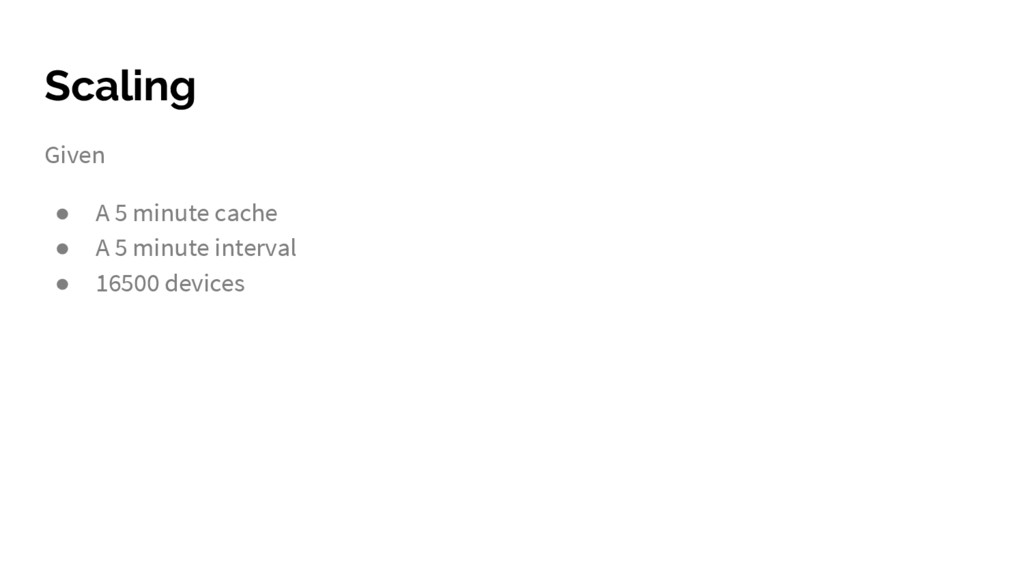

36. Scaling Given • A 5 minute cache • A 5 minute interval • 16500 devices

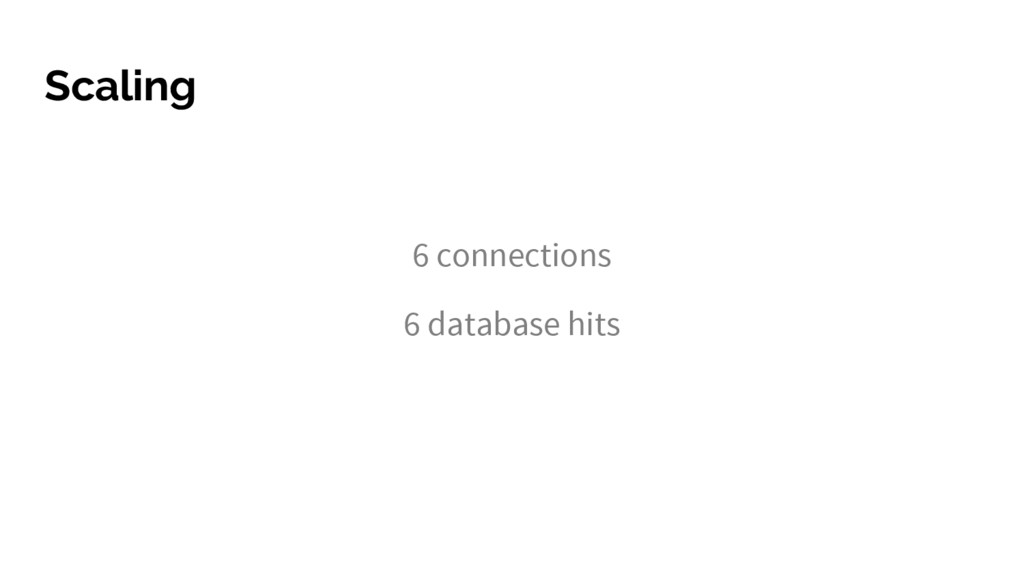

37. Scaling 6 connections 6 database hits

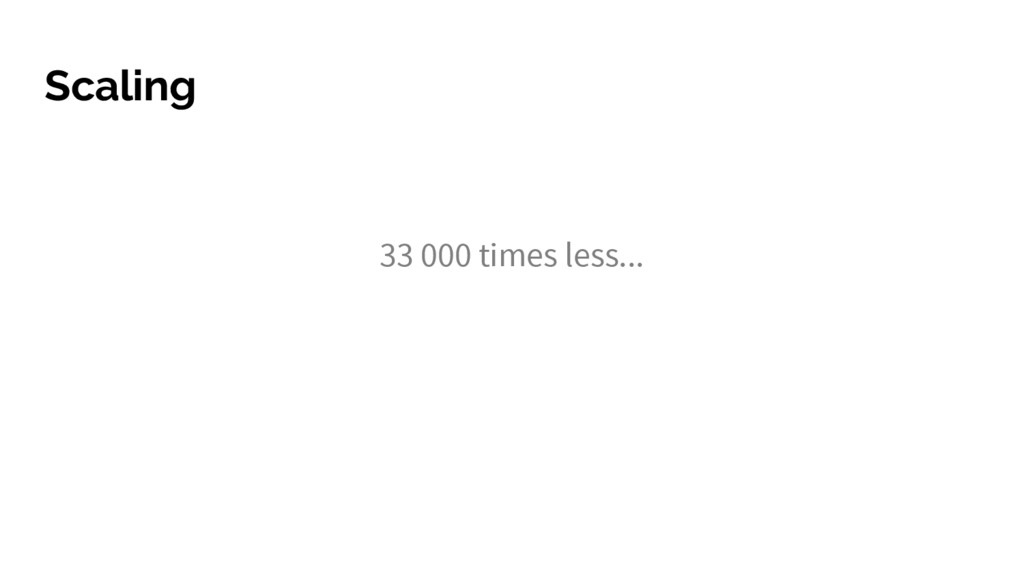

38. Scaling 33 000 times less...

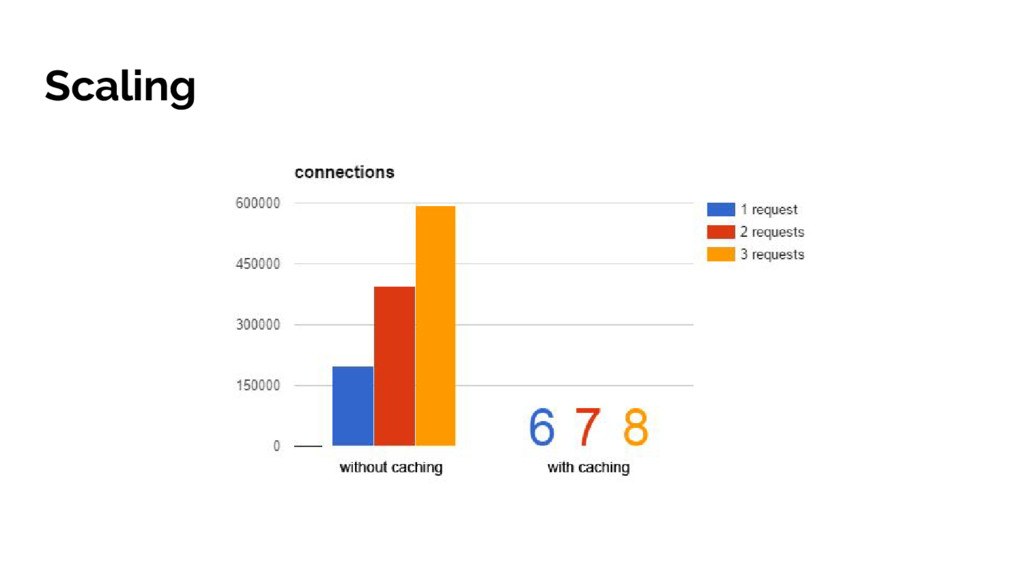

39. Scaling
40. Scaling

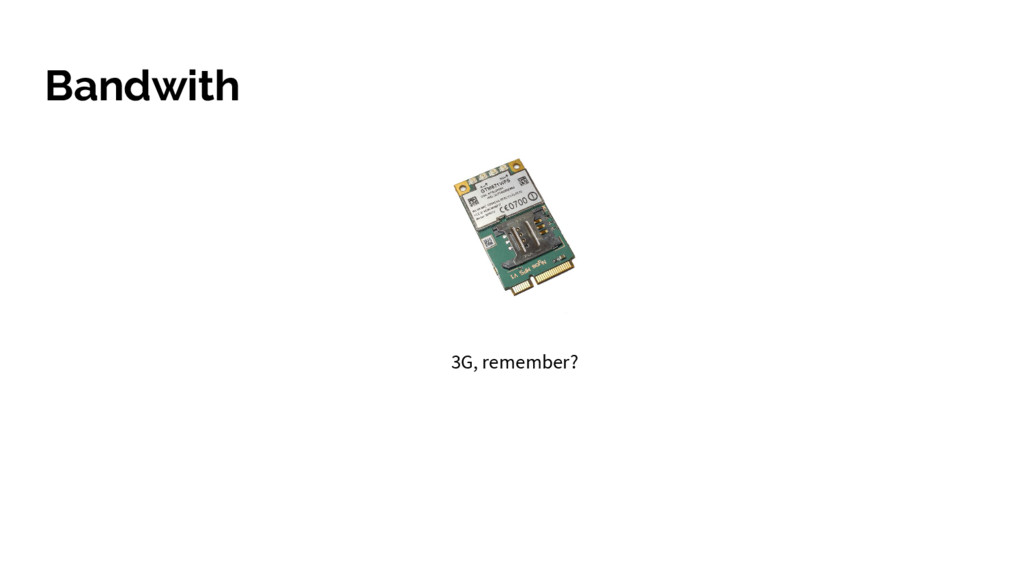

41. Bandwith 3G, remember?

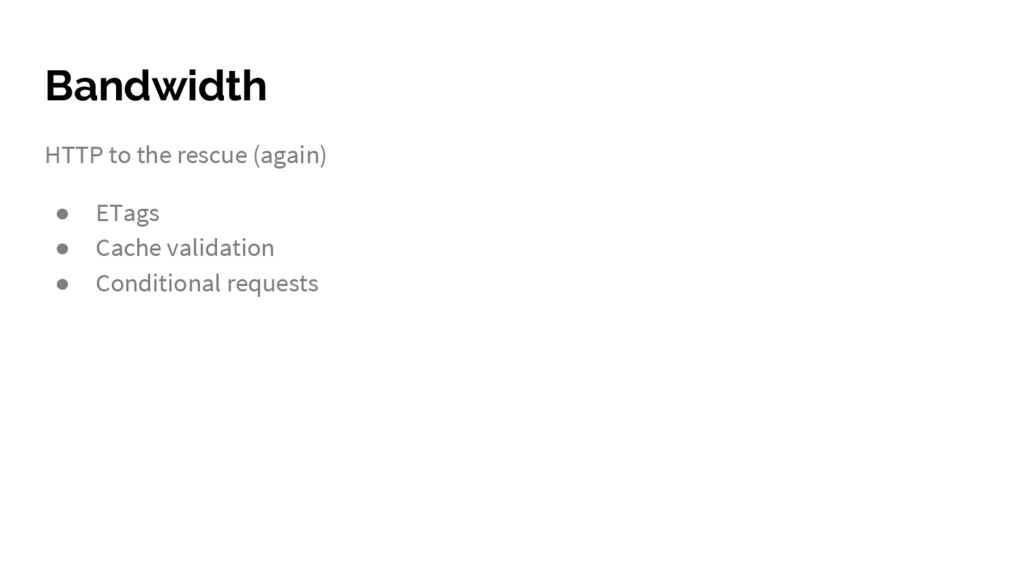

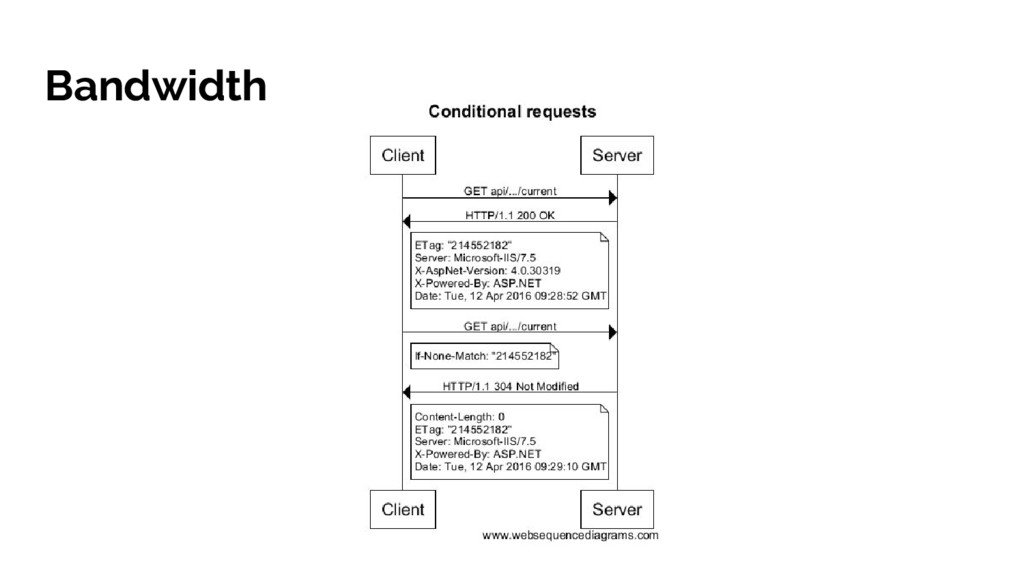

42. Bandwidth HTTP to the rescue (again) • ETags • Cache validation • Conditional requests
43. Bandwidth
44. Bandwidth Number time… • 600kb payload for a page of 1000 items • 16h of activity (6am - 10pm) • Sync every 5 minutes

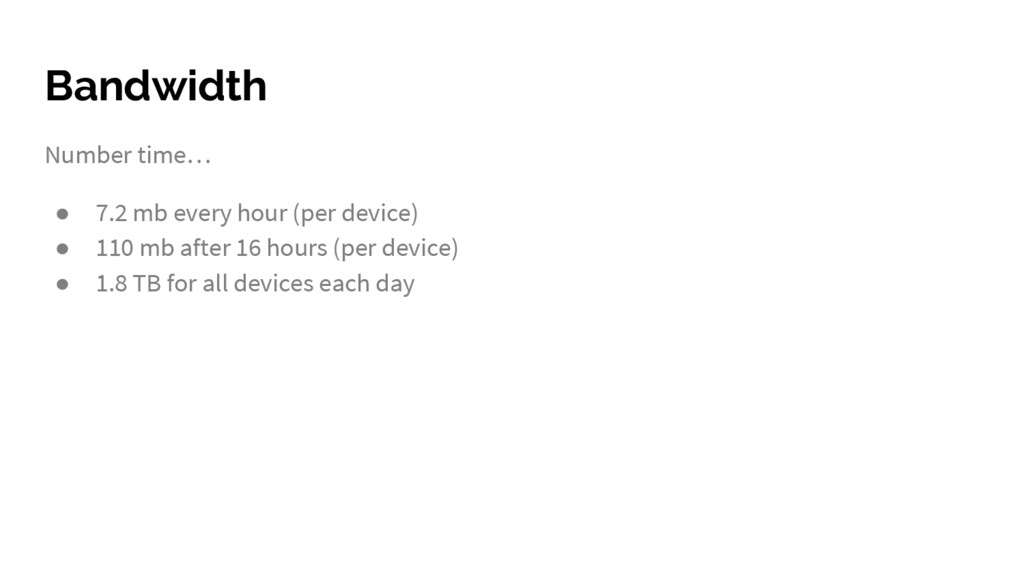

45. Bandwidth Number time… • 7.2 mb every hour (per device) • 110 mb after 16 hours (per device) • 1.8 TB for all devices each day
46. Bandwidth

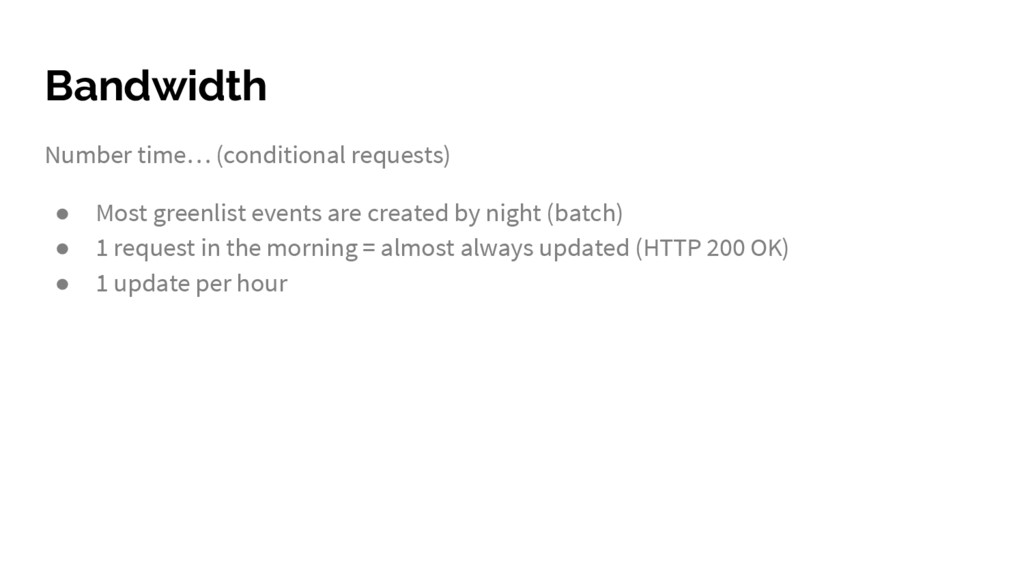

47. Bandwidth Number time… (conditional requests) • Most greenlist events are created by night (batch) • 1 request in the morning = almost always updated (HTTP 200 OK) • 1 update per hour

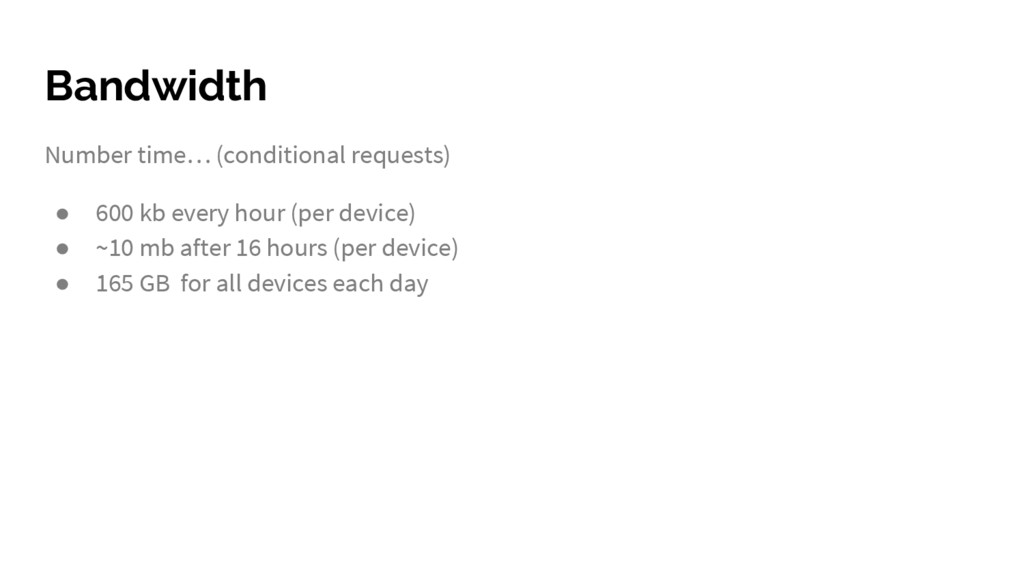

48. Bandwidth Number time… (conditional requests) • 600 kb every hour (per device) • ~10 mb after 16 hours (per device) • 165 GB for all devices each day

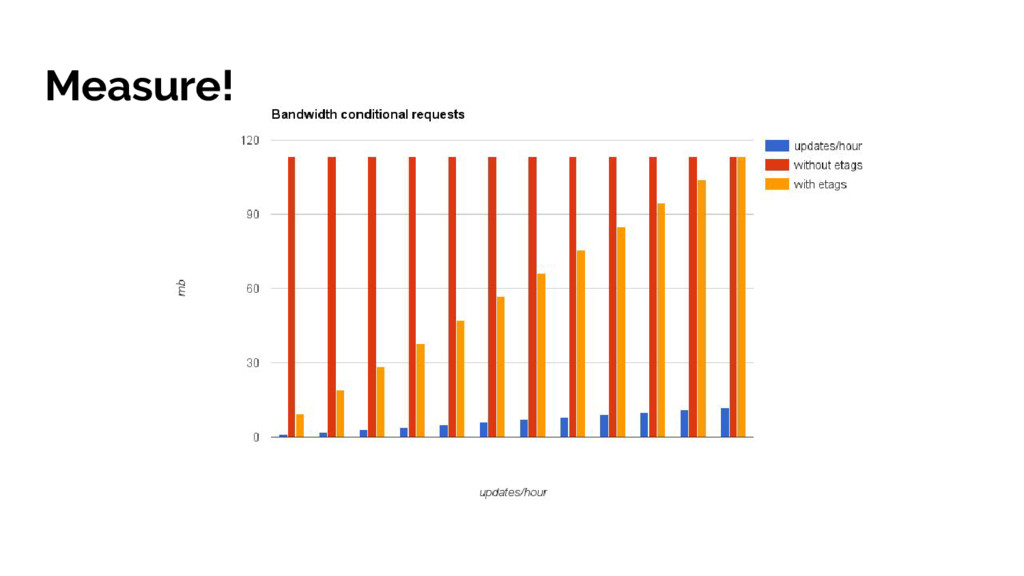

49. Measure!

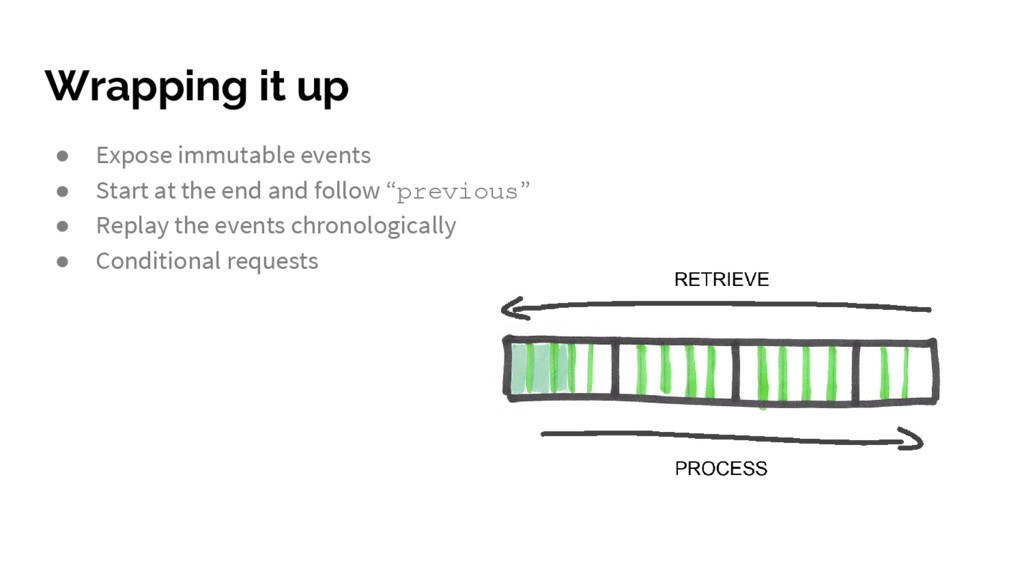

50. Wrapping it up • Expose immutable events • Start at the end and follow “previous” • Replay the events chronologically • Conditional requests
51. Questions? @one75 https://www.linkedin.com/in/stijnvolders stijn@one75.be
52. Thank you! @one75 https://www.linkedin.com/in/stijnvolders stijn@one75.be
