Testing Distributed Systems with Fuzzy Monkey Testing

One of the keys to good software is good testing. There are well-known testing suites for back end code – things like junit and py.test. There are also good front-end testing tools – things like Selenium. But for testing distributed systems there aren’t so many well-known tools – because the problem is quite different, and harder. These slides cover the “Fuzzy Monkey” methodology used for testing three different successful distributed systems (including the Assimilation Suite) – its history and how and why it works.

http://bit.ly/FuzzyMonkey

Transcript

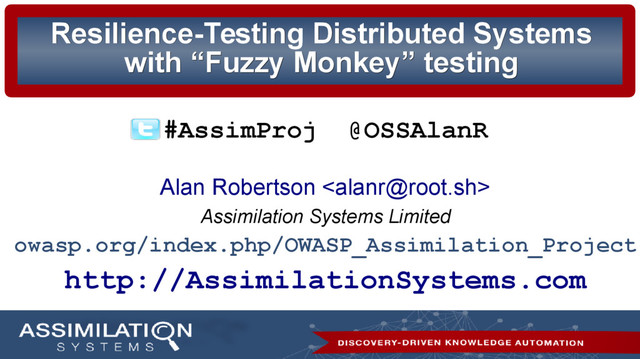

1. Resilience-Testing Distributed Systems
   Resilience-Testing Distributed Systems
   with “Fuzzy Monkey” testing
   with “Fuzzy Monkey” testing
   #AssimProj @OSSAlanR
   Alan Robertson
   Assimilation Systems Limited
   owasp.org/index.php/OWASP_Assimilation_Project
   http://AssimilationSystems.com


   View Slide

2. 2/19
   Biography
   Biography
   ●
   35+ years in IT/development – 10 years in system
   management (SysAdmin)
   ●
   Founded Linux-HA project - led 1998-2007 – aka “Heartbeat” -
   now called Pacemaker
   ●
   Founded Assimilation Project in 2010
   ●
   Founded Assimilation Systems Limited in 2013
   ●
   Alumnus of Bell Labs, SuSE, IBM


   View Slide

3. 3/19
   What Is Fuzzy Monkey Testing?
   What Is Fuzzy Monkey Testing?
   ●
   A method of testing of distributed systems
   ●
   Specializes in resilience testing
   – testing for robustness in the
   presence of failures


   View Slide

4. 4/19
   Fuzzy Monkey History
   Fuzzy Monkey History
   ●
   First conceived in Fall of 2001
   ●
   Initially implemented by CTS as part of the Linux-HA project
   – CTS == Cluster Testing System
   ●
   Continued into the Pacemaker Project
   ●
   CTS Adopted by Corosync
   ●
   Fuzzy Monkey method re-implemented for Assimilation
   Project in 2014
   ●
   Came up with Fuzzy Monkey name in May 2016


   View Slide

5. 5/19
   Why create a unique testing method?
   Why create a unique testing method?
   ●
   Testing distributed systems is hard
   ●
   Manual testing is rarely successful
   ●
   No good tools out there
   ●
   Eliminate Embarrassment:
   – I was tired of having egg on my face when I put out a release of
   Linux-HA with bugs that I should have caught
   – I hated doing manual testing – and I was bad at it


   View Slide

6. 6/19
   Why is Automated Testing Important?
   Why is Automated Testing Important?
   ●
   Automated testing speeds up product releases
   ●
   Automated testing available to developers decreases end-
   user-visible bugs
   ●
   Continuous Integration needs automated testing
   ●
   Continuous Deployment requires automated testing
   Modern software development cannot rely on manual testing


   View Slide

7. 7/19
   How do normal automated tests work?
   How do normal automated tests work?
   ●
   Fixed list of tests which do fixed things
   ●
   Tests are typically synchronous
   ●
   Each test tests one thing – often just calls a function and looks at the
   result
   ●
   Each test expects one correct answer
   ●
   When tests complete, they leave things like when they started
   ●
   It’s easy to tell when a test is complete – when the function returns
   ●
   Tests are not subject to timing problems
   ●
   Tests are complete when the last test completes


   View Slide

8. 8
   Why is Automated Distributed System
   Why is Automated Distributed System
   Testing Hard?
   Testing Hard?
   ●
   Tests are always asynchronous
   ●
   If you run the same test twice, you might get two different correct answers
   ●
   The results of the test depend on the current distributed configuration
   ●
   Events happen when they do, and are observed at a random time later
   ●
   Specifically trying to create timing issues
   ●
   You need randomness in the tests to make it more likely you hit all the timing
   windows
   ●
   It’s hard to tell when a test is “done”
   ●
   It’s hard to know when you’ve tested enough


   View Slide

9. 9/19
   What does this mean for Distributed testing?
   What does this mean for Distributed testing?
   ●
   Tests need to be run multiple times
   ●
   Tests need to be selected at random
   ●
   Tests need to include randomness in them
   ●
   Some tests will deliberately make configuration changes
   ●
   Tests need to expect all the correct possible outcomes
   ●
   Tests need to allow for the fact that things might not
   happen in a particular order
   ●
   Often need white box testing to aim at timing windows


   View Slide

10. 10/19
    How does “Fuzzy Monkey” testing work?
    How does “Fuzzy Monkey” testing work?
    ●
    Direct all syslogs to a central machine (using TCP)
    ●
    Key results come through syslog to central machine
    ●
    Tests exercise the systems over ssh or similar
    ●
    Each test typically randomly picks one or more systems to use in the test
    ●
    Each test expects certain syslog messages indicating success, allowing
    for possible alternatives typically ignoring ordering
    ●
    “Oh, darn!” messages cause tests to be marked as failed
    ●
    Each test must wait for systems to stabilize before marking it complete
    ●
    Audits of system state are performed after each test


    View Slide

11. 11/19
    When does a test succeed?
    When does a test succeed?
    ●
    It finds all the regular expressions it expects in syslog
    before the timeout
    ●
    It doesn’t find any “Oh Darn!” messages
    ●
    It passes the post-test system sanity audit


    View Slide

12. 12/19
    How could this
    How could this possibly
    possibly work?
    work?
    Doesn’t seem likely does it?


    View Slide

13. 13/19
    What does this require from applications?
    What does this require from applications?
    ●
    They have to be willing to log important things to syslog
    ●
    They need to be defensive – and output “Oh Darn!” messages
    ●
    Need to be consistent in “Oh Darn!” messages
    ●
    You will likely have to log a few more things that originally
    planned
    ●
    You need to know what kinds of things are likely to stress the
    application
    ●
    You need to know what kinds of sanity audits you can perform
    quickly, and others that maybe you only run infrequently


    View Slide

14. 14/19
    How does this work out?
    How does this work out?
    ●
    Basically once we test a certain kind of interaction – and pass the test – it never fails in the field
    ●
    If used with good unit testing, you likely need dozens of tests, not hundreds
    ●
    Expect your product to work more reliably than any competitor’s
    – RedHat left the business of producing their own unique HA solution
    ●
    Expect that to learn things about how the application works – maybe some you didn’t know
    even as author
    ●
    Expect that some tests will need tweaking to make sure they’re really “done” before going to
    next test
    ●
    Syslog regex testing can be a little fragile – you will have to update your tests as the code
    changes
    ●
    If you use Docker, you may run into docker bugs or unexpected interactions – which will
    change over time...
    ●
    These kinds of tests can take days to run


    View Slide

15. 15/19
    Why “Re-Invent” CTS for Assimilation?
    Why “Re-Invent” CTS for Assimilation?
    ●
    CTS assumed you set up the syslog and real/virtual machines
    “somehow”
    – Distributing software and setting up syslog correctly is a pain
    – In Assimilation system testing, that’s all automated
    – We used Docker which is lower overhead than virtual machines and
    designed from the ground up for automation
    ●
    I Added test-specific post-queries to validate the database – in
    CTS all post-query audits were identical
    ●
    I was concerned about intellectual property issues
    ●
    I did reuse (and improve) the LogWatcher class from CTS


    View Slide

16. 16/19
    Why call it “Fuzzy Monkey” Testing?
    Why call it “Fuzzy Monkey” Testing?
    ●
    It’s a tribute to two other related testing methods
    – Fuzz testing – having tests not always give the same input
    – Chaos Monkey testing – which also tries to break the system –
    in production (we predate Chaos Monkey by several years)
    ●
    I liked it :-D
    ●
    It’s unrelated to the vodka-based cocktail ;-)


    View Slide

17. © 2015 Assimilation Systems Limited
    17/19
    ●
    http://assimilationsystems.com/2016/05/24/testing-distribu
    ted-systems-with-fuzzy-monkey-testing/
    ●
    OR http://bit.ly/FuzzyMonkey
    ●
    Assimilation Source Code:
    – https://github.com/assimilation/assimilation-official
    /tree/master/cma/systemtests
    ●
    These Slides:
    – https://bit.ly/FuzzyMonkeySlides2016
    Where to find this online?
    Where to find this online?


    View Slide

18. © 2015 Assimilation Systems Limited
    18/19
    Get Involved (Assimilation Project)!
    Get Involved (Assimilation Project)!
    ●
    Get Assimilated!
    ●
    Contribute!
    – Users – give it a try
    – Security best practice experts
    – Testers, System Management, Continuous Integration
    – Designers
    – Developers (C,Python, Shell, PowerShell, JavaScript)
    – Porters (esp Windows)
    – Promoters, Publicists, Packagers, etc.


    View Slide

19. © 2015 Assimilation Systems Limited
    19/19
    Resistance Is Futile!
    Resistance Is Futile!
    These slides: bit.ly/FuzzyMonkeySlides16
    Mailing List: bit.ly/AssimML
    @OSSAlanR
    #assimilation on irc.freenode.net
    Assimilation Web Site: assimproj.org
    https://www.owasp.org/index.php/OWASP_Assimilation_Project
    Company Web Site: assimilationsystems.com
    Download: assimilationsystems.com/download


    View Slide
