M-Pesa System

A deep dive into the inner workings

Transcript

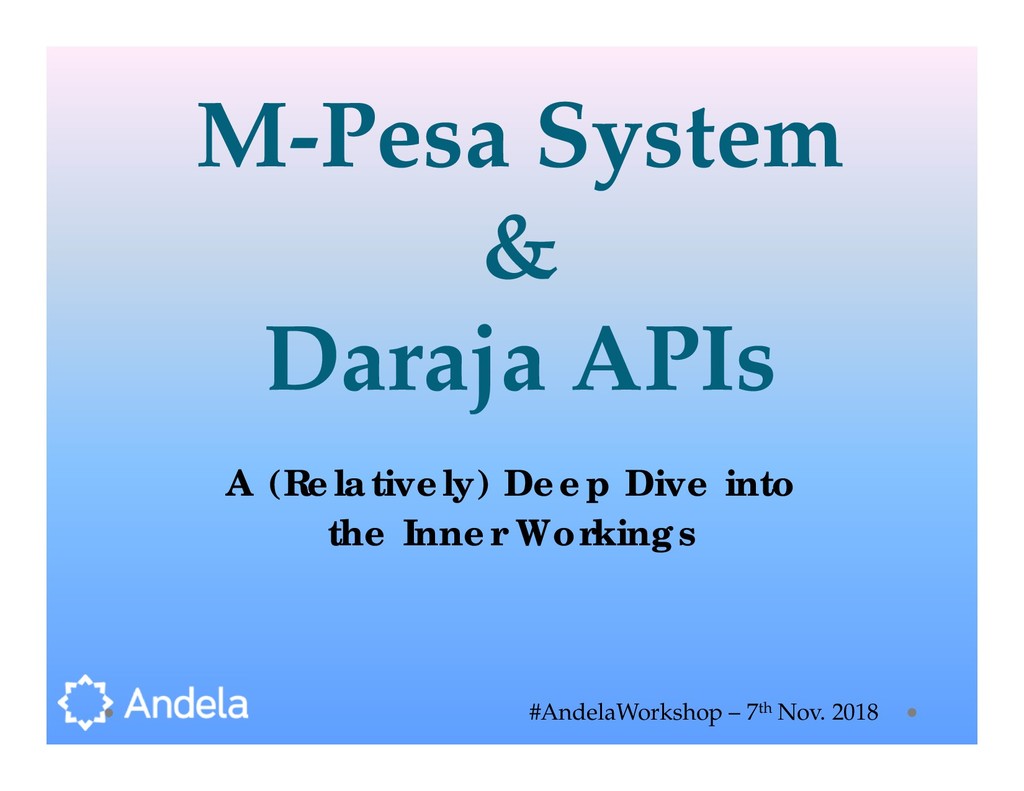

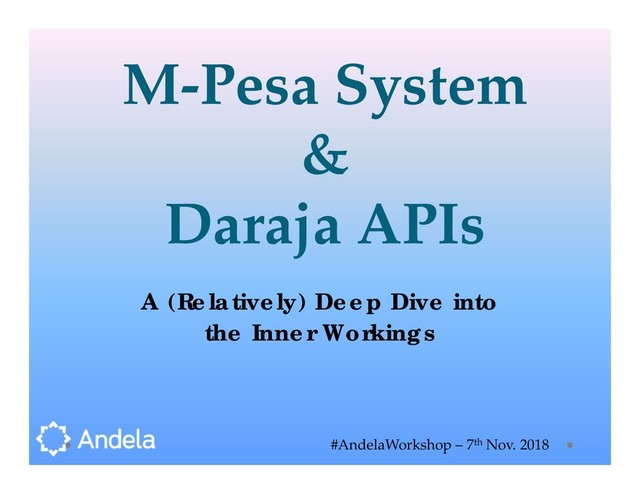

1. M-Pesa System & Daraja APIs A (Relatively) Deep Dive into the Inner Workings #AndelaWorkshop – 7th Nov. 2018

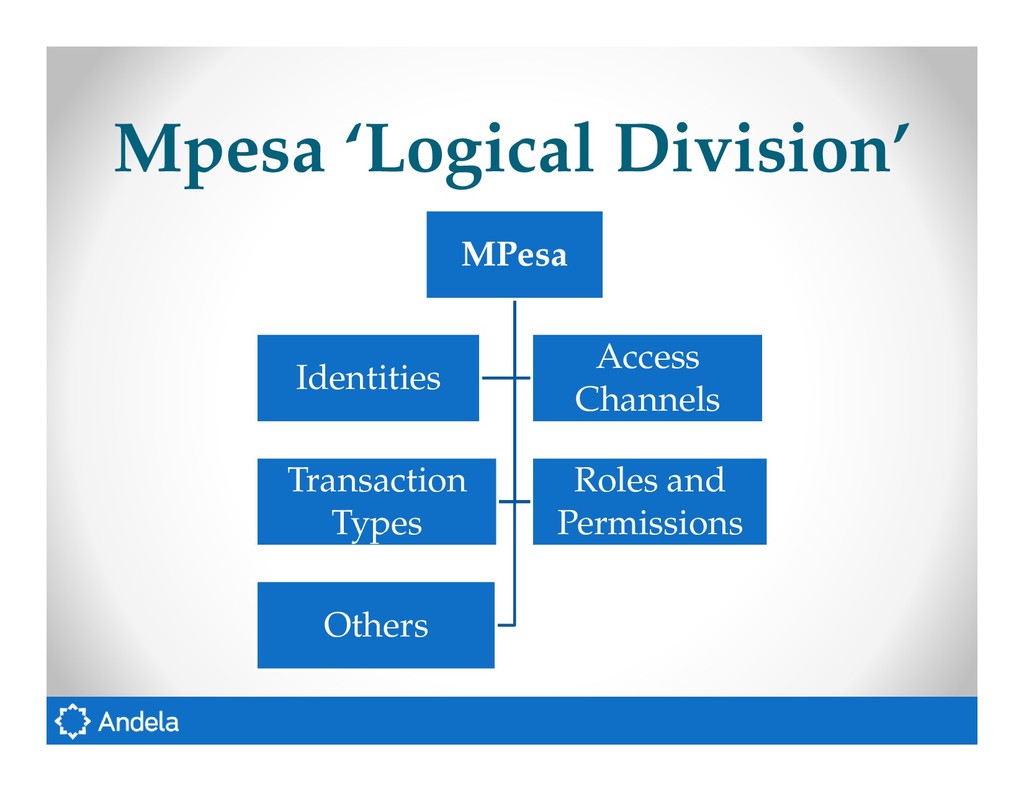

2. Mpesa ‘Logical Division’ MPesa Identities Access Channels Transaction Types Roles and Permissions Others

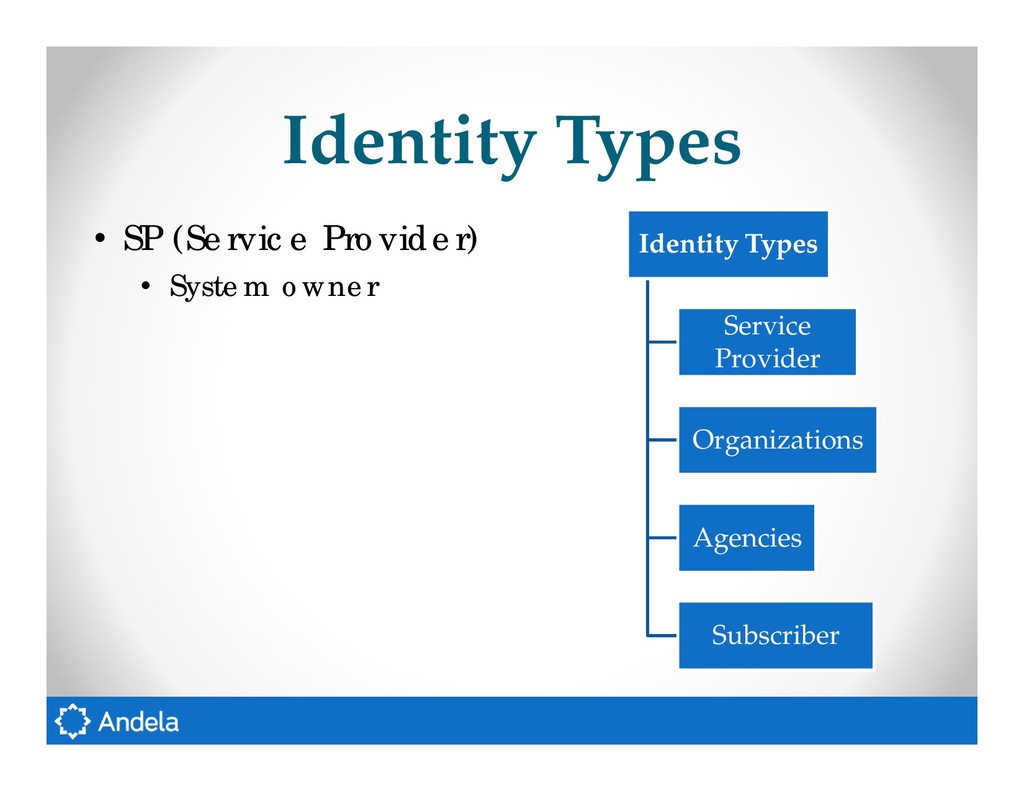

3. Identity Types Identity Types Service Provider Organizations Agencies Subscriber • SP (Service Provider) • System owner

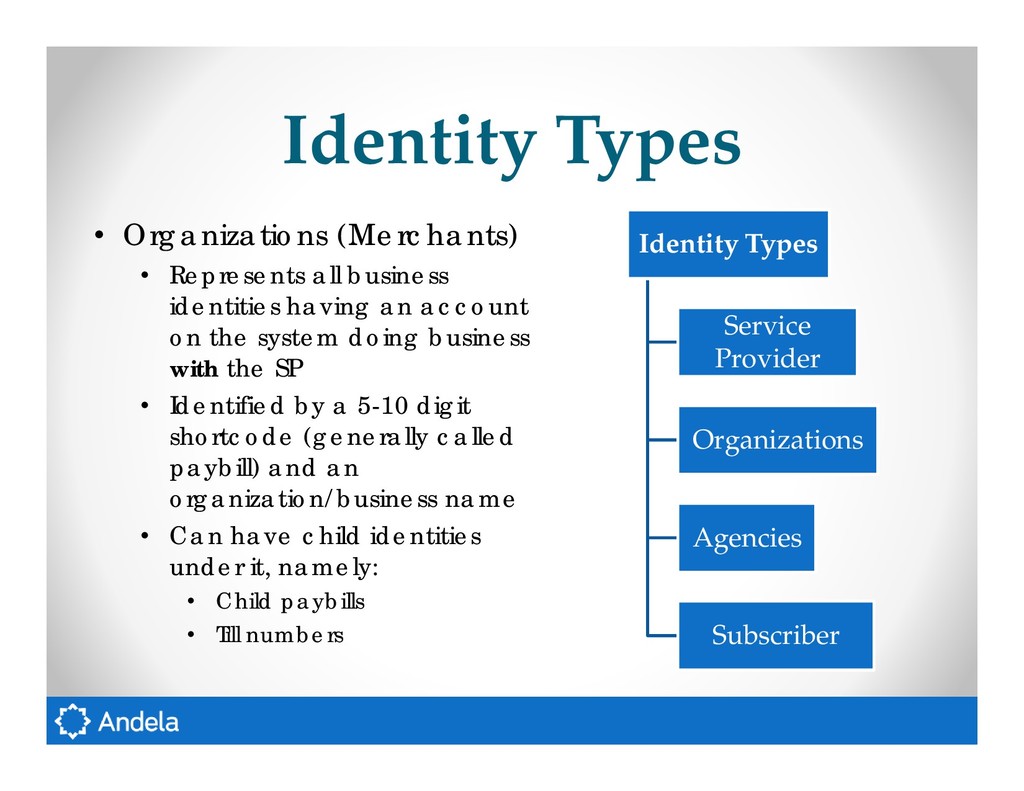

4. Identity Types Identity Types Service Provider Organizations Agencies Subscriber • Organizations (Merchants) • Represents all business identities having an account on the system doing business with the SP • Identified by a 5-10 digit shortcode (generally called paybill) and an organization/business name • Can have child identities under it, namely: • Child paybills • Till numbers

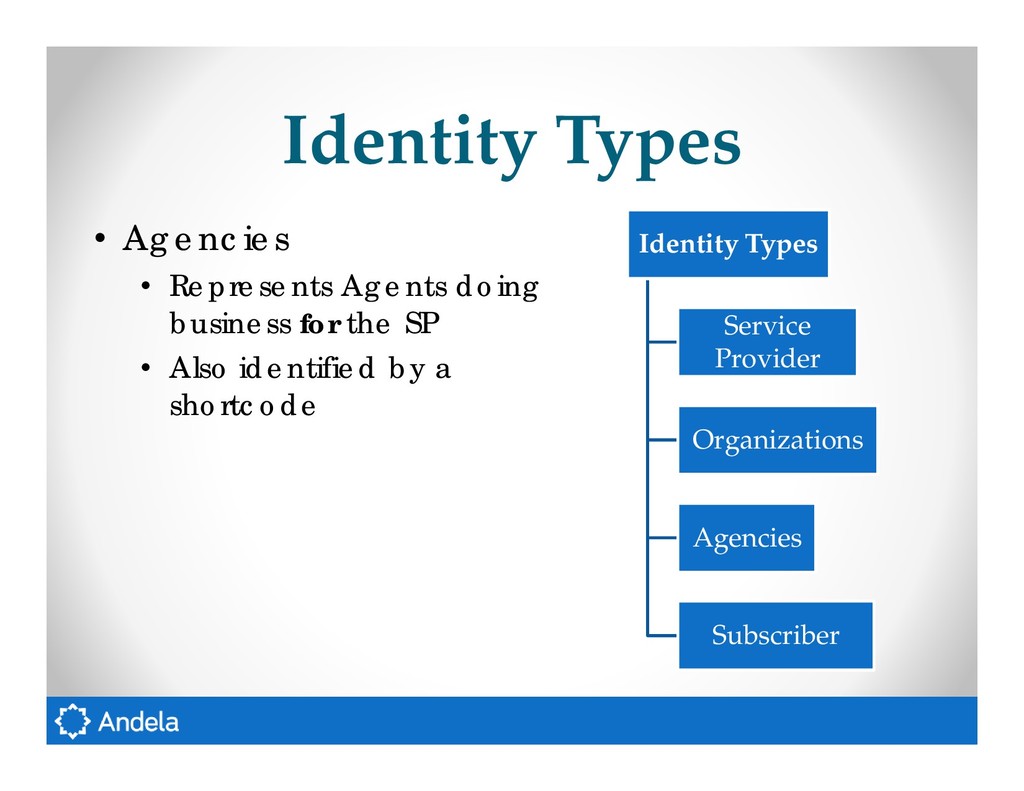

5. Identity Types Identity Types Service Provider Organizations Agencies Subscriber • Agencies • Represents Agents doing business for the SP • Also identified by a shortcode
6. Identity Types Identity Types Service Provider Organizations Agencies Subscriber • Subscribers • Represents individual customers on the system • Identified by unique MSISDNs/Phone numbers on the system

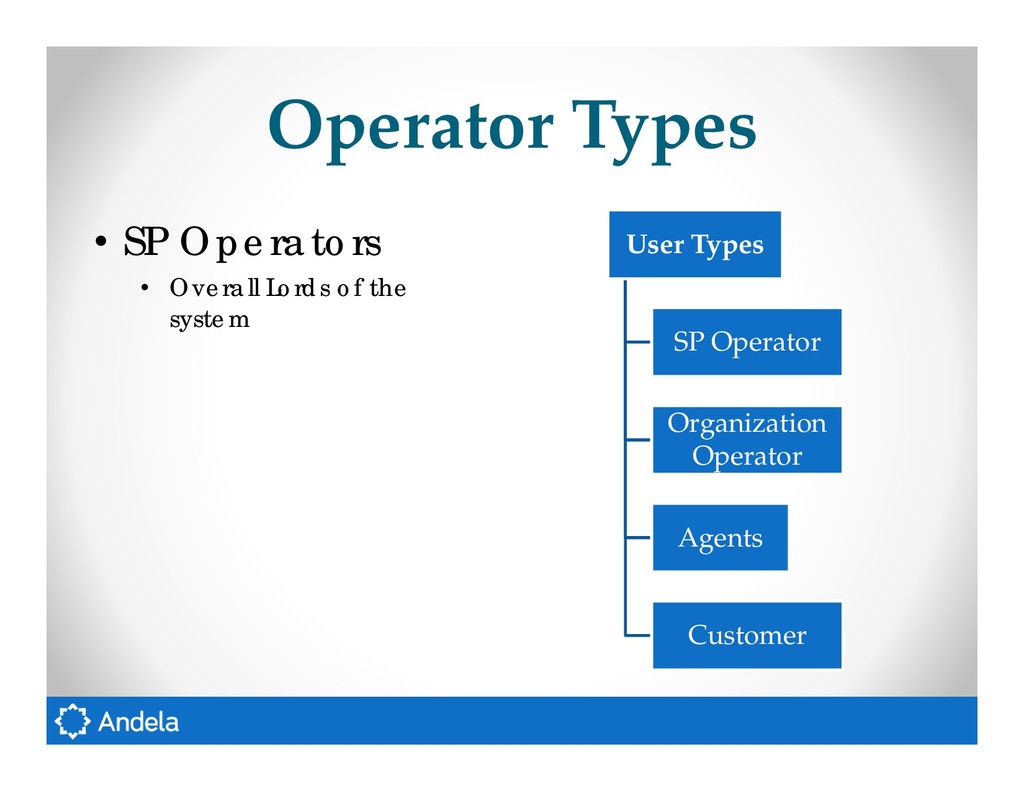

7. Operator Types User Types SP Operator Organization Operator Agents Customer • SP Operators • Overall Lords of the system

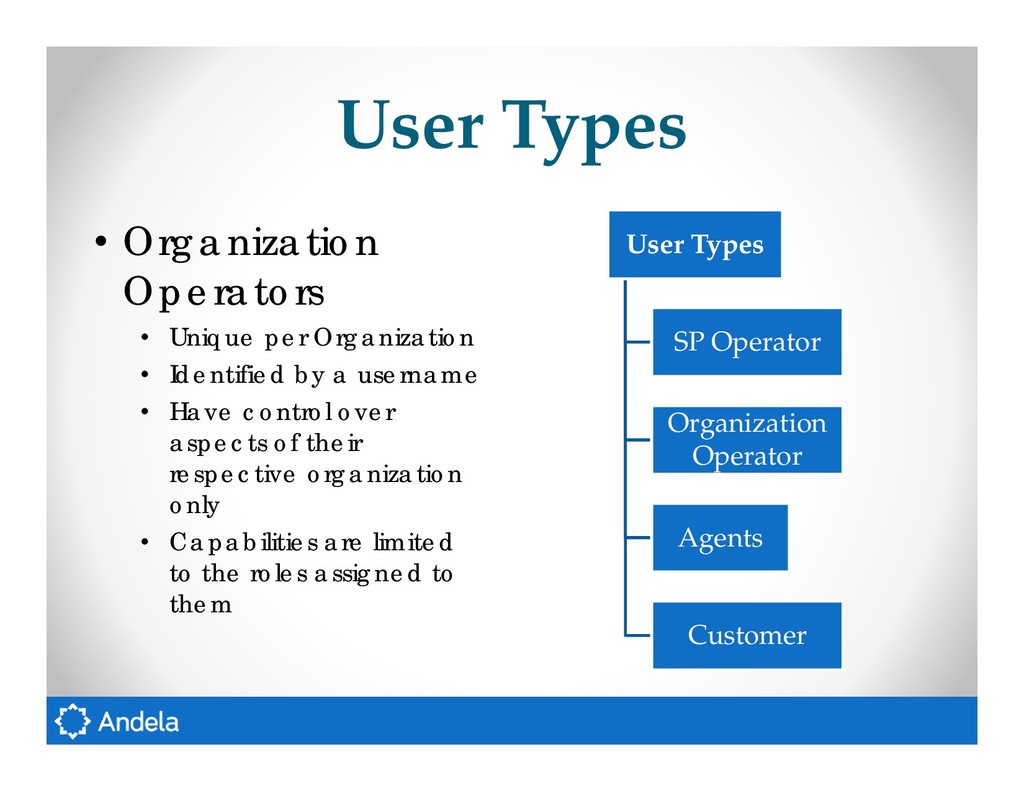

8. User Types User Types SP Operator Organization Operator Agents Customer • Organization Operators • Unique per Organization • Identified by a username • Have control over aspects of their respective organization only • Capabilities are limited to the roles assigned to them

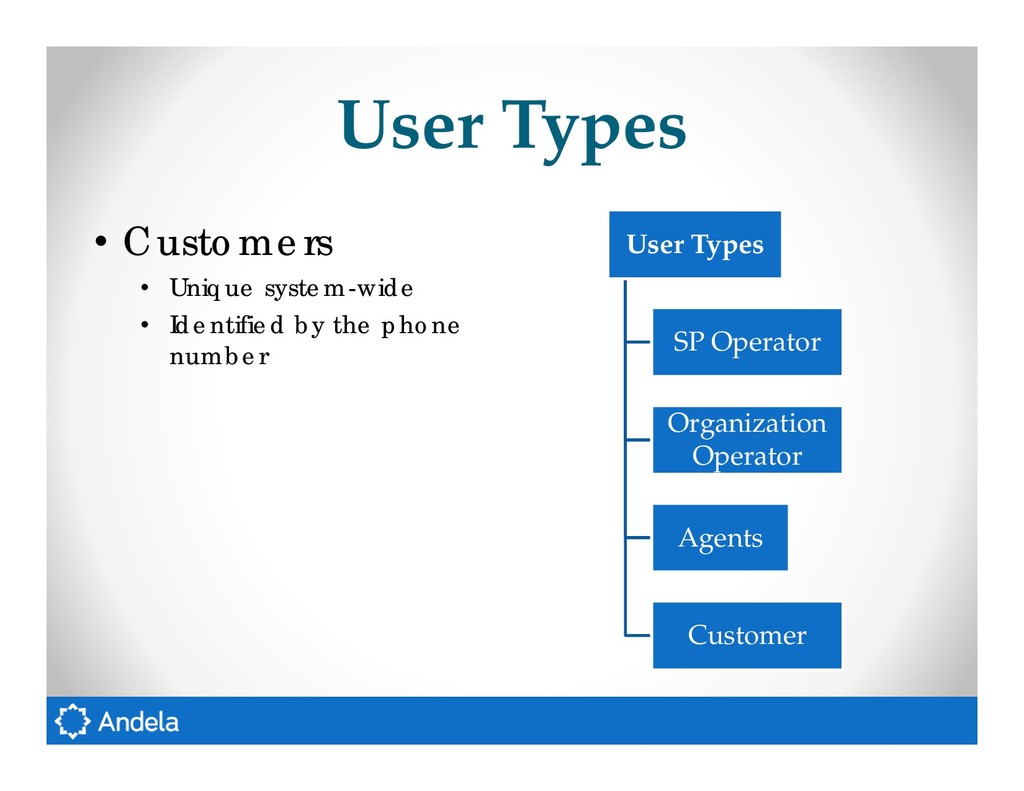

9. User Types User Types SP Operator Organization Operator Agents Customer • Customers • Unique system-wide • Identified by the phone number

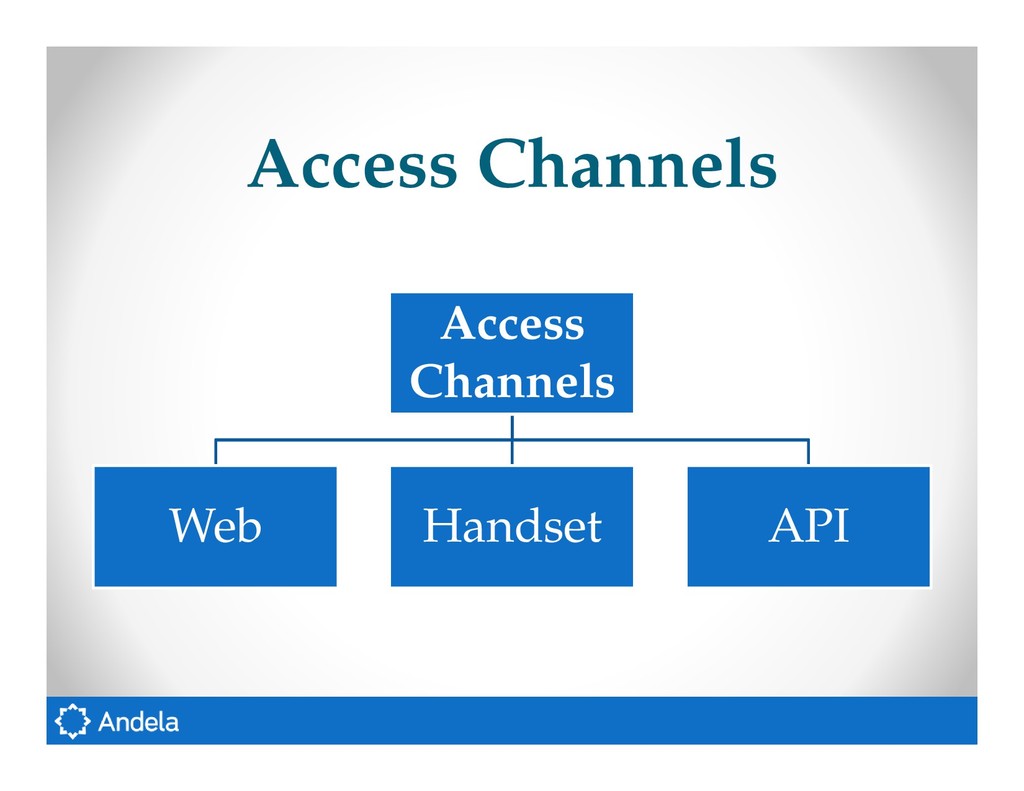

10. Access Channels Access Channels Web Handset API

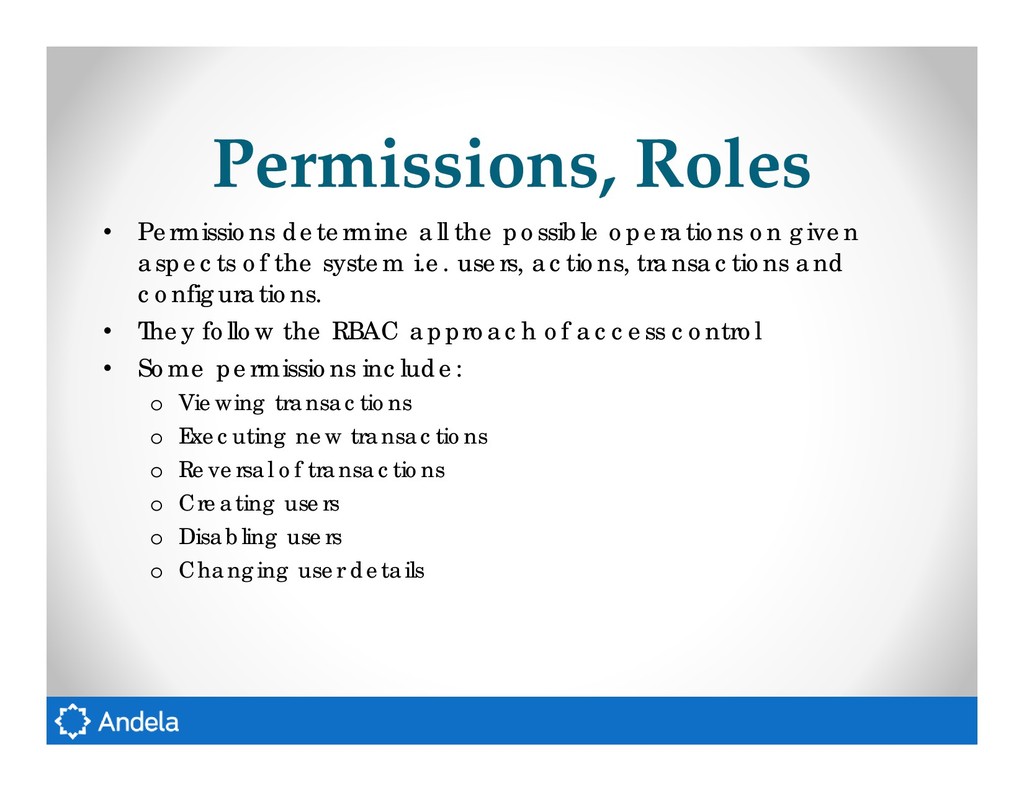

11. Permissions, Roles • Permissions determine all the possible operations on given aspects of the system i.e. users, actions, transactions and configurations. • They follow the RBAC approach of access control • Some permissions include: o Viewing transactions o Executing new transactions o Reversal of transactions o Creating users o Disabling users o Changing user details

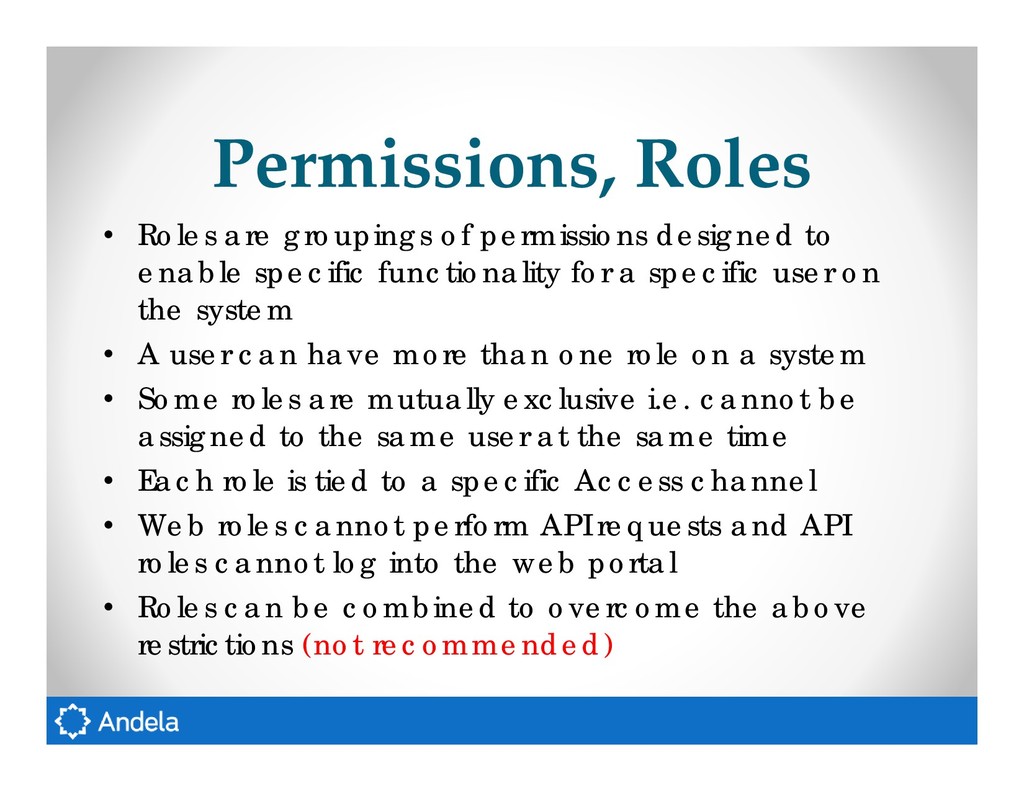

12. Permissions, Roles • Roles are groupings of permissions designed to enable specific functionality for a specific user on the system • A user can have more than one role on a system • Some roles are mutually exclusive i.e. cannot be assigned to the same user at the same time • Each role is tied to a specific Access channel • Web roles cannot perform API requests and API roles cannot log into the web portal • Roles can be combined to overcome the above restrictions (not recommended)

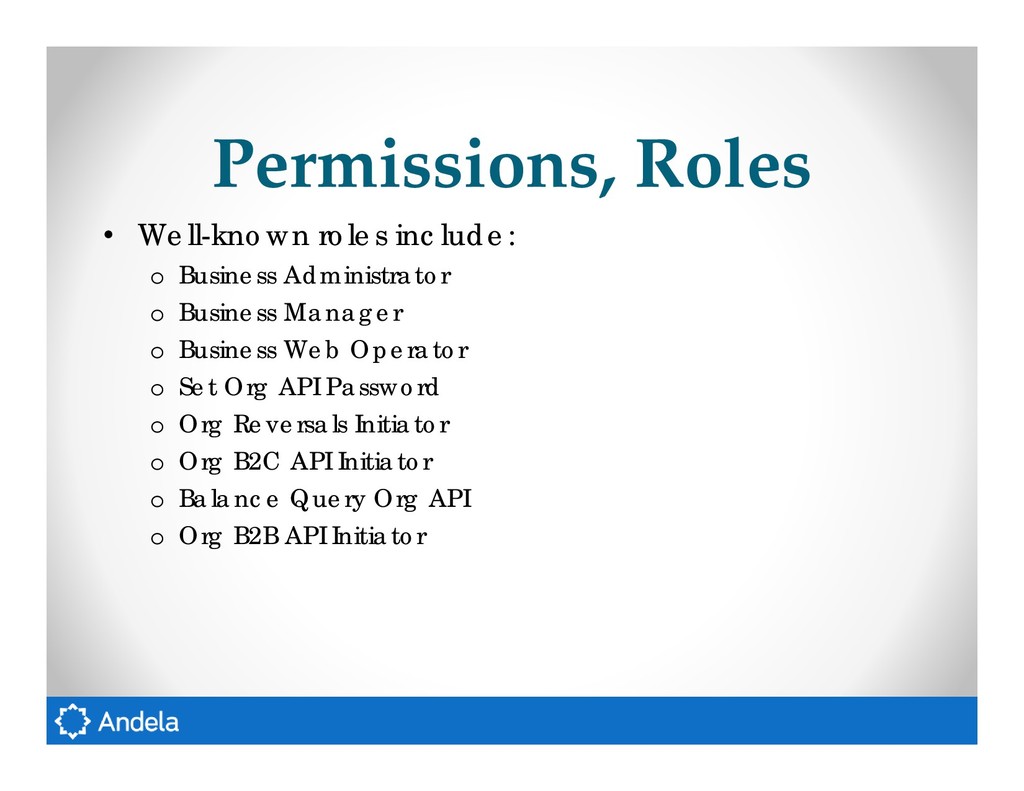

13. Permissions, Roles • Well-known roles include: o Business Administrator o Business Manager o Business Web Operator o Set Org API Password o Org Reversals Initiator o Org B2C API Initiator o Balance Query Org API o Org B2B API Initiator

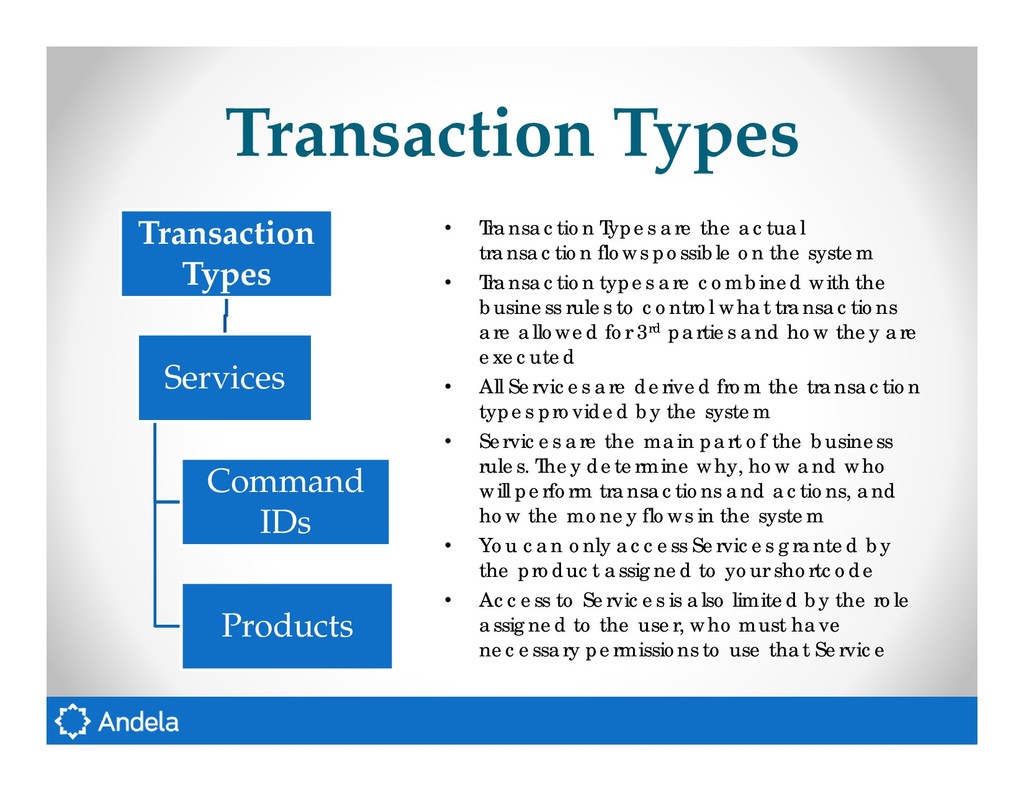

14. Transaction Types Transaction Types Services Command IDs Products • Transaction Types are the actual transaction flows possible on the system • Transaction types are combined with the business rules to control what transactions are allowed for 3rd parties and how they are executed • All Services are derived from the transaction types provided by the system • Services are the main part of the business rules. They determine why, how and who will perform transactions and actions, and how the money flows in the system • You can only access Services granted by the product assigned to your shortcode • Access to Services is also limited by the role assigned to the user, who must have necessary permissions to use that Service

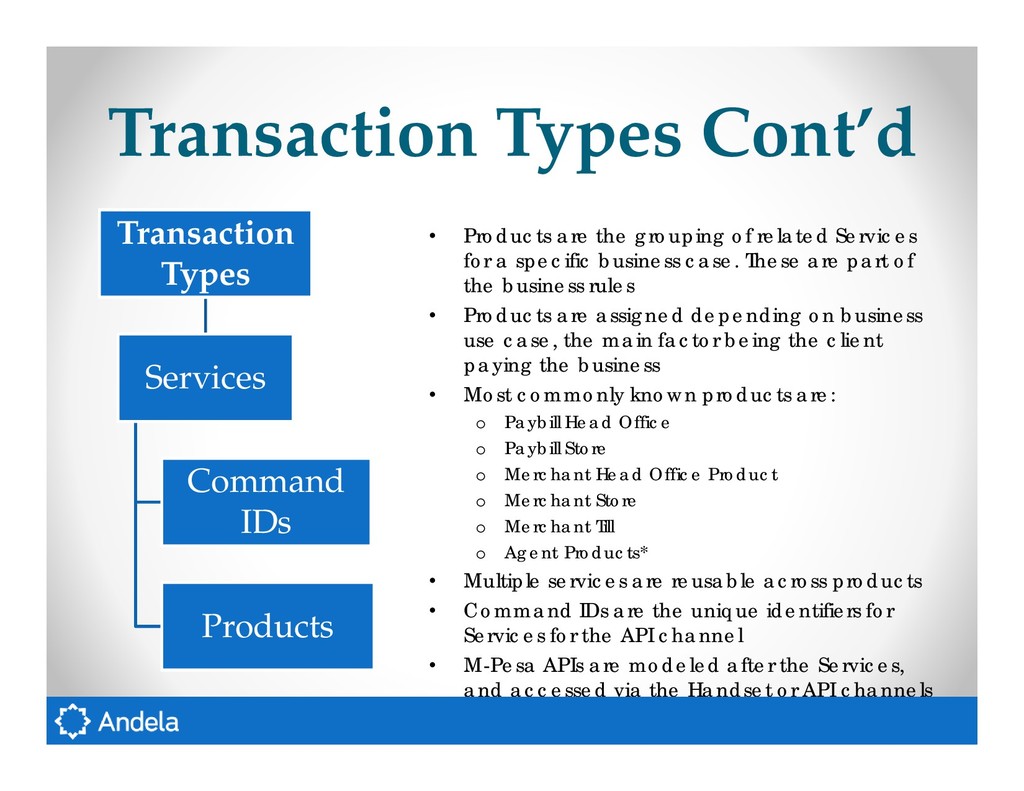

15. Transaction Types Cont’d Transaction Types Services Command IDs Products • Products are the grouping of related Services for a specific business case. These are part of the business rules • Products are assigned depending on business use case, the main factor being the client paying the business • Most commonly known products are: o Paybill Head Office o Paybill Store o Merchant Head Office Product o Merchant Store o Merchant Till o Agent Products* • Multiple services are reusable across products • Command IDs are the unique identifiers for Services for the API channel • M-Pesa APIs are modeled after the Services, and accessed via the Handset or API channels

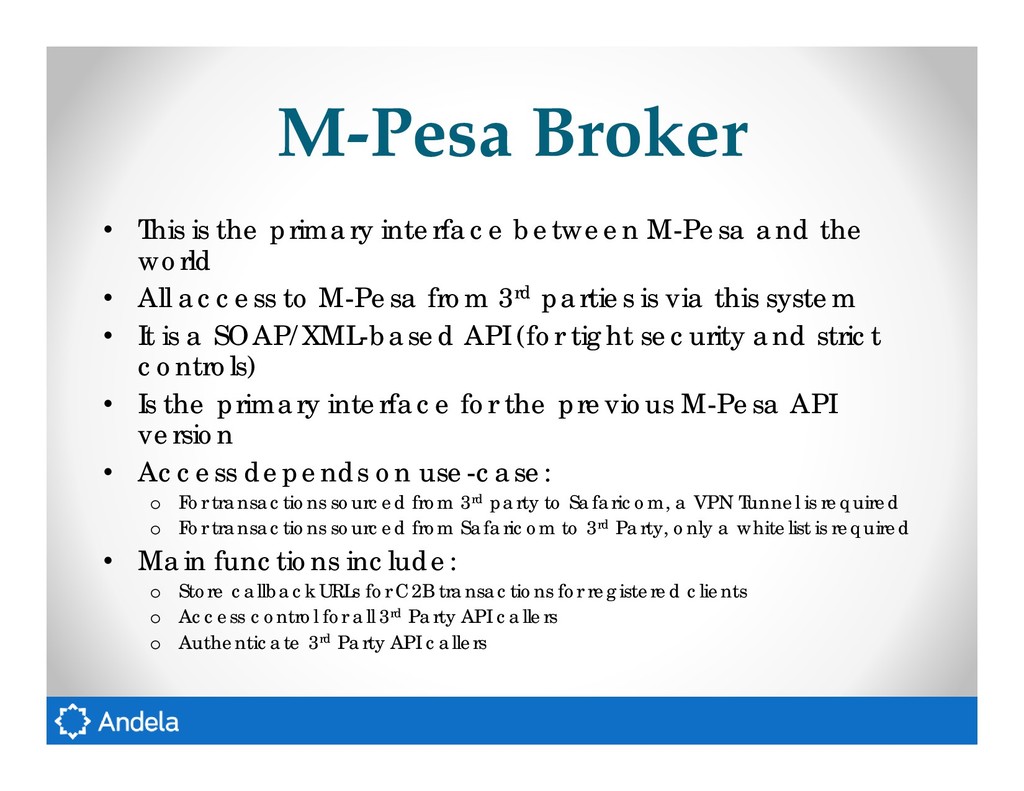

16. M-Pesa Broker • This is the primary interface between M-Pesa and the world • All access to M-Pesa from 3rd parties is via this system • It is a SOAP/XML-based API (for tight security and strict controls) • Is the primary interface for the previous M-Pesa API version • Access depends on use-case: o For transactions sourced from 3rd party to Safaricom, a VPN Tunnel is required o For transactions sourced from Safaricom to 3rd Party, only a whitelist is required • Main functions include: o Store callback URLs for C2B transactions for registered clients o Access control for all 3rd Party API callers o Authenticate 3rd Party API callers

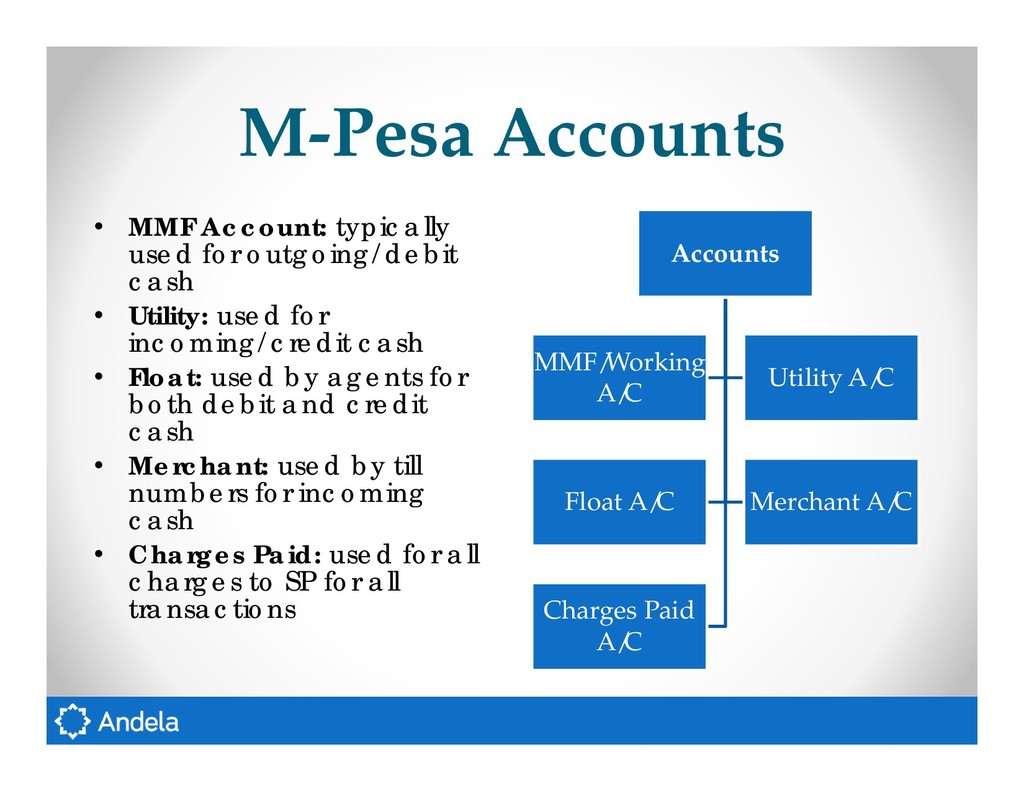

17. M-Pesa Accounts Accounts MMF/Working A/C Utility A/C Float A/C Merchant A/C Charges Paid A/C • MMF Account: typically used for outgoing/debit cash • Utility: used for incoming/credit cash • Float: used by agents for both debit and credit cash • Merchant: used by till numbers for incoming cash • Charges Paid: used for all charges to SP for all transactions

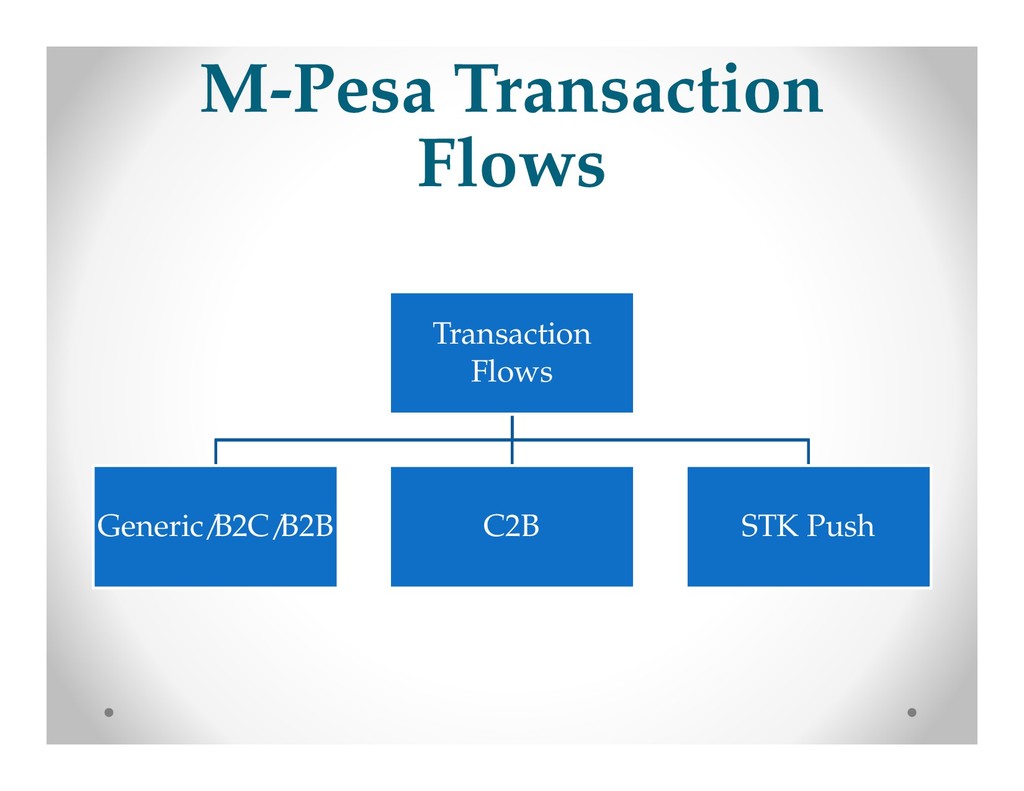

18. M-Pesa Transaction Flows Transaction Flows Generic/B2C/B2B C2B STK Push

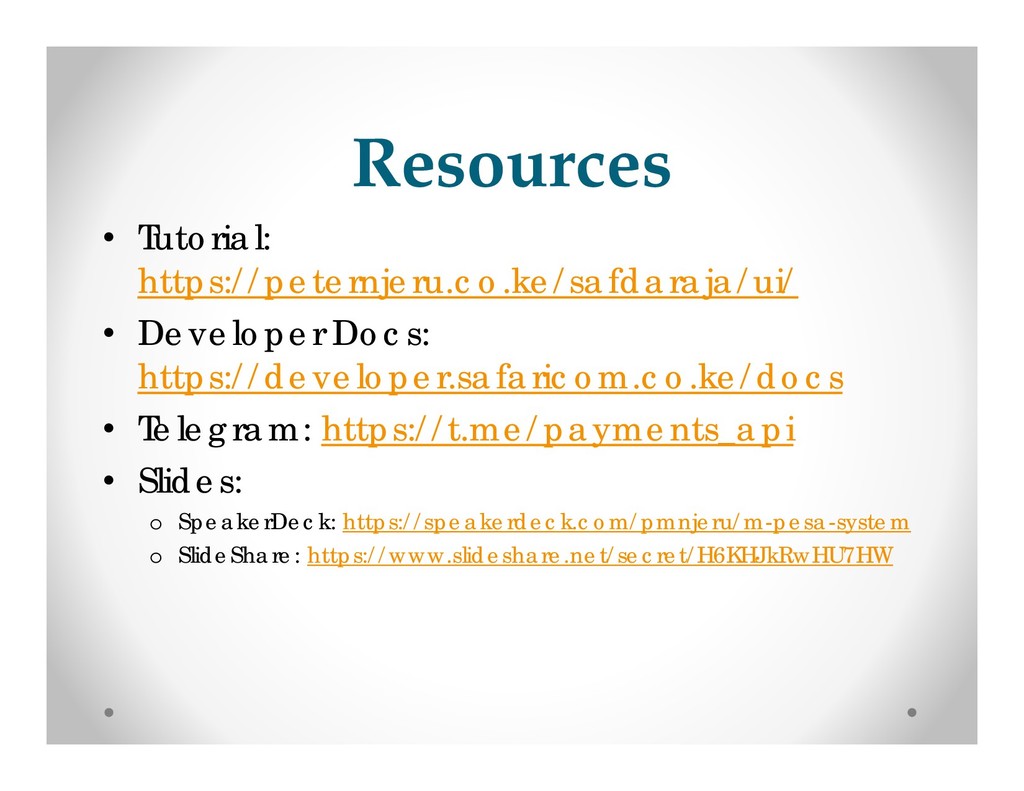

19. Resources • Tutorial: https://peternjeru.co.ke/safdaraja/ui/ • Developer Docs: https://developer.safaricom.co.ke/docs • Telegram: https://t.me/payments_api • Slides: o SpeakerDeck: https://speakerdeck.com/pmnjeru/m-pesa-system o SlideShare: https://www.slideshare.net/secret/H6KHJkRwHU7HW
