1. EDDYSTONE AN OPEN FORMAT FOR BEACONS AND IOT Romain Menetrier @romemore +RomainMenetrier
2. What is a beacon ?
3. WHAT IS A BEACON ? BLUETOOTH LOW ENERGY BROADCAST +
4. BLUETOOTH LOW ENERGY IDENTIFICATION TELEMETRY
5. BLUETOOTH LOW ENERGY POWER 1 year on a AA battery (basic usage with ID) DISTANCE 30 to 50m (configurable, up to 150m) AVAILABLE on many mobile devices
6. IBEACON

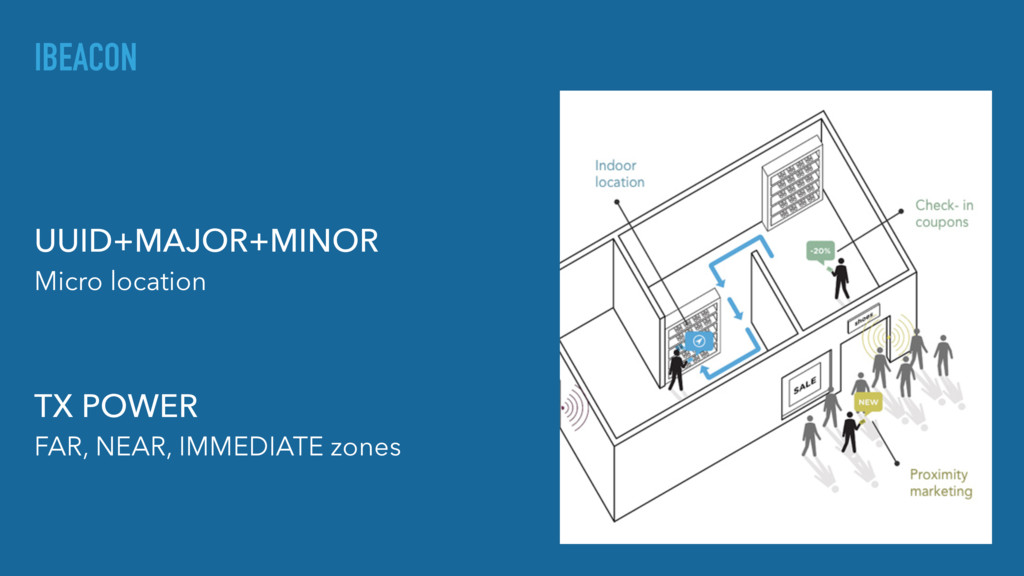

7. IBEACON UUID+MAJOR+MINOR Micro location TX POWER FAR, NEAR, IMMEDIATE zones
8. IBEACON #CORELOCATION APPLICATION WAKE UP

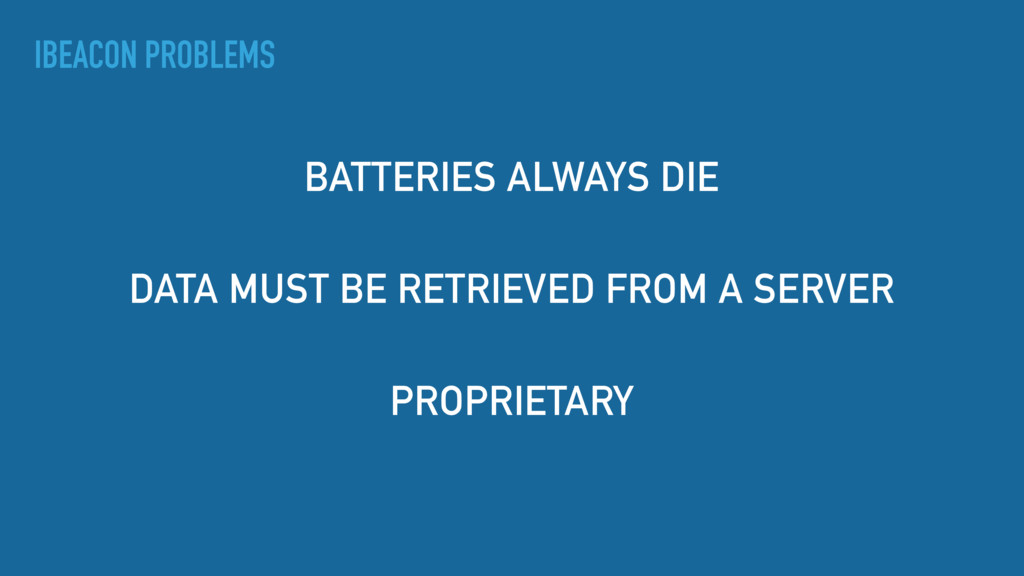

9. IBEACON PROBLEMS BATTERIES ALWAYS DIE DATA MUST BE RETRIEVED FROM A SERVER PROPRIETARY
10. IBEACON + ANDROID ? LEGAL ISSUES BLE SCAN
11. EDDYSTONE
13. EDDYSTONE
14. EDDYSTONE UID 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 0x00 0xee 0xd1 0x06 0x78 0x27 0xa8 0xfa 0x7c 0x08 0x68 0xd3 0x00 0x00 0x00 0x00 0x00 0x01 0x00 0x00 NAMESPACE ID (10 BYTES) D1 06 78 27 A8 FA 7C 08 68 D3 FRAME TYPE 0X00 = UID TX POWER 0XEE = -18DB INSTANCE ID (6 BYTES) 00 00 00 00 00 01 RFU

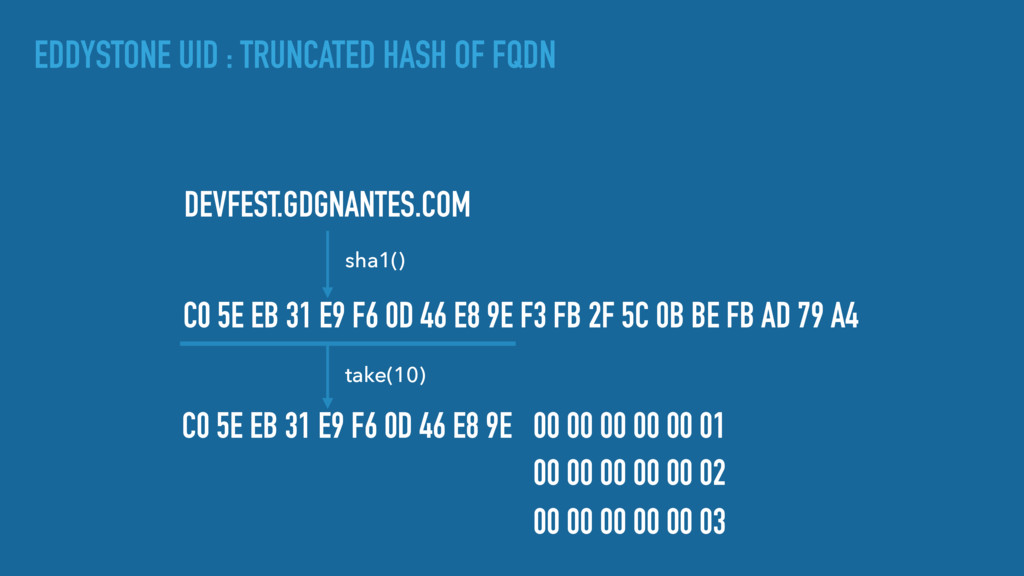

15. EDDYSTONE UID : TRUNCATED HASH OF FQDN DEVFEST.GDGNANTES.COM C0 5E EB 31 E9 F6 0D 46 E8 9E F3 FB 2F 5C 0B BE FB AD 79 A4 C0 5E EB 31 E9 F6 0D 46 E8 9E sha1() take(10) 00 00 00 00 00 01 00 00 00 00 00 02 00 00 00 00 00 03

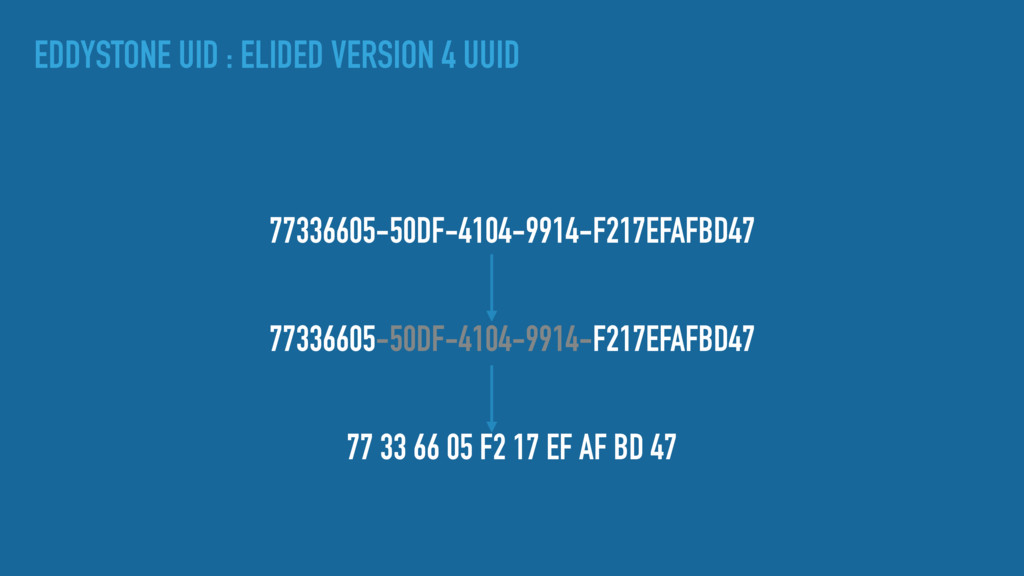

16. EDDYSTONE UID : ELIDED VERSION 4 UUID 77336605-50DF-4104-9914-F217EFAFBD47 77 33 66 05 F2 17 EF AF BD 47 77336605-50DF-4104-9914-F217EFAFBD47
17. EDDYSTONE UID SCANNER // Eddystone service uuid (0xfeaa)
 private static final ParcelUuid UID_SERVICE =
 ParcelUuid.fromString("0000feaa-0000-1000-8000-00805f9b34fb");

 // Namespace id for Devfest Eddystone beacons (devfest.gdgnantes.com / c05eeb31e9f60d46e89e)
 private static final byte[] NAMESPACE_FILTER = {
 0x00, //Frame type = UID
 0x00, //TX power, we don't care the value for filter
 (byte)0xc0, (byte)0x5e, (byte)0xeb, (byte)0x31, (byte)0xe9,
 (byte)0xf6, (byte)0x0d, (byte)0x46, (byte)0xe8, (byte)0x9e,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };

 // Force frame type and namespace id to match
 private static final byte[] NAMESPACE_FILTER_MASK = {
 (byte)0xFF,
 0x00,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };

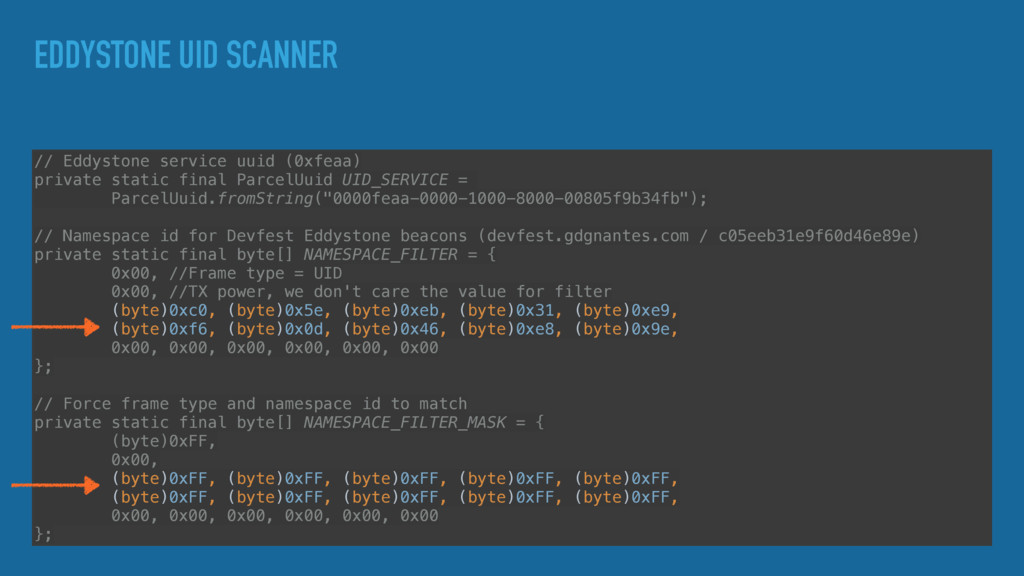

18. EDDYSTONE UID SCANNER // Eddystone service uuid (0xfeaa)
 private static final ParcelUuid UID_SERVICE =
 ParcelUuid.fromString("0000feaa-0000-1000-8000-00805f9b34fb");

 // Namespace id for Devfest Eddystone beacons (devfest.gdgnantes.com / c05eeb31e9f60d46e89e)
 private static final byte[] NAMESPACE_FILTER = {
 0x00, //Frame type = UID
 0x00, //TX power, we don't care the value for filter
 (byte)0xc0, (byte)0x5e, (byte)0xeb, (byte)0x31, (byte)0xe9,
 (byte)0xf6, (byte)0x0d, (byte)0x46, (byte)0xe8, (byte)0x9e,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };

 // Force frame type and namespace id to match
 private static final byte[] NAMESPACE_FILTER_MASK = {
 (byte)0xFF,
 0x00,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };
19. EDDYSTONE UID SCANNER // Eddystone service uuid (0xfeaa)
 private static final ParcelUuid UID_SERVICE =
 ParcelUuid.fromString("0000feaa-0000-1000-8000-00805f9b34fb");

 // Namespace id for Devfest Eddystone beacons (devfest.gdgnantes.com / c05eeb31e9f60d46e89e)
 private static final byte[] NAMESPACE_FILTER = {
 0x00, //Frame type = UID
 0x00, //TX power, we don't care the value for filter
 (byte)0xc0, (byte)0x5e, (byte)0xeb, (byte)0x31, (byte)0xe9,
 (byte)0xf6, (byte)0x0d, (byte)0x46, (byte)0xe8, (byte)0x9e,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };

 // Force frame type and namespace id to match
 private static final byte[] NAMESPACE_FILTER_MASK = {
 (byte)0xFF,
 0x00,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF, (byte)0xFF,
 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
 };
20. EDDYSTONE UID SCANNER BluetoothManager manager = (BluetoothManager) getSystemService(BLUETOOTH_SERVICE);
 mBluetoothLeScanner = manager.getAdapter().getBluetoothLeScanner(); ScanFilter beaconFilter = new ScanFilter.Builder()
 .setServiceUuid(UID_SERVICE)
 .setServiceData(UID_SERVICE, NAMESPACE_FILTER, NAMESPACE_FILTER_MASK)
 .build();

 List<ScanFilter> filters = new ArrayList<>();
 filters.add(beaconFilter);

 ScanSettings settings = new ScanSettings.Builder()
 .setScanMode(ScanSettings.SCAN_MODE_LOW_LATENCY)
 .build();

 mBluetoothLeScanner.startScan(filters, settings, mScanCallback);
21. EDDYSTONE URL 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 0x10 0xee 0x03 0x67 0x6f 0x6f 0x2e 0x67 0x2f 0x39 0x74 0x42 0x75 0x36 0x6c 0x00 0x00 0x00 0x00 0x00 HTTPS://GOO.GL/9TBU6I 67 6F 6F 2E 67 6C 2F 39 74 42 75 36 6C FRAME TYPE 0X10 = URL TX POWER 0XEE = -18DB URL SCHEME 0X03 = HTTPS://
22. EDDYSTONE TLM 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 0x20 0x00 0x00 0x67 0x80 0x00 0x00 0x00 0x00 0x39 0x00 0x00 0x00 0x36 0x00 0x00 0x00 0x00 0x00 0x00 FRAME TYPE 0X20 = TLM TLM VERSION 0X00 = FIRST BATTERY VOLTAGE BEACON TEMPERATURE ADVERTISING PDU COUNT TIME SINCE POWER-ON OR REBOOT
23. APIS <>
24. associate blob of data monitor the health of your beacons works with Eddystone + iBeacon PROXIMITY BEACON API

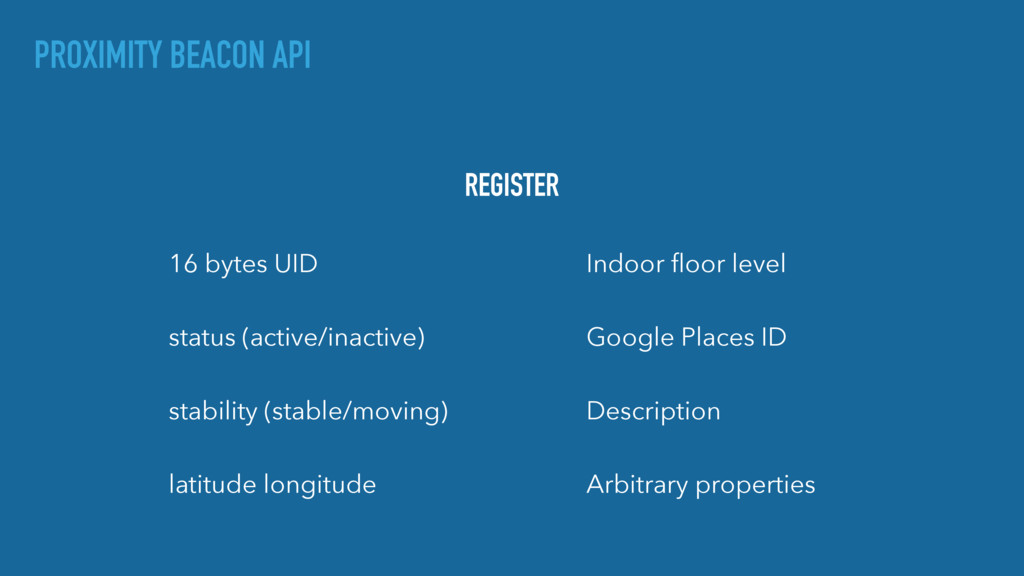

25. PROXIMITY BEACON API 16 bytes UID status (active/inactive) stability (stable/moving) latitude longitude REGISTER Indoor floor level Google Places ID Description Arbitrary properties
26. PROXIMITY BEACON API MONITOR Predicted battery death Beacons moved away from their location Unusually low detection rates

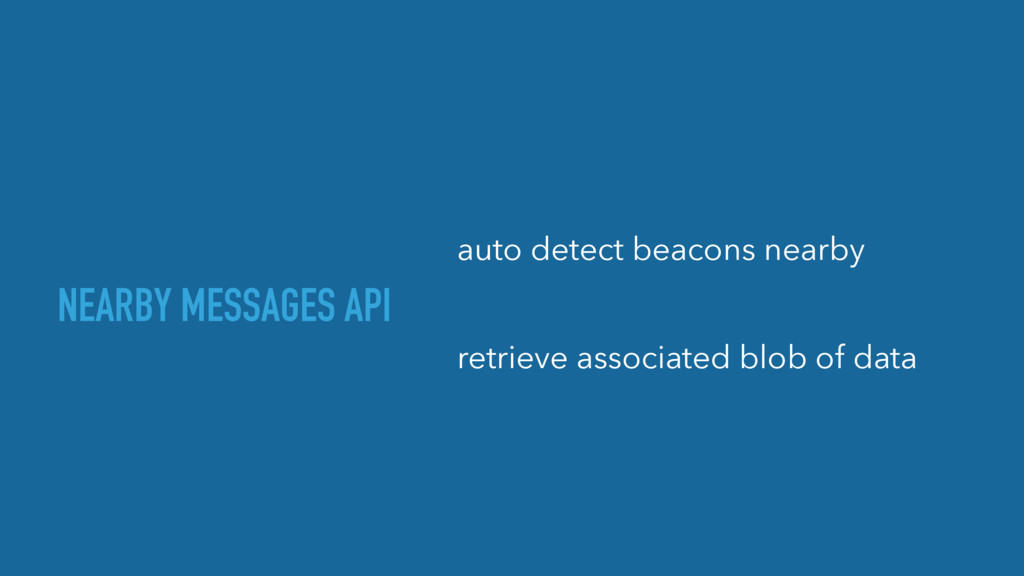

27. auto detect beacons nearby retrieve associated blob of data NEARBY MESSAGES API
28. MessageListener messageListener = new MessageListener() {
 @Override
 public void onFound(Message message) {
 String nearbyMessageNamespace = message.getNamespace();
 String nearbyMessageType = message.getType();
 String nearbyMessageString = new String(message.getContent());

 Log.i(TAG, "Message string: " + nearbyMessageString);
 Log.i(TAG, "Message namespaced type: " + nearbyMessageNamespace +
 "/" + nearbyMessageType);
 }
 };

 // Use Strategy.BLE_ONLY because we are only interested in messages that we
 // attached to BLE beacons.
 Nearby.Messages.subscribe(client, messageListener, Strategy.BLE_ONLY)
 .setResultCallback(new ErrorCheckingCallback("subscribe()")); NEARBY MESSAGES API
29. PHYSICAL WEB Walk up and use anything
30. URL Broadcast Direct interaction PHYSICAL WEB Walk up and use anything
31. PHYSICAL WEB

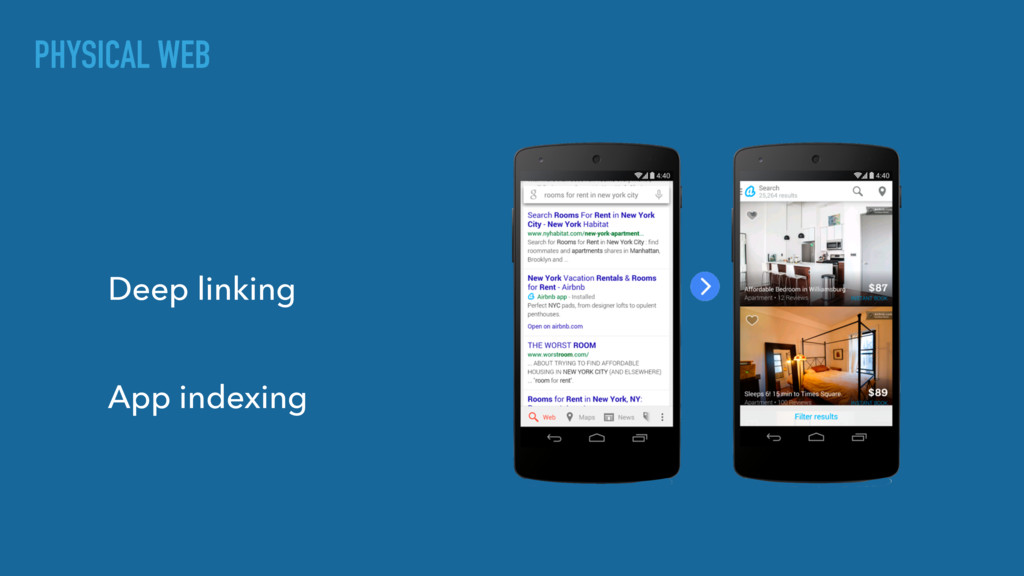

32. PHYSICAL WEB Deep linking App indexing
33. PHYSICAL WEB NO APP direct interaction with your environnement MULTI PLATFORM android + iOS +desktop (Chrome)

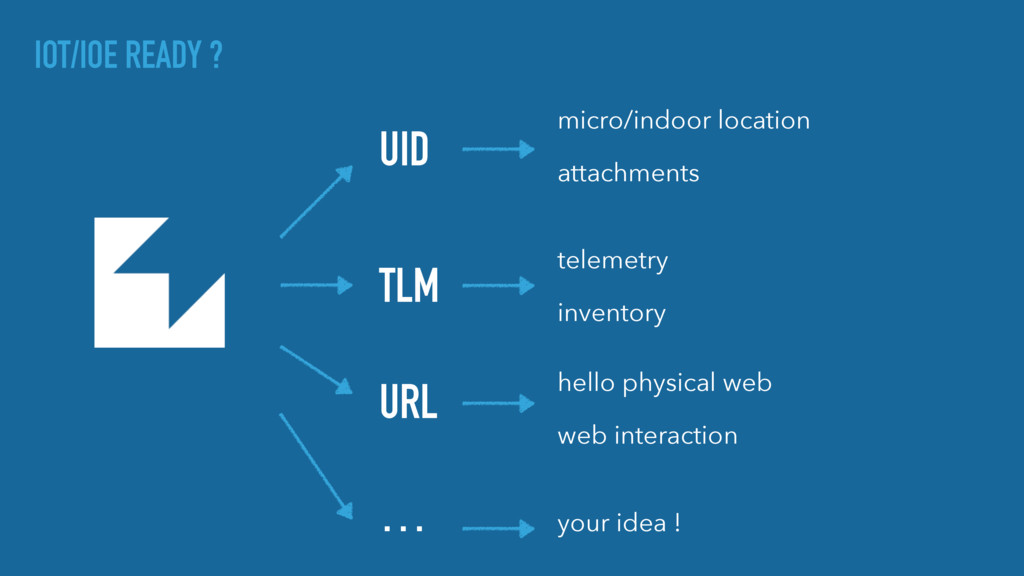

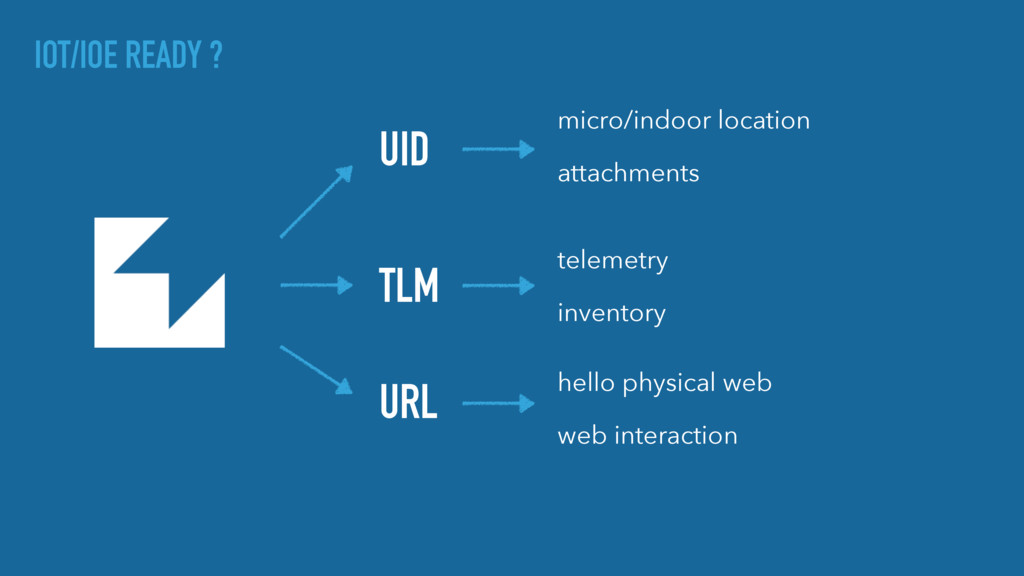

34. IOT/IOE READY ? micro/indoor location attachments UID TLM URL telemetry inventory hello physical web web interaction
35. IOT/IOE READY ? micro/indoor location attachments UID TLM URL telemetry inventory hello physical web web interaction … your idea !
36. EDDYSTONE https://github.com/google/eddystone SCANNER SAMPLE https://github.com/devunwired/eddystone-scanner PROXIMITY BEACON API https://developers.google.com/beacons/proximity/guides PHYSICAL WEB https://google.github.io/physical-web/ REFERENCES
