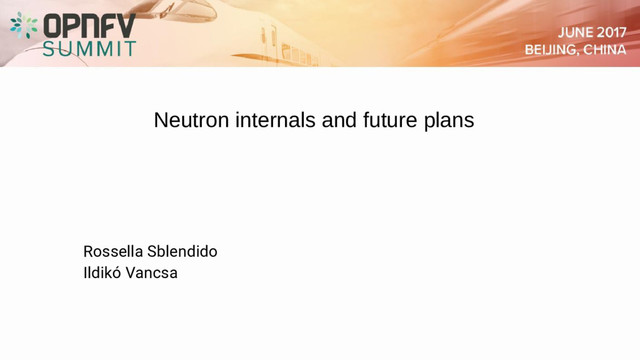

1. Neutron internals and future plans Rossella Sblendido Ildikó Vancsa
2. When you hear the word Neutron... 1) 2) 3)
3. History
4. What is Neutron anyway? • Neutron − API exposing logical abstractions for consuming the networking service − One or more backend implementations of that API • Why? − Networking constructs baked into Nova (OpenStack compute) − No tenant control over network topology and service insertion − Multi-tenancy and scalability
5. • Modular Architecture − Plugin: custom back-end implementation of the Networking API − Neutron-server: exposes the API − Several agents (L2, L3, DHCP, Metadata, etc) Neutron architecture
6. • Monolithic plugin (direct control of core resources) • ML2 − Modular, delegates calls to proper drivers − Two kind of drives: • Type drivers (support specific network type) • Mechanism drivers (ensure the information established by the TypeDriver is properly applied) − 2 default implementations: OpenVSwitch and LinuxBridge Neutron Plugin
7. Different kinds of nodes
8. • Runs on hypervisor (compute node) • Configure the local vswitch • Communicates with the server over RPC • Wires new devices • Security Group Rules L2 Agent
9. • Provides L3/NAT • Runs network node • Uses namespaces • External network access L3 Agent
10. • Provides DHCP services • Communication over RPC • Isolation through namespaces • dnsmasq DHCP Agent
11. • Proxies Metadata requests to Nova • Routed Networks − Process embedded in router • Non-routed Networks − Static routes redirect traffic running in the DHCP namespace Metadata Agent
12. • Flat (no segmentation) • VLAN • Tunnels (GRE or VXLAN) How is traffic isolation achieved?
13. Neutron with OVS
14. Neutron with LinuxBridge
15. Telecom/NFV demands and Neutron • Reliability • Plannability • Performance ◦ Bandwidth ◦ Real-time-ness • QoS • SR-IOV
16. • VMs are able to send/receive tagged traffic • Motivations: ◦ Be able to connect to lots of networks ◦ Handle containers traffic ◦ Be compatible with legacy applications that expect to use VLANs ◦ New entities: ▪ Trunk port ▪ Sub port https://specs.openstack.org/openstack/neutron-specs/specs/newton/vlan-aware-vms.html VLAN aware VMs
17. VM with a subport with seg ID 10
18. QoS - Minimum bandwidth support • Guaranteed minimum bandwidth • Egress traffic • Needs scheduling improvements ◦ No overcommitting of the physical interface https://bugs.launchpad.net/neutron/+bug/1560963 https://bugs.launchpad.net/neutron/+bug/1578989
19. QoS - Ingress bandwidth limiting • Noisy neighbors on the consumer side • CSP’s to ◦ plan and allocate bandwidth to customers ◦ Provide different levels of network services • Bandwidth limiting rules got a direction field ◦ By default set to egress (original functionality) • OVS Agent support is in progress https://blueprints.launchpad.net/neutron/+spec/instance-ingress-bw-limit
20. OVS + SR-IOV • SR-IOV accelerated OVS ◦ Better performance ◦ Same core functionality • Kernel support is in place from version 4.8 ◦ SW representation mode ◦ Allows to offload SW switch traffic rules to the HW e- switch • OVS support is in progress • Neutron status is dependent on the OVS upstream progress https://bugs.launchpad.net/neutron/+bug/1627987
21. QinQ • Adding QinQ to the supported network types • OVS QinQ support ◦ Related patches are merged upstream ◦ Will be released in August (version 2.8) • Neutron implementation is in progress • Adds support for vlan-transparent networks in the OVS ML2 driver https://review.openstack.org/#/c/446047/ https://bugs.launchpad.net/neutron/+bug/1604222
