Can't ping my VM!

Talk about debugging common problems in Neutron

Transcript

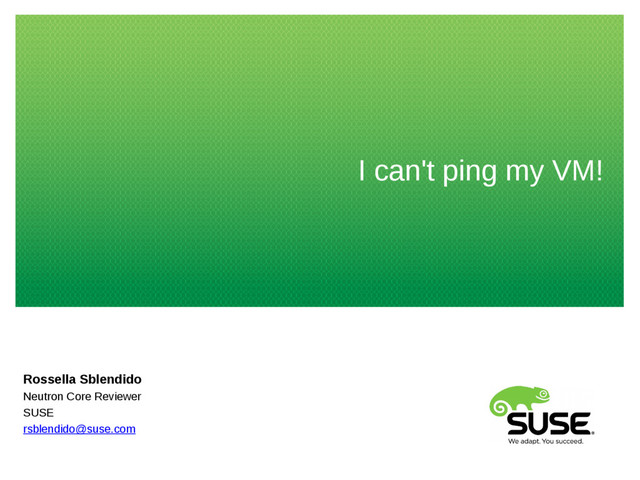

1. I can't ping my VM! Rossella Sblendido Neutron Core Reviewer SUSE rsblendido@suse.com
2. 2 Can't reach my VM... Rebooting didn't fix it Can't find any solution online I will wipe eveything out!
3. 3 Breathe! • You will be able to fix most problems in 40 minutes from now :)
4. 4 Networking problems... • Misconfiguration ‒ Wrong config entries ‒ Underlying network infrastructure has problems/is not configured correctly (e.g. external network not reachable, some firewall rule is filtering the traffic) • Bug in the code
5. Can't ping/ssh VM private IP
6. 6 Problem: I can't ping a VM (private IP) • Easy first checks: ‒ Is the VM up and running? Nova list and if not check nova logs ‒ Grep TRACE in /var/log/nova/* and /var/log/neutron/* ‒ Check that security group allows ICMP ‒ Check that all the nodes can reach one another Let's dig further!
7. 7 How does a VM get an IP?
8. 8 DHCP agent • Provides DHCP services • Communication over RPC • Isolation through namespaces • dnsmasq
9. 9 IP address allocation
10. 10 OpenVSwitch
11. 11 Linuxbridge
12. 12 Digging further ‒ Did the VM receive an IP ? ‒ If not is the DHCP agent running? ‒ Is dnsmasq running in the dhcp namespace and is the lease file correctly filled? ‒ If using VLANs is the underlay switch allowing the VLAN ID used for the network? ‒ Tcpdump all the way to see where the packet gets lost
13. VM can't reach external world
14. 14 L3 Agent • Provides L3/NAT • Runs network node • Uses namespaces • External network access
15. 15 OpenVSwitch
16. 16 LinuxBridge
17. 17 • Is the instances on a network with a router to the external network? • Can the VM ping the router? • Is br-ext configured correctly? Ovs vsctl show • Can you reach the external world from the router namespace? • If using VLAN, is the switch allowing these VLAN IDs? Things to check
18. Can't ping/ssh VM floating IP
19. 19 OpenVSwitch
20. 20 LinuxBridge
21. 21 Things to check... • Did you configure security group properly? Ping and ssh need to be allowed explicitly • Pinging the private IP is working? • Can the VM ping the router? • Can you ping the VM from the router namespace using the floating IP? • ovs-vsctl show • tcpdump
22. VM can't reach the Metadata server
23. 23 Metadata Agent • Proxies Metadata requests to Nova • Routed Networks ‒ Process embedded in router • Non-routed Networks ‒ Static routes redirect traffic running in the DHCP namespace
24. 24 Routed networks Iptables redirects Metadata traffic to the proxy
25. 25 Isolated networks Option 121 is used to inject a route in the VM to set the Metadata proxy as next hop to reach the MD server
26. 26 Things to check • Is the Metadata agent up? • Is the Metadata proxy up? • Look at the logs of neutron-metadata-agent and nova- metadata-agent • Is the Metadata server reachable from the router namespace or the DHCP namespace? • Does the image you are using suppot Option121? • Tcpdump all the way
27. Vif plugging timeout
28. 28 L2 Agent • Runs on hypervisor (compute node) • Configure the local vswitch • Communicates with the server over RPC • Wires new devices • Security Group Rules
29. 29 Vif plugging
30. 30 • Check the neutron server and the l2 agent logs • If the system is loaded adjust vif_plugging_timeout, rpc_thread_pool_size and rpc_conn_pool_size Things to check
31. Tools
32. 32 General info • ip addr • route -n • iptables -L • arp
33. 33 tcpdump • tcpdump -i eth0 -n ip proto gre • tcpdump -envi br-int • ip netns exec qrouter-UUID tcpdump -i qr-63ea2815- b5 icmp • tcpdump -i eth0 -n arp or icmp • tcpdump -i any -n icmp
34. 34 Namespaces • ip netns list • ip netns exec qrouter-UUID ip link • ip netns exec qrouter-UUID route -n • ip netns exec qrouter-UUID iptables -L -t nat
35. 35 OpenVSwitch • ovs-vsctl show • ovs-dpctl show • ovs-dpctl dump-flows • ovs-ofctl dump-flows br-tun • ovs-ofctl dump-flows br-tun table=21
36. 36 LinuxBridge • brctl show • brctl show bridgename
37. 37 Useful links • http://docs.openstack.org/admin-guide- cloud/content/under_the_hood_openvswitch.html • https://www.rdoproject.org/Networking_in_too_much_ detail • https://kashyapc.fedorapeople.org/virt/openstack/neutr on/neutron-diagnostics.html • http://techbackground.blogspot.ie/2013/06/metadata- via-dhcp-namespace.html
38. Thank you. 38 Don't forget to give feedback :) Questions?
