Title — Hyperspectral data fusion and source separation for X-ray astrophysics

Abstract — In astrophysics, X-ray telescopes can collect cubes of data called hyperspectral images. These data cubes have two spatial dimensions, and one spectral dimension. The subject of my thesis is to implement algorithms to analyze X-ray hyperspectral images of supernovae remnants. In particular, I have implemented a non-stationary unmixing algorithm (unmixing where each endmember varies spectrally), and a fusion algorithm to obtain the best resolutions from two generation of telescopes. The aim of my thesis is to combine the two, and thus obtain an algorithm that unmixes and fuses hyperspectral data simultaneously.

Article: https://arxiv.org/abs/2404.03490

Bio
Julia Lascar is a 2nd year PhD student working at the CEA with Jérôme Bobin and Fabio Acero. Her research focuses on implementing signal processing algorithms applied to hyperspectral X-ray astrophysics, with a particular interest in supernova remnants. She has a Master’s degree in astrophysics from McGill University, Montreal, and a M2 in statistics from ENSAI, Rennes. Before that, she studied Physics and Philosophy at King’s College London.

Transcript

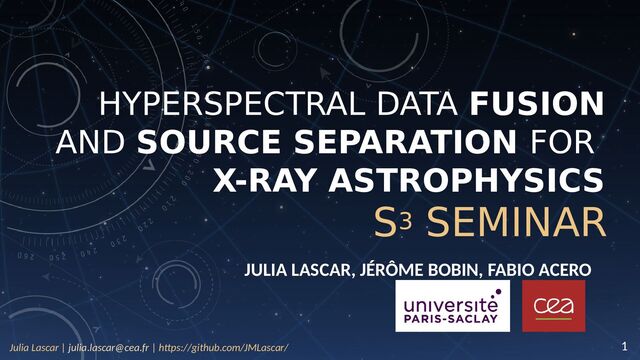

1. S3 SEMINAR JULIA LASCAR, JÉRÔME BOBIN, FABIO ACERO HYPERSPECTRAL DATA FUSION AND SOURCE SEPARATION FOR X-RAY ASTROPHYSICS 1 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
2. OUTLINE • Context: X-ray Astrophysics • Source Separation with Spectral Variabilities • Hyperspectral Fusion • Future works and perspectives 2 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
3. X-RAY ASTROPHYSICS
4. CONTEXT • Supernova Remnants: stars that exploded hundreds of years ago Cassiopeia A 4 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/ Type Ia (binary star collapse) Type II (core collapse) Tycho
5. CONTEXT • Hyperspectral images: 2 spatial dimensions + 1 energy dimension • For each pixel, a spectrum • Entangled physical components spatial spatial spectral 5 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
6. CHALLENGES IN X-RAY ASTROPHYSICS • Poisson Noise • Low signal/noise ratio, noise variabilities • High spectral variability • Non analytical physical model --> Need tools that account for these specific challenges 6 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
7. SEMI-BLIND UNMIXING WITH SPARSITY FOR HYPERSPECTRAL IMAGES 7 SUSHI SOURCE SEPARATION WITH SPECTRAL VARIABILITIES Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
8. UNMIXING: A NON-STATIONARY MODEL Stationary model: = + + … Spectrum_1 Image_1 Spectrum_2 Image_2 + + … More realistic model includes spatial variability: Cube_1 Cube_2 = 8
9. SUSHI: AN OVERVIEW  Plug a learnt model for spectral variation  Applies a spatial regularisation on the parameters map of the learnt model  Obtains, for each component, a cube that varies spatially and spectrally. 9 + … Component 1 = + Component 2 SUSHI output
10. SUSHI: OVERVIEW 10 Data fidelity Learnt Model Latent Parameters Spatial Reg = + 1 2 Amplitude Latent Parameters A, θ = argmin + A, θ Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
11. • Learn to interpolate between anchor points 11 LEARNT MODEL: INTERPOLATORY AUTO ENCODER (IAE) Bobin, J., Gertosio, R., Thiam, C., Bobin C. 2021. Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
12. LEARNT MODEL: INTERPOLATORY AUTO ENCODER (IAE) 12 Spectral Space Latent Space Spectral Space Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
13. THE DECODER AS A GENERATIVE MODEL 13 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/ • D is differentiable • Not costly to call upon • Latent parameters vary smoothly with physical parameters  Spatial regularization makes sense
14. SPATIAL REGULARIZATION OF LATENT PARAMETERS • Undecimated Isotropic Wavelet Transform: Starlet Transform (useful in astro) • Minimize L1 norm 14 Likelihood Learnt Model Latent Parameters Spatial Reg • Proximal Alternating Linearized Minimization (PALM, Bolte 2014) Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/ A, θ = argmin A, θ +
15. SUSHI RESULTS 15 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
16. SIMULATED TOY MODEL • from real images + numerical simulations of CasA • Thermal Component: Varying redshift, temperature • Synchrotron Component: Constant Photon Index 16 16 Thermal Amplitude Synchrotron Amplitude Photon Index Velocity Redshift (z) Temperature (keV)
17. EXAMPLE OF SPECTRA FROM INDIVIDUAL PIXELS • Varying levels of noise / count statistics 17 Energy (keV) Flux Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
18. AMPLITUDE MAP COMPARISONS 18 Fit 1D pixel-per-pixel
19. INDIVIDUAL PIXEL COMPARISONS 19 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
20. INDIVIDUAL PIXEL COMPARISONS 20 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
22. PARAMETER RESIDUALS HISTOGRAMS 22 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
23. SUSHI SUMMARY • SUSHI is a method to unmix hyperspectral images with spectral variations based on a physical model (one for each endmember). • As a surrogate model, SUSHI uses the decoder of an Interpolatory Auto-Encoder. • It applies a spatial sparsity regularization on the surrogate model’s parameter maps. • General framework applicable to hyperspectral images with spectral variabilities where a spectral model can be learnt. 23 https://github.com/JMLascar/SUSHI Julia Lascar | julia.lascar@cea.fr |
24. HYPERSPECTRAL IMAGE FUSION VIA REGULARIZED DECONVOLUTION 24 HI-FRED Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
25. FUSIO N 25 √ Spatial X Spectral X Spatial √ Spectral √ Spatial √ Spectral XMM- Newton, 1999 XRISM, 2023 Chandra, 1999 Athena-XIFU, 2037
26. Sourc e Z XMM XRISM Rebinni ng Operato rs R 1 ( ) Z⊛ ⊛ R 2 ( ) Z⊛ ⊛ Spatial 2D Convolution Kernel Spectral 1D Convolution Kernel Effectiv e Area X Y × × Observed data Poisso n Noise Poisso n Noise FUSION FORWARD MODEL 26 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
27. ESTIMATOR 27 Spectral Response Rebinning Effective Area Spatial Response
28. REGULARIZATION • Three methods: • l1 norm of Wavelet 2D-1D coefficients • Low rank Approximation (using PCA) with Sobolev Regularization (inspired by Guilloteau 2020 work on JWST) • Low rank Approximation with 2D Wavelet Regularization 28 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
29. ALGORITHM • Negative log likelihood Poisson • Most of the cost function is differentiable (except at 0) • Non differentiable constraints, but convex • Proximal Gradient Descent / ISTA • FFT of the kernels is calculated at the start, then saved. 29 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
30. FUSION RESULTS 30 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
31. SPATIAL RESPONSE S 31 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/ σ=1 px σ=3 px
32. SPECTRAL RESPONSES 32 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/ σ=21.0 eV σ=2.52 eV σ=51.0 eV σ=1.38 eV
33. FOUR TOYMODELS 33 • Gaussian: • 1 keV • 6 keV • Gaussian with rebinning: • 1 keV • Realistic: • 1 keV Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
34. SPECTRAL VARIABILITY OF EACH MODEL 34
35. GAUSSIAN TOY MODEL 35 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
36. GAUSSIAN TOY MODEL 36 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
37. GAUSSIAN WITH REBINNING TOY MODEL 37 Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
38. REALISTIC TOY MODEL 38 (Note: version with more noise in progress) Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
39. GAUSSIAN (1 KEV) 39
40. GAUSSIAN (1 KEV) 40
41. GAUSSIAN (6 KEV) 41
42. GAUSSIAN (6 KEV) 42
43. GAUSSIAN (WITH REBIN, 1KEV) 43
44. GAUSSIAN (WITH REBIN, 1K 44
45. REALISTIC (1 KEV) 45
46. REALISTIC (1 KEV) 46
47. Gaussian 1 keV Gaussian 6 keV Realistic 1 keV Gaussian with Rebinning 1 keV SUMMARY 47 ASAM: Moyenne de Carte d’angle spectral, PSNR: Pic Rapport Signal sur Bruit, acSSIM: moyenne complémentaire de l’indice de similarité structurelle
48. FUSION SUMMARY 48 • Propose a new algorithm for hyperspectral fusion adapted to X-ray imaging • Studied regularization at different regimes • Methods work similarly at low spectral variability • Low rank is faster thanks to dimension reduction • W2D1D works best at high spectral variability • Though, both can be biased • Need a method that reduces dimension, preserves variabilities  include physical information Julia Lascar | julia.lascar@cea.fr | https://github.com/JMLascar/
49. FUTURE WORK • FUSION + SOURCE SEPARATION • Will have the acceleration obtained by dimension reduction • Including physical information • Performs source separation and fusion at the same time
50. CONCLUSION • X-ray hyperspectral images are complex to analyse because of Poisson noise and high spectral variability • SUSHI is a method to unmix hyperspectral images with spectral variations based on a physical model (one for each endmember). • HIFReD is a fusion method, which combines two hyperspectral images to obtain the best spatial and spectral resolutions 50 julia.lascar@cea.fr https://github.com/JMLascar/SUSHI
