How Managed Is Your Managed Platform?

Most of us rely on managed services to run our applications. Even in companies using their own bare-metal infrastructure, it's rare for one team to be responsible for running lower-level services like container orchestration as well as writing the customer-facing applications that run on it.

"Managed" is an extremely broad word though, which can trip up platform builders and consumers alike. Just how much is managed for you?

In this talk, we'll explore how wildly managed offerings of the same service can differ by reviewing three Kubernetes products: Amazon's EKS, Google's GKE, and Amazon's Fargate for EKS.

The point isn't to arrive at a single "best" option - there isn't one. The goal is for you to leave with a better sense of how to compare managed services as a customer, or, if you're a platform builder, how to decide what's your responsibility and what you leave to customers.

Transcript

1. How managed is your managed platform? sinjo.dev
3. “Managed” is a broad term
5. Hi
6. sinjo.dev
7. sinjo.dev
9. Postg reSQL

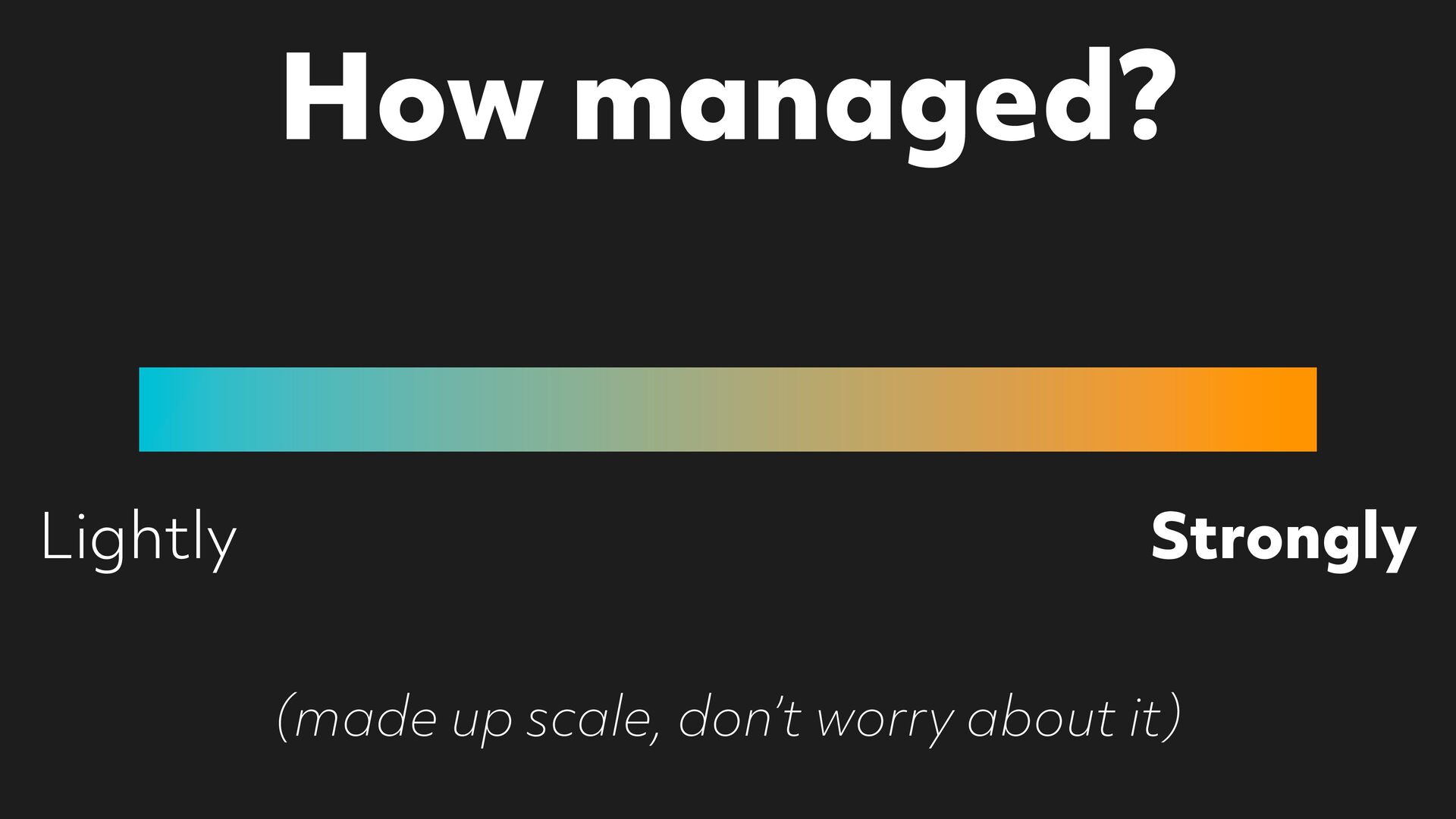

11. How managed? Lightly Strongly (made up scale, don’t worry about it)

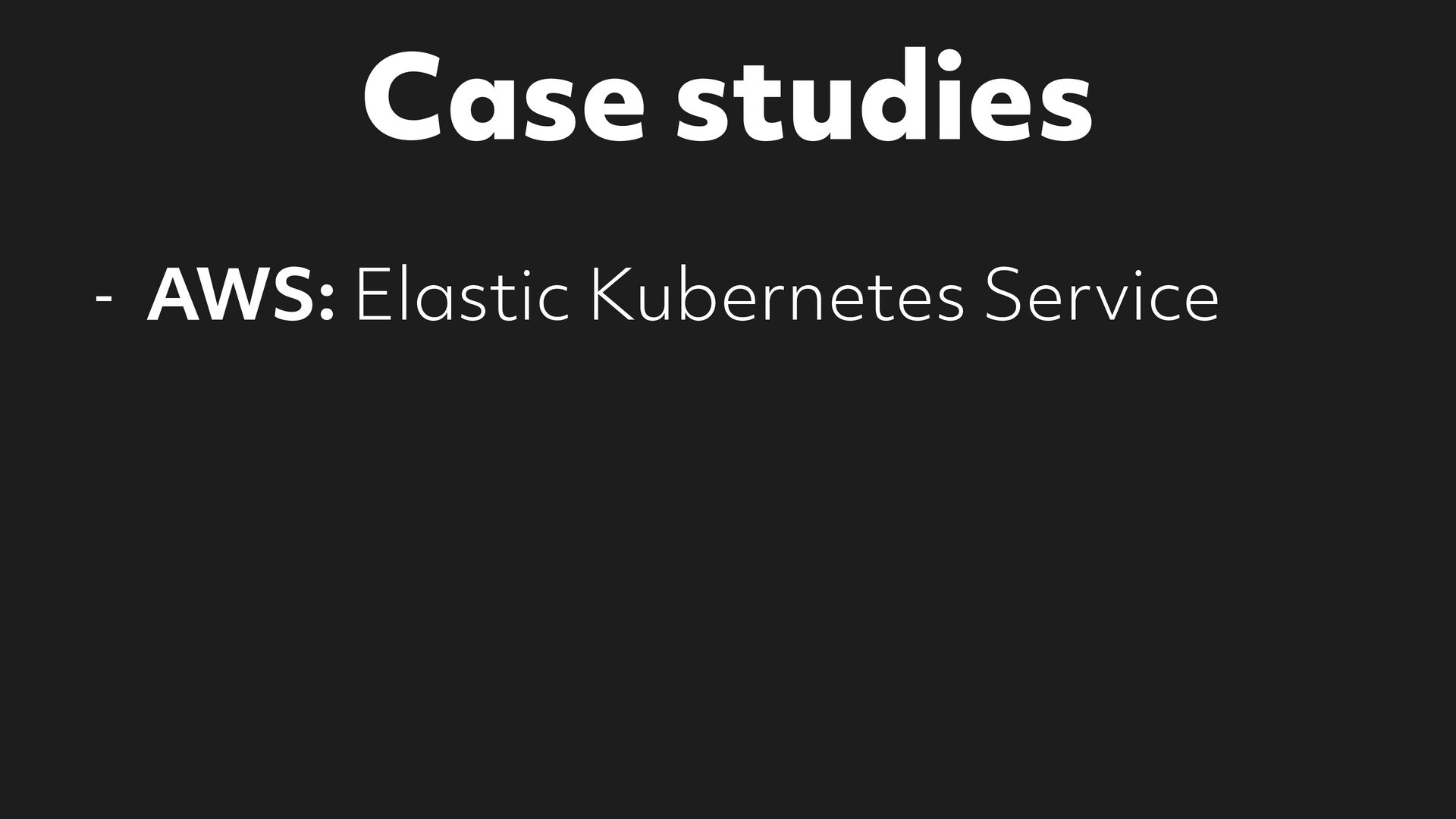

12. Case studies - AWS: Elastic Kubernetes Service - GCP: Google Kubernetes Engine - AWS: Fargate for EKS
13. Case studies - AWS: Elastic Kubernetes Service - GCP: Google Kubernetes Engine - AWS: Fargate for EKS
14. Case studies - AWS: Elastic Kubernetes Service - GCP: Google Kubernetes Engine - AWS: Fargate for EKS
15. Case studies - AWS: Elastic Kubernetes Service - GCP: Google Kubernetes Engine - AWS: Fargate for EKS
17. The “same” service... ff ...but di erent

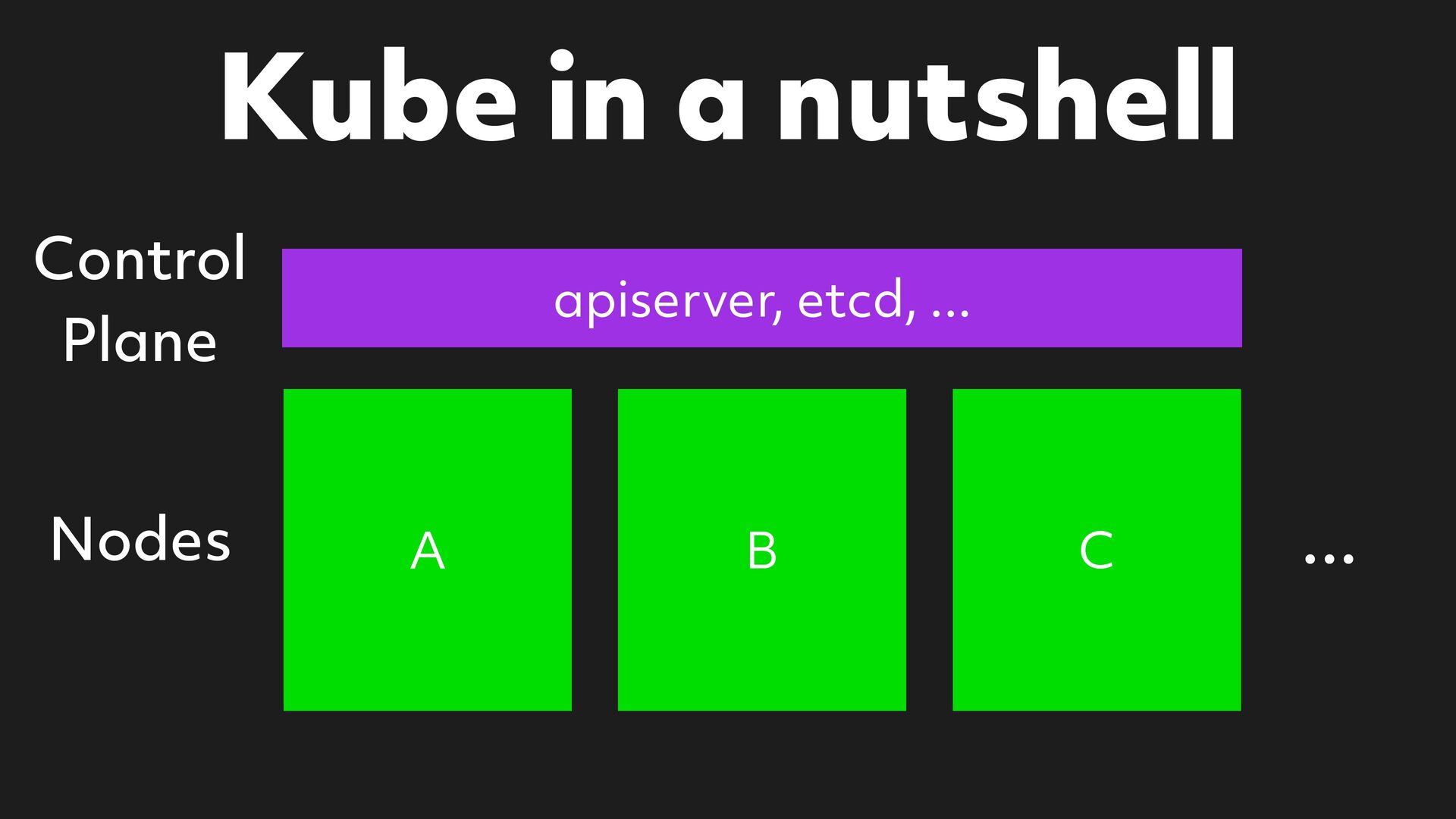

18. Kube in a nutshell Control Plane Nodes apiserver, etcd, ... A B C ...

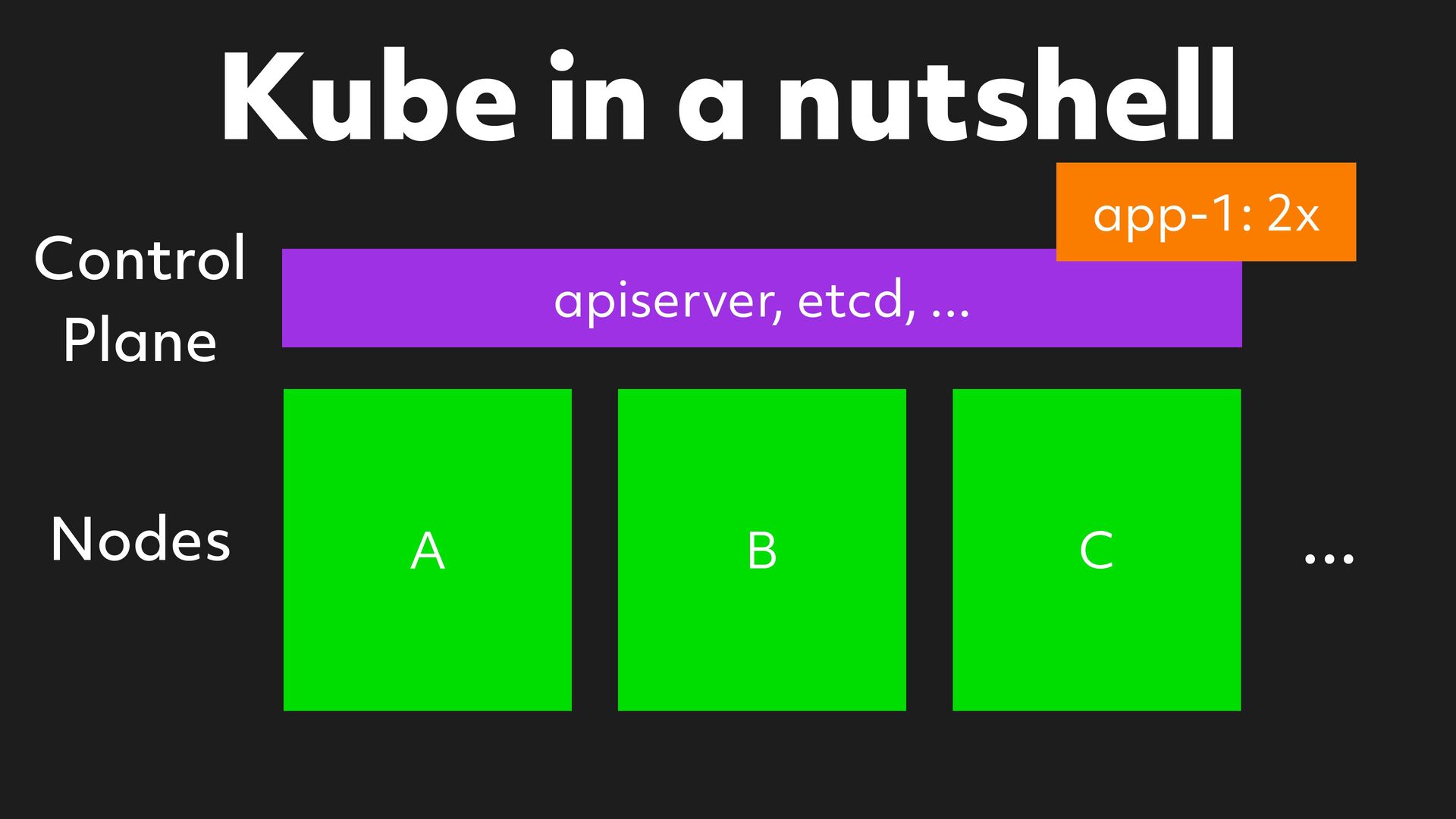

19. Kube in a nutshell app-1: 2x Control Plane Nodes apiserver, etcd, ... A B C ...

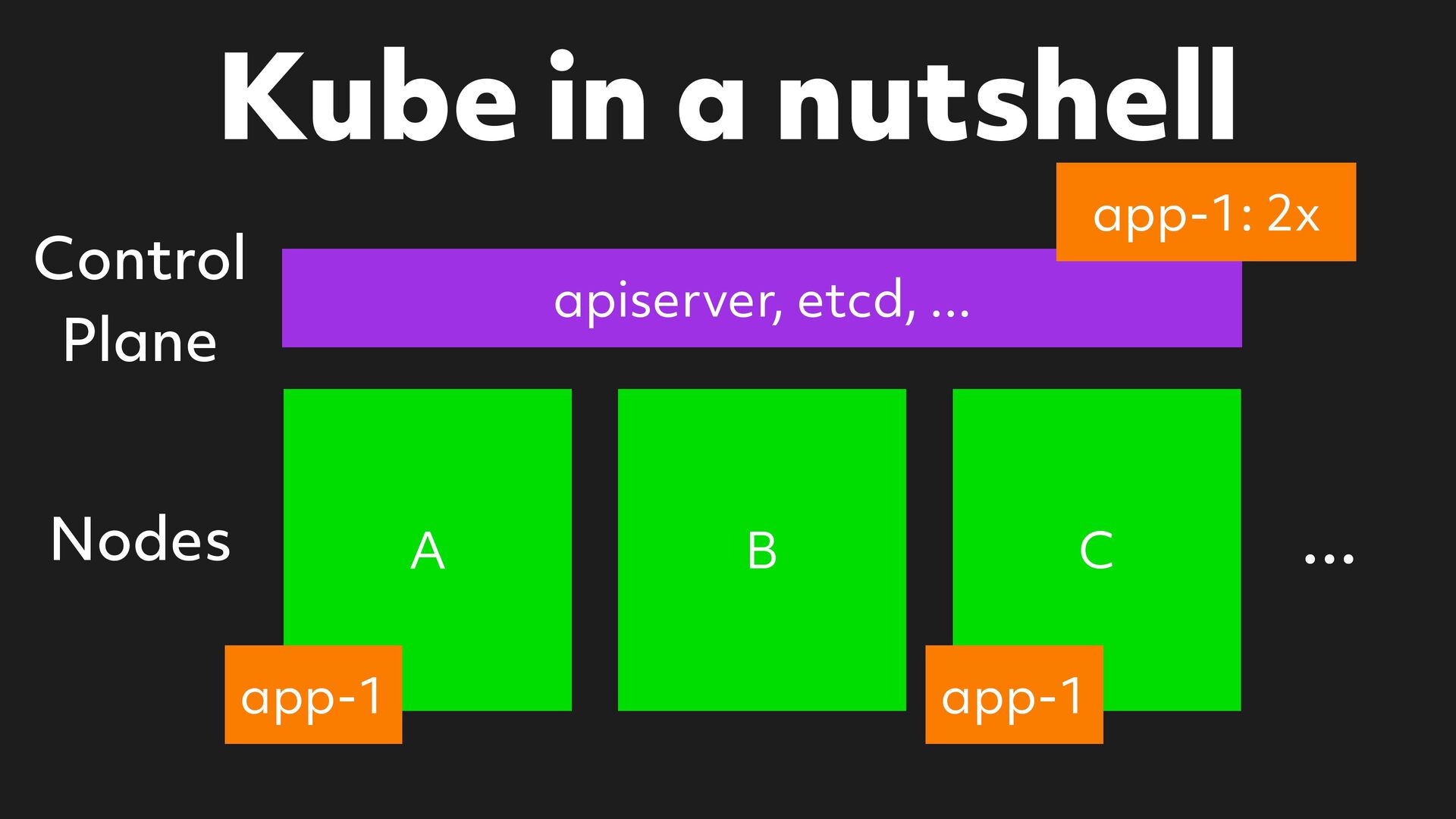

20. Kube in a nutshell app-1: 2x Control Plane Nodes apiserver, etcd, ... A app-1 B C app-1 ...

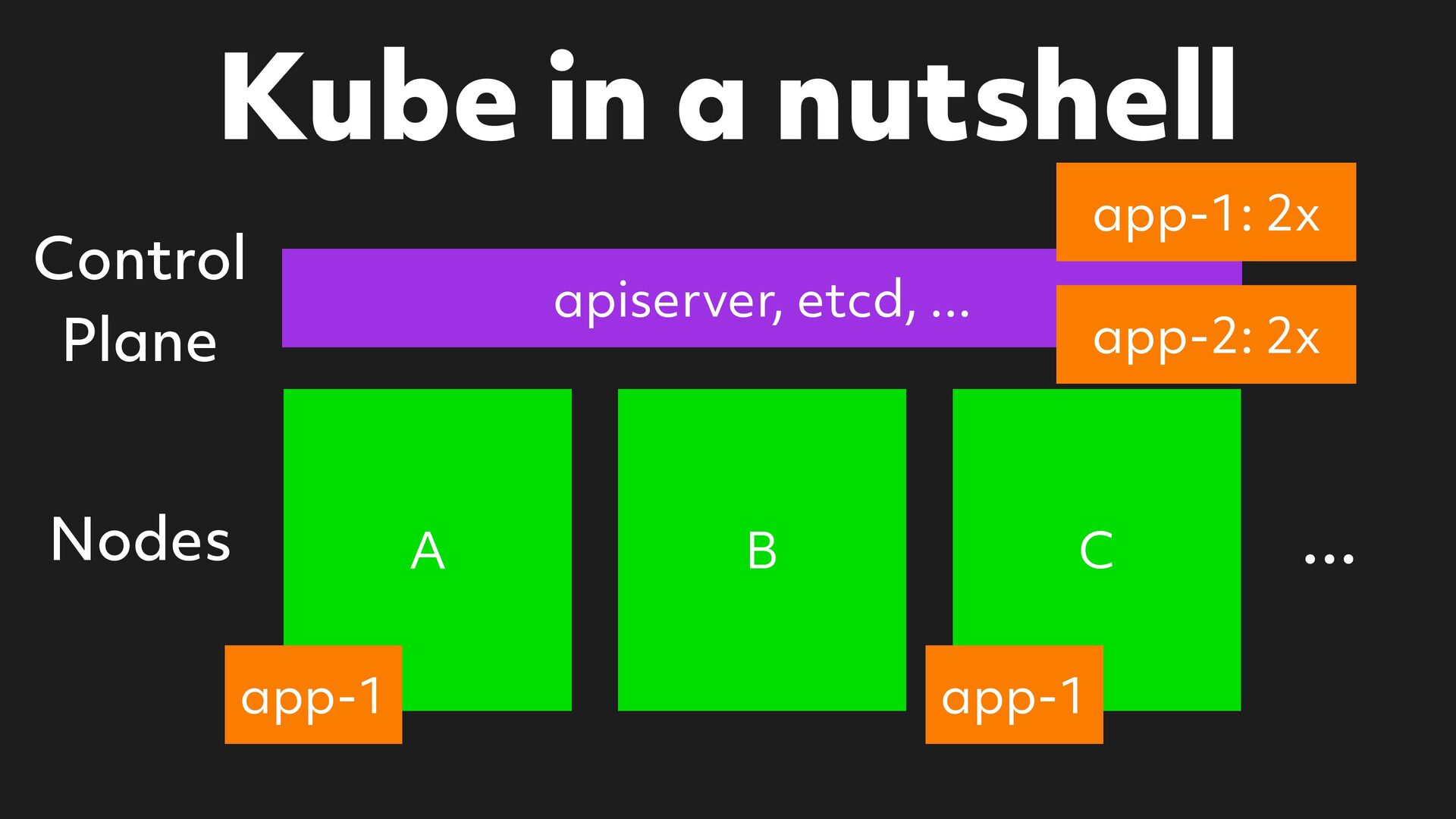

21. Kube in a nutshell app-1: 2x Control Plane Nodes apiserver, etcd, ... A app-1 B app-2: 2x C app-1 ...

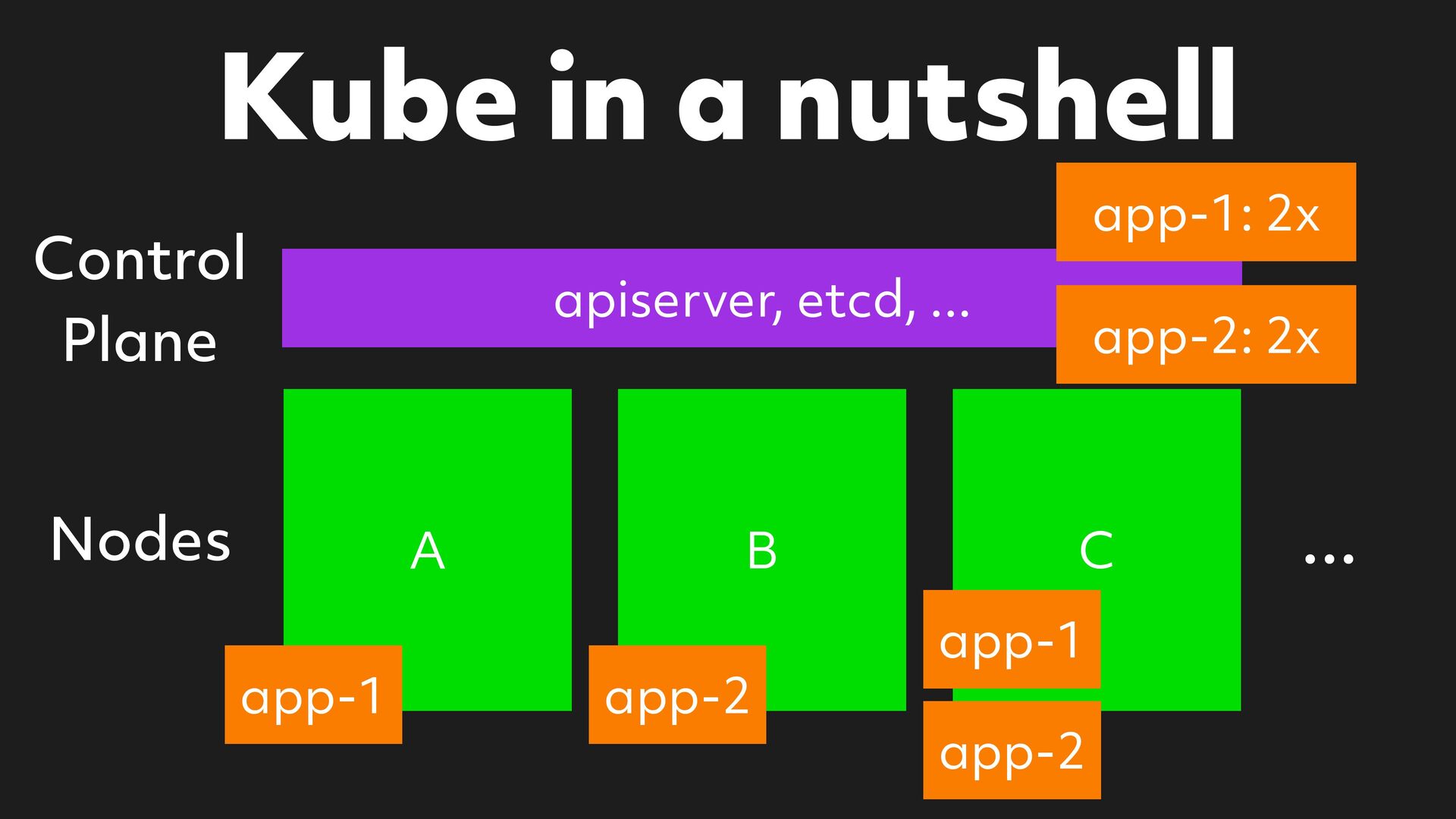

22. Kube in a nutshell app-1: 2x Control Plane Nodes apiserver, etcd, ... A app-1 B app-2 app-2: 2x C app-1 app-2 ...

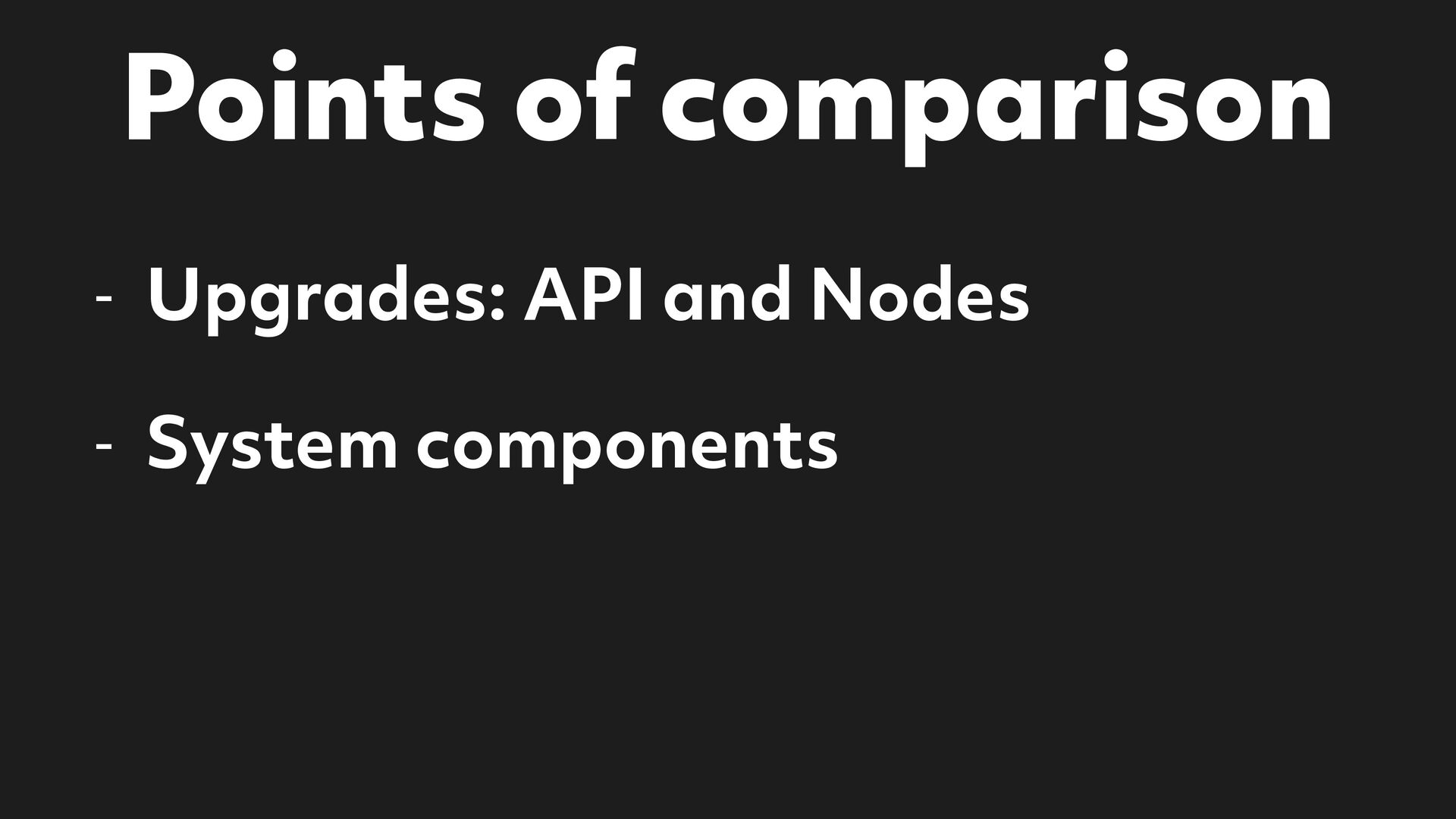

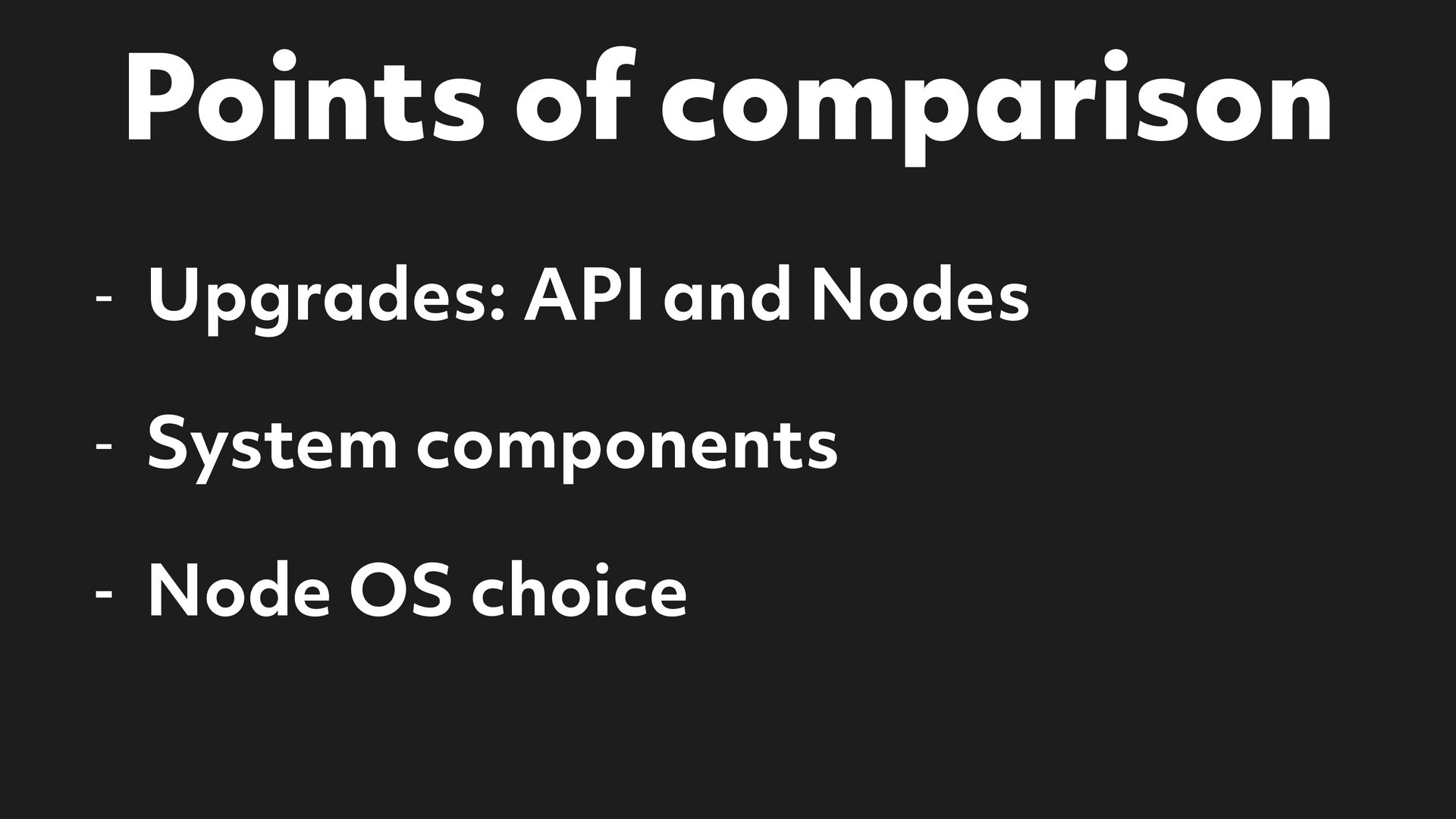

23. Points of comparison - Upgrades: API and Nodes - System components - Node OS choice
24. Points of comparison - Upgrades: API and Nodes - System components - Node OS choice
25. Points of comparison - Upgrades: API and Nodes - System components - Node OS choice
26. Points of comparison - Upgrades: API and Nodes - System components - Node OS choice
27. Case 1 AWS Elastic Kubernetes Service

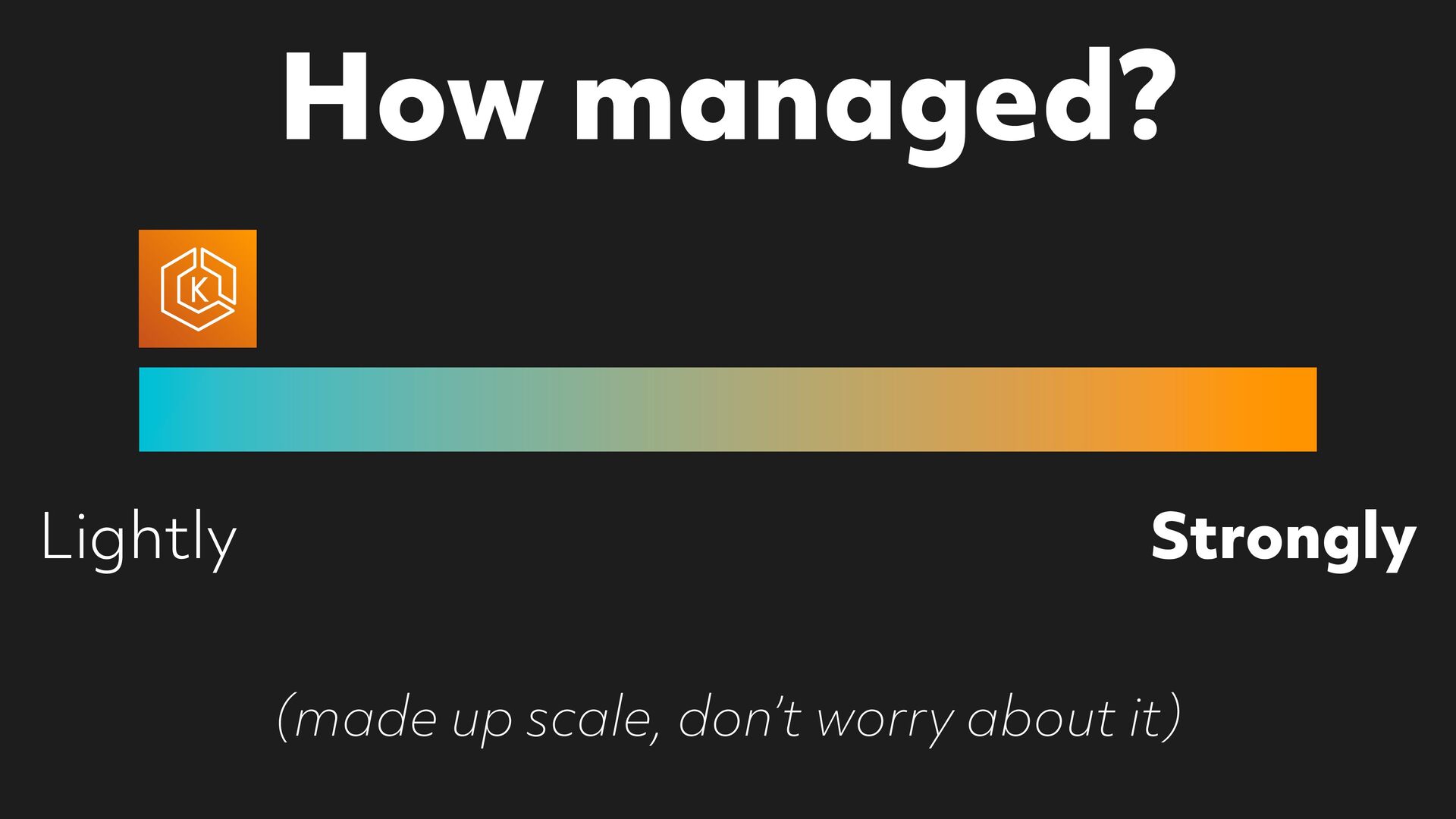

28. How managed? Lightly Strongly (made up scale, don’t worry about it)

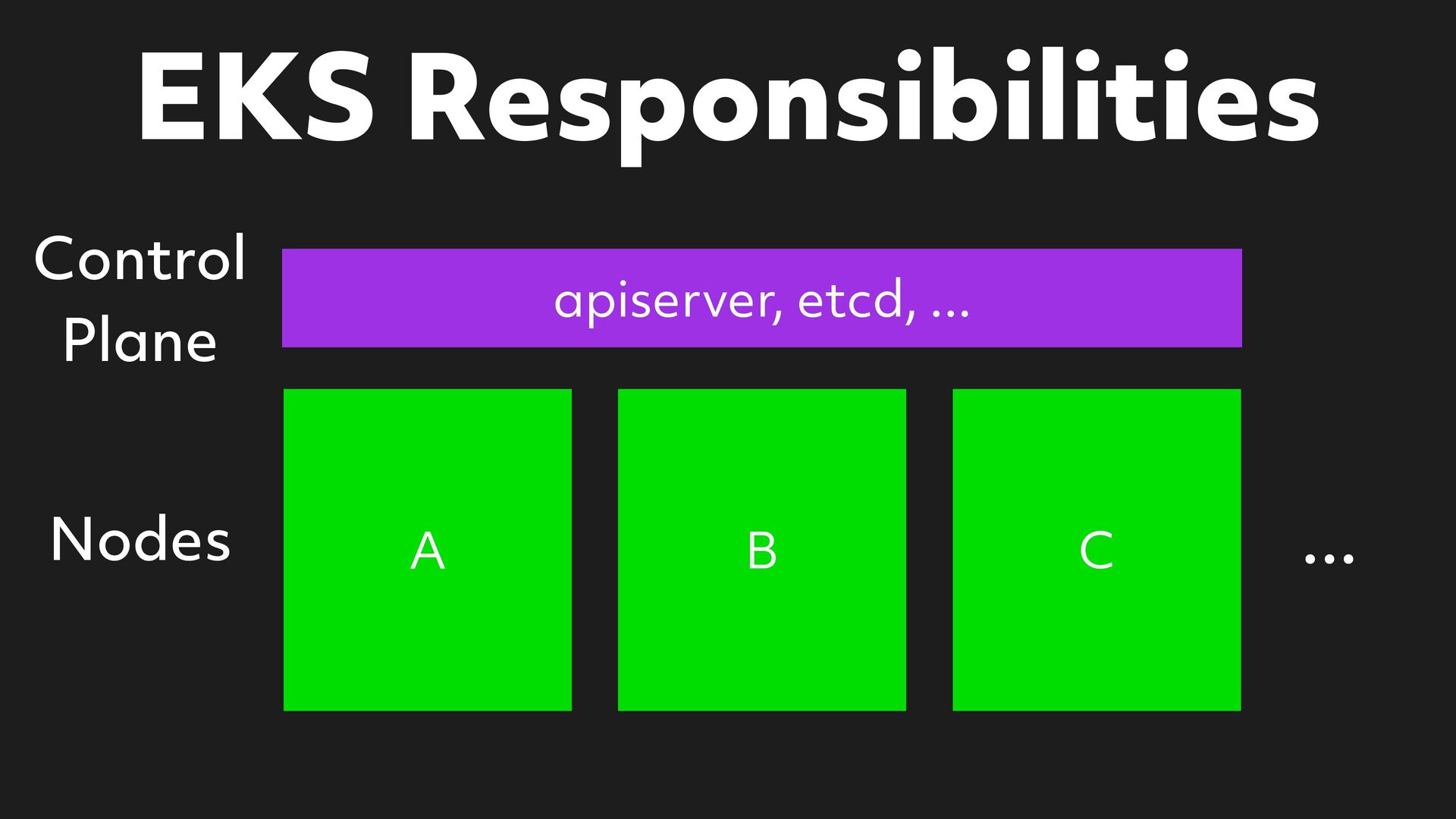

29. EKS Responsibilities Control Plane Nodes apiserver, etcd, ... A B C ...
30. EKS Responsibilities Control Plane apiserver, etcd, ... AWS You Nodes A B C ...

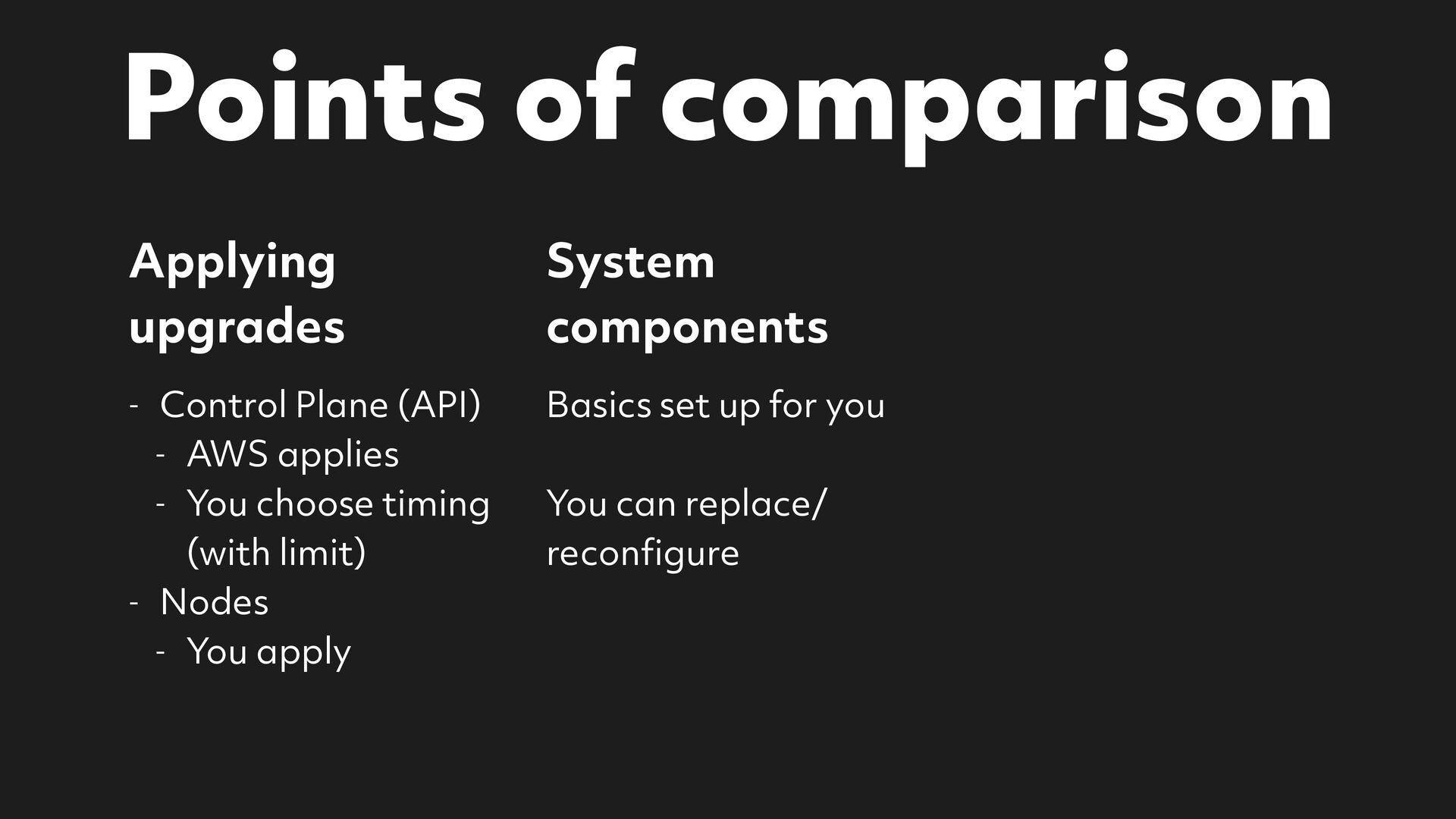

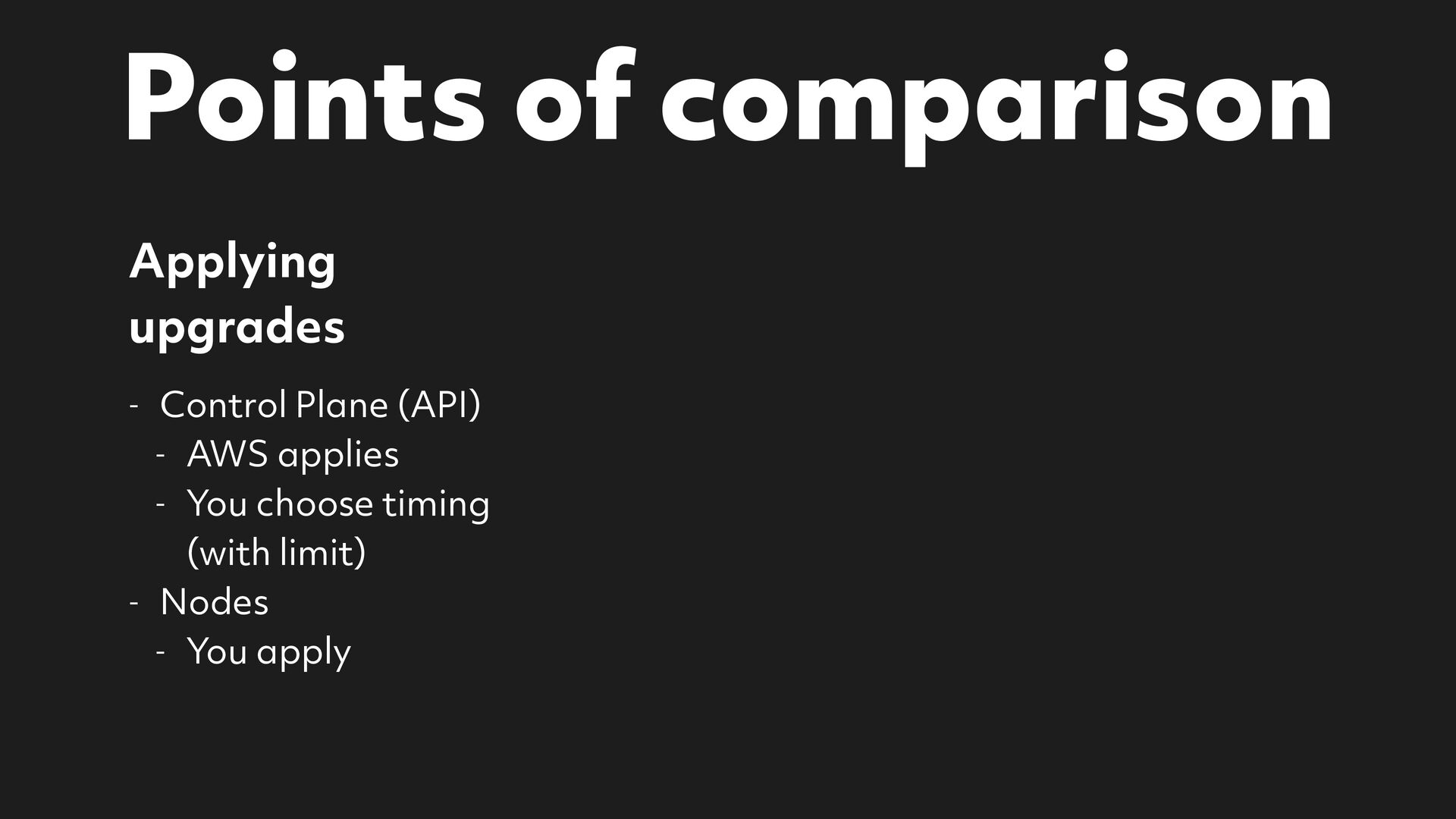

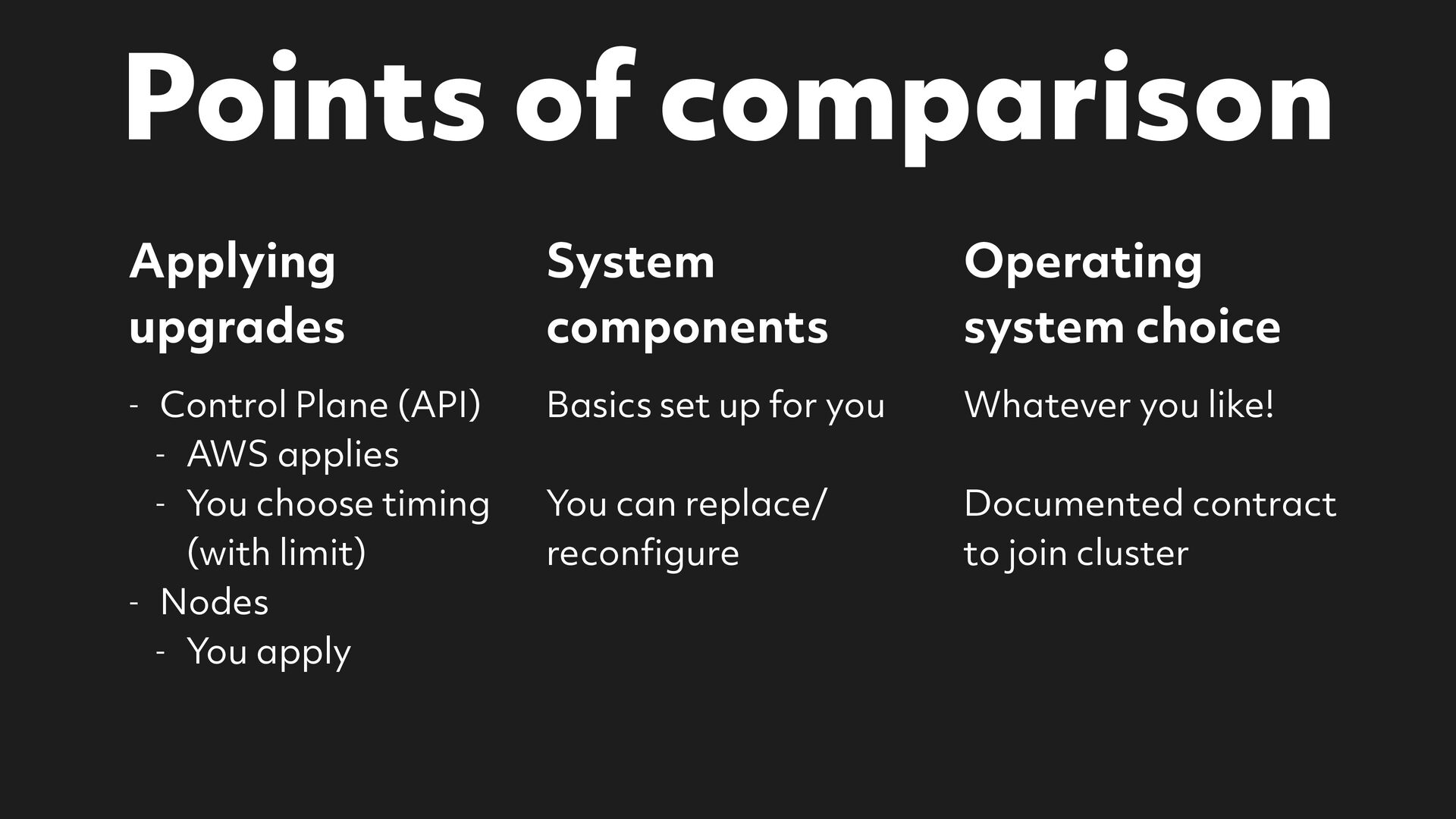

31. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - You apply Basics set up for you Whatever you like! You can replace/ recon gure Documented contract to join cluster fi -
32. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - You apply Basics set up for you Whatever you like! You can replace/ recon gure Documented contract to join cluster fi -
33. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - You apply Basics set up for you Whatever you like! You can replace/ recon gure Documented contract to join cluster fi -

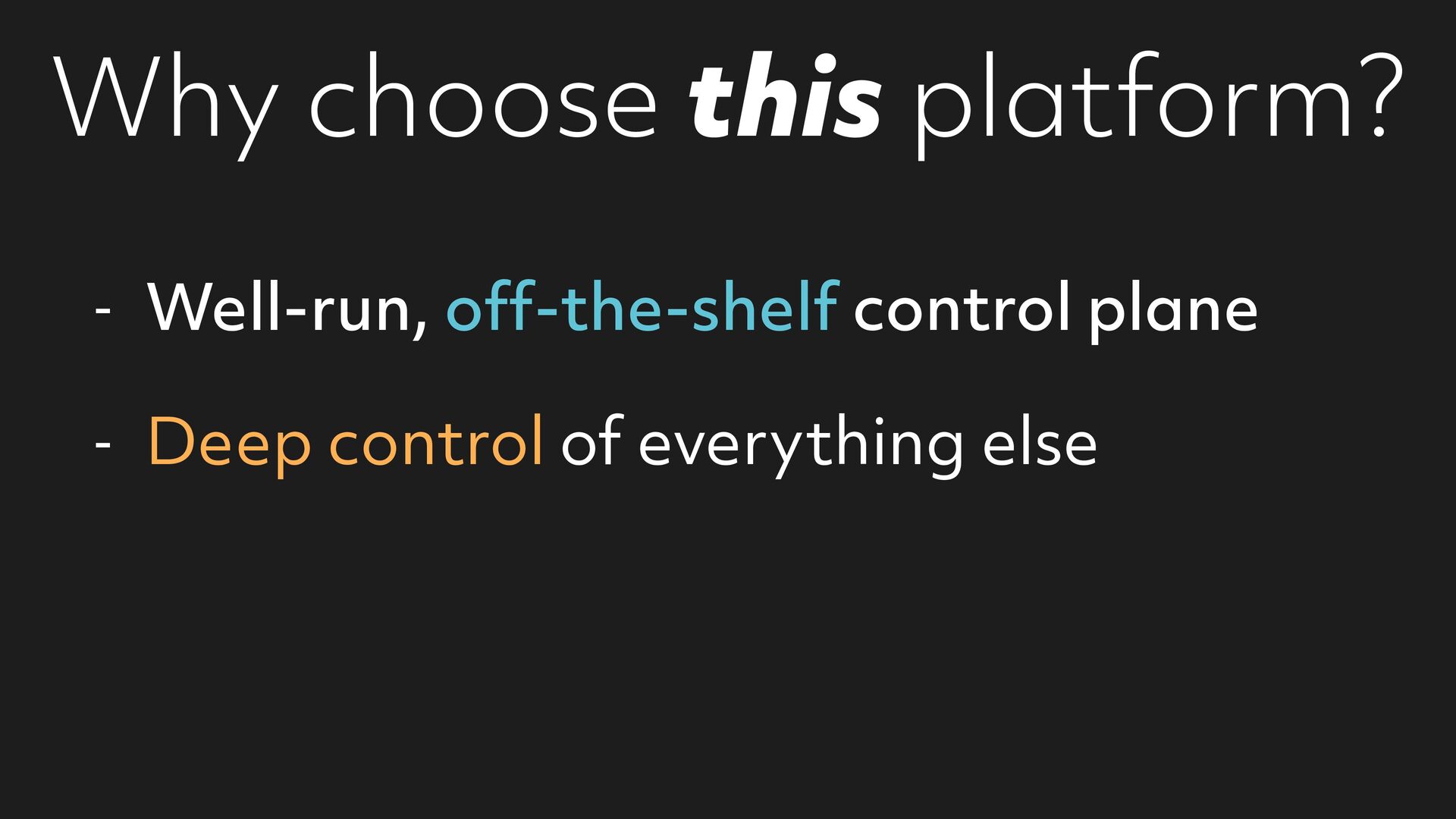

34. Why choose this platform? - Well-run, o -the-shelf control plane ff - Deep control of everything else
35. Case 2 Google Kubernetes Engine

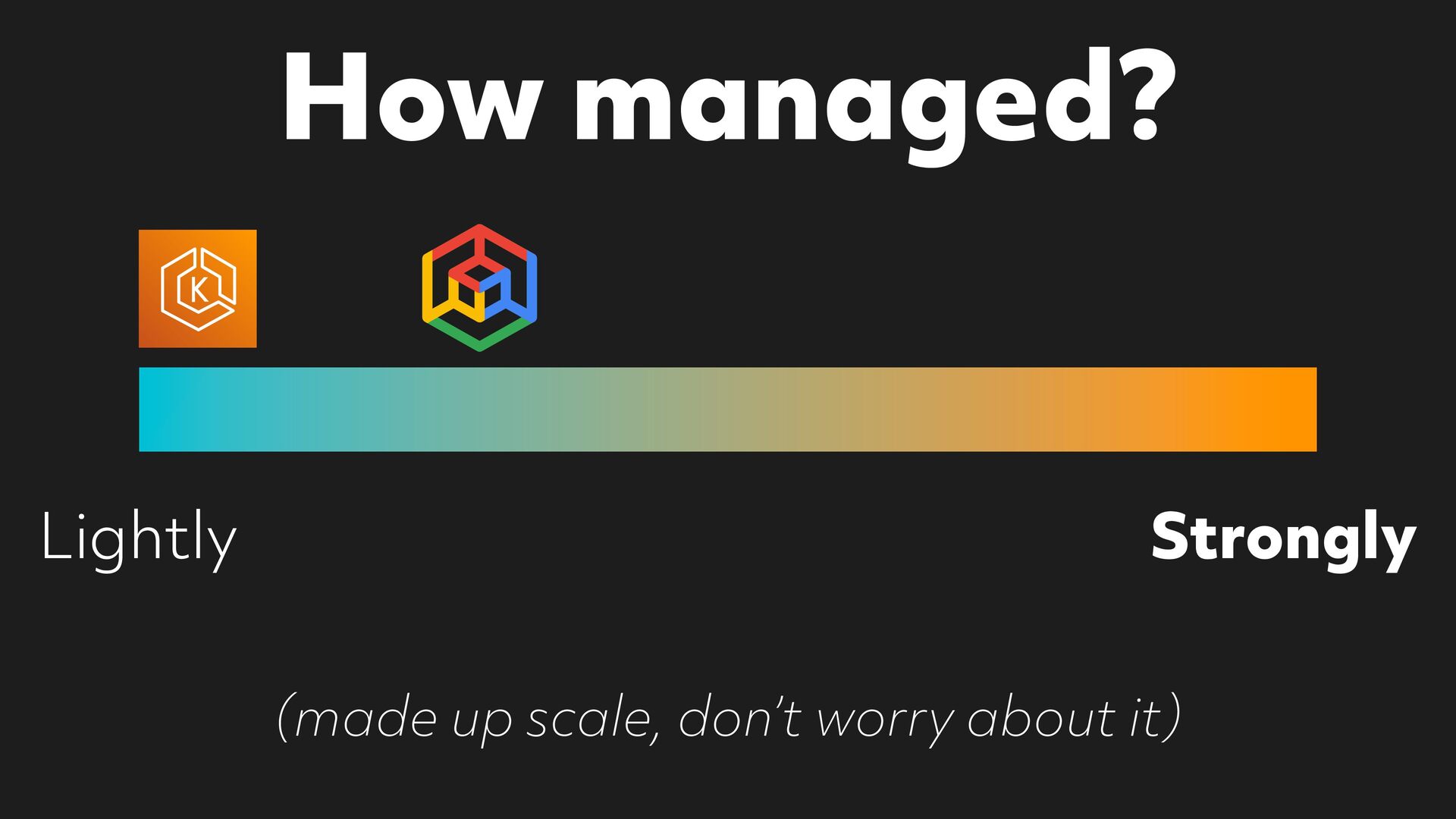

36. How managed? Lightly Strongly (made up scale, don’t worry about it)

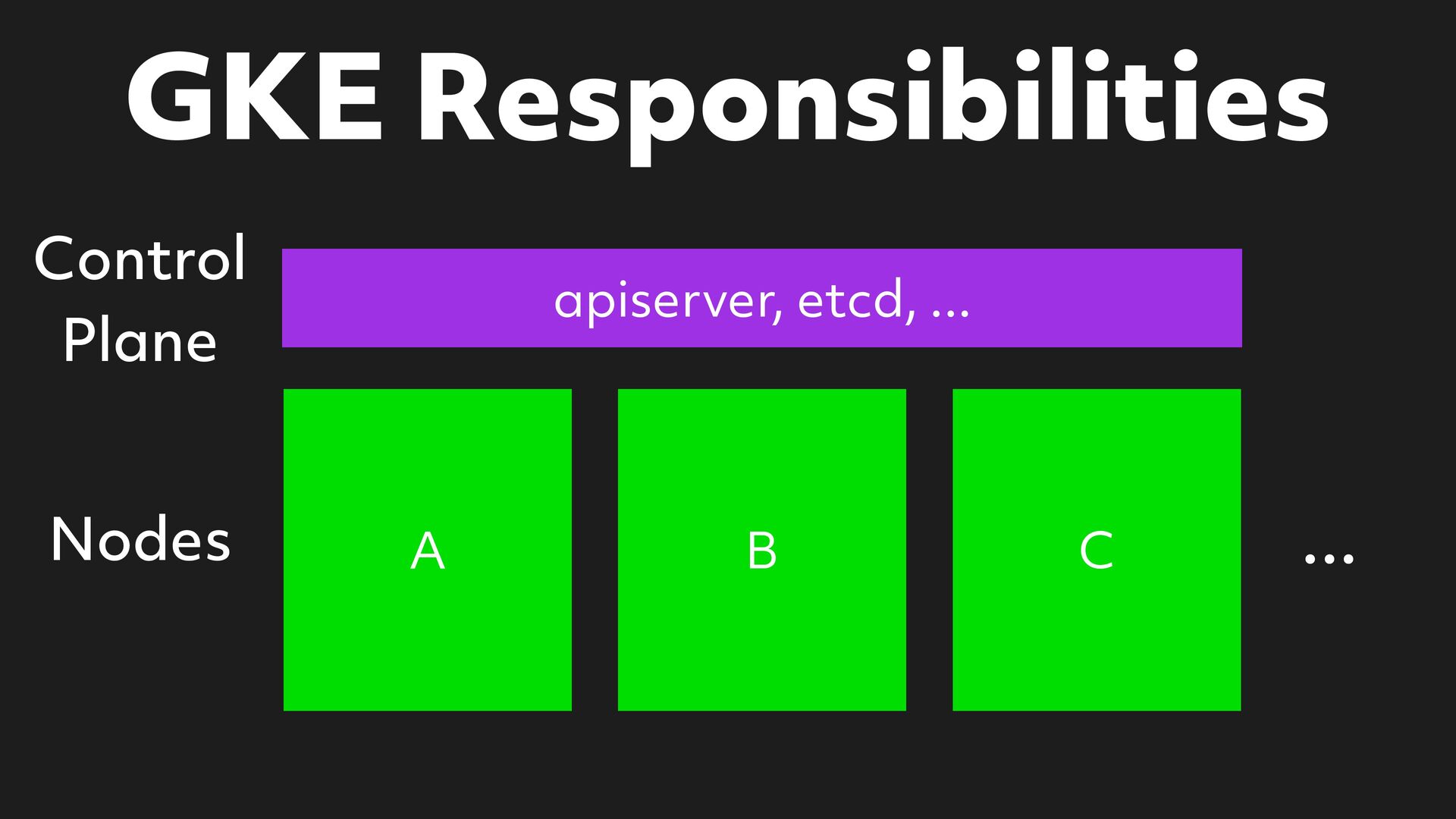

37. GKE Responsibilities Control Plane Nodes apiserver, etcd, ... A B C ...

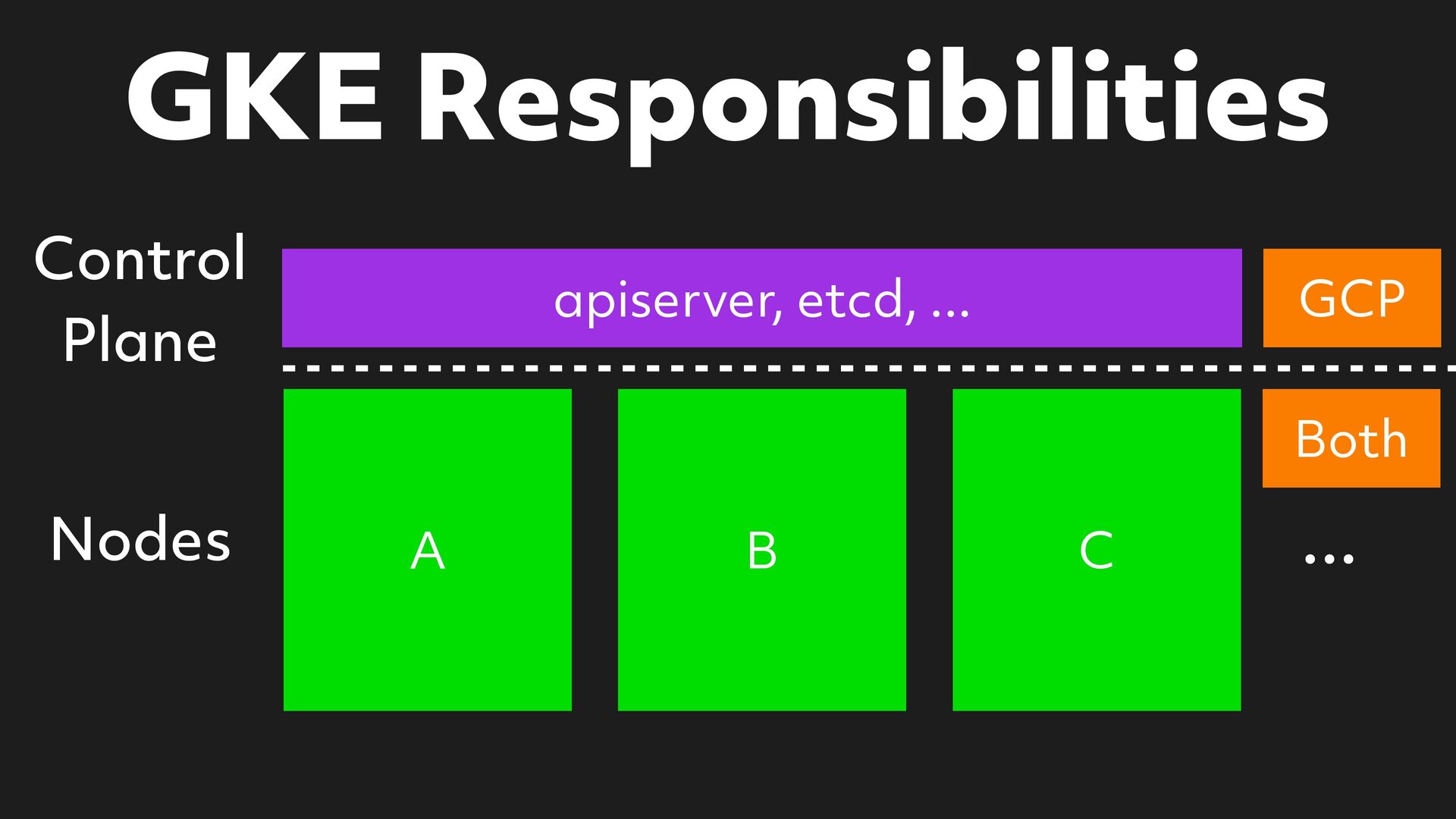

38. GKE Responsibilities Control Plane apiserver, etcd, ... GCP Both Nodes A B C ...

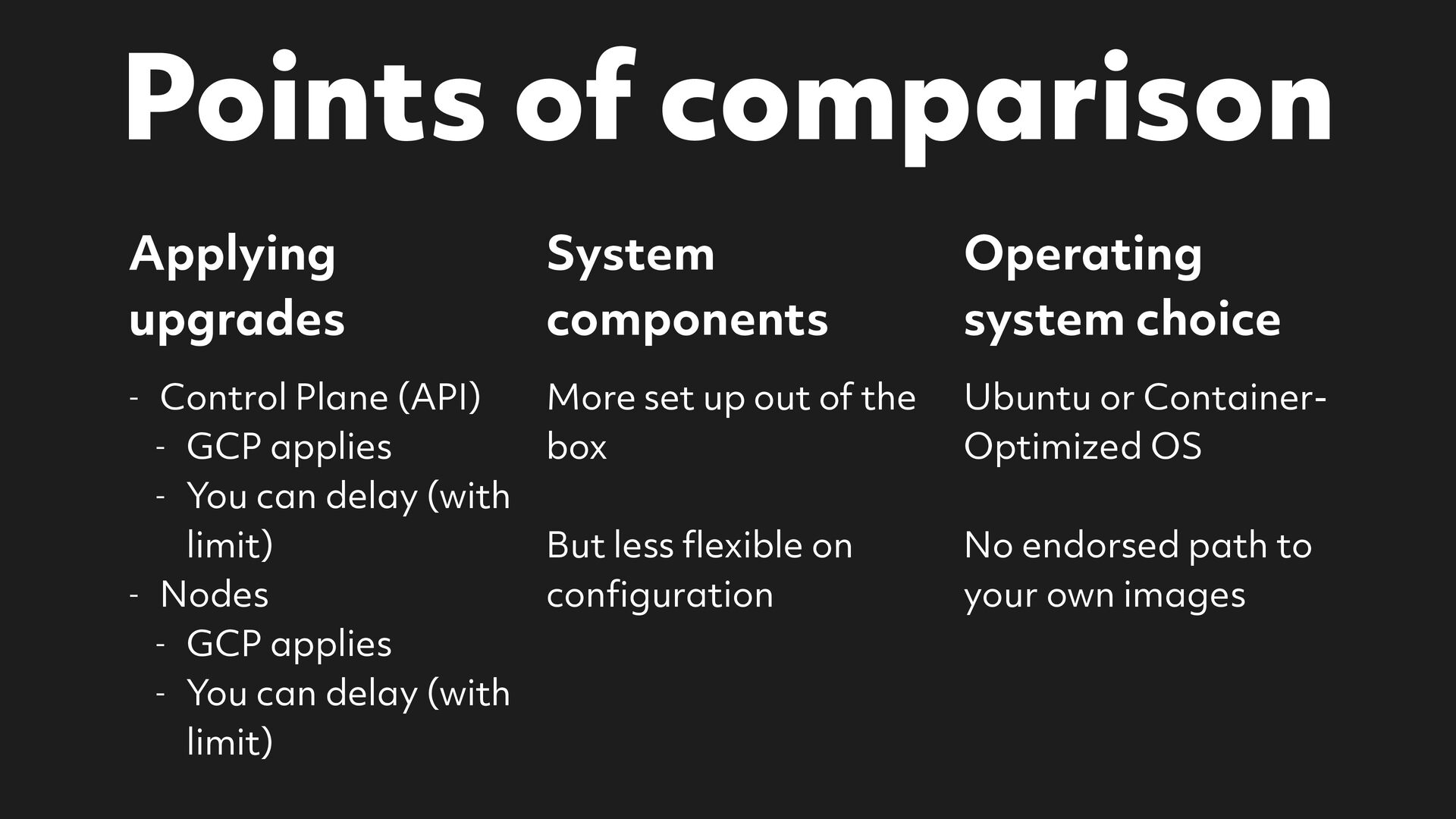

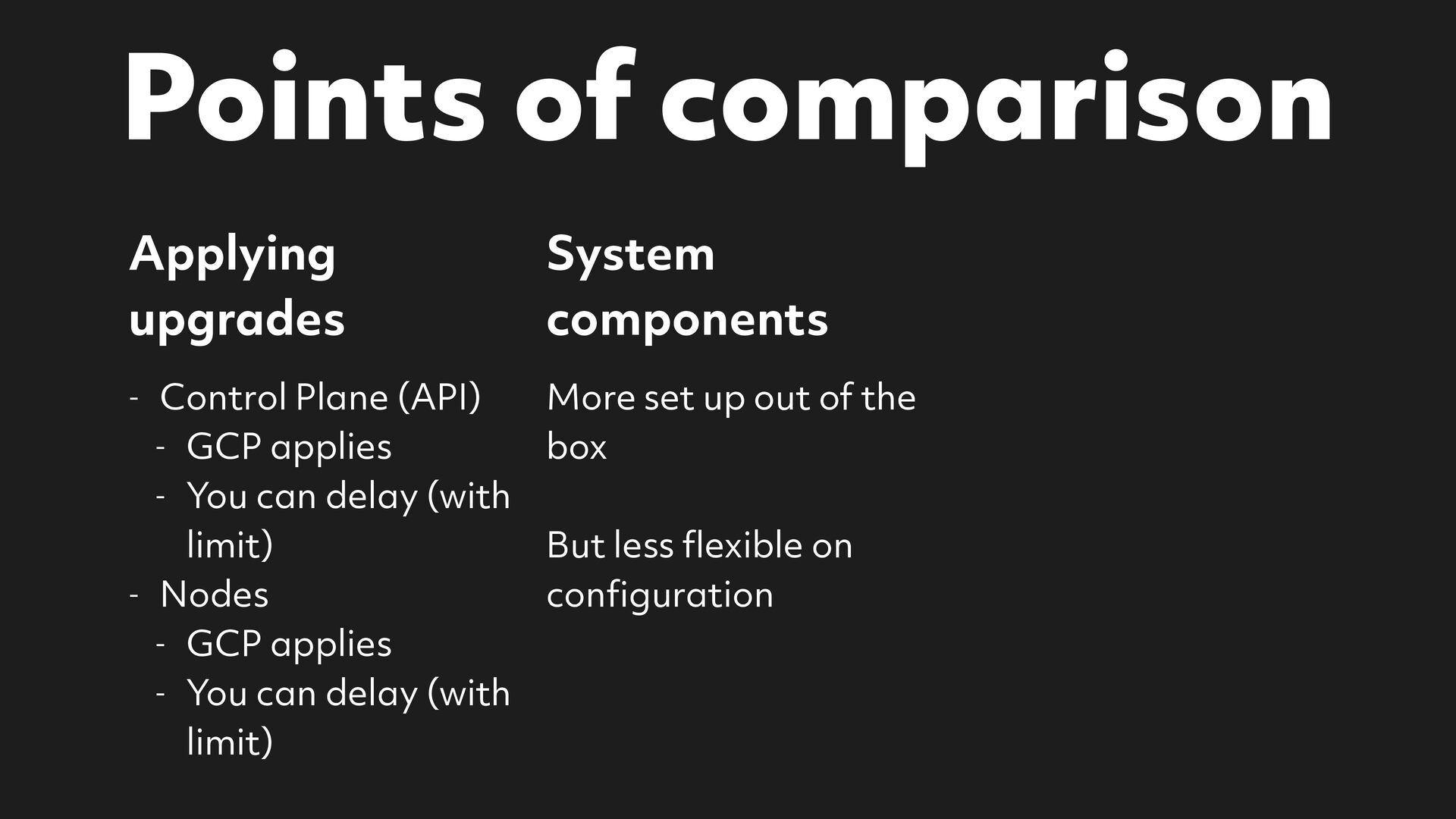

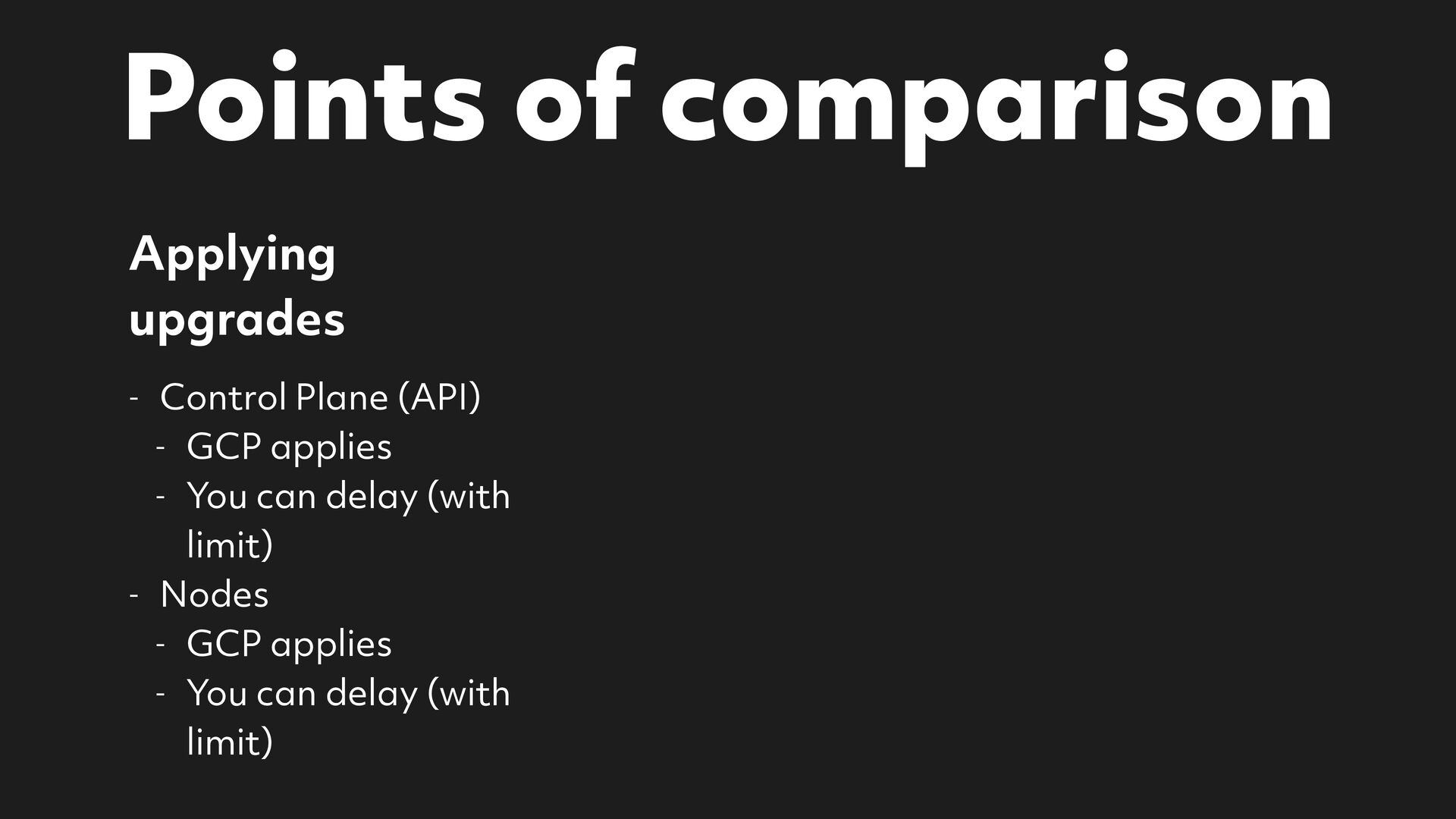

39. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - GCP applies - You can delay (with limit) - Nodes - GCP applies - You can delay (with limit) More set up out of the box Ubuntu or ContainerOptimized OS But less exible on con guration No endorsed path to your own images - fl fi -
40. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - GCP applies - You can delay (with limit) - Nodes - GCP applies - You can delay (with limit) More set up out of the box Ubuntu or ContainerOptimized OS But less exible on con guration No endorsed path to your own images - fl fi -
41. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - GCP applies - You can delay (with limit) - Nodes - GCP applies - You can delay (with limit) More set up out of the box Ubuntu or ContainerOptimized OS But less exible on con guration No endorsed path to your own images - fl fi -
42. Why choose this platform? - You want a mostly vanilla Kubernetes - You want someone else to maintain it ce some exibility fl fi - You're willing to sacri
43. Case 3 AWS Fargate for EKS

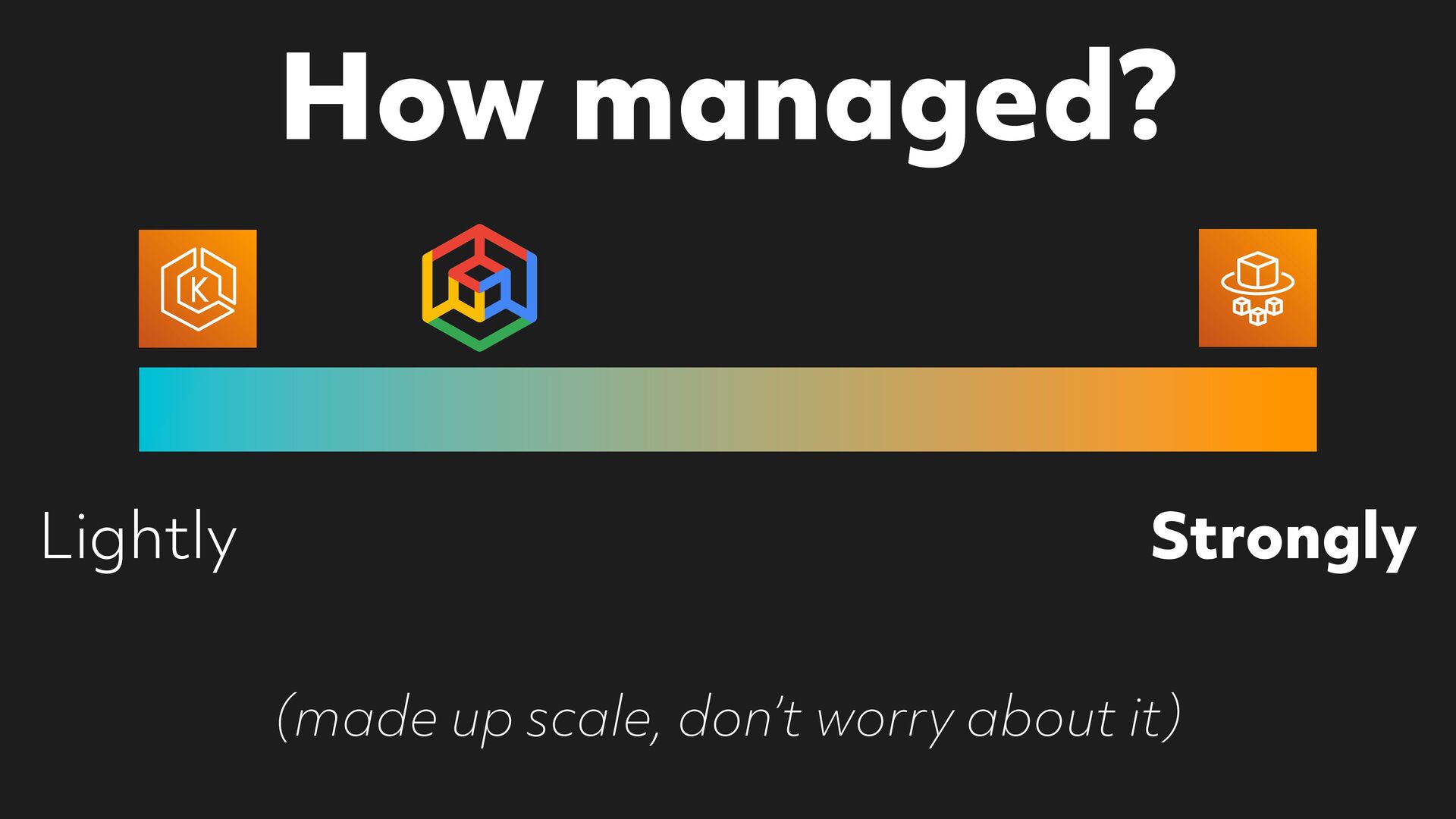

44. How managed? Lightly Strongly (made up scale, don’t worry about it)

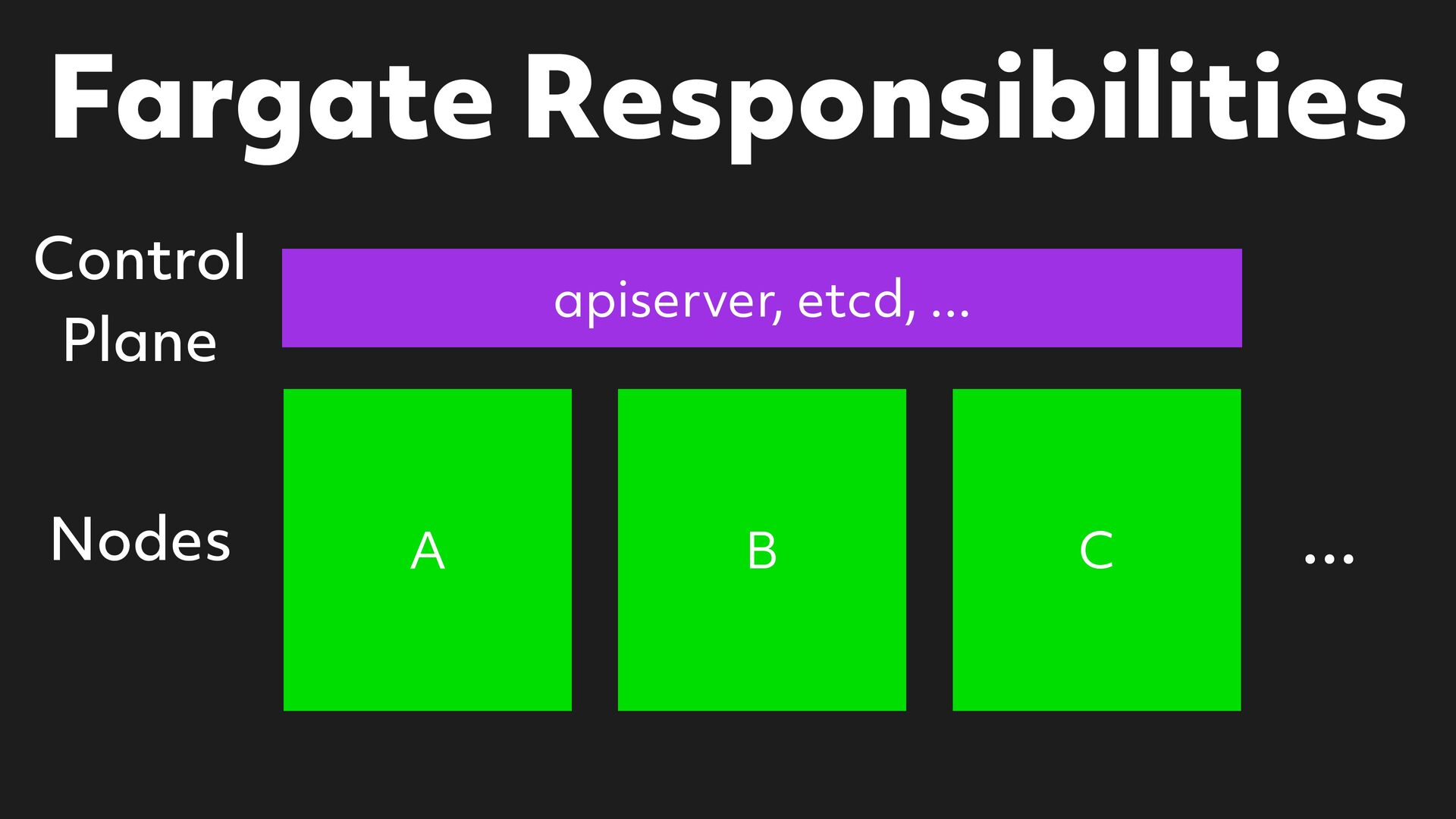

45. Fargate Responsibilities Control Plane Nodes apiserver, etcd, ... A B C ...

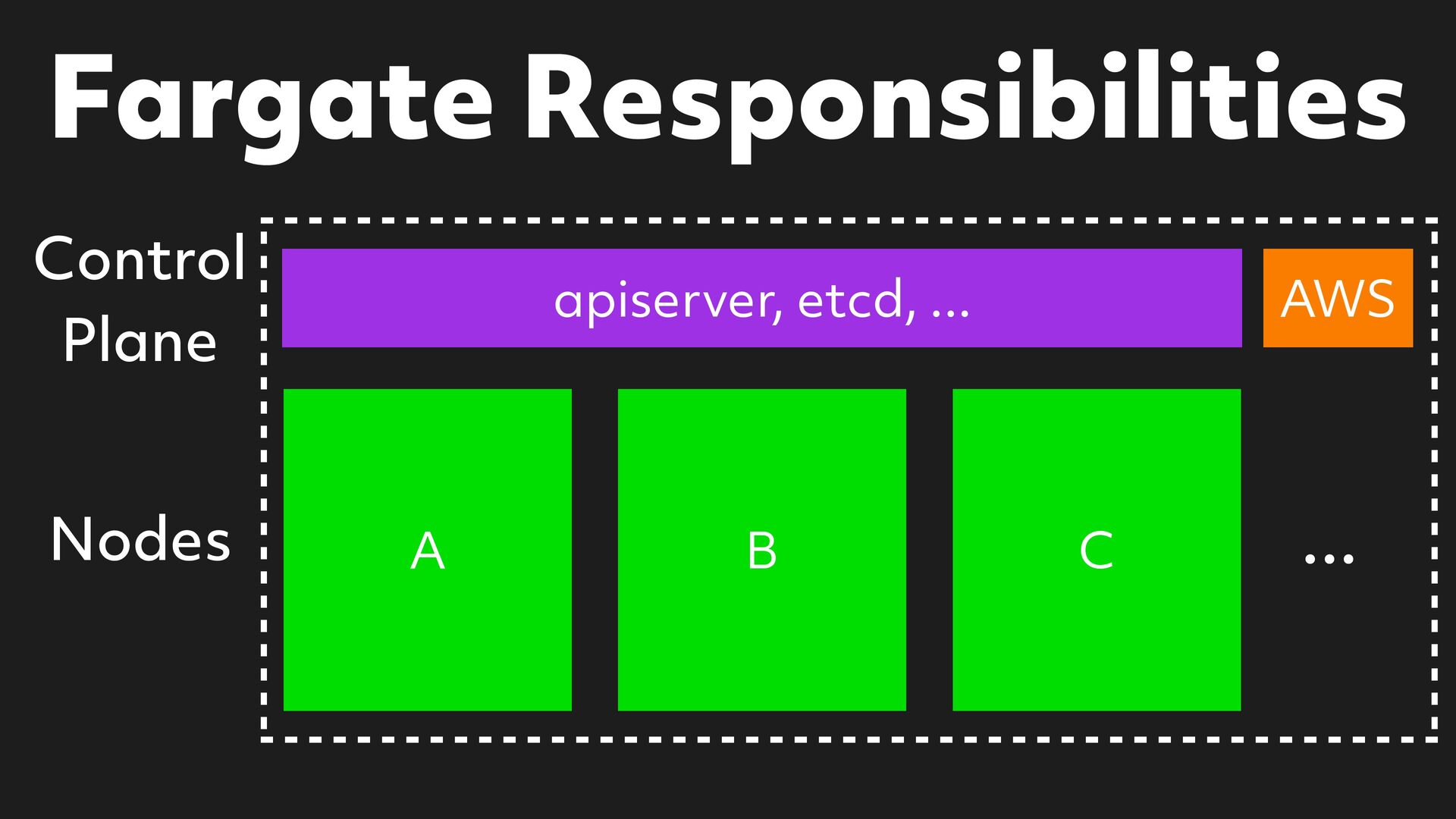

46. Fargate Responsibilities Control Plane Nodes apiserver, etcd, ... A B AWS C ...

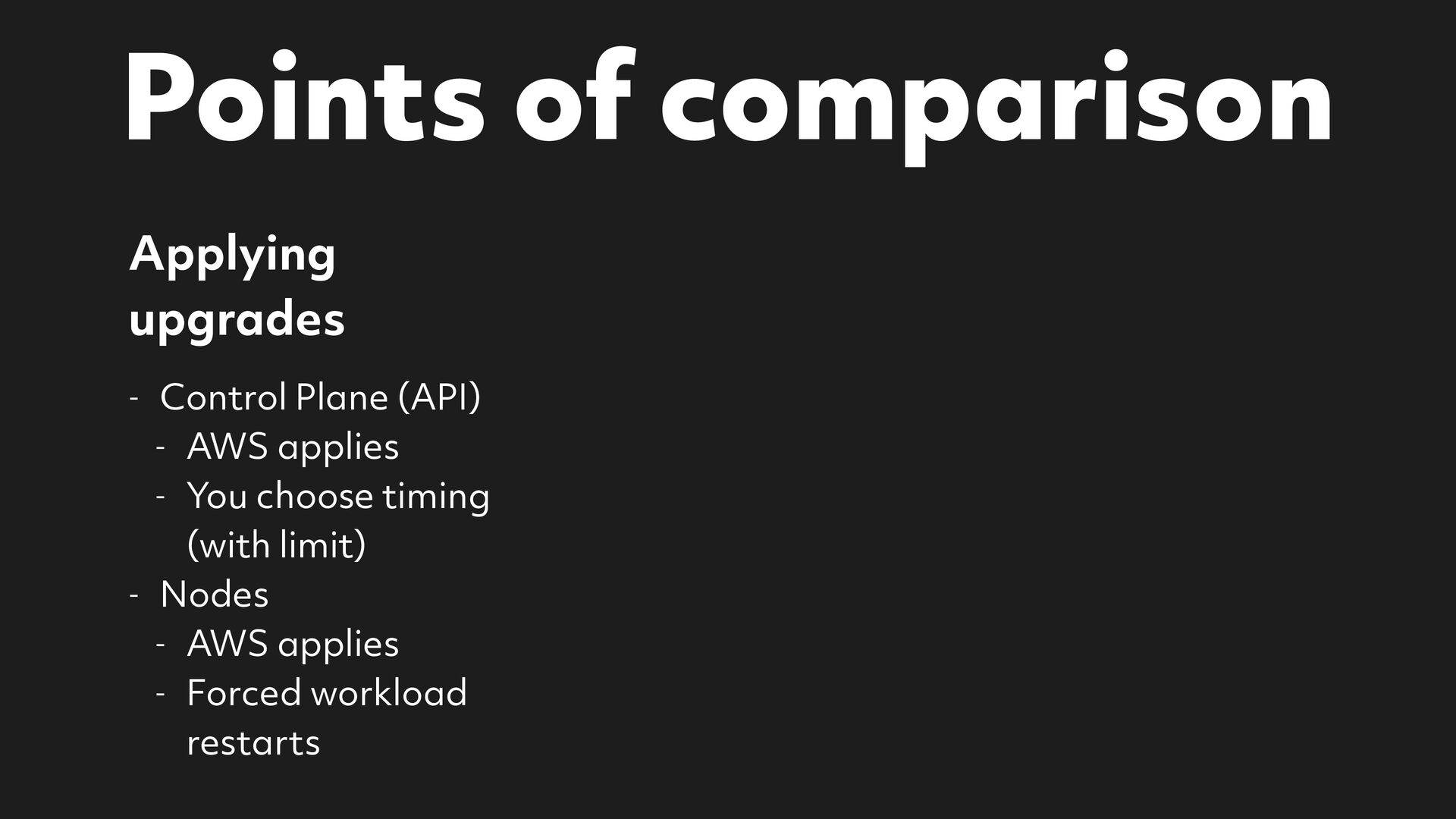

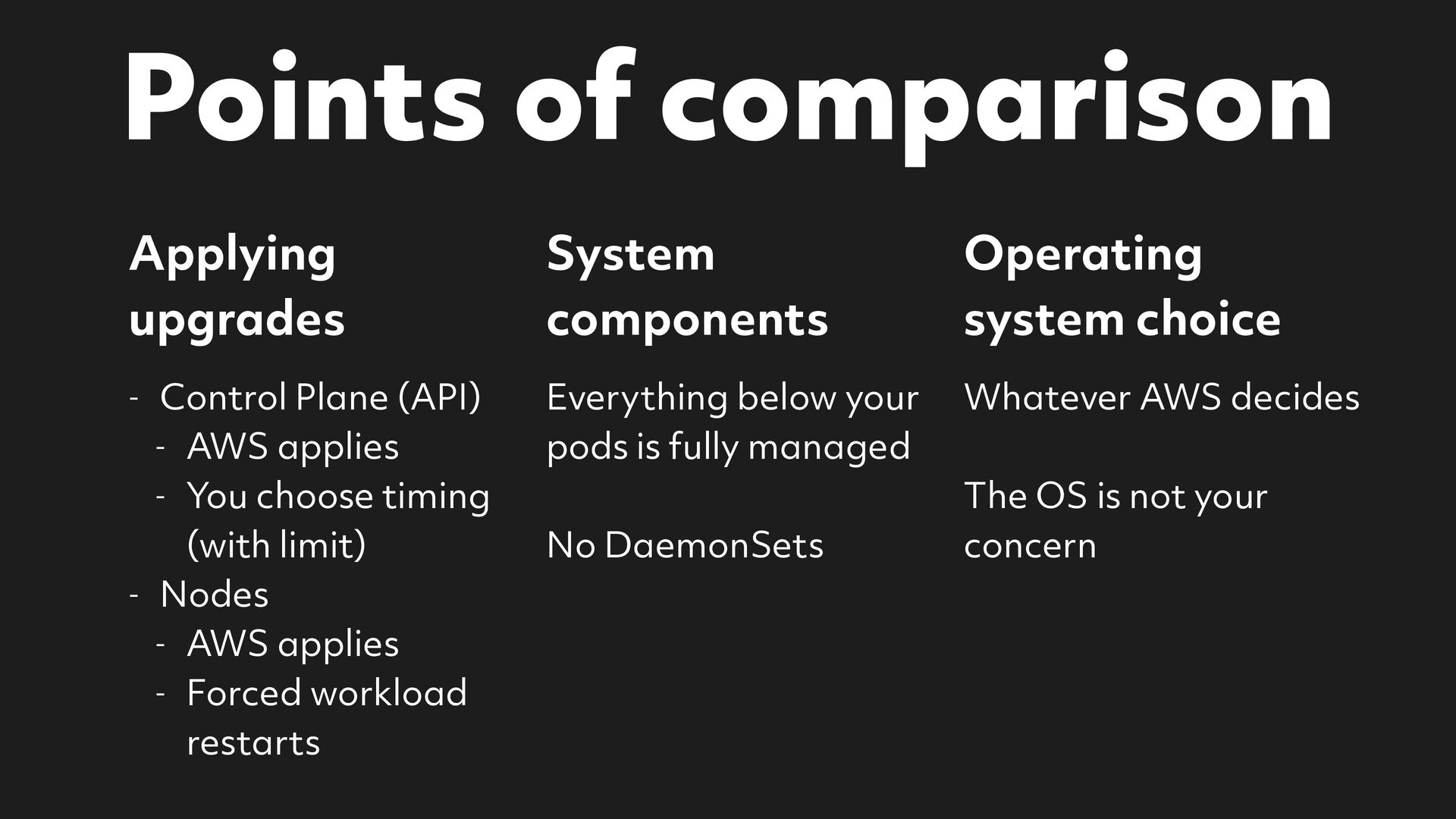

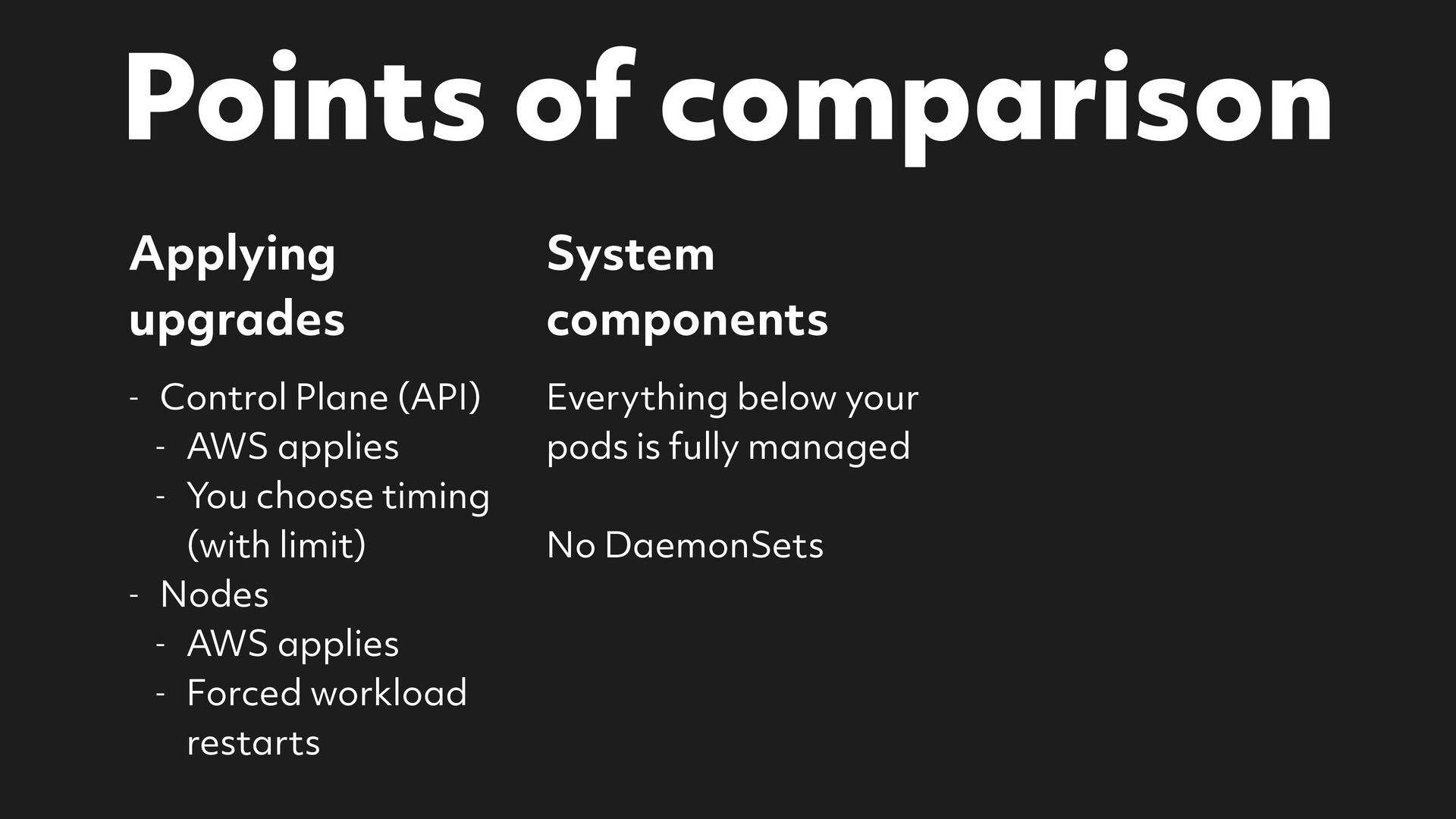

47. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - AWS applies - Forced workload restarts Everything below your pods is fully managed Whatever AWS decides - No DaemonSets The OS is not your concern
48. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - AWS applies - Forced workload restarts Everything below your pods is fully managed Whatever AWS decides - No DaemonSets The OS is not your concern
49. Points of comparison Applying upgrades System components Operating system choice Control Plane (API) - AWS applies - You choose timing (with limit) - Nodes - AWS applies - Forced workload restarts Everything below your pods is fully managed Whatever AWS decides - No DaemonSets The OS is not your concern

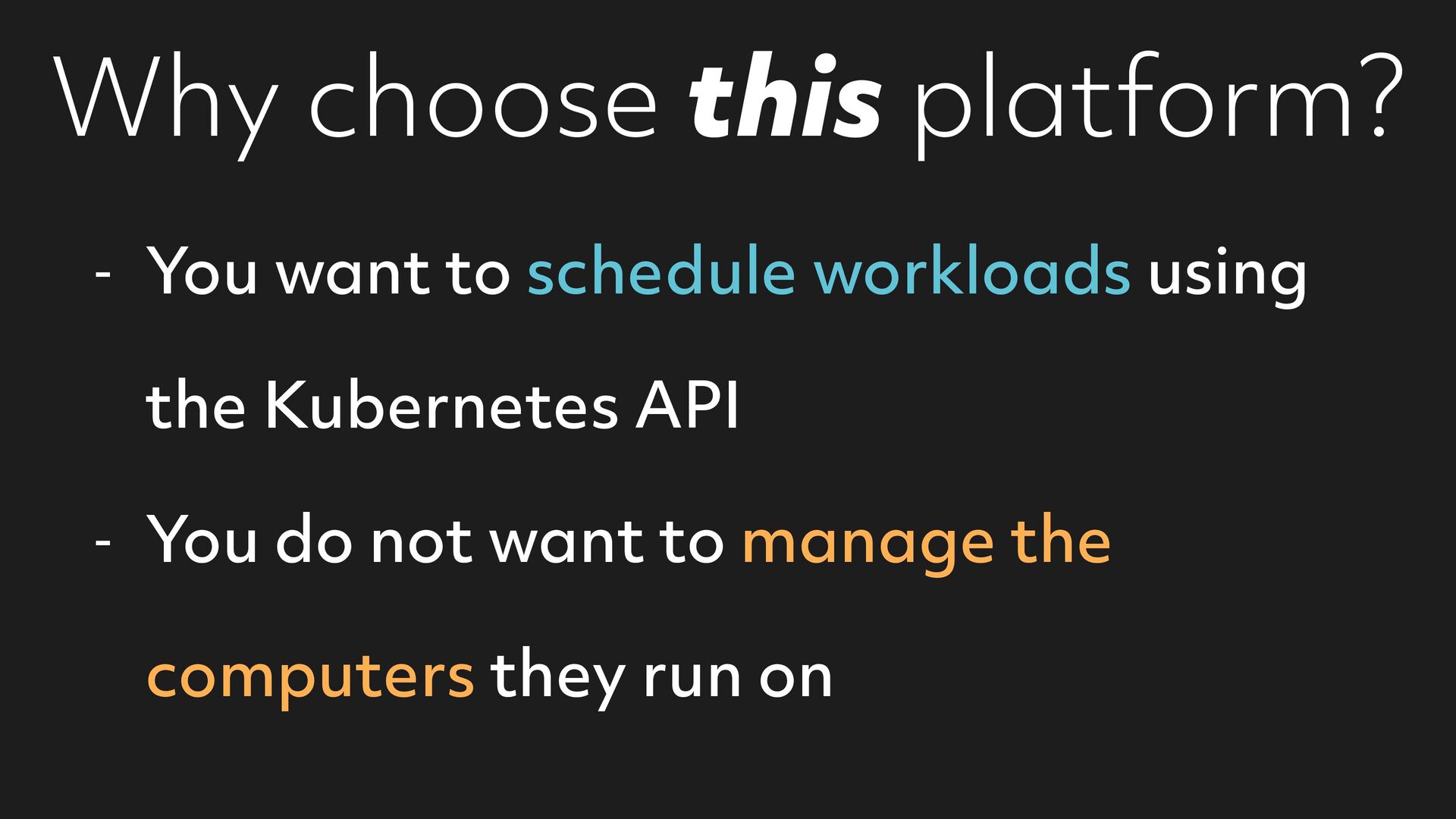

50. Why choose this platform? - You want to schedule workloads using the Kubernetes API - You do not want to manage the computers they run on
51. Before we wrap up What drives ff the trade-o ?
53. “We’re going to build an internal Heroku-like platform”

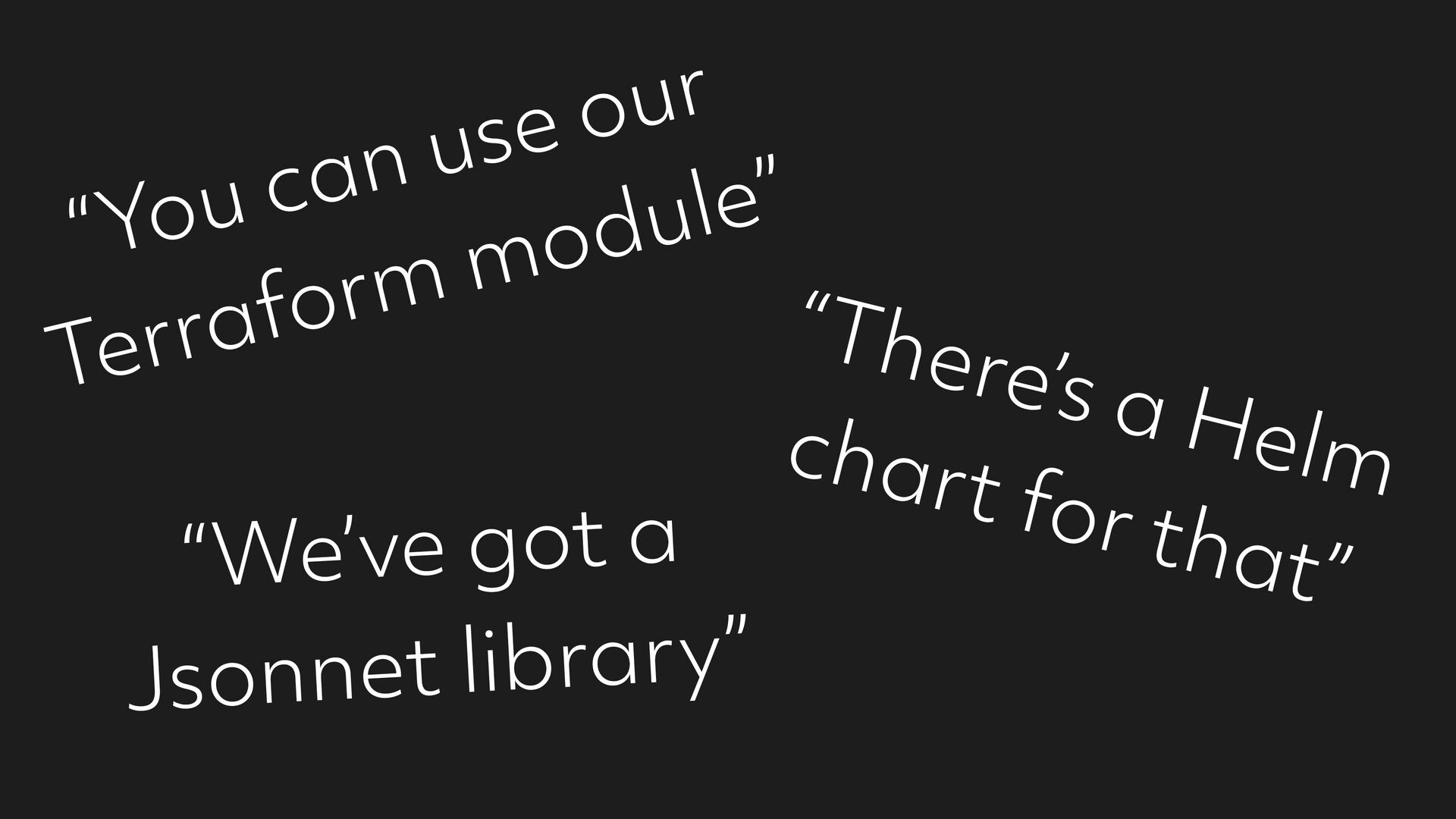

55. r u o e s u n a c ” e u l o u Y d “ o m m r o f “ a T r r h ere’s Te a He char l m t for t a t h o g e v ’ at” “We ” y r a r b i l t e n Json
56. “We’re going to build an internal Heroku-like platform”
57. “We’re going to build an internal Heroku-like platform”
58. It’s hard to be all things to all people
59. fl Paved paths vs maximum exibility

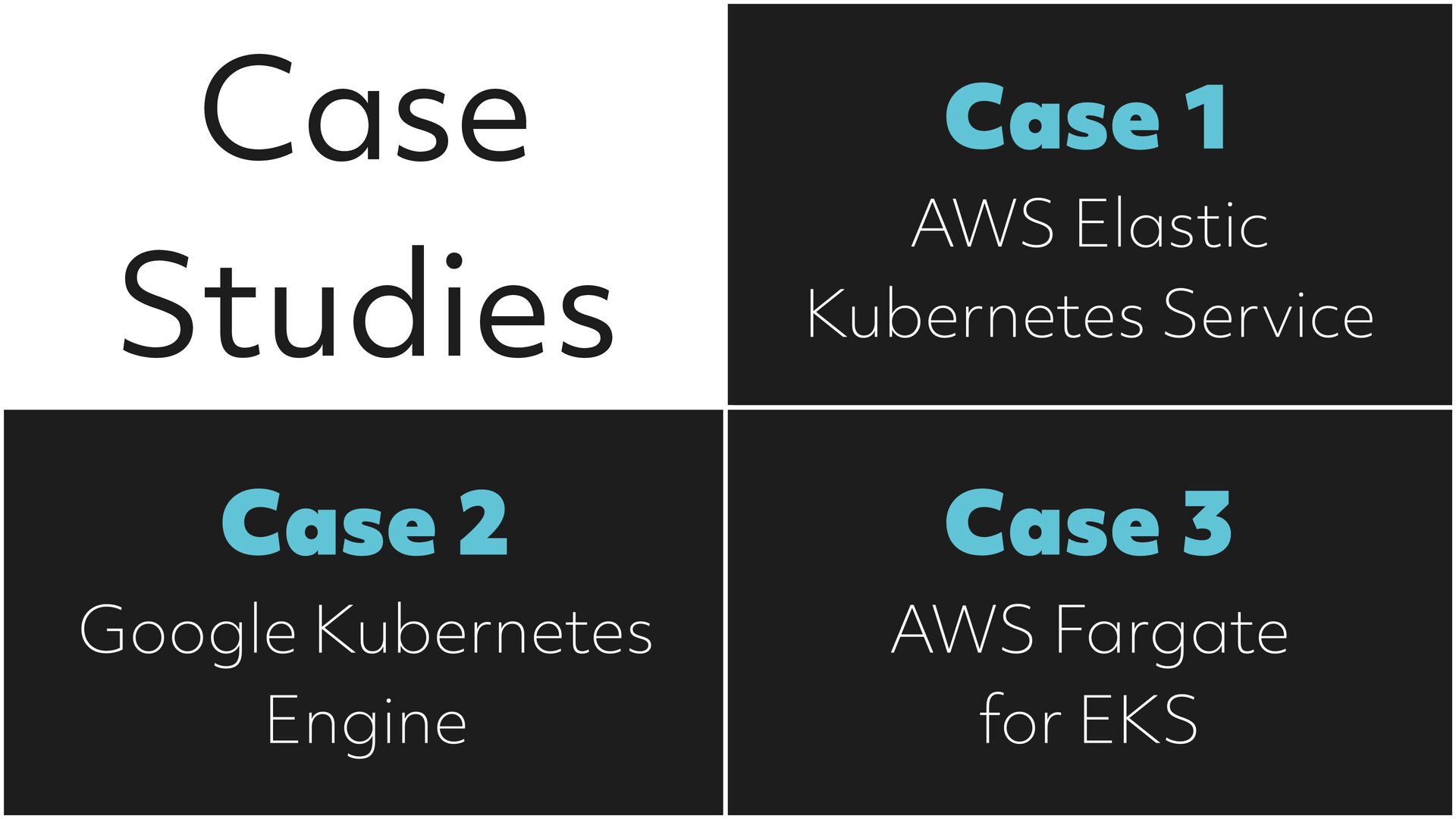

60. Case Studies

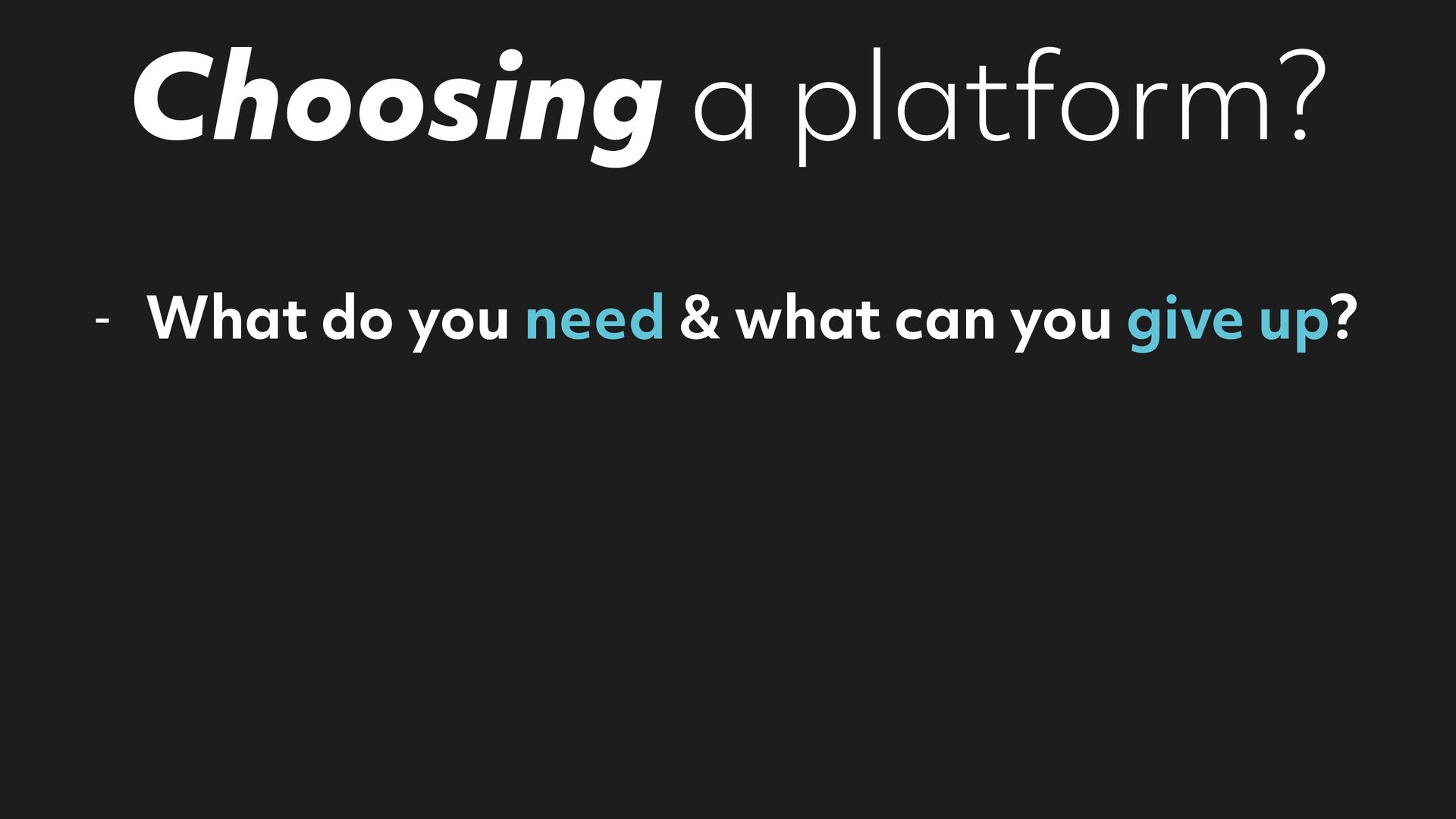

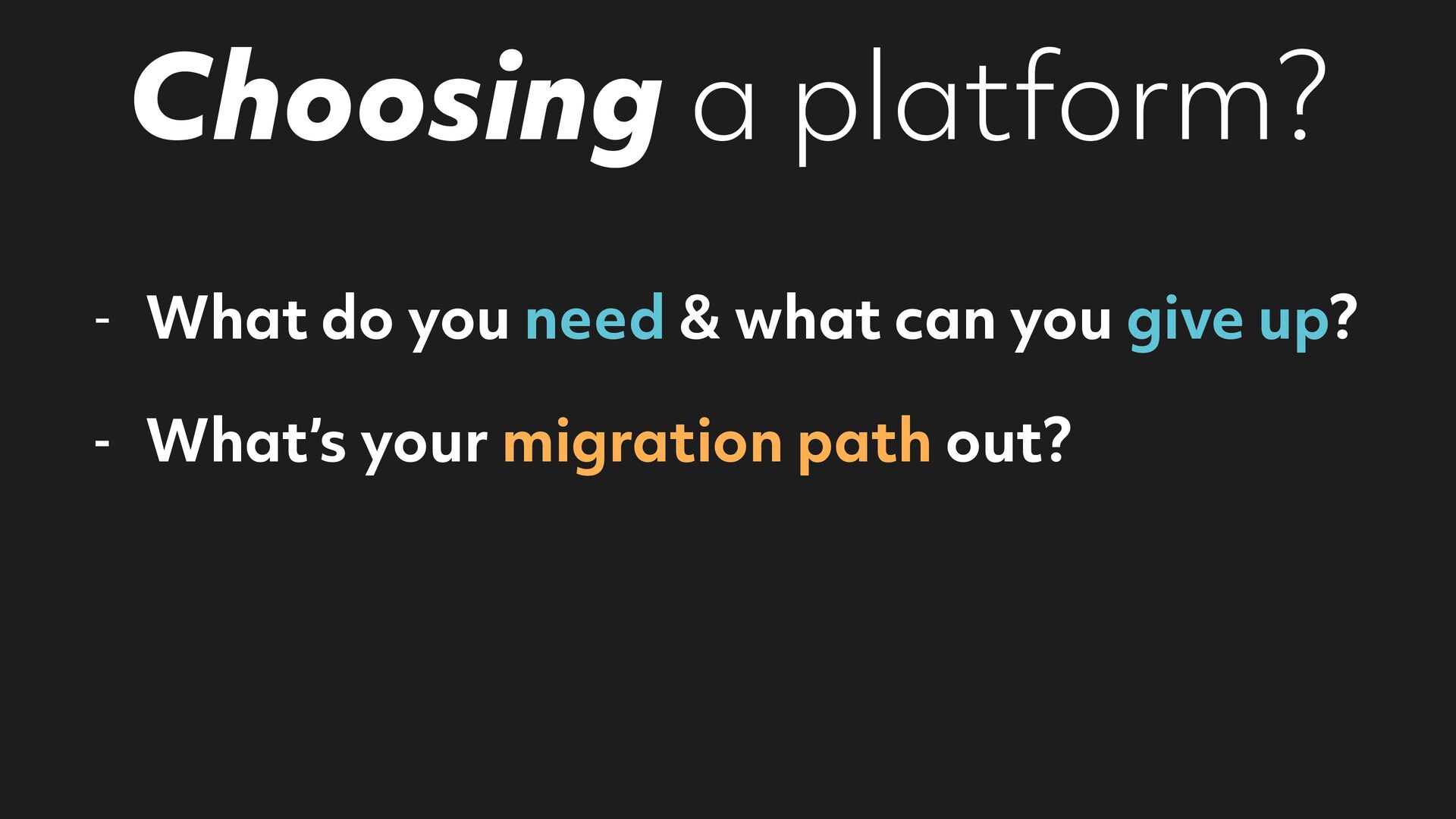

62. Choosing a platform? - What do you need & what can you give up? - What’s your migration path out? - Can you match the vendor experience?
63. Choosing a platform? - What do you need & what can you give up? - What’s your migration path out? - Can you match the vendor experience?
64. Choosing a platform? - What do you need & what can you give up? - What’s your migration path out? - Can you match the vendor experience?
65. Choosing a platform? - What do you need & what can you give up? - What’s your migration path out? - Can you match the vendor experience?
66. fl More exibility means more responsibility
67. Building a platform?
68. Know who you're building for... ...and build for them unapologetically
69. Know who you're building for... ...and build for them unapologetically
70. Thank you ✌❤ sinjo.dev @PlanetScale

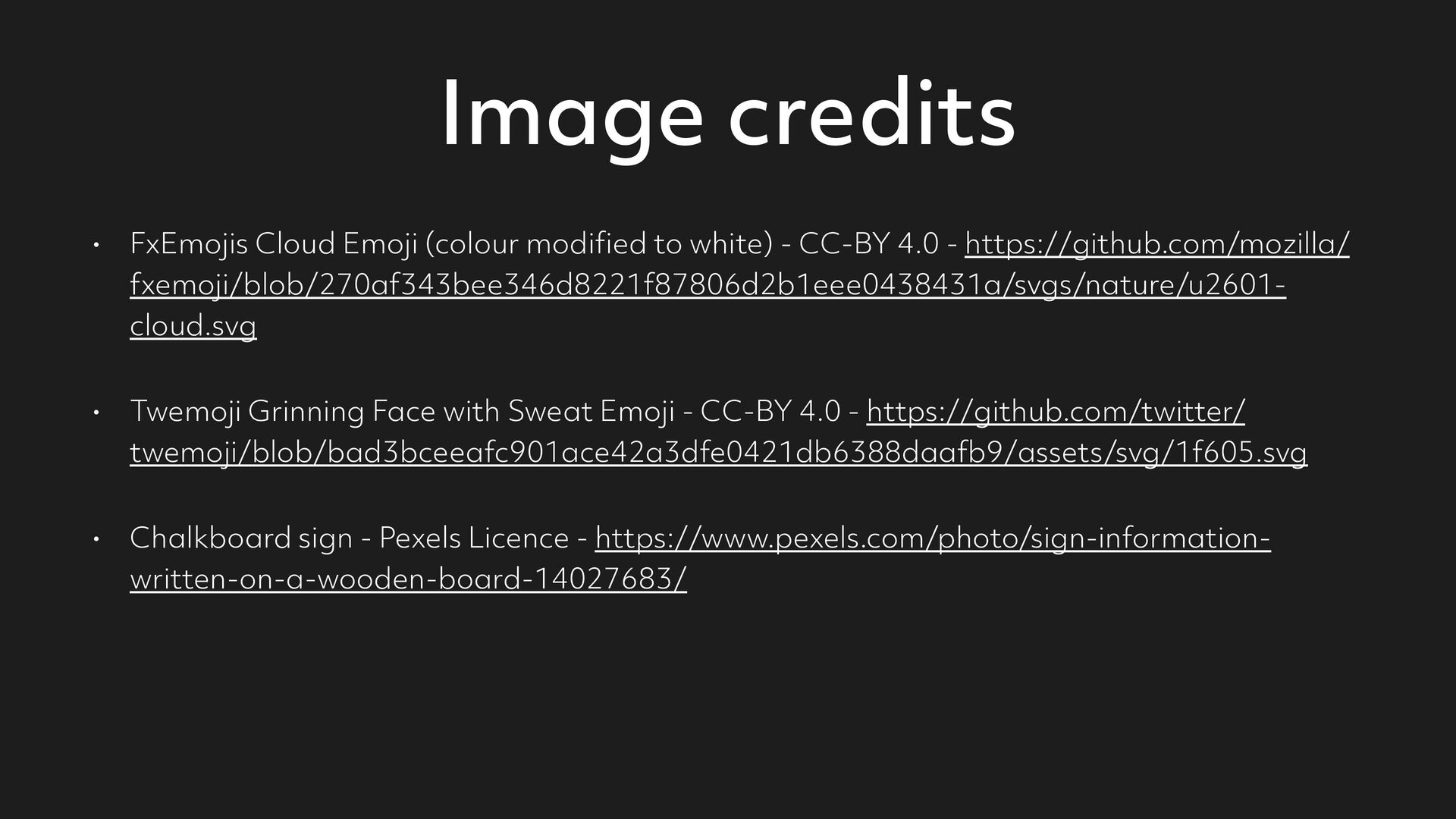

71. Image credits FxEmojis Cloud Emoji (colour modi ed to white) - CC-BY 4.0 - https://github.com/mozilla/ fxemoji/blob/270af343bee346d8221f87806d2b1eee0438431a/svgs/nature/u2601cloud.svg • Twemoji Grinning Face with Sweat Emoji - CC-BY 4.0 - https://github.com/twitter/ twemoji/blob/bad3bceeafc901ace42a3dfe0421db6388daafb9/assets/svg/1f605.svg • Chalkboard sign - Pexels Licence - https://www.pexels.com/photo/sign-informationwritten-on-a-wooden-board-14027683/ fi •
72. Questions? ✌❤ sinjo.dev @PlanetScale
