Color Vision and Eye movement

E96e5a67f45b1d18dbdcfd9eb62f87fb?s=47 sms1371
December 19, 2012

Color Vision and Eye movement



December 19, 2012


  1. None
  2. Lectured by Dr Sadatinejad, Seyyed Mohsen,student of Medicine from Iran,Kashan

  3. Blind spot Although the cone pigments have maximum efficiency closer

    to violet, green, and yellow wavelengths, they are referred to as blue, green, and red pigments, respectively
  4. Short-wave pigment Middle-wave pigment Long-wave pigment

  5. A single photon of light can activate a rod, whereas

    several hundred photons are required to activate a cone. Types of photopigments: Blue,Green,Red(Yellow) photopigmment
  6. Additive color mixing Subtractive color mixing

  7. None
  8. Primetric field

  9. Ganglion cells Type 1: respond to a broad band of

    wavelengths. In other words, they receive input from all three types of cones, and they signal not specific color but general brightness. Type 2: code specific colors. Type 3: opponent color cells
  10. Type 3: opponent color cells excitatory input from one type

    of cone receptor and an inhibitory input from another
  11. ganglion cells → lateral geniculate nucleus → Neural pathways to

    V1: red–green pathway (signals of L- and M-cone responses) blue–yellow pathway (signals of S-cone and the sum of L- and M-cone responses) luminance pathway (signals of sum of L- and M-cone responses) → blobs , deep portion of layer 4C of V1 → V8 → sensation of color
  12. Color Blinding (Daltonism)

  13. None
  14. No Red No Green No Blue

  15. Trichromats Dichromats : 3 types : •Protanopia •Deuteranopia •Tritanopia. The

    prefixes "prot-," "deuter-," and "trit-" refer to defects of the red, green, and blue cone systems Monochromats
  16. • Red-Green Color Blindness • Blue Weakness

  17. None
  18. Eye Special Movement

  19. None

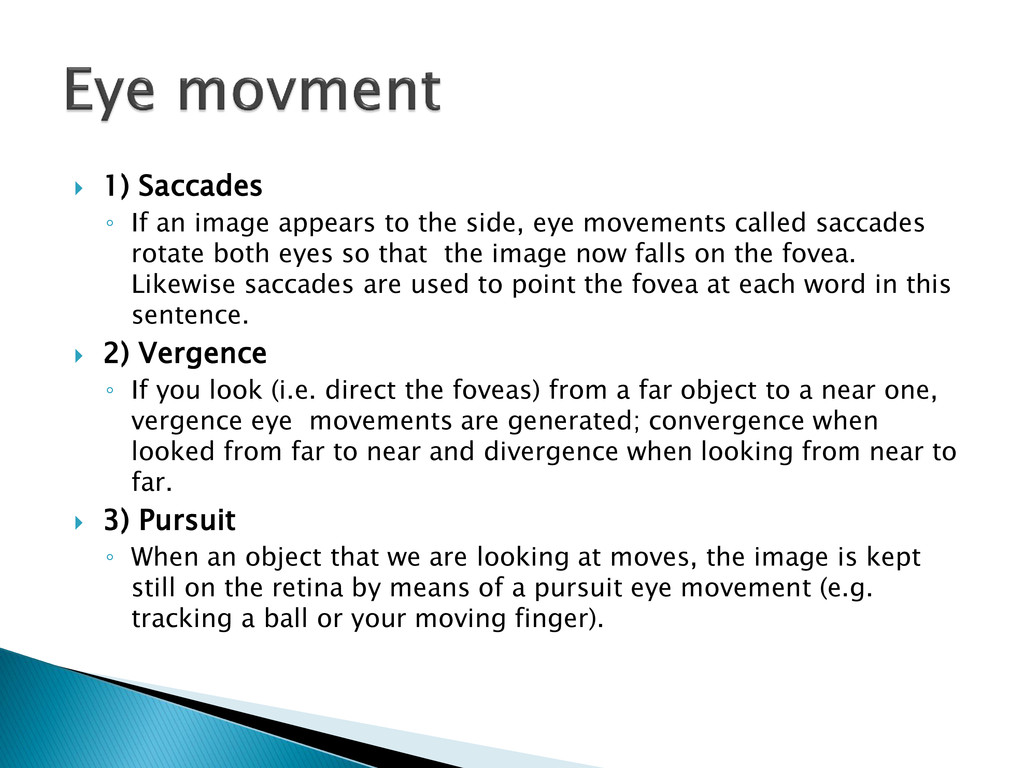

  20.  1) Saccades ◦ If an image appears to the

    side, eye movements called saccades rotate both eyes so that the image now falls on the fovea. Likewise saccades are used to point the fovea at each word in this sentence.  2) Vergence ◦ If you look (i.e. direct the foveas) from a far object to a near one, vergence eye movements are generated; convergence when looked from far to near and divergence when looking from near to far.  3) Pursuit ◦ When an object that we are looking at moves, the image is kept still on the retina by means of a pursuit eye movement (e.g. tracking a ball or your moving finger).

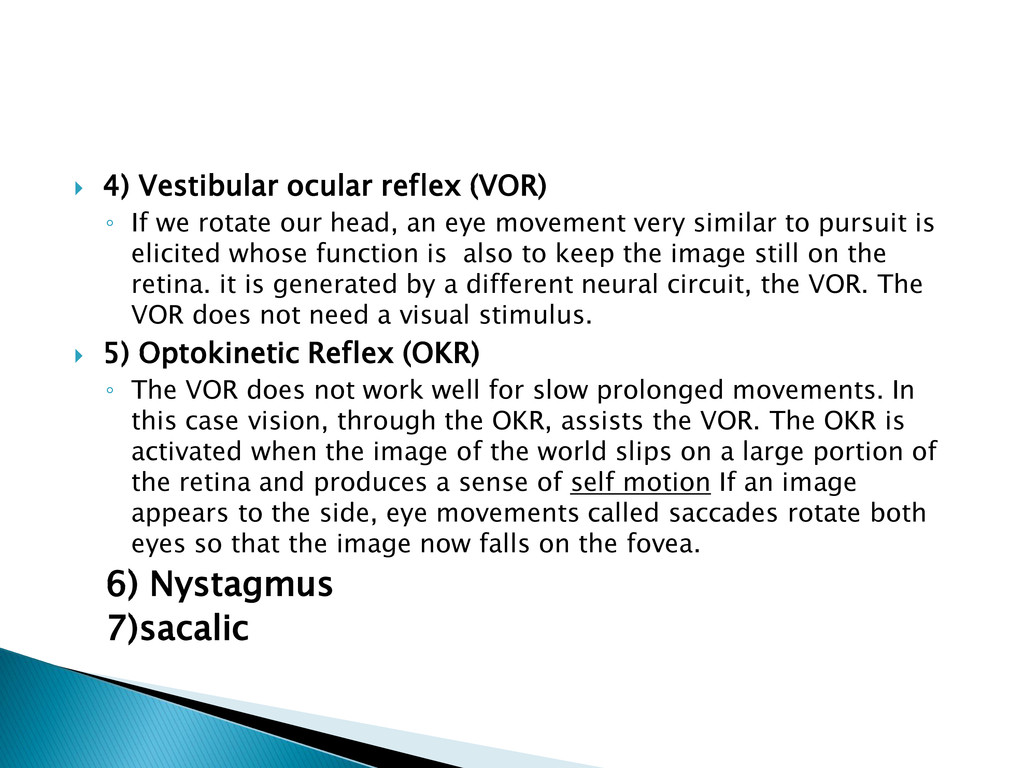

  21.  4) Vestibular ocular reflex (VOR) ◦ If we rotate

    our head, an eye movement very similar to pursuit is elicited whose function is also to keep the image still on the retina. it is generated by a different neural circuit, the VOR. The VOR does not need a visual stimulus.  5) Optokinetic Reflex (OKR) ◦ The VOR does not work well for slow prolonged movements. In this case vision, through the OKR, assists the VOR. The OKR is activated when the image of the world slips on a large portion of the retina and produces a sense of self motion If an image appears to the side, eye movements called saccades rotate both eyes so that the image now falls on the fovea. 6) Nystagmus 7)sacalic
  22. None
  23. None
