How to Play LLDB in iOS runtime?

How to Play LLDB in iOS runtime?

Sting Su

May 28, 2019
Tweet

Other Decks in Programming

Transcript

  1. How to play with LLDB in iOS runtime? @stinge

  2. • slide url
 https://ppt.cc/fhdtqx • QR Code

  3. Background stinge • Mercari iOS Engineer • twitter: @StingeSu •

    hobby: traveling & cooking
  4. Outline • Why LLDB(Low Level Debugger)? • How LLDB works?

    • LLDB OSS • Custom LLDB command
  5. Why LLDB? • high-performance debugger • Clang expression parser &

    LLVM disassembler • Default debugger in Xcode • Run Swift REPL & python supported • Save your time
  6. Clang v.s GCC(GNU Compiler Collection) Clang • Apple official compiler

    • Frontend for LLVM • High performance • BSD license • …… GCC • Linux based • Support more languages • GPL license

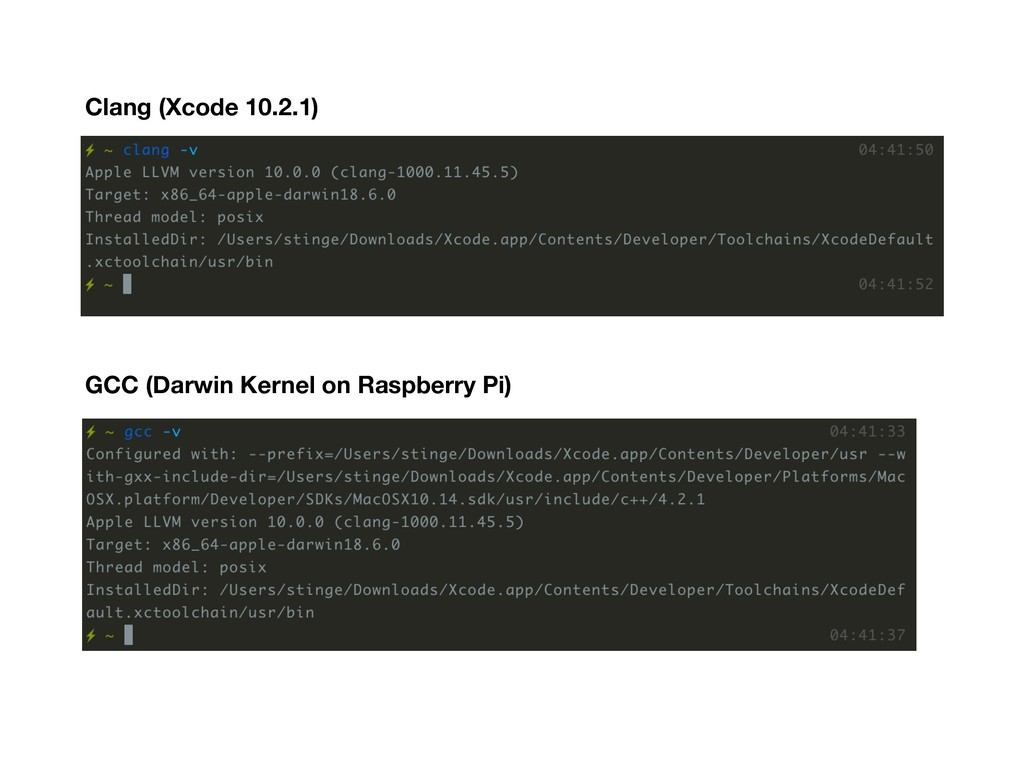

  7. Clang (Xcode 10.2.1) GCC (Darwin Kernel on Raspberry Pi)

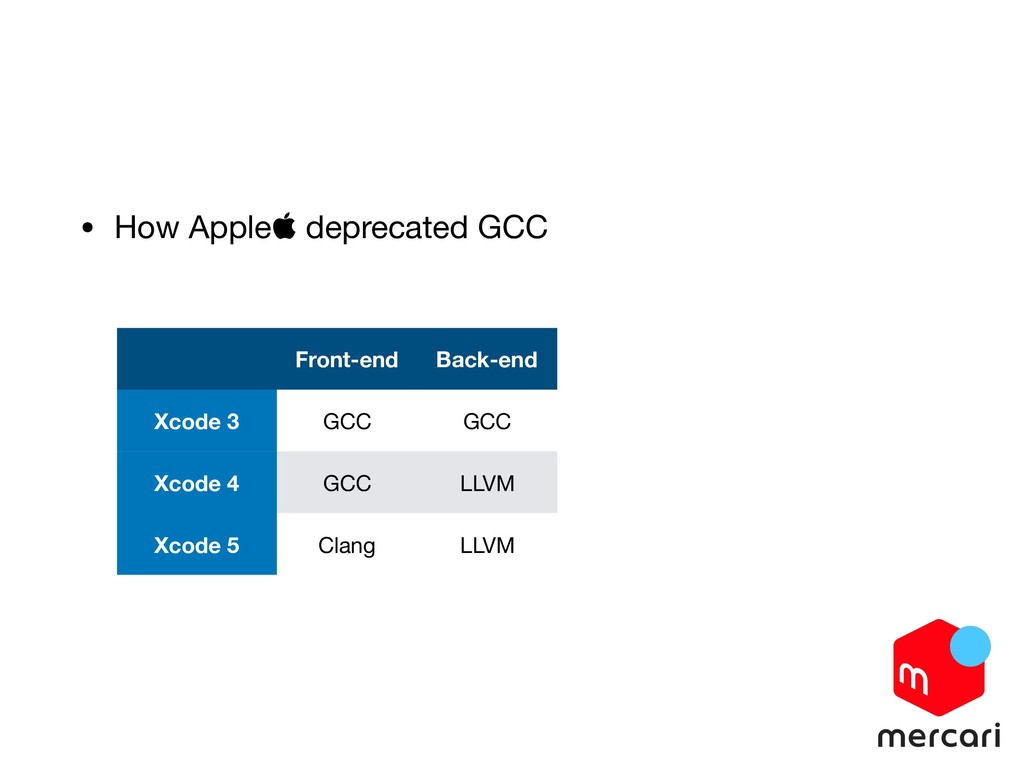

  8. • How Apple deprecated GCC Front-end Back-end Xcode 3 GCC

    GCC Xcode 4 GCC LLVM Xcode 5 Clang LLVM
  9. • gcc hello.c

  10. Is it good for iOS?

  11. Is it good for iOS? NO 

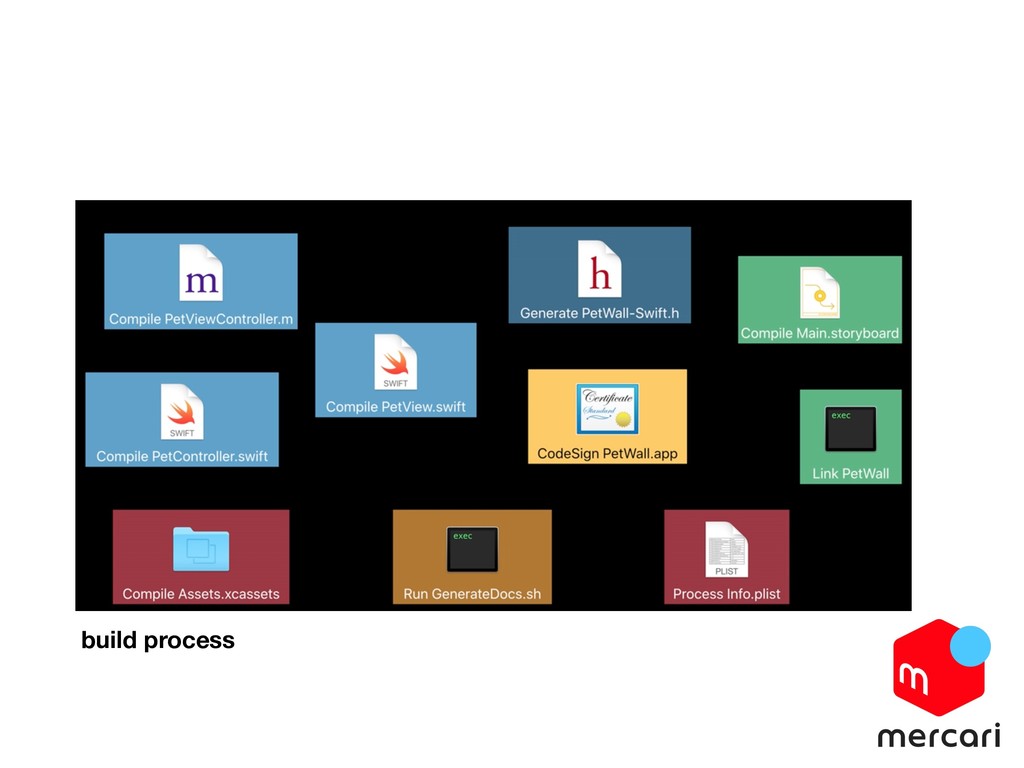

  12. build process

  13. Clang-Swift • The compiler process of swift cmd+B

  14. Clang-Swift • The compiler process of swift Clang AST Reference

    https://ppt.cc/fnA4Qx
  15. Clang-Swift • The compiler process of swift

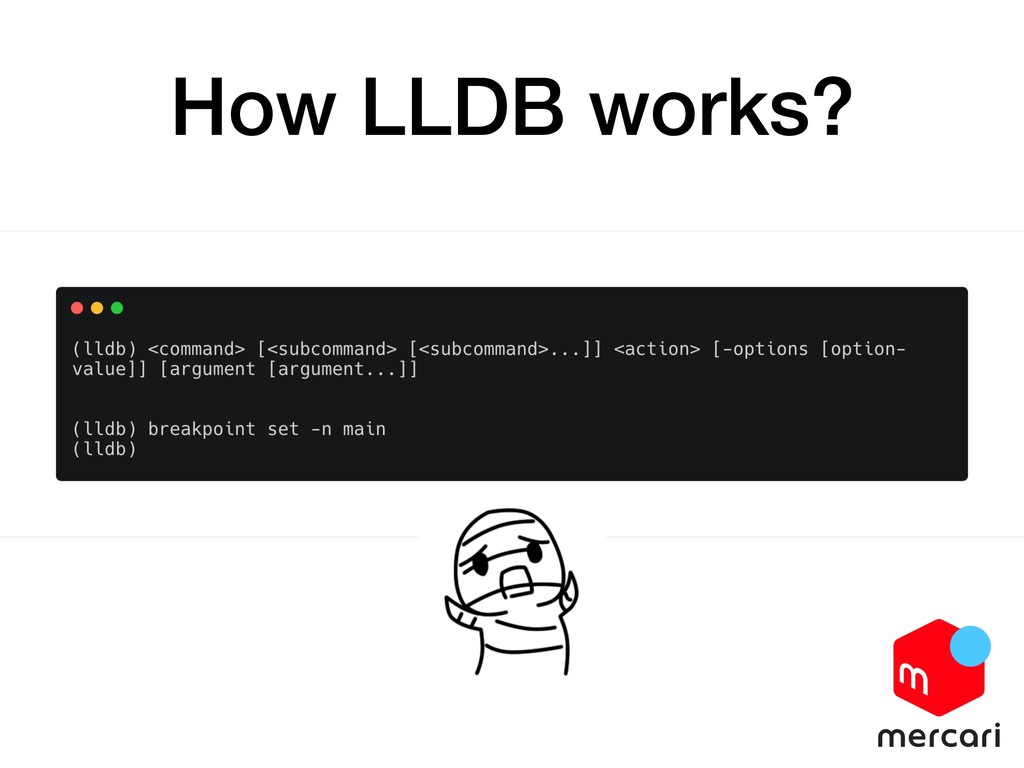

  16. How LLDB works?

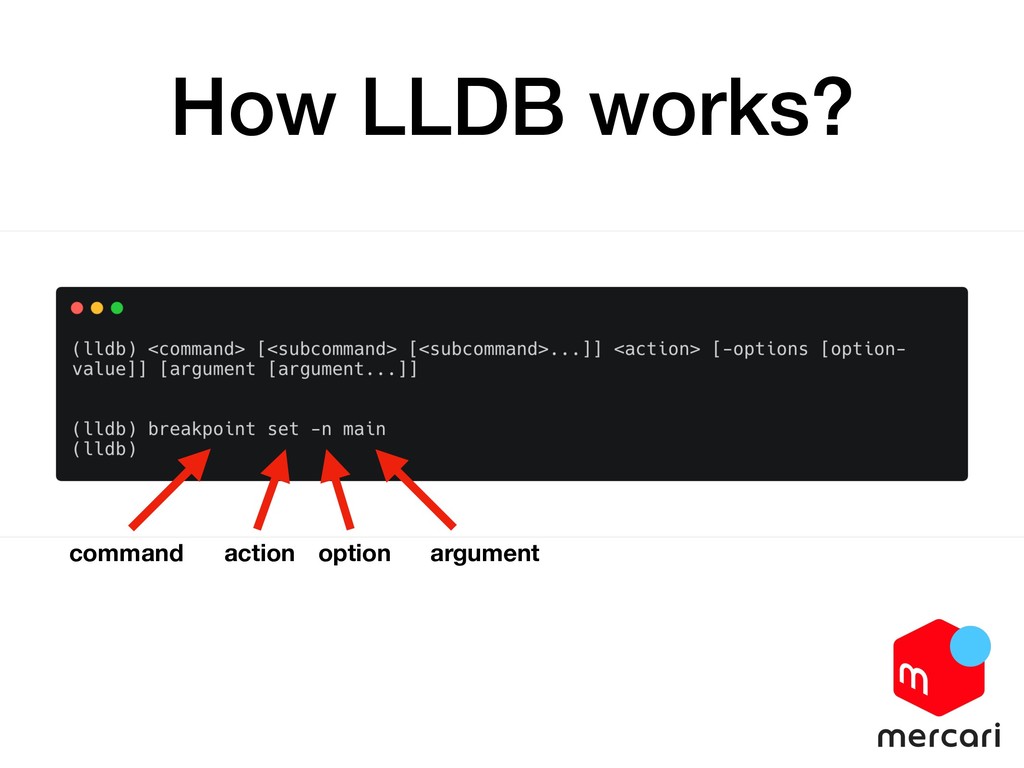

  17. How LLDB works? command action option argument

  18. None

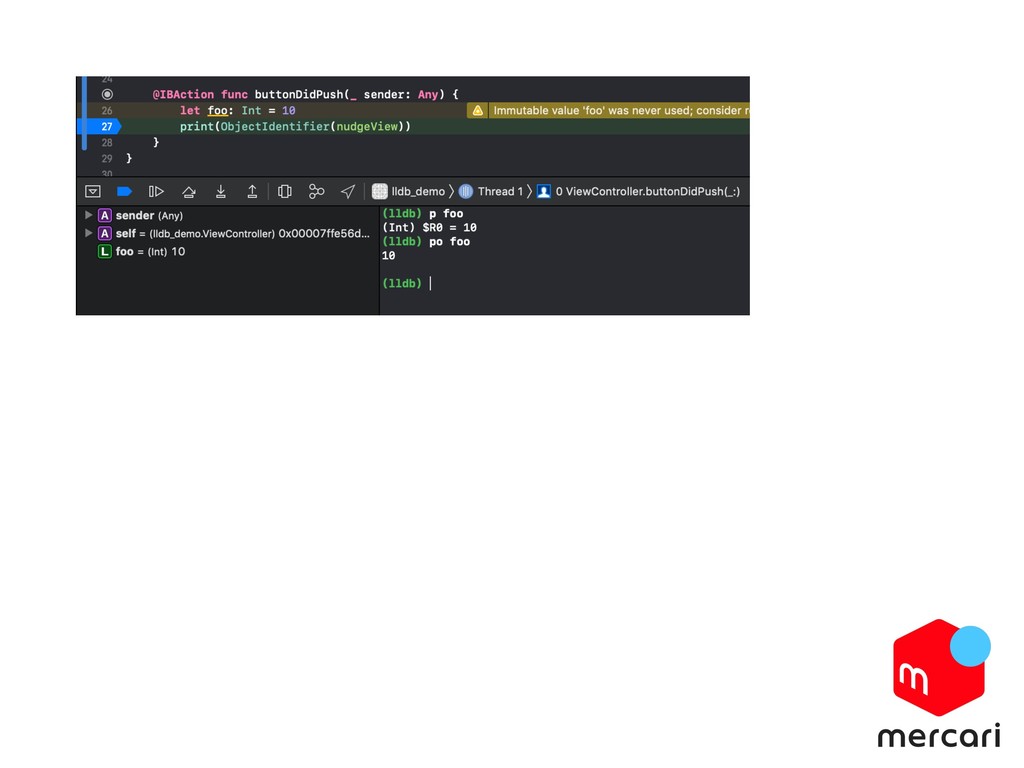

  19. • p(print) → expr -- expr -- foo • po(print

    object) → expr -O -- expr -O -- foo

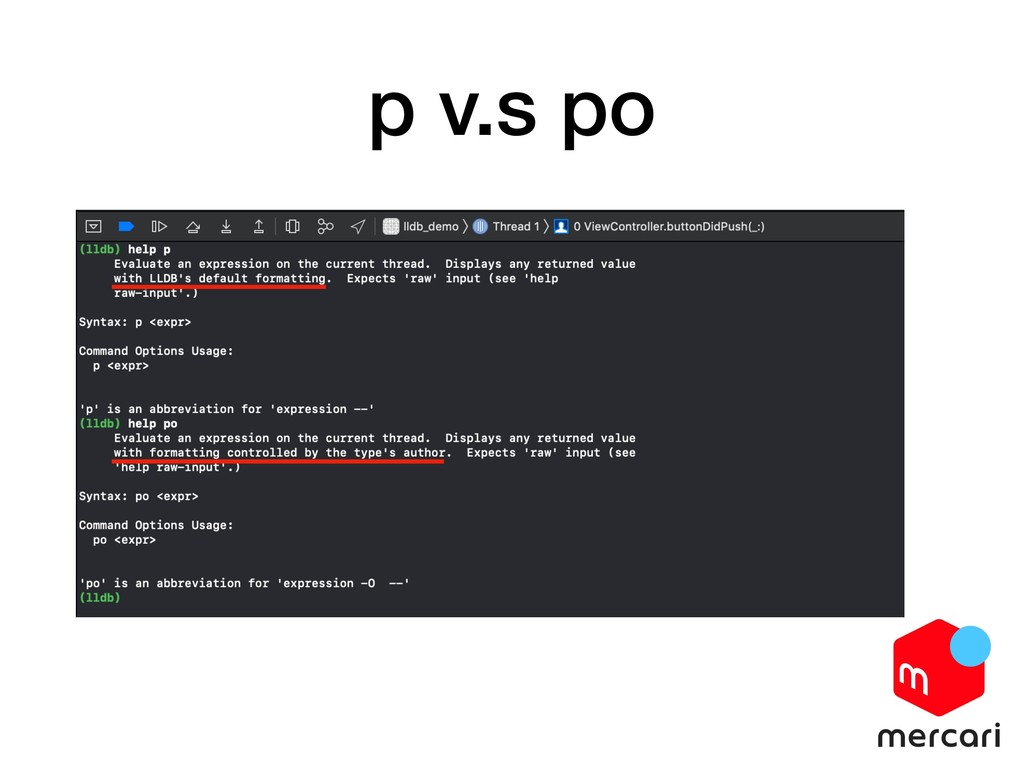

  20. p v.s po

  21. None
  22. • Changes the value of variables • Creates temporary variables

    • Validates the values
  23. • DEMO • Tasks 1. Changes UIButton title into red

    2. Moves UIView up
  24. • Can we use a efficient way to finish these

    commands?
 - YES
  25. LLDB Python API https://lldb.llvm.org/python_reference/index.html

  26. LLDB OSS • Facebook/chisel • DEMO

  27. Customized command • nudge(swift) • DEMO https://gist.github.com/sTinGe/059dc4c15347b7fef4ee537efdcc6e53
