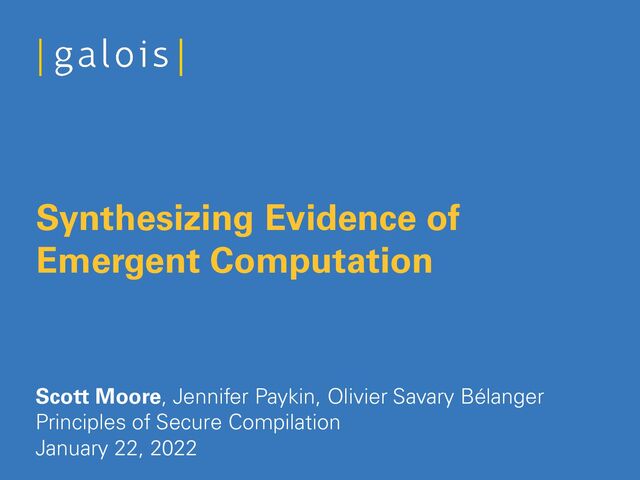

  1. Scott Moore, Jennifer Paykin, Olivier Savary Bélanger Principles of Secure

    Compilation January 22, 2022 Synthesizing Evidence of Emergent Computation
  2. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Studying

    insecure compilation • SEEC is a tool for automatically finding counter-examples to secure compilation • Why build tools to demonstrate insecure compilation? 2 3 As tools to understand system security in general: secure compilation is a framework for formalizing the intended behaviors of any interactive system 1 As tools to help write secure compilers by enabling designers to test before proving 2 As tools to understand existing compilers, which we know to be insecure, but not always how or why
  3. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Exploits

    as insecure compilation • Many exploit authors think
 about hacking as an exercise of
 “programming a weird machine”
 of unintended functionality
 enabled by unexpected inputs • These “weird behaviors” or
 “emergent computations” are
 system behaviors that emerge
 from implementation artifacts,
 design mistakes, or adversarial
 environments. • Understanding the weird behaviors of a system and their characteristics is crucial to understanding its vulnerability. 3 Implementing a virtual machine using out-of-bounds memory operations in bitmap decoding. “A deep dive into an NSO zero- click iMessage exploit: Remote Code Execution,” Ian Beer & Samuel Groß of Google Project Zero. Jennifer Paykin, Eric Mertens, Mark Tullsen, Luke Maurer, Benoît Razet, and Scott Moore, PriSC 2022.
  4. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Insecure

    compilation models emergent computation 4 P P C C High-level model Low-level model - Definition A source component P admits emergent computation if there is a context C from a class of interactions C such that the behavior of C[P] cannot be simulated by P in the high-level model.
  5. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. SEEC

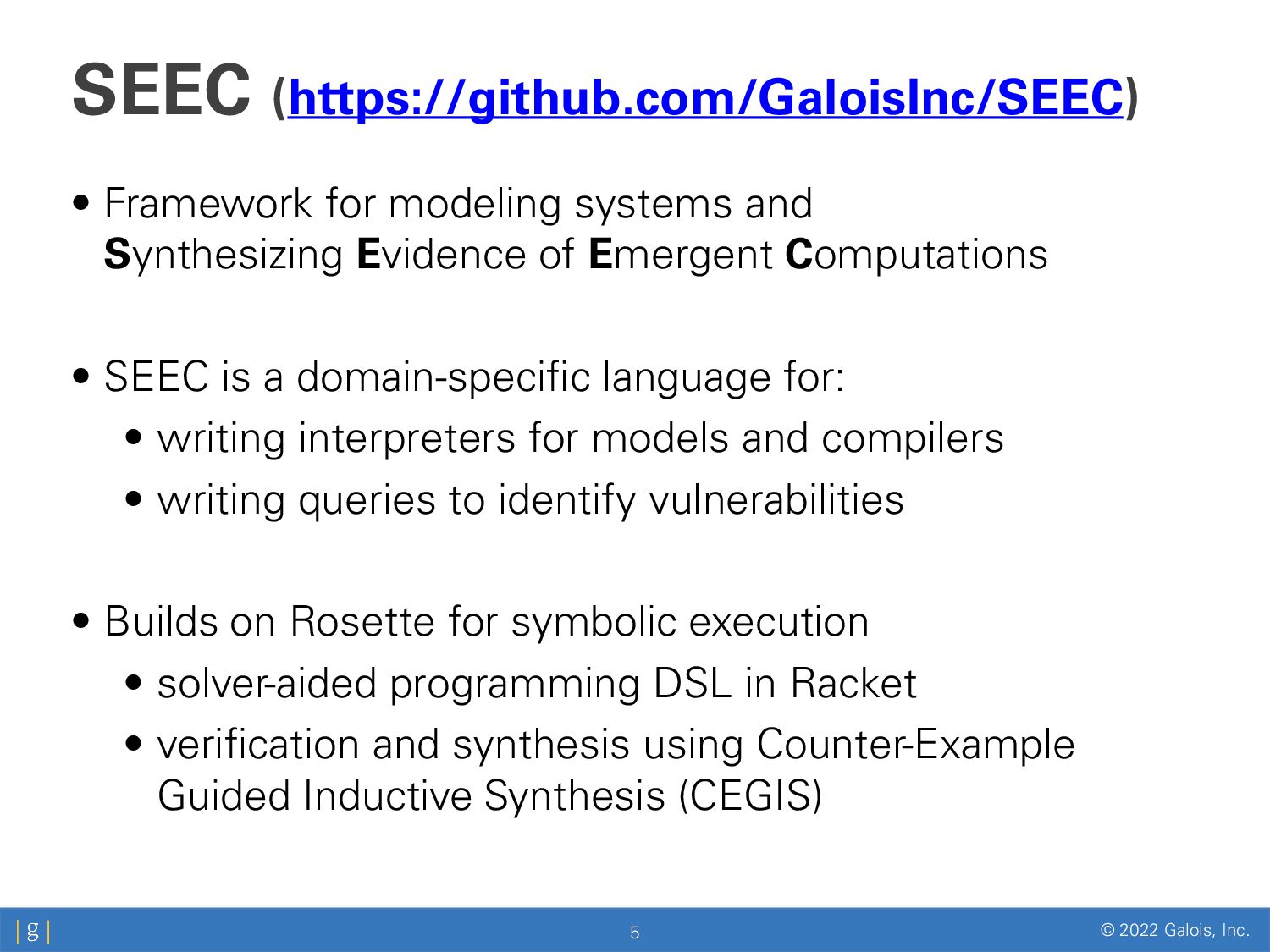

    (https://github.com/GaloisInc/SEEC) • Framework for modeling systems and
 Synthesizing Evidence of Emergent Computations • SEEC is a domain-specific language for: • writing interpreters for models and compilers • writing queries to identify vulnerabilities • Builds on Rosette for symbolic execution • solver-aided programming DSL in Racket • verification and synthesis using Counter-Example Guided Inductive Synthesis (CEGIS) 5
  6. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. SEEC

    Workflow 6 Executable models of
 source and target languages
 and compiler SEEC Evidence of insecure
 compilation query DSL Counter-examples Revised compiler, implementation,
 or specification Bounded validation
 of secure compilation
  7. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Levels

    of evidence Higher levels of evidence intuitively represent “more dangerous” kinds of compiler insecurity because they give more flexibility to the adversary 7 3 A program and context that implement a specific emergent behavior (e.g., boolean AND, OR, etc.) 1 A program and a context that have changed behavior under compilation 4 A program and collection of contexts that implement a set of emergent behaviors that can be composed in sequence (e.g., NAND = NOT ∘ AND) 2 A program and a context that demonstrate emergent computation (any behavior not present at the source level)
  8. Running example: Set API

  9. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Modeling

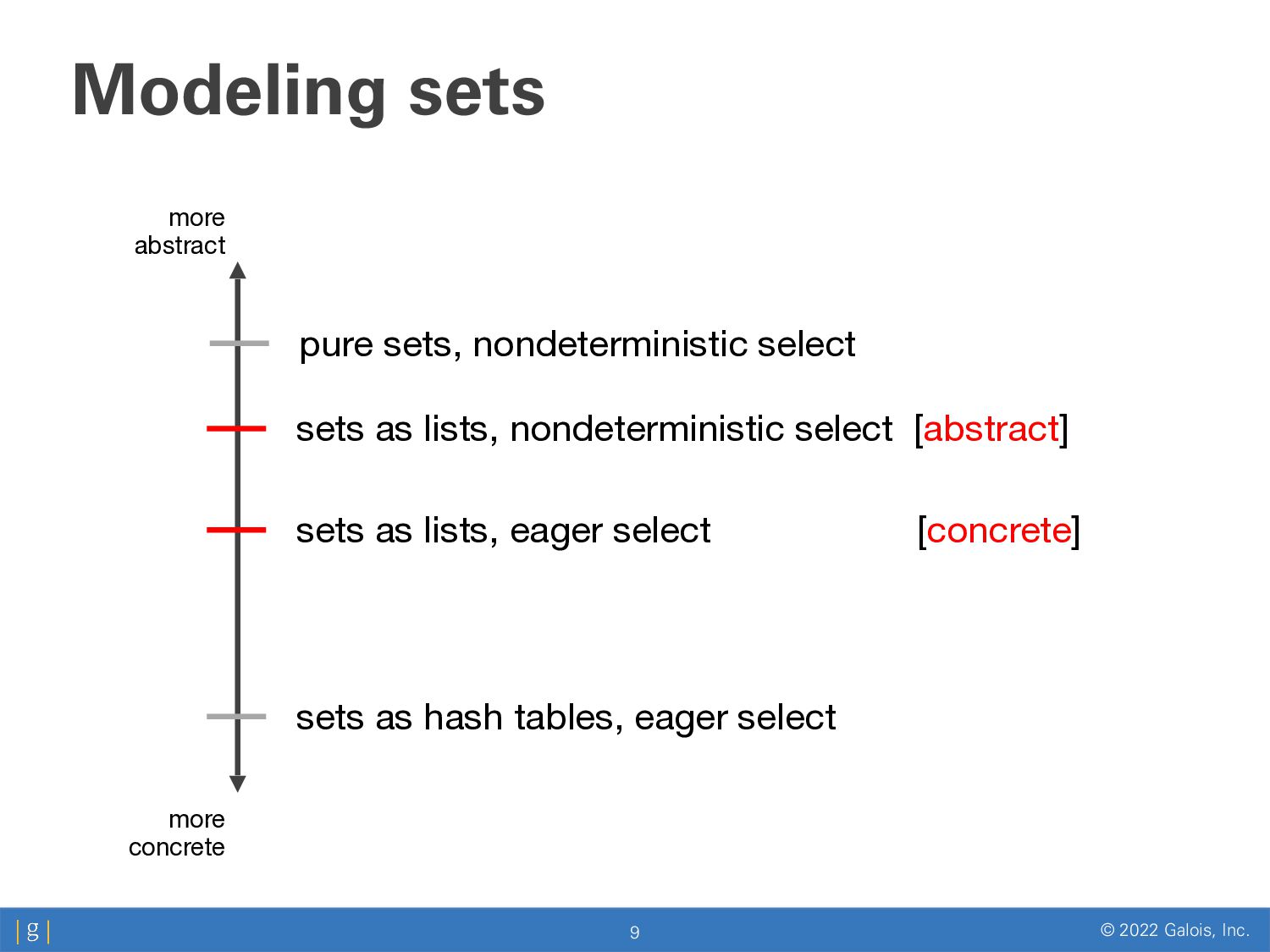

    sets 9 pure sets, nondeterministic select sets as hash tables, eager select sets as lists, nondeterministic select [abstract] sets as lists, eager select [concrete] more abstract more concrete
  10. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. (define-grammar

    set-api (set ::= list<integer>) (method ::= (insert integer) (remove integer) (member? integer) select) (interaction ::= list<method>) A simple set API 10
  11. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. (define

    (abstract-interpret interaction state) (match interaction ... [(set-api (cons (insert v:value) r:interaction)) (abstract-interpret r (abstract-insert state v))] ...)) Set API - abstract semantics 11 (define (abstract-insert s v) (set-api (,v ,(abstract-remove s v))))
  12. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. (define

    (abstract-interpret interaction state) (match interaction ... [(set-api (cons select r:interaction)) (set-api (cons ,(abstract-select state) ,(abstract-interpret r state)))] ...)) Set API - abstract semantics 12 (define (abstract-select s) (match s [(set-api nil) #f] [(set-api (cons x:value nil)) x] [(set-api (cons x:value r:vallist)) (if (nondet!) x (abstract-select r))]))
  13. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. (define

    (concrete-interpret interaction state) (match interaction [(set-api nil) (set-api nil)] [(set-api (cons (insert v:value) r:interaction)) (concrete-interpret r (concrete-insert state v))] [(set-api (cons select r:interaction)) (concrete-interpret r (concrete-select state v))] ...)) Set API - concrete semantics 13 (define (concrete-insert s v) (set-api (cons ,v ,s))) (define (concrete-select s) (match s [(set-api nil) (set-api #f)] [(set-api (cons x:value vallist)) x]))
  14. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Set

    API - compiler 14 (define-language abstract #:grammar set-api #:expression interaction #:size 4 #:context set #:size 2 #:link snoc #:evaluate (uncurry abstract-interpret)) (define-language concrete #:grammar set-api #:expression interaction #:size 4 #:context set #:size 2 #:link snoc #:evaluate (uncurry concrete-interpret)) (define-compiler abstract-to-concrete #:source abstract #:target concrete #:behavior-relation equal? #:context-relation equal? #:compile id) ; Very simple compiler just swaps implementations
  15. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. 1

    A program and a context that have changed behavior under compilation > (find-changed-component abstract-to-concrete) The following expression... ((insert -1) ((insert 5) (select))) ...has behavior... ((ite nondet$9 5 -1)) ...in the following source-level context... *null* ==== Compiles to... ((insert -1) ((insert 5) (select))) ...with emergent behavior... (5) ...in the following target-level context... *null* ∃ e, ctx. behavior(ctx[e]) ≠ behavior(compile(ctx)[compile(e)])
  16. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. 2

    A program and a context that demonstrate emergent computation (any behavior not present at the source level) > (find-weird-component abstract-to-concrete #:source-expression-size 5) The following expression... ((insert -8) ((insert -8) ((remove -8) (select)))) ...has emergent behavior... (-8) ...witnessed by the following target-level context... *null* ∃ e, ctx. ∀ ctx. behavior(ctx[e]) ≠ behavior(ctx[compile(e)])
  17. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Set

    API - concrete semantics 17 (define (concrete-insert s v) (set-api (cons ,v ,s))) (define (concrete-remove s v) (match s [(set-api nil) (set-api nil)] [(set-api (cons x:value r:vallist)) (if (equal? x v) r (set-api (cons ,x ,(concrete-remove r v))))]))
  18. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Set

    API - concrete semantics 18 (define (concrete-insert s v) (set-api (cons ,v ,s))) (define (concrete-remove s v) (match s [(set-api nil) (set-api nil)] [(set-api (cons x:value r:vallist)) (if (equal? x v) r (concrete-remove r v) (set-api (cons ,x ,(concrete-remove r v))))]))

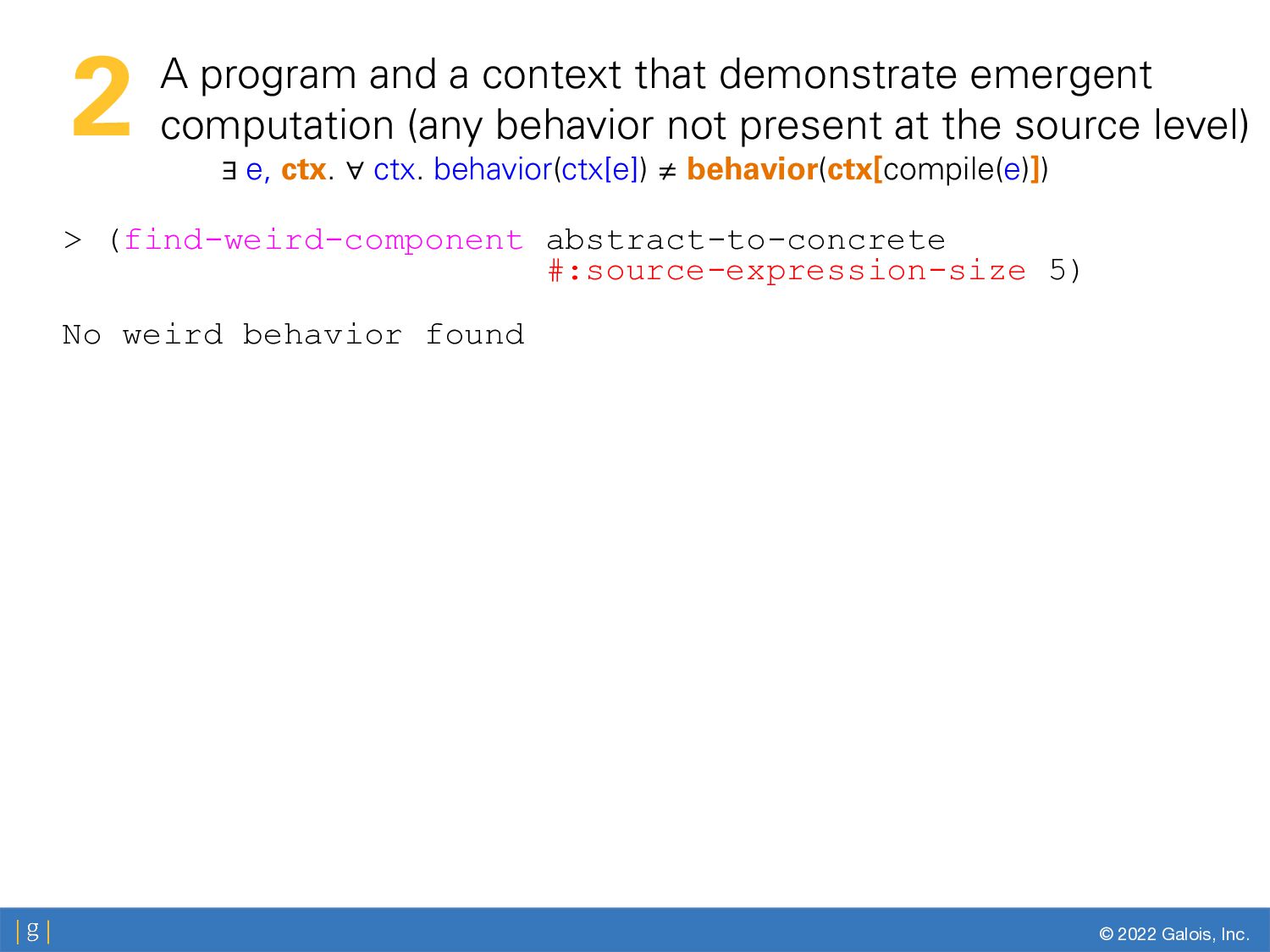

  19. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. 2

    A program and a context that demonstrate emergent computation (any behavior not present at the source level) > (find-weird-component abstract-to-concrete #:source-expression-size 5) ∃ e, ctx. ∀ ctx. behavior(ctx[e]) ≠ behavior(ctx[compile(e)]) No weird behavior found

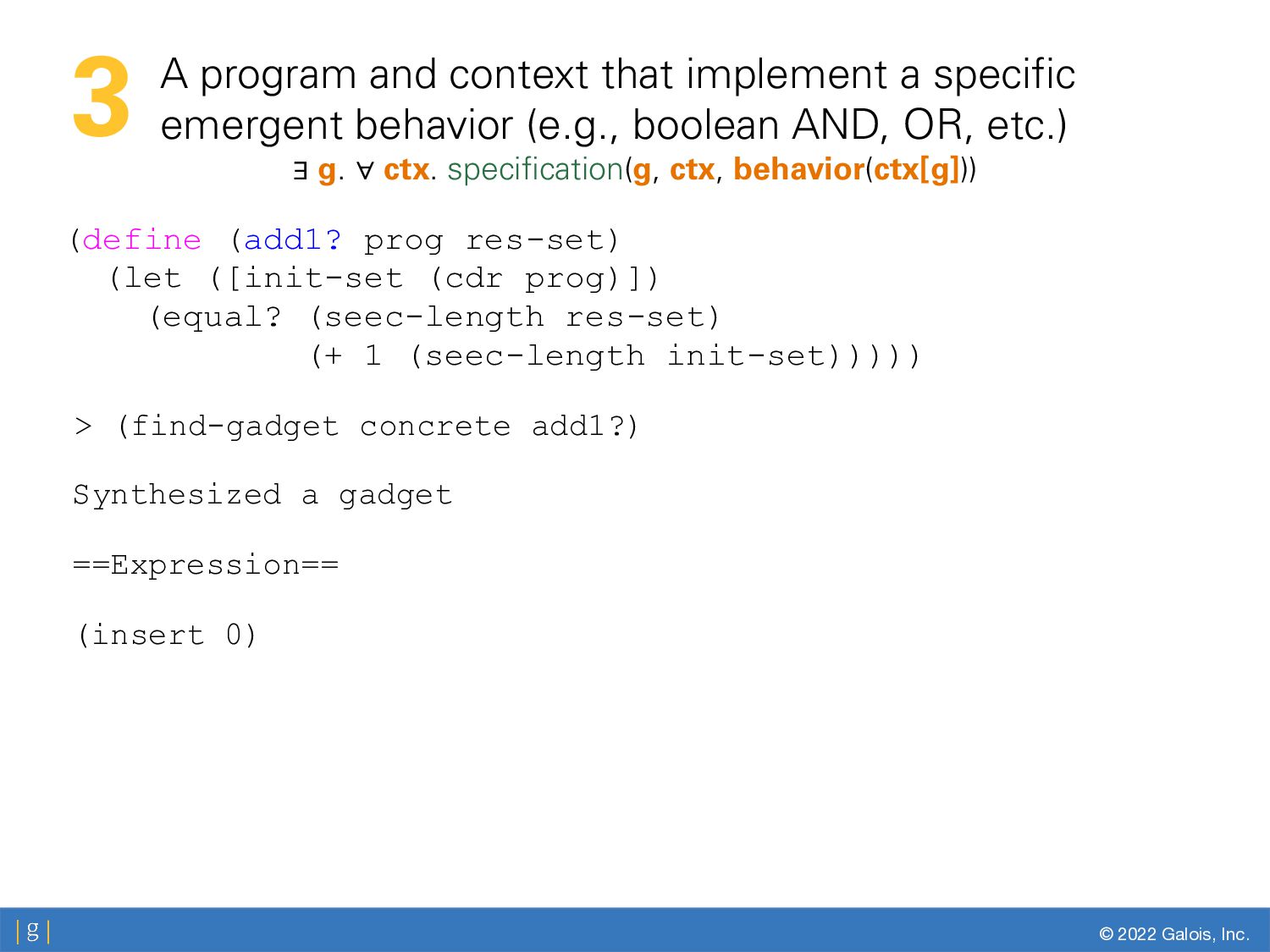

  20. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. 3

    A program and context that implement a specific emergent behavior (e.g., boolean AND, OR, etc.) (define (add1? prog res-set) (let ([init-set (cdr prog)]) (equal? (seec-length res-set) (+ 1 (seec-length init-set))))) > (find-gadget concrete add1?) Synthesized a gadget ==Expression== (insert 0) ∃ g. ∀ ctx. speci fi cation(g, ctx, behavior(ctx[g]))

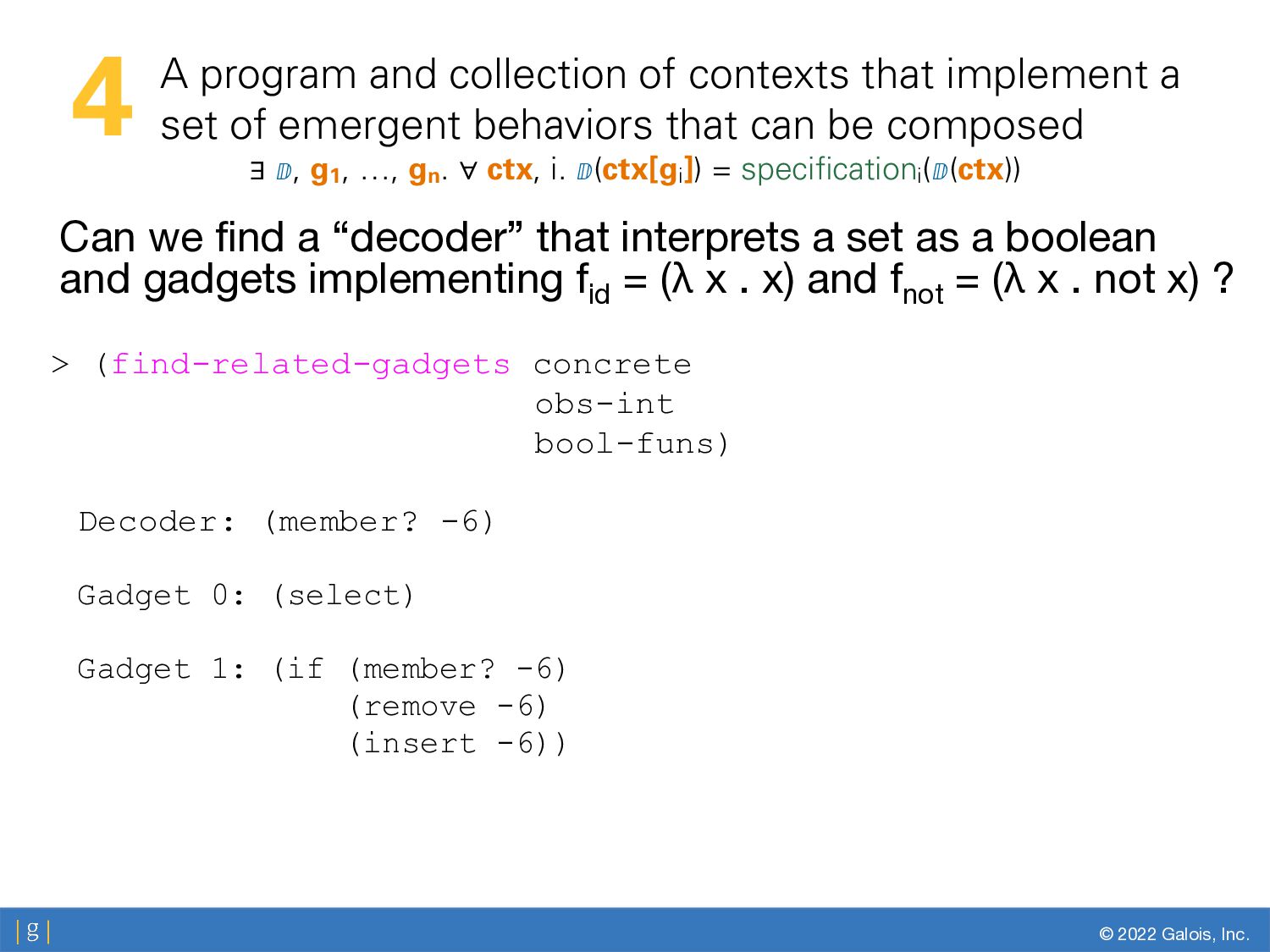

  21. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. 4

    A program and collection of contexts that implement a set of emergent behaviors that can be composed > (find-related-gadgets concrete obs-int bool-funs) Decoder: (member? -6) Gadget 0: (select) Gadget 1: (if (member? -6) (remove -6) (insert -6)) Can we find a “decoder” that interprets a set as a boolean and gadgets implementing fid = (λ x . x) and fnot = (λ x . not x) ? ∃ ⅅ, g1, …, gn. ∀ ctx, i. ⅅ(ctx[gi]) = speci fi cationi(ⅅ(ctx))
  22. Case Studies

  23. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS1:

    printf-oriented programming • Emergent computations admitted by malformed calls to the C printf API • Powerful interface: can read and write memory • Implementations enable additional emergent computation: • Access stack variables not passed as parameters • Read and write variables at inconsistent types • Goal: demonstrate that SEEC can synthesize examples corresponding to hand-crafted printf gadgets • Outcome: synthesized gadgets for boolean operations 23
  24. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS2:

    API design • Goals: • Explore SEEC-assisted workflow for designing an implementation of a specification • Experiment with synthesizing composable gadgets • Outcome: • Synthesis identified interesting behaviors in buggy implementations of a set API • Demonstrated use of relational verification to synthesize composable gadgets 24
  25. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS3:

    Data-Oriented Programming • Language-level vulnerability classes are a critical application of tools for reasoning about emergent computation and mitigations • “Data-oriented programming, ” which relies on existing control flow, is particularly interesting because emergent computations are program-specific • Goals: • Demonstrate applicability of SEEC to complex semantics and compilers • Explore synthesis of alternative emergent computational models 25
  26. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS3:

    Data-Oriented Programming TinyC: • C-like language with variables, pointers, & procedures • Memory-safety enforced by semantics • Contexts: input command writes user input to
 memory object TinyA: • Unstructured control flow • Allocations are integer offsets in linear heap • input command writes unbounded number
 of bytes to supplied address Tiny Compiler: • Compiles structured to unstructured control flow (JMP/CALL/RET) • Introduces explicit allocation of stack frames 26 P P C C Source language Target language -
  27. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS3:

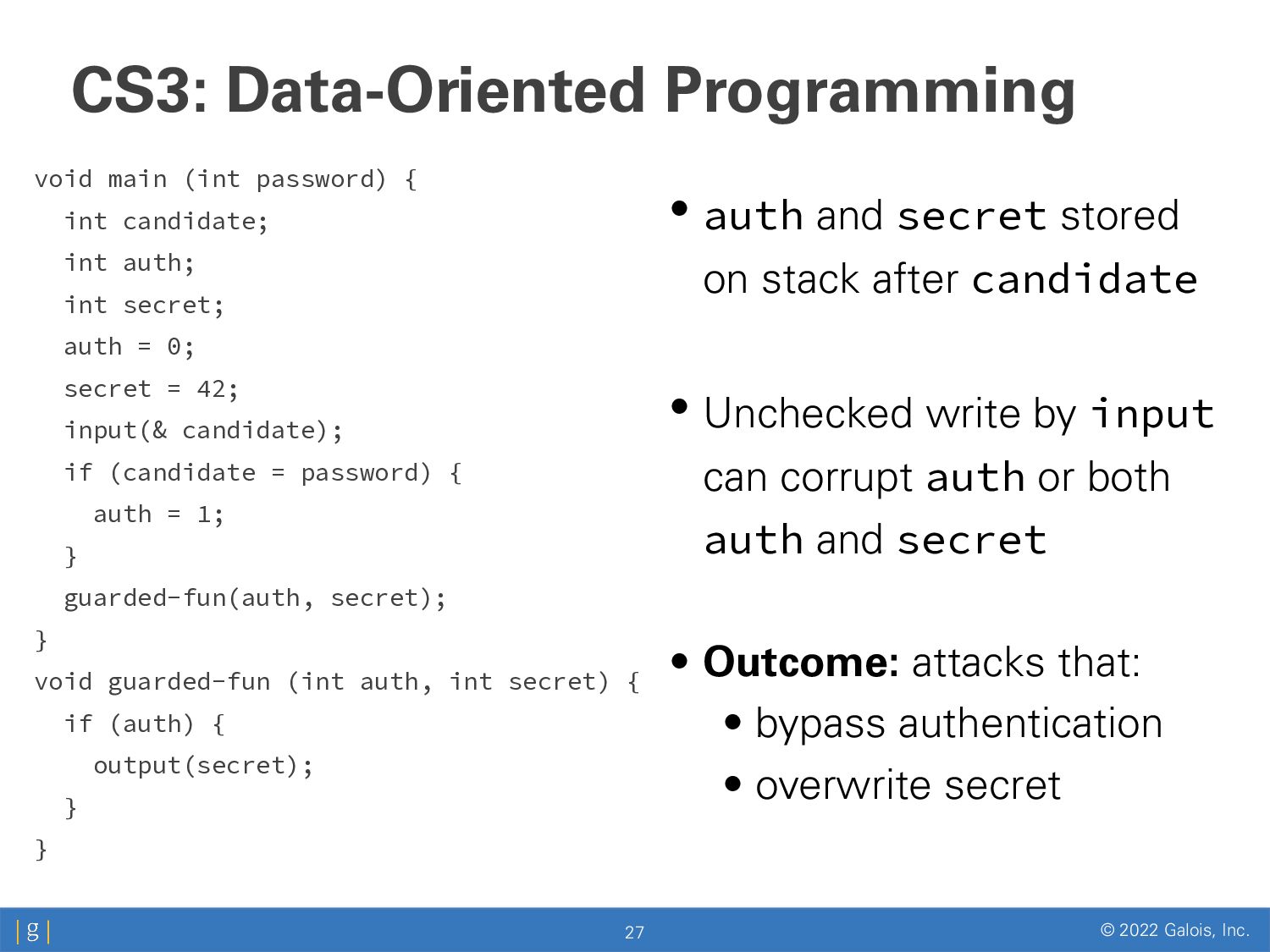

    Data-Oriented Programming • auth and secret stored on stack after candidate • Unchecked write by input can corrupt auth or both auth and secret • Outcome: attacks that: • bypass authentication • overwrite secret 27 void main (int password) { int candidate; int auth; int secret; auth = 0; secret = 42; input(& candidate); if (candidate = password) { auth = 1; } guarded-fun(auth, secret); } void guarded-fun (int auth, int secret) { if (auth) { output(secret); } }
  28. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS4:

    Heap allocator • Heap allocators have witnessed a long arms race between exploits and mitigations • Pragmatic concerns lead to complex data structures and algorithms • Difficult to reason carefully about potential weaknesses • Goal: show utility of SEEC for iterative design of a secure allocator through design → detect → mitigate cycle
 28
  29. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS4:

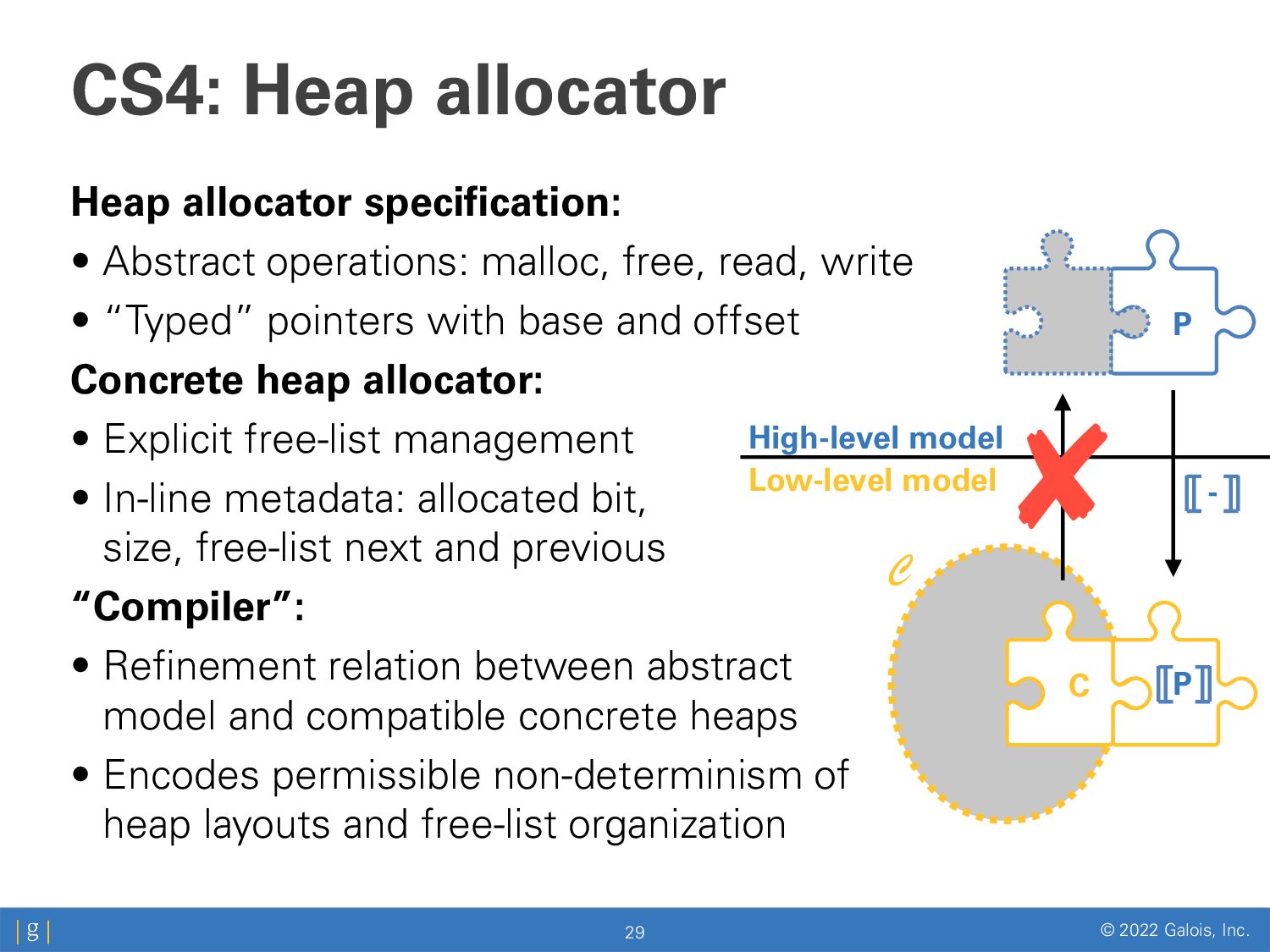

    Heap allocator Heap allocator specification: • Abstract operations: malloc, free, read, write • “Typed” pointers with base and offset Concrete heap allocator: • Explicit free-list management • In-line metadata: allocated bit,
 size, free-list next and previous “Compiler”: • Refinement relation between abstract
 model and compatible concrete heaps • Encodes permissible non-determinism of heap layouts and free-list organization 29 P P C C High-level model Low-level model -
  30. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. CS4:

    Heap allocator • Outcome: Synthesized attacks that enable: • Resizing a block (overwrite size metadata) • Forcing the address of the next allocation • Demonstrated power of composition: • Synthesizing next-alloc directly takes over an hour • Instead, next-alloc can be composed from: • find-head: (alloc 1), (copy 1 2), (free 1) • insert-in-freelist: (write <target> 2), (alloc 1) • Synthesized in seconds! • Iterative development uncovered interesting corner cases such as dangling or forged pointers 30
  31. Conclusion

  32. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Lessons

    learned • Having an oracle of unexpected behaviors is powerful! • But scalability is a huge challenge! • State-space explosion under symbolic execution is difficult to control and debug • For larger systems, deductive symex + CEGIS alone may be too blunt an instrument • Found partially-concrete testing very valuable • As was “sketching” emergent computations • But exhaustive checking of small models is informative! 32
  33. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. Next

    steps • Applications to more realistic systems • Novel counter-example search strategies based on secure compilation proof techniques such as back-translation • Automatic identification of composable gadget collections • Let us help secure your next compiler or system!
 SEEC is open source at https://github.com/GaloisInc/SEEC
 Reach out to us at {scott,jpaykin,olivier}@galois.com 33
  34. Backup

  35. © 2015 Galois, Inc. ‹#› © 2022 Galois, Inc. •

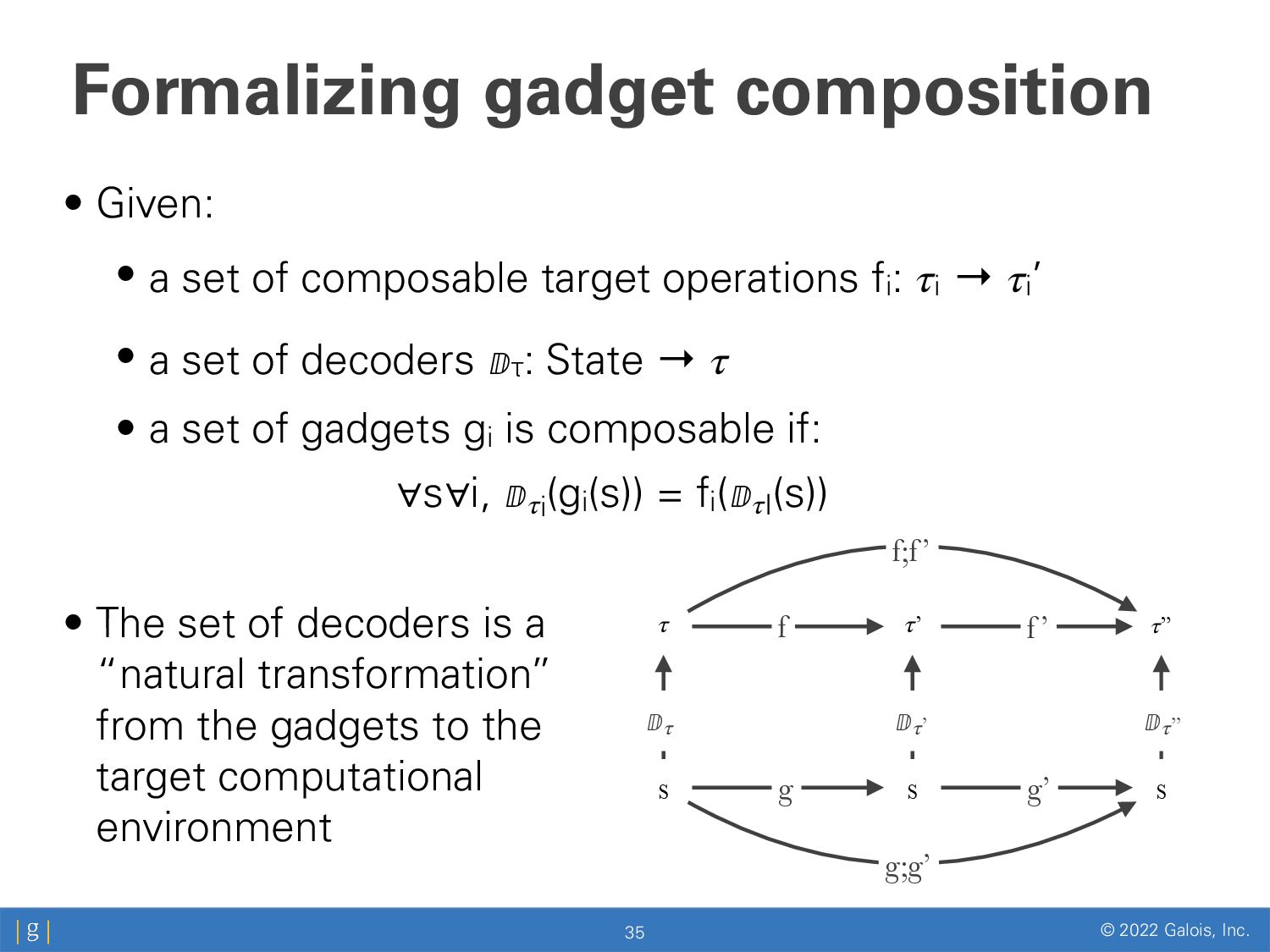

    Given: • a set of composable target operations fi: 𝜏 i → 𝜏 i’ • a set of decoders ⅅτ: State → 𝜏 • a set of gadgets gi is composable if:
 ∀s∀i, ⅅ i (gi(s)) = fi(ⅅ I (s)) • The set of decoders is a
 “natural transformation”
 from the gadgets to the
 target computational
 environment Formalizing gadget composition 35 s s s 𝜏 𝜏 ’ 𝜏 ” g g’ g;g’ f;f’ f f’ ⅅ ⅅ ’ ⅅ ”
