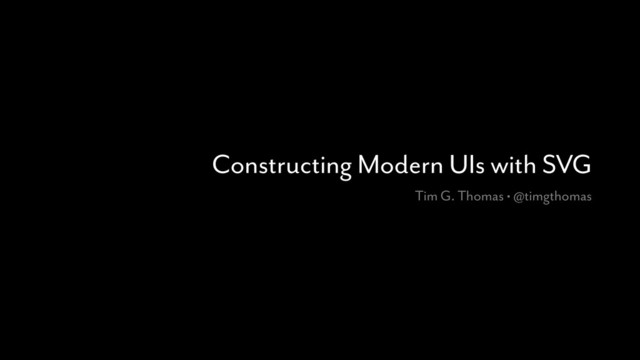

  1. Constructing Modern UIs with SVG Tim G. Thomas • @timgthomas

  2. Today Basics Integration Advanced SVG

  3. Basics

  4. SVG Scalable Vector Graphics

  5. SVG Scalable Vector Graphics

  6. SVG Scalable Vector Graphics

  7. SVG Scalable Vector Graphics

  8. SVG Scalable Vector Graphics

  9. SVG Scalable Vector Graphics

  10. Why SVG? Non-flow-based layout Visual effects Why not?

  11. Uses for SVG Glyphs + Icons Visualizations Components Full Apps

  12. Creating SVG By hand Apps Procedurally Libraries

  13. Creating SVG By hand Apps Procedurally Libraries <svg> <rect />

    </svg>

  14. Creating SVG By hand Apps Procedurally Libraries

  15. Creating SVG By hand Apps Procedurally Libraries

  16. Creating SVG By hand Apps Procedurally Libraries <svg> {{#each shape

    as |d|}} <path d={{d}} /> {{/each}} </svg>

  17. Creating SVG By hand Apps Procedurally Libraries svgjs.com snapsvg.io d3js.org

  18. Integration

  19. Integration Inline Reference <use>

  20. Integrating SVG Inline <body> <svg> <rect x="0" y="0" width="100" height="100"

    /> </svg> </body>

  21. Integrating SVG Inline with React render() { return ( <div>

    <Header /> <svg> <path d={pathData} /> </svg> </div> ); },

  22. Integrating SVG References .logo { background-image: url('logo.svg'); }

  23. Integrating SVG <use> <svg> <use href="glyphs.svg#favorite"></use> </svg> <!-- glyphs.svg -->

    <svg> <symbol id="favorite"> <path /> </symbol> </svg>

  24. Styling SVG Attributes CSS

  25. Styling SVG Attributes <rect />

  26. Styling SVG Attributes <rect fill="#6495ed" />

  27. Styling SVG Attributes <rect fill="#6495ed" stroke="#ff1493" />

  28. Styling SVG Attributes <rect fill="#6495ed" stroke="#ff1493" rx="10" ry="10" />

  29. Styling SVG CSS <rect rx="10" ry="10" /> rect { fill:

    #6495ed; stroke: #ff1493; }

  30. Advanced SVG

  31. Advanced SVG Blend Modes Line Drawing Symbols Clipping Filters A

    Real-World App

  32. Advanced SVG Blend Modes

  33. Advanced SVG Blend Modes

  34. Advanced SVG Blend Modes .tint { mix-blend-mode: color; }

  35. Advanced SVG Blend Modes Branding Photo Filters UI Tricks

  36. Advanced SVG Line Drawing

  37. Advanced SVG Line Drawing

  38. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+Width Animate!

  39. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+With Animate!

  40. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+Width Animate!

  41. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+Width Animate!

  42. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+Width Animate!

  43. Advanced SVG Line Drawing Create Path Stroke with Dash Add

    Dash Offset+Width Animate!

  44. Advanced SVG Line Drawing path { stroke-dasharray: 750, 1000; }

    @keyframes handwriting { 0% { stroke-offset: 0%; } 100% { stroke-offset: 100%; } }

  45. Advanced SVG Line Drawing path { stroke-dasharray: 750, 1000; }

    @keyframes handwriting { 0% { stroke-offset: 0%; } 100% { stroke-offset: 100%; } }

  46. Advanced SVG Line Drawing Use Sparingly!

  47. Advanced SVG Symbols

  48. Advanced SVG Symbols <symbol id="doc"> <path d="..." /> </symbol>

  49. Advanced SVG Symbols <symbol id="doc"> <path d="..." /> </symbol> <use

    href="#doc" />

  50. Advanced SVG Symbols <symbol id="doc"> <path d="..." /> </symbol> <use

    href="#doc" style="fill: #6495ed" /> <use href="#doc" style="fill: #ff1493" />

  51. Advanced SVG Symbols Reduce Duplication Composition Glyphs/Icons

  52. Advanced SVG Clipping + Masking

  53. Advanced SVG Clipping + Masking <defs> <clipPath id="mask"> </clipPath> </defs>

  54. Advanced SVG Clipping + Masking <defs> <clipPath id="mask"> <circle cx="128"

    cy="128" r="128" /> </clipPath> </defs>

  55. Advanced SVG Clipping + Masking <defs> <clipPath id="mask"> <circle cx="128"

    cy="128" r="128" /> </clipPath> </defs> <image width="256" height="256" href="unclipped.png" />

  56. Advanced SVG Clipping + Masking <defs> <clipPath id="mask"> <circle cx="128"

    cy="128" r="128" /> </clipPath> </defs> <image width="256" height="256" href="unclipped.png" clip-path="url(#mask)" />

  57. Advanced SVG Clipping + Masking Use sparingly!

  58. Advanced SVG Filters

  59. Advanced SVG Filters <filter id="filter"> </filter> <text style="filter: url(#filter)">NDC</text>

  60. Advanced SVG Filters <filter id="filter"> <feTurbulence type="turbulence" baseFrequency="0.05" numOctaves="2" result="turbulence"

    /> </filter> <text style="filter: url(#filter)">NDC</text>

  61. Advanced SVG Filters <filter id="filter"> <feTurbulence type="turbulence" baseFrequency="0.05" numOctaves="2" result="turbulence"

    /> <feDisplacementMap in="SourceGraphic" in2="turbulence" scale="50" xChannelSelector="R" yChannelSelector="G" result="displacement" /> </filter> <text style="filter: url(#filter)">NDC</text>

  62. Advanced SVG Filters <filter id="filter"> <feTurbulence type="turbulence" baseFrequency="0.05" numOctaves="2" result="turbulence"

    /> <feDisplacementMap in="SourceGraphic" in2="turbulence" scale="50" xChannelSelector="R" yChannelSelector="G" result="displacement" /> <feGaussianBlur in="displacement" stdDeviation="3" /> </filter> <text style="filter: url(#filter)">NDC</text>

  63. Advanced SVG Filters <feTurbulence type="turbulence" baseFrequency="0.05" numOctaves="2" result="turbulence"> <animate attributeType="XML"

    attributeName="baseFrequency" from="0.05" to="0" dur="10s" repeatCount="indefinite" /> </feTurbulence>

  64. Advanced SVG Filters <feTurbulence type="turbulence" baseFrequency="0.05" numOctaves="2" result="turbulence"> <animate attributeType="XML"

    attributeName="baseFrequency" from="0.05" to="0" dur="10s" repeatCount="indefinite" /> </feTurbulence>

  65. Advanced SVG A Real-World App

  66. Custom Shapes Blend Modes Clip Paths

  67. Custom Shapes Blend Modes Clip Paths

  68. Further Research developer.mozilla.org/docs/Web/SVG css-tricks.com/mega-list-svg-information bit.ly/ndcoslo-svg

  69. Thanks for coming! @timgthomas • timgthomas.com
