Creating a Basic Chat App with Pub/Sub and Go

Go has been designed from the ground up around scalability and concurrency. Pub/Sub, a common messaging paradigm, is not only also designed around these concepts, but actually mimicks one of Golang’s core concepts; channels.
In this talk, I will be giving an introduction to the concepts of Pub/Sub, its relevance to common Golang use-cases, and then demonstrating how one could create a basic chat application using it in Golang.

Transcript

1. Creating a Basic Chat App @tomcamp333
2. Hello GopherCon! I am Tom Camp Developer Relations Engineer at Ably @tomcamp333 and @ablyrealtime
3. It’s good to be back in the ‘real world’! People are increasingly expecting realtime experiences from their apps @tomcamp333

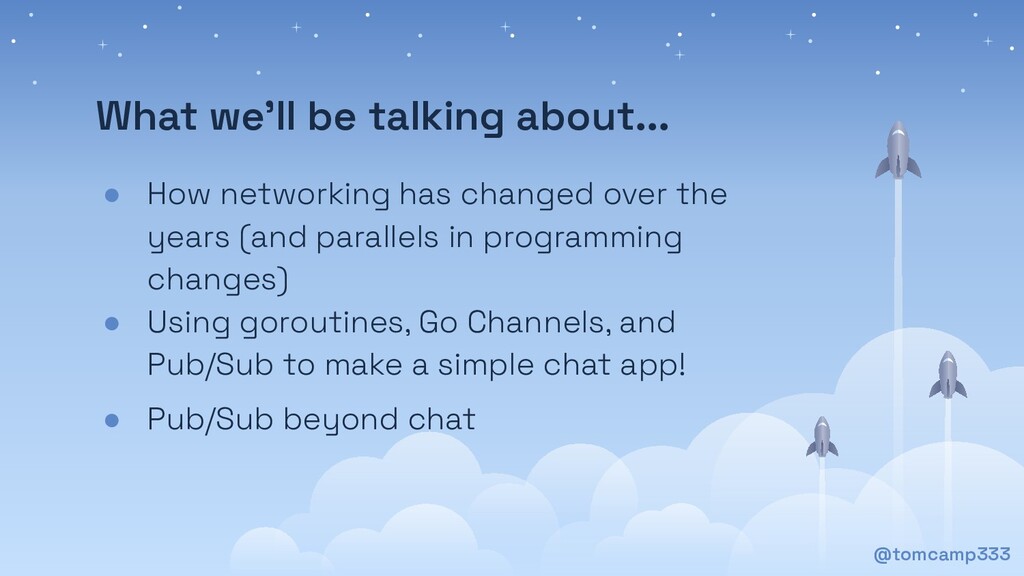

4. What we’ll be talking about... • How networking has changed over the years (and parallels in programming changes) • Using goroutines, Go Channels, and Pub/Sub to make a simple chat app! • Pub/Sub beyond chat @tomcamp333
5. The evolution of communication between devices @tomcamp333

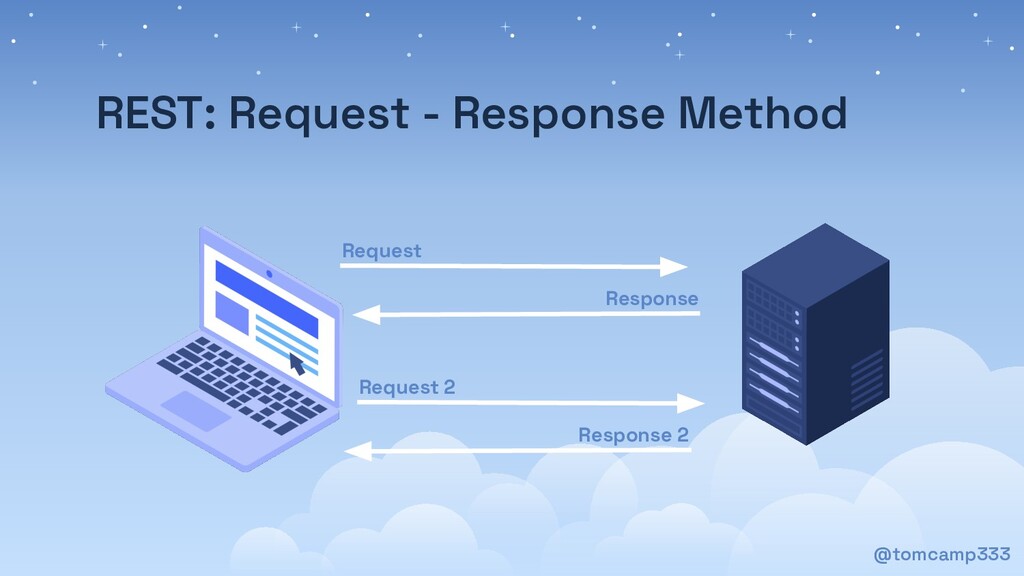

6. REST: Request - Response Method Request Response Request 2 Response 2 @tomcamp333

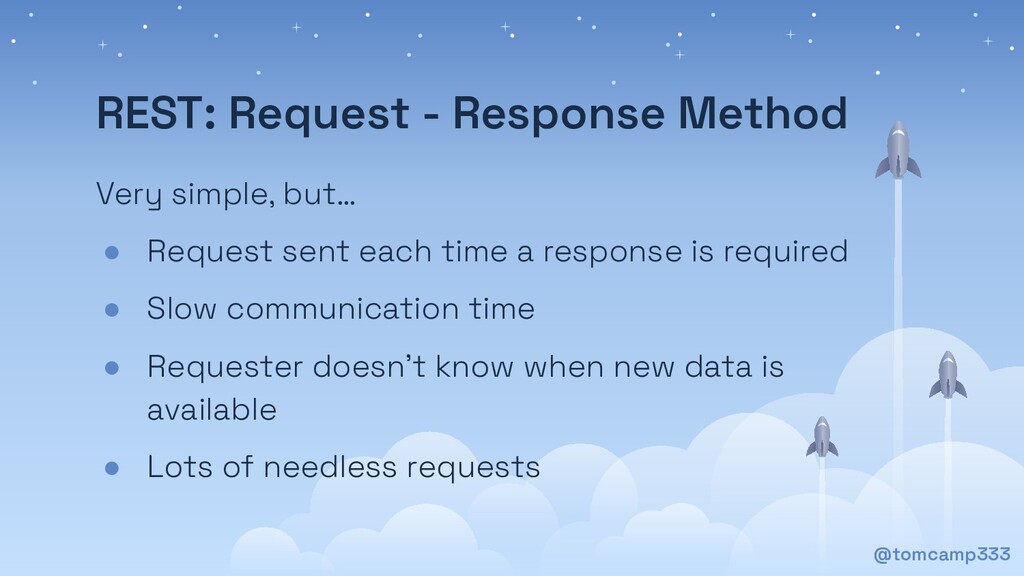

7. REST: Request - Response Method Very simple, but… • Request sent each time a response is required • Slow communication time • Requester doesn’t know when new data is available • Lots of needless requests @tomcamp333

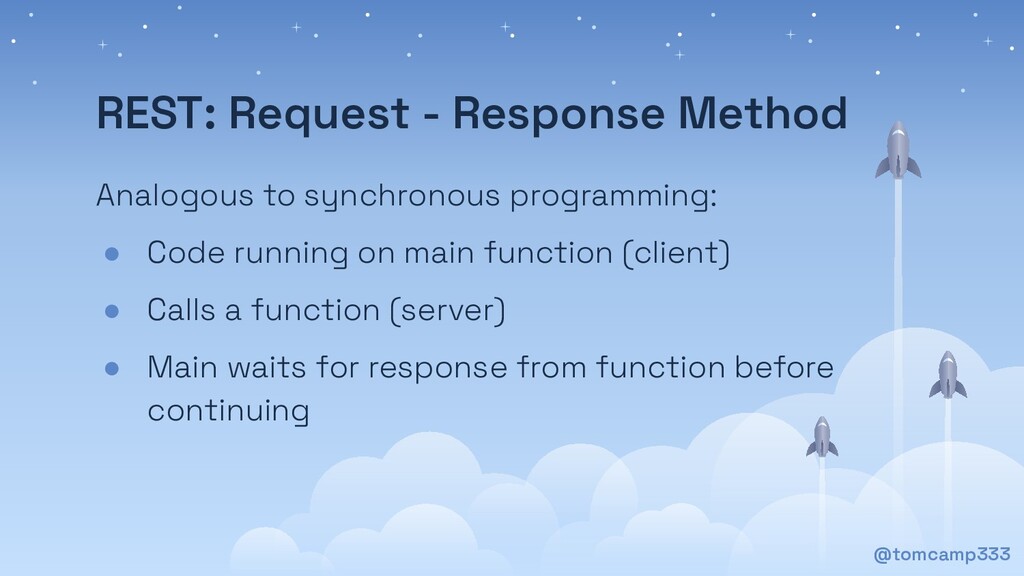

8. REST: Request - Response Method Analogous to synchronous programming: • Code running on main function (client) • Calls a function (server) • Main waits for response from function before continuing @tomcamp333

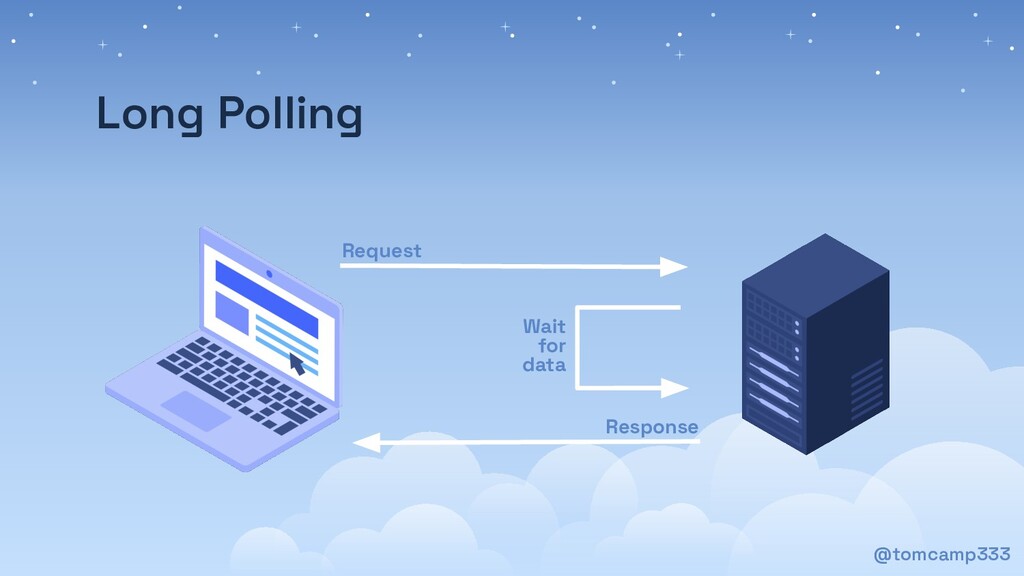

9. Long Polling Request Response @tomcamp333 Wait for data

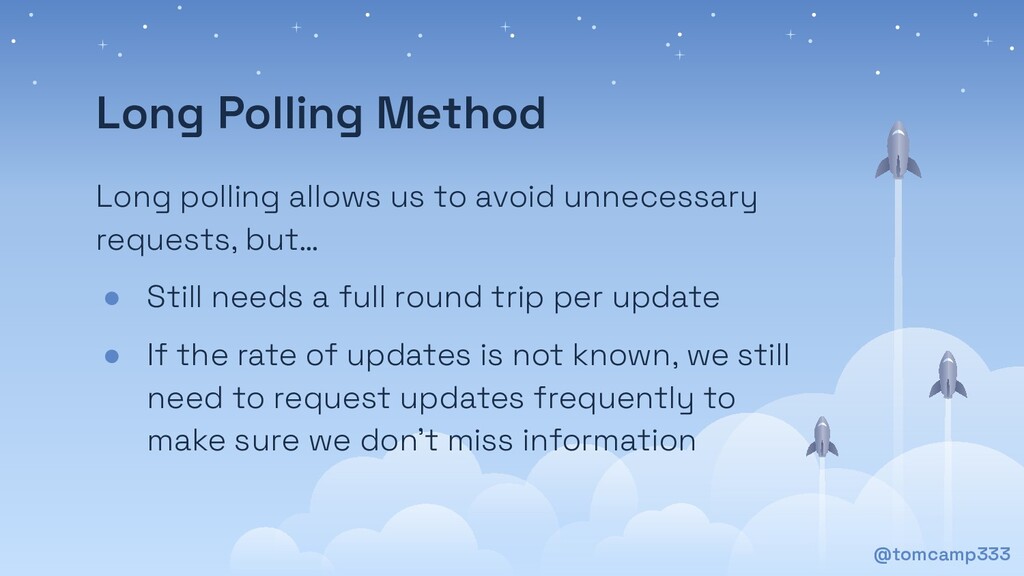

10. Long Polling Method Long polling allows us to avoid unnecessary requests, but… • Still needs a full round trip per update • If the rate of updates is not known, we still need to request updates frequently to make sure we don’t miss information @tomcamp333

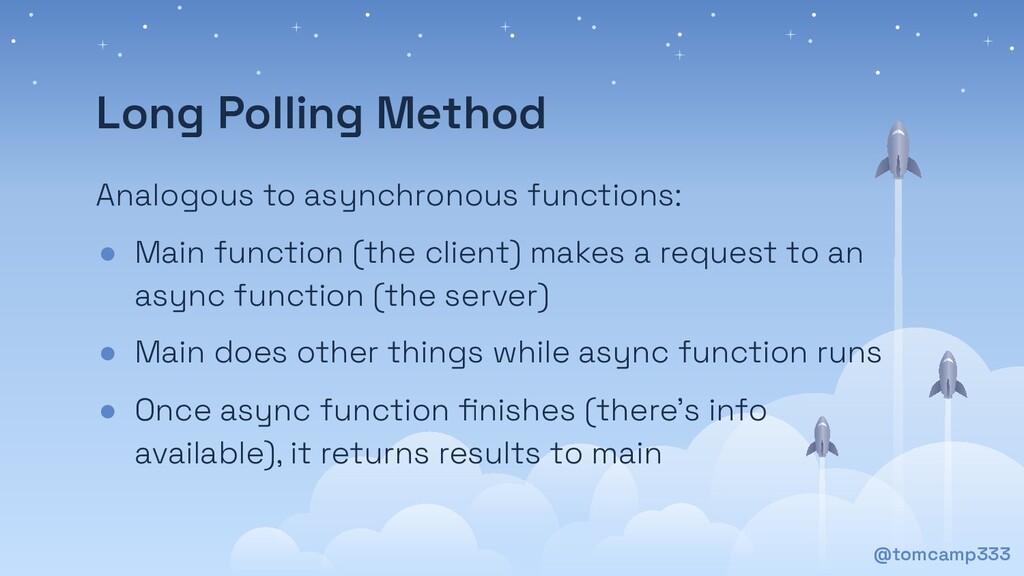

11. Long Polling Method Analogous to asynchronous functions: • Main function (the client) makes a request to an async function (the server) • Main does other things while async function runs • Once async function finishes (there’s info available), it returns results to main @tomcamp333

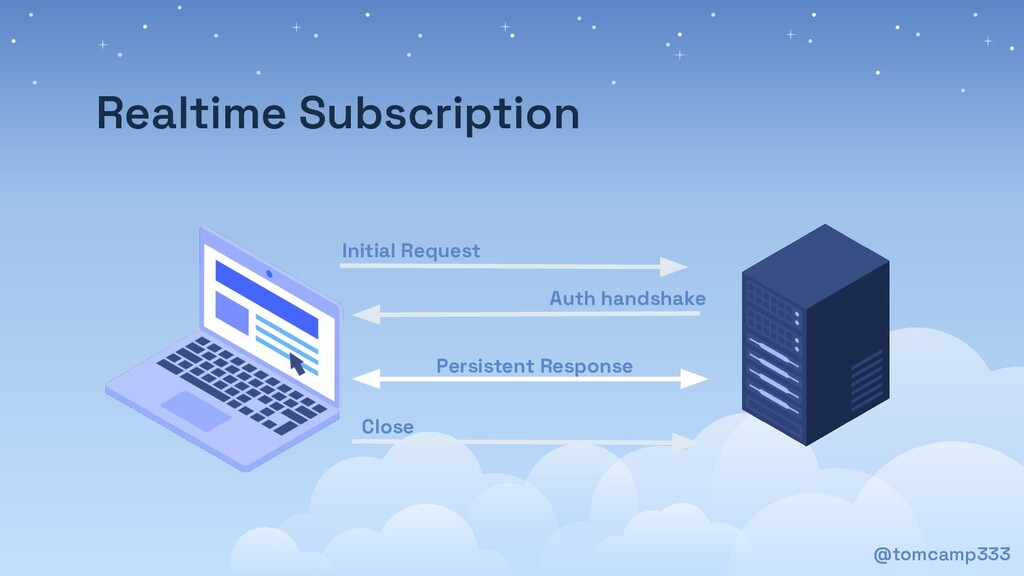

12. Realtime Subscription Initial Request Close @tomcamp333 Auth handshake Persistent Response

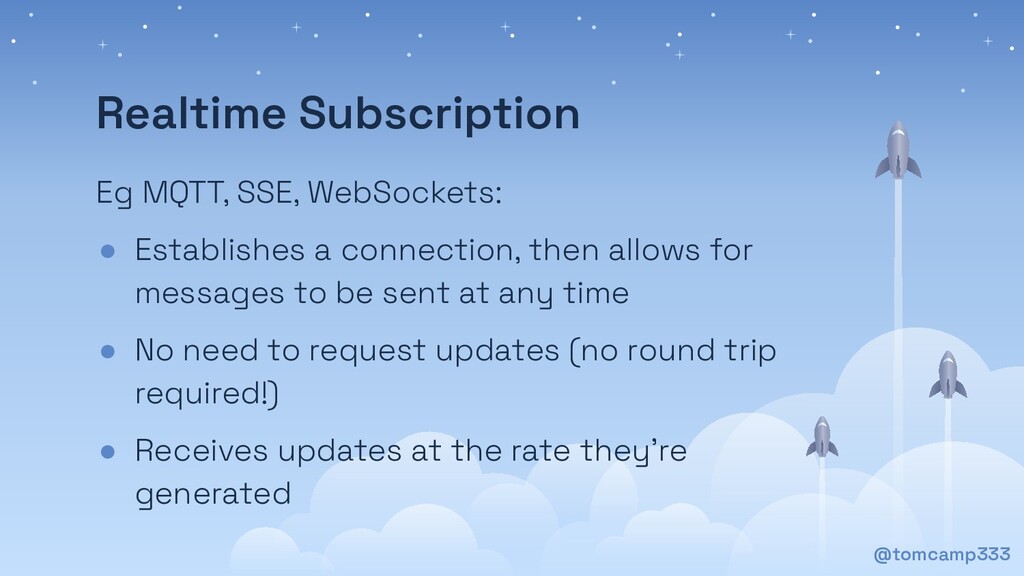

13. Realtime Subscription Eg MQTT, SSE, WebSockets: • Establishes a connection, then allows for messages to be sent at any time • No need to request updates (no round trip required!) • Receives updates at the rate they’re generated @tomcamp333

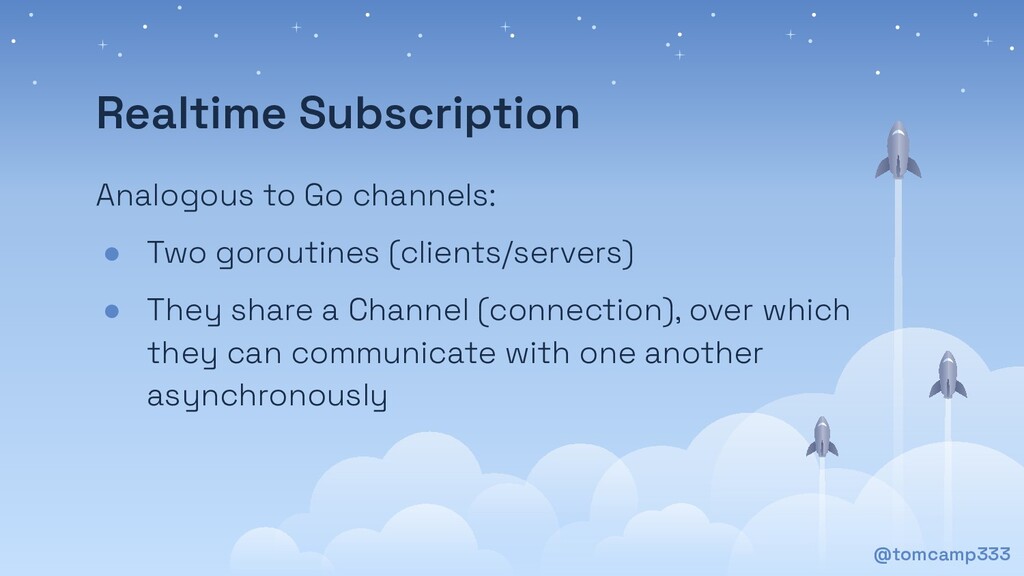

14. Realtime Subscription Analogous to Go channels: • Two goroutines (clients/servers) • They share a Channel (connection), over which they can communicate with one another asynchronously @tomcamp333
15. How does data move around the web? @tomcamp333 1. Rest Requests 2. Long Polling 3. Realtime Subscriptions

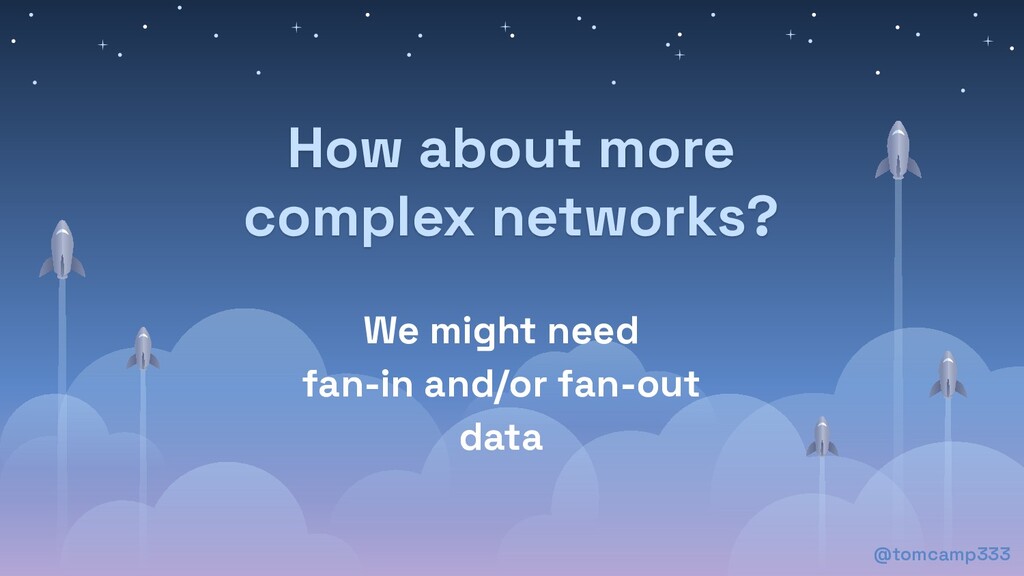

16. How about more complex networks? @tomcamp333 We might need fan-in and/or fan-out data

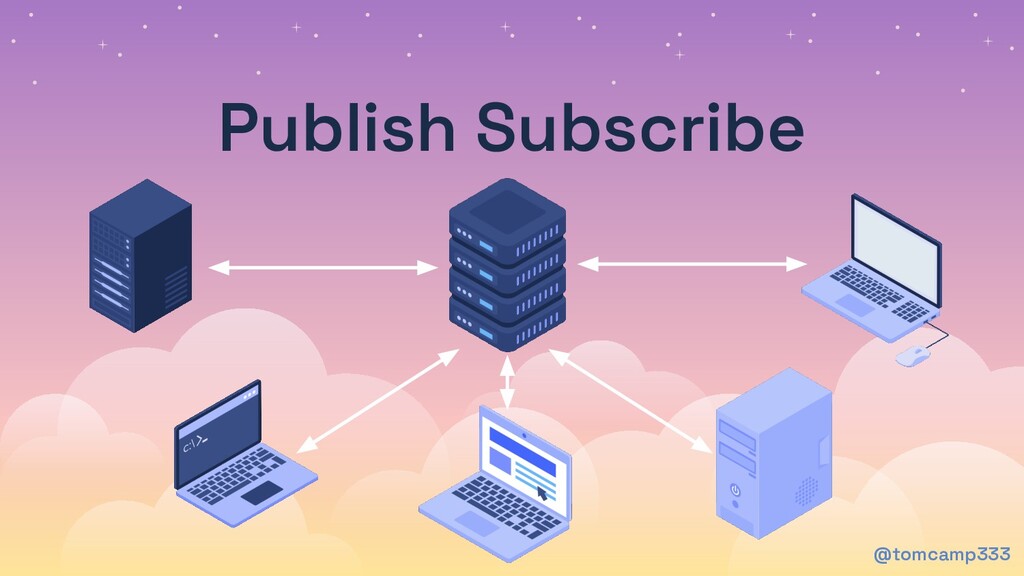

17. Publish Subscribe @tomcamp333

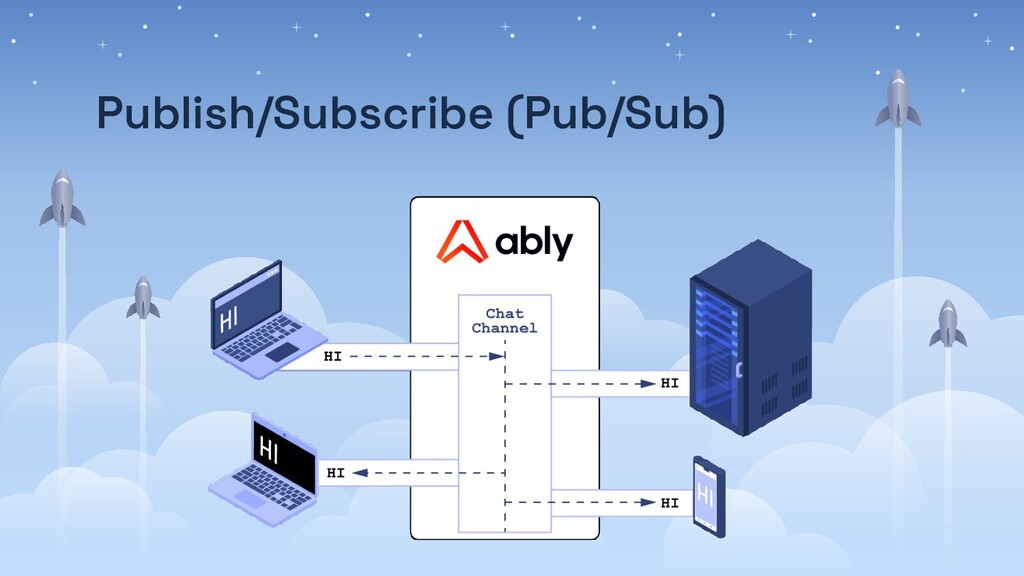

18. Publish/Subscribe (Pub/Sub)

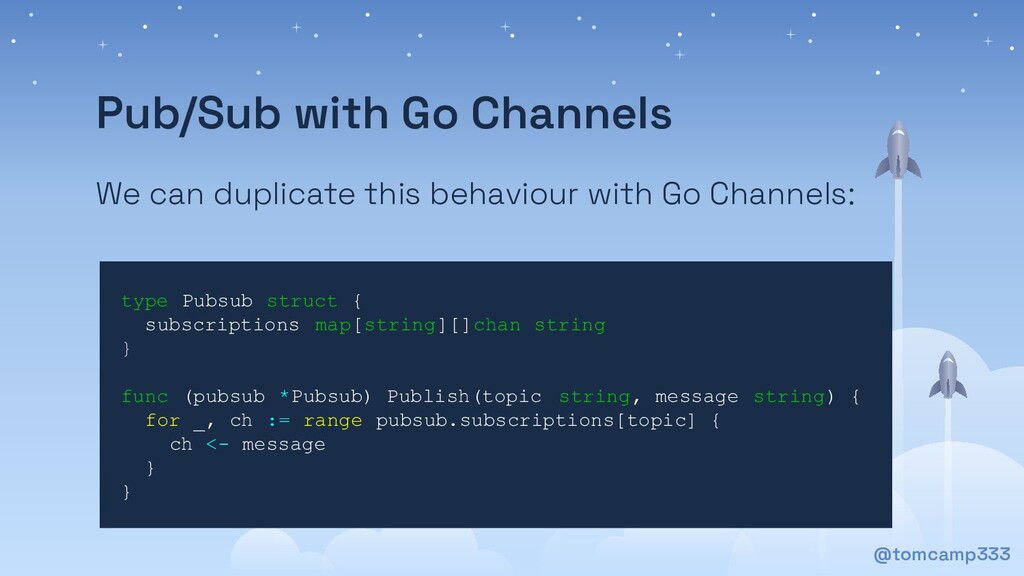

19. Pub/Sub with Go Channels We can duplicate this behaviour with Go Channels: type Pubsub struct { subscriptions map[string][]chan string } func (pubsub *Pubsub) Publish(topic string, message string) { for _, ch := range pubsub.subscriptions[topic] { ch <- message } } @tomcamp333
20. It is no coincidence that we’ve developed tools in both programming (Go Channels) and communication (Pub/Sub) to allow for complex asynchronous communication between asynchronous entities @tomcamp333
21. Making a Chat App With Go and Pub/Sub @tomcamp333
22. What do we need? • Usernames • Ability to send messages to everyone in a chat room • Ability to receive messages from everyone in a chat room Preferably we can: • Check what happened before we joined (the chat history) • See who is currently online @tomcamp333

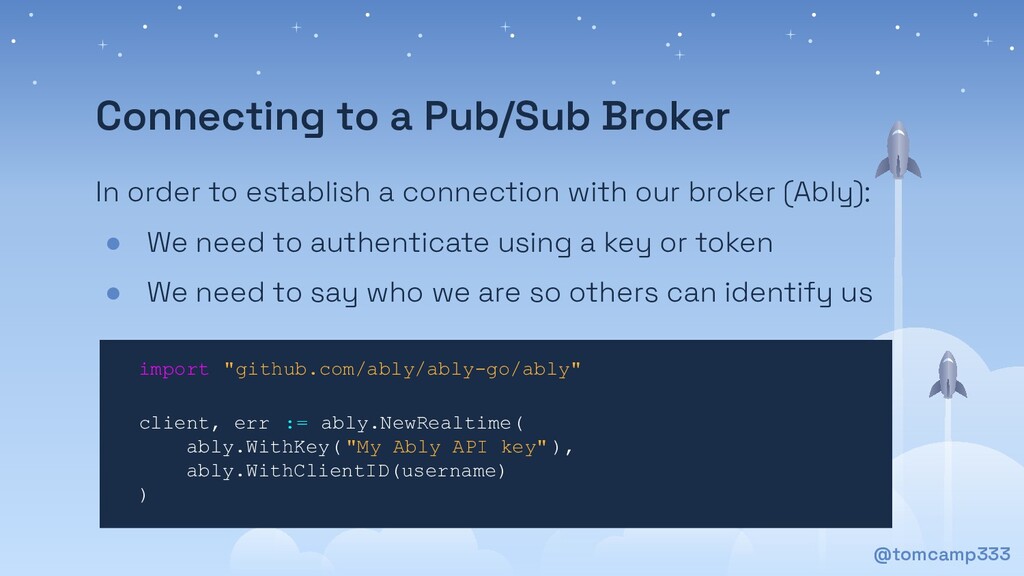

23. Connecting to a Pub/Sub Broker In order to establish a connection with our broker (Ably): • We need to authenticate using a key or token • We need to say who we are so others can identify us import "github.com/ably/ably-go/ably" client, err := ably.NewRealtime( ably.WithKey( "My Ably API key" ), ably.WithClientID(username) ) @tomcamp333

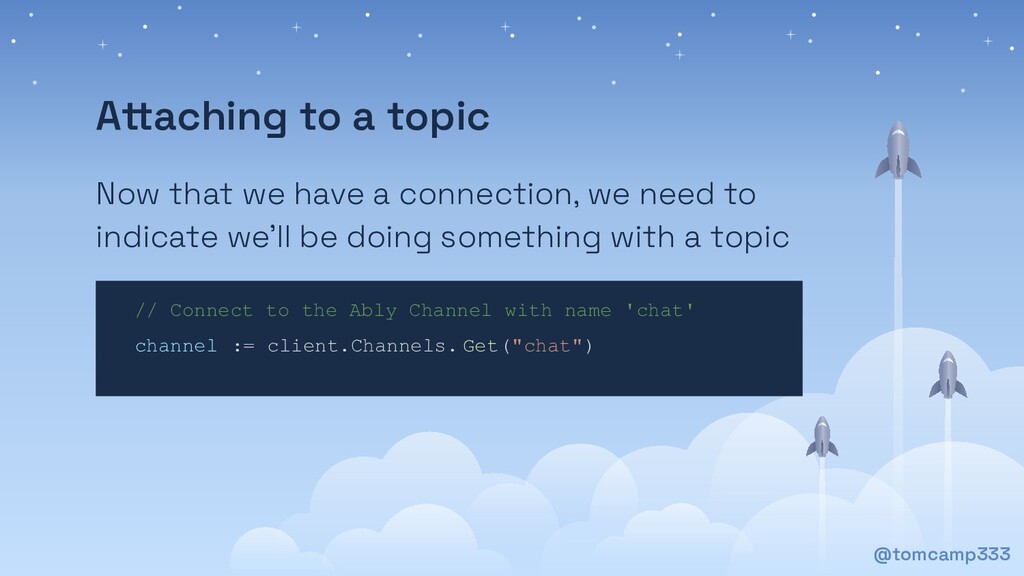

24. Attaching to a topic Now that we have a connection, we need to indicate we’ll be doing something with a topic @tomcamp333 // Connect to the Ably Channel with name 'chat' channel := client.Channels. Get("chat")
25. Publishing messages Next, we want to send (publish) messages. We can do so with channel.Publish(). We will read from the terminal input, and publish to the broker in a goroutine. @tomcamp333 reader := bufio.NewReader(os.Stdin) for { text, _ := reader.ReadString( '\n') _ := channel.Publish(context.Background(), text) }

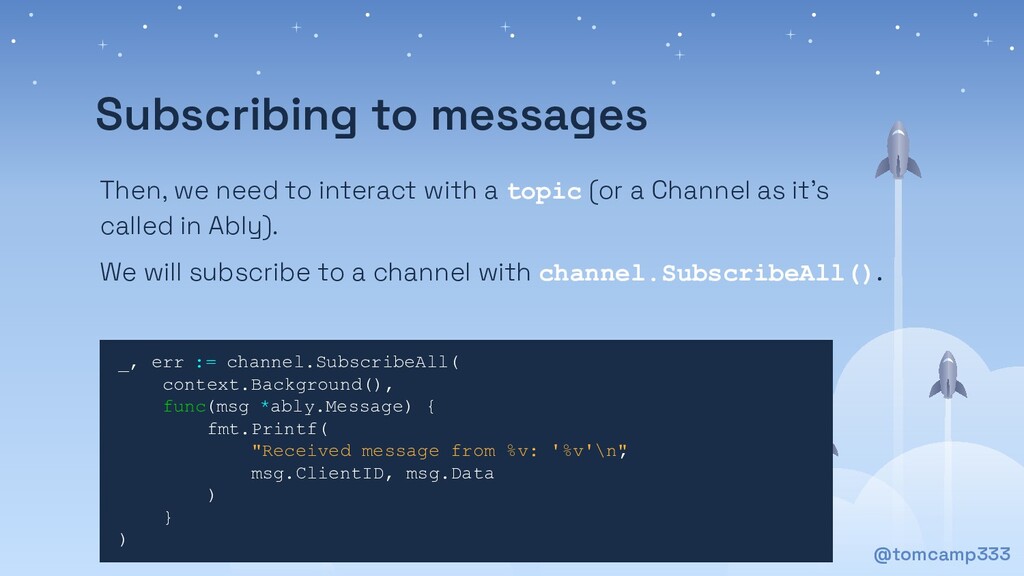

26. Subscribing to messages Then, we need to interact with a topic (or a Channel as it’s called in Ably). We will subscribe to a channel with channel.SubscribeAll(). @tomcamp333 _, err := channel.SubscribeAll( context.Background(), func(msg *ably.Message) { fmt.Printf( "Received message from %v: '%v'\n" , msg.ClientID, msg.Data ) } )

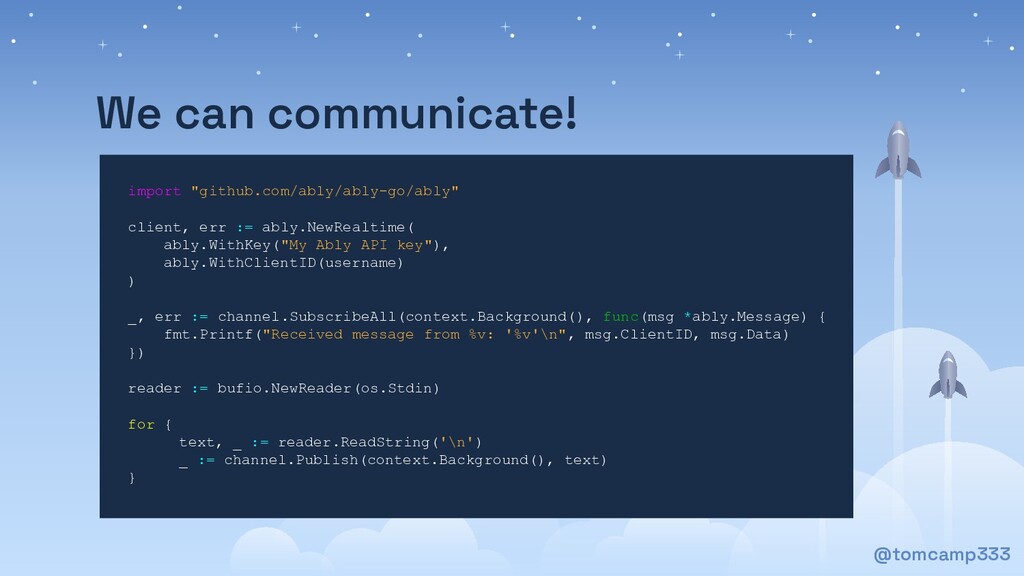

27. We can communicate! @tomcamp333 import "github.com/ably/ably-go/ably" client, err := ably.NewRealtime( ably.WithKey("My Ably API key"), ably.WithClientID(username) ) _, err := channel.SubscribeAll(context.Background(), func(msg *ably.Message) { fmt.Printf("Received message from %v: '%v'\n", msg.ClientID, msg.Data) }) reader := bufio.NewReader(os.Stdin) for { text, _ := reader.ReadString('\n') _ := channel.Publish(context.Background(), text) }

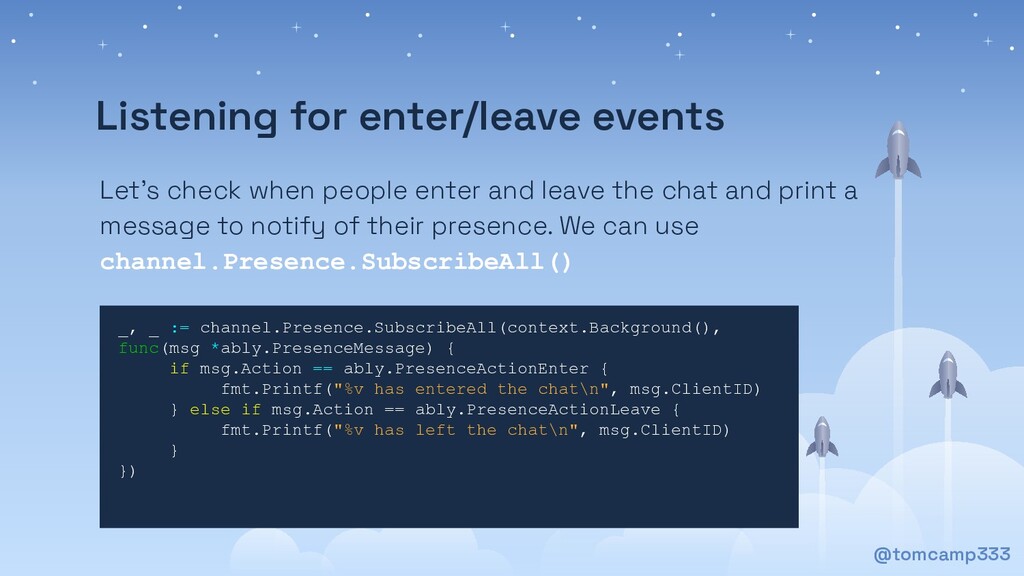

28. Listening for enter/leave events Let’s check when people enter and leave the chat and print a message to notify of their presence. We can use channel.Presence.SubscribeAll() @tomcamp333 _, _ := channel.Presence.SubscribeAll(context.Background(), func(msg *ably.PresenceMessage) { if msg.Action == ably.PresenceActionEnter { fmt.Printf("%v has entered the chat\n", msg.ClientID) } else if msg.Action == ably.PresenceActionLeave { fmt.Printf("%v has left the chat\n", msg.ClientID) } })

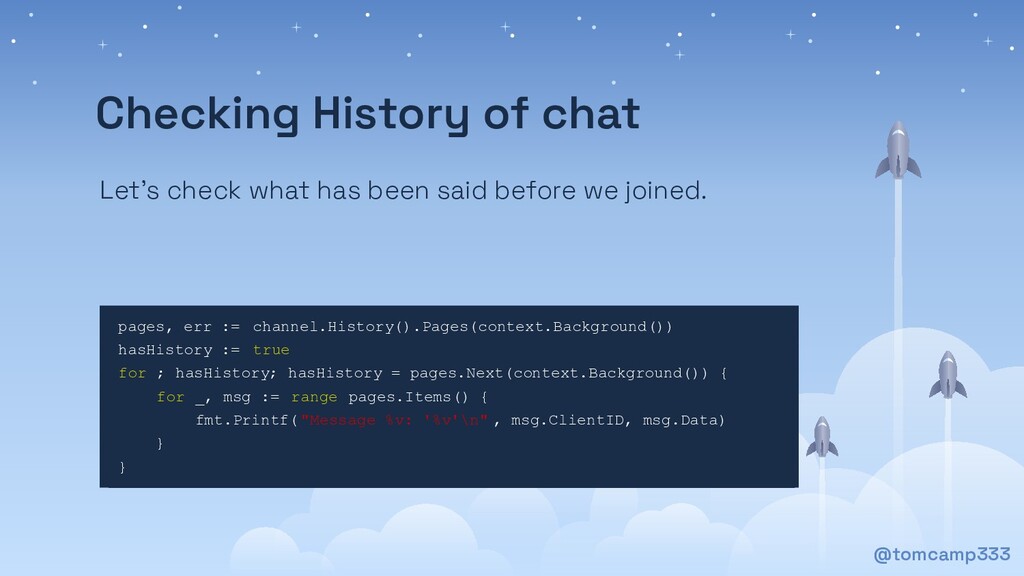

29. Checking History of chat Let’s check what has been said before we joined. @tomcamp333 pages, err := channel.History().Pages(context.Background()) hasHistory := true for ; hasHistory; hasHistory = pages.Next(context.Background()) { for _, msg := range pages.Items() { fmt.Printf( "Message %v: '%v'\n" , msg.ClientID, msg.Data) } }

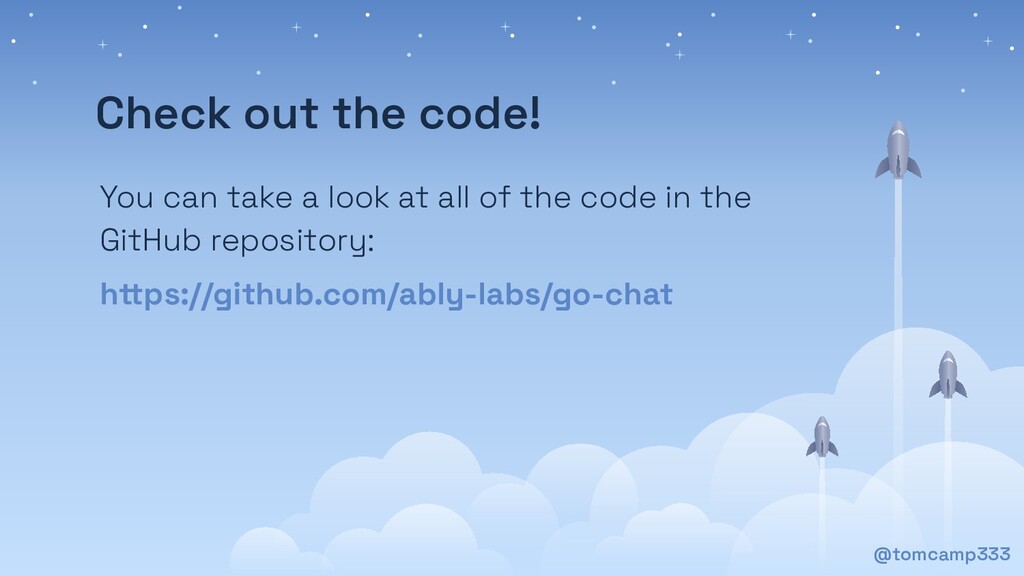

30. Check out the code! You can take a look at all of the code in the GitHub repository: https://github.com/ably-labs/go-chat @tomcamp333

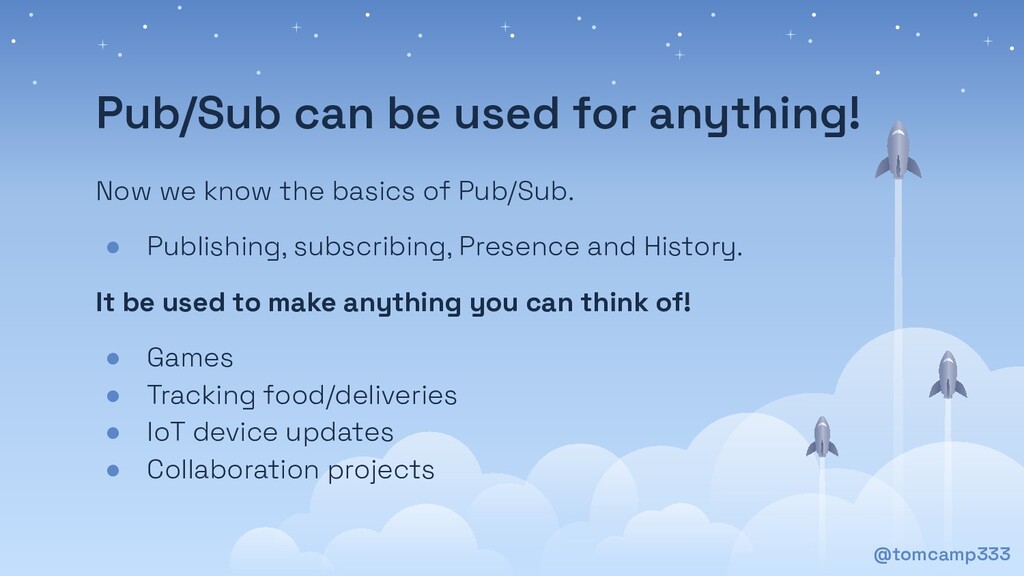

31. Pub/Sub can be used for anything! Now we know the basics of Pub/Sub. • Publishing, subscribing, Presence and History. It be used to make anything you can think of! • Games • Tracking food/deliveries • IoT device updates • Collaboration projects @tomcamp333
32. h ps://roshambo.ably.dev/game/1 The rules • Rock beats paper • Paper beats scissors • Scissors beats rock GitHub h ps://github.com/ably-labs/ably-rock-paper-scissors Let’s play a game!

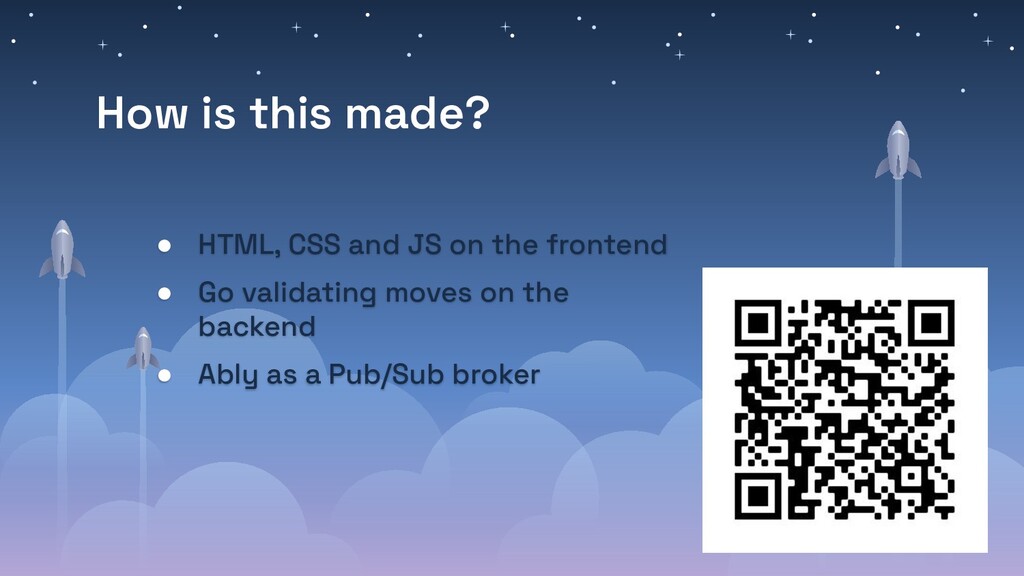

33. • HTML, CSS and JS on the frontend • Go validating moves on the backend • Ably as a Pub/Sub broker How is this made?
34. Ably is running a hackathon in the lounge! Top prize: AirPods Pro Theme winners: £100 Amazon Make your own!
35. ably.com/careers Ably is hiring!
36. Thank you for listening! Any questions? You can find me at: @tomcamp333 @ablyrealtime @tomcamp333
