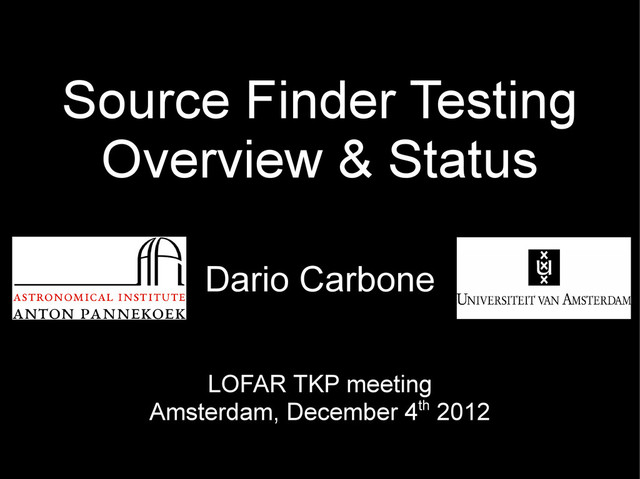

  1. LOFAR TKP meeting
    Amsterdam, December 4th 2012
    Source Finder Testing
    Overview & Status
    Dario Carbone

    View Slide

  2. LOFAR Source Finders WG
    Lead by Chiara Ferrari
    R. Breton, D. Carbone, P. Carroll, A. Dabbech, H. Garsden, A. van der Horst, A.
    Mints, R. Paladino, D. Rafferty, A. Rowlinson, A. Shulevski, J. Swinbank, S. van
    Velzen.
    http://www.lofar.org/wiki/doku.php?id=commissioning:source_finders

    View Slide

  3. LOFAR Source Finders WG
    Lead by Chiara Ferrari
    R. Breton, D. Carbone, P. Carroll, A. Dabbech, H. Garsden, A. van der Horst, A.
    Mints, R. Paladino, D. Rafferty, A. Rowlinson, A. Shulevski, J. Swinbank, S. van
    Velzen.
    http://www.lofar.org/wiki/doku.php?id=commissioning:source_finders
    Main aims

    Identify the best settings for automatically running source finders in
    LOFAR/MSSS/TRAP pipelines

    Report bugs and needs to developers and provide support to LOFAR
    users

    LOFAR representative in the international radio source finding
    discussion

    View Slide

  4. Work done & to be done
    DONE

    Tests on real LOFAR data

    Presence of both testers and developers

    Finding & fixing bugs

    Evaluate the performance of the SF tools

    View Slide

  5. Work done & to be done
    DONE

    Tests on real LOFAR data

    Presence of both testers and developers

    Finding & fixing bugs

    Evaluate the performance of the SF tools
    TO BE DONE

    Test SF tools on reliable simulated LOFAR maps

    Participate to the international campaign on SF by
    Hancock et al.

    View Slide

  6. Tests & users assistance
    WENSS map by R. Pizzo

    View Slide

  7. Tests & users assistance
    Test and development by D. Rafferty and C. Ferrari

    View Slide

  8. Tests & users assistance
    LOFAR map of GRS1915 by D. Carbone
    Source extraction by D. Rafferty

    View Slide

  9. Systematic position errors

    Very important for the transient pipeline

    Source could not to be associated

    Tests on 70 images of 10 fields, with a pixel
    size of 45 arcsec.

    View Slide

  10. Systematic position errors


    PyBDSM loses 13.3% PySE 3.4%
    R
    DR
    = 5.68
    Credits to A. Van der Horst

    View Slide

  11. Systematic position errors

    Systematic position error of 20 arcsec

    PyBDSM loses 2.0% PySE 1.0%
    Credits to A. Van der Horst

    View Slide

  12. Flux errors
    Circles: objects both in the VLSS and the
    LOFAR catalogs (extracted with PyBDSM
    and/or PySE)
    Differences :
    < 40%
    < 70%
    < 80%
    > 80%
    Credits to C. Ferrari

    View Slide

  13. Statistics on source detection

    View Slide

  14. Diagnostic of non detection

    View Slide

  15. Questions at SF WG meeting
    i. Which source finders should we keep testing?
    We should focus our tests on PySE and PyBDSM.

    View Slide

  16. Questions at SF WG meeting
    ii. Which are the parameters that are important to set for optimizing source finders?
    Detection threshold, Analysis threshold, False Detection Rate, RMS box and Adaptive
    RMS box, Margins or radius, Beam infos, De-blending and Extended sources detection
    i. Which source finders should we keep testing?
    We should focus our tests on PySE and PyBDSM.

    View Slide

  17. Questions at SF WG meeting
    iii. Which corrections should we introduce in theoretical error bars given by the source
    finder tools?
    The position errors are underestimated by PyBDSM and systematics errors have to be
    introduced. Better constrains will be put using simulated maps.
    ii. Which are the parameters that are important to set for optimizing source finders?
    Detection threshold, Analysis threshold, False Detection Rate, RMS box and Adaptive
    RMS box, Margins or radius, Beam infos, De-blending and Extended sources detection
    i. Which source finders should we keep testing?
    We should focus our tests on PySE and PyBDSM.

    View Slide

  18. Questions at SF WG meeting
    iv. Which source association tools and strategy should we use in order to combine
    different catalogs?
    B. Scheers's method: the De Ruiter radius, taking into account position errors and thus
    preventing spurious source associations.
    CAVEAT: without appropriate systematic position errors very bright sources could be NOT
    associated.

    View Slide

  19. Questions at SF WG meeting
    iv. Which source association tools and strategy should we use in order to combine
    different catalogs?
    B. Scheers's method: the De Ruiter radius, taking into account position errors and thus
    preventing spurious source associations.
    CAVEAT: without appropriate systematic position errors very bright sources could be NOT
    associated.
    v. Which source extraction and association strategy should we use for multi-band LOFAR
    catalogs?
    MSSS scripts and spectral module of PyBDSM being tested to make multi-band LOFAR
    catalogs. Could be implemented in PYSE if desirable.

    View Slide

  20. Simulated maps

    Procedure:
    – input Gaussian noise in the visibilities of a true
    LOFAR MS to have the directional dependent gains
    already in place.
    – input simulated sources in the visibilities, centered
    on the pointing center of the original LOFAR MS,
    keeping the instrument table untouched. The
    simulated source must be in BBS format.
    – calibrate and image the obtained MS as a normal
    observation.

    View Slide

  21. Simulated maps
    Simulated LOFAR map by A. Rowlinson

    View Slide

  22. Simulated maps
    Simulated LOFAR map by A. Rowlinson
    A very bright source has been added

    View Slide

  23. Conclusion
    Main aims of LOFAR SF WG:

    Identify the best settings for automatically running source finders

    Report bugs to developers and provide support to LOFAR users
    Work done:

    Tests on real LOFAR data

    Evaluate the performance of the SF tools
    Work to be done:

    Test SF tools on reliable simulated LOFAR maps

    View Slide

  24. SF WG wikipage
    http://www.lofar.org/wiki/doku.php?id=commissioning:source_finders

    View Slide
