1. MVVM ARCHITECTURE ON ANDROID MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

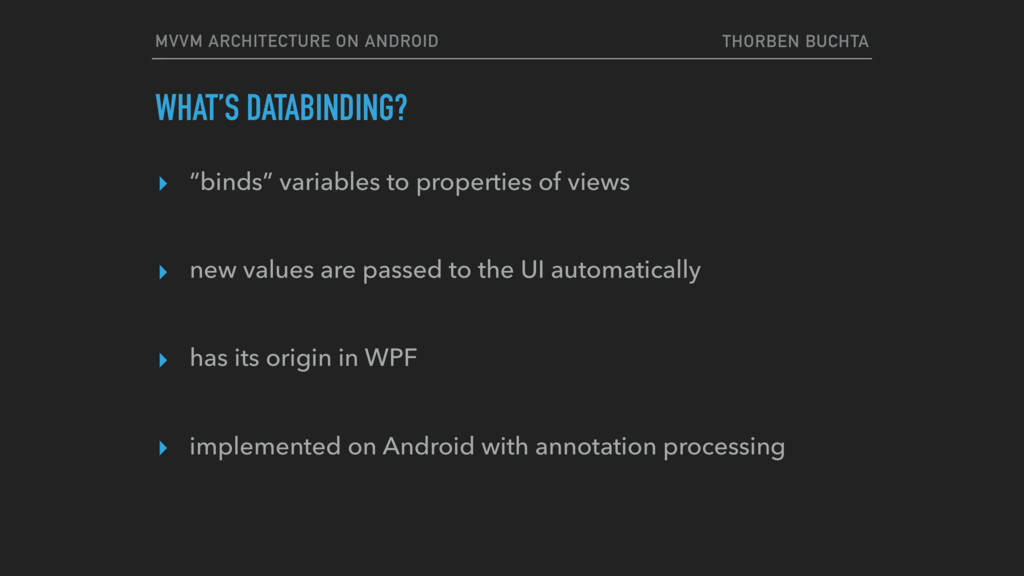

2. MVVM ARCHITECTURE ON ANDROID ▸ “binds” variables to properties of views ▸ new values are passed to the UI automatically ▸ has its origin in WPF ▸ implemented on Android with annotation processing WHAT’S DATABINDING? THORBEN BUCHTA

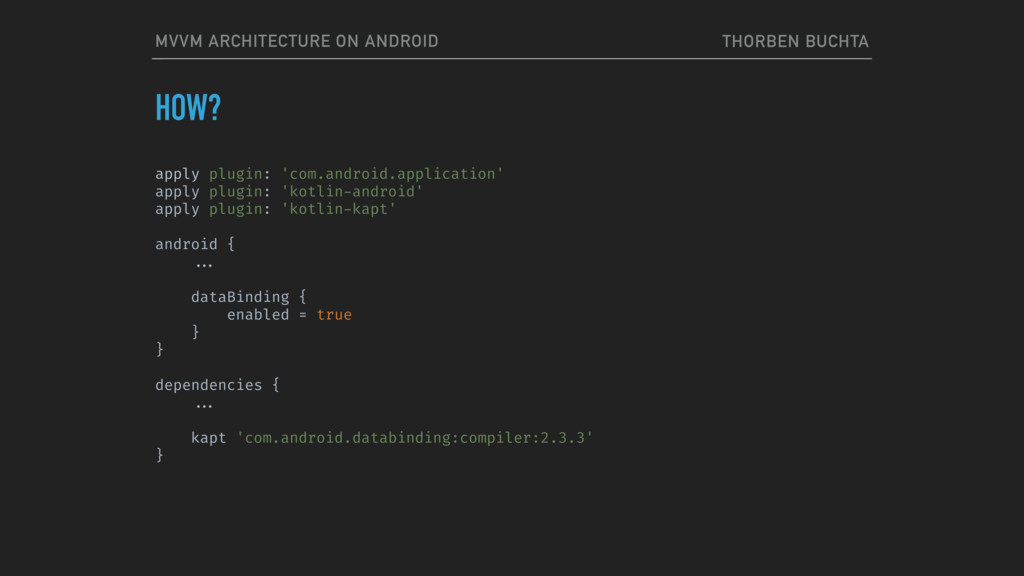

3. HOW? apply plugin: 'com.android.application'
 apply plugin: 'kotlin-android'
 apply plugin: 'kotlin-kapt'

 android { ""...
 dataBinding {
 enabled = true
 }
 }

 dependencies { ""...
 kapt 'com.android.databinding:compiler:2.3.3'
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

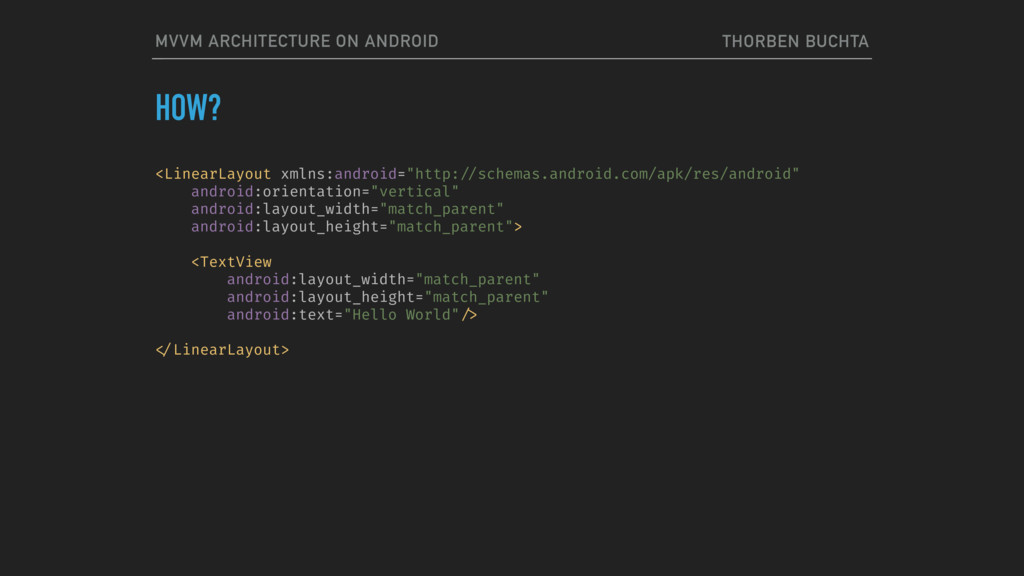

4. HOW? <LinearLayout xmlns:android="http:"//schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="match_parent"
 android:layout_height="match_parent">

 <TextView
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:text="Hello World""/>

 "</LinearLayout> MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

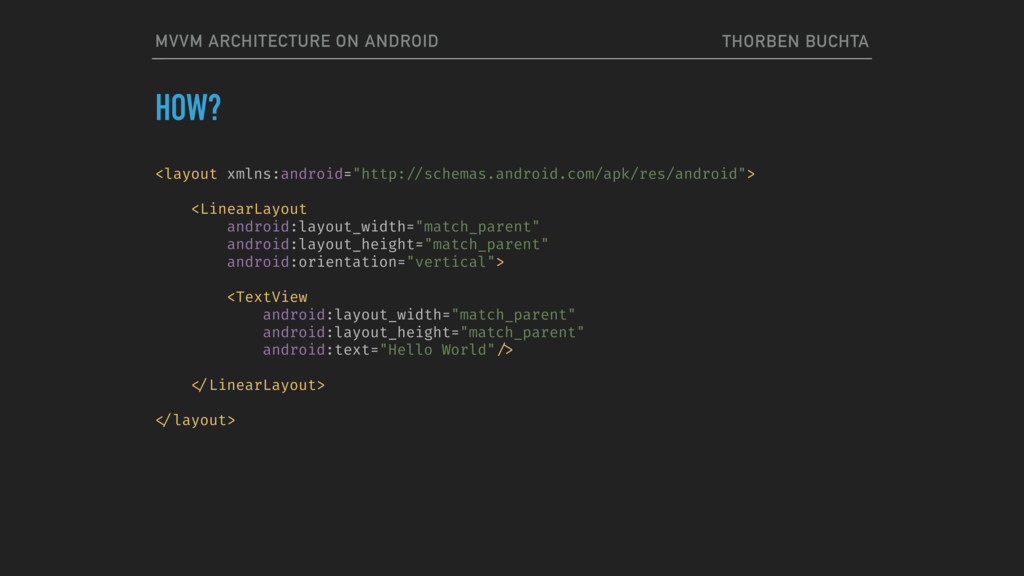

5. HOW? <layout xmlns:android="http:"//schemas.android.com/apk/res/android">

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

 <TextView
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:text="Hello World""/>

 "</LinearLayout>

 "</layout> MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

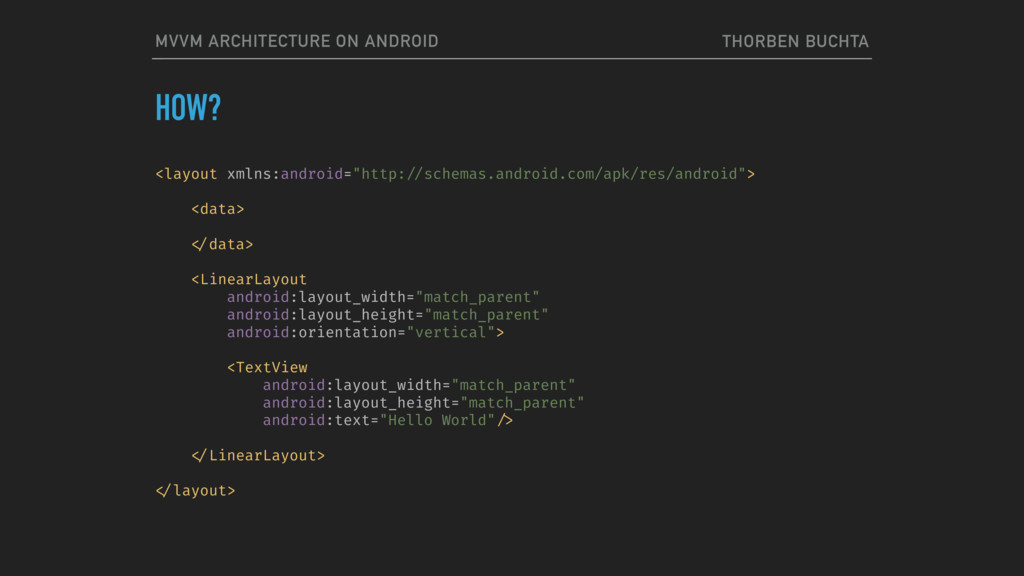

6. HOW? <layout xmlns:android="http:"//schemas.android.com/apk/res/android">
 <data>

 "</data>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

 <TextView
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:text="Hello World""/>

 "</LinearLayout>

 "</layout> MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

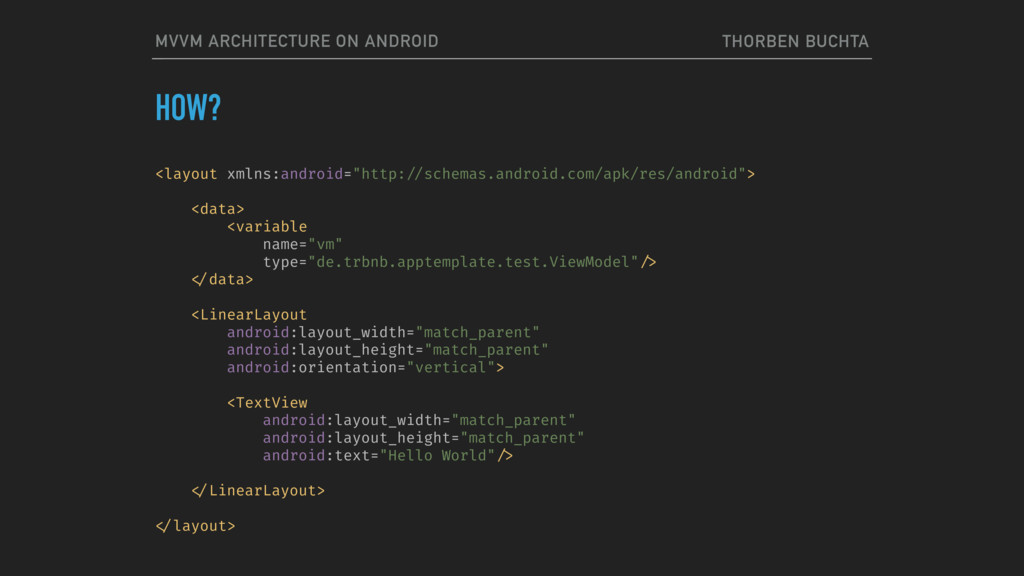

7. HOW? <layout xmlns:android="http:"//schemas.android.com/apk/res/android">
 <data>
 <variable
 name="vm"
 type="de.trbnb.apptemplate.test.ViewModel""/>
 "</data>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

 <TextView
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:text="Hello World""/>

 "</LinearLayout>

 "</layout> MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA
8. HOW? <layout xmlns:android="http:"//schemas.android.com/apk/res/android">

 <data>
 <variable
 name="vm"
 type="de.trbnb.apptemplate.test.ViewModel""/>
 "</data>

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

 <TextView
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:text="@{vm.text}""/>

 "</LinearLayout>

 "</layout> MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

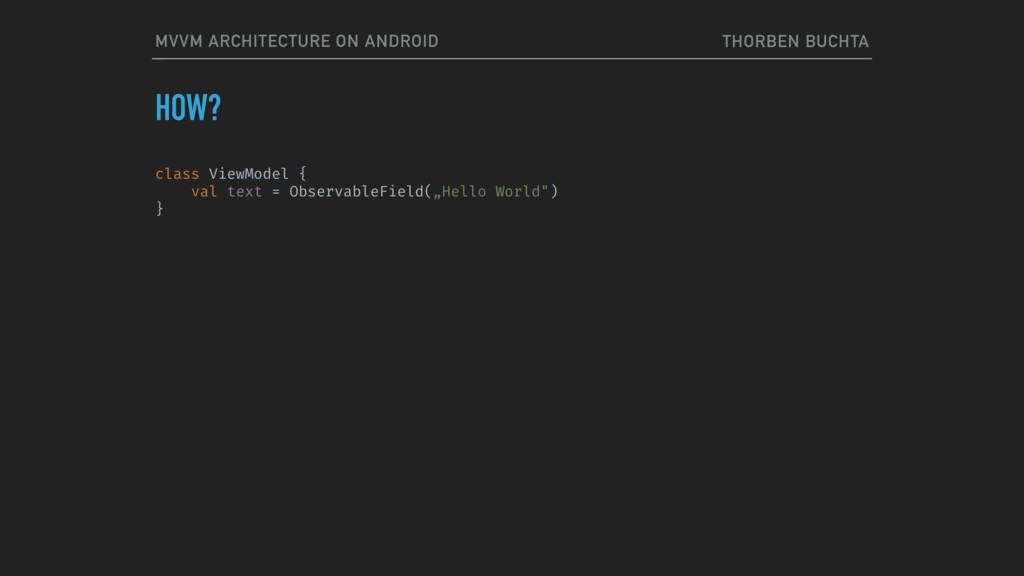

9. HOW? class ViewModel {
 val text = ObservableField(„Hello World")
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

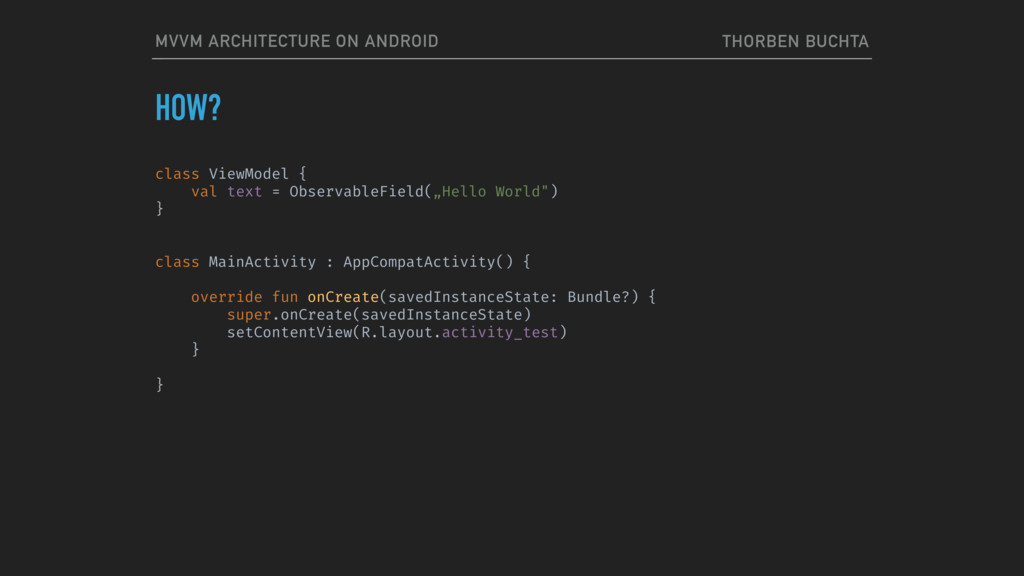

10. HOW? class ViewModel {
 val text = ObservableField(„Hello World")
 } class MainActivity : AppCompatActivity() {

 override fun onCreate(savedInstanceState: Bundle?) {
 super.onCreate(savedInstanceState)
 setContentView(R.layout.activity_test)
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

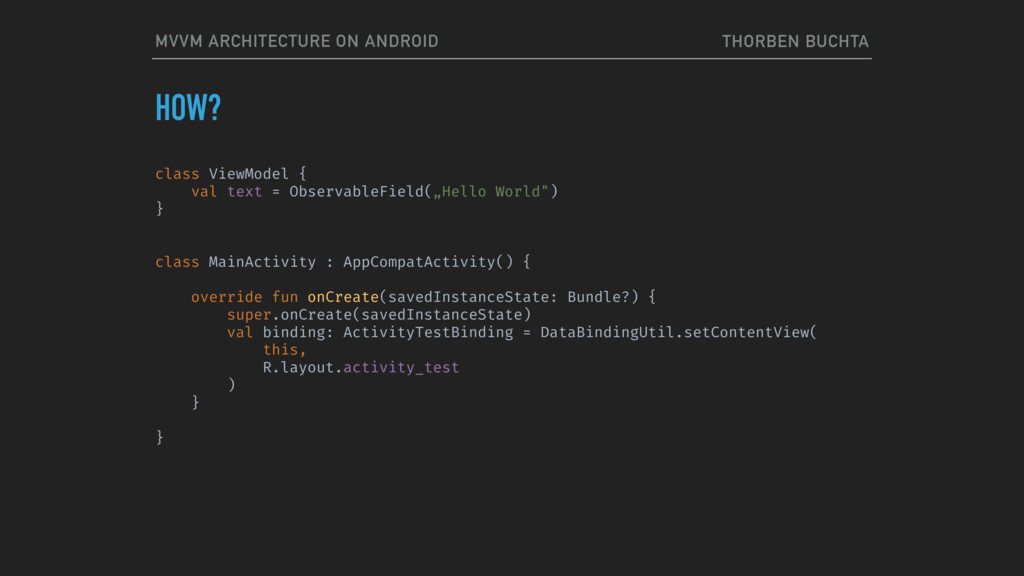

11. HOW? class ViewModel {
 val text = ObservableField(„Hello World")
 } class MainActivity : AppCompatActivity() {

 override fun onCreate(savedInstanceState: Bundle?) {
 super.onCreate(savedInstanceState)
 val binding: ActivityTestBinding = DataBindingUtil.setContentView( this, R.layout.activity_test )
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

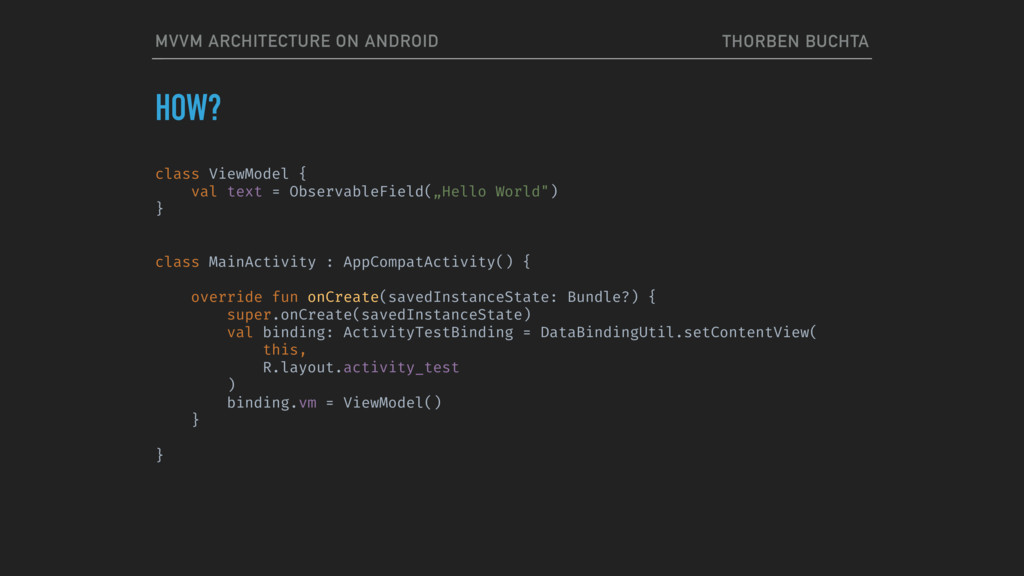

12. HOW? class ViewModel {
 val text = ObservableField(„Hello World")
 } class MainActivity : AppCompatActivity() {

 override fun onCreate(savedInstanceState: Bundle?) {
 super.onCreate(savedInstanceState)
 val binding: ActivityTestBinding = DataBindingUtil.setContentView( this, R.layout.activity_test )
 binding.vm = ViewModel()
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

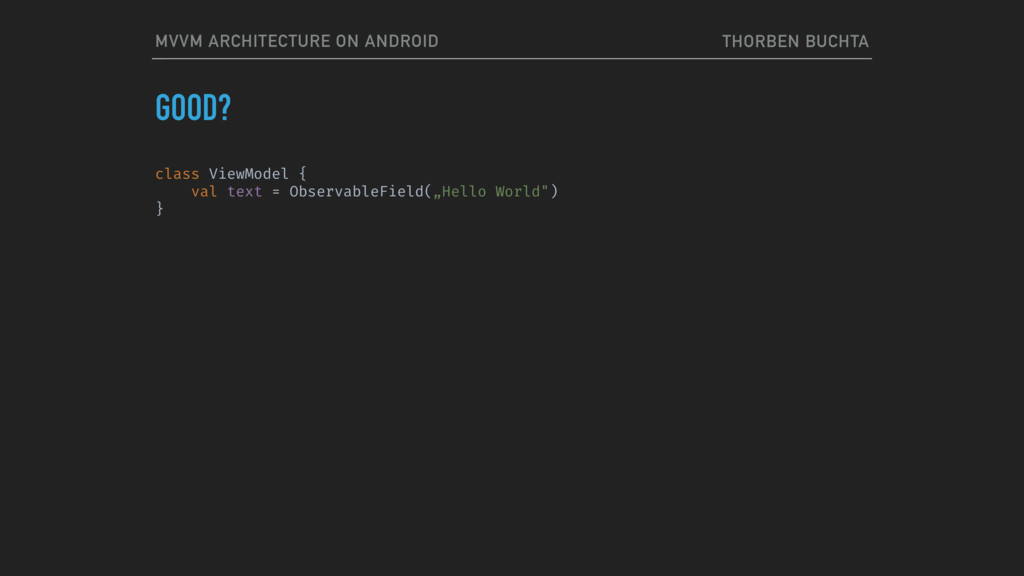

13. GOOD? class ViewModel {
 val text = ObservableField(„Hello World")
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

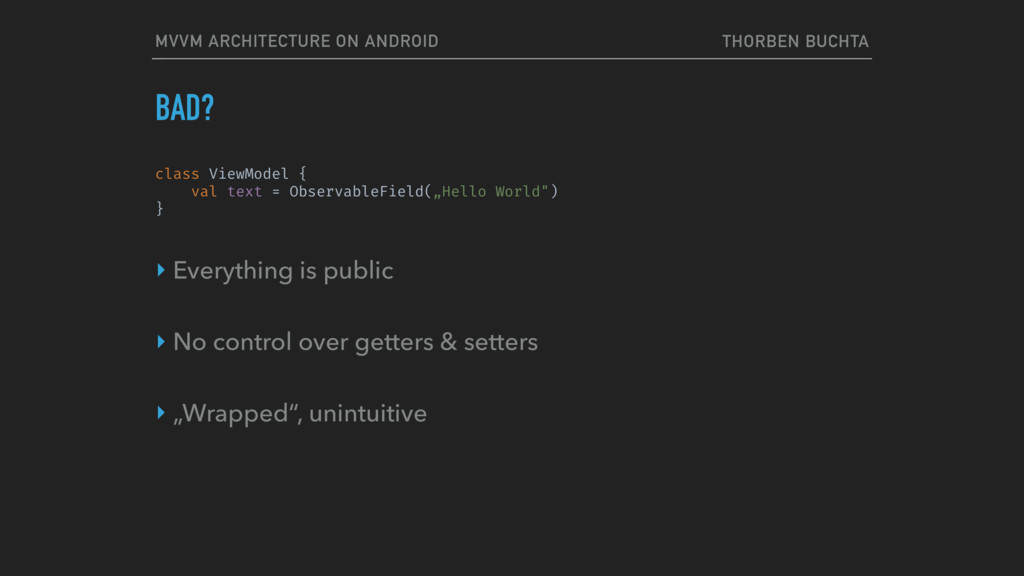

14. BAD? class ViewModel {
 val text = ObservableField(„Hello World")
 } ‣ Everything is public ‣ No control over getters & setters ‣ „Wrapped“, unintuitive MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

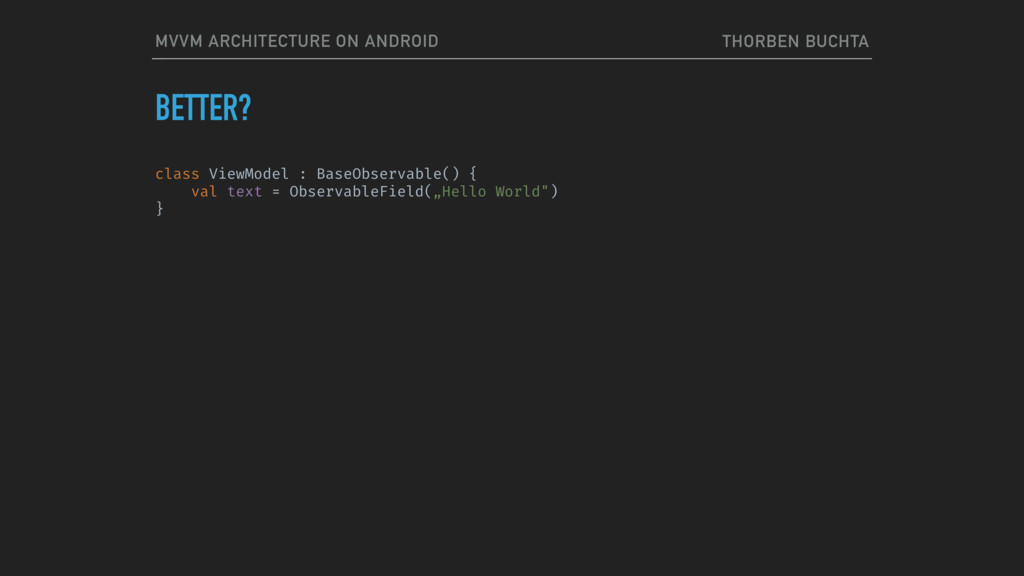

15. BETTER? class ViewModel : BaseObservable() {
 val text = ObservableField(„Hello World")
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

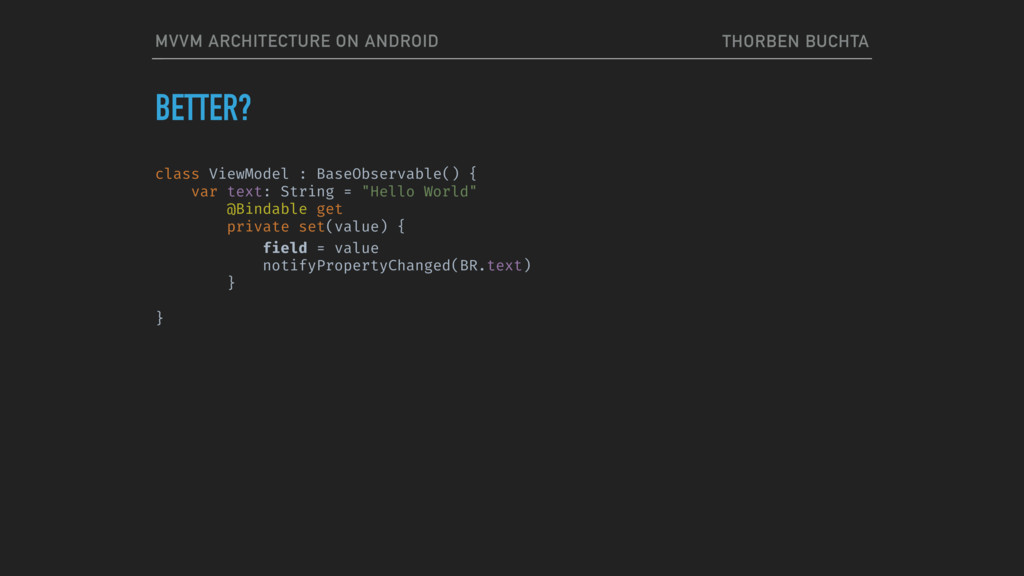

16. BETTER? class ViewModel : BaseObservable() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

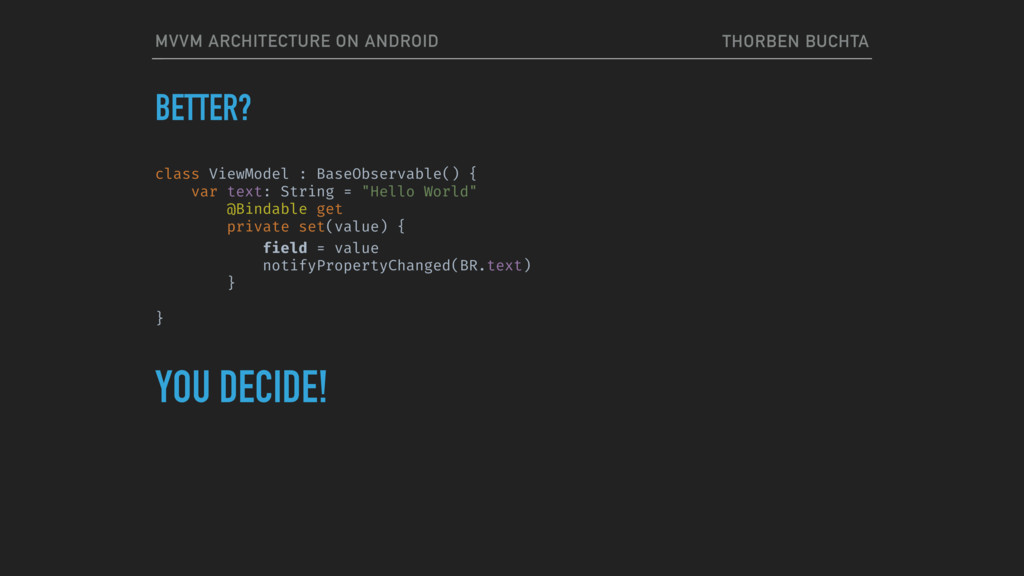

17. BETTER? class ViewModel : BaseObservable() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } YOU DECIDE! MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

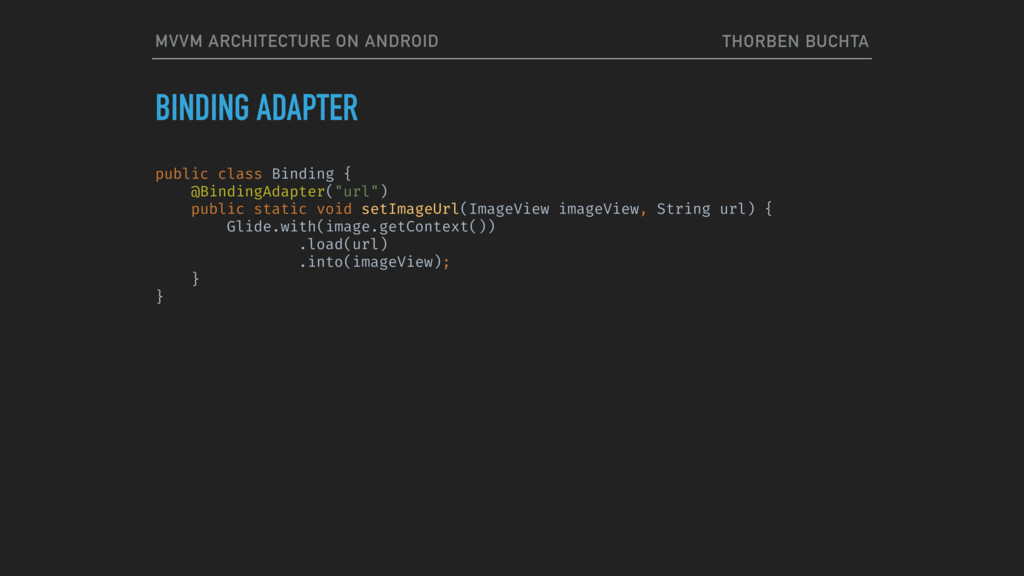

18. BINDING ADAPTER public class Binding {
 @BindingAdapter("url")
 public static void setImageUrl(ImageView imageView, String url) {
 Glide.with(image.getContext())
 .load(url)
 .into(imageView);
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

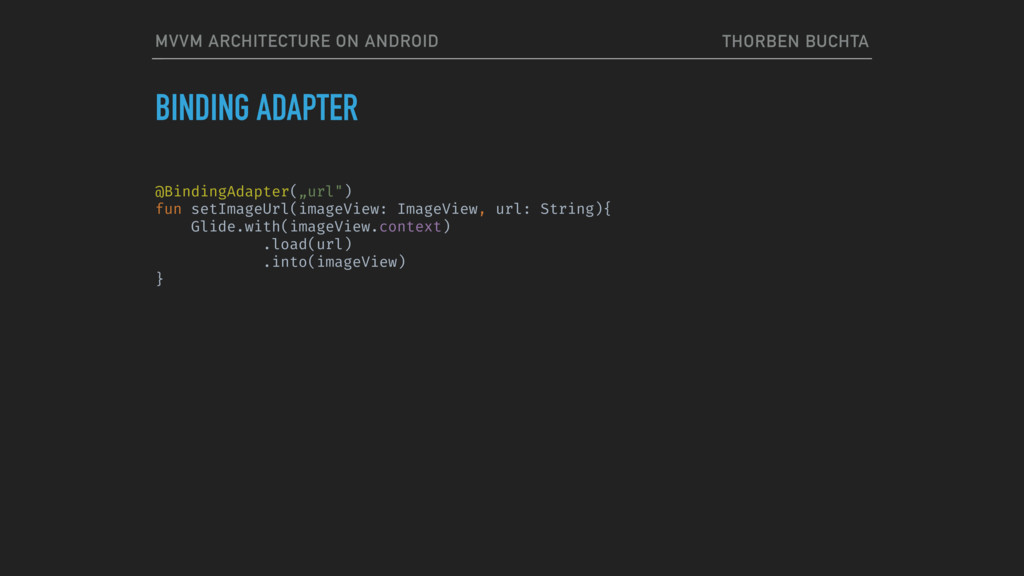

19. BINDING ADAPTER @BindingAdapter(„url")
 fun setImageUrl(imageView: ImageView, url: String){
 Glide.with(imageView.context)
 .load(url)
 .into(imageView)
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

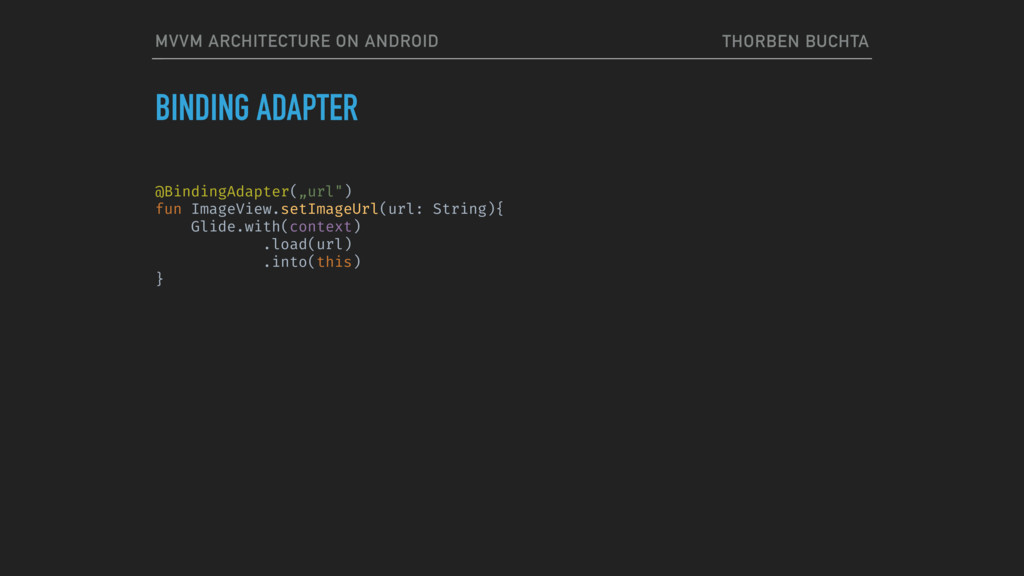

20. BINDING ADAPTER @BindingAdapter(„url")
 fun ImageView.setImageUrl(url: String){
 Glide.with(context)
 .load(url)
 .into(this)
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

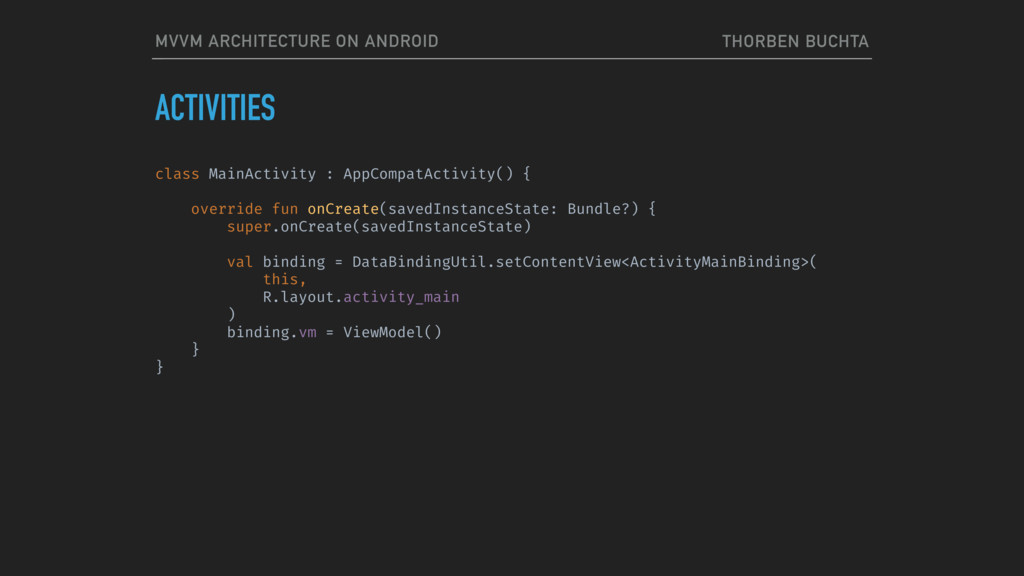

21. ACTIVITIES class MainActivity : AppCompatActivity() {

 override fun onCreate(savedInstanceState: Bundle?) {
 super.onCreate(savedInstanceState)
 val binding = DataBindingUtil.setContentView<ActivityMainBinding>( this, R.layout.activity_main )
 binding.vm = ViewModel()
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

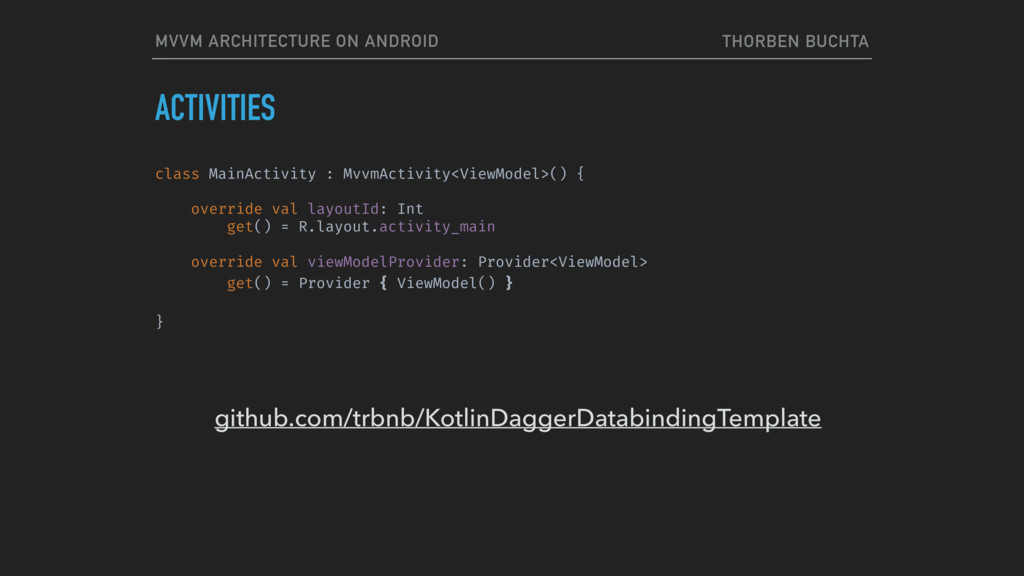

22. ACTIVITIES class MainActivity : MvvmActivity<ViewModel>() {

 override val layoutId: Int
 get() = R.layout.activity_main

 override val viewModelProvider: Provider<ViewModel>
 get() = Provider { ViewModel() }

 } github.com/trbnb/KotlinDaggerDatabindingTemplate MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

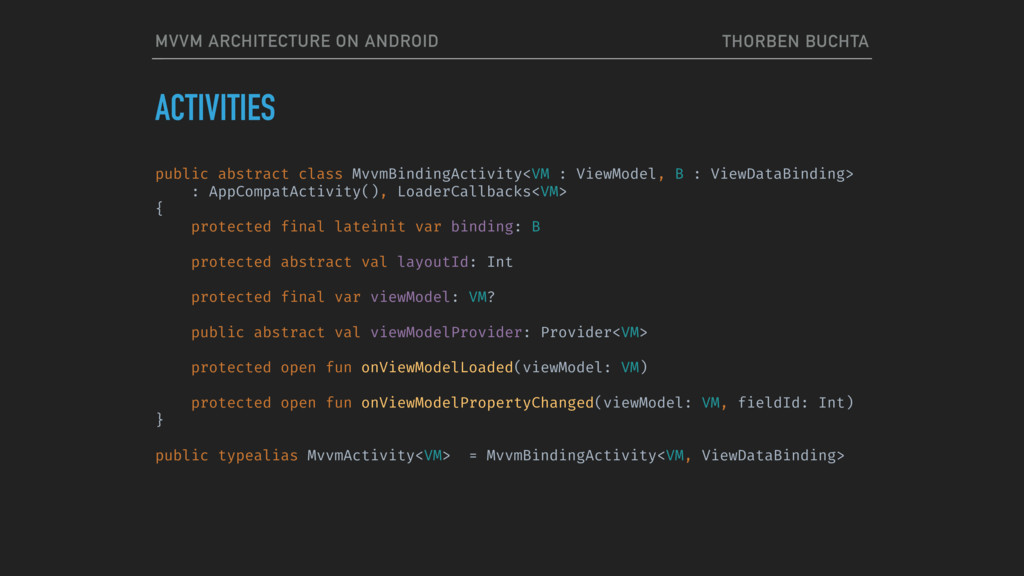

23. ACTIVITIES public abstract class MvvmBindingActivity<VM : ViewModel, B : ViewDataBinding> : AppCompatActivity(), LoaderCallbacks<VM> {
 protected final lateinit var binding: B

 protected abstract val layoutId: Int

 protected final var viewModel: VM?

 public abstract val viewModelProvider: Provider<VM>

 protected open fun onViewModelLoaded(viewModel: VM)

 protected open fun onViewModelPropertyChanged(viewModel: VM, fieldId: Int)
 } public typealias MvvmActivity<VM> = MvvmBindingActivity<VM, ViewDataBinding>
 MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

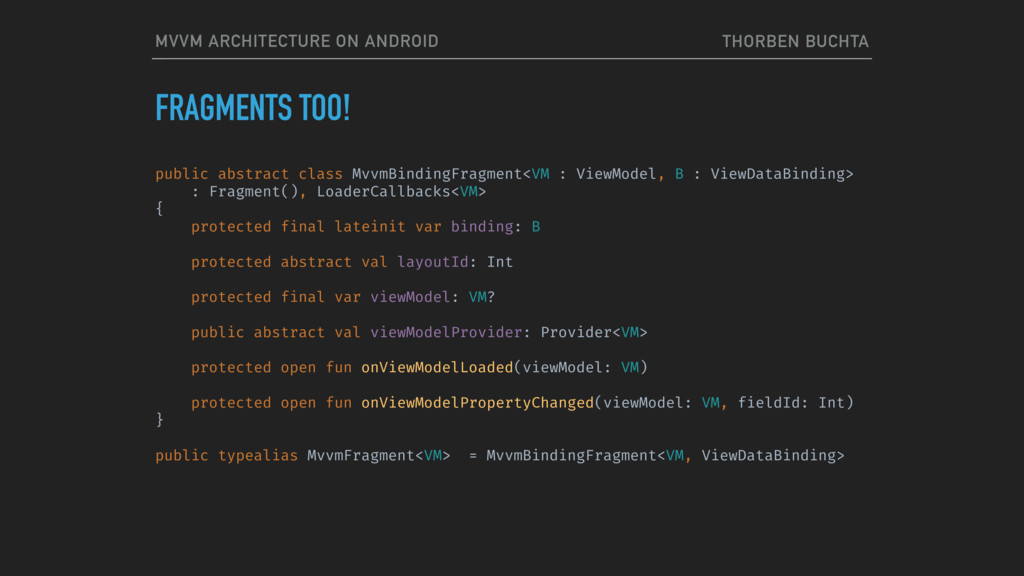

24. FRAGMENTS TOO! public abstract class MvvmBindingFragment<VM : ViewModel, B : ViewDataBinding> : Fragment(), LoaderCallbacks<VM> {
 protected final lateinit var binding: B

 protected abstract val layoutId: Int

 protected final var viewModel: VM?

 public abstract val viewModelProvider: Provider<VM>

 protected open fun onViewModelLoaded(viewModel: VM)

 protected open fun onViewModelPropertyChanged(viewModel: VM, fieldId: Int)
 } public typealias MvvmFragment<VM> = MvvmBindingFragment<VM, ViewDataBinding>
 MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

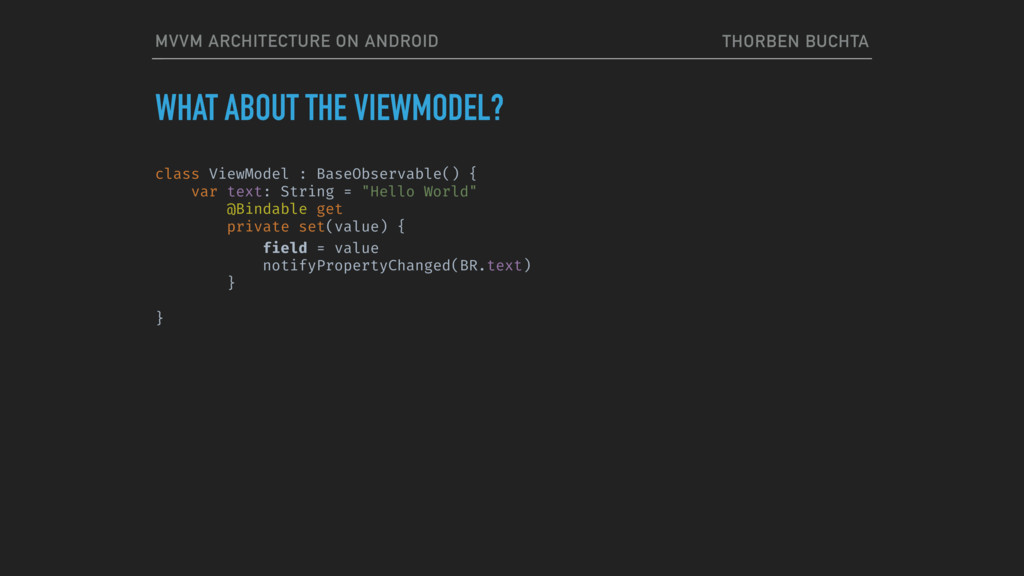

25. WHAT ABOUT THE VIEWMODEL? class ViewModel : BaseObservable() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

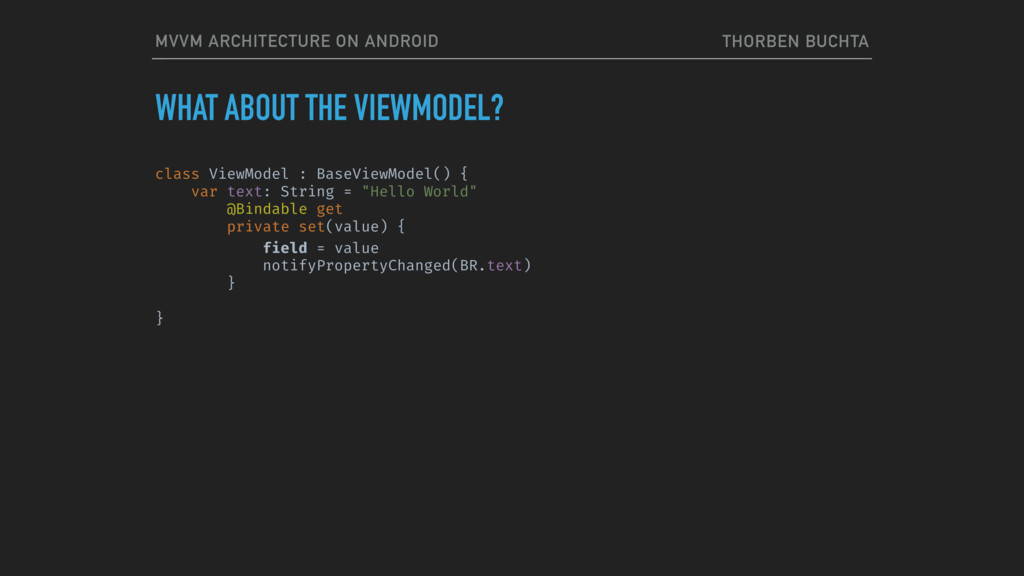

26. WHAT ABOUT THE VIEWMODEL? class ViewModel : BaseViewModel() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

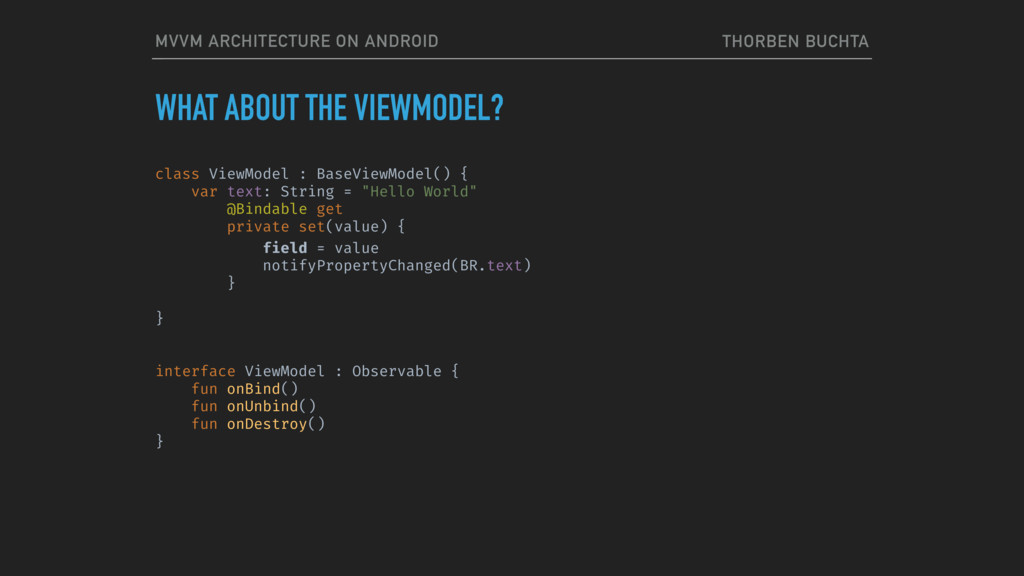

27. WHAT ABOUT THE VIEWMODEL? class ViewModel : BaseViewModel() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } interface ViewModel : Observable {
 fun onBind()
 fun onUnbind() fun onDestroy()
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

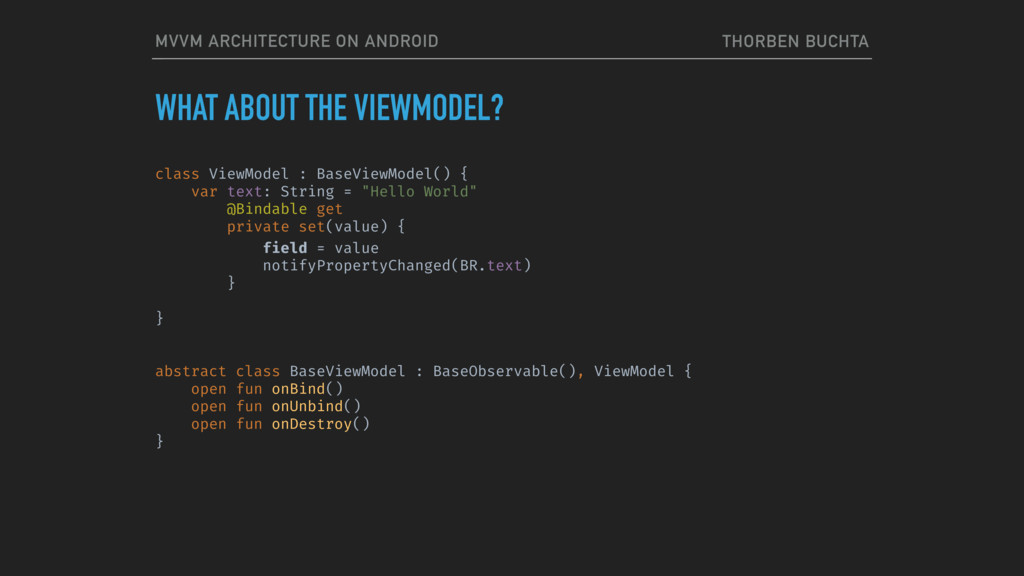

28. WHAT ABOUT THE VIEWMODEL? class ViewModel : BaseViewModel() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } abstract class BaseViewModel : BaseObservable(), ViewModel {
 open fun onBind()
 open fun onUnbind() open fun onDestroy()
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

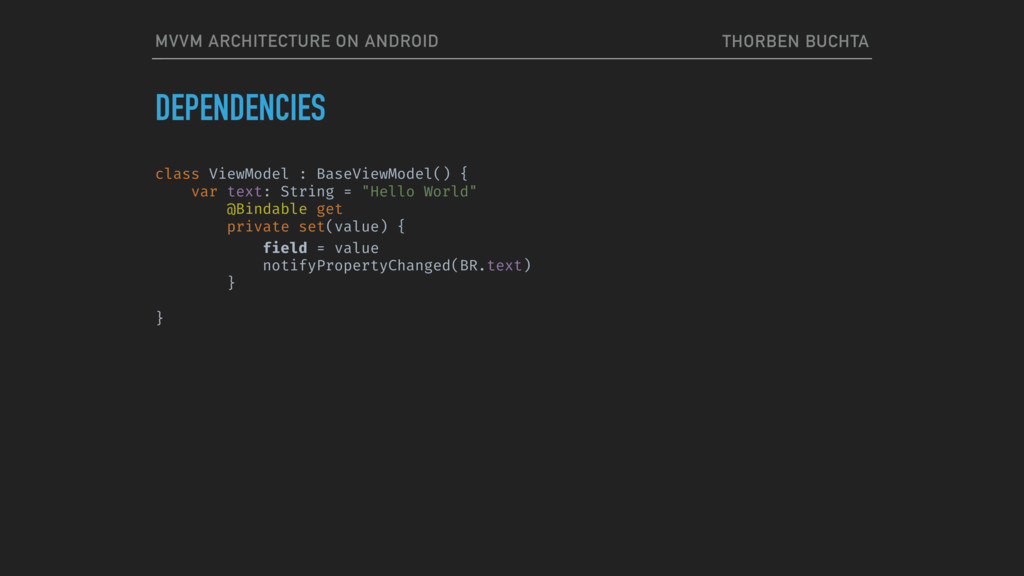

29. DEPENDENCIES class ViewModel : BaseViewModel() {
 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

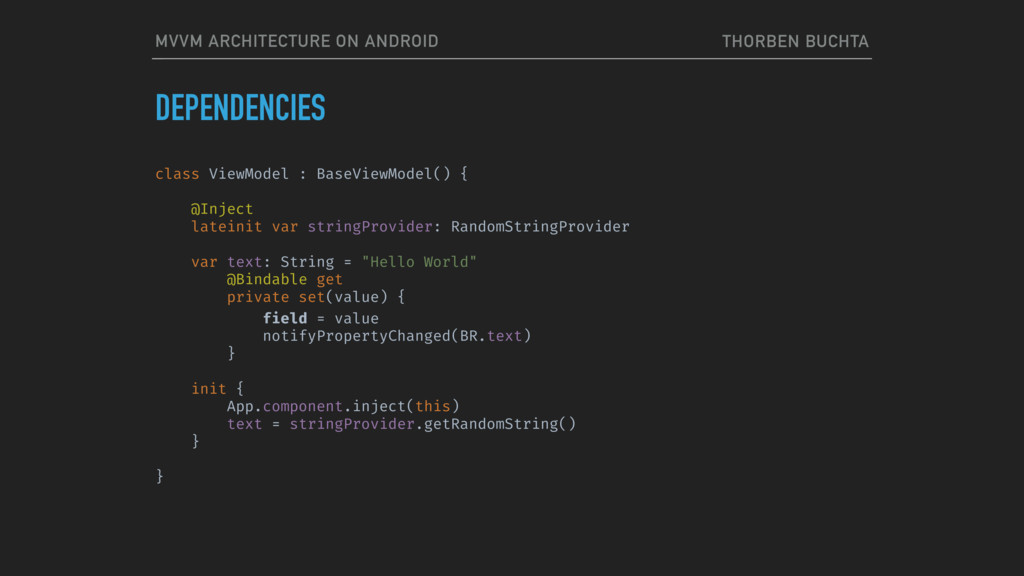

30. DEPENDENCIES class ViewModel : BaseViewModel() {

 @Inject
 lateinit var stringProvider: RandomStringProvider

 var text: String = "Hello World"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }

 init {
 App.component.inject(this)
 text = stringProvider.getRandomString()
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

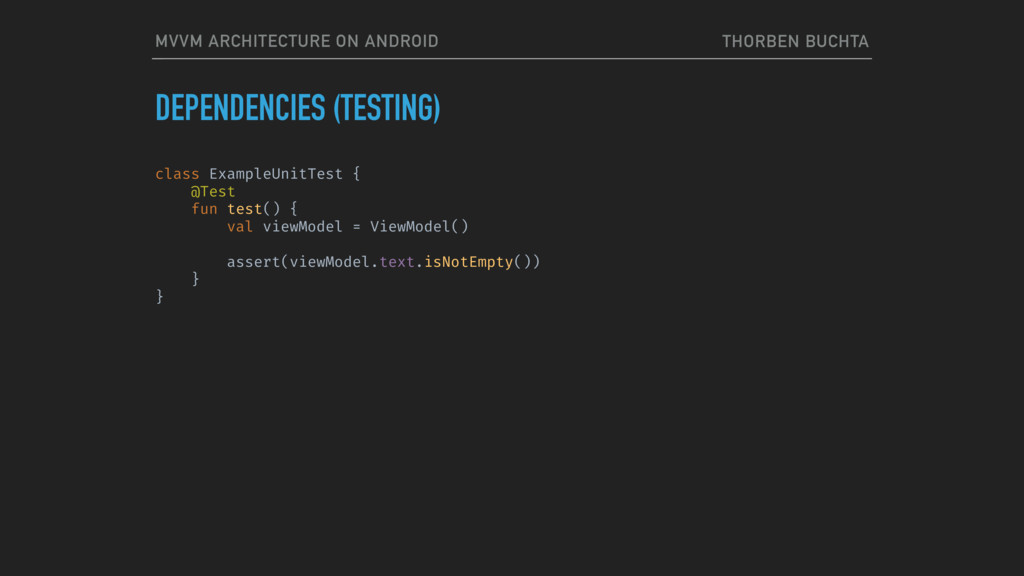

31. DEPENDENCIES (TESTING) class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel()

 assert(viewModel.text.isNotEmpty())
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

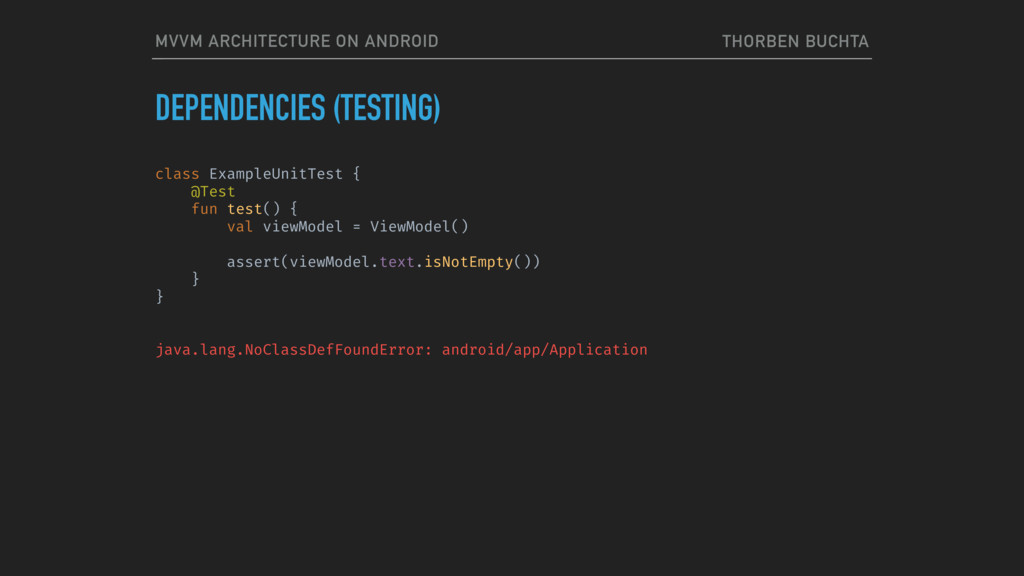

32. DEPENDENCIES (TESTING) class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel()

 assert(viewModel.text.isNotEmpty())
 }
 } java.lang.NoClassDefFoundError: android/app/Application MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

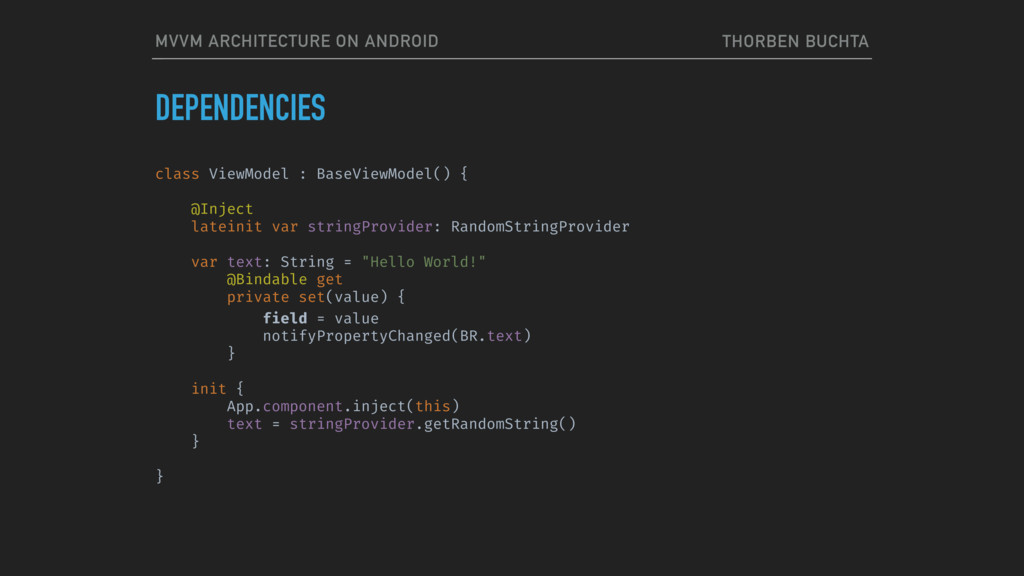

33. DEPENDENCIES class ViewModel : BaseViewModel() {

 @Inject
 lateinit var stringProvider: RandomStringProvider

 var text: String = "Hello World!"
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }

 init {
 App.component.inject(this)
 text = stringProvider.getRandomString()
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

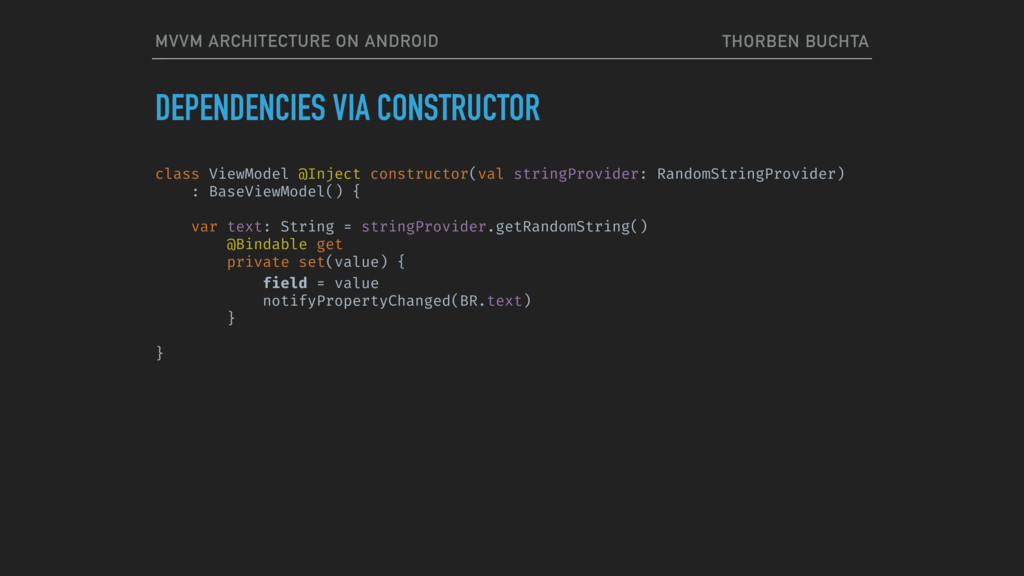

34. DEPENDENCIES VIA CONSTRUCTOR class ViewModel @Inject constructor(val stringProvider: RandomStringProvider) : BaseViewModel() {

 var text: String = stringProvider.getRandomString()
 @Bindable get
 private set(value) {
 field = value
 notifyPropertyChanged(BR.text)
 }

 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

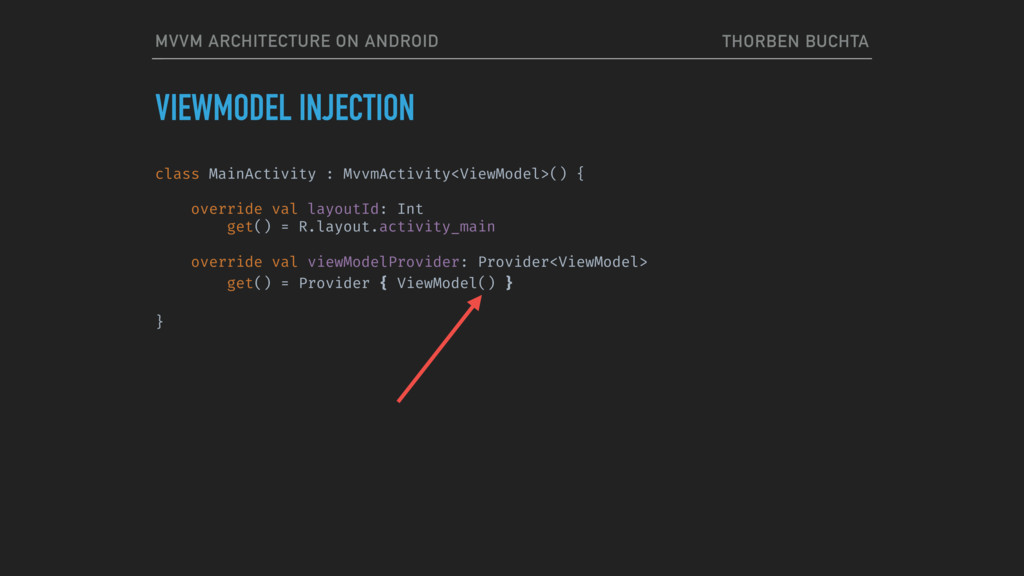

35. VIEWMODEL INJECTION class MainActivity : MvvmActivity<ViewModel>() {

 override val layoutId: Int
 get() = R.layout.activity_main

 override val viewModelProvider: Provider<ViewModel>
 get() = Provider { ViewModel() }

 }
 MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

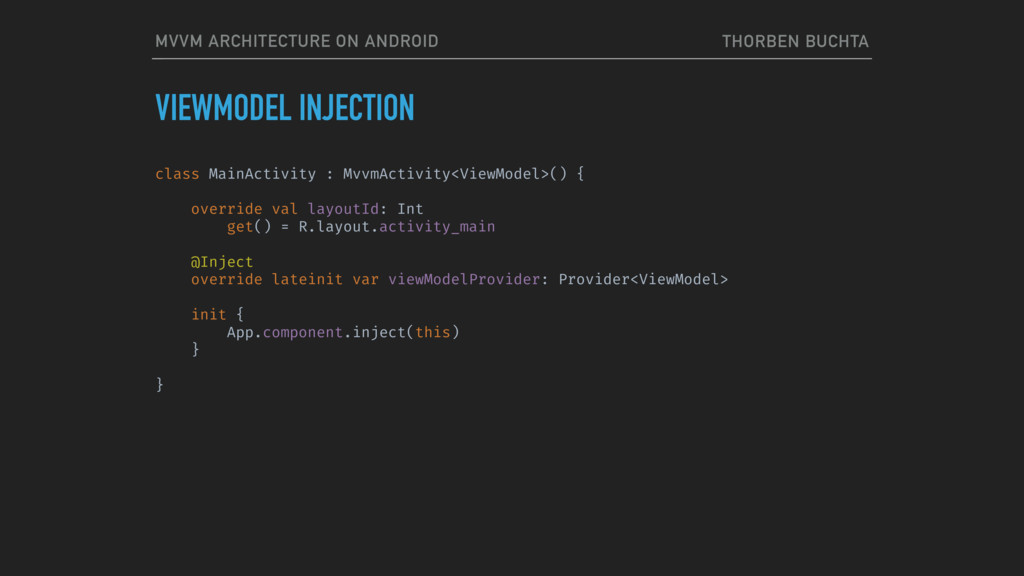

36. VIEWMODEL INJECTION class MainActivity : MvvmActivity<ViewModel>() {

 override val layoutId: Int
 get() = R.layout.activity_main

 @Inject
 override lateinit var viewModelProvider: Provider<ViewModel>

 init {
 App.component.inject(this)
 }

 }
 MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

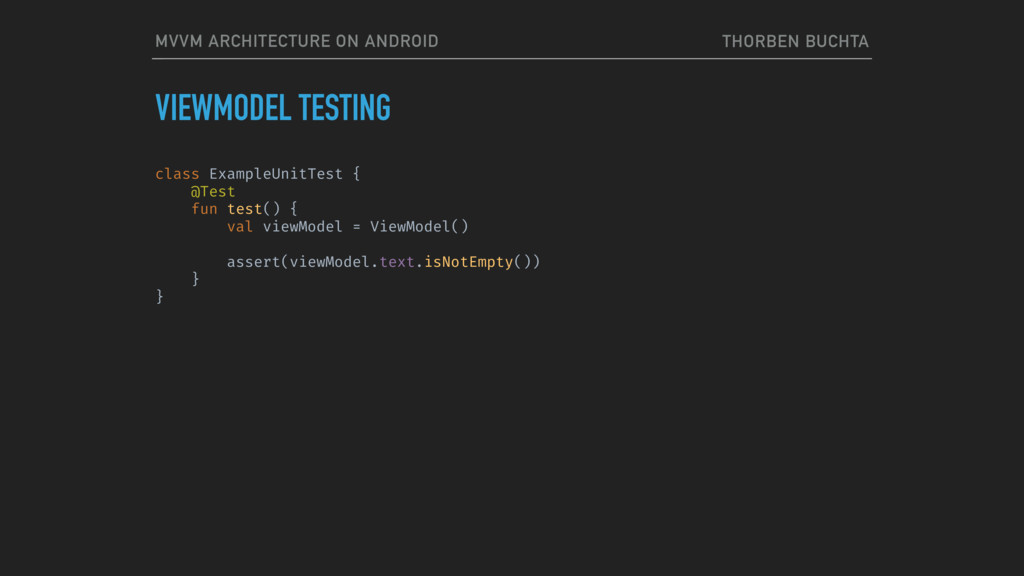

37. VIEWMODEL TESTING class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel()

 assert(viewModel.text.isNotEmpty())
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

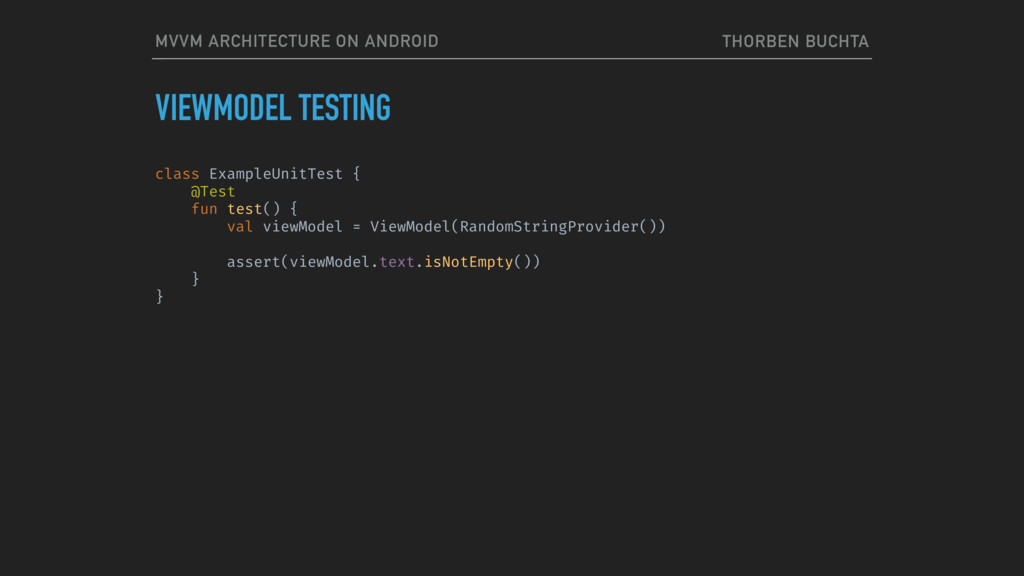

38. VIEWMODEL TESTING class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel(RandomStringProvider())

 assert(viewModel.text.isNotEmpty())
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

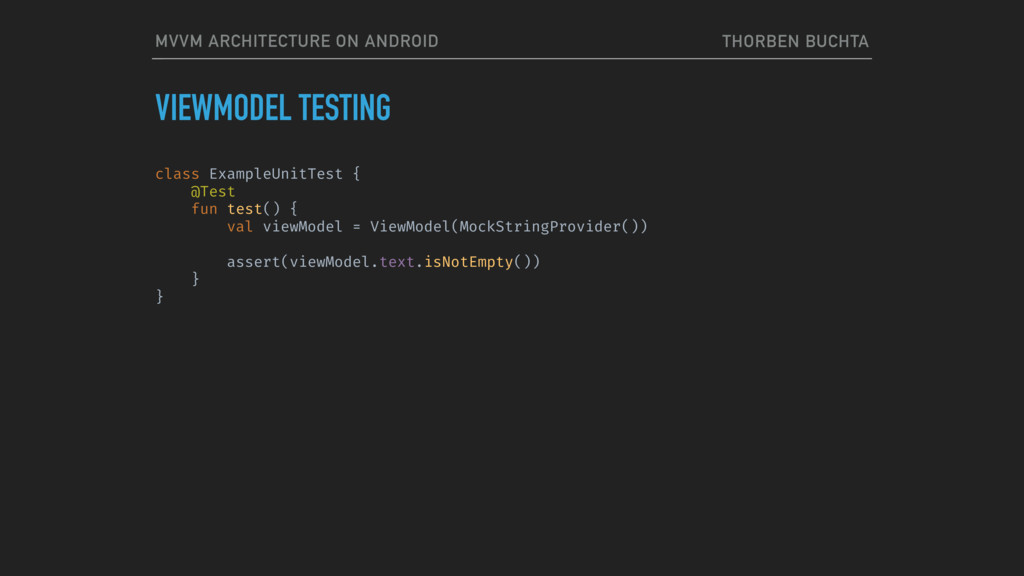

39. VIEWMODEL TESTING class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel(MockStringProvider())

 assert(viewModel.text.isNotEmpty())
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA

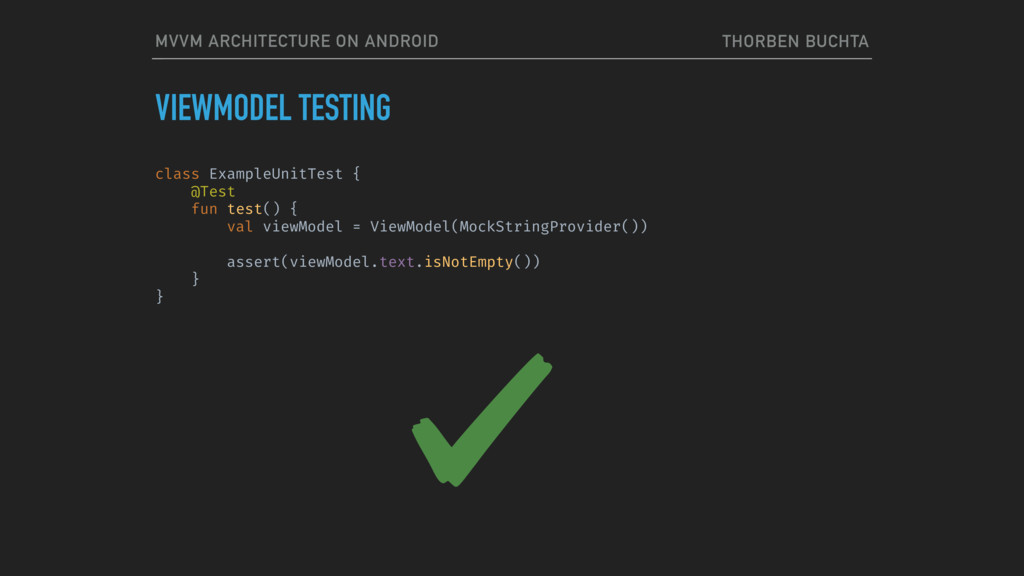

40. VIEWMODEL TESTING class ExampleUnitTest {
 @Test
 fun test() {
 val viewModel = ViewModel(MockStringProvider())

 assert(viewModel.text.isNotEmpty())
 }
 } MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA
41. THANKS FOR YOUR ATTENTION MVVM ARCHITECTURE ON ANDROID THORBEN BUCHTA
