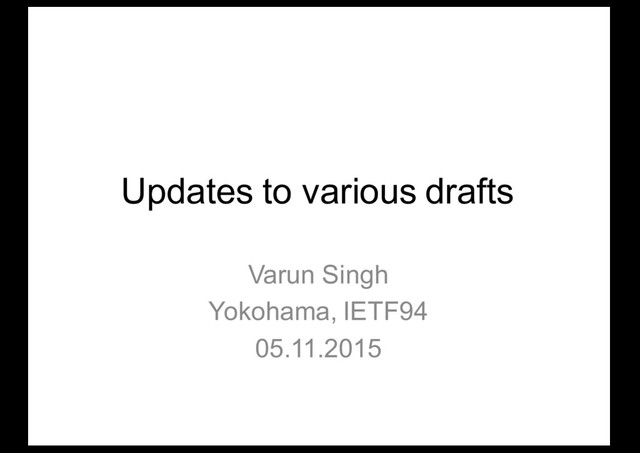

  1. Updates to various drafts
    Varun Singh
    Yokohama, IETF94
    05.11.2015

    View full-size slide

  2. RFC6958
    http://www.rfc-editor.org/errata_search.php?rfc=6958&eid=4424
    • Errata needs to be updated to say:
    – 12 bits in the packet format is correct and
    instead the text needs to fixed.
    • How do I update the errata?

    View full-size slide

  3. Unreported errata: RFC7509
    0 1 2 3 4
    0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | BT=33 | Reserved | Block length = 4 |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | SSRC of Source |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | begin_seq | end_seq |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | Post-repair loss count | Repaired loss count |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    Block length needs to be set to 3

    View full-size slide

  4. Independent burst-gap-discard
    • RFC7003 needed to be sent with RFC6958
    – A limitation because burst/gap loss and discard
    assumed to be correlated
    – Experience shows that they are not in wireless
    environments
    • New draft:
    – https://tools.ietf.org/html/draft-singh-xrblock-
    independent-burst-gap-discard-01

    View full-size slide

  5. Packet Format
    0 1 2 3
    0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | BT=IBGD | I | resv | Block Length = 5 |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | SSRC of Source |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | Threshold | Sum of Burst Durations (ms) |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | Packets Discarded in Bursts | Number of |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | Bursts | Total Packets Expected in Bursts |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    | Discard Count |
    +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
    • Number of bursts in the loss report is 12 bits, here 16 bits
    • Discard count has a separate report. Should it be added here?

    View full-size slide

  6. Extended Report (XR) Metrics for the
    WebRTC Statistics API
    • WEBRTC WG at TPAC chose to use the
    W3C Statistics document as a place to
    document the statistics.
    – i.e., will not use an IANA registry
    – The W3C document will need to have some text
    on how other SDOs will be able to pick identifiers
    • This draft creates an registry and assigns
    names/identifiers.

    View full-size slide

  7. Next Steps
    • All open issues closed.
    Name: burstDiscardCount
    Definition: The cumulative number of bursts of discarded RTP packets, Appendix A
    (e) of [I-D.singh-xrblock-independent-burst-gap-discard].
    [RFC3611] recommends a Gmin (threshold) value of 16 for classifying packet loss
    or discard burst.
    • Ready for WGLC.
