SAS1844 - Securing Hadoop Clusters while Still Retaining Your Sanity

The Hadoop ecosystem is vast, and there's a lot of conflicting information available about how to best secure any given implementation. It's also difficult to fix any mistakes made early on once an instance is put into production. In this paper, we demonstrate the currently accepted best practices for securing and Kerberizing Hadoop clusters in a vendor-agnostic way, review some of the not-so-obvious pitfalls one could encounter during the process, and delve into some of the theory behind why things are the way they are.

Transcript

1. SAS1844 - Securing Hadoop Clusters while Still Retaining Your Sanity Evan Kinney, Security Software Developer SAS

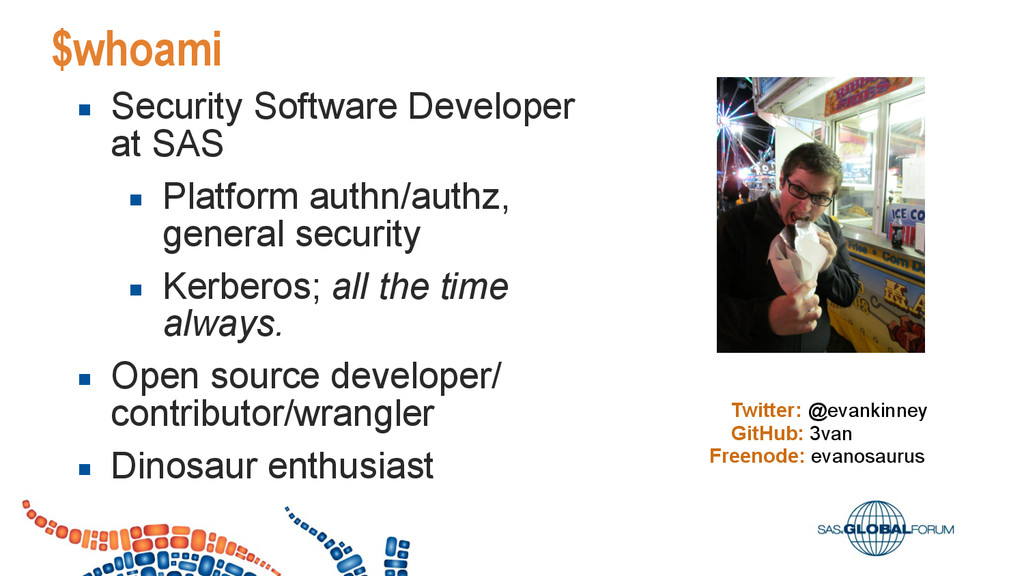

2. $whoami ▪ Security Software Developer at SAS ▪ Platform authn/authz, general security ▪ Kerberos; all the time always. ▪ Open source developer/ contributor/wrangler ▪ Dinosaur enthusiast Twitter: @evankinney GitHub: 3van Freenode: evanosaurus

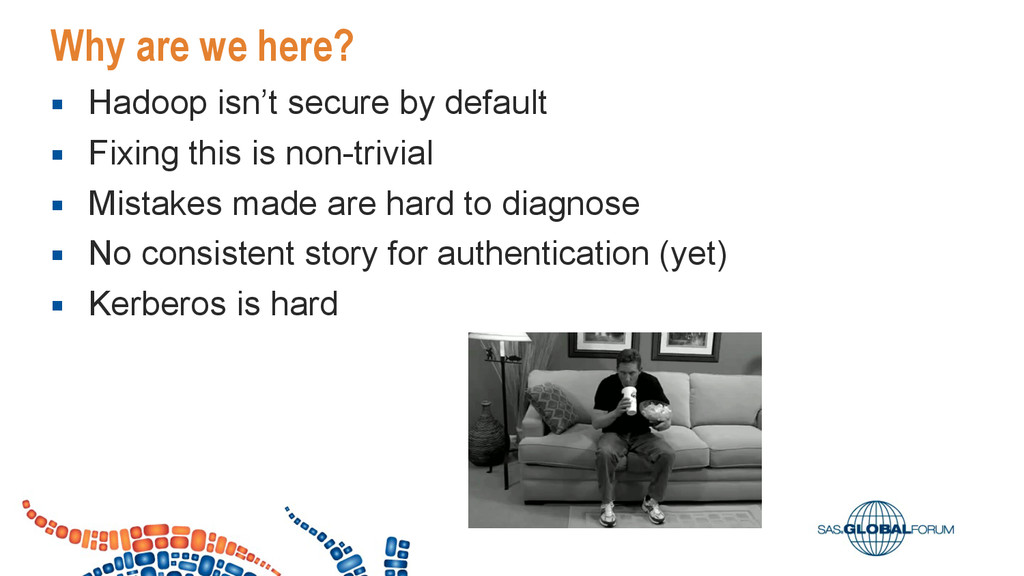

3. Why are we here? ▪ Hadoop isn’t secure by default ▪ Fixing this is non-trivial ▪ Mistakes made are hard to diagnose ▪ No consistent story for authentication (yet) ▪ Kerberos is hard

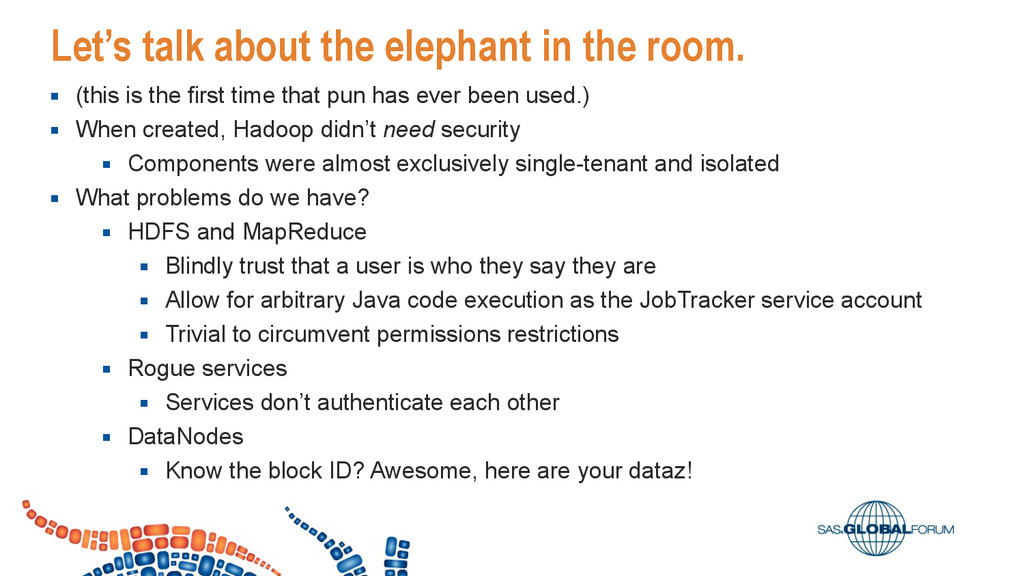

4. Let’s talk about the elephant in the room. ▪ (this is the first time that pun has ever been used.) ▪ When created, Hadoop didn’t need security ▪ Components were almost exclusively single-tenant and isolated ▪ What problems do we have? ▪ HDFS and MapReduce ▪ Blindly trust that a user is who they say they are ▪ Allow for arbitrary Java code execution as the JobTracker service account ▪ Trivial to circumvent permissions restrictions ▪ Rogue services ▪ Services don’t authenticate each other ▪ DataNodes ▪ Know the block ID? Awesome, here are your dataz!

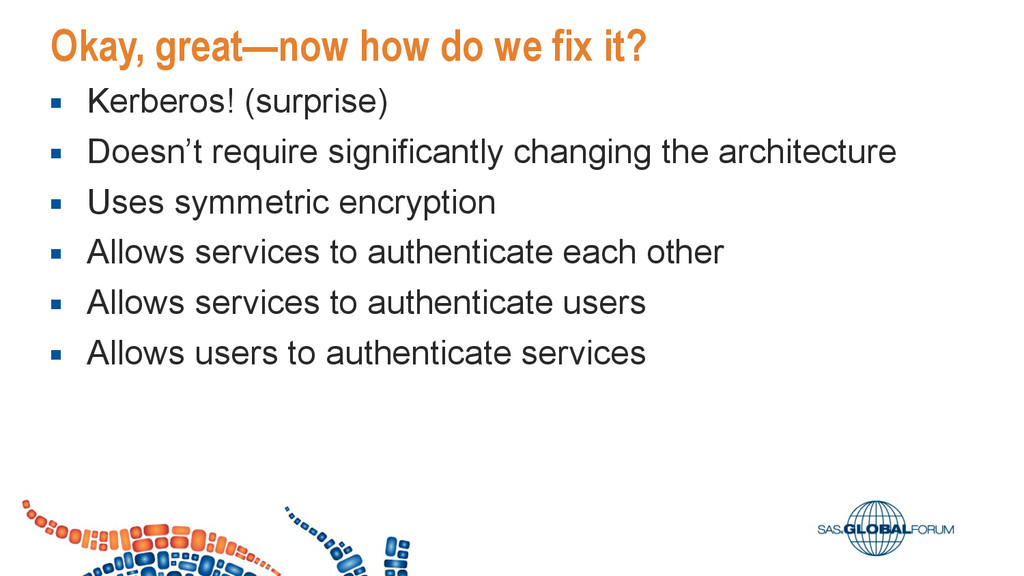

5. Okay, great—now how do we fix it? ▪ Kerberos! (surprise) ▪ Doesn’t require significantly changing the architecture ▪ Uses symmetric encryption ▪ Allows services to authenticate each other ▪ Allows services to authenticate users ▪ Allows users to authenticate services

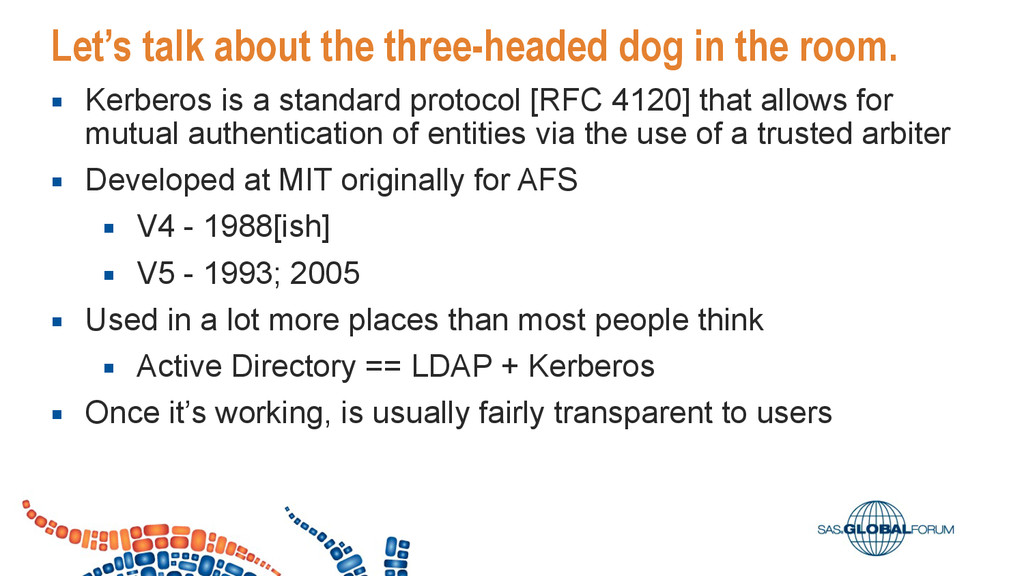

6. Let’s talk about the three-headed dog in the room. ▪ Kerberos is a standard protocol [RFC 4120] that allows for mutual authentication of entities via the use of a trusted arbiter ▪ Developed at MIT originally for AFS ▪ V4 - 1988[ish] ▪ V5 - 1993; 2005 ▪ Used in a lot more places than most people think ▪ Active Directory == LDAP + Kerberos ▪ Once it’s working, is usually fairly transparent to users

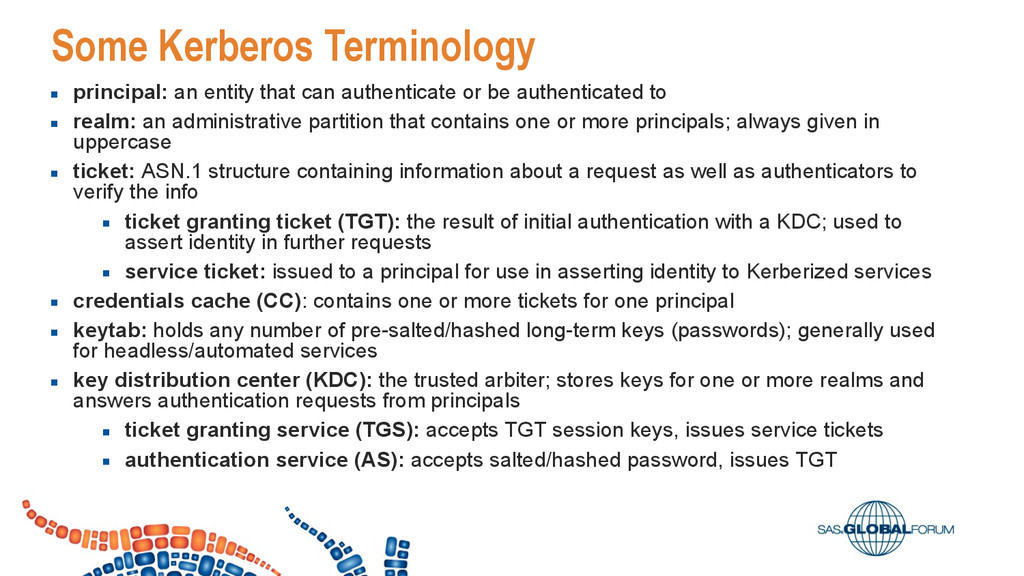

7. Some Kerberos Terminology ▪ principal: an entity that can authenticate or be authenticated to ▪ realm: an administrative partition that contains one or more principals; always given in uppercase ▪ ticket: ASN.1 structure containing information about a request as well as authenticators to verify the info ▪ ticket granting ticket (TGT): the result of initial authentication with a KDC; used to assert identity in further requests ▪ service ticket: issued to a principal for use in asserting identity to Kerberized services ▪ credentials cache (CC): contains one or more tickets for one principal ▪ keytab: holds any number of pre-salted/hashed long-term keys (passwords); generally used for headless/automated services ▪ key distribution center (KDC): the trusted arbiter; stores keys for one or more realms and answers authentication requests from principals ▪ ticket granting service (TGS): accepts TGT session keys, issues service tickets ▪ authentication service (AS): accepts salted/hashed password, issues TGT

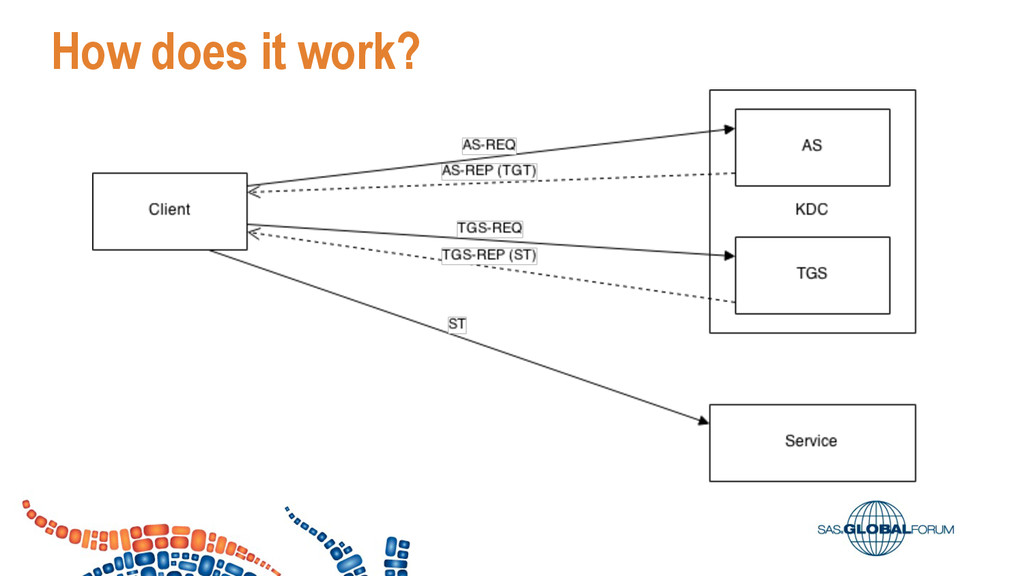

8. How does it work?

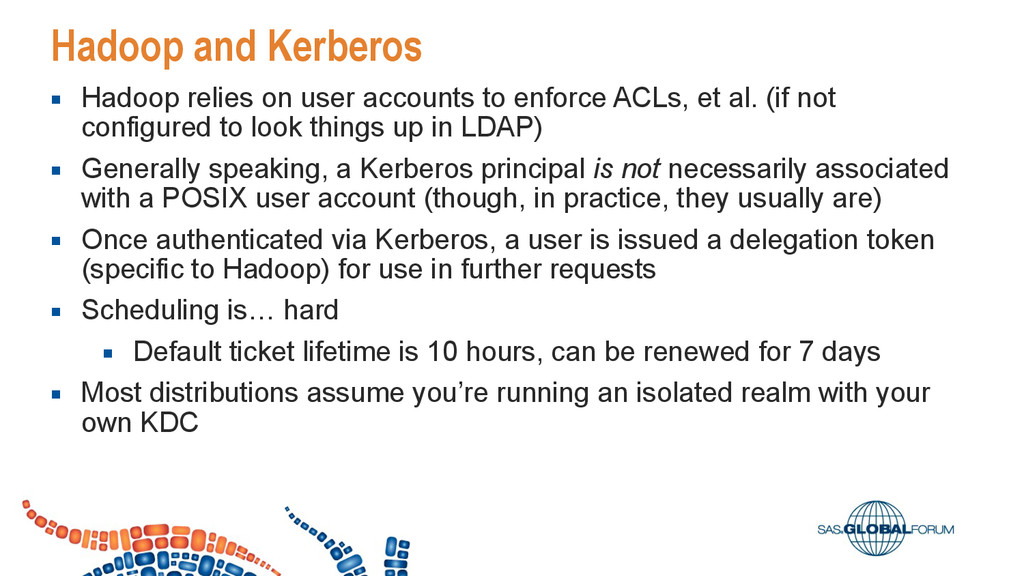

9. Hadoop and Kerberos ▪ Hadoop relies on user accounts to enforce ACLs, et al. (if not configured to look things up in LDAP) ▪ Generally speaking, a Kerberos principal is not necessarily associated with a POSIX user account (though, in practice, they usually are) ▪ Once authenticated via Kerberos, a user is issued a delegation token (specific to Hadoop) for use in further requests ▪ Scheduling is… hard ▪ Default ticket lifetime is 10 hours, can be renewed for 7 days ▪ Most distributions assume you’re running an isolated realm with your own KDC

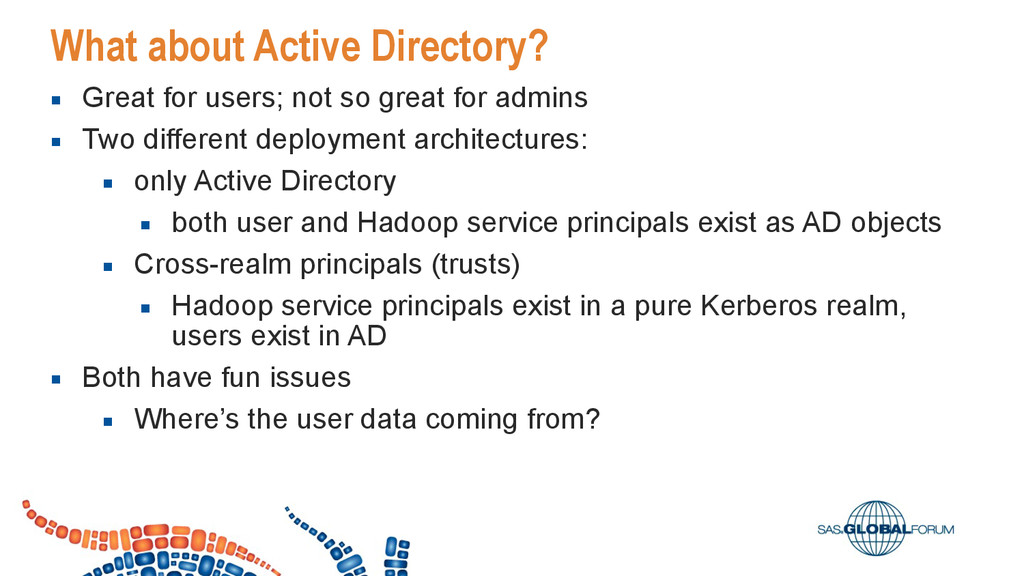

10. What about Active Directory? ▪ Great for users; not so great for admins ▪ Two different deployment architectures: ▪ only Active Directory ▪ both user and Hadoop service principals exist as AD objects ▪ Cross-realm principals (trusts) ▪ Hadoop service principals exist in a pure Kerberos realm, users exist in AD ▪ Both have fun issues ▪ Where’s the user data coming from?

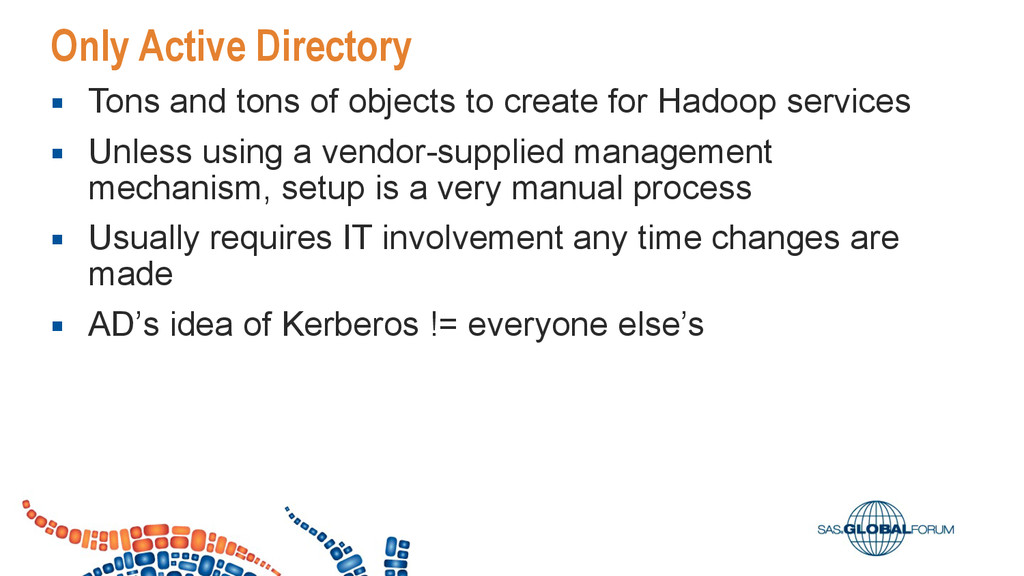

11. Only Active Directory ▪ Tons and tons of objects to create for Hadoop services ▪ Unless using a vendor-supplied management mechanism, setup is a very manual process ▪ Usually requires IT involvement any time changes are made ▪ AD’s idea of Kerberos != everyone else’s

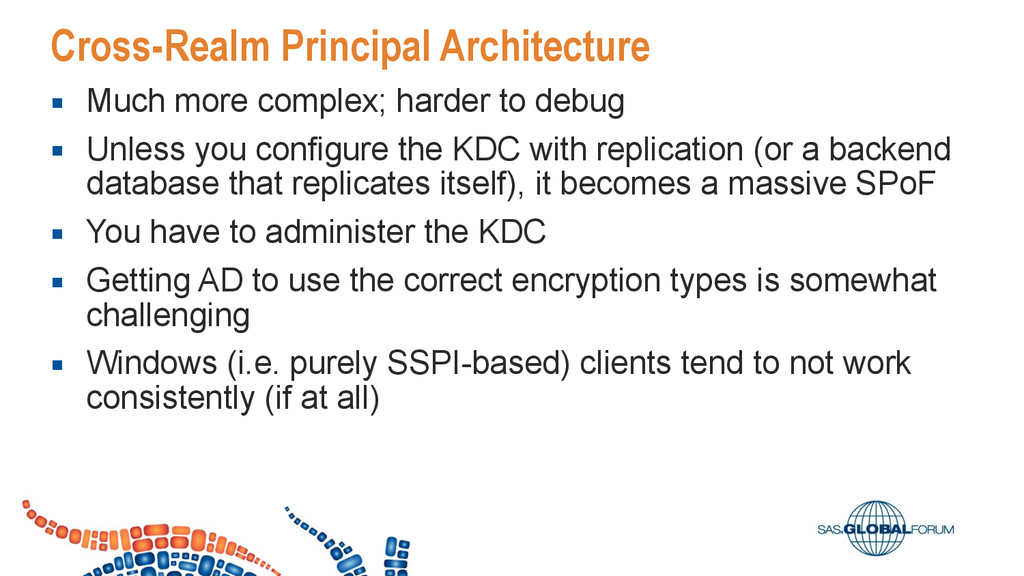

12. Cross-Realm Principal Architecture ▪ Much more complex; harder to debug ▪ Unless you configure the KDC with replication (or a backend database that replicates itself), it becomes a massive SPoF ▪ You have to administer the KDC ▪ Getting AD to use the correct encryption types is somewhat challenging ▪ Windows (i.e. purely SSPI-based) clients tend to not work consistently (if at all)

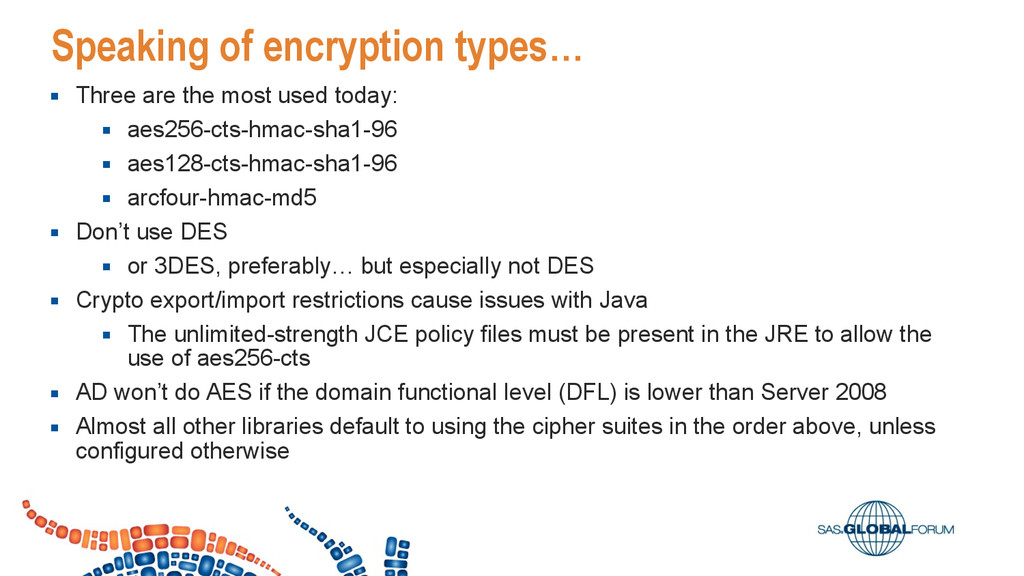

13. Speaking of encryption types… ▪ Three are the most used today: ▪ aes256-cts-hmac-sha1-96 ▪ aes128-cts-hmac-sha1-96 ▪ arcfour-hmac-md5 ▪ Don’t use DES ▪ or 3DES, preferably… but especially not DES ▪ Crypto export/import restrictions cause issues with Java ▪ The unlimited-strength JCE policy files must be present in the JRE to allow the use of aes256-cts ▪ AD won’t do AES if the domain functional level (DFL) is lower than Server 2008 ▪ Almost all other libraries default to using the cipher suites in the order above, unless configured otherwise

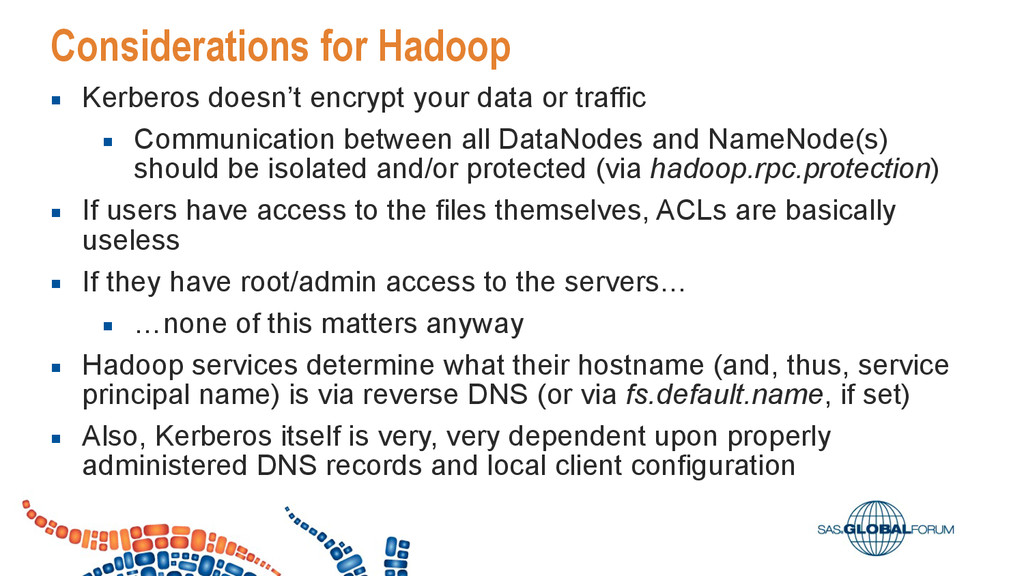

14. Considerations for Hadoop ▪ Kerberos doesn’t encrypt your data or traffic ▪ Communication between all DataNodes and NameNode(s) should be isolated and/or protected (via hadoop.rpc.protection) ▪ If users have access to the files themselves, ACLs are basically useless ▪ If they have root/admin access to the servers… ▪ …none of this matters anyway ▪ Hadoop services determine what their hostname (and, thus, service principal name) is via reverse DNS (or via fs.default.name, if set) ▪ Also, Kerberos itself is very, very dependent upon properly administered DNS records and local client configuration

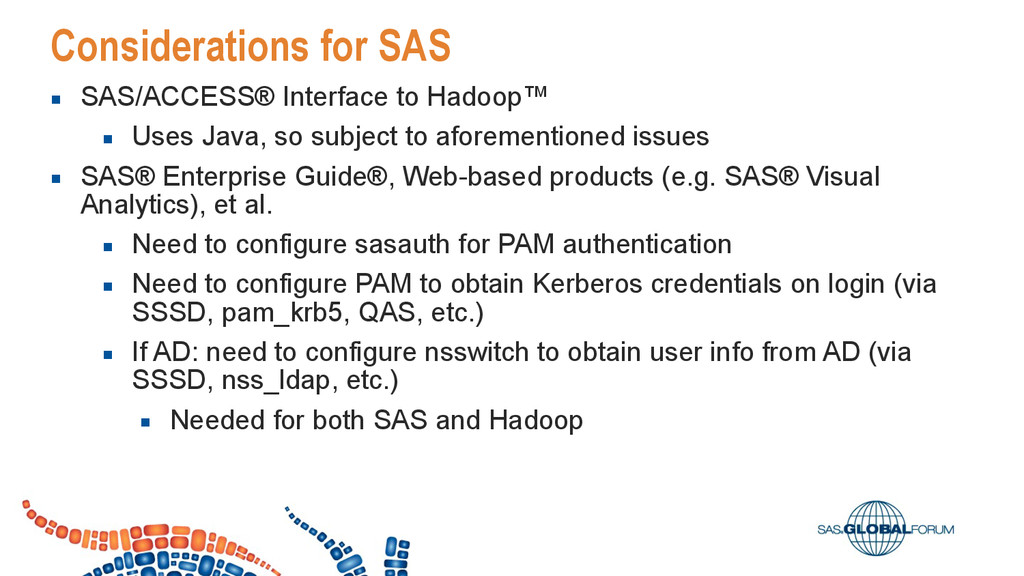

15. Considerations for SAS ▪ SAS/ACCESS® Interface to Hadoop™ ▪ Uses Java, so subject to aforementioned issues ▪ SAS® Enterprise Guide®, Web-based products (e.g. SAS® Visual Analytics), et al. ▪ Need to configure sasauth for PAM authentication ▪ Need to configure PAM to obtain Kerberos credentials on login (via SSSD, pam_krb5, QAS, etc.) ▪ If AD: need to configure nsswitch to obtain user info from AD (via SSSD, nss_ldap, etc.) ▪ Needed for both SAS and Hadoop

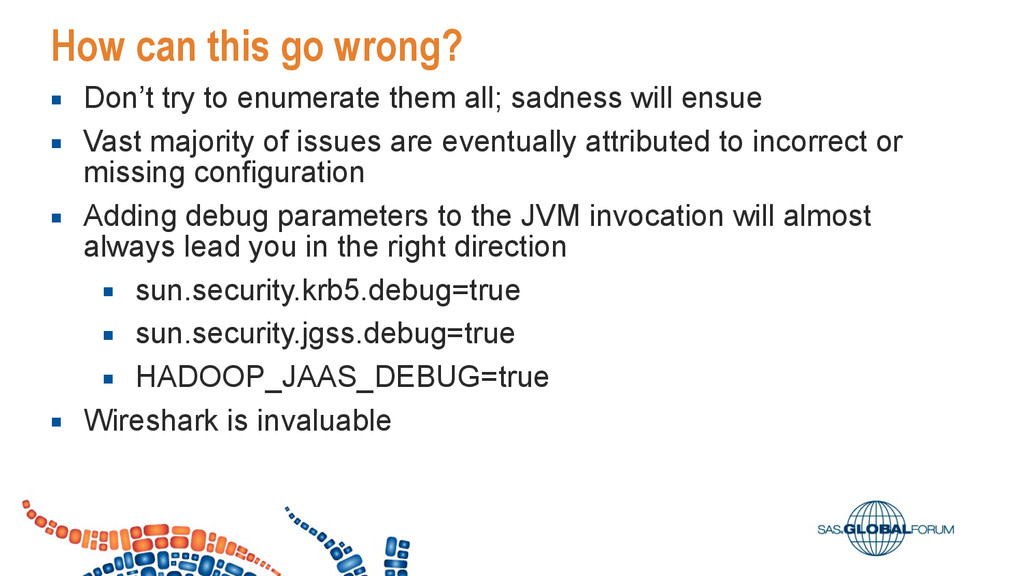

16. How can this go wrong? ▪ Don’t try to enumerate them all; sadness will ensue ▪ Vast majority of issues are eventually attributed to incorrect or missing configuration ▪ Adding debug parameters to the JVM invocation will almost always lead you in the right direction ▪ sun.security.krb5.debug=true ▪ sun.security.jgss.debug=true ▪ HADOOP_JAAS_DEBUG=true ▪ Wireshark is invaluable

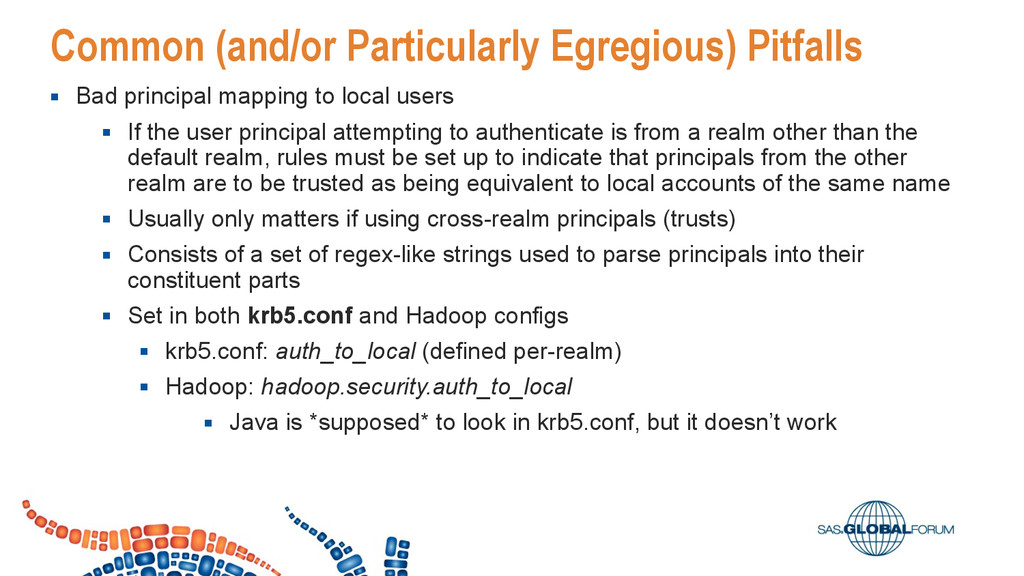

17. Common (and/or Particularly Egregious) Pitfalls ▪ Bad principal mapping to local users ▪ If the user principal attempting to authenticate is from a realm other than the default realm, rules must be set up to indicate that principals from the other realm are to be trusted as being equivalent to local accounts of the same name ▪ Usually only matters if using cross-realm principals (trusts) ▪ Consists of a set of regex-like strings used to parse principals into their constituent parts ▪ Set in both krb5.conf and Hadoop configs ▪ krb5.conf: auth_to_local (defined per-realm) ▪ Hadoop: hadoop.security.auth_to_local ▪ Java is *supposed* to look in krb5.conf, but it doesn’t work

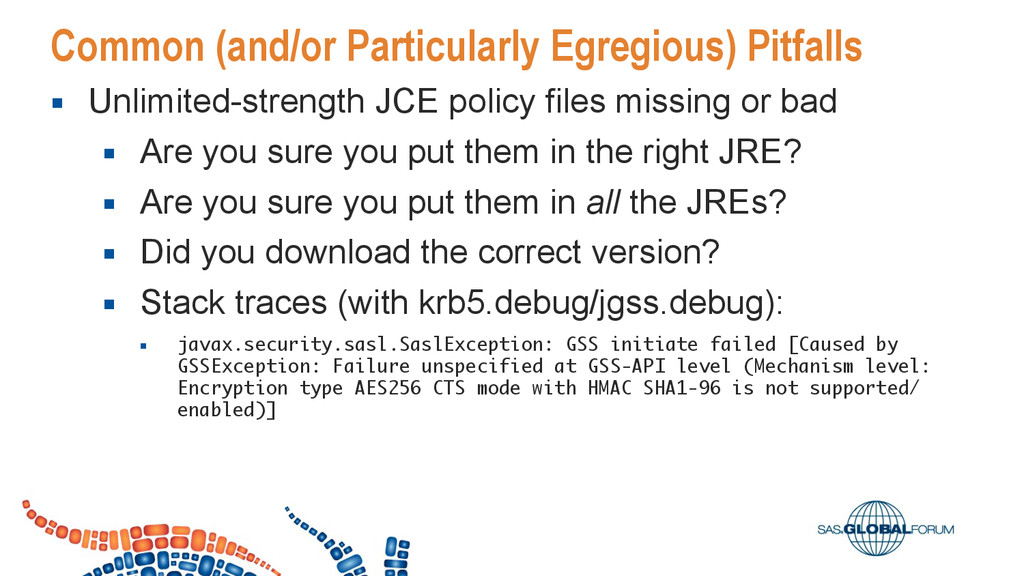

18. Common (and/or Particularly Egregious) Pitfalls ▪ Unlimited-strength JCE policy files missing or bad ▪ Are you sure you put them in the right JRE? ▪ Are you sure you put them in all the JREs? ▪ Did you download the correct version? ▪ Stack traces (with krb5.debug/jgss.debug): ▪ javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: Failure unspecified at GSS-API level (Mechanism level: Encryption type AES256 CTS mode with HMAC SHA1-96 is not supported/ enabled)]

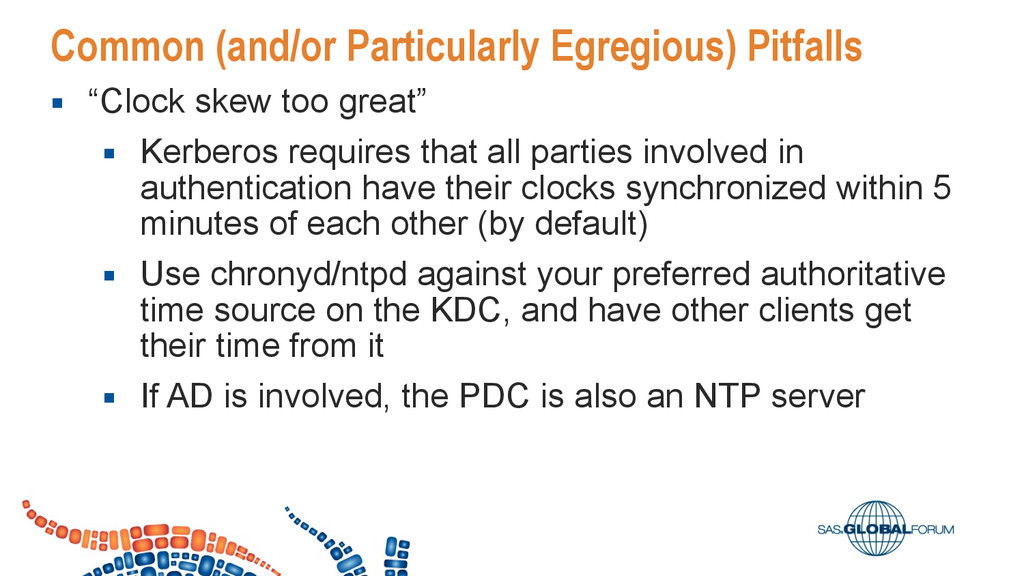

19. Common (and/or Particularly Egregious) Pitfalls ▪ “Clock skew too great” ▪ Kerberos requires that all parties involved in authentication have their clocks synchronized within 5 minutes of each other (by default) ▪ Use chronyd/ntpd against your preferred authoritative time source on the KDC, and have other clients get their time from it ▪ If AD is involved, the PDC is also an NTP server

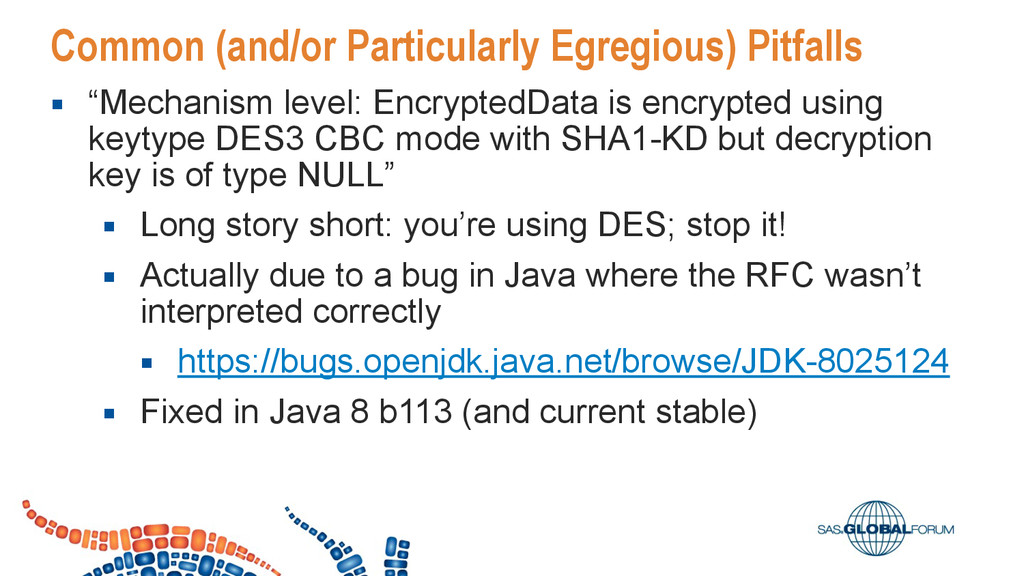

20. Common (and/or Particularly Egregious) Pitfalls ▪ “Mechanism level: EncryptedData is encrypted using keytype DES3 CBC mode with SHA1-KD but decryption key is of type NULL” ▪ Long story short: you’re using DES; stop it! ▪ Actually due to a bug in Java where the RFC wasn’t interpreted correctly ▪ https://bugs.openjdk.java.net/browse/JDK-8025124 ▪ Fixed in Java 8 b113 (and current stable)
21. Questions?
