Recipes of Clean Android

A talk about recipes of clean android – different patterns that can be applied to android architecture and code to make cleaner and better.

There's no video, but text of the presentation can be found here: https://docs.google.com/document/d/15QYmR3FyXbLgFyCFTG-jeGoq9VkTDGog5qMLlLcsZMo/edit?usp=sharing

Transcript

1. Recipes of Clean Android Practical examples

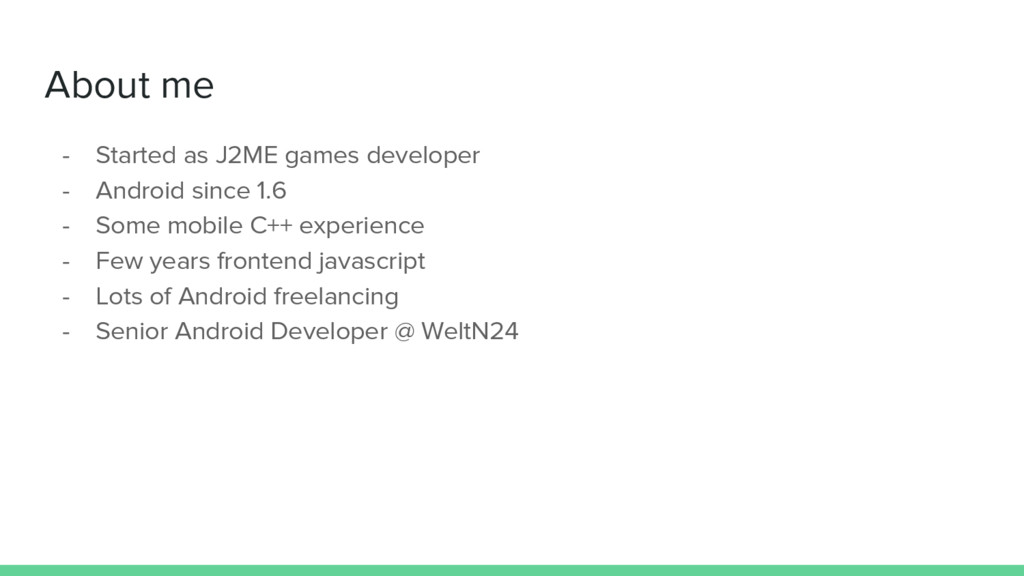

2. About me - Started as J2ME games developer - Android since 1.6 - Some mobile C++ experience - Few years frontend javascript - Lots of Android freelancing - Senior Android Developer @ WeltN24

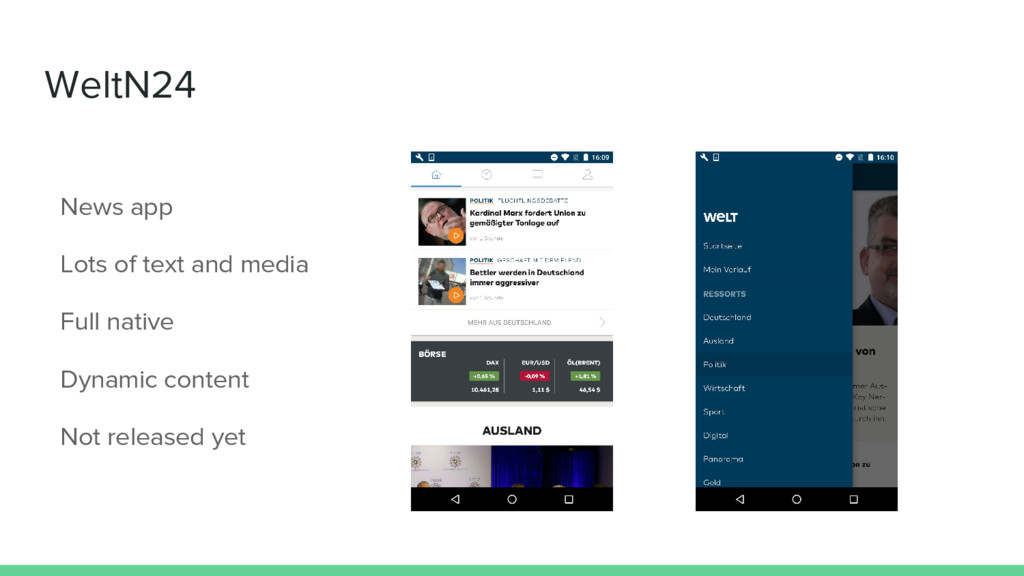

3. WeltN24 News app Lots of text and media Full native Dynamic content Not released yet

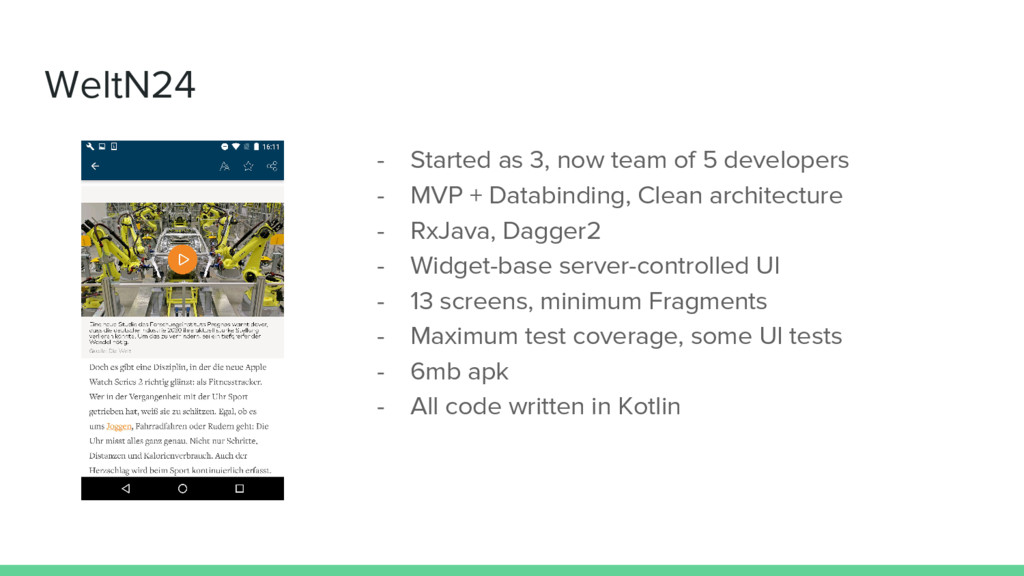

4. WeltN24 - Started as 3, now team of 5 developers - MVP + Databinding, Clean architecture - RxJava, Dagger2 - Widget-base server-controlled UI - 13 screens, minimum Fragments - Maximum test coverage, some UI tests - 6mb apk - All code written in Kotlin
5. Issue: Long unreadable code Verbose classes

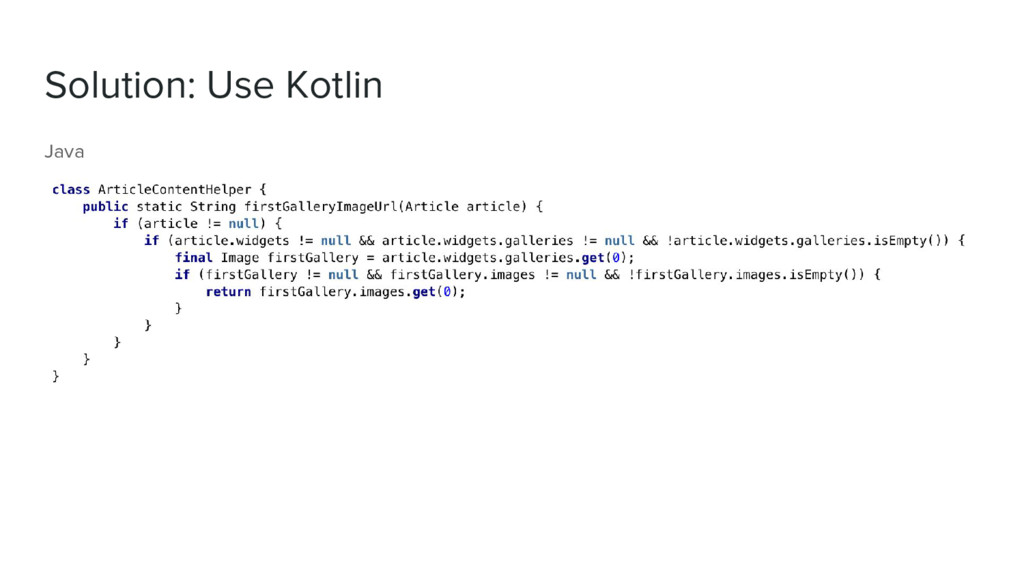

7. Solution: Use Kotlin Java

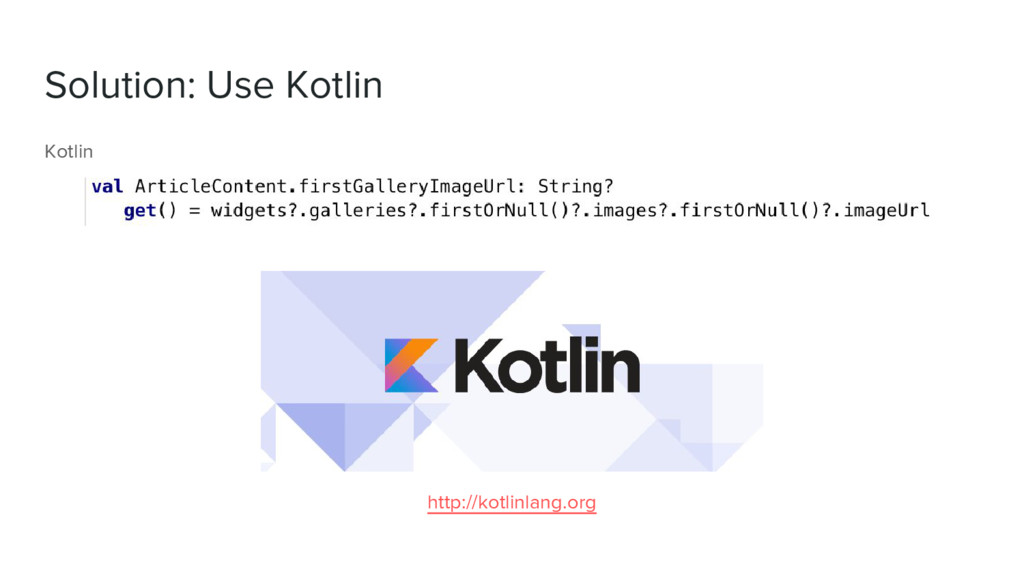

8. Solution: Use Kotlin Kotlin http://kotlinlang.org
10. Issue: God Classes Impossible to maintain

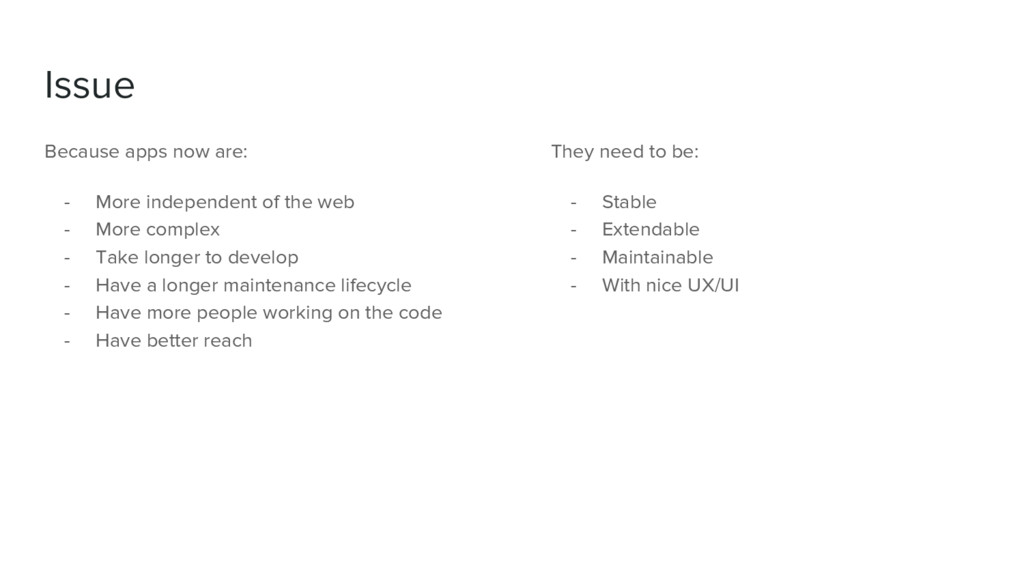

11. Issue Because apps now are: - More independent of the web - More complex - Take longer to develop - Have a longer maintenance lifecycle - Have more people working on the code - Have better reach They need to be: - Stable - Extendable - Maintainable - With nice UX/UI
12. Following Google Tutorials

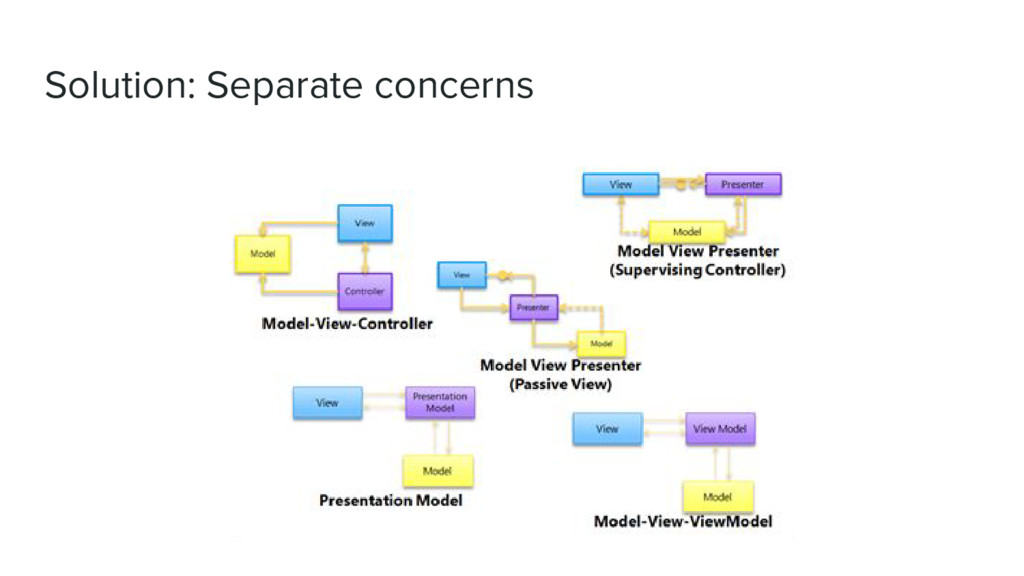

13. Solution: Separate concerns
15. Issue: Complex Views Reuse/maintain/test Views

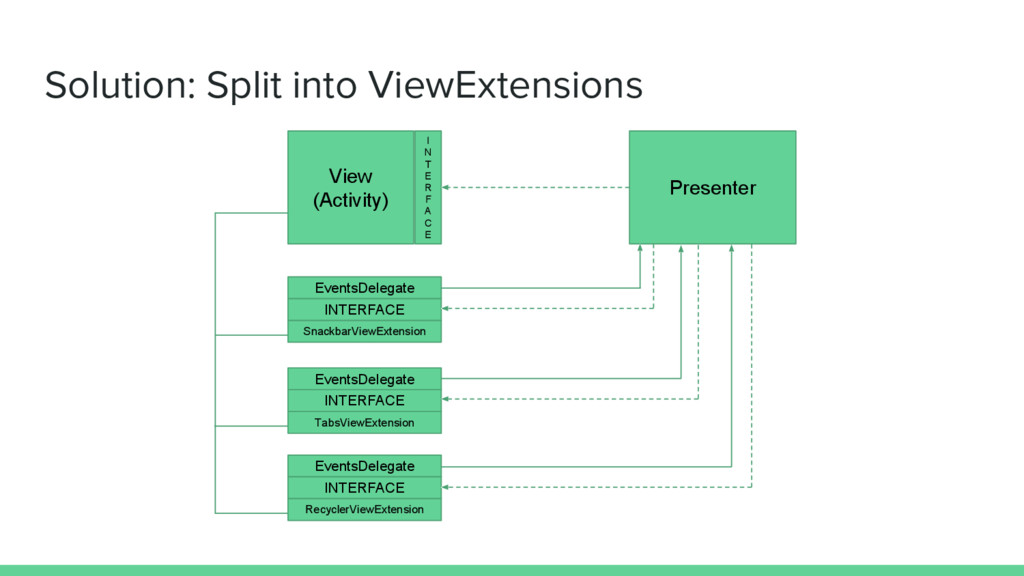

16. Solution: Split into ViewExtensions View (Activity) I N T E R F A C E Presenter EventsDelegate INTERFACE SnackbarViewExtension EventsDelegate INTERFACE TabsViewExtension EventsDelegate INTERFACE RecyclerViewExtension

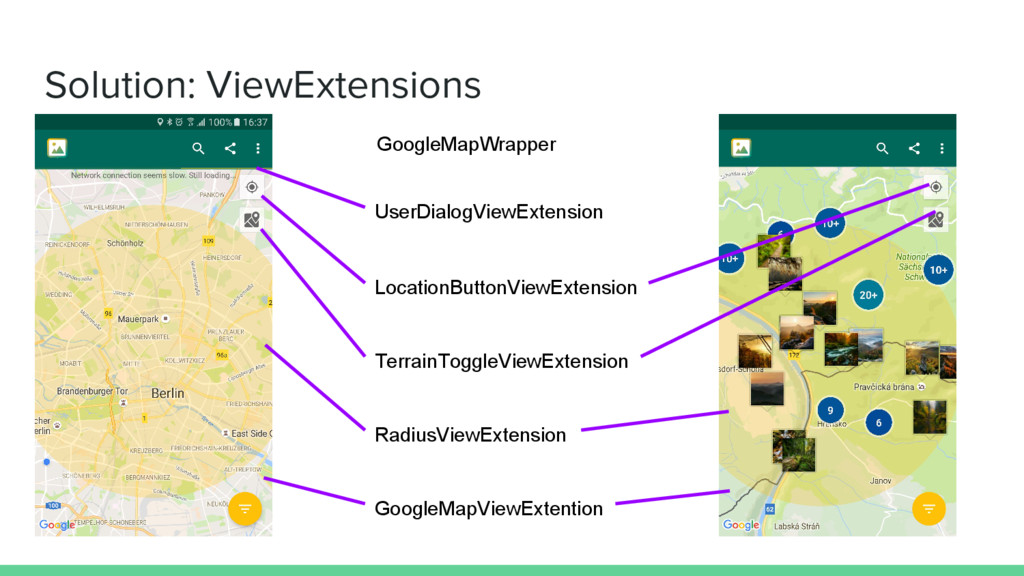

17. Solution: ViewExtensions GoogleMapViewExtention GoogleMapWrapper TerrainToggleViewExtension RadiusViewExtension LocationButtonViewExtension UserDialogViewExtension
19. Issue: Boilerplate Views View code that only sets values

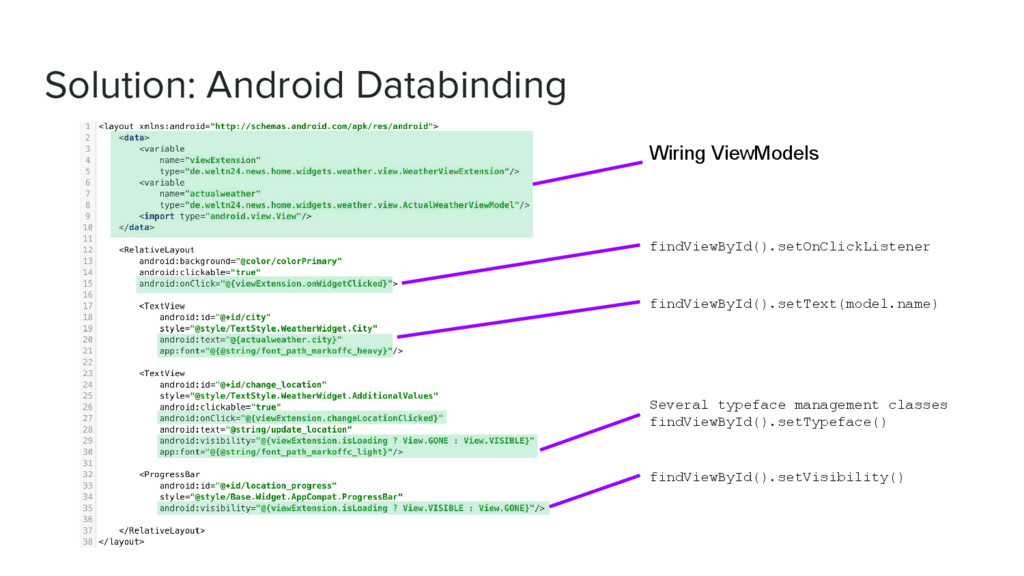

20. Solution: Android Databinding Wiring ViewModels findViewById().setOnClickListener findViewById().setText(model.name) Several typeface management classes findViewById().setTypeface() findViewById().setVisibility()

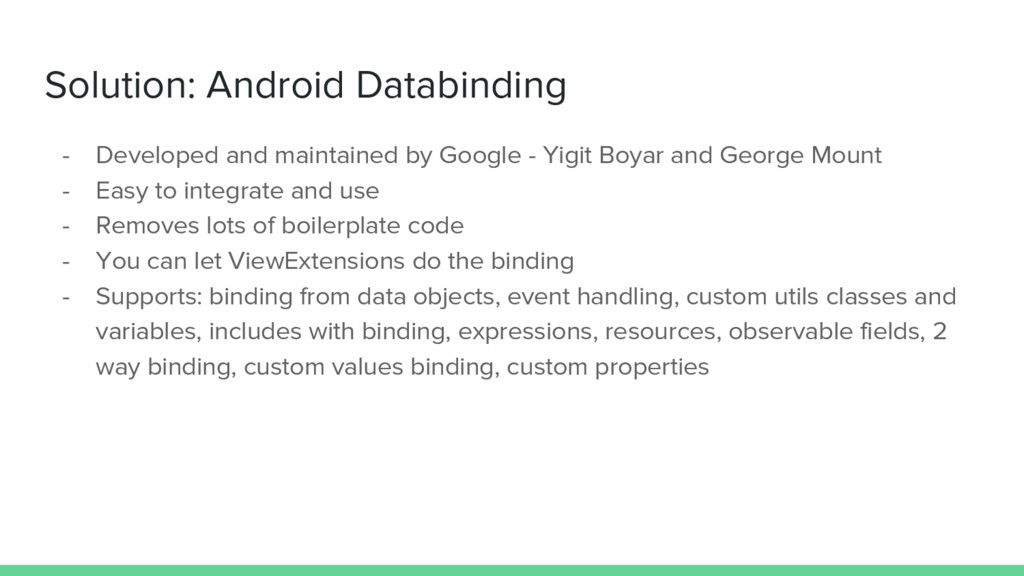

21. Solution: Android Databinding - Developed and maintained by Google - Yigit Boyar and George Mount - Easy to integrate and use - Removes lots of boilerplate code - You can let ViewExtensions do the binding - Supports: binding from data objects, event handling, custom utils classes and variables, includes with binding, expressions, resources, observable fields, 2 way binding, custom values binding, custom properties
23. Issue: Complex Data layer How to keep it clean

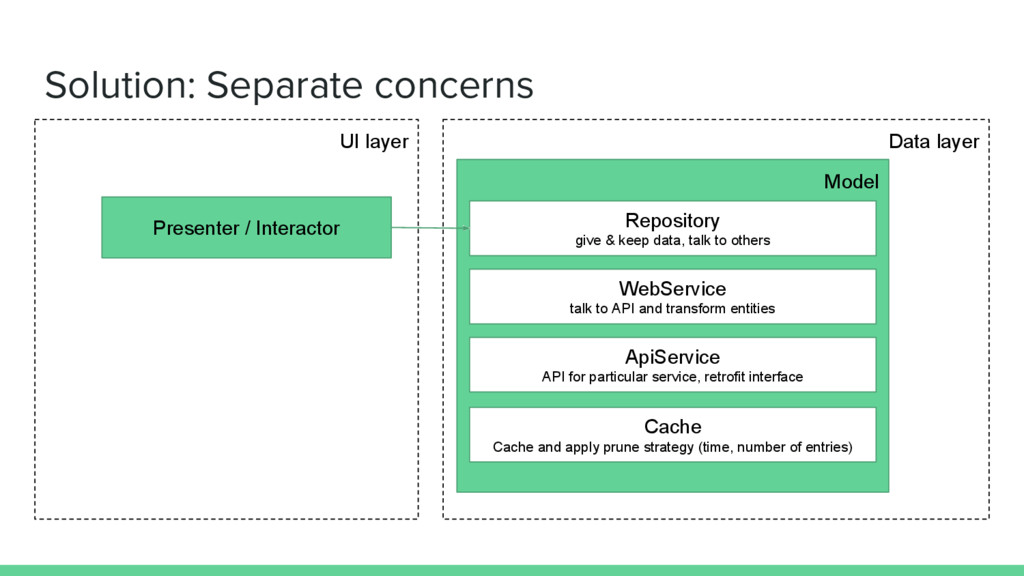

24. Solution: Separate concerns Model Repository give & keep data, talk to others WebService talk to API and transform entities ApiService API for particular service, retrofit interface Cache Cache and apply prune strategy (time, number of entries) Presenter / Interactor Data layer UI layer
26. Issue: Loaders / AsyncTasks Impossible to maintain
27. Solution: Reactive Don’t let Loaders, AsyncTasks and Threads bite you. And they will Use RxJava! Calm the dog! 2 problems: - Difficult to get into - Highly addictive once you do
29. Issue: Events Handling Everything in one place

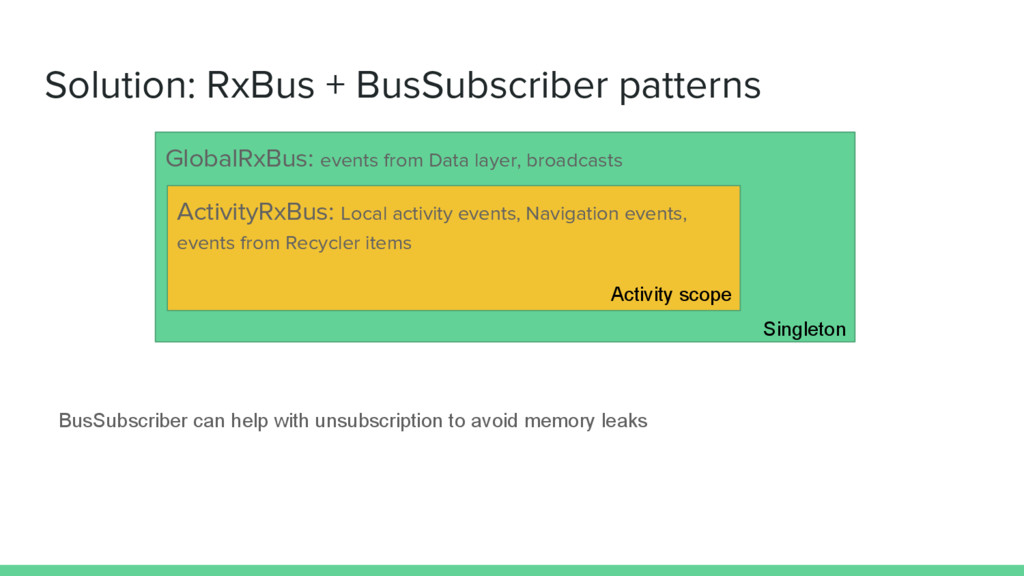

30. Solution: RxBus + BusSubscriber patterns BusSubscriber can help with unsubscription to avoid memory leaks GlobalRxBus: events from Data layer, broadcasts ActivityRxBus: Local activity events, Navigation events, events from Recycler items Singleton Activity scope
32. Issue: Error handling Can we resolve the error?

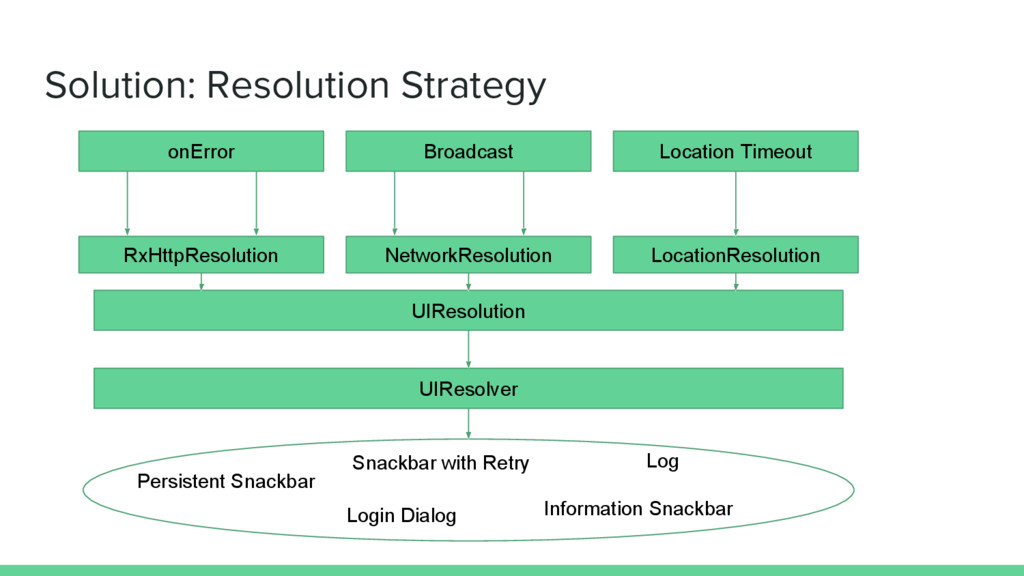

33. Solution: Resolution Strategy UIResolution RxHttpResolution NetworkResolution LocationResolution onError Broadcast Location Timeout UIResolver Persistent Snackbar Snackbar with Retry Login Dialog Information Snackbar Log

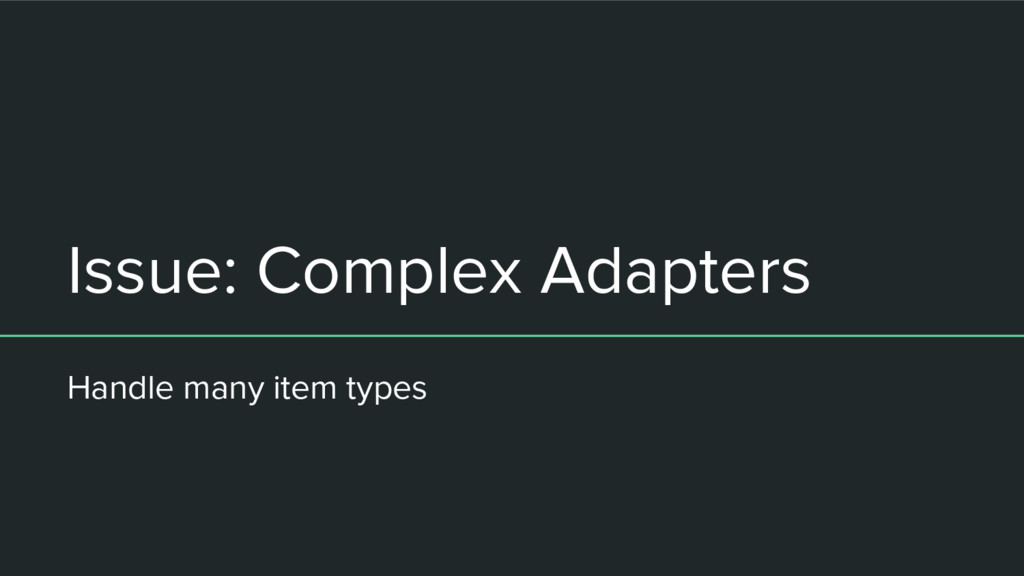

35. Issue: Complex Adapters Handle many item types

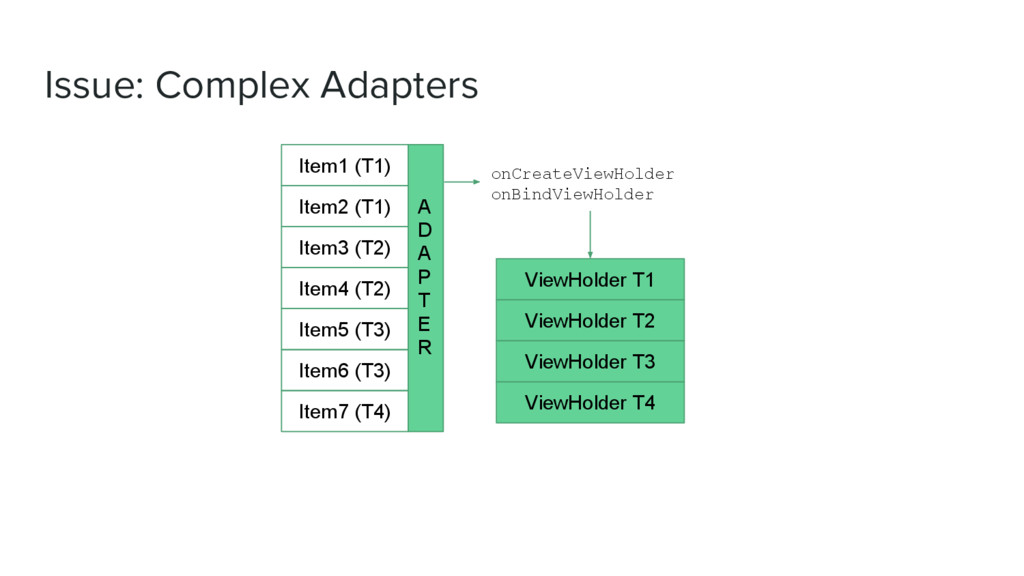

36. Issue: Complex Adapters Item1 (T1) Item2 (T1) Item3 (T2) Item4 (T2) Item5 (T3) Item6 (T3) Item7 (T4) A D A P T E R onCreateViewHolder onBindViewHolder ViewHolder T1 ViewHolder T2 ViewHolder T3 ViewHolder T4

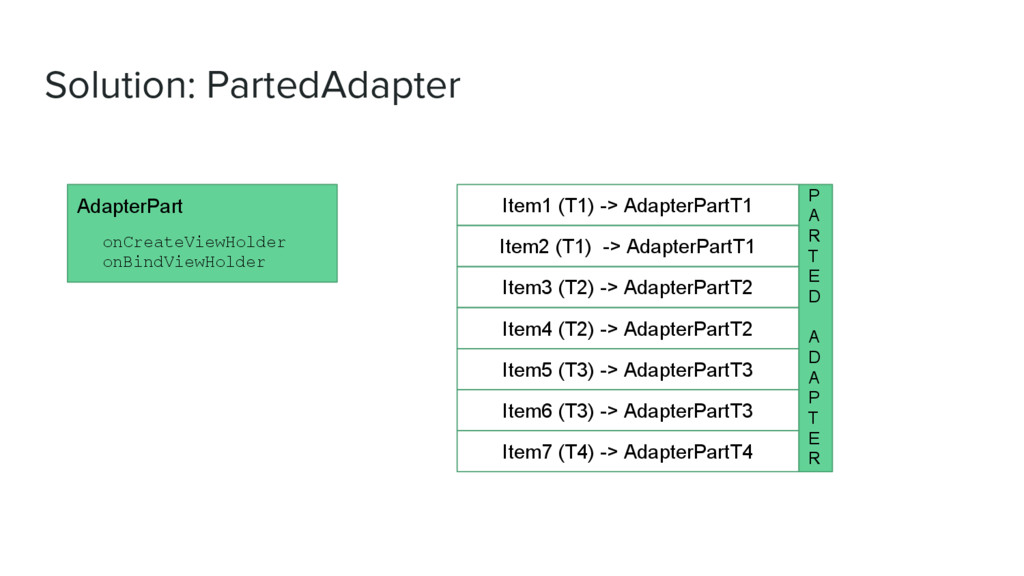

37. Solution: PartedAdapter Item1 (T1) -> AdapterPartT1 Item2 (T1) -> AdapterPartT1 Item3 (T2) -> AdapterPartT2 Item4 (T2) -> AdapterPartT2 Item5 (T3) -> AdapterPartT3 Item6 (T3) -> AdapterPartT3 Item7 (T4) -> AdapterPartT4 P A R T E D A D A P T E R AdapterPart onCreateViewHolder onBindViewHolder

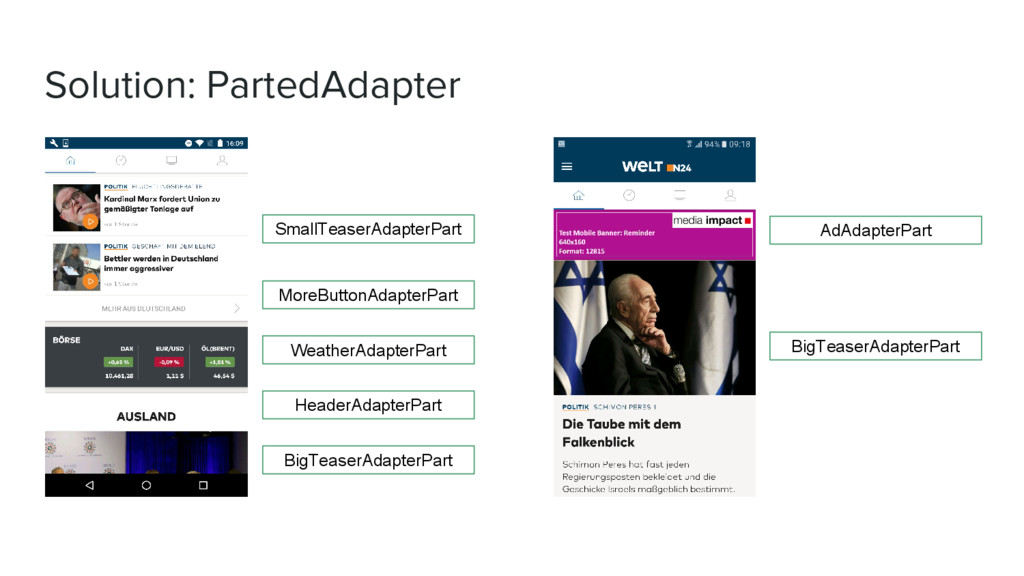

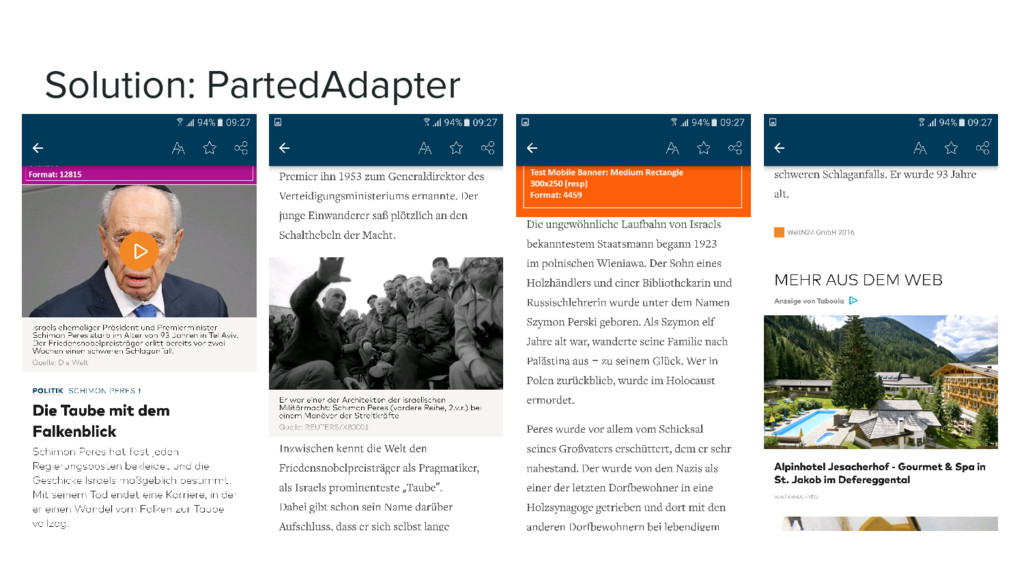

38. Solution: PartedAdapter SmallTeaserAdapterPart BigTeaserAdapterPart MoreButtonAdapterPart WeatherAdapterPart HeaderAdapterPart BigTeaserAdapterPart AdAdapterPart
39. Solution: PartedAdapter
41. Issue: Acceptance testing Too much espresso

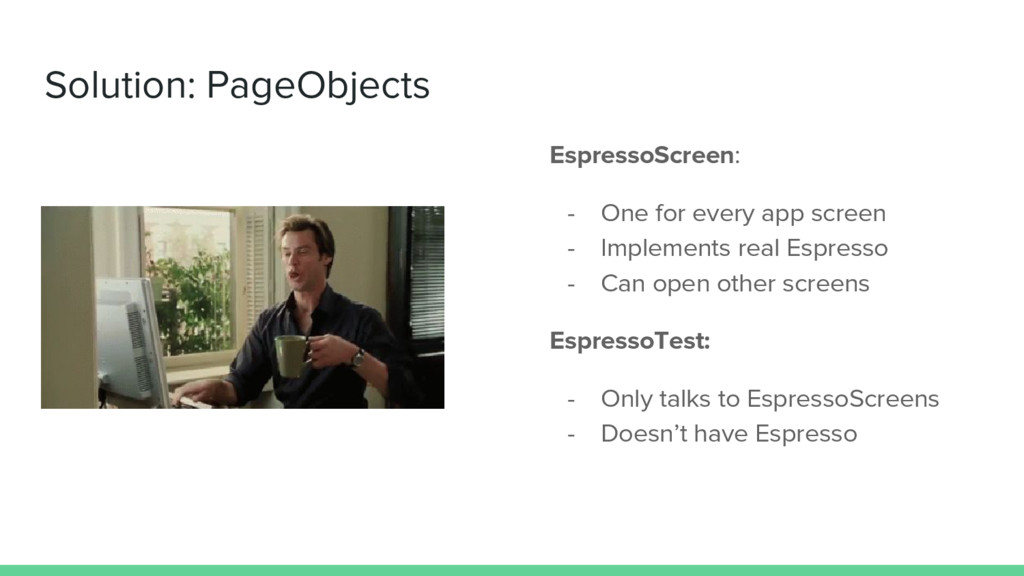

42. Solution: PageObjects EspressoScreen: - One for every app screen - Implements real Espresso - Can open other screens EspressoTest: - Only talks to EspressoScreens - Doesn’t have Espresso
43. Contacts and Links Github: AAverin/CleanAndroidCookbook Medium: @anton.averin.dev/Clean Android Code
44. Thanks! Questions time!
