Right now, there is a wide range of ABC-related R&D projects under way, including a group of specific technical R&D projects funded under DOE’s ABC Initiative. To give you a representative sampling of the new construction and retrofit projects supported by the ABC Initiative, these cover a section of the technical readiness continuum. These are some impressive teams and ideas, but I’ll also remind you that the universe of ABC is much larger than just this set of projects—or even the while cohort of DOE-funded ABC R&D teams.

Transcript

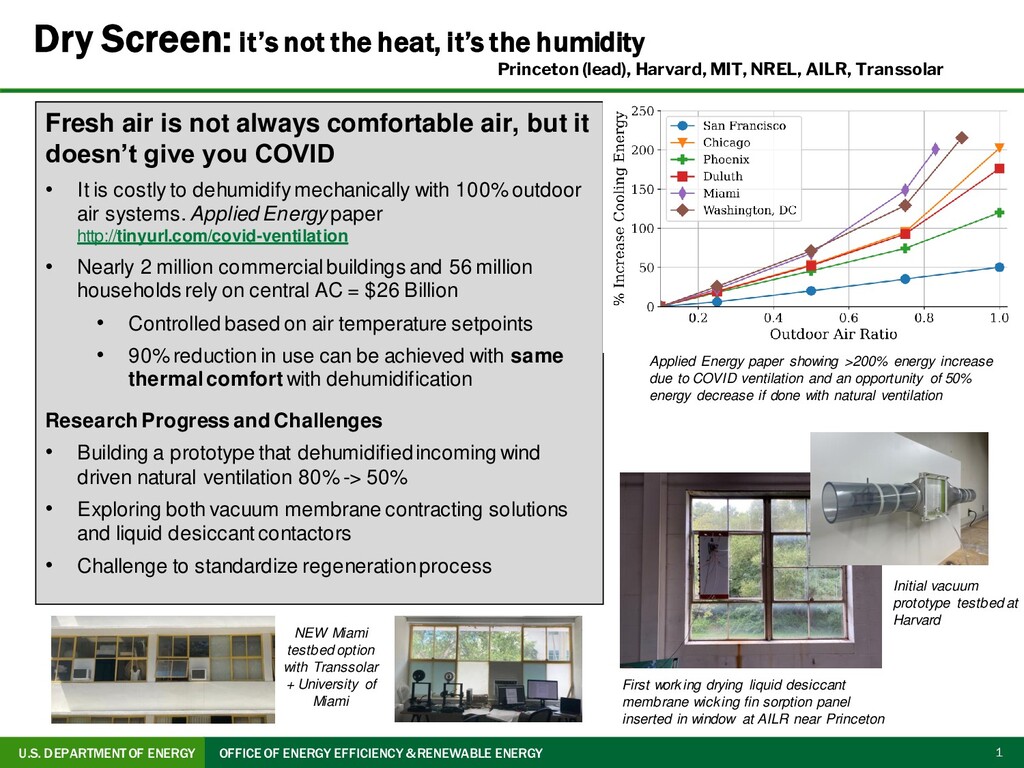

1. 1 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Dry Screen: it’s not the heat, it’s the humidity Fresh air is not always comfortable air, but it doesn’t give you COVID • It is costly to dehumidify mechanically with 100% outdoor air systems. Applied Energy paper http://tinyurl.com/covid-ventilation • Nearly 2 million commercial buildings and 56 million households rely on central AC = $26 Billion • Controlled based on air temperature setpoints • 90% reduction in use can be achieved with same thermal comfort with dehumidification Research Progress and Challenges • Building a prototype that dehumidified incoming wind driven natural ventilation 80% -> 50% • Exploring both vacuum membrane contracting solutions and liquid desiccant contactors • Challenge to standardize regeneration process Applied Energy paper showing >200% energy increase due to COVID ventilation and an opportunity of 50% energy decrease if done with natural ventilation Princeton (lead), Harvard, MIT, NREL, AILR, Transsolar First working drying liquid desiccant membrane wicking fin sorption panel inserted in window at AILR near Princeton Initial vacuum prototype testbed at Harvard NEW Miami testbed option with Transsolar + University of Miami

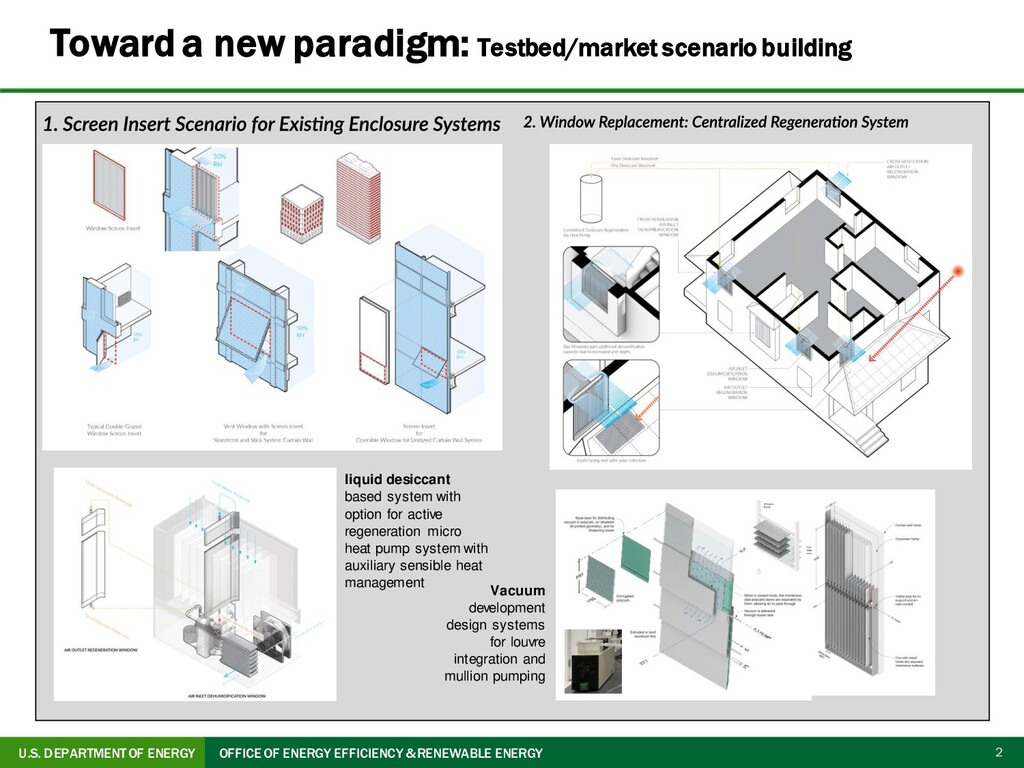

2. 2 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Toward a new paradigm: Testbed/market scenario building liquid desiccant based system with option for active regeneration micro heat pump system with auxiliary sensible heat management Vacuum development design systems for louvre integration and mullion pumping
3. ORNL is managed by UT-Battelle, LLC for the US Department of Energy Preinstalled Sealant for Prefab Components Diana Hun, Peng-Fei Cao, Jiancheng Luo, Zoriana Demchuk, Bingrui Li, Tomonori Saito ORNL Hans Porschitz, Jay Lepple Bensonwood William Lentlie, Dennis Michaud Saint-Gobain Advance Building Construction Summit April 28, 2021
4. 4 Problem and Solution Material Synthesis Scaleup and Deployment Practical Integration Team Roles Tapes Caulks and spray foams Gaskets Current Joint Sealing Techniques Preinstalled Sealant Goal Develop a sealing technology that can be installed at the prefab plant and is activated at the jobsite to improve installation speed and performance • Low tackiness before activation • Activated by pressure applied at the jobsite • Adequate curing time after activation • Adhesion force 25 lb/in

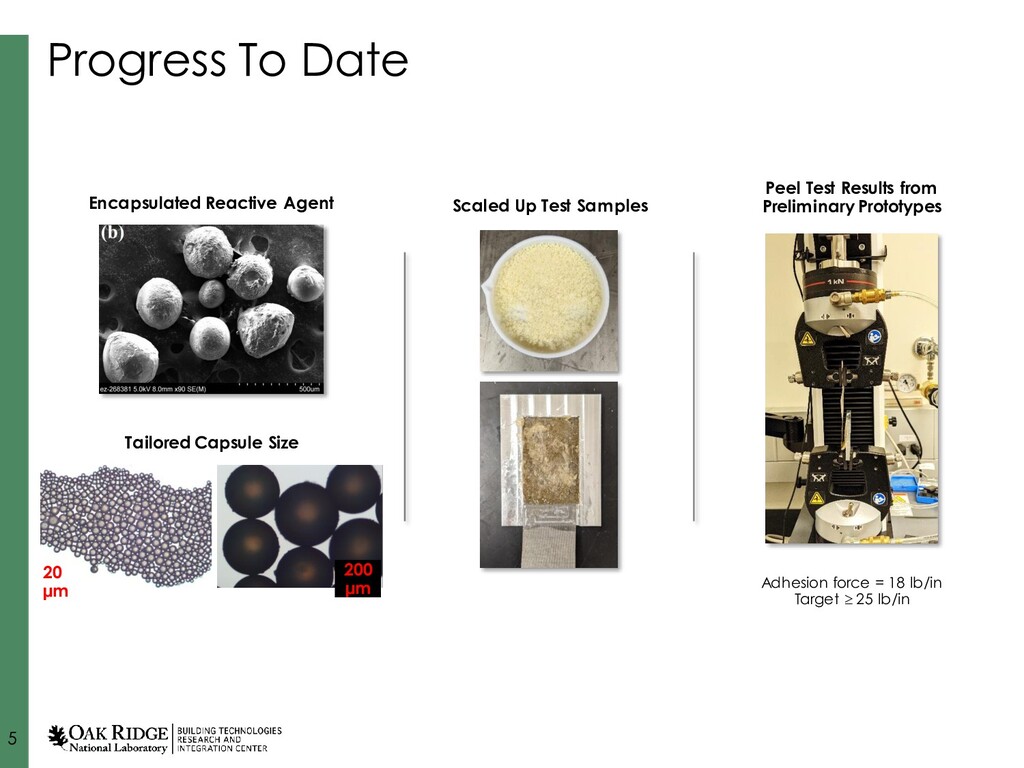

5. 5 Progress To Date Encapsulated Reactive Agent 200 µm 20 µm Tailored Capsule Size Peel Test Results from Preliminary Prototypes Scaled Up Test Samples Adhesion force = 18 lb/in Target  25 lb/in
6. 6 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Integrated Whole-Building Energy Efficiency Retrofit Solution for Residences in Cold/Very Cold Climates Bess Krietemeyer, PI Assist. Prof. School of Architecture Syracuse University Amber Bartosh, Co-PI Assist. Prof. School of Architecture Syracuse University Jensen Zhang, Co-PI Prof. Mech.& Aero. Engr., Director, Building Energy and Environmental Systems Laboratory (BEESL), Syracuse University Edward Bogucz, Co-PI Assoc. Prof. Mech. & Aero. Engineering, Syracuse University Michele Knapp, Co-PI Founder, Cocoon Construct, co. Tom King, Co-PI Founder, tkFabricate, llc Tammy Rosanio, Assoc. Director for Partner Programs, SyracuseCoE Research Assistants: Rui Zhang, Post-Doc Jialei Shen, PhD Student Ava Helm, B.Arch Student Tiffany Ng, M.Arch Student Market and Implementation Collaborators (MIC) Advisory Board:

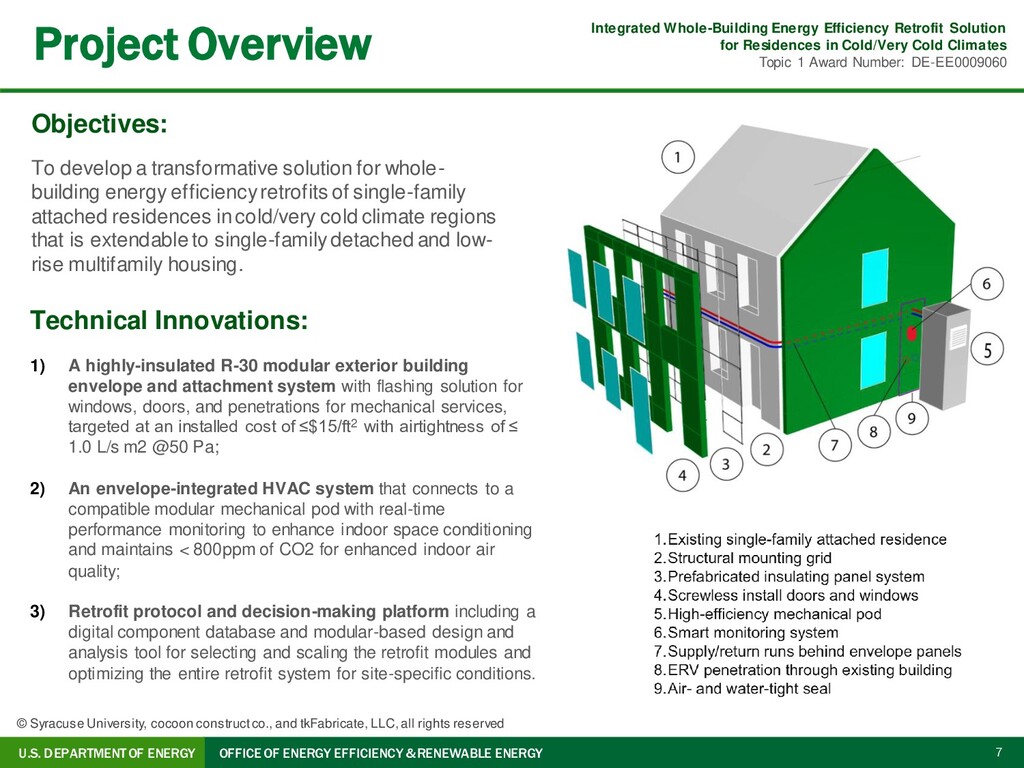

7. 7 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Project Overview 1) A highly-insulated R-30 modular exterior building envelope and attachment system with flashing solution for windows, doors, and penetrations for mechanical services, targeted at an installed cost of ≤$15/ft2 with airtightness of ≤ 1.0 L/s m2 @50 Pa; 2) An envelope-integrated HVAC system that connects to a compatible modular mechanical pod with real-time performance monitoring to enhance indoor space conditioning and maintains < 800ppm of CO2 for enhanced indoor air quality; 3) Retrofit protocol and decision-making platform including a digital component database and modular-based design and analysis tool for selecting and scaling the retrofit modules and optimizing the entire retrofit system for site-specific conditions. © Syracuse University, cocoon construct co., and tkFabricate, LLC, all rights reserved Objectives: To develop a transformative solution for whole- building energy efficiency retrofits of single-family attached residences in cold/very cold climate regions that is extendable to single-family detached and low- rise multifamily housing. Technical Innovations: Integrated Whole-Building Energy Efficiency Retrofit Solution for Residences in Cold/Very Cold Climates Topic 1 Award Number: DE-EE0009060

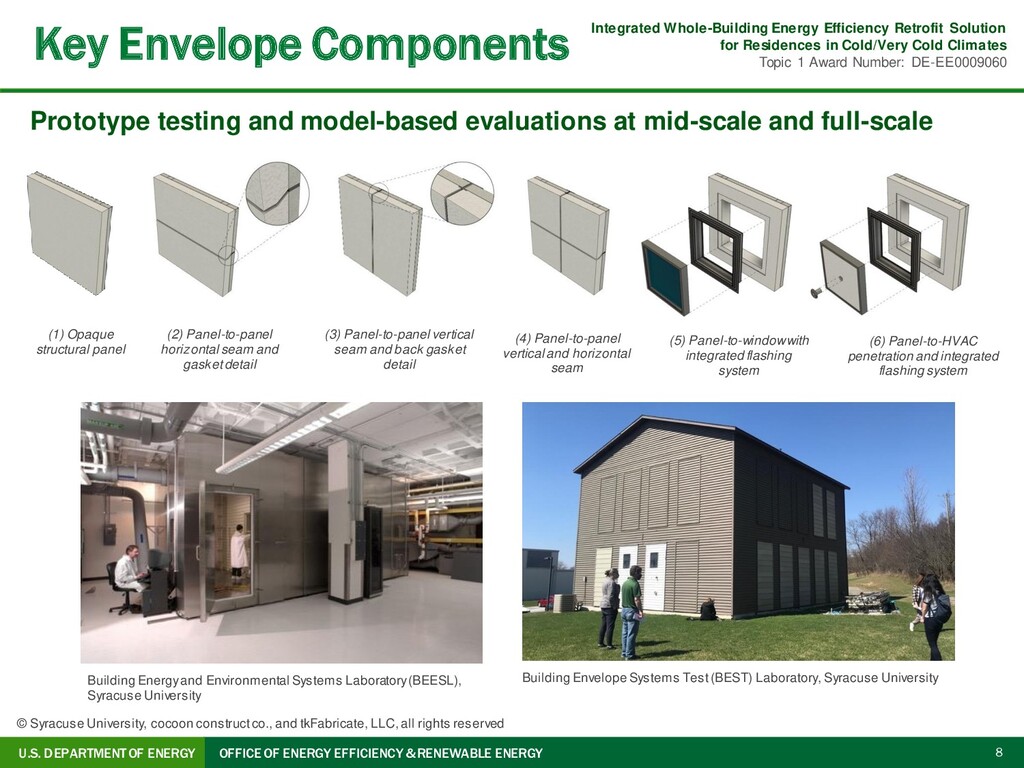

8. 8 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Key Envelope Components Prototype testing and model-based evaluations at mid-scale and full-scale Integrated Whole-Building Energy Efficiency Retrofit Solution for Residences in Cold/Very Cold Climates Topic 1 Award Number: DE-EE0009060 © Syracuse University, cocoon construct co., and tkFabricate, LLC, all rights reserved (5) Panel-to-window with integrated flashing system (6) Panel-to-HVAC penetration and integrated flashing system (2) Panel-to-panel horizontal seam and gasket detail (4) Panel-to-panel vertical and horizontal seam (1) Opaque structural panel (3) Panel-to-panel vertical seam and back gasket detail Building Energy and Environmental Systems Laboratory (BEESL), Syracuse University Building Envelope Systems Test (BEST) Laboratory, Syracuse University

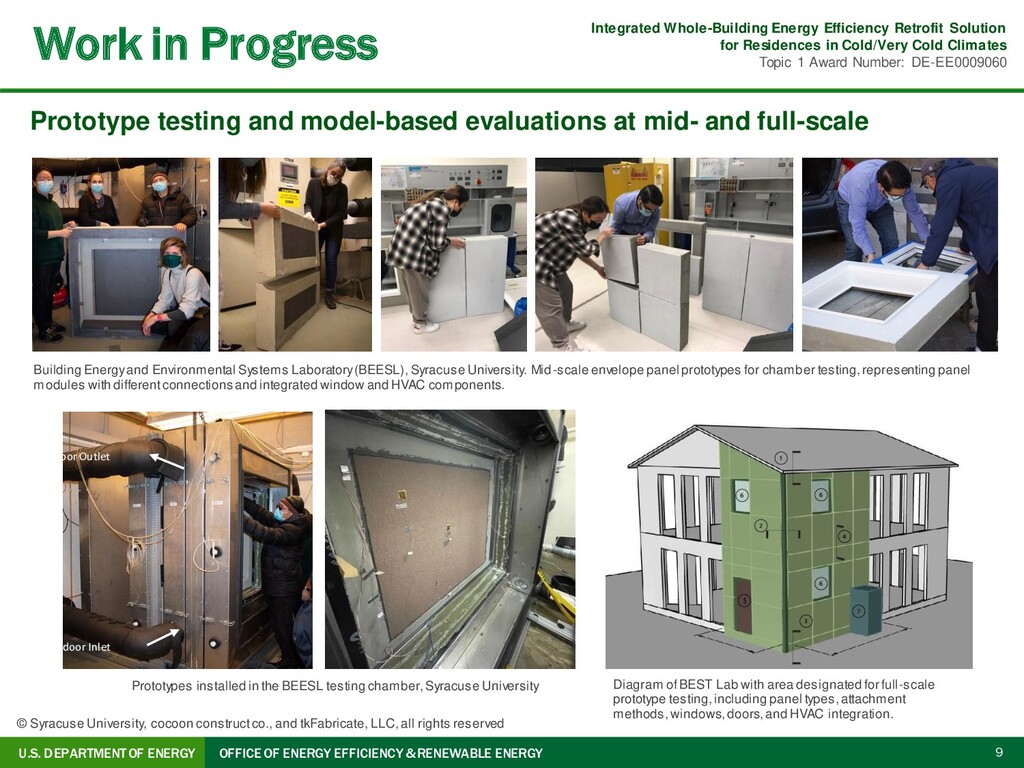

9. 9 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY Work in Progress Prototype testing and model-based evaluations at mid- and full-scale Integrated Whole-Building Energy Efficiency Retrofit Solution for Residences in Cold/Very Cold Climates Topic 1 Award Number: DE-EE0009060 © Syracuse University, cocoon construct co., and tkFabricate, LLC, all rights reserved Building Energy and Environmental Systems Laboratory (BEESL), Syracuse University. Mid-scale envelope panel prototypes for chamber testing, representing panel modules with different connections and integrated window and HVAC components. Outdoor Inlet Outdoor Outlet Prototypes installed in the BEESL testing chamber, Syracuse University Diagram of BEST Lab with area designated for full-scale prototype testing, including panel types, attachment methods, windows, doors, and HVAC integration.
10. 10 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY
11. 11 U.S. DEPARTMENT OF ENERGY OFFICE OF ENERGY EFFICIENCY & RENEWABLE ENERGY
