1. “Optimized for Joy” Wednesday, August 7, 13
2. What is Redis? “Memcache on steroids” Wednesday, August 7, 13
3. What is Redis? “A swiss army knife” Wednesday, August 7, 13
4. What is Redis? “... like grease for your server” Wednesday, August 7, 13
5. What is Redis? “A tank” Wednesday, August 7, 13
6. What is Redis? “legos for your data” Wednesday, August 7, 13
7. What is Redis? “a party on your own server” Wednesday, August 7, 13
8. What is Redis? “Redis is an open source, BSD licensed, advanced key-value store. It is often referred to as a data structure server since keys can contain strings, hashes, lists, sets and sorted sets.” Created by Salvatore Sanfilippo (aka antirez) Wednesday, August 7, 13

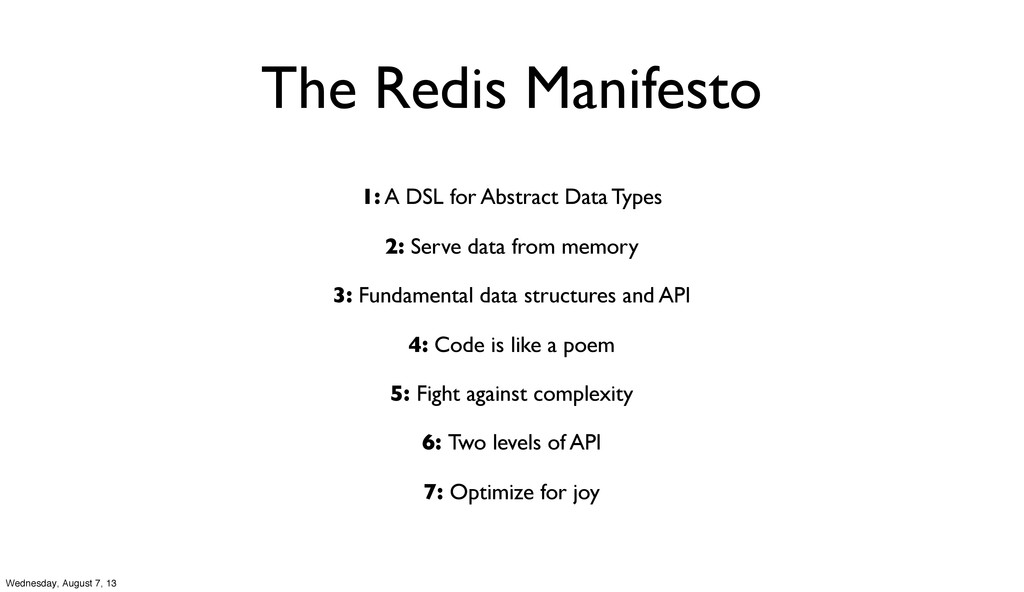

9. The Redis Manifesto 1: A DSL for Abstract Data Types 2: Serve data from memory 3: Fundamental data structures and API 4: Code is like a poem 5: Fight against complexity 6: Two levels of API 7: Optimize for joy Wednesday, August 7, 13

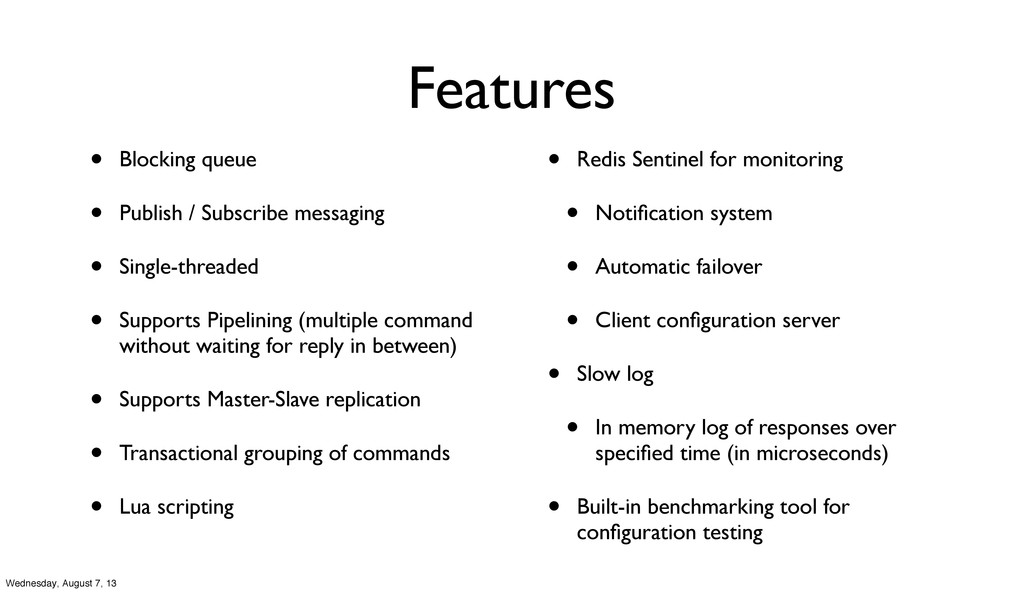

10. Features • Blocking queue • Publish / Subscribe messaging • Single-threaded • Supports Pipelining (multiple command without waiting for reply in between) • Supports Master-Slave replication • Transactional grouping of commands • Lua scripting • Redis Sentinel for monitoring • Notification system • Automatic failover • Client configuration server • Slow log • In memory log of responses over specified time (in microseconds) • Built-in benchmarking tool for configuration testing Wednesday, August 7, 13

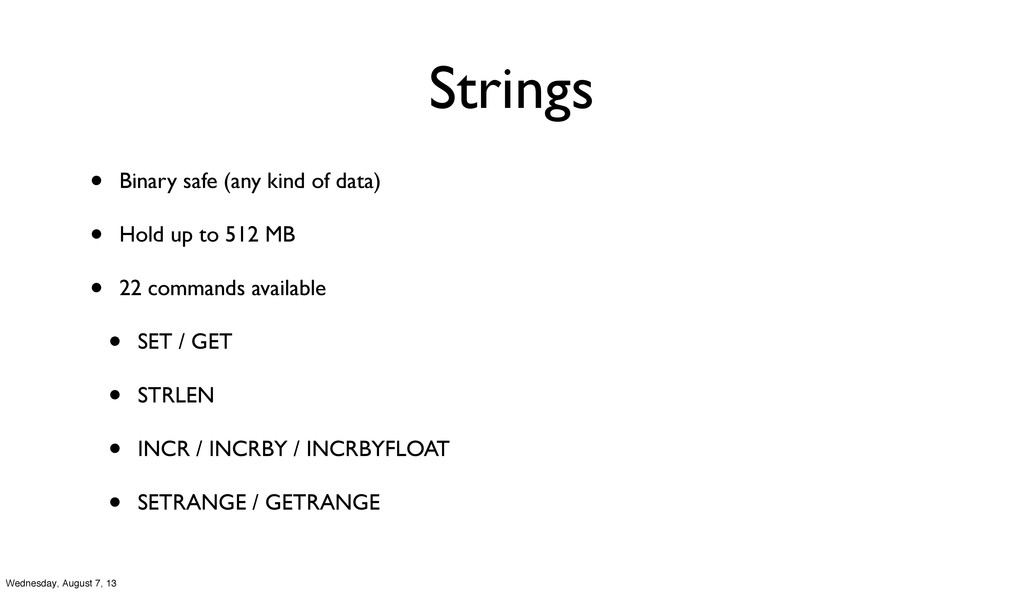

11. Strings • Binary safe (any kind of data) • Hold up to 512 MB • 22 commands available • SET / GET • STRLEN • INCR / INCRBY / INCRBYFLOAT • SETRANGE / GETRANGE Wednesday, August 7, 13

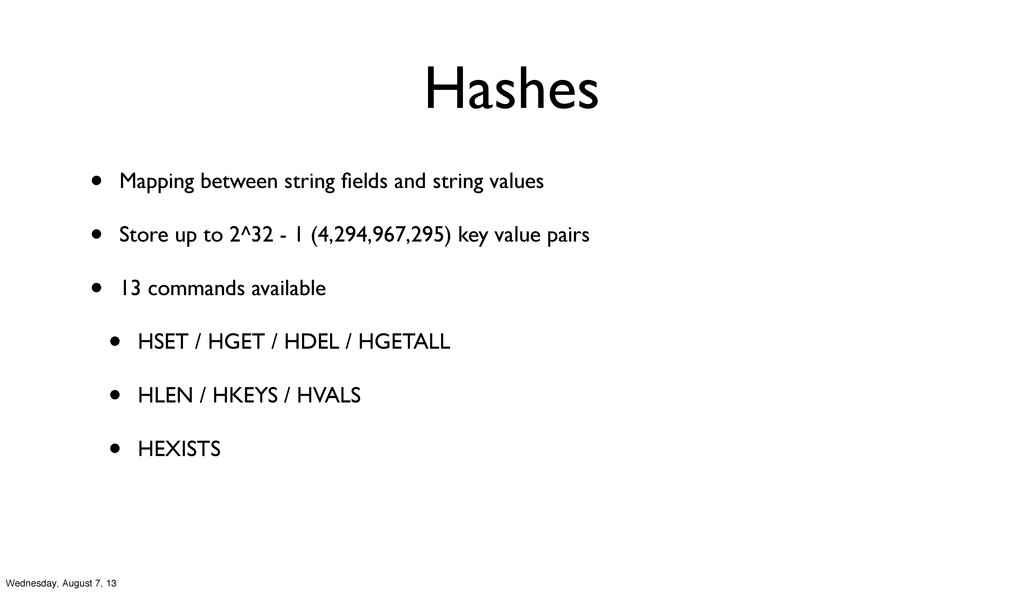

12. Hashes • Mapping between string fields and string values • Store up to 2^32 - 1 (4,294,967,295) key value pairs • 13 commands available • HSET / HGET / HDEL / HGETALL • HLEN / HKEYS / HVALS • HEXISTS Wednesday, August 7, 13

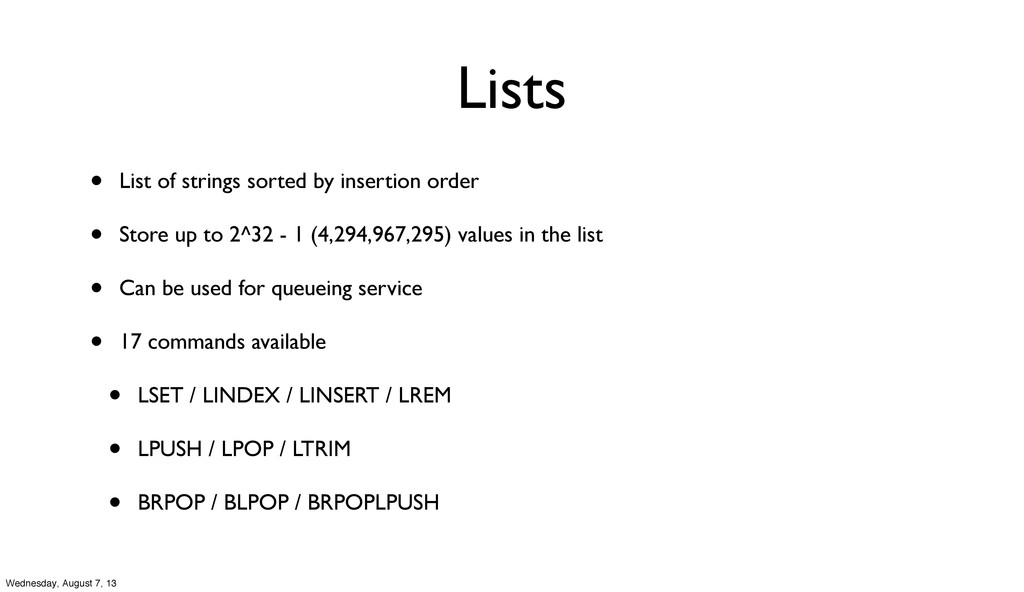

13. Lists • List of strings sorted by insertion order • Store up to 2^32 - 1 (4,294,967,295) values in the list • Can be used for queueing service • 17 commands available • LSET / LINDEX / LINSERT / LREM • LPUSH / LPOP / LTRIM • BRPOP / BLPOP / BRPOPLPUSH Wednesday, August 7, 13

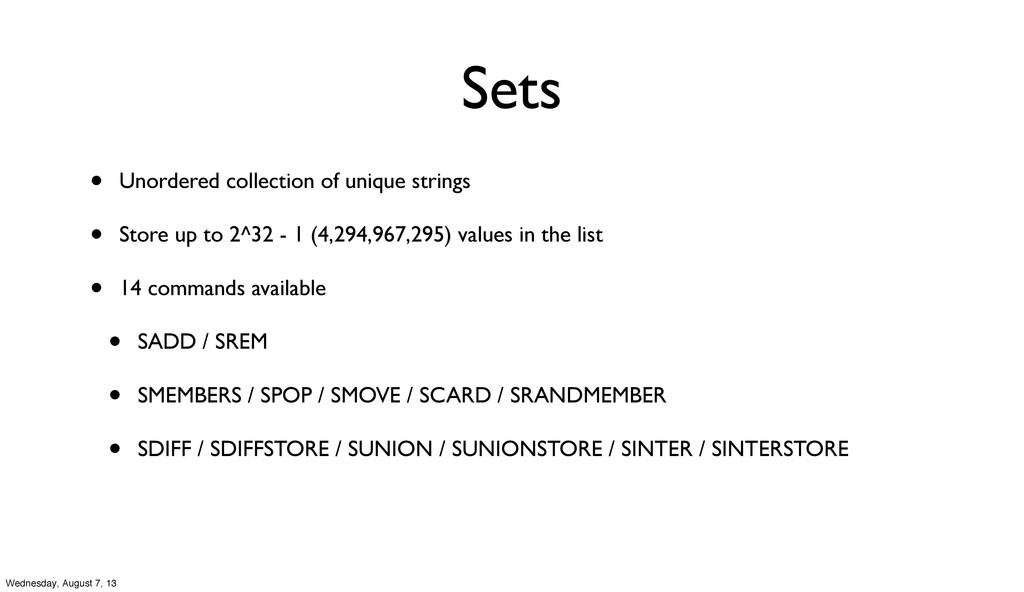

14. Sets • Unordered collection of unique strings • Store up to 2^32 - 1 (4,294,967,295) values in the list • 14 commands available • SADD / SREM • SMEMBERS / SPOP / SMOVE / SCARD / SRANDMEMBER • SDIFF / SDIFFSTORE / SUNION / SUNIONSTORE / SINTER / SINTERSTORE Wednesday, August 7, 13

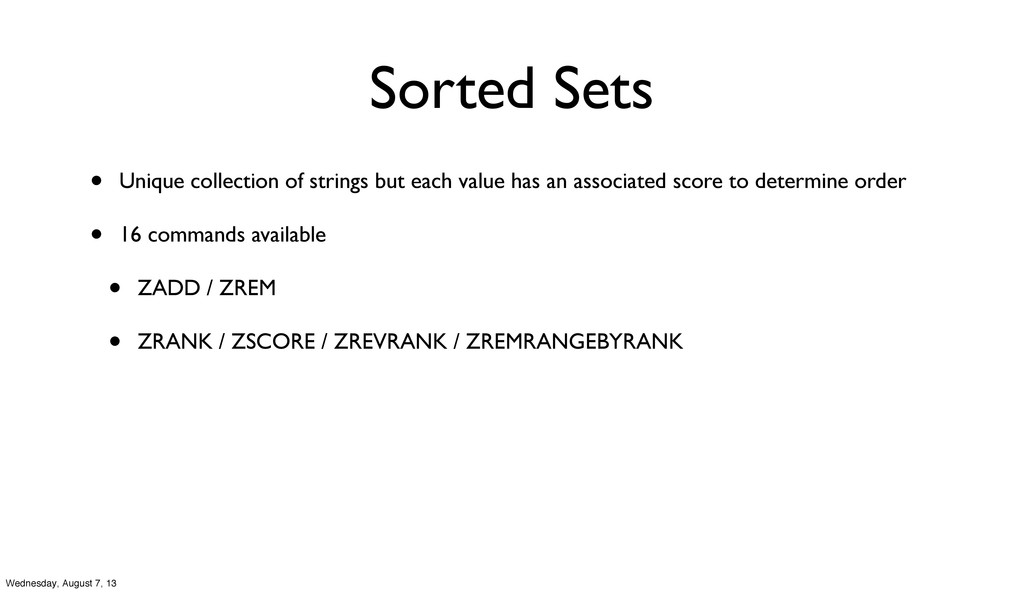

15. Sorted Sets • Unique collection of strings but each value has an associated score to determine order • 16 commands available • ZADD / ZREM • ZRANK / ZSCORE / ZREVRANK / ZREMRANGEBYRANK Wednesday, August 7, 13

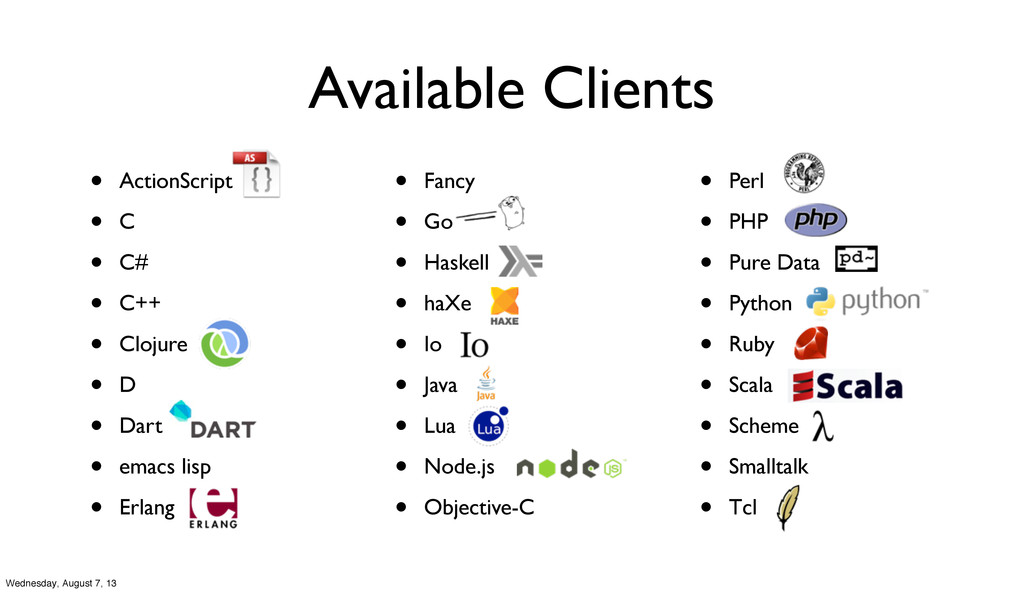

16. Available Clients • ActionScript • C • C# • C++ • Clojure • D • Dart • emacs lisp • Erlang • Fancy • Go • Haskell • haXe • Io • Java • Lua • Node.js • Objective-C • Perl • PHP • Pure Data • Python • Ruby • Scala • Scheme • Smalltalk • Tcl Wednesday, August 7, 13
17. Who uses Redis? Wednesday, August 7, 13

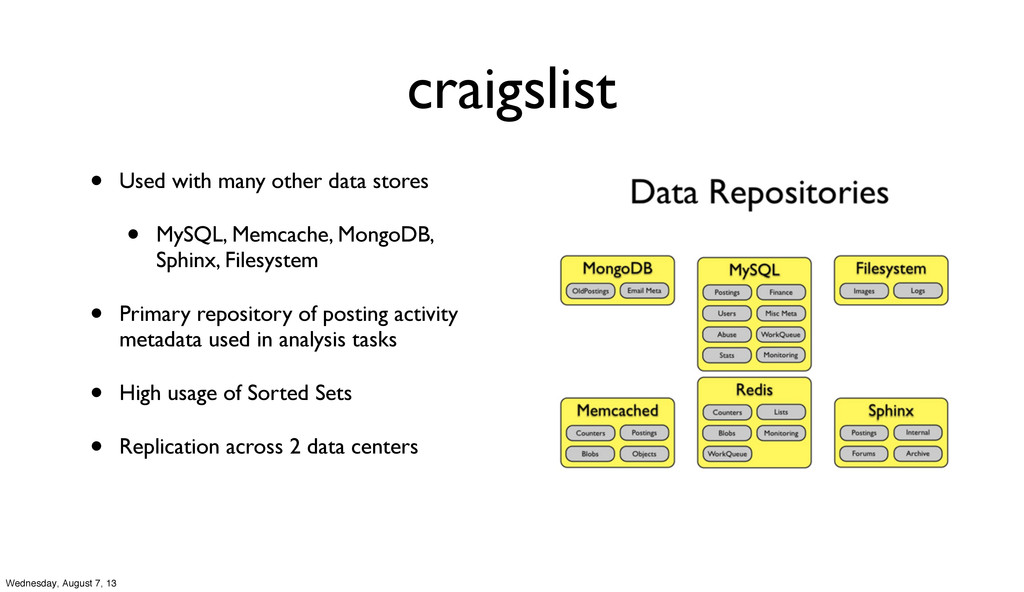

18. craigslist • Used with many other data stores • MySQL, Memcache, MongoDB, Sphinx, Filesystem • Primary repository of posting activity metadata used in analysis tasks • High usage of Sorted Sets • Replication across 2 data centers Wednesday, August 7, 13

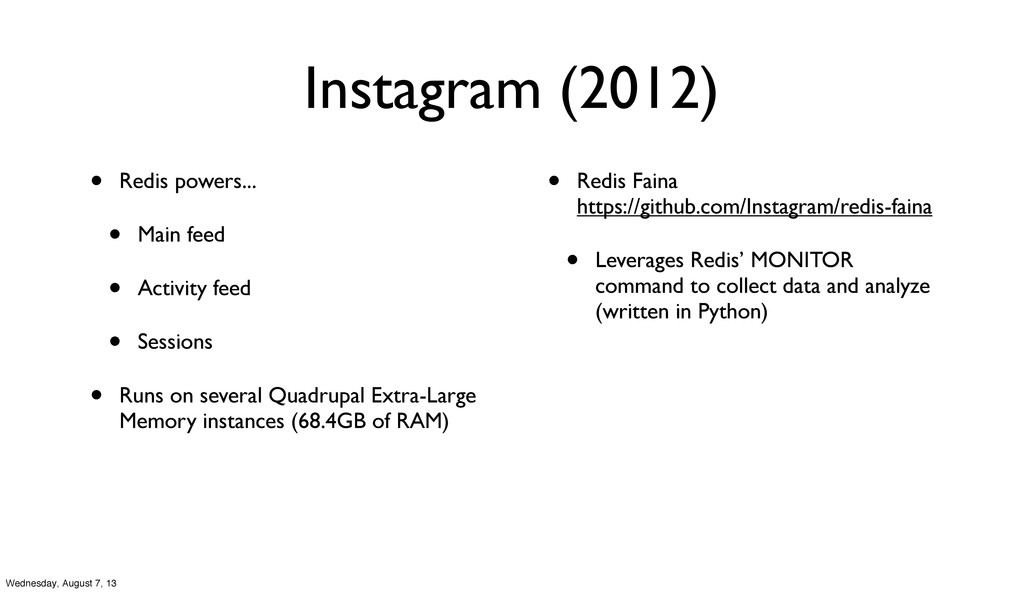

19. Instagram (2012) • Redis powers... • Main feed • Activity feed • Sessions • Runs on several Quadrupal Extra-Large Memory instances (68.4GB of RAM) • Redis Faina https://github.com/Instagram/redis-faina • Leverages Redis’ MONITOR command to collect data and analyze (written in Python) Wednesday, August 7, 13

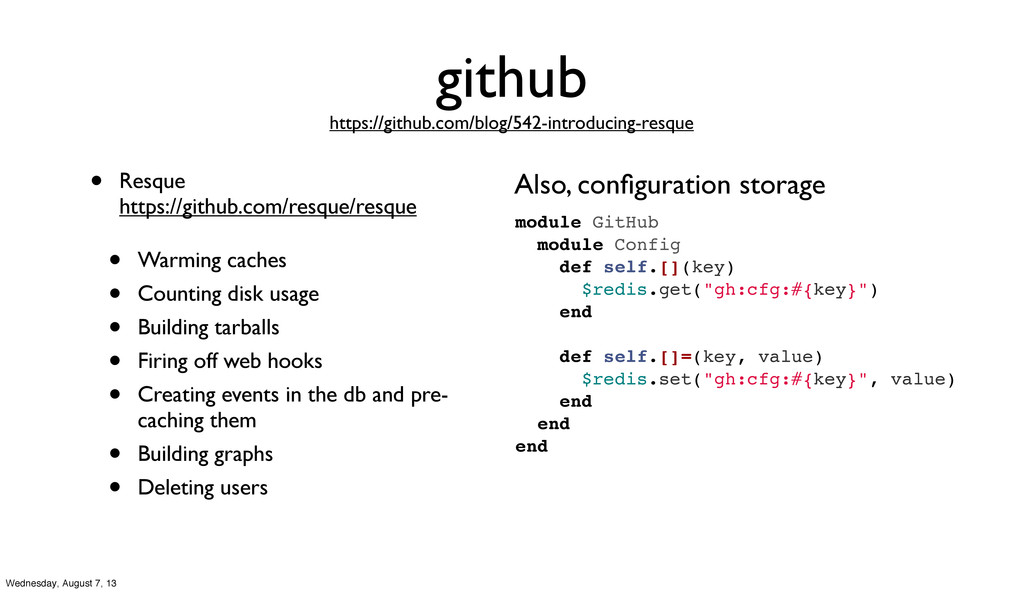

20. github https://github.com/blog/542-introducing-resque • Resque https://github.com/resque/resque • Warming caches • Counting disk usage • Building tarballs • Firing off web hooks • Creating events in the db and pre- caching them • Building graphs • Deleting users module GitHub module Config def self.[](key) $redis.get("gh:cfg:#{key}") end def self.[]=(key, value) $redis.set("gh:cfg:#{key}", value) end end end Also, configuration storage Wednesday, August 7, 13

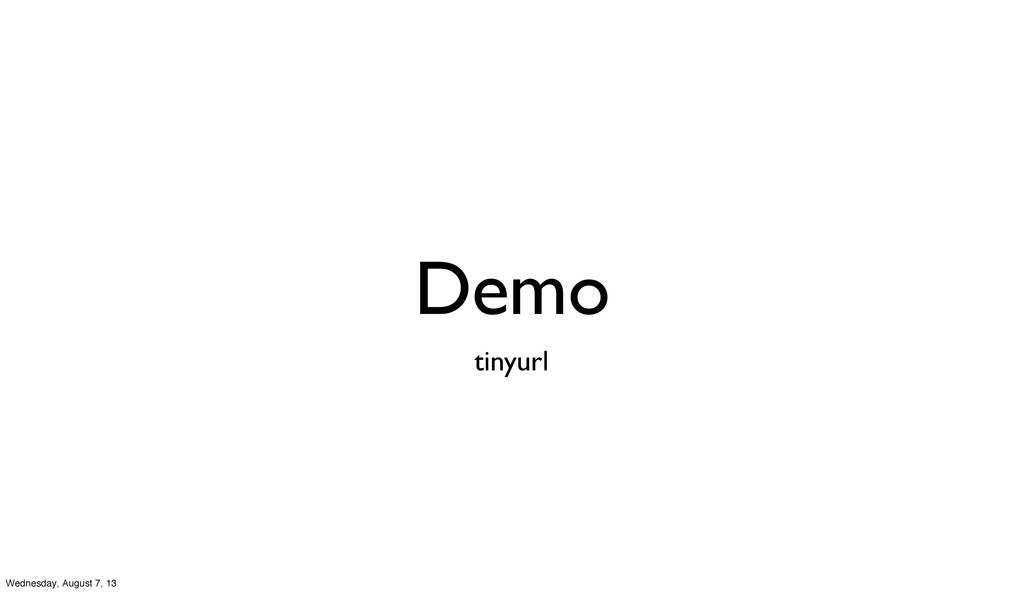

21. Demo tinyurl Wednesday, August 7, 13
22. Tips • Check out http://redis.io for great documentation • Use hashes instead of multiple keys for more efficient storage • Make sure you plan out your memory for your server accordingly • If you are building a URL shortener and you want to use QR codes... Wednesday, August 7, 13
23. Redis Conf 2013.redisconf.com October 17th Wednesday, August 7, 13
24. Questions? Wednesday, August 7, 13
