Docker Swarm Mode

Transcript

1. Docker Swarm @anak10thn
2. /bin/whoami Ibnu Yahya (Eka Tresna Irawan) CTO Bitch @ aksaramaya.com github.com/anak10thn

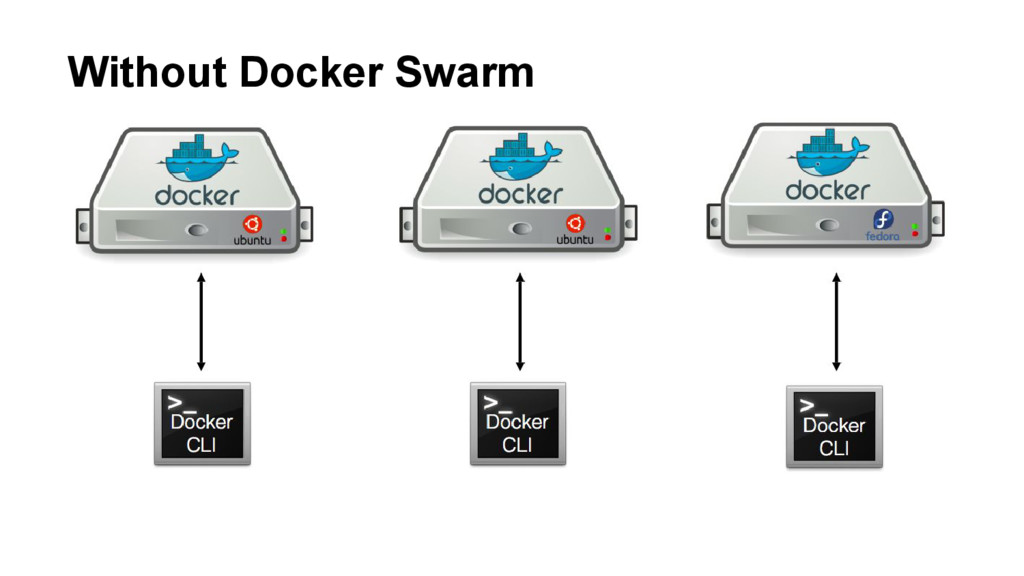

4. Without Docker Swarm

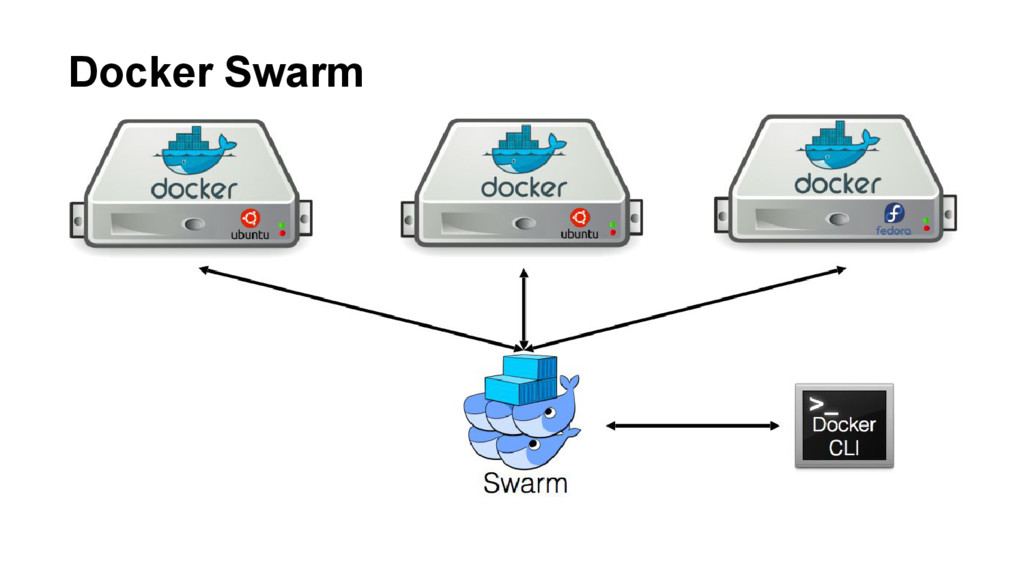

5. Docker Swarm

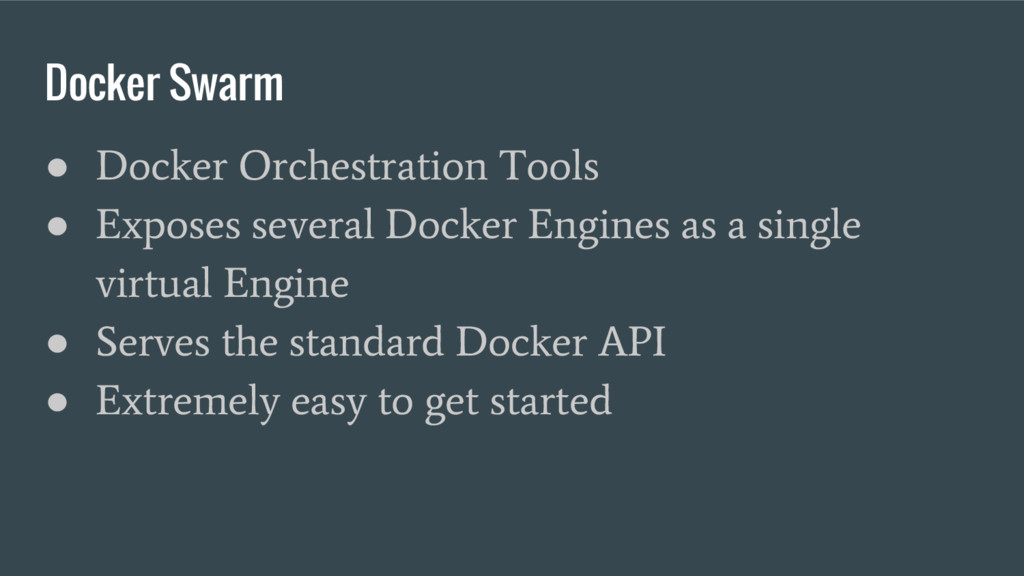

6. Docker Swarm • Docker Orchestration Tools • Exposes several Docker Engines as a single virtual Engine • Serves the standard Docker API • Extremely easy to get started

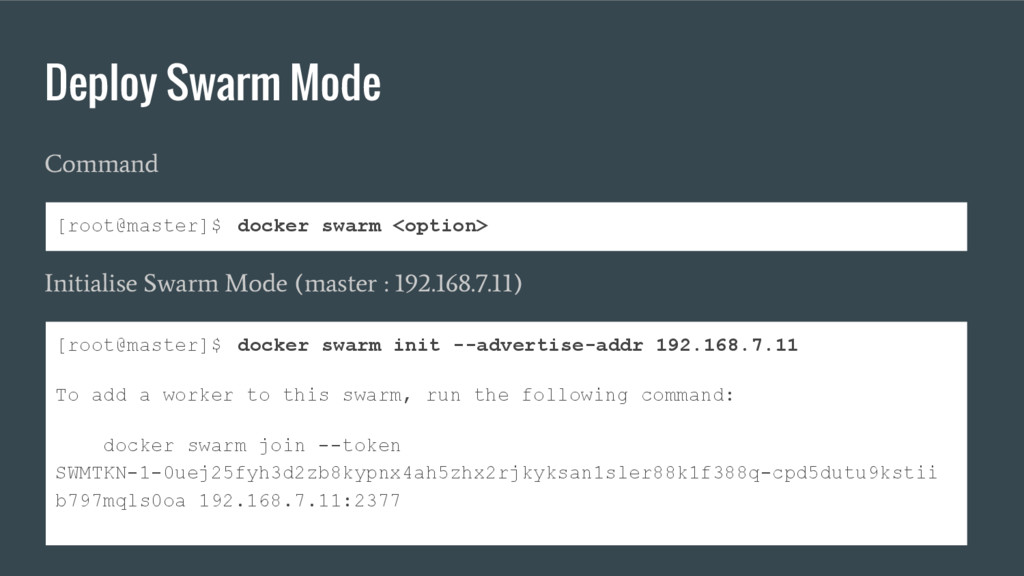

7. Deploy Swarm Mode Initialise Swarm Mode (master : 192.168.7.11) [root@master]$ docker swarm init --advertise-addr 192.168.7.11 To add a worker to this swarm, run the following command: docker swarm join --token SWMTKN-1-0uej25fyh3d2zb8kypnx4ah5zhx2rjkyksan1sler88k1f388q-cpd5dutu9kstii b797mqls0oa 192.168.7.11:2377 Command [root@master]$ docker swarm <option>

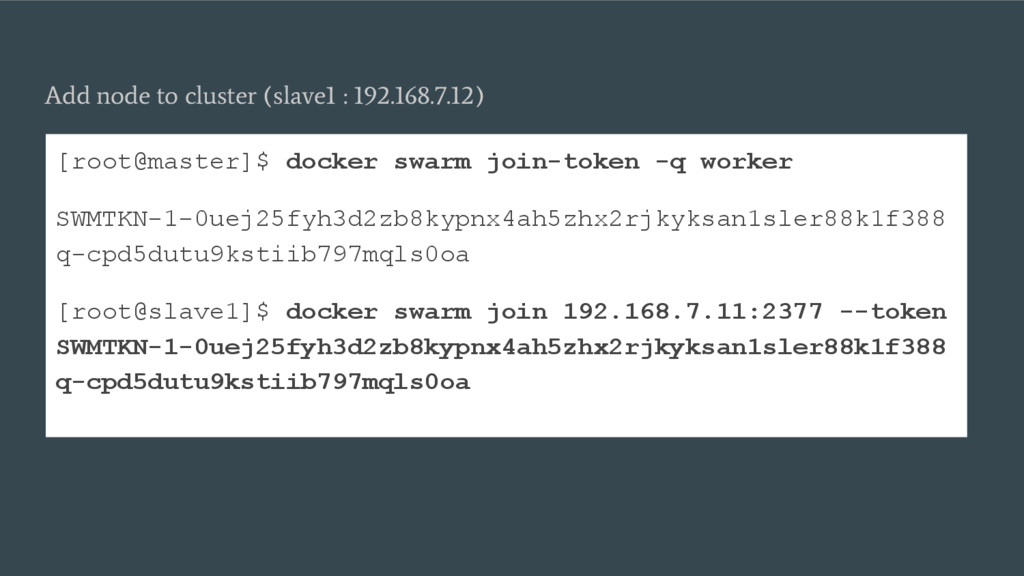

8. Add node to cluster (slave1 : 192.168.7.12) [root@master]$ docker swarm join-token -q worker SWMTKN-1-0uej25fyh3d2zb8kypnx4ah5zhx2rjkyksan1sler88k1f388 q-cpd5dutu9kstiib797mqls0oa [root@slave1]$ docker swarm join 192.168.7.11:2377 --token SWMTKN-1-0uej25fyh3d2zb8kypnx4ah5zhx2rjkyksan1sler88k1f388 q-cpd5dutu9kstiib797mqls0oa

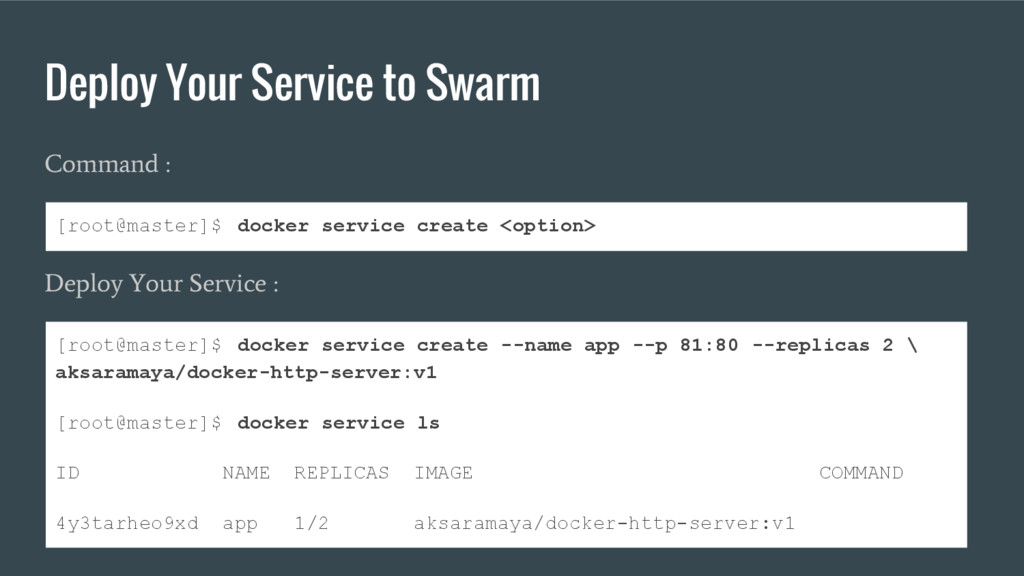

9. Deploy Your Service to Swarm Deploy Your Service : [root@master]$ docker service create --name app --p 81:80 --replicas 2 \ aksaramaya/docker-http-server:v1 [root@master]$ docker service ls ID NAME REPLICAS IMAGE COMMAND 4y3tarheo9xd app 1/2 aksaramaya/docker-http-server:v1 Command : [root@master]$ docker service create <option>

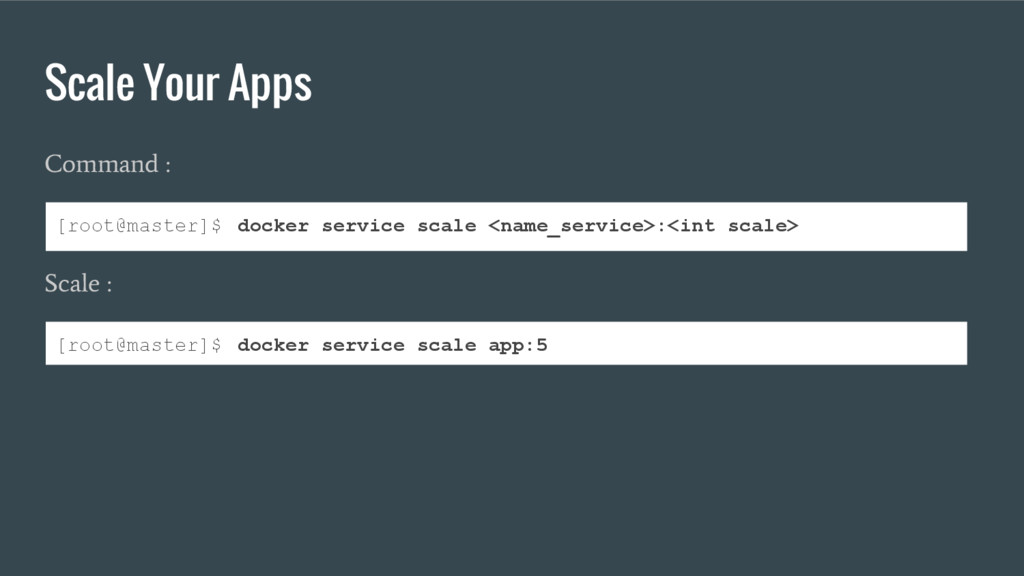

10. Scale Your Apps Scale : [root@master]$ docker service scale app:5 Command : [root@master]$ docker service scale <name_service>:<int scale>

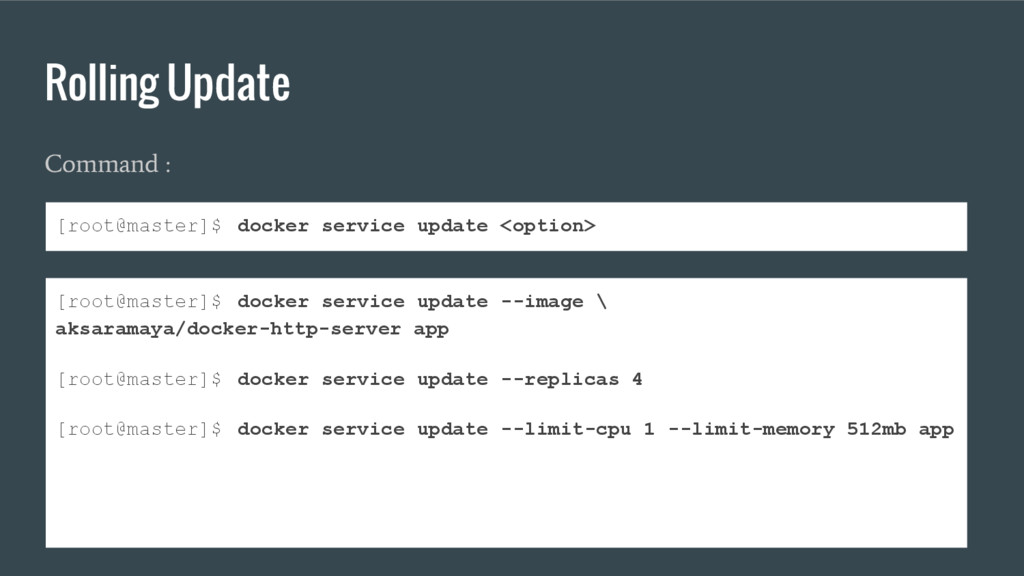

11. Rolling Update [root@master]$ docker service update --image \ aksaramaya/docker-http-server app [root@master]$ docker service update --replicas 4 [root@master]$ docker service update --limit-cpu 1 --limit-memory 512mb app Command : [root@master]$ docker service update <option>

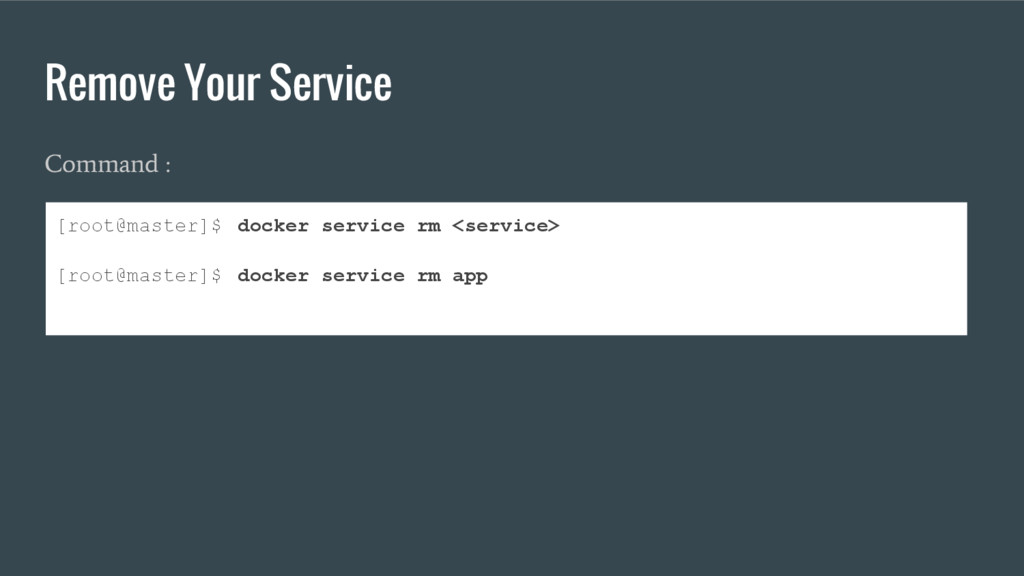

12. Remove Your Service Command : [root@master]$ docker service rm <service> [root@master]$ docker service rm app
13. Thank You
