1. Andrii Chyzh @ Wix.com Node.js Performance andriic@wix.com github.com/andriichyzh
2. Standard Slide • Software Engineer / Team Leader at Wix.com • Independent project development consulting • More than 8 years in professional software development • Latest 6 years Node.js my main and beloved technology

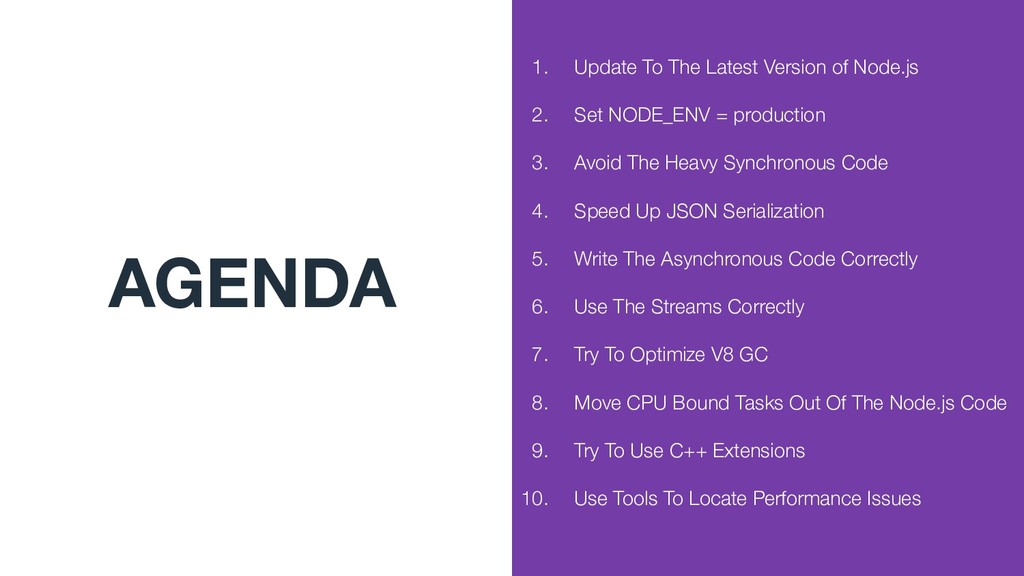

3. AGENDA 1. Update To The Latest Version of Node.js 2. Set NODE_ENV = production 3. Avoid The Heavy Synchronous Code 4. Speed Up JSON Serialization 5. Write The Asynchronous Code Correctly 6. Use The Streams Correctly 7. Try To Optimize V8 GC 8. Move CPU Bound Tasks Out Of The Node.js Code 9. Try To Use C++ Extensions 10. Use Tools To Locate Performance Issues
4. Update To The Latest Version of Node.js 01

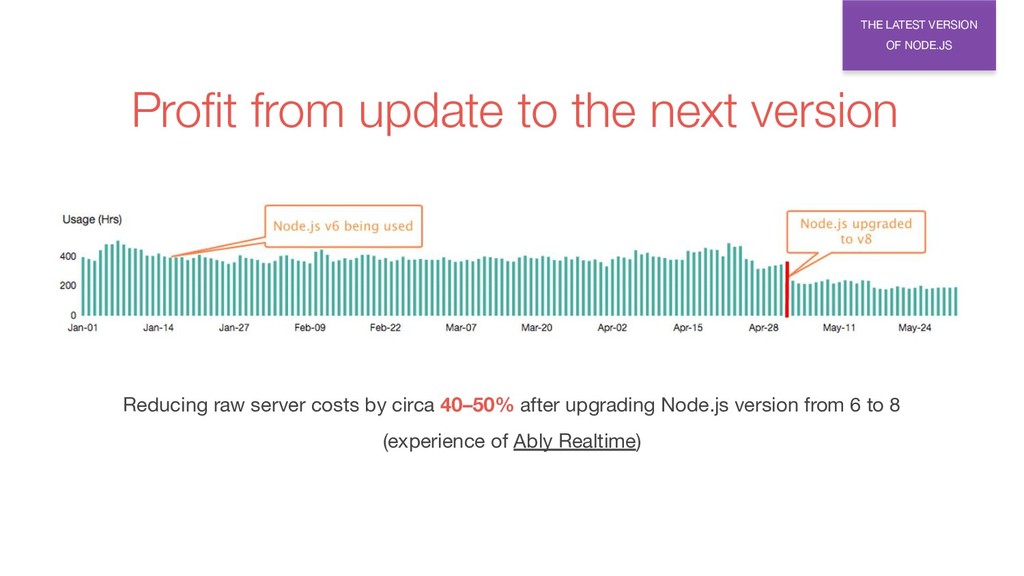

5. THE LATEST VERSION OF NODE.JS Reducing raw server costs by circa 40–50% after upgrading Node.js version from 6 to 8 (experience of Ably Realtime) Profit from update to the next version

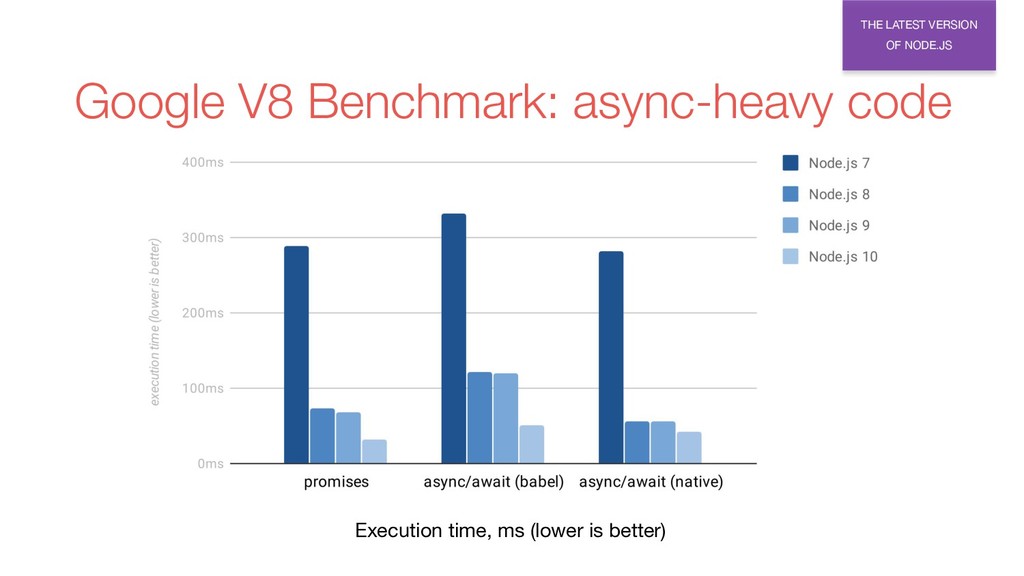

6. Google V8 Benchmark: async-heavy code THE LATEST VERSION OF NODE.JS Execution time, ms (lower is better)

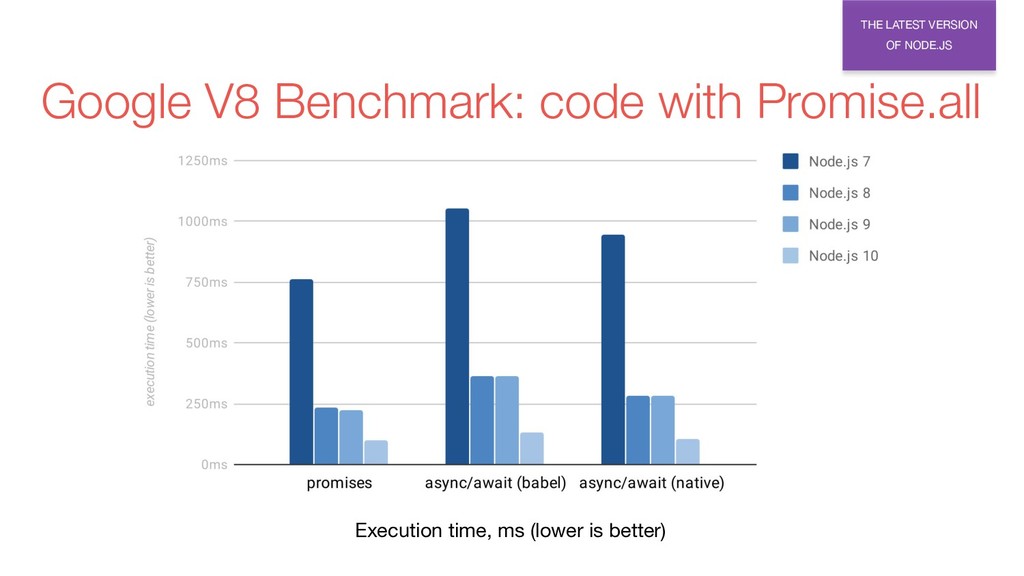

7. Google V8 Benchmark: code with Promise.all THE LATEST VERSION OF NODE.JS Execution time, ms (lower is better)

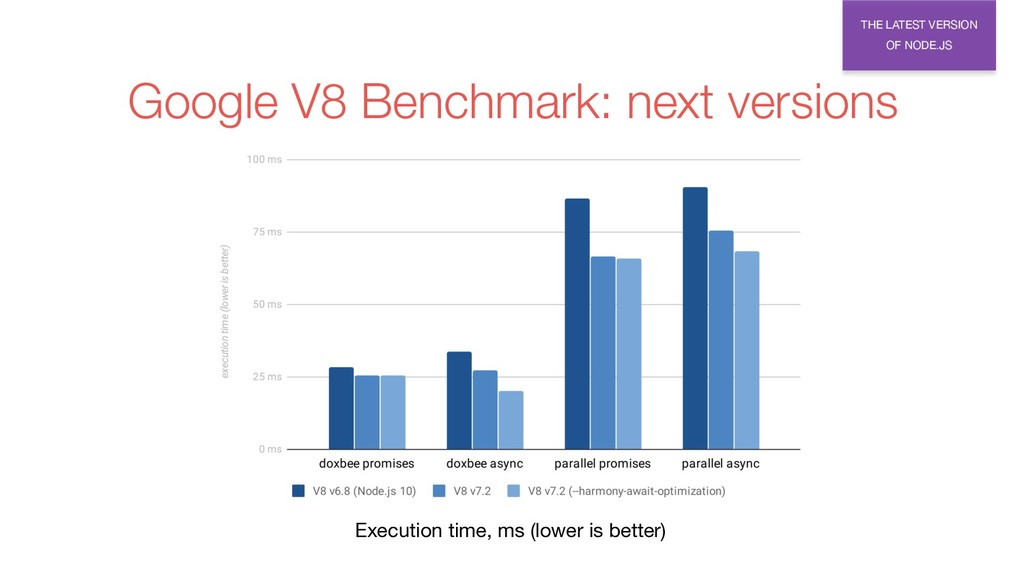

8. Google V8 Benchmark: next versions THE LATEST VERSION OF NODE.JS Execution time, ms (lower is better)

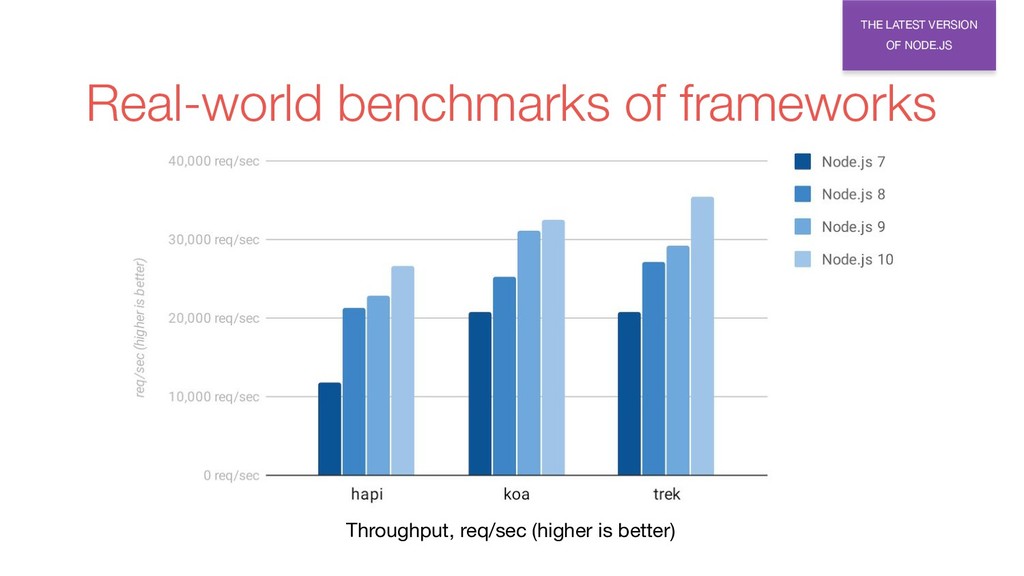

9. Real-world benchmarks of frameworks THE LATEST VERSION OF NODE.JS Throughput, req/sec (higher is better)

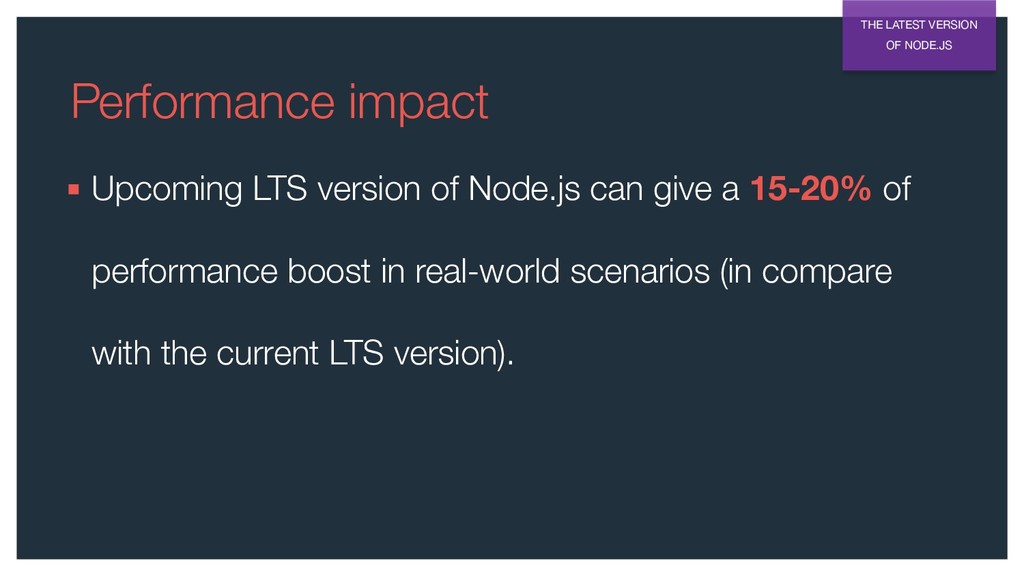

10. Performance impact ▪ Upcoming LTS version of Node.js can give a 15-20% of performance boost in real-world scenarios (in compare with the current LTS version). THE LATEST VERSION OF NODE.JS
11. Set NODE_ENV = production 02

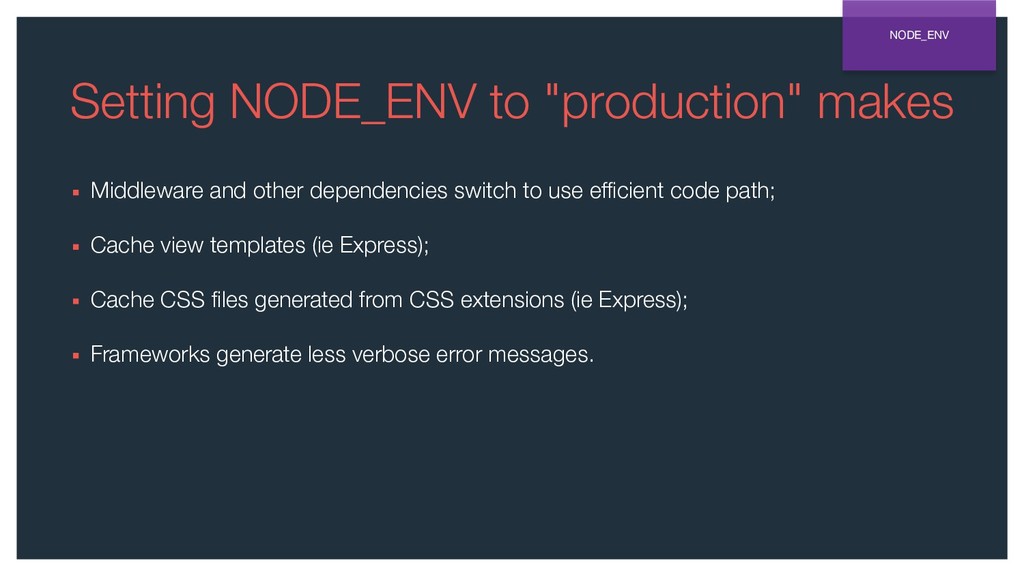

12. Setting NODE_ENV to "production" makes ▪ Middleware and other dependencies switch to use efficient code path; ▪ Cache view templates (ie Express); ▪ Cache CSS files generated from CSS extensions (ie Express); ▪ Frameworks generate less verbose error messages. NODE_ENV

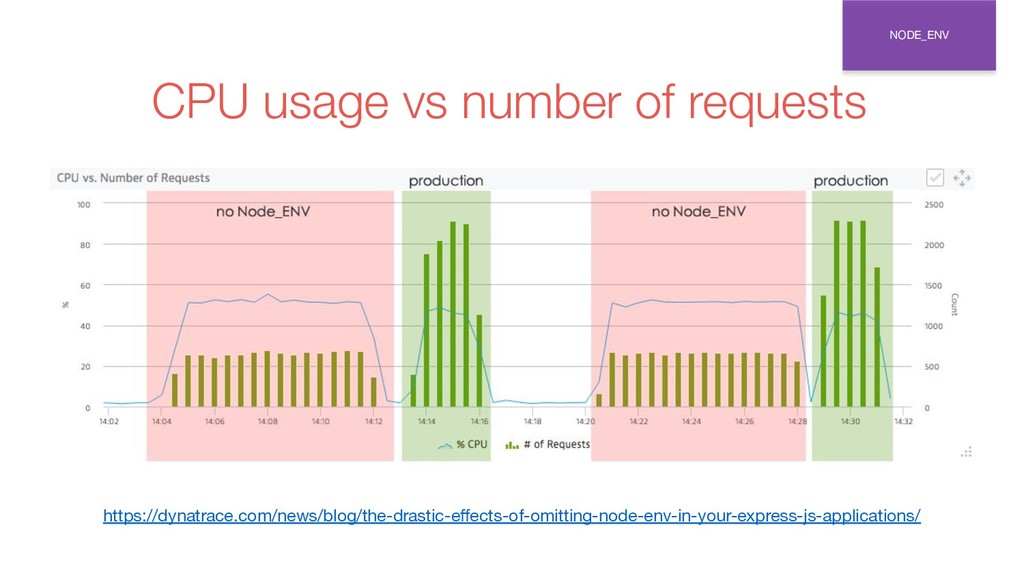

13. CPU usage vs number of requests NODE_ENV https://dynatrace.com/news/blog/the-drastic-effects-of-omitting-node-env-in-your-express-js-applications/

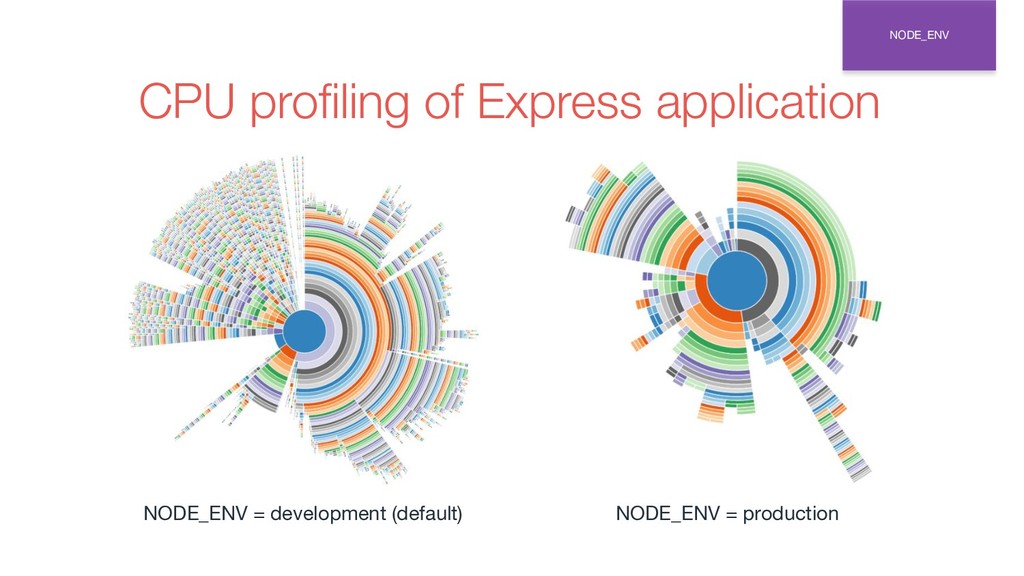

14. CPU profiling of Express application NODE_ENV NODE_ENV = development (default) NODE_ENV = production

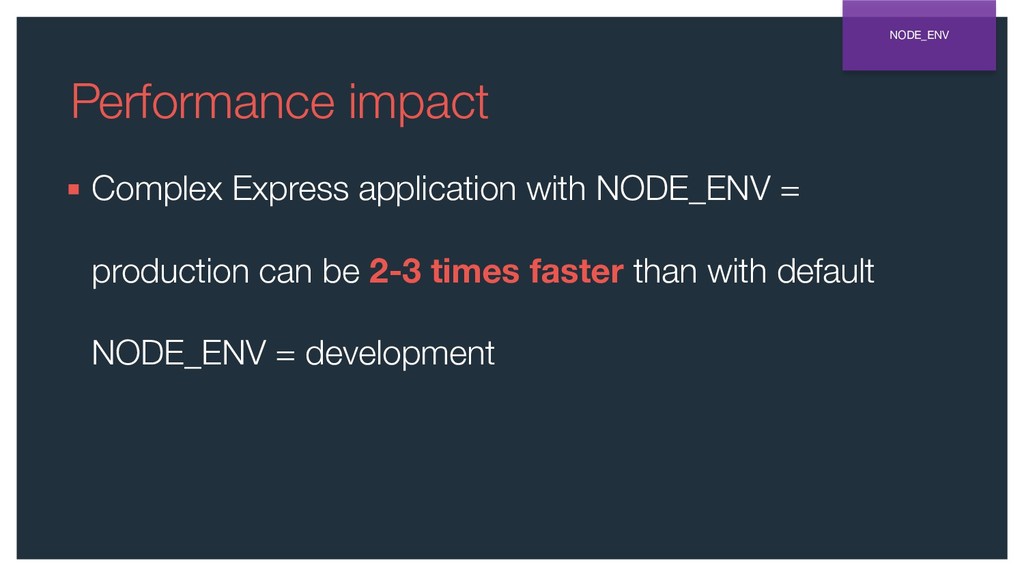

15. Performance impact ▪ Complex Express application with NODE_ENV = production can be 2-3 times faster than with default NODE_ENV = development NODE_ENV
16. Avoid The Heavy Synchronous Code 03

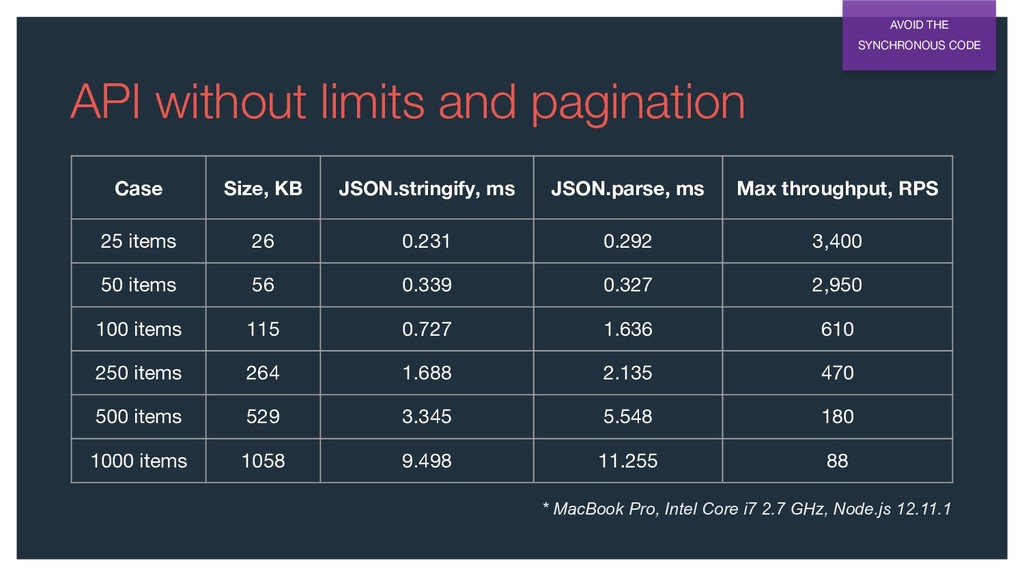

17. API without limits and pagination AVOID THE SYNCHRONOUS CODE Case Size, KB JSON.stringify, ms JSON.parse, ms Max throughput, RPS 25 items 26 0.231 0.292 3,400 50 items 56 0.339 0.327 2,950 100 items 115 0.727 1.636 610 250 items 264 1.688 2.135 470 500 items 529 3.345 5.548 180 1000 items 1058 9.498 11.255 88 * MacBook Pro, Intel Core i7 2.7 GHz, Node.js 12.11.1

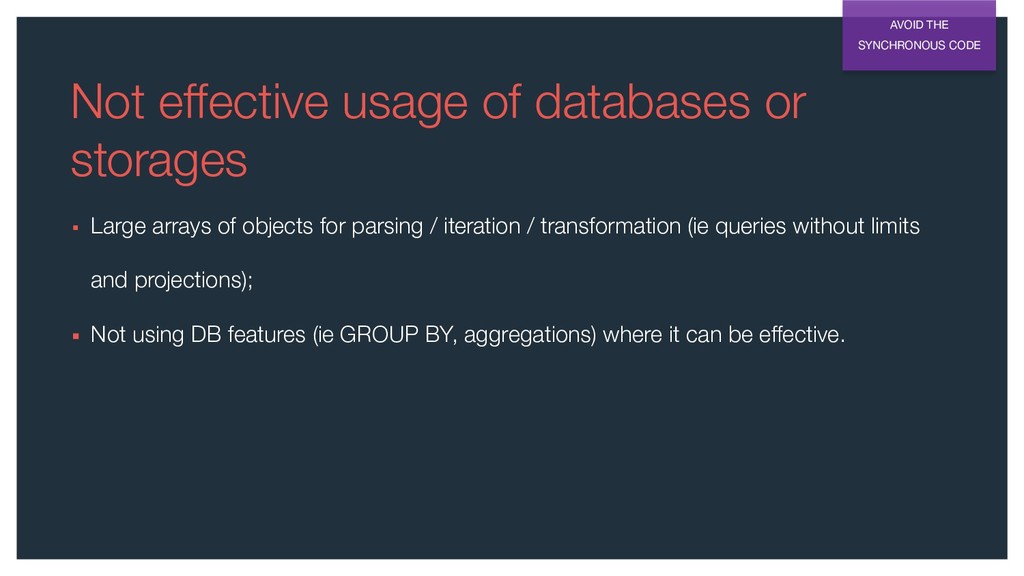

18. Not effective usage of databases or storages ▪ Large arrays of objects for parsing / iteration / transformation (ie queries without limits and projections); ▪ Not using DB features (ie GROUP BY, aggregations) where it can be effective. AVOID THE SYNCHRONOUS CODE

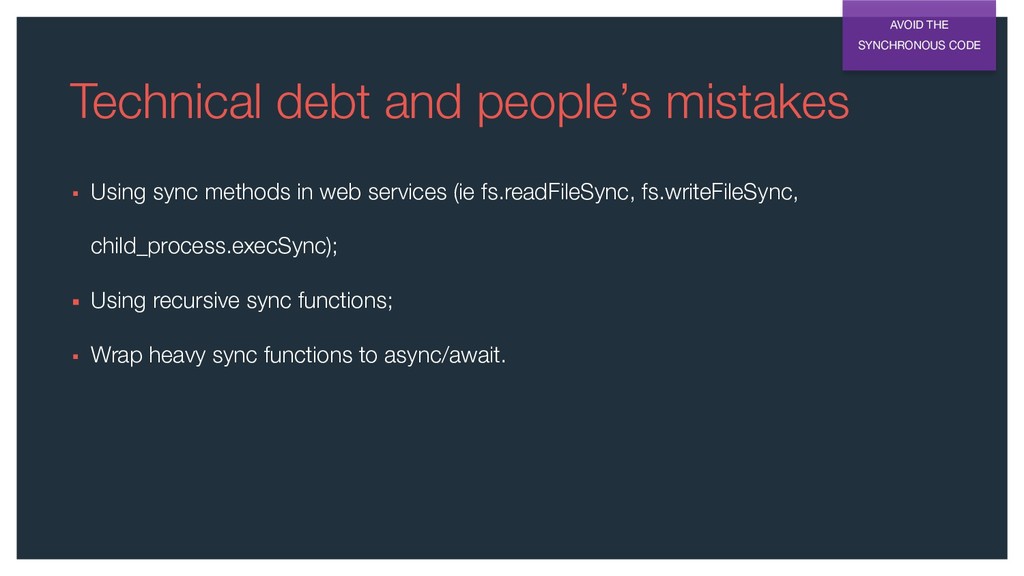

19. Technical debt and people’s mistakes ▪ Using sync methods in web services (ie fs.readFileSync, fs.writeFileSync, child_process.execSync); ▪ Using recursive sync functions; ▪ Wrap heavy sync functions to async/await. AVOID THE SYNCHRONOUS CODE

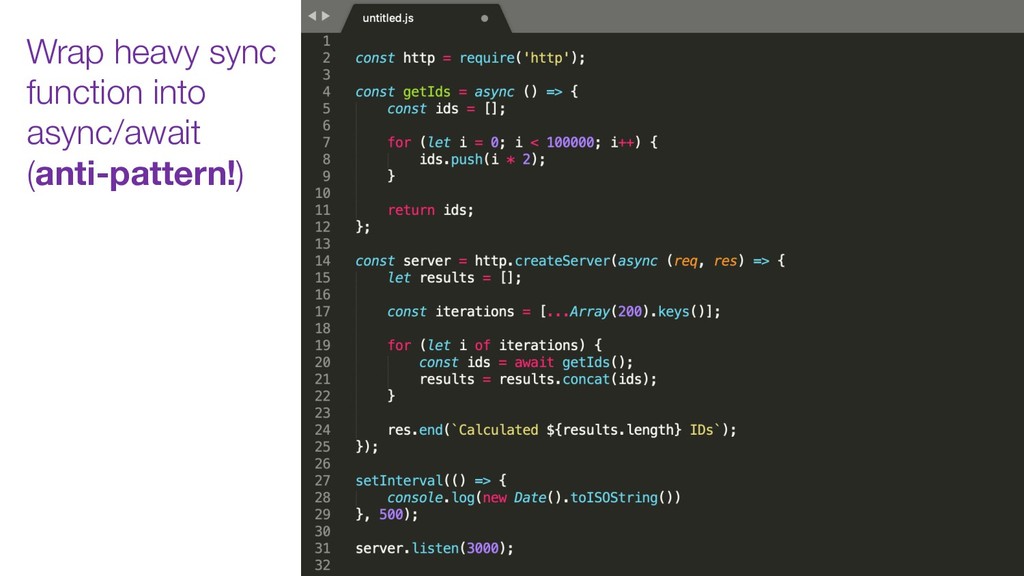

20. Wrap heavy sync function into async/await (anti-pattern!)

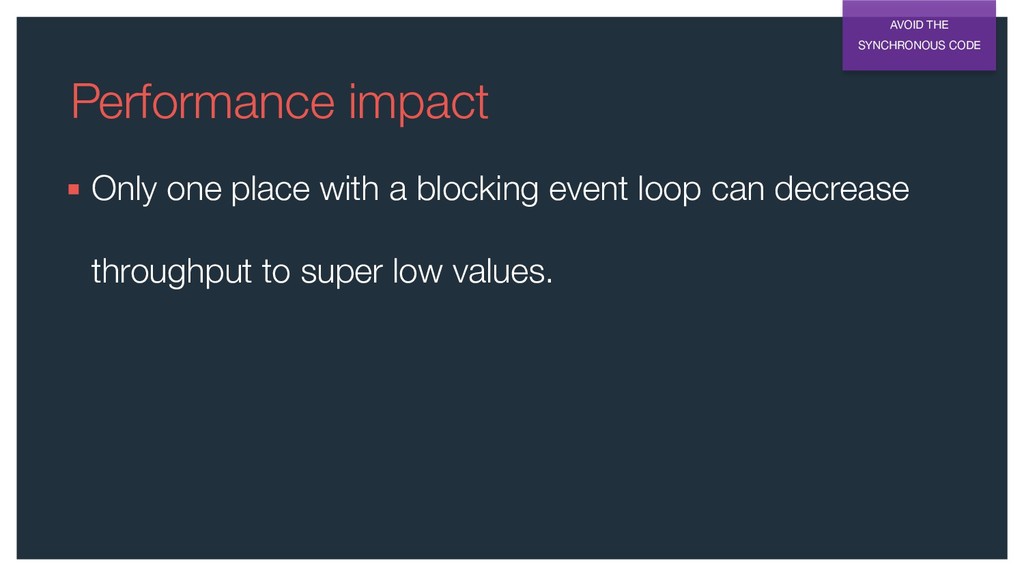

21. Performance impact ▪ Only one place with a blocking event loop can decrease throughput to super low values. AVOID THE SYNCHRONOUS CODE
22. Speed Up JSON Serialization 04

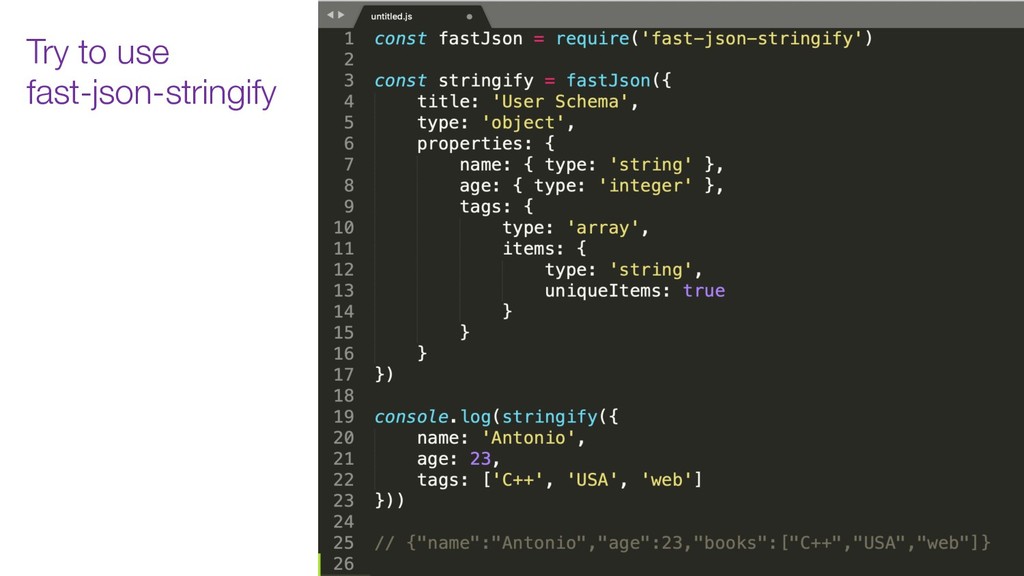

23. Try to use fast-json-stringify

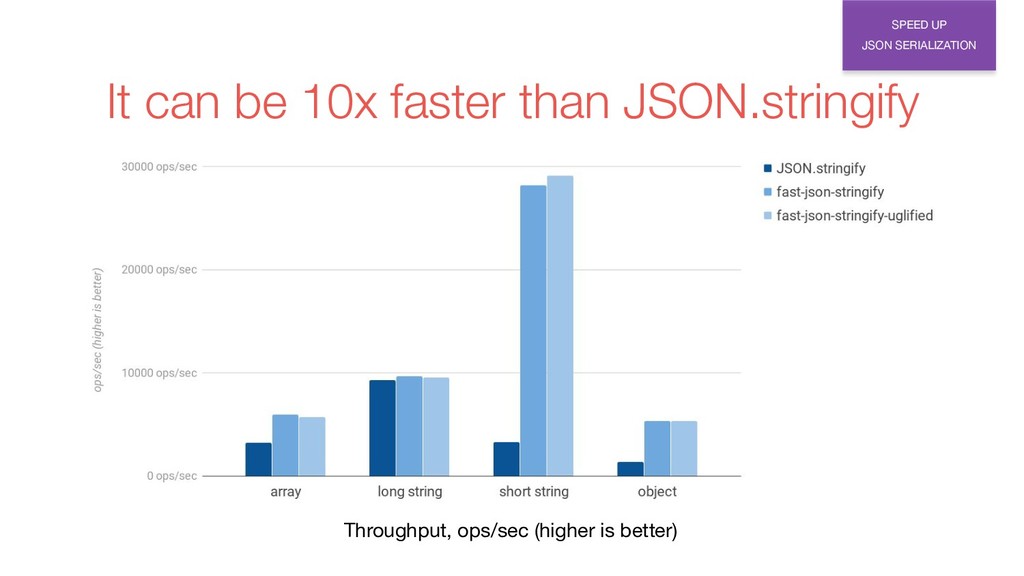

24. It can be 10x faster than JSON.stringify SPEED UP JSON SERIALIZATION Throughput, ops/sec (higher is better)
25. Write The Asynchronous Code Correctly 05

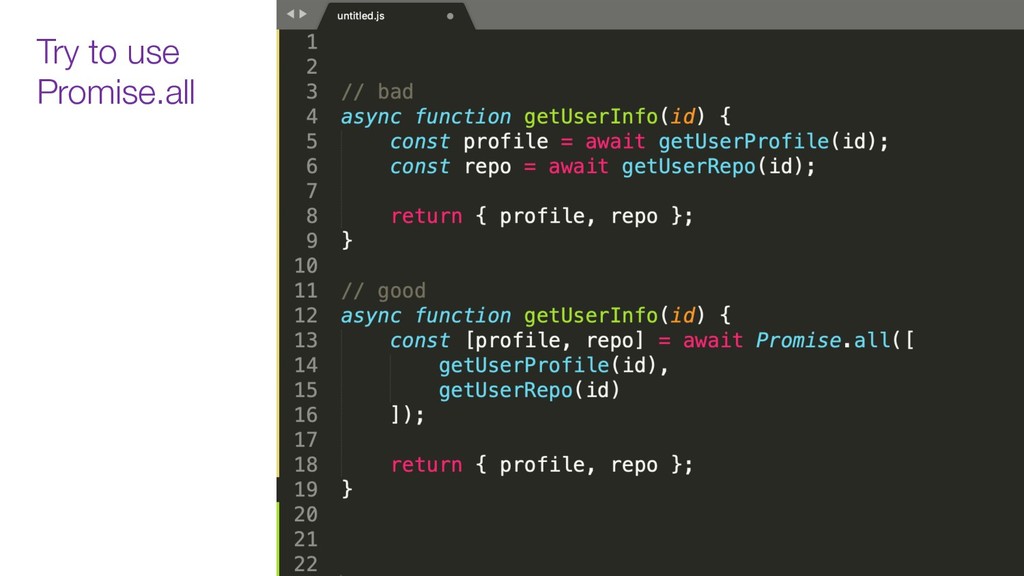

26. Try to use Promise.all
27. Use The Streams Correctly 06

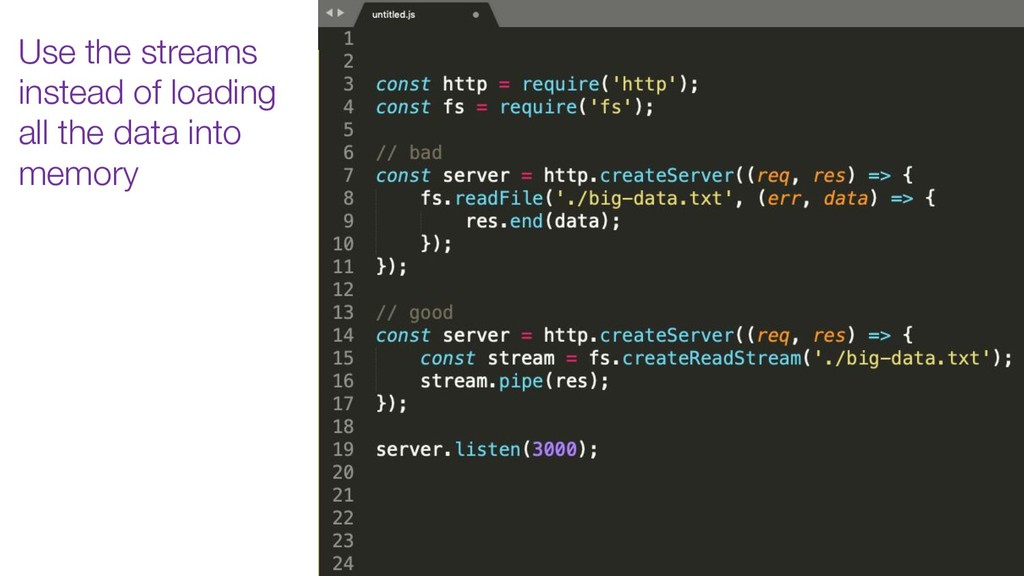

28. Use the streams instead of loading all the data into memory

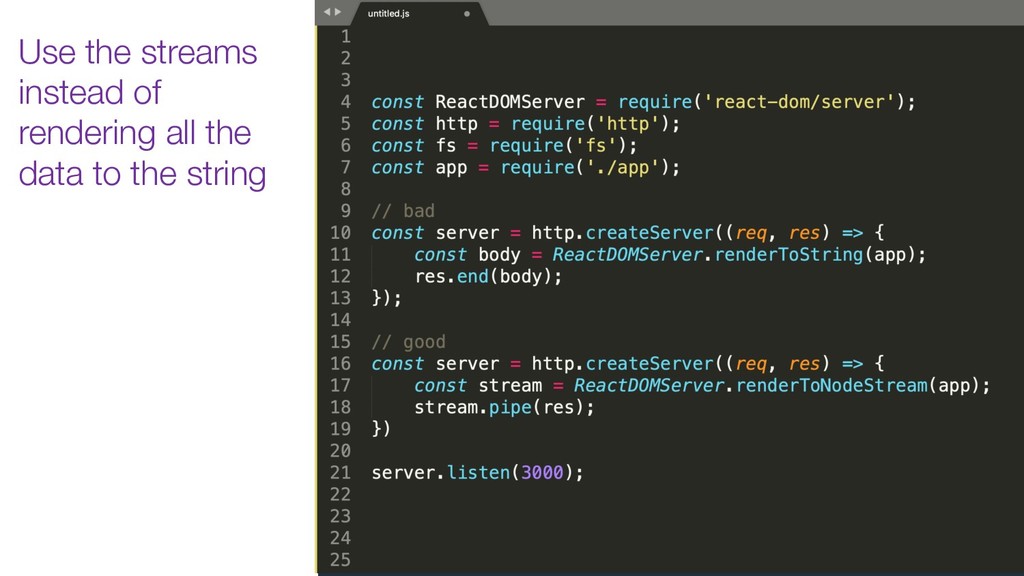

29. Use the streams instead of rendering all the data to the string

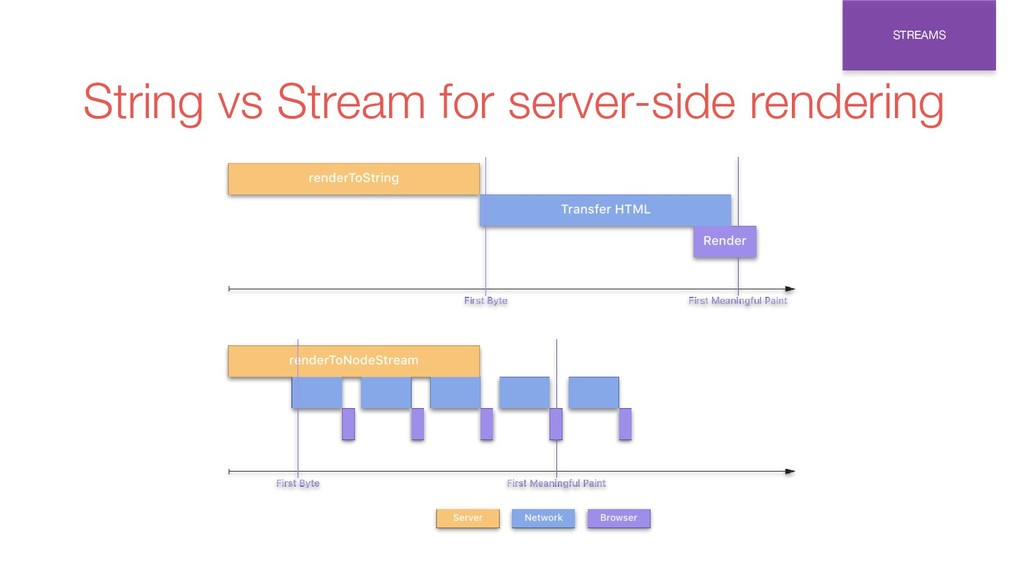

30. STREAMS String vs Stream for server-side rendering
31. Try To Optimize V8 GC 07

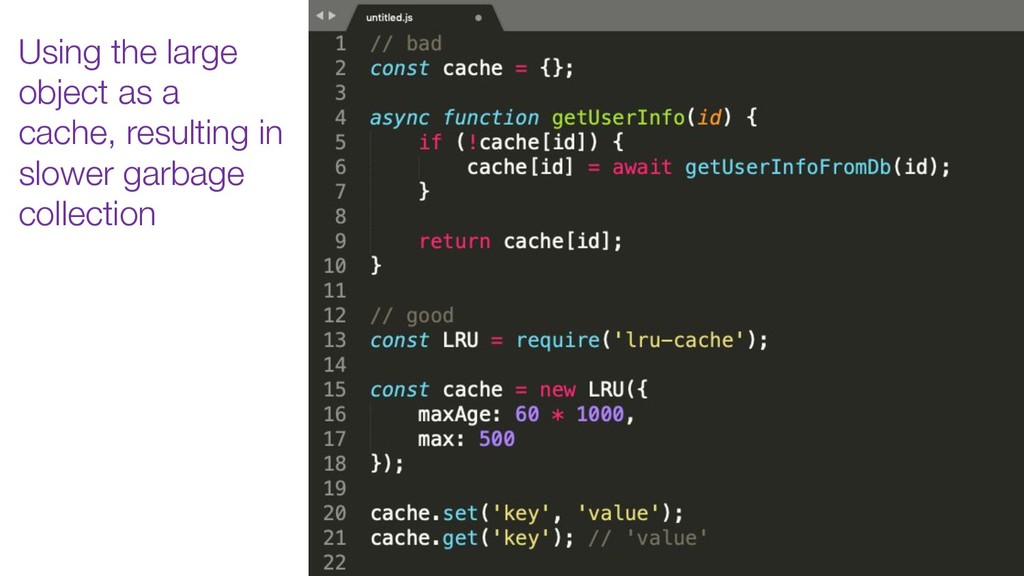

32. Using the large object as a cache, resulting in slower garbage collection

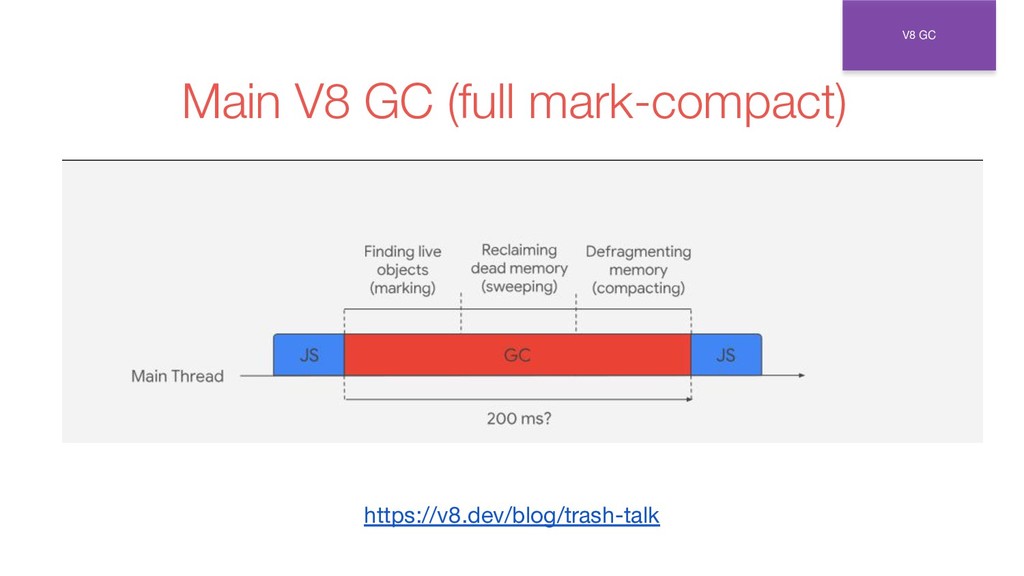

33. V8 GC Main V8 GC (full mark-compact) https://v8.dev/blog/trash-talk

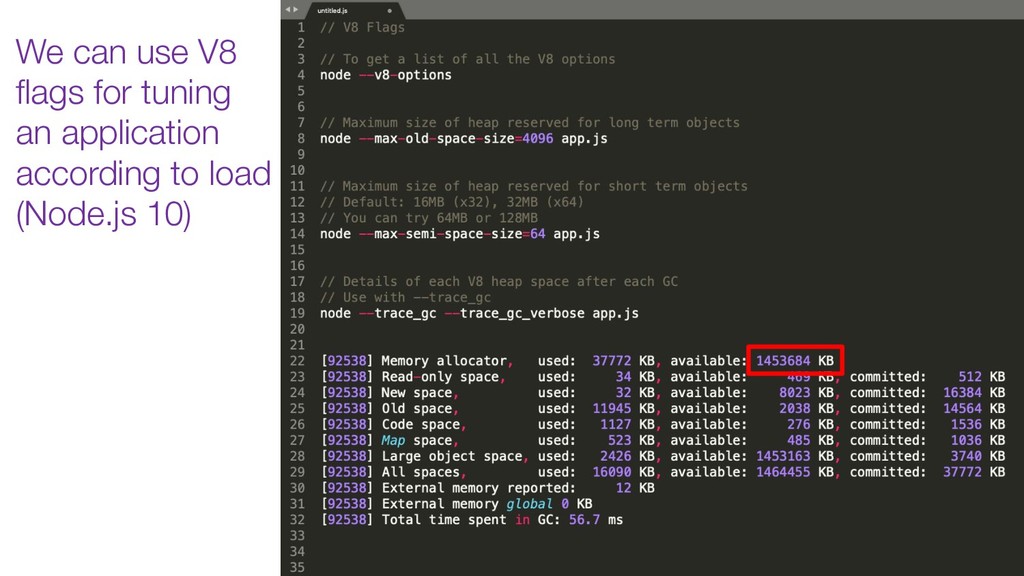

34. We can use V8 flags for tuning an application according to load (Node.js 10)

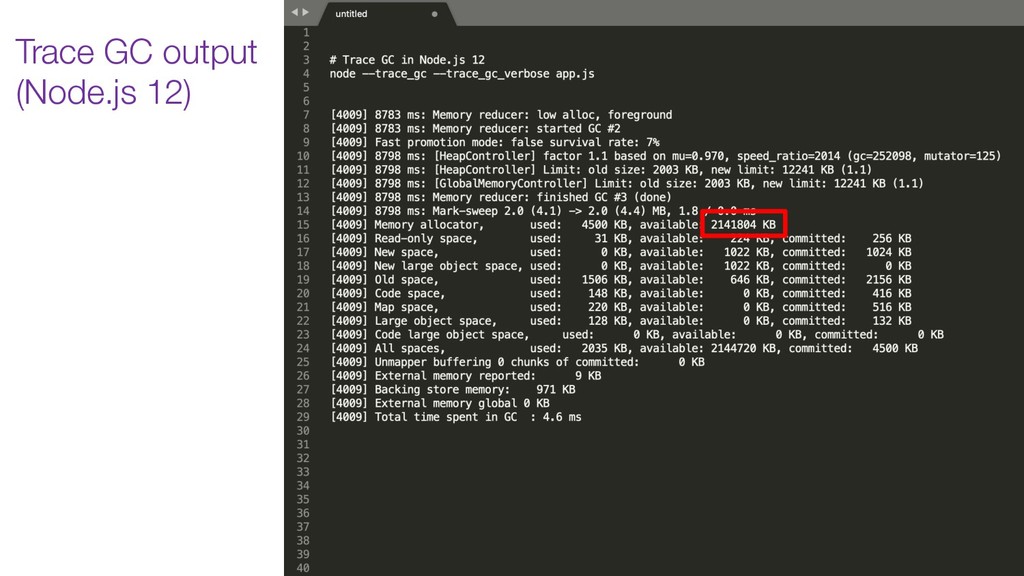

35. Trace GC output (Node.js 12)
36. Move CPU Bound Tasks Out Of The Node.js Code 08

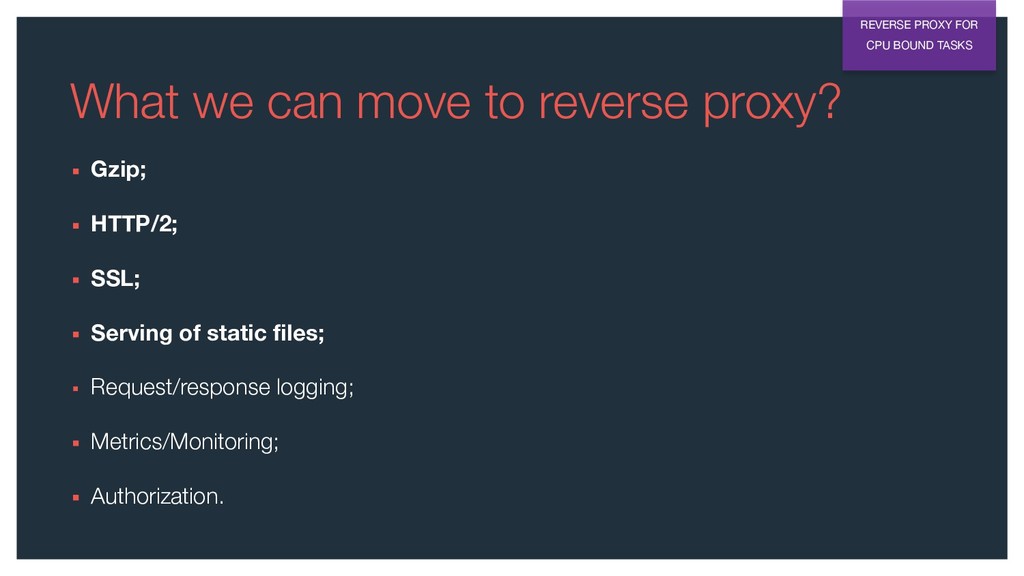

37. What we can move to reverse proxy? ▪ Gzip; ▪ HTTP/2; ▪ SSL; ▪ Serving of static files; ▪ Request/response logging; ▪ Metrics/Monitoring; ▪ Authorization. REVERSE PROXY FOR CPU BOUND TASKS
38. Try To Use C++ Extensions 09

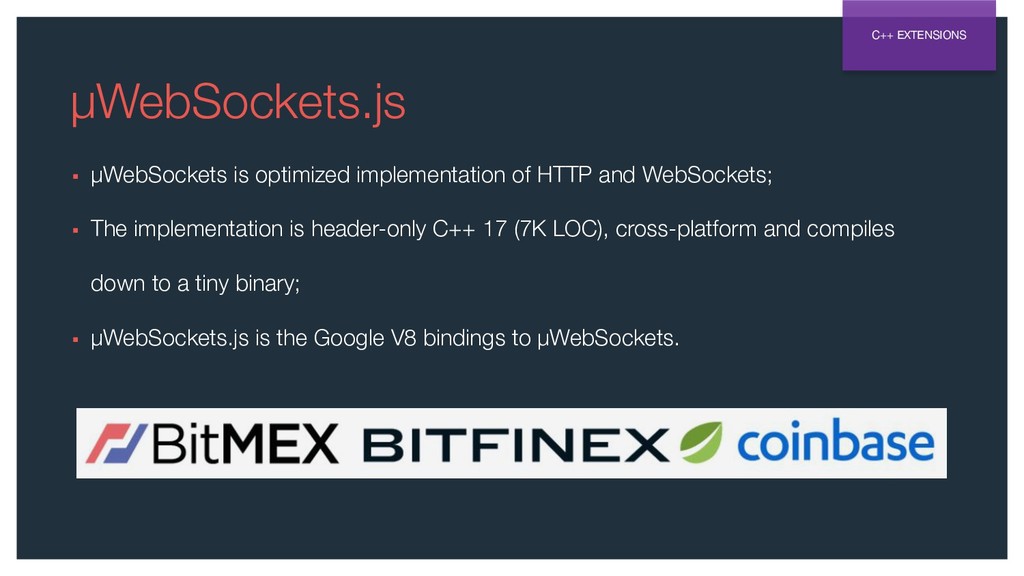

39. µWebSockets.js ▪ µWebSockets is optimized implementation of HTTP and WebSockets; ▪ The implementation is header-only C++ 17 (7K LOC), cross-platform and compiles down to a tiny binary; ▪ µWebSockets.js is the Google V8 bindings to µWebSockets. C++ EXTENSIONS

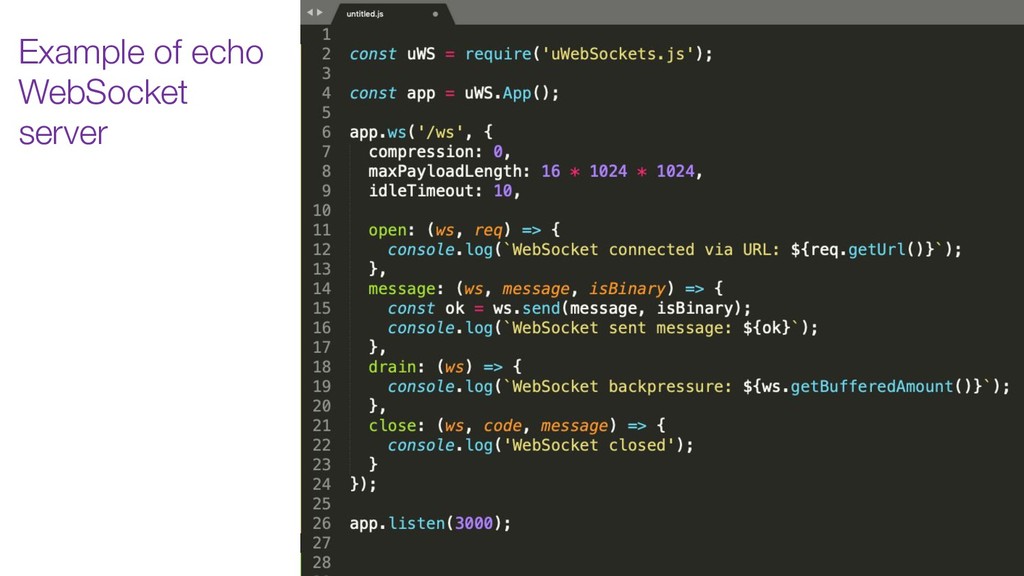

40. Example of echo WebSocket server

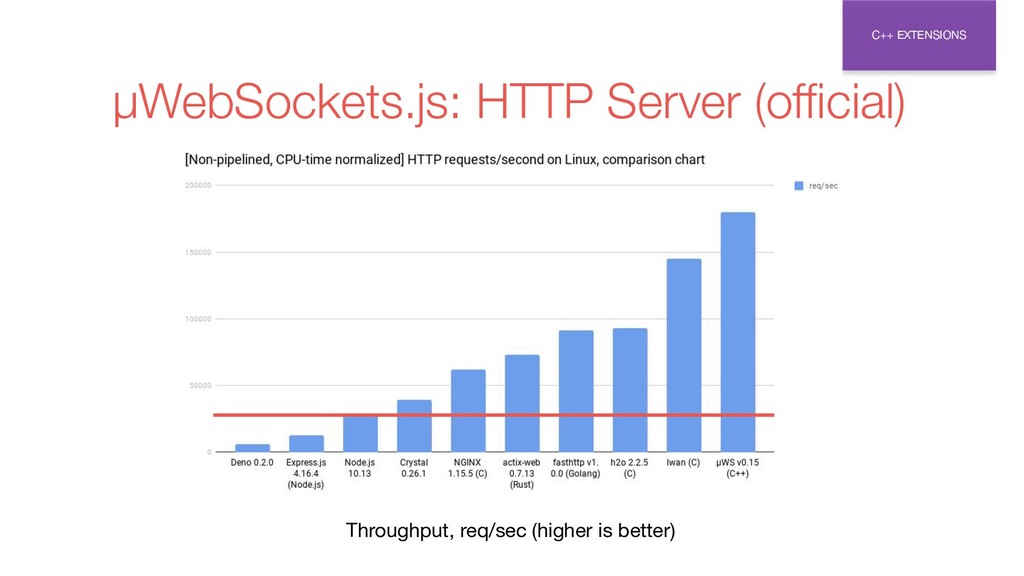

41. C++ EXTENSIONS µWebSockets.js: HTTP Server (official) Throughput, req/sec (higher is better)

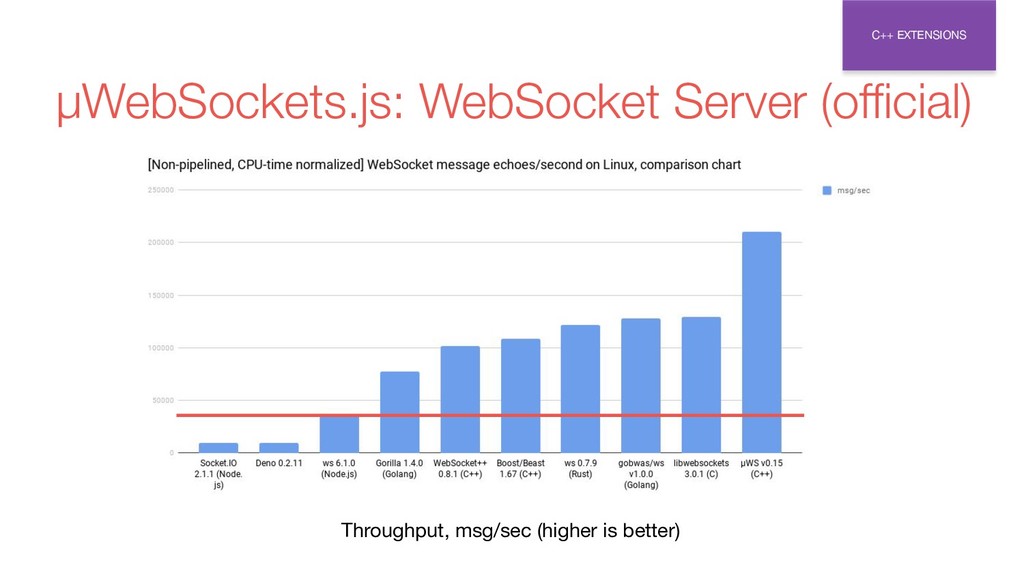

42. C++ EXTENSIONS µWebSockets.js: WebSocket Server (official) Throughput, msg/sec (higher is better)

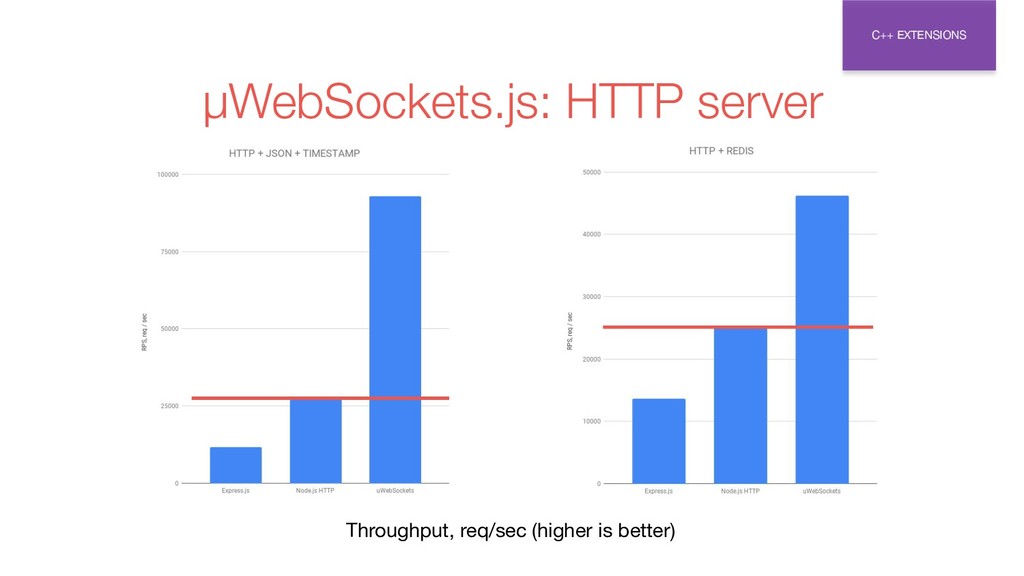

43. C++ EXTENSIONS µWebSockets.js: HTTP server Throughput, req/sec (higher is better)

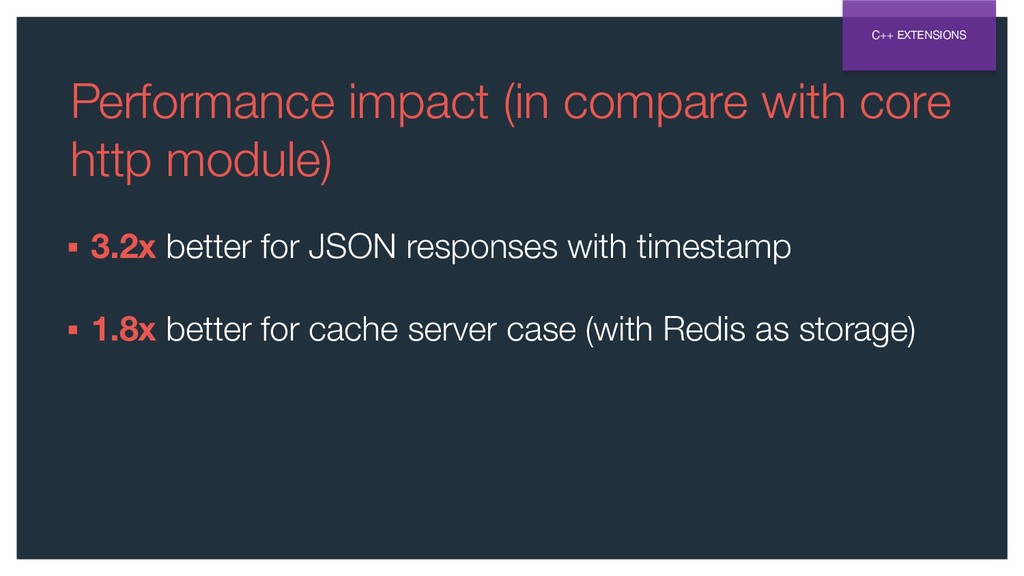

44. C++ EXTENSIONS Performance impact (in compare with core http module) ▪ 3.2x better for JSON responses with timestamp ▪ 1.8x better for cache server case (with Redis as storage)

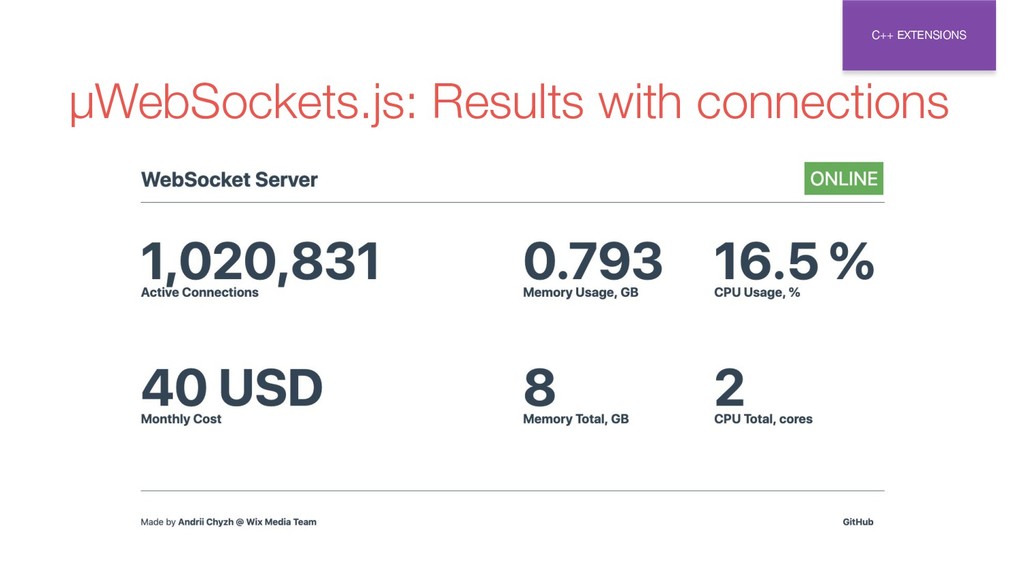

45. C++ EXTENSIONS µWebSockets.js: Results with connections

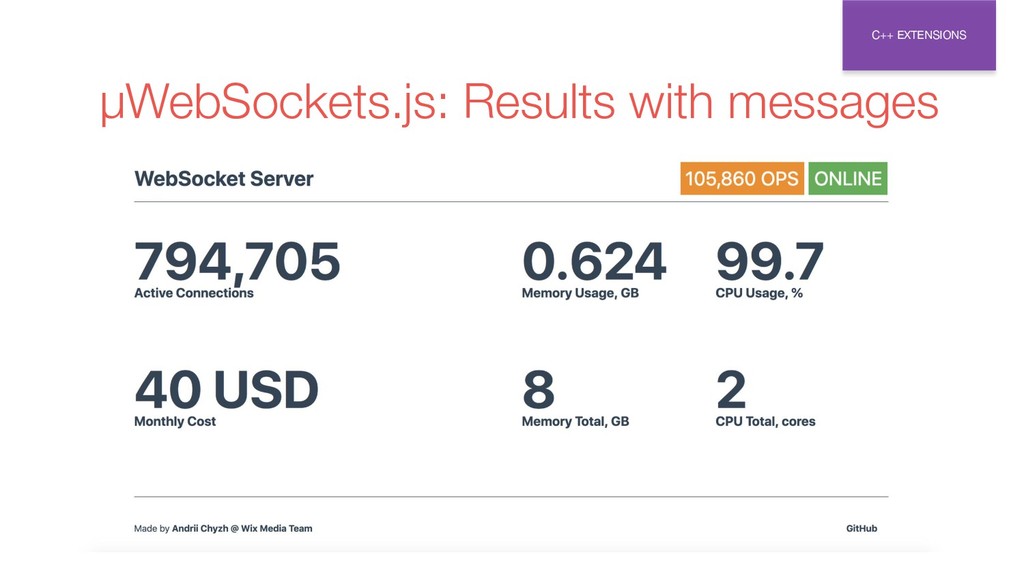

46. C++ EXTENSIONS µWebSockets.js: Results with messages

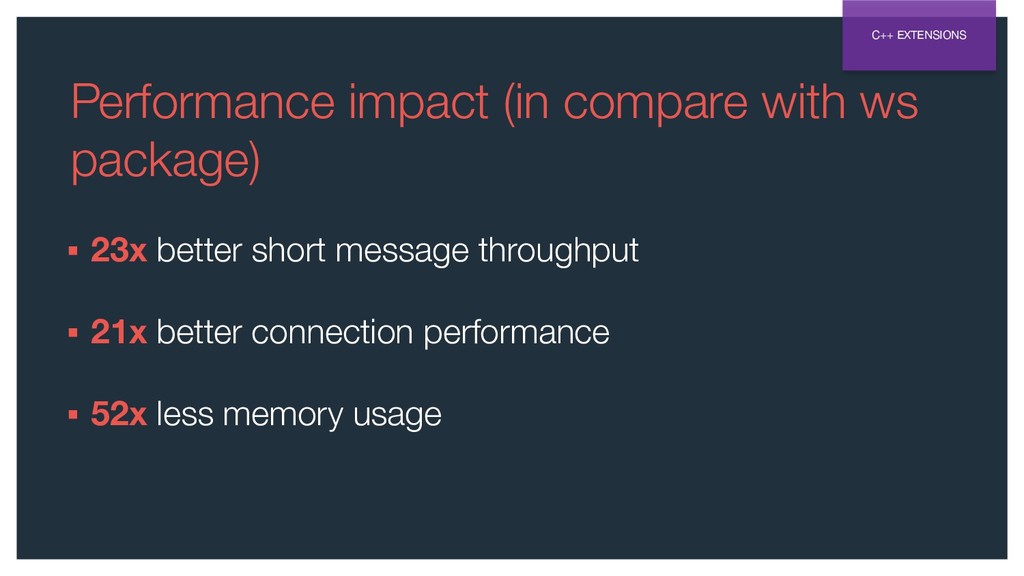

47. C++ EXTENSIONS Performance impact (in compare with ws package) ▪ 23x better short message throughput ▪ 21x better connection performance ▪ 52x less memory usage
48. Use Tools To Locate Performance Issues 10

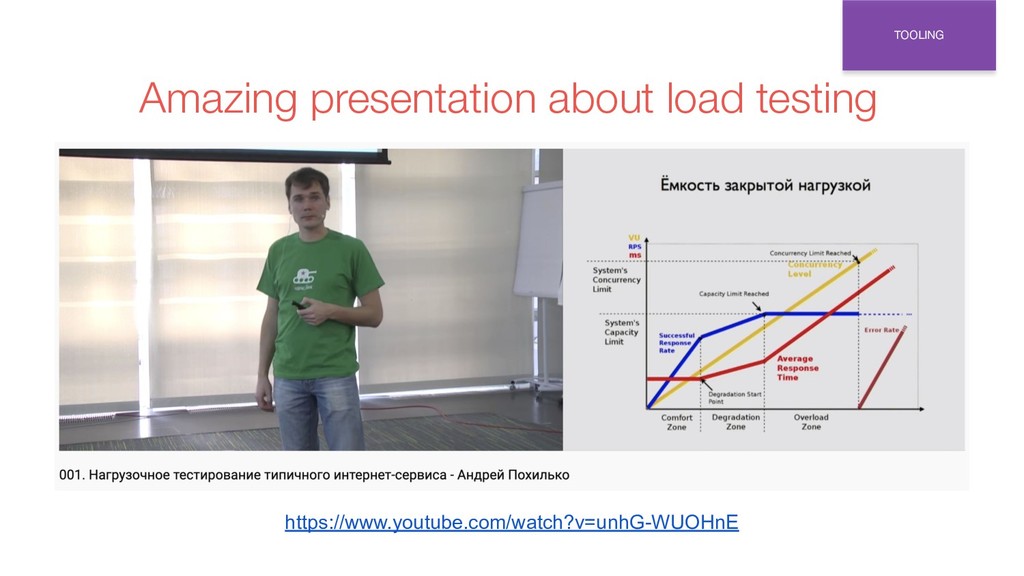

49. Amazing presentation about load testing TOOLING https://www.youtube.com/watch?v=unhG-WUOHnE
50. What can we use for loading the application? ▪ WRK; ▪ Apache Benchmark (ab); ▪ AutoCannon; ▪ Own handmade loaders; ▪ Nginx Mirroring. TOOLING

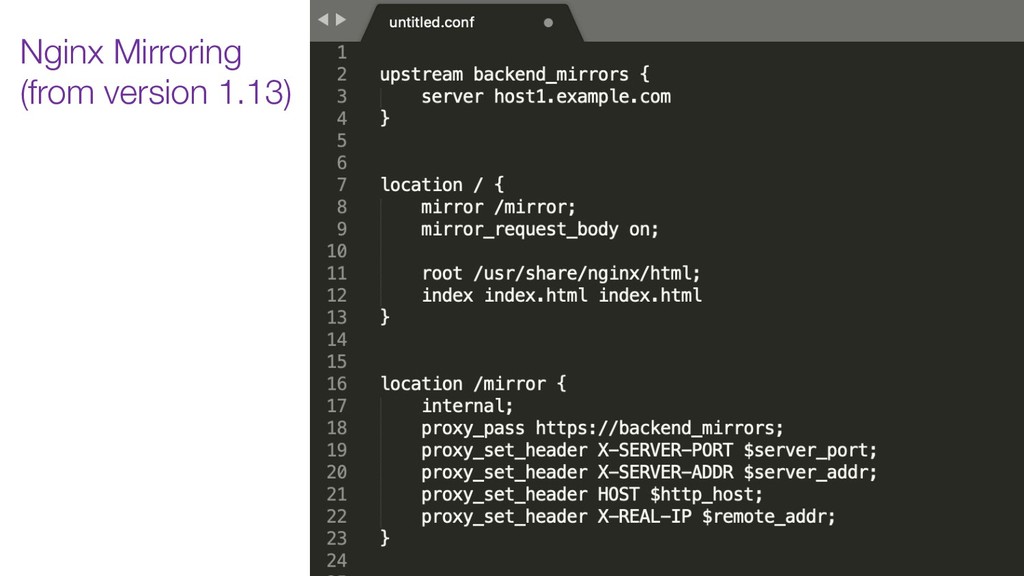

51. Nginx Mirroring (from version 1.13)

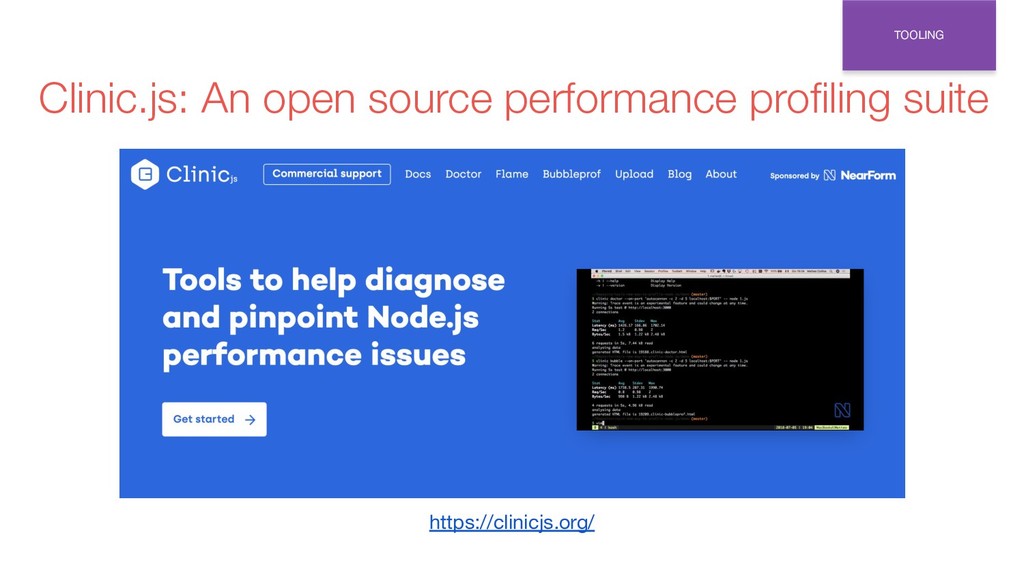

52. Clinic.js: An open source performance profiling suite TOOLING https://clinicjs.org/

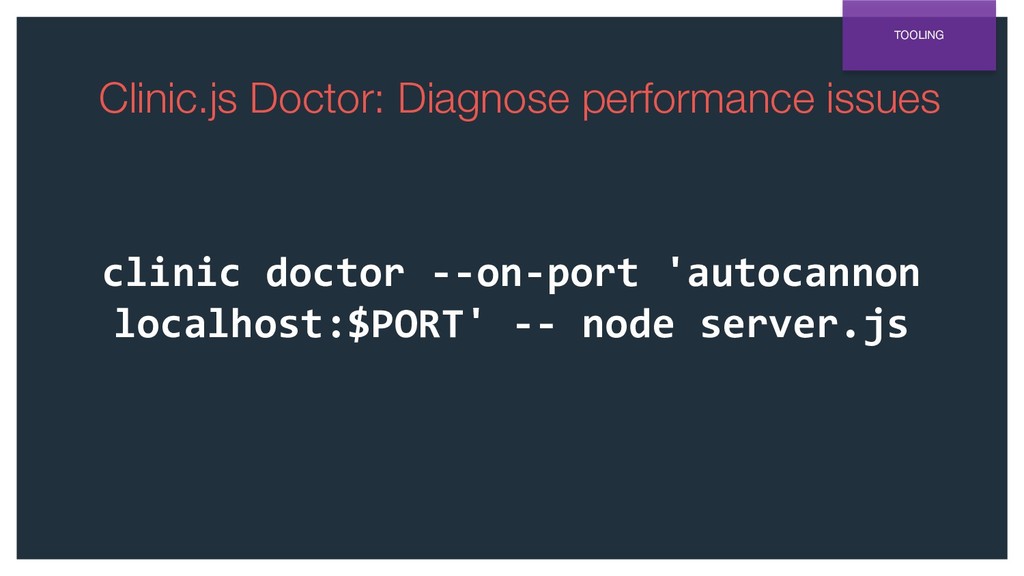

53. TOOLING clinic doctor --on-port 'autocannon localhost:$PORT' -- node server.js Clinic.js Doctor: Diagnose performance issues
54. TOOLING clinic doctor --on-port 'autocannon localhost:$PORT' -- node server.js Clinic.js Doctor: Diagnose performance issues

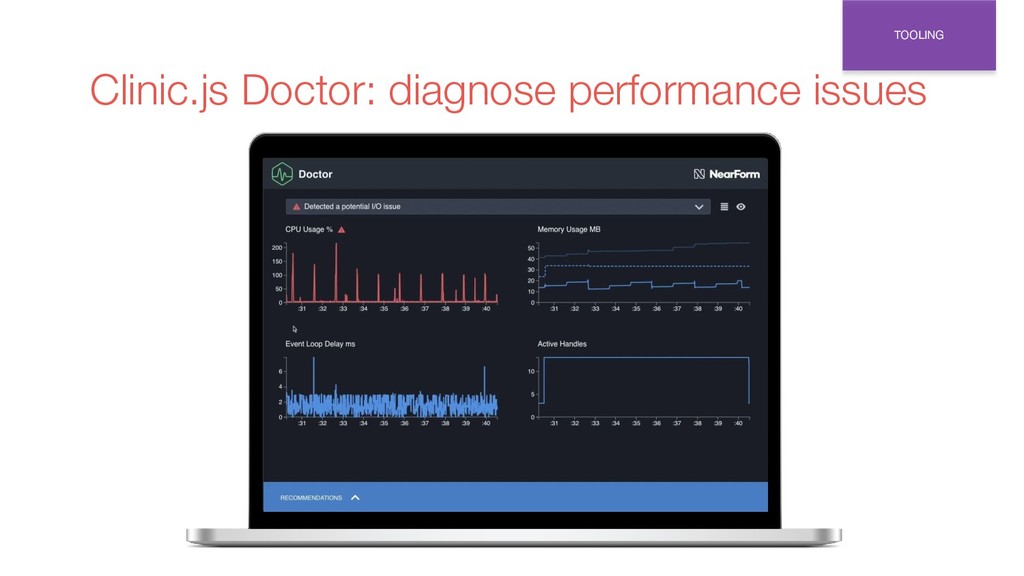

55. Clinic.js Doctor: diagnose performance issues TOOLING

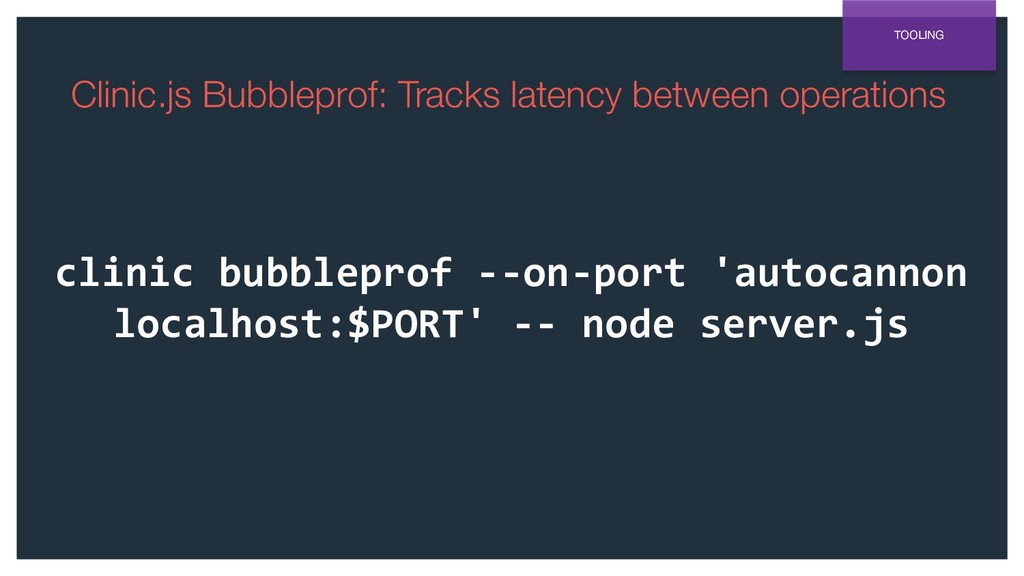

56. Clinic.js Bubbleprof: Tracks latency between operations TOOLING clinic bubbleprof --on-port 'autocannon localhost:$PORT' -- node server.js

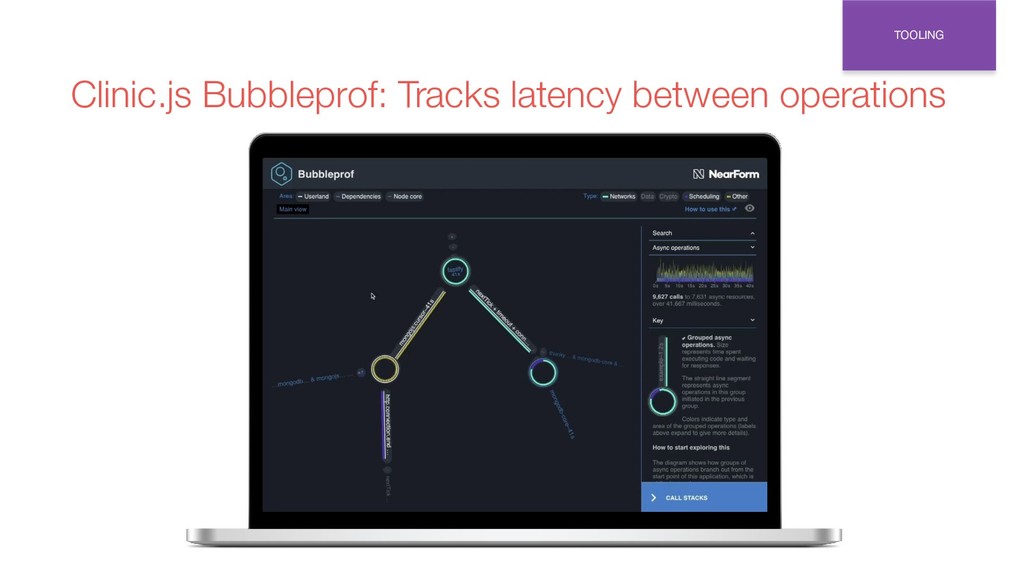

57. Clinic.js Bubbleprof: Tracks latency between operations TOOLING

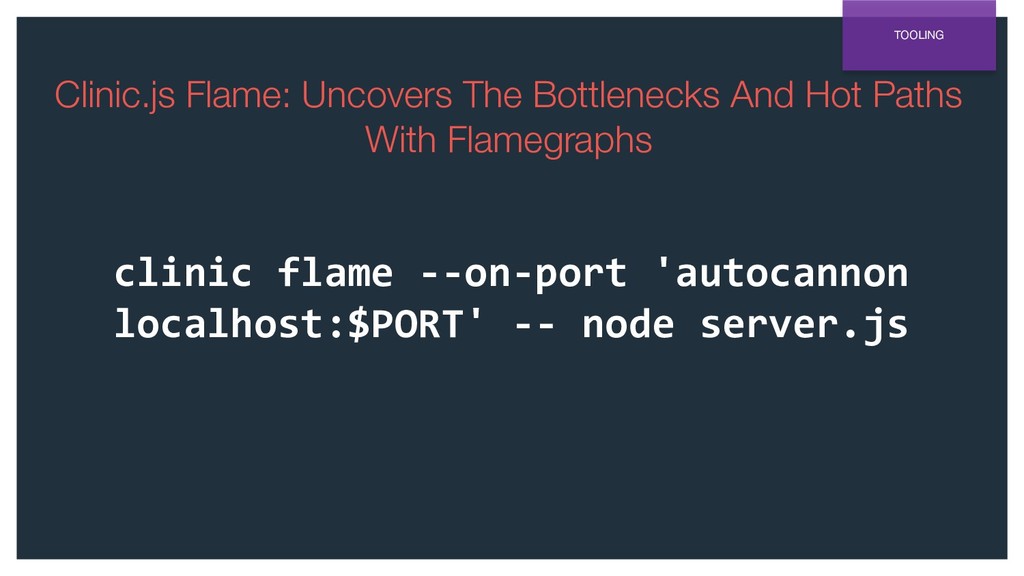

58. TOOLING clinic flame --on-port 'autocannon localhost:$PORT' -- node server.js Clinic.js Flame: Uncovers The Bottlenecks And Hot Paths With Flamegraphs

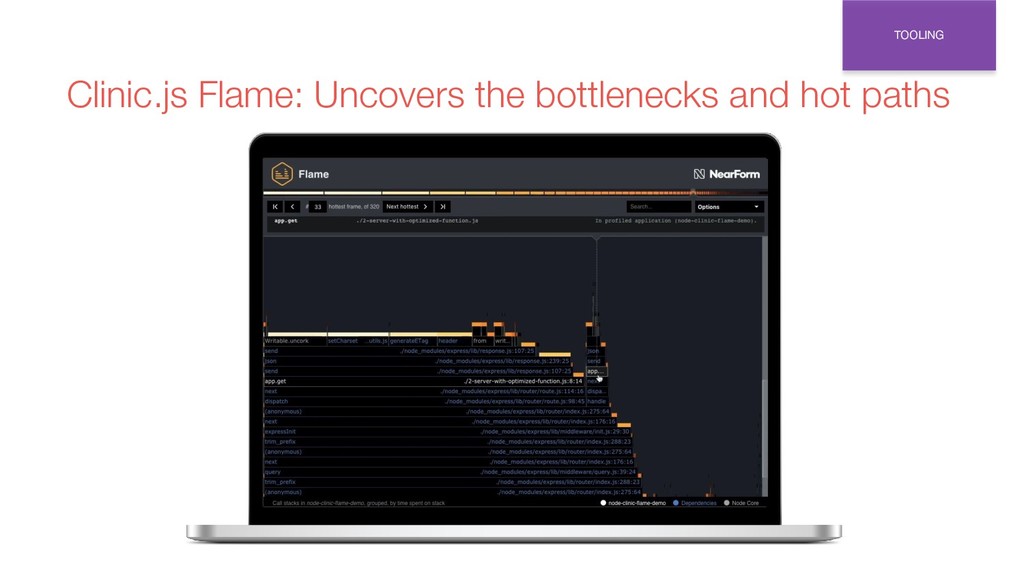

59. Clinic.js Flame: Uncovers the bottlenecks and hot paths TOOLING

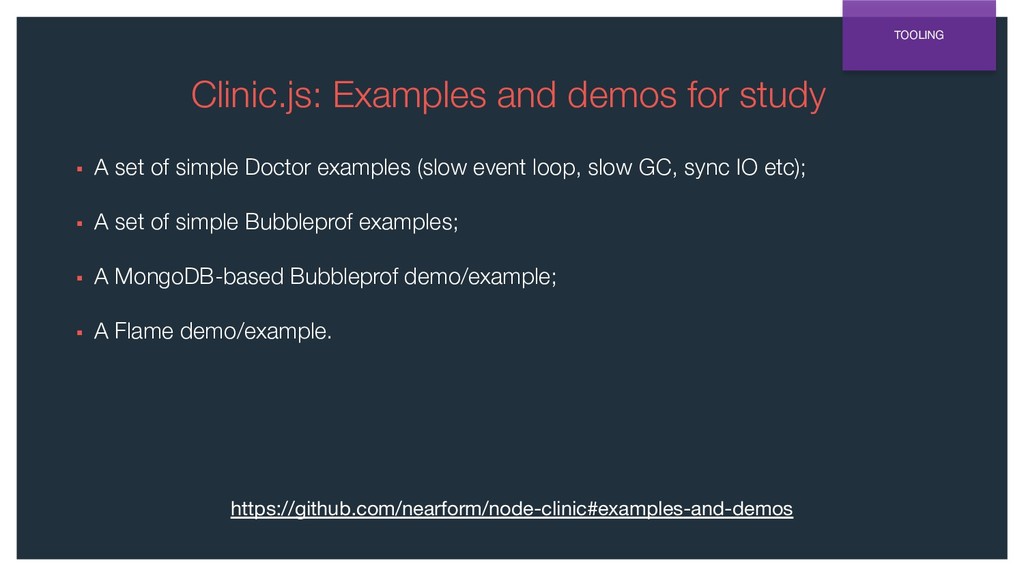

60. TOOLING Clinic.js: Examples and demos for study ▪ A set of simple Doctor examples (slow event loop, slow GC, sync IO etc); ▪ A set of simple Bubbleprof examples; ▪ A MongoDB-based Bubbleprof demo/example; ▪ A Flame demo/example. https://github.com/nearform/node-clinic#examples-and-demos
61. 0x: Single-command flamegraph profiling TOOLING https://github.com/davidmarkclements/0x https://habr.com/ru/post/414541/
62. Conclusion

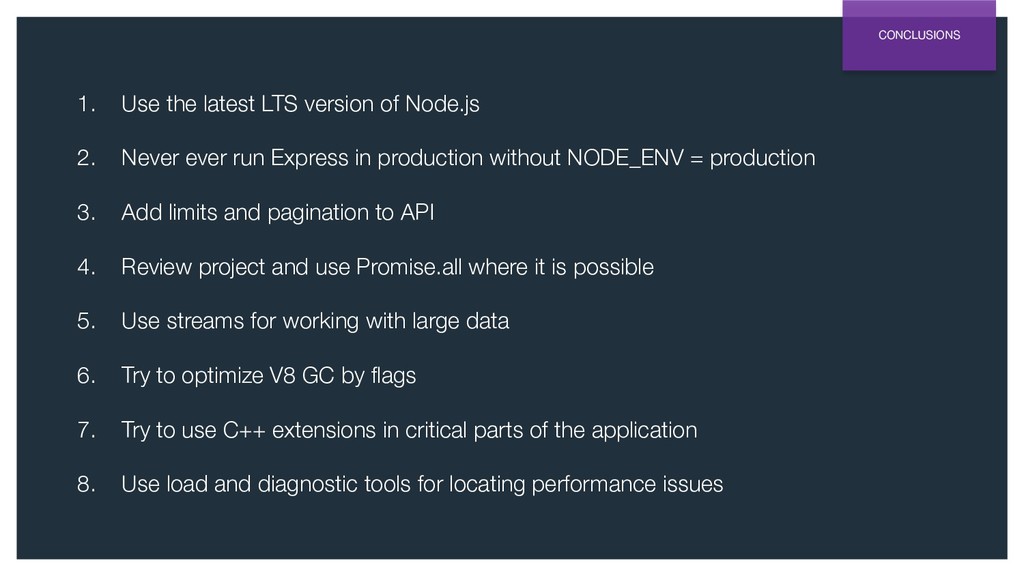

63. 1. Use the latest LTS version of Node.js 2. Never ever run Express in production without NODE_ENV = production 3. Add limits and pagination to API 4. Review project and use Promise.all where it is possible 5. Use streams for working with large data 6. Try to optimize V8 GC by flags 7. Try to use C++ extensions in critical parts of the application 8. Use load and diagnostic tools for locating performance issues CONCLUSIONS
