Building better Android UI using Constraint Layout

ConstraintLayout – a layout to rule them all. Advantages and disadvantages of using ConstraintLayout, performance comparisons and built in animations.

Transcript

1. Constraint Layout Building better UI

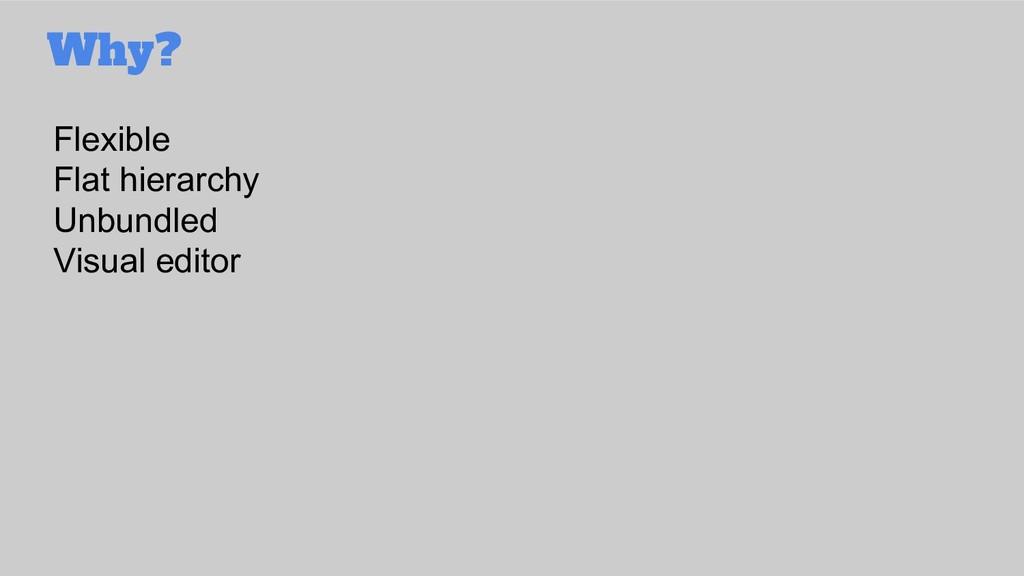

2. Why? Flexible Flat hierarchy Unbundled Visual editor

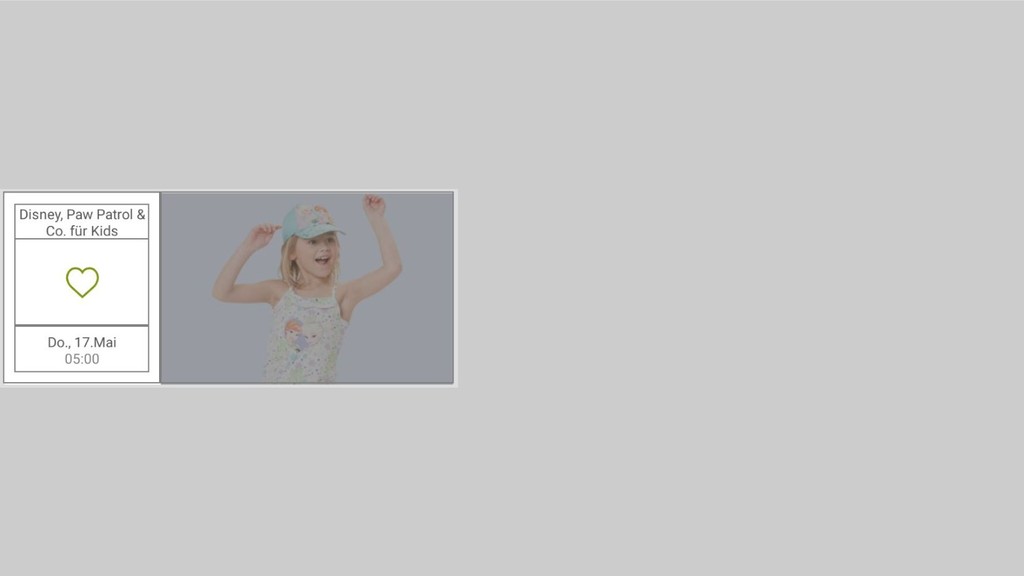

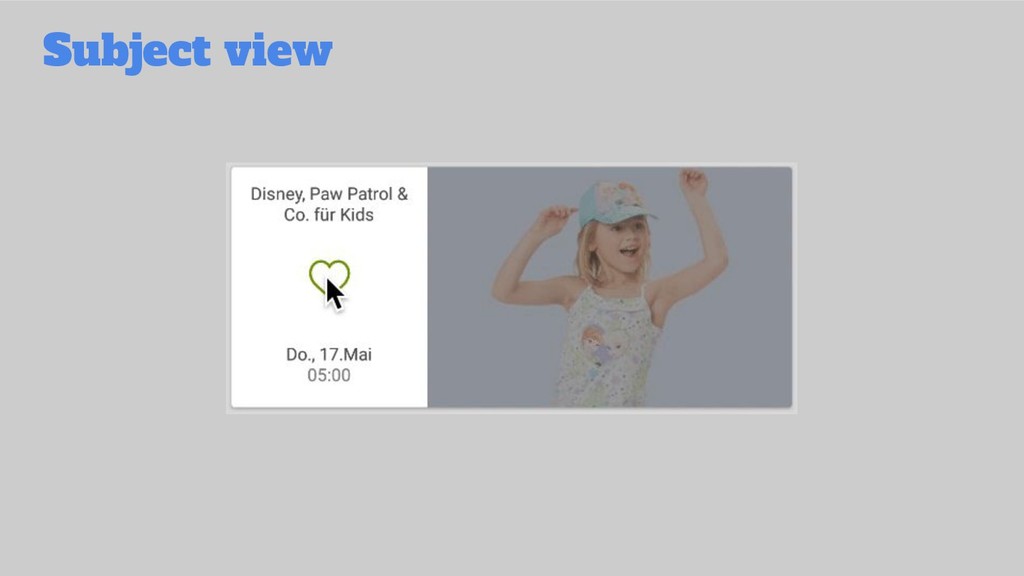

3. Subject view

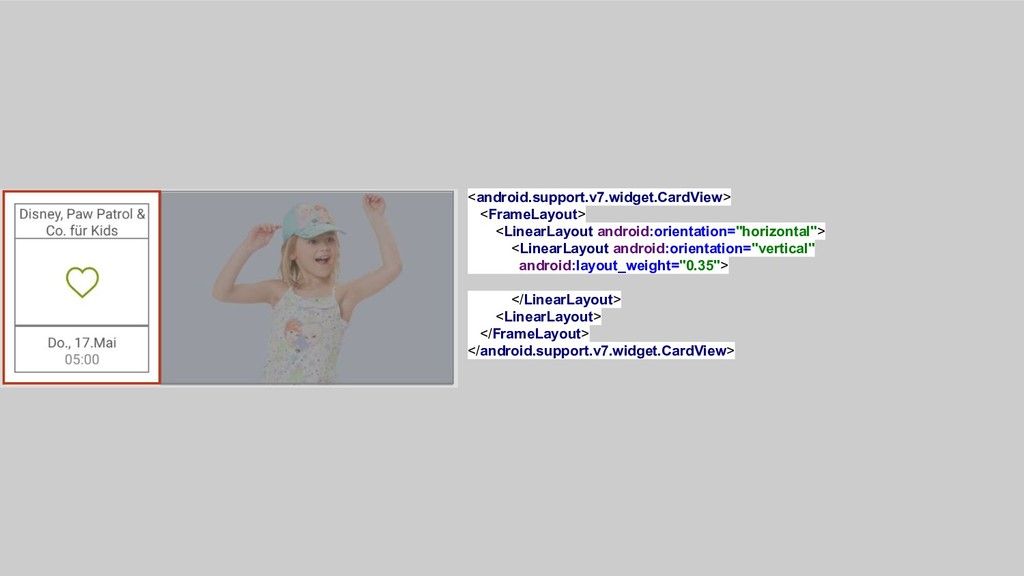

5. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>
6. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> </LinearLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

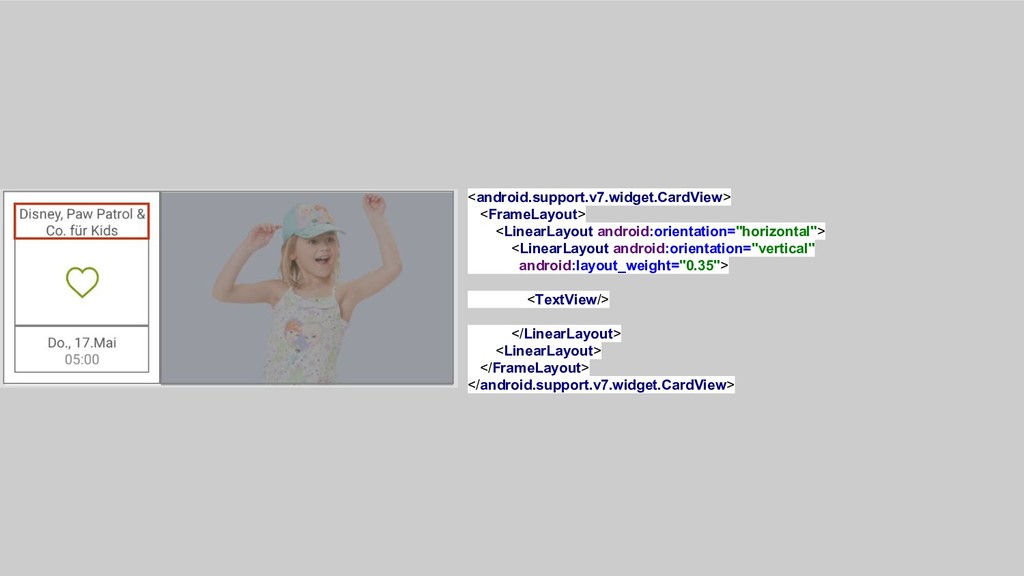

7. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> </LinearLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

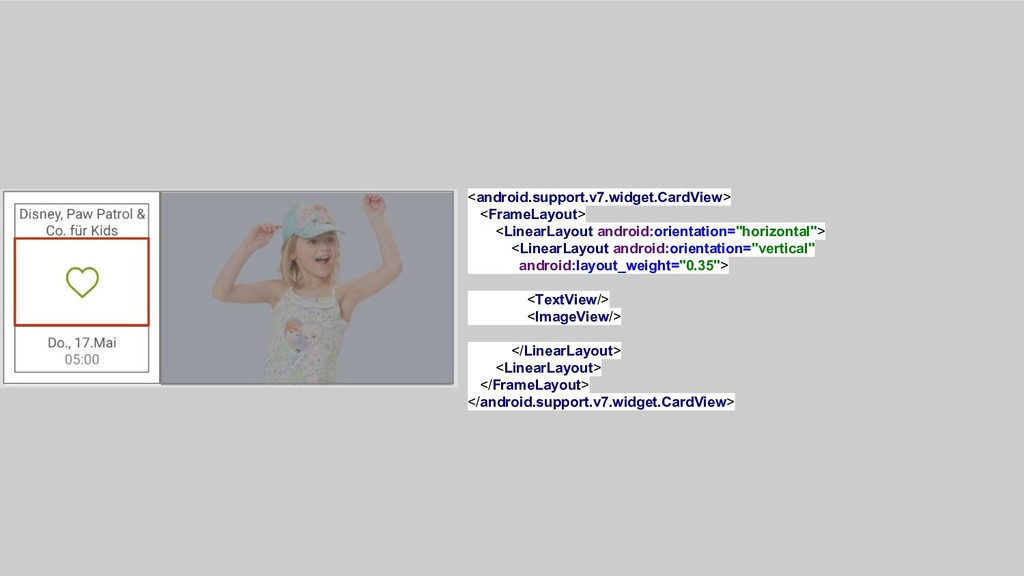

8. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> </LinearLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

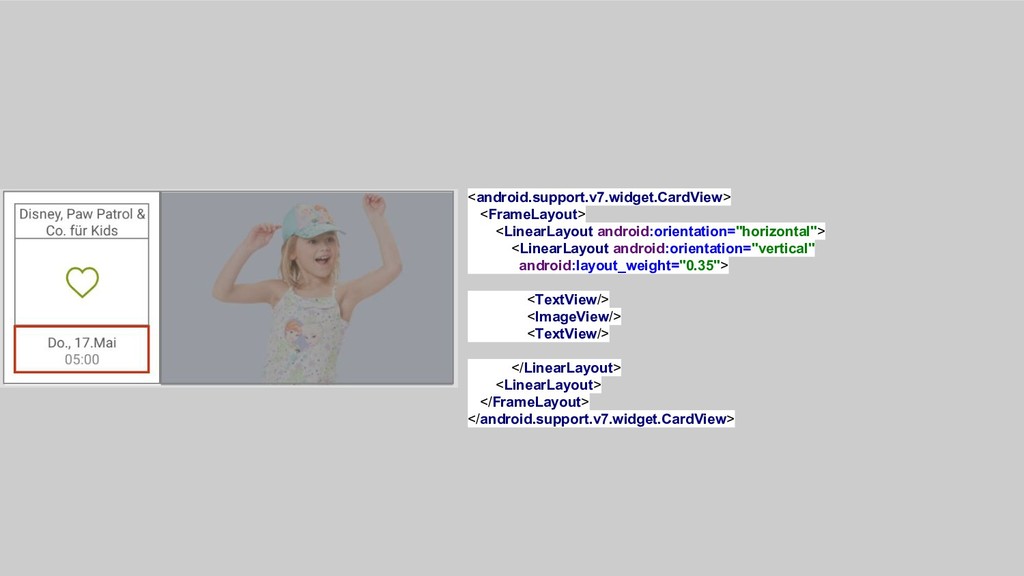

9. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

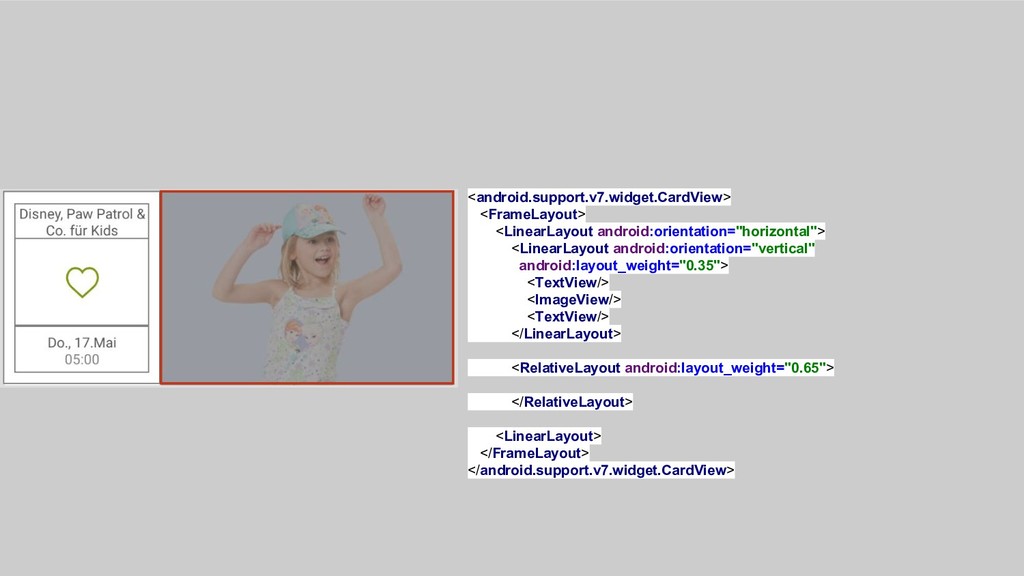

10. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> </RelativeLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

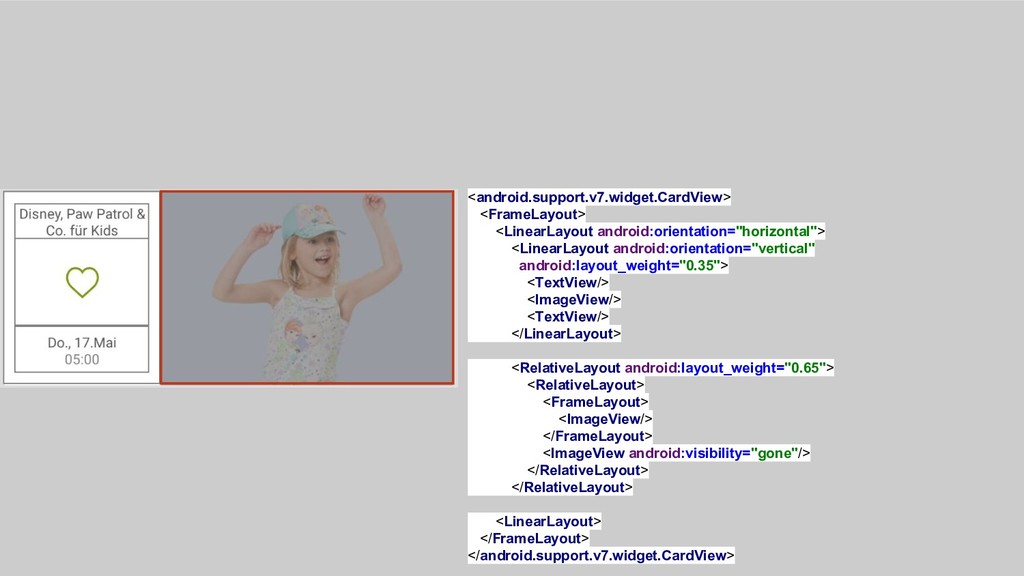

11. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> </RelativeLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

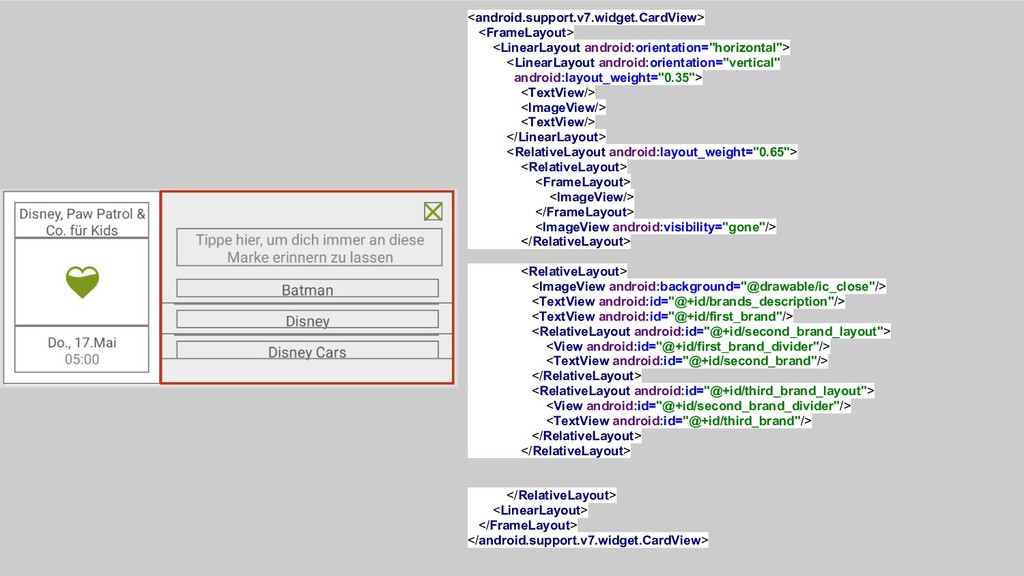

12. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> <RelativeLayout> <ImageView android:background="@drawable/ic_close"/> <TextView android:id="@+id/brands_description"/> <TextView android:id="@+id/first_brand"/> <RelativeLayout android:id="@+id/second_brand_layout"> <View android:id="@+id/first_brand_divider"/> <TextView android:id="@+id/second_brand"/> </RelativeLayout> <RelativeLayout android:id="@+id/third_brand_layout"> <View android:id="@+id/second_brand_divider"/> <TextView android:id="@+id/third_brand"/> </RelativeLayout> </RelativeLayout> </RelativeLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView>

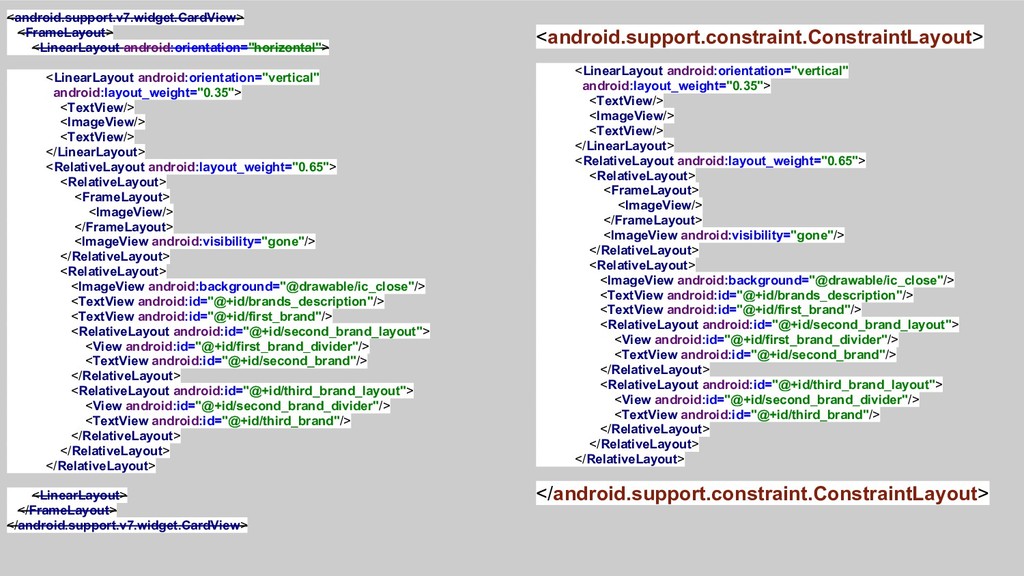

13. <android.support.v7.widget.CardView> <FrameLayout> <LinearLayout android:orientation="horizontal"> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> <RelativeLayout> <ImageView android:background="@drawable/ic_close"/> <TextView android:id="@+id/brands_description"/> <TextView android:id="@+id/first_brand"/> <RelativeLayout android:id="@+id/second_brand_layout"> <View android:id="@+id/first_brand_divider"/> <TextView android:id="@+id/second_brand"/> </RelativeLayout> <RelativeLayout android:id="@+id/third_brand_layout"> <View android:id="@+id/second_brand_divider"/> <TextView android:id="@+id/third_brand"/> </RelativeLayout> </RelativeLayout> </RelativeLayout> <LinearLayout> </FrameLayout> </android.support.v7.widget.CardView> <android.support.constraint.ConstraintLayout> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> <RelativeLayout> <ImageView android:background="@drawable/ic_close"/> <TextView android:id="@+id/brands_description"/> <TextView android:id="@+id/first_brand"/> <RelativeLayout android:id="@+id/second_brand_layout"> <View android:id="@+id/first_brand_divider"/> <TextView android:id="@+id/second_brand"/> </RelativeLayout> <RelativeLayout android:id="@+id/third_brand_layout"> <View android:id="@+id/second_brand_divider"/> <TextView android:id="@+id/third_brand"/> </RelativeLayout> </RelativeLayout> </RelativeLayout> </android.support.constraint.ConstraintLayout>

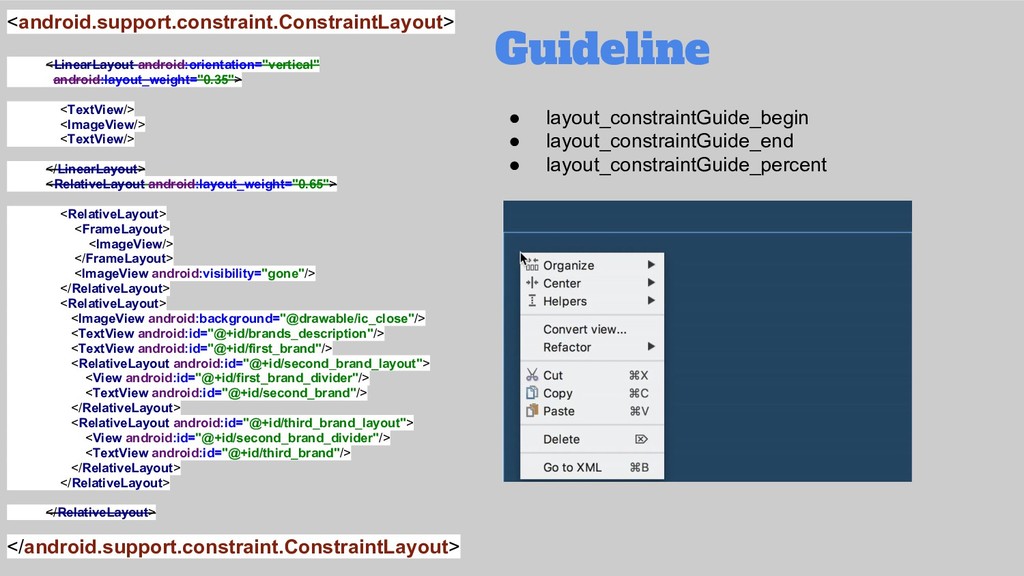

14. <android.support.constraint.ConstraintLayout> <LinearLayout android:orientation="vertical" android:layout_weight="0.35"> <TextView/> <ImageView/> <TextView/> </LinearLayout> <RelativeLayout android:layout_weight="0.65"> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> <RelativeLayout> <ImageView android:background="@drawable/ic_close"/> <TextView android:id="@+id/brands_description"/> <TextView android:id="@+id/first_brand"/> <RelativeLayout android:id="@+id/second_brand_layout"> <View android:id="@+id/first_brand_divider"/> <TextView android:id="@+id/second_brand"/> </RelativeLayout> <RelativeLayout android:id="@+id/third_brand_layout"> <View android:id="@+id/second_brand_divider"/> <TextView android:id="@+id/third_brand"/> </RelativeLayout> </RelativeLayout> </RelativeLayout> </android.support.constraint.ConstraintLayout> Guideline • layout_constraintGuide_begin • layout_constraintGuide_end • layout_constraintGuide_percent

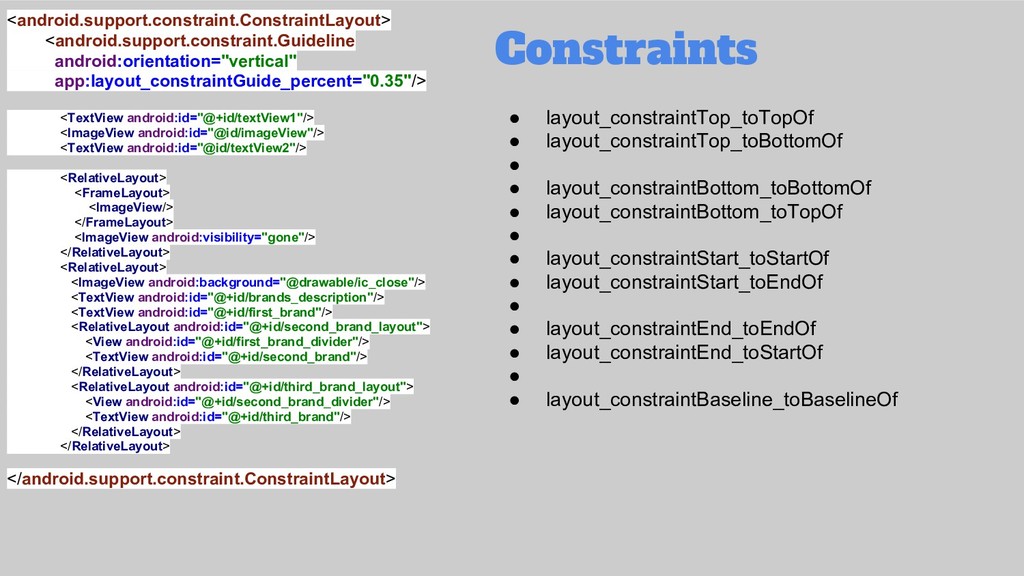

15. <android.support.constraint.ConstraintLayout> <android.support.constraint.Guideline android:orientation="vertical" app:layout_constraintGuide_percent="0.35"/> <TextView android:id="@+id/textView1"/> <ImageView android:id="@id/imageView"/> <TextView android:id="@id/textView2"/> <RelativeLayout> <FrameLayout> <ImageView/> </FrameLayout> <ImageView android:visibility="gone"/> </RelativeLayout> <RelativeLayout> <ImageView android:background="@drawable/ic_close"/> <TextView android:id="@+id/brands_description"/> <TextView android:id="@+id/first_brand"/> <RelativeLayout android:id="@+id/second_brand_layout"> <View android:id="@+id/first_brand_divider"/> <TextView android:id="@+id/second_brand"/> </RelativeLayout> <RelativeLayout android:id="@+id/third_brand_layout"> <View android:id="@+id/second_brand_divider"/> <TextView android:id="@+id/third_brand"/> </RelativeLayout> </RelativeLayout> </android.support.constraint.ConstraintLayout> Constraints • layout_constraintTop_toTopOf • layout_constraintTop_toBottomOf • • layout_constraintBottom_toBottomOf • layout_constraintBottom_toTopOf • • layout_constraintStart_toStartOf • layout_constraintStart_toEndOf • • layout_constraintEnd_toEndOf • layout_constraintEnd_toStartOf • • layout_constraintBaseline_toBaselineOf

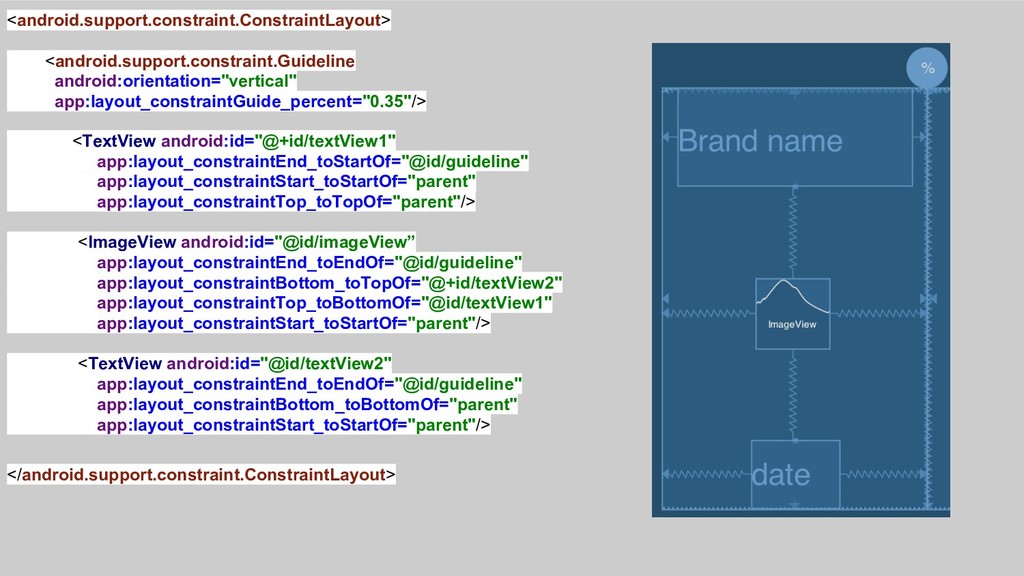

16. <android.support.constraint.ConstraintLayout> <android.support.constraint.Guideline android:orientation="vertical" app:layout_constraintGuide_percent="0.35"/> <TextView android:id="@+id/textView1" app:layout_constraintEnd_toStartOf="@id/guideline" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent"/> <ImageView android:id="@id/imageView” app:layout_constraintEnd_toEndOf="@id/guideline" app:layout_constraintBottom_toTopOf="@+id/textView2" app:layout_constraintTop_toBottomOf="@id/textView1" app:layout_constraintStart_toStartOf="parent"/> <TextView android:id="@id/textView2" app:layout_constraintEnd_toEndOf="@id/guideline" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintStart_toStartOf="parent"/> </android.support.constraint.ConstraintLayout>

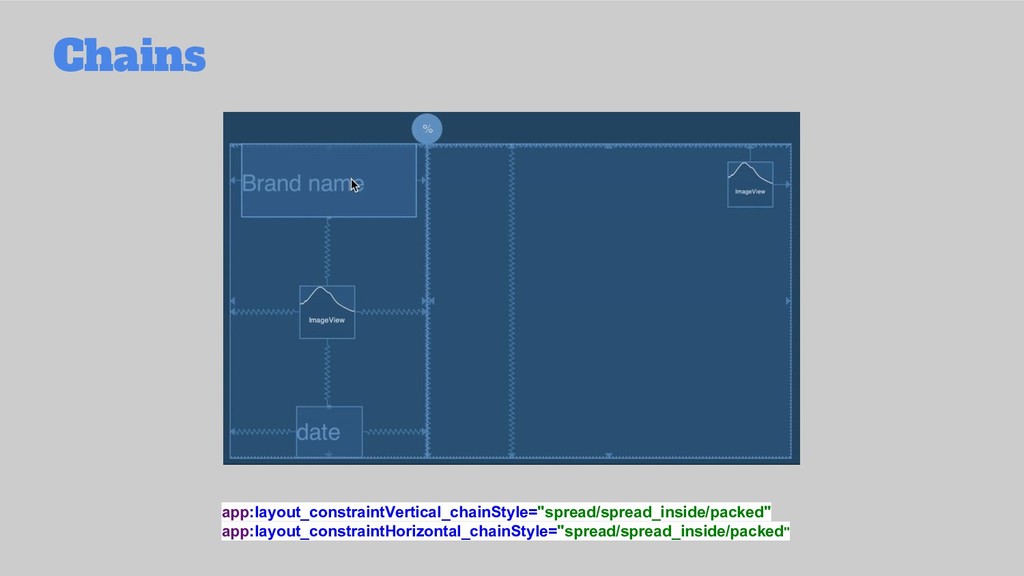

17. Chains app:layout_constraintVertical_chainStyle="spread/spread_inside/packed" app:layout_constraintHorizontal_chainStyle="spread/spread_inside/packed"

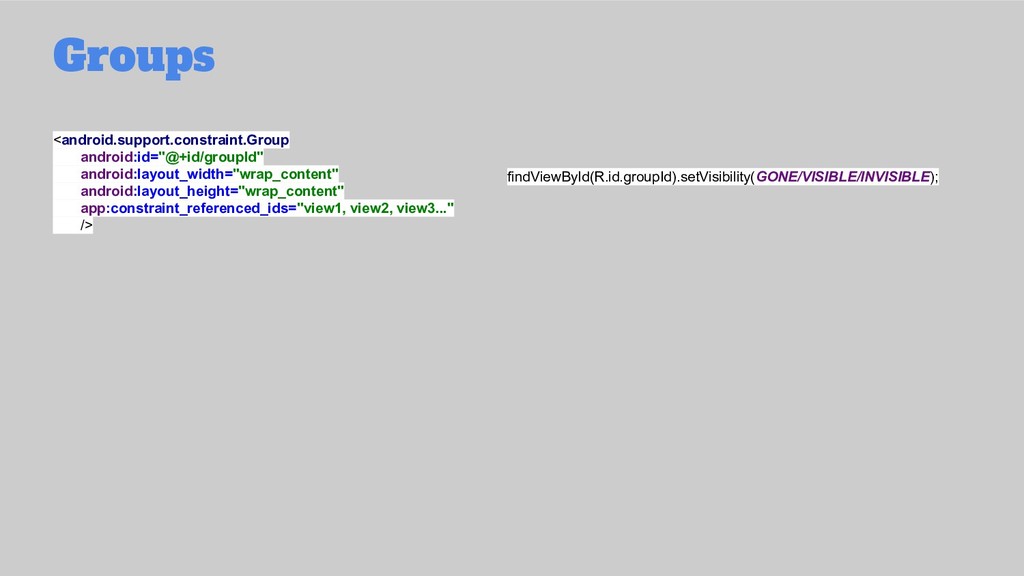

18. Groups <android.support.constraint.Group android:id="@+id/groupId" android:layout_width="wrap_content" android:layout_height="wrap_content" app:constraint_referenced_ids="view1, view2, view3..." /> findViewById(R.id.groupId).setVisibility(GONE/VISIBLE/INVISIBLE);

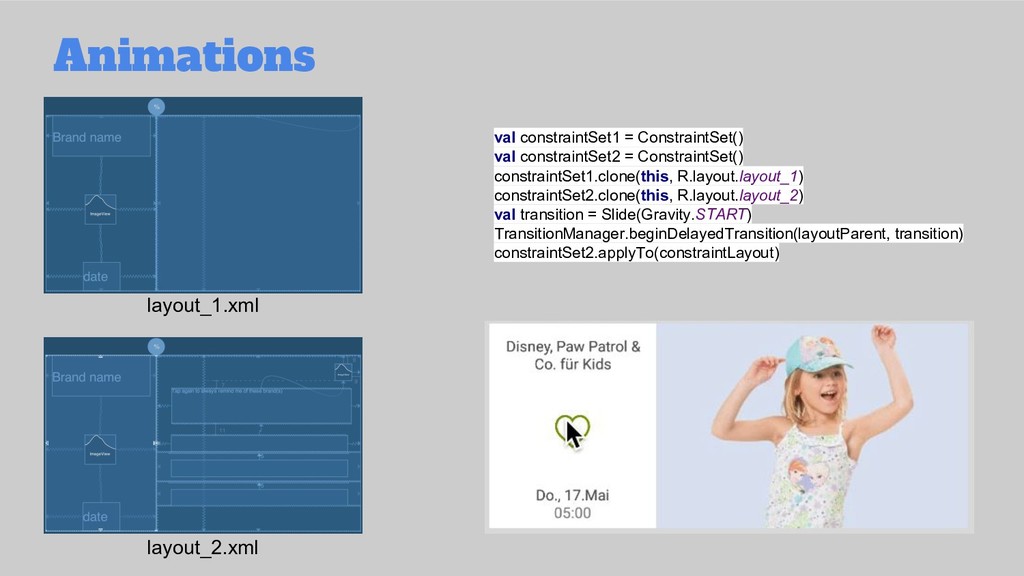

19. Animations layout_1.xml layout_2.xml val constraintSet1 = ConstraintSet() val constraintSet2 = ConstraintSet() constraintSet1.clone(this, R.layout.layout_1) constraintSet2.clone(this, R.layout.layout_2) val transition = Slide(Gravity.START) TransitionManager.beginDelayedTransition(layoutParent, transition) constraintSet2.applyTo(constraintLayout)

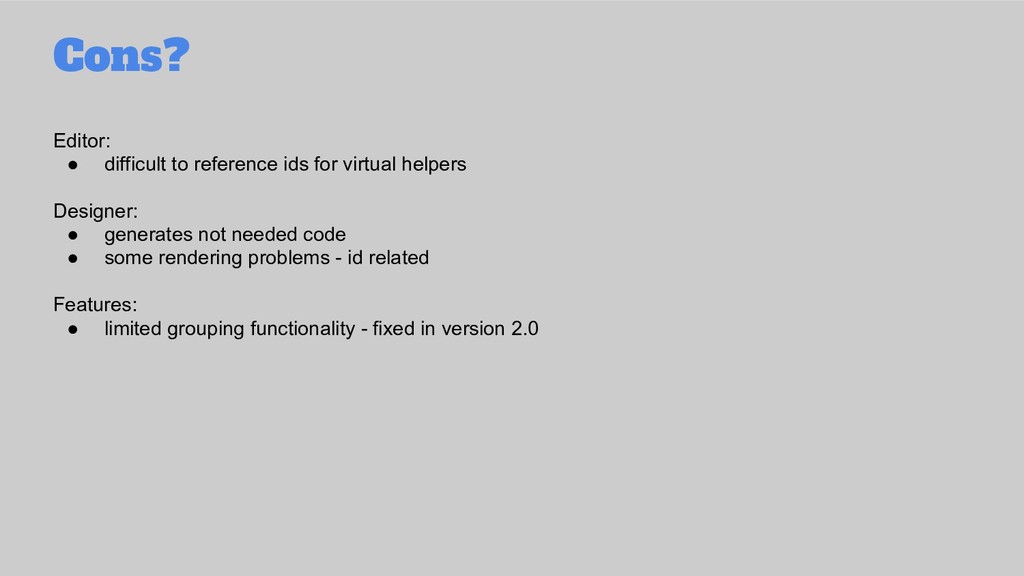

20. Cons? Editor: • difficult to reference ids for virtual helpers Designer: • generates not needed code • some rendering problems - id related Features: • limited grouping functionality - fixed in version 2.0

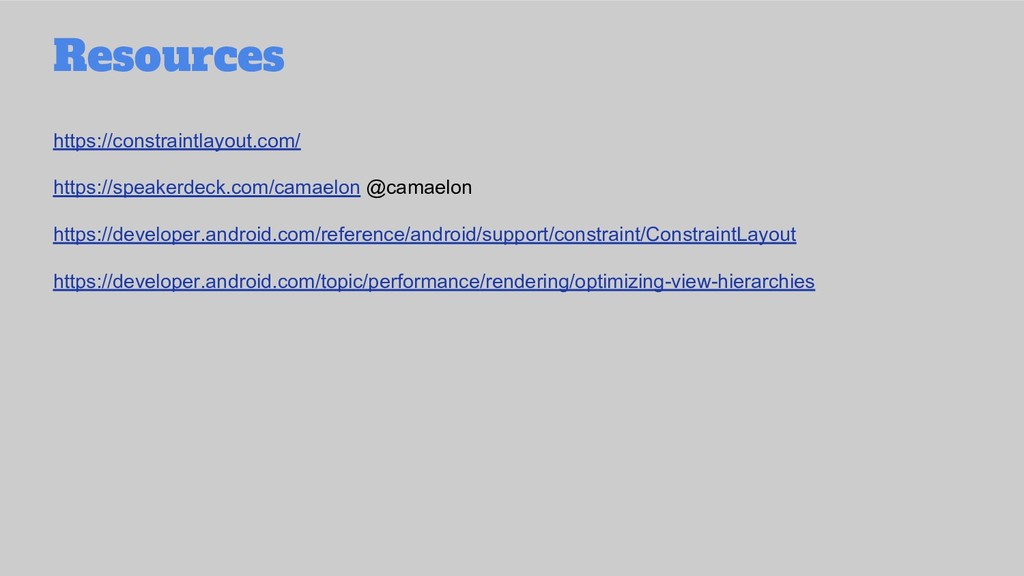

21. Resources https://constraintlayout.com/ https://speakerdeck.com/camaelon @camaelon https://developer.android.com/reference/android/support/constraint/ConstraintLayout https://developer.android.com/topic/performance/rendering/optimizing-view-hierarchies
