What the heck do “declarative” and “reactive” actually mean?

ANDRÉ KOVAC 1 WHAT THE HECK DO “DECLARATIVE” AND “REACTIVE”
ACTUALLY MEAN?

2 https://media.istockphoto.com/photos/teenagers-messy-room-picture-id1087233556?k=20&m=1087233556&s=612x612&w=0&h=GJ6_asZveN4P4M65pAysJWRnLf9ajxgKyhPoZsebRo8=

3 “Pick up the toys, then empty the bin, then
remove dust, then … and fi nally vacuum the fl oor.” IMPERATIVE Here’s a picture of what your room looks like when it’s clean. In 30 minutes this room will be clean. DECLARATIVE

4 SOFTWARE ENGINEER ANDRÉ KOVAC TECHNOLOGY TRAINER

6 …ARE DECLARATIVE & REACTIVE. MODERN FRONTEND FRAMEWORKS… ANDRÉ KOVAC

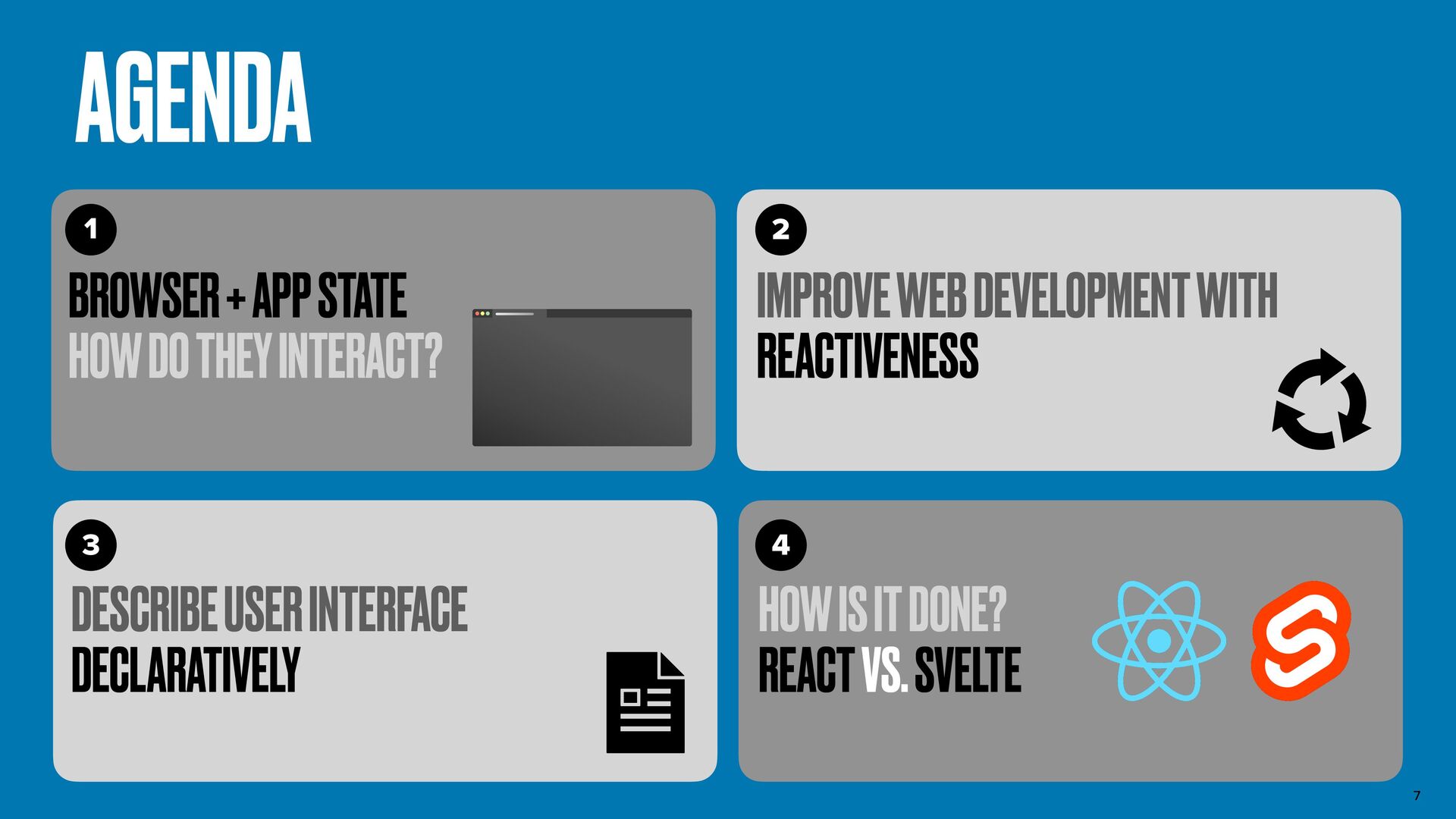

7 AGENDA 1 BROWSER + APP STATE HOW DO THEY
INTERACT? 2 IMPROVE WEB DEVELOPMENT WITH REACTIVENESS 4 HOW IS IT DONE? REACT VS. SVELTE 3 DESCRIBE USER INTERFACE DECLARATIVELY

USER INTERFACE DEVELOPMENT 8

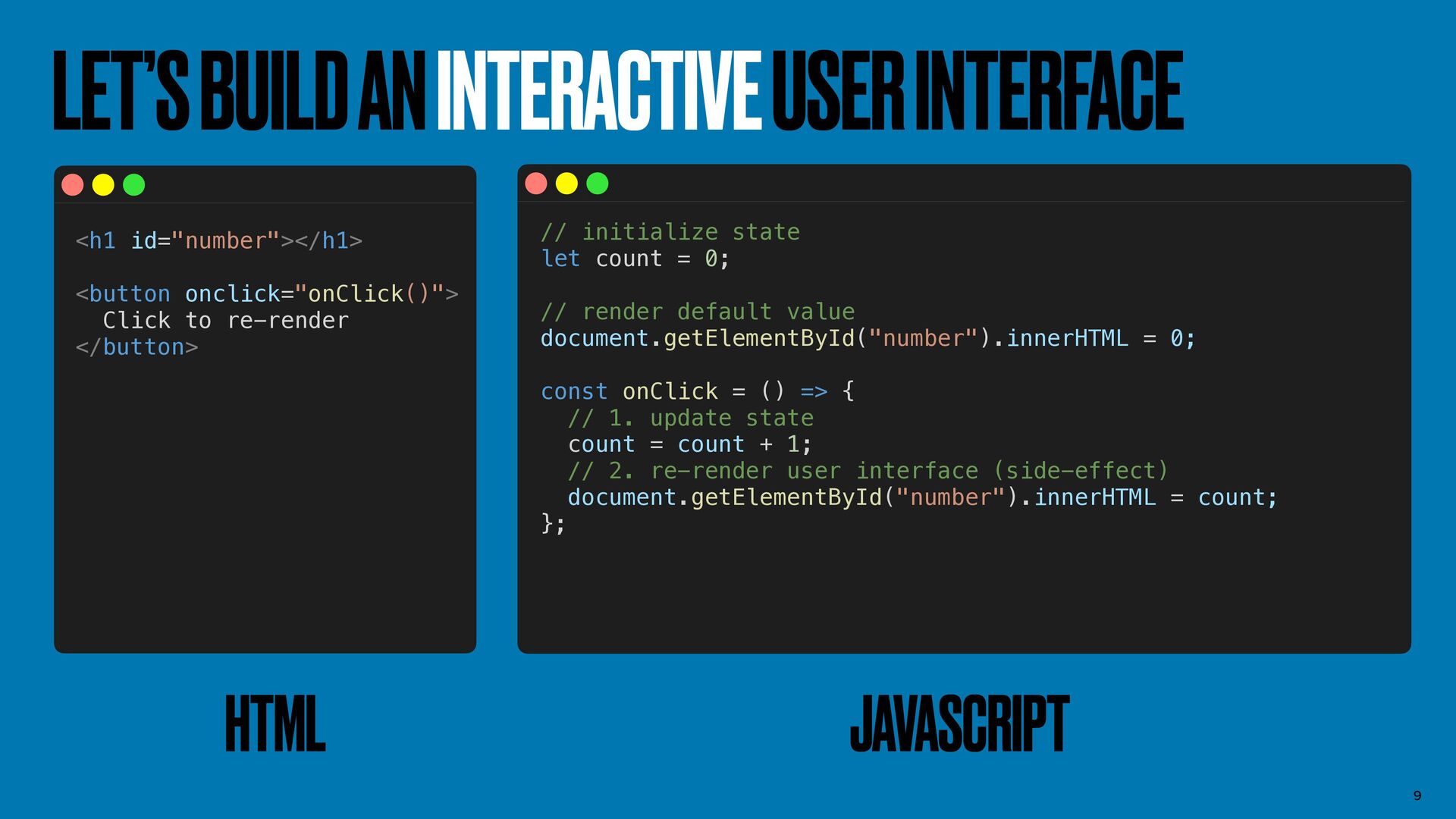

LET’S BUILD AN INTERACTIVE USER INTERFACE 9 <h1 id="number"></h1> <button
onclick="onClick()"> Click to re-render </button> // initialize state let count = 0; // render default value document.getElementById("number").innerHTML = 0; const onClick = () => { // 1. update state count = count + 1; // 2. re-render user interface (side-effect) document.getElementById("number").innerHTML = count; }; HTML JAVASCRIPT

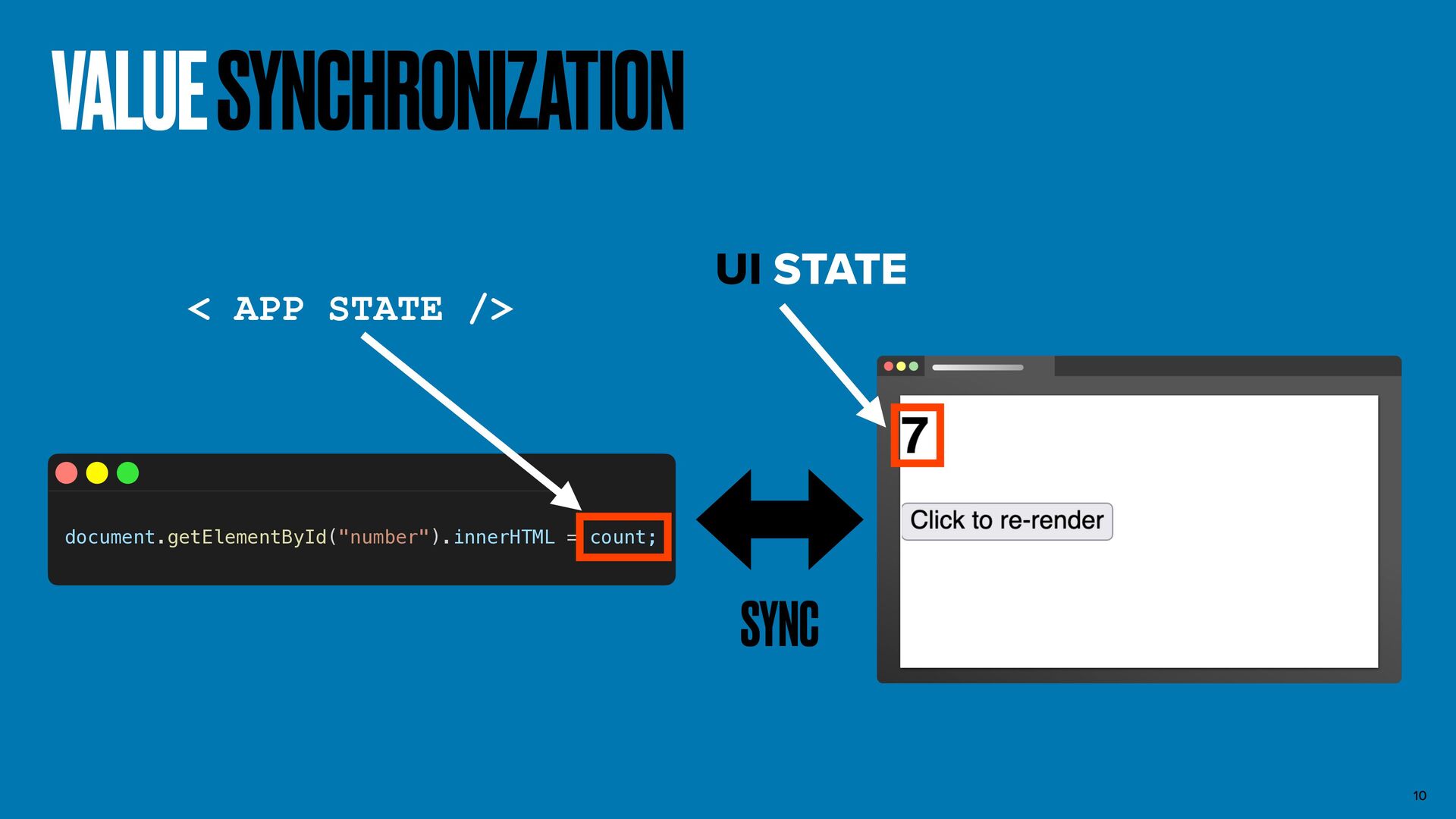

10 SYNC VALUE SYNCHRONIZATION document.getElementById("number").innerHTML = count; < APP STATE
/> UI STATE

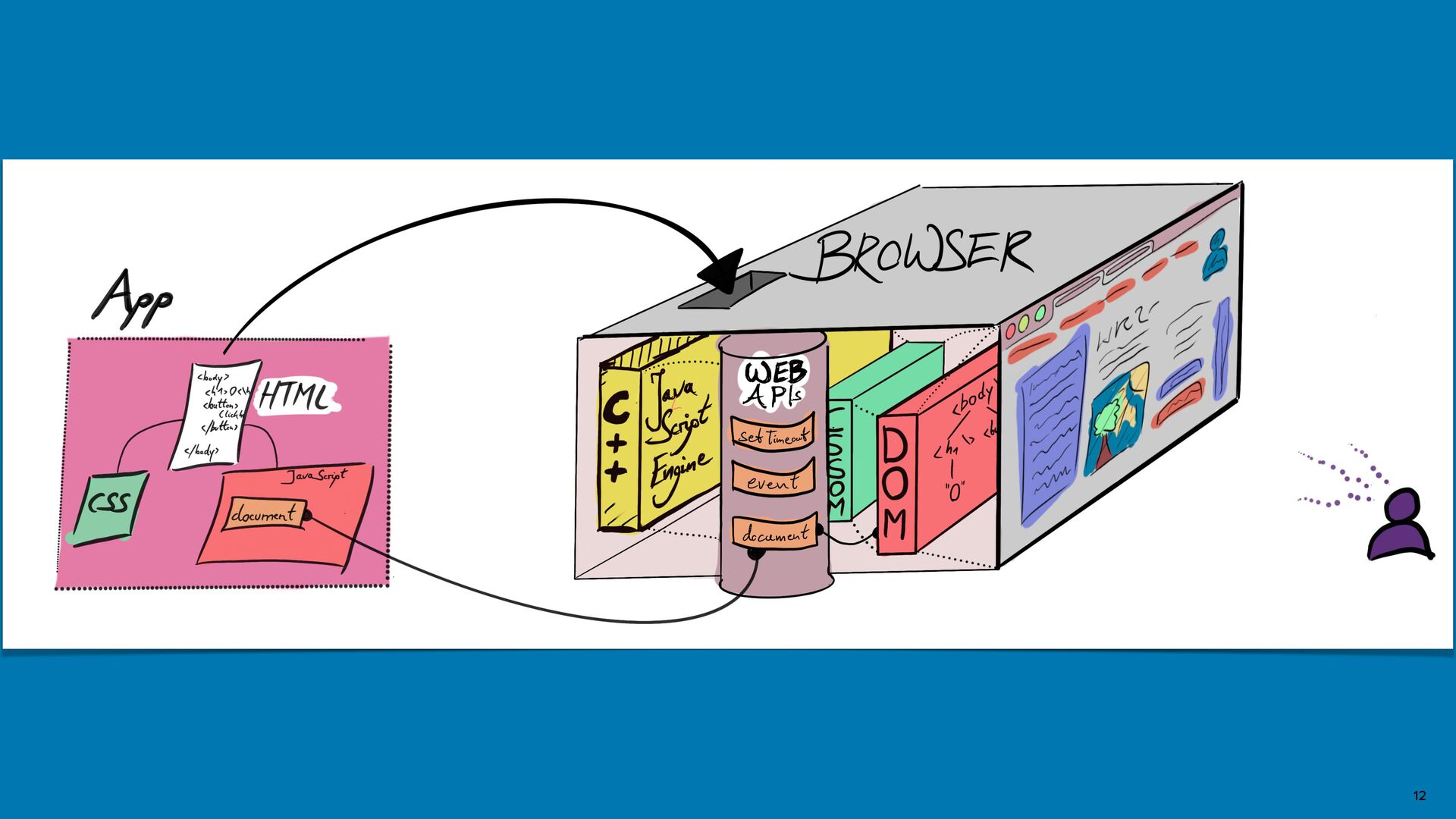

11 HOW DOES JAVASCRIPT INTERACT WITH THE BROWSER? LET’S LOOK
A BIT MORE INTO IT

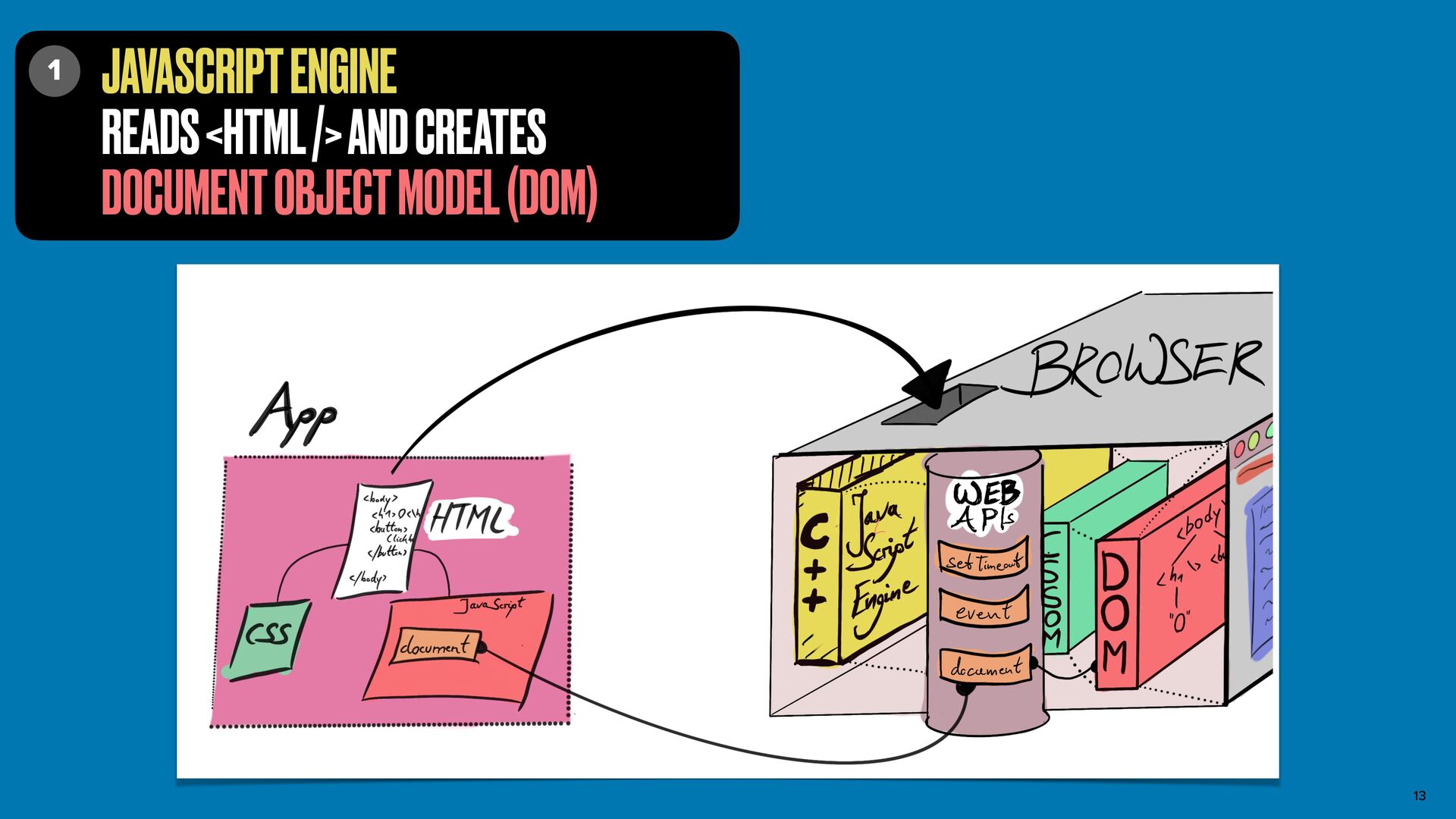

13 1 JAVASCRIPT ENGINE READS <HTML /> AND CREATES DOCUMENT
OBJECT MODEL (DOM)

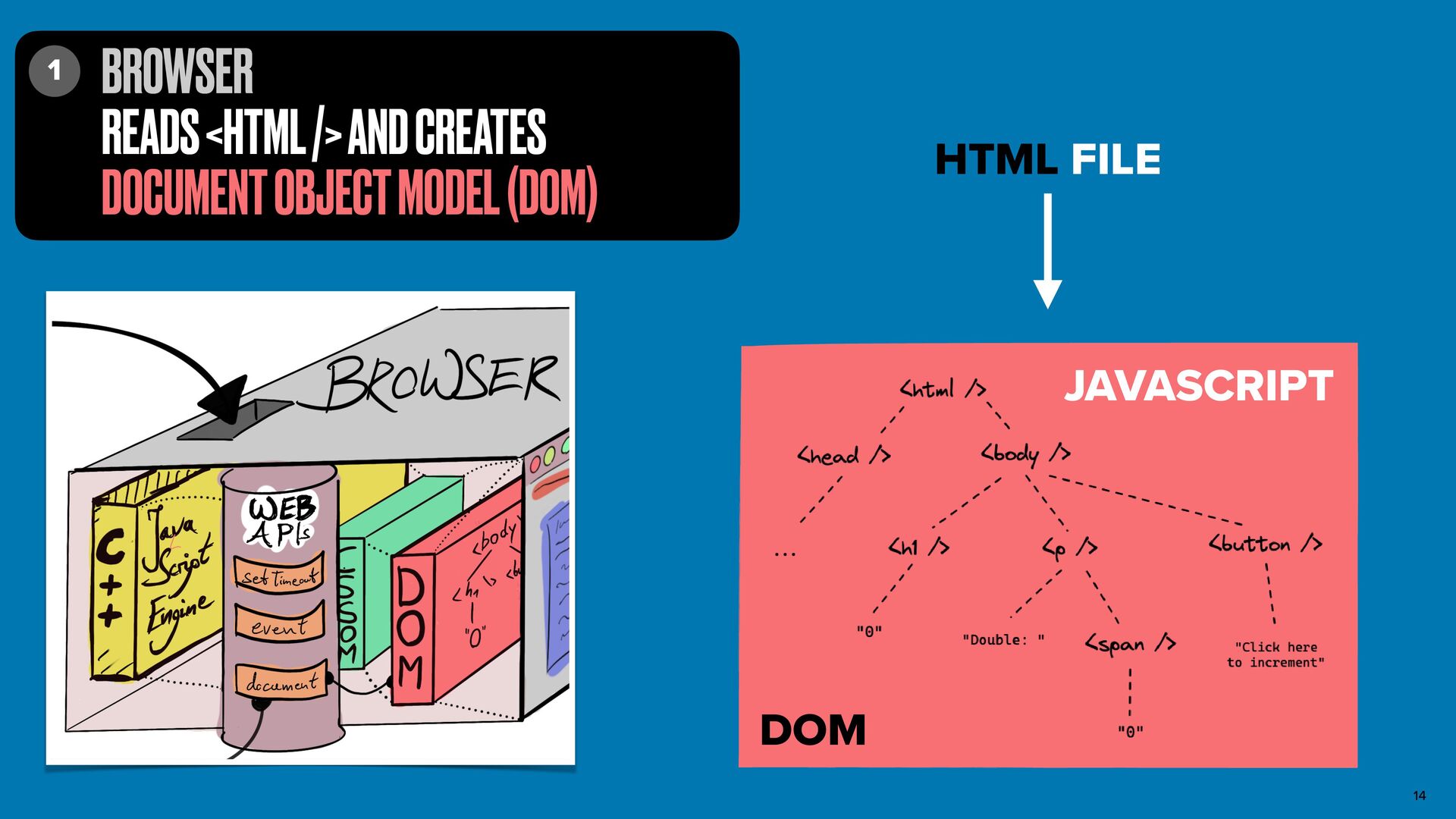

14 1 BROWSER READS <HTML /> AND CREATES DOCUMENT OBJECT
MODEL (DOM) HTML FILE DOM JAVASCRIPT

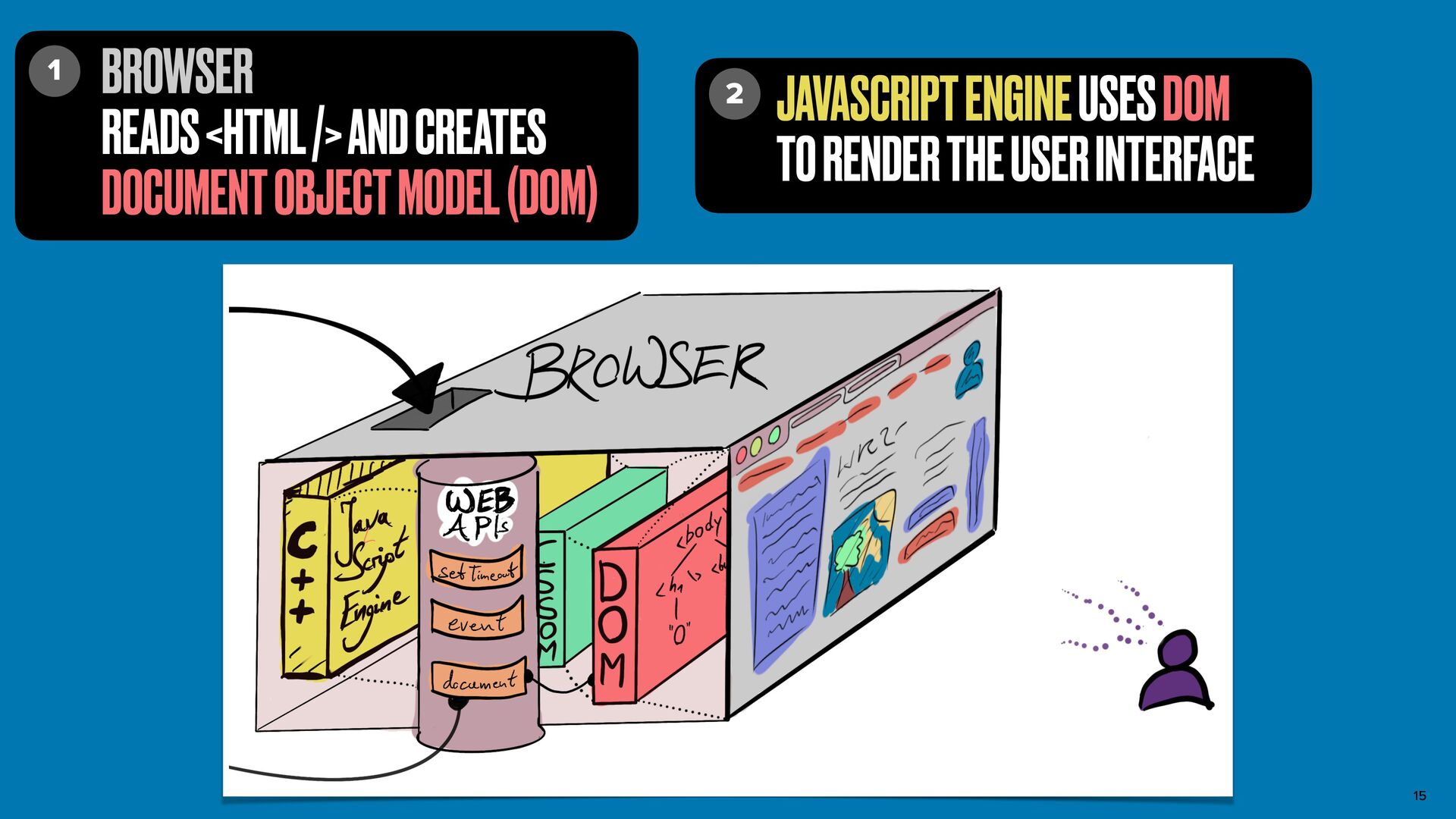

15 1 BROWSER READS <HTML /> AND CREATES DOCUMENT OBJECT
MODEL (DOM) 2 JAVASCRIPT ENGINE USES DOM TO RENDER THE USER INTERFACE

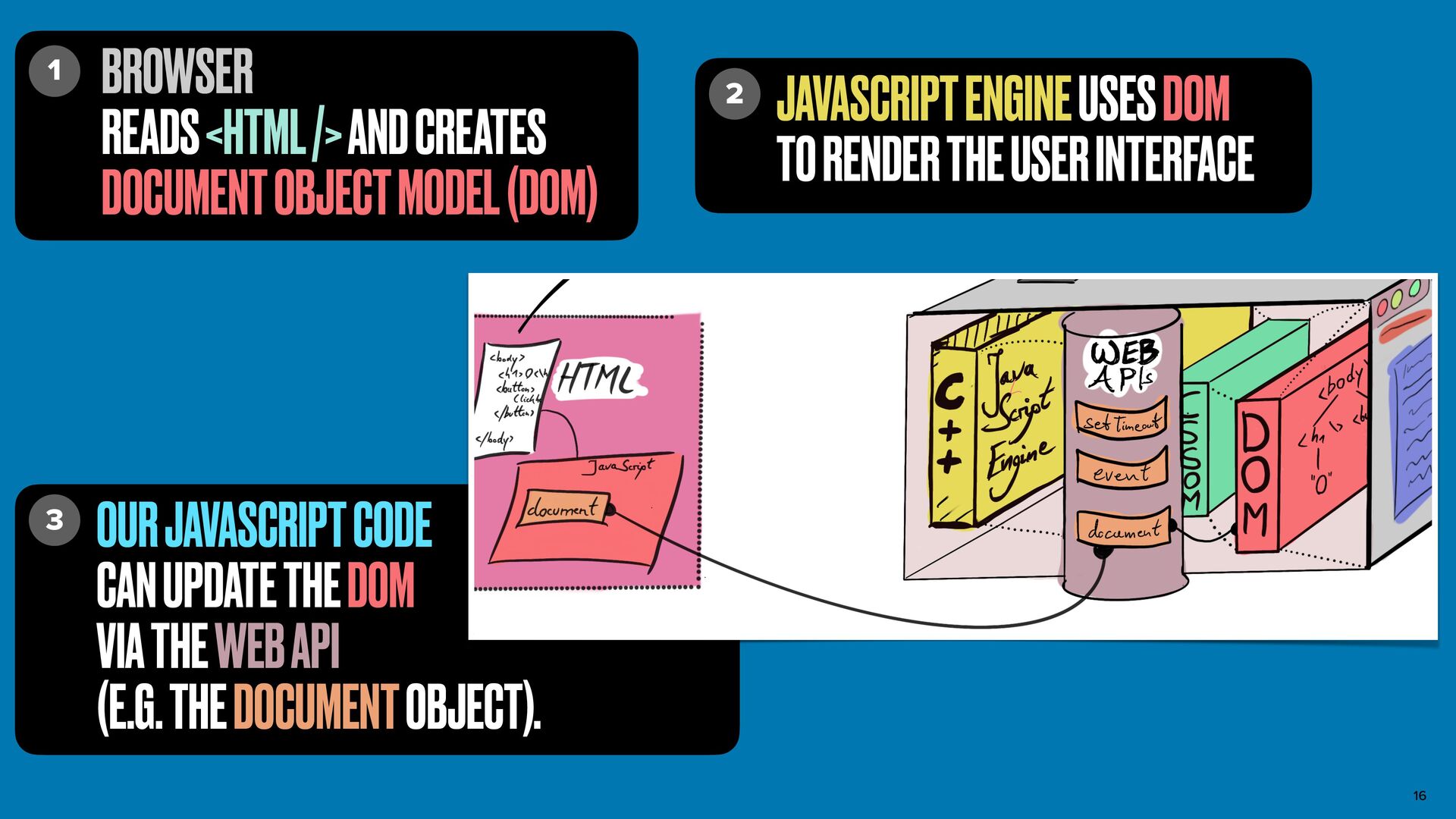

16 3 OUR JAVASCRIPT CODE CAN UPDATE THE DOM VIA
THE WEB API (E.G. THE DOCUMENT OBJECT). 1 BROWSER READS <HTML /> AND CREATES DOCUMENT OBJECT MODEL (DOM) 2 JAVASCRIPT ENGINE USES DOM TO RENDER THE USER INTERFACE

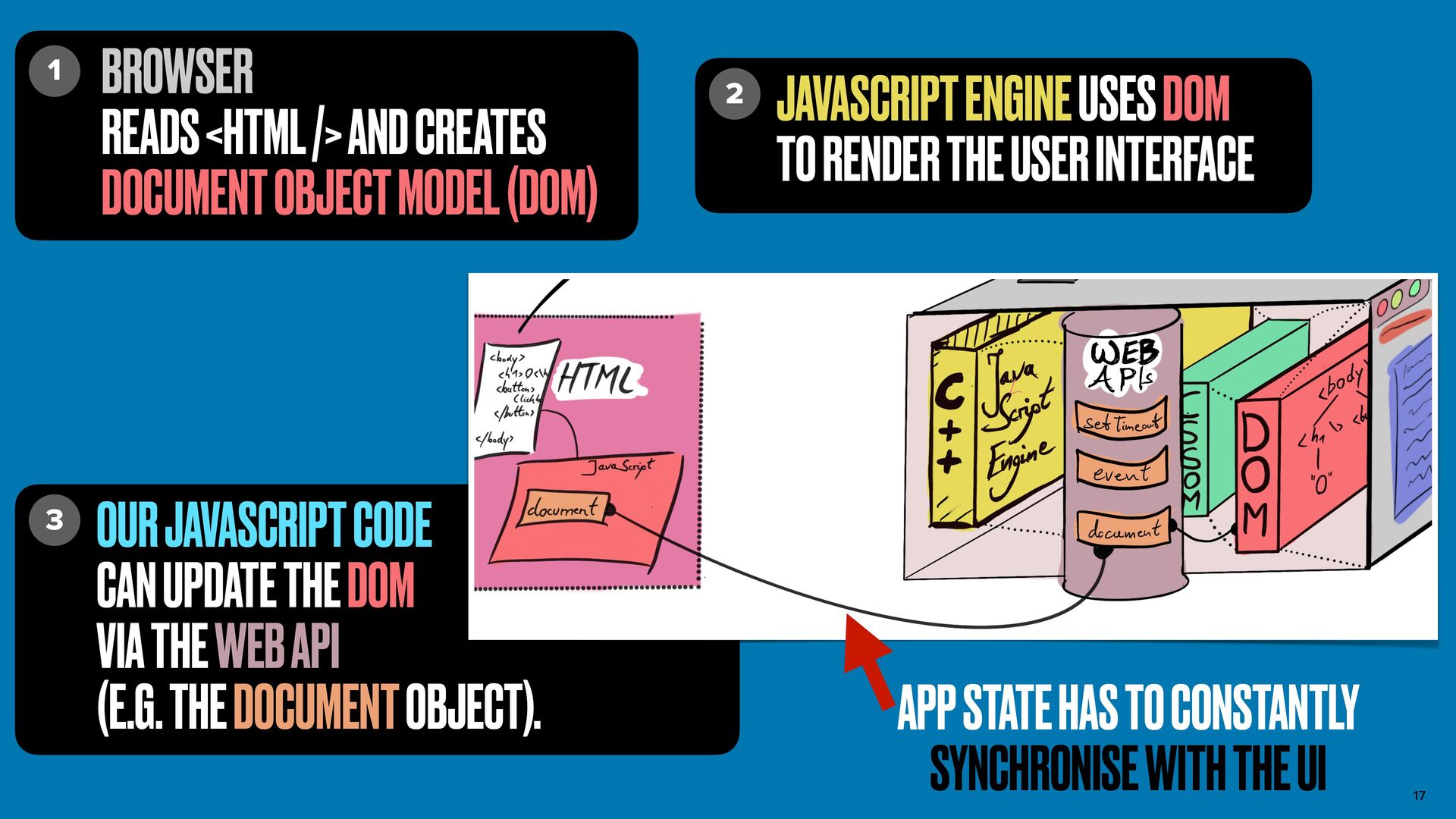

17 3 OUR JAVASCRIPT CODE CAN UPDATE THE DOM VIA
THE WEB API (E.G. THE DOCUMENT OBJECT). 1 BROWSER READS <HTML /> AND CREATES DOCUMENT OBJECT MODEL (DOM) 2 JAVASCRIPT ENGINE USES DOM TO RENDER THE USER INTERFACE APP STATE HAS TO CONSTANTLY SYNCHRONISE WITH THE UI

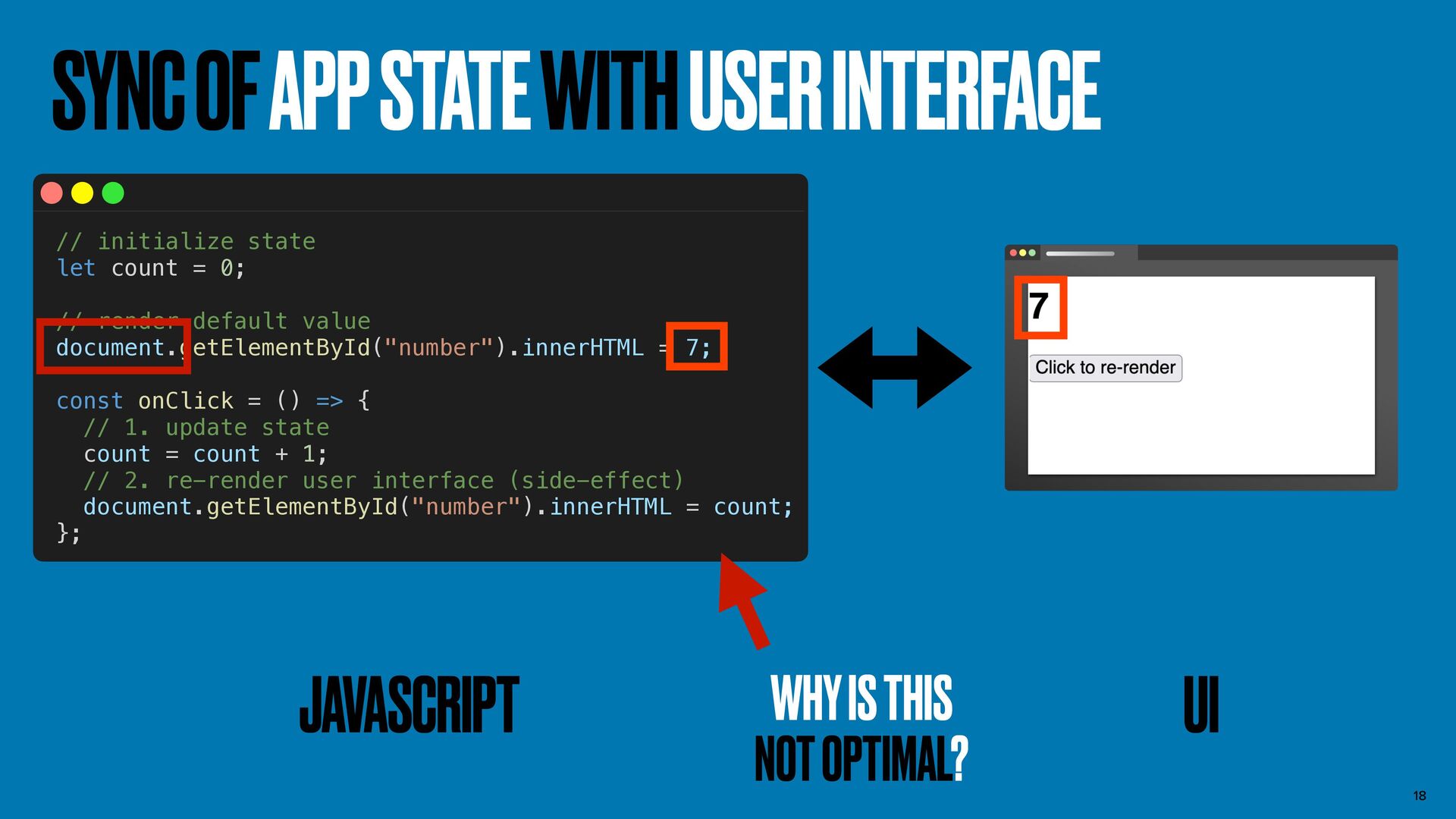

SYNC OF APP STATE WITH USER INTERFACE 18 // initialize
state let count = 0; // render default value document.getElementById("number").innerHTML = 7; const onClick = () => { // 1. update state count = count + 1; // 2. re-render user interface (side-effect) document.getElementById("number").innerHTML = count; }; UI JAVASCRIPT WHY IS THIS NOT OPTIMAL?

19 REACTIVE PROGRAMMING

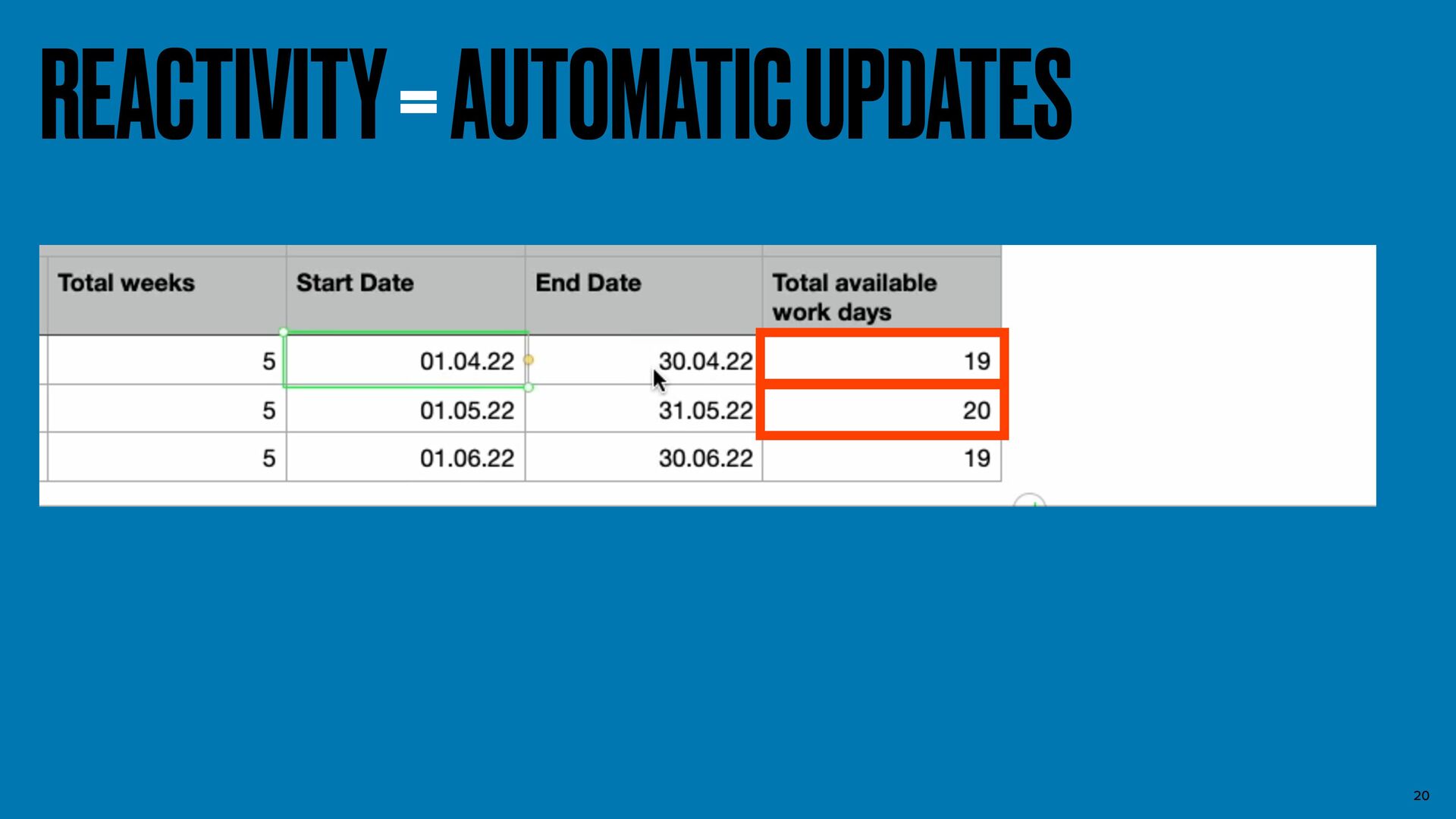

20 REACTIVITY = AUTOMATIC UPDATES

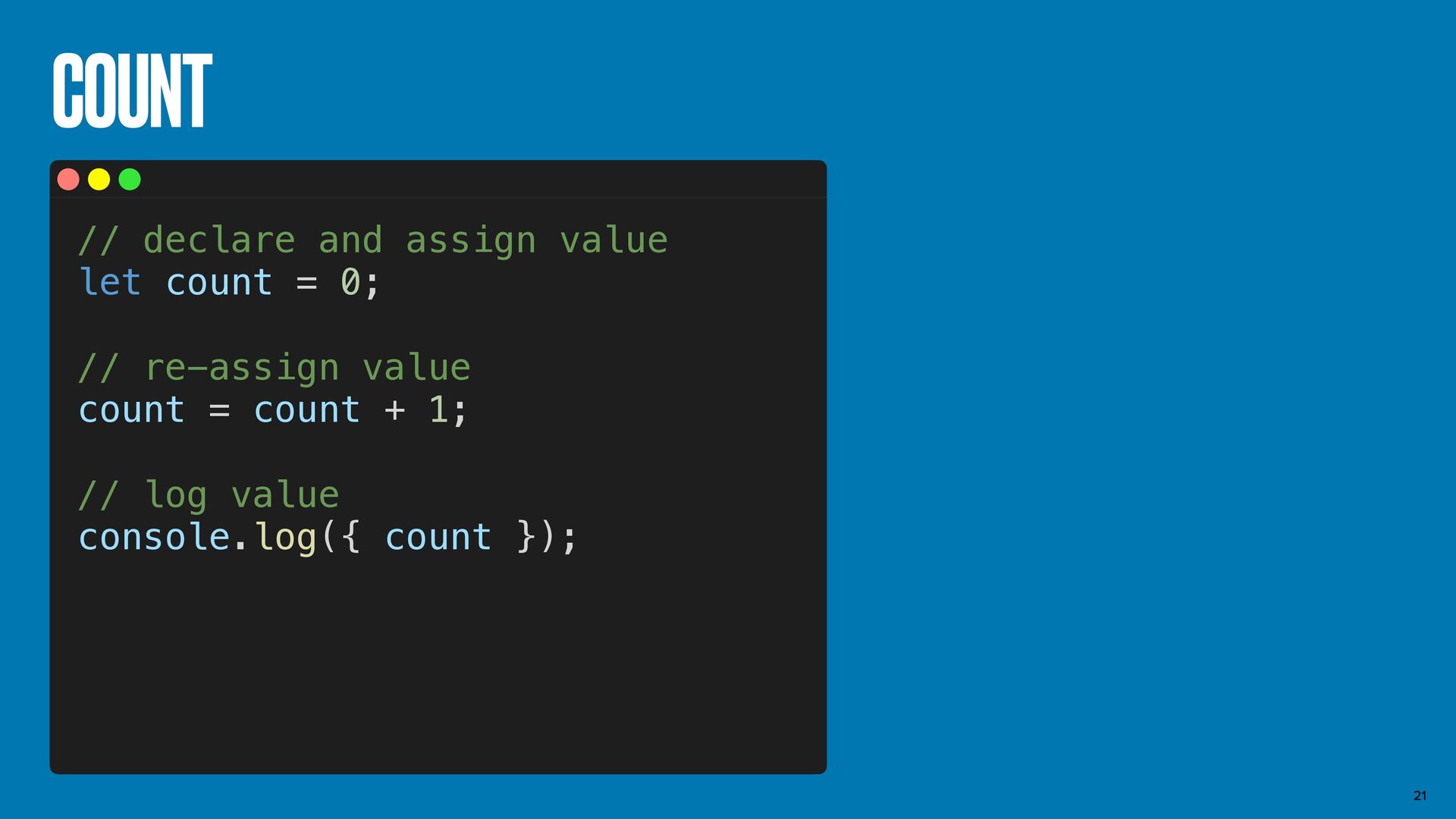

COUNT 21 // declare and assign value let count =
0; // re-assign value count = count + 1; // log value console.log({ count });

NON-REACTIVE CODE VS. REACTIVE CODE 22 // declare and assign
value let count = 0; // create copy let countCopy = count; // re-assign value count = count + 1; // log value console.log({ count, countCopy }); 🤔 MAKES SENSE COPY KEEPS FORMER VALUE OF "COUNT".

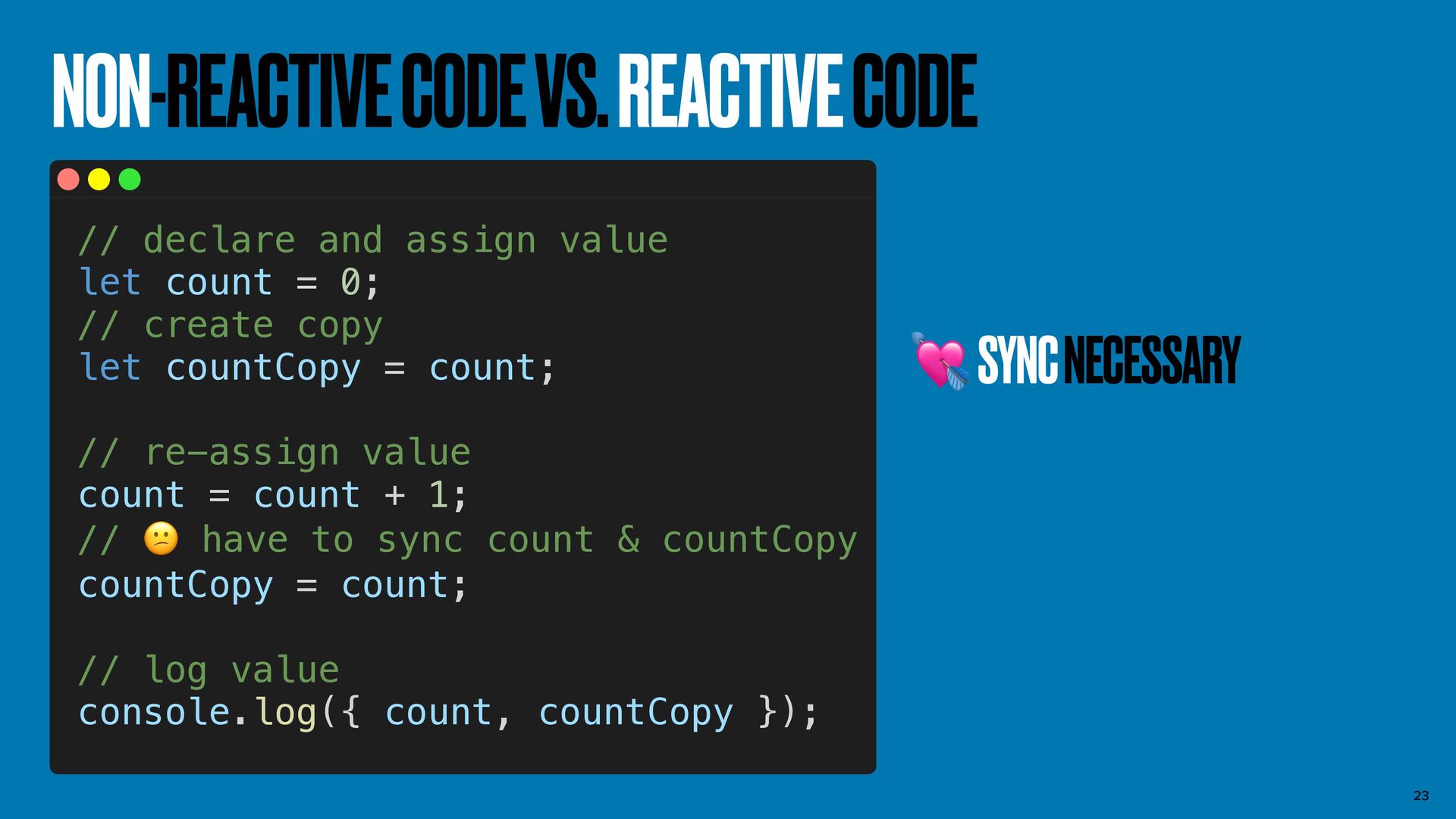

NON-REACTIVE CODE VS. REACTIVE CODE 23 // declare and assign
value let count = 0; // create copy let countCopy = count; // re-assign value count = count + 1; // 😕 have to sync count & countCopy countCopy = count; // log value console.log({ count, countCopy }); 💘 SYNC NECESSARY

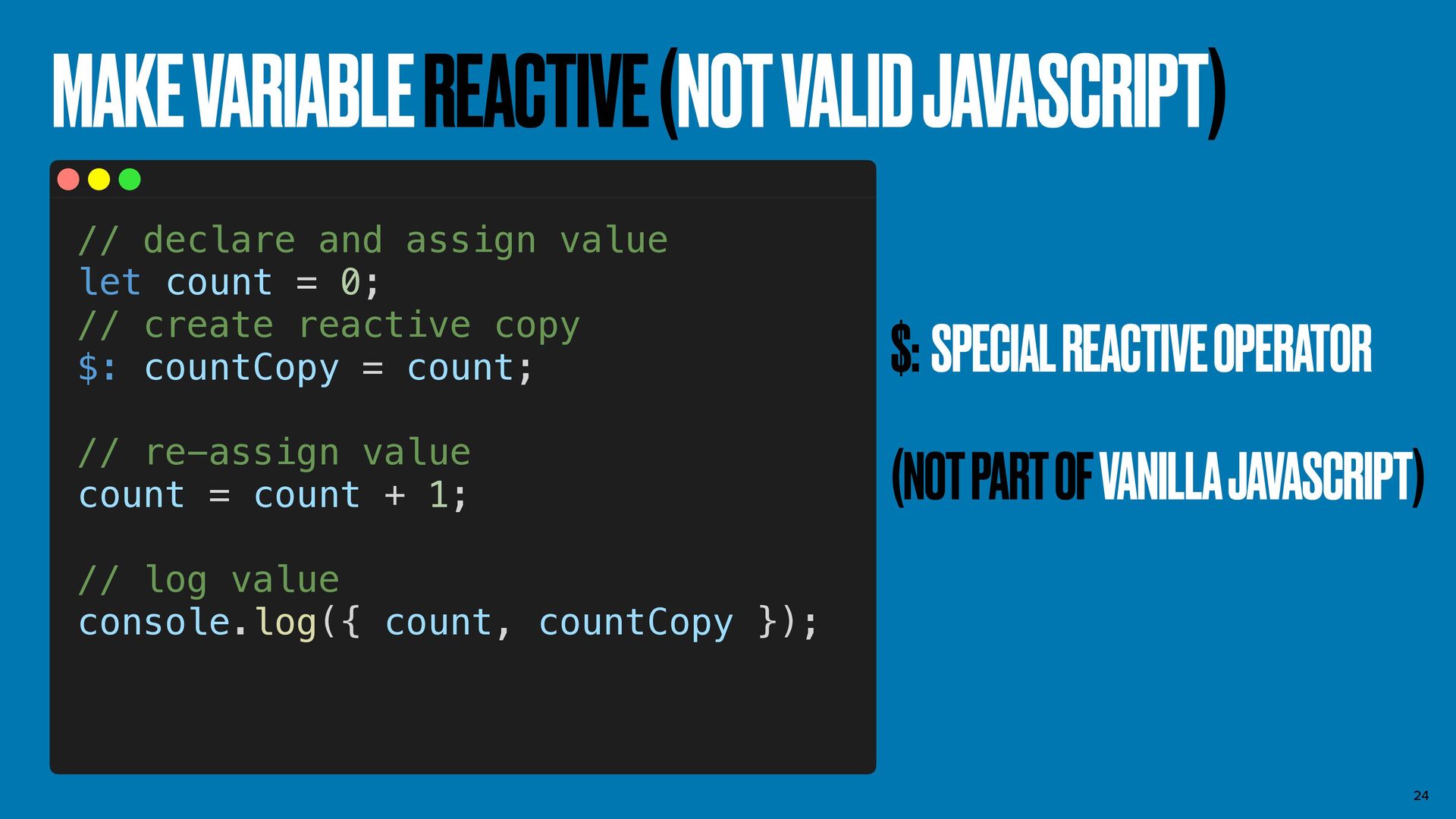

MAKE VARIABLE REACTIVE (NOT VALID JAVASCRIPT) 24 // declare and
assign value let count = 0; // create reactive copy $: countCopy = count; // re-assign value count = count + 1; // log value console.log({ count, countCopy }); $: SPECIAL REACTIVE OPERATOR (NOT PART OF VANILLA JAVASCRIPT)

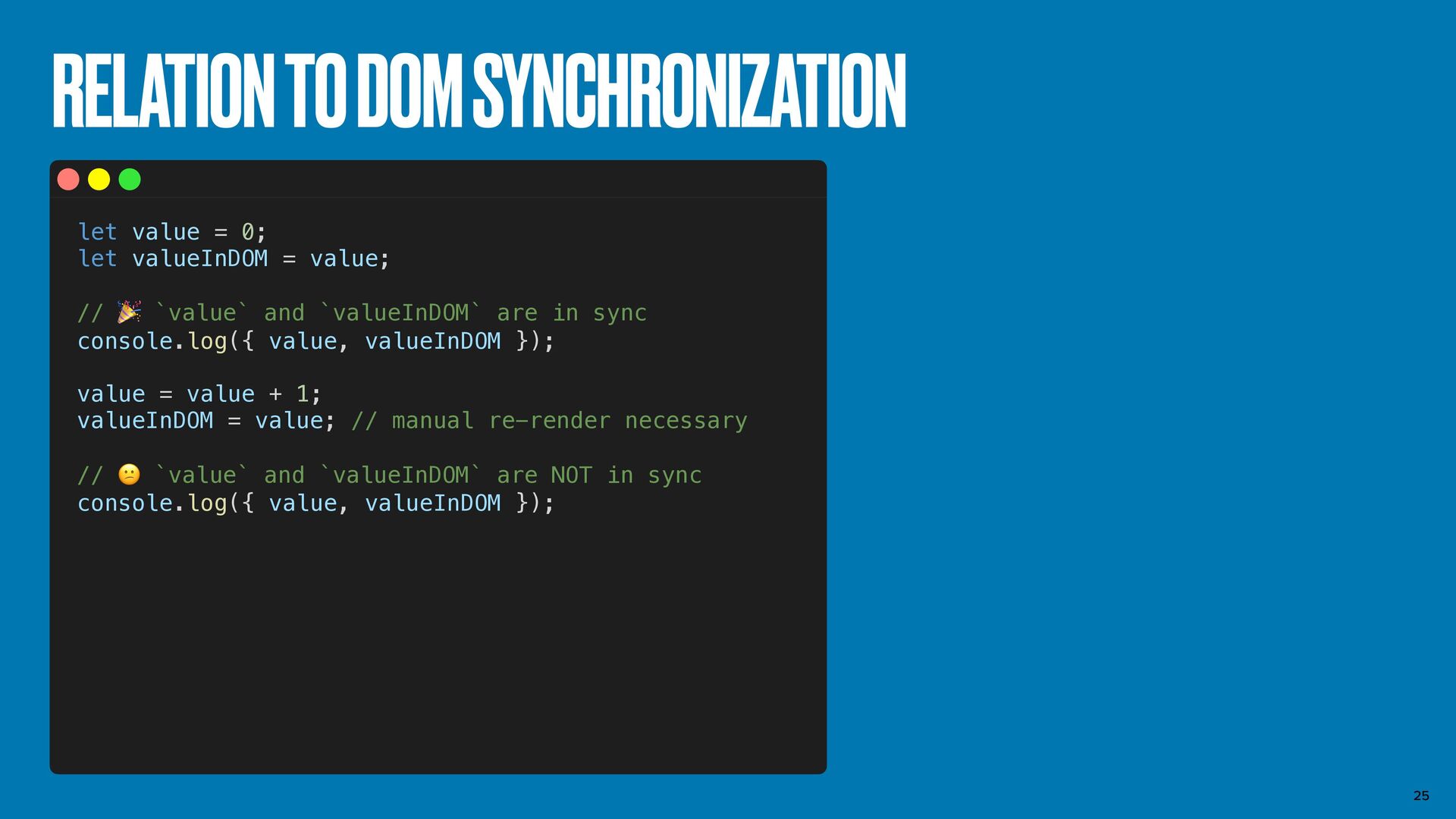

RELATION TO DOM SYNCHRONIZATION 25 let value = 0; let
valueInDOM = value; // 🎉 `value` and `valueInDOM` are in sync console.log({ value, valueInDOM }); value = value + 1; valueInDOM = value; // manual re-render necessary // 😕 `value` and `valueInDOM` are NOT in sync console.log({ value, valueInDOM });

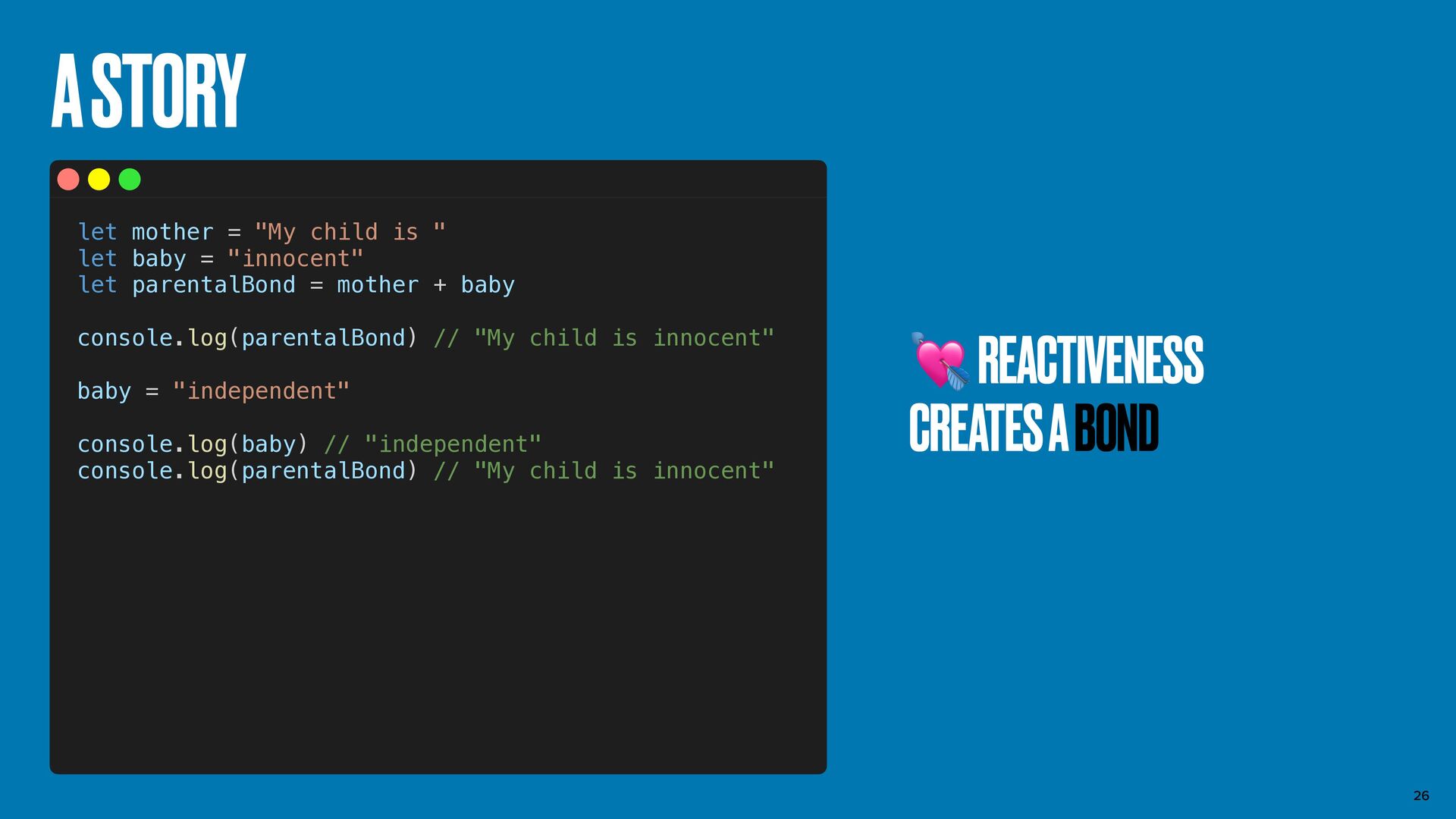

A STORY 26 let mother = "My child is "
let baby = "innocent" let parentalBond = mother + baby console.log(parentalBond) // "My child is innocent" baby = "independent" console.log(baby) // "independent" console.log(parentalBond) // "My child is innocent" 💘 REACTIVENESS CREATES A BOND

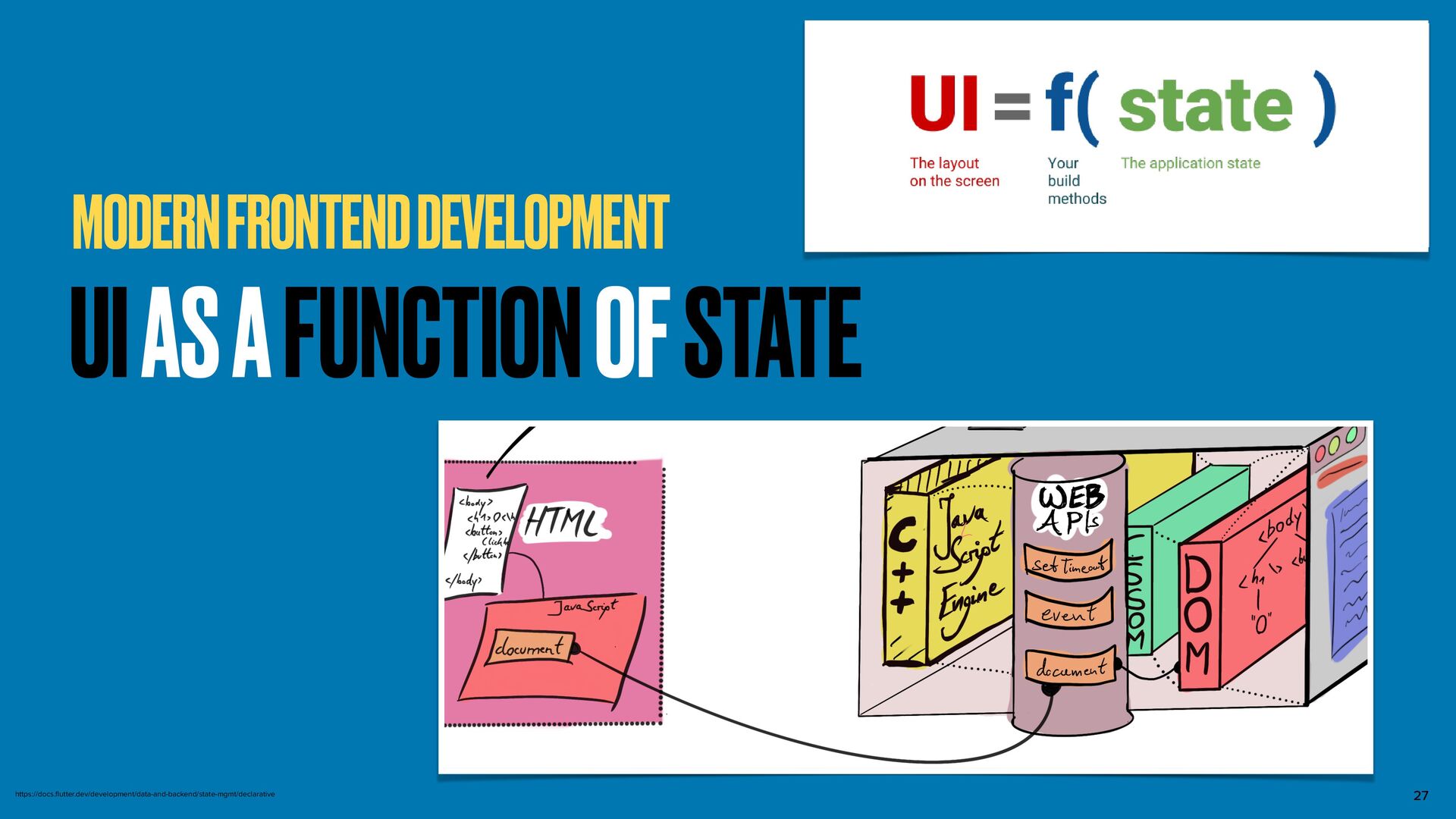

27 UI AS A FUNCTION OF STATE MODERN FRONTEND DEVELOPMENT
https://docs. fl utter.dev/development/data-and-backend/state-mgmt/declarative

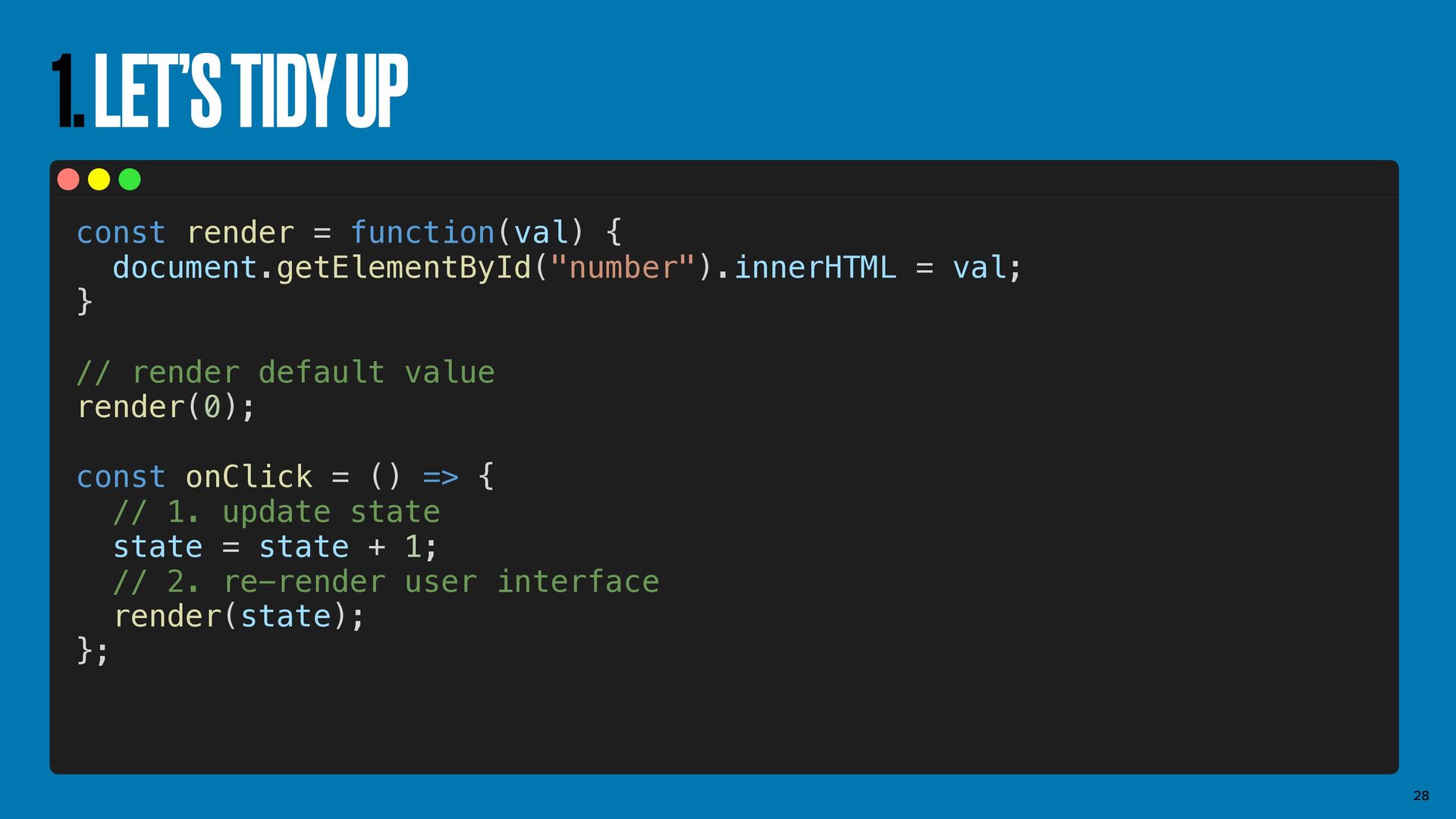

1. LET’S TIDY UP 28 const render = function(val) {
document.getElementById("number").innerHTML = val; } // render default value render(0); const onClick = () => { // 1. update state state = state + 1; // 2. re-render user interface render(state); };

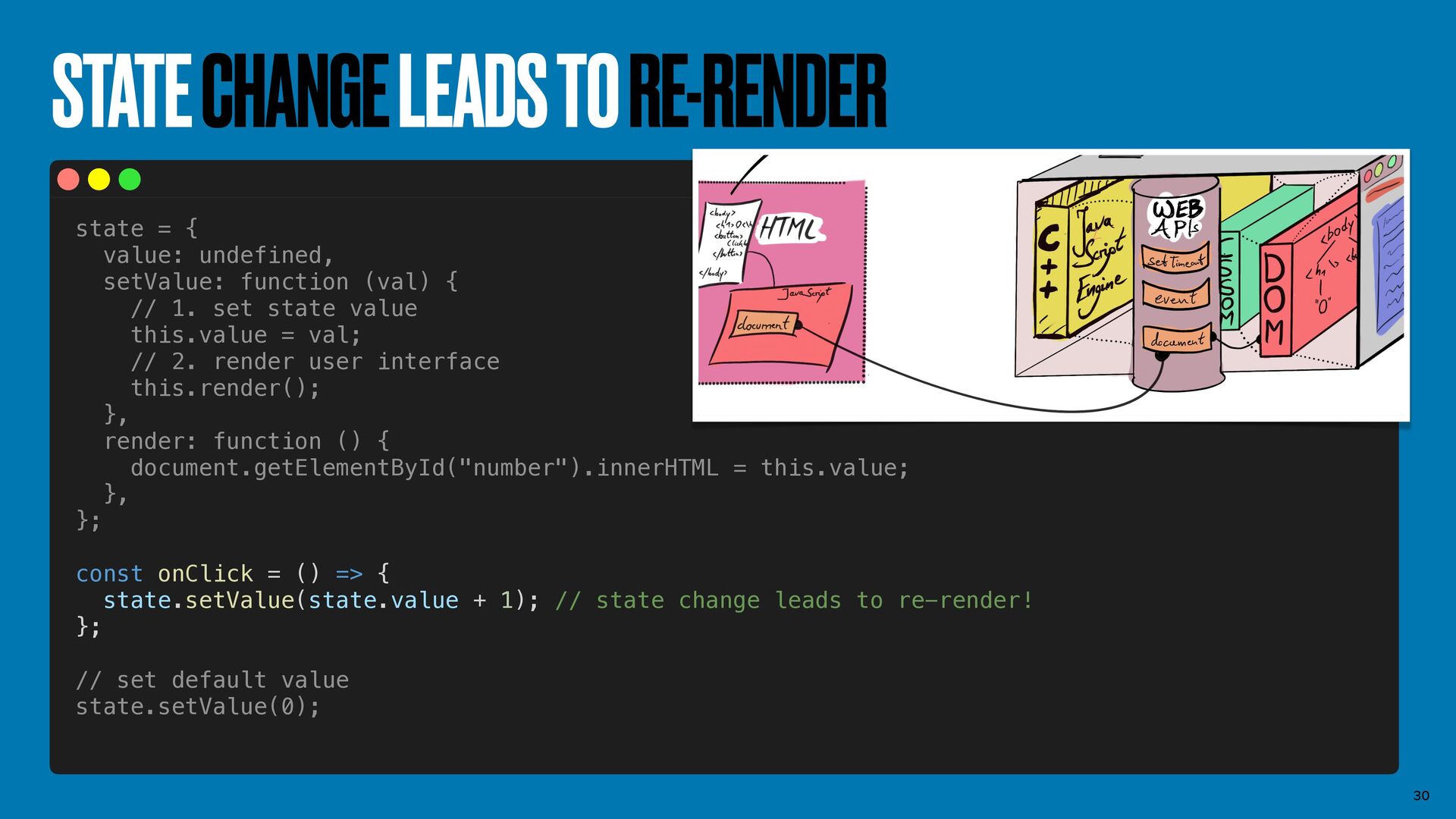

STATE CHANGE LEADS TO RE-RENDER 29 state = { value:
undefined, setValue: function (val) { // 1. set state value this.value = val; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; }, }; const onClick = () => { state.setValue(state.value + 1); // state change leads to re-render! }; // set default value state.setValue(0);

STATE CHANGE LEADS TO RE-RENDER 30 state = { value:
undefined, setValue: function (val) { // 1. set state value this.value = val; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; }, }; const onClick = () => { state.setValue(state.value + 1); // state change leads to re-render! }; // set default value state.setValue(0);

31 state = { value: undefined, setValue: function (val) {
// 1. set state value this.value = val; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; }, }; const onClick = () => { state.setValue(state.value + 1); // state change leads to re-render! }; // set default value state.setValue(0); STATE CHANGE LEADS TO RE-RENDER

32 DERIVED VALUES

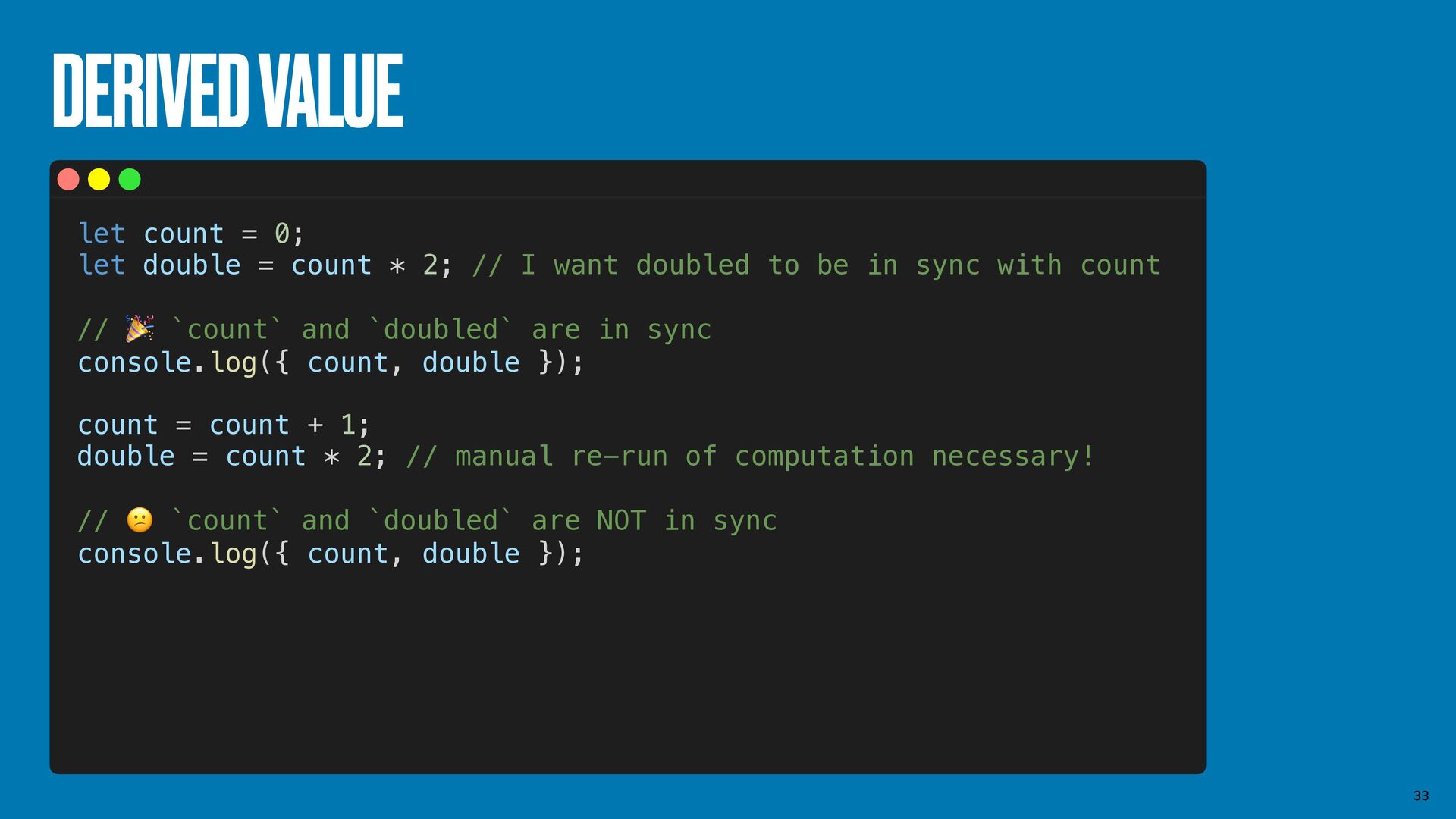

DERIVED VALUE 33 let count = 0; let double =
count * 2; // I want doubled to be in sync with count // 🎉 `count` and `doubled` are in sync console.log({ count, double }); count = count + 1; double = count * 2; // manual re-run of computation necessary! // 😕 `count` and `doubled` are NOT in sync console.log({ count, double });

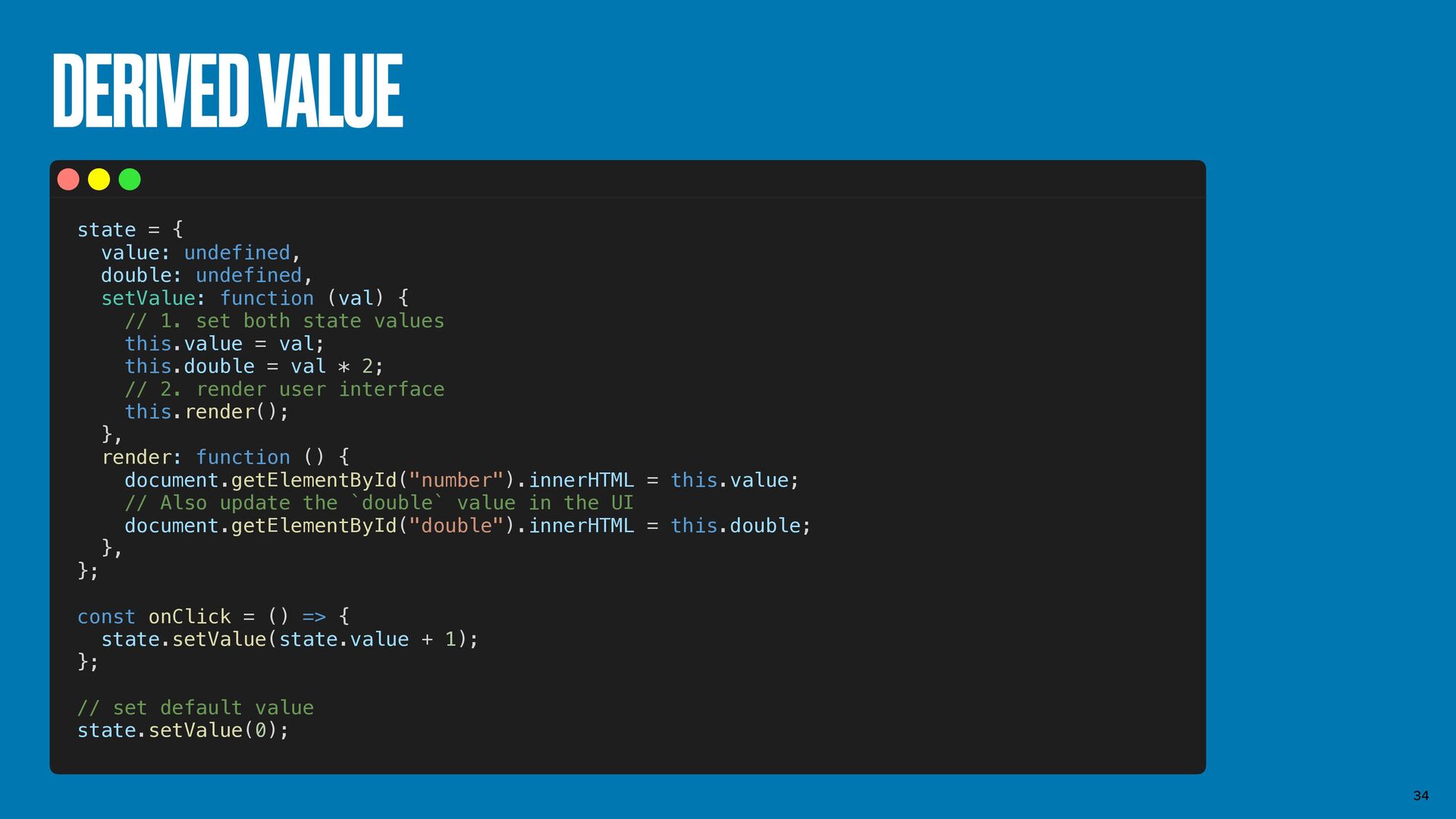

DERIVED VALUE 34 state = { value: undefined, double: undefined,
setValue: function (val) { // 1. set both state values this.value = val; this.double = val * 2; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; // Also update the `double` value in the UI document.getElementById("double").innerHTML = this.double; }, }; const onClick = () => { state.setValue(state.value + 1); }; // set default value state.setValue(0);

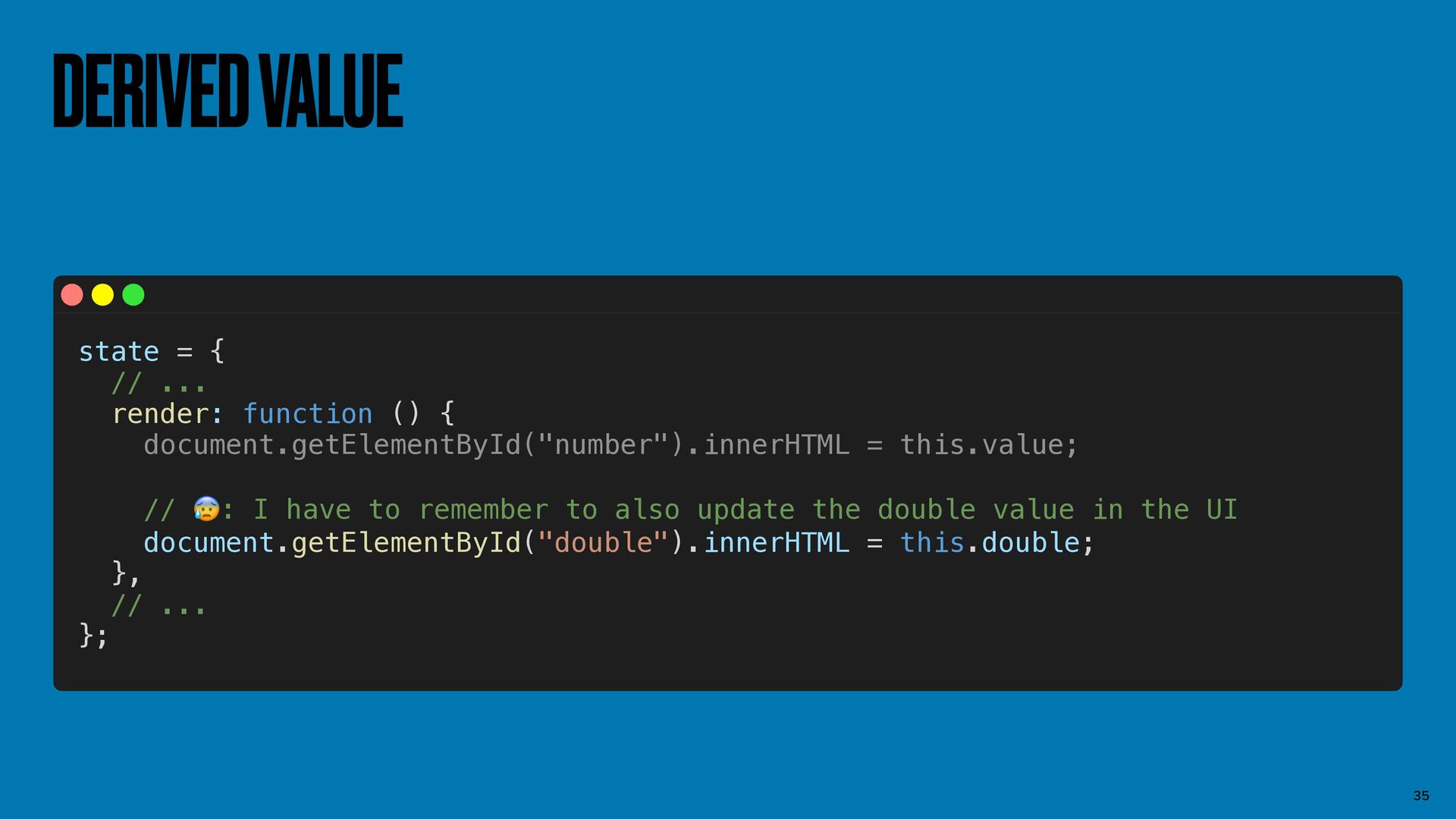

35 state = { // ... render: function () {
document.getElementById("number").innerHTML = this.value; // 😰: I have to remember to also update the double value in the UI document.getElementById("double").innerHTML = this.double; }, // ... }; DERIVED VALUE

36 CONDITIONAL LOGIC

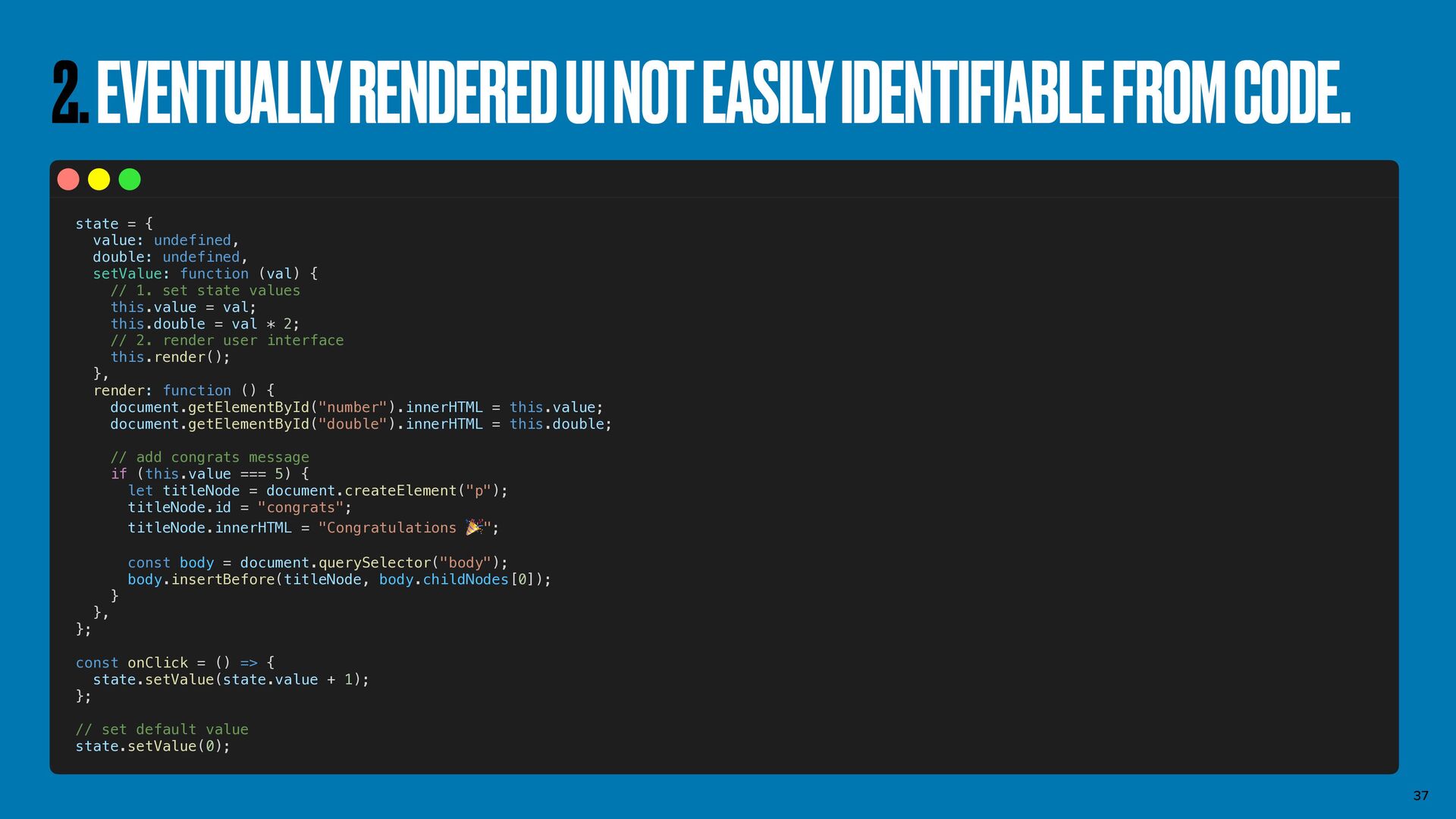

2. EVENTUALLY RENDERED UI NOT EASILY IDENTIFIABLE FROM CODE. 37
state = { value: undefined, double: undefined, setValue: function (val) { // 1. set state values this.value = val; this.double = val * 2; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; document.getElementById("double").innerHTML = this.double; // add congrats message if (this.value === 5) { let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉 "; const body = document.querySelector("body"); body.insertBefore(titleNode, body.childNodes[0]); } }, }; const onClick = () => { state.setValue(state.value + 1); }; // set default value state.setValue(0);

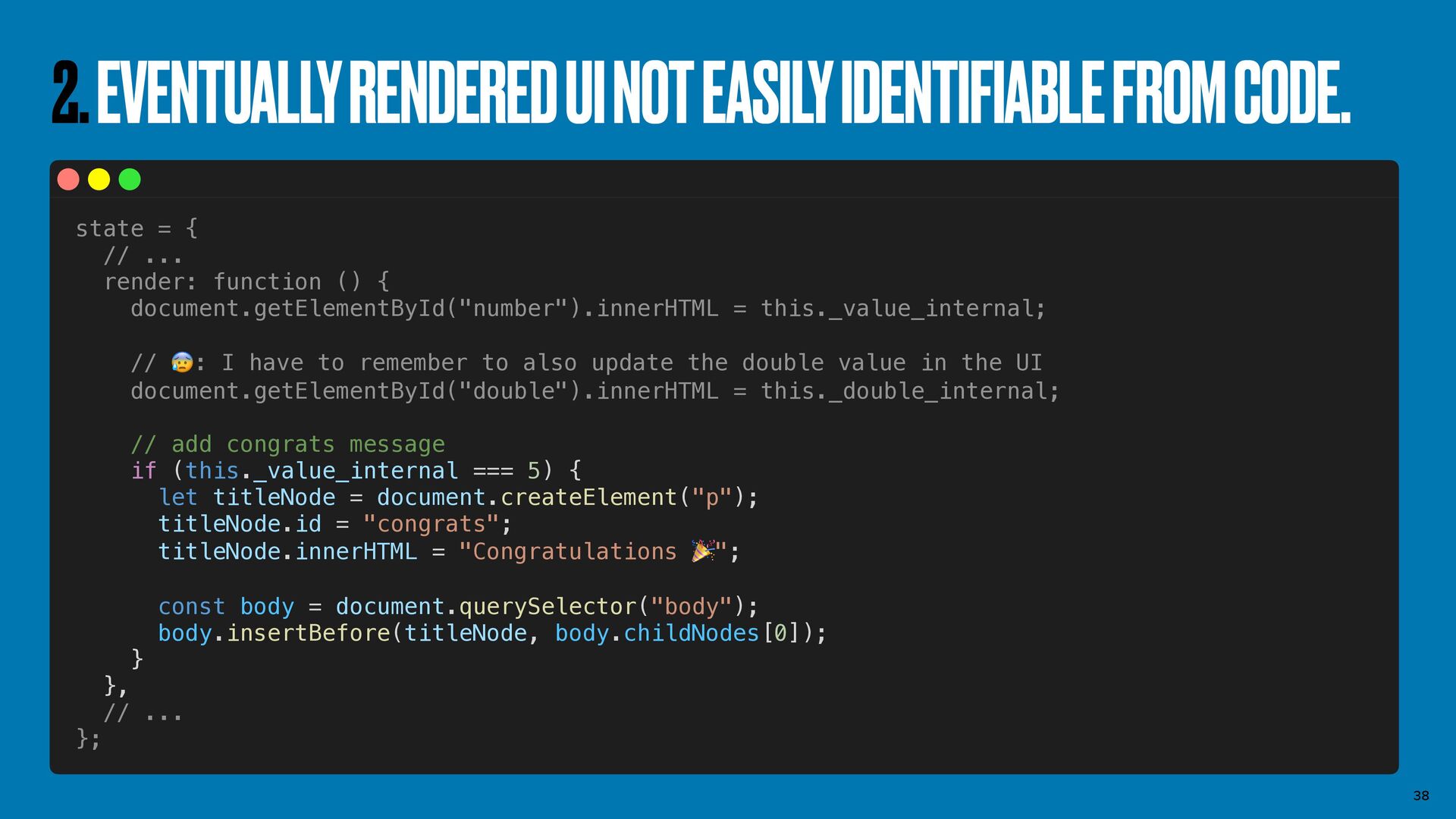

state = { // ... render: function () { document.getElementById("number").innerHTML = this._value_internal; // 😰: I have to remember to also update the double value in the UI document.getElementById("double").innerHTML = this._double_internal; // add congrats message if (this._value_internal === 5) { let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉"; const body = document.querySelector("body"); body.insertBefore(titleNode, body.childNodes[0]); } }, // ... };

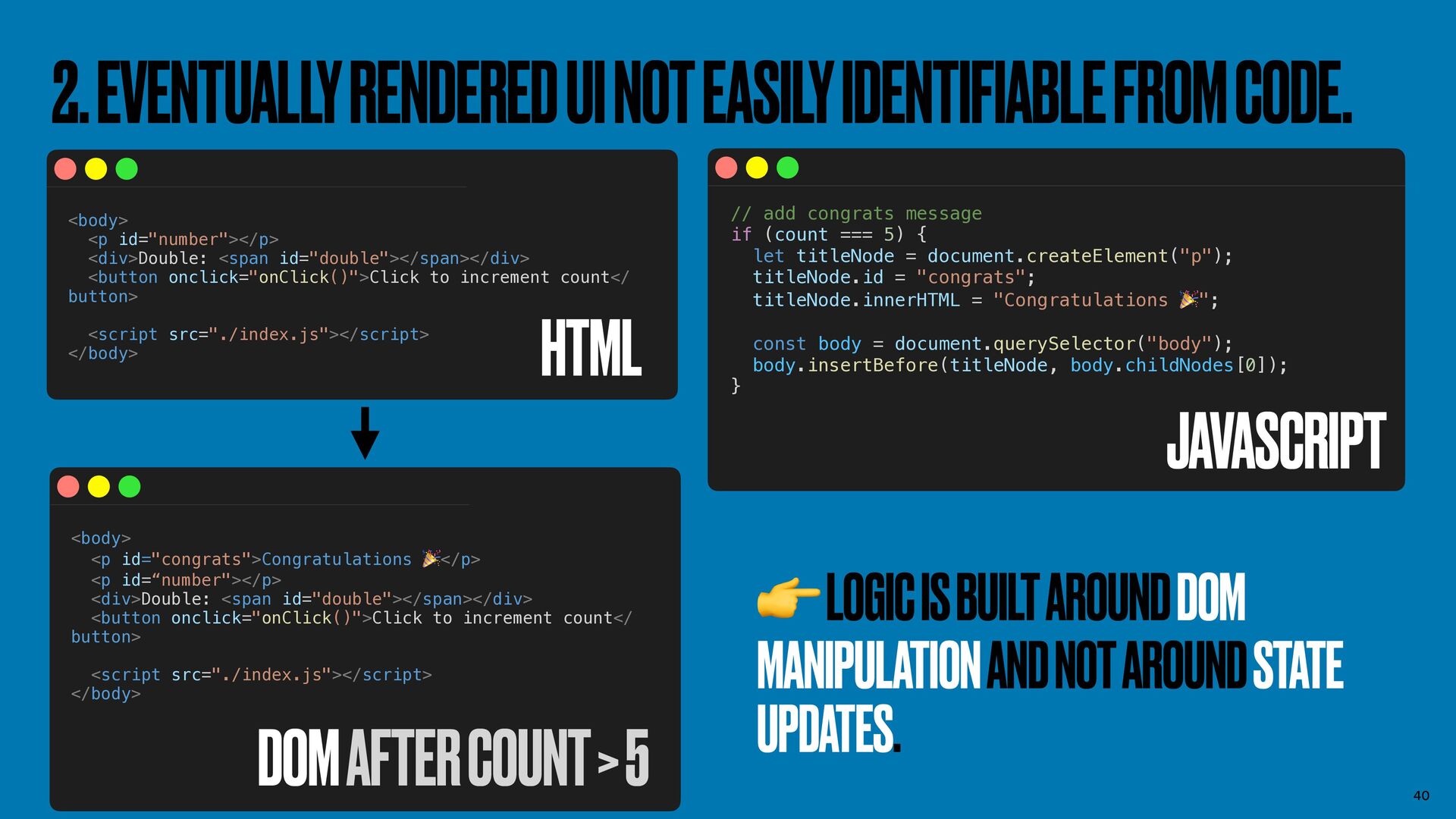

<body> <p id="number"></p> <div>Double: <span id="double"></span></div> <button onclick="onClick()">Click to increment</button> </body> HTML <body> <p id="congrats">Congratulations 🎉</p> <p id=“number"></p> <div>Double: <span id="double"></span></div> <button onclick="onClick()">Click to increment</button> </body> DOM AFTER COUNT >= 5

<body> <p id="number"></p> <div>Double: <span id="double"></span></div> <button onclick="onClick()">Click to increment count</ button> <script src="./index.js"></script> </body> // add congrats message if (count === 5) { let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉"; const body = document.querySelector("body"); body.insertBefore(titleNode, body.childNodes[0]); } HTML JAVASCRIPT 👉 LOGIC IS BUILT AROUND DOM MANIPULATION AND NOT AROUND STATE UPDATES. <body> <p id="congrats">Congratulations 🎉</p> <p id=“number"></p> <div>Double: <span id="double"></span></div> <button onclick="onClick()">Click to increment count</ button> <script src="./index.js"></script> </body> DOM AFTER COUNT > 5

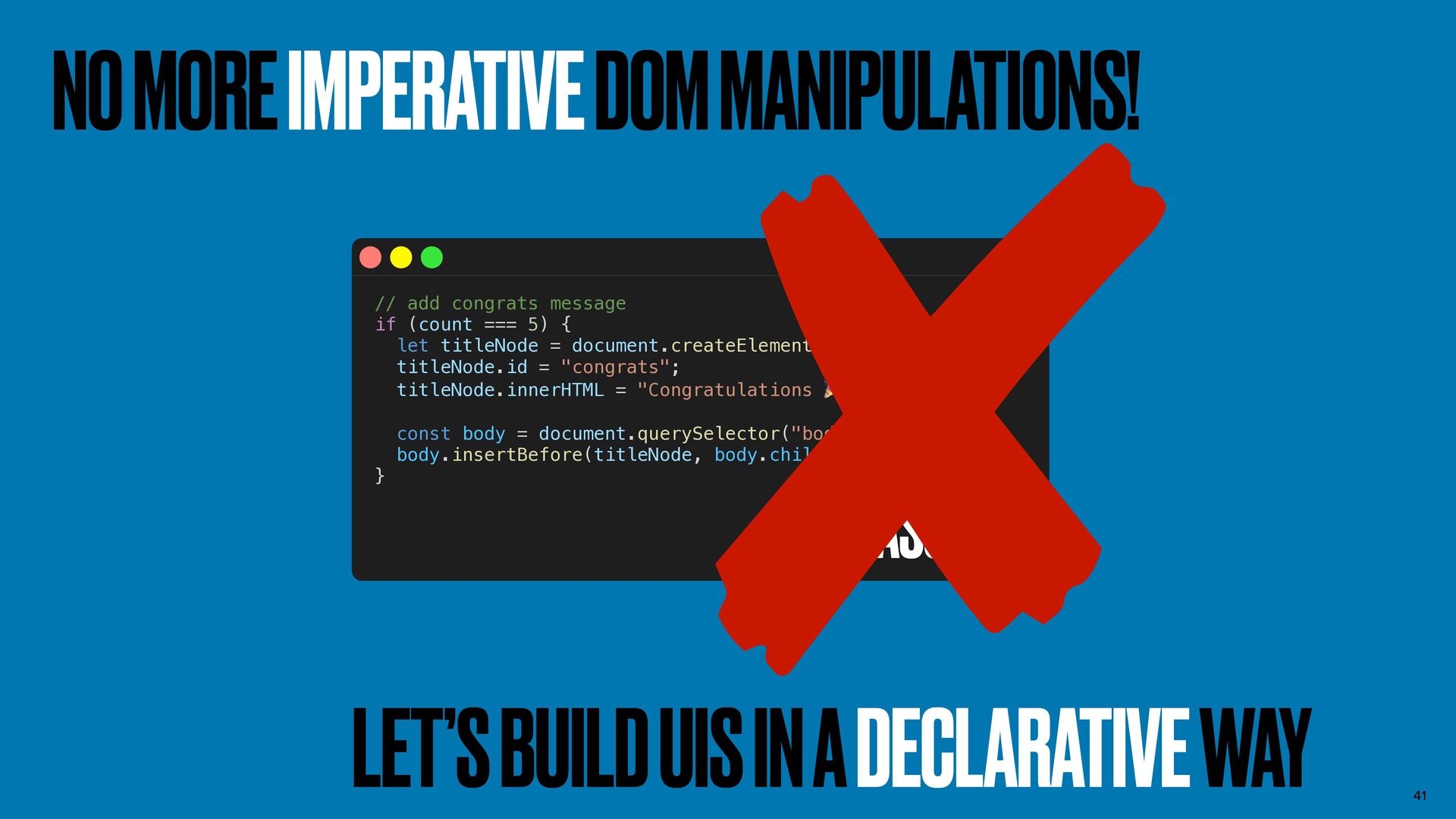

NO MORE IMPERATIVE DOM MANIPULATIONS! 41 // add congrats message
if (count === 5) { let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉"; const body = document.querySelector("body"); body.insertBefore(titleNode, body.childNodes[0]); } JAVASCRIPT LET’S BUILD UIS IN A DECLARATIVE WAY

IMPERATIVE VS DECLARATIVE 42 COMPARING PROGRAMMING PARADIGMS

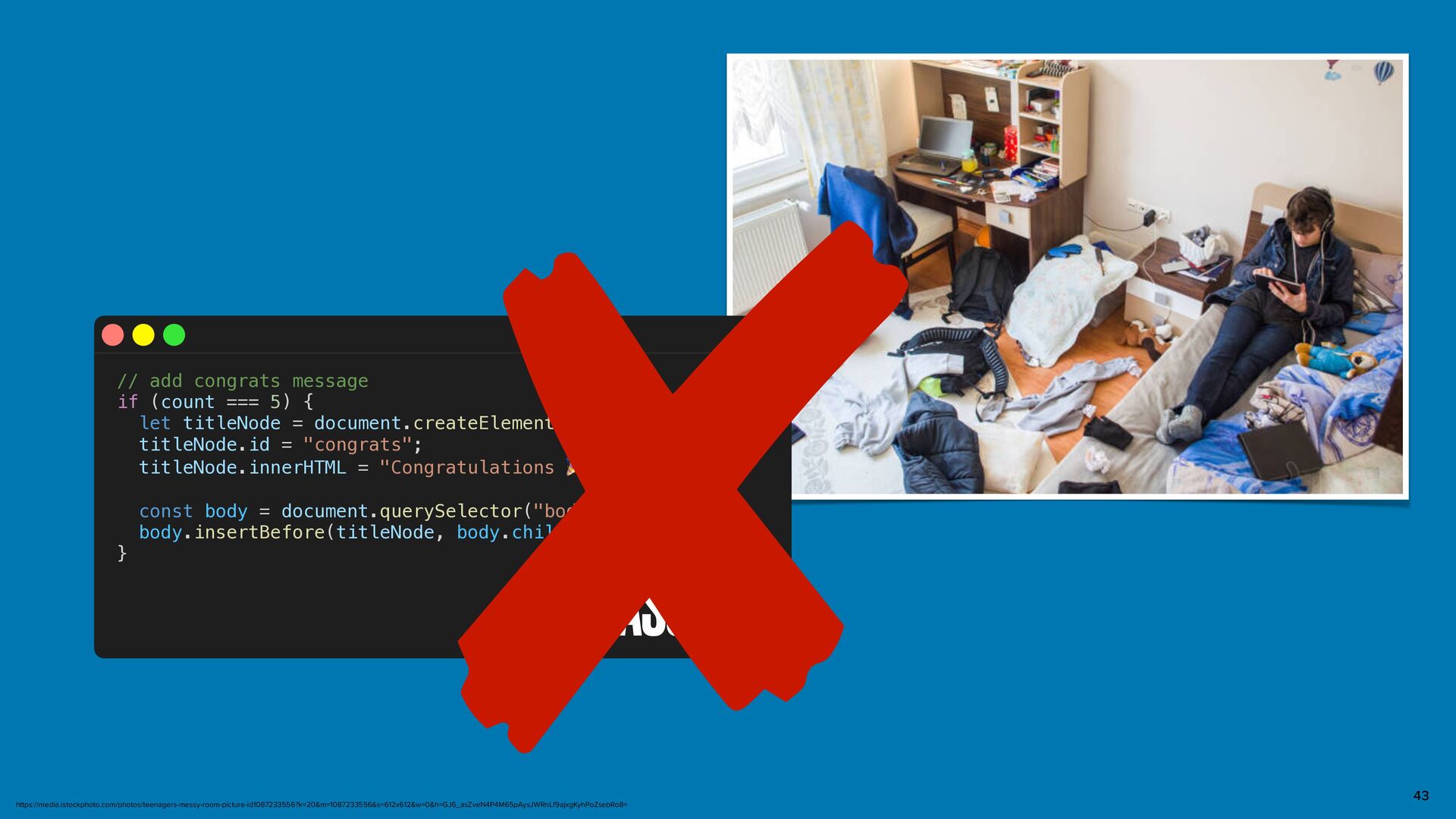

43 https://media.istockphoto.com/photos/teenagers-messy-room-picture-id1087233556?k=20&m=1087233556&s=612x612&w=0&h=GJ6_asZveN4P4M65pAysJWRnLf9ajxgKyhPoZsebRo8= // add congrats message if (count === 5)
{ let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉"; const body = document.querySelector("body"); body.insertBefore(titleNode, body.childNodes[0]); } JAVASCRIPT

IMPERATIVE HOW HOW COMPUTERS OPERATE 44 DECLARATIVE WHAT DESCRIBE POSSIBLE
APPLICATION STATES

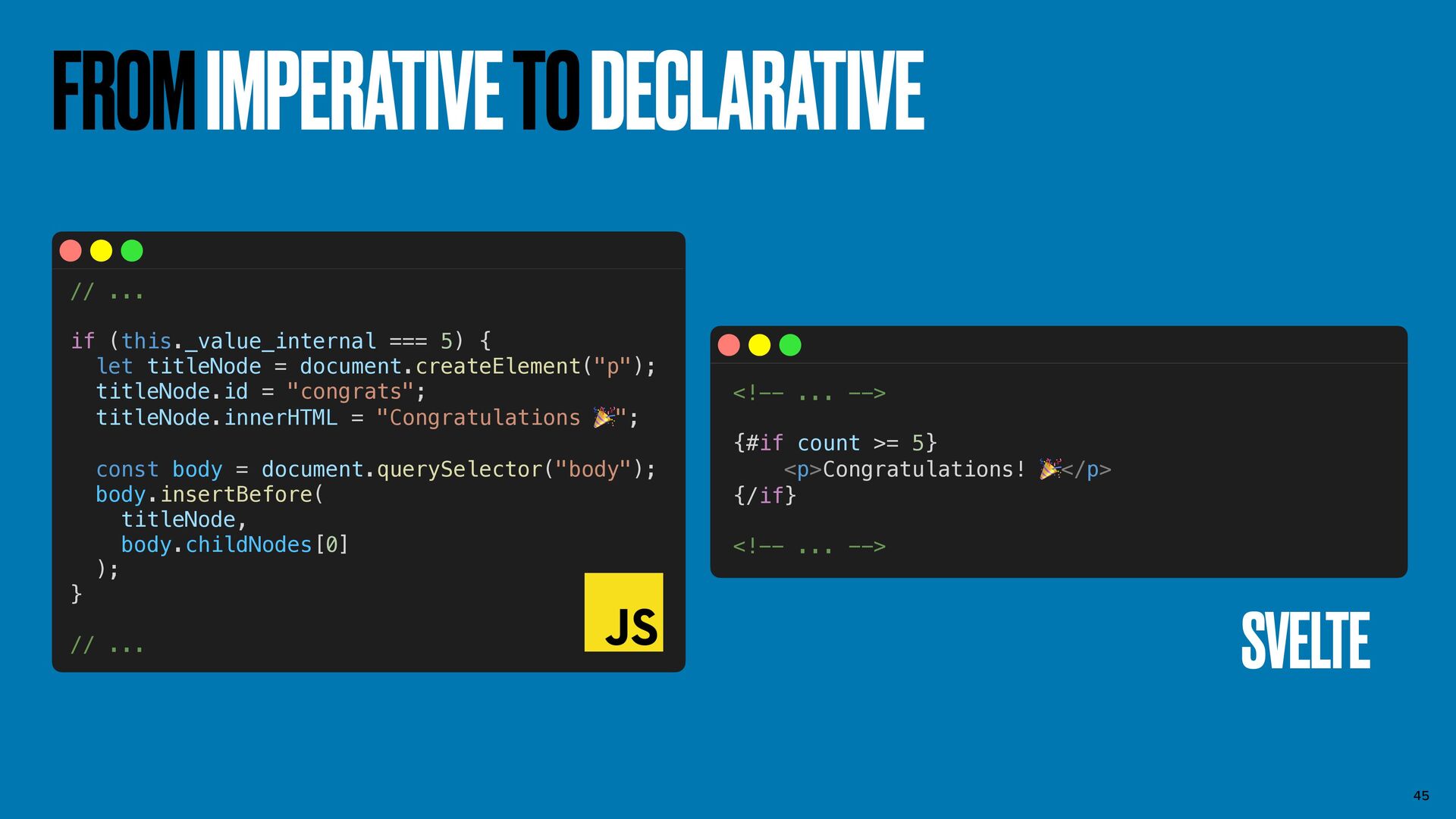

FROM IMPERATIVE TO DECLARATIVE 45  {#if count
>= 5} <p>Congratulations! 🎉</p> {/if}  SVELTE // ... if (this._value_internal === 5) { let titleNode = document.createElement("p"); titleNode.id = "congrats"; titleNode.innerHTML = "Congratulations 🎉"; const body = document.querySelector("body"); body.insertBefore( titleNode, body.childNodes[0] ); } // ...

46 REACT & SVELTE

47 REACT A DECLARATIVE UI FRAMEWORK

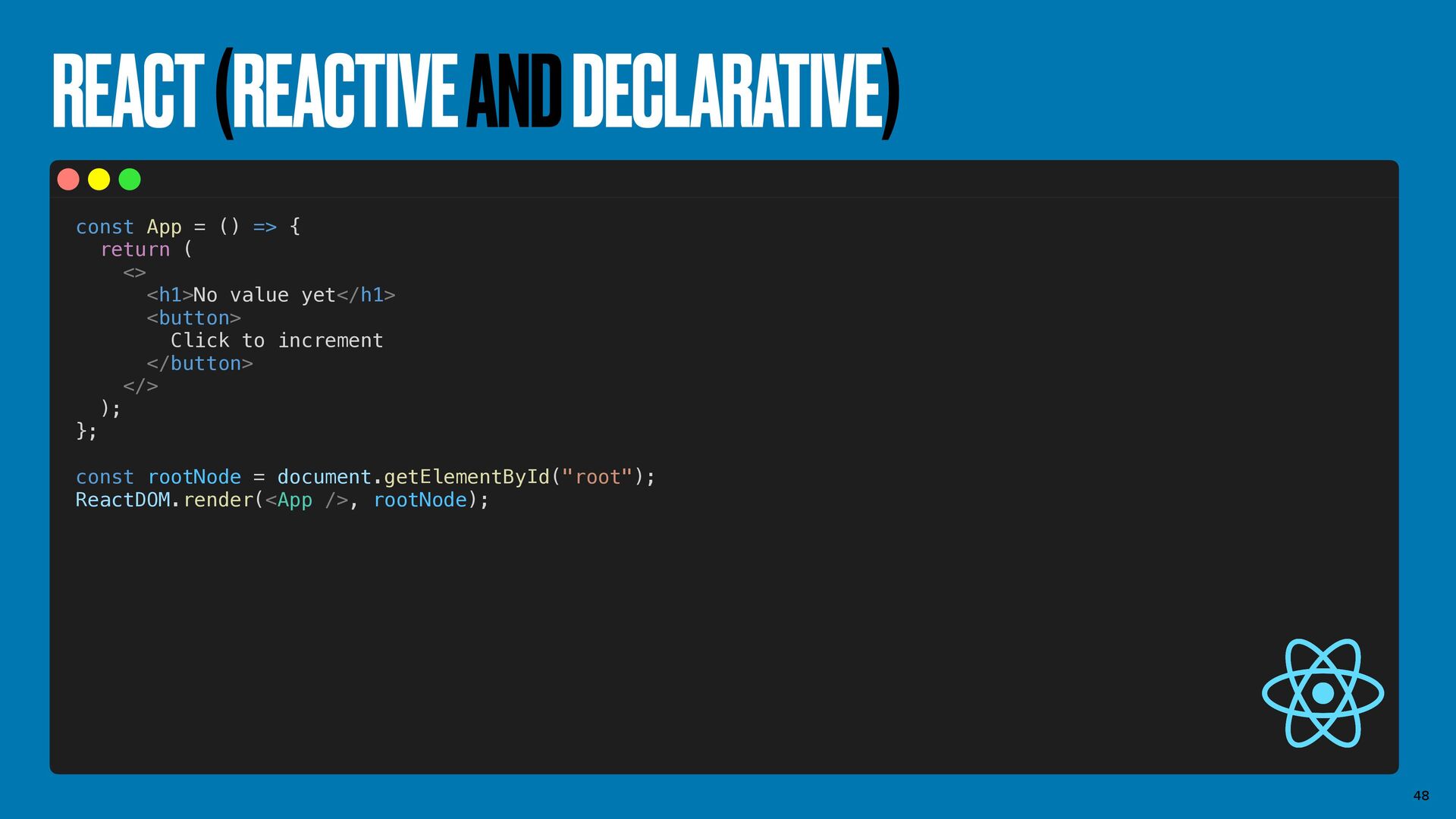

REACT (REACTIVE AND DECLARATIVE) 48 const App = () =>
{ return ( <> <h1>No value yet</h1> <button> Click to increment </button> </> ); }; const rootNode = document.getElementById("root"); ReactDOM.render(<App />, rootNode);

{ const [value, setValue] = React.useState(0); // set default value const onClick = () => { setValue(value + 1); // state change leads to re-render! }; return ( <> <h1>{value}</h1> <button onClick={onClick}>Click to re-render</button> </> ); }; const rootNode = document.getElementById("root"); ReactDOM.render(<App />, rootNode);

{ const [value, setValue] = React.useState(0); // set default value const double = value * 2; // derived value const onClick = () => { setValue(value + 1) // state change leads to re-render! } return ( <> {value >= 5 ? 'Congratulations 🎉' : null} <h1>{value}</h1> <p>Double: <span>{double}</span></p> <button onClick={onClick}> Click to increment </button> </> ); }; const rootNode = document.getElementById("root"); ReactDOM.render(<App />, rootNode); VIRTUAL DOM MAKES REACT DECLARATIVE USESTATE HOOK MAKES REACT REACTIVE

51 SVELTE TRULY REACTIVE

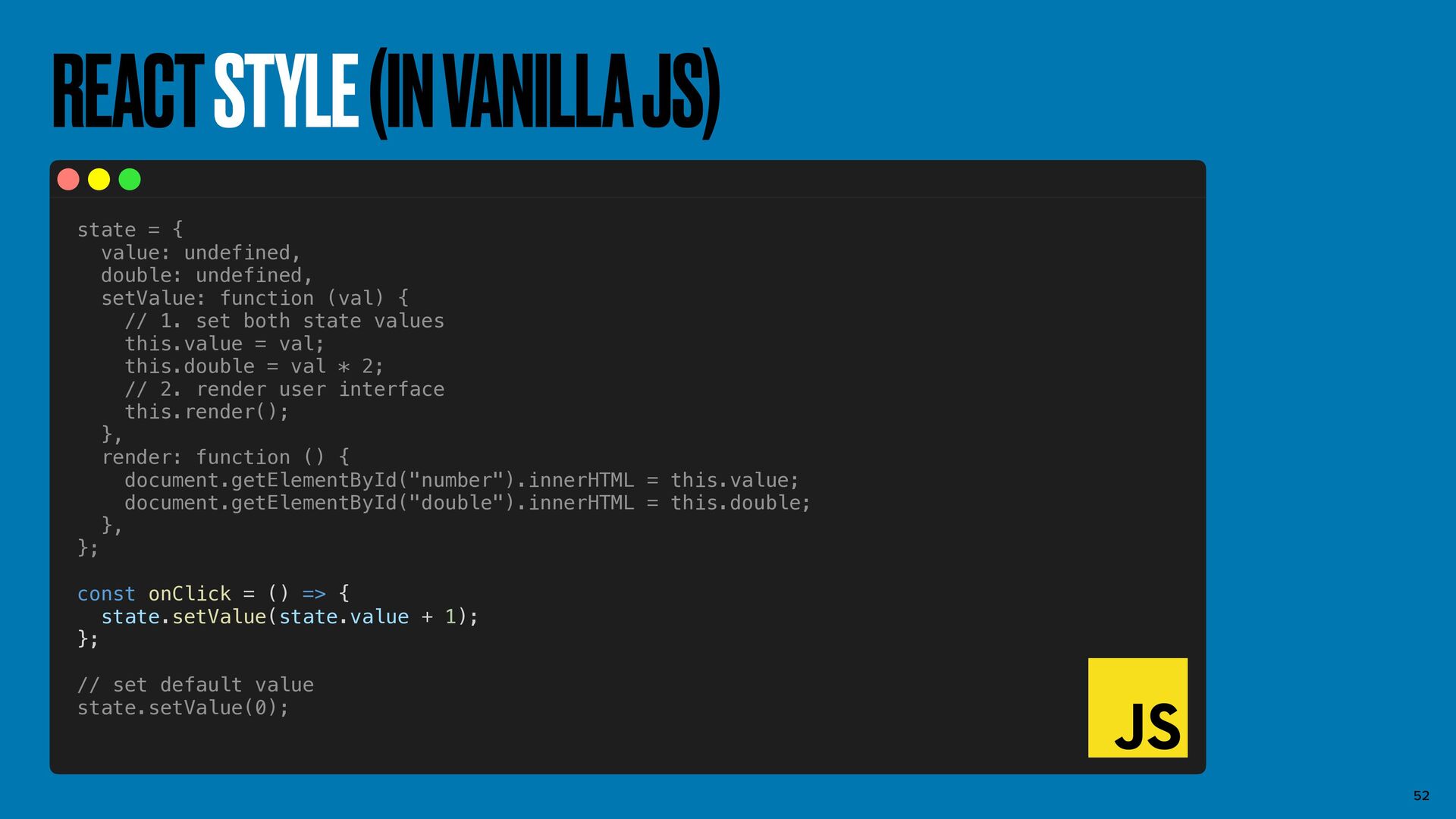

REACT STYLE (IN VANILLA JS) 52 state = { value:
undefined, double: undefined, setValue: function (val) { // 1. set both state values this.value = val; this.double = val * 2; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this.value; document.getElementById("double").innerHTML = this.double; }, }; const onClick = () => { state.setValue(state.value + 1); }; // set default value state.setValue(0);

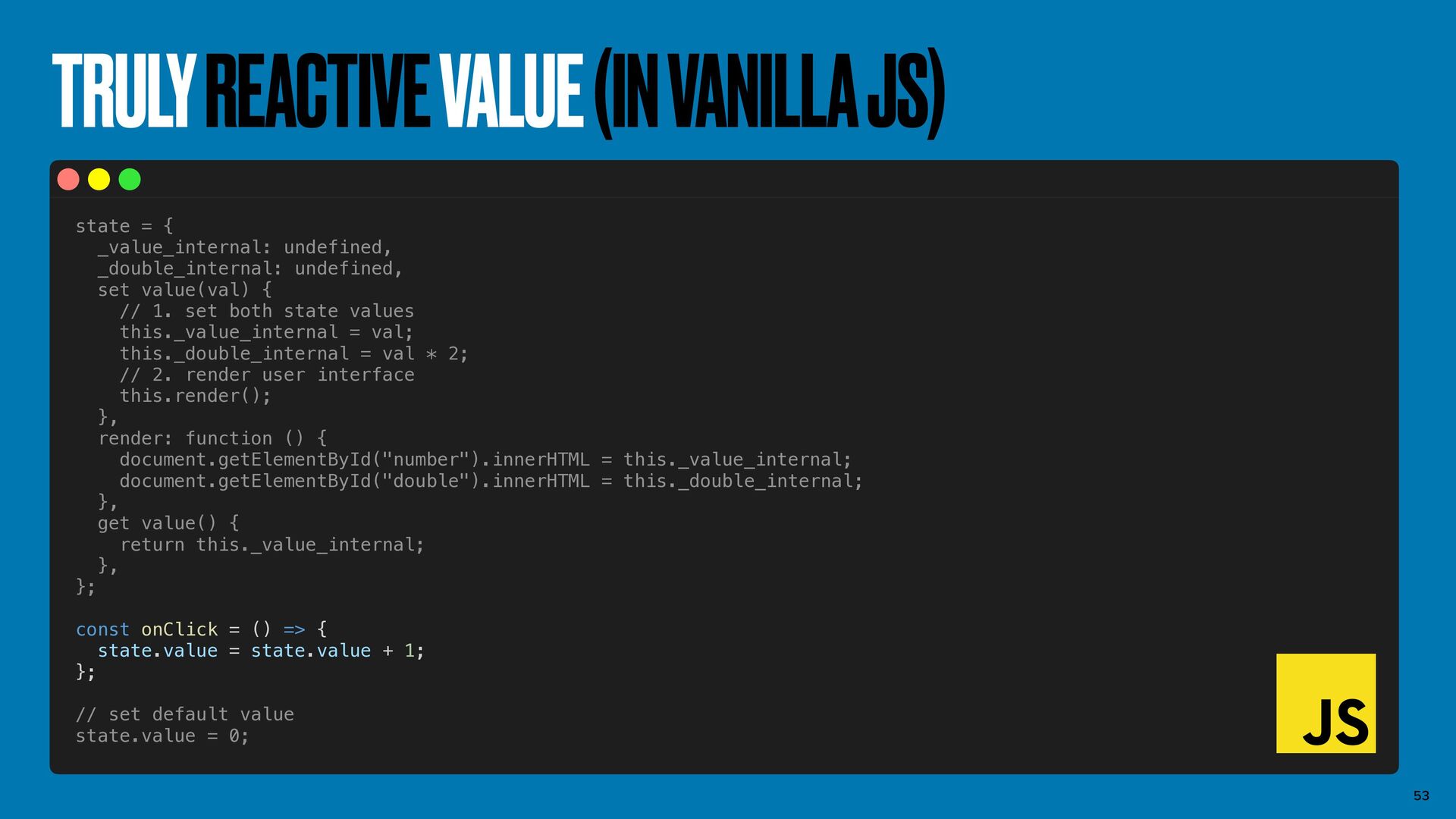

TRULY REACTIVE VALUE (IN VANILLA JS) 53 state = {
_value_internal: undefined, _double_internal: undefined, set value(val) { // 1. set both state values this._value_internal = val; this._double_internal = val * 2; // 2. render user interface this.render(); }, render: function () { document.getElementById("number").innerHTML = this._value_internal; document.getElementById("double").innerHTML = this._double_internal; }, get value() { return this._value_internal; }, }; const onClick = () => { state.value = state.value + 1; }; // set default value state.value = 0;

REACT VS. SVELTE (IN VANILLA JS) 54 SETTER FUNCTION ->
REACTIVE // ... const onClick = () => { state.value = state.value + 1; }; // ... // ... const onClick = () => { state.setValue(state.value + 1); }; // ... REACTIVE ASSIGNMENT

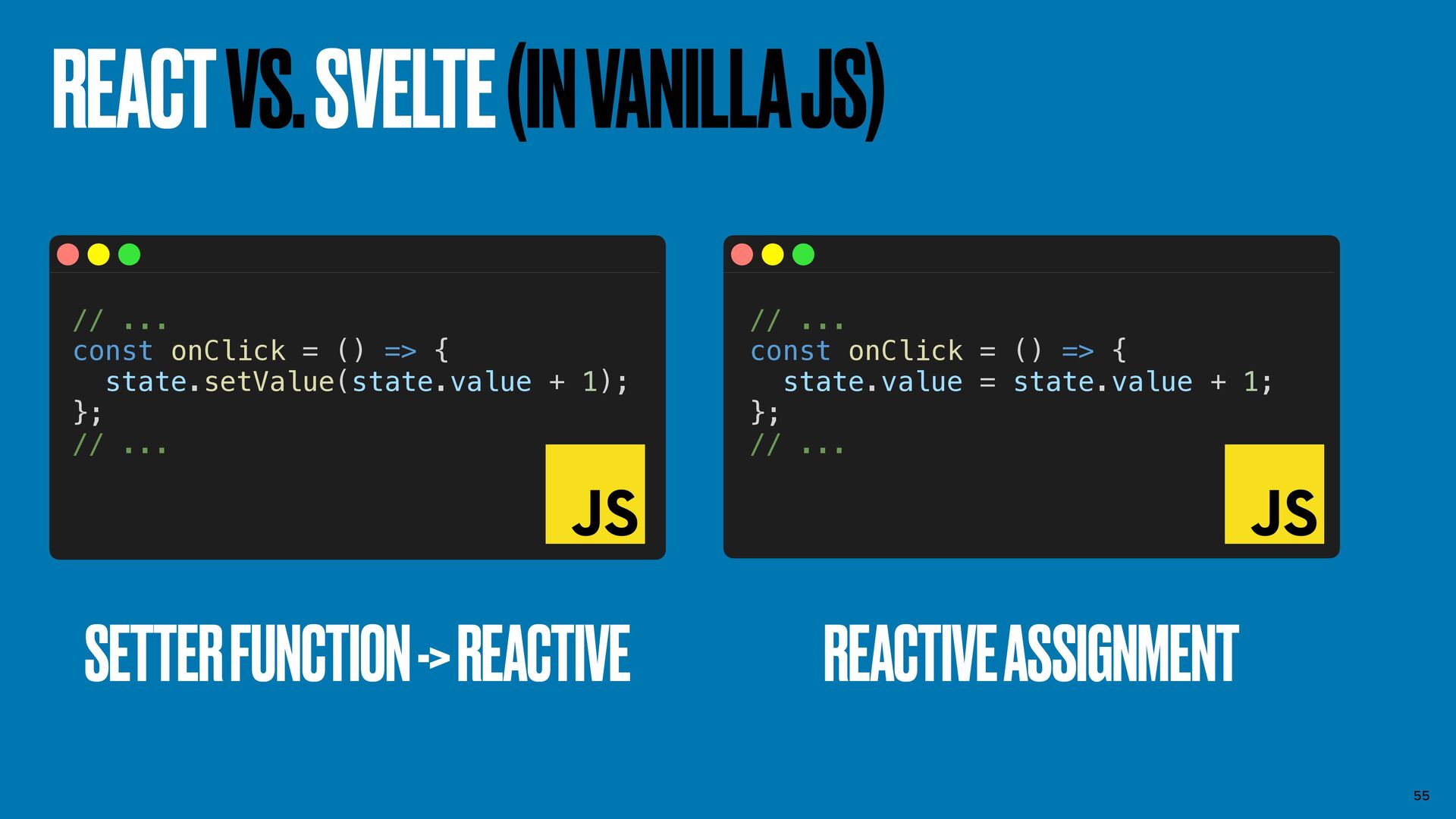

REACT VS. SVELTE (IN VANILLA JS) 55 SETTER FUNCTION ->
REACTIVE // ... const onClick = () => { state.value = state.value + 1; }; // ... // ... const onClick = () => { state.setValue(state.value + 1); }; // ... REACTIVE ASSIGNMENT

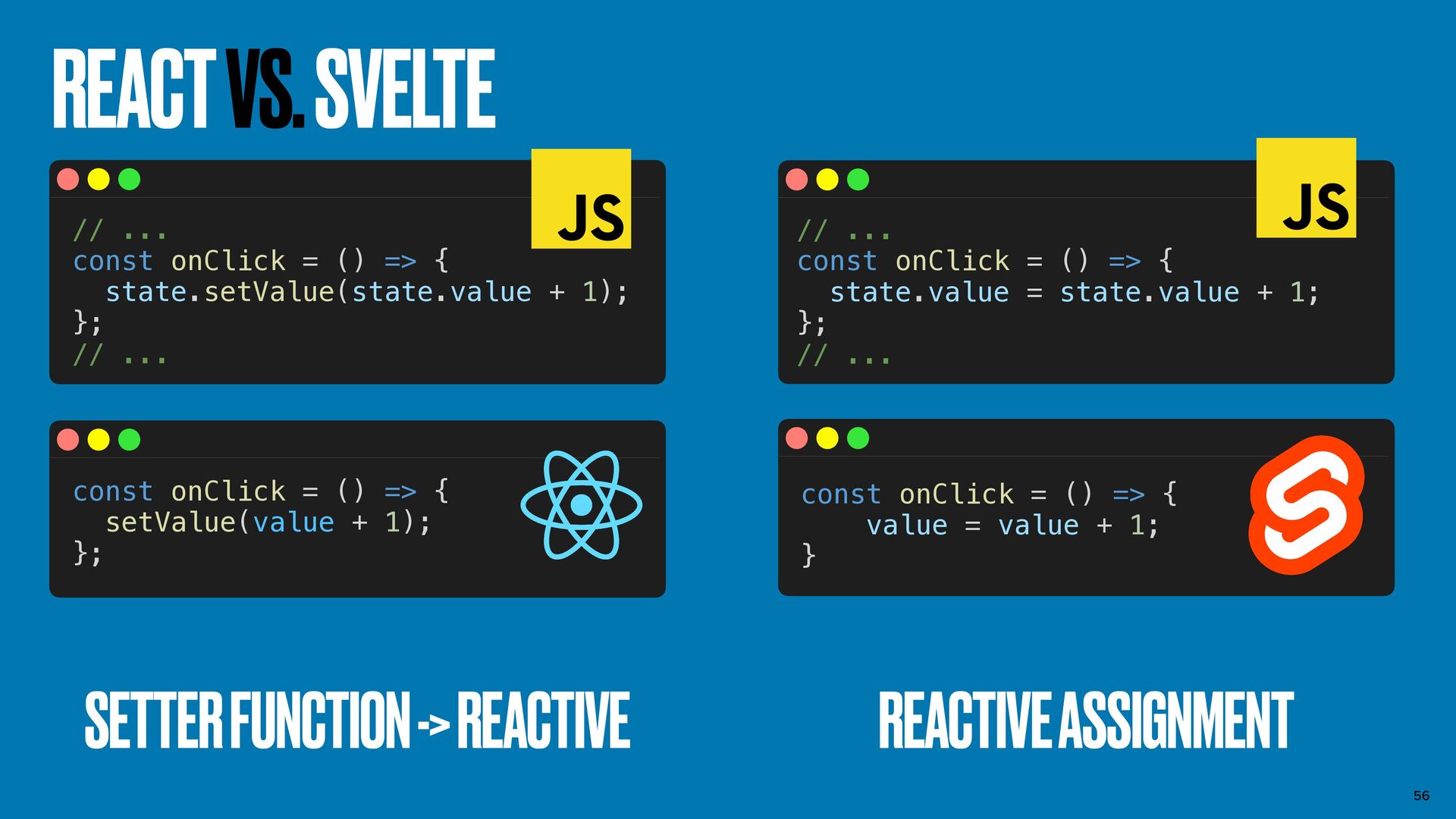

REACT VS. SVELTE 56 SETTER FUNCTION -> REACTIVE // ...
const onClick = () => { state.value = state.value + 1; }; // ... // ... const onClick = () => { state.setValue(state.value + 1); }; // ... REACTIVE ASSIGNMENT const onClick = () => { setValue(value + 1); }; const onClick = () => { value = value + 1; }

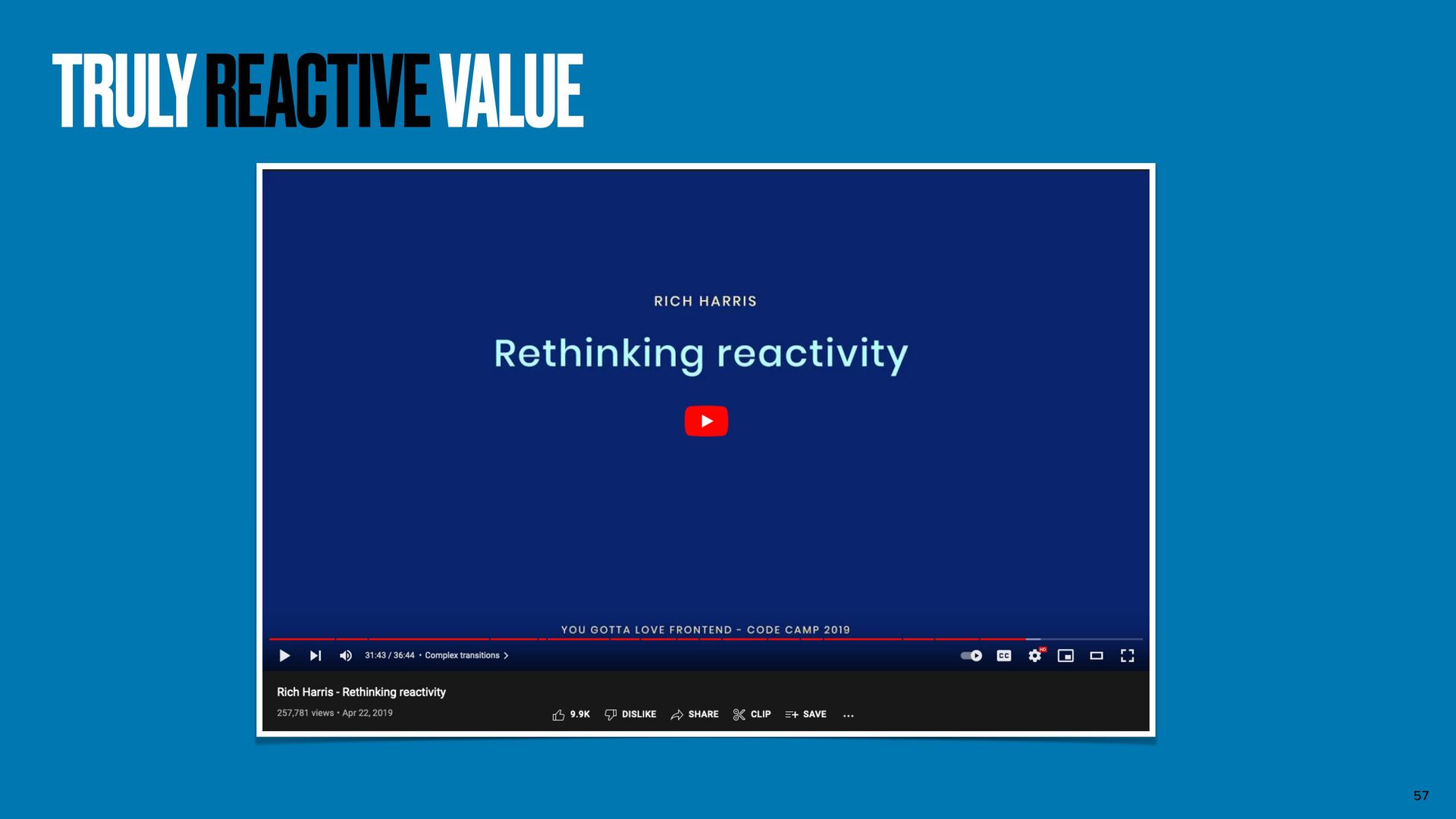

TRULY REACTIVE VALUE 57

58 VANILLA JS BECOMES REACTIVE VARIABLE ASSIGNMENTS TRIGGER REACTIVITY

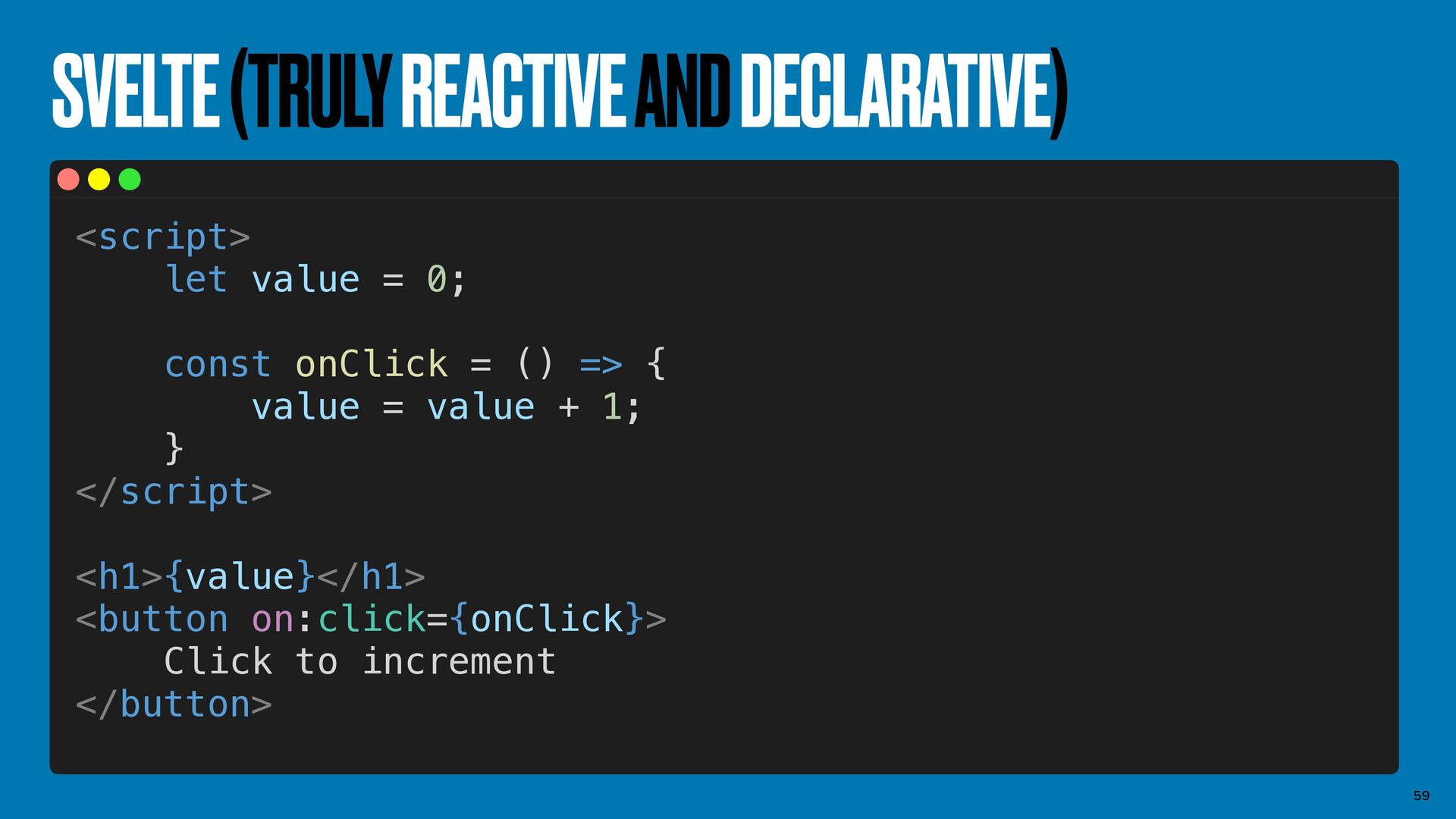

SVELTE (TRULY REACTIVE AND DECLARATIVE) 59 <script> let value =
0; const onClick = () => { value = value + 1; } </script> <h1>{value}</h1> <button on:click={onClick}> Click to increment </button>

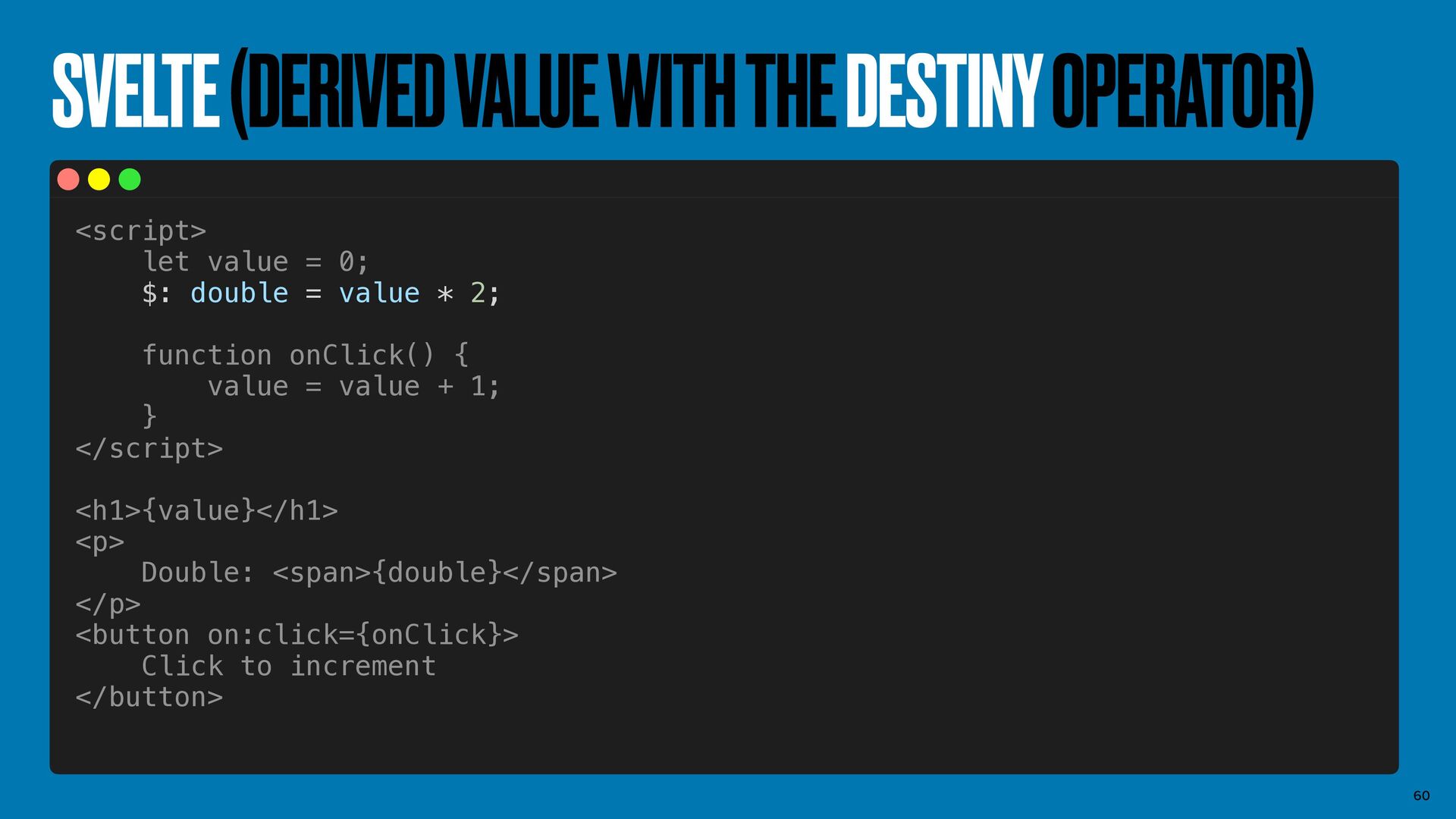

SVELTE (DERIVED VALUE WITH THE DESTINY OPERATOR) 60 <script> let
value = 0; $: double = value * 2; function onClick() { value = value + 1; } </script> <h1>{value}</h1> <p> Double: <span>{double}</span> </p> <button on:click={onClick}> Click to increment </button>

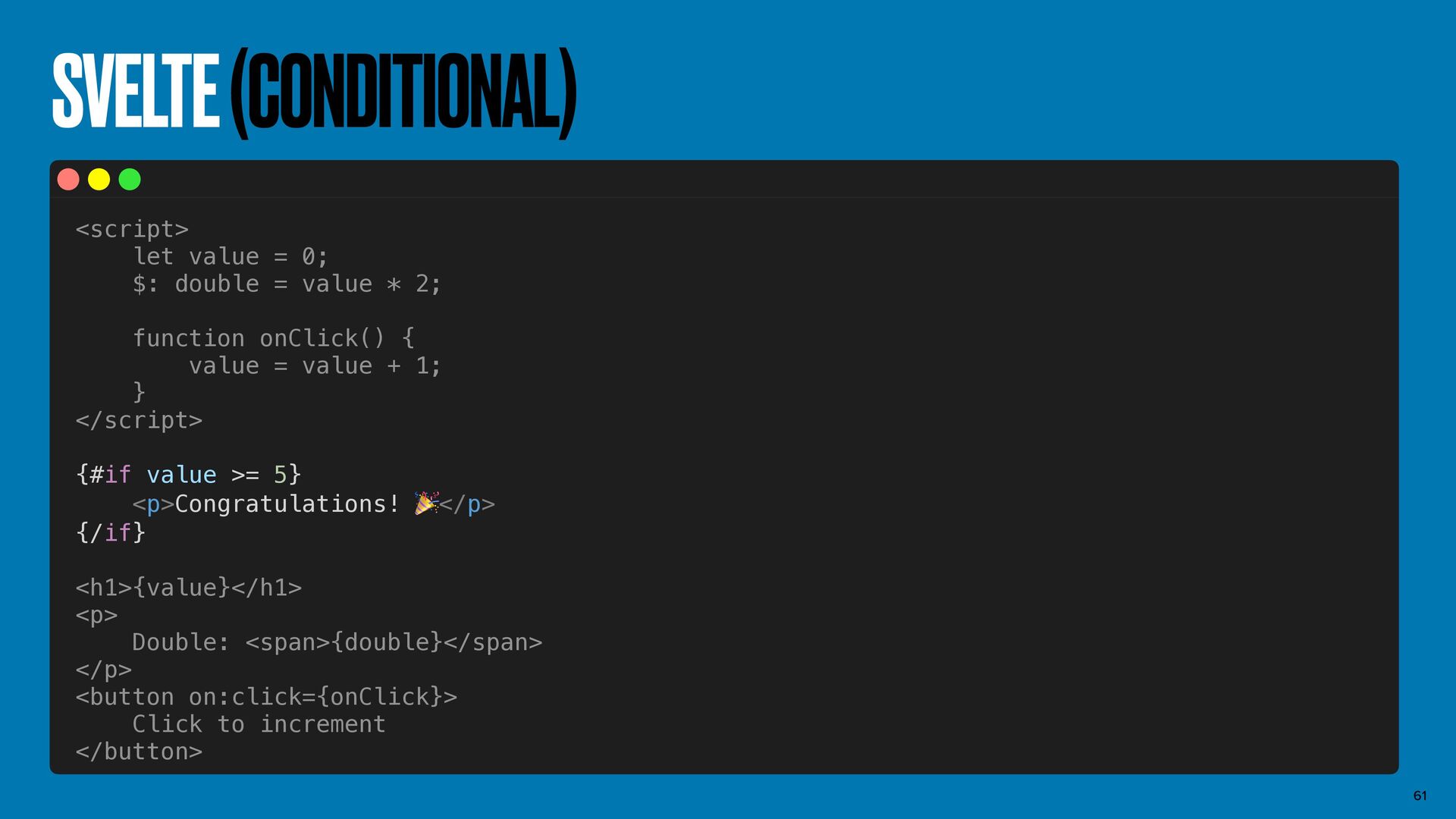

SVELTE (CONDITIONAL) 61 <script> let value = 0; $: double
= value * 2; function onClick() { value = value + 1; } </script> {#if value >= 5} <p>Congratulations! 🎉</p> {/if} <h1>{value}</h1> <p> Double: <span>{double}</span> </p> <button on:click={onClick}> Click to increment </button>

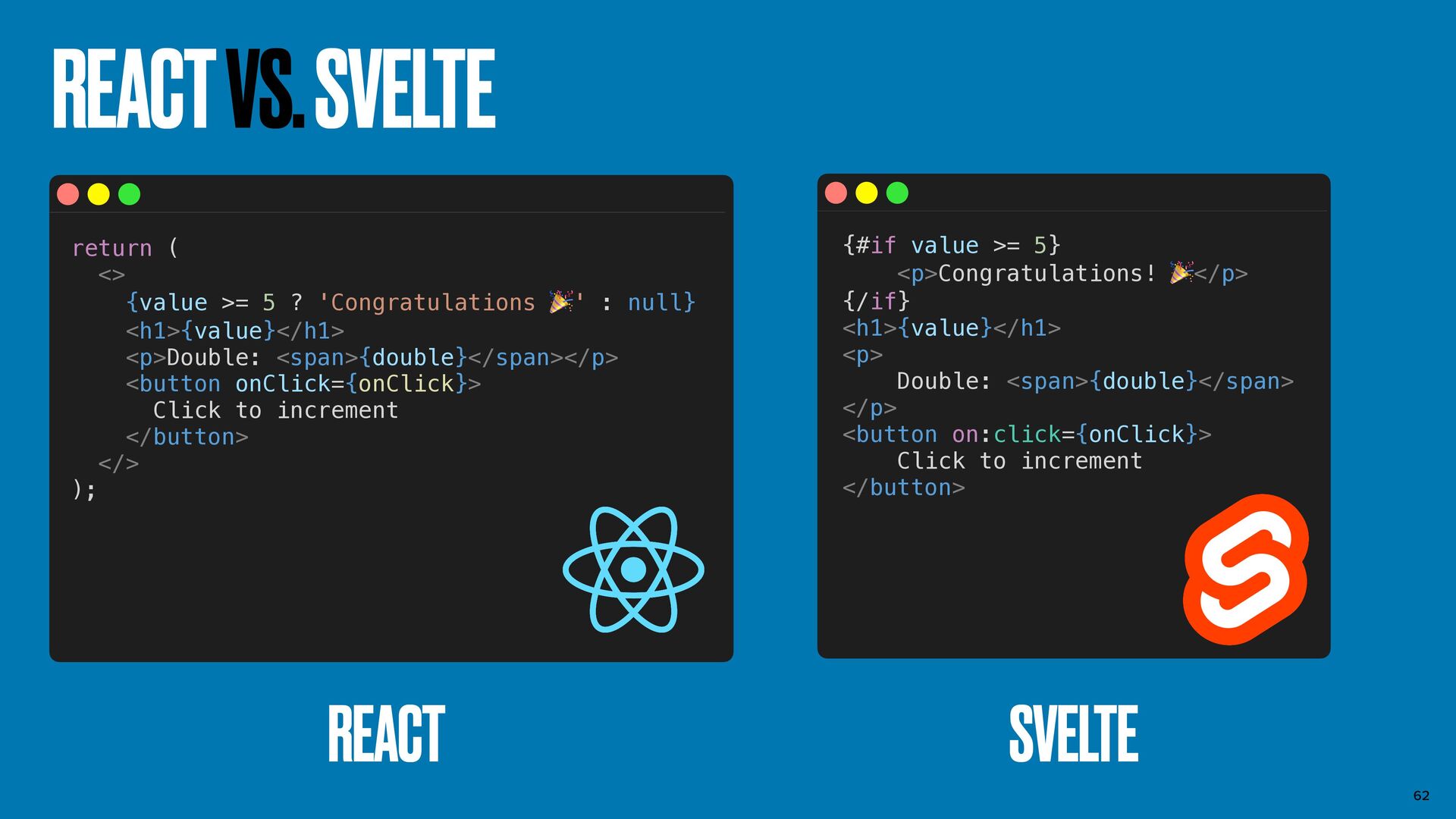

REACT VS. SVELTE 62 REACT SVELTE {#if value >= 5}
<p>Congratulations! 🎉</p> {/if} <h1>{value}</h1> <p> Double: <span>{double}</span> </p> <button on:click={onClick}> Click to increment </button> return ( <> {value >= 5 ? 'Congratulations 🎉' : null} <h1>{value}</h1> <p>Double: <span>{double}</span></p> <button onClick={onClick}> Click to increment </button> </> );

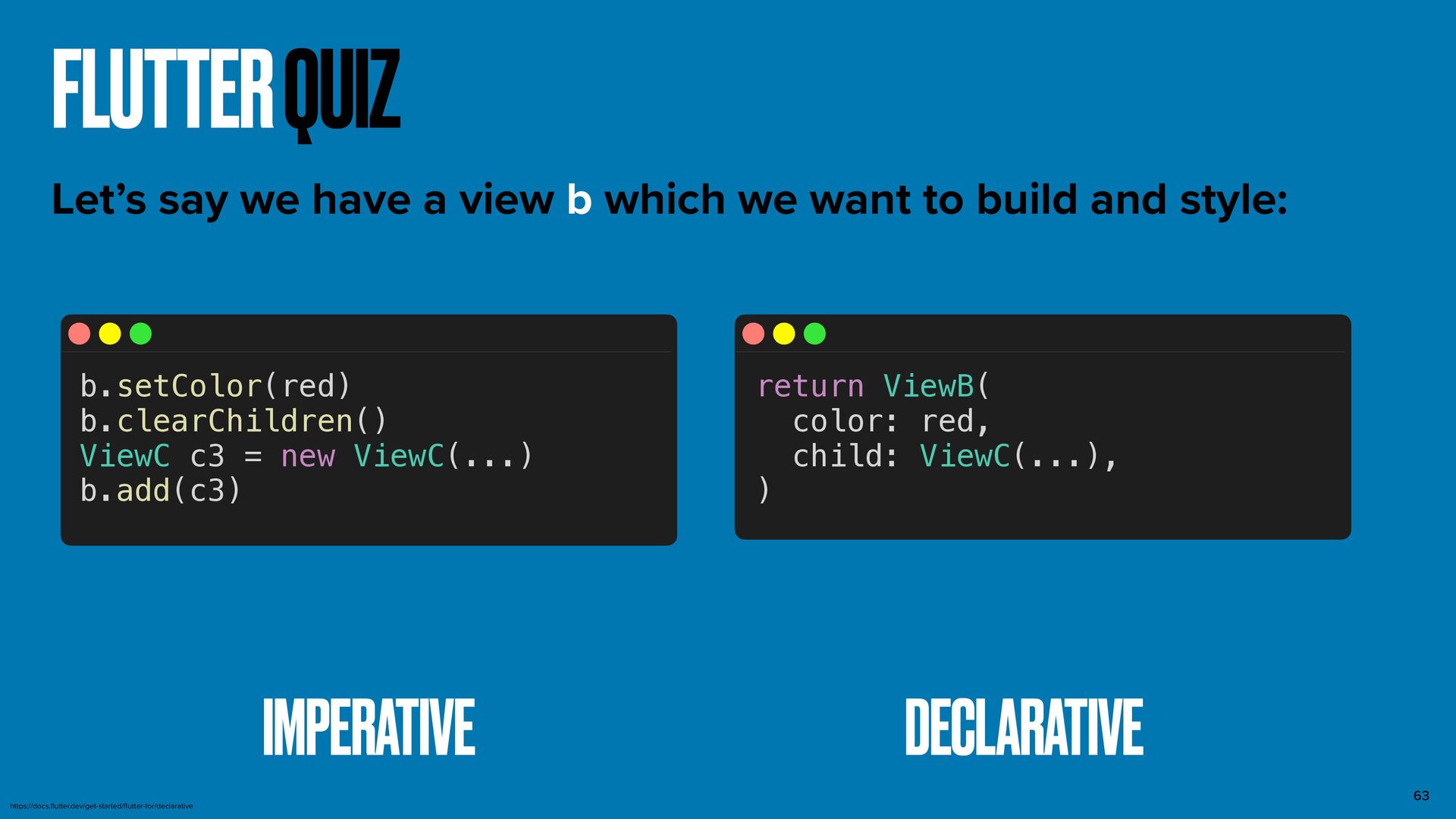

FLUTTER QUIZ 63 return ViewB( color: red, child: ViewC(...), )
IMPERATIVE DECLARATIVE b.setColor(red) b.clearChildren() ViewC c3 = new ViewC(...) b.add(c3) https://docs. fl utter.dev/get-started/ fl utter-for/declarative Let’s say we have a view b which we want to build and style:

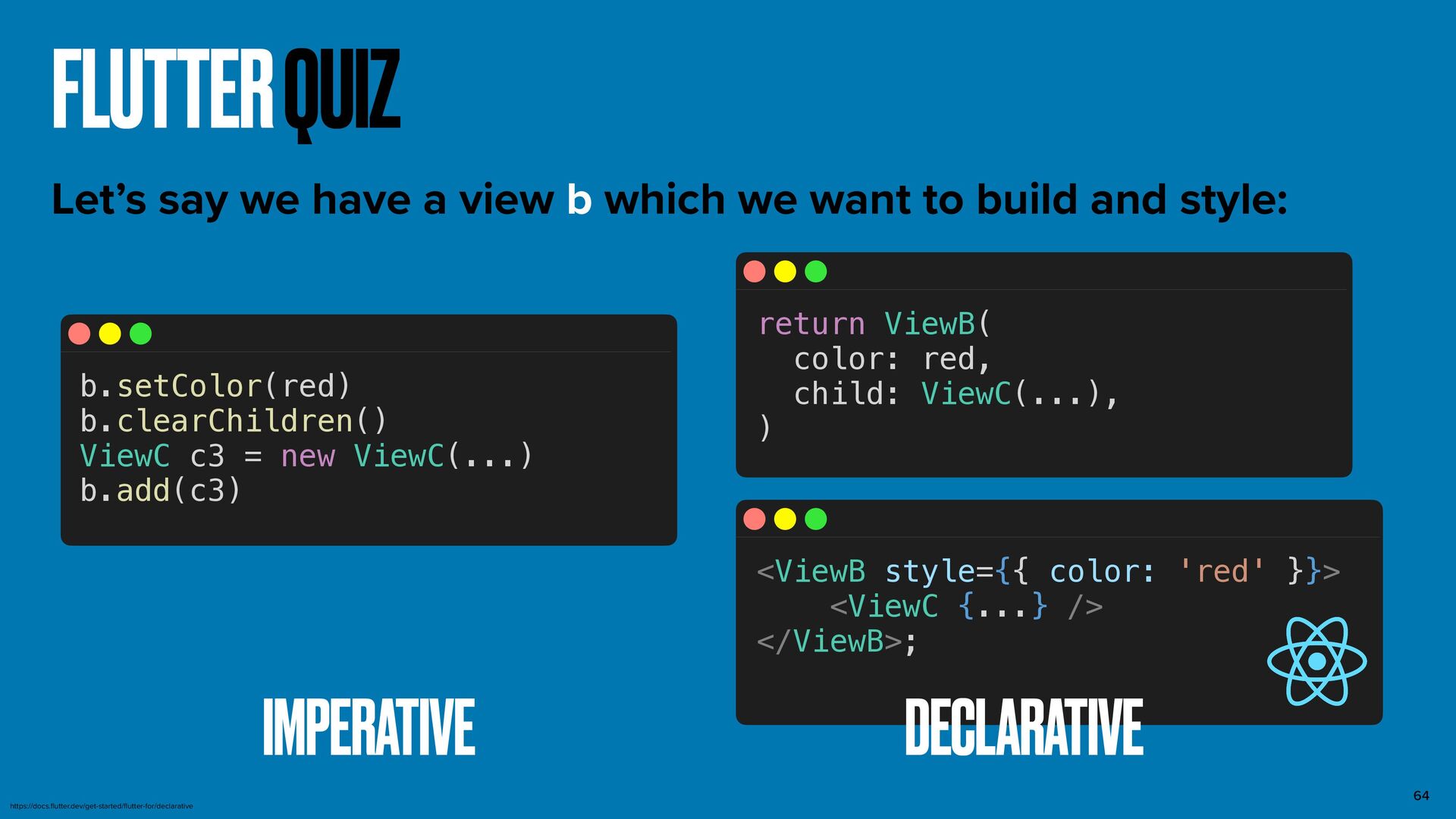

FLUTTER QUIZ 64 return ViewB( color: red, child: ViewC(...), )
IMPERATIVE b.setColor(red) b.clearChildren() ViewC c3 = new ViewC(...) b.add(c3) https://docs. fl utter.dev/get-started/ fl utter-for/declarative Let’s say we have a view b which we want to build and style: <ViewB style={{ color: 'red' }}> <ViewC {...} /> </ViewB>; DECLARATIVE

65 DECLARATIVE, REACTIVE CODE IS …A BIT MAGICAL BUT …EVENTUALLY
MUCH EASIER TO REASON ABOUT.

66 LINKEDIN LET’S CONNECT! https://twitter.com/andrekovac TWITTER ANDRÉ KOVAC
