REST: from zero to hero

REST: from zero to hero

[FR]
Venez découvrir - ou redécouvrir ! - les différents ingrédients qui sont a l’origine d’une bonne API.

Nous présenterons la transformation d’une API Web fictive (d'une conception assez discutable ;-) ) en une API REST vraiment user-friendly. Chaque étape sera l’occasion d’introduire un concept ou une bonne pratique supplémentaire en partant des bases de REST jusqu’aux sujets avancés tels que le versioning ou l’hypermédia.

Vous sortirez de cette session avec une vision claire des concepts cachés derrière le terme "REST".

Antoine RICHARD

November 06, 2015
Tweet

More Decks by Antoine RICHARD

Other Decks in Programming

Transcript

  1. A network data object or service that can be identified

    by a URI, as defined in section 3.2. Resources may be available in multiple representations (e. g. multiple languages, data formats, size, and resolutions) or vary in other ways. RFC 2616 (june 1999)
  2. A resource is anything that’s important enough to be referenced

    as a thing in itself Leonard Richardson & Sam Ruby
  3. 5.1.1 Method The Method token indicates the method to be

    performed on the resource identified by the Request-URI. The method is case- sensitive. Method = "OPTIONS" ; Section 9.2 | "GET" ; Section 9.3 | "HEAD" ; Section 9.4 | "POST" ; Section 9.5 | "PUT" ; Section 9.6 | "DELETE" ; Section 9.7 | “PATCH” ; RFC 5789 (2010) RFC 2616 (june 1999)
  4. # Actions POST /api/stats/notes { "by": "session"} [ { "avg":

    3.4, "count": 6, "max": 5, "min": 1, "session": "s2" }, … ]
  5. 1xx Hold on 2xx Here you go 3xx Go away

    4xx You f**ked up 5xx I f**ked up
  6. “The action performed by the POST method might not result

    in a resource that can be identified by a URI. In this case, either 200 (OK) or 204 (No Content) is the appropriate response status, depending on whether or not the response includes an entity that describes the result. If a resource has been created on the origin server, the response SHOULD be 201 (Created) and contain an entity which describes the status of the request and refers to the new resource, and a Location header.” http://www.w3.org/Protocols/rfc2616/rfc2616-sec9.html#sec9.5
  7. > POST /speakers {...} HTTP/1.1 201 Created Location: /speakers/spiderman {

    "id": "spiderman", "firstname": "peter", "lastname": "parker" }
  8. • Using page number (or equivalent) ◦ No deterministic with

    insertion GET api/sessions?page=4&sort=hour GET api/sessions?after=s20&sort=hour • Comparing on element id ◦ Easy navigation to previous and next ◦ Impossible to go directly to middle
  9. > GET /speakers?page=4 HTTP/1.1 206 Partial Content Link: </speakers?page=1>; rel="first",

    </speakers?page=3>; rel="prev", </speakers?page=5>; rel="next", </speakers?page=9>; rel="last" { "items": [{ "id": "spiderman" }, … ], "count": 25, "total": 237 }

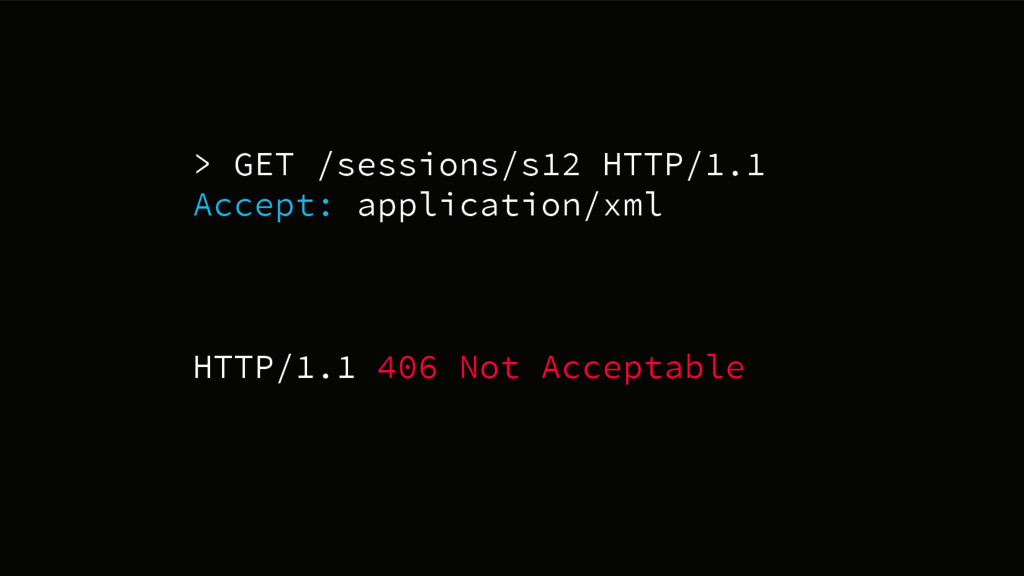

  10. > GET /sessions/s12 HTTP/1.1 Accept: application/json HTTP/1.1 200 OK Content-Type:

    application/json { "id": "s12", "title": "OMG! Terminator sera codé en Javascript!" }
  11. A REST API should be entered with no prior knowledge

    beyond the initial URI and set of standardized media types that are appropriate for the intended audience. From that point on, all application state transitions must be driven by client selection of server-provided choices that are present in the received representations or implied by the user’s manipulation of those representations. The Glory of REST by Roy Fielding
  12. URI
