Isolating Flutter into multithreading effectively

- Exploring Rx Dart
- Flutter/Dart's threading model and asynchronous apis like async/await
- How isolates Api resolve parallel processing.
- Advanced Isolates usage.
- Benchmarks while using Isolates.
- Implementing a Scheduler for idiomatic thread hopping in Rx-Dart.

Transcript

1. –A wise man “True judge of courage is when you get to stand between a man and his food”
2. Speaker Bio I work at Fueled Psst! You can too ｡◕‿◕｡
3. Isolating Flutter into multithreading effectively Anvith Bhat @anv1th
4. Exploring Rx Dart
5. Exploring Rx Dart 1. Observables can be subscribed only once. 2. onListen (doOnSubscribe) called once. 3. No Schedulers ¯\_(ツ)_/¯

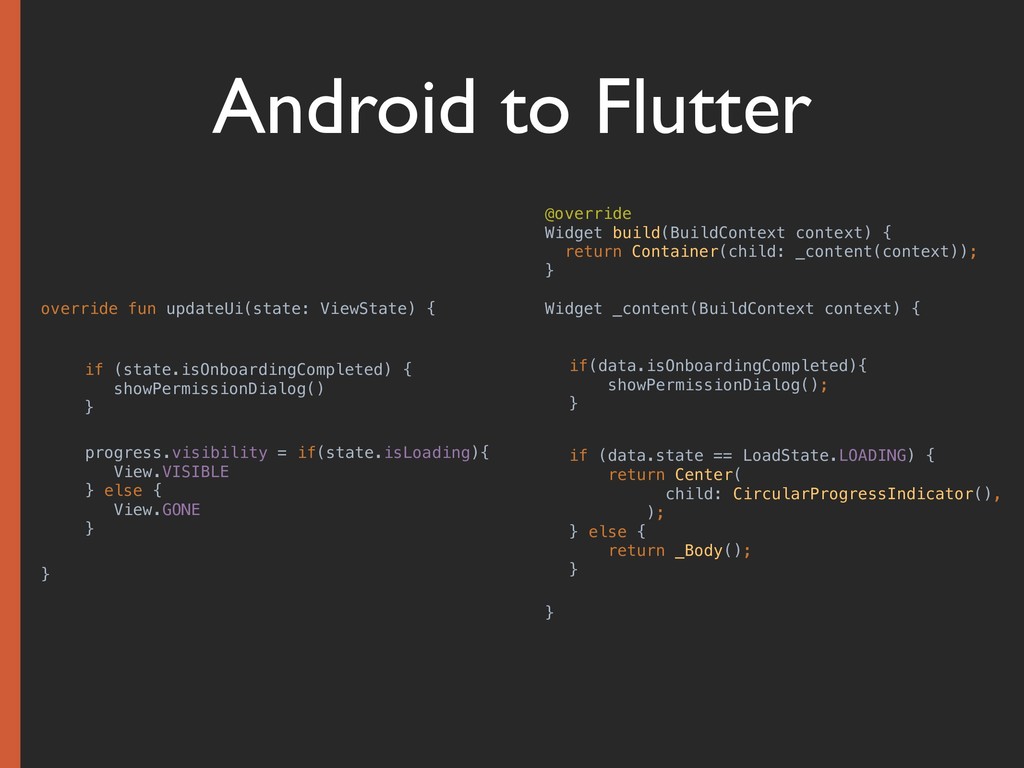

6. Android to Flutter override fun updateUi(state: ViewState) {







 } @override Widget build(BuildContext context) { return Container(child: _content(context)); }
 Widget _content(BuildContext context) {











 }

 if (state.isOnboardingCompleted) { showPermissionDialog() }
 progress.visibility = if(state.isLoading){ View.VISIBLE } else { View.GONE } if(data.isOnboardingCompleted){ showPermissionDialog(); } if (data.state == LoadState.LOADING) { return Center( child: CircularProgressIndicator(), ); } else { return _Body(); }
8. @override Widget build(BuildContext context) { return Container(child: _content(context)); }
 Widget _content(BuildContext context) {











 }

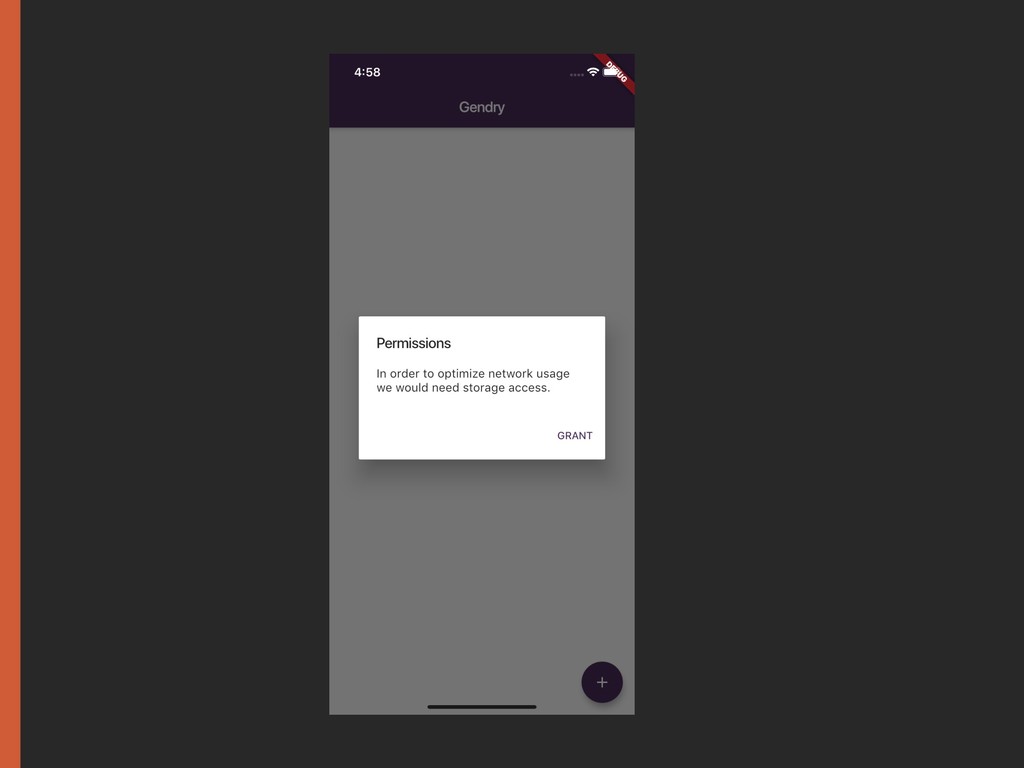

 if(data.isOnboardingCompleted){ showPermissionDialog(); } @override Widget build(BuildContext context) { return Container(child: _content(context)); }
 Widget _content(BuildContext context) {











 }

 if(data.isOnboardingCompleted){ Future(()=>
 showPermissionDialog()); }
10. Flutter Framework
11. Flutter Framework • Flutter engine does not create its own threads or manage them Platform Task
 Runner UI Task
 Runner IO Task
 Runner GPU Task
 Runner Embedder

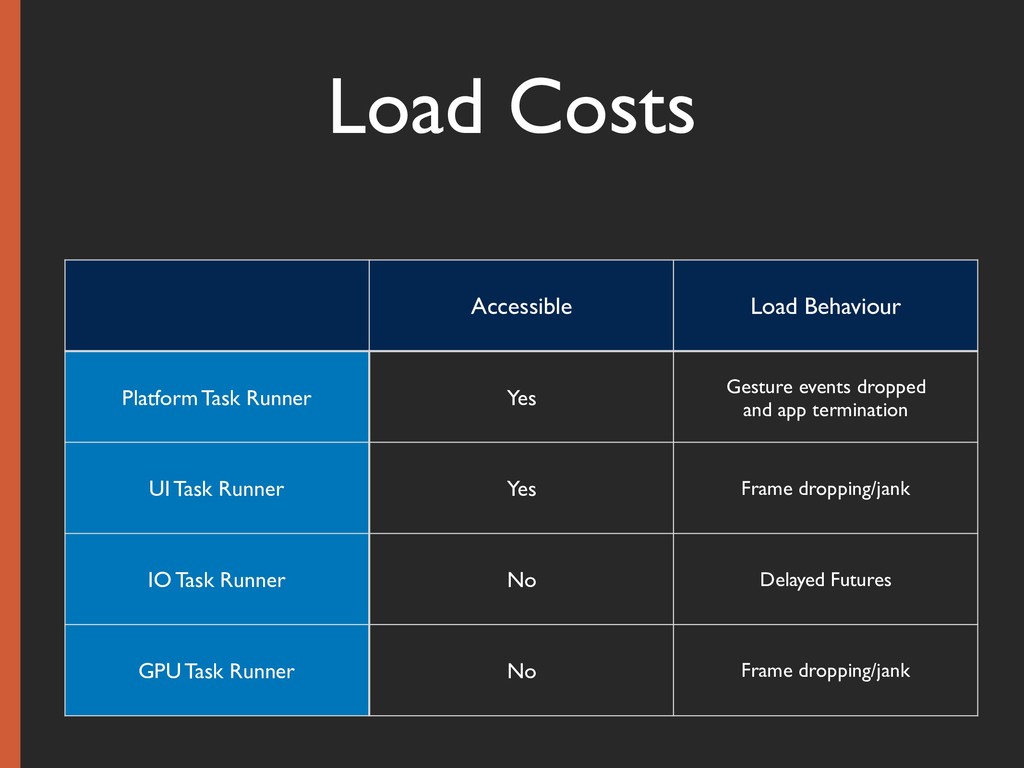

12. Load Costs Accessible Load Behaviour Platform Task Runner Yes Gesture events dropped
 and app termination UI Task Runner Yes Frame dropping/jank IO Task Runner No Delayed Futures GPU Task Runner No Frame dropping/jank

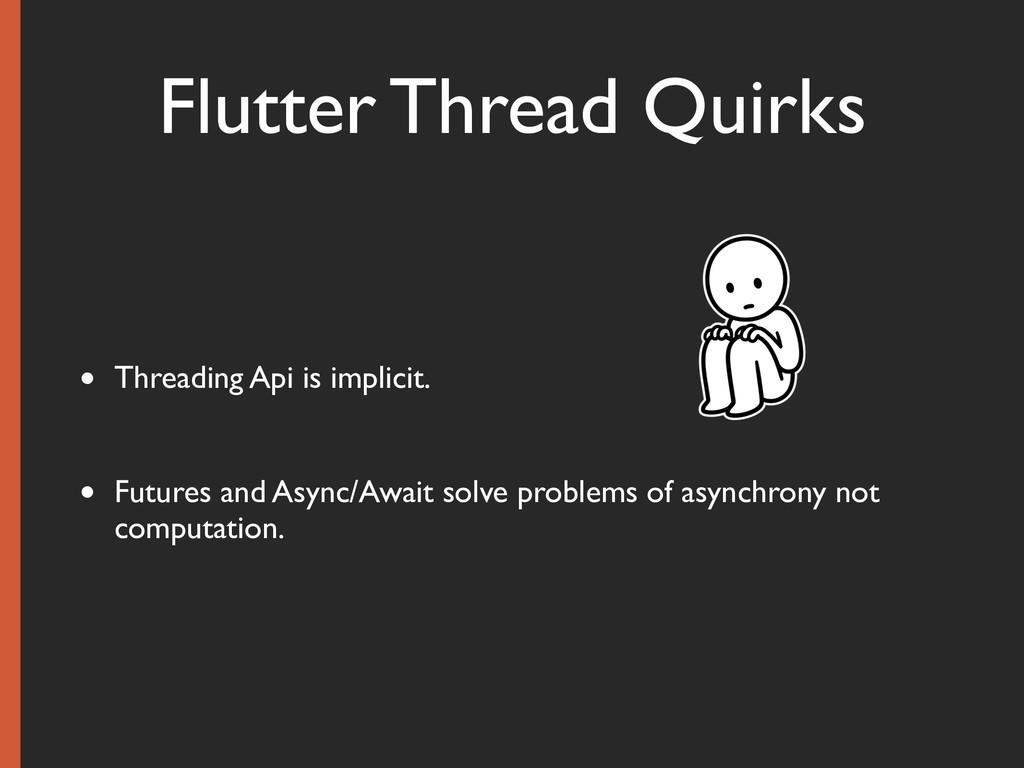

13. Flutter Thread Quirks • Threading Api is implicit.
 • Futures and Async/Await solve problems of asynchrony not computation.
14. Isolates

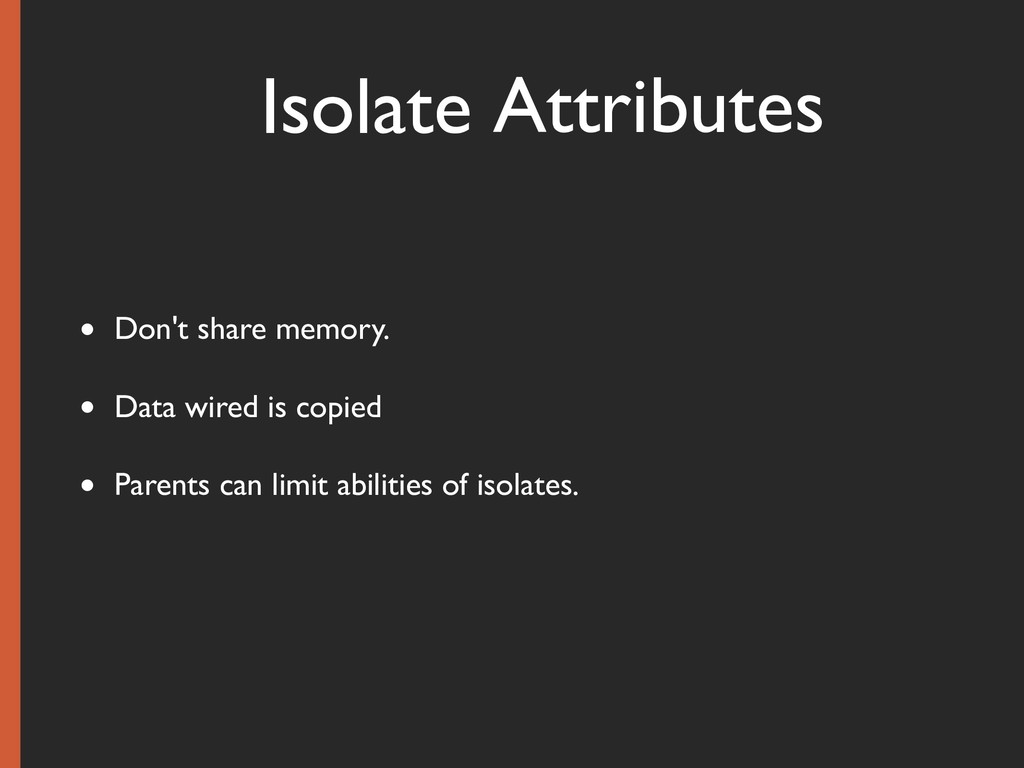

15. • Don't share memory. • Data wired is copied • Parents can limit abilities of isolates. IsolatesAttributes
16. Isolates Threads Looper
17. Control
 Port Capability SendPort ReceivePort pause/resume/kill Isolate Anatomy
18. Isolate Port spawn(port) Port App send/listen
19. How do I make em
 Future<int> startIsolate() async {






 }

 1. Isolate.spawn(runnable, runnable_param) //Create a Port for communication
 ReceivePort receivePort = ReceivePort(); //Create the isolate
 await Isolate.spawn(computeMatrix,
 receivePort.sendPort); //Pick first item in stream
 return await receivePort.first; //Callback void computeMatrix(SendPort port) { var result = heavilyComputedValue(); port.send(result) }
 void onButtonClick() { startIsolate().then((computedValue) {
 setState(() { computedText = "Matrix result is
 ${computedValue}"; });
 }); }

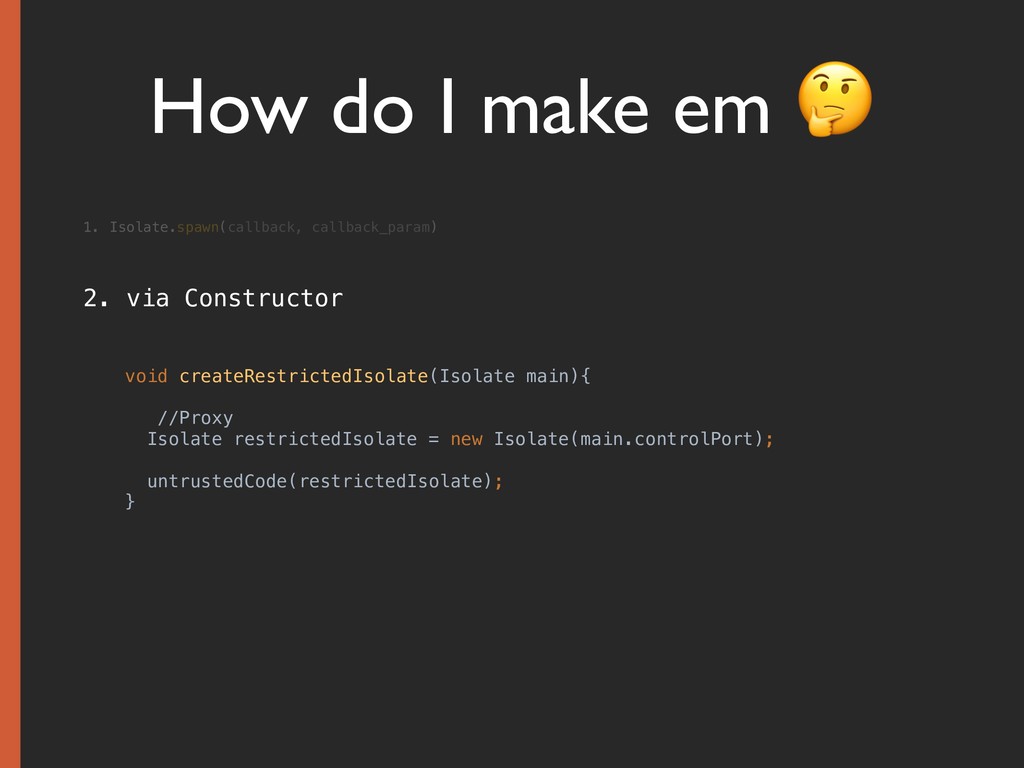

20. How do I make em void createRestrictedIsolate(Isolate main){

 //Proxy Isolate restrictedIsolate = new Isolate(main.controlPort);
 untrustedCode(restrictedIsolate); } 1. Isolate.spawn(callback, callback_param) 2. via Constructor

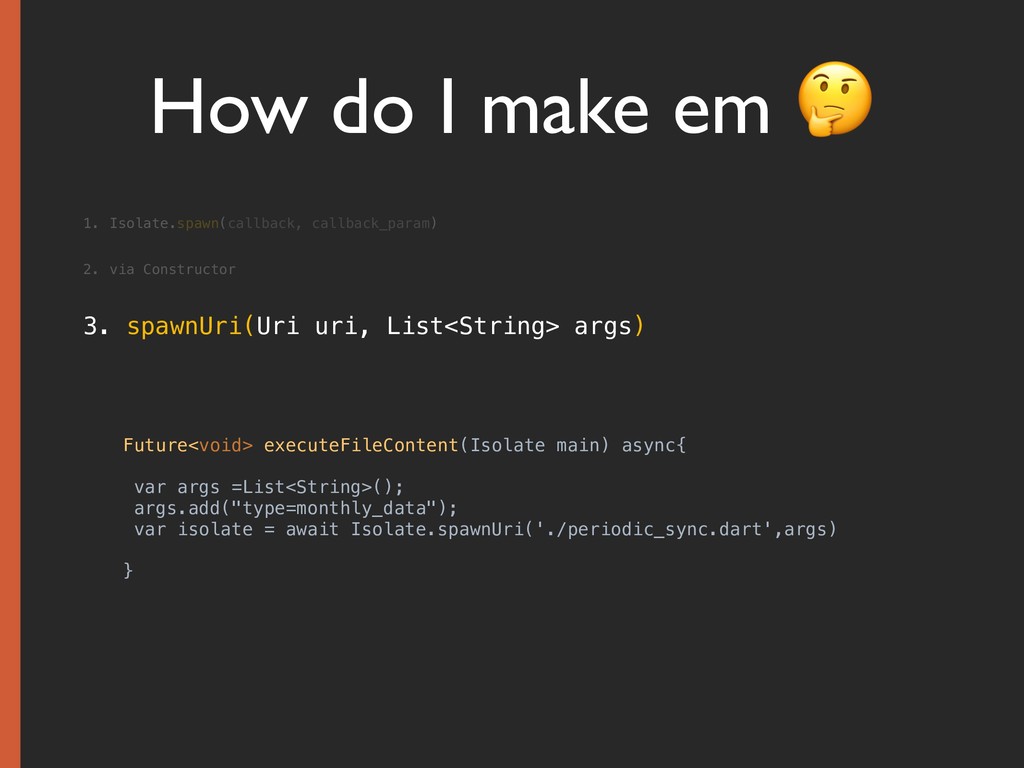

21. How do I make em 1. Isolate.spawn(callback, callback_param) 3. spawnUri(Uri uri, List<String> args) Future<void> executeFileContent(Isolate main) async{
 var args =List<String>();
 args.add("type=monthly_data");
 var isolate = await Isolate.spawnUri('./periodic_sync.dart',args)

 } 2. via Constructor

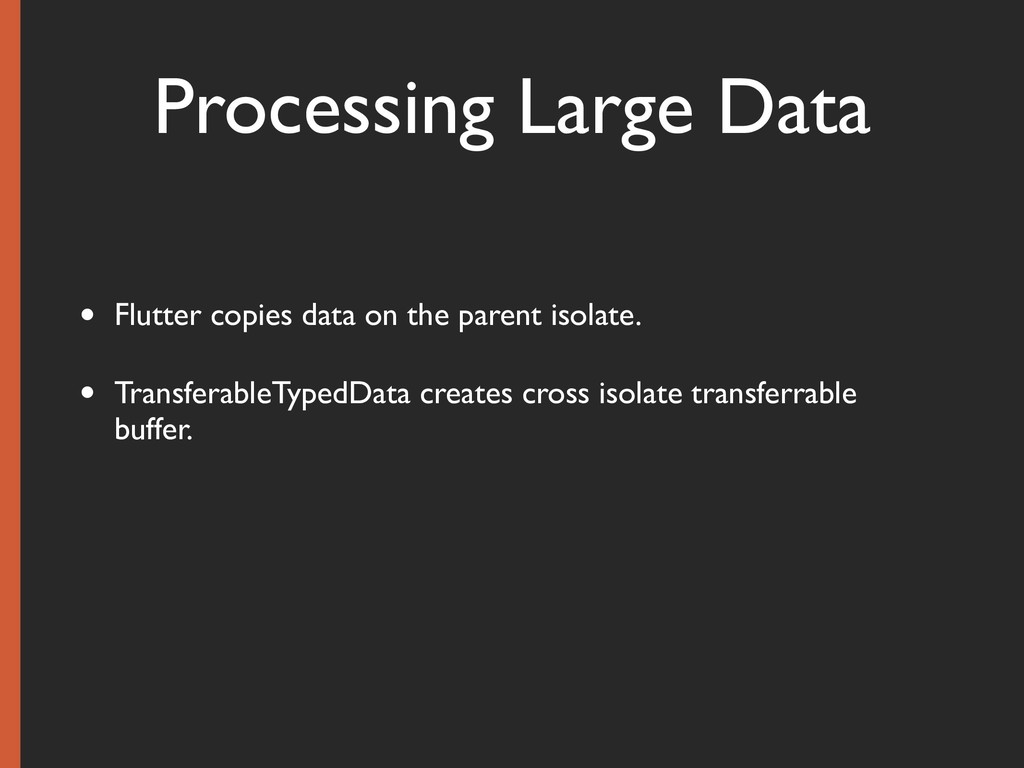

22. Processing Large Data • Flutter copies data on the parent isolate. • TransferableTypedData creates cross isolate transferrable buffer.

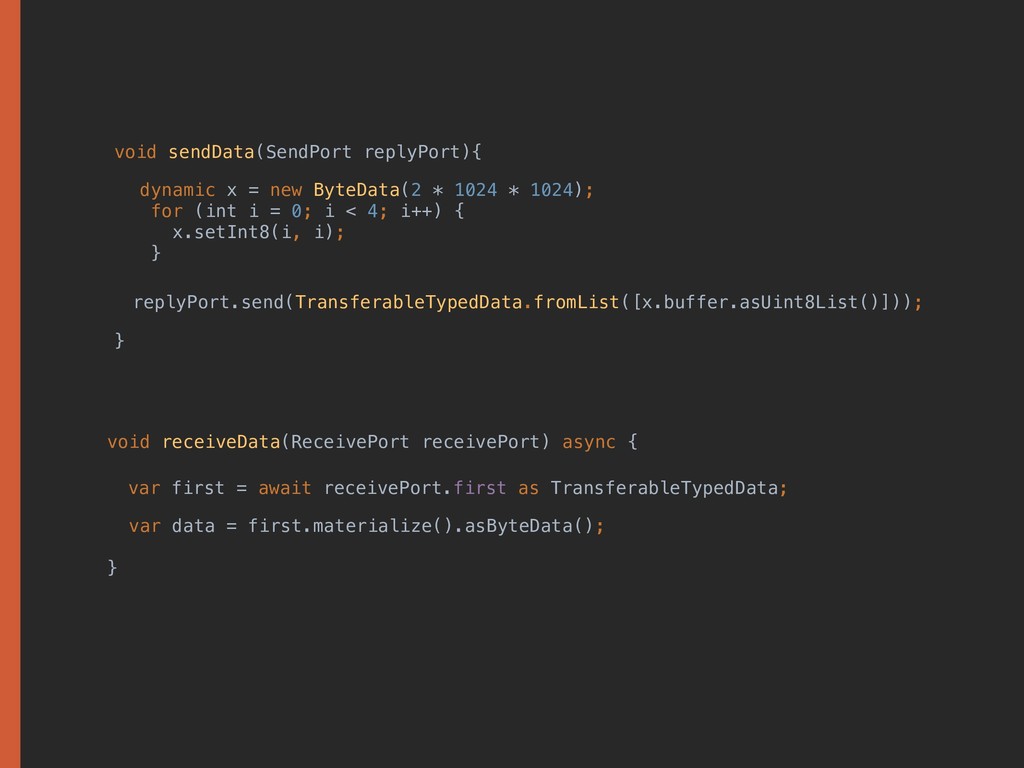

23. void sendData(SendPort replyPort){






 } void receiveData(ReceivePort receivePort) async {


 } dynamic x = new ByteData(2 * 1024 * 1024); for (int i = 0; i < 4; i++) { x.setInt8(i, i); } replyPort.send(TransferableTypedData.fromList([x.buffer.asUint8List()])); var first = await receivePort.first as TransferableTypedData; var data = first.materialize().asByteData();

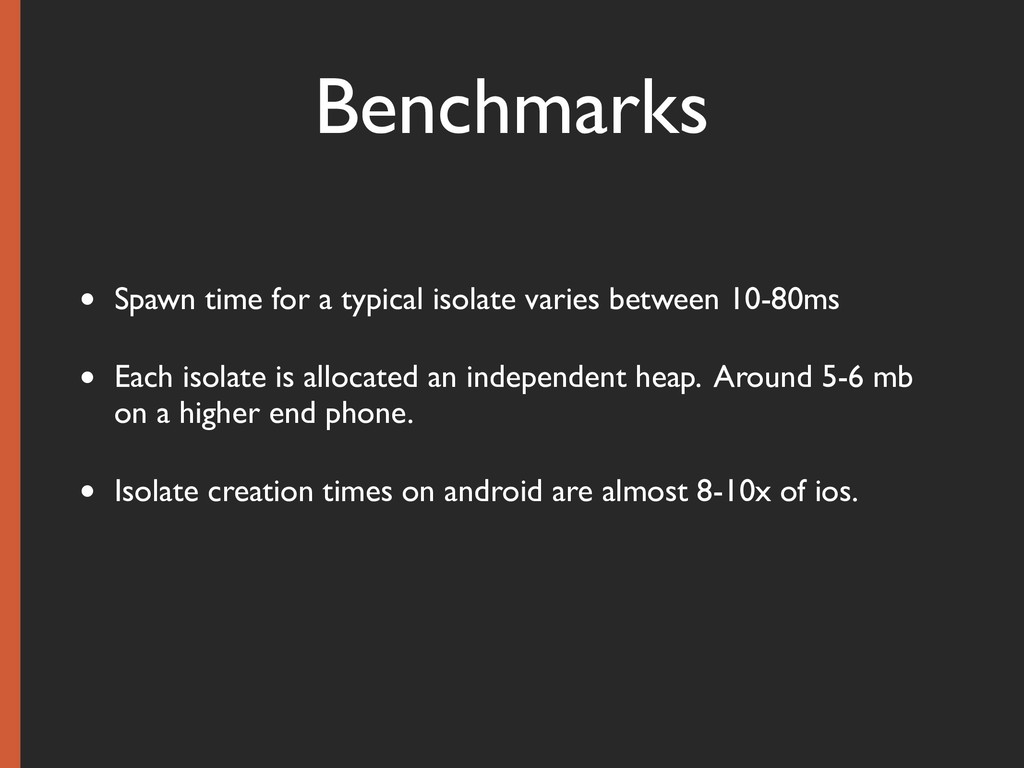

24. Benchmarks • Spawn time for a typical isolate varies between 10-80ms • Each isolate is allocated an independent heap. Around 5-6 mb on a higher end phone. • Isolate creation times on android are almost 8-10x of ios.

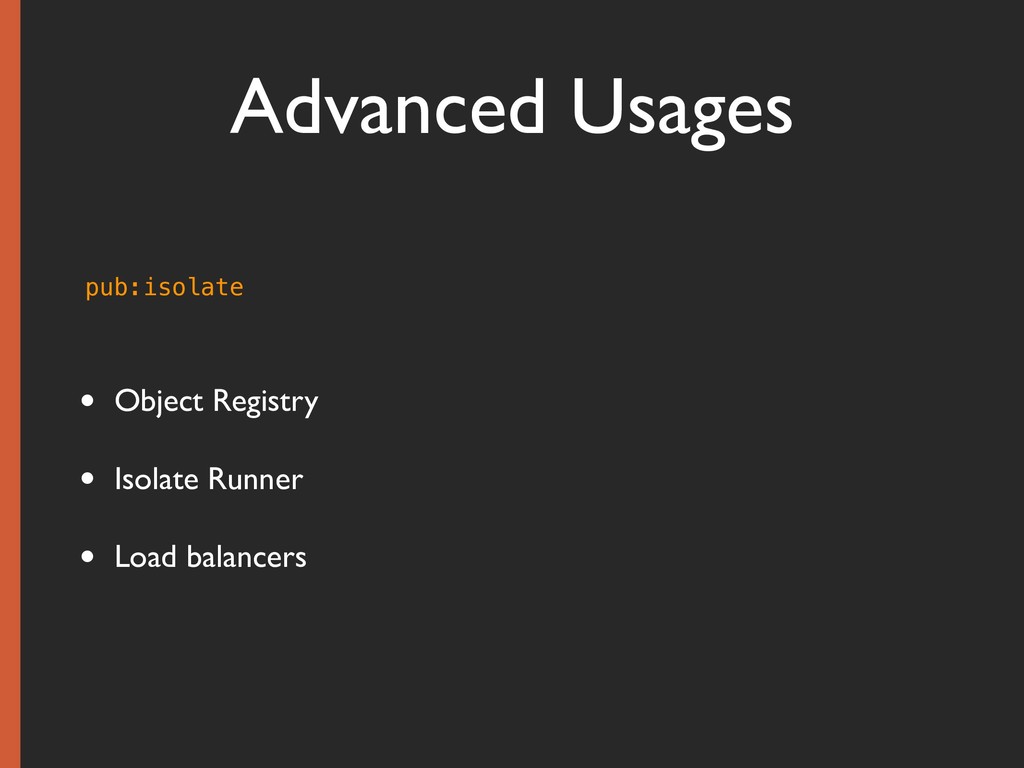

26. Advanced Usages • Object Registry • Isolate Runner • Load balancers
 pub:isolate

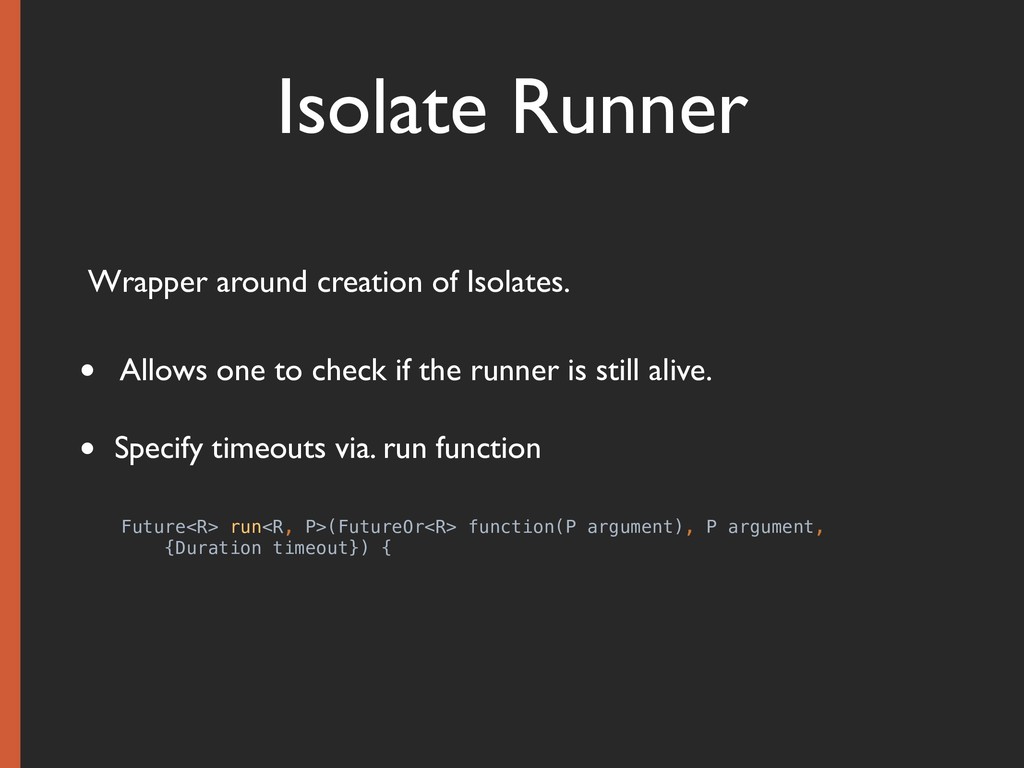

27. Isolate Runner • Allows one to check if the runner is still alive. • Specify timeouts via. run function Wrapper around creation of Isolates. Future<R> run<R, P>(FutureOr<R> function(P argument), P argument, {Duration timeout}) {
28. Load Balancers • Create and Manage Isolate runner pool.
 var balancer = LoadBalancer.create(POOL_SIZE, IsolateRunner.spawn)
 balancer.run(heavyCompute, heavyComputeArg, estimatedLoad)

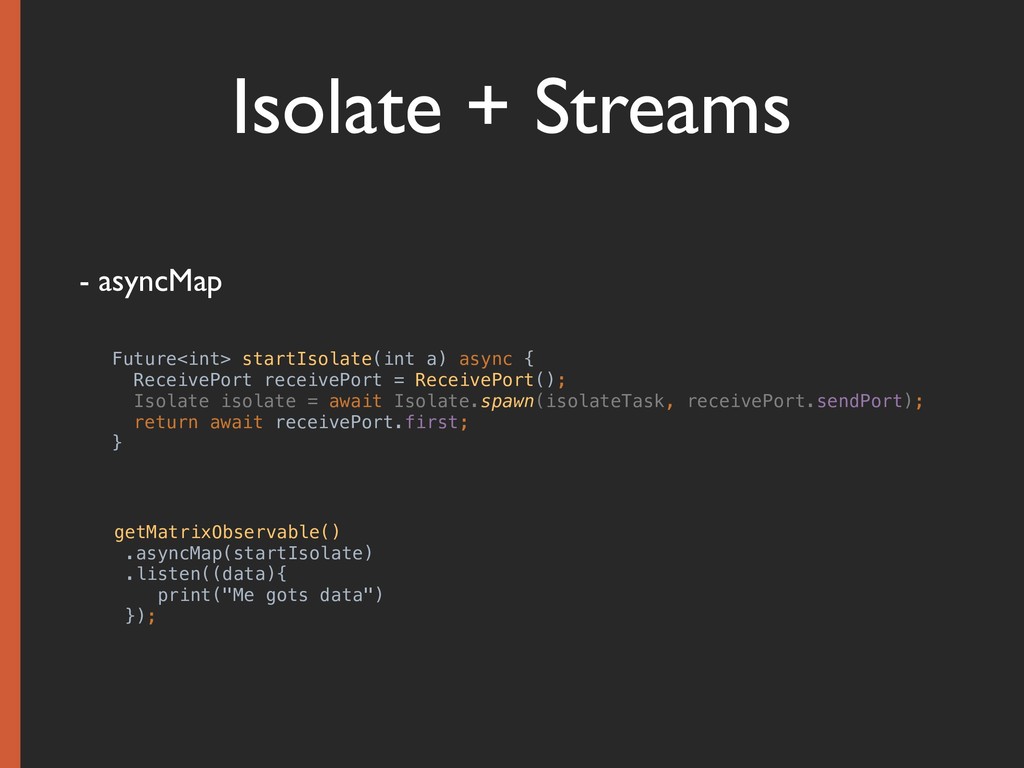

29. Isolate + Streams getMatrixObservable() .asyncMap(startIsolate)
 .listen((data){ print("Me gots data") }); - asyncMap
 Future<int> startIsolate(int a) async { ReceivePort receivePort = ReceivePort();
 Isolate isolate = await Isolate.spawn(isolateTask, receivePort.sendPort); return await receivePort.first; }
30. Isolate + Streams - fromFuture - asyncMap
 Future<int> startIsolate() async { ReceivePort receivePort = ReceivePort();
 Isolate isolate = await Isolate.spawn(isolateTask, receivePort.sendPort); return await receivePort.first; } Observable
 .fromFuture(startIsolate())
 .listen((data){ print("I come from the future: $data") });;

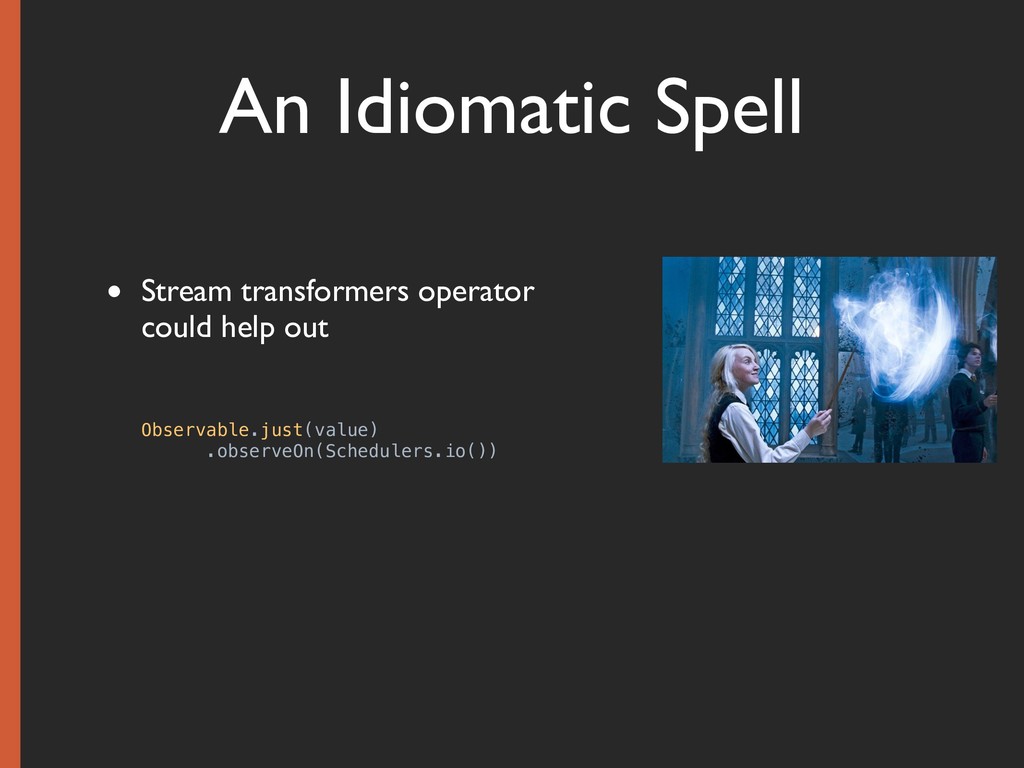

31. An Idiomatic Spell • Stream transformers operator
 could help out Observable.just(value) .observeOn(Schedulers.io())

32. class IoScheduler<S, T> implements StreamTransformer<S, T> {










 }

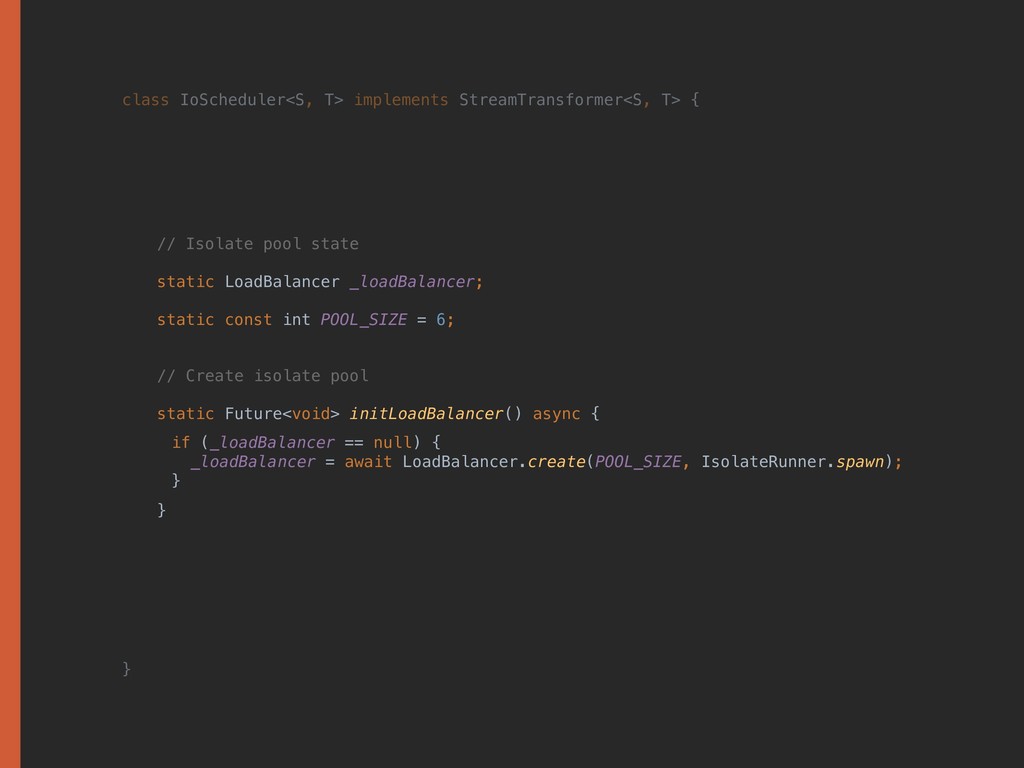

33. class IoScheduler<S, T> implements StreamTransformer<S, T> {

























 } if (_loadBalancer == null) { _loadBalancer = await LoadBalancer.create(POOL_SIZE, IsolateRunner.spawn); } // Create isolate pool
 static Future<void> initLoadBalancer() async { // Isolate pool state

 static LoadBalancer _loadBalancer;
 static const int POOL_SIZE = 6; }

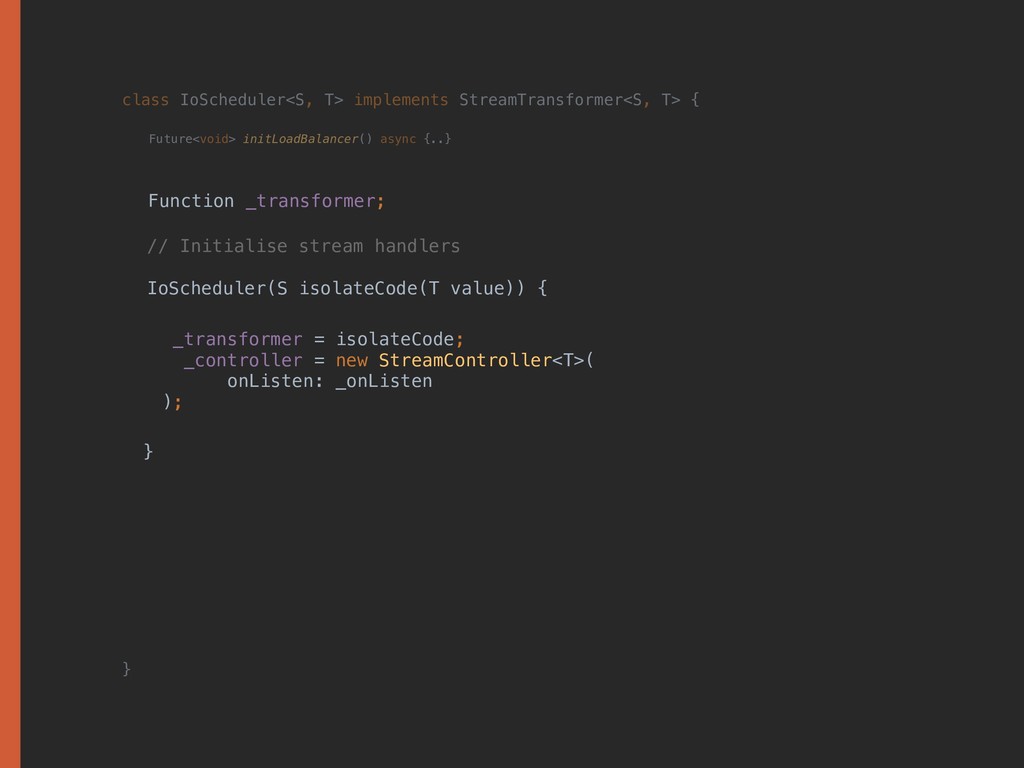

34. class IoScheduler<S, T> implements StreamTransformer<S, T> {

























 } // Initialise stream handlers

 IoScheduler(S isolateCode(T value)) { } _transformer = isolateCode; _controller = new StreamController<T>( onListen: _onListen
 ); Function _transformer; Future<void> initLoadBalancer() async { ..}
35. class IoScheduler<S, T> implements StreamTransformer<S, T> {

























 } // Initialise stream handlers

 IoScheduler(S isolateCode(T value)) {..} Function _transformer; } void _onListen() { _subscription = _stream.listen(
 onData, onError: _controller.addError ); Future<void> initLoadBalancer() async { ..}
36. class IoScheduler<S, T> implements StreamTransformer<S, T> {

























 } ..} void _onListen() { void onData(S data) { initLoadBalancer().then((val) {





 }); } _loadBalancer.run(_transformer, data).then((transformed) { _controller.add(transformed as T); }, onError: (error) { throw error; });
 // Initialise stream handlers

 IoScheduler(S isolateCode(T value)) { ..} Function _transformer; Future<void> initLoadBalancer() async { ..}

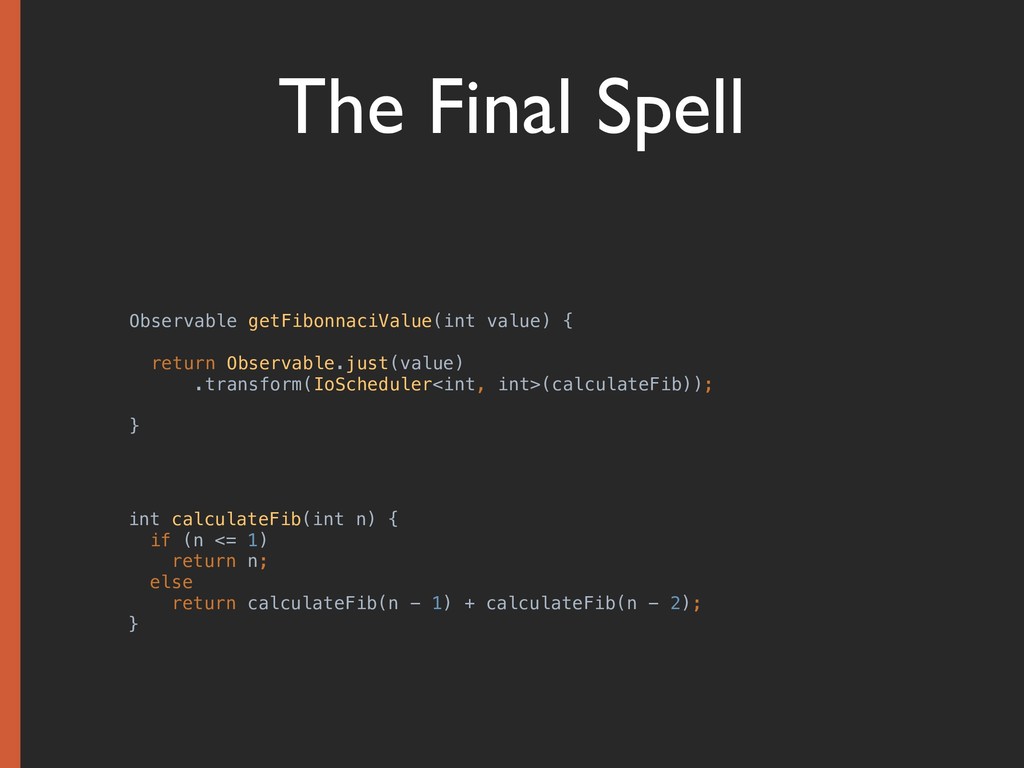

37. The Final Spell Observable getFibonnaciValue(int value) {

 return Observable.just(value) .transform(IoScheduler<int, int>(calculateFib));
 } int calculateFib(int n) { if (n <= 1) return n; else return calculateFib(n - 1) + calculateFib(n - 2); }

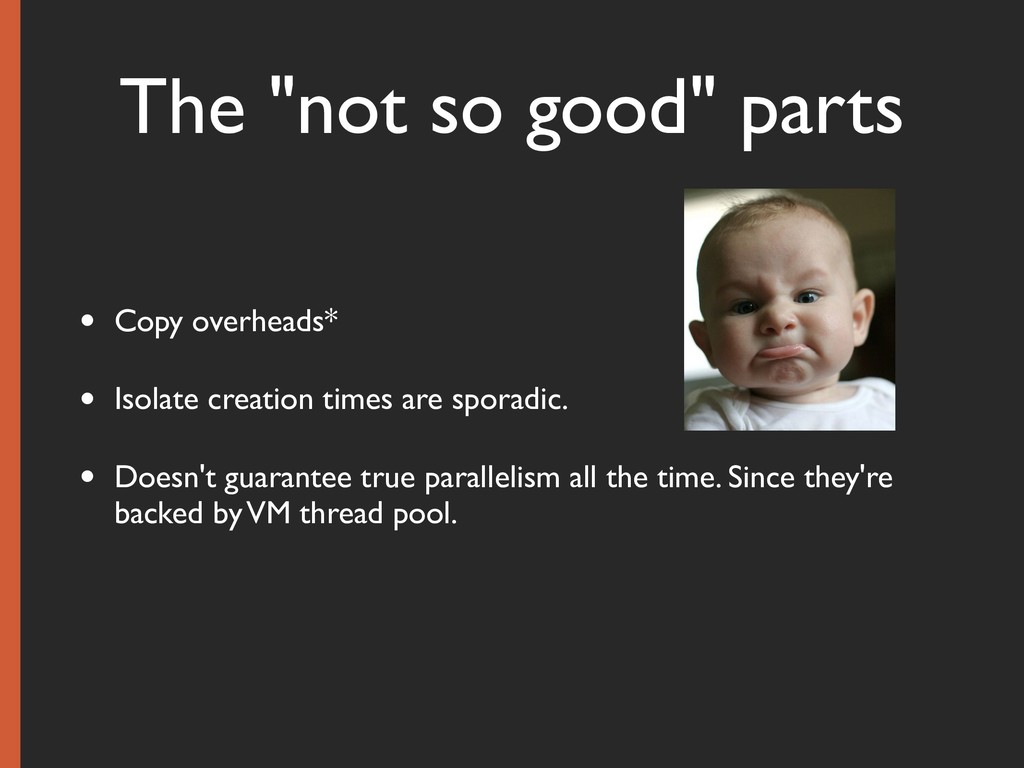

38. The "not so good" parts • Copy overheads* • Isolate creation times are sporadic. • Doesn't guarantee true parallelism all the time. Since they're backed by VM thread pool.
39. Takeaways • Avoid isolates for simpler tasks like object transformations. • Use Isolates for json decoding, encryption and image processing. • Figure out a pool size that works well for your app. Around 5-6 isolates are good enough for most apps. • Profile your app.

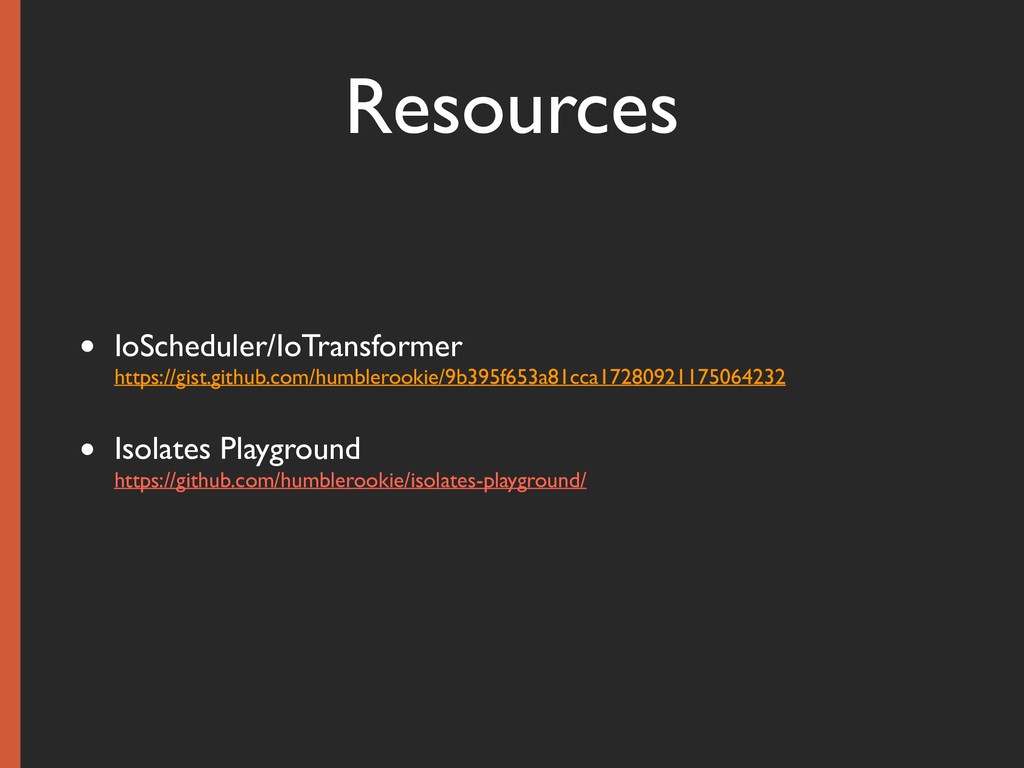

40. Resources • IoScheduler/IoTransformer
 https://gist.github.com/humblerookie/9b395f653a81cca17280921175064232 • Isolates Playground
 https://github.com/humblerookie/isolates-playground/
41. Questions? Thanks. Anvith Bhat @anv1th
