LegoSDN SOSR '16

Isolating and Tolerating SDN Application Failures with LegoSDN, SOSR 2016.

A redesign of the SDN controller architecture centering around a set of abstractions to eliminate the fate-sharing relationships between SDN applications & the controller, and between the SDN applications themselves.

Transcript

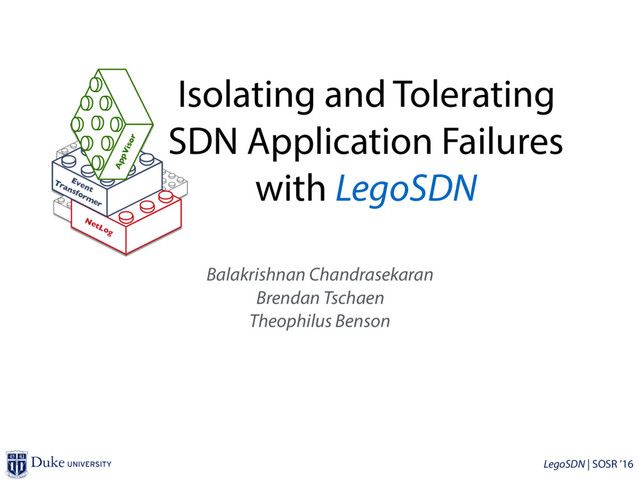

1. Duke UNIVERSITY LegoSDN | SOSR ’16 Isolating and Tolerating SDN Application Failures with LegoSDN Balakrishnan Chandrasekaran Brendan Tschaen Theophilus Benson … … NetLog Event Transformer AppVisor
2. Duke UNIVERSITY LegoSDN | SOSR ’16 2 Enterprise SDN
3. Duke UNIVERSITY LegoSDN | SOSR ’16 2 Enterprise SDN “The network should be a solid foundation that never goes wrong” Colin Constable Deutsche Bank Labs
4. Duke UNIVERSITY LegoSDN | SOSR ’16 2 Enterprise SDN “The network should be a solid foundation that never goes wrong” Colin Constable Deutsche Bank Labs “We need as an enterprise to be able to control our network, predictably and efficiently to make it secure” Bryan Larish National Security Agency
5. LegoSDN | SOSR ’16 Duke UNIVERSITY Rich choice of SDN controllers FloodLight, OpenDaylight Platform, ONOS, … More importantly, a good market for SDN applications! HPE Network Optimizer, Big Tap, Packet Design SDN-TE, OpenDayLight OFM App Why aren’t more organizations adopting yet? 3 Easing transition to SDN
6. LegoSDN | SOSR ’16 Duke UNIVERSITY Fact: (SDN) applications are most likely to have bugs! bug-free code? let’s be serious… Crash of SDN applications — meh! 4 Bugs are endemic in software
7. LegoSDN | SOSR ’16 Duke UNIVERSITY Crash of one SDN application Crash of all SDN applications Crash of SDN controller Loss of network control 5 Cascading Failures
8. LegoSDN | SOSR ’16 Duke UNIVERSITY Crash of one SDN application Crash of all SDN applications Crash of SDN controller Loss of network control 5 Cascading Failures Isolate SDN applications from one another and the SDN controller
9. LegoSDN | SOSR ’16 Duke UNIVERSITY App1 App2 Controller Crashing application might also have changed the state of one or more network devices! 6 Network Inconsistency
10. LegoSDN | SOSR ’16 Duke UNIVERSITY App1 App2 Controller Crashing application might also have changed the state of one or more network devices! 6 Network Inconsistency Undo changes to both control and data planes…
11. LegoSDN | SOSR ’16 Duke UNIVERSITY Deterministic bugs can cripple the SDN ecosystem! Reboot — not an option Loss of SDN application(s) or controller state can be problematic! Paxos — solves orthogonal problems Replay of crash-inducing inputs gets stuck in a infinite loop 7 Deterministic Bugs
12. LegoSDN | SOSR ’16 Duke UNIVERSITY Deterministic bugs can cripple the SDN ecosystem! Reboot — not an option Loss of SDN application(s) or controller state can be problematic! Paxos — solves orthogonal problems Replay of crash-inducing inputs gets stuck in a infinite loop 7 Deterministic Bugs ‘transform’ the input … !?
13. LegoSDN | SOSR ’16 Duke UNIVERSITY … … NetLog Event Transformer AppVisor 1. Isolation 2. Cross-Layer Transactions 3. Event Transformations 4. Prototype Implementation 8 LegoSDN
14. LegoSDN | SOSR ’16 Duke UNIVERSITY Operating System Controller Process Controller Network Event Transfomer Cross-Layer Transaction Manager AppVisor Sandbox App1 Sandbox App2 Sandbox App3 RPC OpenFlow Messages Isolate SDN applications within sandboxes. No cascading of crashes! 9 Isolation
15. LegoSDN | SOSR ’16 Duke UNIVERSITY Operating System Controller Process Controller Network Event Transfomer Cross-Layer Transaction Manager AppVisor Sandbox App1 Sandbox App2 Sandbox App3 RPC OpenFlow Messages Isolate SDN applications within sandboxes. No cascading of crashes! 9 Isolation
16. LegoSDN | SOSR ’16 Duke UNIVERSITY Operating System Controller Process Controller Network Event Transfomer Cross-Layer Transaction Manager AppVisor Sandbox App1 Sandbox App2 Sandbox App3 RPC OpenFlow Messages Crash of App1 does not affect other healthy SDN applications No more fate-sharing - between SDN applications - between SDN applications and the SDN controller 10 Isolation
17. LegoSDN | SOSR ’16 Duke UNIVERSITY Operating System Controller Process Controller Network Event Transfomer Cross-Layer Transaction Manager AppVisor Sandbox App1 Sandbox App2 Sandbox App3 RPC OpenFlow Messages Transactions span both control and data planes. In case of failures, undo changes to both control and data planes 11 Cross-Layer Transactions
18. LegoSDN | SOSR ’16 Duke UNIVERSITY 12 Cross-Layer Transactions
19. LegoSDN | SOSR ’16 Duke UNIVERSITY Reverting control plane changes is easy. checkpoint application, and restore to last checkpoint on a crash 12 Cross-Layer Transactions
20. LegoSDN | SOSR ’16 Duke UNIVERSITY Reverting control plane changes is easy. checkpoint application, and restore to last checkpoint on a crash Reverting data plane changes is hard. 12 Cross-Layer Transactions
21. LegoSDN | SOSR ’16 Duke UNIVERSITY Reverting control plane changes is easy. checkpoint application, and restore to last checkpoint on a crash Reverting data plane changes is hard. leverage OpenFlow spec. – control messages are invertible! FlowMod (add) ➔ FlowMod (delete) elegant change: retain output as such but change the ‘field’ 12 Cross-Layer Transactions
22. Duke UNIVERSITY Transaction2 Timeline of events in the context of an SDN-App 1 SDN-App Snapshot Event In1 Msg Outx Msg Outx Msg Out3 Event In2 Msg Outx Msg Outx Msg Out4 2 SDN-App Snapshot 13 Cross-Layer Transactions Control plane changes –SDN Application snapshots Data plane changes –output messages
23. Duke UNIVERSITY Transaction2 Timeline of events in the context of an SDN-App 1 SDN-App Snapshot Event In1 Msg Outx Msg Outx Msg Out3 Event In2 Msg Outx Msg Outx Msg Out4 2 SDN-App Snapshot Revert SDN application to last snapshot Use CRIU to checkpoint SDN application state. 14 Cross-Layer Transactions
24. Duke UNIVERSITY Transaction2 Timeline of events in the context of an SDN-App 1 SDN-App Snapshot Event In1 Msg Outx Msg Outx Msg Out3 Event In2 Msg Outx Msg Outx Msg Out4 2 SDN-App Snapshot Revert SDN application to last snapshot Use CRIU to checkpoint SDN application state. 14 Cross-Layer Transactions
25. Duke UNIVERSITY Transaction2 Timeline of events in the context of an SDN-App 1 SDN-App Snapshot Event In1 Msg Outx Msg Outx Msg Out3 Event In2 Msg Outx Msg Outx Msg Out4 2 SDN-App Snapshot Network state changes as part of the current transaction. Revert network state changes in case transaction fails. FlowMod (add) ➔ FlowMod (delete) 15 Cross-Layer Transactions
26. Duke UNIVERSITY Transaction2 Timeline of events in the context of an SDN-App 1 SDN-App Snapshot Event In1 Msg Outx Msg Outx Msg Out3 Event In2 Msg Outx Msg Outx Msg Out4 2 SDN-App Snapshot Input events processed since the last transaction. Until transaction is committed, events are in replay buffer. Replay e1, e2, … en-1. Transform en 16 Cross-Layer Transactions
27. LegoSDN | SOSR ’16 Duke UNIVERSITY Operating System Controller Process Controller Network Event Transfomer Cross-Layer Transaction Manager AppVisor Sandbox App1 Sandbox App2 Sandbox App3 RPC OpenFlow Messages Transform the crash-inducing message. Tolerate deterministic crashes! 17 Event Transformations
28. LegoSDN | SOSR ’16 Duke UNIVERSITY 18 Event Transformations
29. LegoSDN | SOSR ’16 Duke UNIVERSITY M: crash-inducing input Transform M to … !? 18 Event Transformations
30. LegoSDN | SOSR ’16 Duke UNIVERSITY M: crash-inducing input Transform M to … !? leverage OpenFlow spec. & domain knowledge 18 Event Transformations
31. LegoSDN | SOSR ’16 Duke UNIVERSITY M: crash-inducing input Transform M to … !? leverage OpenFlow spec. & domain knowledge Transform M to T M ≣ T both have same intent Port (A) Down ≣ {Port (A) Up, Port (A) Down} 18 Event Transformations
32. LegoSDN | SOSR ’16 Duke UNIVERSITY 19 Event Transformations
33. LegoSDN | SOSR ’16 Duke UNIVERSITY Transformations preserve the intent of the original event. Port (S1 :A) Down ➔ Switch (S1) Down 19 Event Transformations
34. LegoSDN | SOSR ’16 Duke UNIVERSITY Transformations preserve the intent of the original event. Port (S1 :A) Down ➔ Switch (S1) Down Rules created by studying OpenFlow specification and switch behavior. 19 Event Transformations
35. LegoSDN | SOSR ’16 Duke UNIVERSITY Transformations preserve the intent of the original event. Port (S1 :A) Down ➔ Switch (S1) Down Rules created by studying OpenFlow specification and switch behavior. Rules also exploit natural hierarchy amongst network elements. Network elements: Port, Switch; Hierarchy: Port ➔ Switch Port (S1:A) Down ➔ Switch (S1) Down 19 Event Transformations
36. LegoSDN | SOSR ’16 Duke UNIVERSITY 20 Event Transformations
37. LegoSDN | SOSR ’16 Duke UNIVERSITY Toggle Port (A) Down ➔ Port (A) Up, Port (A) Down 20 Event Transformations
38. LegoSDN | SOSR ’16 Duke UNIVERSITY Toggle Port (A) Down ➔ Port (A) Up, Port (A) Down Escalate Port (A) Up ➔ Switch (S1) Up 20 Event Transformations
39. LegoSDN | SOSR ’16 Duke UNIVERSITY Toggle Port (A) Down ➔ Port (A) Up, Port (A) Down Escalate Port (A) Up ➔ Switch (S1) Up Reorder Change ordering of inputs across switches. No reordering of messages from the same switch. 20 Event Transformations
40. LegoSDN | SOSR ’16 Duke UNIVERSITY 21 Event Transformations
41. LegoSDN | SOSR ’16 Duke UNIVERSITY (1) Assume App1 crashed on input M1 M1 ➔ T1 21 Event Transformations
42. LegoSDN | SOSR ’16 Duke UNIVERSITY (1) Assume App1 crashed on input M1 M1 ➔ T1 (2) Can App1 process T1 without fail? Yes: done. No: M1 ➔ T2 21 Event Transformations
43. LegoSDN | SOSR ’16 Duke UNIVERSITY (1) Assume App1 crashed on input M1 M1 ➔ T1 (2) Can App1 process T1 without fail? Yes: done. No: M1 ➔ T2 (3) Repeat (2) until App1 succeeds. 21 Event Transformations
44. LegoSDN | SOSR ’16 Duke UNIVERSITY (1) Assume App1 crashed on input M1 M1 ➔ T1 (2) Can App1 process T1 without fail? Yes: done. No: M1 ➔ T2 (3) Repeat (2) until App1 succeeds. Controller maintains per-application network view, as required. App1 — Port (S1:A) Down ➔ Switch (S1) Down As far as App1 is concerned, S1 is down. 21 Event Transformations
45. LegoSDN | SOSR ’16 Duke UNIVERSITY … … NetLog Event Transformer AppVisor LegoSDN Evaluations 22
46. LegoSDN | SOSR ’16 Duke UNIVERSITY Two Linux (Ubuntu 14.04 LTS) servers connected by a 1 Gbps link with 10 ms delay. Each machine had 12 cores and 16 GB of memory. Server1: SDN Controller and SDN Applications Server2: Mininet, traffic generators 23 Testbed
47. LegoSDN | SOSR ’16 Duke UNIVERSITY – SDN Applications – Hub, Learning Switch, Load Balancer, Route Manager, Stateful Firewall Test applications were designed to run with FloodLight, and required no modifications to run on top of LegoSDN. Comparison with controller reboots and application reboots. 24 Testbed
48. LegoSDN | SOSR ’16 Duke UNIVERSITY 1. How fast is LegoSDN compared to controller and application reboots? 2. Can LegoSDN successfully recover from deterministic bugs? 3. Can LegoSDN recover stateful applications safely? 4. Can LegoSDN network changes on a crash to avoid policy violations? 25 Evaluations
49. LegoSDN | SOSR ’16 Duke UNIVERSITY 1. How fast is LegoSDN compared to controller and application reboots? 2. Can LegoSDN successfully recover from deterministic bugs? 3. Can LegoSDN recover stateful applications safely? 4. Can LegoSDN network changes on a crash to avoid policy violations? 26 Evaluations
50. Duke UNIVERSITY 1 10 100 1000 10000 Hub L.Switch LoadBal. Rt.Flow Recovery time (in ms) Application Ctrlr. Reboot App. Reboot LegoSDN LegoSDN is 3x faster than controller reboots. 27 Recovery Time | Results
51. LegoSDN | SOSR ’16 Duke UNIVERSITY 1. How fast is LegoSDN compared to controller and application reboots? LegoSDN is 3x faster than controller reboots. 2. Can LegoSDN successfully recover from deterministic bugs? 3. Can LegoSDN recover stateful applications safely? 4. Can LegoSDN network changes on a crash to avoid policy violations? 28 Evaluations
52. Duke UNIVERSITY S1 S2 S3 S4 S5 S6 S7 S8 1 4 ms 2 ms UDP Flow. Packet every 10 ms. Primary: S2 –S1 –S7 –S8 Secondary: S2 –S3 –S4 –S5 –S6 –S8 Application: Route Manager. S1 –S7 brought down at t = 5 s and brought back up at t = 25 s Application cannot process Link-Down events. 29 Deterministic Bugs | Setup
53. Duke UNIVERSITY 0 1 2 3 4 5 6 0 5 10 15 20 25 30 RTT (in ms) Time (in s) Ctrlr. Reboot App. Reboot LegoSDN Crash Primary Secondary Primary lost packets LegoSDN recovers quickly (~250ms). Event transformations help in recovering from deterministic faults. (deterministic bug: inability of application to process Port-Down event). 30 Deterministic Bugs | Results
54. LegoSDN | SOSR ’16 Duke UNIVERSITY 1. How fast is LegoSDN compared to controller and application reboots? LegoSDN is 3x faster than controller reboots. 2. Can LegoSDN successfully recover from deterministic bugs? Event transformations help in recovering from deterministic bugs. 3. Can LegoSDN recover stateful applications safely? 4. Can LegoSDN network changes on a crash to avoid policy violations? 31 Evaluations
55. LegoSDN | SOSR ’16 Duke UNIVERSITY 1. How fast is LegoSDN compared to controller and application reboots? LegoSDN is 3x faster than controller reboots. 2. Can LegoSDN successfully recover from deterministic bugs? Event transformations help in recovering from deterministic bugs. 3. Can LegoSDN recover stateful applications safely? LegoSDN uses checkpointing to avoid loss of application state. 4. Can LegoSDN network changes on a crash to avoid policy violations? LegoSDN reverts network changes quickly on a crash. 32 Evaluations
56. LegoSDN | SOSR ’16 Duke UNIVERSITY 33 Conclusion
57. LegoSDN | SOSR ’16 Duke UNIVERSITY Treats failures as first-class citizens. Recovers applications from even deterministic crashes. Newer abstractions; transparent to SDN application developers 33 Conclusion
58. LegoSDN | SOSR ’16 Duke UNIVERSITY Treats failures as first-class citizens. Recovers applications from even deterministic crashes. Newer abstractions; transparent to SDN application developers … still, only the tip of the iceberg! 33 Conclusion
59. LegoSDN | SOSR ’16 Duke UNIVERSITY Treats failures as first-class citizens. Recovers applications from even deterministic crashes. Newer abstractions; transparent to SDN application developers … still, only the tip of the iceberg! Peek into applications’ state? Learn from Beehive … Leverage symbolic execution to identify exact cause of crash … Handle Byzantine faults … Distributed scenarios introduce more complexity … 33 Conclusion
60. Duke UNIVERSITY LegoSDN | SOSR ’16 LegoSDN http://legosdn.cs.duke.edu (coming soon) Building blocks for designing a robust SDN controller! … … NetLog Event Transformer AppVisor
61. LegoSDN | SOSR ’16 Duke UNIVERSITY Troubleshooting & Verification NICE, NSDI ’12; Minimal Causal Sequences, SIGCOMM ’14; Veriflow, NSDI ’13; SDNRacer, SOSR ’15; … Programming Abstractions Transactional Networking, HotSDN ’13; OF. CPP, HotSDN ’13; … Controller Replication Ravana, SOSR ’15; Onix, OSDI ’10; BeeHive, HotNets ’14; … Fault-Tolerance Microreboot, OSDI ’04; Failure Oblivious Computing, OSDI ’04; … 35 Related Works
