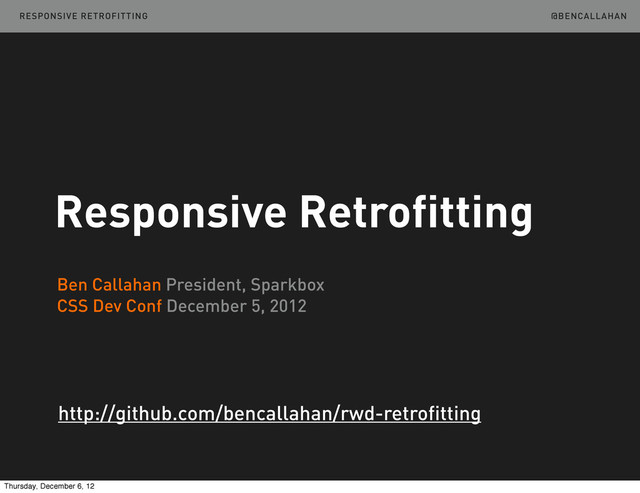

  1. Ben Callahan President, Sparkbox CSS Dev Conf December 5, 2012

    Responsive Retrofitting @BENCALLAHAN http://github.com/bencallahan/rwd-retrofitting RESPONSIVE RETROFITTING Thursday, December 6, 12
  2. @BENCALLAHAN The Necessary Intro My name is Ben @bencallahan http://seesparkbox.com

    http://buildresponsively.com RESPONSIVE RETROFITTING Thursday, December 6, 12
  3. @BENCALLAHAN Retrofitting RESPONSIVE RETROFITTING Thursday, December 6, 12

  4. @BENCALLAHAN What is a Retrofit? RESPONSIVE RETROFITTING Thursday, December 6,

    12
  5. @BENCALLAHAN What is a Retrofit? Finding the fastest and lowest-risk

    approach to creating a better experience on an existing site for users of any size screen. RESPONSIVE RETROFITTING Thursday, December 6, 12
  6. @BENCALLAHAN What is a Retrofit? 1. How to do it.

    2. Managing your client. RESPONSIVE RETROFITTING Thursday, December 6, 12
  7. @BENCALLAHAN @klayon ...performance is important, but access is more important.

    Mobile later is better than mobile never. From “Responsive images for mobile: don’t sweat it” (http://tiny.cc/vr24gw) RESPONSIVE RETROFITTING Thursday, December 6, 12
  8. @BENCALLAHAN Retrofitting Techniques http://github.com/bencallahan/rwd-retrofitting If you like, you can clone

    this repository: RESPONSIVE RETROFITTING Thursday, December 6, 12
  9. @BENCALLAHAN Retrofitting Techniques: From Fixed to Fluid (demo of Twitter.com)

    RESPONSIVE RETROFITTING Thursday, December 6, 12
  10. @BENCALLAHAN Retrofitting Techniques: From Fixed to Fluid ➡ Demo of

    Twitter.com http://www.alistapart.com/articles/fluidgrids/ target  /  context  =  result RESPONSIVE RETROFITTING Thursday, December 6, 12
  11. @BENCALLAHAN Retrofitting Techniques: From Fixed to Fluid ➡ Demo of

    Twitter.com http://www.alistapart.com/articles/fluidgrids/ target  /  context  =  result 302  /  837  =  36.08% 522  /  837  =  62.37% RESPONSIVE RETROFITTING Thursday, December 6, 12
  12. @BENCALLAHAN Retrofitting Techniques: From Fixed to Fluid ➡ Demo of

    Twitter.com http://paulirish.com/2012/box-sizing-border-box-ftw/ *  {      -­‐moz-­‐box-­‐sizing:  border-­‐box;      -­‐webkit-­‐box-­‐sizing:  border-­‐box;      box-­‐sizing:  border-­‐box; } RESPONSIVE RETROFITTING Thursday, December 6, 12
  13. @BENCALLAHAN Retrofitting Techniques: From Fixed to Fluid ➡ Demo of

    Twitter.com /*  some  css  */ @media  (max-­‐width:  500px)  {      /*  css  for  500px  and  lower  */ } RESPONSIVE RETROFITTING Thursday, December 6, 12
  14. @BENCALLAHAN Retrofitting Techniques: Inline Image Styles (demo of /Images) http://github.com/bencallahan/rwd-retrofitting

    RESPONSIVE RETROFITTING Thursday, December 6, 12
  15. @BENCALLAHAN Retrofitting Techniques: Inline Image Styles ➡ Support ‣ FireFox

    5+ Win/Mac ‣ IE7+ (exception: IE8 & min-width) ‣ Chrome 14+ Win/Mac ‣ Safari 4+ Win, 5+ Mac ‣ Opera 10+ Win, 11+ Mac ‣ Mobile Safari (iOS 5) ‣ Android Browser 2.3+ RESPONSIVE RETROFITTING Thursday, December 6, 12
  16. @BENCALLAHAN Retrofitting Techniques: Background Images Tim Kadlec on timkadlec.com “Media

    Query & Asset Downloading Results” ‣ display: none on parent element ‣ specify all background images inside media queries http://timkadlec.com/2012/04/media-query-asset-downloading-results/ RESPONSIVE RETROFITTING Thursday, December 6, 12
  17. @BENCALLAHAN Retrofitting Techniques: Tables RESPONSIVE RETROFITTING Thursday, December 6, 12

  18. @BENCALLAHAN Retrofitting Techniques: Tables (demo of /Tables) http://github.com/bencallahan/rwd-retrofitting RESPONSIVE RETROFITTING

    Thursday, December 6, 12
  19. @BENCALLAHAN Retrofitting Techniques: Tables RESPONSIVE RETROFITTING Thursday, December 6, 12

  20. @BENCALLAHAN Retrofitting Techniques: Media Queries ➡ Large Resolution First ➡

    Small Resolution First, Capped RESPONSIVE RETROFITTING Thursday, December 6, 12
  21. @BENCALLAHAN Retrofitting Techniques: Media Queries ➡ Large Resolution First /*

     FILE:  main.css  */ /*  all  your  original  styles  */ @media  (max-­‐width:  53em)  {    /*  styles  for  53em  and  lower  */ } @media  (max-­‐width:  37em)  {    /*  styles  for  37em  and  lower  */ } RESPONSIVE RETROFITTING Thursday, December 6, 12
  22. @BENCALLAHAN Retrofitting Techniques: Media Queries ➡ Small Resolution First, Capped

    ‣ Serve the original CSS to large viewports ‣ Serve mobile-first CSS to small viewports ‣ No changes to original CSS RESPONSIVE RETROFITTING Thursday, December 6, 12
  23. @BENCALLAHAN Retrofitting Techniques: Media Queries ➡ Small Resolution First, Capped

    <html  class=”no-­‐js”> <head>    <script  src=”/js/modernizr.js”></script>    <script>        yepnope({            test  :  Modernizr.mq(‘(min-­‐width:  0px)’),            yep    :  ‘base.css’,            nope  :  ‘original.css’        });      </script>    <noscript>        <link  rel="stylesheet"  href="original.css">    </noscript> </head> RESPONSIVE RETROFITTING Thursday, December 6, 12
  24. @BENCALLAHAN Retrofitting Techniques: Media Queries ➡ Small Resolution First, Capped

    @media (max-width: 979px) { @import "small"; } @media (min-width: 661px) and (max-width: 979px) { @import "medium"; } @media (min-width: 980px) { @import "original"; } RESPONSIVE RETROFITTING Thursday, December 6, 12
  25. @BENCALLAHAN Other Considerations RESPONSIVE RETROFITTING Thursday, December 6, 12

  26. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Touch Target Area ➡

    Hover States ➡ Contrast ➡ Prioritization RESPONSIVE RETROFITTING Thursday, December 6, 12
  27. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Touch Target Area ‣

    Apple recommends minimum 44px X 44px ‣ This is based on non-retina displays ‣ Using padding instead of margin ‣ Consider increasing font-size at smaller resolutions http://www.lukew.com/ff/entry.asp?1085 http://developer.apple.com/iphone/library/documentation/UserExperience/Conceptual/MobileHIG/ DesigningNativeApp/DesigningNativeApp.html#//apple_ref/doc/uid/TP40006556-CH4-SW1 RESPONSIVE RETROFITTING Thursday, December 6, 12
  28. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Hover States ‣ Consider

    using modernizr a { /* standard styles */ } .no-touch a:hover { /* :hover styles */ } RESPONSIVE RETROFITTING Thursday, December 6, 12
  29. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Contrast ‣ Try your

    site outside in the sun ‣ Try your site in bed when it’s dark ‣ Take it with you RESPONSIVE RETROFITTING Thursday, December 6, 12
  30. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization RESPONSIVE RETROFITTING Thursday,

    December 6, 12
  31. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization RESPONSIVE RETROFITTING Thursday,

    December 6, 12
  32. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization RESPONSIVE RETROFITTING Thursday,

    December 6, 12
  33. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization (http://mobilism.nl) RESPONSIVE RETROFITTING

    Thursday, December 6, 12
  34. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization (http://mobilism.nl) RESPONSIVE RETROFITTING

    Thursday, December 6, 12
  35. @BENCALLAHAN Retrofitting Techniques: Other Considerations ➡ Prioritization ‣ Instead of

    adding/removing content, prioritize ‣ Generally requires ability to change HTML ‣ Use CSS to show/hide small prioritized blocks ‣ Sometimes this is all we can do, every bit helps RESPONSIVE RETROFITTING Thursday, December 6, 12
  36. @BENCALLAHAN Client Interaction RESPONSIVE RETROFITTING Thursday, December 6, 12

  37. @BENCALLAHAN Client Interaction: Great Need Big Companies + No Mobile

    Presence + Triple Digit Growth = Anxious Clients RESPONSIVE RETROFITTING Thursday, December 6, 12
  38. @BENCALLAHAN Client Interaction: Great Need Less than Half the Cost

    + Less than Half the Time + Increased Conversions = Desperate Clients RESPONSIVE RETROFITTING Thursday, December 6, 12
  39. @BENCALLAHAN Client Interaction: When It’s Right ➡ Evaluate the Project

    ‣ Solid UX at higher widths? ‣ Semantic markup? ‣ Immediate need? ‣ Real benefit for the user? RESPONSIVE RETROFITTING Thursday, December 6, 12
  40. @BENCALLAHAN Client Interaction: Proceed Carefully Retrofitting is a step in

    the right direction. RESPONSIVE RETROFITTING Thursday, December 6, 12
  41. @BENCALLAHAN Client Interaction: Proceed Carefully Make sure you’re capturing analytics.

    RESPONSIVE RETROFITTING Thursday, December 6, 12
  42. @BENCALLAHAN Constantly remind them of the user. Client Interaction: Proceed

    Carefully RESPONSIVE RETROFITTING Thursday, December 6, 12
  43. @BENCALLAHAN When you’re done and they ask for more... Client

    Interaction: Proceed Carefully ...push for even better experiences! RESPONSIVE RETROFITTING Thursday, December 6, 12
  44. @BENCALLAHAN Fun with Retrofitting RESPONSIVE RETROFITTING Thursday, December 6, 12

  45. @BENCALLAHAN Fun with Retrofitting (demo of Responsive Retrofitting Bookmarklet) RESPONSIVE

    RETROFITTING Thursday, December 6, 12
  46. Thank You! @BENCALLAHAN RESPONSIVE RETROFITTING Ben Callahan President, Sparkbox CSS

    Dev Conf December 5, 2012 Thursday, December 6, 12
