InVision is a collaborative design company that’s growing into Golang. That being said, when we started doing web services, we looked at using one of the middleware libraries out there such as Alice and Negroni. We found them all interesting but decided to tackle it on our own. As we did that we realized that our library was pretty cool so we broke it out and open sourced it as Rye. I’ll present on the approach we took and some of the benefits of using Rye including integration with Statsd, Context and custom middleware handlers we’ve added such as CIDR validation and JWT validation.

Transcript

1. Middleware in Golang InVision’s Rye Cale Hoopes, Senior Software Engineer InVision Core Services - Platform Team 1
2. Who is InVision? Design Better. Faster. Together. 2 Design Collaboration Cloud Prototyping Collaborative Asset Management Project Management Real-time Design Updates Complete Product Design Process Integrate with User Testing Integrate with Sketch and Adobe Creative Cloud 01 02 03 04 05 06 07 08

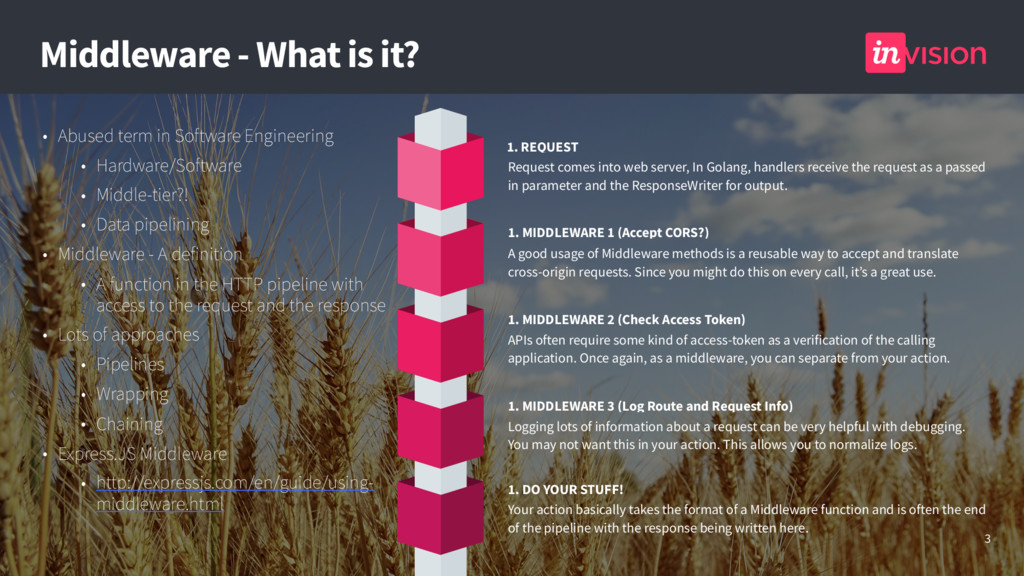

3. 3 Middleware - What is it? • Abused term in Software Engineering • Hardware/Software • Middle-tier?! • Data pipelining • Middleware - A definition • A function in the HTTP pipeline with access to the request and the response • Lots of approaches • Pipelines • Wrapping • Chaining • Express.JS Middleware • http://expressjs.com/en/guide/using- middleware.html Request comes into web server, In Golang, handlers receive the request as a passed in parameter and the ResponseWriter for output. 1. REQUEST A good usage of Middleware methods is a reusable way to accept and translate cross-origin requests. Since you might do this on every call, it’s a great use. 1. MIDDLEWARE 1 (Accept CORS?) APIs often require some kind of access-token as a verification of the calling application. Once again, as a middleware, you can separate from your action. 1. MIDDLEWARE 2 (Check Access Token) Logging lots of information about a request can be very helpful with debugging. You may not want this in your action. This allows you to normalize logs. 1. MIDDLEWARE 3 (Log Route and Request Info) Your action basically takes the format of a Middleware function and is often the end of the pipeline with the response being written here. 1. DO YOUR STUFF!
4. 4 Golang Middleware: Negroni • Not a full framework - a library - Familiar API • Can be used with routing packages • Lots of 3rd party middlewares • https://github.com/urfave/negroni

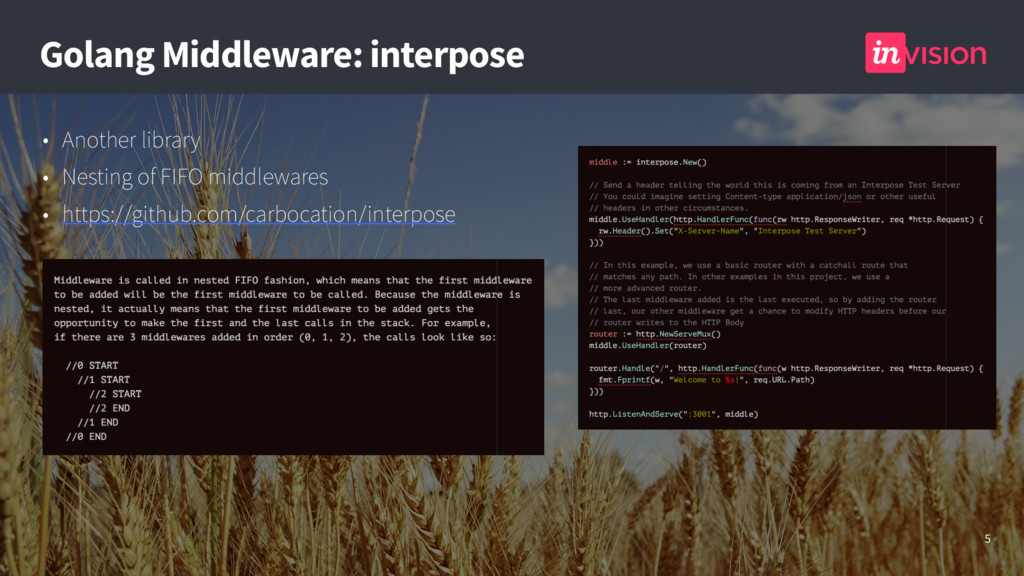

5. 5 Golang Middleware: interpose • Another library • Nesting of FIFO middlewares • https://github.com/carbocation/interpose

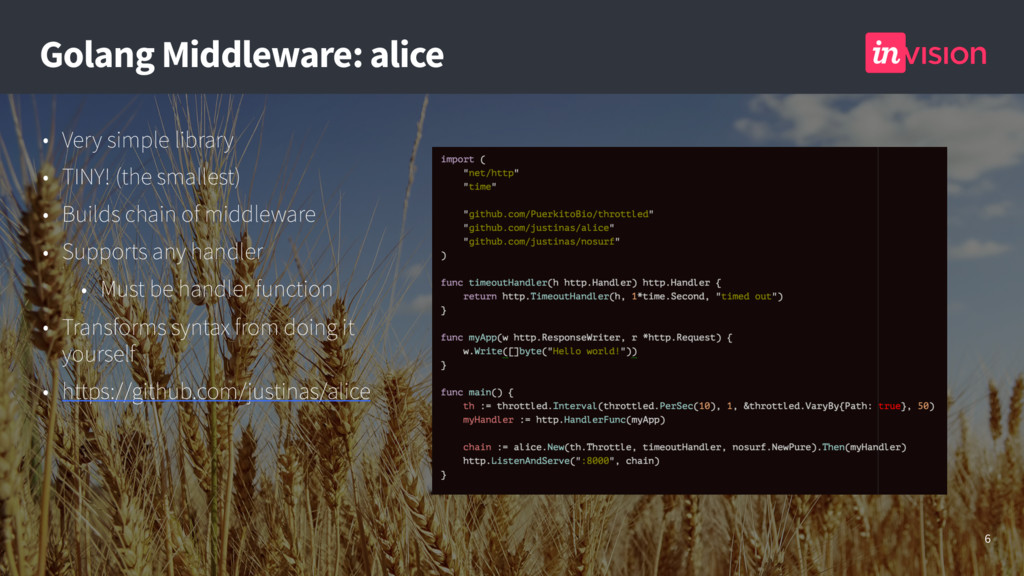

6. 6 Golang Middleware: alice • Very simple library • TINY! (the smallest) • Builds chain of middleware • Supports any handler • Must be handler function • Transforms syntax from doing it yourself • https://github.com/justinas/alice

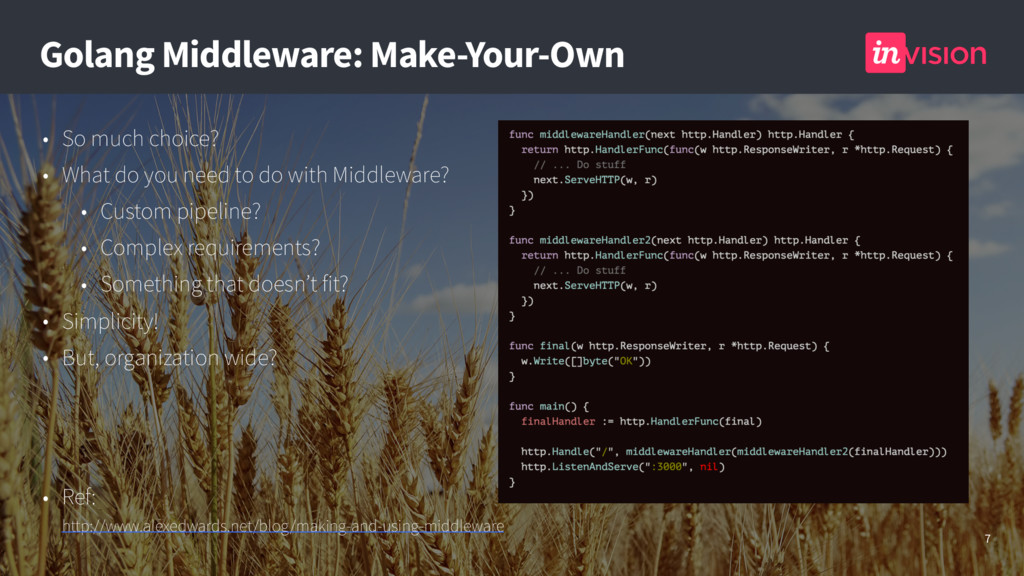

7. 7 Golang Middleware: Make-Your-Own • So much choice? • What do you need to do with Middleware? • Custom pipeline? • Complex requirements? • Something that doesn’t fit? • Simplicity! • But, organization wide?



 • Ref:
 http://www.alexedwards.net/blog/making-and-using-middleware
8. 8 Introducing: Rye! • Easy to configure • Built-in Statsd per middleware • Supports 1.7 Golang Context • Out of the box Middlewares • Access Token verification • CIDR verification • JWT verification • CORS support • Route logging • Extensible • Make a middleware easily

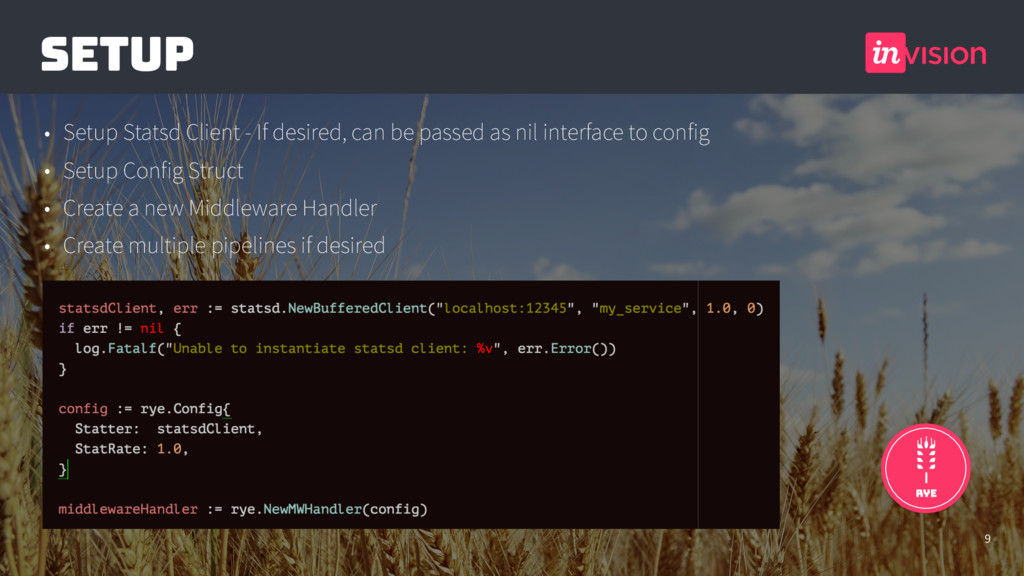

9. 9 SETUp • Setup Statsd Client - If desired, can be passed as nil interface to config • Setup Config Struct • Create a new Middleware Handler • Create multiple pipelines if desired

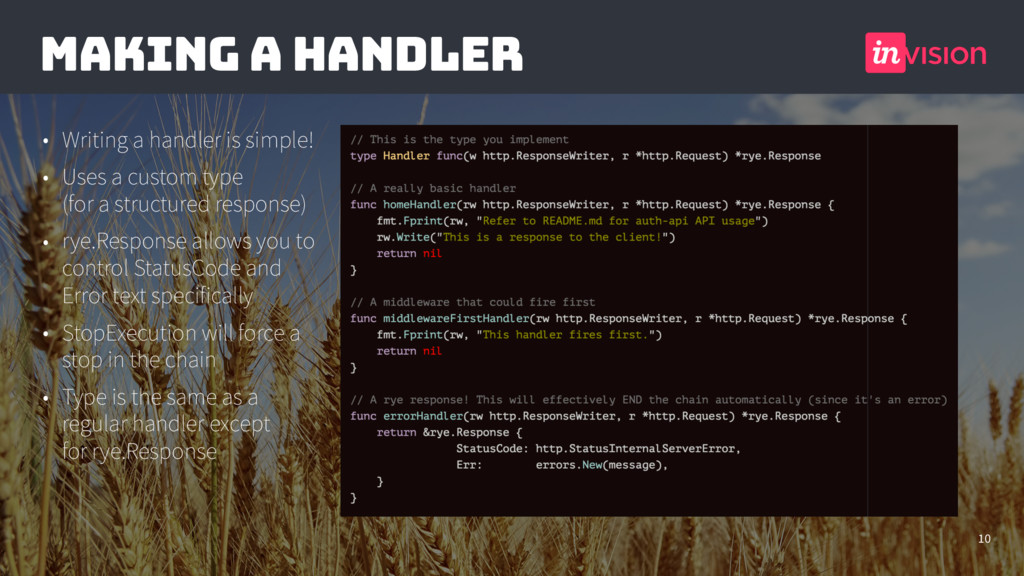

10. 10 Making a Handler • Writing a handler is simple! • Uses a custom type
 (for a structured response) • rye.Response allows you to
 control StatusCode and
 Error text specifically • StopExecution will force a
 stop in the chain • Type is the same as a
 regular handler except
 for rye.Response

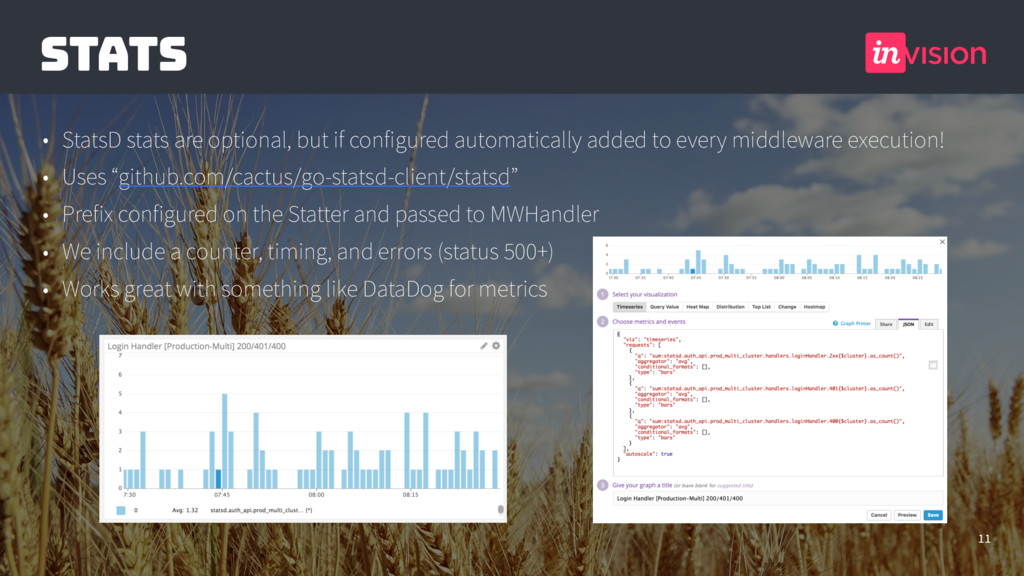

11. 11 STATS • StatsD stats are optional, but if configured automatically added to every middleware execution! • Uses “github.com/cactus/go-statsd-client/statsd” • Prefix configured on the Statter and passed to MWHandler • We include a counter, timing, and errors (status 500+) • Works great with something like DataDog for metrics

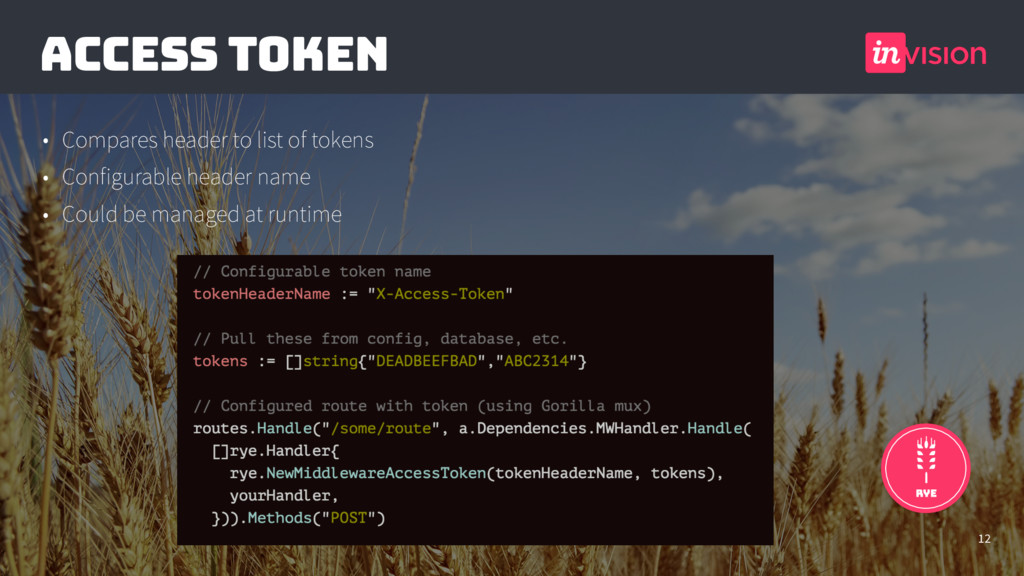

12. 12 ACCESS TOKEN • Compares header to list of tokens • Configurable header name • Could be managed at runtime

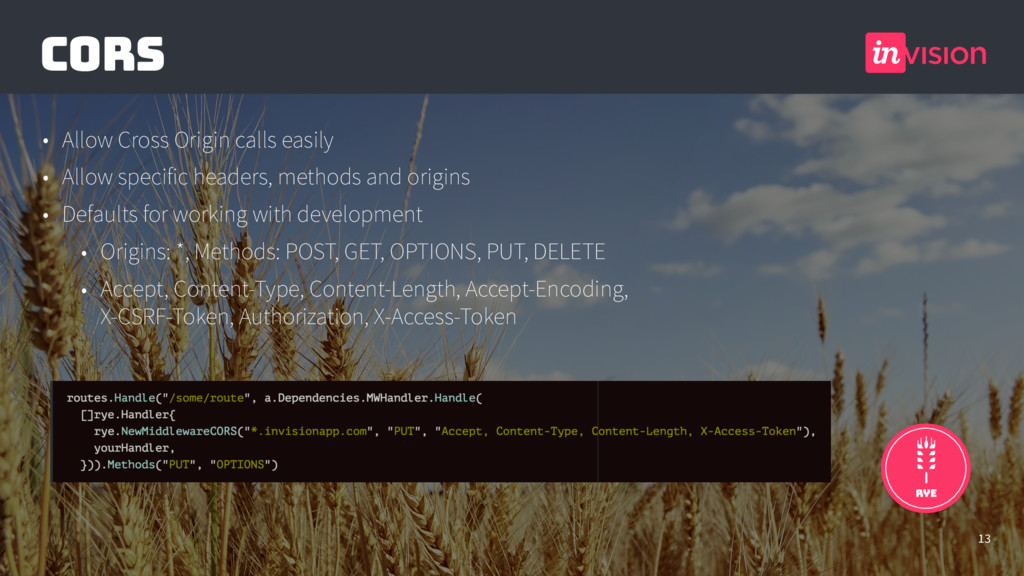

13. 13 CORS • Allow Cross Origin calls easily • Allow specific headers, methods and origins • Defaults for working with development • Origins: *, Methods: POST, GET, OPTIONS, PUT, DELETE • Accept, Content-Type, Content-Length, Accept-Encoding,
 X-CSRF-Token, Authorization, X-Access-Token
14. 14 CIDR • Configure multiple CIDR filters • CIDR notation: https://en.wikipedia.org/wiki/Classless_Inter-Domain_Routing • A failure produces a 401 Unauthorized

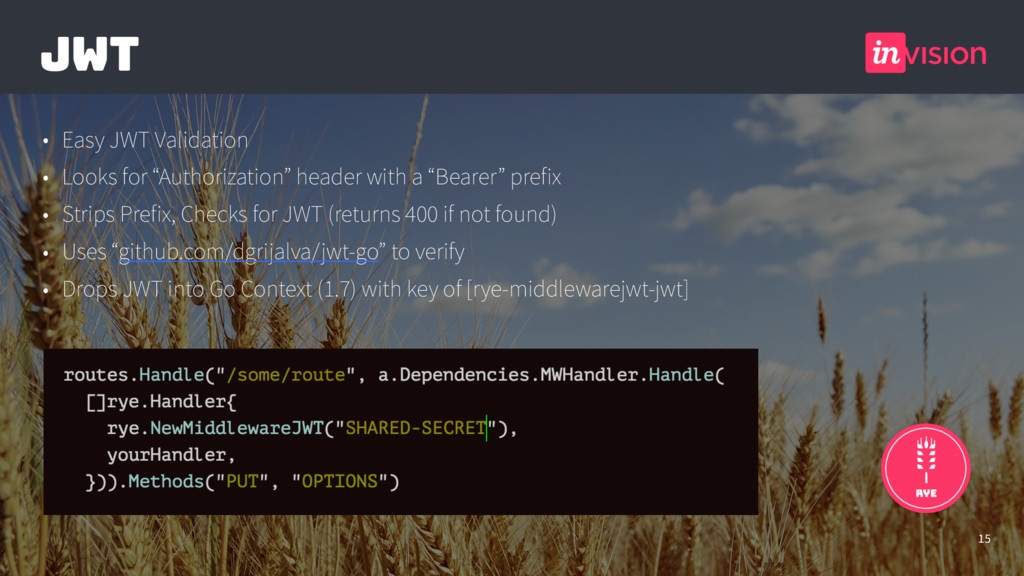

15. 15 JWT • Easy JWT Validation • Looks for “Authorization” header with a “Bearer” prefix • Strips Prefix, Checks for JWT (returns 400 if not found) • Uses “github.com/dgrijalva/jwt-go” to verify • Drops JWT into Go Context (1.7) with key of [rye-middlewarejwt-jwt]

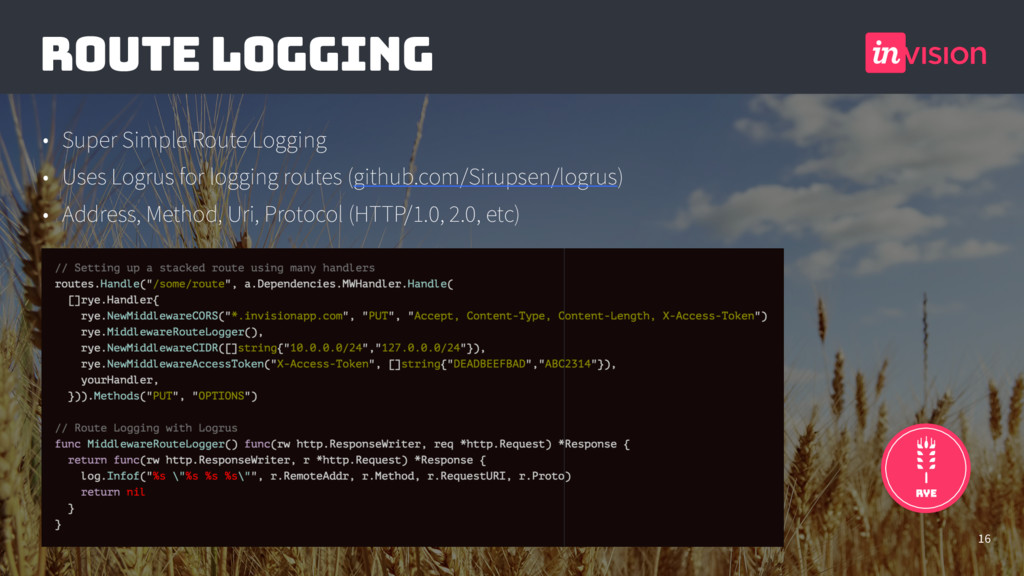

16. 16 ROUTE Logging • Super Simple Route Logging • Uses Logrus for logging routes (github.com/Sirupsen/logrus) • Address, Method, Uri, Protocol (HTTP/1.0, 2.0, etc)

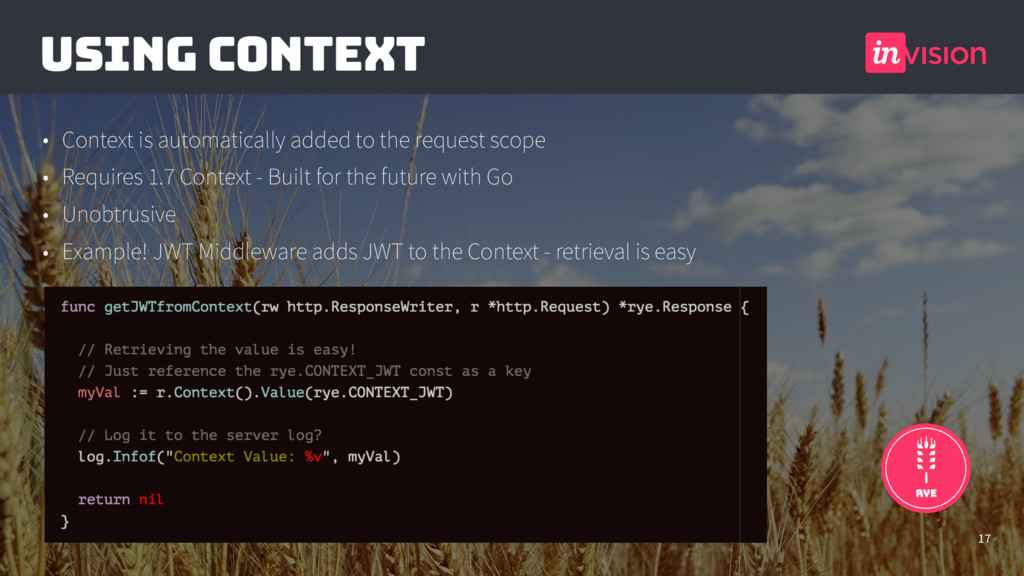

17. 17 USING CONTEXT • Context is automatically added to the request scope • Requires 1.7 Context - Built for the future with Go • Unobtrusive • Example! JWT Middleware adds JWT to the Context - retrieval is easy
18. 18 Wrap-Up • Why Rye? • Tiny but useful • Better? Or Different? • Learn! - Unintended Benefits! • Community! • Inspiration! • Unicorns! • Github: https://github.com/InVisionApp/rye • Engineering Blog: http://engineering.invisionapp.com/ • Core Tech! Golang, NodeJS, Docker, React, Cold Fusion, Kubernetes, AWS
