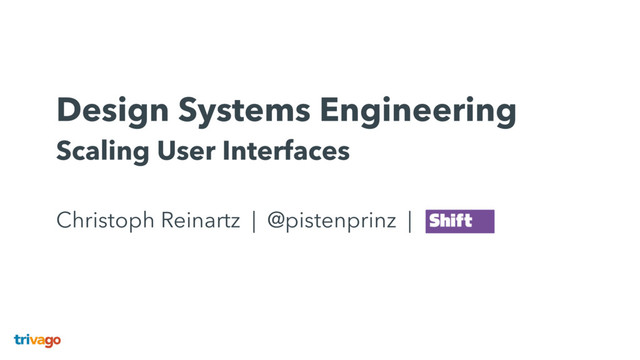

  1. Design Systems Engineering
 Scaling User Interfaces

 Christoph Reinartz |

    @pistenprinz |
  2. Title
 subtitle

  3. Based on a true story
 Share what worked

  4. Design Systems
 An Overview

  5. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles Inspired by: https://medium.com/@NateBaldwin/anatomy-of-a-design-system-7a6b0677bf5
  6. Definition
 CSS Framework This is the front-end code and production-ready

    design assets. The CSS framework is referenced and consumed by the product(s). It is a modular, scalable, and extensible tool that fosters rapid development and typically confirms to a CI/ CD development environment. https://medium.com/@NateBaldwin/clarifying-our-style-guide-nomenclature-ab72358ee111#.nduusckg1
  7. Title
 subtitle

  8. This is the documentation resource for the design system. Since

    the design system is purely code and assets, the style guide is a site to demonstrate the UI patterns with references to aid in implementation and usage. Definition
 Styleguide https://medium.com/@NateBaldwin/clarifying-our-style-guide-nomenclature-ab72358ee111#.nduusckg1
  9. Title
 subtitle

  10. Definition
 Pattern Library This is a library of standardized UI

    patterns. They are the final designs, and can be delivered in the form of a repository of design files, or a symbol library/UI kit. It is the resource for designers to build from. https://medium.com/@NateBaldwin/clarifying-our-style-guide-nomenclature-ab72358ee111#.nduusckg1
  11. Definition
 Design System The entirety of the standardized UI patterns,

    framework, assets, and documentation, as well as the processes and people involved. It is the ecosystem that drives and supports the unified evolution of the product(s). https://medium.com/@NateBaldwin/clarifying-our-style-guide-nomenclature-ab72358ee111#.nduusckg1
  12. Design Systems
 Examples

  13. None
  14. None
  15. None
  16. None
  17. Design System Why do we need it?

  18. #1 Establish design and code consistency Remove clutter in code

    code and design
  19. #2 Improve code quality and maintainability Reduce technical debt

  20. #3 Provide base for modern & sustainable UI rebuild Build

    modern applications fast
  21. Specificity graph 2012
 The specificity wall

  22. #banner_topnav div.tablink li div.dropdown #table.localization
 a.plain:hover { color:#fff !important; }

    Show me your code
 Specificity 254
  23. None
  24. peaks at the beginning of the stylesheet Graph 2015


    Way better, but still…
  25. HTML5

  26. #1 Sprites were out of control We built Frankenstein with

    Icons
  27. Title
 subtitle

  28. #2 Too much CSS How many Selectors do you use?

    ALL!
  29. #3 Desktop first approach Oh you poor mobile devices

  30. #4 Inconsistency and missing Styleguide Or how to create fifty

    shades of grey
  31. None
  32. Title
 subtitle

  33. Title
 subtitle

  34. Title
 subtitle

  35. #5 Repeat yourself 97 different footers - no single source

    of truth
  36. Title
 subtitle

  37. Title
 subtitle

  38. Title
 subtitle

  39. Title
 subtitle

  40. #6 Overly complex CSS/DOM structure div, div, div, span, span,

    span
  41. #7 Too much confusion in code Scary comments

  42. Title
 subtitle

  43. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles
  44. Processes & Integration Methodologies and people

  45. #issue JPG to Jira Task driven development Developing on the

    live system
  46. None
  47. # Transforming the workflow Migration to a Design Systems Engineering

    Team
  48. Digital Design UI Engineering

  49. Design Development HTML CSS JavaScript

  50. Design Development Accessibility Animations Integration Semantic Usability Performance JS Framework

    X
  51. Design Development Accessibility Animations Integration Semantic Usability Performance JS Framework

    X
  52. Design Development Accessibility Animations Integration Semantic Usability Performance JS Framework

    X
  53. Design Development Accessibility Animations Integration Semantic Usability Performance JS Framework

    X
  54. # Atomic Design An approach for modular interfaces

  55. http://bradfrost.com/blog/post/atomic-design-in-one-gif/

  56. The initial version
 Simple but it worked

  57. None
  58. Form Elements Buttons Navigation Teaser Header Footer Typographie Icons Tabs

    Grid
  59. None
  60. Good news everyone
 We do it differently now - The

    sales pitch
  61. None
  62. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles
  63. None
  64. None
  65. None
  66. Title
 subtitle Project Ironman Large scale CSS refactoring Christoph Reinartz

    - ScotlandCSS - Edinburgh, June 1st 2016
  67. New CSS Core Old CSS Core normalize.css reset.css border-box content-box

    mobile first (min-width) desktop first (max-width) media queries inline in separate files embed SVG icon image sprites ITCSS layering [something] BEM, OOCSS [something] Post processing (MQPacker etc.) nothing (Assetic)
  68. peaks at the beginning of the stylesheet Graph before Ironman


    Way better, but still…
  69. New CSS base refactored CSS Graph after Ironman
 Improved curve…

  70. Components Process CSS
 Framework Styleguide Design
 Language Documentation

    Assets UI Kit Design
 Principles
  71. From refactoring to rebuilding
 A new Search Result component

  72. Refactoring first
 Disposable refactoring of old code

  73. Step 1 New codebase integrated Old layout kept because don’t

    release what you haven’t tested
  74. Step 2 Iterate new versions of UI components A new

    Search Result component based on the new base
  75. Rebuilding later
 Relaunch a few weeks after the refactoring

  76. Release and test
 And qualify it

  77. Step 3 Go to step 2 Rebuild more Components

  78. Rebuild more components
 Relaunch a few weeks after the refactoring

  79. None
  80. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles
  81. <3 New Icon System From sprites to Inline-SVG

  82. Title
 subtitle

  83. Title
 subtitle

  84. Title
 subtitle

  85. Title
 subtitle

  86. description details infobig hotelconnect smiley heart towel star pictures wifi

    spa beach breakfast pool pet golf tv family eco parking bed_single bed_double bed_small couple universal home menu share edit checkout checkin general rates faq_circle faq info_circle info arrow_right_circle arrow_left_circle arrow_down_circle arrow_up_circle arrow_right arrow_left arrow_down arrow_up tick exclamation x plus minus image media bag chair team candy journalist news hoteltest plus_circle minus_circle x_circle filter dashboard statistics hotel2 hotel travel2 travel booking hotelchain upload delete tick_circle exclamation_circle contact profile info product history giveback lock calendar search publisher career comment download map smiley_belowaverage smiley_satisfactory smiley_good smiley_verygood smiley_excellent smiley_belowaverage smiley_satisfactory smiley_good smiley_verygood smiley_excellent level sort department poi_citycentre poi_airport poi_sight poi_conference poi_harbor poi_mainstation poi_nature poi_nightlife poi_sports filterreset join thin share2 movie call piechart diagram music multimedia wifi spa beach breakfast pool pet golf tv family eco parking bed_single bed_double bed_small couple universal home menu share edit checkout checkin general rates description details infobig hotelconnect smiley heart towel star pictures icn_profile icn_info icn_product icn_history icn_giveback icn_lock icn_calendar icn_search icn_publisher icn_career icn_comment icn_download icn_map icn_dashboard icn_statistics icn_hotel2 icn_hotel icn_travel2 icn_travel icn_booking icn_hotelchain icn_upload icn_delete icn_tick_circle exclamation_circle contact image media bag chair team candy journalist news hoteltest plus_circle minus_circle x_circle icn_filter arrow_right_circle arrow_left_circle arrow_down_circle arrow_up_circle arrow_right arrow_left arrow_down arrow_up tick exclamation x plus minus faq_circle faq info_circle info smiley_belowaverage smiley_satisfactory smiley_good smiley_verygood smiley_excellent smiley_belowaverage smiley_satisfactory smiley_good smiley_verygood smiley_excellent level sort department poi_citycentre poi_airport poi_sight poi_conference poi_harbor poi_mainstation poi_nature poi_nightlife poi_sports join thin filterreset share2 movie call piechart diagram music multimedia
  87. None
  88. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles
  89. <3 Sorted the colors Established and introduce a color palette

  90. trv-blue-light #3f9fc1 trv-red-light #d67763 trv-green-light #8cba3f trv-green-lighter #b2d17f trv-green-dark #4c7b00

    trv-juri-light #697379 trv-juri-lighter #9ba2a6 trv-juri-lightest #ebeced trv-blue-dark #005f81 trv-blue #007fad trv-orange #f48f00 trv-red #c94a30 trv-orange-dark #b76b00 trv-orange-light #f6ab3f trv-blue-lightest #e5f2f6 trv-red-lightest #f9ecea trv-orange-lightest #fdf3e5 trv-red-dark #963724 trv-green #66a400 trv-juri #37454d trv-juri-dark #293339 16 12 18 16 12 12 18 12 18 16 * trv-juri-very-light #cdd0d2 trv-red-very-light #f1d1cb trv-green-very-light #d8e8bf trv-orange-very-light #fce3bf trv-blue-very-light #bfdfea trv-red-lighter #e4a49b trv-orange-lighter #f9c780 trv-blue-lighter #7fbfd6 trv-green-lightest #eff5e5
  91. Title
 subtitle Now 2015

  92. <3 Code Styleguide And Documentation

  93. None
  94. None
  95. None
  96. None
  97. None
  98. Components Process UI Layer Styleguide Design
 Language Documentation Assets

    UI Kit Design
 Principles
  99. Lessons learned What went wrong? And why?

  100. None
  101.
 “We built a Design System for you w/o knowing

    your needs. You should totally use it”
  102. None
  103.
 “We built a Design System together. Everybody can use

    it”
  104. </3 Let’s remove this CSS class Famous last words

  105. pull-left vs. fl-leading
 nobody uses this old thing, or? deprecated

    class non - deprecated class 97% 3%
  106. </3 Is the scope too big? There is no approach

    to rule them all
  107. The roll-out Vision handling
 The verbose version

  108. The roll-out Vision
 Filtered by Designers

  109. 21 admin-library patternlab-loader admin-lib trivago-core_patterns daisy-and-trivi fork visualisation admin-tools application

    composer package composer package composer package symfony application scss _patterns _patterns
  110. patternlab-loader dmin-lib -core_patterns admin-tools application oser package oser package composer

    package symfony application scss _patterns _patterns
  111. 100% Pattern lab loader reusable shared templates 100%

  112. CSS Components to be open sourced soon 80%

  113. </3 Dependencies From monolith to packages to mono-repo

  114. daisy-and-trivi applications

  115. daisy-and-trivi applications trivago core patterns

  116. daisy-and-trivi applications trivago core patterns

  117. None
  118. None
  119. None
  120. None
  121. None
  122. None
  123. None
  124. daisy-and-trivi applications trivago core patterns

  125. Design System Metrics
 Some data

  126.
 “We saved two weeks when using the System” *

    *) Communication Team
  127.
 16 contributors

  128.
 12 teams using it

  129.
 15 public applications using it

  130. Title
 subtitle

  131. Title
 subtitle

  132. Title
 subtitle

  133.
 5 external companies using it

  134. Christoph Reinartz UI/UX Engineer @trivago

 Web: www.creinartz.de
 twitter: @pistenprinz
