Vue JS @ MindDoc. The progressive road to online therapy

Creating a single page application is an iterative process, where we should aim for the "good enough" and continuously improve it based on the growing requirements. The current Frontend ecosystem gives us multiple tools that we can employ based on the use cases we might discover on the way. In this presentation, we explain our Vue adventure and development approach with this framework.

Transcript

1. Vue JS @ MindDoc The progressive road to online therapy Darío Blanco Iturriaga (CTO Schoen Digital Labs) April 26, 2018
2. Life is full of uncertainty ▪ Do we implement the corporate website on our own? minddoc.de ▪ Angular? React? Vue? ▪ JavaScript? TypeScript? 2
3. “ “In his writings, a wise Italian says that the better is the enemy of good” - Voltaire 3
4. Progressive Developing gradually or in stages 4

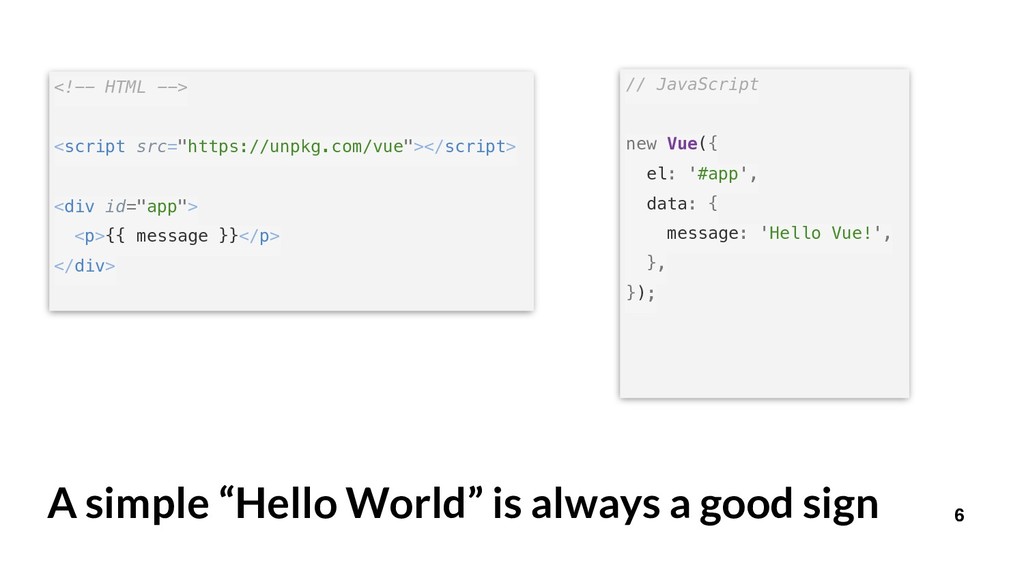

6. 6 A simple “Hello World” is always a good sign <!-- HTML --> <script src="https://unpkg.com/vue"></script> <div id="app"> <p>{{ message }}</p> </div> // JavaScript new Vue({ el: '#app', data: { message: 'Hello Vue!', }, });

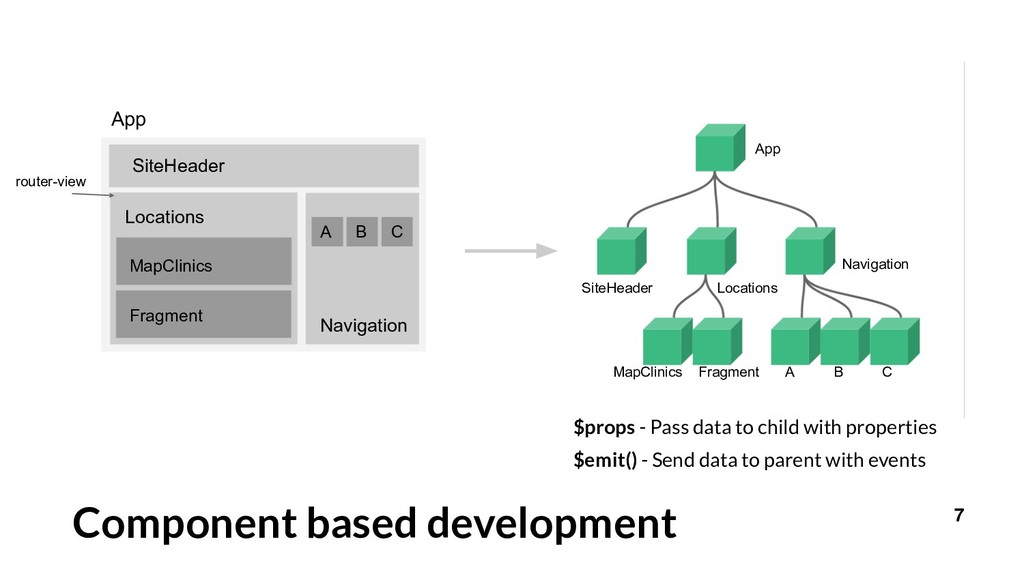

7. Component based development $props - Pass data to child with properties $emit() - Send data to parent with events 7 App SiteHeader Locations router-view Navigation MapClinics Fragment A B C SiteHeader Locations Navigation App MapClinics Fragment A B C

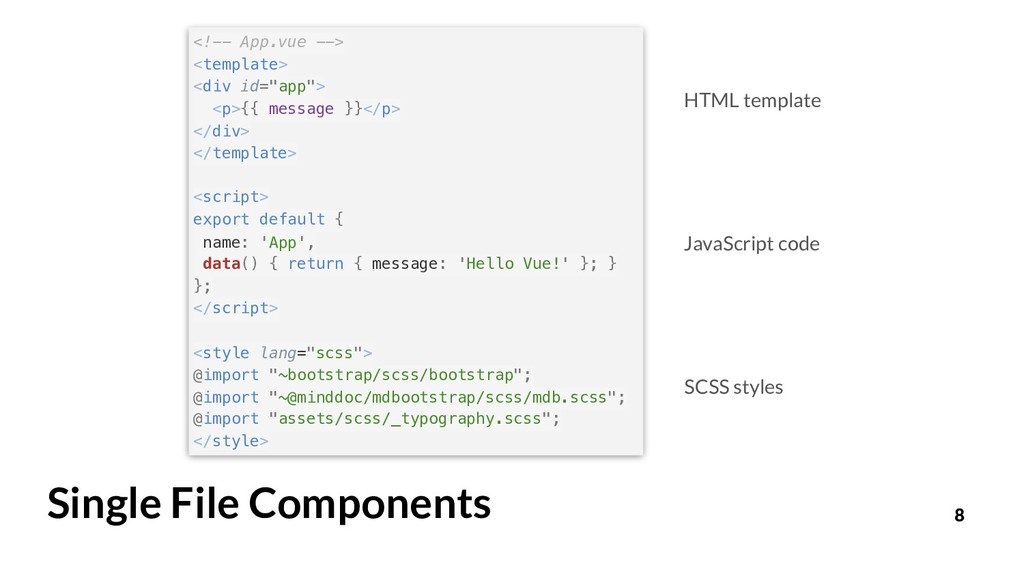

8. 8 Single File Components HTML template JavaScript code SCSS styles <!-- App.vue --> <template> <div id="app"> <p>{{ message }}</p> </div> </template> <script> export default { name: 'App', data() { return { message: 'Hello Vue!' }; } }; </script> <style lang="scss"> @import "~bootstrap/scss/bootstrap"; @import "~@minddoc/mdbootstrap/scss/mdb.scss"; @import "assets/scss/_typography.scss"; </style>

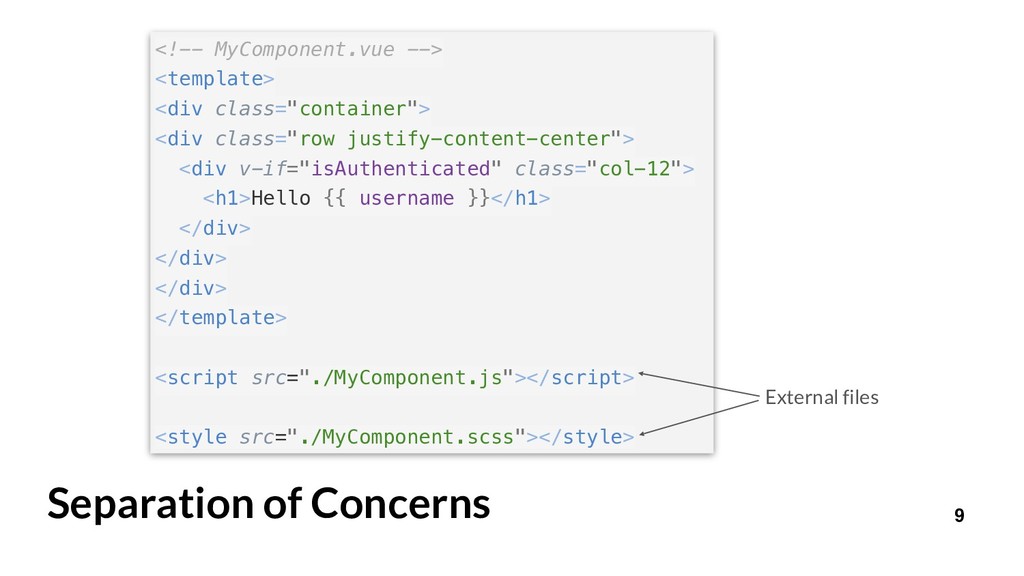

9. 9 Separation of Concerns <!-- MyComponent.vue --> <template> <div class="container"> <div class="row justify-content-center"> <div v-if="isAuthenticated" class="col-12"> <h1>Hello {{ username }}</h1> </div> </div> </div> </template> <script src="./MyComponent.js"></script> <style src="./MyComponent.scss"></style> External files

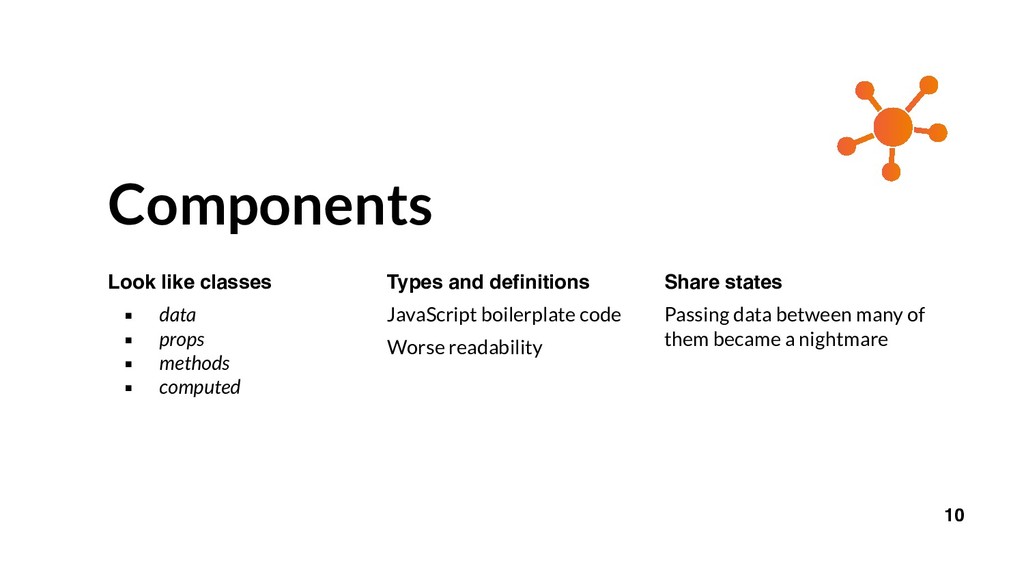

10. Components Look like classes ▪ data ▪ props ▪ methods ▪ computed Types and definitions JavaScript boilerplate code Worse readability Share states Passing data between many of them became a nightmare 10

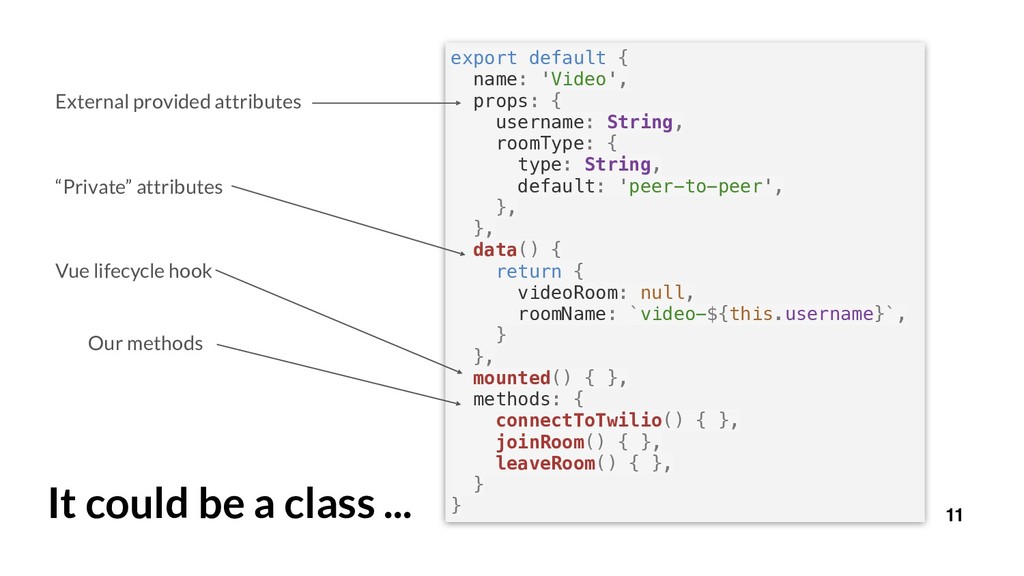

11. 11 It could be a class ... Our methods Vue lifecycle hook “Private” attributes External provided attributes export default { name: 'Video', props: { username: String, roomType: { type: String, default: 'peer-to-peer', }, }, data() { return { videoRoom: null, roomName: `video-${this.username}`, } }, mounted() { }, methods: { connectToTwilio() { }, joinRoom() { }, leaveRoom() { }, } }
12. 12 … write “class based” components import Vue from 'vue'; import Component from 'vue-class-component'; @Component({ props: { username: String, roomType: { type: String, default: 'peer-to-peer', }, } }) export default class Video extends Vue { // initial data videoRoom = null; roomName = `video-${this.username}`; // lifecycle hook mounted() { }; // methods connectToTwilio() { } joinRoom() { } leaveRoom() { } } Reserved method name Our methods Data is implicit “Old style” can be set in decorator (ES6)
14. Types! Full Vue support (since 2.5.0+) Easy to set with vue-cli (3.0+) Experimental decorators 14

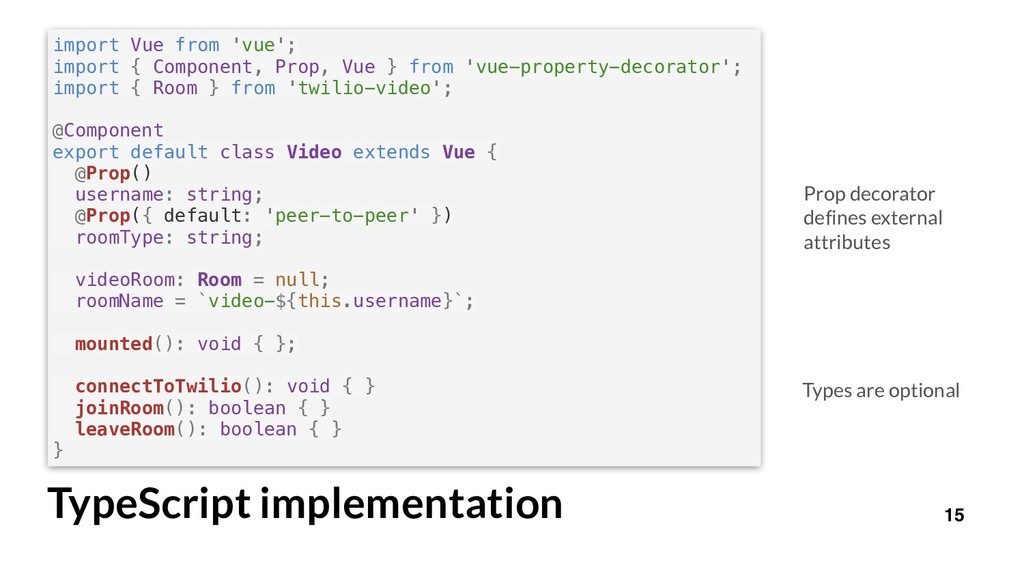

15. import Vue from 'vue'; import { Component, Prop, Vue } from 'vue-property-decorator'; import { Room } from 'twilio-video'; @Component export default class Video extends Vue { @Prop() username: string; @Prop({ default: 'peer-to-peer' }) roomType: string; videoRoom: Room = null; roomName = `video-${this.username}`; mounted(): void { }; connectToTwilio(): void { } joinRoom(): boolean { } leaveRoom(): boolean { } } 15 TypeScript implementation Prop decorator defines external attributes Types are optional

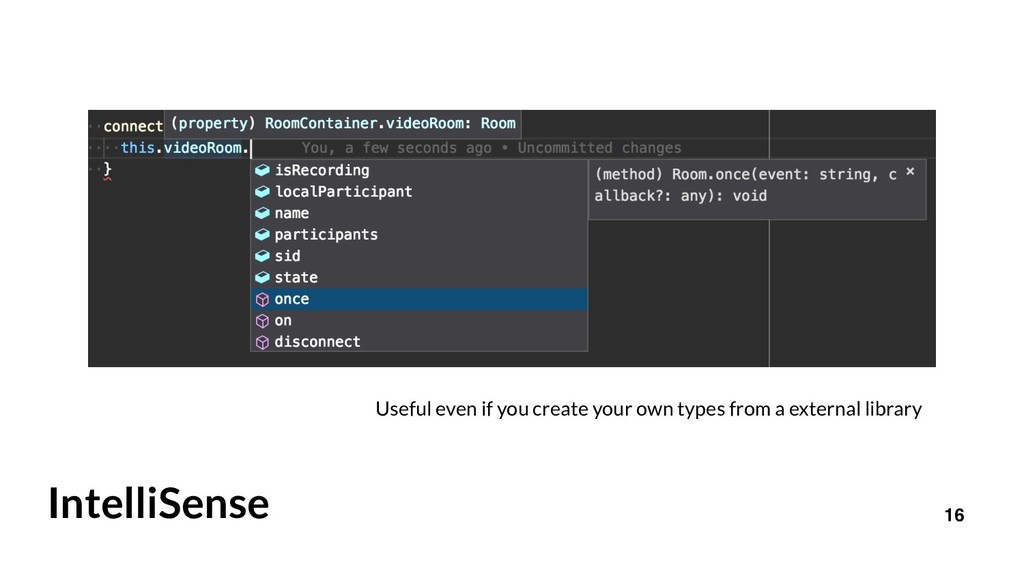

16. 16 IntelliSense Useful even if you create your own types from a external library

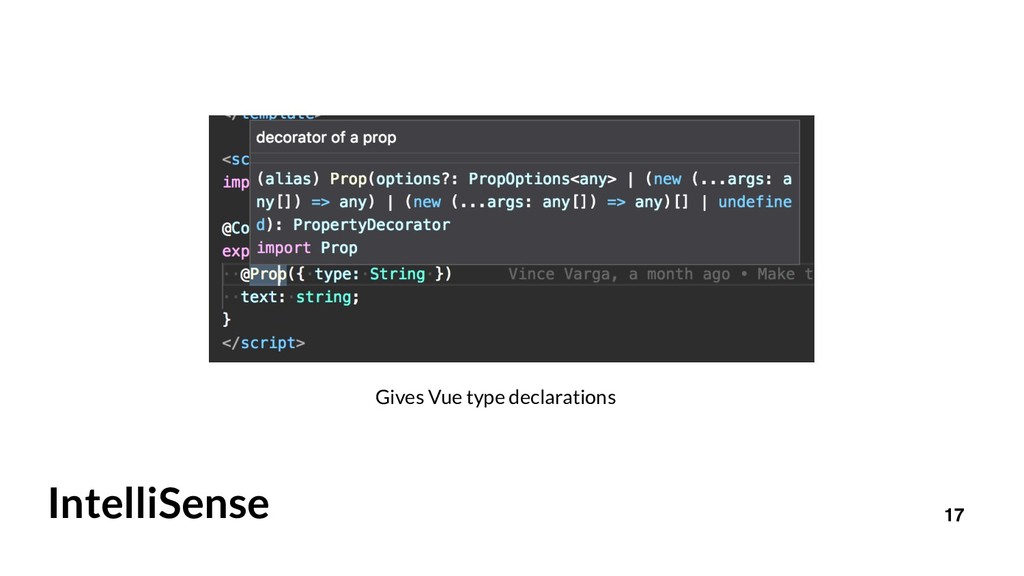

17. 17 IntelliSense Gives Vue type declarations

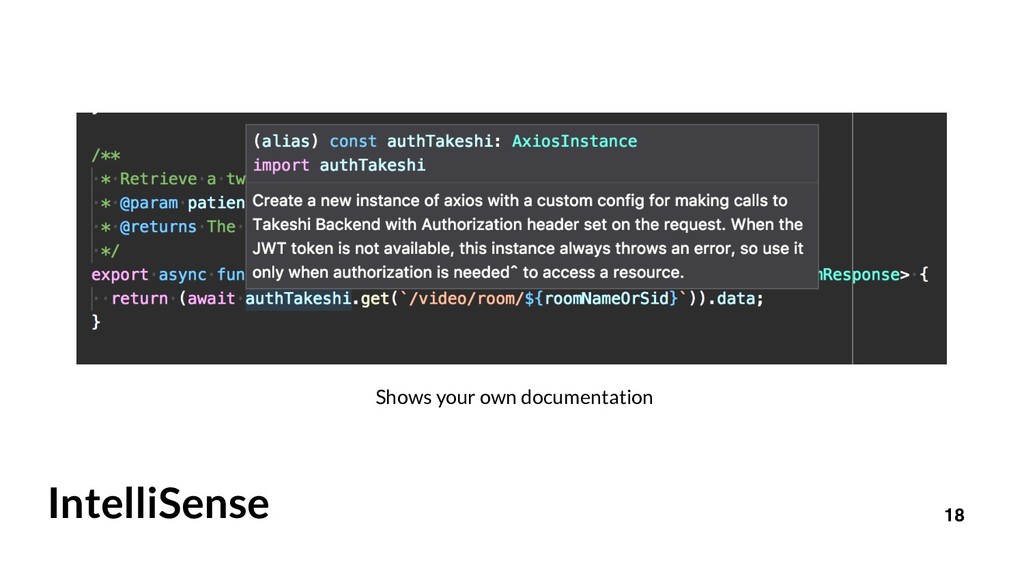

18. 18 IntelliSense Shows your own documentation

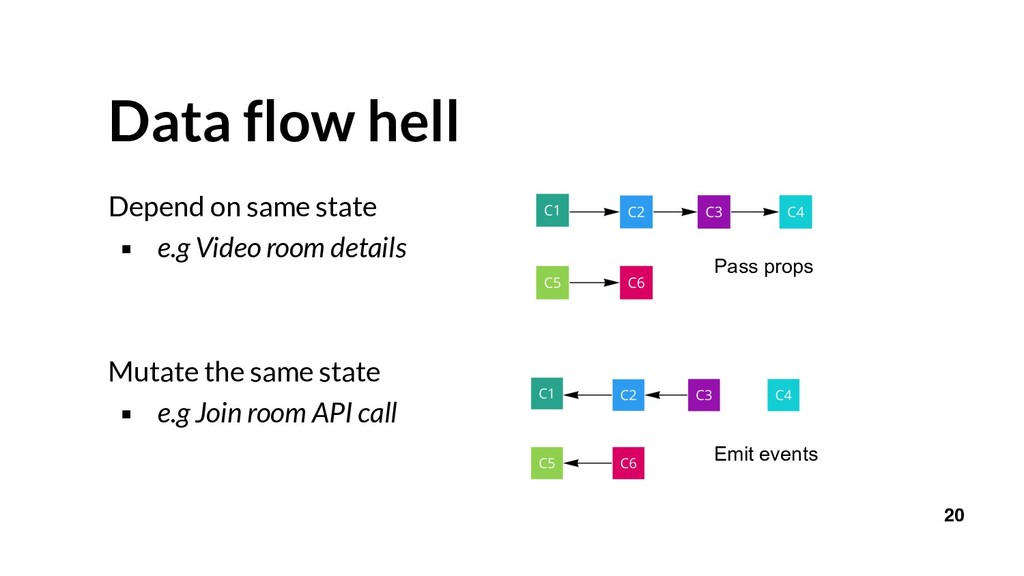

20. Data flow hell Depend on same state ▪ e.g Video room details Mutate the same state ▪ e.g Join room API call 20 Pass props Emit events

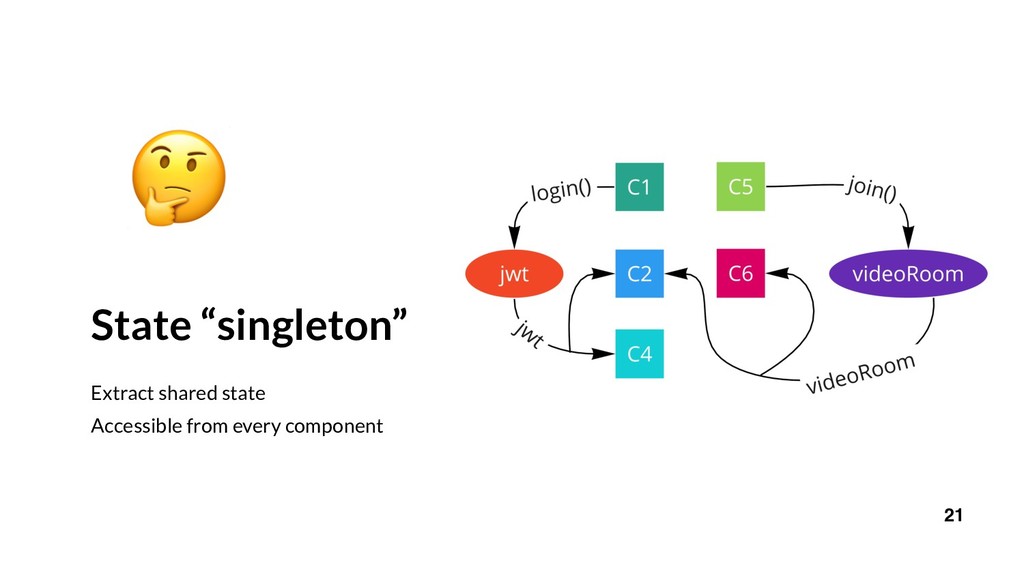

21. State “singleton” Extract shared state Accessible from every component 21

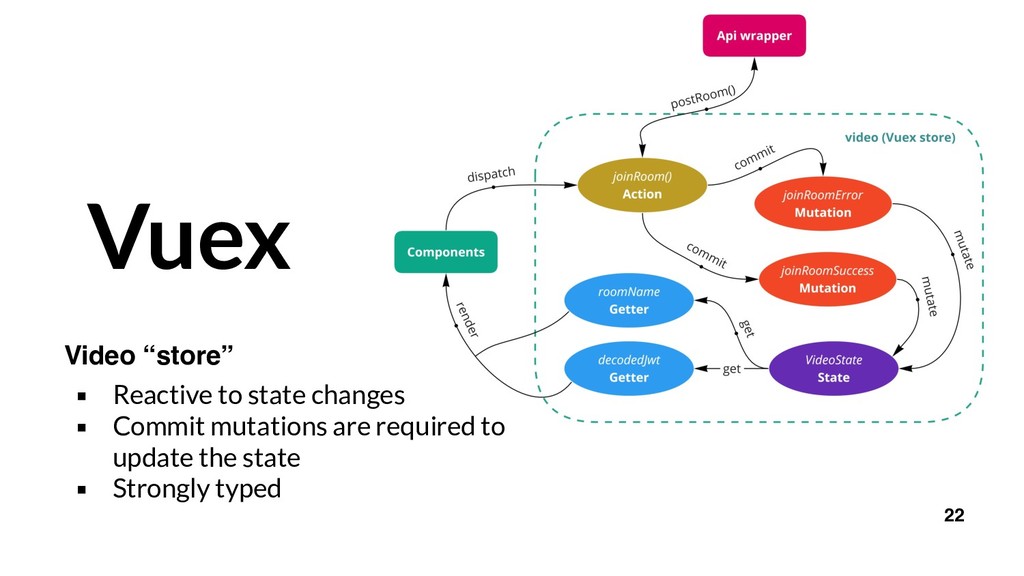

22. Vuex Video “store” ▪ Reactive to state changes ▪ Commit mutations are required to update the state ▪ Strongly typed 22

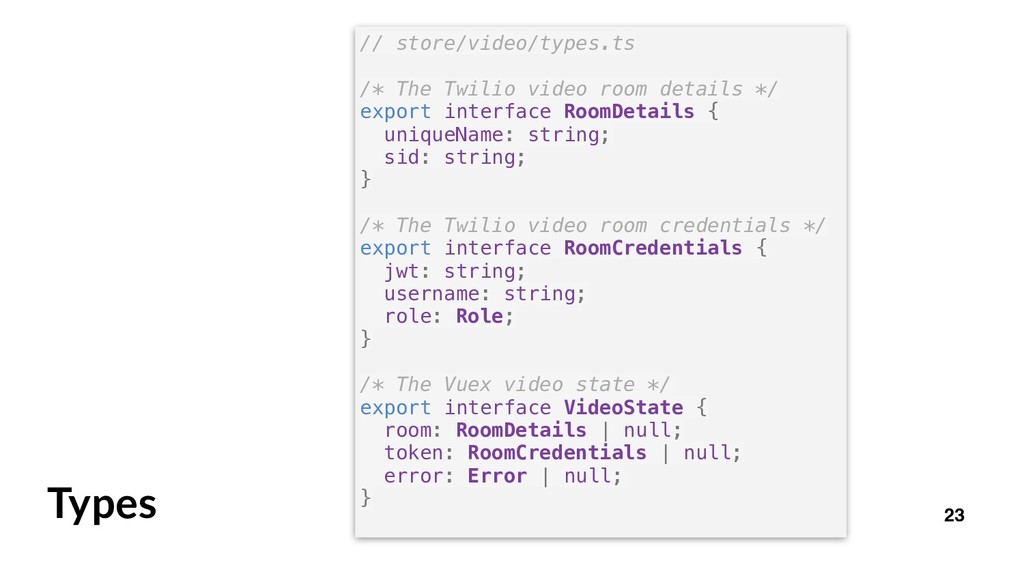

23. 23 Types // store/video/types.ts /* The Twilio video room details */ export interface RoomDetails { uniqueName: string; sid: string; } /* The Twilio video room credentials */ export interface RoomCredentials { jwt: string; username: string; role: Role; } /* The Vuex video state */ export interface VideoState { room: RoomDetails | null; token: RoomCredentials | null; error: Error | null; }

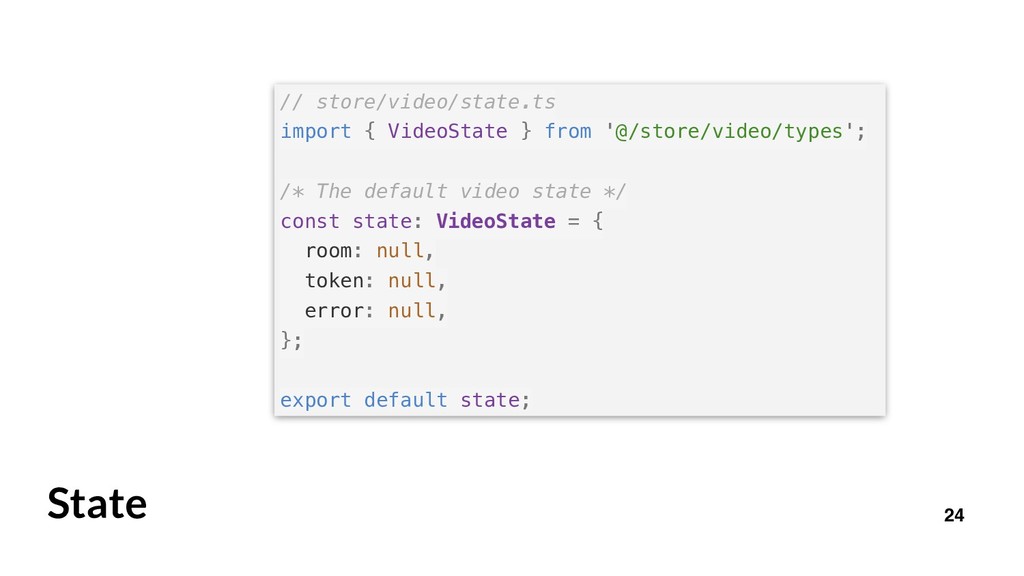

24. 24 // store/video/state.ts import { VideoState } from '@/store/video/types'; /* The default video state */ const state: VideoState = { room: null, token: null, error: null, }; export default state; State

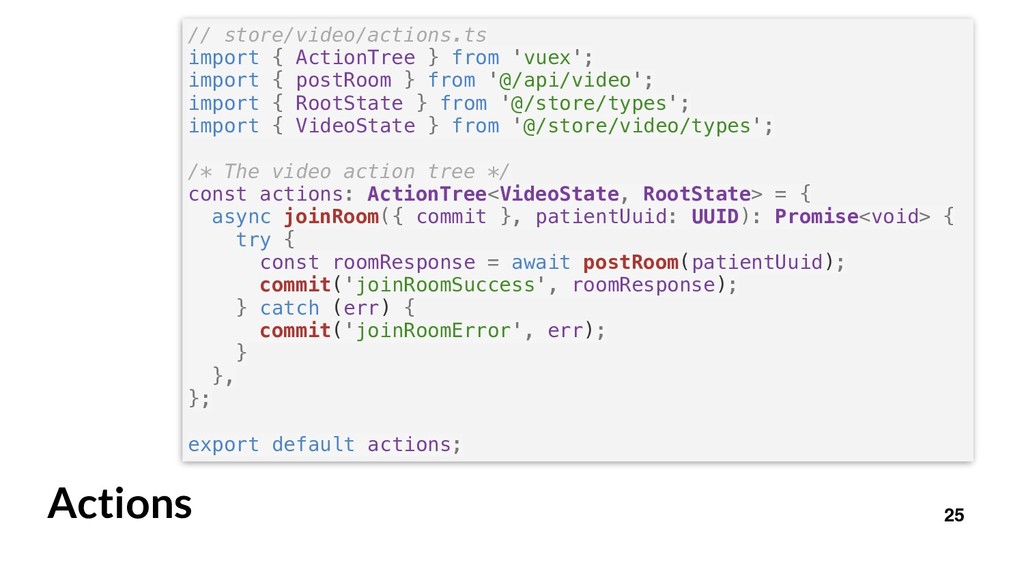

25. 25 Actions // store/video/actions.ts import { ActionTree } from 'vuex'; import { postRoom } from '@/api/video'; import { RootState } from '@/store/types'; import { VideoState } from '@/store/video/types'; /* The video action tree */ const actions: ActionTree<VideoState, RootState> = { async joinRoom({ commit }, patientUuid: UUID): Promise<void> { try { const roomResponse = await postRoom(patientUuid); commit('joinRoomSuccess', roomResponse); } catch (err) { commit('joinRoomError', err); } }, }; export default actions;

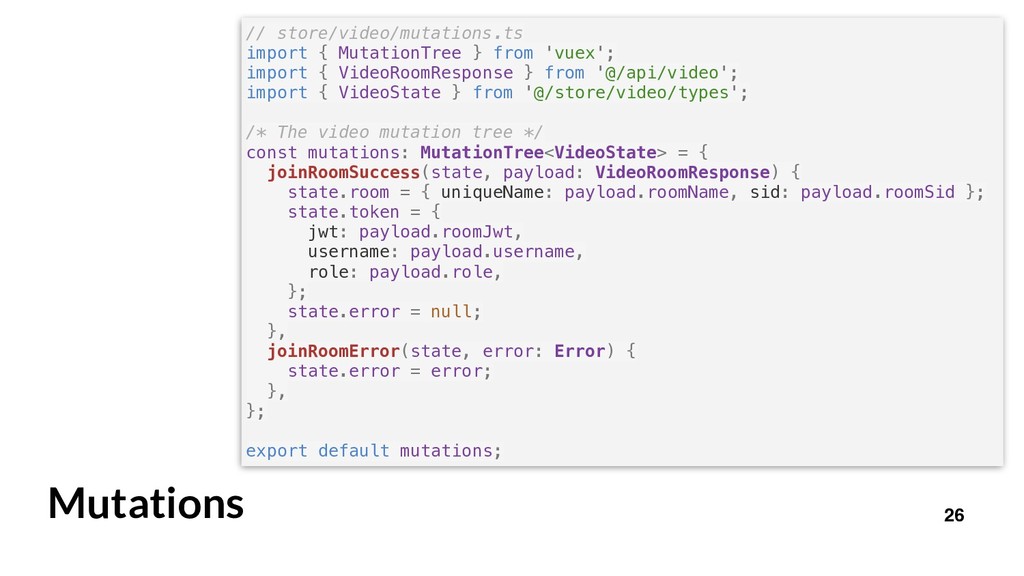

26. 26 Mutations // store/video/mutations.ts import { MutationTree } from 'vuex'; import { VideoRoomResponse } from '@/api/video'; import { VideoState } from '@/store/video/types'; /* The video mutation tree */ const mutations: MutationTree<VideoState> = { joinRoomSuccess(state, payload: VideoRoomResponse) { state.room = { uniqueName: payload.roomName, sid: payload.roomSid }; state.token = { jwt: payload.roomJwt, username: payload.username, role: payload.role, }; state.error = null; }, joinRoomError(state, error: Error) { state.error = error; }, }; export default mutations;

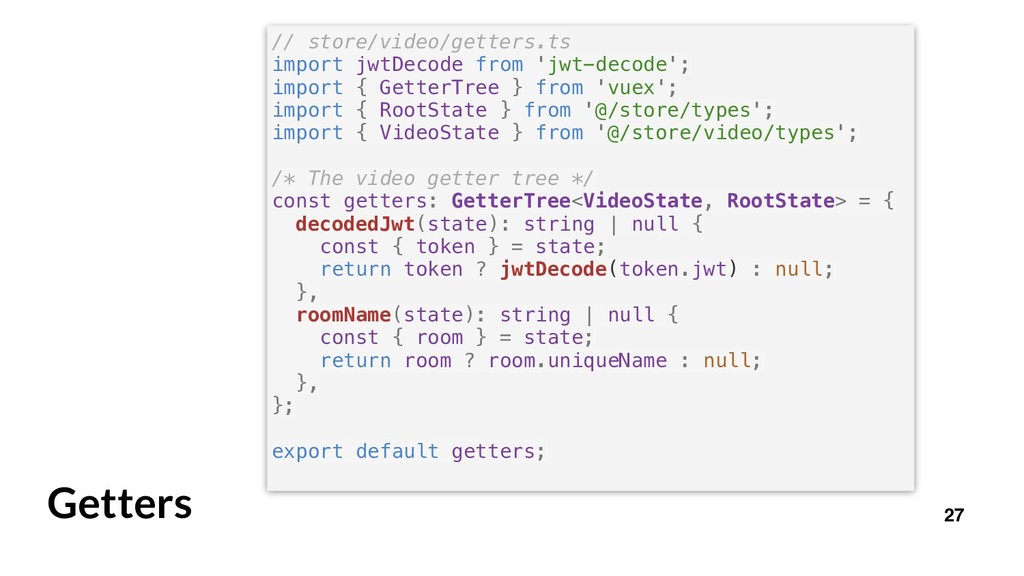

27. 27 Getters // store/video/getters.ts import jwtDecode from 'jwt-decode'; import { GetterTree } from 'vuex'; import { RootState } from '@/store/types'; import { VideoState } from '@/store/video/types'; /* The video getter tree */ const getters: GetterTree<VideoState, RootState> = { decodedJwt(state): string | null { const { token } = state; return token ? jwtDecode(token.jwt) : null; }, roomName(state): string | null { const { room } = state; return room ? room.uniqueName : null; }, }; export default getters;

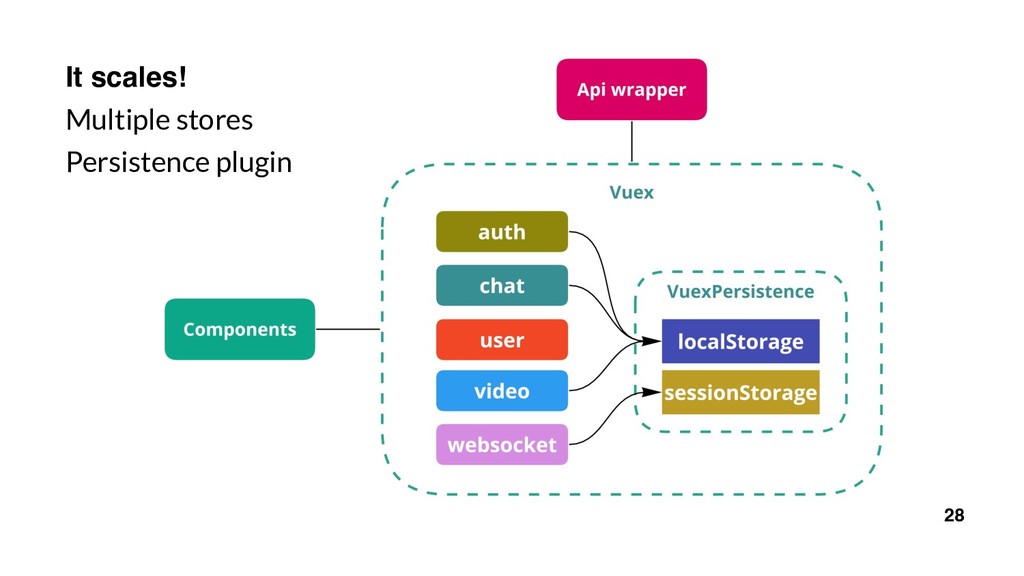

28. 28 It scales! Multiple stores Persistence plugin
29. Testing 29

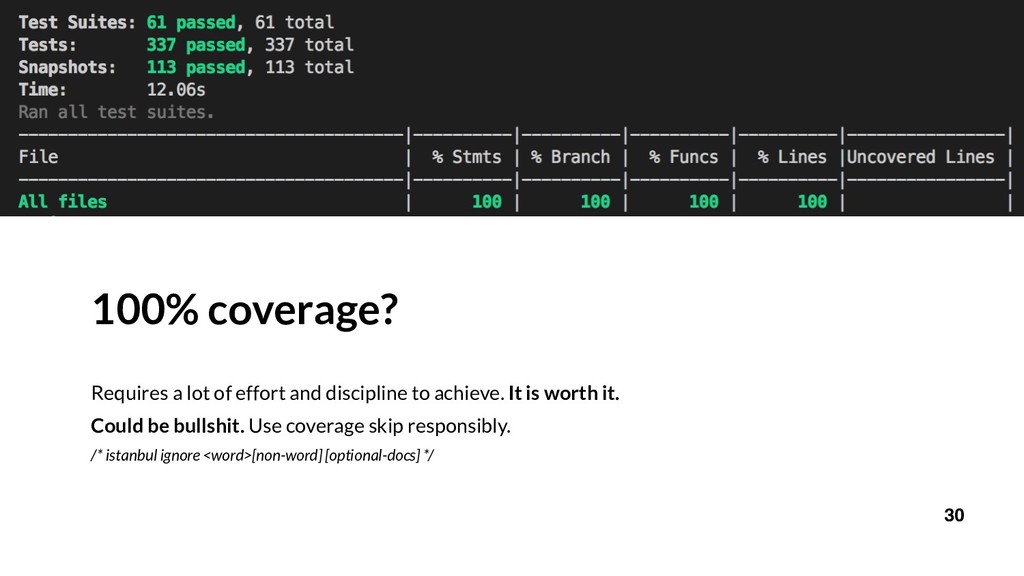

30. 100% coverage? Requires a lot of effort and discipline to achieve. It is worth it. Could be bullshit. Use coverage skip responsibly. /* istanbul ignore <word>[non-word] [optional-docs] */ 30

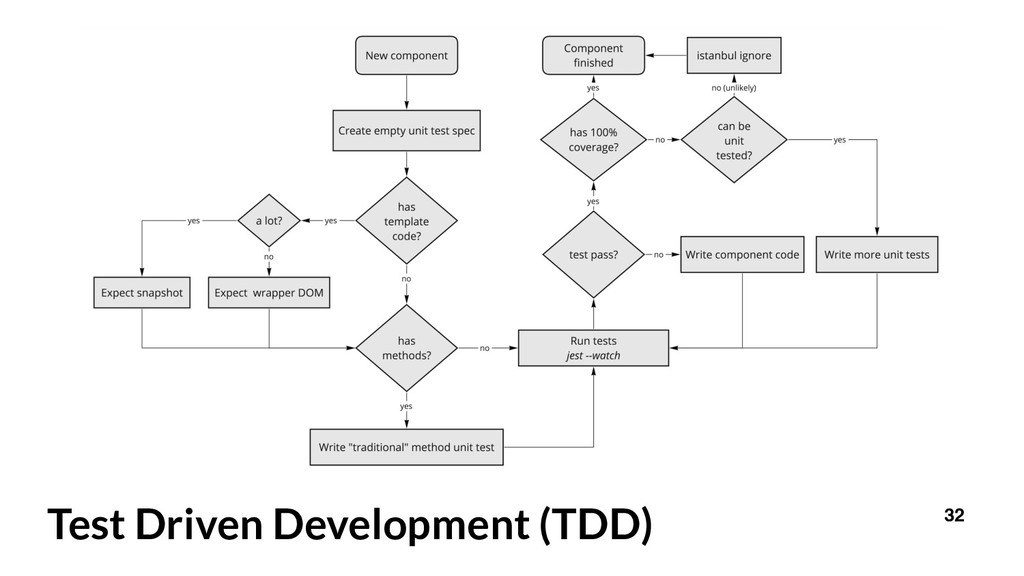

32. 32 Test Driven Development (TDD)

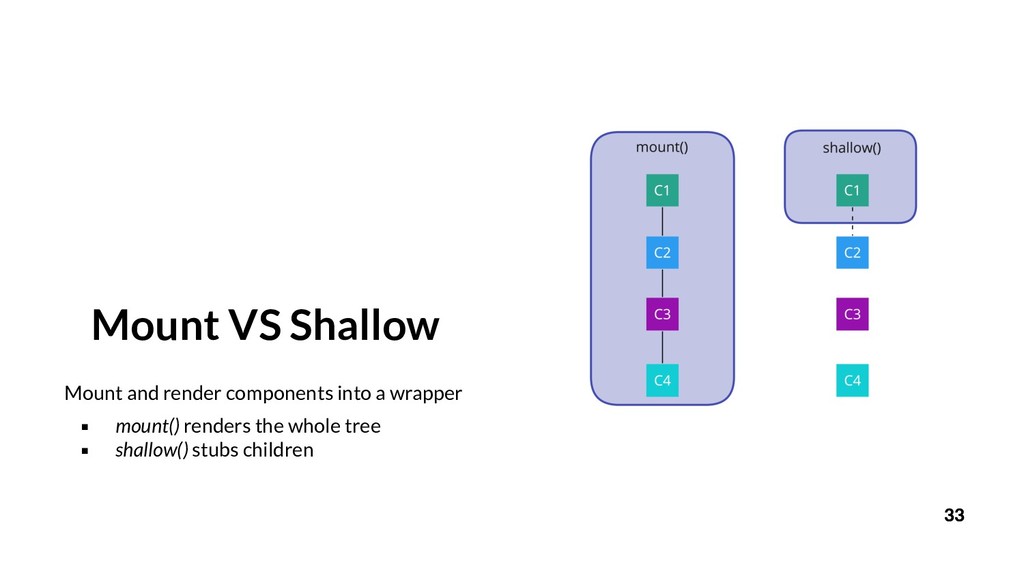

33. Mount VS Shallow Mount and render components into a wrapper ▪ mount() renders the whole tree ▪ shallow() stubs children 33
34. Thanks! Any questions? You can find me at ▪ dblanco@minddoc.de ▪ Twitter: @darioblanco 34 Join our new TypeScript group! ▪ meetup.com/TypeScript-Munich/
