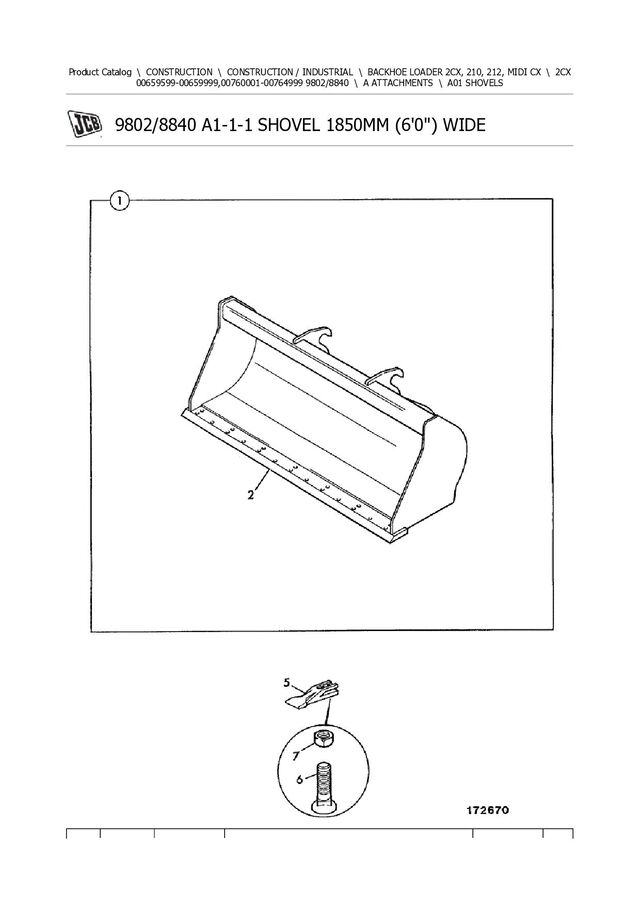

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A01 SHOVELS 9802/8840 A1-1-1 SHOVEL 1850MM (6'0") WIDE
2. Item Part # Change No Description Usage Code QTY 1 528/01600 Shovel G.P. 1850mm wide quickhitch mount 1 2 :141/00472 Toeplate 1850mm wide 14 holes (Weld-On) 1 5 531/03205 Tooth 6 6 826/00303 Bolt Plough 12 7 1340/0701 Nut 12
3. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A01 SHOVELS 9802/8840 A1-3-1 SHOVEL, CLAM 1850MM (6'0") WIDE
4. Item Part # Change No Description Usage Code QTY A 528/00100 Installation clamshovel assembly mk2, 1850mm quickhitch mount 1 1 :141/29900 Superseded Clamshovel assembly 1 1 :141/94700 Clamshovel assembly mk2 1 2 ::141/26900 Superseded Backblade 1 2 ::141/94800 Backblade 1 2A :::141/00498 Toeplate 1784mm wide No holes (Weld-On) 1 3 ::1450/0001 Nipple Grease, Straight 1/8 BSP 4 4 ::141/27000 Clam 1 4A :::141/00472 Toeplate 1850mm wide 14 holes (Weld-On) 1 5 ::1206/0001 Bush 4 6 ::811/50287 Pin pivot 2 7 ::1315/3417Z Bolt (M10 x 75) 2 8 ::1370/0303Z Nut lock M10 2 9 ::141/00542 Washer shim, 2mm thick 2 10 ::2203/0043 Circlip 2 11 **** 'See Remark' Ram, see E4 2 12 :612/27100 Hose 3/8"BSP 910mm long 2 12A :612/21600 Hose 3/8"BSP x 1050mm 2 13 :612/04900 Hose 3/8BSPx405mm 1 14 :612/04900 Hose 3/8BSPx405mm 1 15 :821/00347 Clamp Twin 2 16 :821/00169 Plate Cover 2 17 :816/10023 Adapter bulkhead 2 18 :816/50033 Adapter Tee 2 19 :1315/3314Z Bolt (M8 x 60) 2 20 :1370/0203Z Nut Nut M8 2 21 :811/50285 Pin pivot 2 22 :811/50286 Pin pivot 2 23 :1315/3315Z Bolt Star Drive M8 x 65mm 2 24 :1370/0203Z Nut Nut M8 2 25 :1604/0003 Adapter Male/Male 2 26 :1406/0015 Washer Bonded 3/8" 2 27 :45/902300 Coupling female 3/8" BSP 1 28 :45/902200 Coupling 3/8" BSP male quick release 1 29 :1417/0016Z Washer Locking 2
5. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A01 SHOVELS 9802/8840 A1-5-1 GUARD, TOOTH
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Item Part # Change No Description Usage Code QTY 1 140/43000 Guard tooth, 1850mm Position A with teeth, B without teeth. 1 1 141/80000 Guard tooth, 1950mm 1 2 817/00054 Label outline sticker L.H. 1 3 817/00055 Label outline sticker R.H. 1 4 1315/0509Z Setscrew M12 x 35mm 2 5 1370/0403Z Nut Lock, M12 2 6 1420/0009Z Washer (M12) 2
8. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A01 SHOVELS 9802/8840 A1-6-1 TOEPLATE, BOLT ON 1850MM
9. Item Part # Change No Description Usage Code QTY 1 141/00704 Toeplate 1850mm wide 7 holes (Bolt-On) Reversible 1 2 826/01142 Ploughbolt M20 x 60mm long 7 3 1425/0012Z Washer spring M20 7 4 1370/0701Z Nut (M20) 7
10. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A01 SHOVELS 9802/8840 A1-6-2 TOEPLATE, BOLT ON 1950MM
11. Item Part # Change No Description Usage Code QTY 1 141/01417 Toeplate 1950mm wide 7 holes (Bolt-On) Reversible 1 2 826/01142 Ploughbolt M20 x 60mm long 7 3 1425/0012Z Washer spring M20 7 4 1370/0701Z Nut (M20) 7
12. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A02 BUCKETS 9802/8840 A2-1-2 BUCKET STANDARD
13. Item Part # Change No Description Usage Code QTY 1 528/00400 Bucket assembly, 300mm(12") 1 1 528/00600 Bucket assembly,350mm(14") 1 1 528/00800 Bucket assembly, 400mm(16") 1 1 528/01000 Bucket assembly, 450mm(18") 1 1 528/01200 Bucket assembly, 600mm(24") 1 1 528/01400 Bucket assembly, 750mm(30") 1 2 **** None serviced part 1 2A ::141/00430 Toeplate 296mm wide 6 holes (Weld-On) 1 2A ::141/00431 Toeplate 346mm wide 6 holes (Weld-On) 1 2A ::141/00432 Toeplate 396mm wide 6 holes (Weld-On) 1 2A ::141/00433 Toeplate 446mm wide 6 holes (Weld-On) 1 2A ::141/00434 Toeplate 596mm wide 8 holes (Weld-On) 1 2A ::141/00435 Toeplate 746mm wide 10 holes (Weld-On) 1 2B ::141/00633 Sidecutter left hand Used on all buckets on this page. 1 2C ::141/00634 Sidecutter right hand Used on all buckets on this page. 1 3 :531/03205 Tooth 300mm, 350mm,400mm,450mm buckets. 3 3 :531/03205 Tooth 600mm bucket. 4 3 :531/03205 Tooth 750mm bucket 5 4 :826/00303 Bolt Plough 300mm,350mm,400mm,450mm buckets. 6 4 :826/00303 Bolt Plough 600mm bucket 8 4 :826/00303 Bolt Plough 750mm bucket. 10 5 :1340/0701 Nut 300mm,350mm,400mm,450mm buckets. 6 5 :1340/0701 Nut 600mm bucket. 8 5 :1340/0701 Nut 750mm bucket. 10
14. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A02 BUCKETS 9802/8840 A2-2-1 BUCKET, 230MM (9")
15. Item Part # Change No Description Usage Code QTY 1 531/99300 Bucket assembly, 230mm (9") 1 2 **** None serviced part Bucket 1 3 ::531/00154 Sidecutter right hand 1 4 ::531/00152 Toeplate 200mm wide 4 holes 1 5 ::531/00155 Sidecutter left hand 1 6 :531/03205 Tooth 2 7 :1340/0701 Nut 4 8 :826/00303 Bolt Plough 4
16. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A02 BUCKETS 9802/8840 A2-3-1 BUCKET GRADING
17. Item Part # Change No Description Usage Code QTY 1 980/05400 Bucket ditch cleaning 1200mm wide Quickhitch compatable 1 2 :531/98401 Toeplate (Weld-In) 1 3 531/98501 Toeplate 1177mm wide 5 holes (Bolt-On) Single edge Option 1 4 826/00303 Bolt Plough 5 5 1416/0011Z Washer spring 3/4" 5 6 1340/0701Z Nut 3/4 5 7 980/07100 Kit conversion Includes fitting instrutions 1
18. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A02 BUCKETS 9802/8840 A2-5-1 BUCKET SQUARE HOLE QUICKHITCH MOUNT Item Part # Change No Description Usage Code QTY 1 980/88196 Bucket square hole 600mm (24") 1
19. 2 980/88197 Bucket square hole 760mm (30") 1 3 531/03205 Tooth 600mm Wide 2 3 531/03205 Tooth 760mm wide 3 4 826/00303 Bolt Plough 600mm wide 8 4 826/00303 Bolt Plough 760mm wide 10 5 1340/0701 Nut 600mm wide 10 5 1340/0701 Nut 760mm wide 12 6 531/03208 Sidecutter double flange right hand 1 7 531/03209 Sidecutter double flange left hand 1 8 1305/0714Z Bolt 2
20. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-1-1 QUICKHITCH
21. Item Part # Change No Description Usage Code QTY A 141/67300 Quickhitch assembly 1 1 **** None serviced part 1 1 **** Frame quickhitch 1 1A **** 'See Remark' 141/29300 1 2 :141/24000 Pipe 1 3 :25/961900 Valve ball 1 4 :1612/0002 Adapter 1 5 :816/20028 Adapter 1 6 :45/910700 Coupling 3/8" BSP Male Quick Hitch 1 7 :45/910600 Coupling 3/8" BSP female quick release 1 8 :1406/0015 Washer Bonded 3/8" 2 9 :141/00525 Guard 1 10 :1315/0207Z Screw M6x25 5 11 :1425/0006Z Washer Spring (M6) 5 12 :826/01181 Nut rivet 5 13 :511/53501 Piston 2 14 :266/14902 Superseded Cap end 2 14 274/00859 Cap end 2 15 :1370/0603Z Nut lock M16 2 16 :2411/7916 Ring wear 4 17 :2401/0314 O Ring 2 18 :2401/0229 O Ring 2 19 :904/09000 Seal Gland 2 20 :904/09100 Seal Wiper 2 21 :1316/3721 Bolt 2 22 :2401/0218 O Ring 2 23 :2411/1129 Seal piston head 2 27 :1406/0011 Washer Bonded (1/4") Used on ball valve. 2 28 :1410/0001Z Washer (1/4") 4
22. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-2-1 FORK FRAMES & FORKS INDUSTRIAL
23. Item Part # Change No Description Usage Code QTY 1 528/02500 Frame fork 1 1A 1370/0603Z Nut lock M16 2 1B 1315/0712Z Bolt M16 x 50mm 2 2 547/08500 Fork industrial 100W x 45T x 1200L Qty 1 = 1 pair. 1 3 :993/51100 Kit-fork retention Class 2 fork 1
24. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-6-1 BRACKET BUCKET STOWAGE
25. Item Part # Change No Description Usage Code QTY 2 1305/0410Z Bolt 1/2" x 1.1/2" long 2 3 140/53500 Bracket hanger G.P. shovels 1 4 1340/0403Z Nut lock 2 5 1425/0008Z Spring Washer 2 6 140/53700 Bracket hanger Clamshovels 1 7 911/12400 Pin Pivot 306 mm long 1 8 826/00512 Pin Linch 1 9 823/00470 Washer 1 10 1315/0408Z Setscrew M10 x 30 2 11 826/01105 Nut M10 2
26. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-6-2 BRACKET BUCKET STOWAGE Item Part # Change No Description Usage Code QTY 1 141/61500 Bracket hanger For identification:- Tube o/d = 45mm 1 2 141/61300 Pin pivot 32mm dia. approx 1 3 1315/0408Z Setscrew M10 x 30 2
27. 4 1425/0008Z Spring Washer 2 6 823/00470 Washer 1 7 826/00512 Pin Linch 1 9 826/01105 Nut M10 4
28. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-7-1 EARTH DRILL
29. Item Part # Change No Description Usage Code QTY 1 980/04200 Kit earth drill 1 2 :45/902300 Coupling female 3/8" BSP 4 3 :45/902200 Coupling 3/8" BSP male quick release 2 4 :1406/0015 Washer Bonded 3/8" 6 5 :1604/0003 Adapter Male/Male 4 6 :1612/0003 Adapter Male/Female 2 7 :612/21500 Hose 2 8 :980/04300 Head auger 1 8A ::993/99613 Kit-seal 1 9 **** 'See Remark' Pivot pin 1 10 ::1370/0603Z Nut lock M16 4 11 ::1315/3710Z Bolt 4 12 ::1315/3714Z Bolt M16 x 60 6 12A ::1420/0011Z Washer (M16) 6 13 ::1370/0603Z Nut lock M16 6 14 ::1606/0007 Adapter 2 15 ::1406/0018 Washer Bonded (1/2" BSP) 2 16 ::980/04310 Bracket earth drill 1 17 ::826/00512 Pin Linch 1 18 **** 'See Remark' See earth drill attachments (A3-8-1) 1 19 **** 'See Remark' Existing pivot pin 1 20 **** 'See Remark' Existing linch pin 1 21 **** 'See Remark' Existing hose 1 22 **** 'See Remark' Existing hose 1
30. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-7-2 EARTH DRILL JCB 1200 QUICK HITCH MOUNTED FRONT
31. Item Part # Change No Description Usage Code QTY 1 980/88190 Kit power head 1 2 613/00300 Hose 1/2"bsp x 1040mm 2 3 1606/0007 Adapter 2 4 1406/0018 Washer Bonded (1/2" BSP) 2 5 45/910600 Coupling 3/8" BSP female quick release 1
32. 6 817/04551 Decal JCB Drillmaster 1200 1 7 817/02742 Decal warning before operating 1 10 1603/0003 Adapter 2 10A 2401/0506 O Ring 2 11 331/16402 Frame mounting earthdrill 1 12 980/84378 Link Connecting 1 13 45/910700 Coupling 3/8" BSP Male Quick Hitch 1 14 647/02616 Hose PVC, black 1 15 121/77603 Tie Cable 300mm 3
33. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
34. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
35. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-7-3 EARTH DRILL JCB 1200 COMPONENTS Item Part # Change No Description Usage Code QTY A 980/88190 Kit power head 1 1 :983/00190 Housing drive 1 2 :983/00191 Cover front 1
36. 4 :983/00192 Cover rear 1 5 :983/00193 Plate hydraulic motor 1 6 :983/00194 Rod adjusting 2 7 :983/00195 Motor hydraulic 1 8 :983/00196 Elbow 2 9 :983/00197 Hose assembly 1 11 :983/00187 Link universal 1 12 :983/00185 Pin clevis, drive side 1 13 :983/00186 Pin clevis mounting side 1 14 :983/00182 Bearing cone 2 15 :983/00181 Cup bearing 2 16 :983/00183 Seal oil 2 17 :983/00198 Nut 1 18 :983/00199 Washer lock 1 19 :983/00200 Key 1 20 :983/00201 Spacer 1 21 :983/00184 Shaft c/w nut,washer & key 1 22 :983/00174 Sprocket 1 23 :983/00188 Sprocket driven 1 24 :983/00175 Chain drive 1 24A ::983/00176 Link 0 25 :983/00209 Spacer 1 27 983/00210 Kit-seal motor 1
37. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00659599-00659999,00760001-00764999 9802/8840 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8840 A3-8-1 EARTH DRILL ATTACHMENTS
