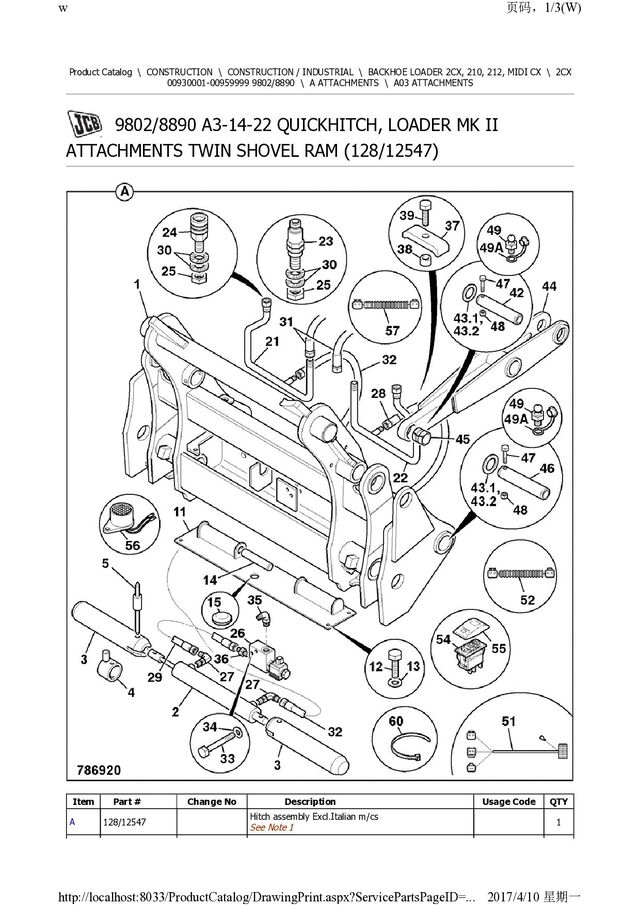

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8890 A3-14-22 QUICKHITCH, LOADER MK II ATTACHMENTS TWIN SHOVEL RAM (128/12547) Item Part # Change No Description Usage Code QTY A 128/12547 Hitch assembly Excl.Italian m/cs See Note 1 1 页码，1/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
2. A 128/13121 Hitch assembly Italian m/cs only See note 1 1 1 **** Frame WA,quickhitch See note 1,not Italy 1 1 :331/55385 Frame WA,quickhitch Italy only See note 1, Italy only 1 2 :903/21229 Ram quickhitch (7/16"UNF ports) 1 3 :811/90644 Pin pivot,265mm long 2 4 :829/31379 Collar 2 5 :331/47206 Indicator peg 2 11 :335/10628 Plate cover,quickhitch 1 12 :1315/0307Z Setscrew M8 X 25 4 13 :1420/0007Z Washer (M8) 4 14 :913/10385 Pin indicator,red 2 15 :2410/1313 Grommet Blind 1 21 :335/10684 Pipe right hand auxiliary 1 22 :335/10679 Pipe left hand auxiliary 1 23 :45/920067 Coupling 3/8"BSP male quick release 1 24 :45/920066 Coupling 3/8"BSP female quick release 1 25 :1356/0203Z Nut backing 2 26 :25/221953 Valve solenoid 1 27 :816/90459 Adaptor Elbow 7/16SAE x 1/4BSP 2 28 :611/03200 Hose 1 29 :611/02300 Hose 1/4"BSP x 300mm 1 30 :1417/0016Z Washer Locking 4 31 :612/07600 Hose high pressure, 3/8" L=610 2 32 :611/27000 Hose 1/4"BSP x 550mm 1 33 :1315/3210Z Bolt (M6 x 40) 2 34 :1420/0006Z Washer (M6) 2 35 :816/90618 Adaptor elbow 1/4 1 36 :1620/2051 Adaptor 1/4"BSP x 9/16"SAE 1 37 :331/46827 Clamp pipe 2 38 :829/30653 Spacer 2 39 :1315/0310Z Setscrew M8x40 2 42 :811/90325 Pin pivot 2 43 :819/00049 Shim 1.4mm 0 43 :823/10347 Shim 0.5/0.6mm o/dia 65mm 0 44 :331/28944 Link shovel Replaces std link when fitting item 00A 2 45 :1208/0006 Bush steel Replaces std bush when fitting item 00A 2 46 :811/90326 Pin pivot 2 47 :1305/3222Z Bolt 3/8 4 48 :1340/0203Z Nut Lock 3/8" UNF 4 49 :1450/0001 Nipple Grease, Straight 1/8 BSP 4 49A :835/00017 Cap Grease Nipple 4 51 :721/11950 Harness quickhitch 1 52 :721/11702 Harness link 4500mm long 1 54 :701/60008 Switch 12V 1 55 :701/58834 Cover indicators switch decal 1 56 :704/26400 Alarm pulse buzzer 1 57 :721/11916 Harness link,400mm long replaces 721/11361 (1200mm long) 1 页码，2/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
3. 60 :204/07007 Tie cable - 100mm Long 20 Note 1: This quickhitch can only be used with attachments manufactured prior to M930000 页码，3/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
4. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8890 A3-15-1 SHOVEL ADAPTOR KIT LOADER ARMS TWIN SHOVEL RAM Item Part # Change No Description Usage Code QTY 1 335/04295 Plate adaptor LH See Note 1 1 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
5. 2 335/04373 Plate adaptor RH 1 3 811/20062 Pin pivot 2 4 141/01175 Collar 2 5 1315/3512Z Bolt M12 x 50mm 4 6 1370/0403Z Nut Lock, M12 4 7 811/50535 Pin pivot,140mm long 2 8 1315/3417Z Bolt (M10 x 75) 2 9 1370/0303Z Nut lock M10 2 Note 1: All items required when pre M930000 direct mtd shovels are fitted on m/c's from M930000 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/8890 A3-16-1 SHOVEL RESTRAINT Item Part # Change No Description Usage Code QTY 1 140/01029 Retainer shovel 2 1 **** 'See Remark' Qty 4 off required if Bolt-on Toeplate fitted 4 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
8. 2 1315/3713Z Bolt 4 2 **** 'See Remark' Qty 8 off required if Bolt on Toeplate fitted 8 3 1370/0603Z Nut lock M16 4 3 **** 'See Remark' Qty 8 off required if Bolt on Toeplate fitted 8 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
9. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-1-1 BONNET, RELEASE Item Part # Change No Description Usage Code QTY 1 335/03626 Bracket lock mounting 1 2 1315/0408Z Setscrew M10 x 30 2 3 1420/0008Z Washer (M10) 6 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
10. 4 826/10689 Nut Rivet 2 5 331/27126 Latch Bonnet 1 6 826/01814 Screw Countersunk M8x35 2 7 1420/0007Z Washer (M8) 2 8 1370/0203Z Nut Nut M8 2 9 910/60104 Cable bonnet release 1 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
11. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-1-2 BONNET, RELEASE Item Part # Change No Description Usage Code QTY 1 331/27126 Latch Bonnet 1 2 826/01814 Screw Countersunk M8x35 2 3 1420/0007Z Washer (M8) 2 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
12. 4 1370/0203Z Nut Nut M8 2 5 910/60151 Cable bonnet release 1 6 335/04440 Bracket lock mount 1 7 1420/0007Z Washer (M8) 8 8 1315/0308Z Setscrew M8 x 30 4 9 1370/0203Z Nut Nut M8 4 10 331/28666 Mounting bump stop 1 11 123/07243 Buffer 1 12 1370/0202Z Nut Thin (M8) 2 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
13. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-2-1 BONNET, SIDEPANELS FRONT GRILLE Item Part # Change No Description Usage Code QTY 1 331/23855 Grille front 1 2 817/04436 Plate JCB logo 1 3 1370/0101Z Nut (M6) 3 页码，1/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
14. 4 1420/0006Z Washer (M6) 3 5 1425/0006Z Washer Spring (M6) 3 6 826/01099 Rivet Nut M6 2 7 823/00555 Washer spring 2 8 826/01591 Screw 2 9 335/02693 Superseded Housing grille front 1 9 335/04383 Housing grille front 1 10 331/23882 Strut 2 11 1370/0603Z Nut lock M16 2 12 1412/0007Z Washer 2 13 1315/0710Z Setscrew 2 14 1315/0509Z Setscrew M12 x 35mm 2 15 1370/0403Z Nut Lock, M12 2 16 1420/0009Z Washer (M12) 4 17 1315/0507Z Setscrew M12 x 25 2 18 331/26847 Cover engine left side Excludes soundproofing 1 18B :821/10190 Clip spring Bonded to item 18 1 19 331/26848 Cover engine right side Excludes soundproofing 1 19B :821/10193 Clip spring Bonded to item 19 1 20 335/03773 Superseded Hinge 1 20 335/04340 Hinge 1 21 1315/3319Z Bolt M8 x 90 mm 1 22 1420/0007Z Washer (M8) 8 23 1425/0007Z Washer Washer 4 24 1315/0307Z Setscrew M8 X 25 4 25 **** None serviced part 1 26 **** None serviced part 1 27 335/03437 Bonnet ABI 1 28 331/27644 Cover loader tower Non Pre-cleaner only 1 28 331/27643 Cover loader tower Use if pre-cleaner fitted 1 28A 826/01249 Nut Rrivet M10 4 28B 826/01616 Screw M10 x 25mm 4 29 331/16737 Bumper front, 2WS 1 30 1315/3816Z Bolt M20 x 70 2 31 1420/0012Z Washer M20 2 33 335/03821 Bracket panel retainer 2 34 1315/0308Z Setscrew M8 x 30 4 35 1420/0007Z Washer (M8) 4 36 1370/0203Z Nut Nut M8 7 37 123/07255 Handle Grab 1 38 1315/0303Z Setscrew M8 x 16 2 39 1420/0007Z Washer (M8) 2 40 331/26981 Catch bonnet 1 41 1420/0006Z Washer (M6) 2 42 1425/0006Z Washer Spring (M6) 2 43 1315/0205Z Setscrew M6 x 20mm 2 'See Remark' 页码，2/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
15. 44 **** Bonnet release See Index B1 1 45 331/28462 Strut gas 1 46 140/00757 Latch 2 47 140/00825 Pawl 2 48 140/00758 Key 1 页码，3/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
16. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-2-2 BONNET, SIDEPANELS FRONT GRILLE Item Part # Change No Description Usage Code QTY 1 331/27955 Grille front 1 1A 2410/0304 Grommet See Note 1 2 页码，1/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
17. 2 817/04436 Plate JCB logo 1 3 1370/0101Z Nut (M6) 3 4 1420/0006Z Washer (M6) 3 6 826/01099 Rivet Nut M6 2 7 823/00555 Washer spring 2 8 826/01591 Screw 2 9 331/28303 Guard grille housing AWS 1 10 162/03434 Lock Barrel 1 11 1370/0303Z Nut lock M10 4 12 1420/0008Z Washer (M10) 8 13 1315/0409Z Setscrew M10 x 35 4 18 331/35136 Cover engine, LH 1 18A **** 'See Remark' No part 1 19 331/35137 Cover engine, RH 1 19A **** 'See Remark' No part 1 20 826/10892 Hinge bonnet 1 21 1315/3313Z Bolt M8 x 55 2 22 1420/0007Z Washer (M8) 8 24 1315/0305Z Setscrew M8 x 20 4 25 823/00185 Washer large 2 26 826/10826 Nut Nyloc M8 2 27 335/05466 Bonnet Excludes soundproofing See Note 2 1 28 331/35683 Cover loader tower Non Pre-cleaner Tier I - Excludes s/proofing See Note 3 1 28 331/35684 Cover tower pre-cleaner Pre-cleaner Tier I & II - Excludes s/proofing 1 28A 826/01249 Nut Rrivet M10 4 28B 826/01616 Screw M10 x 25mm 4 28C 926/49001 Seal strip 1 29 331/26744 Bumper front, 47kg 1 30 1315/3816Z Bolt M20 x 70 2 31 1420/0012Z Washer M20 2 33 335/03821 Bracket panel retainer 2 34 1315/0308Z Setscrew M8 x 30 4 35 1420/0007Z Washer (M8) 4 36 1370/0203Z Nut Nut M8 7 37 123/07255 Handle Grab 1 38 1315/0303Z Setscrew M8 x 16 2 39 1420/0007Z Washer (M8) 2 40 331/26981 <M946328 Catch bonnet 1 40 331/38949 Catch plate,bonnet,Tier 2 1 41 1420/0007Z Washer (M8) 2 43 1315/0303Z Setscrew M8 x 16 2 44 **** 'See Remark' Bonnet release See Index B1 1 45 331/25495 Superseded Strut gas 1 45 128/13052 Strut gas assembly 1 45A 331/32843 Joint ball 2 页码，2/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
18. 46 140/00757 Latch 2 47 140/00825 Pawl 2 48 140/00758 Key 1 Note 1: Fit to front grille location peg mounting holes Note 2: Replacement bonnets no longer have grab handle fitment of items 37,38,39 Note 3: Use 331/35684 on ALL Tier II engine builds with or without pre-cleaner installation 页码，3/3(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
19. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-3-2 BRACKET HOLD DOWN Item Part # Change No Description Usage Code QTY 1 331/31631 Bracket hold down 2 2 1315/0509Z Setscrew M12 x 35mm 6 3 1420/0009Z Washer (M12) 6 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
20. 4 1370/0403Z Nut Lock, M12 6 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
21. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-4-10 CHASSIS EXCAVATOR SIDESHIFT 1850MM WIDE Item Part # Change No Description Usage Code QTY 1 335/03543 <See Note Chassis Twin shovel ram 1 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
22. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
23. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
24. See Note 1 1 335/05561 <See Note Chassis Tier I engine builds only See Note 2 1 1 335/06633 Chassis Tier II engine builds only 1 1A :809/00093 Bearing Liner 6 2 331/27124 <See note Bracket 1 3 826/01176 <See note Nut M8 rivet 2 4 1420/0008Z <See note Washer (M10) 2 5 1315/3422Z <See note Bolt M10 x 120 2 5A 1370/0303Z <See note Nut lock M10 2 6 335/03513 Tube air 1 7 1315/4035Z Bolt M24 x 300mm Rear Axle mounts 4 8 823/00411 Washer Rear Axle mounts 8 9 826/10372 Nut Dry Lube Rear Axle mounts 4 10 331/27333 Spacer axle 2 11 811/90297 Pin pivot 1 12 823/10401 Spacer 50mm x 120mm 3.5mm thk 0 12 823/10402 Spacer 50mm x 120mm 4mm thk 0 12 823/10403 Spacer 50mm x 120mm 4.5mm thk 0 12 823/10404 Spacer 50mm x120mm 5mm thk 0 12 823/10405 Spacer 50mm x 120mm 0 12 823/10406 Spacer 50mm x 120mm 6mm thk 0 13 1315/3520Z Bolt M12 x 100mm 1 14 1370/0403Z Nut Lock, M12 1 15 123/06223 Adhesive Washer Assembly aid for spacers 1 Note 1: <M942732 UK,Europe & ROW machines only. North American machines <M942724 Note 2: <M945351 UK,Europe & ROW Models <M945074 USA Models 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
25. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX 00930001-00959999 9802/8890 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8890 B1-7-1 FENDERS FRONT 18" TYRES Item Part # Change No Description Usage Code QTY 1 331/31841 Fender front LH yellow 1 1 331/35198 Fender front LH black 1 2 331/31842 Fender front RH yellow 1 页码，1/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
26. 2 331/35197 Fender front RH black 1 3 335/04669 Bracket fender mounting LH 1 4 335/04670 Bracket fender mounting RH 1 5 335/04667 Mounting fender upper LH 1 6 335/04668 Mounting fender upper RH 1 7 1318/3512Z Bolt M12X50mm long TUF-LOK 8 8 823/00309 Washer hardened (13mm x 23mm x 2.7mm) 8 9 1315/3510Z Bolt (M12 x 40) 4 10 1420/0009Z Washer (M12) 4 11 1370/0403Z Nut Lock, M12 4 12 1315/0307Z Setscrew M8 X 25 4 12A 122/23509 Cap Nut M8 0 13 1411/0002Z Washer (5/16" Medium) 16 14 1370/0203Z Nut Nut M8 8 页码，2/2(W) w 2017/4/10 星期一 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=...
