JCB_2CX_AIRMASTER_BACKHOE_LOADER_Parts_Catalogue_Manual__Serial_Number_00657000-00659598_.pdf

Transcript

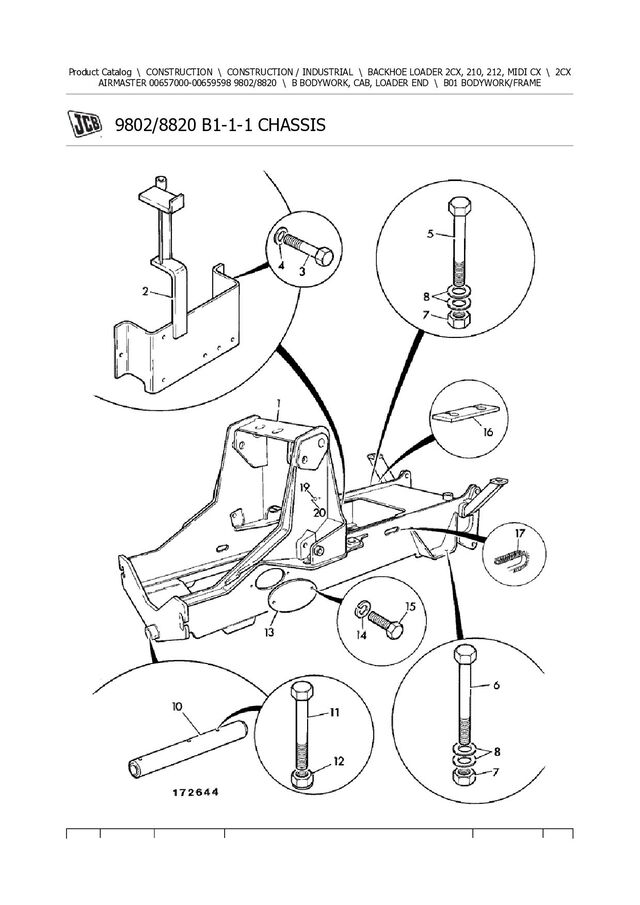

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-1-1 CHASSIS
2. Item Part # Change No Description Usage Code QTY 1 141/01100 <M658960 Chassis 1 1 141/82400 <M659524 Chassis 1 1 141/85800 Chassis 1 1 141/01300 <M658960 Chassis Airmaster 1 1 141/82300 <M659524 Chassis Airmaster 1 1 141/85900 Chassis Airmaster 1 2 141/20200 Plate loader valve mount. 1 3 1315/0410Z Setscrew Screw 2 4 1420/0008Z Washer (M10) 2 5 826/01375 <M659524 Bolt special, plain Right hand side. M20 2 5 1316/4034 Bolt M24 2 6 826/01376 <M659524 Bolt special, plain Left hand side. M20 SD 40 Axles 2 6 826/01457 <M659524 Bolt M20 SD 55 Axles 2 6 1316/4033 Bolt M24 2 7 826/01377 <M659524 Nut special, plain M20 4 7 1371/0903 Nut M24 4 8 823/00505 <M659524 Washer M20 8 8 1420/0014 Washer M24 4 10 811/10072 Pin pivot 1 11 1315/3420Z Bolt (M10 X 100) 1 12 1370/0303Z Nut lock M10 1 13 141/00573 Plate cover 1 14 1425/0007Z Washer Washer 2 15 1315/0303Z Setscrew M8 x 16 2 16 141/00126 <M TBA Spacer axle 1 16 141/00962 <M TBA Spacer axle To suit M20 axle mounting bolts 1 16 142/00718 Spacer axle To suit M24 axle mounting bolts 1 17 926/00600 Grommet Flexiform 0 18 121/77603 Tie Cable 300mm 55 19 828/00333 Plug blanking Used in place of Battery Isolator. 1 20 828/00334 Plug blanking Used in place of Battery Isolator. 2 22 1420/0007Z Washer (M8) 2
3. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-3-2 TANK, DIESEL FUEL & FITTINGS
4. Item Part # Change No Description Usage Code QTY 1 :141/00454 Hose fuel filler 1 2 141/51500 Plate cover 1 3 141/00457 Gasket 1 4 716/15700 Sender fuel 1 4A :993/99609 Gasket 1 5 816/80011 Plug 3/4BSP 1 6 1406/0021 Washer Bonded 1 7 826/00972 Nut Rivet,M6 9 8 2201/0012 Clip Jubilee, 46/70mm 1 9 2201/0014 Clip Worm Drive 1 10 1315/0207Z Screw M6x25 9 11 1420/0006Z Washer (M6) 9 12 1425/0006Z Washer Spring (M6) 9 13 141/54800 Tube fuel filler 1 14 122/62400 Cap filler,diesel fuel 1 15 1315/0103Z Screw 3 16 1370/0003Z Lock Nut M5 3 17 1420/0005Z Washer (M5) 6 18 1360/0201Z Screw 6 20 648/02500 Hose Cut to length, 720mm 0 21 655/00664 Pipe breather 1 22 1430/0201 Screw self tapping 1
5. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-4-2 TANK, HYDRAULIC
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Item Part # Change No Description Usage Code QTY A 141/56300 Tank hydraulic 1 A 141/56500 Tank hydraulic loader lift ram HBCV for m/cs with loader lift ram HBCVs 1 2 :123/00877 Cover 1 3 :813/00360 Gasket 8 Hole 1 4 :32/904200 Strainer Suction 1 1/2BSP Thread, 63AF Hexagon 1 5 :816/00197 Plug 1 6 :816/80011 Plug 3/4BSP 1 7 :1406/0021 Washer Bonded 1 8 :141/43100 Cap Filler 1 10 :826/01316 Nut M6 Rivet 8 11 :1315/0205Z Setscrew M6 x 20mm 8 13 :1425/0006Z Washer Spring (M6) 8 15 :231/65902 Gauge sight 1 23 1315/0510Z Bolt M12x40 3 24 1420/0009Z Washer (M12) 4 26 1315/0511Z Bolt M12 x 45mm 1 27 1370/0403Z Nut Lock, M12 4 28 1370/0402Z Nut Thin (M12) 1 29 816/00197 Plug 1
8. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-4-4 TANK, HYDRAULIC
9. Item Part # Change No Description Usage Code QTY A 141/66000 Tank hydraulic AIRMASTER 1 2 :123/00877 Cover 1 3 :813/00360 Gasket 8 Hole 1 4 :32/904200 Strainer Suction 1 1/2BSP Thread, 63AF Hexagon 1 6 :816/80011 Plug 3/4BSP 1 7 :1406/0021 Washer Bonded 1 8 :141/43100 Cap Filler 1 10 :826/01316 Nut M6 Rivet 8 11 :1315/0205Z Setscrew M6 x 20mm 8 13 :1425/0006Z Washer Spring (M6) 8 15 :231/65902 Gauge sight 1 23 1315/0510Z Bolt M12x40 3 24 1420/0009Z Washer (M12) 4 26 1315/0511Z Bolt M12 x 45mm 1 27 1370/0403Z Nut Lock, M12 4 28 1370/0402Z Nut Thin (M12) 1
10. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-4-5 TANK, HYDRAULIC Item Part # Change No Description Usage Code QTY
11. A 141/81500 Tank hydraulic 1 2 :123/00877 Cover 1 3 :813/00360 Gasket 8 Hole 1 4 :32/904200 Strainer Suction 1 1/2BSP Thread, 63AF Hexagon 1 5 :816/00190 Cap 1 6 :816/80011 Plug 3/4BSP 1 7 :1406/0021 Washer Bonded 1 8 :141/43100 Cap Filler 1 10 :826/01316 Nut M6 Rivet 8 11 :1315/0205Z Setscrew M6 x 20mm 8 13 :1425/0006Z Washer Spring (M6) 8 15 :231/65902 Gauge sight 1 23 1315/0510Z Bolt M12x40 4 24 1420/0009Z Washer (M12) 4 27 1370/0403Z Nut Lock, M12 4 29 816/00197 Plug 1
12. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-5-1 BONNET, SIDEPANELS & FRONT GRILLE
13. Item Part # Change No Description Usage Code QTY 1 141/00577P <M657461 Casting nose 1 1 141/00952P Casting nose 1 2 141/21800 Grille 1 3 141/00412 Superseded Cover engine, left hand 1 3 141/00776 Superseded Cover engine, left side 1 3 142/00687 Cover engine, left hand 1 3A 141/00593 Clip spring 2 per side 2 4 141/00413 Superseded Cover engine, right side 1 4 142/00686 Cover engine, right hand 1 4A 141/00593 Clip spring 2 per side 2 5 141/20300 <M657461 Bonnet See Note 1 1 5 141/50600 Bonnet 1 5 141/48100 <M657510 Bonnet air-conditioning m/c 1 5 141/50700 Bonnet air-conditioning m/c 1 6 141/00339 Hinge 1 7 141/20400 Plate hinge 1 7 1370/0203Z Nut Nut M8 Use with 3 off item 12 3 8 140/00757 Latch 2 9 1420/0012Z Washer M20 1 10 140/00825 Pawl 1 11 1315/0307Z Setscrew M8 X 25 6 12 1420/0007Z Washer (M8) 9 13 140/28700 <M657461 Stay bonnet 1 13 141/00950 Stay bonnet 1 14 814/00250 <M657461 Spring right hand Not required after M657461 1 16 913/00026 <M657461 Clip retaining 1 16 823/00515 Washer starlock, internal 1 17 817/02548 Plate JCB badge 1 18 828/00267 Grommet Not fitted after April 93 approx. 3 19 823/00445 Washer retaining 3 20 926/04800 Strip Edging 410mm approx. 0 23 1315/3718Z Bolt M16 x 80 2 24 1315/3312Z Bolt M8x50 1 25 140/00887 Bracket horn 1 29 1315/0409Z Setscrew M10 x 35 2 30 1370/0303Z Nut lock M10 2 31 1420/0008Z Washer (M10) 2 32 141/00751 Shim 3mm thickness If fitted 0 32 141/00759 Shim 2mm thickness If fitted 0 32 141/00760 Shim 1mm thickness If fitted 0 Note 1: Bonnet key, 140/00758
14. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-6-2 BATTERY BOX
15. Item Part # Change No Description Usage Code QTY 1 141/49300 Box battery 1 2 141/49200 Cover 1 3 826/01379 Bolt J M6 x 220mm 2 4 141/44200 Clamp battery 1 4 141/01027 Clamp battery Bar type 1 5 826/00649 Screw thumb 2 6 1420/0008Z Washer (M10) 4 7 826/01115 Nut Wing M6 2 8 1425/0006Z Washer Spring (M6) 2 9 1420/0009Z Washer (M12) 4 10 1370/0403Z Nut Lock, M12 4 11 1315/0509Z Setscrew M12 x 35mm 4 12 1411/0001Z Washer (1/4" Medium) 2 13 823/00480 Retainer 2
16. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-6-3 BATTERY BOX Item Part # Change No Description Usage Code QTY
17. 1 141/84300 Box battery 1 2 141/84400 Cover battery box 1 3 826/01379 Bolt J M6 x 220mm 2 4 141/01027 Clamp battery 1 5 826/00649 Screw thumb 2 6 1420/0008Z Washer (M10) 2 7 826/01115 Nut Wing M6 2 8 1425/0006Z Washer Spring (M6) 2 9 1420/0009Z Washer (M12) 4 10 1370/0403Z Nut Lock, M12 4 11 1315/0509Z Setscrew M12 x 35mm 4 12 1411/0001Z Washer (1/4" Medium) 2 13 823/00480 Retainer 2 14 1315/0203Z Setscrew 1 15 1370/0103Z Nut Self Lock M6 1
18. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-7-1 FENDERS, REAR
19. Item Part # Change No Description Usage Code QTY 1 141/00313 Fender rear, left hand 1 2 141/00314 Fender rear, right hand 1 3 1315/0203Z Setscrew 8 4 1420/0006Z Washer (M6) 8
20. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-7-2 FENDERS, FRONT Item Part # Change No Description Usage Code QTY 1 141/77100 Bracket support, left 1 2 141/77200 Bracket support, right 1 3 141/77300 Stay fender, upper 2
21. 4 141/01405 Stay fender, lower, LH 1 5 141/01406 Stay fender, lower, RH 1 6 267/12800 Fender 2 7 267/00407 Spacer fender mounting 4 8 1315/0409Z Setscrew M10 x 35 12 9 1315/3412Z Bolt M10x50 2 10 1315/3514Z Bolt M12 x 60mm 8 11 1370/0303Z Nut lock M10 14 12 1420/0008Z Washer (M10) 14 13 1412/0003Z Washer (3/8" Large) 8
22. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-9-2 COUNTERWEIGHT AIRMASTER
23. Item Part # Change No Description Usage Code QTY 1 141/01167P Counterweight 1 2 141/01169 Washer 4 3 1315/4025Z Bolt 2 4 1315/4020Z Bolt 2 5 1370/0903Z Nut Lock M24 4 6 1420/0014Z Washer M24 4
24. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
25. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
26. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/8820 B1-10-1 SOUNDPROOFING STANDARD
27. Item Part # Change No Description Usage Code QTY 1 141/00723 Panel soundproofing 1 2 141/00724 <M TBA Panel soundproofing,L.side 1 2 142/00689 Panel soundproofing left hand 1 3 141/00725 <M TBA Panel soundproofing,R.side 1 3 142/00688 Panel soundproofing right hand 1 6 826/01308 Button Fastener 5 7 826/01070 Rivet 10 off on earlier m/cs before March 93 8 8 141/00726 Superseded Retainer 10 8 141/00906 Retainer 8 9 1414/0011Z Washer (2BA) 10 off on earlier m/cs before March 93 8 10 826/00959 Fastener drive yellow Used on engine side panels 4 per panel 8
28. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI CX \ 2CX AIRMASTER 00657000-00659598 9802/8820 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/8820 B2-1-1 CAB GLAZING CLEAR
